1. Running MongoDB Enterprise
Database Services on
Kubernetes
At your MongoDB.local, you’ll learn technologies, tools, and best practices that make it easy for you to build
data-driven applications without distraction.
Modified
url 7 secs ago
ptx 8 mins ago
ptx 9/12/2018 9:58 am

2. Jason
Mimick
Technical Director, MongoDB
@jmimick
jasonmimick

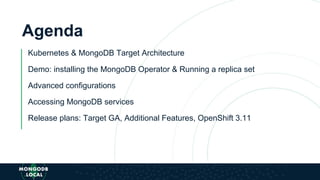

3. Agenda
Kubernetes & MongoDB Target Architecture
Demo: installing the MongoDB Operator & Running a replica set
Advanced configurations
Accessing MongoDB services
Release plans: Target GA, Additional Features, OpenShift 3.11

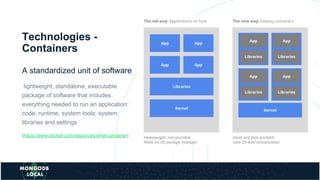

4. Technologies -
Containers
A standardized unit of software
lightweight, standalone, executable
package of software that includes
everything needed to run an application:
code, runtime, system tools, system
libraries and settings
(https://www.docker.com/resources/what-container)

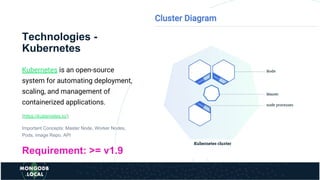

5. Technologies -
Kubernetes
Kubernetes is an open-source
system for automating deployment,
scaling, and management of
containerized applications.
(https://kubernetes.io/)
Important Concepts: Master Node, Worker Nodes,
Pods, Image Repo, API
Requirement: >= v1.9

6. Technologies -
MongoDB Ops
Manager
Ops Manager is a package for
managing MongoDB
deployments.
Management (Automation)
Monitoring
Backups
Cloud Manager

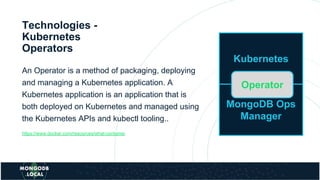

7. Technologies -
Kubernetes
Operators
An Operator is a method of packaging, deploying
and managing a Kubernetes application. A
Kubernetes application is an application that is
both deployed on Kubernetes and managed using
the Kubernetes APIs and kubectl tooling..
https://www.docker.com/resources/what-container
Kubernetes
MongoDB Ops
Manager
Operator

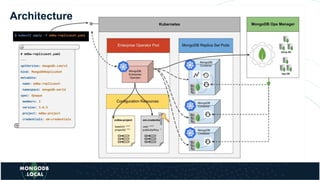

8. Architecture

9. Part 2 - Using the Operator

10. Getting the operator
Official container images
hosted on quay.io
Public GitHub repository
https://github.com/mongodb/mongodb-enterprise-kub
ernetes

11. Demo
Installing the Operator

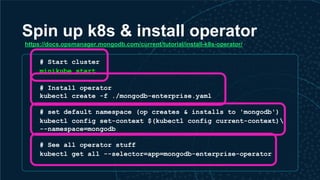

12. Spin up k8s & install operator
# Start cluster
minikube start
# Install operator
kubectl create -f ./mongodb-enterprise.yaml
# set default namespace (op creates & installs to 'mongodb')
kubectl config set-context $(kubectl config current-context)
--namespace=mongodb
# See all operator stuff
kubectl get all --selector=app=mongodb-enterprise-operator
https://docs.opsmanager.mongodb.com/current/tutorial/install-k8s-operator/

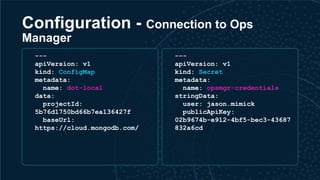

13. Configuration - Connection to Ops
Manager
---
apiVersion: v1
kind: ConfigMap
metadata:
name: dot-local
data:
projectId:
5b76d1750bd66b7ea136427f
baseUrl:
https://cloud.mongodb.com/
---
apiVersion: v1
kind: Secret
metadata:
name: opsmgr-credentials
stringData:
user: jason.mimick
publicApiKey:
02b9674b-e912-4bf5-bec3-43687
832a6cd

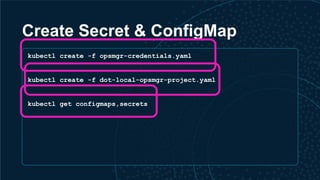

14. Create Secret & ConfigMap
kubectl create -f opsmgr-credentials.yaml
kubectl create -f dot-local-opsmgr-project.yaml
kubectl get configmaps,secrets

15. Demo
Deploying a MongoDB
Replica Set

16. Deploying a Replica Set
apiVersion: mongodb.com/v1
kind: MongoDbReplicaSet
metadata:
name: chicago-rs1
namespace: mongodb
spec:
members: 3
version: 4.0.0
project: dot-local
credentials: opsmgr-credentials
podSpec:
storageClass: standard

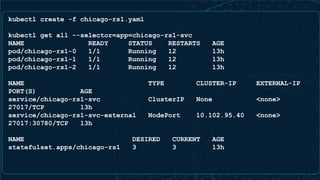

17. kubectl create -f chicago-rs1.yaml
kubectl get all --selector=app=chicago-rs1-svc
NAME READY STATUS RESTARTS AGE
pod/chicago-rs1-0 1/1 Running 12 13h
pod/chicago-rs1-1 1/1 Running 12 13h
pod/chicago-rs1-2 1/1 Running 12 13h
NAME TYPE CLUSTER-IP EXTERNAL-IP
PORT(S) AGE
service/chicago-rs1-svc ClusterIP None <none>
27017/TCP 13h
service/chicago-rs1-svc-external NodePort 10.102.95.40 <none>
27017:30780/TCP 13h
NAME DESIRED CURRENT AGE
statefulset.apps/chicago-rs1 3 3 13h

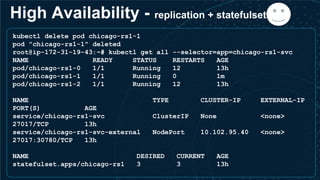

18. High Availability - replication + statefulset =
kubectl delete pod chicago-rs1-1
pod "chicago-rs1-1" deleted
root@ip-172-31-19-43:~# kubectl get all --selector=app=chicago-rs1-svc
NAME READY STATUS RESTARTS AGE
pod/chicago-rs1-0 1/1 Running 12 13h
pod/chicago-rs1-1 1/1 Running 0 1m
pod/chicago-rs1-2 1/1 Running 12 13h
NAME TYPE CLUSTER-IP EXTERNAL-IP
PORT(S) AGE
service/chicago-rs1-svc ClusterIP None <none>
27017/TCP 13h
service/chicago-rs1-svc-external NodePort 10.102.95.40 <none>
27017:30780/TCP 13h
NAME DESIRED CURRENT AGE
statefulset.apps/chicago-rs1 3 3 13h

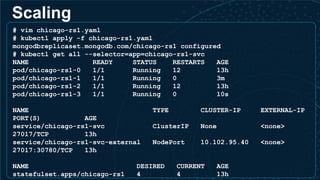

19. Scaling
# vim chicago-rs1.yaml
# kubectl apply -f chicago-rs1.yaml
mongodbreplicaset.mongodb.com/chicago-rs1 configured
# kubectl get all --selector=app=chicago-rs1-svc
NAME READY STATUS RESTARTS AGE
pod/chicago-rs1-0 1/1 Running 12 13h
pod/chicago-rs1-1 1/1 Running 0 3m
pod/chicago-rs1-2 1/1 Running 12 13h
pod/chicago-rs1-3 1/1 Running 0 10s
NAME TYPE CLUSTER-IP EXTERNAL-IP
PORT(S) AGE
service/chicago-rs1-svc ClusterIP None <none>
27017/TCP 13h
service/chicago-rs1-svc-external NodePort 10.102.95.40 <none>
27017:30780/TCP 13h
NAME DESIRED CURRENT AGE
statefulset.apps/chicago-rs1 4 4 13h

20. Part 2 - Advanced Configuration

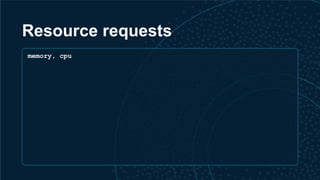

21. Resource requests
memory, cpu

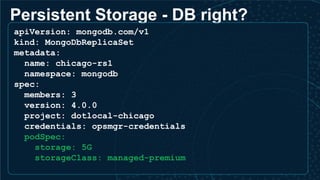

22. Persistent Storage - DB right?
apiVersion: mongodb.com/v1
kind: MongoDbReplicaSet
metadata:
name: chicago-rs1
namespace: mongodb
spec:
members: 3
version: 4.0.0
project: dotlocal-chicago
credentials: opsmgr-credentials
podSpec:
storage: 5G
storageClass: managed-premium

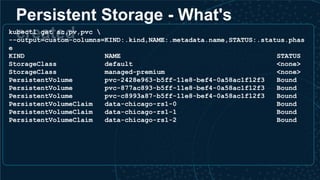

23. Persistent Storage - What's
createdkubectl get sc,pv,pvc
--output=custom-columns=KIND:.kind,NAME:.metadata.name,STATUS:.status.phas
e
KIND NAME STATUS
StorageClass default <none>
StorageClass managed-premium <none>
PersistentVolume pvc-2428e963-b5ff-11e8-bef4-0a58ac1f12f3 Bound
PersistentVolume pvc-877ac893-b5ff-11e8-bef4-0a58ac1f12f3 Bound
PersistentVolume pvc-c8993a87-b5ff-11e8-bef4-0a58ac1f12f3 Bound
PersistentVolumeClaim data-chicago-rs1-0 Bound
PersistentVolumeClaim data-chicago-rs1-1 Bound
PersistentVolumeClaim data-chicago-rs1-2 Bound

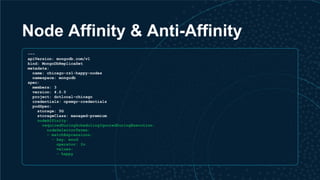

24. Node Affinity & Anti-Affinity
---
apiVersion: mongodb.com/v1
kind: MongoDbReplicaSet
metadata:
name: chicago-rs1-happy-nodes
namespace: mongodb
spec:
members: 3
version: 4.0.0
project: dotlocal-chicago
credentials: opsmgr-credentials
podSpec:
storage: 5G
storageClass: managed-premium
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- key: mood
operator: In
values:
- happy

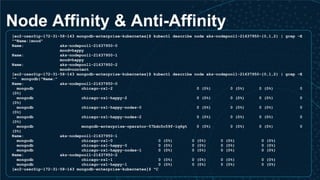

25. Node Affinity & Anti-Affinity
[ec2-user@ip-172-31-58-143 mongodb-enterprise-kubernetes]$ kubectl describe node aks-nodepool1-21637950-{0,1,2} | grep -E
"^Name:|mood"
Name: aks-nodepool1-21637950-0
mood=happy
Name: aks-nodepool1-21637950-1
mood=happy
Name: aks-nodepool1-21637950-2
mood=content
[ec2-user@ip-172-31-58-143 mongodb-enterprise-kubernetes]$ kubectl describe node aks-nodepool1-21637950-{0,1,2} | grep -E
"^ mongodb|^Name:"
Name: aks-nodepool1-21637950-0
mongodb chicago-rs1-2 0 (0%) 0 (0%) 0 (0%) 0
(0%)
mongodb chicago-rs1-happy-2 0 (0%) 0 (0%) 0 (0%) 0
(0%)
mongodb chicago-rs1-happy-nodes-0 0 (0%) 0 (0%) 0 (0%) 0
(0%)
mongodb chicago-rs1-happy-nodes-2 0 (0%) 0 (0%) 0 (0%) 0
(0%)
mongodb mongodb-enterprise-operator-57bdc5c59f-lq6gt 0 (0%) 0 (0%) 0 (0%) 0
(0%)
Name: aks-nodepool1-21637950-1
mongodb chicago-rs1-0 0 (0%) 0 (0%) 0 (0%) 0 (0%)
mongodb chicago-rs1-happy-0 0 (0%) 0 (0%) 0 (0%) 0 (0%)
mongodb chicago-rs1-happy-nodes-1 0 (0%) 0 (0%) 0 (0%) 0 (0%)
Name: aks-nodepool1-21637950-2
mongodb chicago-rs1-1 0 (0%) 0 (0%) 0 (0%) 0 (0%)
mongodb chicago-rs1-happy-1 0 (0%) 0 (0%) 0 (0%) 0 (0%)
[ec2-user@ip-172-31-58-143 mongodb-enterprise-kubernetes]$ ^C

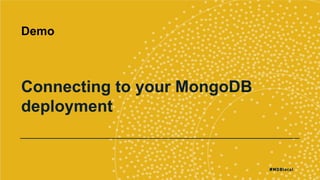

26. Demo
Connecting to your MongoDB
deployment

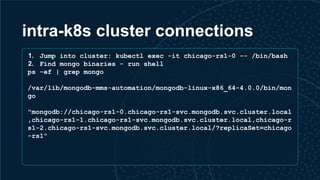

27. intra-k8s cluster connections
1. Jump into cluster: kubectl exec -it chicago-rs1-0 -- /bin/bash
2. Find mongo binaries - run shell
ps -ef | grep mongo
/var/lib/mongodb-mms-automation/mongodb-linux-x86_64-4.0.0/bin/mon
go
"mongodb://chicago-rs1-0.chicago-rs1-svc.mongodb.svc.cluster.local
,chicago-rs1-1.chicago-rs1-svc.mongodb.svc.cluster.local,chicago-r
s1-2.chicago-rs1-svc.mongodb.svc.cluster.local/?replicaSet=chicago
-rs1"

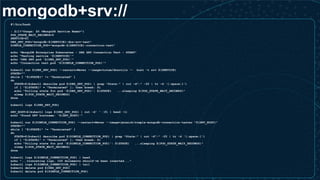

28. mongodb+srv://
#!/bin/bash
: ${1?"Usage: $0 <MongoDB Service Name>"}
POD_STATE_WAIT_SECONDS=5
SERVICE=$1
DNS_SRV_POD="mongodb-${SERVICE}-dns-srv-test"
SIMPLE_CONNECTION_POD="mongodb-${SERVICE}-connection-test"
echo "MongoDB Enterprise Kubernetes - DNS SRV Connection Test - START"
echo "Testing service '${SERVICE}'"
echo "DNS SRV pod '${DNS_SRV_POD}'"
echo "Connection test pod '${SIMPLE_CONNECTION_POD}'"
kubectl run ${DNS_SRV_POD} --restart=Never --image=tutum/dnsutils -- host -t srv ${SERVICE}
STATE=""
while [ "${STATE}" != "Terminated" ]
do
STATE=$(kubectl describe pod ${DNS_SRV_POD} | grep "State:" | cut -d":" -f2 | tr -d '[:space:]')
if [ "${STATE}" = "Terminated" ]; then break; fi
echo "Polling state for pod '${DNS_SRV_POD}': ${STATE} ...sleeping ${POD_STATE_WAIT_SECONDS}"
sleep ${POD_STATE_WAIT_SECONDS}
done
kubectl logs ${DNS_SRV_POD}
SRV_HOST=$(kubectl logs ${DNS_SRV_POD} | cut -d' ' -f1 | head -1)
echo "Found SRV hostname: '${SRV_HOST}'"
kubectl run ${SIMPLE_CONNECTION_POD} --restart=Never --image=jmimick/simple-mongodb-connection-tester "${SRV_HOST}"
STATE=""
while [ "${STATE}" != "Terminated" ]
do
STATE=$(kubectl describe pod ${SIMPLE_CONNECTION_POD} | grep "State:" | cut -d":" -f2 | tr -d '[:space:]')
if [ "${STATE}" = "Terminated" ]; then break; fi
echo "Polling state for pod '${SIMPLE_CONNECTION_POD}': ${STATE} ...sleeping ${POD_STATE_WAIT_SECONDS}"
sleep ${POD_STATE_WAIT_SECONDS}
done
kubectl logs ${SIMPLE_CONNECTION_POD} | head
echo "...truncating logs, 100 documents should've been inserted..."
kubectl logs ${SIMPLE_CONNECTION_POD} | tail
kubectl delete pod ${DNS_SRV_POD}
kubectl delete pod ${SIMPLE_CONNECTION_POD}

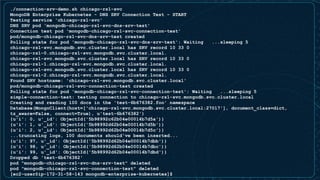

29. ./connection-srv-demo.sh chicago-rs1-svc
MongoDB Enterprise Kubernetes - DNS SRV Connection Test - START
Testing service 'chicago-rs1-svc'
DNS SRV pod 'mongodb-chicago-rs1-svc-dns-srv-test'
Connection test pod 'mongodb-chicago-rs1-svc-connection-test'
pod/mongodb-chicago-rs1-svc-dns-srv-test created
Polling state for pod 'mongodb-chicago-rs1-svc-dns-srv-test': Waiting ...sleeping 5
chicago-rs1-svc.mongodb.svc.cluster.local has SRV record 10 33 0
chicago-rs1-0.chicago-rs1-svc.mongodb.svc.cluster.local.
chicago-rs1-svc.mongodb.svc.cluster.local has SRV record 10 33 0
chicago-rs1-1.chicago-rs1-svc.mongodb.svc.cluster.local.
chicago-rs1-svc.mongodb.svc.cluster.local has SRV record 10 33 0
chicago-rs1-2.chicago-rs1-svc.mongodb.svc.cluster.local.
Found SRV hostname: 'chicago-rs1-svc.mongodb.svc.cluster.local'
pod/mongodb-chicago-rs1-svc-connection-test created
Polling state for pod 'mongodb-chicago-rs1-svc-connection-test': Waiting ...sleeping 5
simple-connection-test: testing connection to chicago-rs1-svc.mongodb.svc.cluster.local
Creating and reading 100 docs in the 'test-6b676382.foo' namespace
Database(MongoClient(host=['chicago-rs1-svc.mongodb.svc.cluster.local:27017'], document_class=dict,
tz_aware=False, connect=True), u'test-6b676382')
{u'i': 0, u'_id': ObjectId('5b98992c62b04e00014b7d5a')}
{u'i': 1, u'_id': ObjectId('5b98992d62b04e00014b7d5b')}
{u'i': 2, u'_id': ObjectId('5b98992d62b04e00014b7d5c')}
...truncating logs, 100 documents should've been inserted...
{u'i': 97, u'_id': ObjectId('5b98992d62b04e00014b7dbb')}
{u'i': 98, u'_id': ObjectId('5b98992d62b04e00014b7dbc')}
{u'i': 99, u'_id': ObjectId('5b98992d62b04e00014b7dbd')}
Dropped db 'test-6b676382'
pod "mongodb-chicago-rs1-svc-dns-srv-test" deleted
pod "mongodb-chicago-rs1-svc-connection-test" deleted
[ec2-user@ip-172-31-58-143 mongodb-enterprise-kubernetes]$

30. Part 3 - Release plans & coming
features

31. Roadmap
Additional Features
Release Plans
SSL/TLS
Authentication
Enabling Backups
Running Ops Manager inside Kubernetes
Beta now - target Q1 2019 for GA
https://docs.opsmanager.mongodb.com/cu
rrent/reference/known-issues-k8s-beta/
OpenShift 3.11

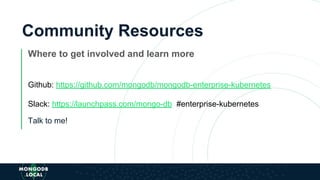

32. Community Resources
Where to get involved and learn more
Github: https://github.com/mongodb/mongodb-enterprise-kubernetes
Slack: https://launchpass.com/mongo-db #enterprise-kubernetes
Talk to me!
