- 1. OpenShift Taiwan Meetupvol.1 Technology Overview Jason Peng OpenShift Taiwan雜工 2018/10/03 WIFI: High Five 5 (B1) PW: 27685388
- 2.

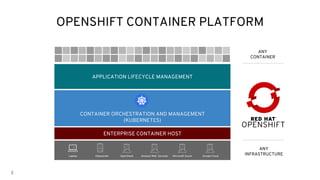

- 3. 3 ANY CONTAINER Amazon Web ServicesMicrosoft Azure Google CloudOpenStackDatacenterLaptop ANY INFRASTRUCTURE APPLICATION LIFECYCLE MANAGEMENT ENTERPRISE CONTAINER HOST CONTAINER ORCHESTRATION AND MANAGEMENT (KUBERNETES) OPENSHIFT CONTAINER PLATFORM

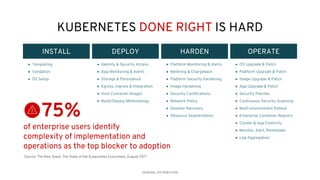

- 4. GENERAL DISTRIBUTION KUBERNETES DONERIGHT IS HARD INSTALL HARDENDEPLOY OPERATE ● Templating ● Validation ● OS Setup ● Identity & Security Access ● App Monitoring & Alerts ● Storage & Persistence ● Egress, Ingress & Integration ● Host Container Images ● Build/Deploy Methodology ● Platform Monitoring & Alerts ● Metering & Chargeback ● Platform Security Hardening ● Image Hardening ● Security Certifications ● Network Policy ● Disaster Recovery ● Resource Segmentation ● OS Upgrade & Patch ● Platform Upgrade & Patch ● Image Upgrade & Patch ● App Upgrade & Patch ● Security Patches ● Continuous Security Scanning ● Multi-environment Rollout ● Enterprise Container Registry ● Cluster & App Elasticity ● Monitor, Alert, Remediate ● Log Aggregation of enterprise users identify complexity of implementation and operations as the top blocker to adoption Source: The New Stack, The State of the Kubernetes Ecosystem, August 2017 75%

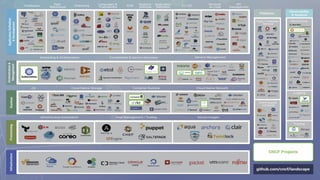

- 5. CONFIDENTIAL - FORINTERNAL USE ONLY 5 CONFIDENTIAL - FOR INTERNAL USE ONLY
- 6. CONFIDENTIAL - FORINTERNAL USE ONLY 6 CONFIDENTIAL - FOR INTERNAL USE ONLY THE CLOUD-NATIVE APP DEV CHALLENGE

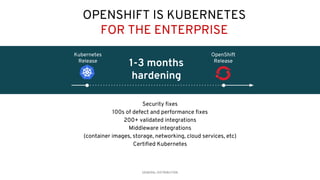

- 7. GENERAL DISTRIBUTION Security fixes 100sof defect and performance fixes 200+ validated integrations Middleware integrations (container images, storage, networking, cloud services, etc) Certified Kubernetes OPENSHIFT IS KUBERNETES FOR THE ENTERPRISE Kubernetes Release OpenShift Release 1-3 months hardening

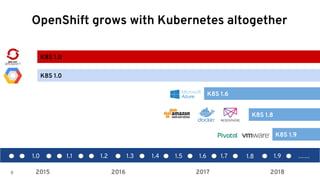

- 8. 8 OpenShift grows withKubernetes altogether 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 …… K8S 1.0 K8S 1.0 2015 2016 2017 2018 K8S 1.8 K8S 1.6 K8S 1.9
- 9.
- 10.

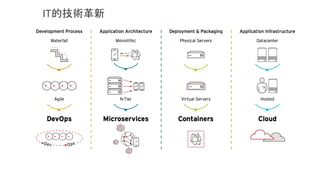

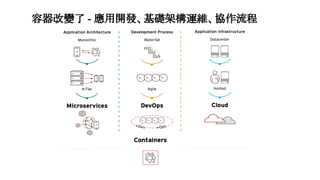

- 11.

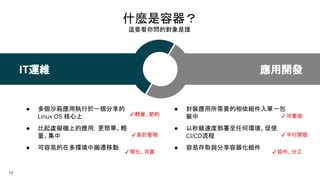

- 12. 12 什麼是容器？ 這要看你問的對象是誰 ● 多個沙箱應用執行於一個分享的 Linux OS核心上 ● 比起虛擬機上的應用，更簡單、輕 量、集中 ● 可容易的在多環境中搬遷移動 ● 封裝應用所需要的相依組件入單一包 裝中 ● 以秒級速度部署至任何環境、促使 CI/CD流程 ● 容易存取與分享容器化組件 IT運維 應用開發 ✓輕量、節約 ✓易於管理 ✓簡化、可靠 ✓可重現 ✓平行開發 ✓協作、分工

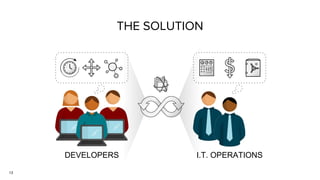

- 13.

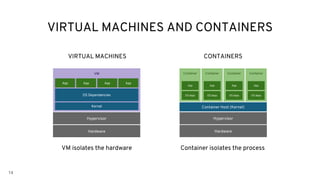

- 14. 14 VIRTUAL MACHINES ANDCONTAINERS VIRTUAL MACHINES CONTAINERS VM isolates the hardware Container isolates the process VM OS Dependencies Kernel Hypervisor Hardware App App App App Container Host (Kernel) Container App OS deps Container App OS deps Container App OS deps Container App OS deps Hypervisor Hardware

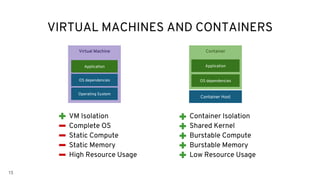

- 15. 15 Virtual Machine Application OS dependencies OperatingSystem VIRTUAL MACHINES AND CONTAINERS VM Isolation Complete OS Static Compute Static Memory High Resource Usage Container Isolation Shared Kernel Burstable Compute Burstable Memory Low Resource Usage Container Host Container Application OS dependencies
- 16. 16 VIRTUAL MACHINES ANDCONTAINERS Container Host Container Application OS dependencies Dev IT Ops Infrastructure Virtual Machine Application OS dependencies Operating System IT Ops (and Dev, sort of) Infrastructure Clear ownership boundary between Dev and IT Ops drives DevOps adoption and fosters agility Optimized for stability Optimized for agility

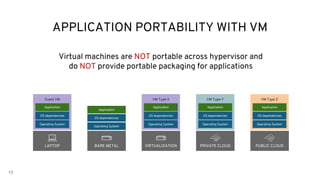

- 17. 17 Virtual machines areNOT portable across hypervisor and do NOT provide portable packaging for applications APPLICATION PORTABILITY WITH VM VM Type X Application OS dependencies Operating System BARE METAL PRIVATE CLOUD PUBLIC CLOUDVIRTUALIZATIONLAPTOP Application OS dependencies Operating System VM Type Y Application OS dependencies Operating System VM Type Z Application OS dependencies Operating System Guest VM Application OS dependencies Operating System

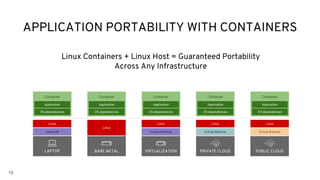

- 18. 18 APPLICATION PORTABILITY WITHCONTAINERS LAPTOP Container Application OS dependencies Guest VM Linux BARE METAL Container Application OS dependencies Linux VIRTUALIZATION Container Application OS dependencies Virtual Machine Linux PRIVATE CLOUD Container Application OS dependencies Virtual Machine Linux PUBLIC CLOUD Container Application OS dependencies Virtual Machine Linux Linux Containers + Linux Host = Guaranteed Portability Across Any Infrastructure
- 19. 19 Base Image Image Layer1 Image Layer 2 Image Layer 3 Base RHEL OS Update Layer Java Runtime Layer Application Layer Container Image Layers Example Container Image RAPID SECURITY PATCHING USING CONTAINER IMAGE LAYERING

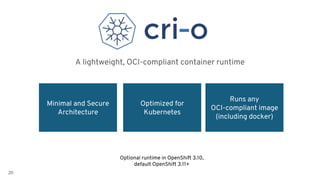

- 20. A lightweight, OCI-compliantcontainer runtime 20 Minimal and Secure Architecture Optimized for Kubernetes Runs any OCI-compliant image (including docker) Optional runtime in OpenShift 3.10, default OpenShift 3.11+
- 21.
- 22. 22 A container isthe smallest compute unit CONTAINER

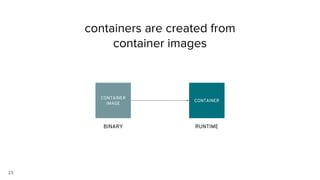

- 23. 23 containers are createdfrom container images CONTAINER CONTAINER IMAGE BINARY RUNTIME

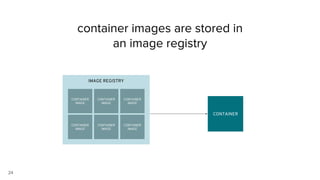

- 24. 24 IMAGE REGISTRY container imagesare stored in an image registry CONTAINER CONTAINER IMAGE CONTAINER IMAGE CONTAINER IMAGE CONTAINER IMAGE CONTAINER IMAGE CONTAINER IMAGE

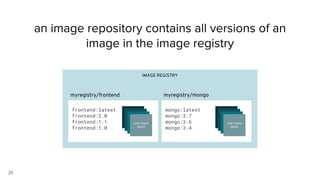

- 25. 25 an image repositorycontains all versions of an image in the image registry IMAGE REGISTRY frontend:latest frontend:2.0 frontend:1.1 frontend:1.0 CONTAINER IMAGE mongo:latest mongo:3.7 mongo:3.6 mongo:3.4 CONTAINER IMAGE myregistry/frontend myregistry/mongo
- 26. 26 PODPOD containers are wrappedin pods which are units of deployment and management CONTAINER CONTAINERCONTAINER IP: 10.1.0.11 IP: 10.1.0.55

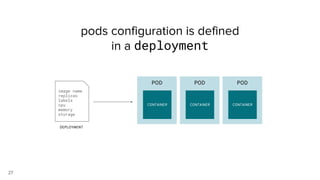

- 27. 27 pods configuration isdefined in a deployment image name replicas labels cpu memory storage POD CONTAINER POD CONTAINER POD CONTAINER DEPLOYMENT

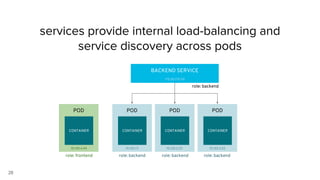

- 28. 28 services provide internalload-balancing and service discovery across pods POD CONTAINER POD CONTAINER POD CONTAINER BACKEND SERVICE POD CONTAINER role: backend role: backendrole: backendrole: backendrole: frontend 10.110.1.11 10.120.2.22 10.130.3.3310.140.4.44 172.30.170.110

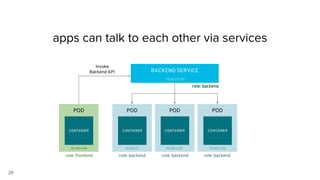

- 29. 29 apps can talkto each other via services Invoke Backend API POD CONTAINER POD CONTAINER POD CONTAINER BACKEND SERVICE POD CONTAINER role: backend role: backendrole: backendrole: backendrole: frontend 10.110.1.11 10.120.2.22 10.130.3.3310.140.4.44 172.30.170.110

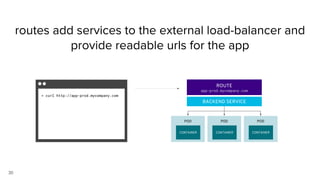

- 30. 30 POD routes add servicesto the external load-balancer and provide readable urls for the app CONTAINER POD CONTAINER POD CONTAINER BACKEND SERVICE ROUTE app-prod.mycompany.com > curl http://app-prod.mycompany.com

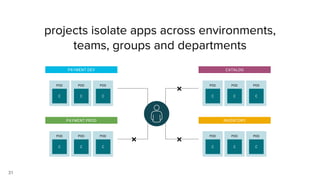

- 31. 31 projects isolate appsacross environments, teams, groups and departments POD C POD C POD C PAYMENT DEV POD C POD C POD C PAYMENT PROD POD C POD C POD C CATALOG POD C POD C POD C INVENTORY ❌ ❌❌
- 32.

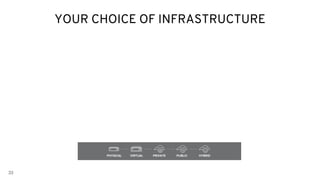

- 33. 33 YOUR CHOICE OFINFRASTRUCTURE PHYSICAL VIRTUAL PRIVATE PUBLIC HYBRID

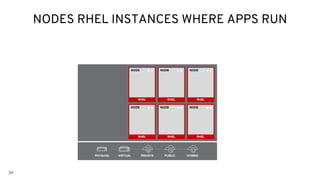

- 34. NODES RHEL INSTANCESWHERE APPS RUN 34 RHEL NODE RHEL NODE RHEL NODE RHEL NODE RHEL NODE RHEL NODE PHYSICAL VIRTUAL PRIVATE PUBLIC HYBRID

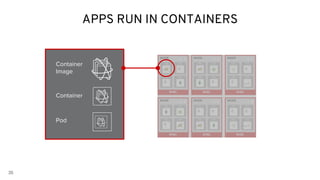

- 35. RHEL NODE c RHEL NODE RHEL NODE RHEL NODE RHEL NODE RHEL NODE C C C C C C C CCC APPS RUN IN CONTAINERS 35 Container Image Container Pod

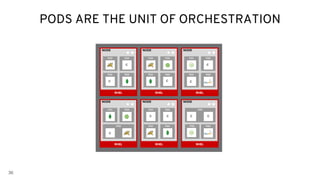

- 36. 36 PODS ARE THEUNIT OF ORCHESTRATION RHEL NODE c RHEL NODE RHEL NODE RHEL NODE RHEL NODE RHEL NODE C C C C C C C CC C

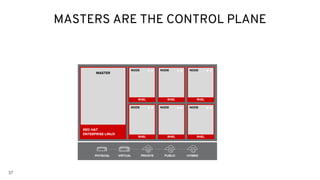

- 37. RHEL NODE RHEL NODE RHEL NODE RHEL NODE RHEL NODE RHEL NODE 37 MASTERS ARE THECONTROL PLANE RED HAT ENTERPRISE LINUX MASTER PHYSICAL VIRTUAL PRIVATE PUBLIC HYBRID

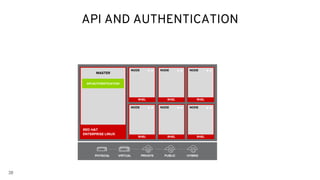

- 38. RHEL NODE RHEL NODE RHEL NODE 38 API AND AUTHENTICATION RHEL NODE RHEL NODE RHEL NODE REDHAT ENTERPRISE LINUX MASTER API/AUTHENTICATION PHYSICAL VIRTUAL PRIVATE PUBLIC HYBRID

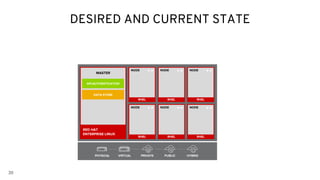

- 39. RHEL NODE RHEL NODE RHEL NODE 39 DESIRED AND CURRENTSTATE RHEL NODE RHEL NODE RHEL NODE PHYSICAL VIRTUAL PRIVATE PUBLIC HYBRID RED HAT ENTERPRISE LINUX MASTER API/AUTHENTICATION DATA STORE PHYSICAL VIRTUAL PRIVATE PUBLIC HYBRID

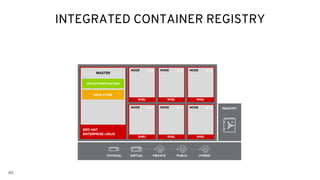

- 40. 40 INTEGRATED CONTAINER REGISTRY RHEL NODE RHEL NODE RHEL RHEL NODE RHEL NODE RHEL RHEL NODE PHYSICALVIRTUAL PRIVATE PUBLIC HYBRID RED HAT ENTERPRISE LINUX MASTER API/AUTHENTICATION DATA STORE NODE REGISTRY RHEL

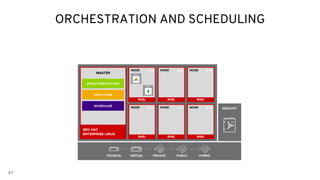

- 41. 41 ORCHESTRATION AND SCHEDULING RHEL NODE RHEL NODE RHEL RHEL NODE RHEL NODE RHEL RHEL NODE PHYSICALVIRTUAL PRIVATE PUBLIC HYBRID RED HAT ENTERPRISE LINUX MASTER API/AUTHENTICATION DATA STORE SCHEDULER NODE REGISTRY RHEL

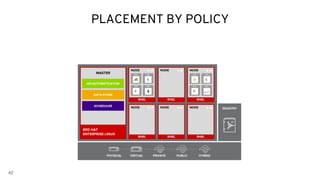

- 42. 42 PLACEMENT BY POLICY RHEL NODE RHEL NODE RHEL NODE PHYSICALVIRTUAL PRIVATE PUBLIC HYBRID RED HAT ENTERPRISE LINUX MASTER API/AUTHENTICATION DATA STORE SCHEDULER REGISTRY RHEL NODE RHEL NODE C C RHEL NODE c C C

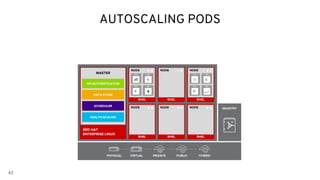

- 43. RHEL NODE RHEL NODE RHEL NODE RHEL NODE RHEL NODE C C RHEL NODE c C C 43 AUTOSCALING PODS PHYSICAL VIRTUALPRIVATE PUBLIC HYBRID RED HAT ENTERPRISE LINUX MASTER API/AUTHENTICATION DATA STORE SCHEDULER REGISTRY HEALTH/SCALING

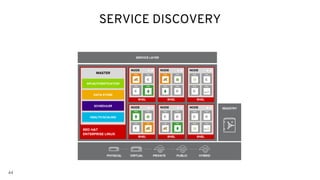

- 44. 44 SERVICE DISCOVERY SERVICE LAYER REGISTRY RHEL NODE C C RHEL NODE CC RHEL NODE c C C RHEL NODE C C RHEL NODE C RHEL NODE C RED HAT ENTERPRISE LINUX MASTER API/AUTHENTICATION DATA STORE SCHEDULER HEALTH/SCALING PHYSICAL VIRTUAL PRIVATE PUBLIC HYBRID

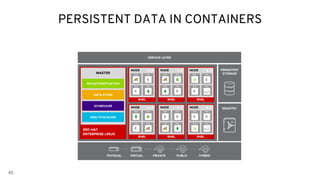

- 45. 45 PERSISTENT DATA INCONTAINERS SERVICE LAYER PERSISTENT STORAGE REGISTRY RHEL NODE C C RHEL NODE C C RHEL NODE c C C RHEL NODE C C RHEL NODE C RHEL NODE C RED HAT ENTERPRISE LINUX MASTER API/AUTHENTICATION DATA STORE SCHEDULER HEALTH/SCALING PHYSICAL VIRTUAL PRIVATE PUBLIC HYBRID

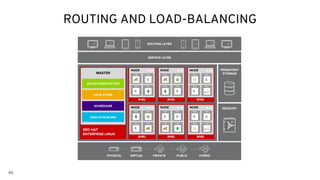

- 46. 46 ROUTING AND LOAD-BALANCING SERVICELAYER ROUTING LAYER PERSISTENT STORAGE REGISTRY RHEL NODE C C RHEL NODE C C RHEL NODE c C C RHEL NODE C C RHEL NODE C RHEL NODE C RED HAT ENTERPRISE LINUX MASTER API/AUTHENTICATION DATA STORE SCHEDULER HEALTH/SCALING PHYSICAL VIRTUAL PRIVATE PUBLIC HYBRID

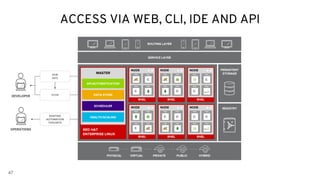

- 47. 47 ACCESS VIA WEB,CLI, IDE AND API EXISTING AUTOMATION TOOLSETS SCM (GIT) CI/CD SERVICE LAYER ROUTING LAYER PERSISTENT STORAGE REGISTRY RHEL NODE C C RHEL NODE C C RHEL NODE c C C RHEL NODE C C RHEL NODE C RHEL NODE C RED HAT ENTERPRISE LINUX MASTER API/AUTHENTICATION DATA STORE SCHEDULER HEALTH/SCALING PHYSICAL VIRTUAL PRIVATE PUBLIC HYBRID
- 48.

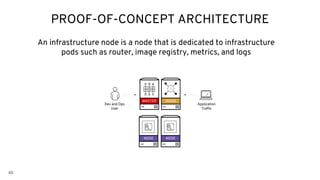

- 49. 49 PROOF-OF-CONCEPT ARCHITECTURE Application Traffic Dev andOps User INFRAMASTER NODE NODE An infrastructure node is a node that is dedicated to infrastructure pods such as router, image registry, metrics, and logs

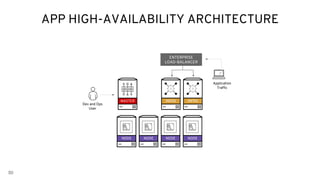

- 50. 50 APP HIGH-AVAILABILITY ARCHITECTURE ENTERPRISE LOAD-BALANCER Application Traffic Devand Ops User INFRAMASTER INFRA NODE NODE NODE NODE

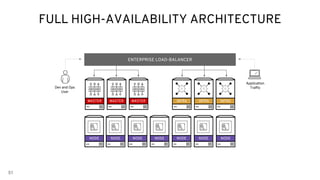

- 51. 51 FULL HIGH-AVAILABILITY ARCHITECTURE ENTERPRISELOAD-BALANCER Application TrafficDev and Ops User NODE MASTER MASTER INFRAMASTER INFRA NODE NODE NODE NODENODE INFRA NODE
- 52. Oh, by theway, How about CoreOS ?

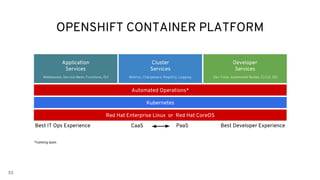

- 53. 53 OPENSHIFT CONTAINER PLATFORM AutomatedOperations* Kubernetes Red Hat Enterprise Linux or Red Hat CoreOS Application Services CaaS PaaSBest IT Ops Experience Best Developer Experience *coming soon Cluster Services Developer Services Middleware, Service Mesh, Functions, ISV Metrics, Chargeback, Registry, Logging Dev Tools, Automated Builds, CI/CD, IDE

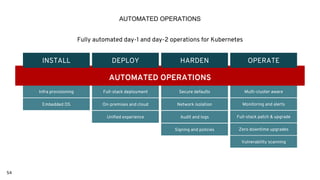

- 54. 54 AUTOMATED OPERATIONS Infra provisioning EmbeddedOS Full-stack deployment On-premises and cloud Unified experience Secure defaults Network isolation Signing and policies Audit and logs Multi-cluster aware Monitoring and alerts Zero downtime upgrades Full-stack patch & upgrade Vulnerability scanning INSTALL HARDENDEPLOY OPERATE AUTOMATED OPERATIONS Fully automated day-1 and day-2 operations for Kubernetes
- 55.
- 56.

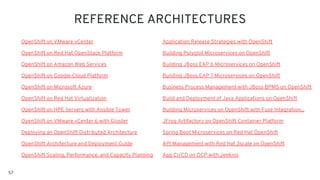

- 57. Application Release Strategieswith OpenShift Building Polyglot Microservices on OpenShift Building JBoss EAP 6 Microservices on OpenShift Building JBoss EAP 7 Microservices on OpenShift Business Process Management with JBoss BPMS on OpenShift Build and Deployment of Java Applications on OpenShift Building Microservices on OpenShift with Fuse Integration... JFrog Artifactory on OpenShift Container Platform Spring Boot Microservices on Red Hat OpenShift API Management with Red Hat 3scale on OpenShift App CI/CD on OCP with Jenkins OpenShift on VMware vCenter OpenShift on Red Hat OpenStack Platform OpenShift on Amazon Web Services OpenShift on Google Cloud Platform OpenShift on Microsoft Azure OpenShift on Red Hat Virtualization OpenShift on HPE Servers with Ansible Tower OpenShift on VMware vCenter 6 with Gluster Deploying an OpenShift Distributed Architecture OpenShift Architecture and Deployment Guide OpenShift Scaling, Performance, and Capacity Planning 57 REFERENCE ARCHITECTURES
