1. Development Workflow
Tools for Open-Source
PHP Libraries
Greg Anderson
@greg_1_anderson

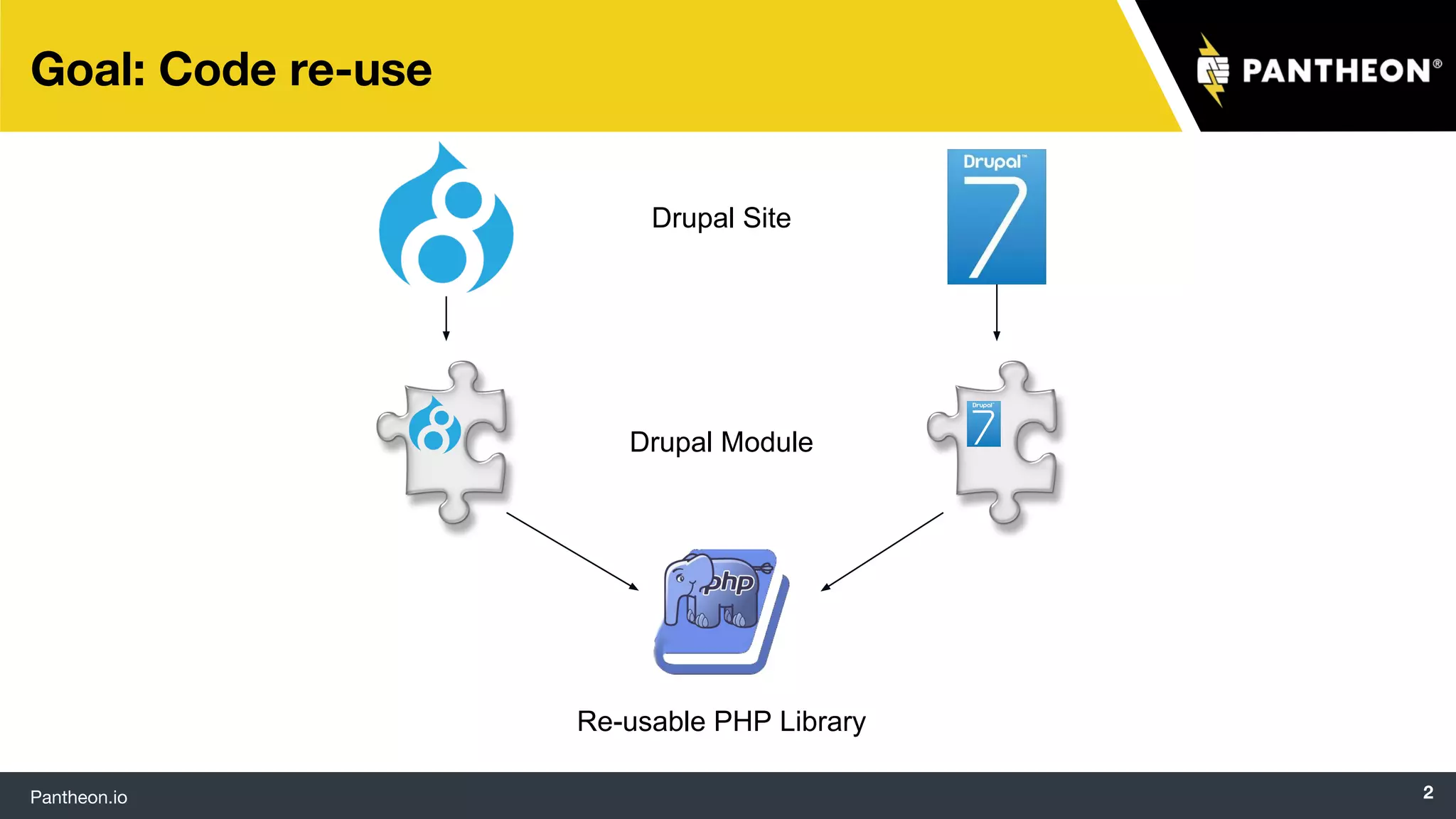

2. Drupal Site
Drupal Module
Re-usable PHP Library

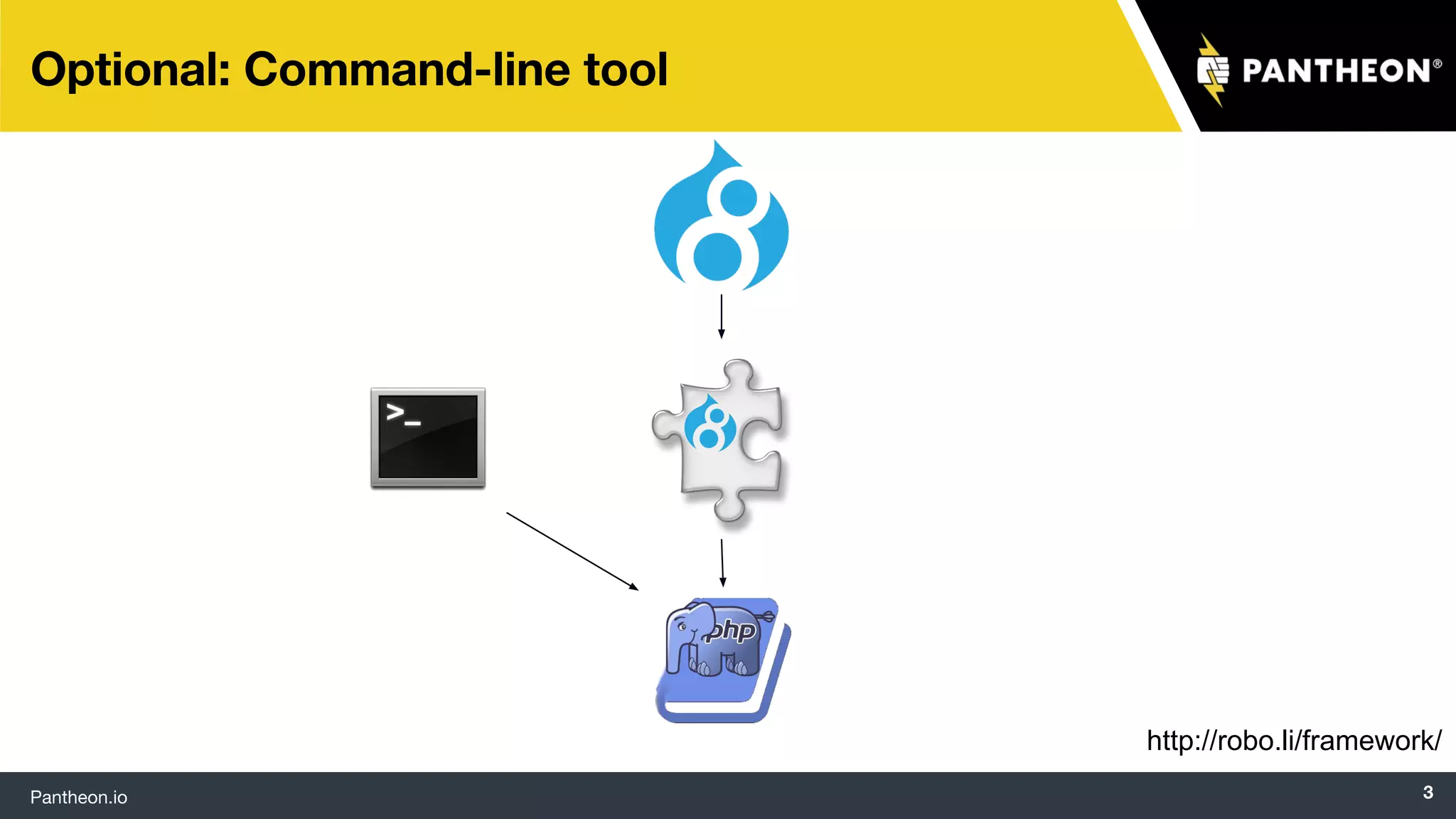

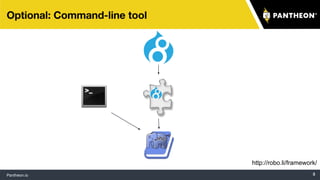

3. http://robo.li/framework/

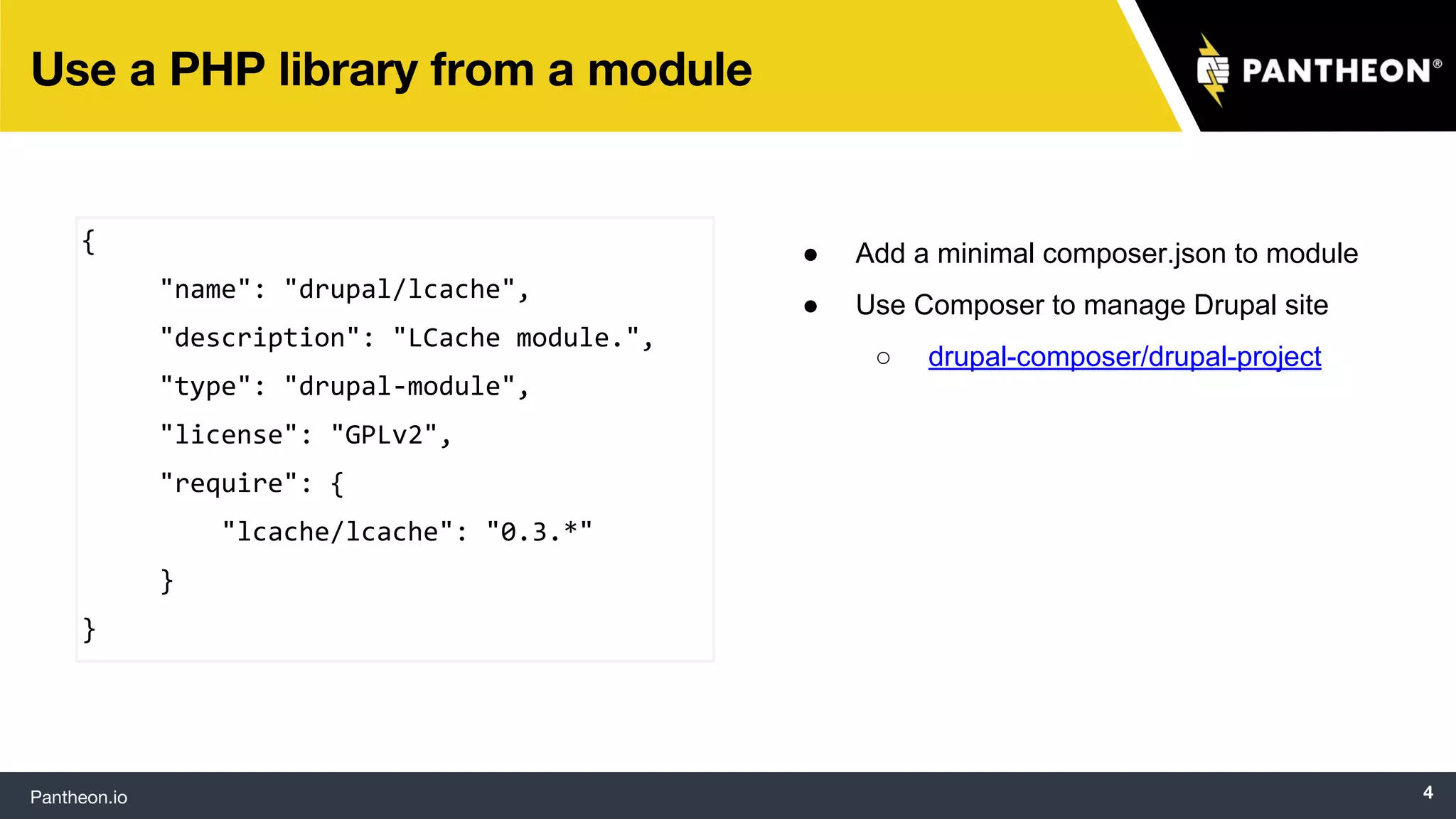

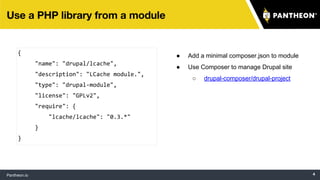

4. {
"name": "drupal/lcache",
"description": "LCache module.",
"type": "drupal-module",
"license": "GPLv2",
"require": {
"lcache/lcache": "0.3.*"
}
}
● Add a minimal composer.json to module
● Use Composer to manage Drupal site
○ drupal-composer/drupal-project

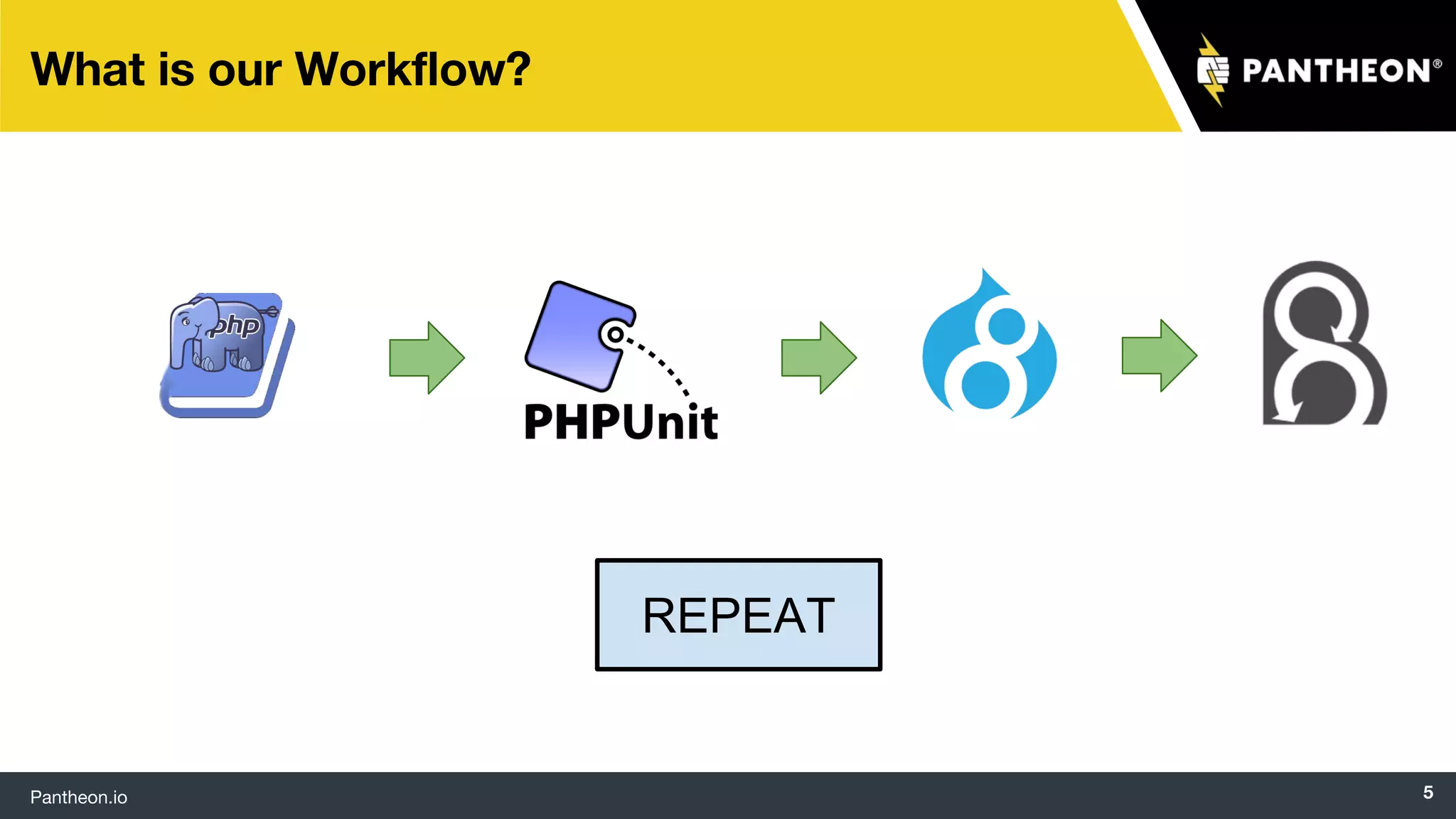

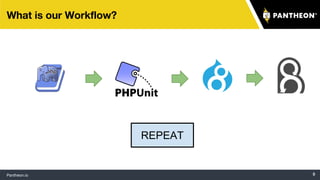

5. REPEAT

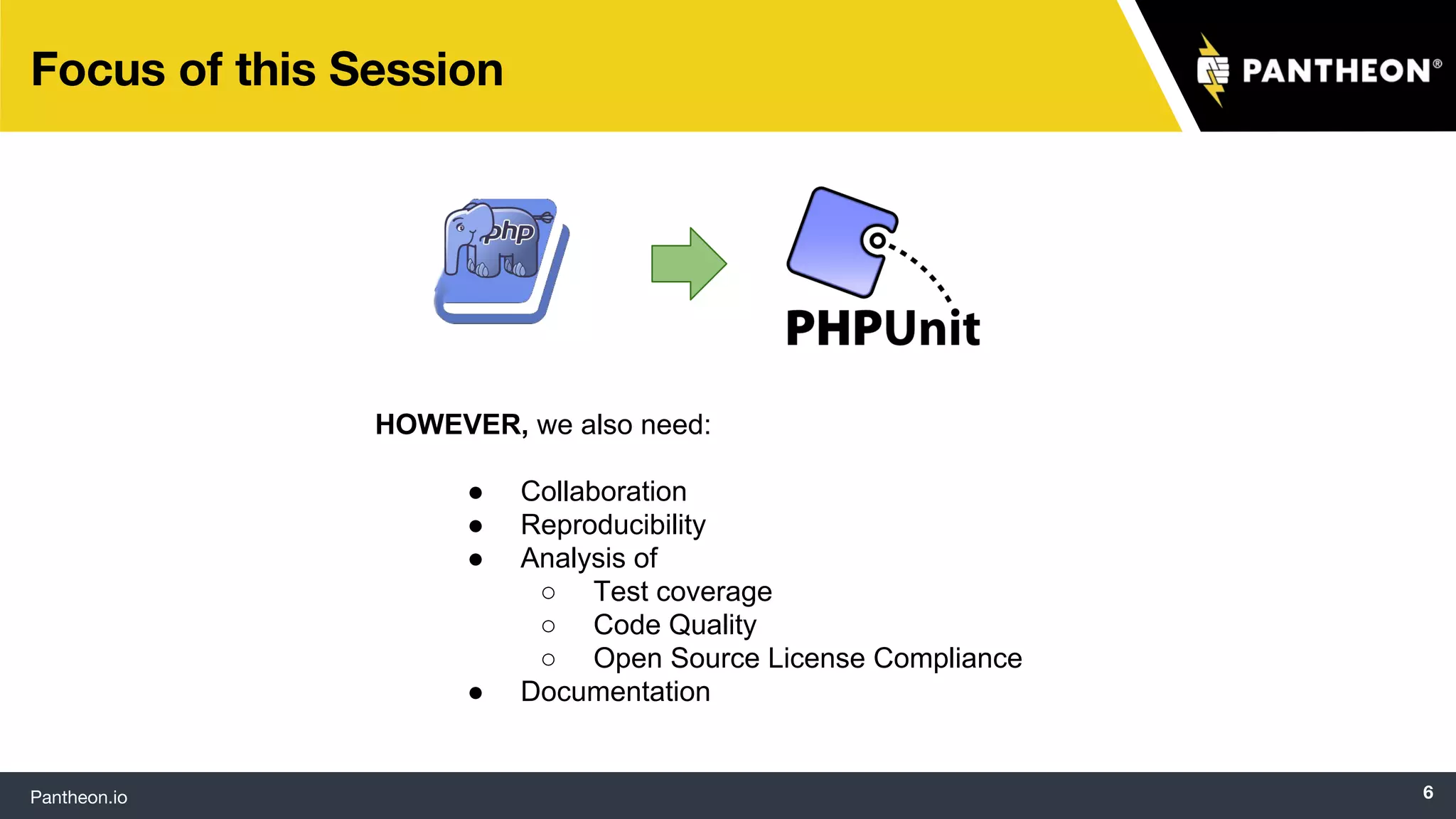

6. HOWEVER, we also need:
● Collaboration
● Reproducibility
● Analysis of
○ Test coverage
○ Code Quality
○ Open Source License Compliance
● Documentation

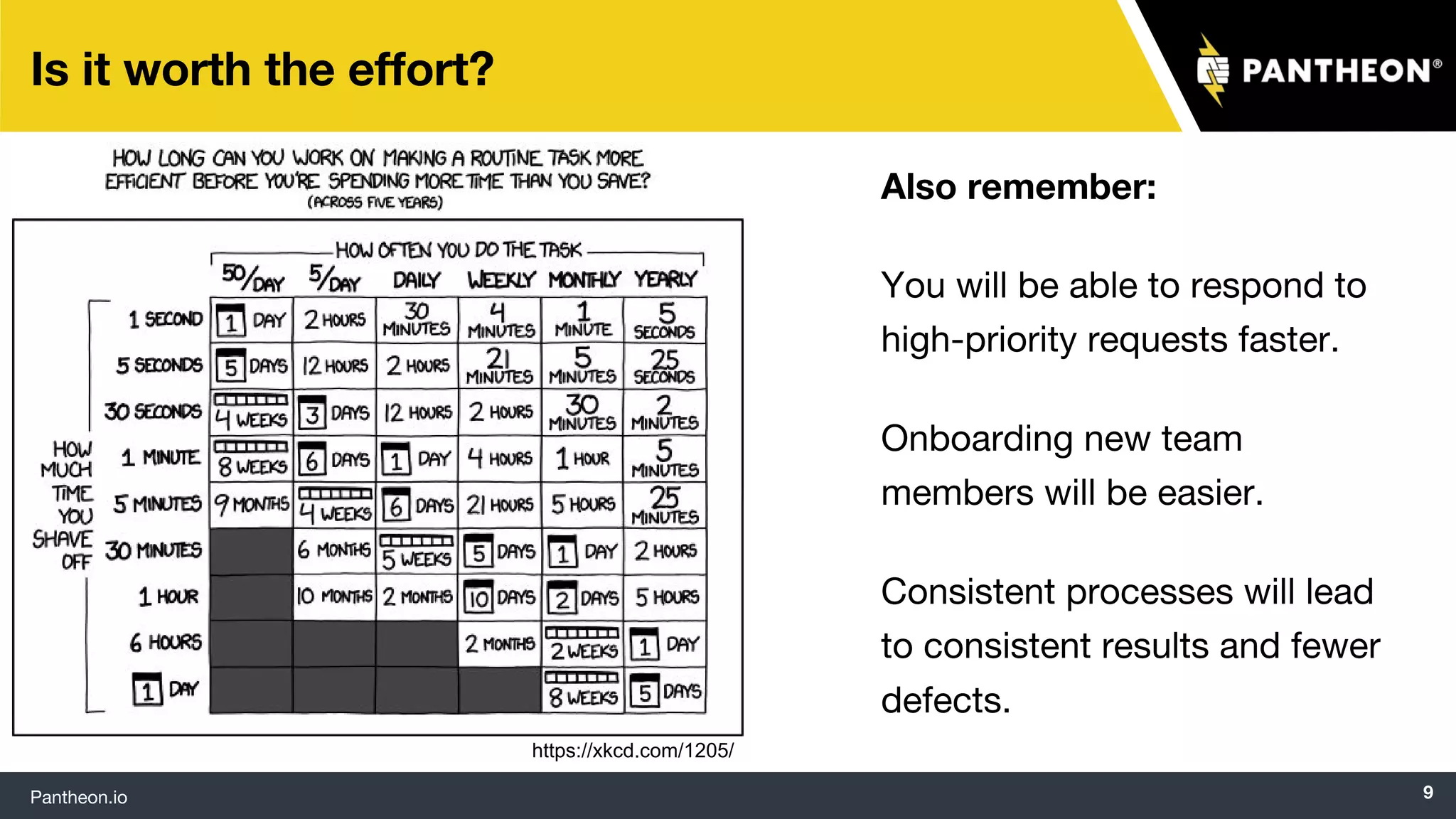

9. https://xkcd.com/1205/

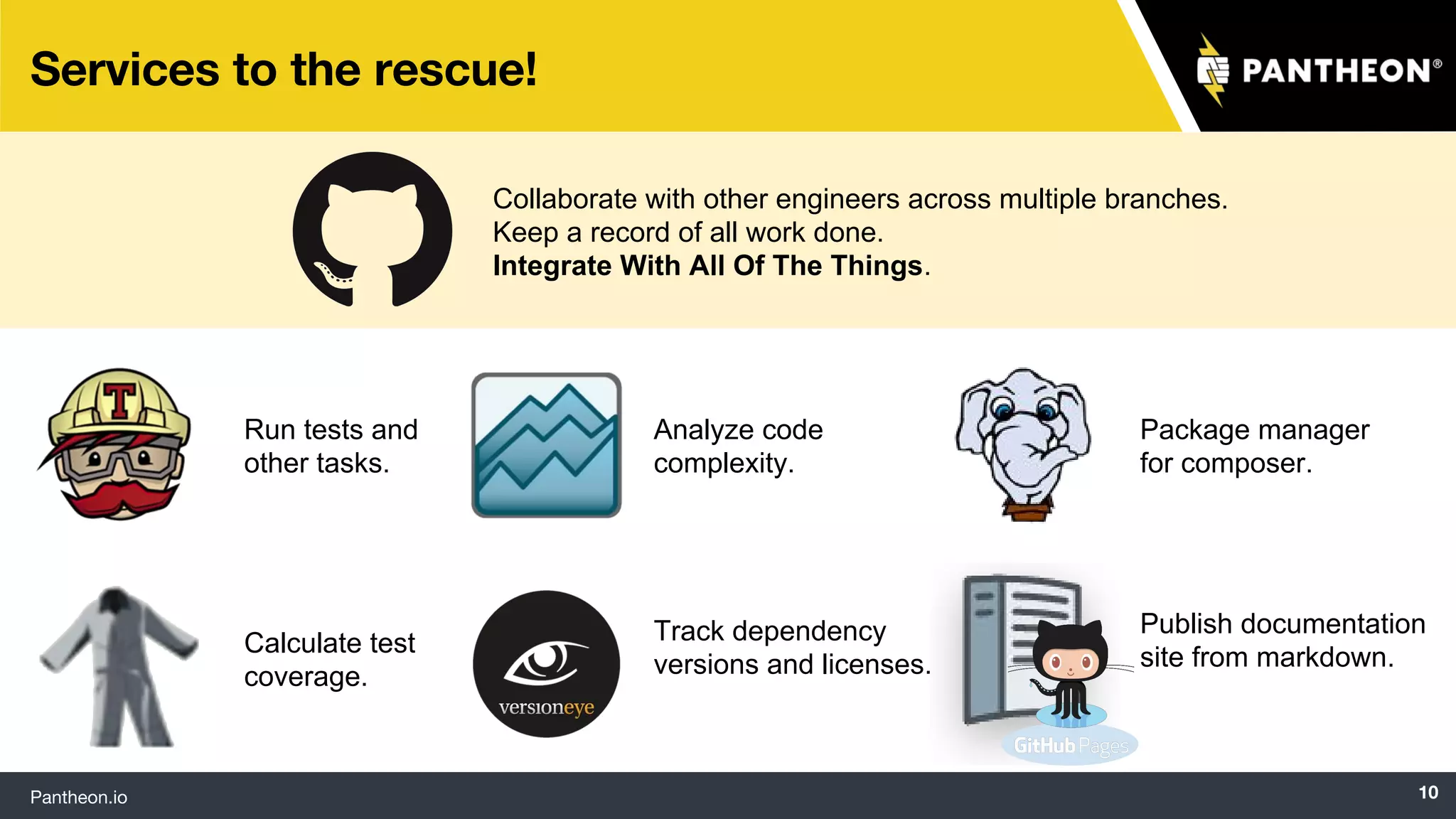

10. Collaborate with other engineers across multiple branches.
Keep a record of all work done.
Integrate With All Of The Things.
Run tests and
other tasks.
Calculate test
coverage.
Analyze code
complexity.
Track dependency
versions and licenses.
Package manager
for composer.
Publish documentation
site from markdown.

11. ●
●
●
http://dilbert.com/strip/1996-01-31

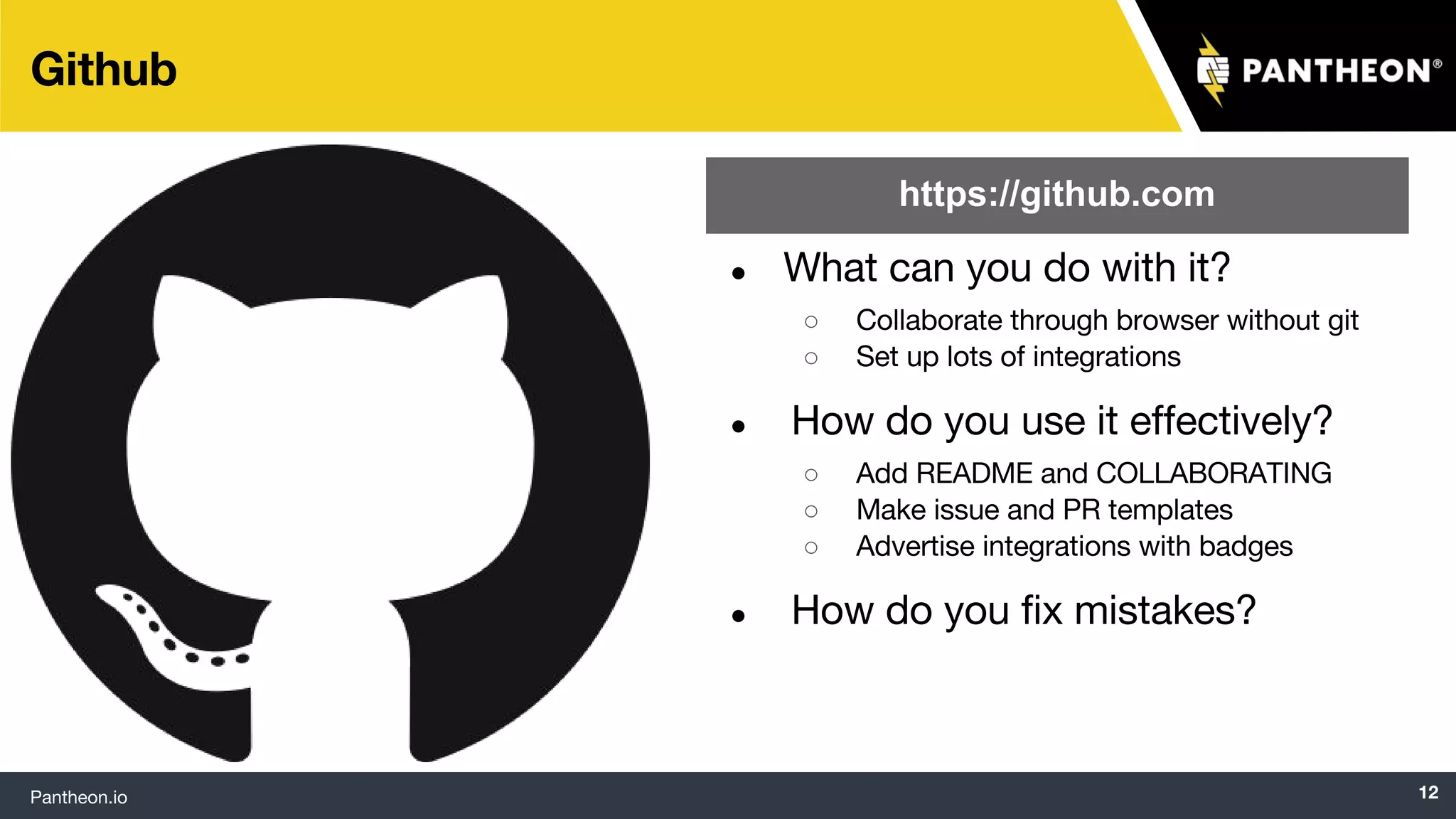

12. ●
○
○
●
○
○
○
●

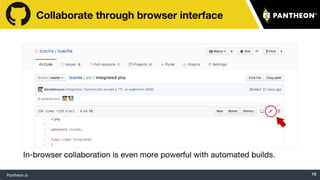

https://github.com

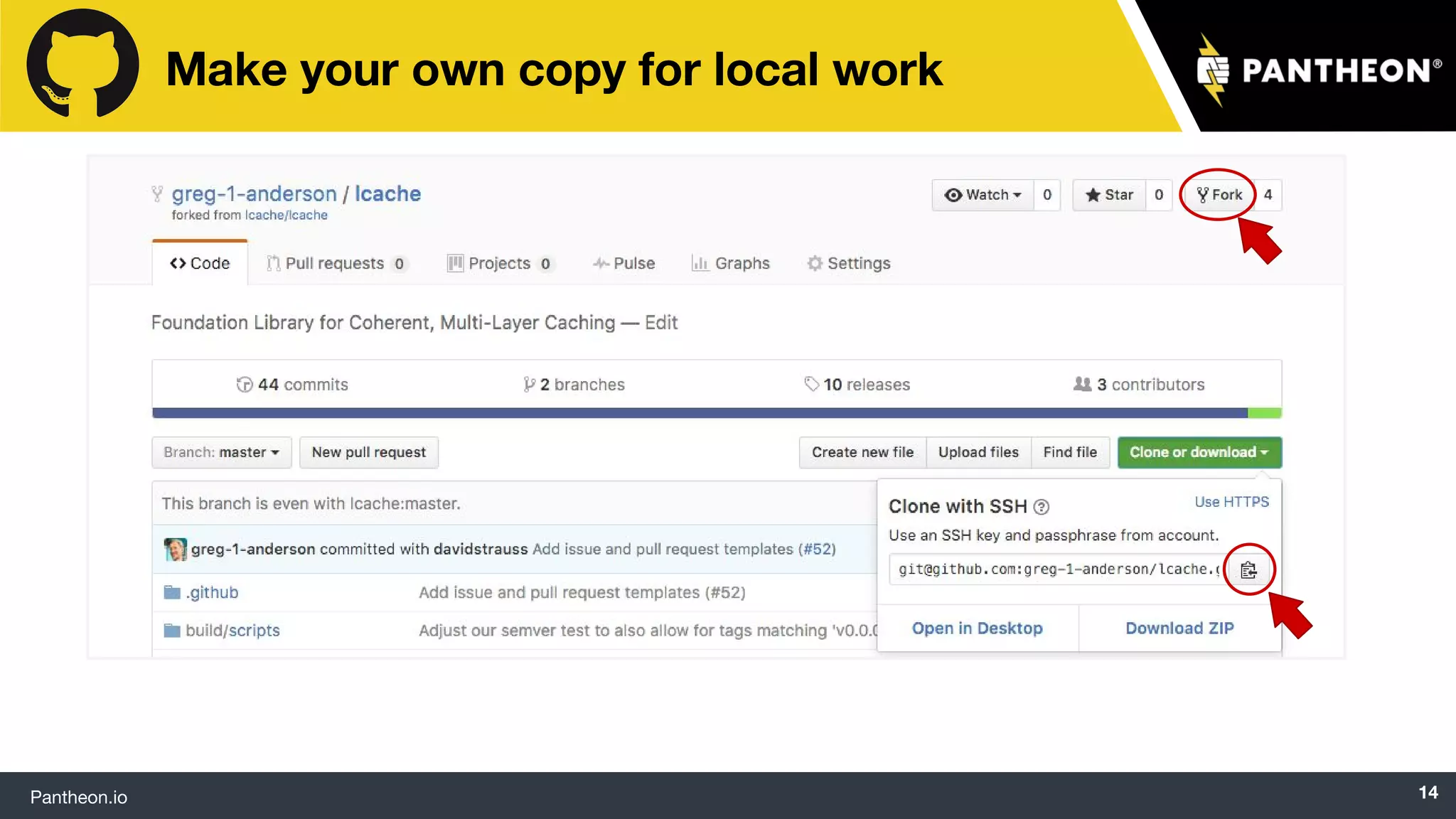

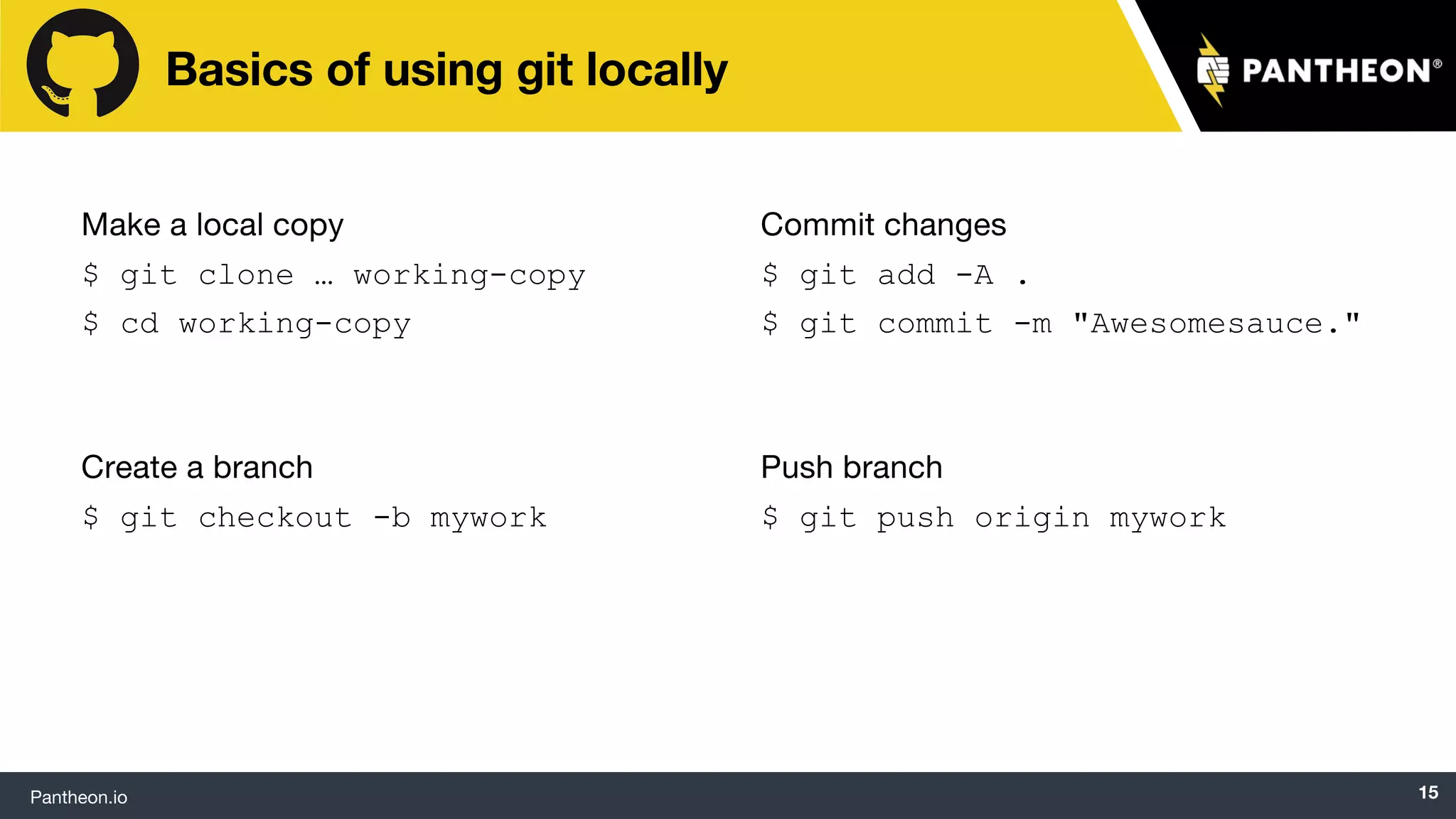

15. $ git clone … working-copy
$ cd working-copy
$ git checkout -b mywork
$ git add -A .
$ git commit -m "Awesomesauce."
$ git push origin mywork

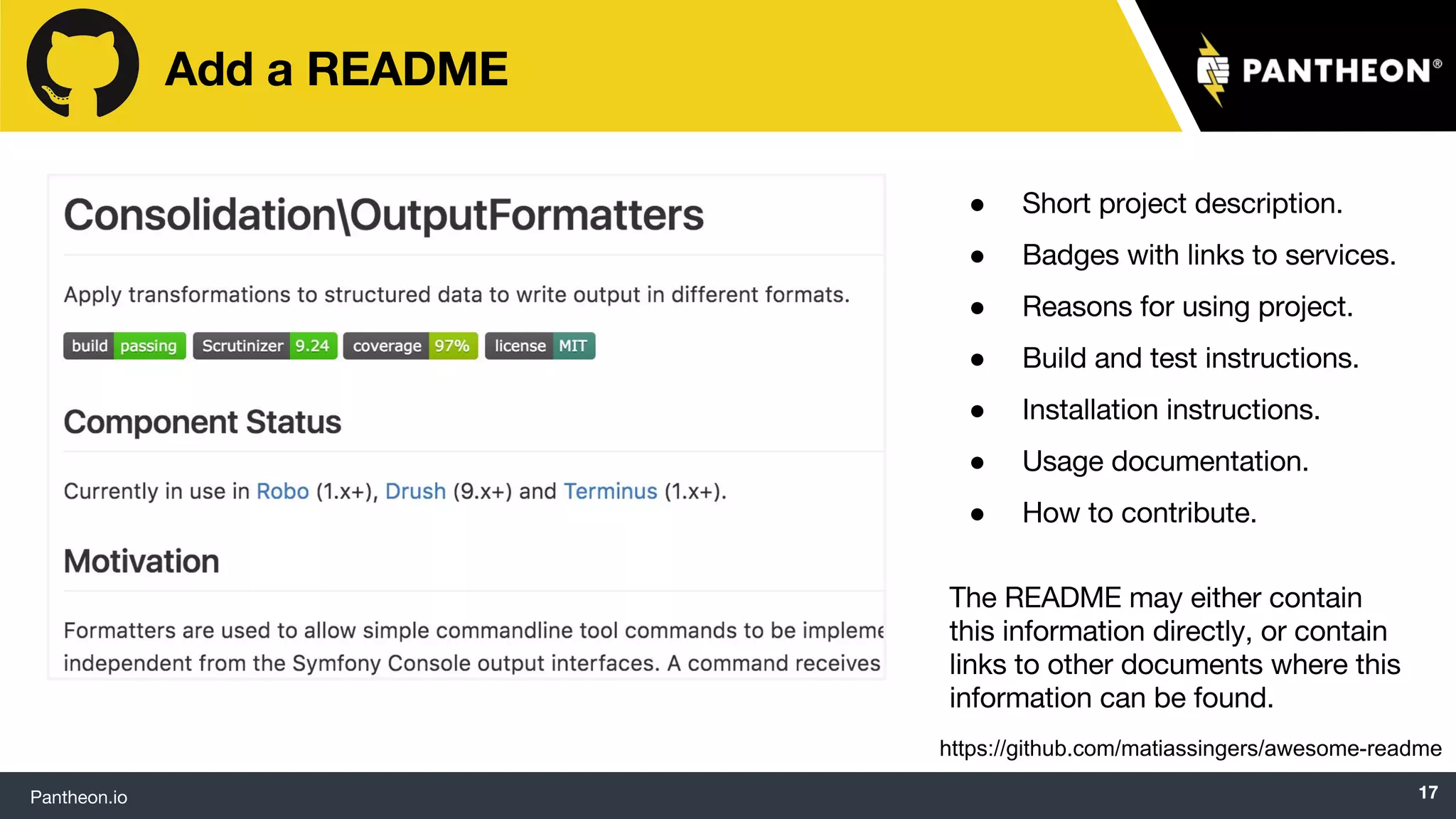

17. https://github.com/matiassingers/awesome-readme
●
●
●
●
●
●
●

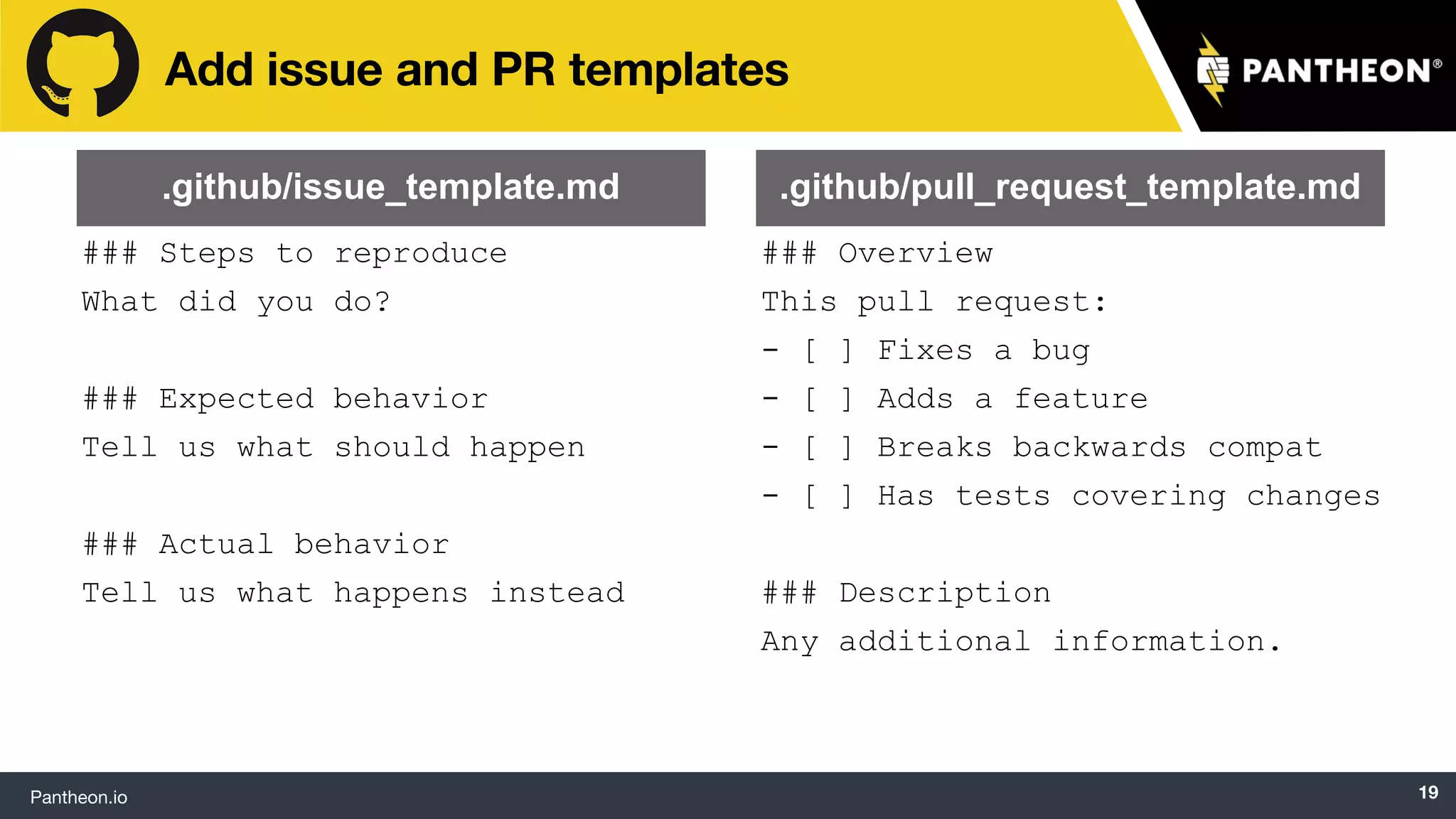

19. ### Steps to reproduce
What did you do?
### Expected behavior
Tell us what should happen
### Actual behavior
Tell us what happens instead
### Overview
This pull request:
- [ ] Fixes a bug
- [ ] Adds a feature
- [ ] Breaks backwards compat
- [ ] Has tests covering changes
### Description
Any additional information.
.github/pull_request_template.md.github/issue_template.md

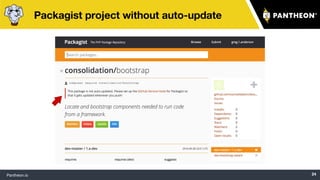

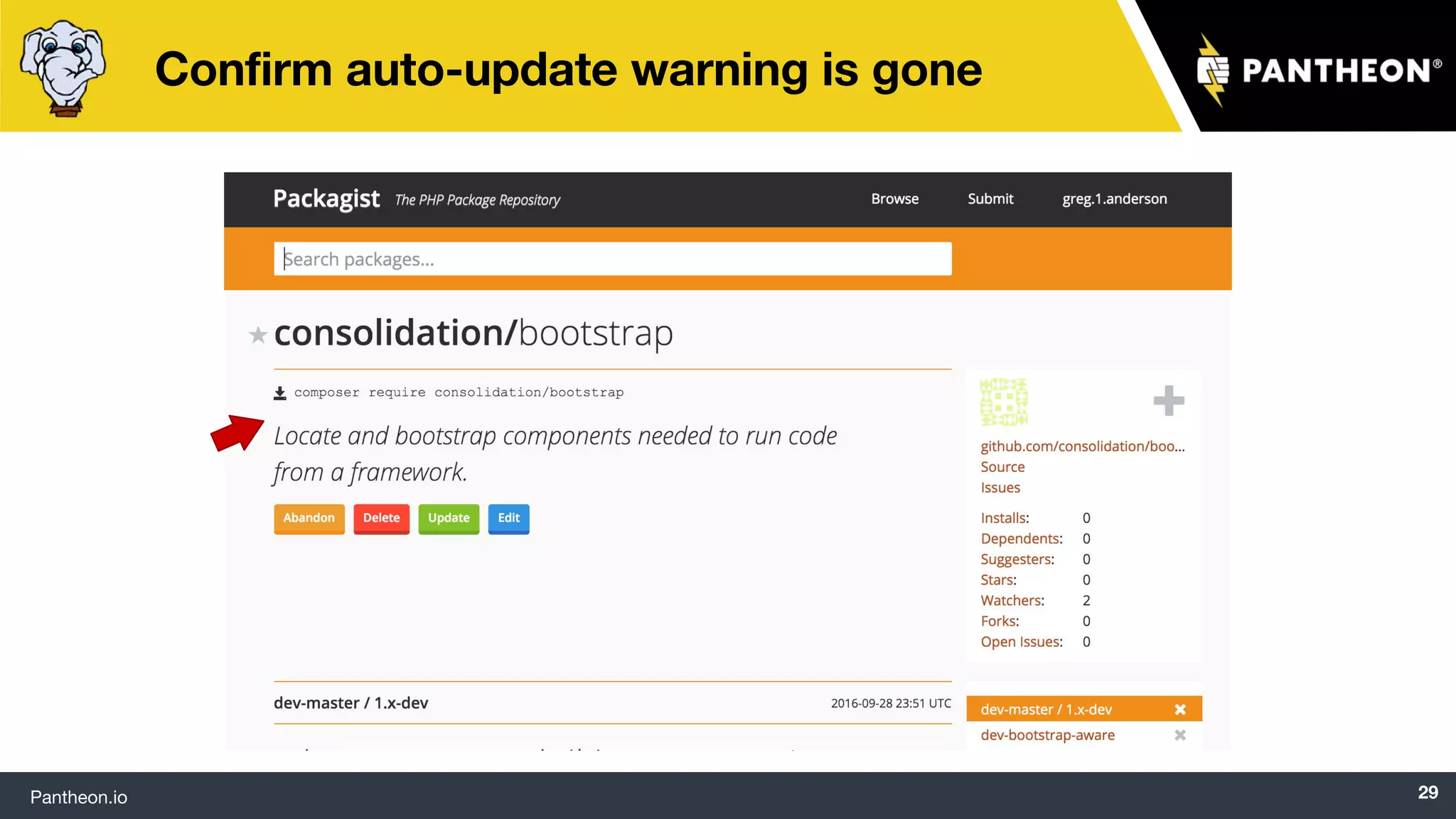

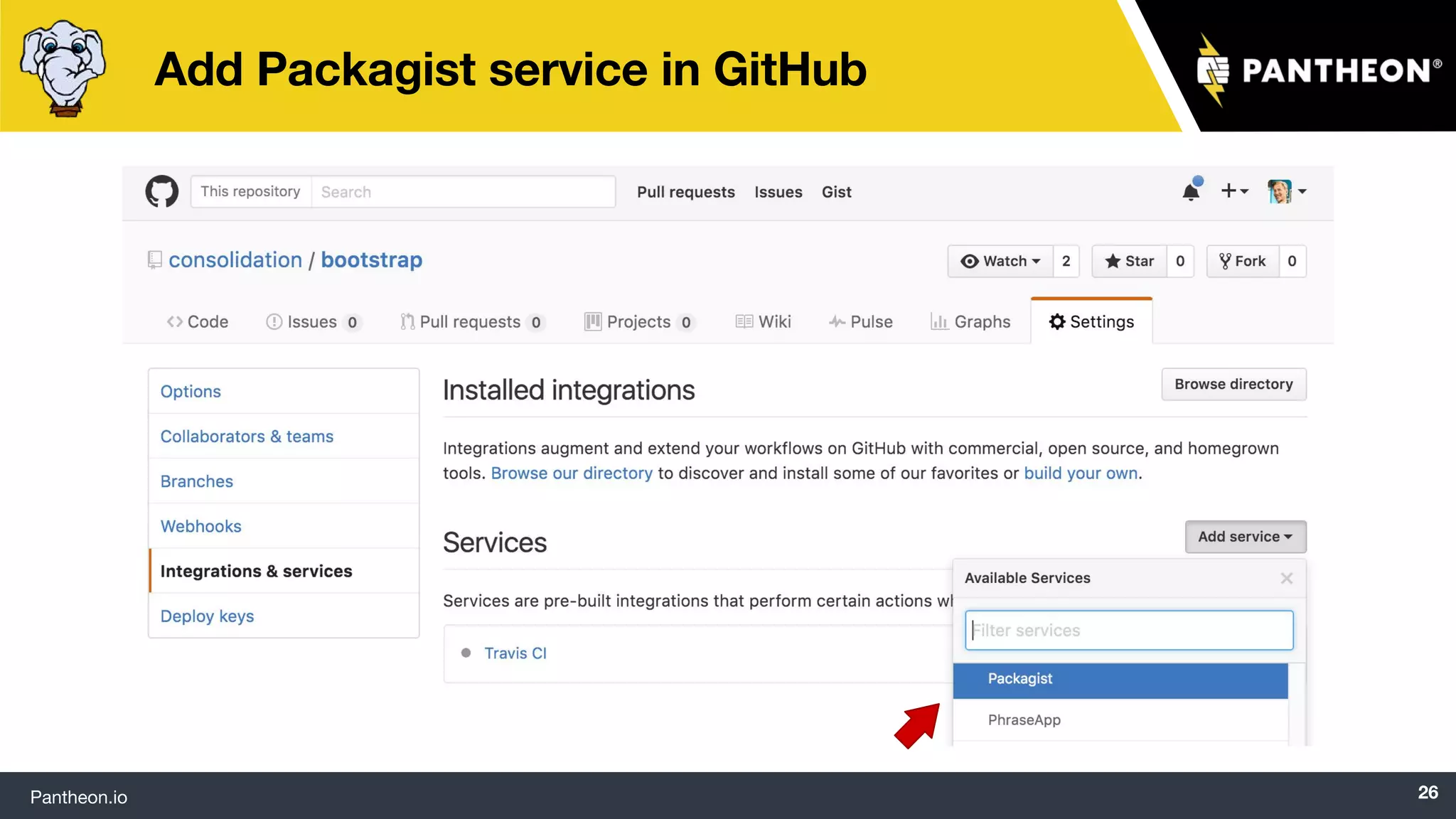

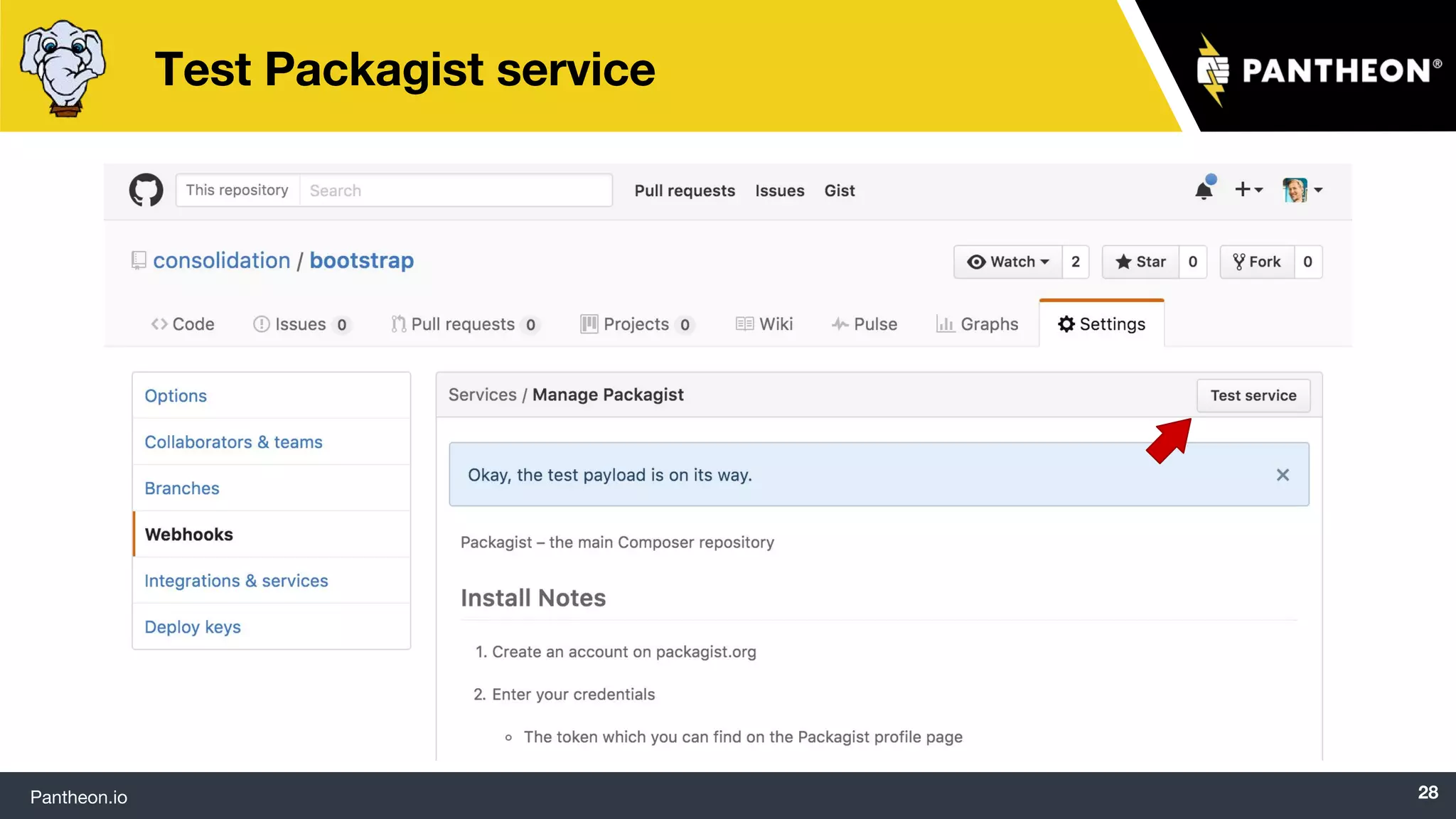

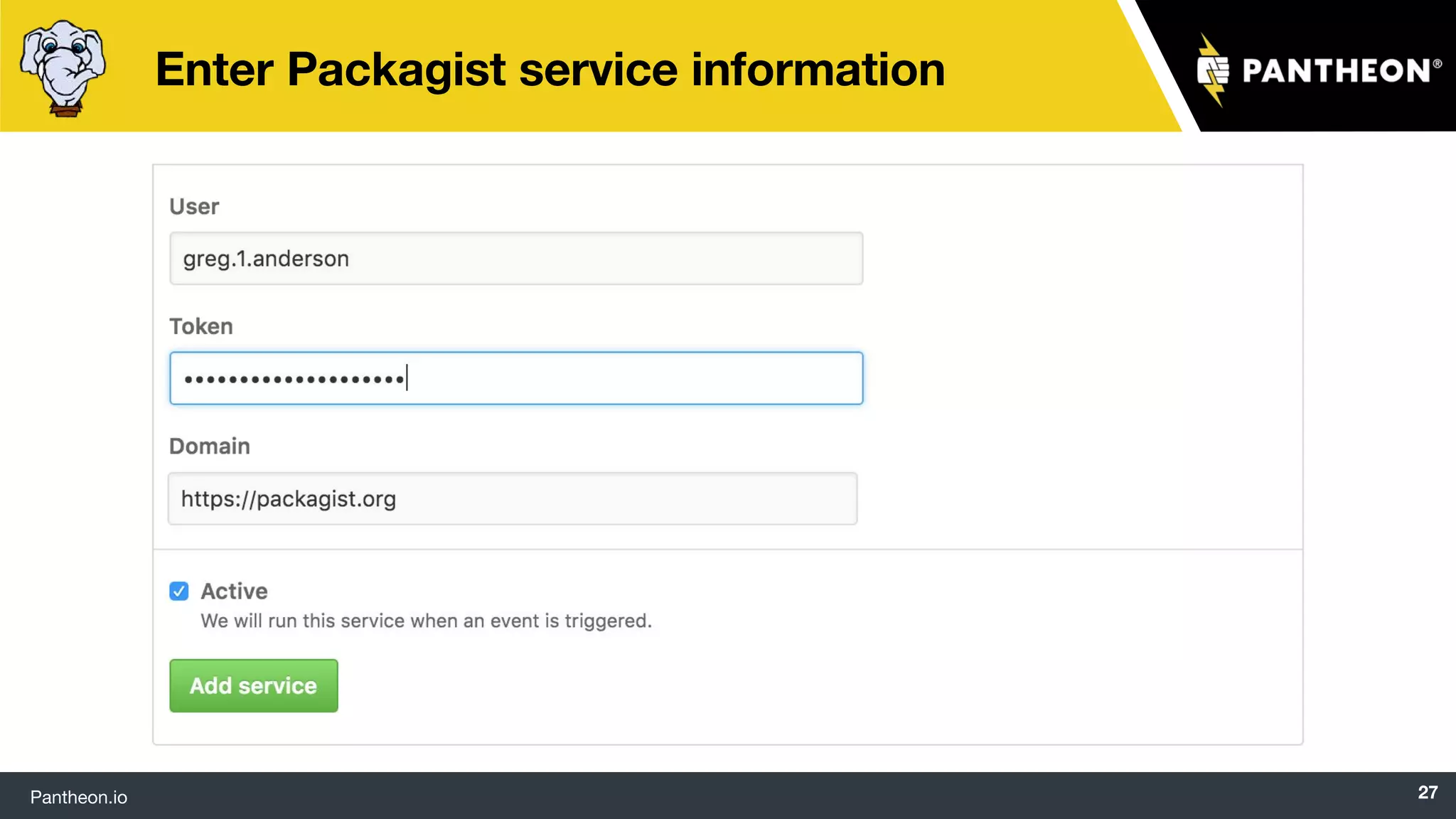

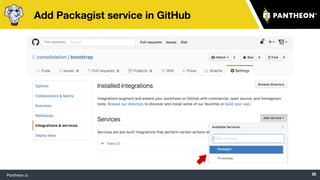

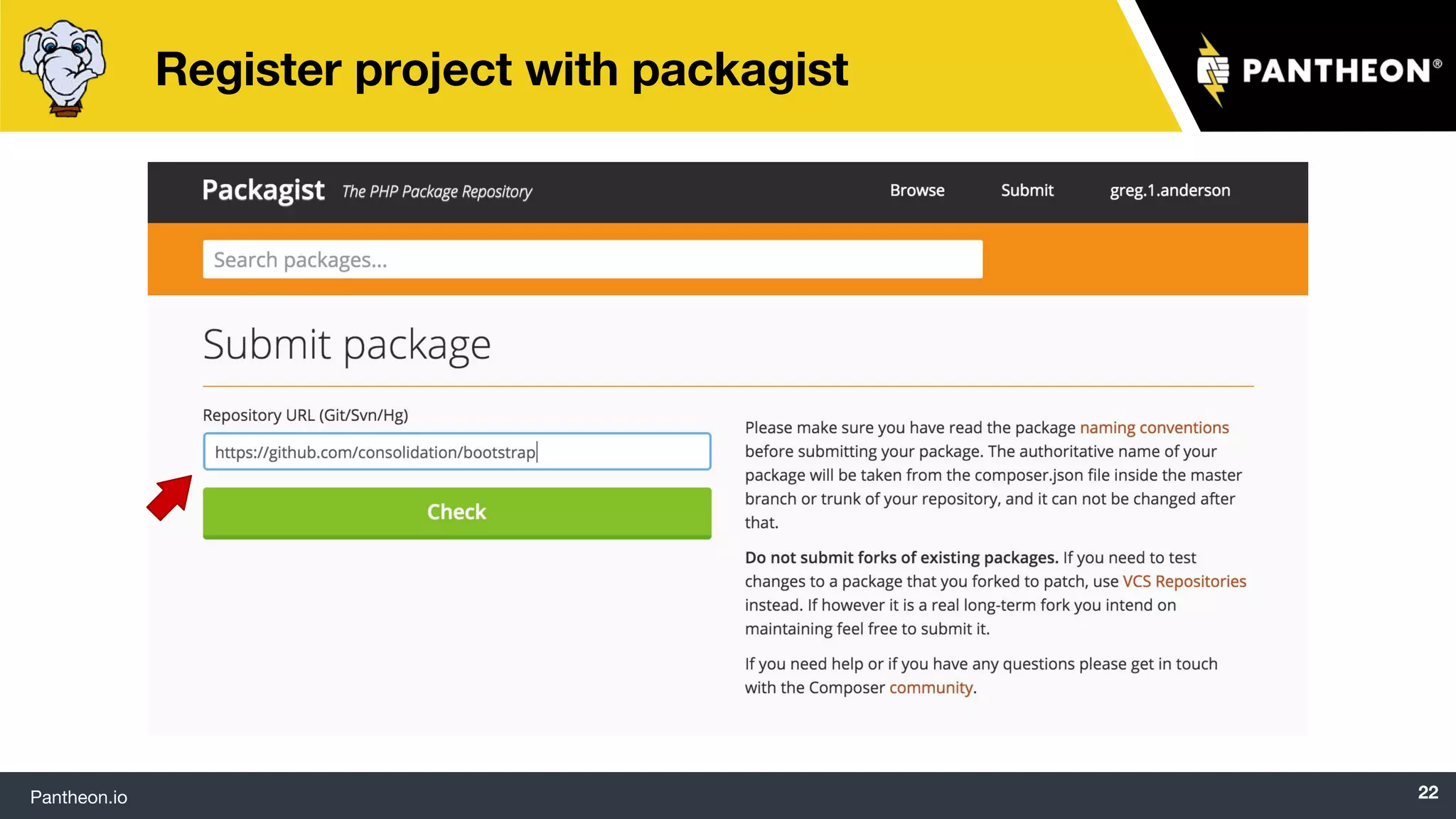

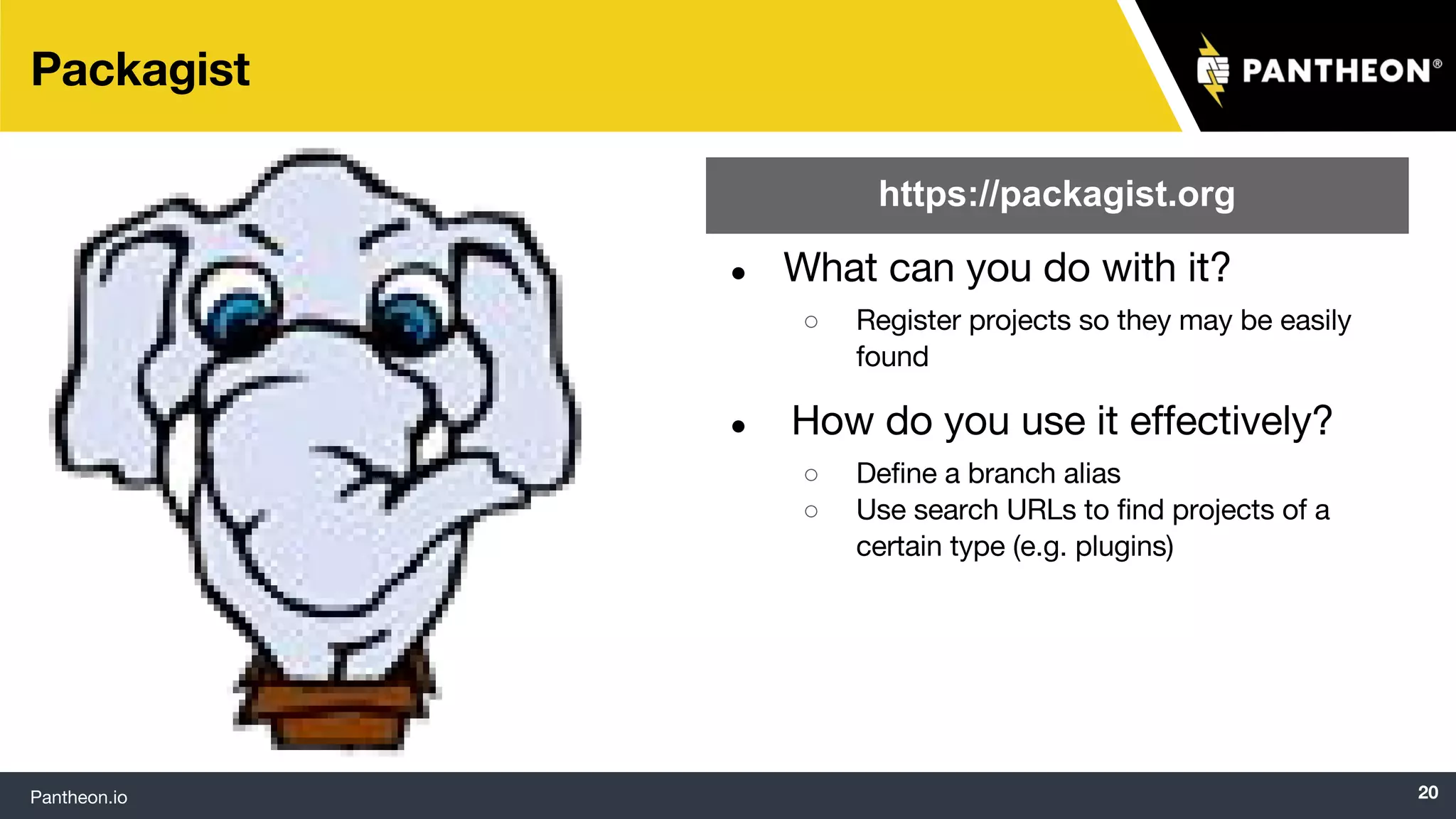

20. ●
○
●
○
○
https://packagist.org

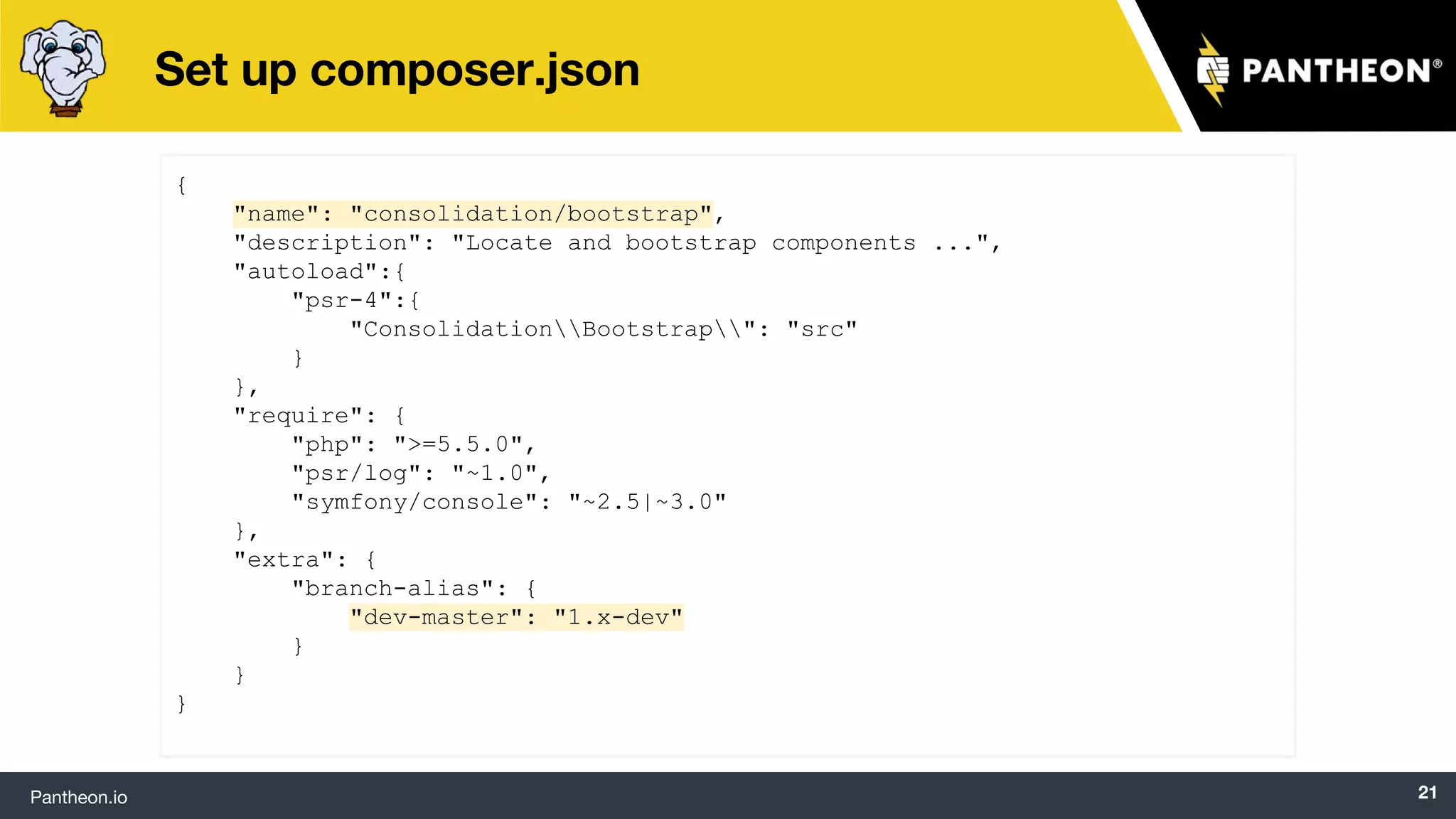

21. {
"name": "consolidation/bootstrap",
"description": "Locate and bootstrap components ...",
"autoload":{
"psr-4":{
"ConsolidationBootstrap": "src"
}
},
"require": {
"php": ">=5.5.0",
"psr/log": "~1.0",
"symfony/console": "~2.5|~3.0"
},
"extra": {
"branch-alias": {
"dev-master": "1.x-dev"
}
}
}

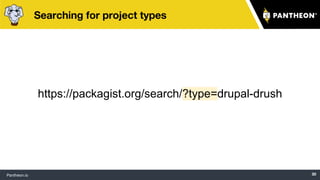

30. https://packagist.org/search/?type=drupal-drush

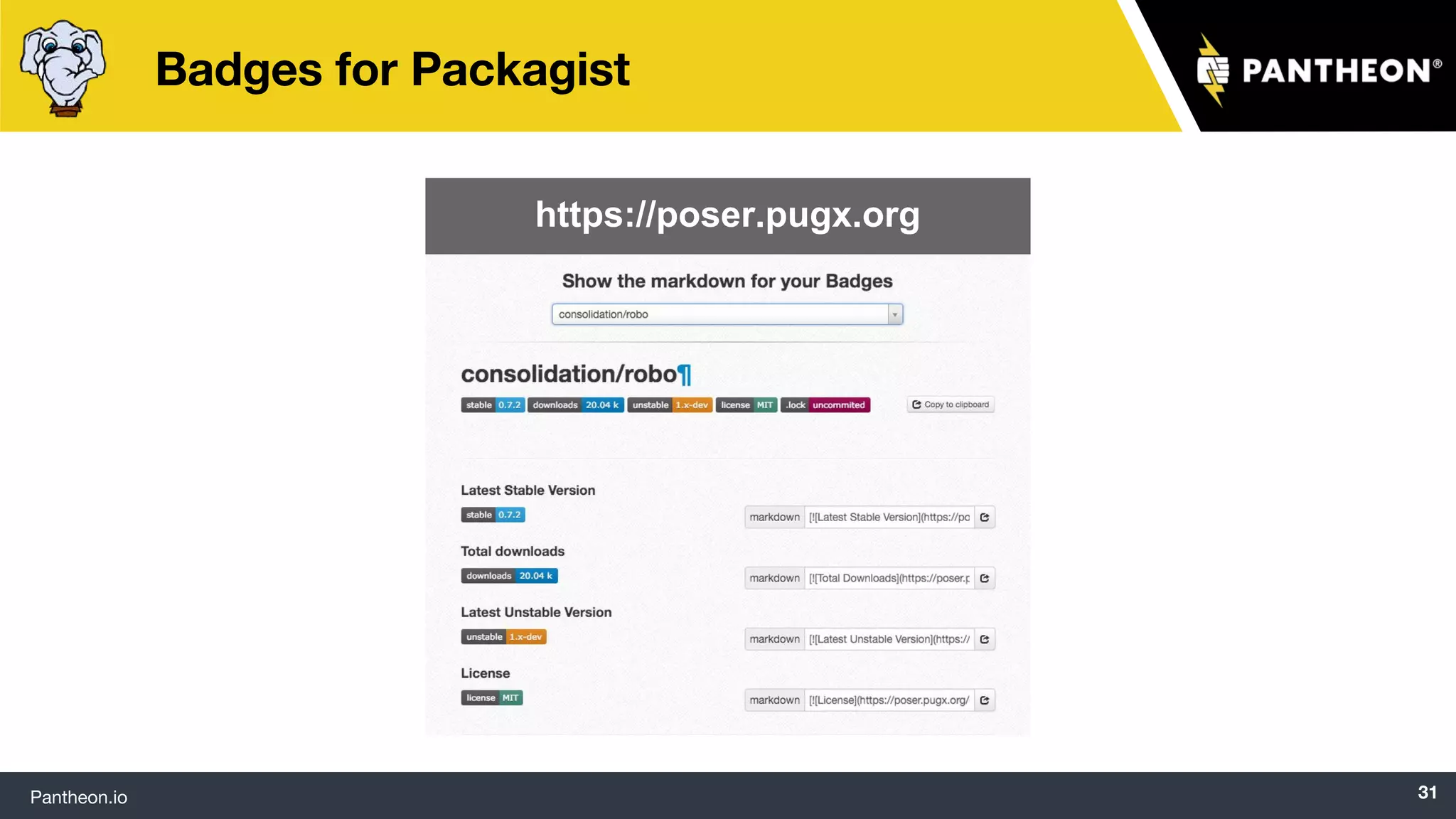

31. https://poser.pugx.org

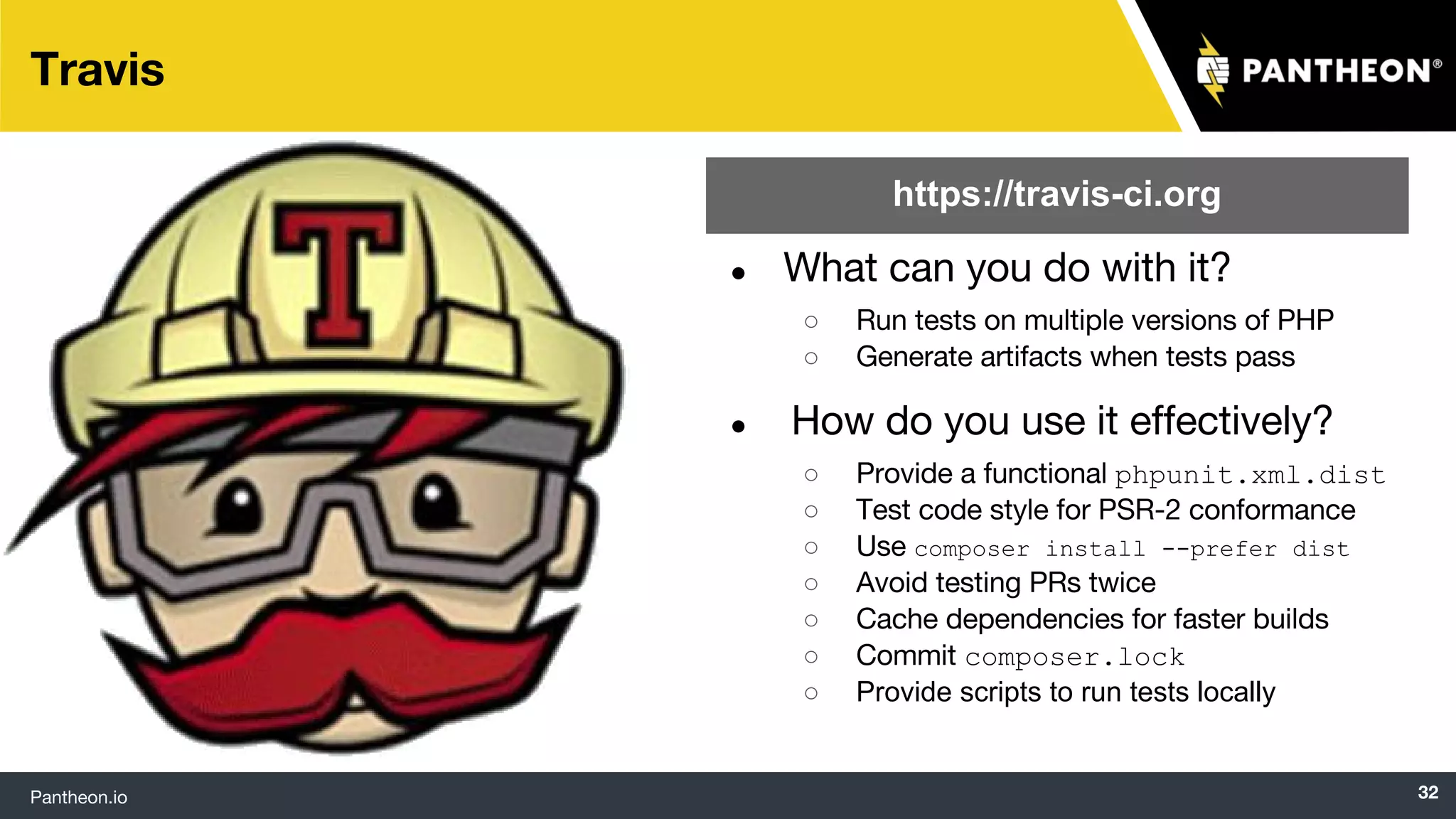

32. ●
○
○
●
○ phpunit.xml.dist
○
○ composer install --prefer dist
○
○
○ composer.lock
○ Provide scripts to run tests locally
https://travis-ci.org

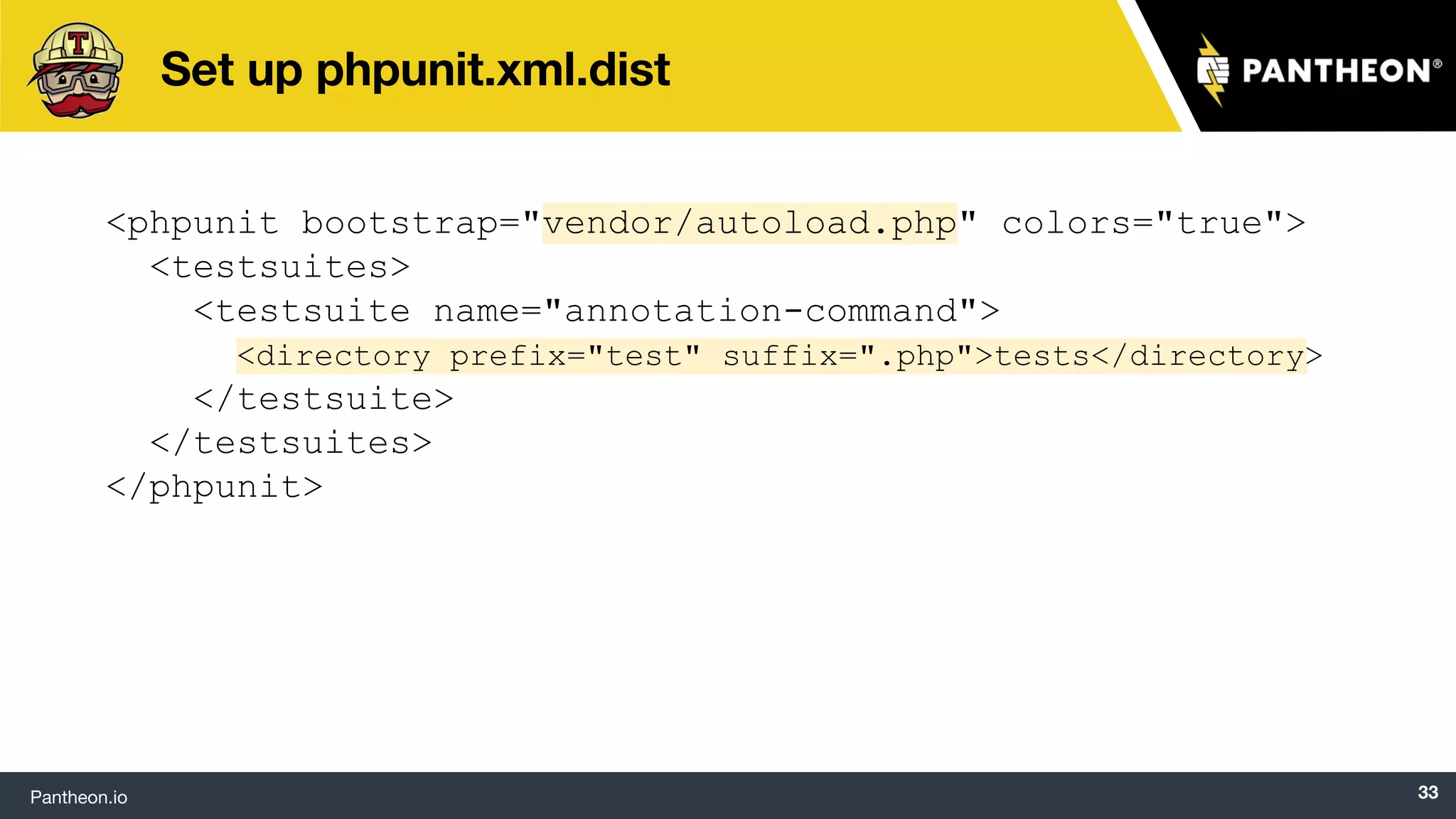

33. <phpunit bootstrap="vendor/autoload.php" colors="true">
<testsuites>
<testsuite name="annotation-command">
<directory prefix="test" suffix=".php">tests</directory>
</testsuite>
</testsuites>
</phpunit>

34. $ composer require squizlabs/php_codesniffer

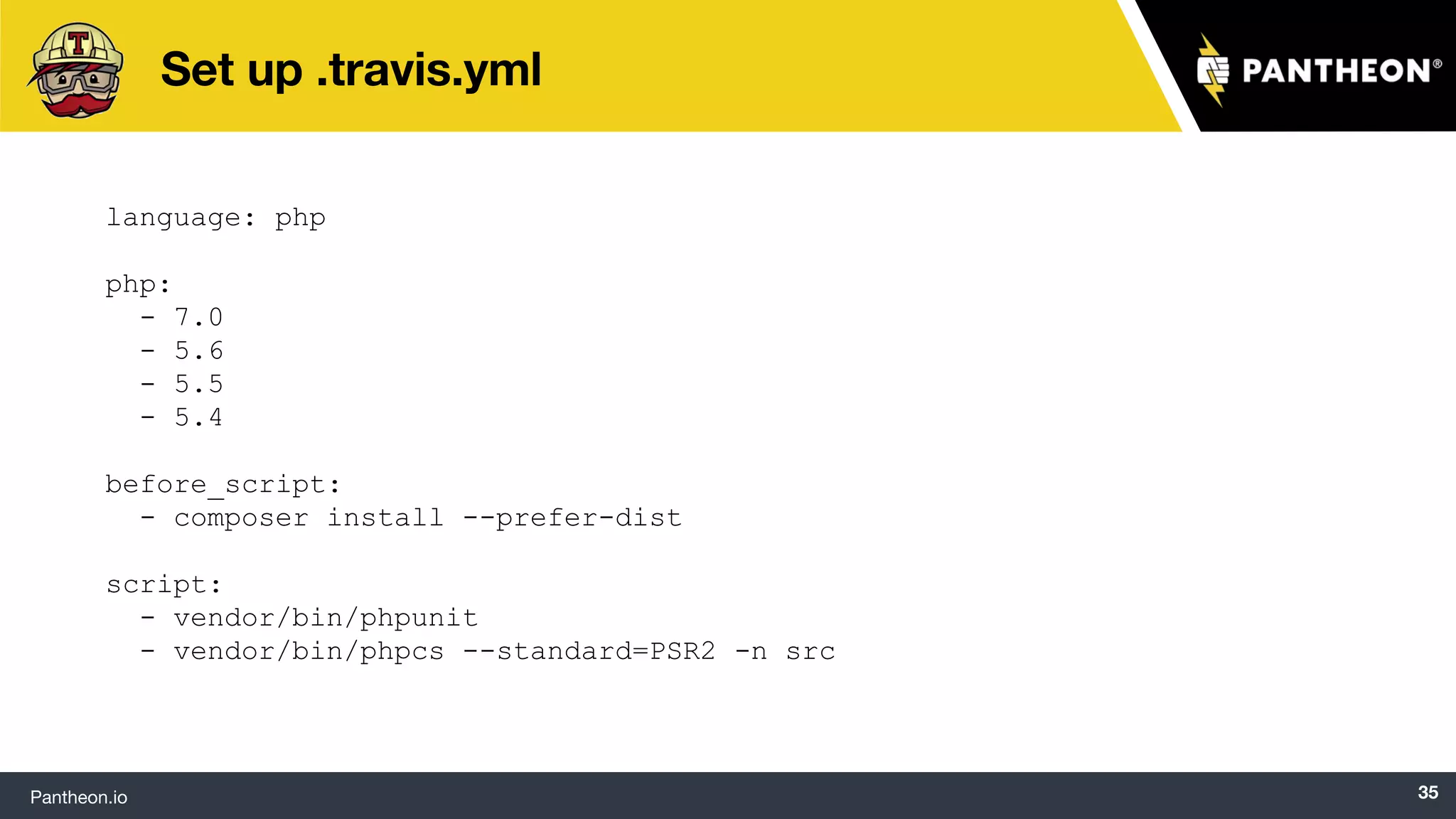

35. language: php
php:
- 7.0
- 5.6
- 5.5
- 5.4
before_script:
- composer install --prefer-dist
script:
- vendor/bin/phpunit
- vendor/bin/phpcs --standard=PSR2 -n src

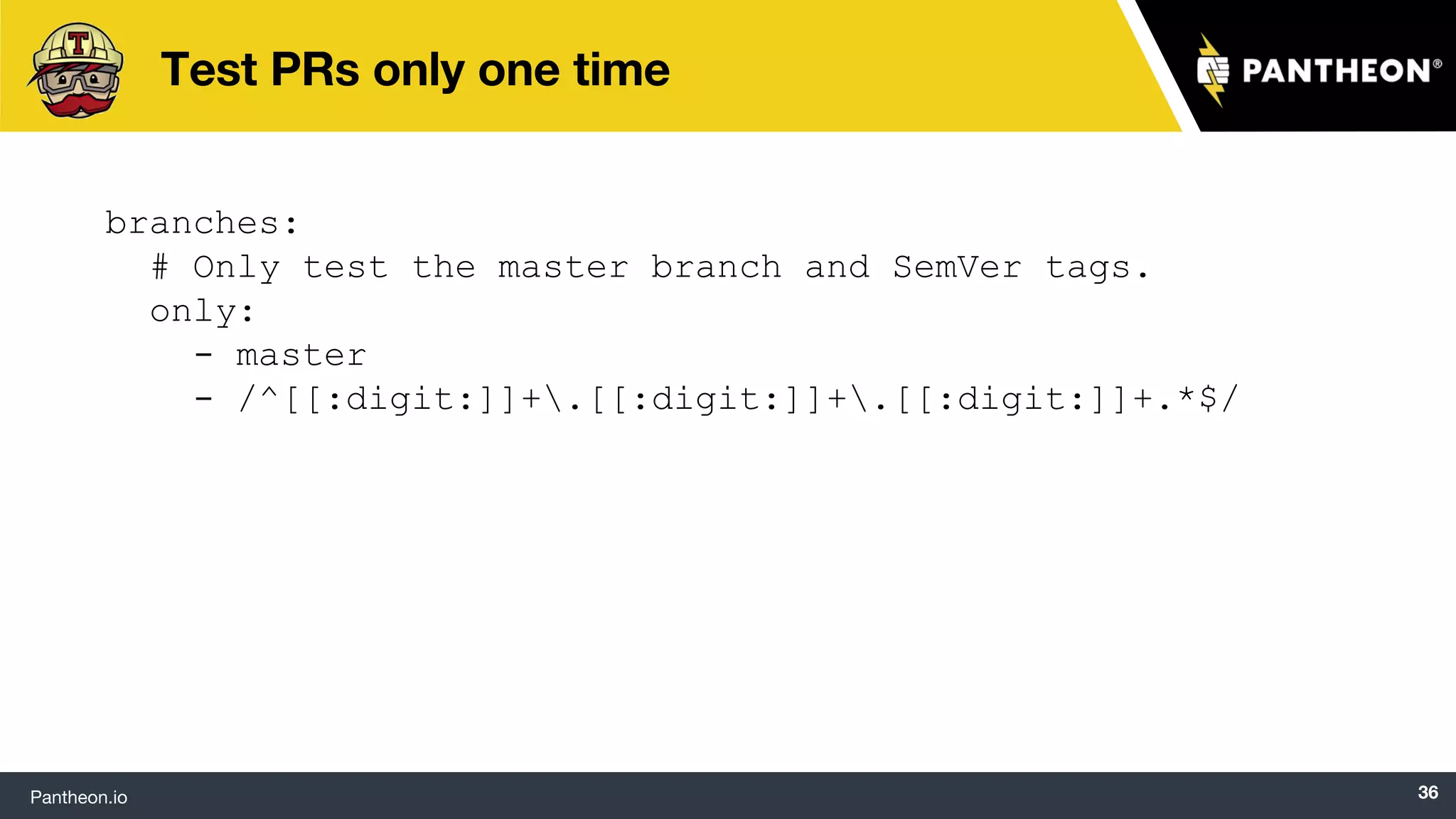

36. branches:
# Only test the master branch and SemVer tags.
only:
- master
- /^[[:digit:]]+.[[:digit:]]+.[[:digit:]]+.*$/

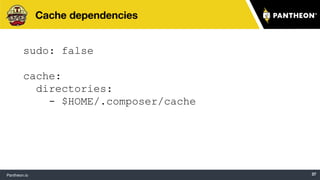

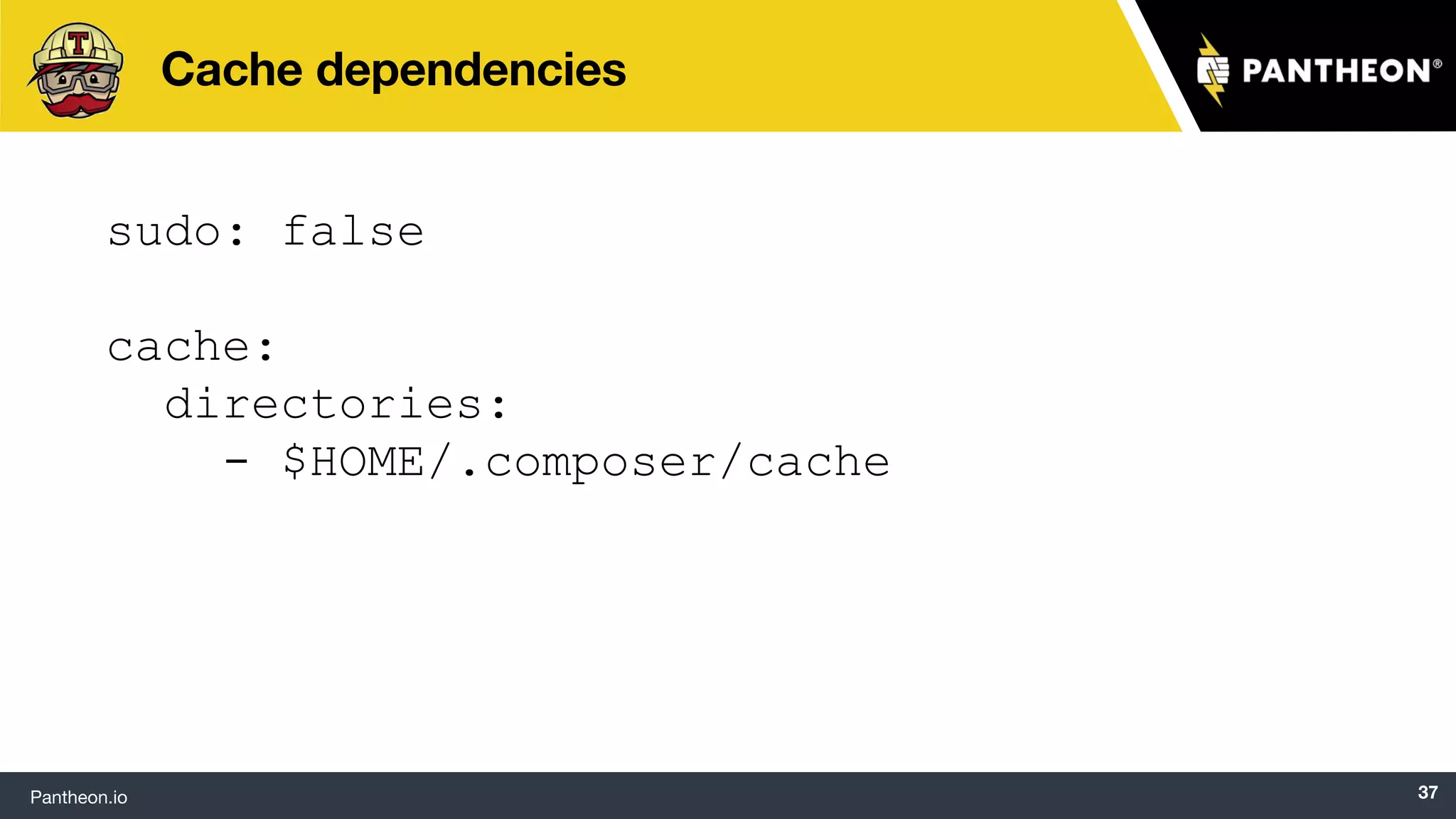

37. sudo: false
cache:
directories:
- $HOME/.composer/cache

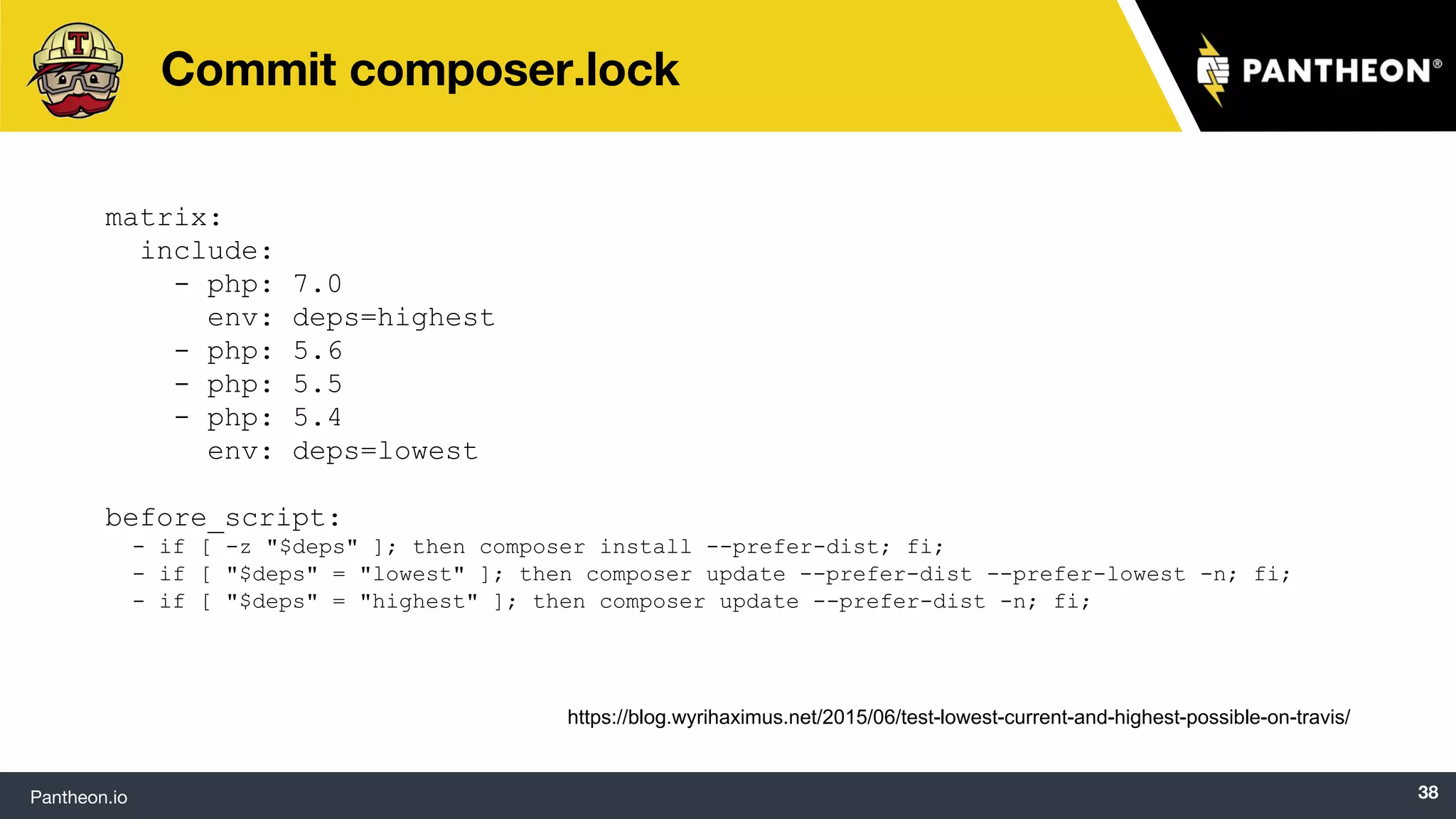

38. matrix:
include:
- php: 7.0
env: deps=highest
- php: 5.6
- php: 5.5
- php: 5.4
env: deps=lowest
before_script:
- if [ -z "$deps" ]; then composer install --prefer-dist; fi;
- if [ "$deps" = "lowest" ]; then composer update --prefer-dist --prefer-lowest -n; fi;
- if [ "$deps" = "highest" ]; then composer update --prefer-dist -n; fi;
https://blog.wyrihaximus.net/2015/06/test-lowest-current-and-highest-possible-on-travis/

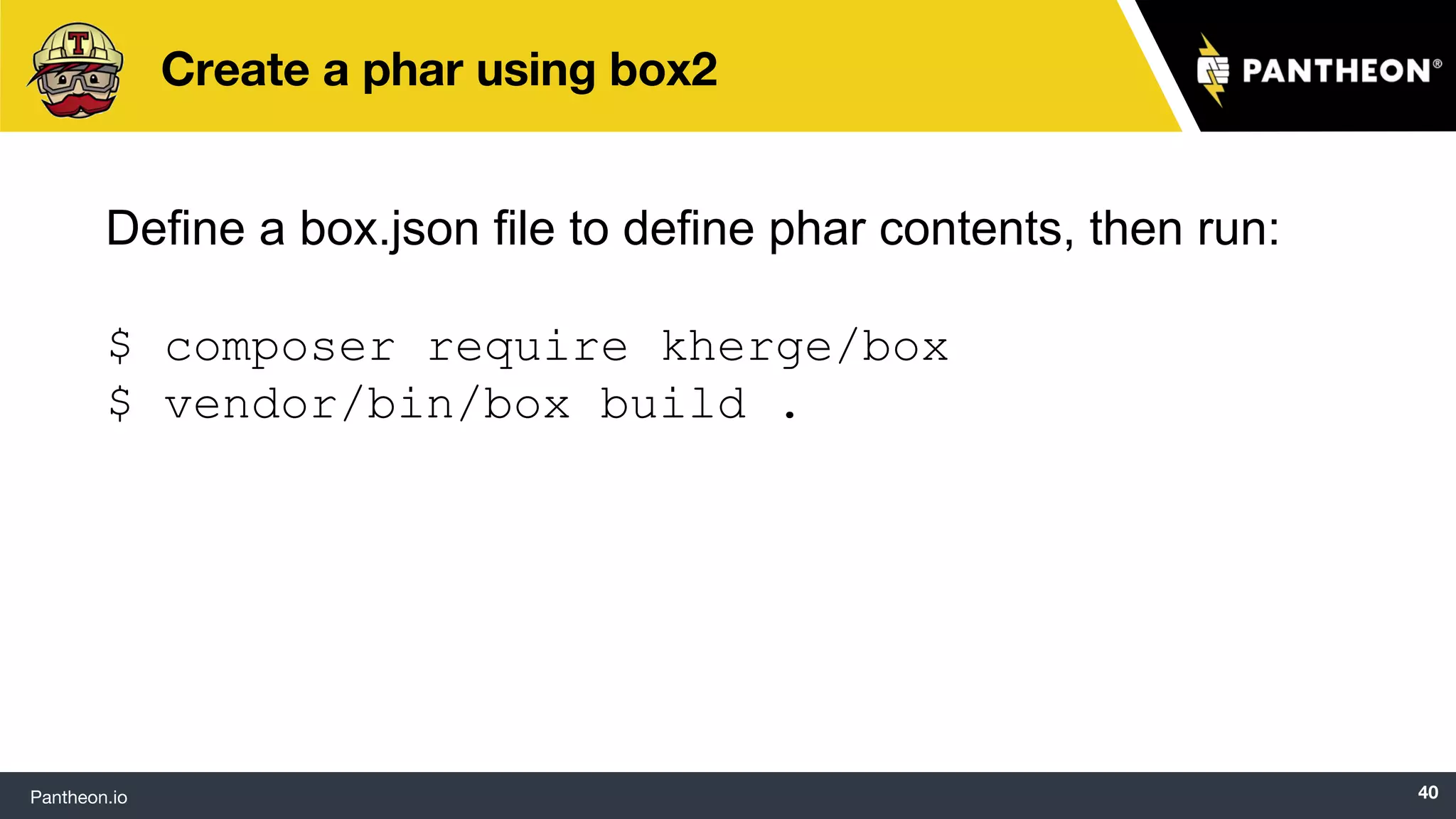

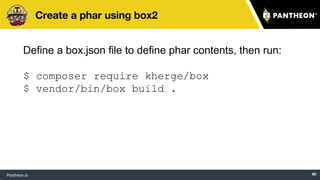

40. Define a box.json file to define phar contents, then run:
$ composer require kherge/box
$ vendor/bin/box build .

41. {
"alias": "robo.phar",
"chmod": "0755",
"compactors": ["HerreraBoxCompactorPhp"],
"directories": ["src"],
"files": ["RoboFile.php"],
"finder": [
{
"name": [ "*.php", "*.exe", "GeneratedWrapper.tmpl" ],
"exclude": [ "test", "tests", "Test", "Tests", "Tester" ],
"in": "vendor"
}
],
"git-commit": "git-commit",
"git-version": "git-version",
"output": "robo.phar",
"main": "robo",
"stub": true
}
https://github.com/consolidation/Robo/pull/411

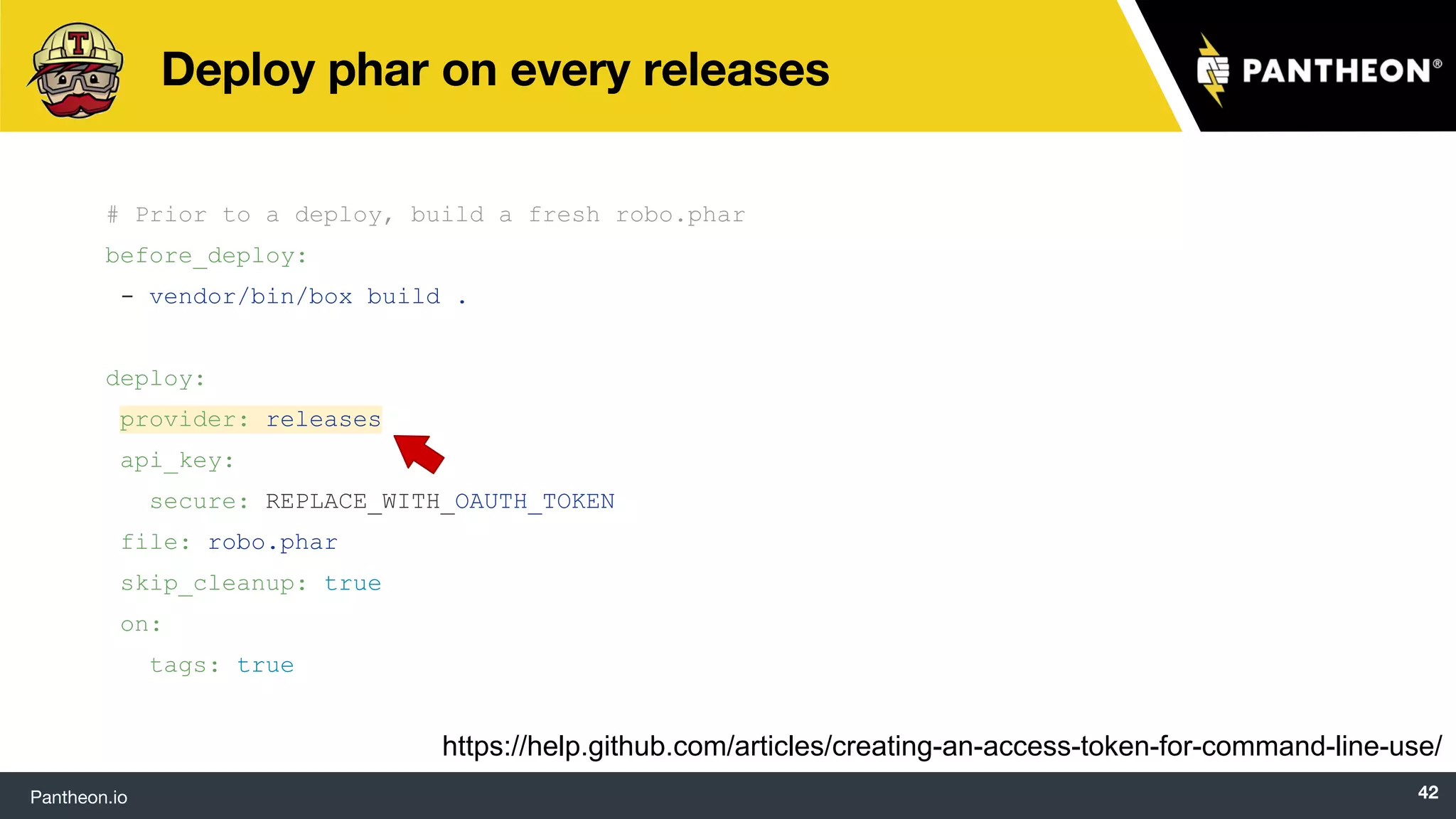

42. # Prior to a deploy, build a fresh robo.phar
before_deploy:
- vendor/bin/box build .
deploy:
provider: releases
api_key:
secure: REPLACE_WITH_OAUTH_TOKEN
file: robo.phar
skip_cleanup: true
on:
tags: true
https://help.github.com/articles/creating-an-access-token-for-command-line-use/

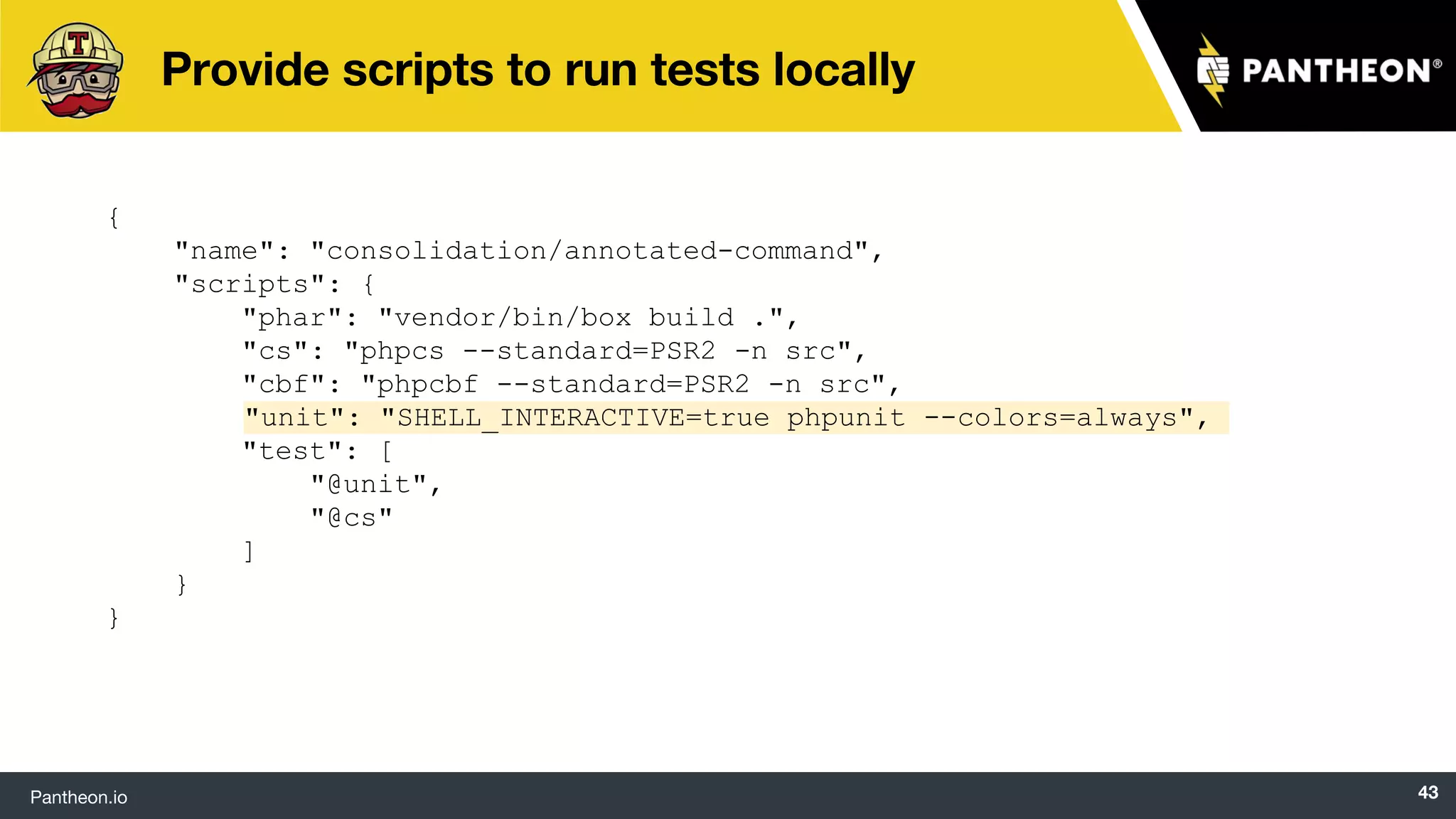

43. {
"name": "consolidation/annotated-command",
"scripts": {
"phar": "vendor/bin/box build .",
"cs": "phpcs --standard=PSR2 -n src",
"cbf": "phpcbf --standard=PSR2 -n src",
"unit": "SHELL_INTERACTIVE=true phpunit --colors=always",
"test": [
"@unit",
"@cs"
]
}
}

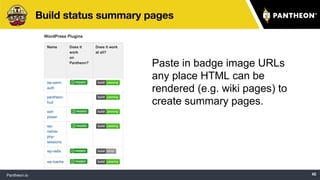

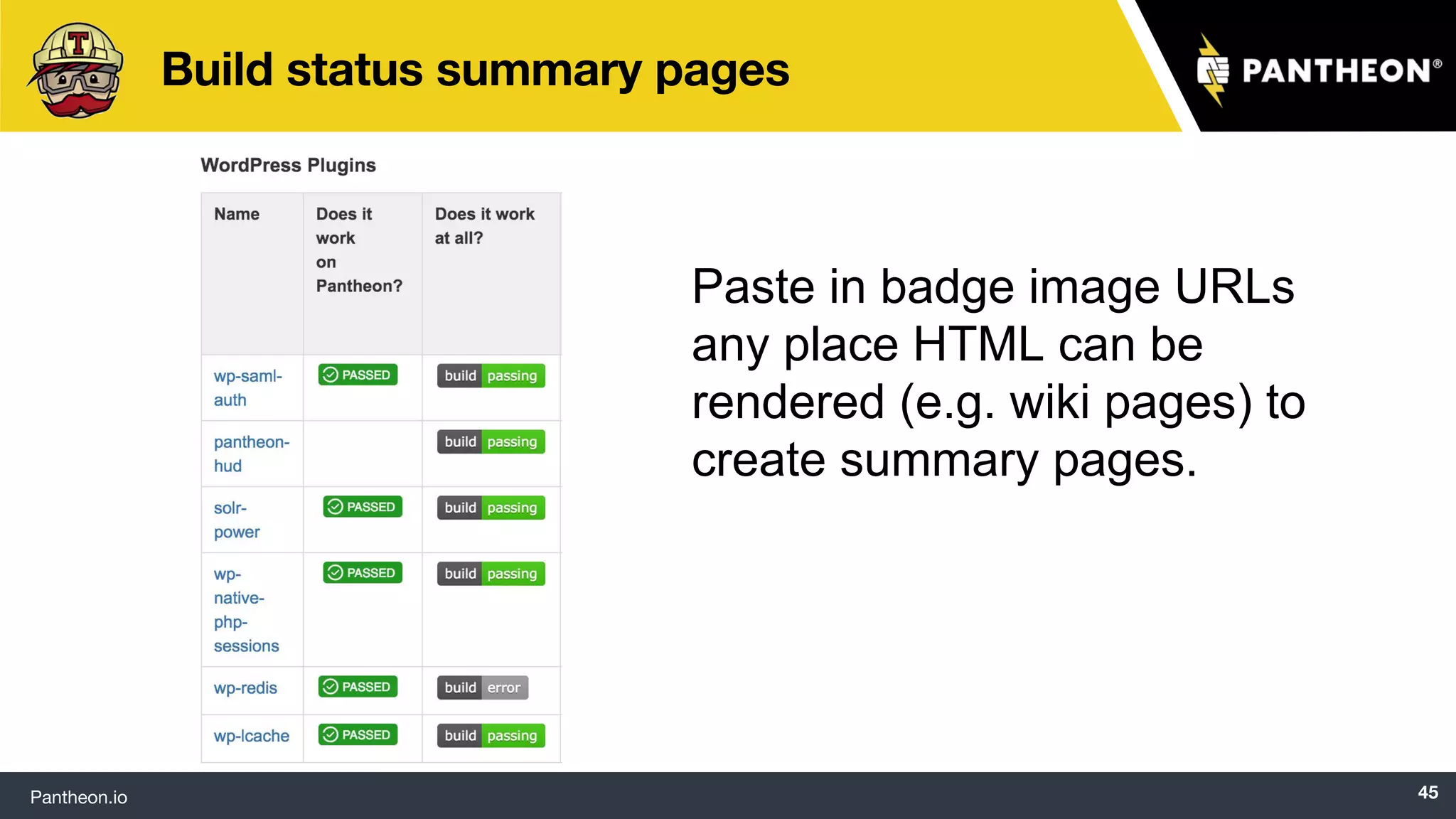

45. Paste in badge image URLs
any place HTML can be
rendered (e.g. wiki pages) to
create summary pages.

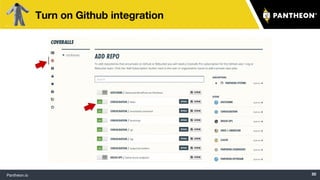

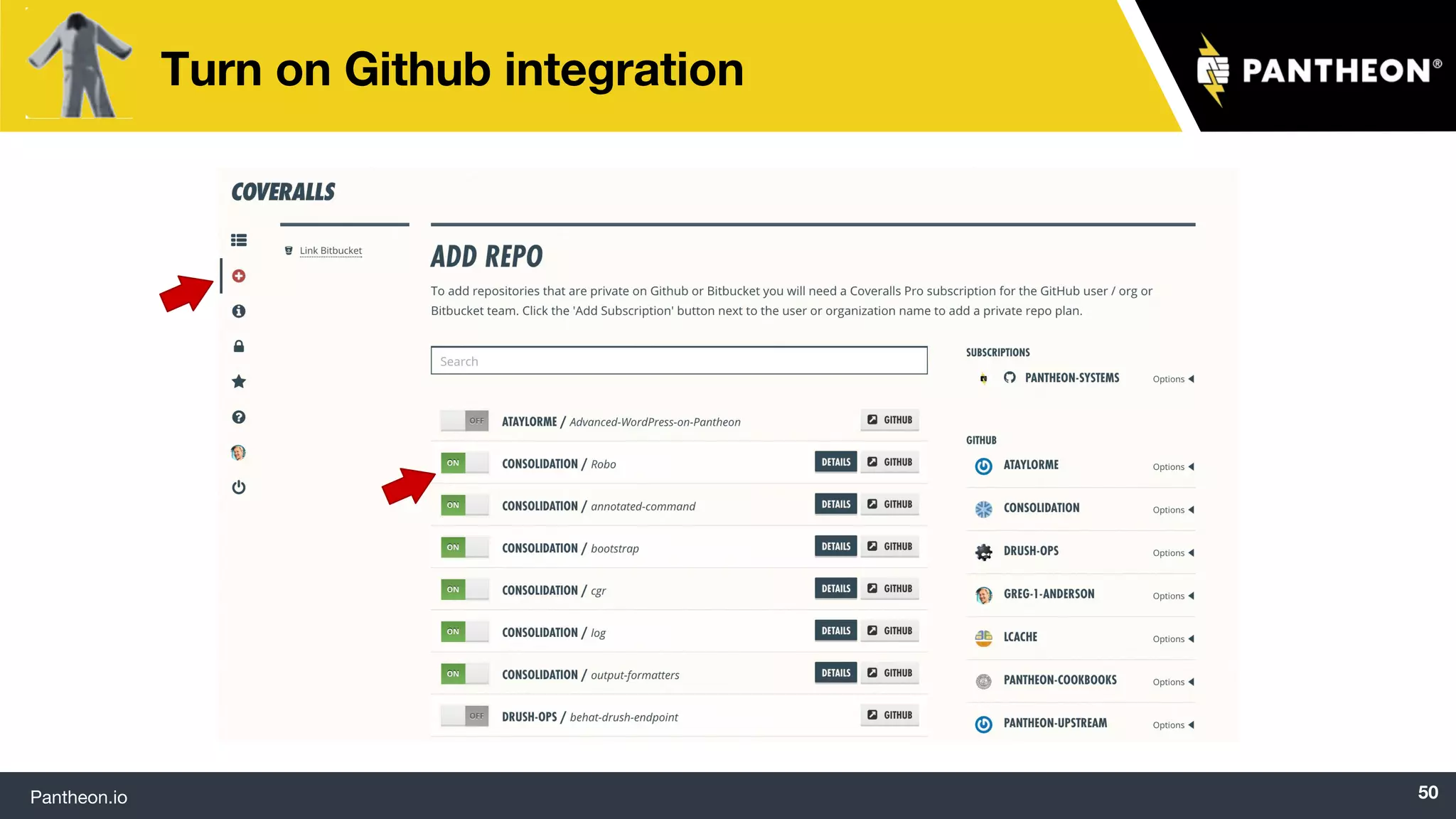

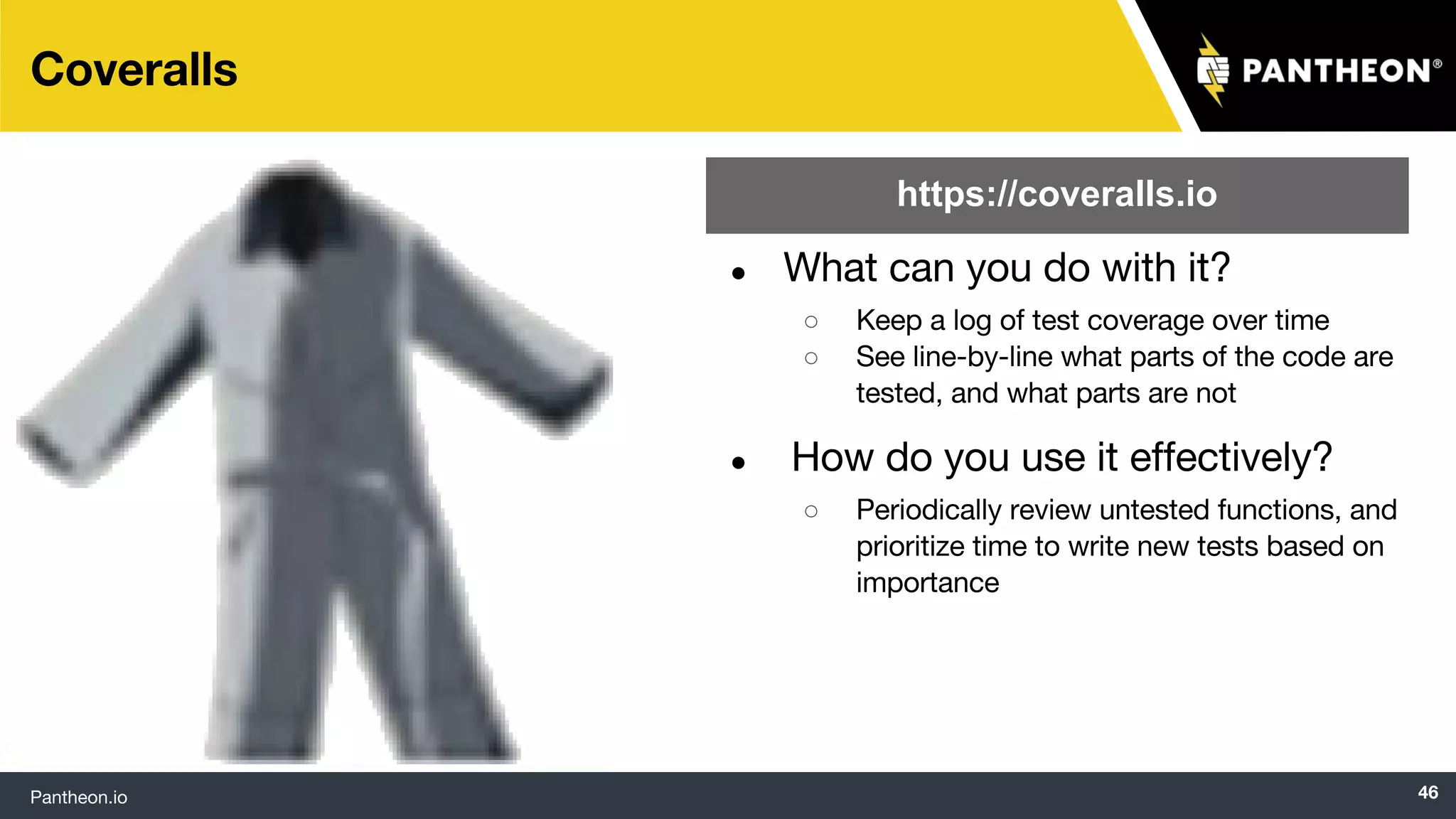

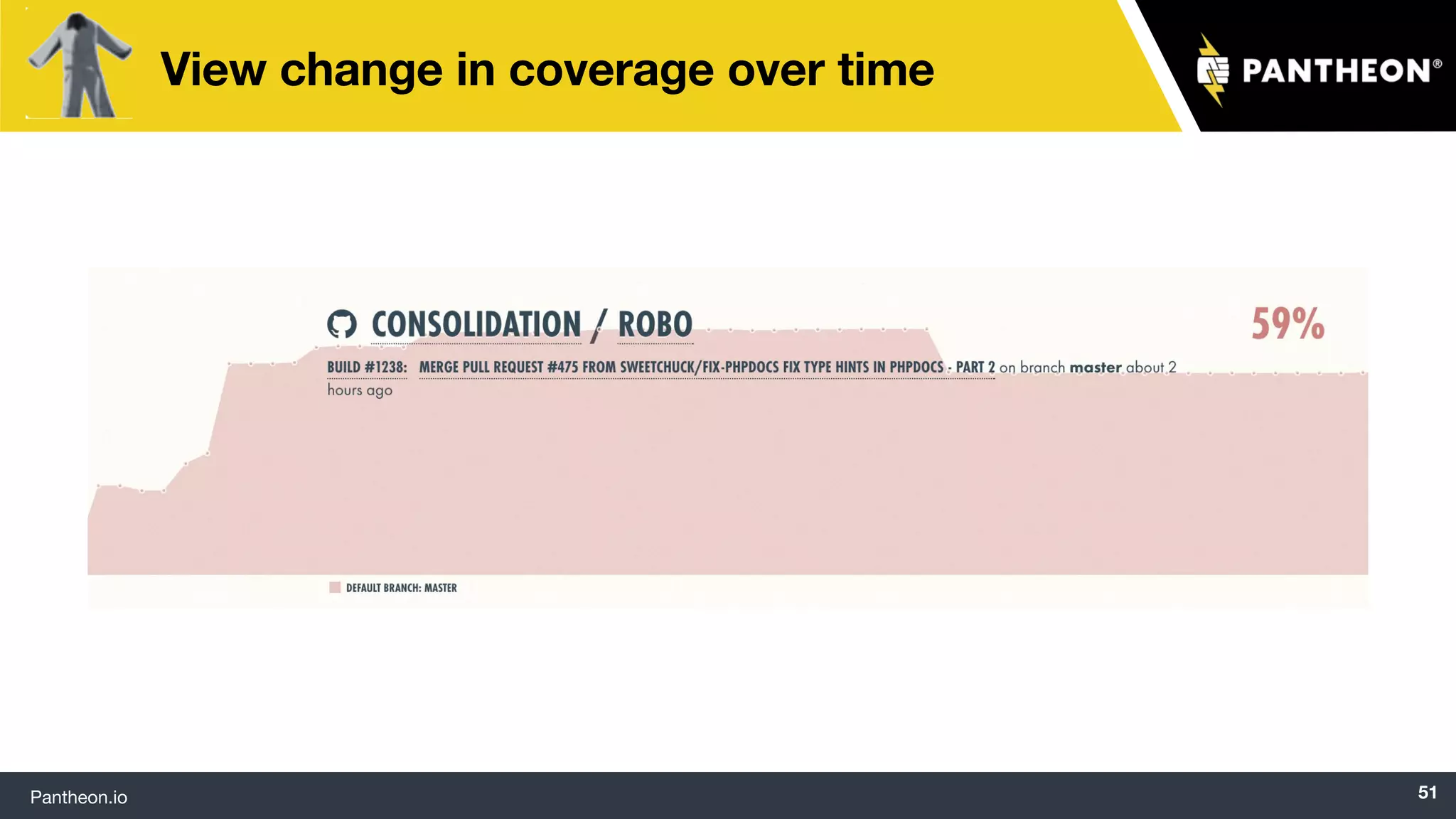

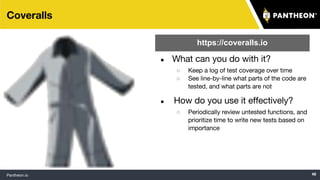

46. ●
○
○
●
○
https://coveralls.io

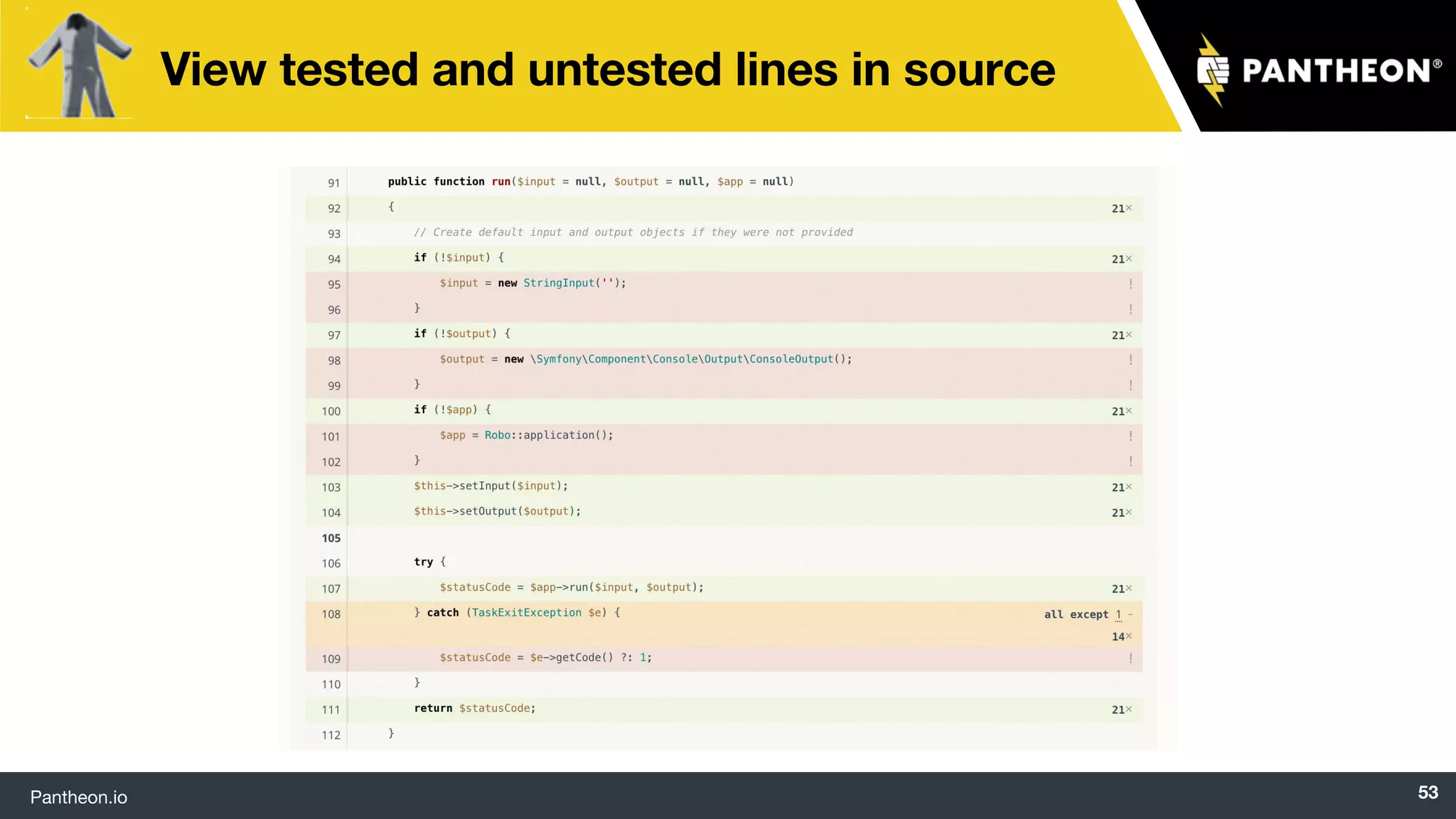

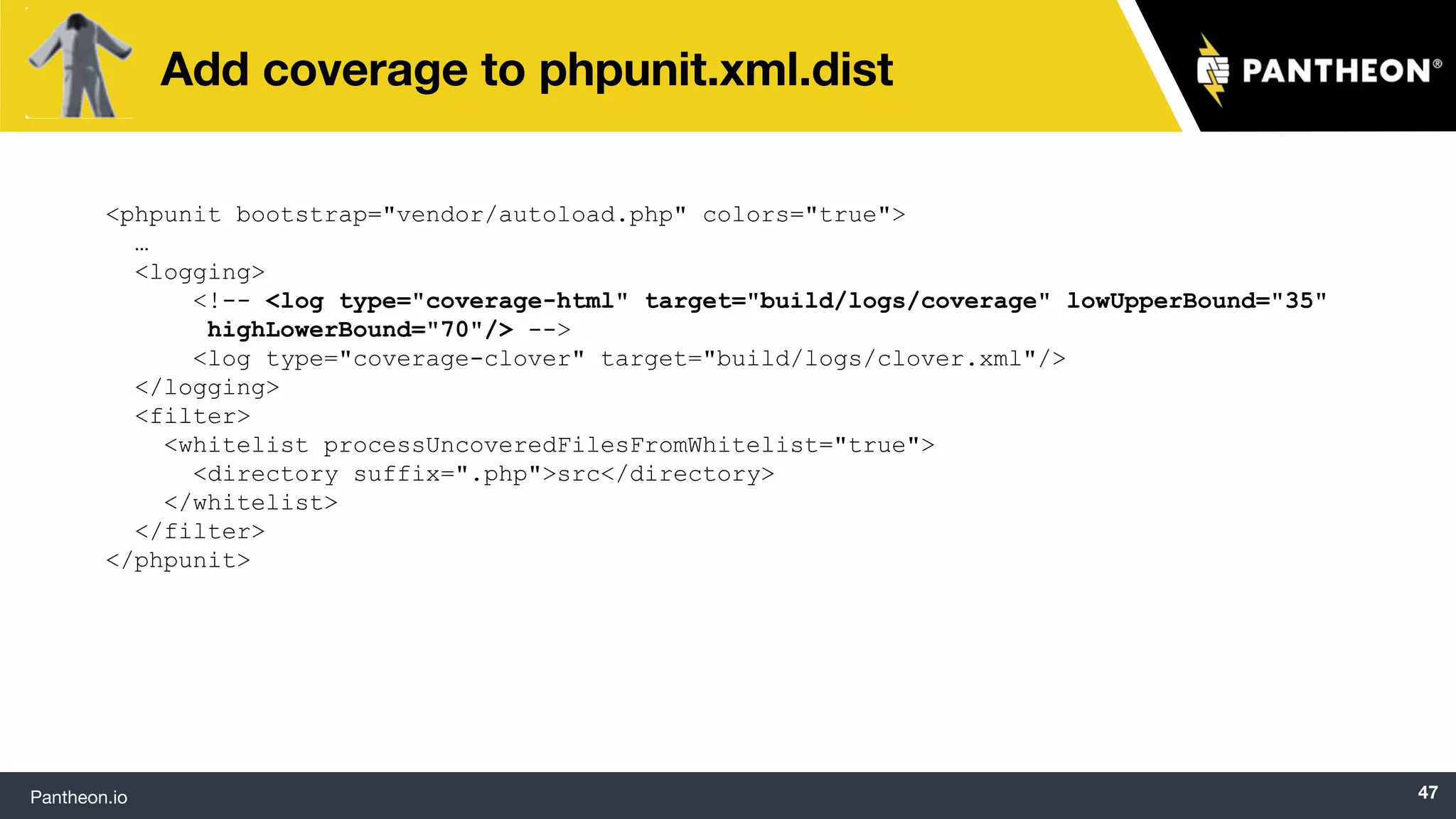

47. <phpunit bootstrap="vendor/autoload.php" colors="true">
…
<logging>
<!-- <log type="coverage-html" target="build/logs/coverage" lowUpperBound="35"
highLowerBound="70"/> -->
<log type="coverage-clover" target="build/logs/clover.xml"/>
</logging>
<filter>
<whitelist processUncoveredFilesFromWhitelist="true">
<directory suffix=".php">src</directory>
</whitelist>
</filter>
</phpunit>

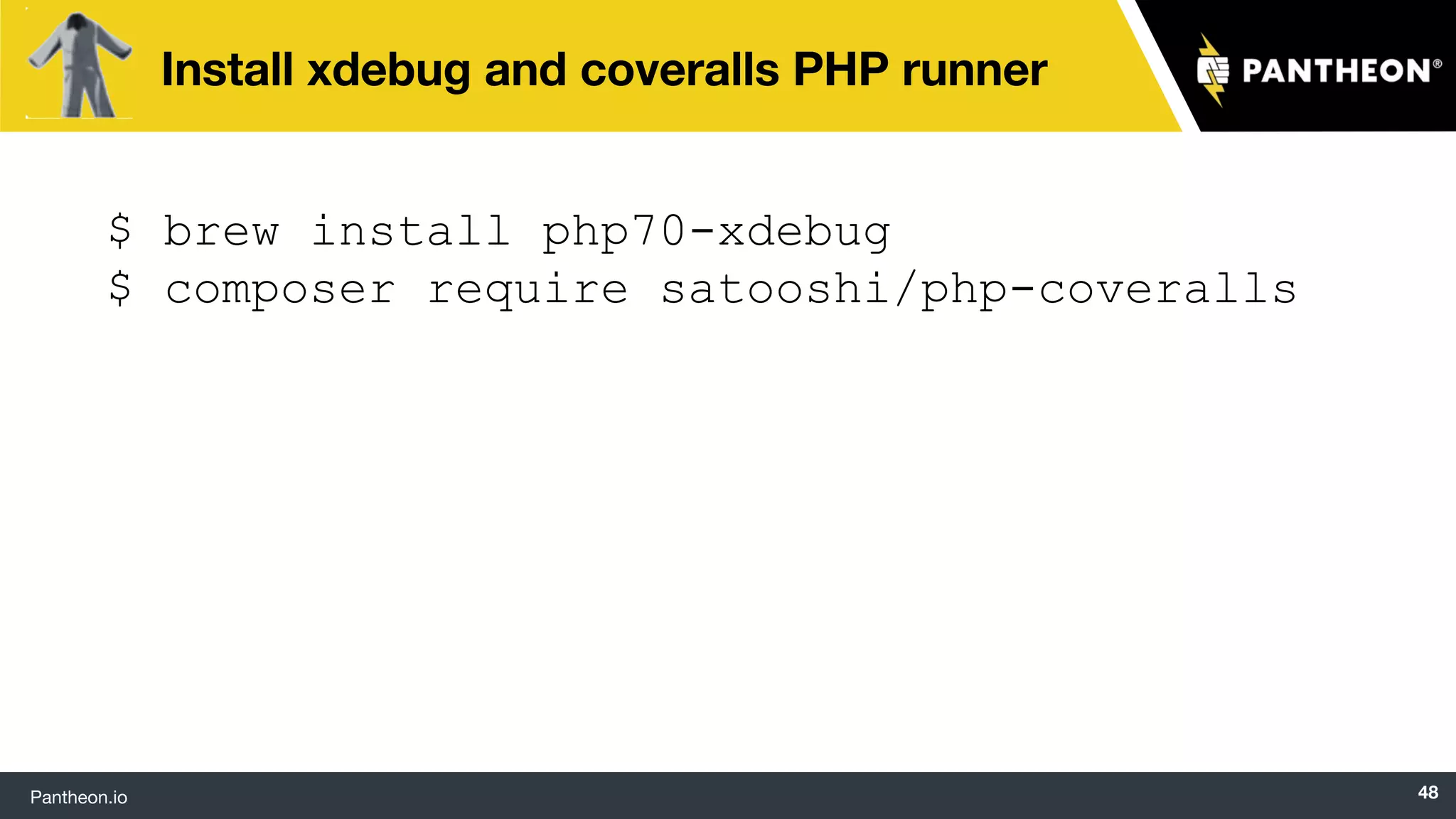

48. $ brew install php70-xdebug
$ composer require satooshi/php-coveralls

49. after_success:
- travis_retry php vendor/bin/coveralls -v

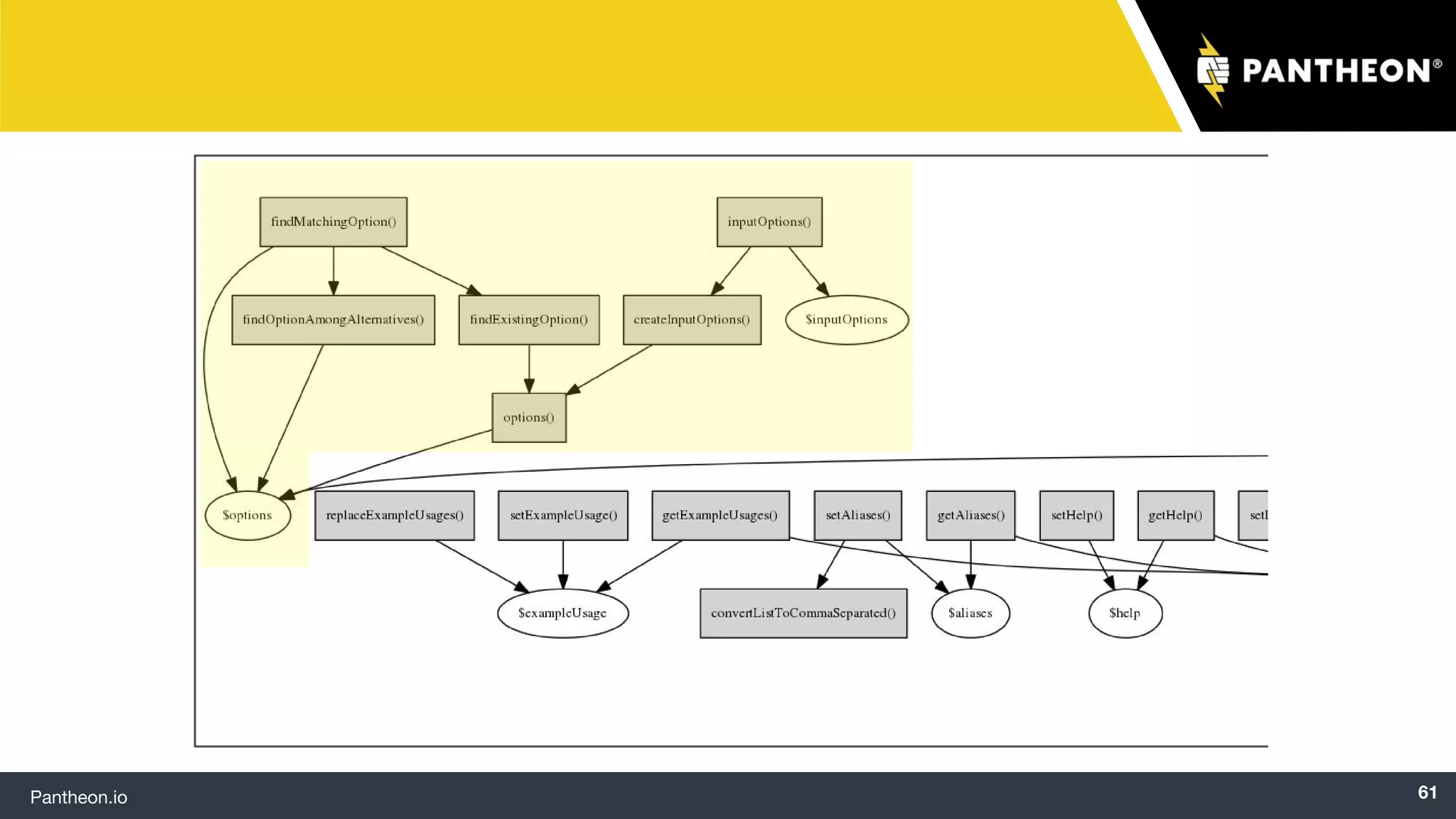

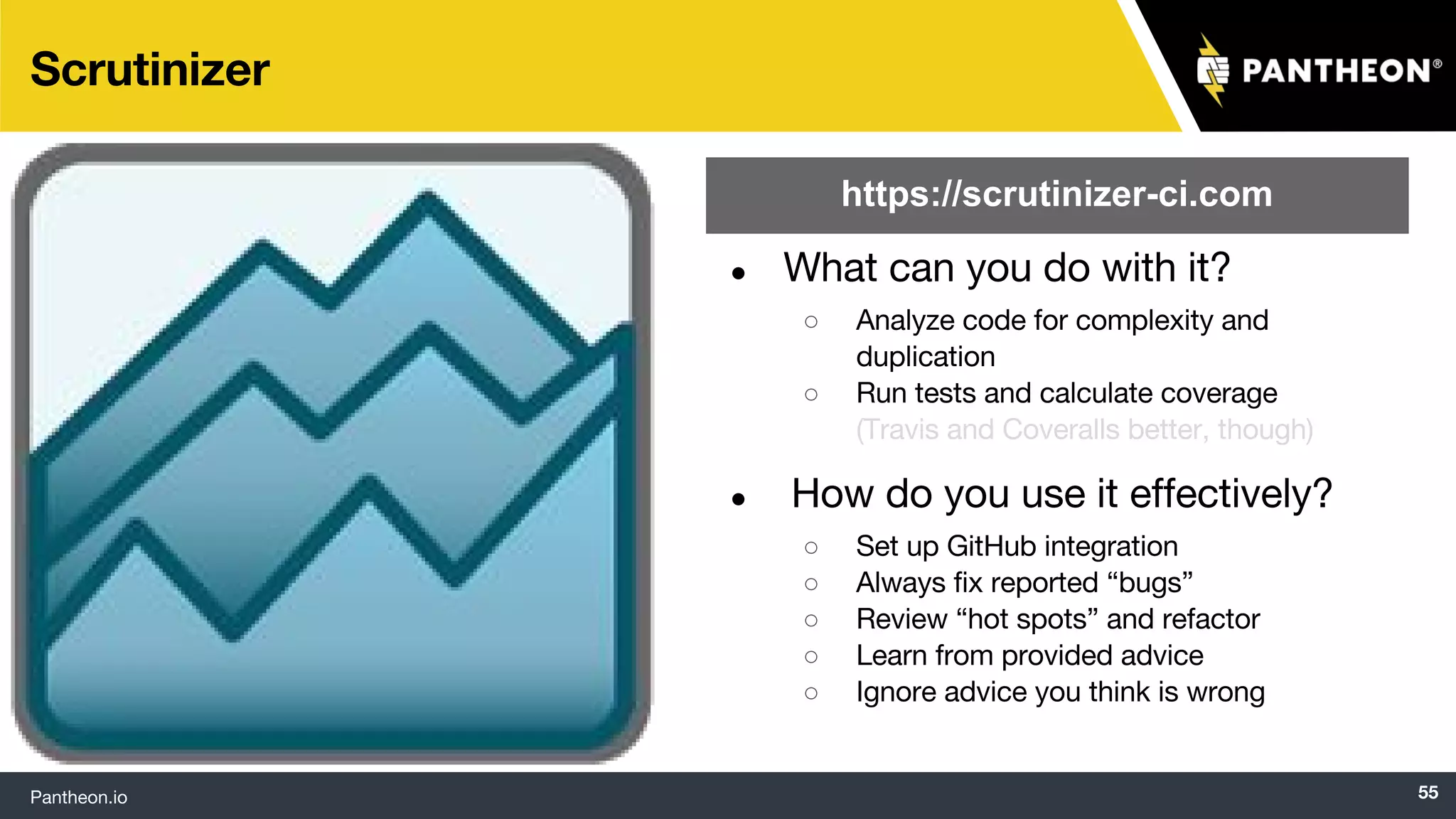

55. ●
○
○
●
○
○
○
○
○

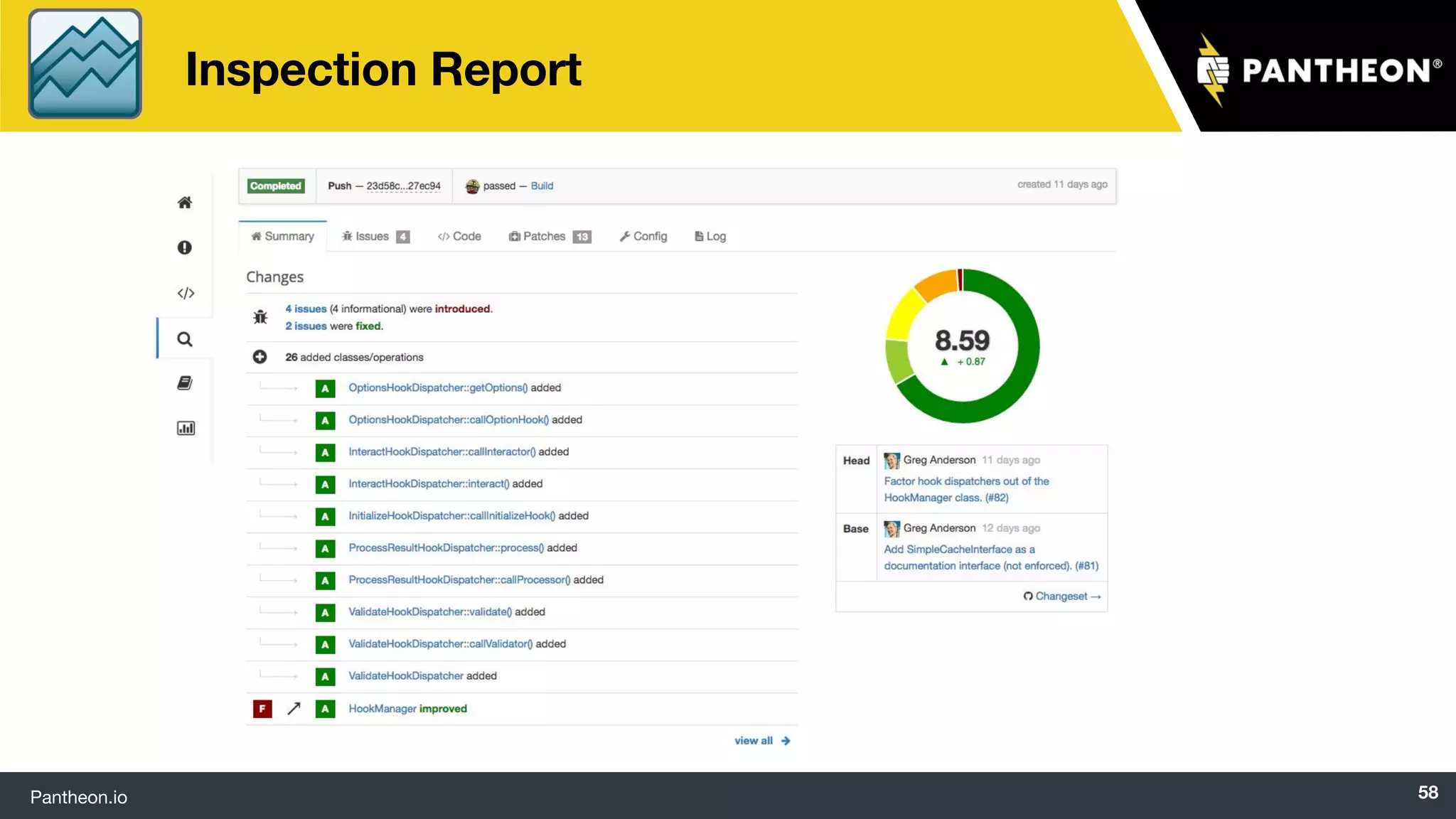

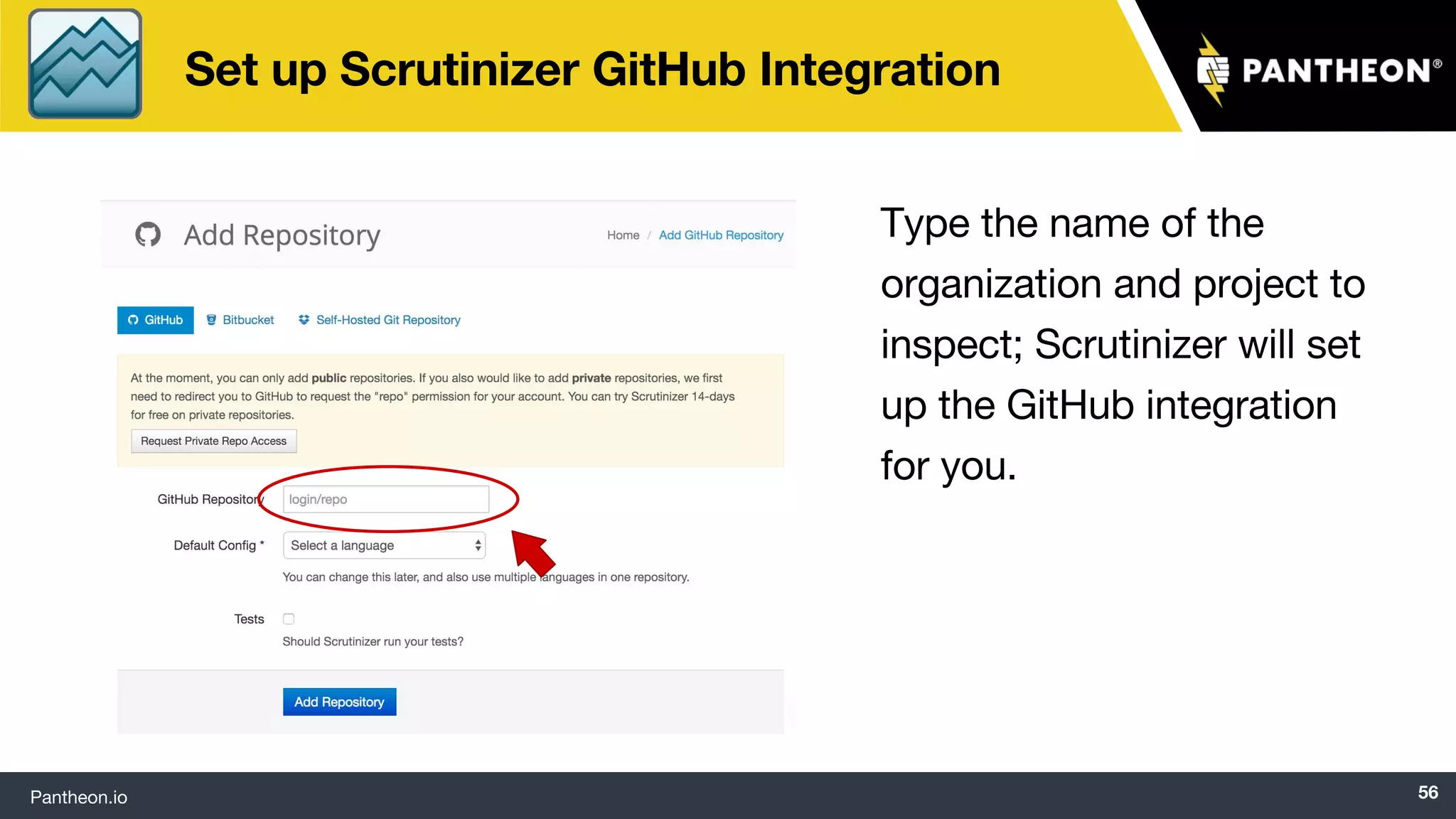

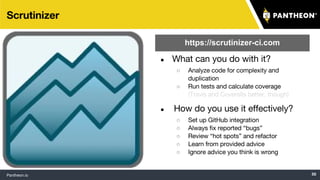

https://scrutinizer-ci.com

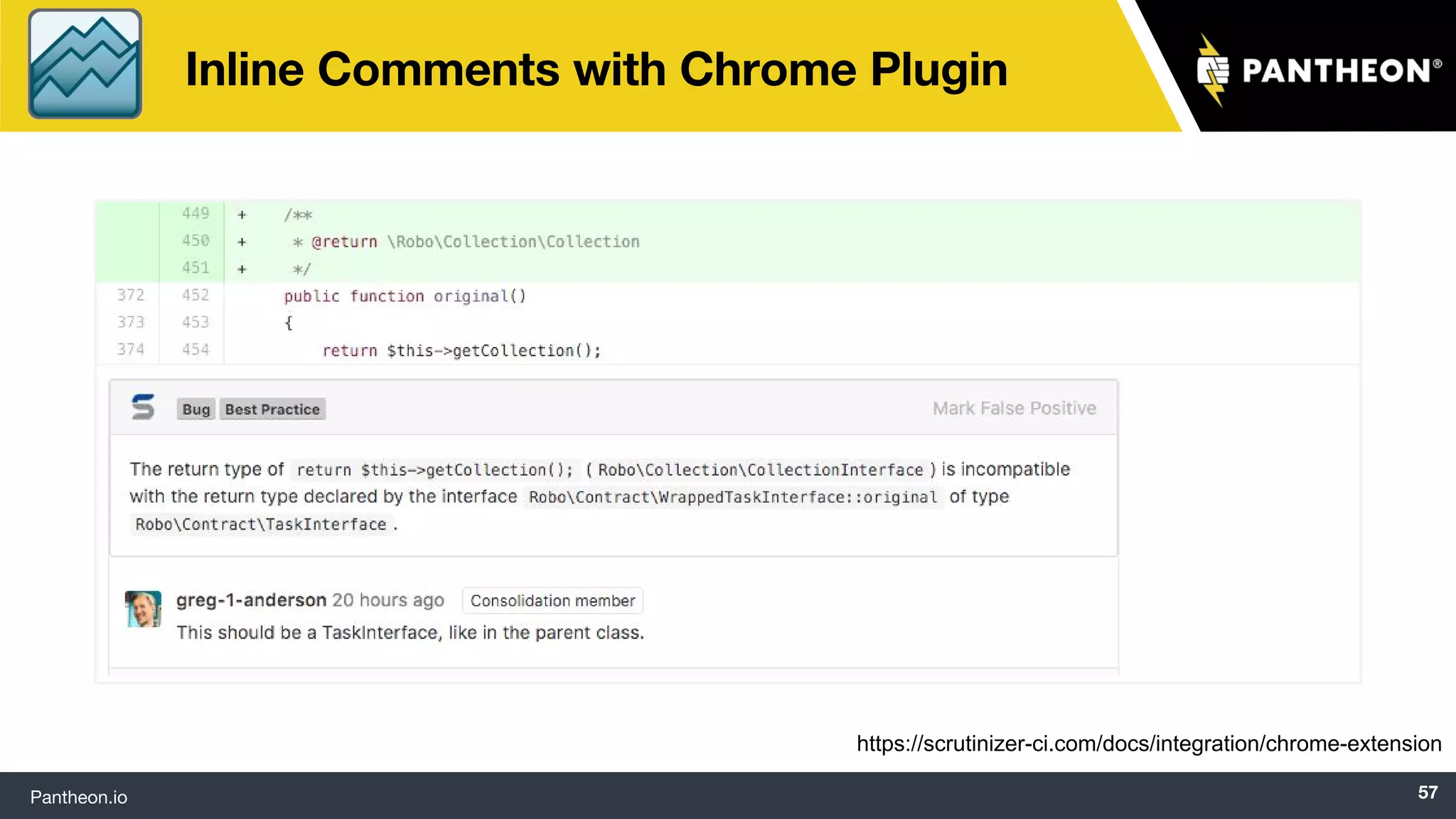

57. https://scrutinizer-ci.com/docs/integration/chrome-extension

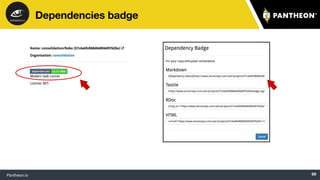

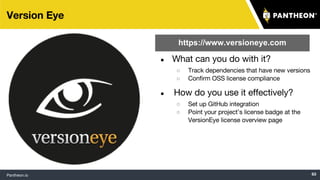

63. ●
○
○
●
○
○

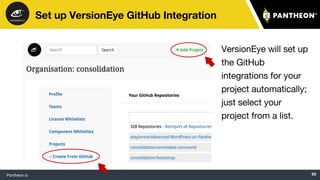

https://www.versioneye.com

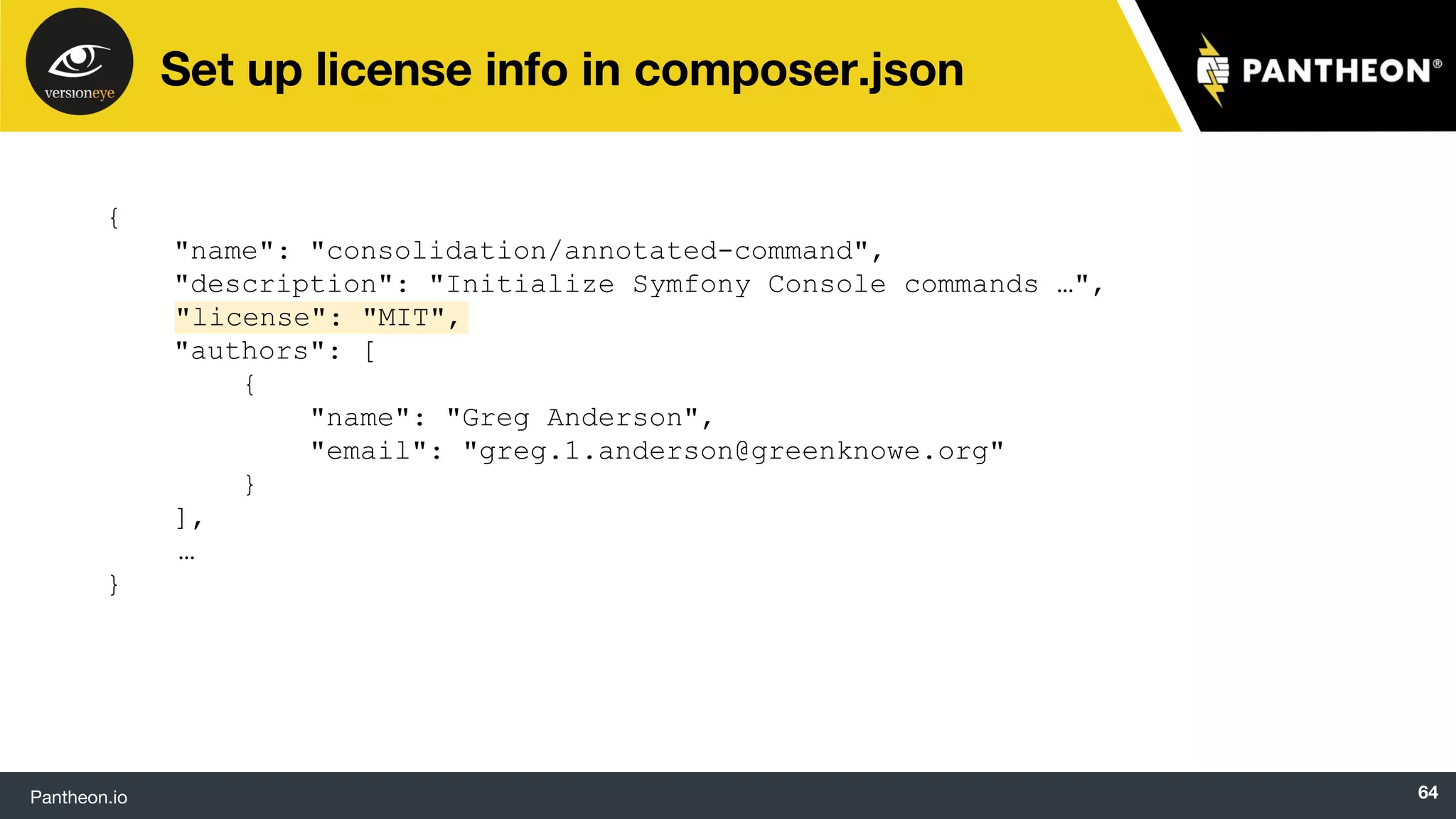

64. {
"name": "consolidation/annotated-command",
"description": "Initialize Symfony Console commands …",
"license": "MIT",
"authors": [
{
"name": "Greg Anderson",
"email": "greg.1.anderson@greenknowe.org"
}
],
…
}

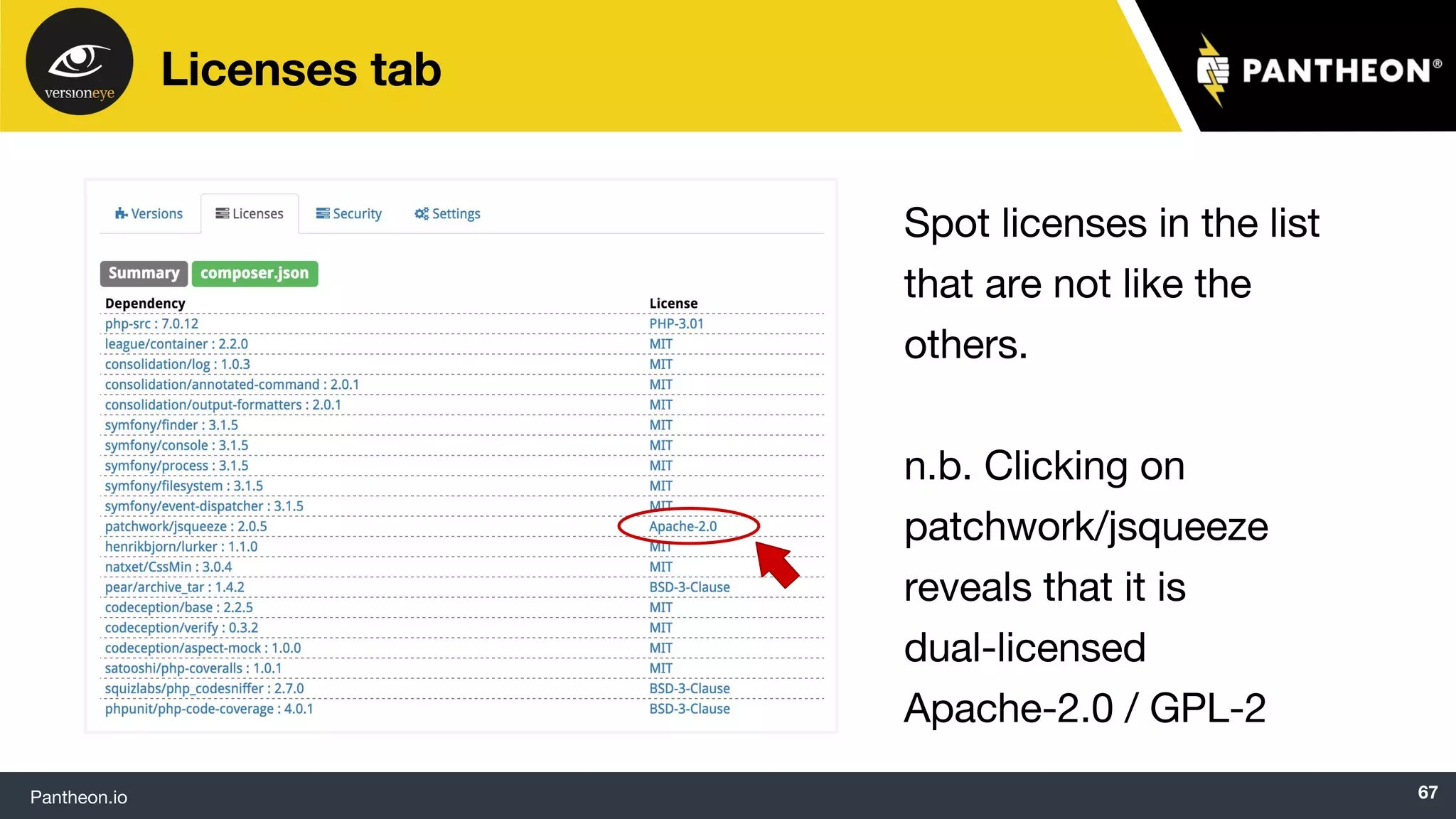

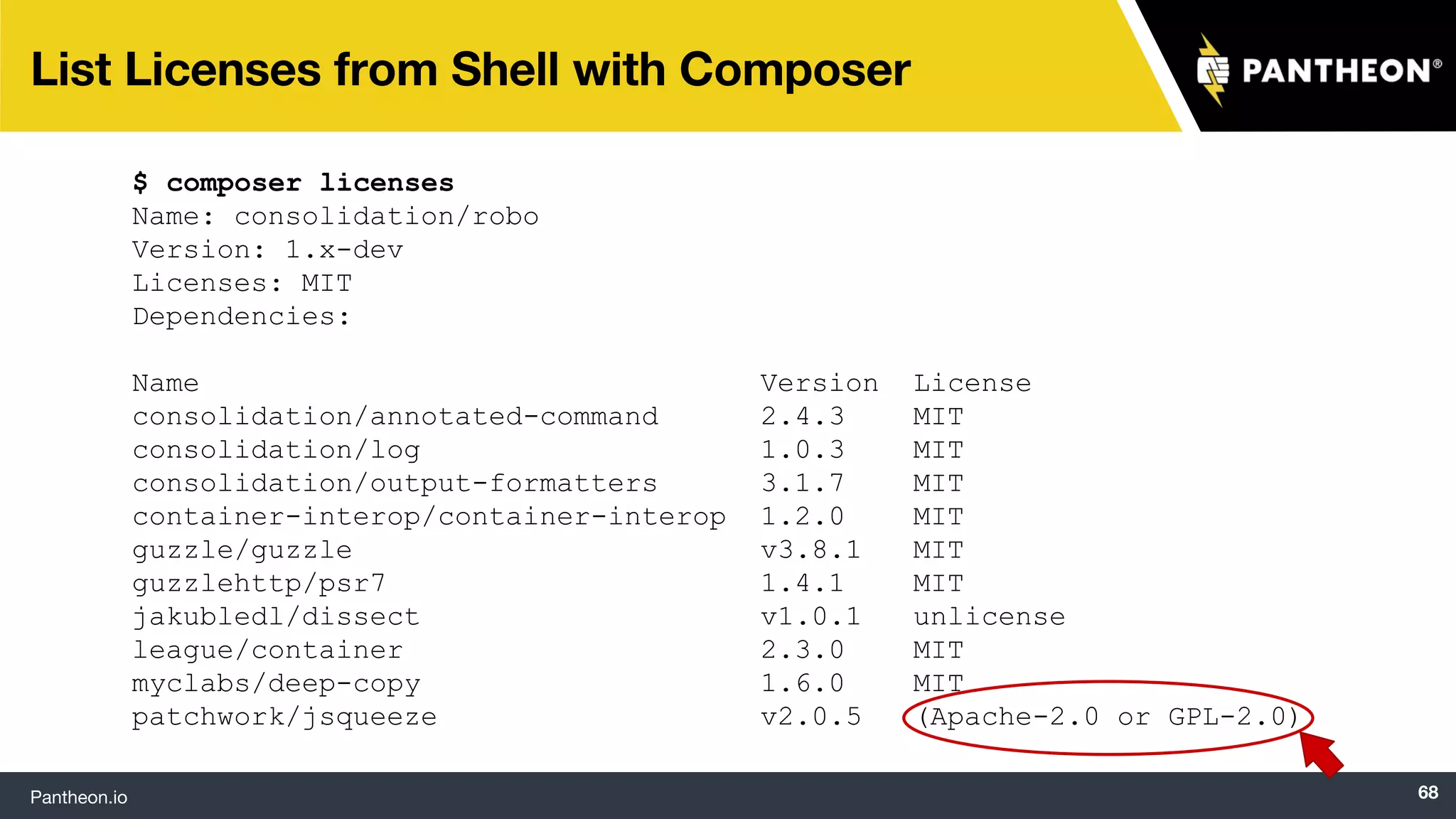

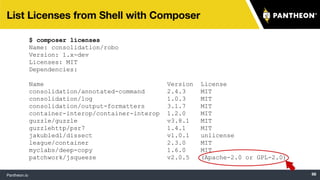

68. $ composer licenses
Name: consolidation/robo
Version: 1.x-dev
Licenses: MIT
Dependencies:
Name Version License
consolidation/annotated-command 2.4.3 MIT
consolidation/log 1.0.3 MIT
consolidation/output-formatters 3.1.7 MIT
container-interop/container-interop 1.2.0 MIT
guzzle/guzzle v3.8.1 MIT
guzzlehttp/psr7 1.4.1 MIT
jakubledl/dissect v1.0.1 unlicense
league/container 2.3.0 MIT
myclabs/deep-copy 1.6.0 MIT
patchwork/jsqueeze v2.0.5 (Apache-2.0 or GPL-2.0)

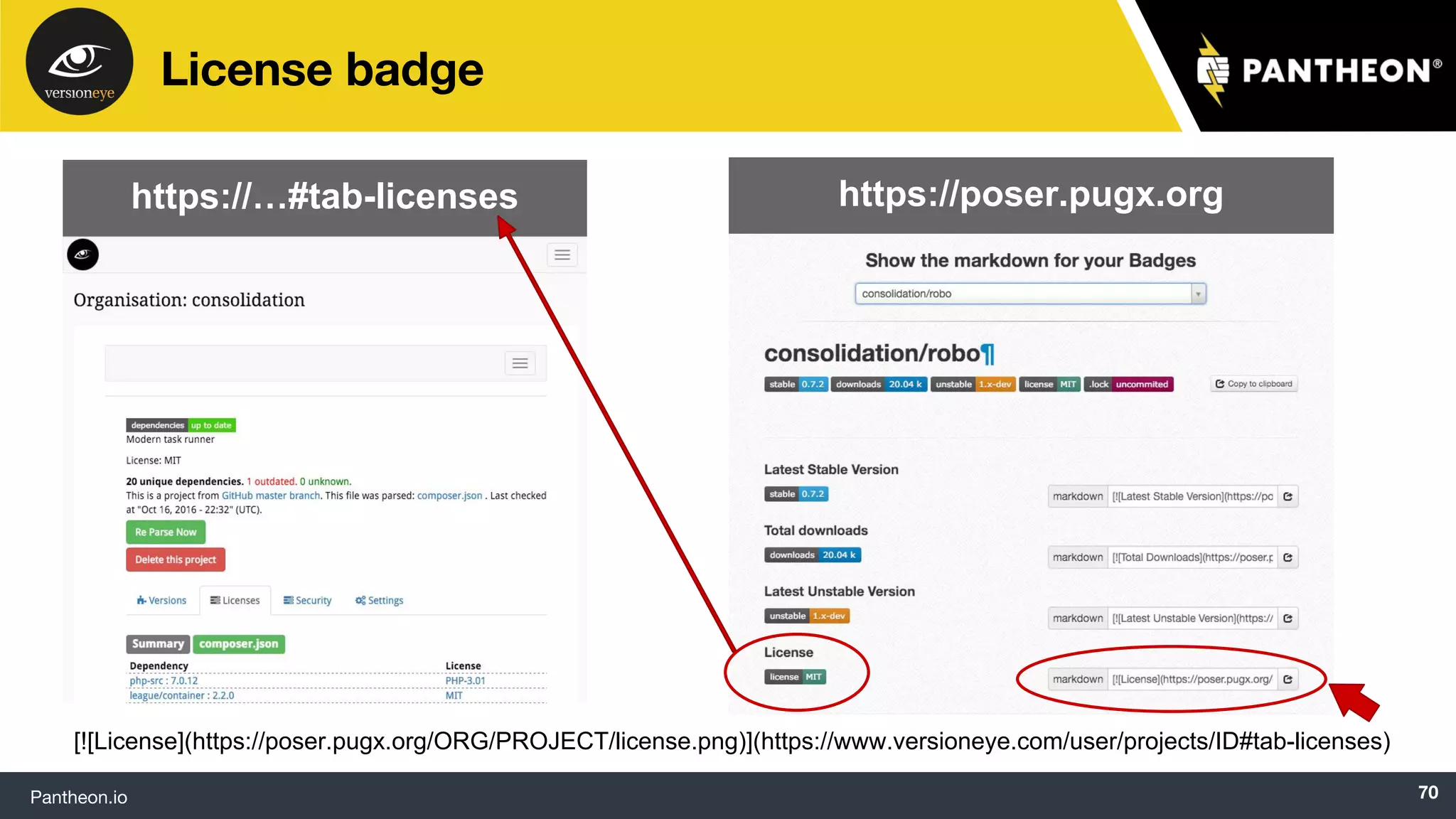

70. https://poser.pugx.orghttps://…#tab-licenses
[](https://www.versioneye.com/user/projects/ID#tab-licenses)

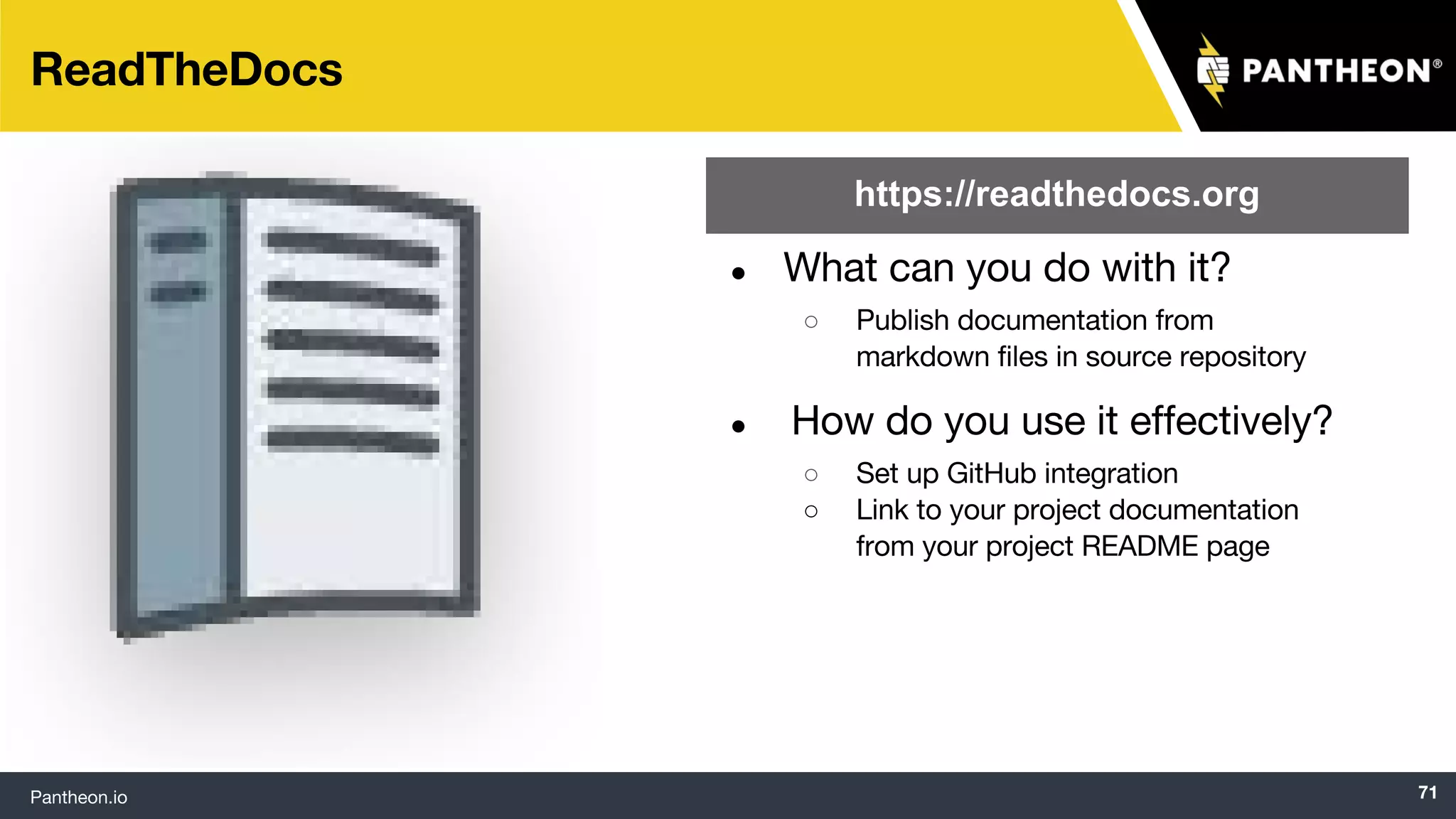

71. ●
○
●
○
○
https://readthedocs.org

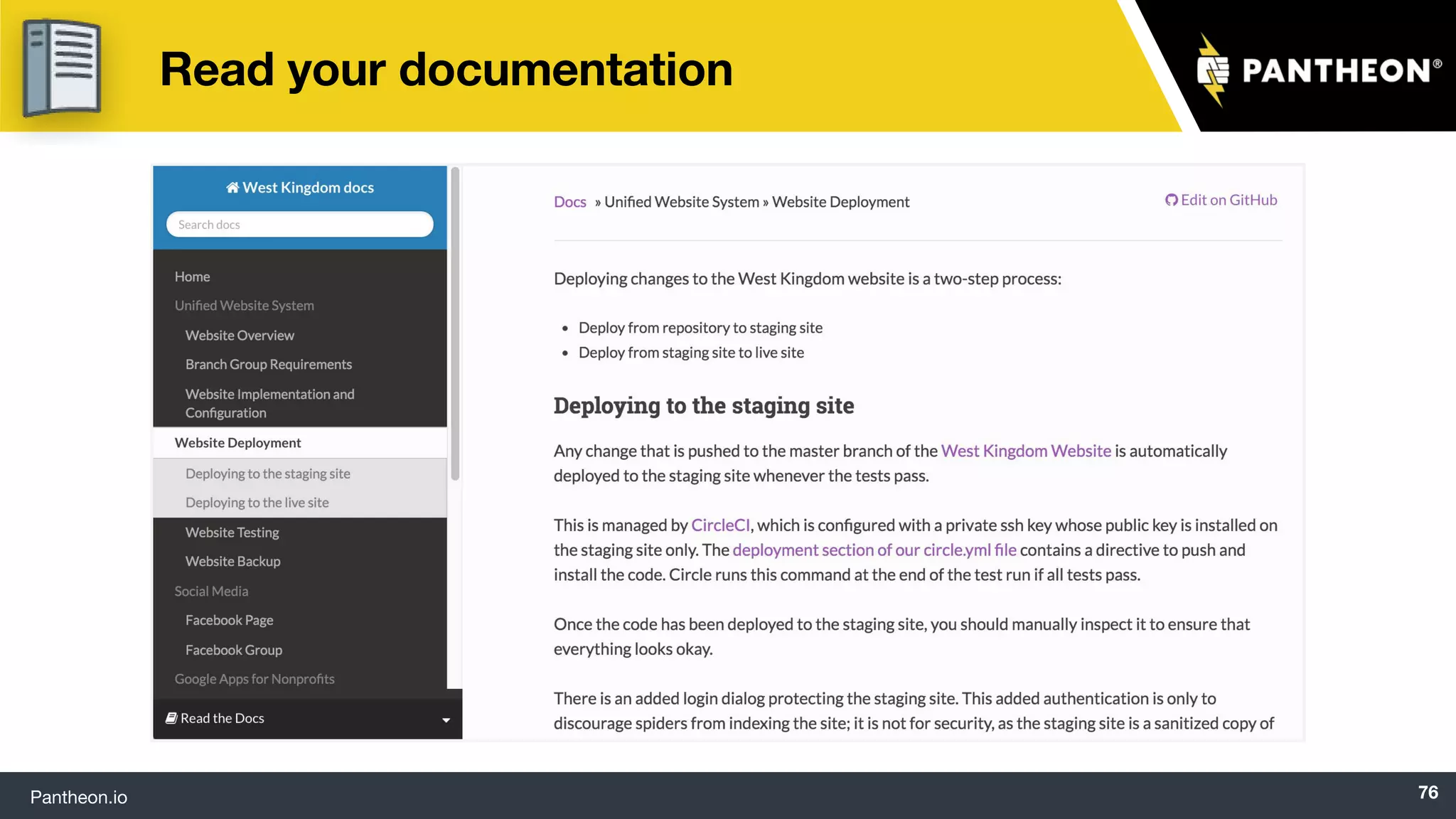

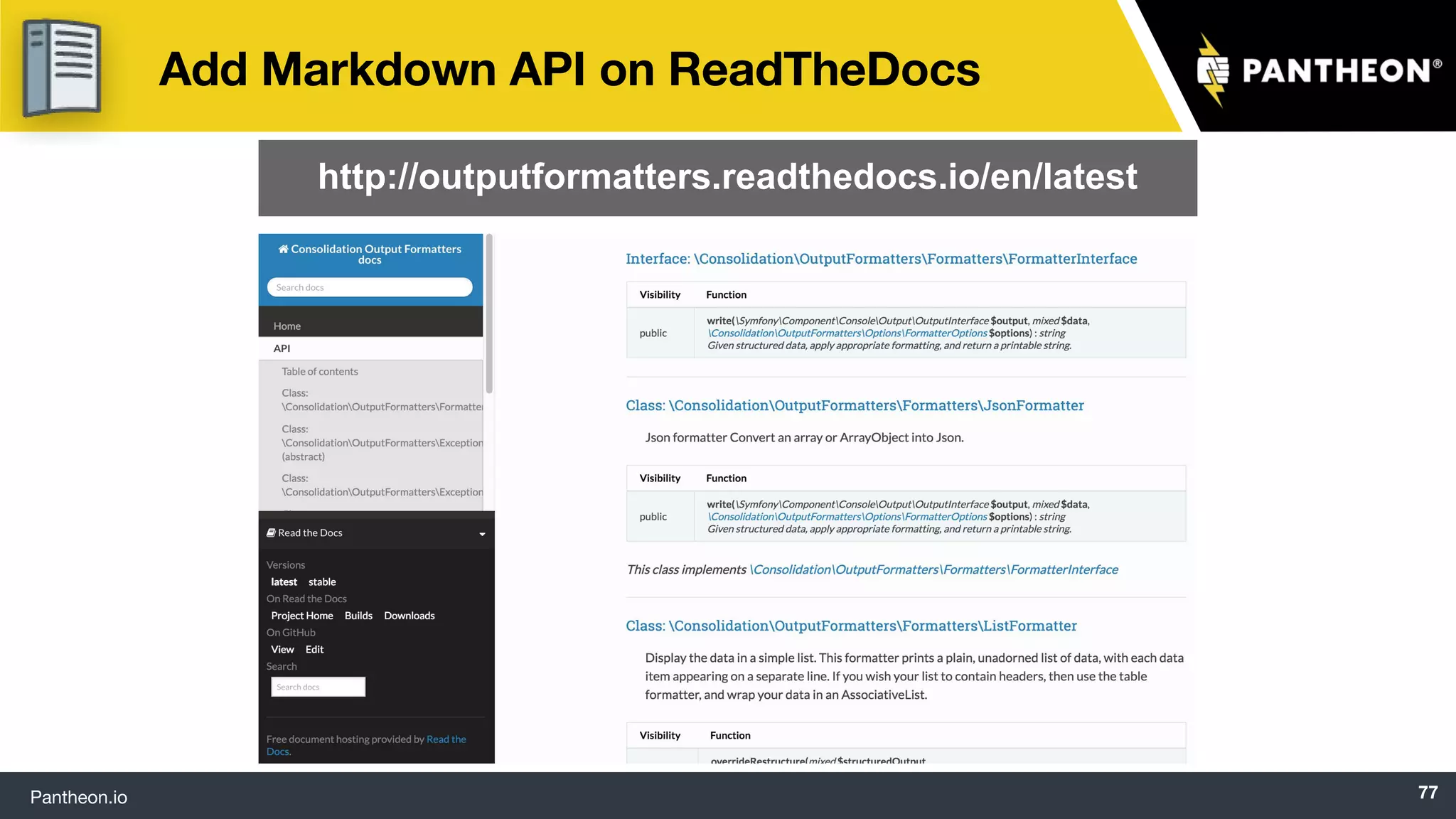

77. http://outputformatters.readthedocs.io/en/latest

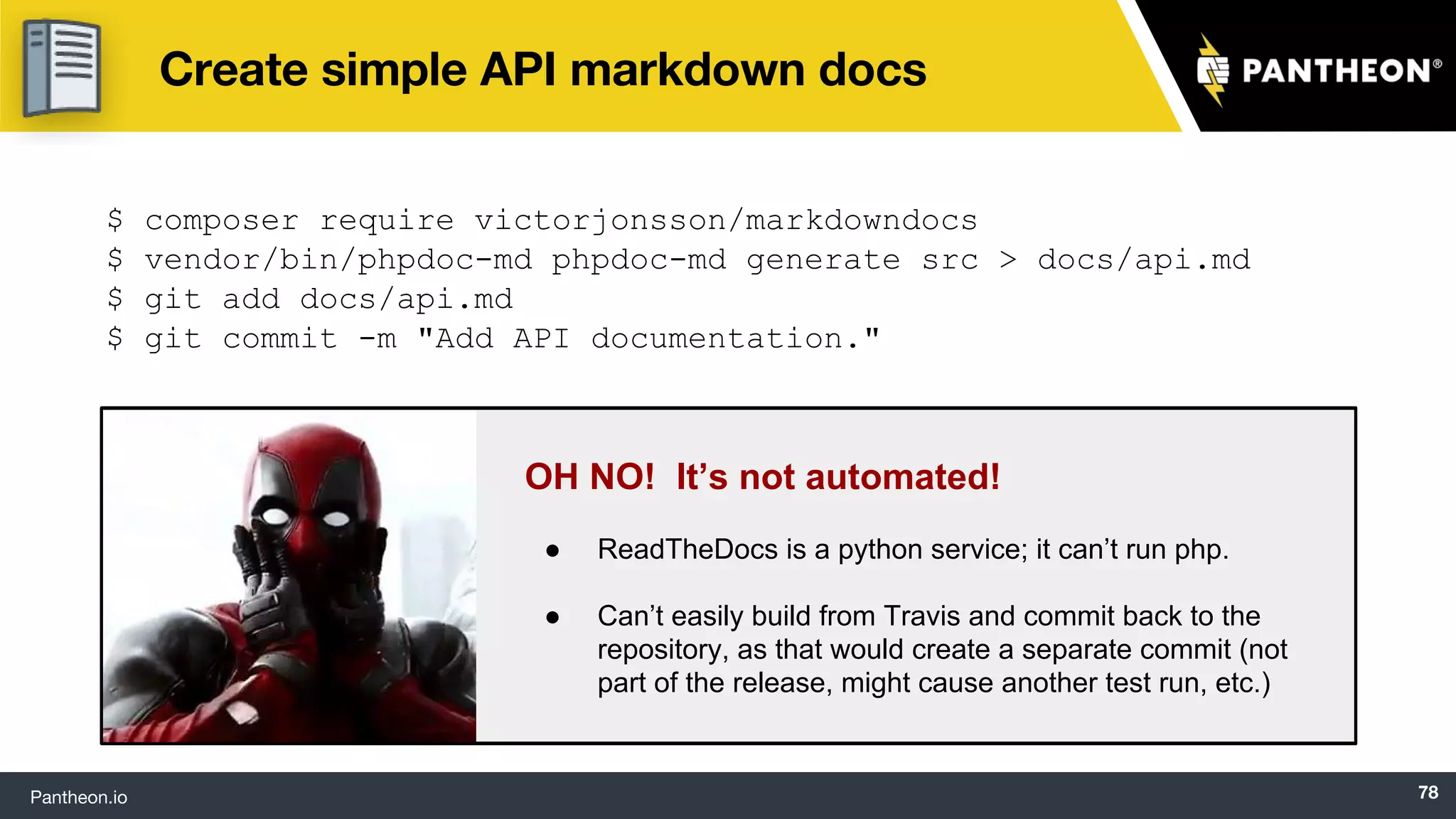

78. $ composer require victorjonsson/markdowndocs
$ vendor/bin/phpdoc-md phpdoc-md generate src > docs/api.md
$ git add docs/api.md
$ git commit -m "Add API documentation."
OH NO! It’s not automated!
● ReadTheDocs is a python service; it can’t run php.
● Can’t easily build from Travis and commit back to the
repository, as that would create a separate commit (not
part of the release, might cause another test run, etc.)

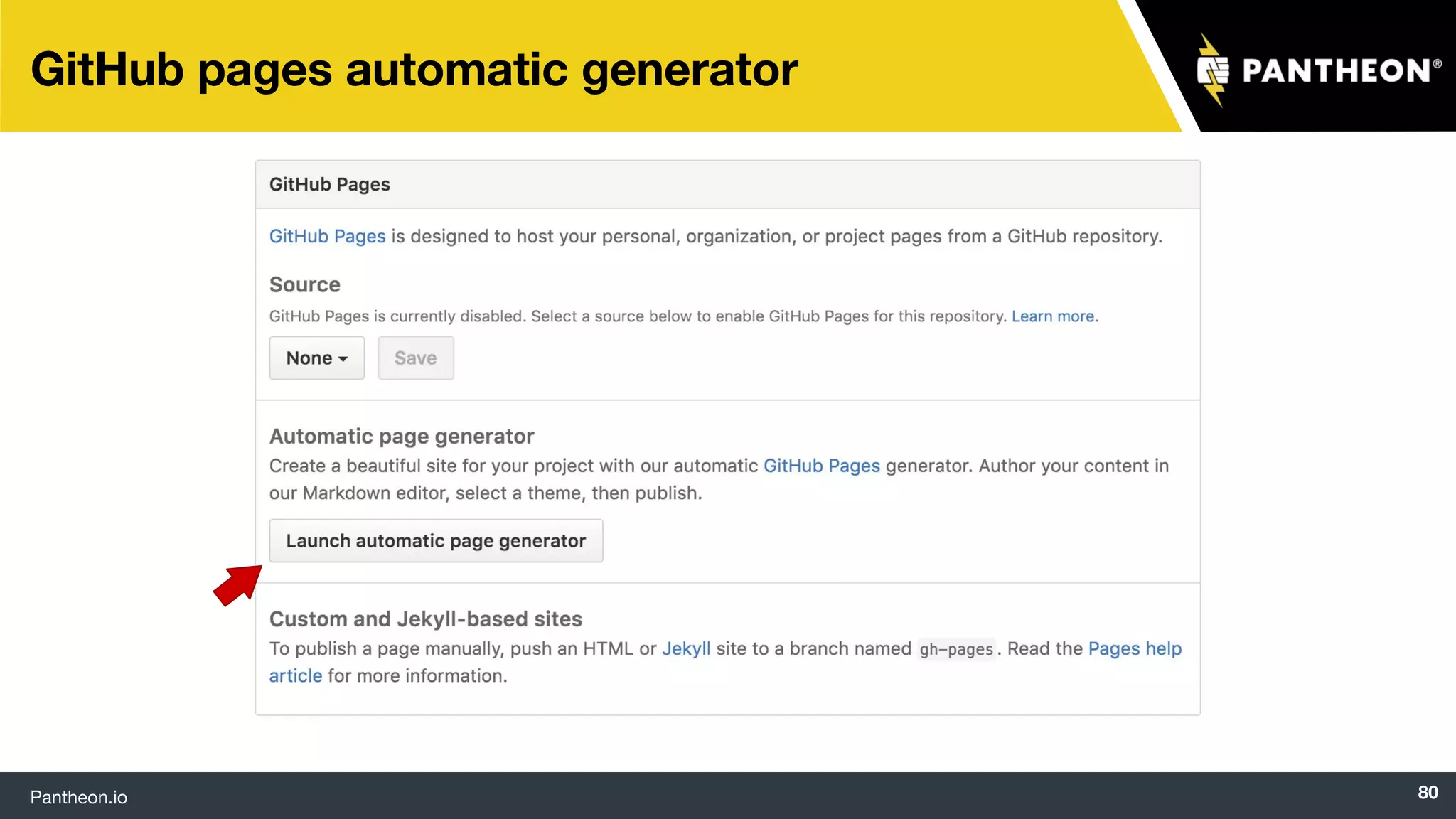

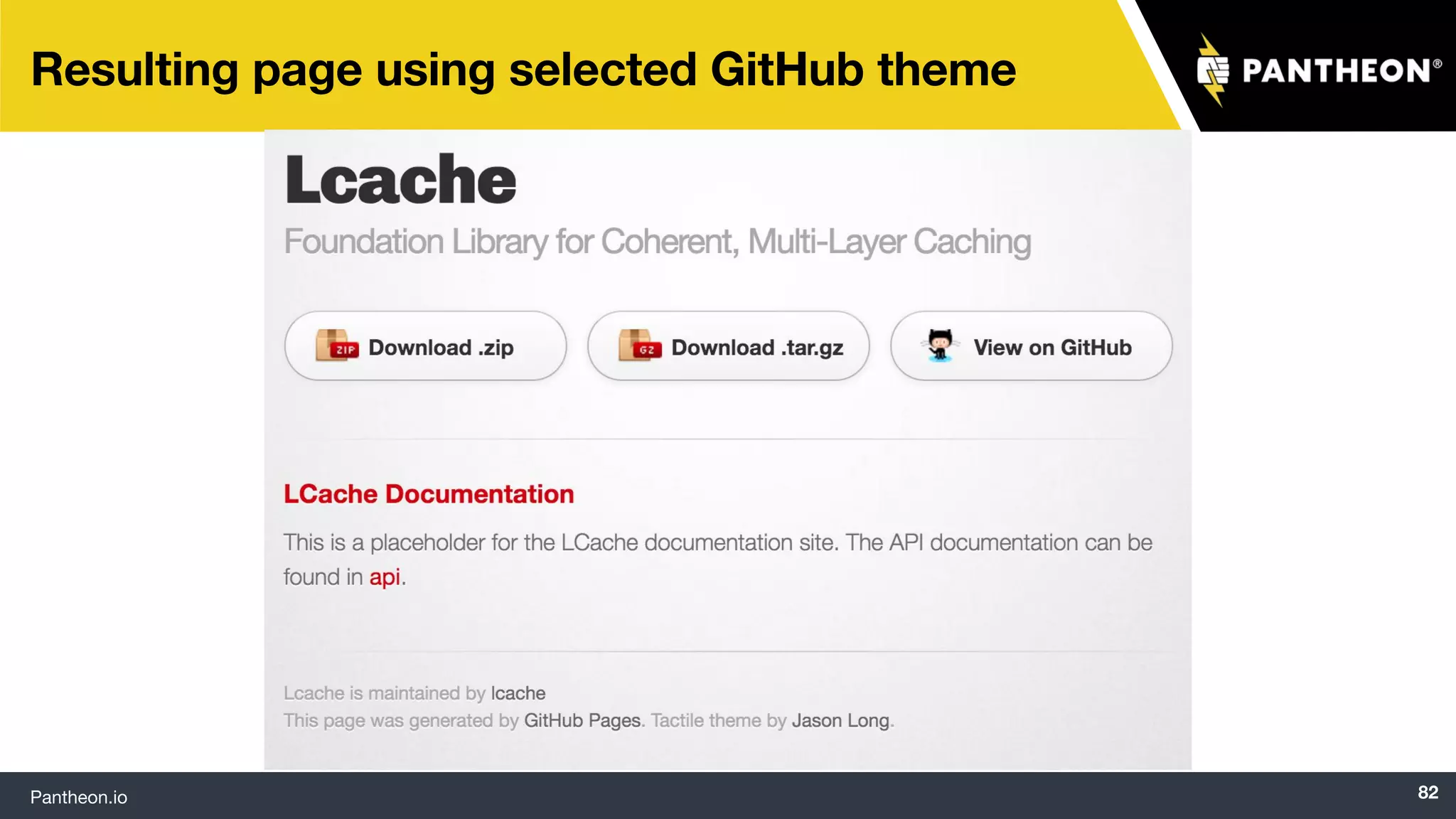

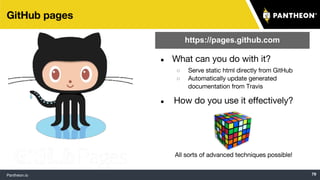

79. ●
○
○
●

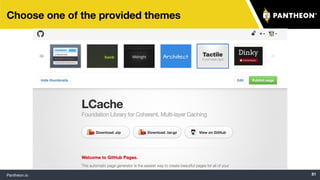

https://pages.github.com

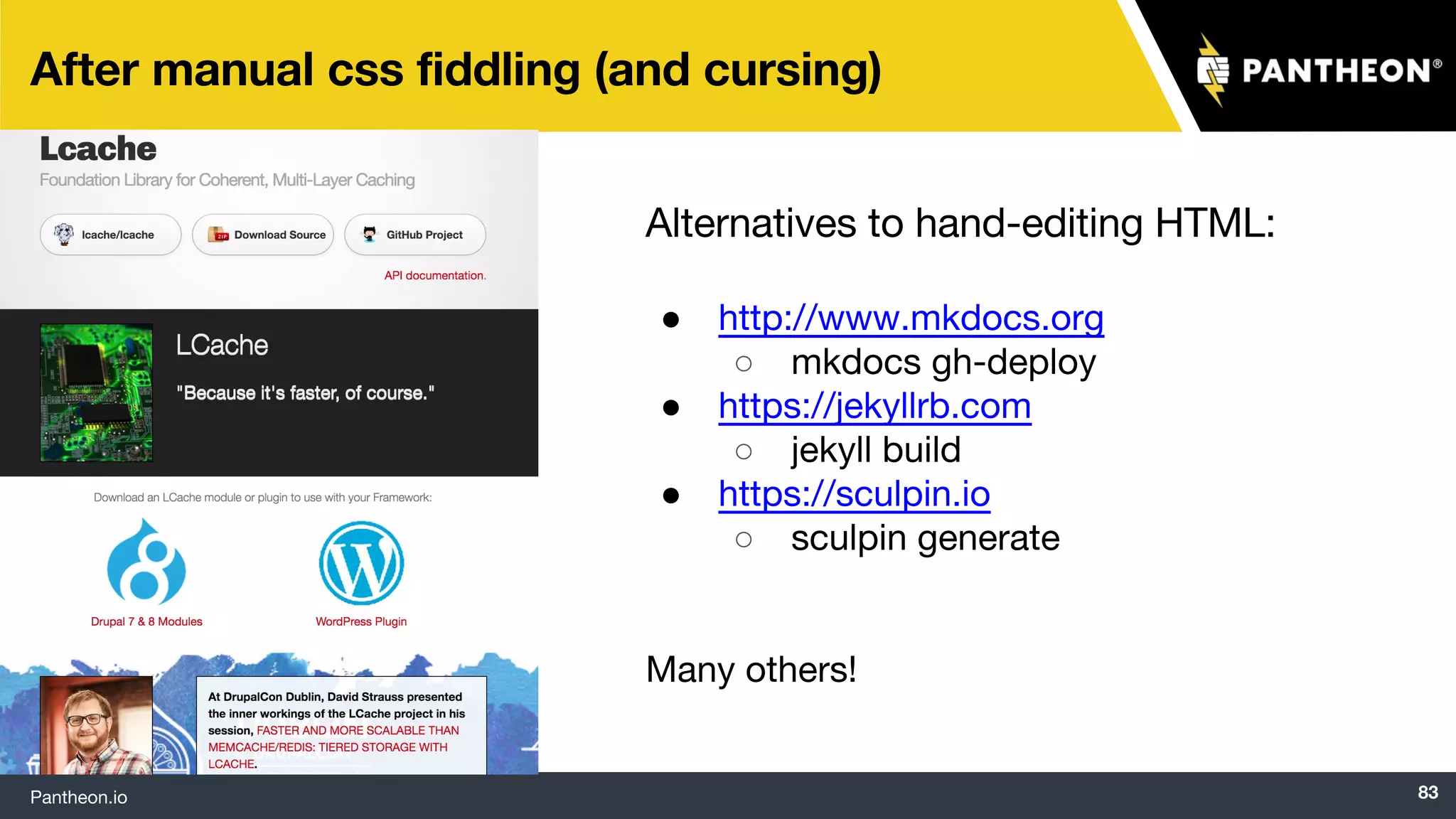

83. ●
○
●
○
●
○

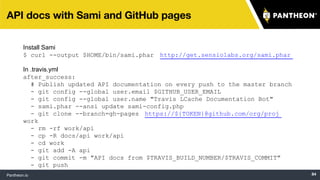

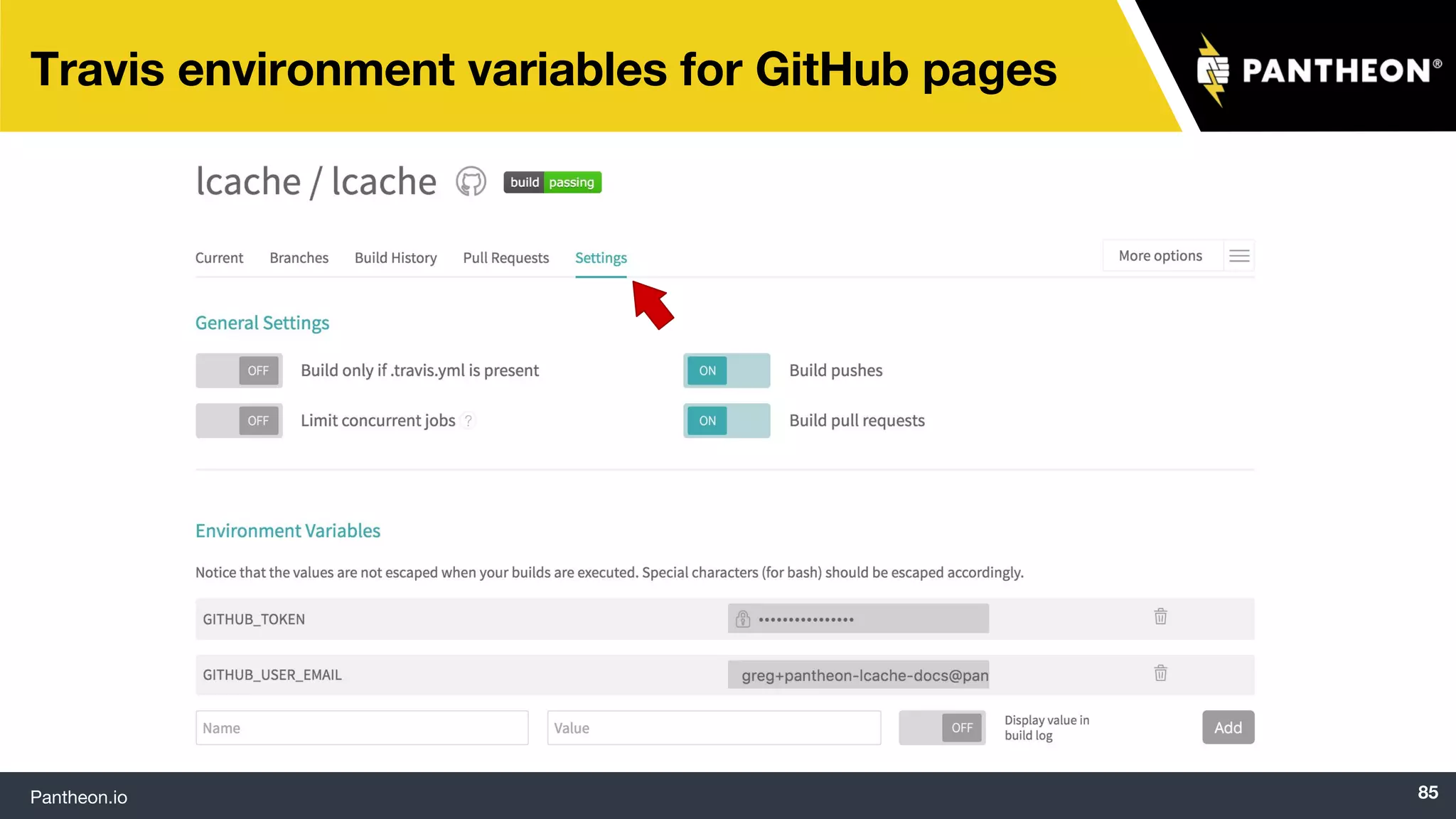

84. Install Sami
$ curl --output $HOME/bin/sami.phar http://get.sensiolabs.org/sami.phar
In .travis.yml
after_success:
# Publish updated API documentation on every push to the master branch
- git config --global user.email $GITHUB_USER_EMAIL
- git config --global user.name "Travis LCache Documentation Bot"
- sami.phar --ansi update sami-config.php
- git clone --branch=gh-pages https://${TOKEN}@github.com/org/proj
work
- rm -rf work/api
- cp -R docs/api work/api
- cd work
- git add -A api
- git commit -m "API docs from $TRAVIS_BUILD_NUMBER/$TRAVIS_COMMIT"
- git push

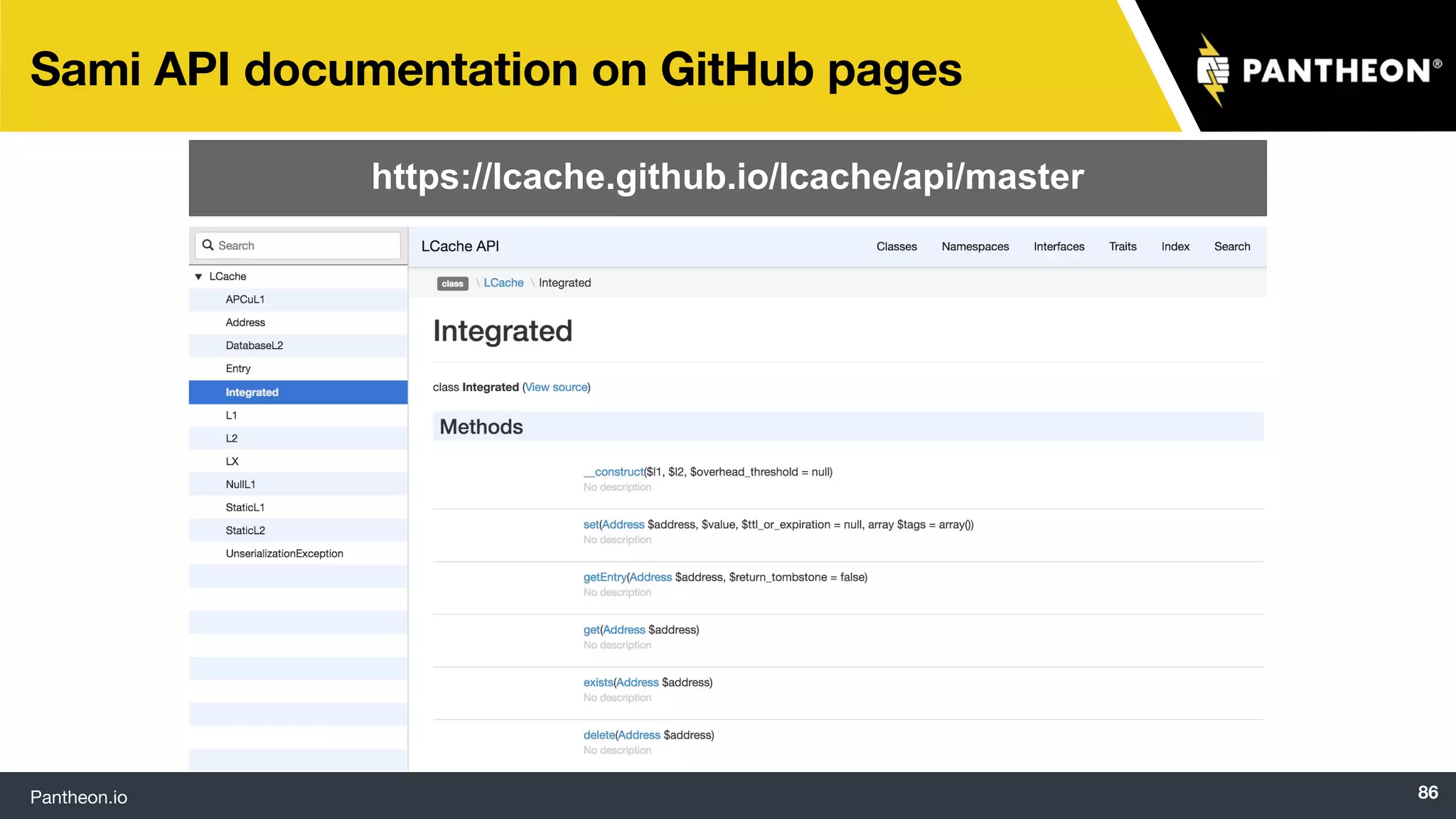

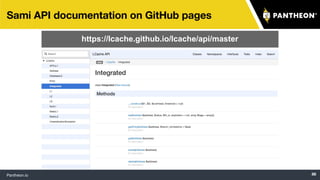

86. https://lcache.github.io/lcache/api/master
