1. PHP
Development Tools

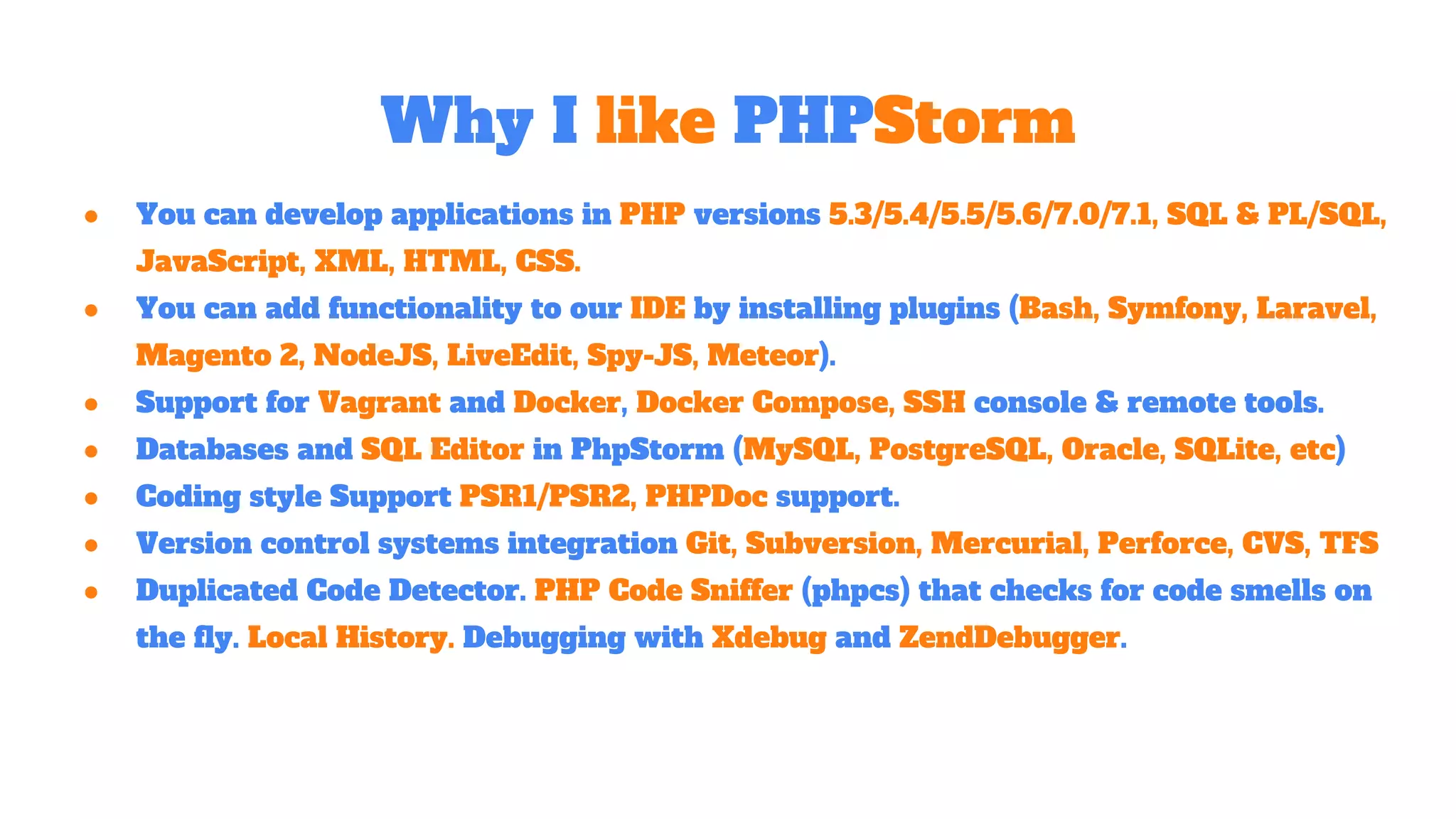

2. Why I like PHPStorm
● You can develop applications in PHP versions 5.3/5.4/5.5/5.6/7.0/7.1, SQL & PL/SQL,
JavaScript, XML, HTML, CSS.
● You can add functionality to our IDE by installing plugins (Bash, Symfony, Laravel,
Magento 2, NodeJS, LiveEdit, Spy-JS, Meteor).
● Support for Vagrant and Docker, Docker Compose, SSH console & remote tools.
● Databases and SQL Editor in PhpStorm (MySQL, PostgreSQL, Oracle, SQLite, etc)
● Coding style Support PSR1/PSR2, PHPDoc support.
● Version control systems integration Git, Subversion, Mercurial, Perforce, CVS, TFS
● Duplicated Code Detector. PHP Code Sniffer (phpcs) that checks for code smells on
the fly. Local History. Debugging with Xdebug and ZendDebugger.

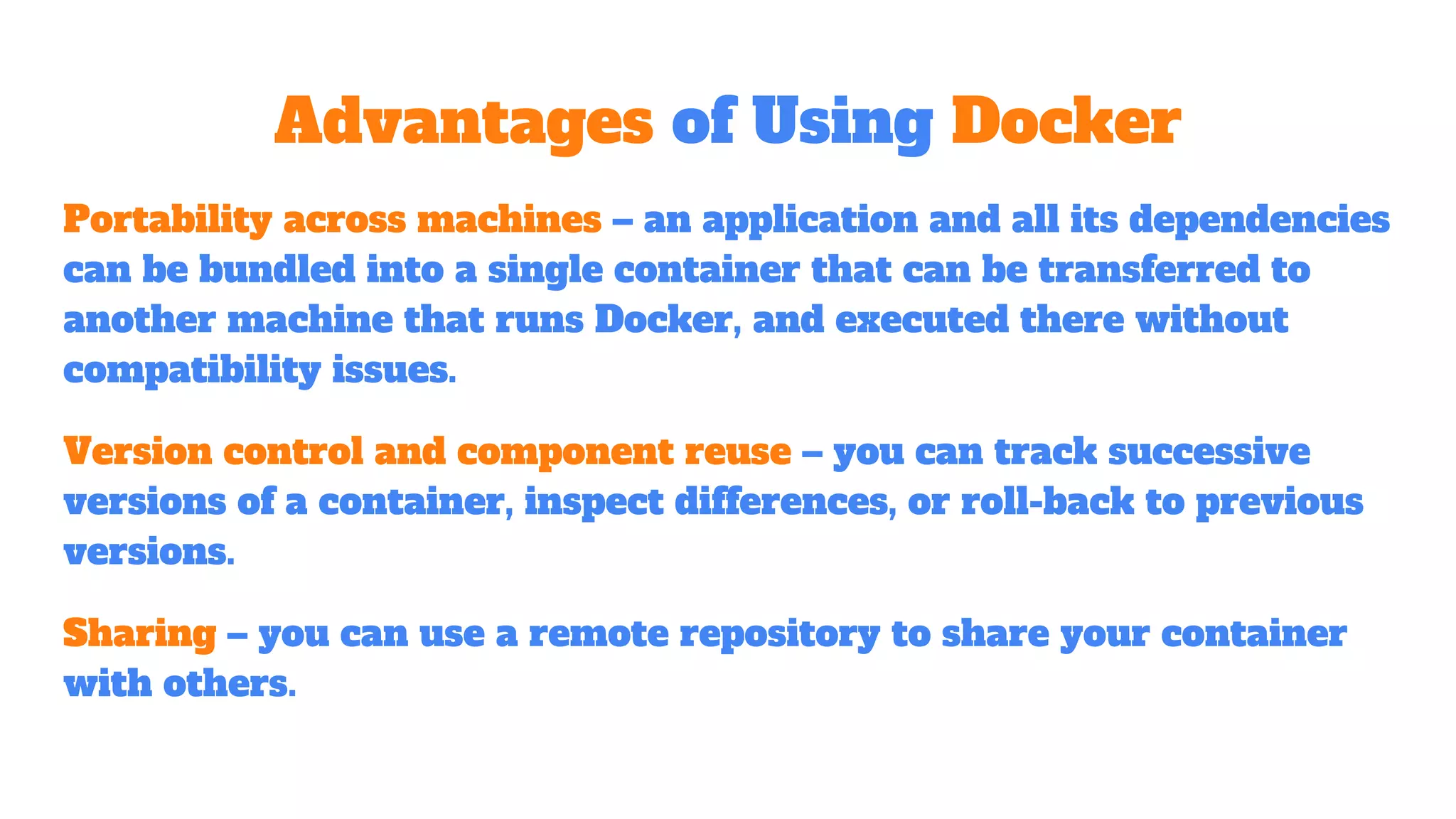

3. Advantages of Using Docker
Portability across machines – an application and all its dependencies
can be bundled into a single container that can be transferred to
another machine that runs Docker, and executed there without
compatibility issues.
Version control and component reuse – you can track successive
versions of a container, inspect differences, or roll-back to previous
versions.
Sharing – you can use a remote repository to share your container
with others.

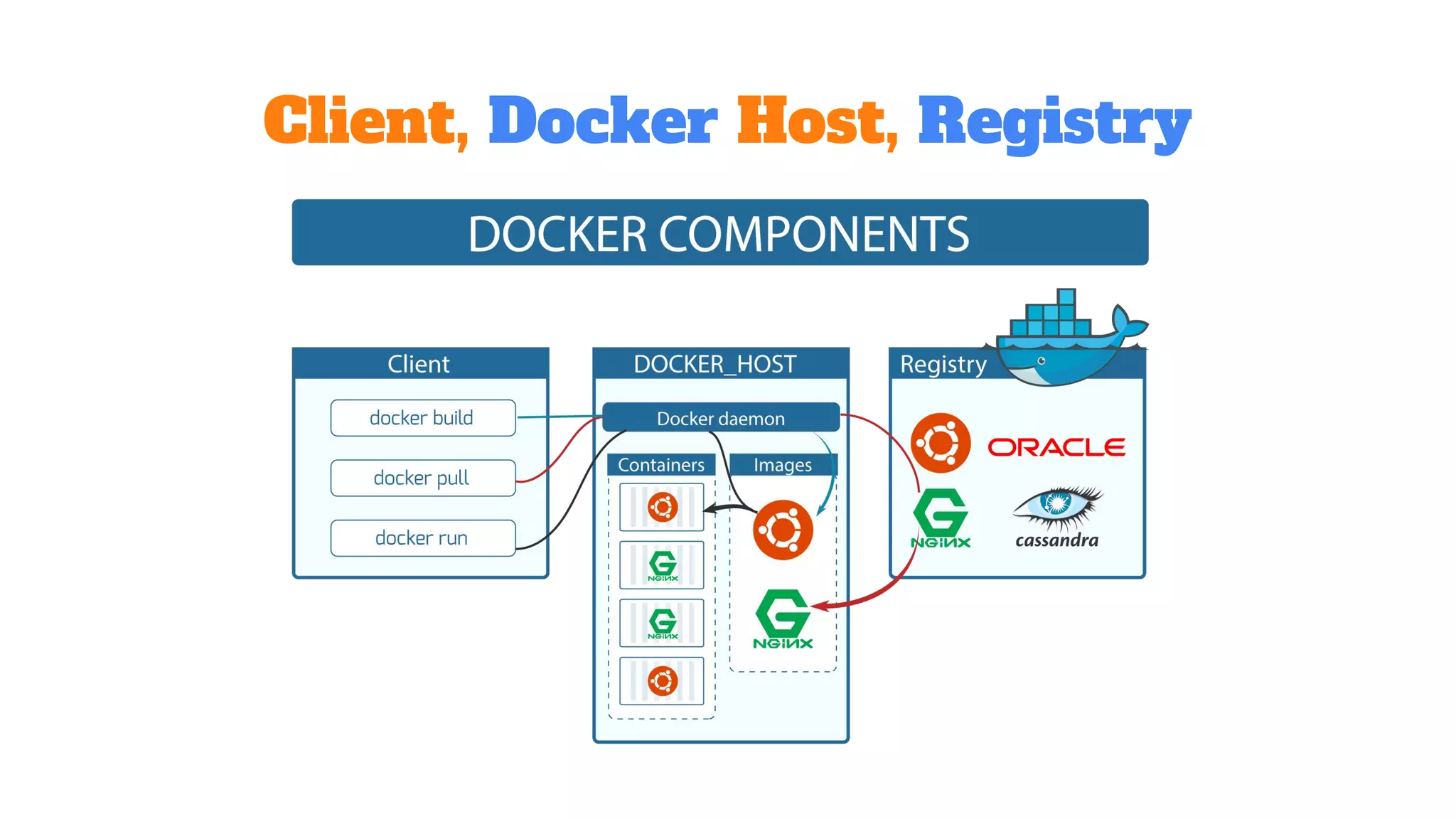

4. Client, Docker Host, Registry

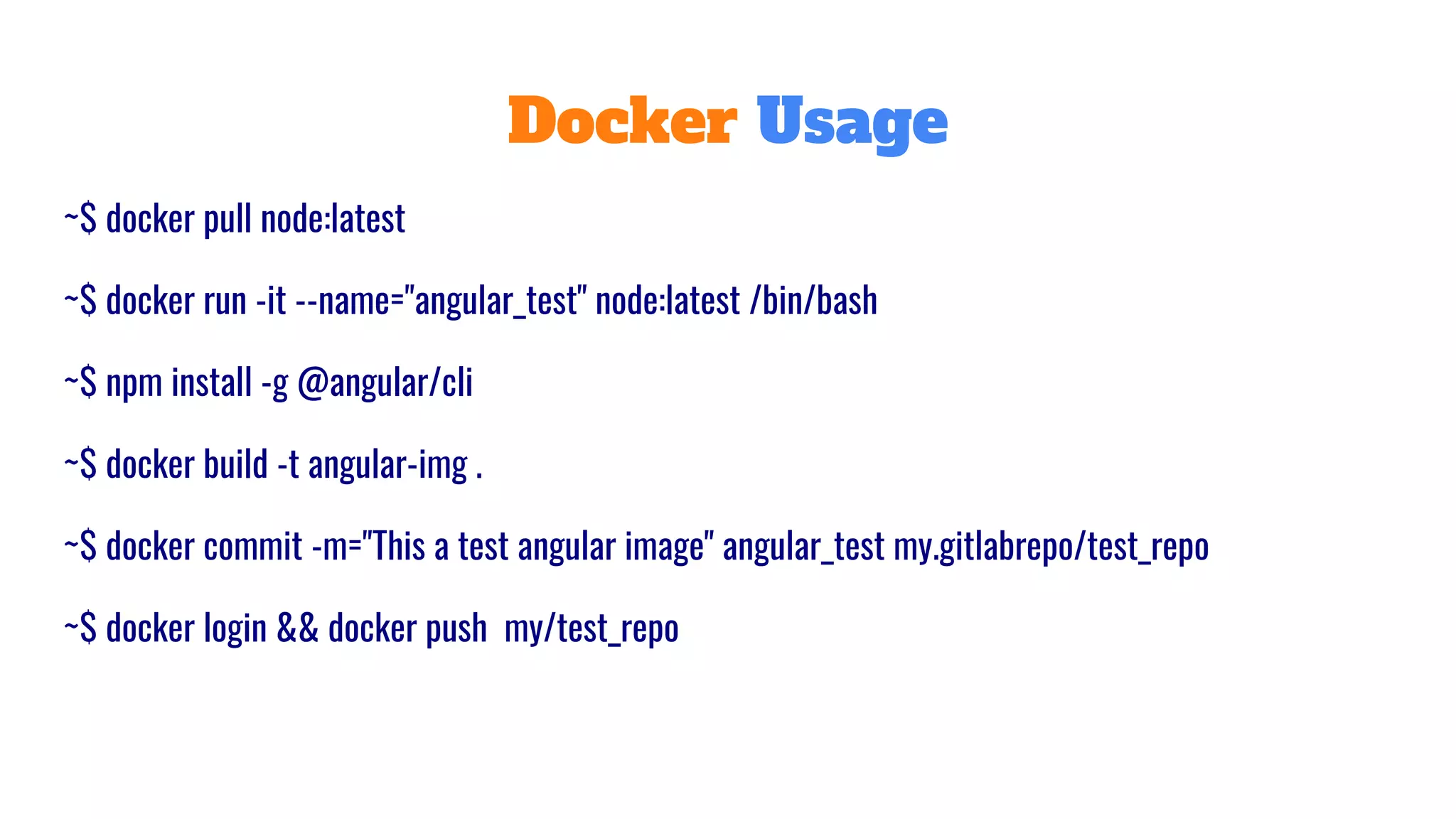

5. Docker Usage
~$ docker pull node:latest
~$ docker run -it --name="angular_test" node:latest /bin/bash
~$ npm install -g @angular/cli
~$ docker build -t angular-img .
~$ docker commit -m="This a test angular image" angular_test my.gitlabrepo/test_repo
~$ docker login && docker push my/test_repo

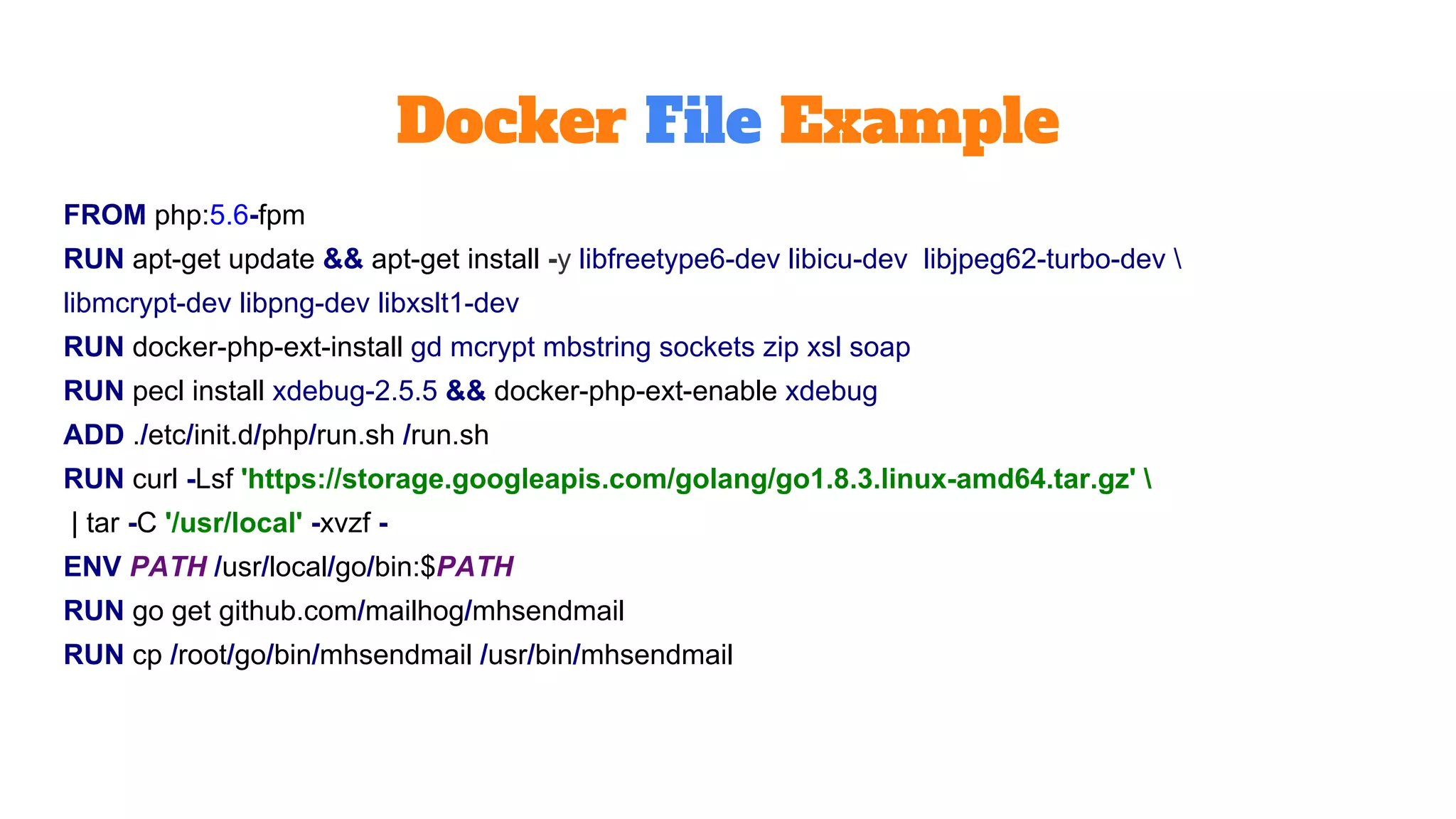

6. Docker File Example
FROM php:5.6-fpm
RUN apt-get update && apt-get install -y libfreetype6-dev libicu-dev libjpeg62-turbo-dev
libmcrypt-dev libpng-dev libxslt1-dev
RUN docker-php-ext-install gd mcrypt mbstring sockets zip xsl soap
RUN pecl install xdebug-2.5.5 && docker-php-ext-enable xdebug
ADD ./etc/init.d/php/run.sh /run.sh
RUN curl -Lsf 'https://storage.googleapis.com/golang/go1.8.3.linux-amd64.tar.gz'
| tar -C '/usr/local' -xvzf -
ENV PATH /usr/local/go/bin:$PATH
RUN go get github.com/mailhog/mhsendmail
RUN cp /root/go/bin/mhsendmail /usr/bin/mhsendmail

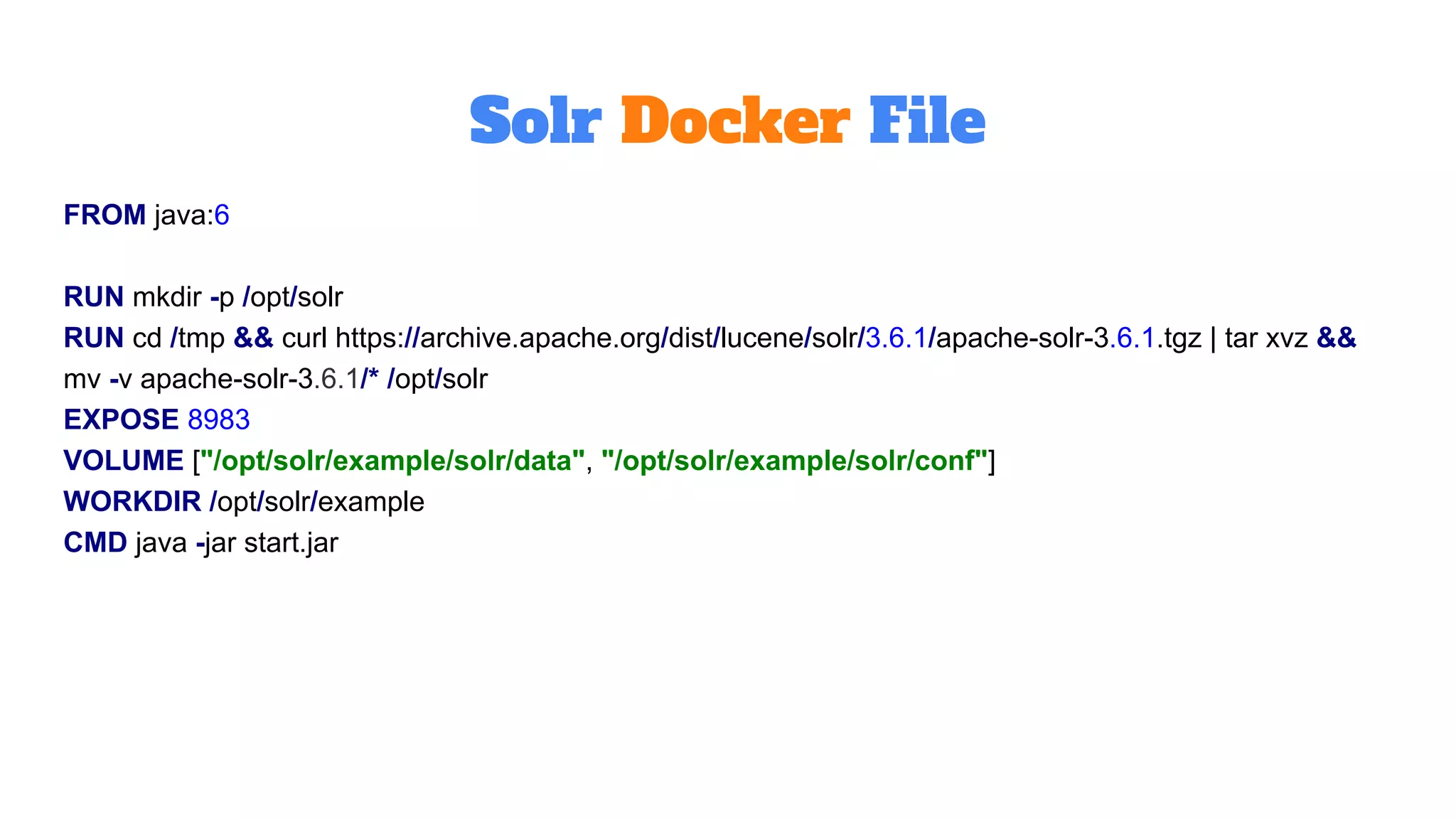

7. Solr Docker File
FROM java:6
RUN mkdir -p /opt/solr
RUN cd /tmp && curl https://archive.apache.org/dist/lucene/solr/3.6.1/apache-solr-3.6.1.tgz | tar xvz &&
mv -v apache-solr-3.6.1/* /opt/solr
EXPOSE 8983
VOLUME ["/opt/solr/example/solr/data", "/opt/solr/example/solr/conf"]
WORKDIR /opt/solr/example
CMD java -jar start.jar

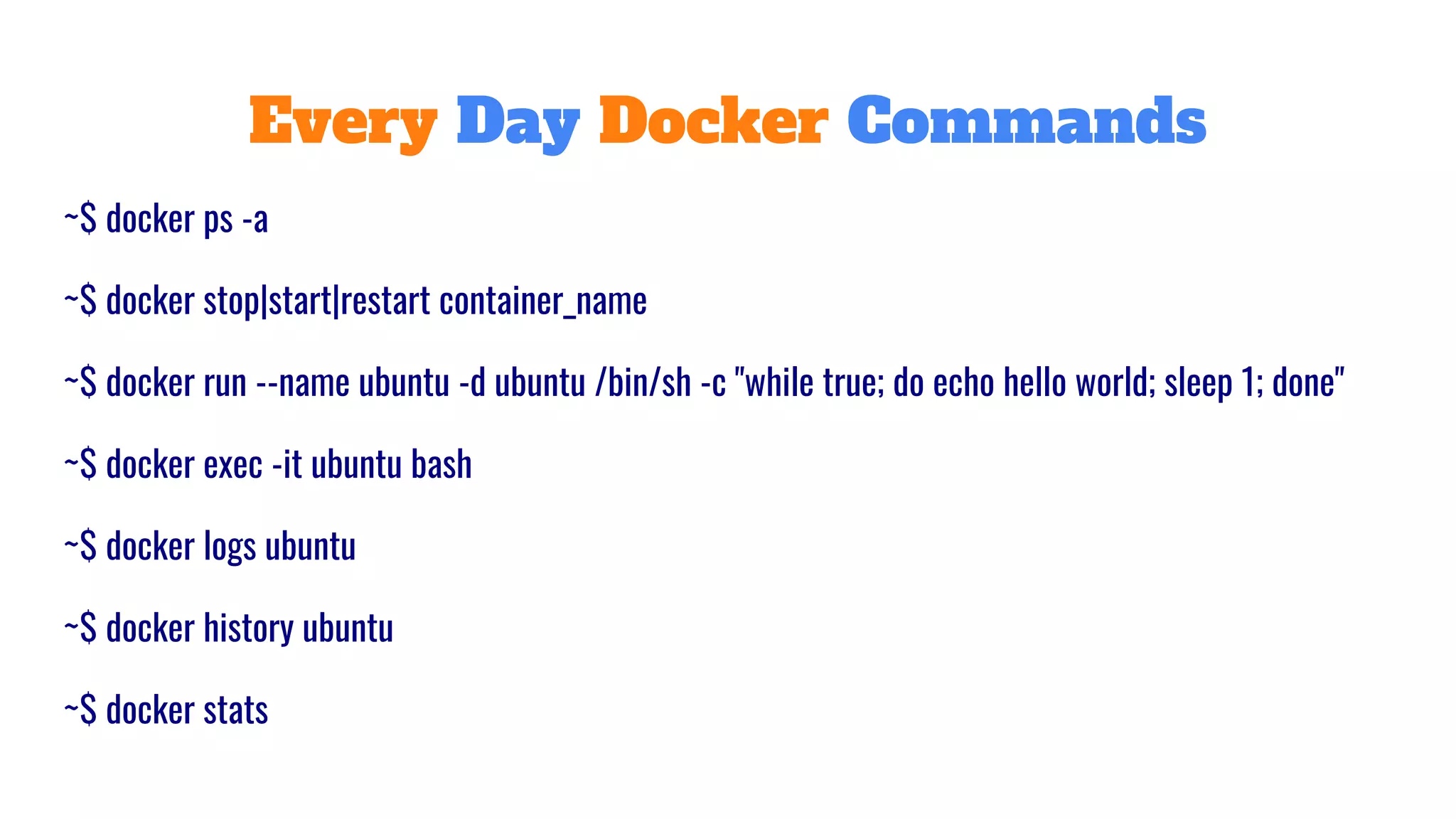

8. Every Day Docker Commands
~$ docker ps -a
~$ docker stop|start|restart container_name
~$ docker run --name ubuntu -d ubuntu /bin/sh -c "while true; do echo hello world; sleep 1; done"
~$ docker exec -it ubuntu bash
~$ docker logs ubuntu
~$ docker history ubuntu
~$ docker stats

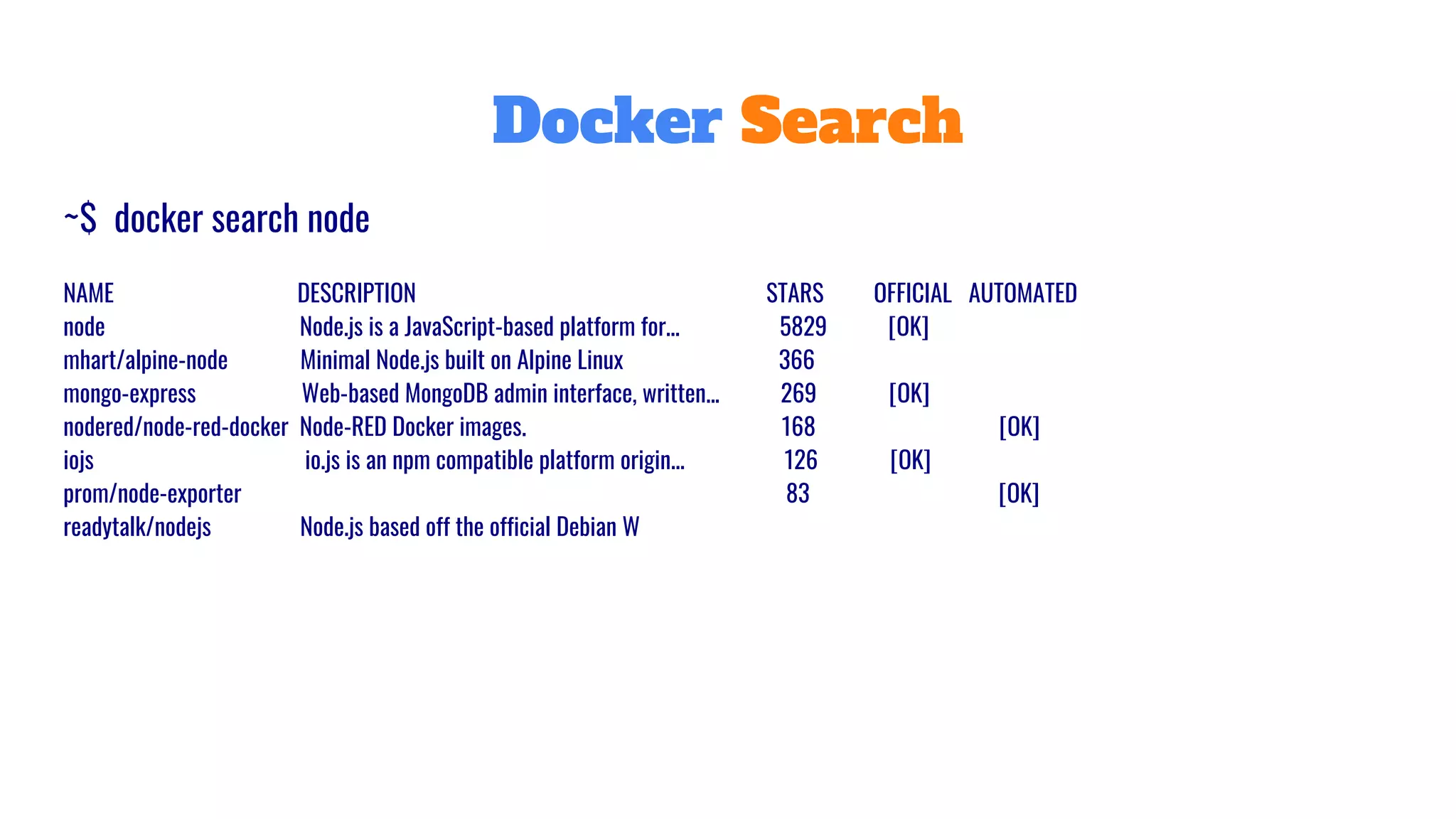

9. Docker Search
~$ docker search node
NAME DESCRIPTION STARS OFFICIAL AUTOMATED
node Node.js is a JavaScript-based platform for... 5829 [OK]
mhart/alpine-node Minimal Node.js built on Alpine Linux 366
mongo-express Web-based MongoDB admin interface, written... 269 [OK]
nodered/node-red-docker Node-RED Docker images. 168 [OK]
iojs io.js is an npm compatible platform origin... 126 [OK]
prom/node-exporter 83 [OK]
readytalk/nodejs Node.js based off the official Debian W

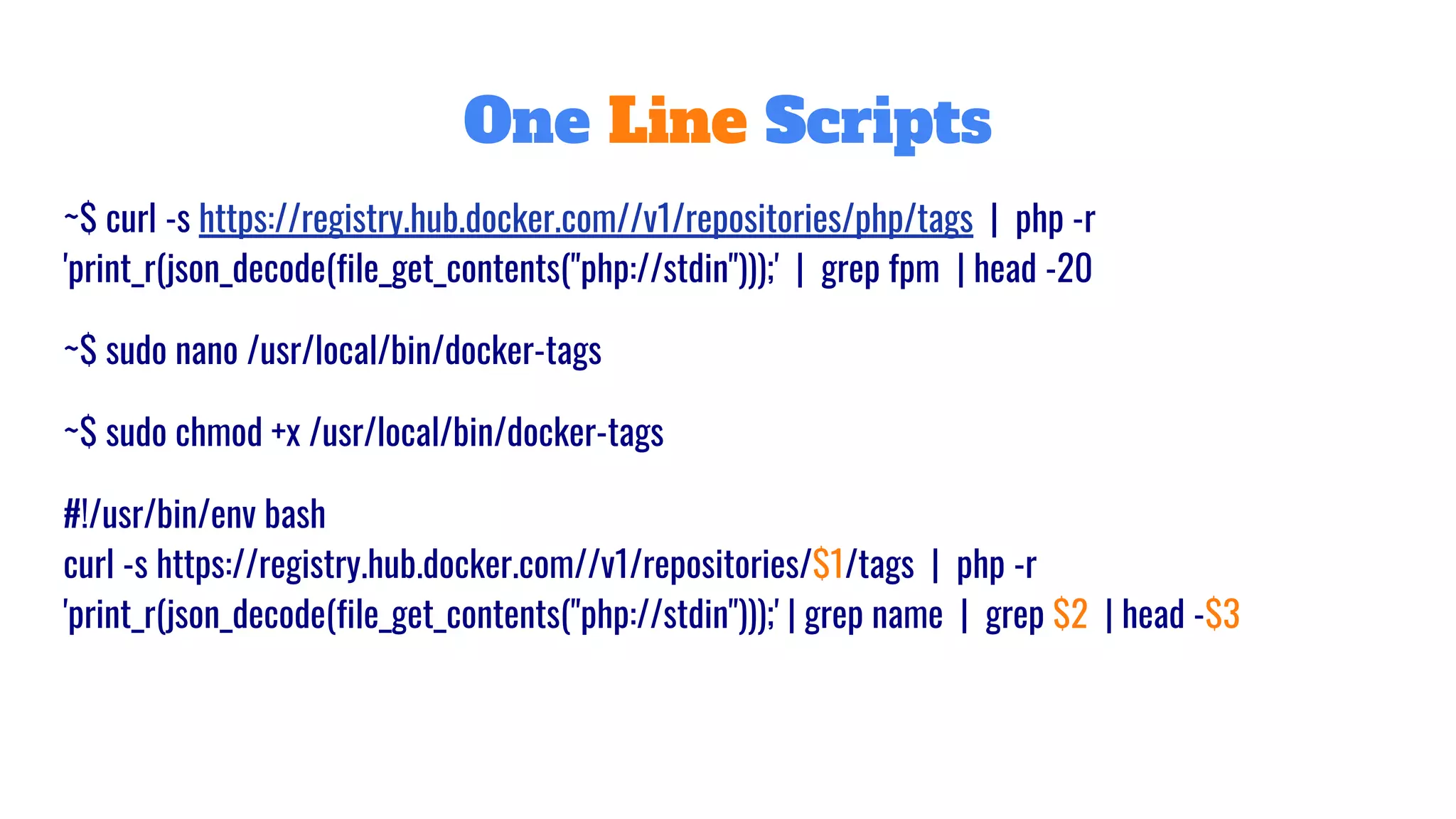

10. One Line Scripts
~$ curl -s https://registry.hub.docker.com//v1/repositories/php/tags | php -r
'print_r(json_decode(file_get_contents("php://stdin")));' | grep fpm | head -20
~$ sudo nano /usr/local/bin/docker-tags
~$ sudo chmod +x /usr/local/bin/docker-tags
#!/usr/bin/env bash
curl -s https://registry.hub.docker.com//v1/repositories/$1/tags | php -r
'print_r(json_decode(file_get_contents("php://stdin")));' | grep name | grep $2 | head -$3

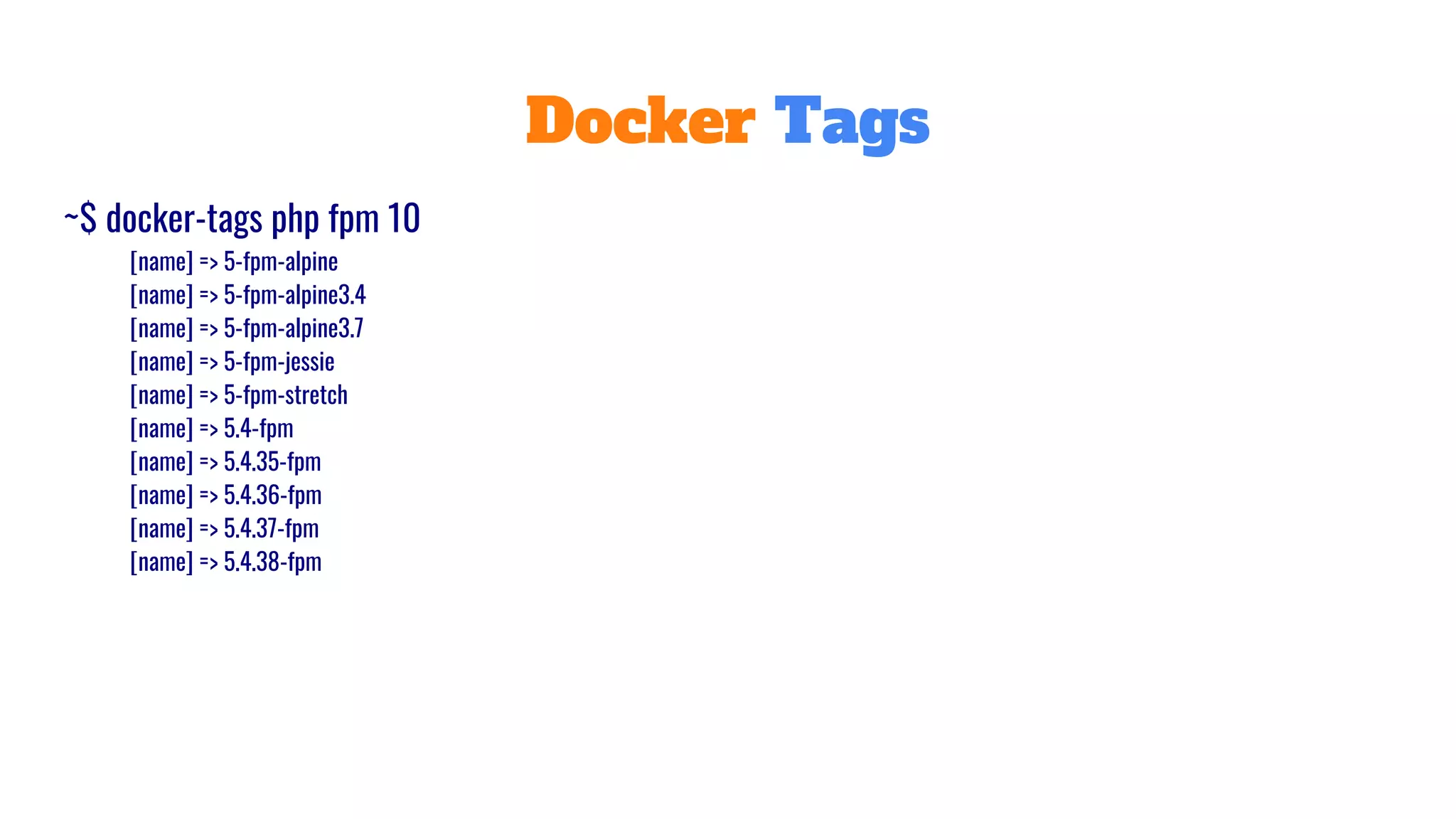

11. Docker Tags
~$ docker-tags php fpm 10
[name] => 5-fpm-alpine
[name] => 5-fpm-alpine3.4
[name] => 5-fpm-alpine3.7
[name] => 5-fpm-jessie
[name] => 5-fpm-stretch
[name] => 5.4-fpm
[name] => 5.4.35-fpm
[name] => 5.4.36-fpm
[name] => 5.4.37-fpm
[name] => 5.4.38-fpm

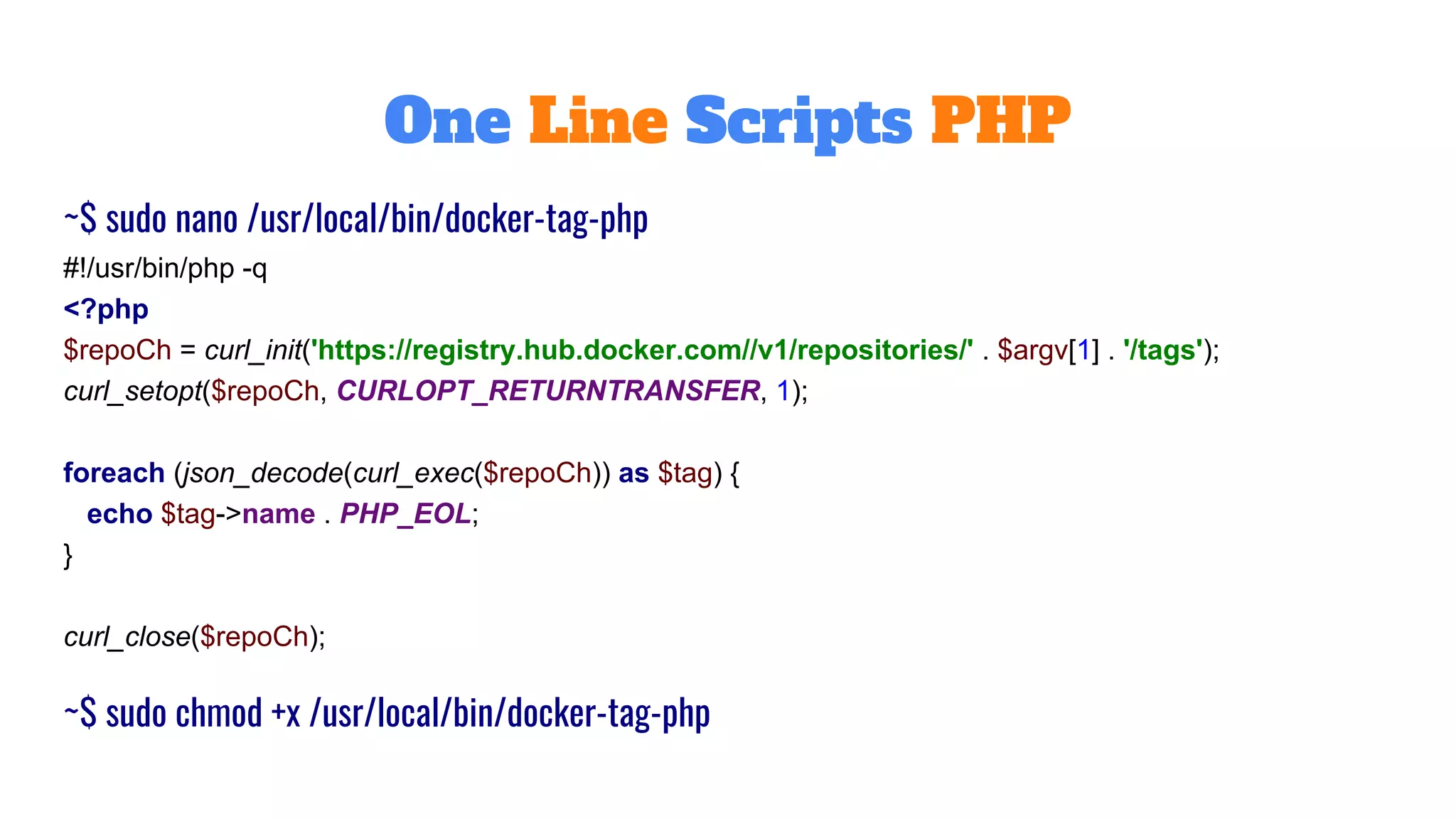

12. One Line Scripts PHP
~$ sudo nano /usr/local/bin/docker-tag-php
#!/usr/bin/php -q
<?php
$repoCh = curl_init('https://registry.hub.docker.com//v1/repositories/' . $argv[1] . '/tags');
curl_setopt($repoCh, CURLOPT_RETURNTRANSFER, 1);
foreach (json_decode(curl_exec($repoCh)) as $tag) {
echo $tag->name . PHP_EOL;
}
curl_close($repoCh);
~$ sudo chmod +x /usr/local/bin/docker-tag-php

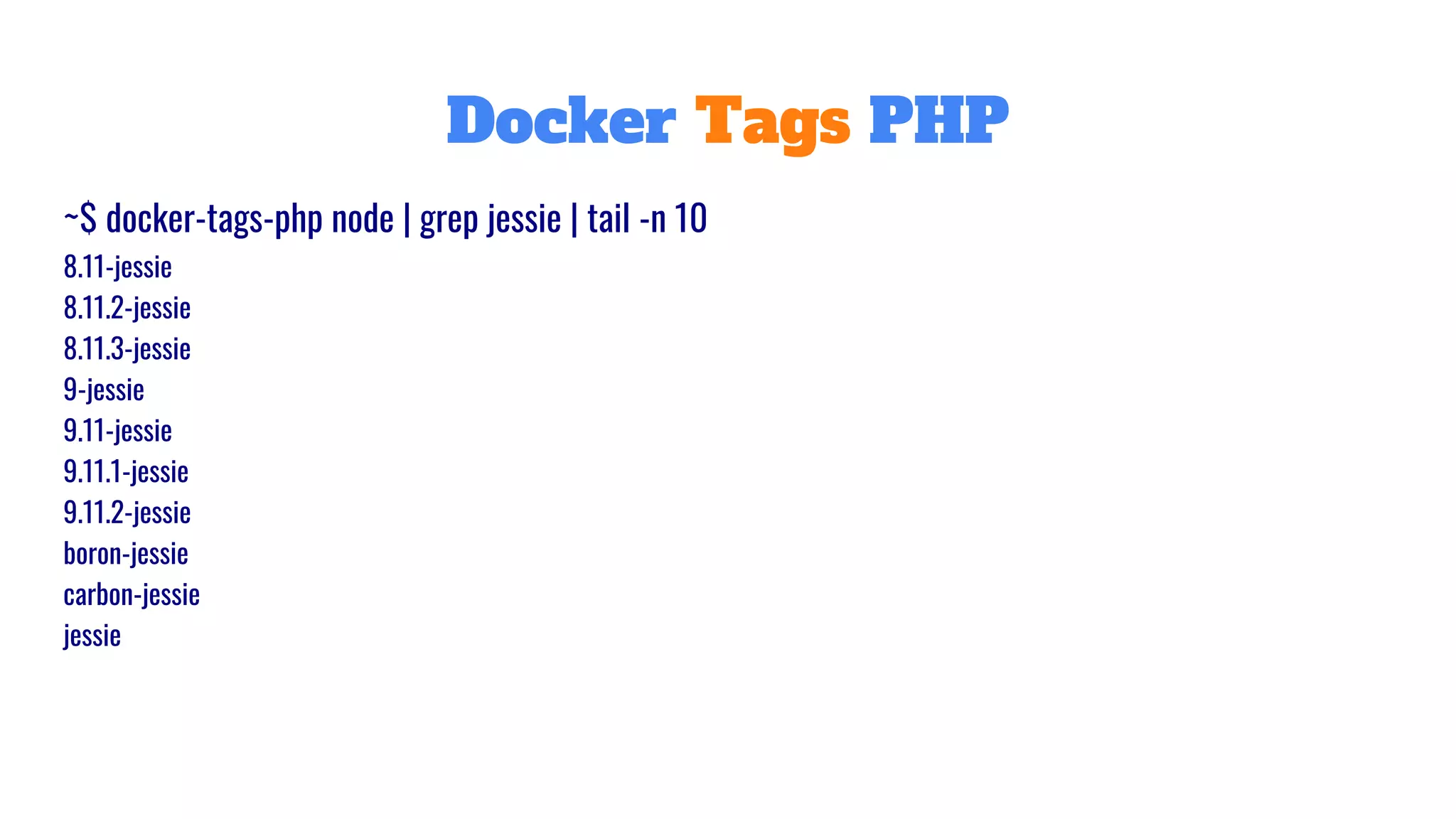

13. Docker Tags PHP
~$ docker-tags-php node | grep jessie | tail -n 10
8.11-jessie
8.11.2-jessie
8.11.3-jessie
9-jessie
9.11-jessie
9.11.1-jessie
9.11.2-jessie
boron-jessie
carbon-jessie
jessie

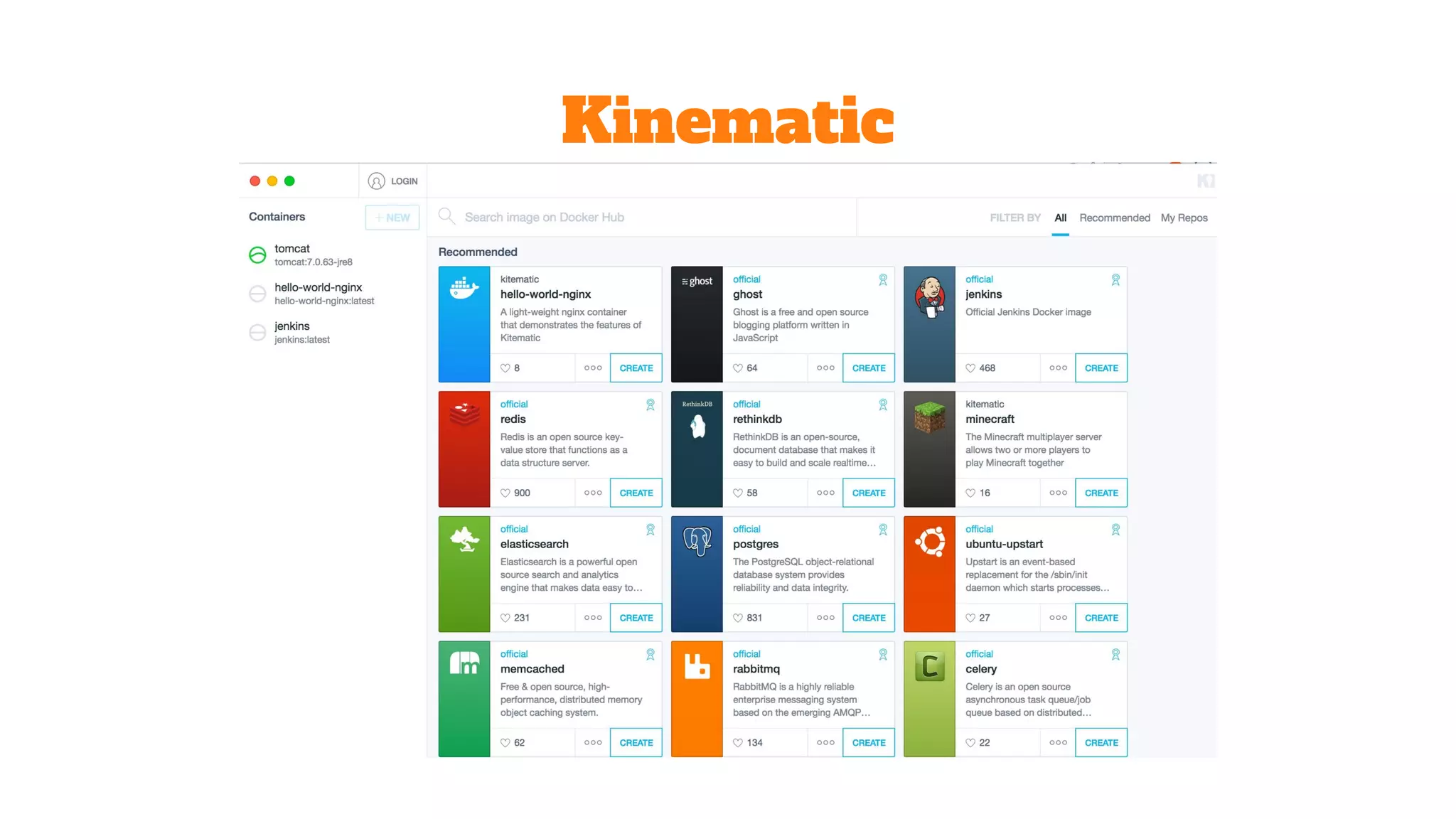

14. Kinematic

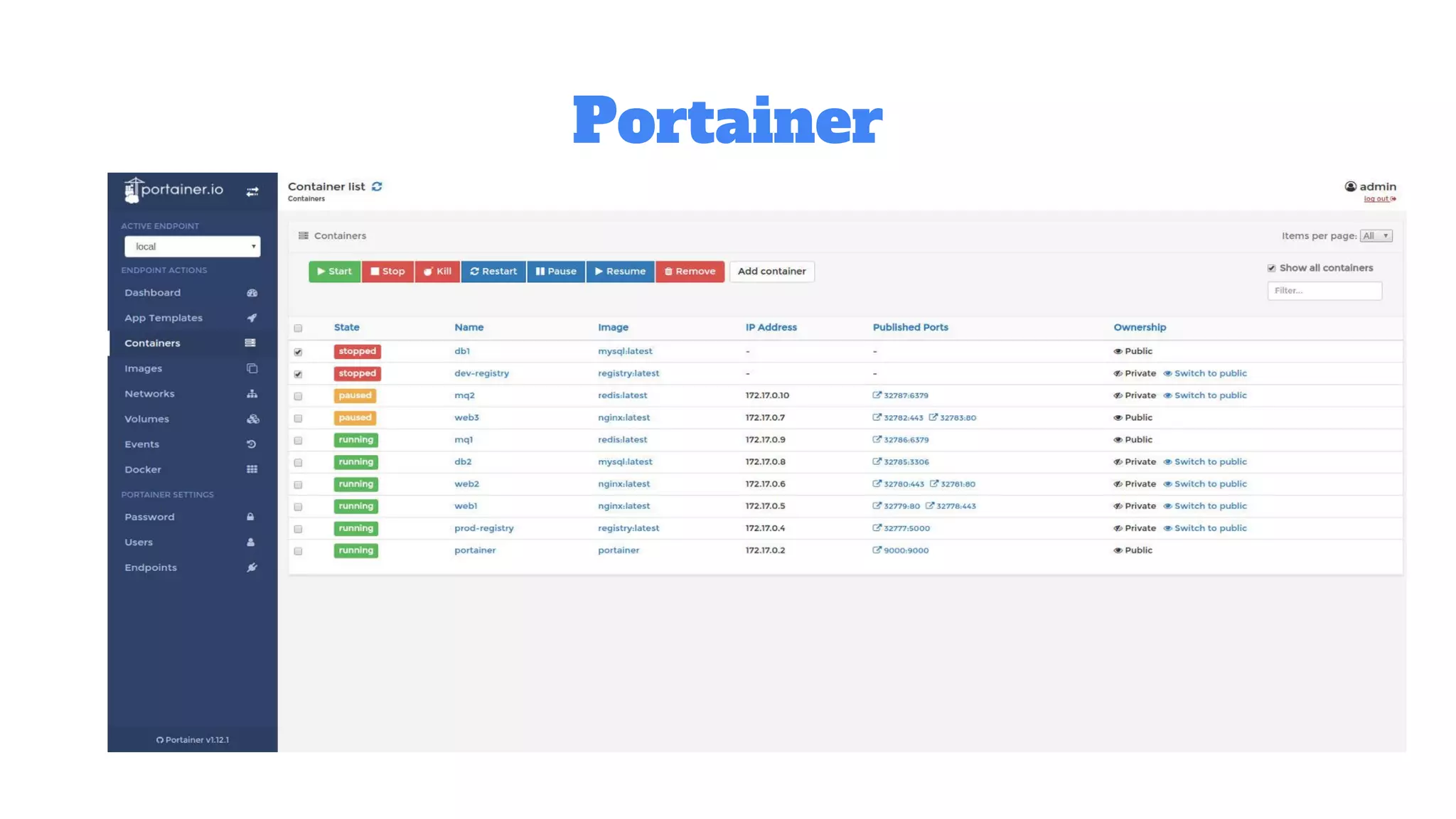

15. Portainer

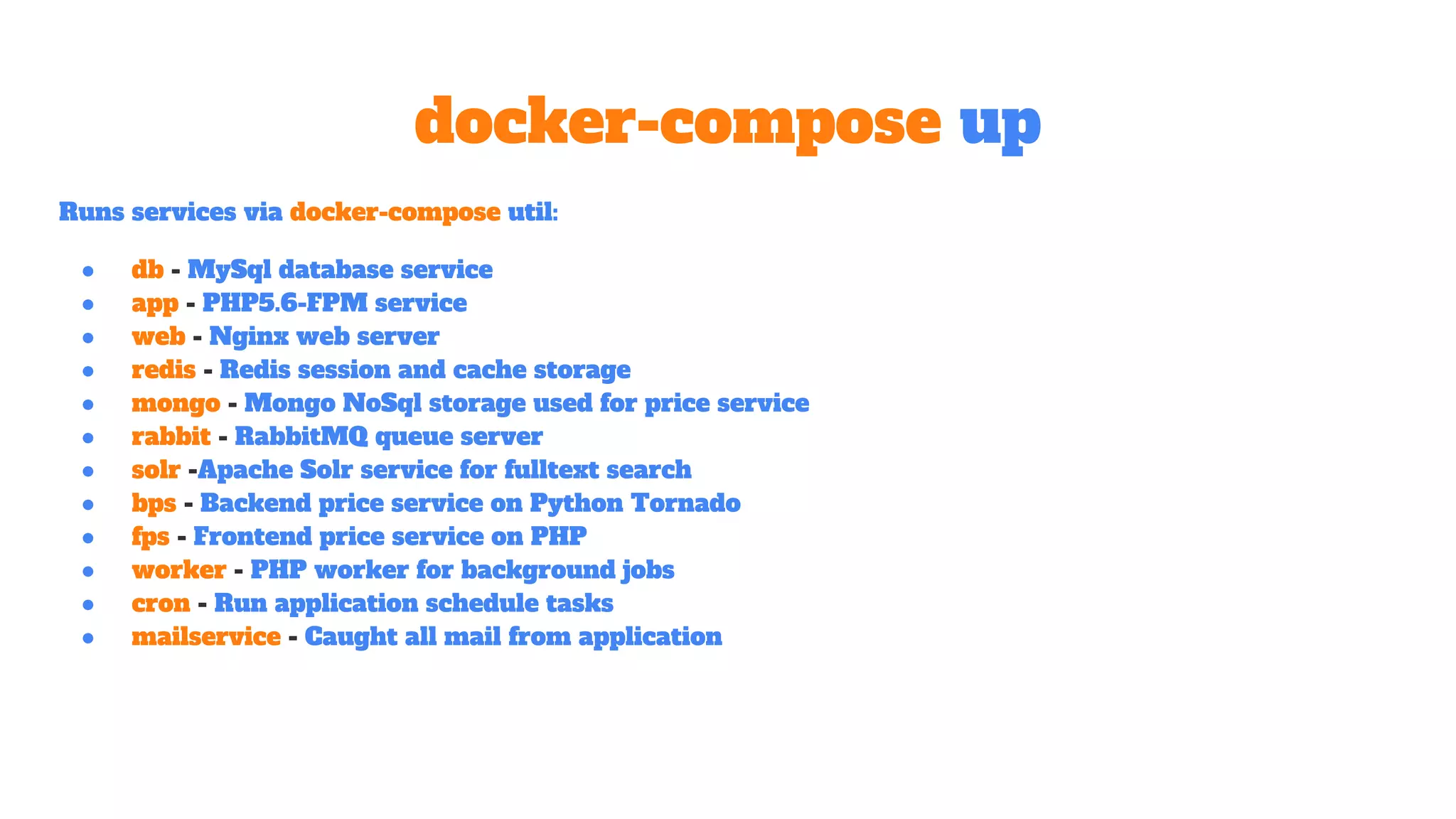

16. docker-compose up
Runs services via docker-compose util:
● db - MySql database service
● app - PHP5.6-FPM service
● web - Nginx web server
● redis - Redis session and cache storage
● mongo - Mongo NoSql storage used for price service
● rabbit - RabbitMQ queue server
● solr -Apache Solr service for fulltext search
● bps - Backend price service on Python Tornado
● fps - Frontend price service on PHP
● worker - PHP worker for background jobs
● cron - Run application schedule tasks
● mailservice - Caught all mail from application

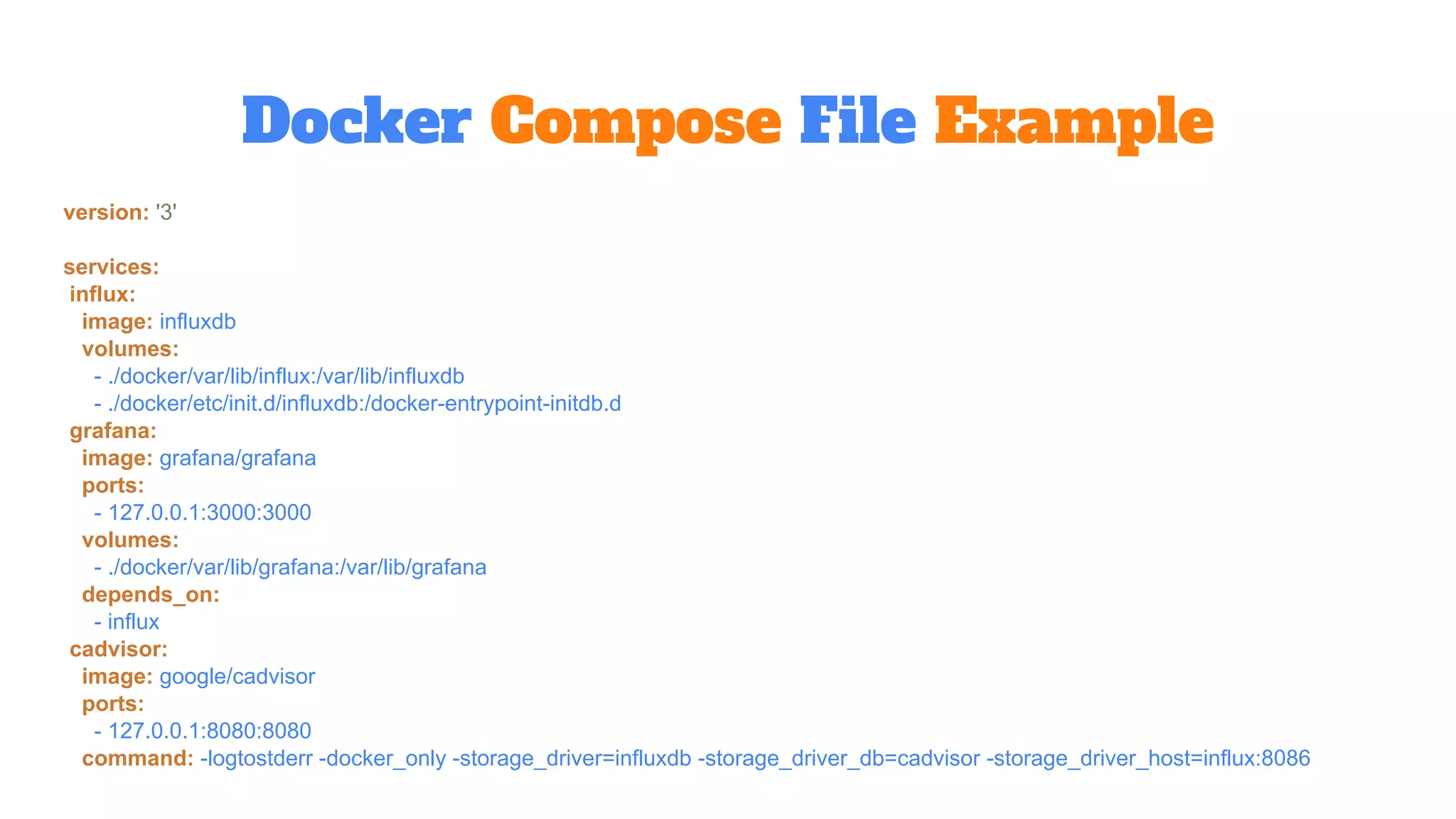

17. Docker Compose File Example
version: '3'
services:
influx:
image: influxdb
volumes:
- ./docker/var/lib/influx:/var/lib/influxdb
- ./docker/etc/init.d/influxdb:/docker-entrypoint-initdb.d
grafana:
image: grafana/grafana
ports:
- 127.0.0.1:3000:3000
volumes:
- ./docker/var/lib/grafana:/var/lib/grafana
depends_on:
- influx
cadvisor:
image: google/cadvisor
ports:
- 127.0.0.1:8080:8080
command: -logtostderr -docker_only -storage_driver=influxdb -storage_driver_db=cadvisor -storage_driver_host=influx:8086

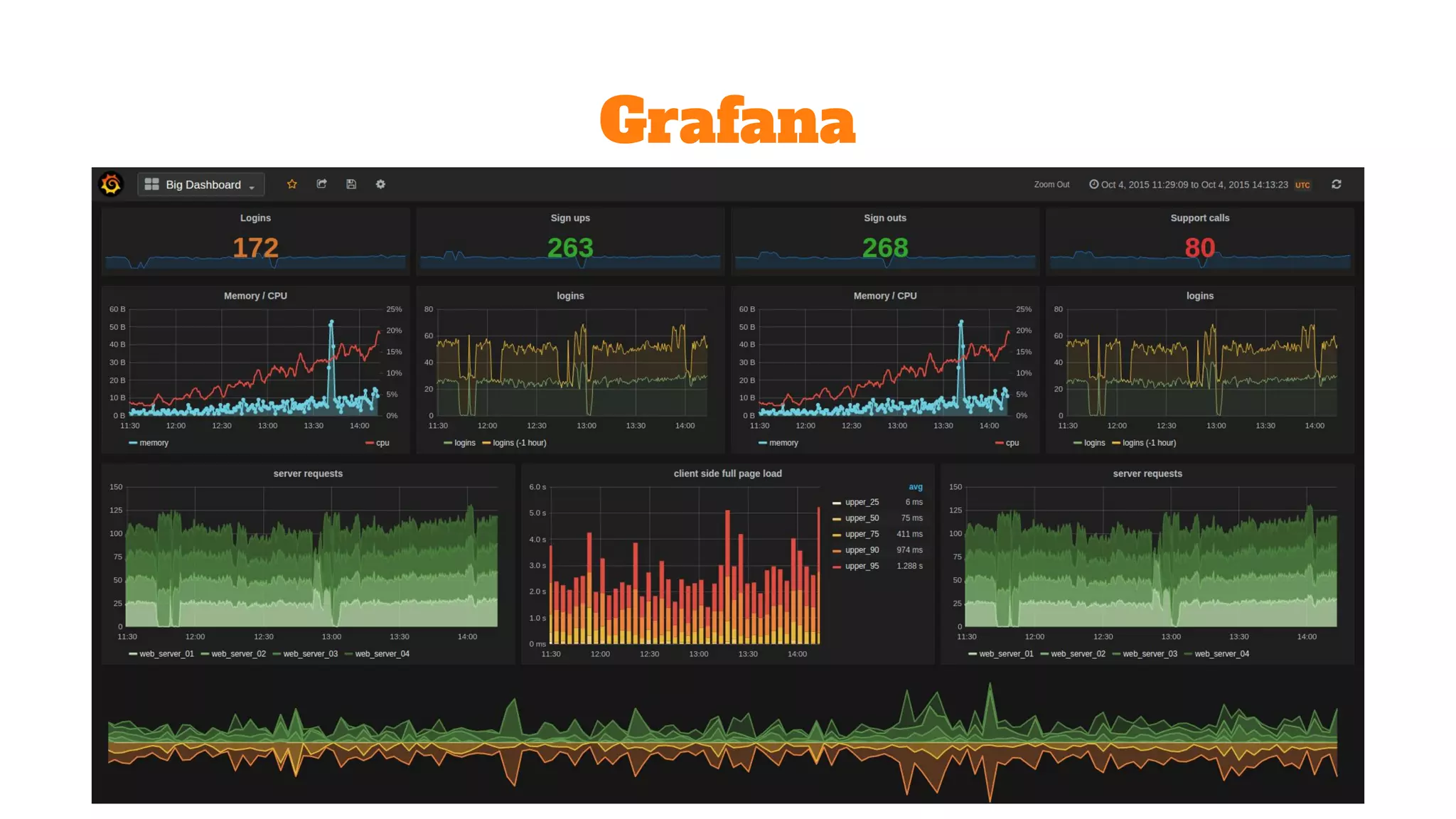

18. Grafana

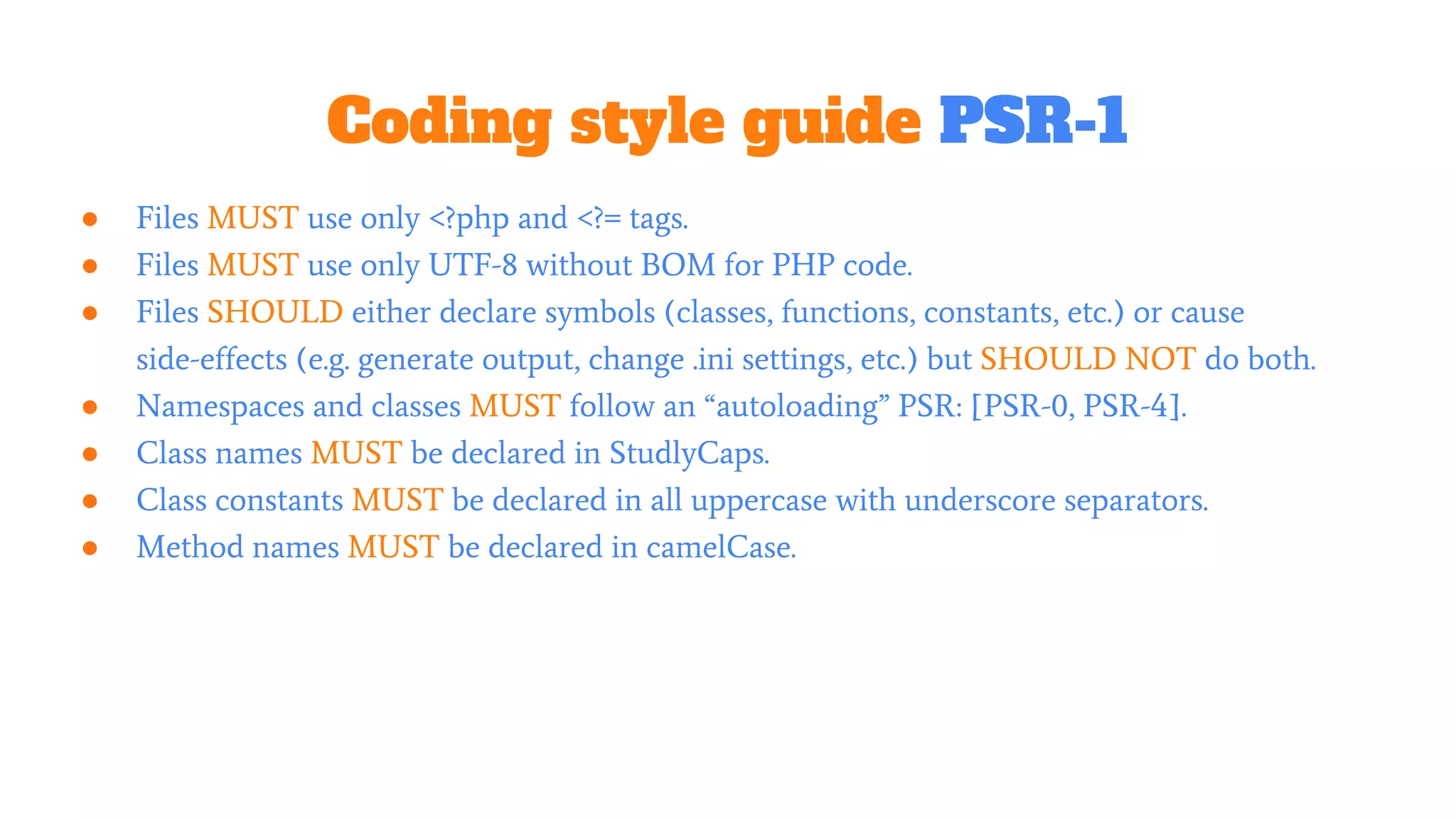

19. Coding style guide PSR-1
● Files MUST use only <?php and <?= tags.
● Files MUST use only UTF-8 without BOM for PHP code.
● Files SHOULD either declare symbols (classes, functions, constants, etc.) or cause
side-effects (e.g. generate output, change .ini settings, etc.) but SHOULD NOT do both.
● Namespaces and classes MUST follow an “autoloading” PSR: [PSR-0, PSR-4].
● Class names MUST be declared in StudlyCaps.
● Class constants MUST be declared in all uppercase with underscore separators.
● Method names MUST be declared in camelCase.

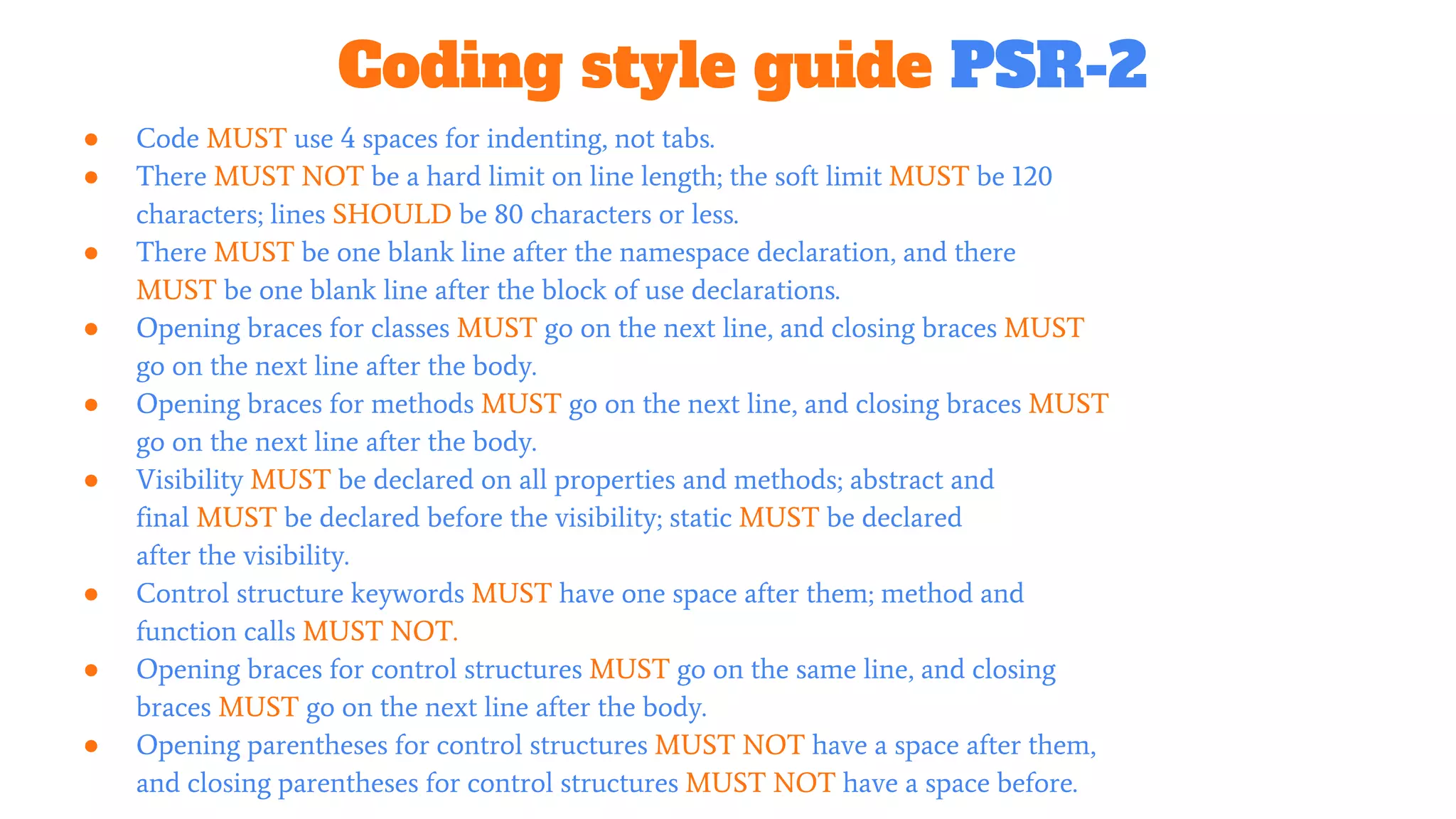

20. Coding style guide PSR-2
● Code MUST use 4 spaces for indenting, not tabs.
● There MUST NOT be a hard limit on line length; the soft limit MUST be 120
characters; lines SHOULD be 80 characters or less.
● There MUST be one blank line after the namespace declaration, and there
MUST be one blank line after the block of use declarations.
● Opening braces for classes MUST go on the next line, and closing braces MUST
go on the next line after the body.
● Opening braces for methods MUST go on the next line, and closing braces MUST
go on the next line after the body.
● Visibility MUST be declared on all properties and methods; abstract and
final MUST be declared before the visibility; static MUST be declared
after the visibility.
● Control structure keywords MUST have one space after them; method and
function calls MUST NOT.
● Opening braces for control structures MUST go on the same line, and closing
braces MUST go on the next line after the body.
● Opening parentheses for control structures MUST NOT have a space after them,
and closing parentheses for control structures MUST NOT have a space before.

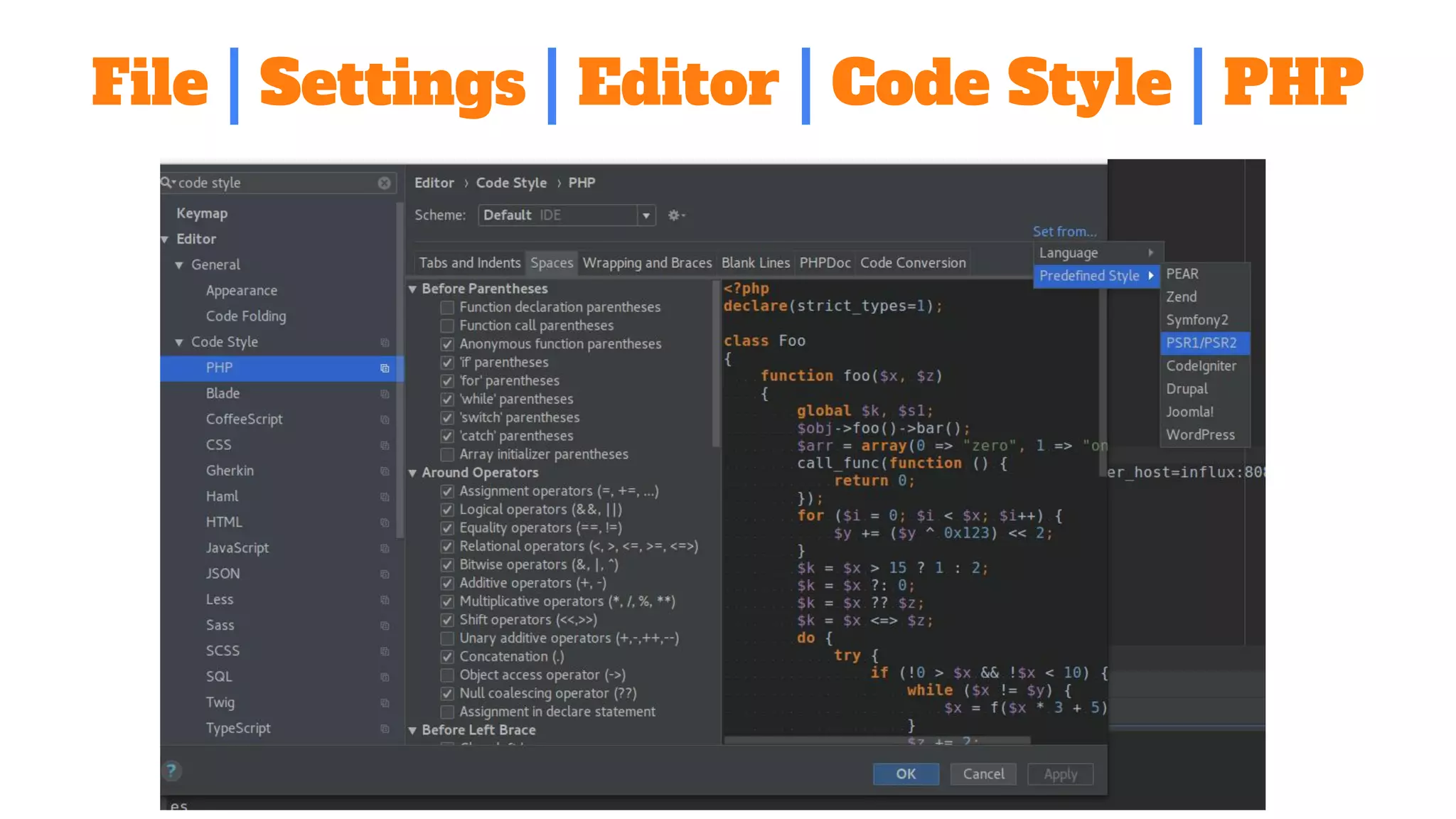

21. File | Settings | Editor | Code Style | PHP

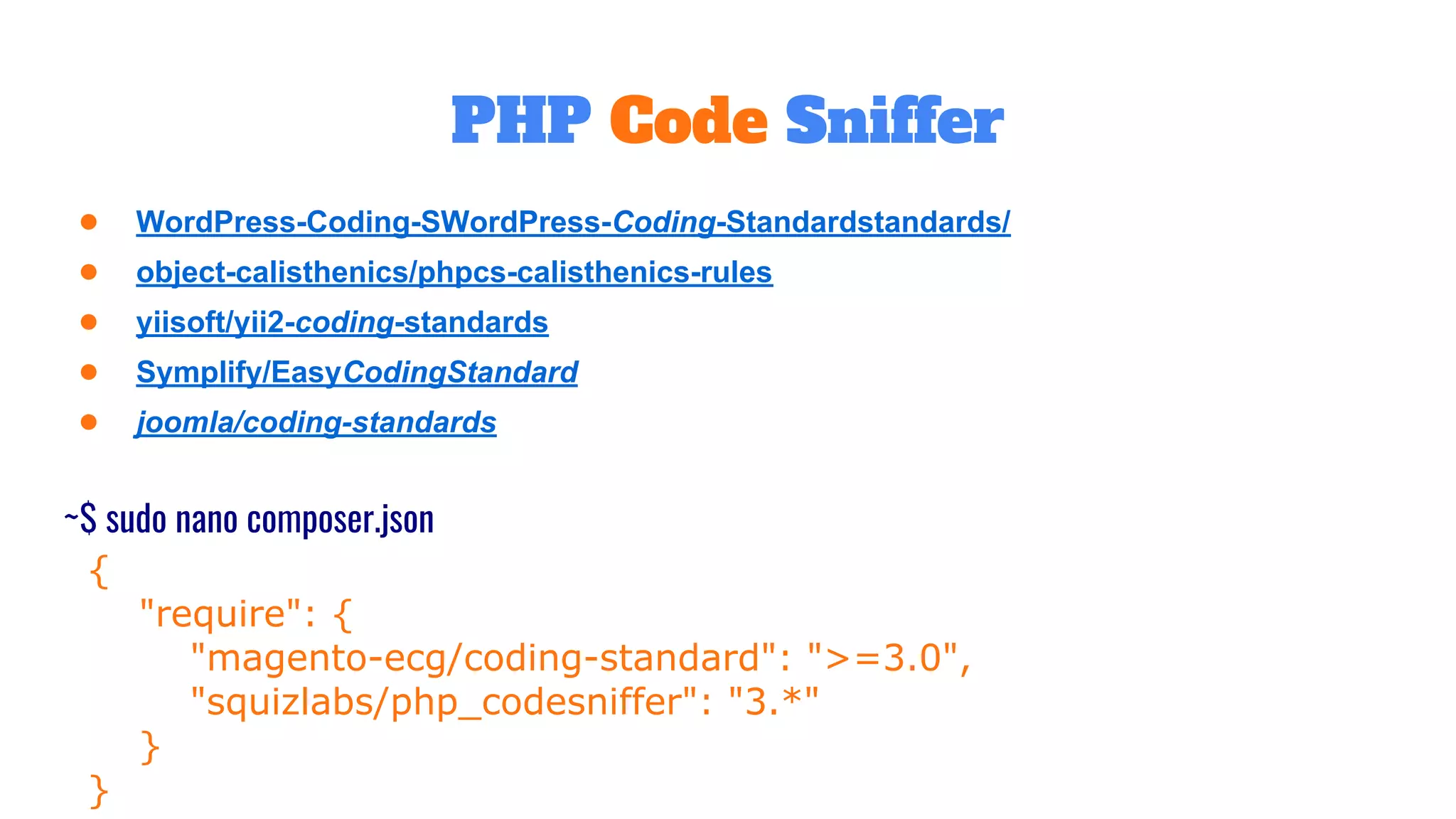

22. PHP Code Sniffer
● WordPress-Coding-SWordPress-Coding-Standardstandards/
● object-calisthenics/phpcs-calisthenics-rules
● yiisoft/yii2-coding-standards
● Symplify/EasyCodingStandard
● joomla/coding-standards
~$ sudo nano composer.json
{
"require": {
"magento-ecg/coding-standard": ">=3.0",
"squizlabs/php_codesniffer": "3.*"
}
}

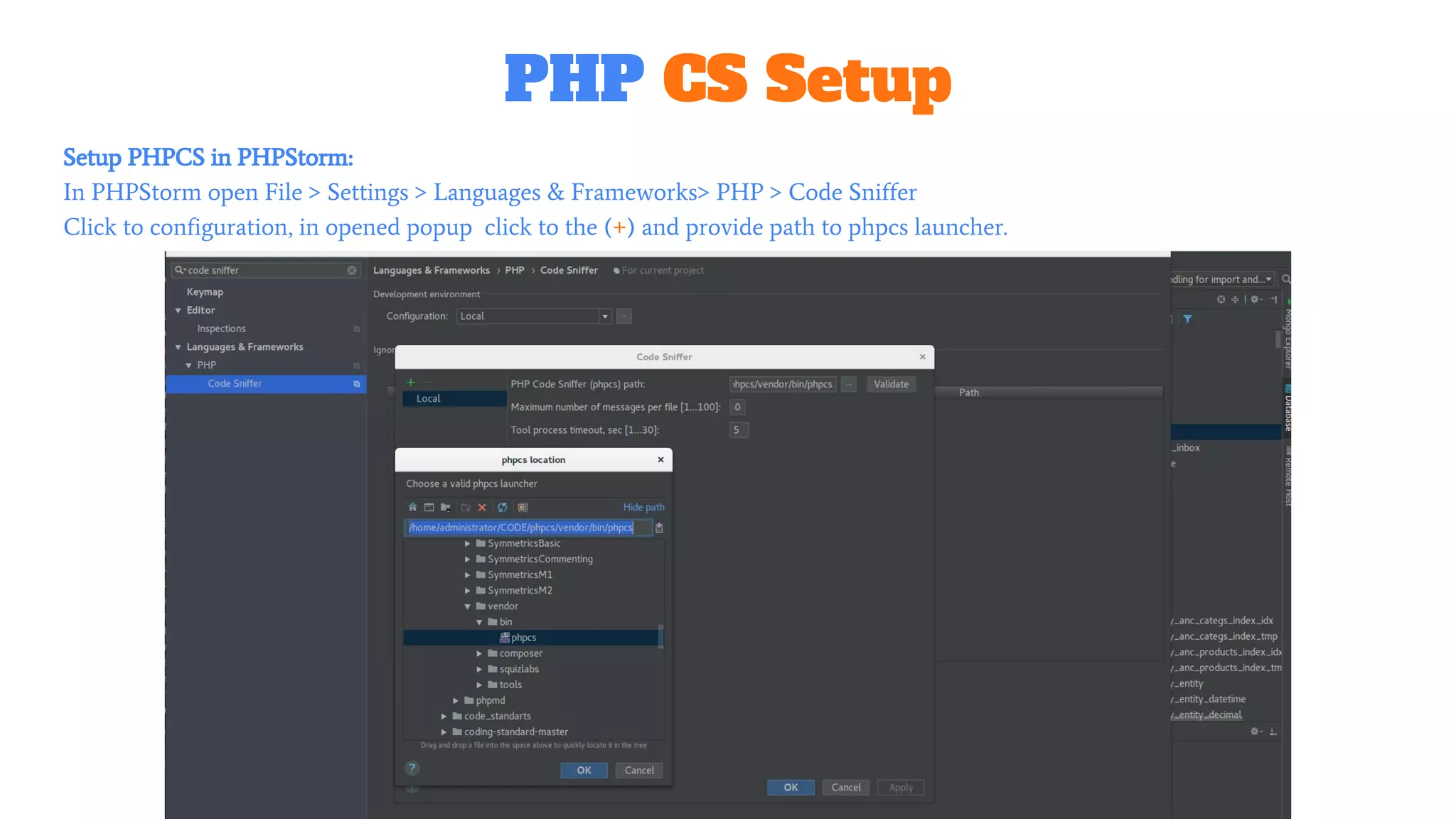

23. PHP CS Setup
Setup PHPCS in PHPStorm:
In PHPStorm open File > Settings > Languages & Frameworks> PHP > Code Sniffer
Click to configuration, in opened popup click to the (+) and provide path to phpcs launcher.

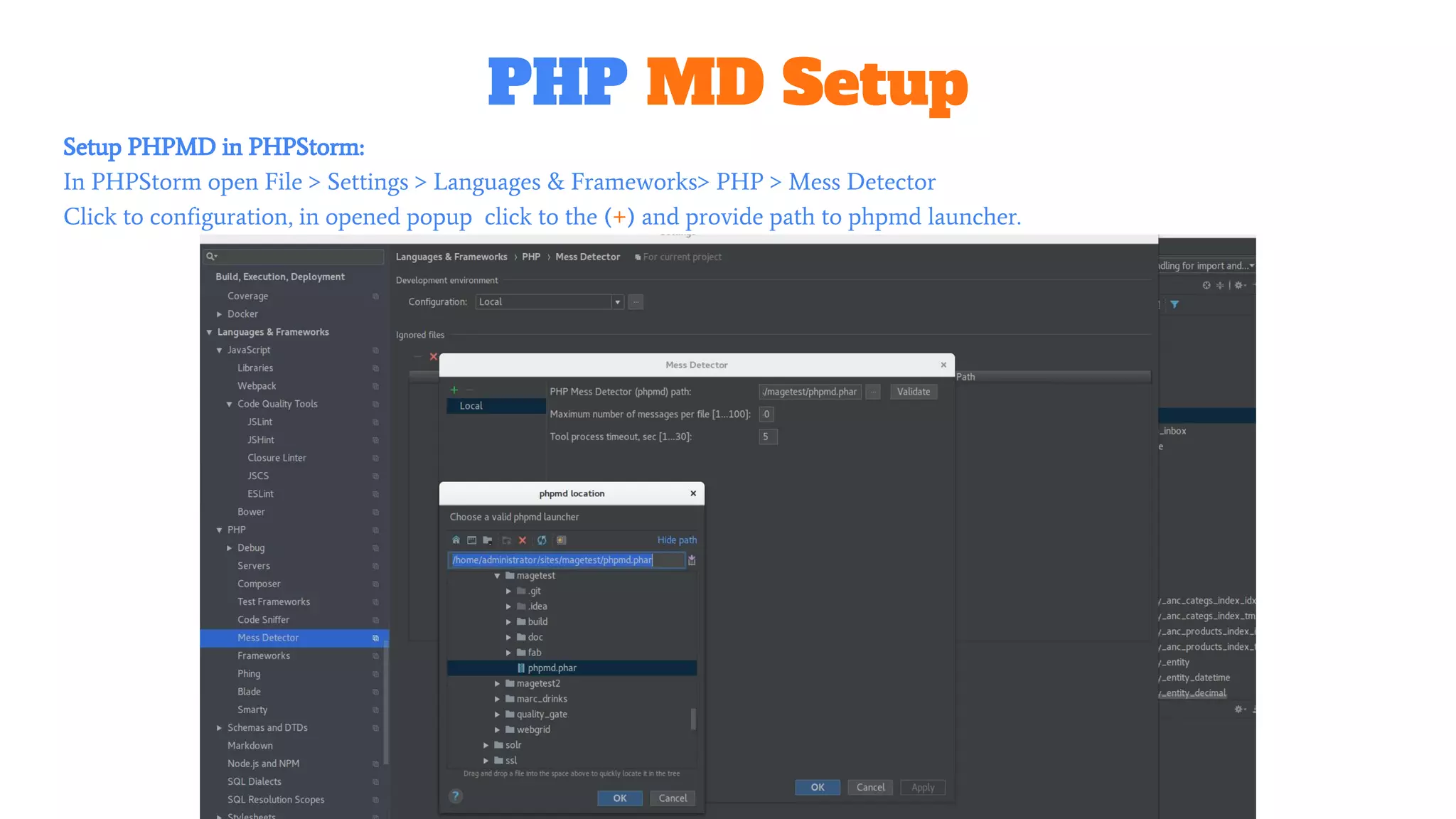

24. PHP MD Setup
Setup PHPMD in PHPStorm:
In PHPStorm open File > Settings > Languages & Frameworks> PHP > Mess Detector
Click to configuration, in opened popup click to the (+) and provide path to phpmd launcher.

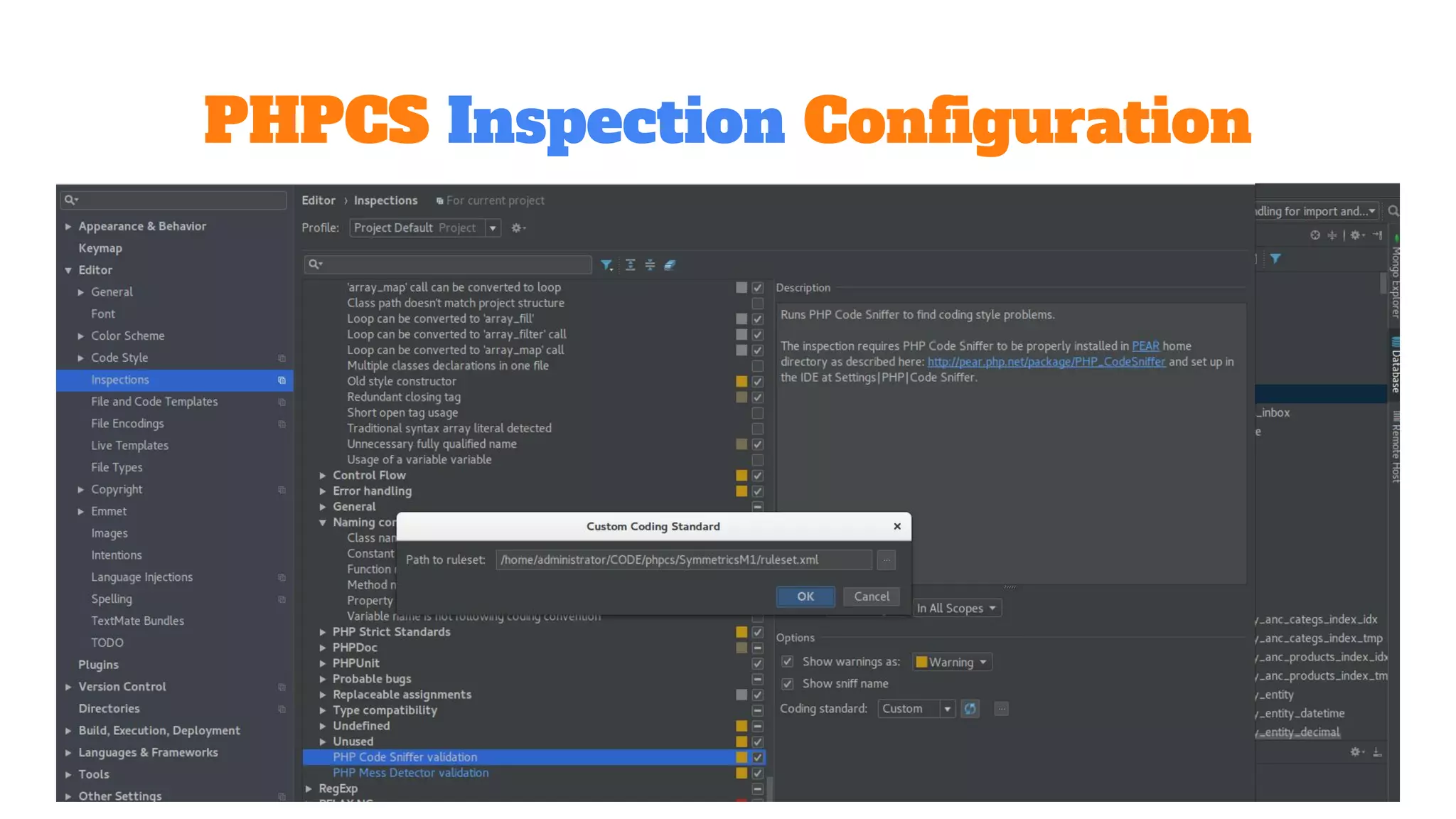

25. PHPCS Inspection Configuration

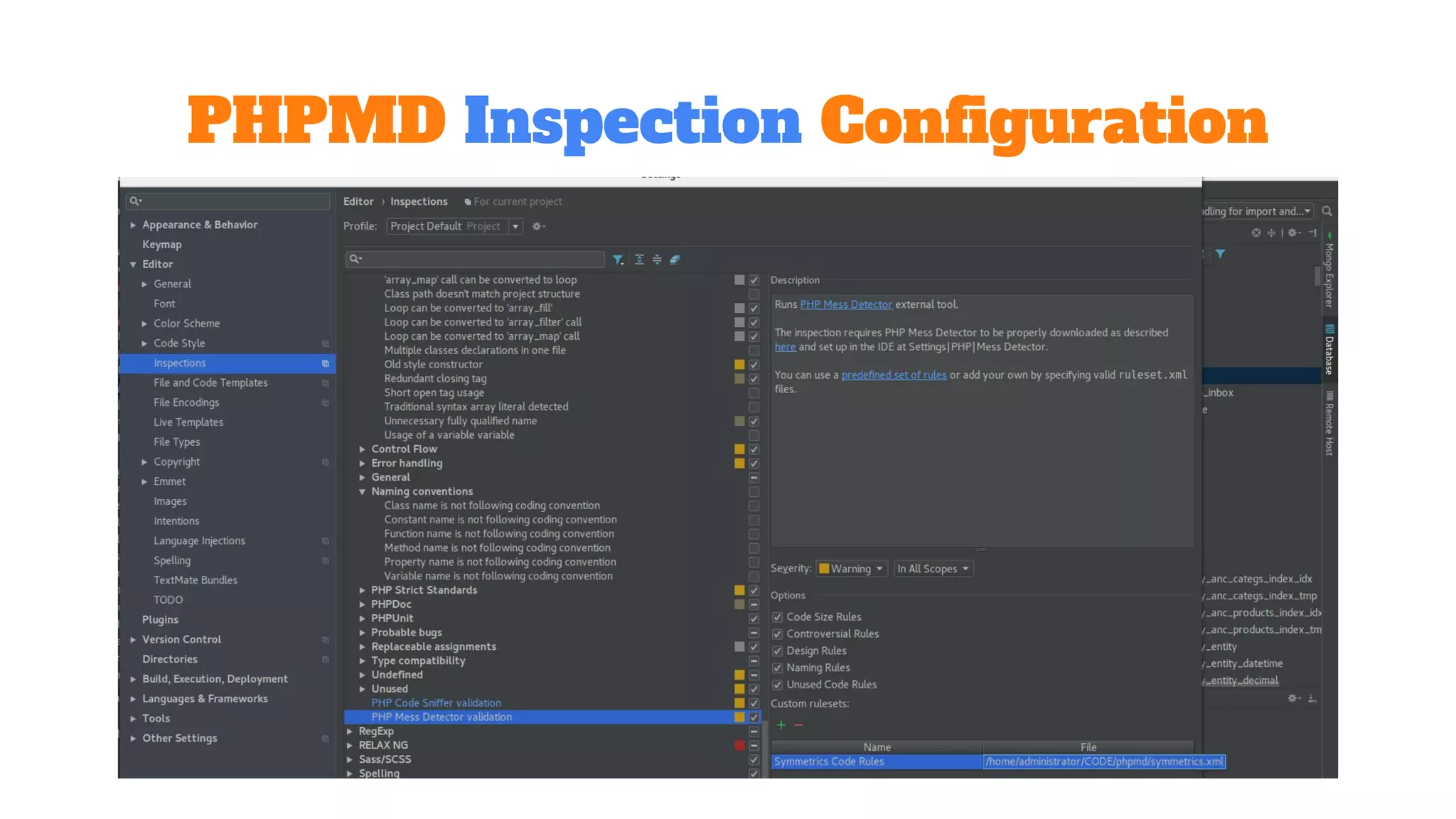

26. PHPMD Inspection Configuration

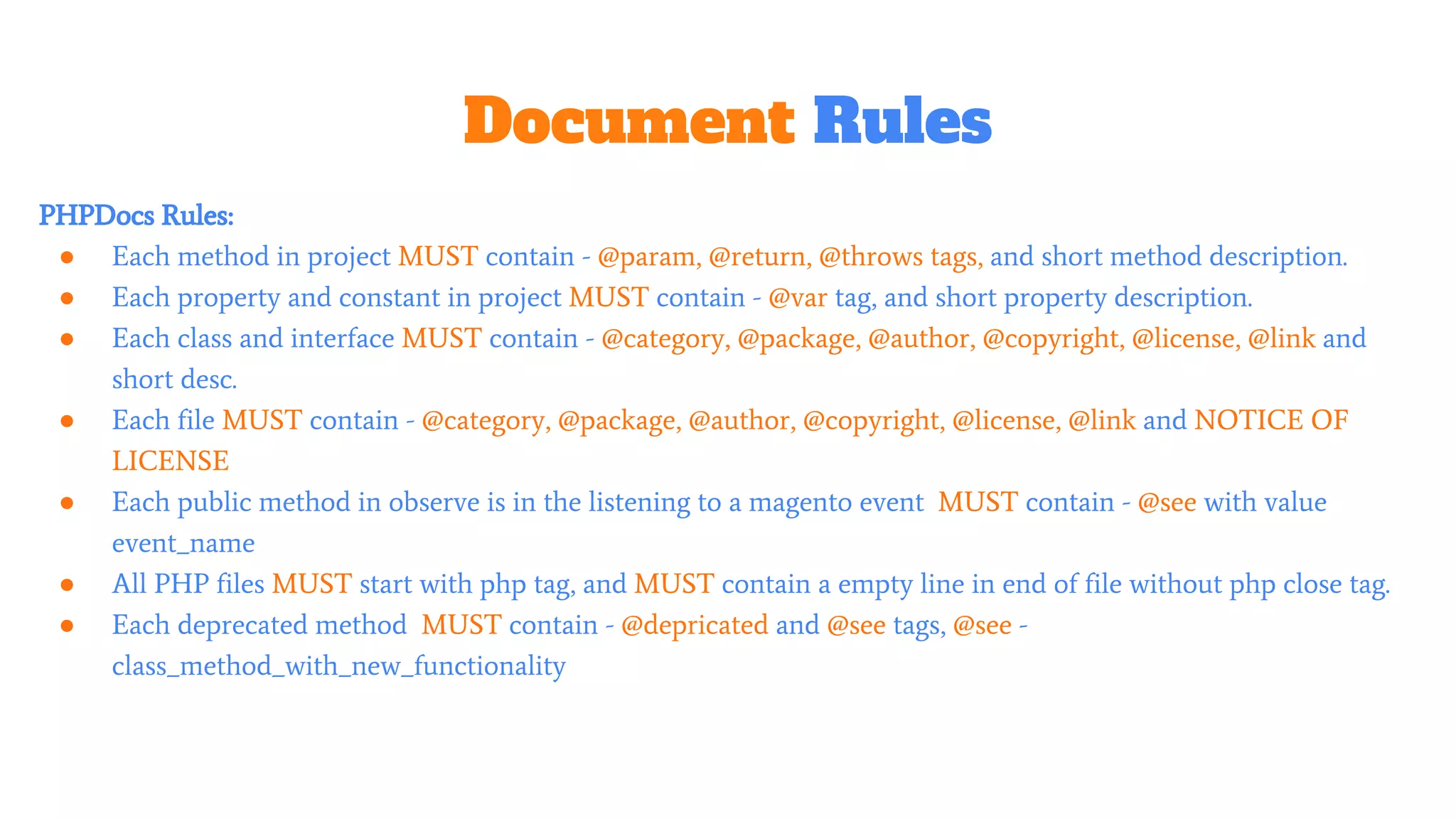

27. Document Rules
PHPDocs Rules:
● Each method in project MUST contain - @param, @return, @throws tags, and short method description.
● Each property and constant in project MUST contain - @var tag, and short property description.
● Each class and interface MUST contain - @category, @package, @author, @copyright, @license, @link and
short desc.
● Each file MUST contain - @category, @package, @author, @copyright, @license, @link and NOTICE OF
LICENSE
● Each public method in observe is in the listening to a magento event MUST contain - @see with value
event_name
● All PHP files MUST start with php tag, and MUST contain a empty line in end of file without php close tag.
● Each deprecated method MUST contain - @depricated and @see tags, @see -
class_method_with_new_functionality

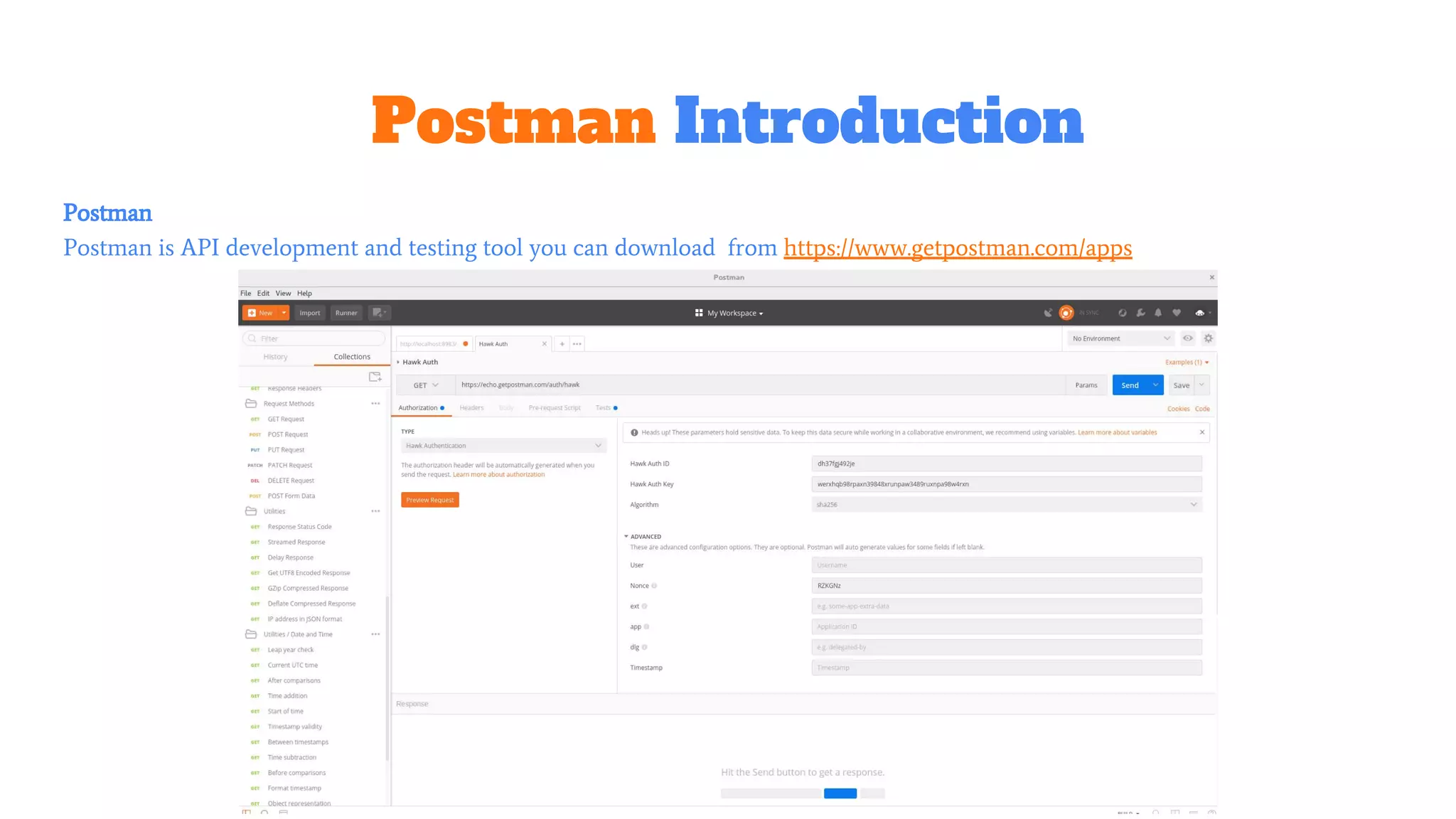

28. Postman Introduction
Postman
Postman is API development and testing tool you can download from https://www.getpostman.com/apps

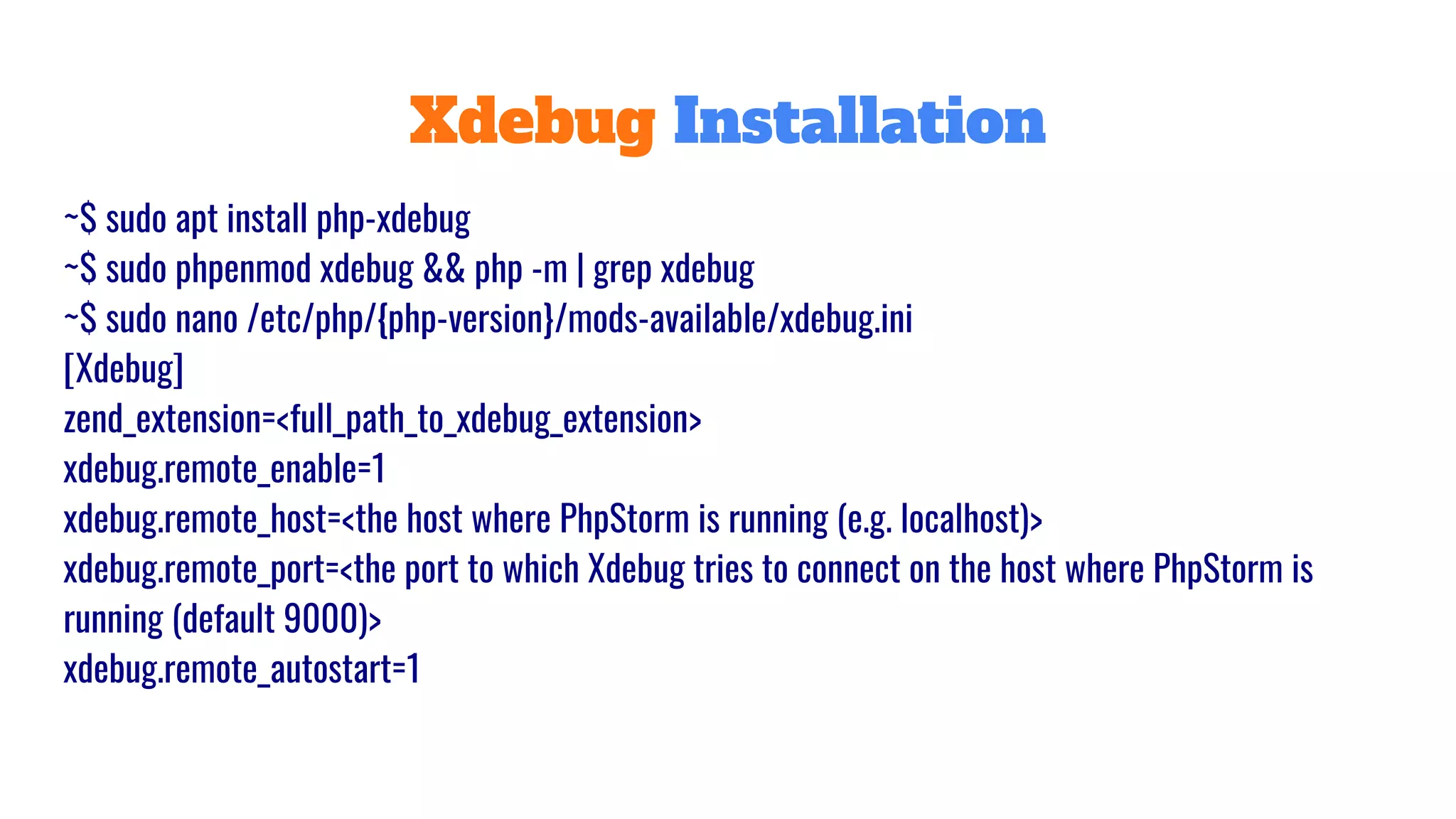

29. Xdebug Installation
~$ sudo apt install php-xdebug
~$ sudo phpenmod xdebug && php -m | grep xdebug
~$ sudo nano /etc/php/{php-version}/mods-available/xdebug.ini
[Xdebug]
zend_extension=<full_path_to_xdebug_extension>
xdebug.remote_enable=1
xdebug.remote_host=<the host where PhpStorm is running (e.g. localhost)>
xdebug.remote_port=<the port to which Xdebug tries to connect on the host where PhpStorm is
running (default 9000)>
xdebug.remote_autostart=1

30. Postman Collections
A Postman Collection is an Executable API Description. With Postman collections you can:
● Publishing an API collection can be done via a Run In Postman button, embedded within the publisher’s
site, and downloading a Postman Collection directly into the developer’s Postman instance.
● API Monitoring is a scheduled service to run a Postman Collection, reporting results based on tests
embedded in the collection, and reported in the user’s Postman dashboard.
● API Documentation publishes a shareable, customized view of the API’s Postman Collection - helping
developers onboard quickly to an API.
● Developers can create a Mock Server from a collection, allowing API users to view example request &
response pairs, even before the API is complete.
● Developers can Debug APIs by creating requests, adding tests, and examining responses.

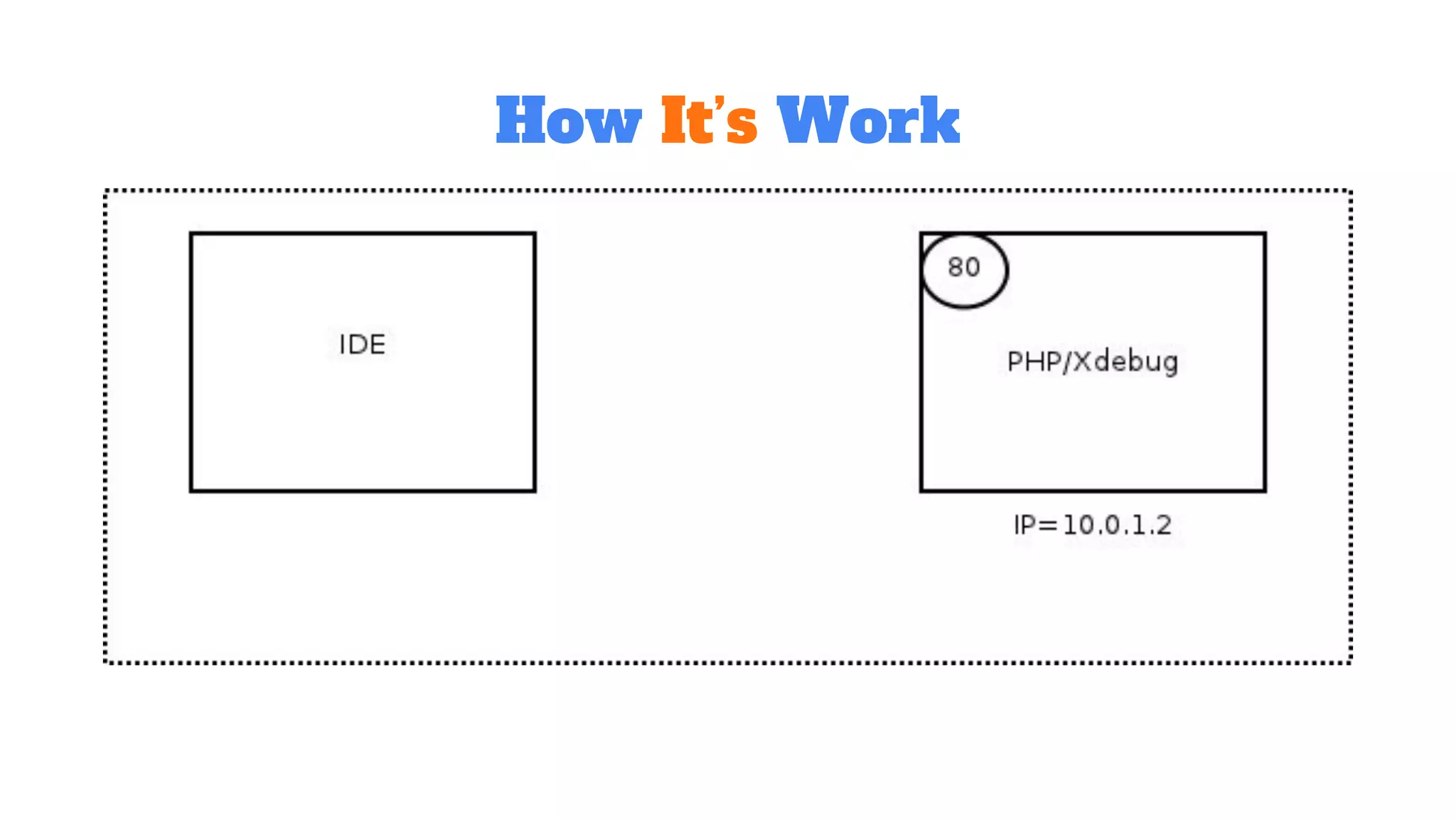

31. How It’s Work

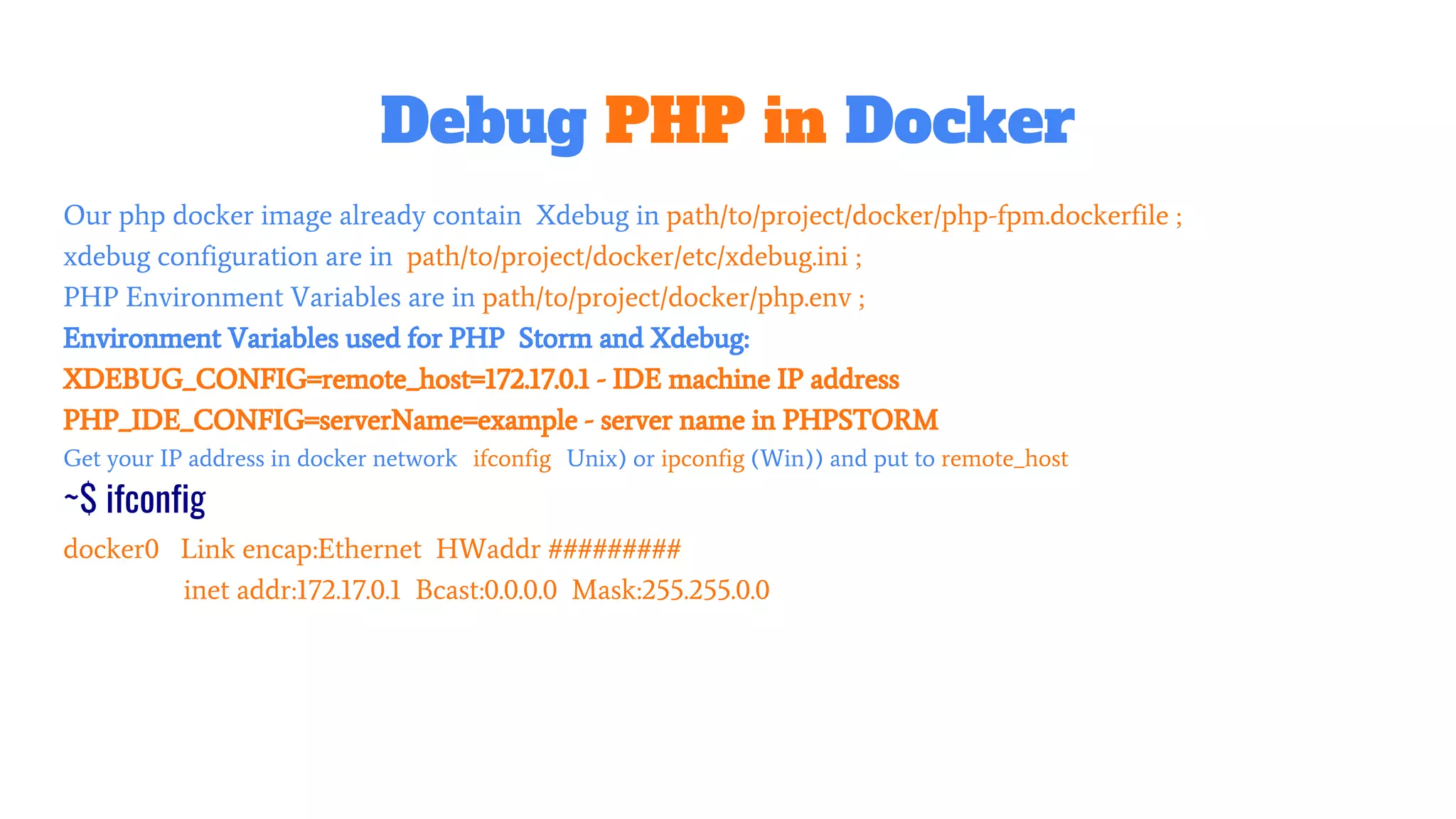

32. Debug PHP in Docker
Our php docker image already contain Xdebug in path/to/project/docker/php-fpm.dockerfile ;
xdebug configuration are in path/to/project/docker/etc/xdebug.ini ;
PHP Environment Variables are in path/to/project/docker/php.env ;
Environment Variables used for PHP Storm and Xdebug:
XDEBUG_CONFIG=remote_host=172.17.0.1 - IDE machine IP address
PHP_IDE_CONFIG=serverName=example - server name in PHPSTORM
Get your IP address in docker network (ifconfig (Unix) or ipconfig (Win)) and put to remote_host
~$ ifconfig
docker0 Link encap:Ethernet HWaddr #########
inet addr:172.17.0.1 Bcast:0.0.0.0 Mask:255.255.0.0
param

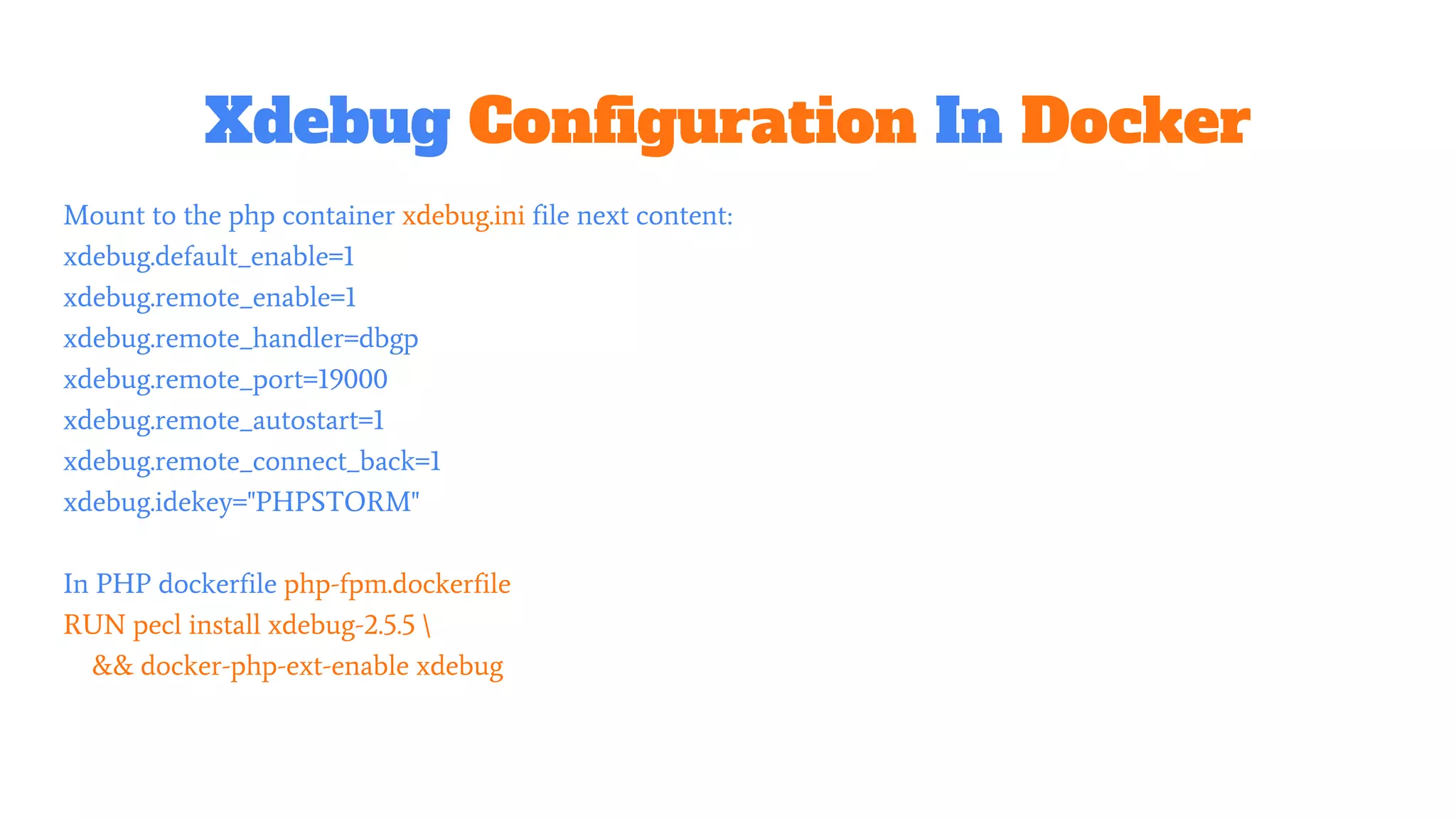

33. Xdebug Configuration In Docker
Mount to the php container xdebug.ini file next content:
xdebug.default_enable=1
xdebug.remote_enable=1
xdebug.remote_handler=dbgp
xdebug.remote_port=19000
xdebug.remote_autostart=1
xdebug.remote_connect_back=1
xdebug.idekey="PHPSTORM"
In PHP dockerfile php-fpm.dockerfile
RUN pecl install xdebug-2.5.5
&& docker-php-ext-enable xdebug

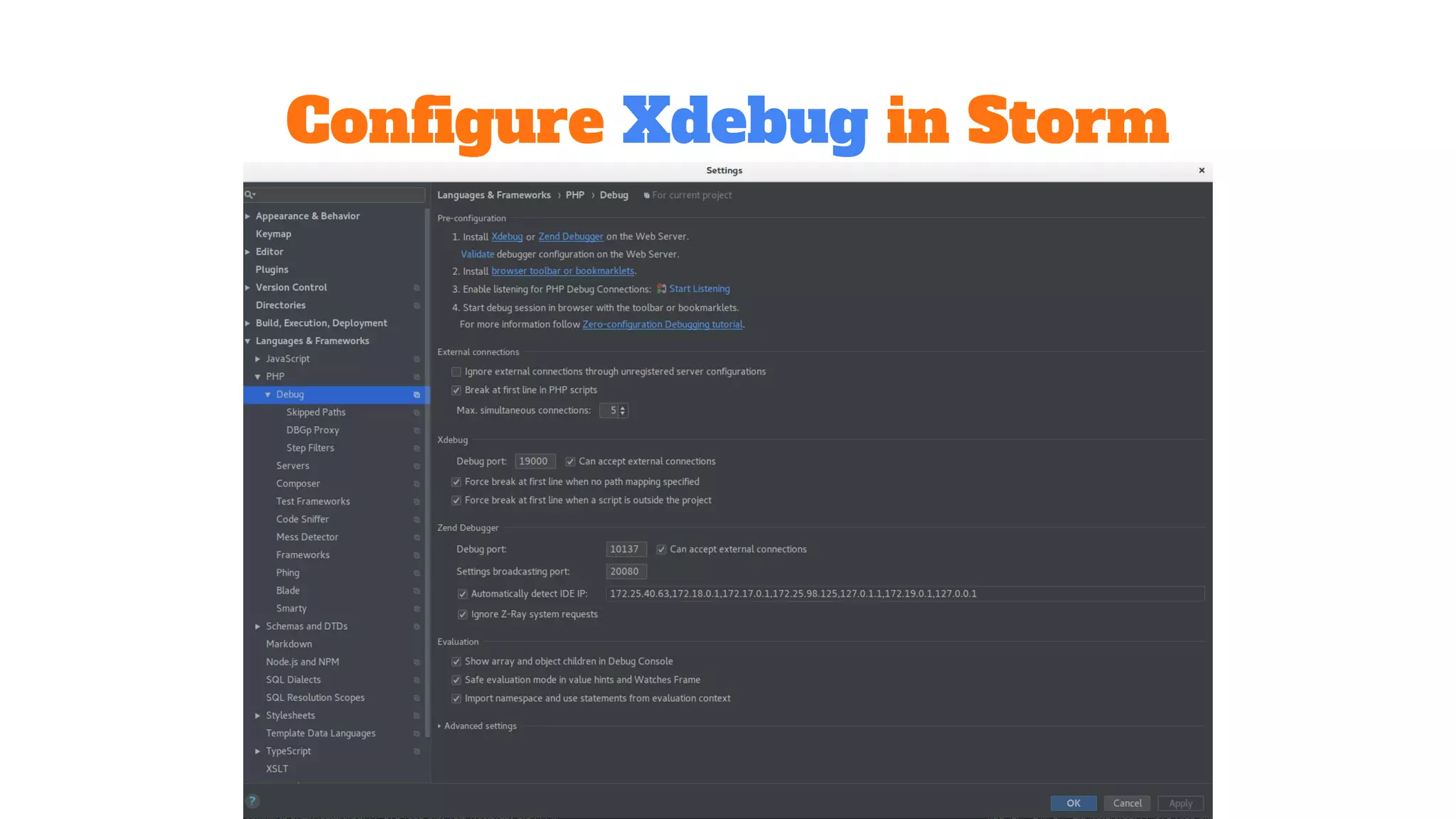

34. Configure Xdebug in Storm

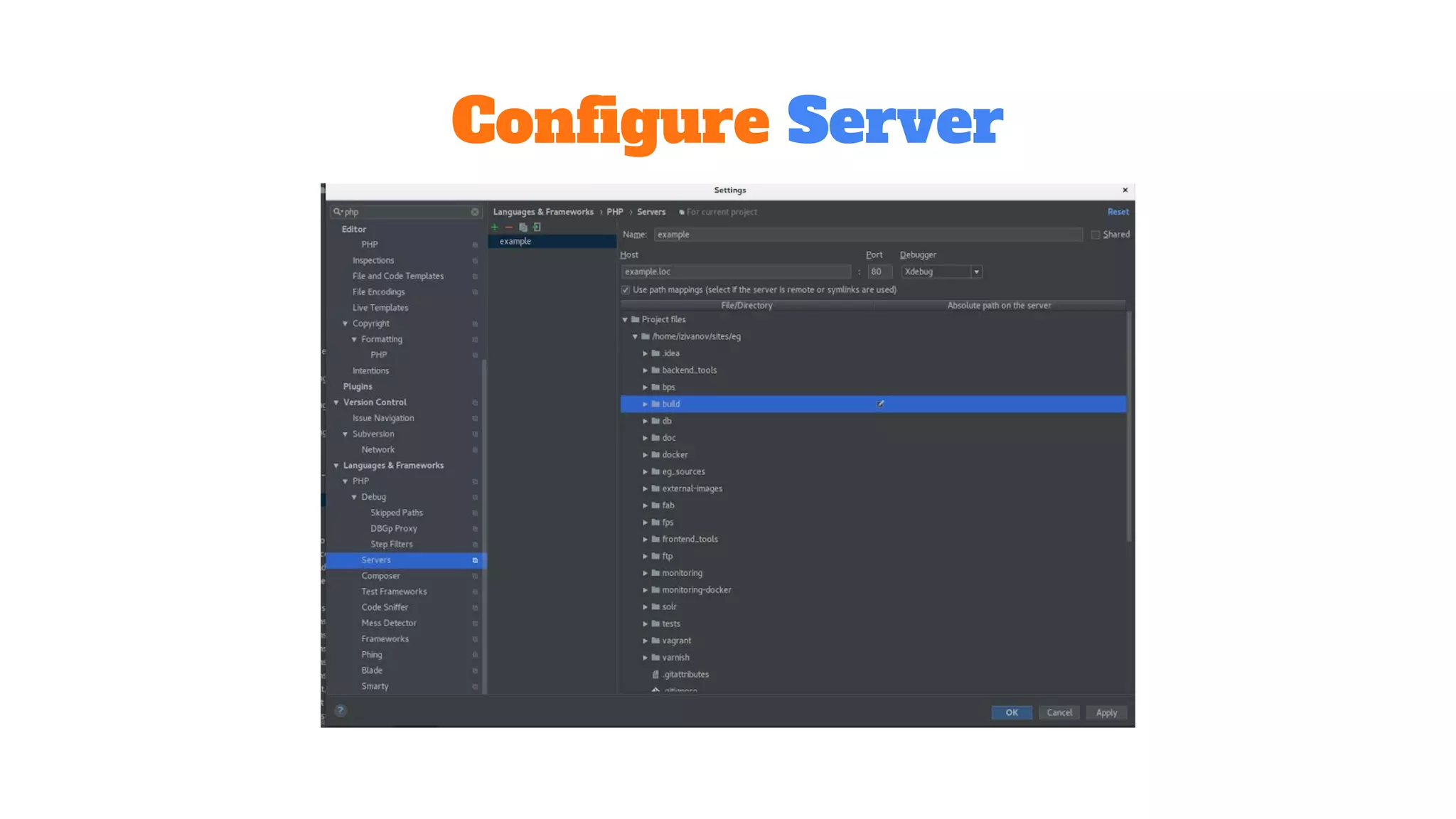

35. Configure Server

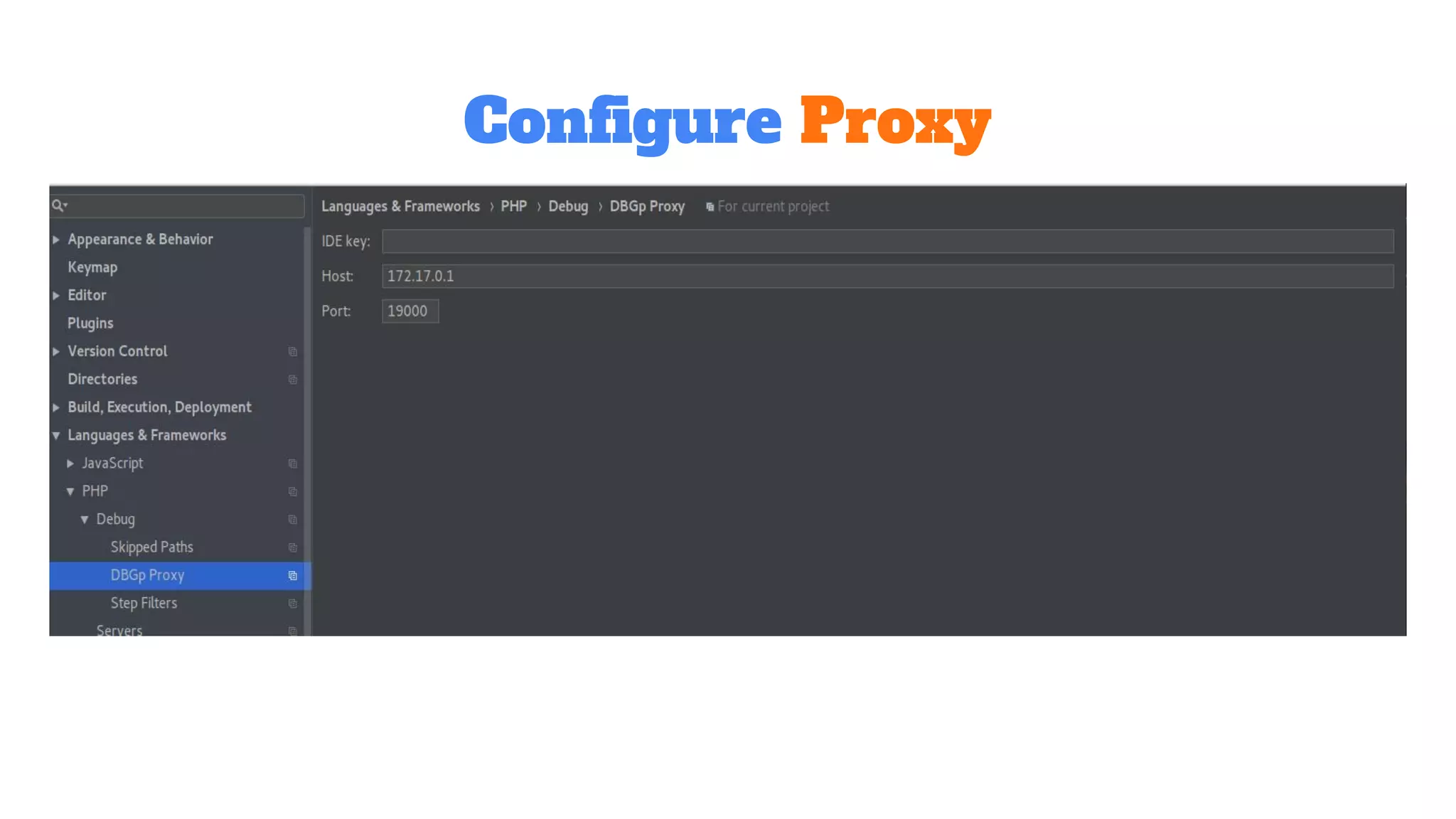

36. Configure Proxy

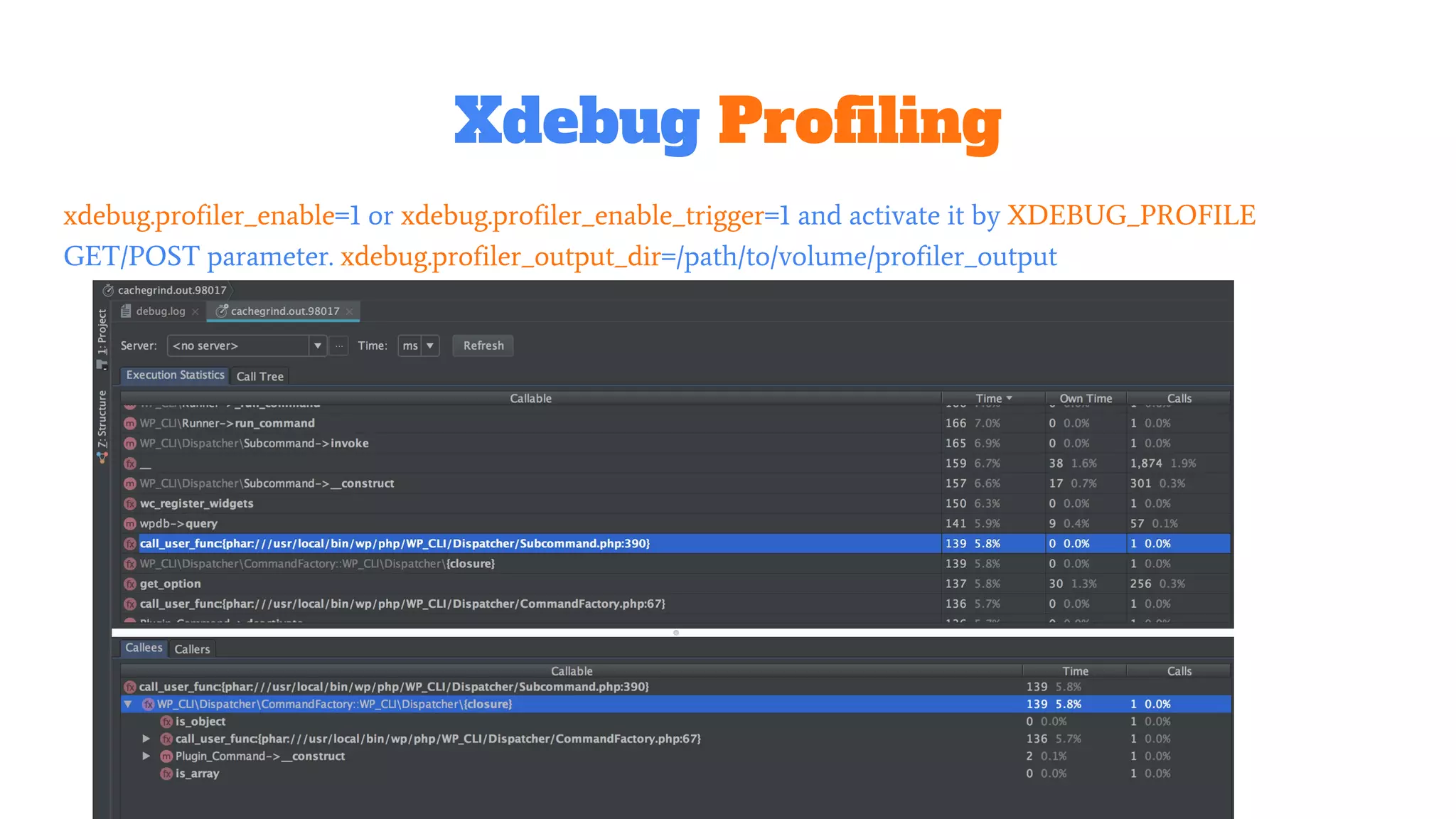

37. Xdebug Profiling
xdebug.profiler_enable=1 or xdebug.profiler_enable_trigger=1 and activate it by XDEBUG_PROFILE
GET/POST parameter. xdebug.profiler_output_dir=/path/to/volume/profiler_output

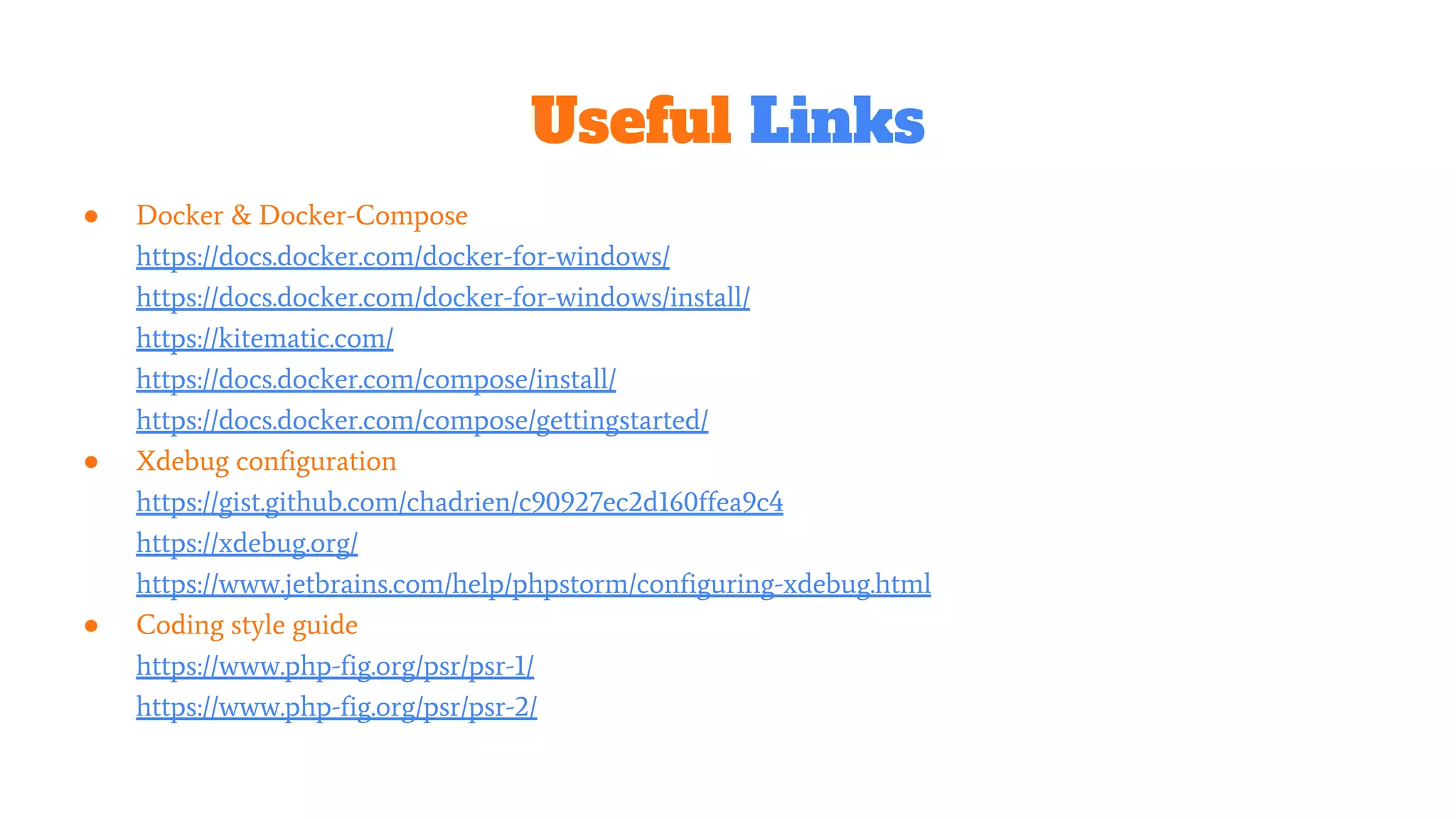

38. Useful Links
● Docker & Docker-Compose
https://docs.docker.com/docker-for-windows/
https://docs.docker.com/docker-for-windows/install/
https://kitematic.com/
https://docs.docker.com/compose/install/
https://docs.docker.com/compose/gettingstarted/
● Xdebug configuration
https://gist.github.com/chadrien/c90927ec2d160ffea9c4
https://xdebug.org/
https://www.jetbrains.com/help/phpstorm/configuring-xdebug.html
● Coding style guide
https://www.php-fig.org/psr/psr-1/
https://www.php-fig.org/psr/psr-2/

39. Useful Links (2)
● PHPMD & PHPCS & PHPDOCS
https://phpmd.org/rules/index.html
https://phpmd.org/download/index.html
https://github.com/squizlabs/PHP_CodeSniffer
https://confluence.jetbrains.com/display/PhpStorm/PHP+Code+Sniffer+in+PhpStorm
https://confluence.jetbrains.com/display/PhpStorm/PHP+Mess+Detector+in+PhpStorm
https://www.phpdoc.org/
https://github.com/WordPress-Coding-Standards/WordPress-Coding-Standards
https://github.com/object-calisthenics/phpcs-calisthenics-rules
https://github.com/magento-ecg/coding-standard
https://github.com/joomla/coding-standards
● POSTMAN
https://habr.com/company/kolesa/blog/351250/
https://www.getpostman.com/
