The document discusses the design and instantiation of a reference architecture for a pluggable service platform tailored for e-commerce, addressing integration challenges posed by various technologies. It outlines research questions related to current solutions, architectural design, and evaluation methodologies, emphasizing an adaptable, lightweight platform to enhance operational agility for retailers. The study concludes with contributions to both theory and practice, proposing a functional prototype while highlighting limitations and potential areas for future research.

1. DESIGN AND INSTANTIATION OF
REFERENCE ARCHITECTURE FOR
PLUGGABLE SERVICE PLATFORM
IN E-COMMERCE
MOHAMMAD ANGGASTA PARAMARTHA - S1341243
MASTER INDUSTRIAL ENGINEERING & MANAGEMENT

2. Traditional approach
27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
2
INTRODUCTION
BACKGROUND & MOTIVATION
E-
commerce
Platform
Function
1
Function
2
Function
3E-
commerce
Platform
Function
1
Function
2
Function
3
Flexible & Lightweight Platform
- Impact to agility
- Limited options for retailers - Pluggable Platform
- Integration

3.  Needs to integrate diverse applications of
business partners
 Emergence of new technologies (Cloud, SaaS,
Mobile, Social Media)
 Lack of suitable E-commerce platform
27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
3

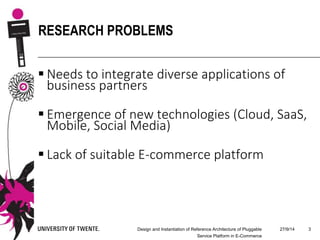

RESEARCH PROBLEMS

4. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
4

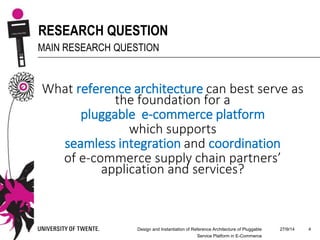

RESEARCH QUESTION
MAIN RESEARCH QUESTION
What reference architecture can best serve as
the foundation for a
pluggable e-commerce platform
which supports
seamless integration and coordination
of e-commerce supply chain partners’
application and services?

5. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
5
RESEARCH QUESTION
SUB RESEARCH QUESTIONS

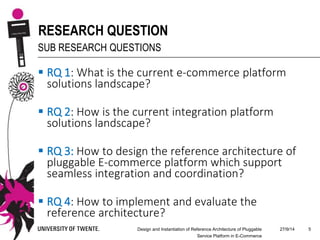

 RQ 1: What is the current e-commerce platform
solutions landscape?
 RQ 2: How is the current integration platform
solutions landscape?
 RQ 3: How to design the reference architecture of
pluggable E-commerce platform which support
seamless integration and coordination?
 RQ 4: How to implement and evaluate the
reference architecture?

6. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
6

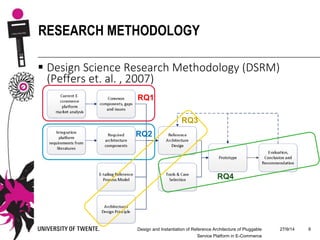

RESEARCH METHODOLOGY
 Design Science Research Methodology (DSRM)
(Peffers et. al. , 2007)
RQ1
RQ2
RQ3
RQ4

7.  Common components: compilation of
common e-commerce platform functionalities
 Gaps & issues:
 Webshop-specific
connectors
 Point-to-point
27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
7

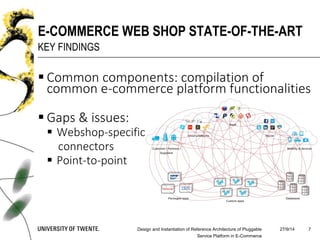

E-COMMERCE WEB SHOP STATE-OF-THE-ART
KEY FINDINGS

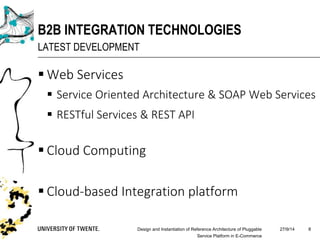

8.  Web Services
 Service Oriented Architecture & SOAP Web Services
 RESTful Services & REST API
 Cloud Computing
 Cloud-based Integration platform
27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
8
B2B INTEGRATION TECHNOLOGIES
LATEST DEVELOPMENT

9.  Common components:
 SOA Governance and API Management
 Process management
 Gaps:
 Lack of BPM engine
27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
9
CLOUD-BASED INTEGRATION PLATFORM
KEY FINDINGS

10.  Enterprise Architecture
 Architecture Framework : TOGAF
 Architecture Modeling Language : Archimate
27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
10
REFERENCE ARCHITECTURE
KEY CONCEPTS

11. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
11
ARCHIMATE

12. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
12

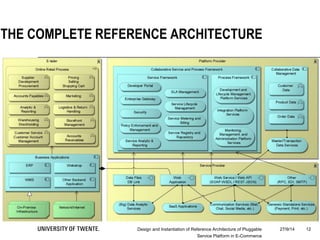

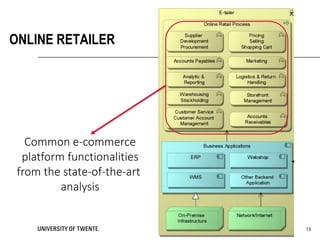

THE COMPLETE REFERENCE ARCHITECTURE

13. 27/9/14 13
ONLINE RETAILER
Common e-commerce
platform functionalities
from the state-of-the-art
analysis

14. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
14

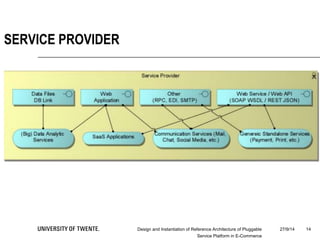

SERVICE PROVIDER

15. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
15
PLATFORM PROVIDER
SOA Governance & API Management Process Management

16. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
16
PLATFORM PROVIDER
 Collaborative Data Management
 Canonical data model
 Schema mapper & matching
 Identity and Access Management

17. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
17

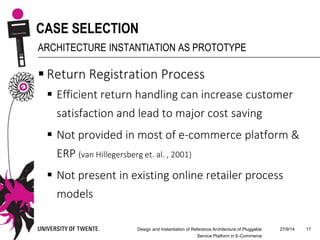

CASE SELECTION
ARCHITECTURE INSTANTIATION AS PROTOTYPE
 Return Registration Process
 Efficient return handling can increase customer
satisfaction and lead to major cost saving
 Not provided in most of e-commerce platform &
ERP (van Hillegersberg et. al. , 2001)
 Not present in existing online retailer process
models

18. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
18

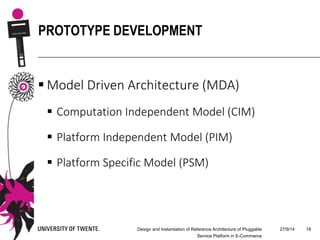

PROTOTYPE DEVELOPMENT
 Model Driven Architecture (MDA)
 Computation Independent Model (CIM)
 Platform Independent Model (PIM)
 Platform Specific Model (PSM)

19. 27/9/14 19

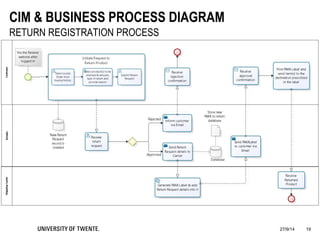

CIM & BUSINESS PROCESS DIAGRAM
RETURN REGISTRATION PROCESS

20. 27/9/14 20
PIM& RETURN HANDLING ARCHITECTURE

21. 27/9/14 21

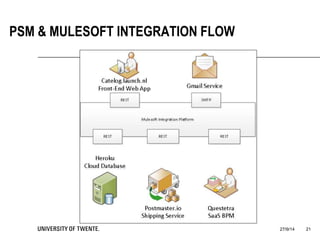

PSM & MULESOFT INTEGRATION FLOW

22. PROTOTYPE DEMONSTRATION
27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
22
 Catelog Front-end Webshop (1)

23. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
23

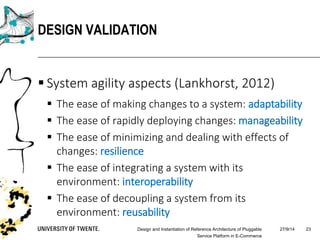

DESIGN VALIDATION
 System agility aspects (Lankhorst, 2012)
 The ease of making changes to a system: adaptability
 The ease of rapidly deploying changes: manageability
 The ease of minimizing and dealing with effects of
changes: resilience
 The ease of integrating a system with its
environment: interoperability
 The ease of decoupling a system from its
environment: reusability

24. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
24
DESIGN VALIDATION

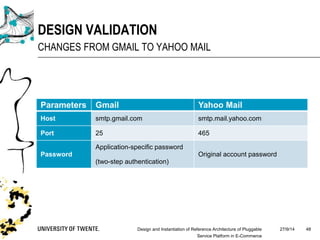

Replace some of the existing services with new
set of services
Type of services Existing New
Mailing Google Mail Yahoo Mail
Shippping Postmaster Shipcloud

25. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
25

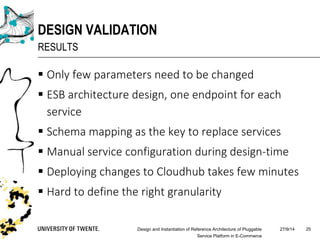

DESIGN VALIDATION
RESULTS
 Only few parameters need to be changed
 ESB architecture design, one endpoint for each
service
 Schema mapping as the key to replace services
 Manual service configuration during design-time
 Deploying changes to Cloudhub takes few minutes
 Hard to define the right granularity

26. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
26

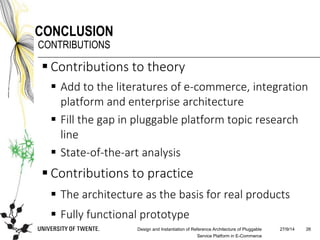

CONCLUSION
CONTRIBUTIONS
 Contributions to theory
 Add to the literatures of e-commerce, integration
platform and enterprise architecture
 Fill the gap in pluggable platform topic research
line
 State-of-the-art analysis
 Contributions to practice
 The architecture as the basis for real products
 Fully functional prototype

27. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
27
CONCLUSION
LIMITATION & FUTURE RESEARCH
Limitations Future Research
Qualitative, subjective
assessment to the platform
design
Try to find suitable metrics for
assessment with external
experts
Simplified use-case Broader & more complex use-
case, or more than one case
Implement security
mechanism
Partial evaluation on some
architecture components
Detailed service classification
with respect to pluggability

28. THANK YOU
DISCUSSION TIME
27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
28
 conclusion
 contributions

29. RESERVED SLIDES
27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
29
 conclusion
 contributions

30.  Content & Product Information Management
 Website Storefront Management
 Customer Account Management and Customer Service
 Marketing, Promotion and Conversion
 Analytic and Reporting
 Data Repository & Search
 Rich Web and Client Presentation
 Stable Core Web Framework
 Shopping Cart and Payment (Transaction Processing)
 Order Management & Fulfilment System
 Shipping, logistic/distribution, and warehousing
 Back-office Integration
 Social Media Integration
 (Multi) Channel Management
27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
30
FEATURES OF E-COMMERCE WEB SHOP
PLATFORM

31. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
31

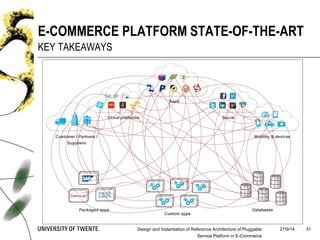

E-COMMERCE PLATFORM STATE-OF-THE-ART
KEY TAKEAWAYS

32.  Web Services
 Universal Description Discovery and Integration (UDDI):
service discoverability mechanism
 Web Service Description Language (WSDL):
A formal document explaining service contracts, service
interface
27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
32
DEVELOPMENT HISTORY OF INTEGRATION
TECHNOLOGIES
WEB SERVICES

33. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
34
DEVELOPMENT HISTORY OF INTEGRATION
TECHNOLOGIES
SOA STACK

34.  SOAP
 REST
27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
35
DEVELOPMENT HISTORY OF INTEGRATION
TECHNOLOGIES
SOAP AND RESTFUL SERVICES COMPARISON

35. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
36

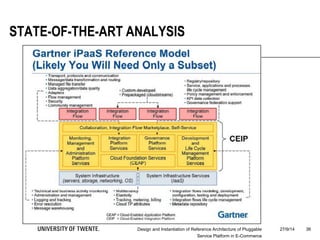

STATE-OF-THE-ART ANALYSIS

36. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
37

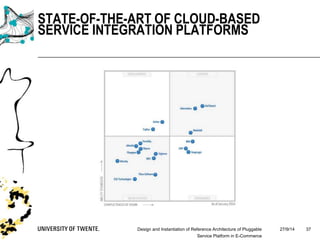

STATE-OF-THE-ART OF CLOUD-BASED
SERVICE INTEGRATION PLATFORMS

37. 27/9/14 39
MULESOFT STUDIO MAIN WORKFLOW
Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce

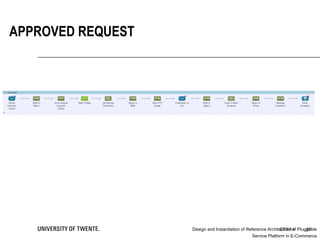

38. 27/9/14 40
APPROVED REQUEST
Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce

39. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
41

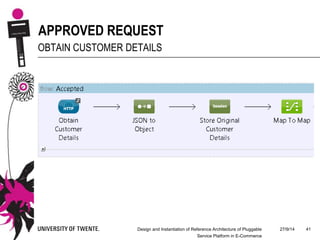

APPROVED REQUEST
OBTAIN CUSTOMER DETAILS

40. 27/9/14 42

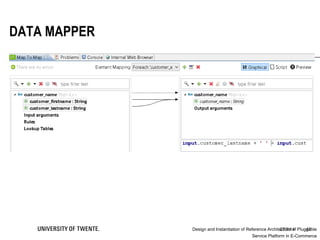

DATA MAPPER
Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce

41. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
43

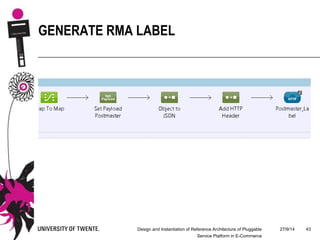

GENERATE RMA LABEL

42. 44
POSTMASTER LABEL

43. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
45
APPROVED REQUESTGENERATE RMA (RETURN MERCHANDISE AUTHORIZATION)
LABEL

44. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
46
REJECTED REQUEST
MAIN FLOW

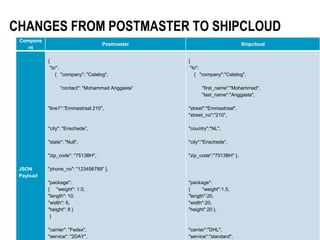

45. Compone
nt
Postmaster Shipcloud
JSON
Payload
{
"to":
{ "company": "Catelog",
"contact": "Mohammad Anggasta”
"line1":”Emmastraat 210",
"city": "Enschede”,
"state": "Null",
"zip_code": "7513BH",
"phone_no": "123456789" },
"package":
{ "weight": 1.5,
"length": 10,
"width": 6,
"height": 8 }
}
"carrier": "Fedex",
"service": "2DAY",
{
"to":
{ "company":"Catelog",
"first_name":"Mohammad",
"last_name":"Anggasta",
"street":"Emmastraat",
"street_no":"210",
"country":"NL",
"city":"Enschede”,
"zip_code":"7513BH" },
"package":
{ "weight":1.5,
"length":20,
"width":20,
"height":20 },
"carrier":"DHL",
"service":"standard",
CHANGES FROM POSTMASTER TO SHIPCLOUD

46. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
48
DESIGN VALIDATION
CHANGES FROM GMAIL TO YAHOO MAIL
Parameters Gmail Yahoo Mail
Host smtp.gmail.com smtp.mail.yahoo.com
Port 25 465
Password
Application-specific password
(two-step authentication)
Original account password

47. 49
SHIPCLOUD LABEL

48. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
50

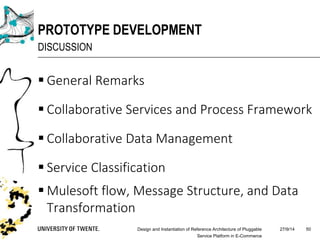

PROTOTYPE DEVELOPMENT
DISCUSSION
 General Remarks
 Collaborative Services and Process Framework
 Collaborative Data Management
 Service Classification
 Mulesoft flow, Message Structure, and Data
Transformation

49. 27/9/14Design and Instantiation of Reference Architecture of Pluggable
Service Platform in E-Commerce
51

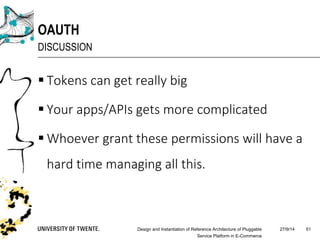

OAUTH
DISCUSSION
 Tokens can get really big
 Your apps/APIs gets more complicated
 Whoever grant these permissions will have a
hard time managing all this.
