- 1. IT ARCHITECTURE MATTERS! SERVICEORIENTED ARCHITECTURE & COMPETITIVE ADVANTAGE Yogish Pai CTO-IT, BEA Systems yogish.pai@bea.com
- 2. AGENDA The Promise ofSOA A Roadmap to SOA Our Experience with SOA and Our Vision

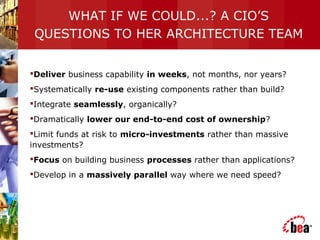

- 3. WHAT IF WECOULD...? A CIO’S QUESTIONS TO HER ARCHITECTURE TEAM Deliver business capability in weeks, not months, nor years? Systematically re-use existing components rather than build? Integrate seamlessly, organically? Dramatically lower our end-to-end cost of ownership? Limit funds at risk to micro-investments rather than massive investments? Focus on building business processes rather than applications? Develop in a massively parallel way where we need speed?
- 4. WE CAN …THREE MAJOR TRENDS ARE TRANSFOMING ENTERPRISE COMPUTING Service Oriented Architectures Global Sourcing Low Cost High Performance Platforms 1 2 3 Interoperability enabling new, much faster and efficient ways to deliver IT Linux-Intel dramatically reducing TCO of IT Large global supply of skills dramatically increasing affordability of labor Speed Efficiency Differentiation
- 5. SOA: A PARADIGMSHIFT Distributed Component Architecture Service Oriented Architecture Functionality Oriented Process Oriented Designed to Last Designed to Change Long Development Cycle Interactive and Iterative Development Cost Centered Business Centered Application Block Services Orchestration Tightly Coupled Agile and Adaptive Homogeneous Technology Heterogeneous Technology Object Oriented Message Oriented Known Implementation Abstraction
- 6. AGENDA The Promise ofSOA A Roadmap to SOA Our Experience with SOA and Our Vision

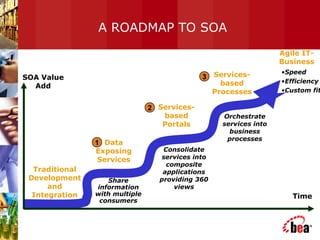

- 7. A ROADMAP TOSOA Traditional Development and Integration Data Exposing Services Services- based Portals Services- based Processes 1 2 3SOA Value Add Time Share information with multiple consumers Consolidate services into composite applications providing 360 views Orchestrate services into business processes •Speed •Efficiency •Custom fit Agile IT- Business

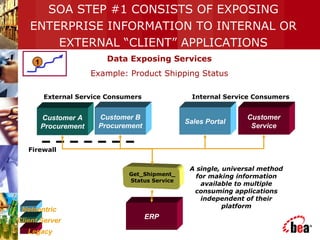

- 8. SOA STEP #1CONSISTS OF EXPOSING ENTERPRISE INFORMATION TO INTERNAL OR EXTERNAL “CLIENT” APPLICATIONS Client Server ERP Legacy Netcentric Get_Shipment_ Status Service Customer A Procurement Customer B Procurement Sales Portal Customer Service Firewall Data Exposing Services Example: Product Shipping Status External Service Consumers Internal Service Consumers A single, universal method for making information available to multiple consuming applications independent of their platform 1

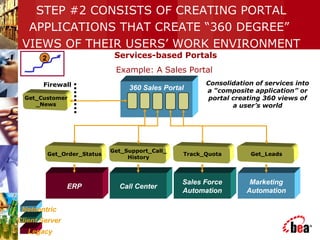

- 9. STEP #2 CONSISTSOF CREATING PORTAL APPLICATIONS THAT CREATE “360 DEGREE” VIEWS OF THEIR USERS’ WORK ENVIRONMENT ERP 360 Sales Portal Services-based Portals Example: A Sales Portal Call Center Get_Support_Call_ History Sales Force Automation Get_Order_Status Get_Customer _News Firewall Track_Quota Marketing Automation Get_Leads Consolidation of services into a “composite application” or portal creating 360 views of a user’s world 2 Client Server Legacy Netcentric
- 10. THE SALES BEAcon,A SALES PORTAL INTEGRATING INFORMATION USING A COMMON PARADIGM: SERVICES Alert Service Employee Task Service Revenue Service Real time, services- based integration of: • CRM • Financials • Order Management • Knowledge/Document management • Collaboration tools • Productivity tools • External information Stock quote Service Account Service Quota Service

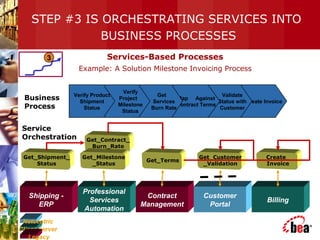

- 11. Get_Contract_ Burn_Rate STEP #3 ISORCHESTRATING SERVICES INTO BUSINESS PROCESSES Shipping - ERP Services-Based Processes Example: A Solution Milestone Invoicing Process Professional Services Automation Get_Milestone _Status Customer Portal Get_Shipment_ Status Get_Customer _Validation Billing Contract Management Get_Terms Create_ Invoice Create Invoice Validate Status with Customer Map Against Contract Terms Get Services Burn Rate Verify Project Milestone Status Verify Product Shipment Status Service Orchestration Business Process 3 Client Server Legacy Netcentric

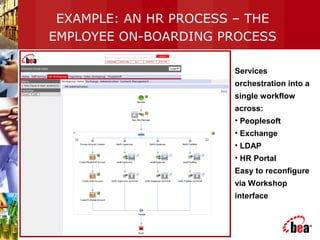

- 12. EXAMPLE: AN HRPROCESS – THE EMPLOYEE ON-BOARDING PROCESS Services orchestration into a single workflow across: • Peoplesoft • Exchange • LDAP • HR Portal Easy to reconfigure via Workshop interface

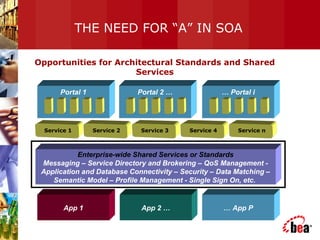

- 13. THE NEED FOR“A” IN SOA App 1 Portal 1 App 2 … Service 1 … App P Portal 2 … … Portal i Service 2 Service 3 Service 4 Service n Enterprise-wide Shared Services or Standards Messaging – Service Directory and Brokering – QoS Management - Application and Database Connectivity – Security – Data Matching – Semantic Model – Profile Management - Single Sign On, etc. Opportunities for Architectural Standards and Shared Services
- 14. AGENDA The Promise ofSOA A Roadmap to SOA Our Experience with SOA and Our Vision

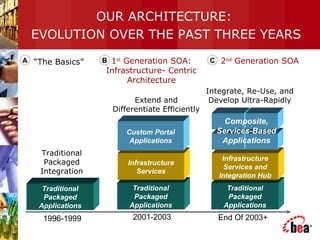

- 15. OUR ARCHITECTURE: EVOLUTION OVERTHE PAST THREE YEARS Traditional Packaged Integration 1st Generation SOA: Infrastructure- Centric Architecture Traditional Packaged Applications Traditional Packaged Applications Infrastructure Services Custom Portal Applications Traditional Packaged Applications Infrastructure Services and Integration Hub 2nd Generation SOA Composite, Services-Based Applications “The Basics” Extend and Differentiate Efficiently Integrate, Re-Use, and Develop Ultra-Rapidly A B C 1996-1999 2001-2003 End Of 2003+ Custom Portal Applications
- 16. Our approach toenterprise architecture. ““A Better Approach”A Better Approach” Service-Centric ArchitectureService-Centric Architecture The “Old Ways”The “Old Ways” Typical Legacy EnterpriseTypical Legacy Enterprise Architectures – Complex,Architectures – Complex, Expensive, RigidExpensive, Rigid • Proliferating applications (multiple ERPs, SFAs,etc.) • Costly bolt-on systems and customizations • Point-to-point integrations • Poor data integrity ERP SFA Call Center … Enterprise Infrastructure Services Custom Portal Applications Custom Portal Applications …. Packaged ApplicationsPackaged Applications WebLogic PlatformWebLogic Platform WebLogic PortalWebLogic Portal

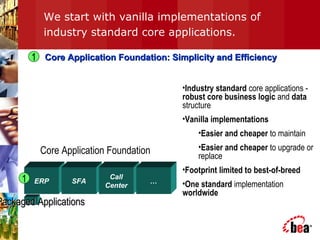

- 17. ERP SFA Call Center … We startwith vanilla implementations of industry standard core applications. •Industry standard core applications - robust core business logic and data structure •Vanilla implementations •Easier and cheaper to maintain •Easier and cheaper to upgrade or replace •Footprint limited to best-of-breed •One standard implementation worldwide Core Application Foundation: Simplicity and EfficiencyCore Application Foundation: Simplicity and Efficiency1 Core Application Foundation 1 Packaged ApplicationsPackaged Applications

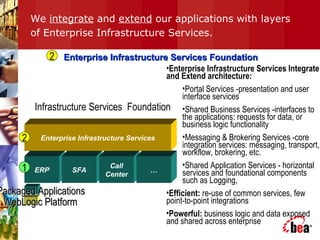

- 18. ERP SFA Call Center … Enterprise InfrastructureServices We integrate and extend our applications with layers of Enterprise Infrastructure Services. •Enterprise Infrastructure Services Integrate and Extend architecture: •Portal Services -presentation and user interface services •Shared Business Services -interfaces to the applications: requests for data, or business logic functionality •Messaging & Brokering Services -core integration services: messaging, transport, workflow, brokering, etc. •Shared Application Services - horizontal services and foundational components such as Logging, •Efficient: re-use of common services, few point-to-point integrations •Powerful: business logic and data exposed and shared across enterprise Enterprise Infrastructure Services FoundationEnterprise Infrastructure Services Foundation2 Infrastructure Services Foundation 2 1 Packaged ApplicationsPackaged Applications WebLogic PlatformWebLogic Platform

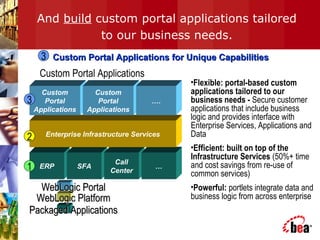

- 19. And build customportal applications tailored to our business needs. •Flexible: portal-based custom applications tailored to our business needs - Secure customer applications that include business logic and provides interface with Enterprise Services, Applications and Data •Efficient: built on top of the Infrastructure Services (50%+ time and cost savings from re-use of common services) •Powerful: portlets integrate data and business logic from across enterprise Custom Portal Applications for Unique CapabilitiesCustom Portal Applications for Unique Capabilities3 Custom Portal Applications ERP SFA Call Center … Enterprise Infrastructure Services Custom Portal Applications Custom Portal Applications …. Packaged ApplicationsPackaged Applications WebLogic PlatformWebLogic Platform WebLogic PortalWebLogic Portal 2 1 3

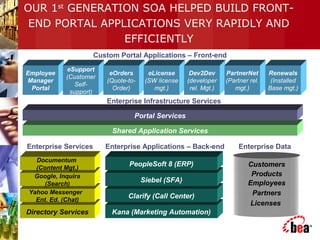

- 20. Kana (Marketing Automation) Clarify(Call Center) Siebel (SFA) PeopleSoft 8 (ERP) Shared Application Services OUR 1st GENERATION SOA HELPED BUILD FRONT- END PORTAL APPLICATIONS VERY RAPIDLY AND EFFICIENTLY Portal Services Employee Manager Portal eSupport (Customer Self- support) eOrders (Quote-to- Order) eLicense (SW license mgt.) Dev2Dev (developer rel. Mgt.) PartnerNet (Partner rel. mgt.) Customers Products Employees Partners Enterprise DataEnterprise Applications – Back-end Custom Portal Applications – Front-end Enterprise Infrastructure Services Licenses Renewals (Installed Base mgt.) Directory Services Yahoo Messenger Ent. Ed. (Chat) Google, Inquira (Search) Documentum (Content Mgt.) Enterprise Services
- 21. Portal Architecture Approach Content Management Domain Database SiebelServices DTOs Presentation BusinessDelegate DTOs DTOs Recommended Approach to Architecture Based on Service Oriented Architecture which Promotes re-use at all levels Provides capability to deliver in weeks not months (once we have a stable framework) Leverage each product for what it is good at, example: WLP for Presentation based on Entitlements Allows business to combine services to deliver new capabilities Domain Access Layer provides abstracts the data source and the relationship, there by minimizing the impact of changes to the source systems De-coupling Presentation from the business logic makes it reliable and scalable Horizontal services and foundational components Presentation and user interface services Shared Application Services Service Locator Notification Search Framework Exception Handling Application Configuration MonitoringLogging Services Access Control Portal Services Personali- sation Login, Registration Entitlements PresentationSSO Search Brokering Content Brokering … …

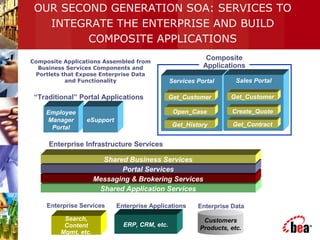

- 22. OUR SECOND GENERATIONSOA: SERVICES TO INTEGRATE THE ENTERPRISE AND BUILD COMPOSITE APPLICATIONS Employee Manager Portal eSupport “Traditional” Portal Applications Enterprise Infrastructure Services Shared Application Services Messaging & Brokering Services Portal Services Shared Business Services Composite Applications Services Portal Sales Portal Open_Case Get_History Get_Customer Create_Quote Get_Contract Get_Customer Enterprise DataEnterprise ApplicationsEnterprise Services Search, Content Mgmt, etc. ERP, CRM, etc. Customers Products, etc. Composite Applications Assembled from Business Services Components and Portlets that Expose Enterprise Data and Functionality

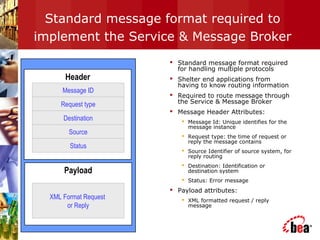

- 23. Header Standard message formatrequired to implement the Service & Message Broker Standard message format required for handling multiple protocols Shelter end applications from having to know routing information Required to route message through the Service & Message Broker Message Header Attributes: Message Id: Unique identifies for the message instance Request type: the time of request or reply the message contains Source Identifier of source system, for reply routing Destination: Identification or destination system Status: Error message Payload attributes: XML formatted request / reply message Payload XML Format Request or Reply Destination Request type Source Status Message ID
- 24. Service & MessageBroker architecture approach Messaging & Brokering Services Service Repository Asynchronous Messaging Asynchronous Workflow Service Finder & Broker Shared Business Services … Vertical/business services: Web Services interfaces to the applications: requests for data, or process Core integration services: messaging, transport, workflow, brokering, etc. …… …… …… … Portal App Portal App Portal App Portal App Portal App Portal App Packaged App Packaged App Packaged App Packaged App Service & Message Broker Service & Message Broker Transform TransformProcess Optional OptionalAll incoming & outgoing message to the process are in canonical format All incoming and outgoing messages to the process shall be in standard format Messages shall not be transformed if they are already in the standard format The Service and Message broker should be able to handle any protocol or message format Service can be executed locally or remotely
- 25. Message and ServiceBroker converts the messages to a standard format (if required) and routes them to the appropriate destination (WebLogic Integrator) (WebLogic Integrator) Message Standardization Web Services Service Repository Request Service Service N Service 2 Service 1 … Message Channel Client App Client App Client App Client App Client App Client App Client App Client App Publish Messages JMS Queue Output File JMS Workflow File Workflow App View Workflow event Client App Client App JMS Queue Web Service invocation Message Broker Service Broker Non-standard messages are converted to standard message format before invoking the service broker The service broker can receive requests from any channel (synchronous & asynchronous) The services can be invokes either on the Service & Message Broker or remotely
- 26. Input Channel S Invoke Sync Service (send w/ reply) Format Response GetSupport Cases by Account Get Customer Address Publish Message Service All Messages Determine Service Service Repository Object Attribute Action Service Customer Address Get GetAddiress Customer SupportCase Action GetSupportCases Customer Contact Add AddContact Header should be fully formed at this time, question still open whether adapters can handle formatting Translate Payload Source Service Transform. object KE GetSupportCases eSupport GetSupportCases SupportCaseXML External AddContact AddFlatCustomer Translation X-Ref If no transformation is needed, leave blank AddFlatCustomer SupportCaseXML Start from Channel Message Start from Direct Invocation XML file XML file Sync Call? Sync? Sync Async Invoke Service (send) Publish Response Message to Input Channel Sync Response? Yes Yes No No Service Broker component Ability to handle anywhere from 40% to 70% of all messages routed through the I-Hub Configurable service broker eliminates the need to implement one Workflow per business process (traditional approach) Enables administrators to dynamically add / modify shared business services Implemented as a single JPD on WLI

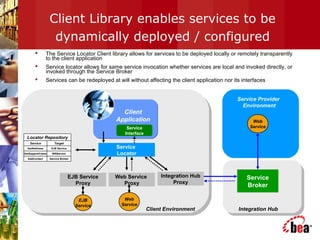

- 27. Client Library enablesservices to be dynamically deployed / configured Client Application Service Locator Locator Repository Service GetAddiress GetSupportCases AddContact Target EJB Service WSService Service Broker Service Interface EJB Service Proxy Web Service Proxy Integration Hub Proxy Client Environment Integration Hub Service Provider Environment EJB Service Web Service Web Service Service Broker The Service Locator Client library allows for services to be deployed locally or remotely transparently to the client application Service locator allows for same service invocation whether services are local and invoked directly, or invoked through the Service Broker Services can be redeployed at will without affecting the client application nor its interfaces

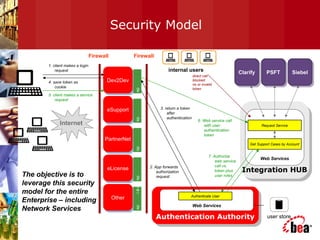

- 28. Authentication AuthorityAuthentication Authority IntegrationHUBIntegration HUB Web Services Security Model SiebelSiebelPSFTPSFT PartnerNetPartnerNet eSupporteSupport OtherOther ClarifyClarify Internet eLicenseeLicense Dev2DevDev2Dev internal users user store Firewall Firewall perimeter 1. client makes a login request 2. App forwards authorization request 3. return a token after authentication 4. save token as cookie 6. Web service call with user authentication token 7. Authorize web service call vs. token plus user roles direct call blocked: no or invalid token The objective is to leverage this security model for the entire Enterprise – including Network Services perimeterperimeterperimeterperimeter Request Service Web Services Authenticate User 5. client makes a service request Get Support Cases by Account

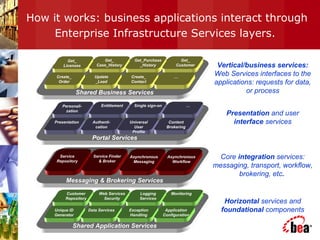

- 29. How it works:business applications interact through Enterprise Infrastructure Services layers. Shared Application Services Customer Repository Unique ID Generator Data Services Exception Handling Application Configuration MonitoringLogging Services Web Services Security Messaging & Brokering Services Service Repository Asynchronous Messaging Asynchronous Workflow Service Finder & Broker Vertical/business services: Web Services interfaces to the applications: requests for data, or process Core integration services: messaging, transport, workflow, brokering, etc. Horizontal services and foundational components Portal Services Personali- zation Presentation Authenti- cation Universal User Profile Content Brokering …Single sign-onEntitlement Shared Business Services Get_ Licenses Create_ Order Update _Lead Create_ Contact … Get_ Customer Get_Purchase _History Get_ Case_History Presentation and user interface services

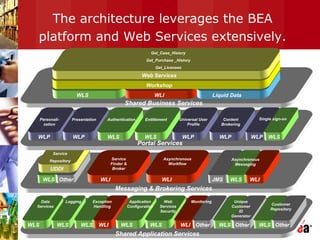

- 30. The architecture leveragesthe BEA platform and Web Services extensively. … Shared Application Services WLS Data Services WLS Logging WLS WLI Exception Handling WLS Application Configuration Web Services Security WLS WLI Other Monitoring WLS Other Unique Customer ID Generator WLS Other Customer Repository UDDI WLS Other WLI WLI Service Repository Service Finder & Broker Asynchronous Workflow WLIWLSJMS Asynchronous Messaging Messaging & Brokering Services … Web Services Workshop WLI Get_Case_History Get_Purchase _History Get_Licenses Liquid DataWLS Shared Business Services WLP Personali- zation WLP Presentation WLS Authentication WLS Entitlement WLP Universal User Profile WLP Content Brokering WLP WLS Single sign-on Portal Services

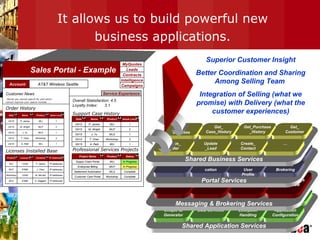

- 31. Date Name ProductIssue Level 03/15 P. James WLI 1 03/15 M. Wright WLP 2 03/15 J. Yu WLS 1 03/15 T. Chen Workshop 3 03/15 A. Petit WLI 1 Sales Portal - Example Account AT&T Wireless Seattle Customer News Words you cannot search for and which cannot improve your search include: …. Order History Date Name Product Issue Level 03/15 P. James WLI 1 03/15 M. Wright WLP 2 03/15 J. Yu WLS 1 03/15 T. Chen Workshop 3 03/15 A. Petit WLI 1 Licenses Installed Base Support Case History Overall Statisfaction: 4.5 Loyalty Index: 3.1 Project Name Product Status Supply Chain Portal WLI In Progress Enterprise Billing WLP In Progress Settlement Automation WLS Complete Customer Care Portal Workshop Complete Professional Services Projects Service Experience MyQuotes Leads Contracts Product License # Contacts IP Addresses WLI 12345 P. James IP addresses WLP 67890 J. Chen IP addresses Workshop 12345 M. McCain IP addresses WLS 67890 A. Haggarti IP addresses Intelligence Campaigns Shared Application Services Customer Repository Unique ID Generator Data Services Exception Handling Application Configuration MonitoringLogging Services Web Services Security Messaging & Brokering Services Service Repository Asynchronous Messaging Asynchronous Workflow Service Finder & Broker Portal Services Personali- zation Presentation Authenti- cation Universal User Profile Content Brokering …Single sign-onEntitlement Shared Business Services Get_ Licenses Create_ Order Update _Lead Create_ Contact … Get_ Customer Get_Purchase _History Get_ Case_History It allows us to build powerful new business applications. Superior Customer Insight Better Coordination and Sharing Among Selling Team Integration of Selling (what we promise) with Delivery (what the customer experiences)
- 32. Shared Application Services Customer Repository UniqueID Generator Data Services Exception Handling Application Configuration MonitoringLogging Services Web Services Security Messaging & Brokering Services Service Repository Asynchronous Messaging Asynchronous Workflow Service Finder & Broker Portal Services Personali- zation Presentation Authenti- cation Universal User Profile Content Brokering …Single sign-onEntitlement Shared Business Services Get_ Licenses Create_ Order Update _Lead Create_ Contact … Get_ Customer Get_Purchase _History Get_ Case_History Date Name Product Issue Level 03/15 P. James WLI 1 03/15 M. Wright WLP 2 03/15 J. Yu WLS 1 03/15 T. Chen Workshop 3 03/15 A. Petit WLI 1 Customer Portal - Example Company AT&T Wireless Seattle Order History Date Name Product Issue Level 03/15 P. James WLI 1 03/15 M. Wright WLP 2 03/15 J. Yu WLS 1 03/15 T. Chen Workshop 3 03/15 A. Petit WLI 1 MyLicenses Support Case History Project Name Product Status Supply Chain Portal WLI In Progress Enterprise Billing WLP In Progress Settlement Automation WLS Complete Customer Care Portal Workshop Complete Professional Services Projects Service Experience Product License # Contacts IP Addresses WLI 12345 P. James IP addresses WLP 67890 J. Chen IP addresses Workshop 12345 M. McCain IP addresses WLS 67890 A. Haggarti IP addresses MyContacts MyConfigs Support Tools Events The new architecture and many of the same services can enable customer facing applications. 360 degree view of my relationship with BEA Improved coordination with BEA and my team members Reduced productivity losses Name J. Cheng Position Sr. Director, eBusiness
- 33. Enterprise Services Hub OURLATEST ARCHITECTURE VISION IN ITS SIMPLEST FORM Portlet Libraries Universal Portals Portlet Service Portlet Application Engines (ERP, CRM, SCM…) Data Sources (Customers, Products,…) Enterprise Applications and Data integrated via Enterprise Services Hub Functionality and Data exposed via Services and Portlets – cataloged in libraries Applications assembled in remote portals – “the user is the owner”- multi- channel delivery Service Portlet Service Services Libraries

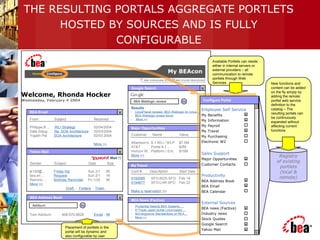

- 34. THE RESULTING PORTALSAGGREGATE PORTLETS HOSTED BY SOURCES AND IS FULLY CONFIGURABLE Registry of existing portlets (local & remote) New functions and content can be added on the fly simply by adding the remote portlet web service definition to the catalog – The resulting portals can be continuously expanded without affecting current functions Welcome, Rhonda Hocker Wednesday, February 4 2004 Google Search BEA Weblogic review Go Results - LinuxPlanet reviews: BEA Weblogic for Linux… - BEA Weblogic review forum - More >> x BEA Email x From Subject Received Philippe.B…. WLI Strategy 02/04/2004 Dale Slaug... Re: SOA Architecture 02/03/2004 Yogish Pai SOA Architecture 02/03.2004 More >> Yahoo Mail x Sender Subject Date Size jk100@... Friday trip Sun 2/1 2K lara.en… Request Sun 2/1 1K Remind… Birthday Reminder Fri 1/30 3K More >> Draft - Folders - Trash BEA Address Book x Ashburn Go Tom Ashburn 408-570-8628 Email - IM Placement of portlets in the portal will be dynamic and also configurable by user Available Portlets can reside either in internal servers or external providers – all communication to remote portlets through Web Services Major Opportunities Customer Name Value Albertson’s 8.1 WLI / WLP $7.5M AT&T Portal 8.1 … $2M Verizon W.. Platform / Ent.. $15M More >> x My Travel Conf # Descrfption Start Date 0192985 SFO-BOS-SFO Feb 14 0194677 SFO-LHR-SFO Feb 22 Make a reservation >> x BEA News (Factiva) x - Prudential Selects BEA Systems … - E*Trade Japan builds Linux-based … - Norvergcence Standardizes on BEA... - More >> Configure Portal Configure Portal V V Employee Self Service My Benefits My Information My Payroll My Travel My Purchasing Electronic W2 Sales Support Major Opportunities Customer Contacts Productivity BEA Address Book BEA Email BEA Calendar External Sources BEA news (Factiva) Industry news Stock Quotes Google Search Yahoo Mail x x x x x x x x x

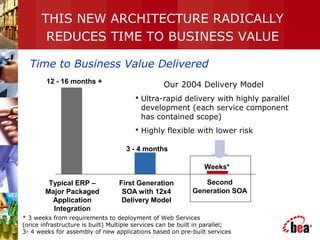

- 35. THIS NEW ARCHITECTURERADICALLY REDUCES TIME TO BUSINESS VALUE 12 - 16 months + 3 - 4 months Weeks* First Generation SOA with 12x4 Delivery Model Typical ERP – Major Packaged Application Integration Second Generation SOA Our 2004 Delivery Model Ultra-rapid delivery with highly parallel development (each service component has contained scope) Highly flexible with lower risk Time to Business Value Delivered * 3 weeks from requirements to deployment of Web Services (once infrastructure is built) Multiple services can be built in parallel; 3- 4 weeks for assembly of new applications based on pre-built services

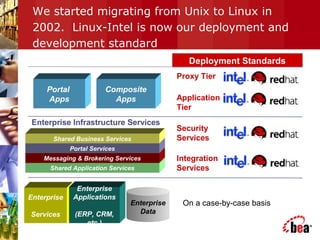

- 36. We started migratingfrom Unix to Linux in 2002. Linux-Intel is now our deployment and development standard Portal Apps Composite Apps Shared Application Services Messaging & Brokering Services Portal Services Shared Business Services Enterprise Services Enterprise Applications (ERP, CRM, etc.) Enterprise Data Enterprise Infrastructure Services Deployment Standards On a case-by-case basis Proxy Tier Application Tier Integration Services Security Services
- 37. Linux is ideallysuited for SOAs. Portal Apps Composite Apps Shared Application Services Messaging & Brokering Services Portal Services Shared Business Services Enterprise Infrastructure Services High Processing Power for the Dollar Ideal for transaction intensive components (portals, messaging and brokering services) Openness Allows OS tuning for single purpose components where performance is key (messaging and brokering, authentication, security services, etc.) Small Footprint Ideal for creation of single purpose (“plug and play”) appliances (grid computing)
- 38. IT ARCHITECTURE MATTERS! SERVICEORIENTED ARCHITECTURE & COMPETITIVE ADVANTAGEYogish Pai CTO-IT, BEA Systems yogish.pai@bea.com
