Design of RCC Lintel
- 1. DESIGN OF RCCLINTEL -ARUN KURALI

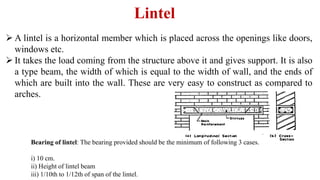

- 2. Lintel A lintelis a horizontal member which is placed across the openings like doors, windows etc. It takes the load coming from the structure above it and gives support. It is also a type beam, the width of which is equal to the width of wall, and the ends of which are built into the wall. These are very easy to construct as compared to arches. Bearing of lintel: The bearing provided should be the minimum of following 3 cases. i) 10 cm. ii) Height of lintel beam iii) 1/10th to 1/12th of span of the lintel.
- 3. Timber lintel Stone lintel Brick lintel Steel lintel Reinforced concrete lintel Reinforced brick lintel Types of Lintels
- 4.
- 5.
- 6.
- 7.
- 8.
- 9. Reinforced Cement ConcreteLintels At present, the lintels of R.C.C are widely used to the openings for doors, windows, etc. in a structure because of their strength, rigidity, fire resistance, economy and ease in construction. R.C.C lintels are suitable for all the loads and for any span. The width of lintel is equal to width of wall. main reinforcement is provided at the bottom and half of these bars are cranked at the ends. Shear stirrups are provided to resist transverse shear
- 10. Types of DesignLoads on lintel Self-weight or dead load of the lintel Dead load of the wall above the opening Dead load and live load transferred from the roof or the floor supported by the wall over the opening
- 11. Dead Load ofthe Wall Above the Lintel

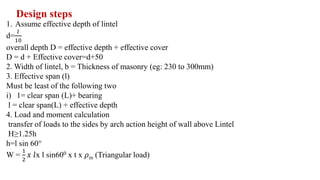

- 12. Design steps 1. Assumeeffective depth of lintel d= 𝑙 10 overall depth D = effective depth + effective cover D = d + Effective cover=d+50 2. Width of lintel, b = Thickness of masonry (eg: 230 to 300mm) 3. Effective span (l) Must be least of the following two i) 1= clear span (L)+ bearing l = clear span(L) + effective depth 4. Load and moment calculation transfer of loads to the sides by arch action height of wall above Lintel H≥1.25h h=l sin 60° W = 1 2 𝑥 𝑙x l sin600 x t x 𝜌m (Triangular load)

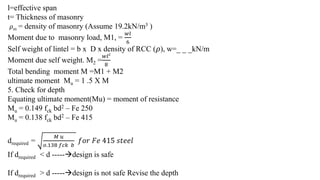

- 13. l=effective span t= Thicknessof masonry 𝜌m = density of masonry (Assume 19.2kN/m3 ) Moment due to masonry load, M1, = 𝑤𝑙 6 Self weight of lintel = b x D x density of RCC ( 𝜌), w=_ _ _kN/m Moment due self weight. M2 = 𝑤𝑙2 8 Total bending moment M =M1 + M2 ultimate moment Mu = 1 .5 X M 5. Check for depth Equating ultimate moment(Mu) = moment of resistance Mu = 0.149 fck bd2 – Fe 250 Mu = 0.138 fck bd2 – Fe 415 drequired = 𝑀 𝑢 𝑜.138 𝑓𝑐𝑘 𝑏 𝑓𝑜𝑟 𝐹𝑒 415 𝑠𝑡𝑒𝑒𝑙 If drequired < d -----design is safe If drequired > d -----design is not safe Revise the depth

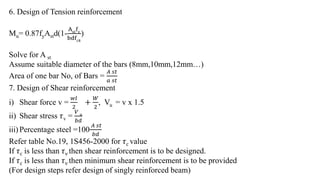

- 14. 6. Design ofTension reinforcement Mu= 0.87fyAstd(1- Ast fy bdf 𝑐𝑘 ) Solve for A st Assume suitable diameter of the bars (8mm,10mm,12mm…) Area of one bar No, of Bars = 𝐴 𝑠𝑡 𝑎 𝑠𝑡 7. Design of Shear reinforcement i) Shear force v = 𝑤𝑙 2 + 𝑊 2 , Vu = v x 1.5 ii) Shear stress 𝜏v = 𝑉 𝑢 𝑏𝑑 iii) Percentage steel =100 𝐴 𝑠𝑡 𝑏𝑑 Refer table No.19, 1S456-2000 for 𝜏c value If 𝜏c is less than 𝜏v then shear reinforcement is to be designed. If 𝜏c is less than 𝜏v then minimum shear reinforcement is to be provided (For design steps refer design of singly reinforced beam)
- 15. Problems: Design a lintelusing following Data: width of opening = 2.4m, Height of brick wall above lintel = 3m, thickness of walls = 230mm, bearing width of wall = 230mm, concrete M20 and steel Fe415, Weight of concrete = 25kN/m3, Weight of brick wall = 19.2kN/m3. Sketch reinforcement details.
- 16. Design steps 1. Assumeeffective depth of lintel d= 𝑙 10 = = 2400 10 = 240mm overall depth D = effective depth + effective cover D = d + 35mm Effective cover=240+35 = 275mm 2. Width of lintel, b = Thickness of masonry = 230mm 3. Effective span (l) Must be least of the following two i) 1= clear span (L)+ bearing = 2.4+0.23 = 2.63m ii) l = clear span(L) + effective depth = 2.4+0.24 = 2.64m l=2.63m 4. Load and moment calculation For transfer of loads to the sides by arch action, Height of wall above Lintel H≥1.25h , H=3m, h = l sin600 = 2.63 x sin600 = 2.27m, 1.25h = 1.25 x 2.27 = 2.83m H>1.25h
- 17. Masonry load(W)-Triangular load W= 1 2 𝑥 𝑙x l sin600 x t x 𝜌m W = 1 2 𝑥 2.63 x 2.63 sin600 x 0.23 x 19.2 = 13.22kN Moment due to masonry load, M1 = Wl 6 = 13.22x2.63 6 = 5.79kN-m Self weight of lintel, w = b x D x Density of RCC(𝜌) = 0.23 x 0.275 x 25 = 1.58kN/m Moment due to self weight , M2 = wl2 8 = 1.58x2.632 8 = 1.36kN-m Total bending moment, M= M1+M2 = 5.79+1.36 = 7.15kN-m Ultimate moment Mu=1.5 x M = 1.5 x 7.15 = 10.73kN-m

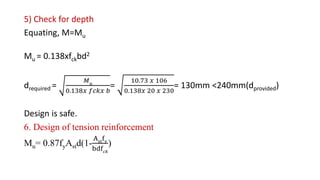

- 18. 5) Check fordepth Equating, M=Mu Mu = 0.138xfckbd2 drequired = 𝑀 𝑢 0.138𝑥 𝑓𝑐𝑘𝑥 𝑏 = 10.73 𝑥 106 0.138𝑥 20 𝑥 230 = 130mm <240mm(dprovided) Design is safe. 6. Design of tension reinforcement Mu= 0.87fyAstd(1- Ast fy bdf 𝑐𝑘 )
- 19. 10.73 x106 =0.87 x 415 x Astx240[1- 𝐴 𝑠𝑡 x415 230 𝑥 240 𝑥 20 ] 10.73 x106 = 86.65x103Ast-32.57Ast 2 32.57Ast 2 - 86.65x103Ast + 10.73 x106 = 0 Ast=130.24mm2 Providing 10mm dia bars Area of one bar, ast= 𝜋𝑥 102 4 =78.5m2 No. of bars = 𝐴 𝑠𝑡 𝑎 𝑠𝑡 = 130.24 78.5 = 1.65 say 2 Nos
- 20. 7. Design ofShear reinforcement i) Shear force v = 𝑤𝑙 2 + 𝑊 2 = 1.58 𝑥2.63 2 + 13.22 2 =8.68kN Vu = v x 1.5 = 8.68 x 1.5 = 13.02kN ii) Shear stress 𝜏v = 𝑉 𝑢 𝑏𝑑 = 13.02𝑥103 230𝑋 240 = 0.235N/mm2 Ast = = 2𝑥 𝜋𝑥 102 4 = 157mm2 iii) Percentage steel =100 𝐴 𝑠𝑡 𝑏𝑑 = 100 x 157 230𝑥240 = 0.28 Refer table No.19, 1S456-2000 𝜏c value after the interpolating available values. 𝜏c=0.37 N/mm2 > 0.235N/mm2 Entire shear is taken by the concrete alone hence providing nominal shear reinforcement, Provide 6mm dia bars

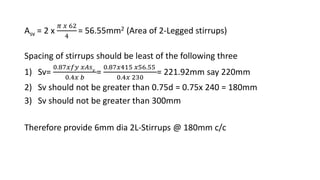

- 21. Asv = 2x 𝜋 𝑥 62 4 = 56.55mm2 (Area of 2-Legged stirrups) Spacing of stirrups should be least of the following three 1) Sv= 0.87𝑥𝑓𝑦 𝑥𝐴𝑠 𝑣 0.4𝑥 𝑏 = 0.87𝑥415 𝑥56.55 0.4𝑥 230 = 221.92mm say 220mm 2) Sv should not be greater than 0.75d = 0.75x 240 = 180mm 3) Sv should not be greater than 300mm Therefore provide 6mm dia 2L-Stirrups @ 180mm c/c
- 22.

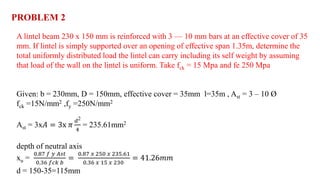

- 23. A lintel beam230 x 150 mm is reinforced with 3 — 10 mm bars at an effective cover of 35 mm. If lintel is simply supported over an opening of effective span 1.35m, determine the total uniformly distributed load the lintel can carry including its self weight by assuming that load of the wall on the lintel is uniform. Take fck = 15 Mpa and fe 250 Mpa Given: b = 230mm, D = 150mm, effective cover = 35mm l=35m , Ast = 3 – 10 Ø fck =15N/mm2 ,fy =250N/mm2 Ast = 3x𝐴 = 3x 𝜋 𝑑2 4 = 235.61mm2 depth of neutral axis xu = 0.87 𝑓 𝑦 𝐴𝑠𝑡 0.36 𝑓𝑐𝑘 𝑏 = 0.87 𝑥 250 𝑥 235.61 0.36 𝑥 15 𝑥 230 = 41.26𝑚𝑚 d = 150-35=115mm PROBLEM 2
- 24. Xu max =0.53d= 0.53 x 115 =60.95mm Xu < Xumax Section is under reinforced , moment of resistance is given by Mu = 0.87 fy A st d x (1 − 𝐴 𝑠𝑡 𝑓𝑦 𝑏𝑑 𝑓𝑐𝑘 ) = 0.87 𝑥 250 𝑥 235.61 𝑥 115 ( 1 − 235.61 𝑥 250 230 𝑥 115 𝑥 15 ) = 5.01x106 N-mm M = Mu / 1.5 = 5.01 1.5 = 3.34𝑘𝑁 − 𝑚 The Maximum BM for simply supported beam carrying udl Equating maximum BM = Moment of resistance 𝑤𝑙2 8 = 𝑤 𝑥 1.35 2 8 = 0.228𝑤 3.34 = 0.228 w w= 14.64kN/m
Editor's Notes
