The document outlines a presentation on Ignition, an industrial application platform, highlighting its features like unlimited licensing, cross-platform compatibility, and modular configurability. It discusses key aspects of the Perspective module, including design, layout, security, and data handling, particularly in relation to mobile devices. Additionally, it provides planning considerations for project development, focusing on design strategy, security measures, and data source management.

2. Moderator
Don Pearson, Chief Strategy Officer, Inductive Automation
Presenter
Travis Cox
Co-Director of Sales Engineering
Inductive Automation

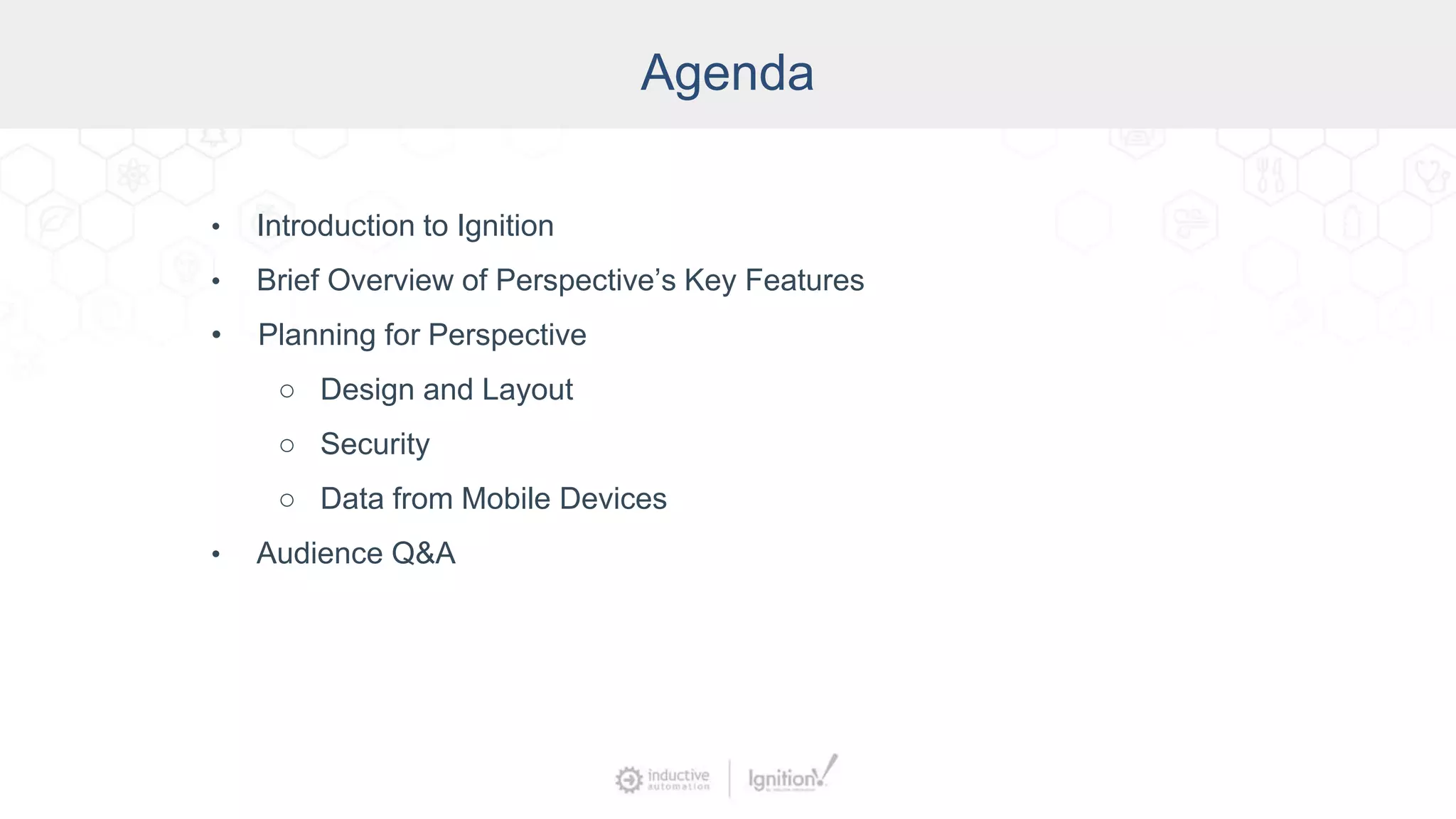

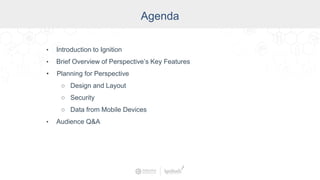

3. Agenda
• Introduction to Ignition
• Brief Overview of Perspective’s Key Features
• Planning for Perspective
○ Design and Layout
○ Security
○ Data from Mobile Devices
• Audience Q&A

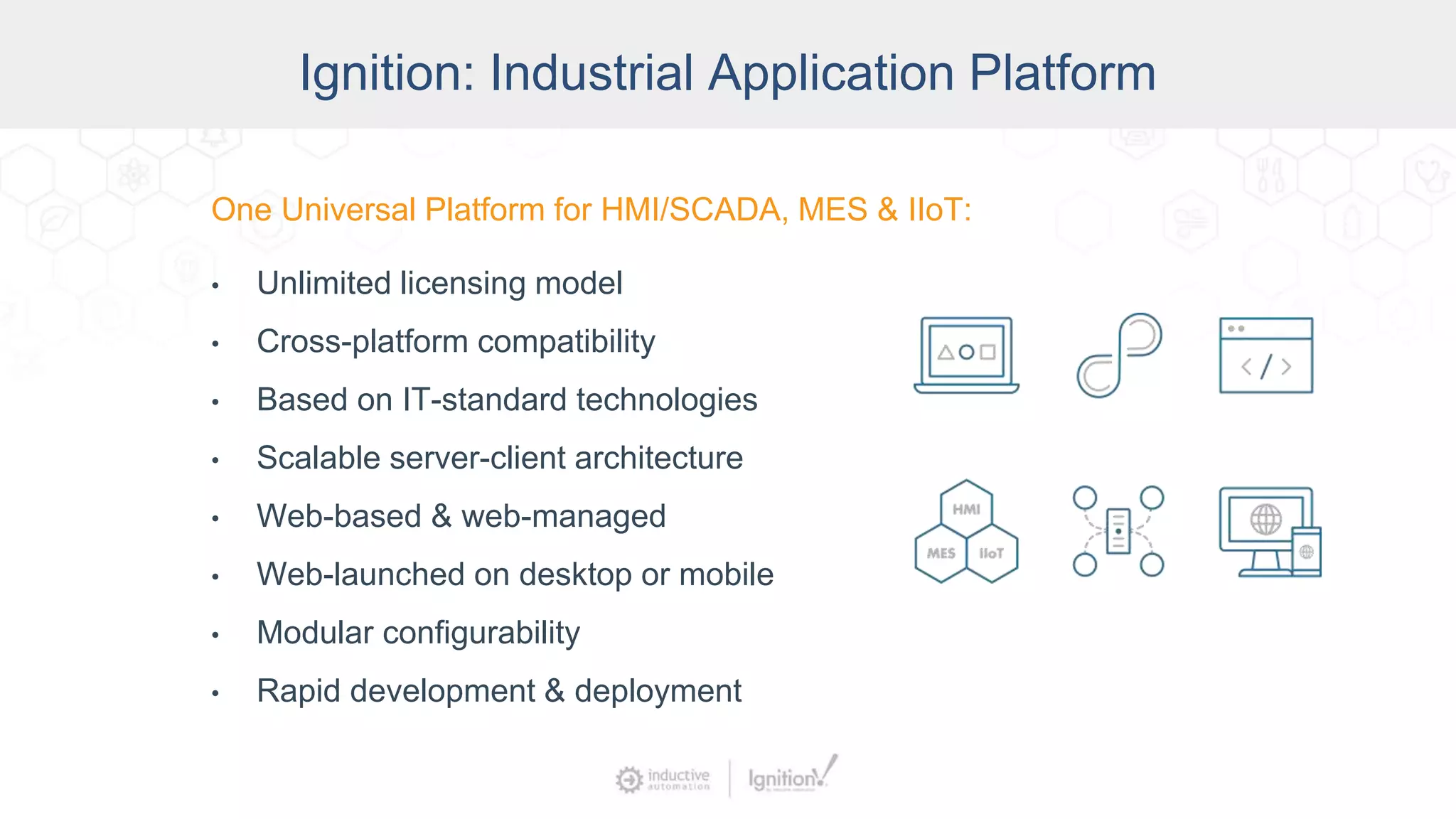

4. Ignition: The Industrial Application
Platform
• Unlimited licensing model
• Cross-platform compatibility
• Based on IT-standard technologies
• Scalable server-client architecture
• Web-managed
• Launch on desktop or mobile
• Modular configurability
• Rapid development and deployment
One Universal Platform for HMI, SCADA, MES & IIoT:One Universal Platform for HMI/SCADA, MES & IIoT:
• Unlimited licensing model
• Cross-platform compatibility
• Based on IT-standard technologies
• Scalable server-client architecture
• Web-based & web-managed
• Web-launched on desktop or mobile
• Modular configurability
• Rapid development & deployment
Ignition: Industrial Application Platform

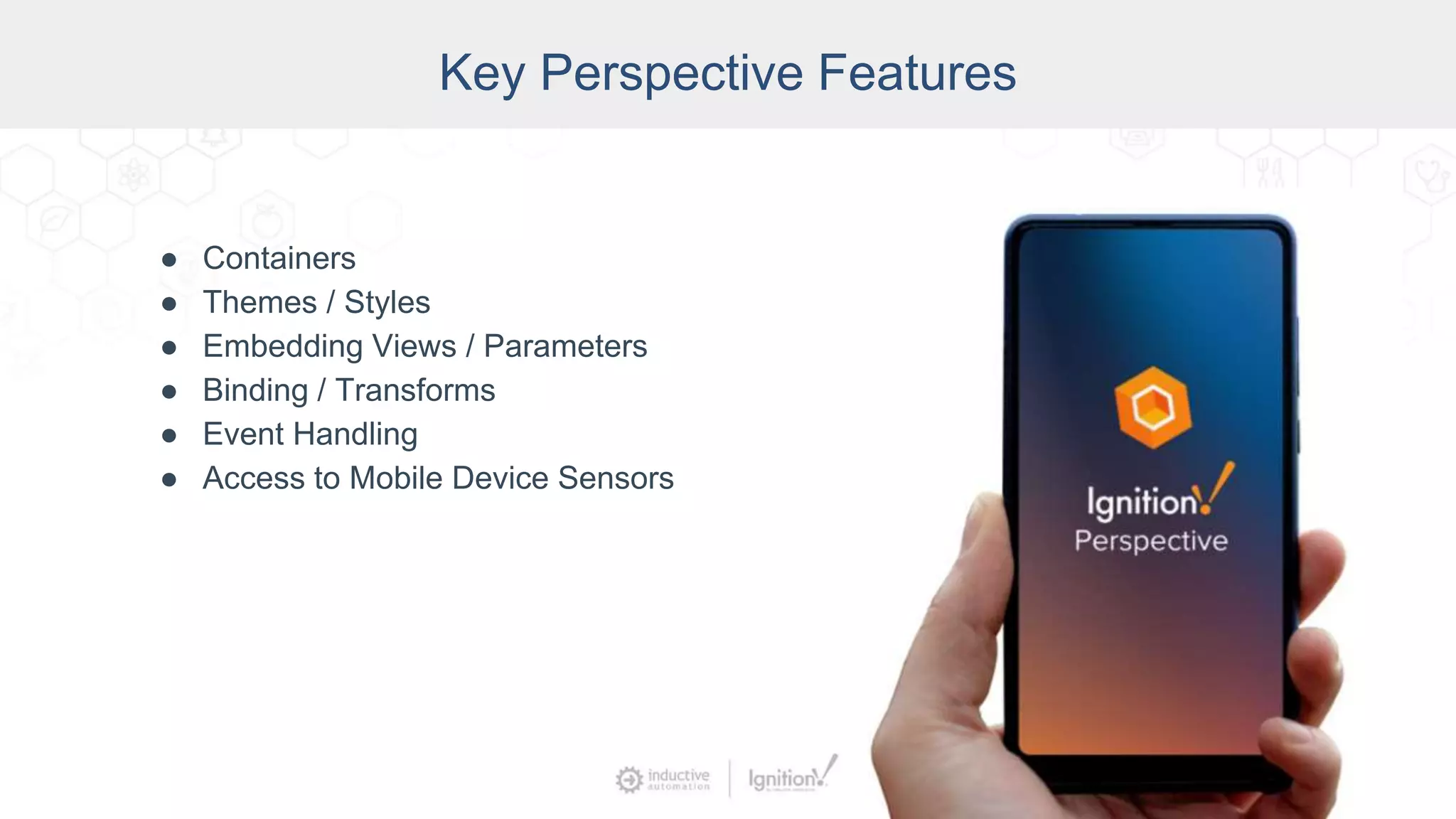

6. Key Perspective Features
● Containers
● Themes / Styles
● Embedding Views / Parameters
● Binding / Transforms
● Event Handling
● Access to Mobile Device Sensors

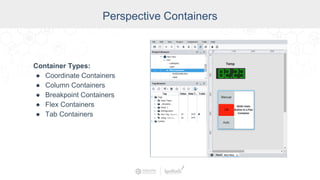

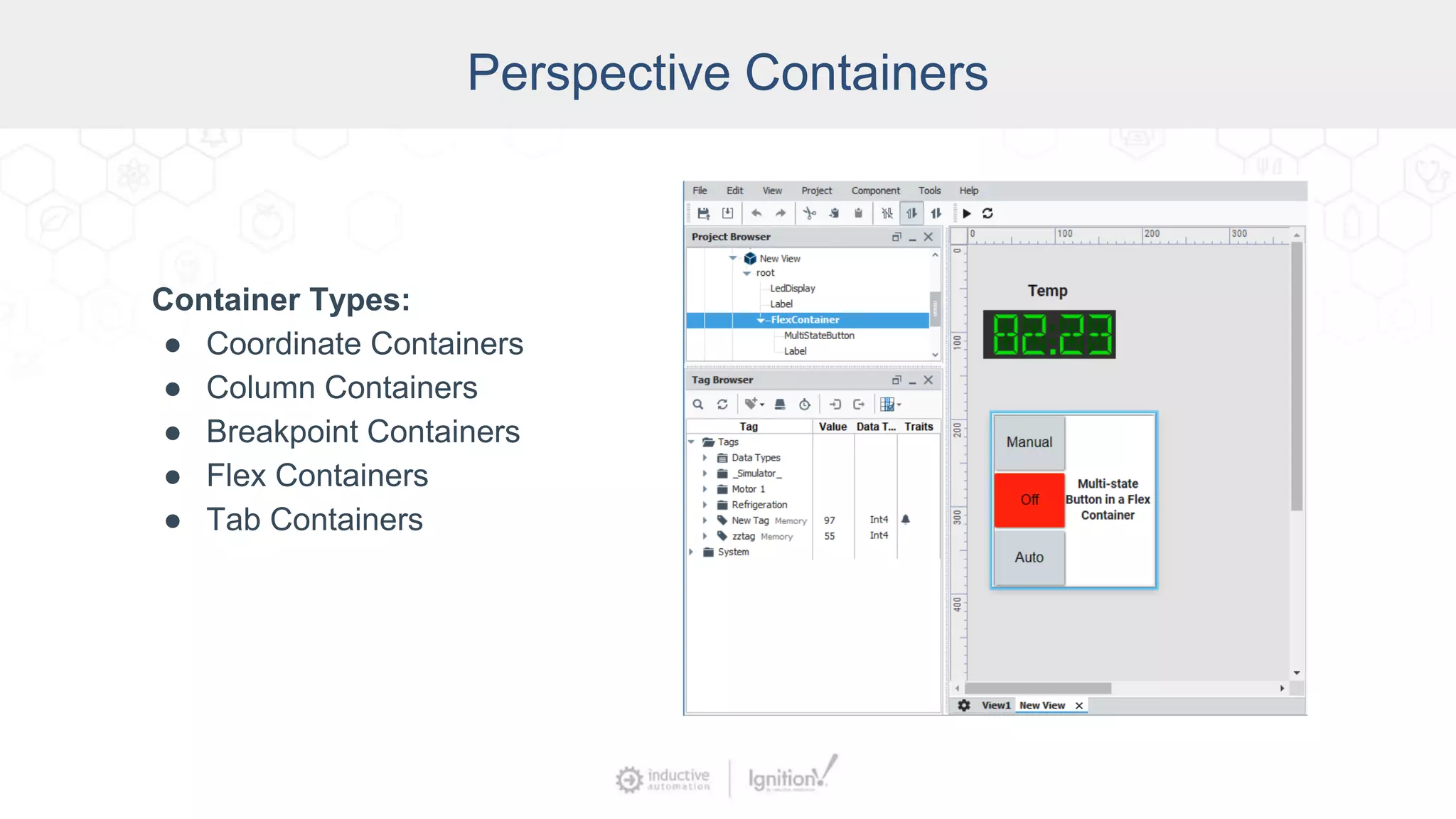

7. Perspective Containers
Container Types:
● Coordinate Containers
● Column Containers
● Breakpoint Containers
● Flex Containers
● Tab Containers

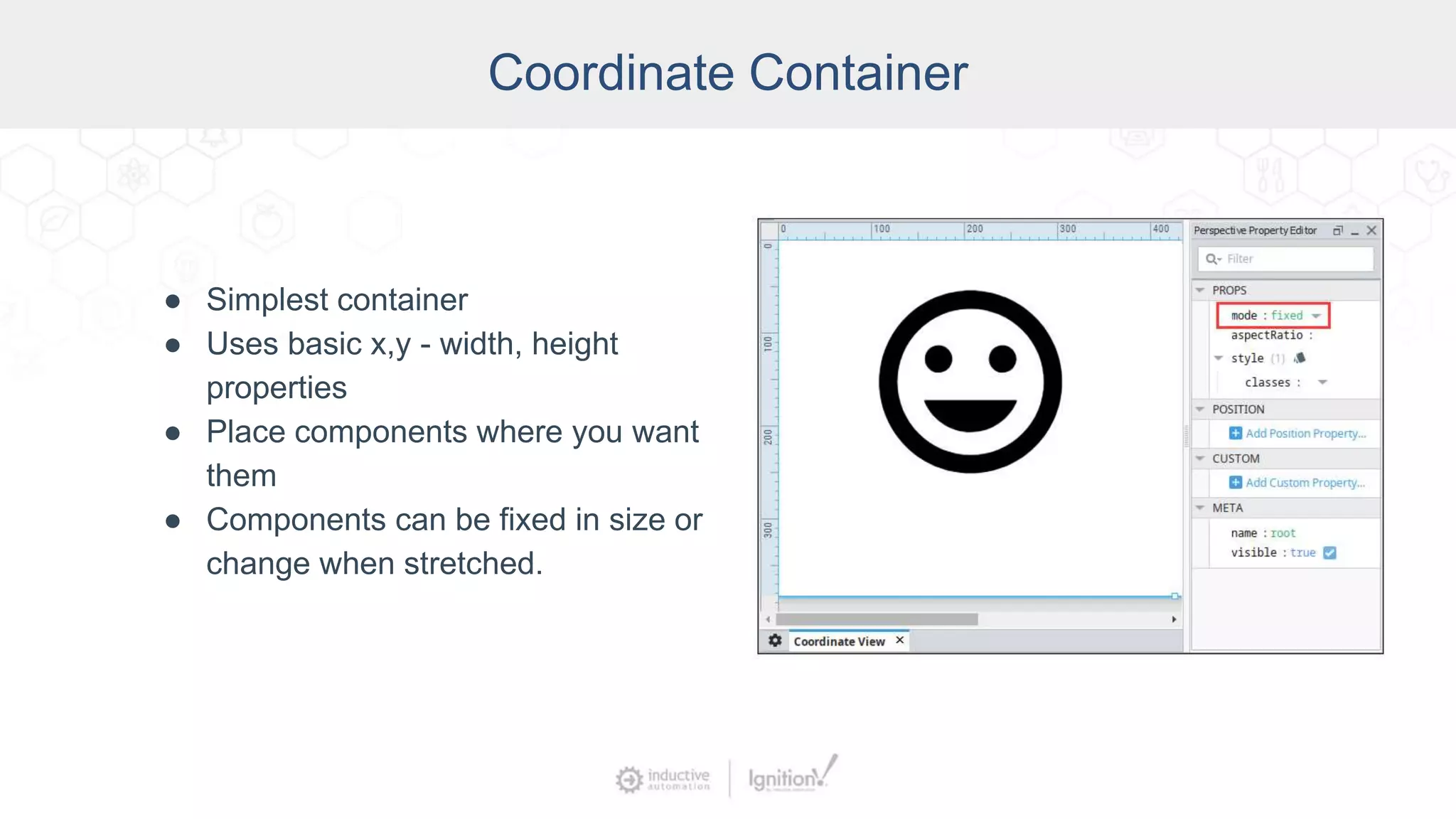

8. Coordinate Container
● Simplest container
● Uses basic x,y - width, height
properties
● Place components where you want
them
● Components can be fixed in size or
change when stretched.

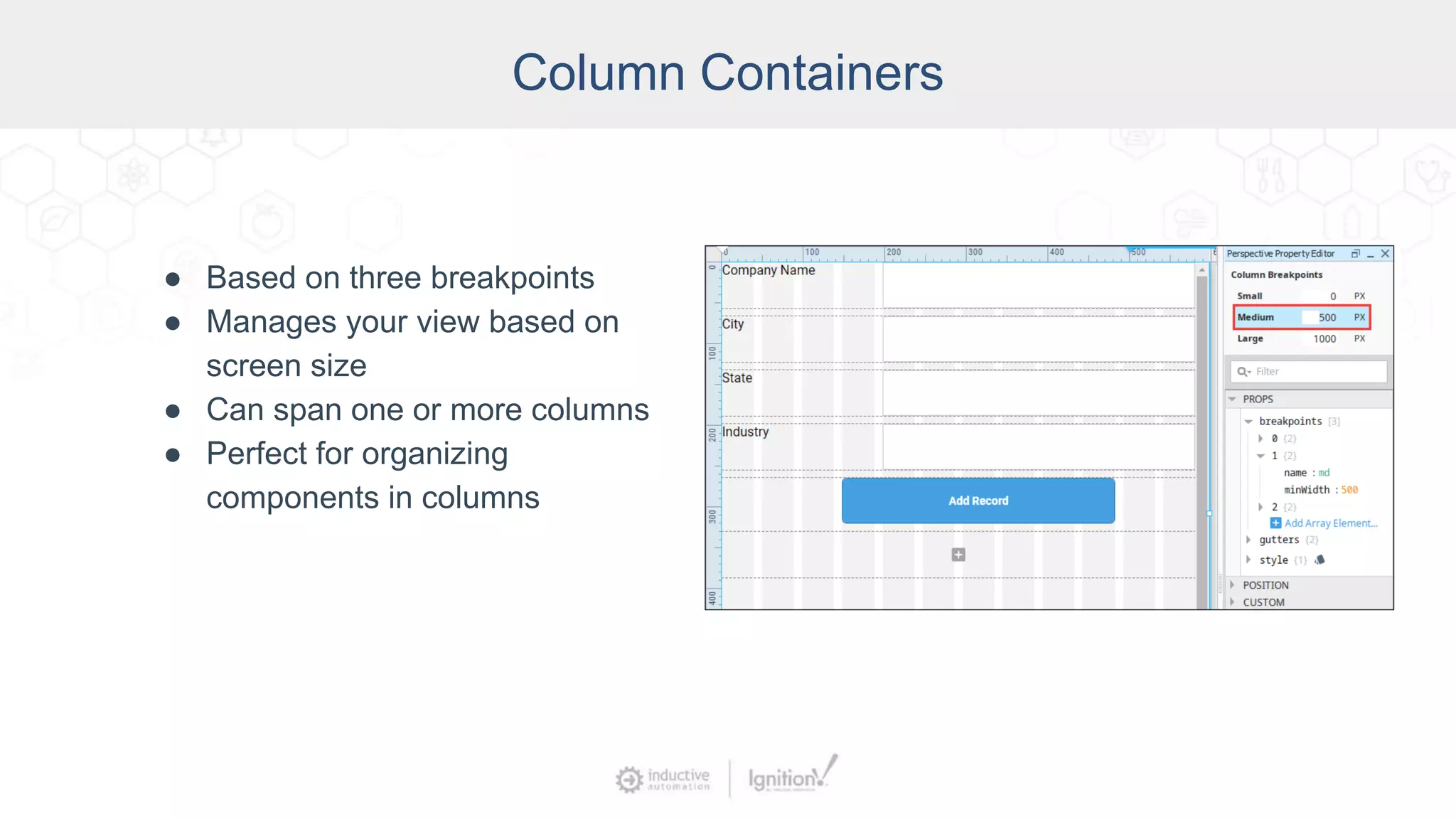

9. Column Containers
● Based on three breakpoints
● Manages your view based on
screen size
● Can span one or more columns
● Perfect for organizing
components in columns

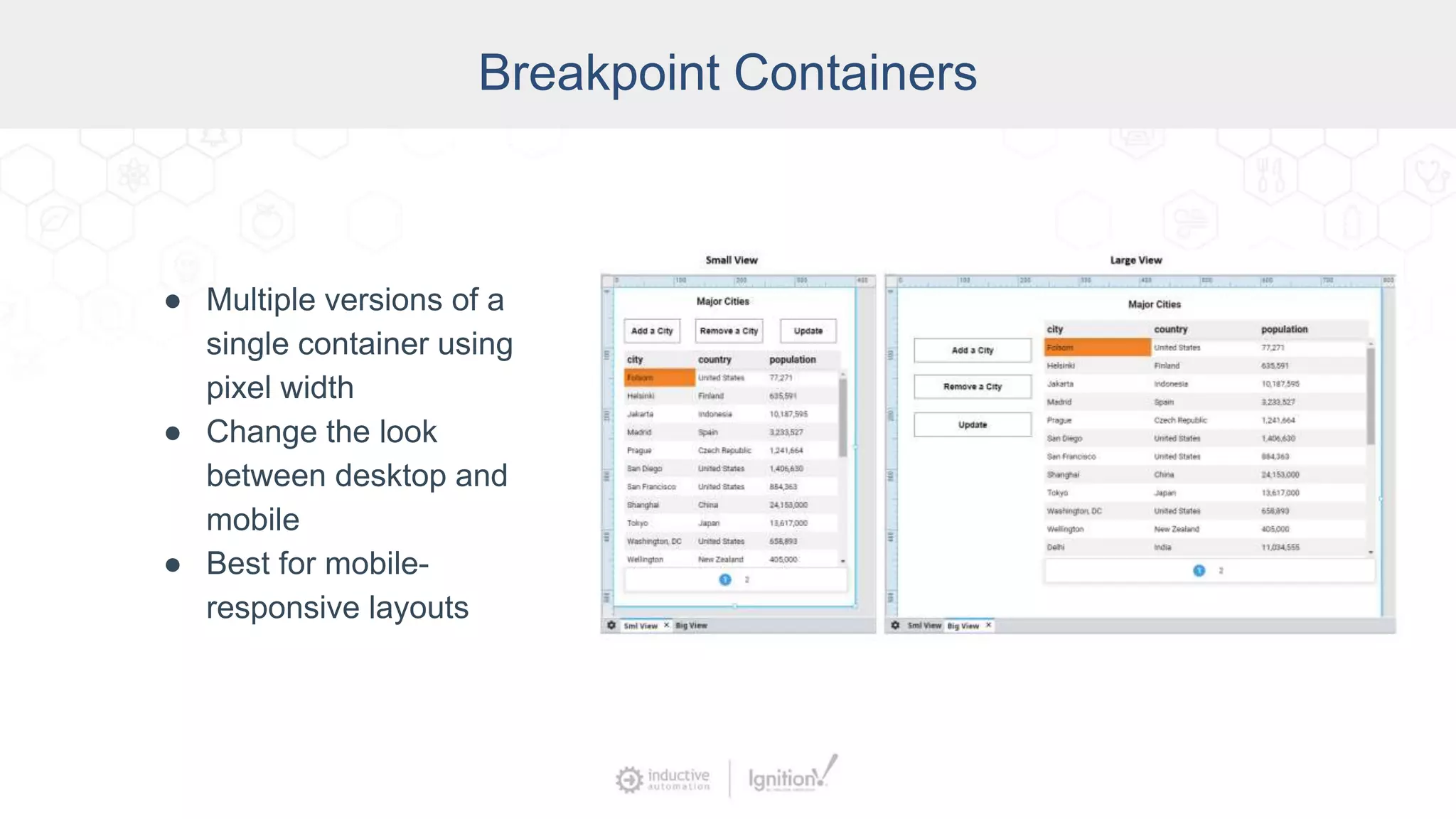

10. Breakpoint Containers
● Multiple versions of a
single container using
pixel width
● Change the look
between desktop and
mobile
● Best for mobile-
responsive layouts

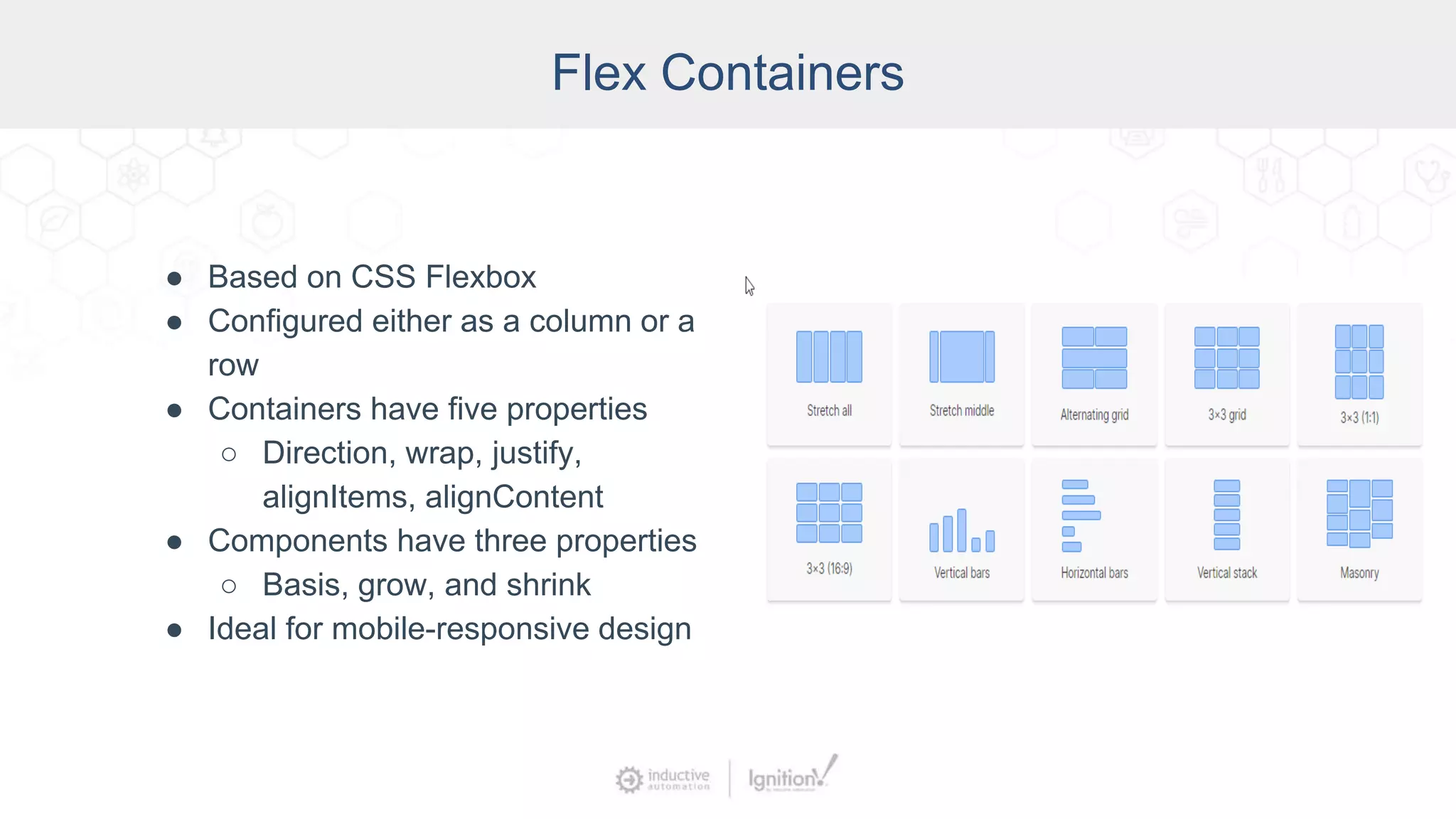

11. Flex Containers
● Based on CSS Flexbox
● Configured either as a column or a
row
● Containers have five properties
○ Direction, wrap, justify,
alignItems, alignContent
● Components have three properties
○ Basis, grow, and shrink
● Ideal for mobile-responsive design

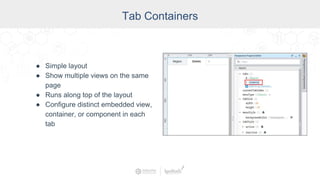

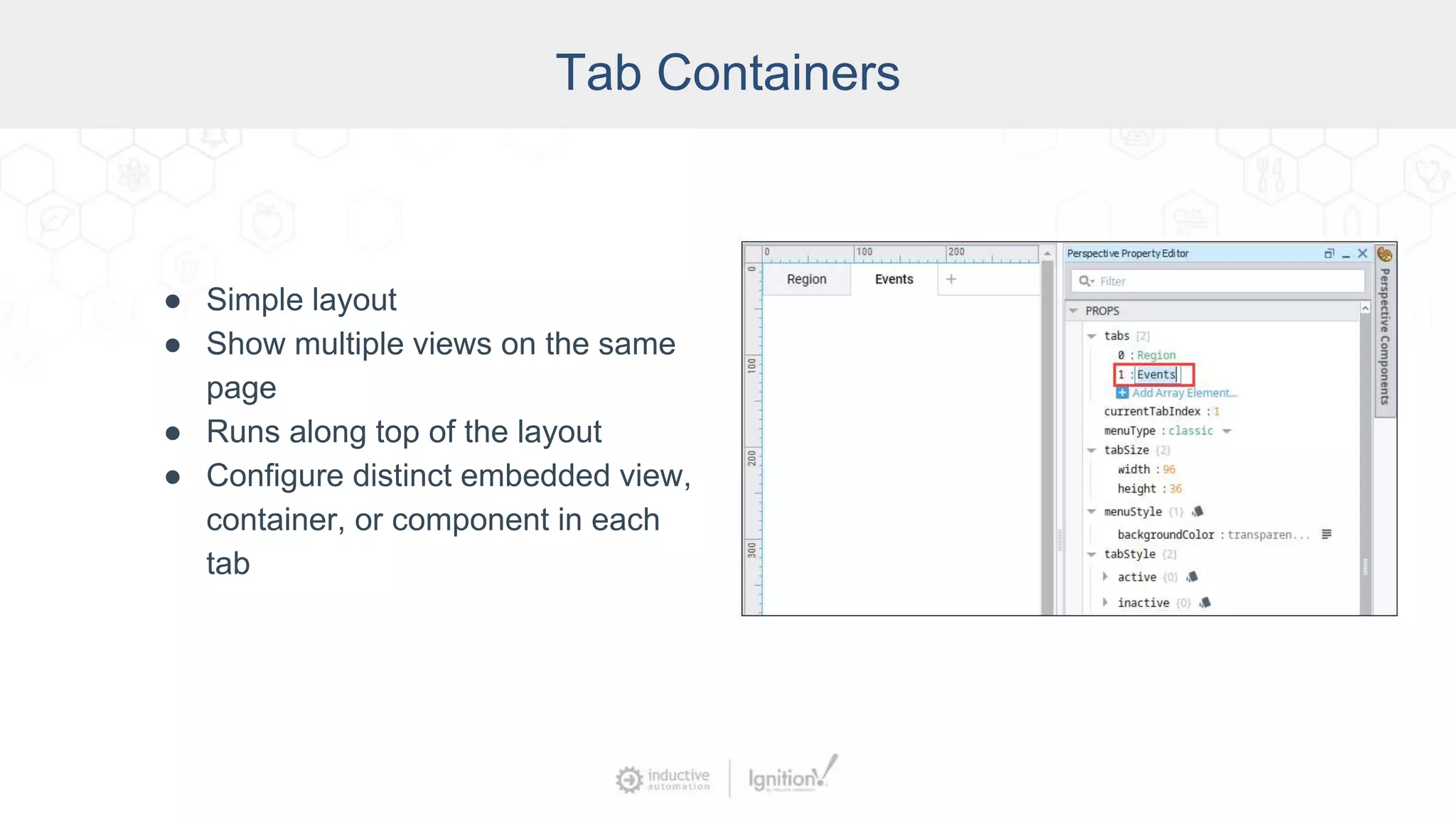

12. Tab Containers
● Simple layout
● Show multiple views on the same
page
● Runs along top of the layout
● Configure distinct embedded view,
container, or component in each
tab

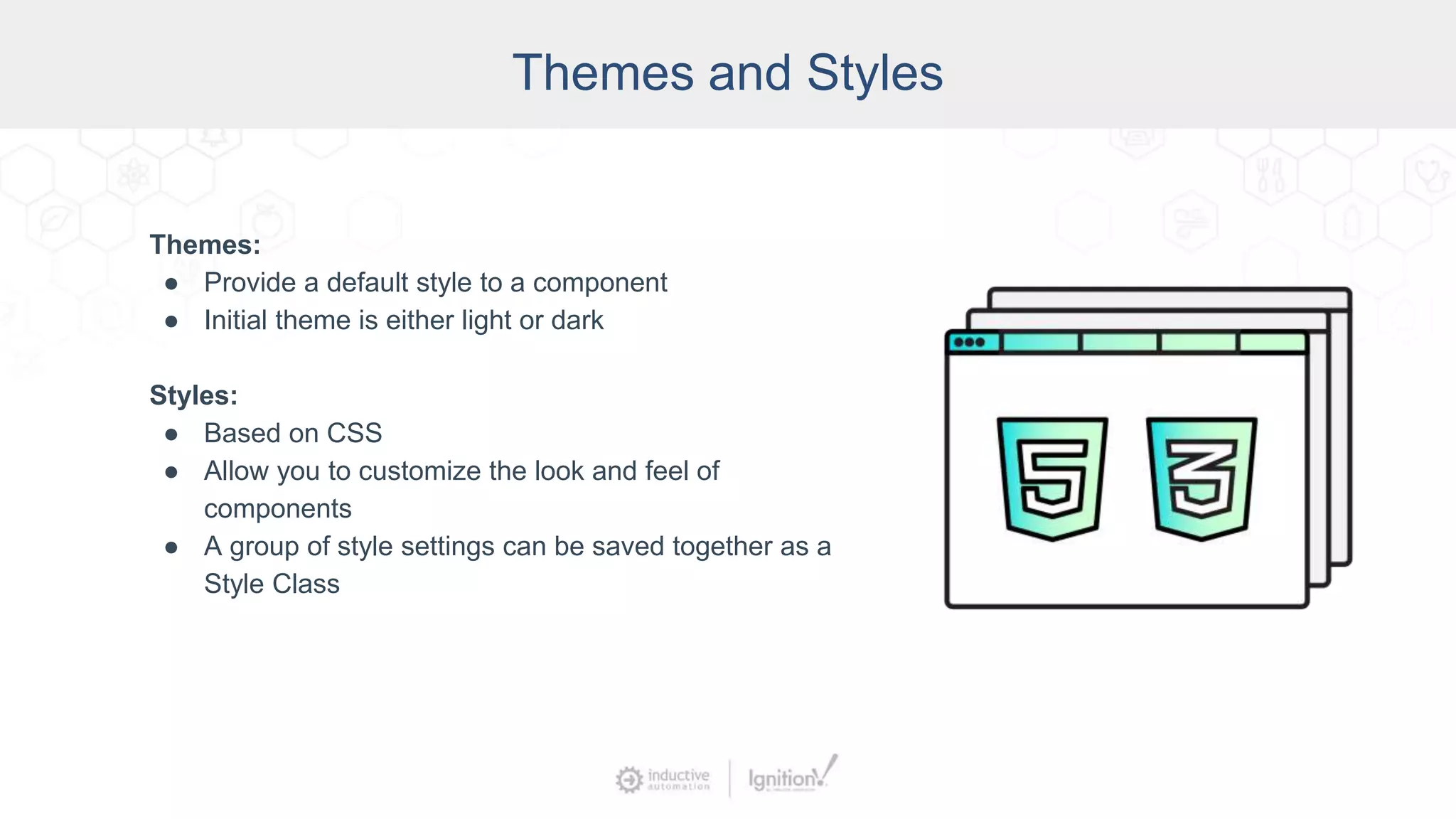

13. Themes and Styles
Themes:
● Provide a default style to a component
● Initial theme is either light or dark
Styles:
● Based on CSS
● Allow you to customize the look and feel of
components
● A group of style settings can be saved together as a
Style Class

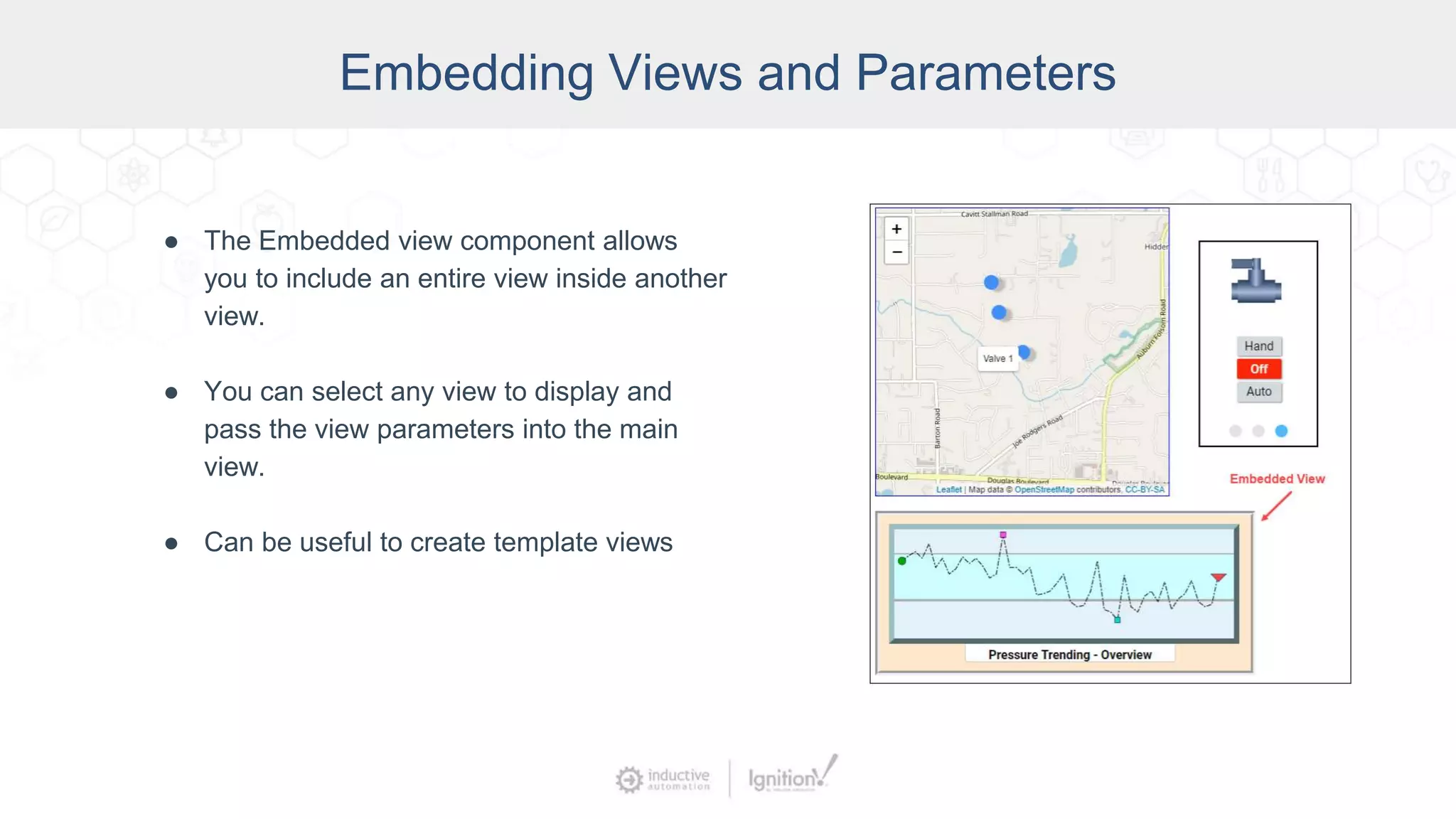

14. Embedding Views and Parameters
● The Embedded view component allows
you to include an entire view inside another
view.
● You can select any view to display and
pass the view parameters into the main
view.
● Can be useful to create template views

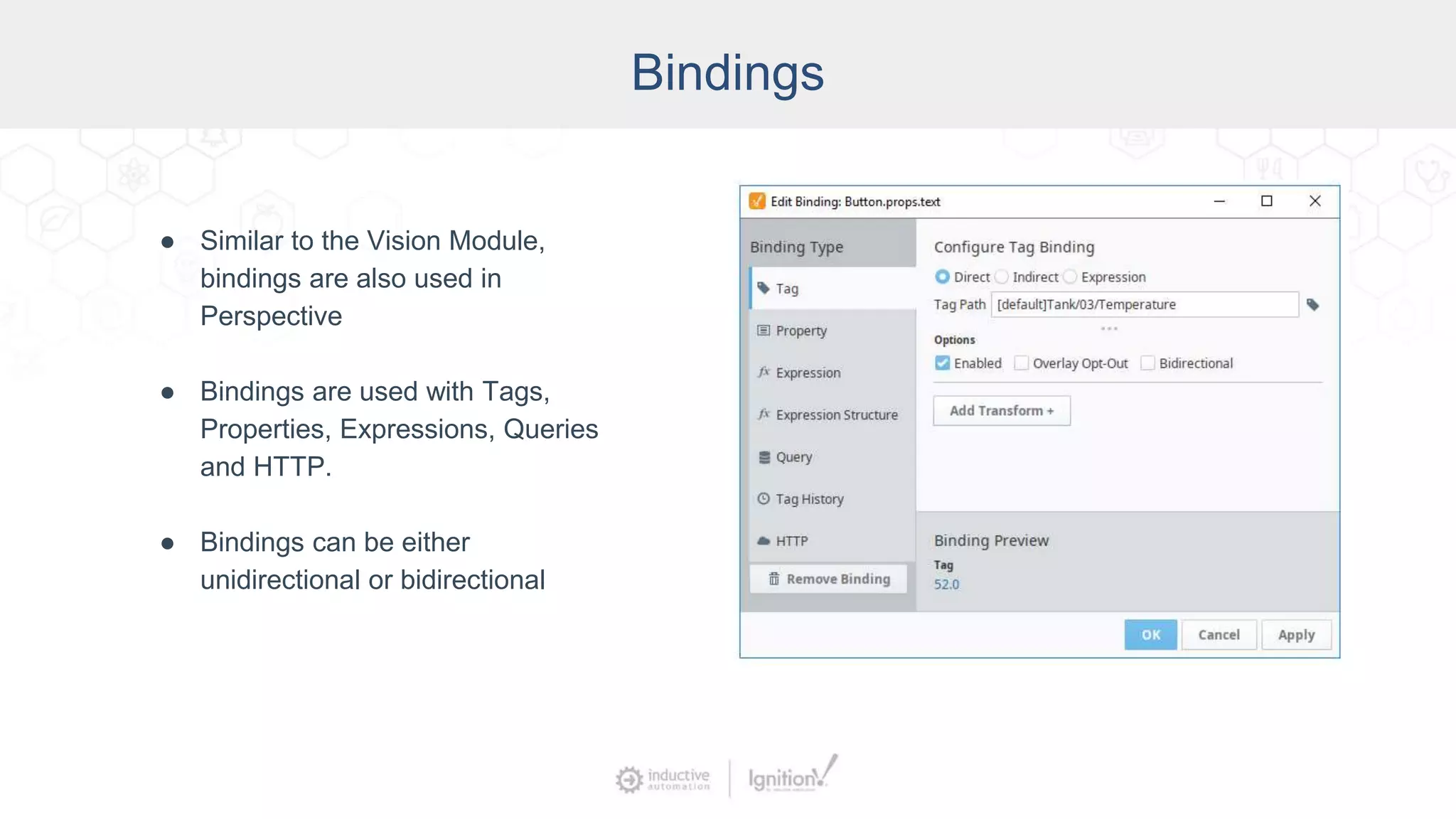

15. Bindings
● Similar to the Vision Module,
bindings are also used in
Perspective
● Bindings are used with Tags,
Properties, Expressions, Queries
and HTTP.
● Bindings can be either
unidirectional or bidirectional

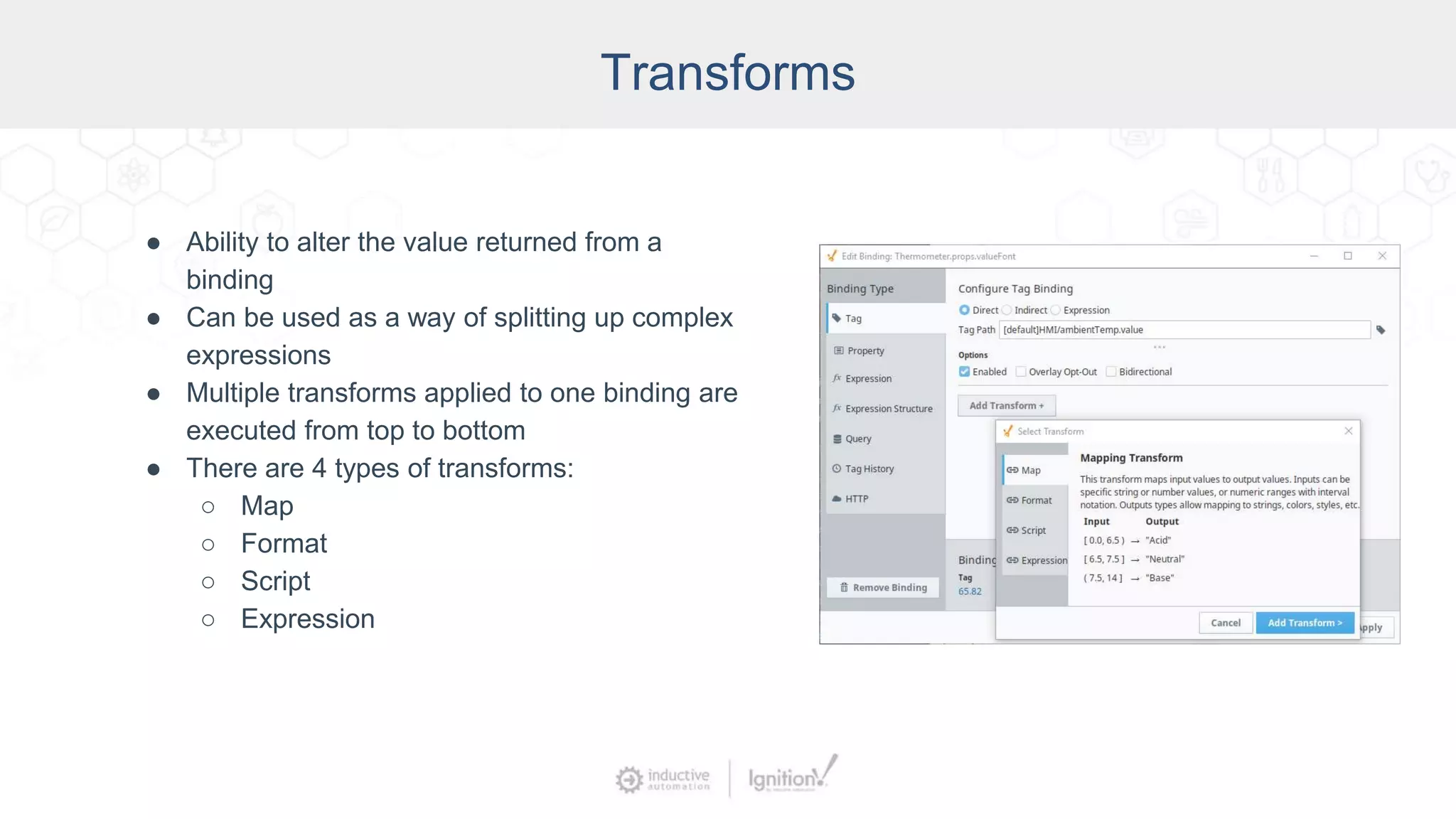

16. Transforms
● Ability to alter the value returned from a
binding
● Can be used as a way of splitting up complex
expressions
● Multiple transforms applied to one binding are
executed from top to bottom
● There are 4 types of transforms:
○ Map
○ Format
○ Script
○ Expression

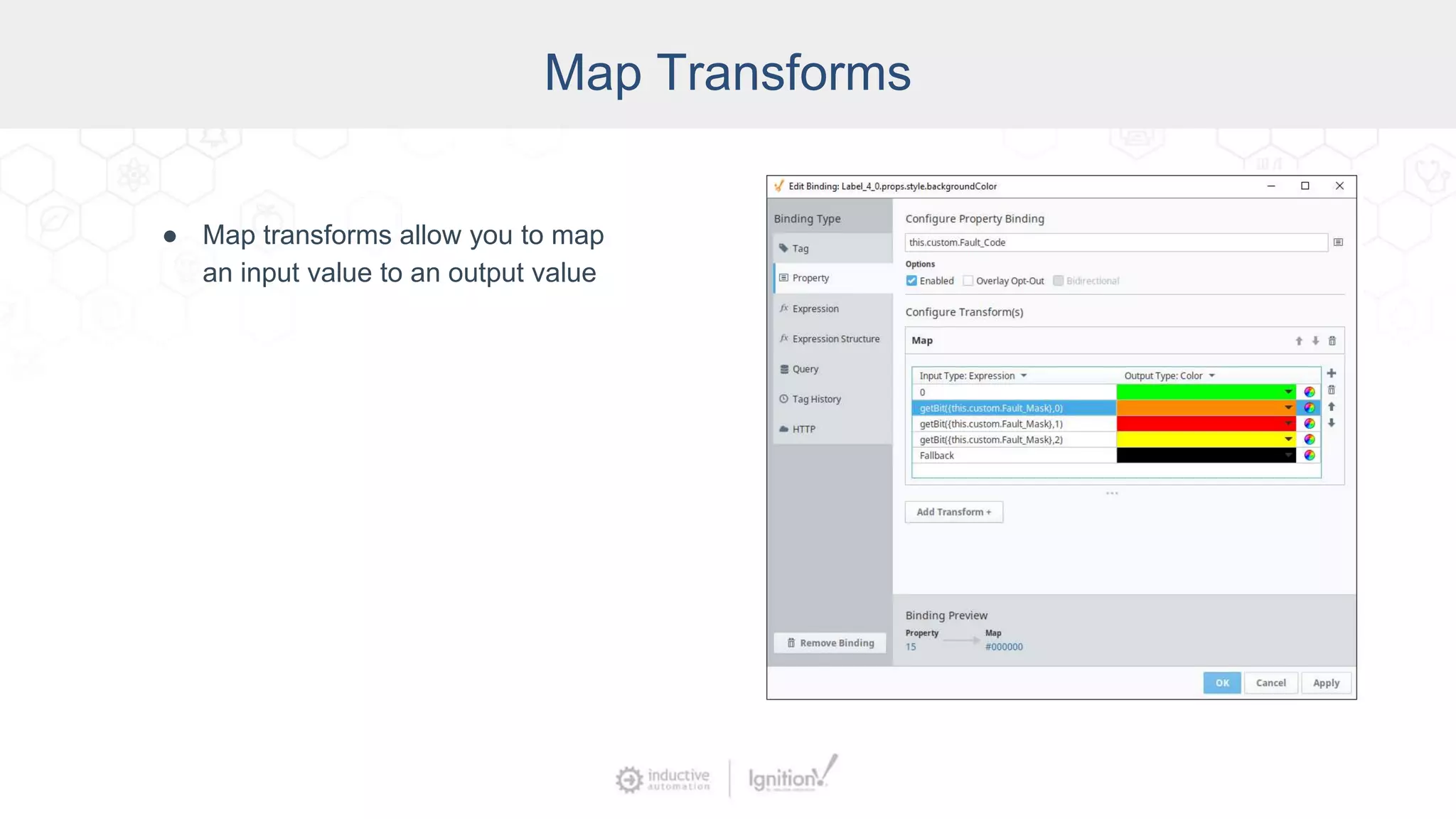

17. Map Transforms
● Map transforms allow you to map
an input value to an output value

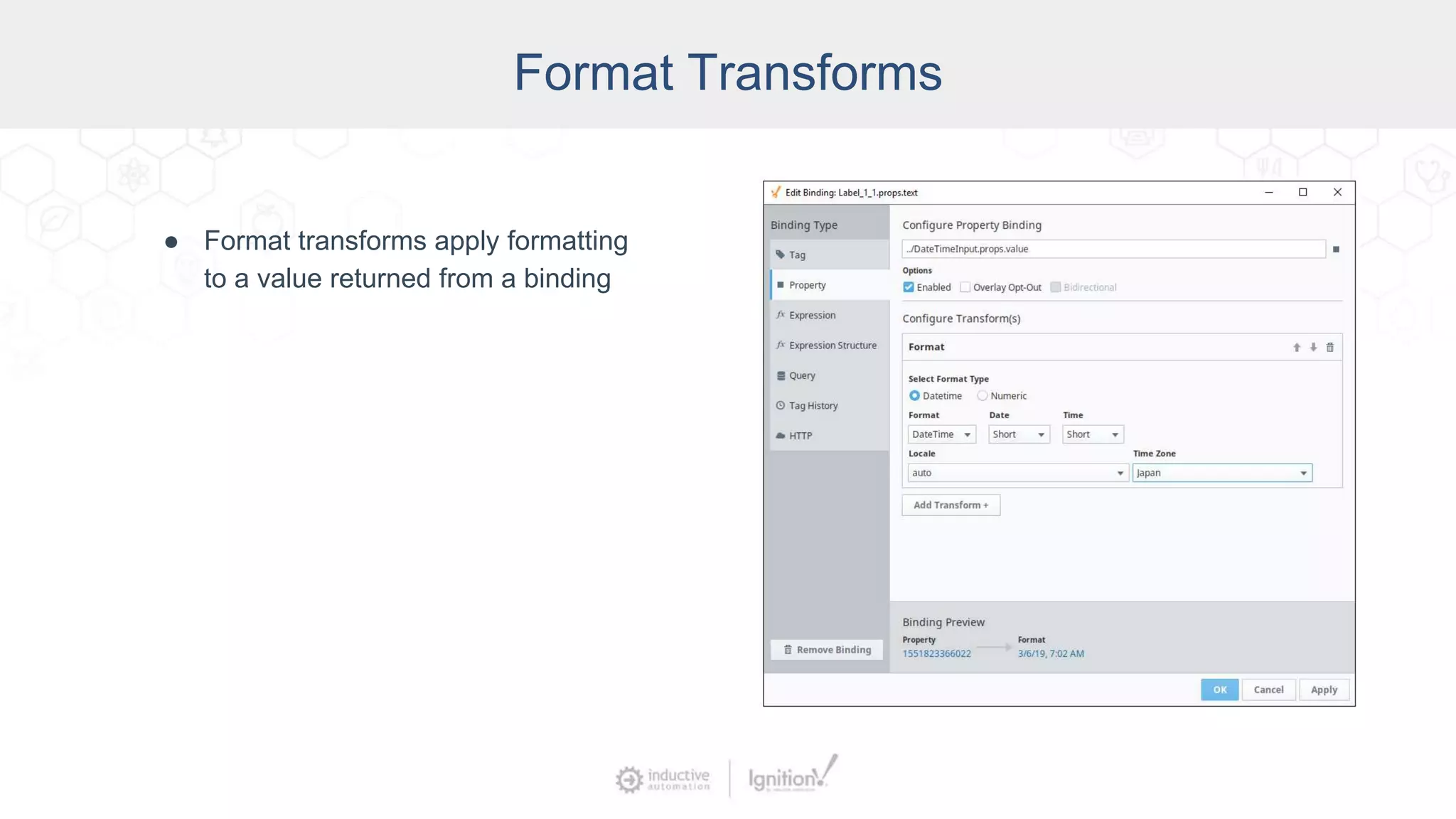

18. Format Transforms
● Format transforms apply formatting
to a value returned from a binding

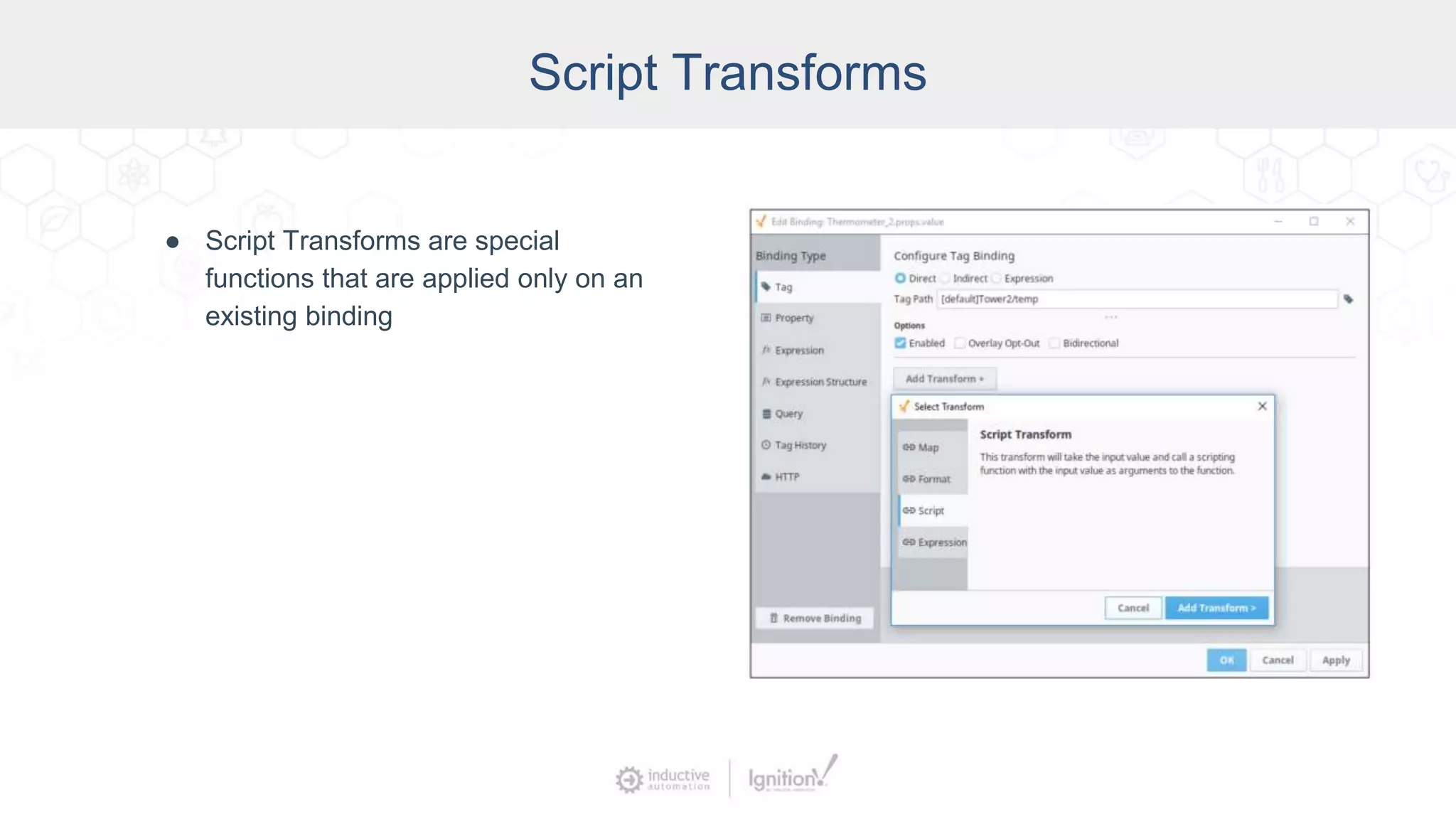

19. Script Transforms
● Script Transforms are special
functions that are applied only on an
existing binding

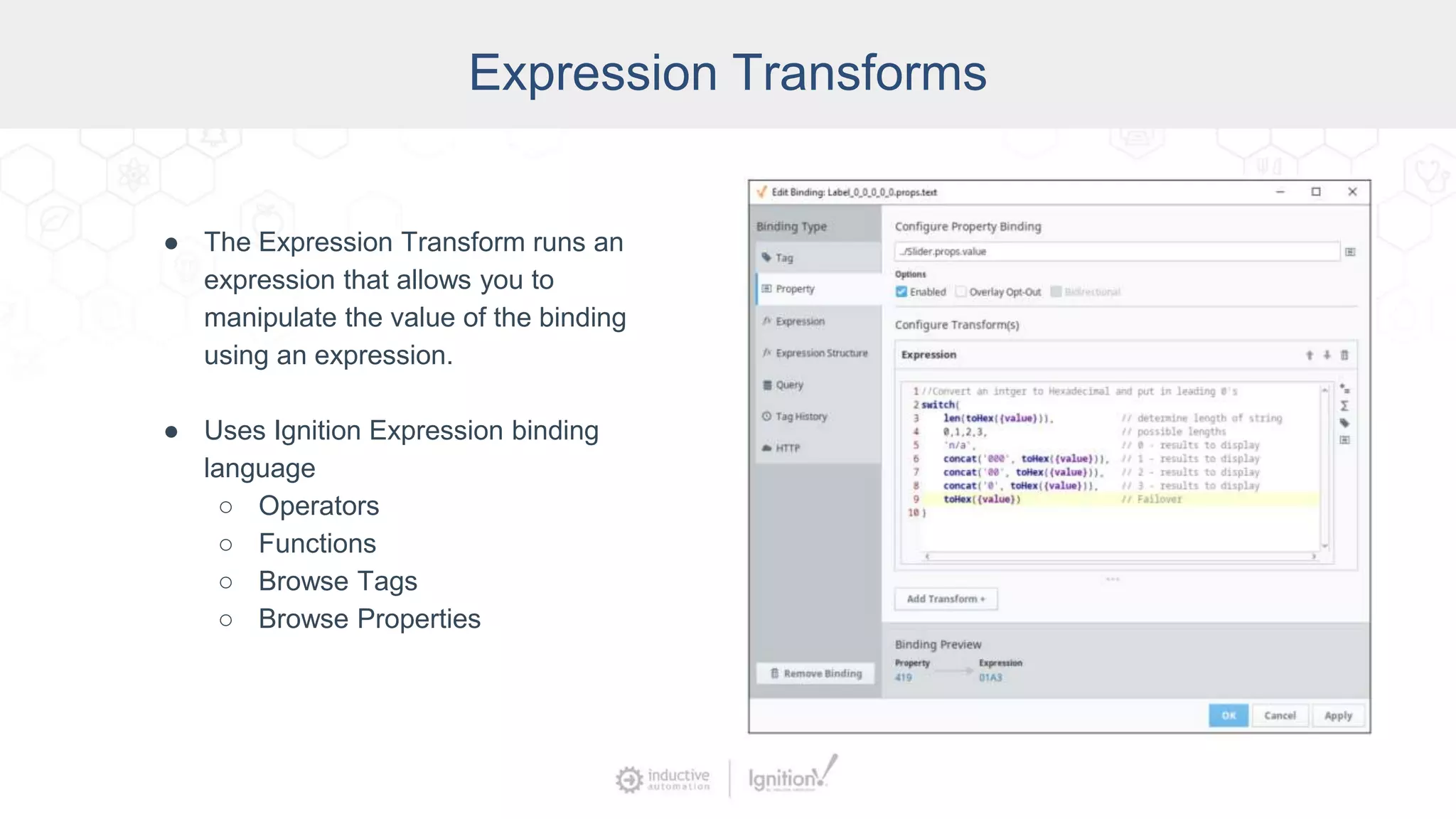

20. Expression Transforms
● The Expression Transform runs an
expression that allows you to
manipulate the value of the binding
using an expression.
● Uses Ignition Expression binding
language
○ Operators
○ Functions
○ Browse Tags
○ Browse Properties

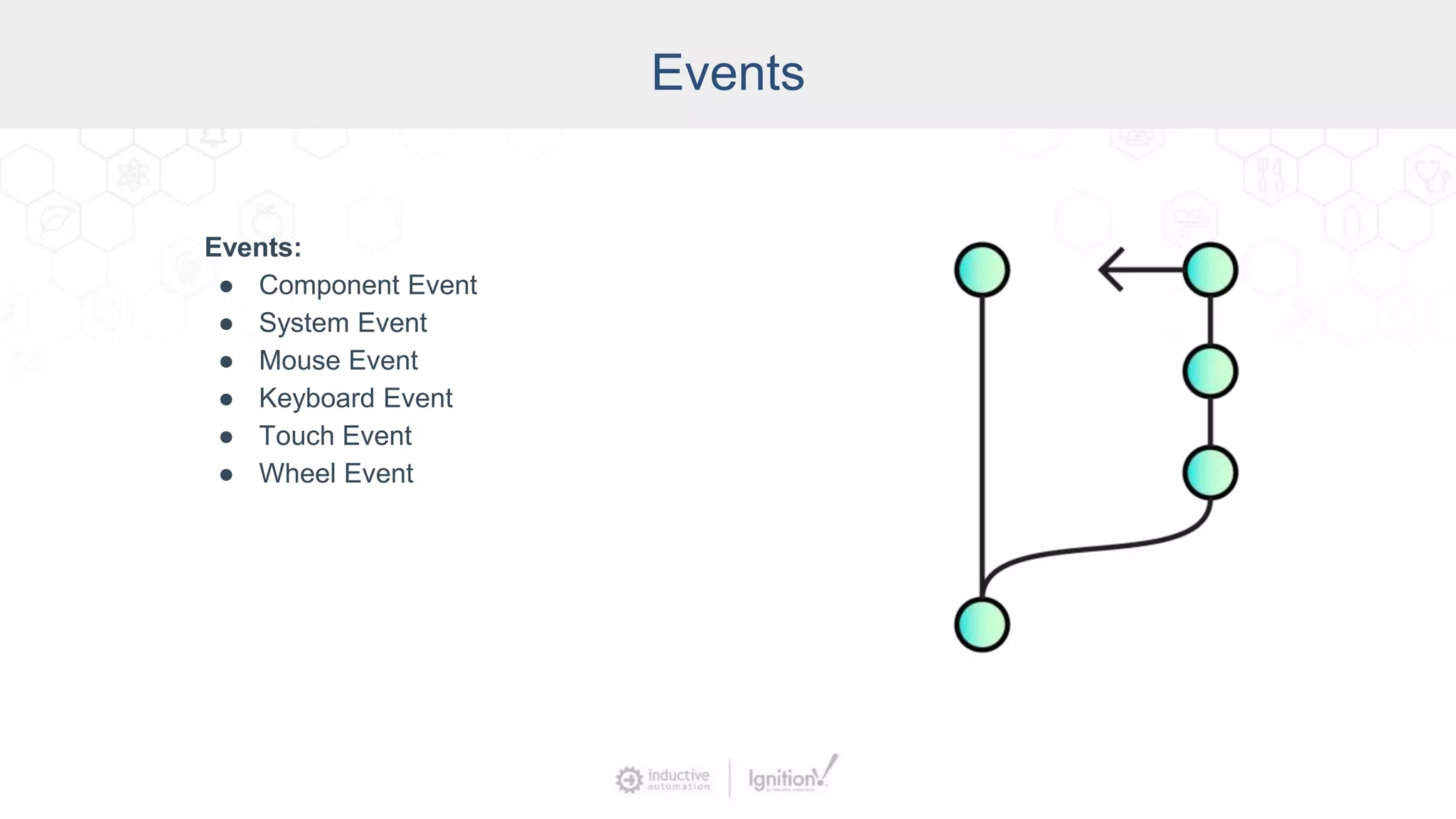

21. Events
Events:
● Component Event
● System Event
● Mouse Event
● Keyboard Event
● Touch Event
● Wheel Event

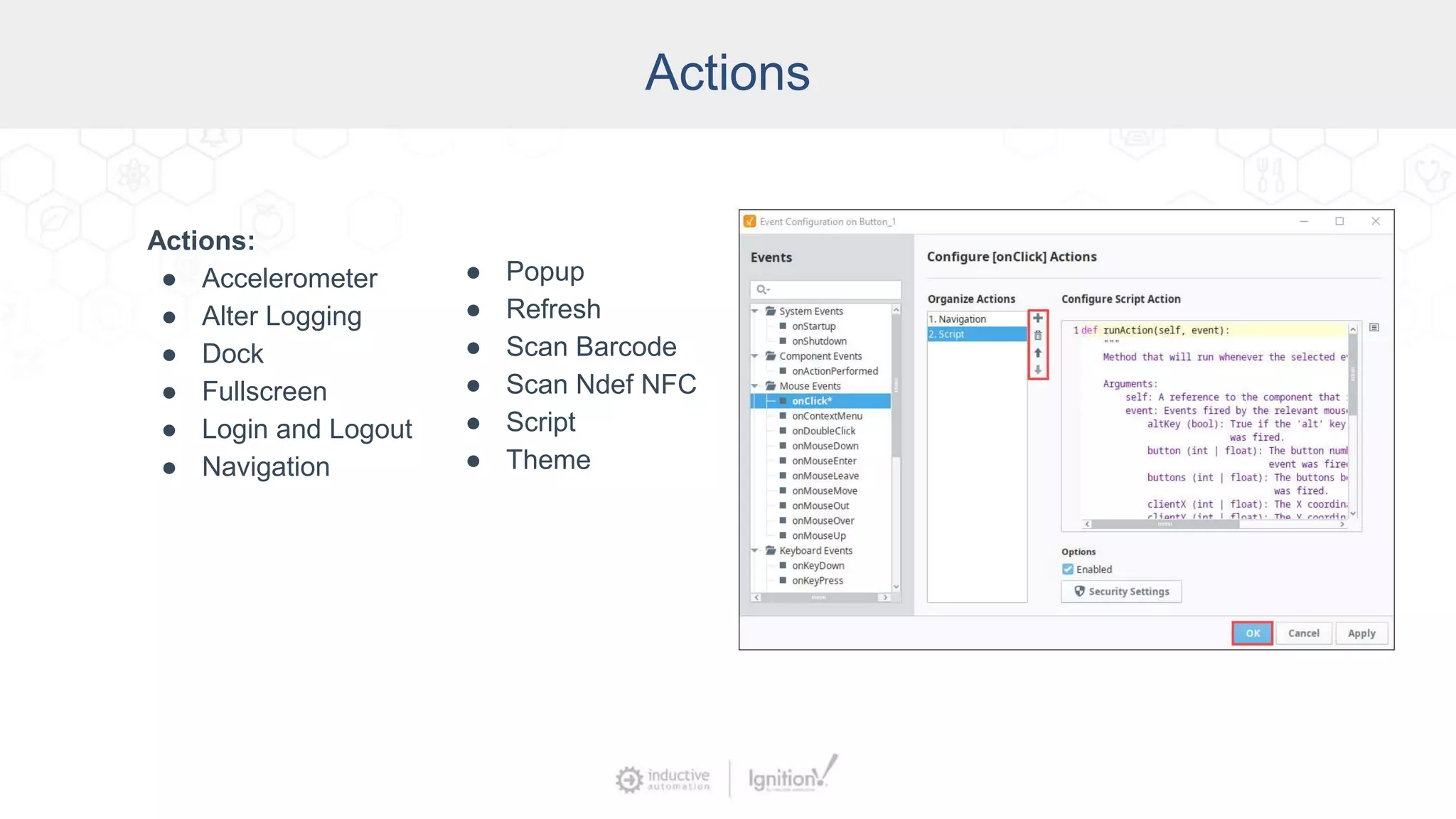

22. Actions
Actions:
● Accelerometer
● Alter Logging
● Dock
● Fullscreen
● Login and Logout
● Navigation
● Popup
● Refresh
● Scan Barcode
● Scan Ndef NFC
● Script
● Theme

23. Mobile Device Sensor Data
● GPS
● Accelerometer
● Camera - Barcode Scanning
● Near Field Communication (NFC)
● Bluetooth

24. Planning Your
Perspective Project

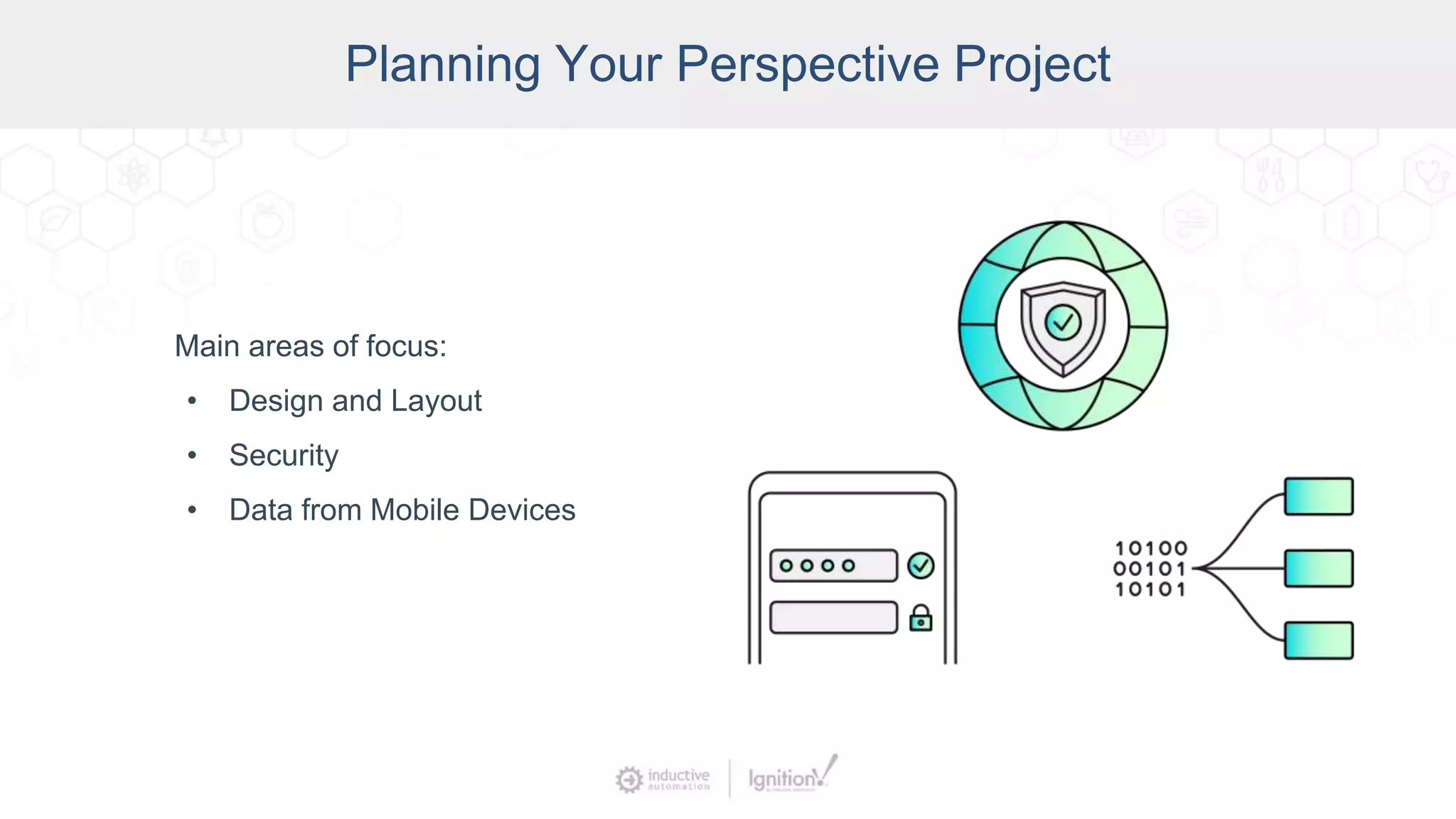

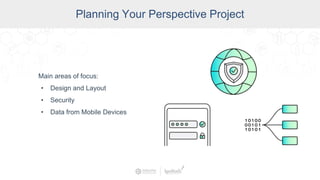

25. Planning Your Perspective Project
Main areas of focus:
• Design and Layout
• Security
• Data from Mobile Devices

26. Planning for
Design & Layout

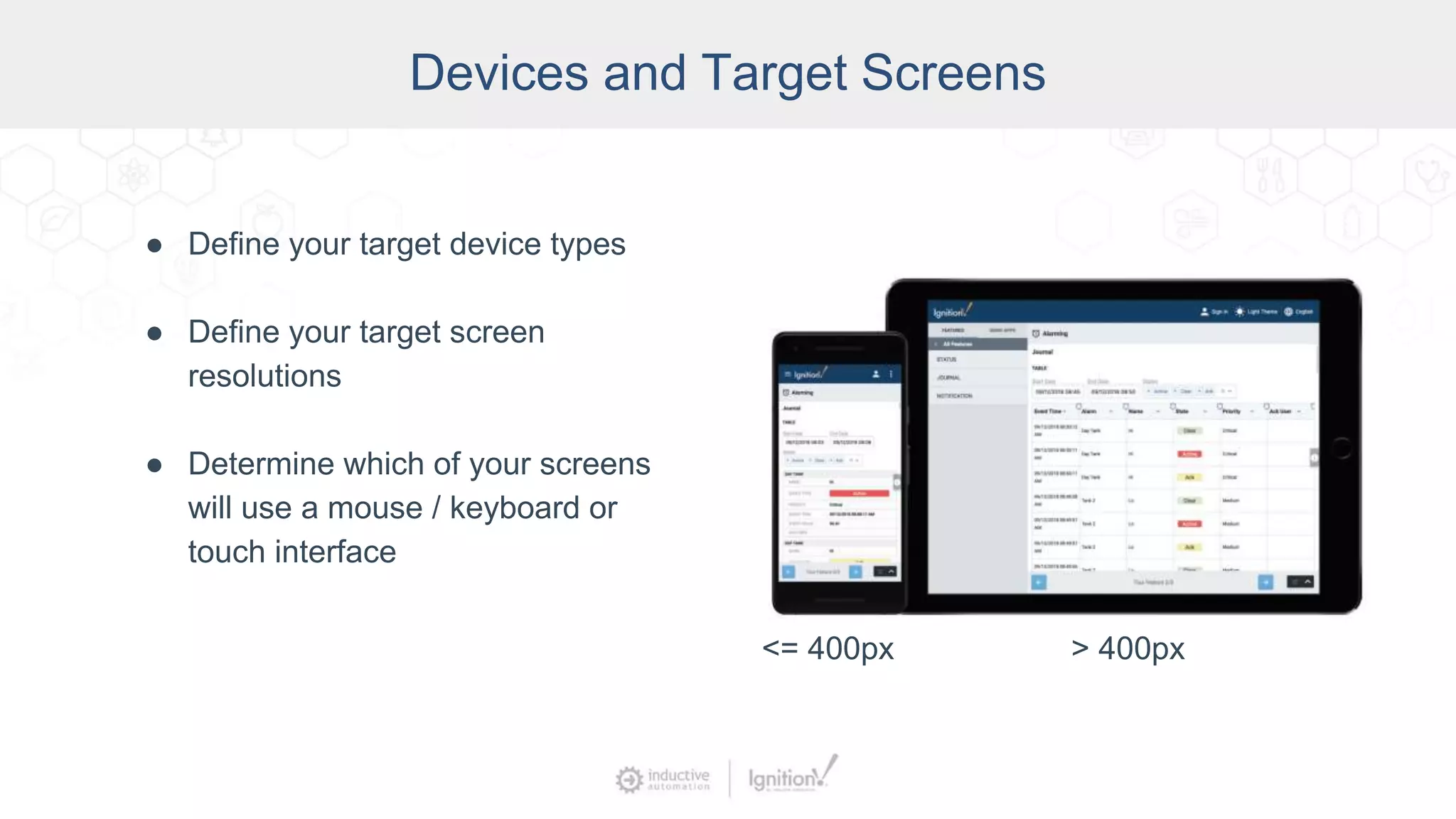

27. Devices and Target Screens
● Define your target device types
● Define your target screen
resolutions
● Determine which of your screens
will use a mouse / keyboard or
touch interface
<= 400px > 400px

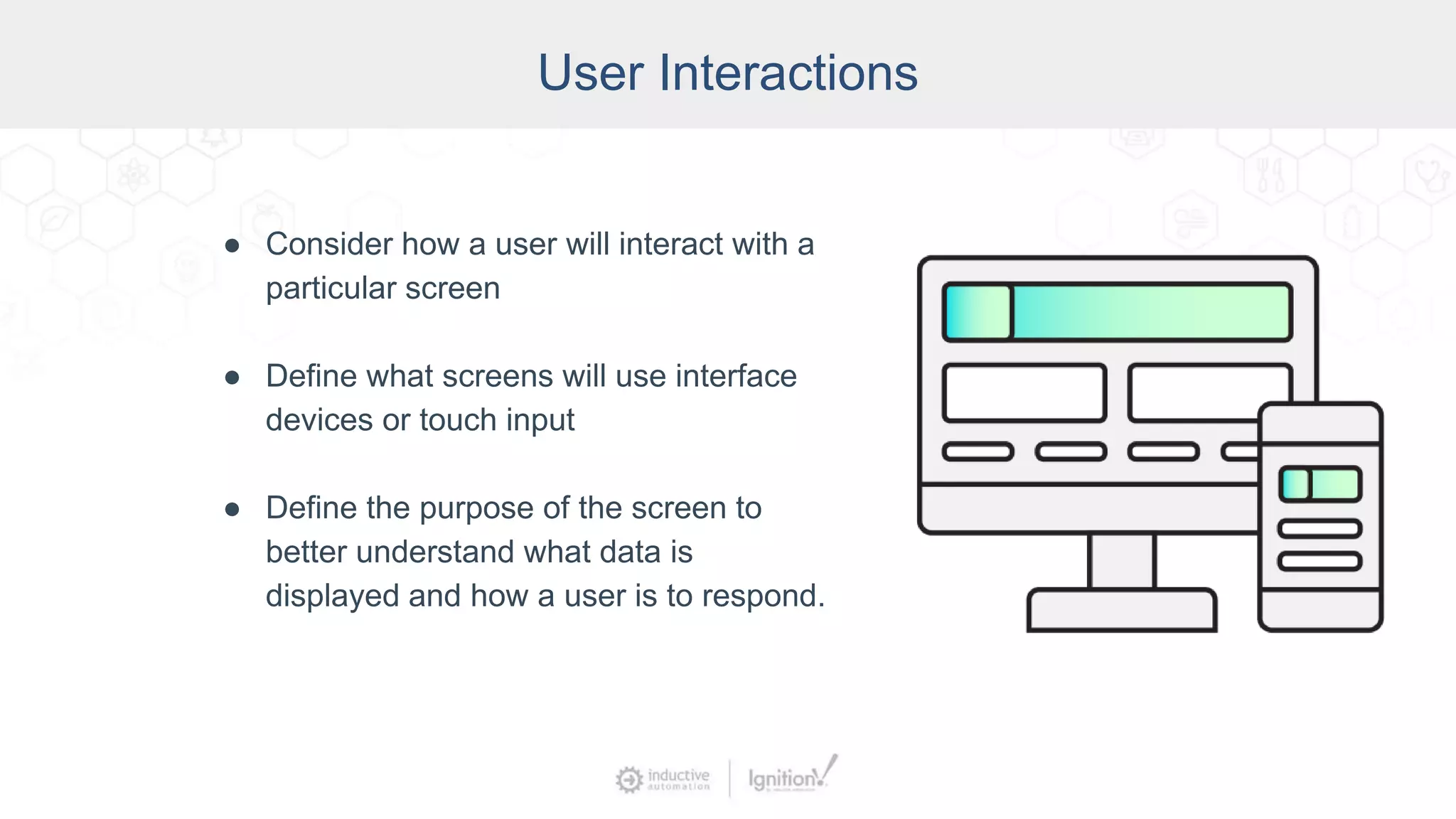

28. User Interactions
● Consider how a user will interact with a
particular screen
● Define what screens will use interface
devices or touch input
● Define the purpose of the screen to
better understand what data is
displayed and how a user is to respond.

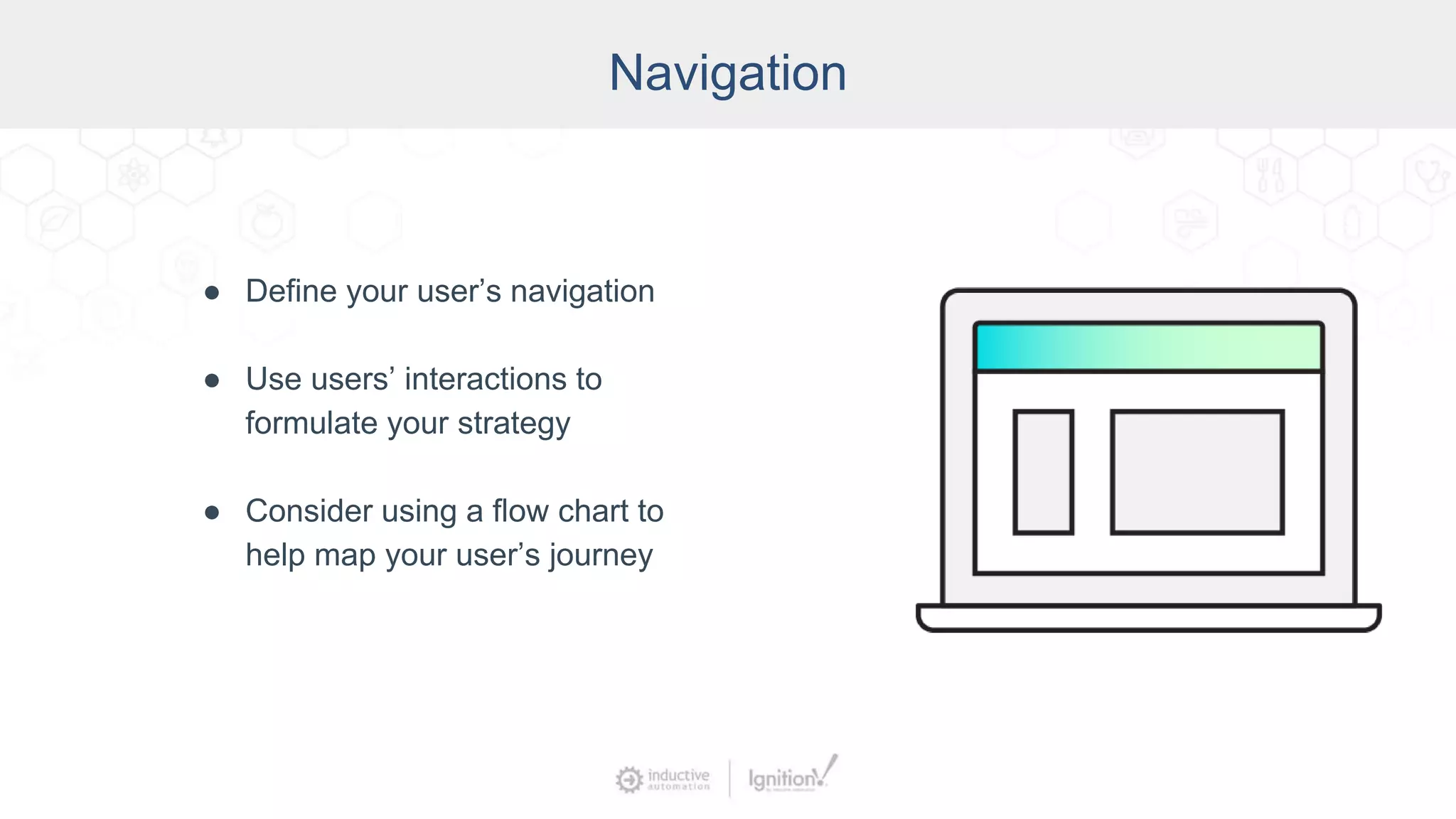

29. Navigation
● Define your user’s navigation
● Use users’ interactions to
formulate your strategy
● Consider using a flow chart to
help map your user’s journey

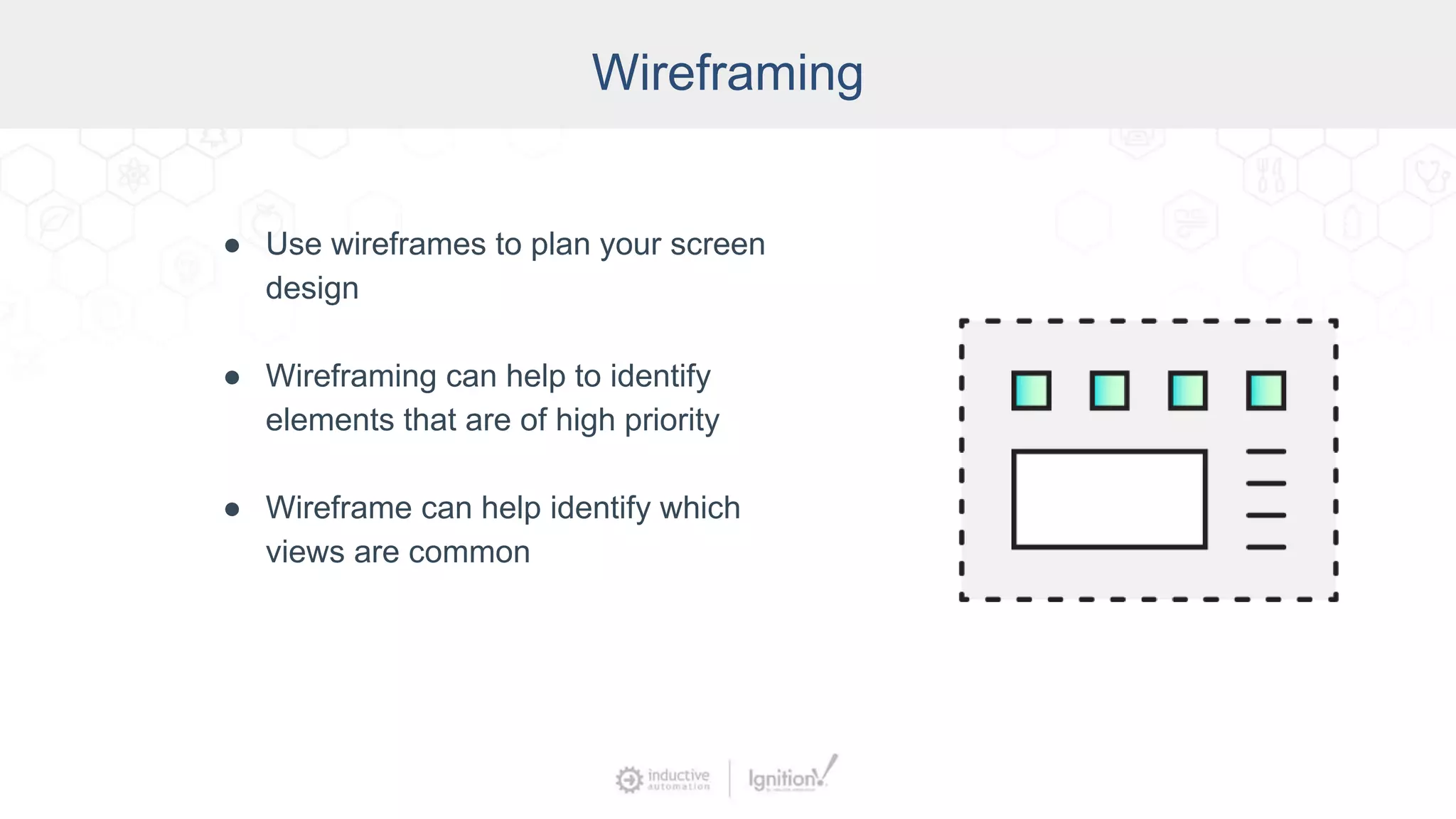

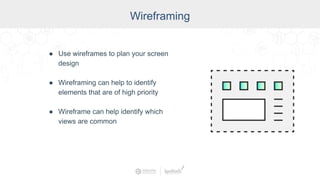

30. Wireframing
● Use wireframes to plan your screen
design
● Wireframing can help to identify
elements that are of high priority
● Wireframe can help identify which
views are common

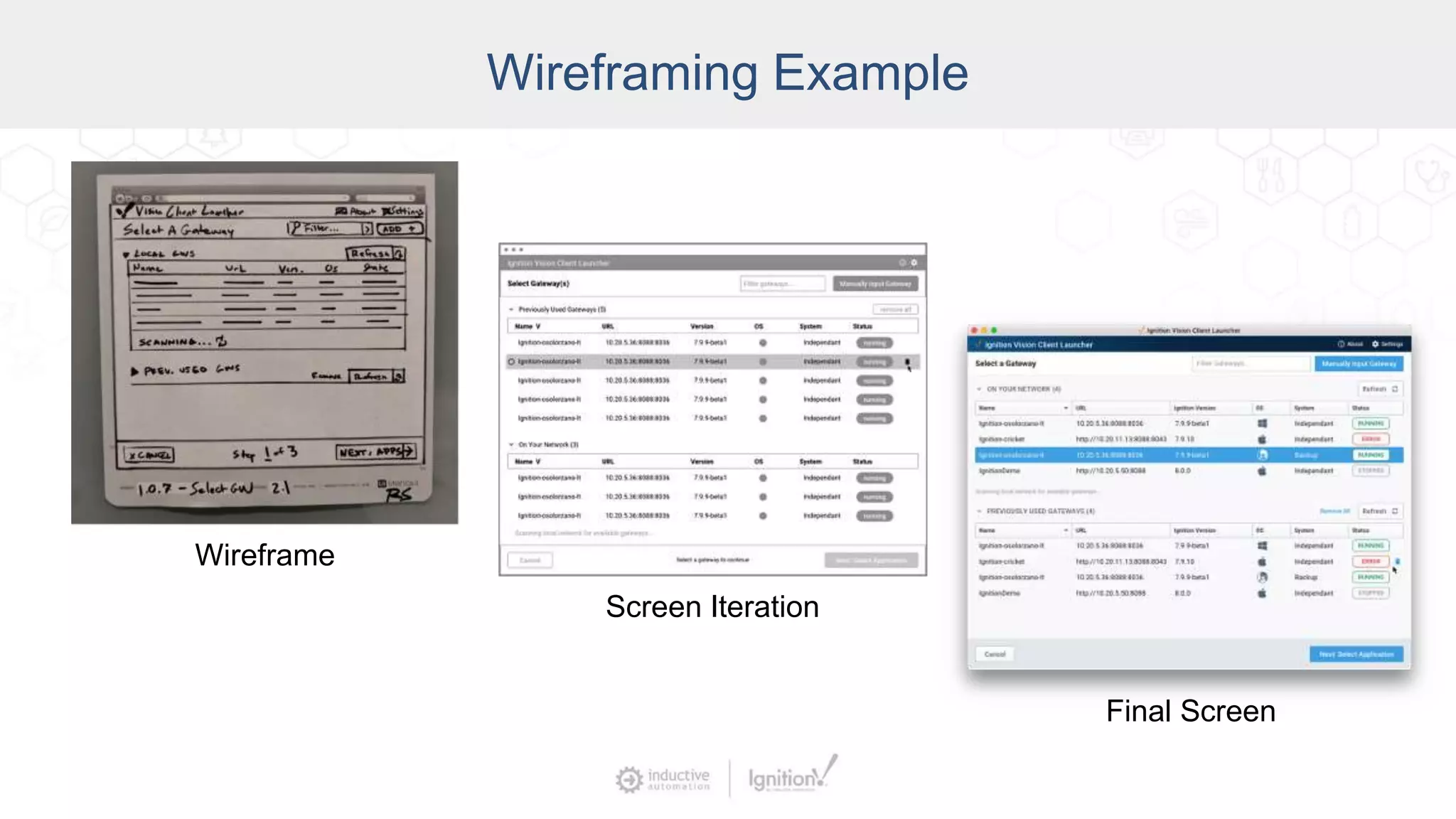

31. Wireframing Example
Wireframe
Screen Iteration
Final Screen

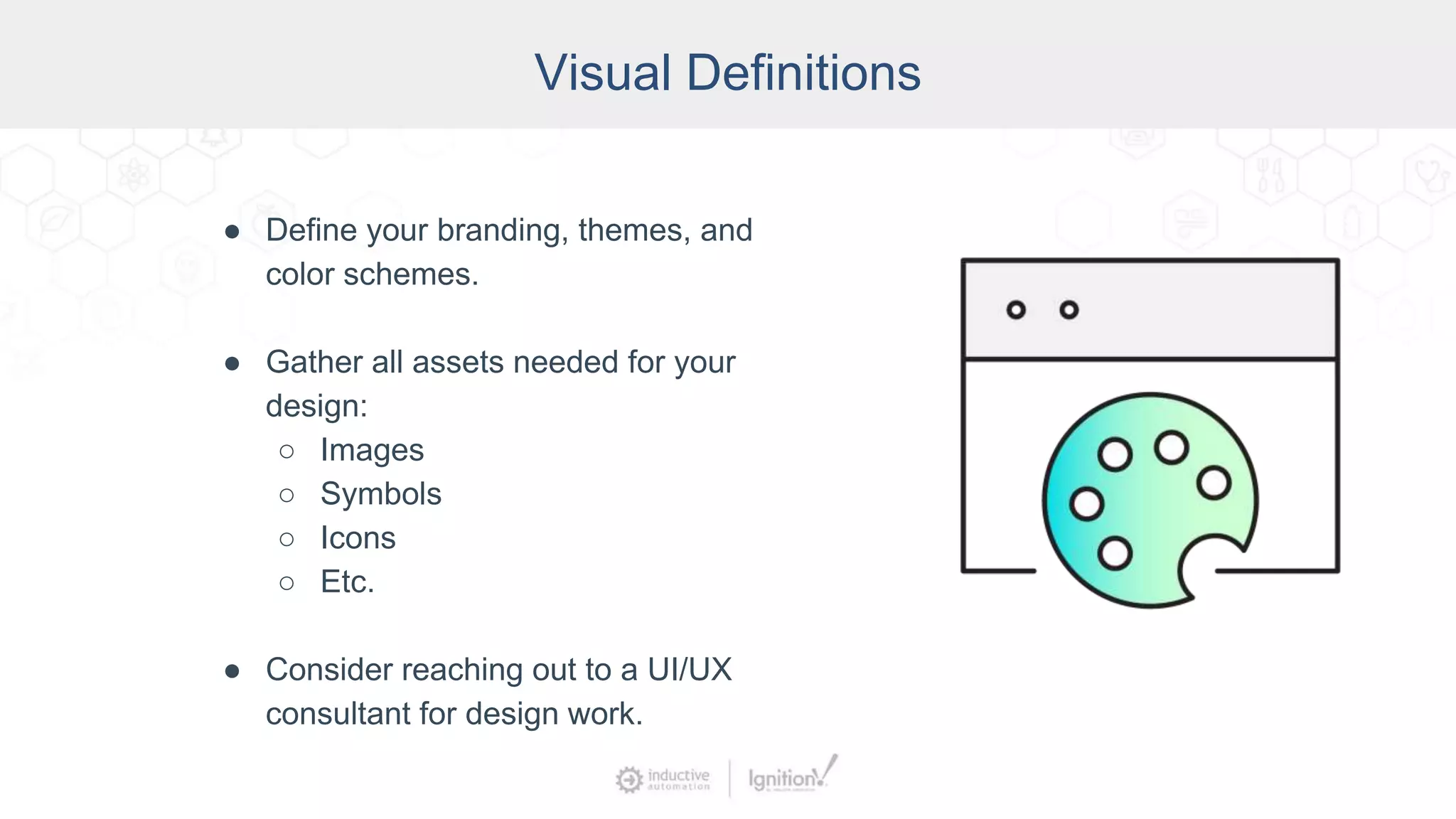

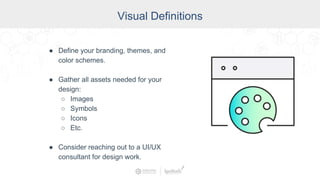

32. Visual Definitions
● Define your branding, themes, and
color schemes.
● Gather all assets needed for your
design:
○ Images
○ Symbols
○ Icons
○ Etc.
● Consider reaching out to a UI/UX
consultant for design work.

33. Planning for Security

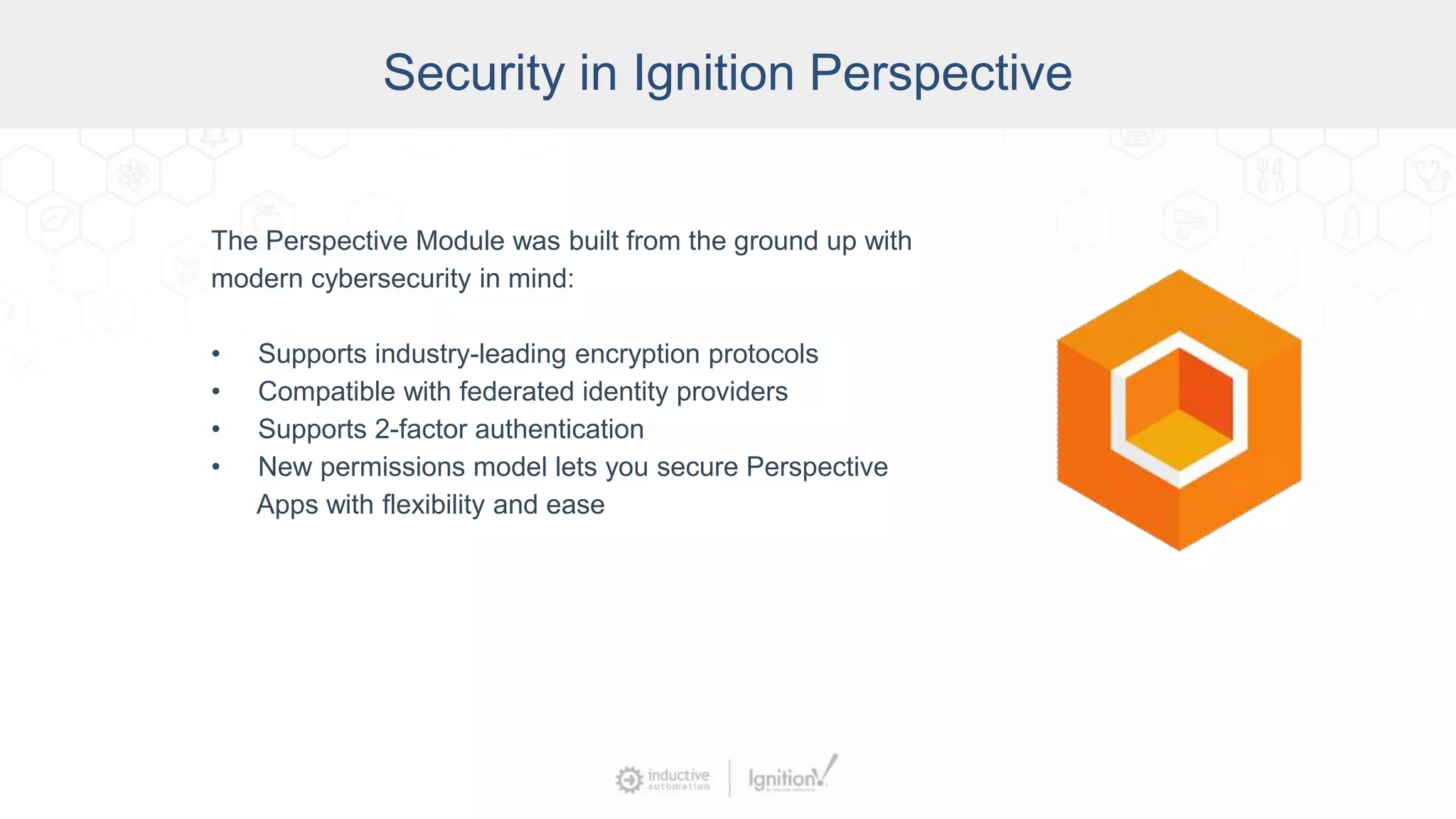

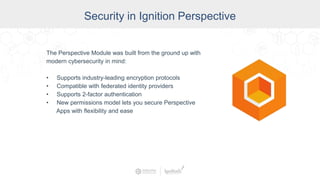

34. Security in Ignition Perspective
The Perspective Module was built from the ground up with
modern cybersecurity in mind:
• Supports industry-leading encryption protocols
• Compatible with federated identity providers
• Supports 2-factor authentication
• New permissions model lets you secure Perspective
Apps with flexibility and ease

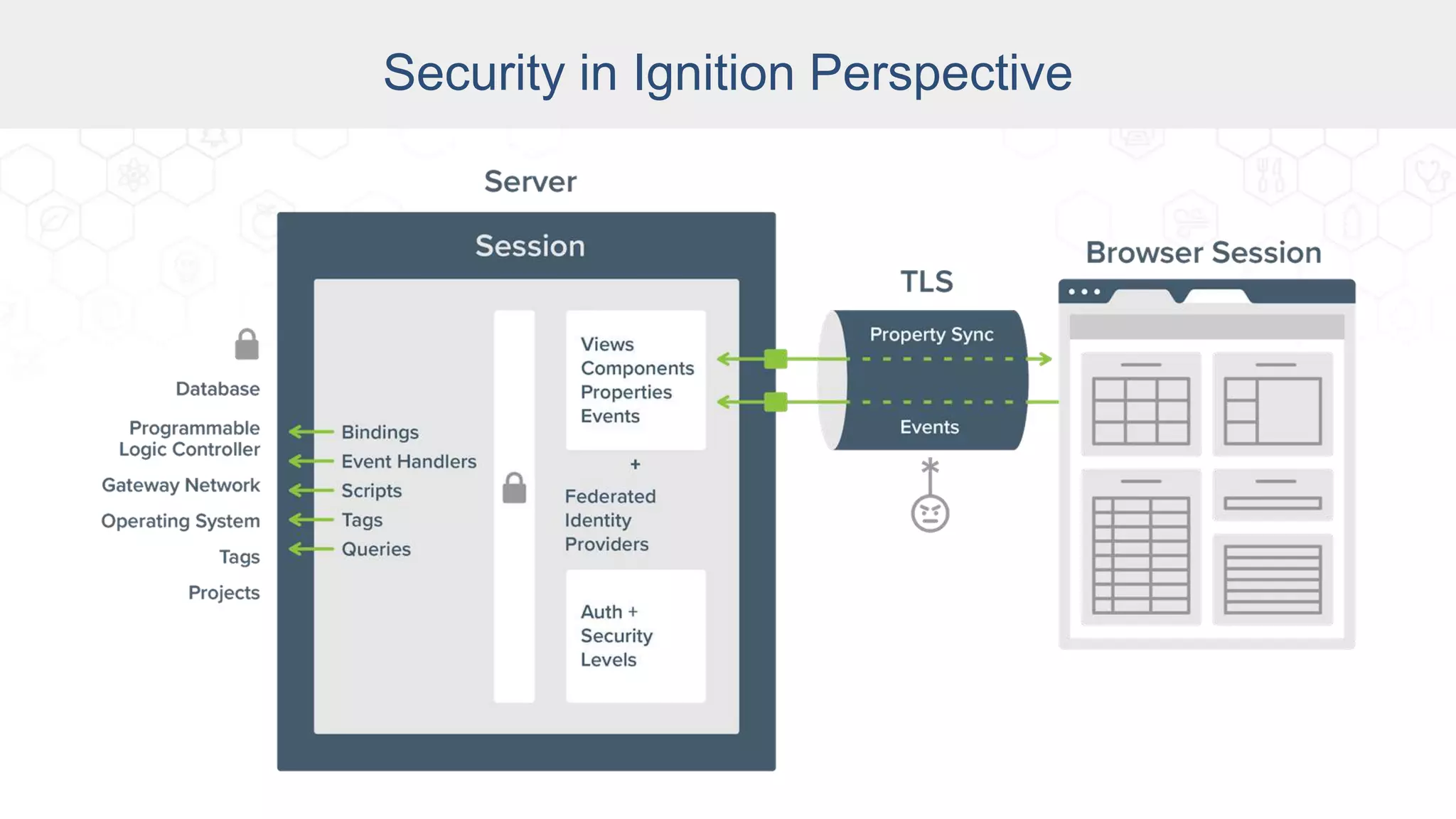

35. Security in Ignition Perspective

36. Planning Security in Ignition Perspective
Security considerations for your project:
1. Plan to harden your Ignition
Gateway security
2. Identify who will have access and
how
3. Determine where applications will be
accessed from
4. Considerations for mobile device
security

37. Hardening Your Ignition Gateway
Here are some important security steps to take:
1. Enable SSL
2. Set Up Authorization
3. Enable Auditing

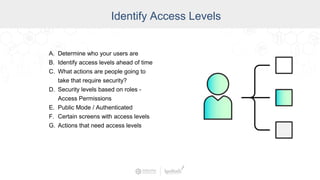

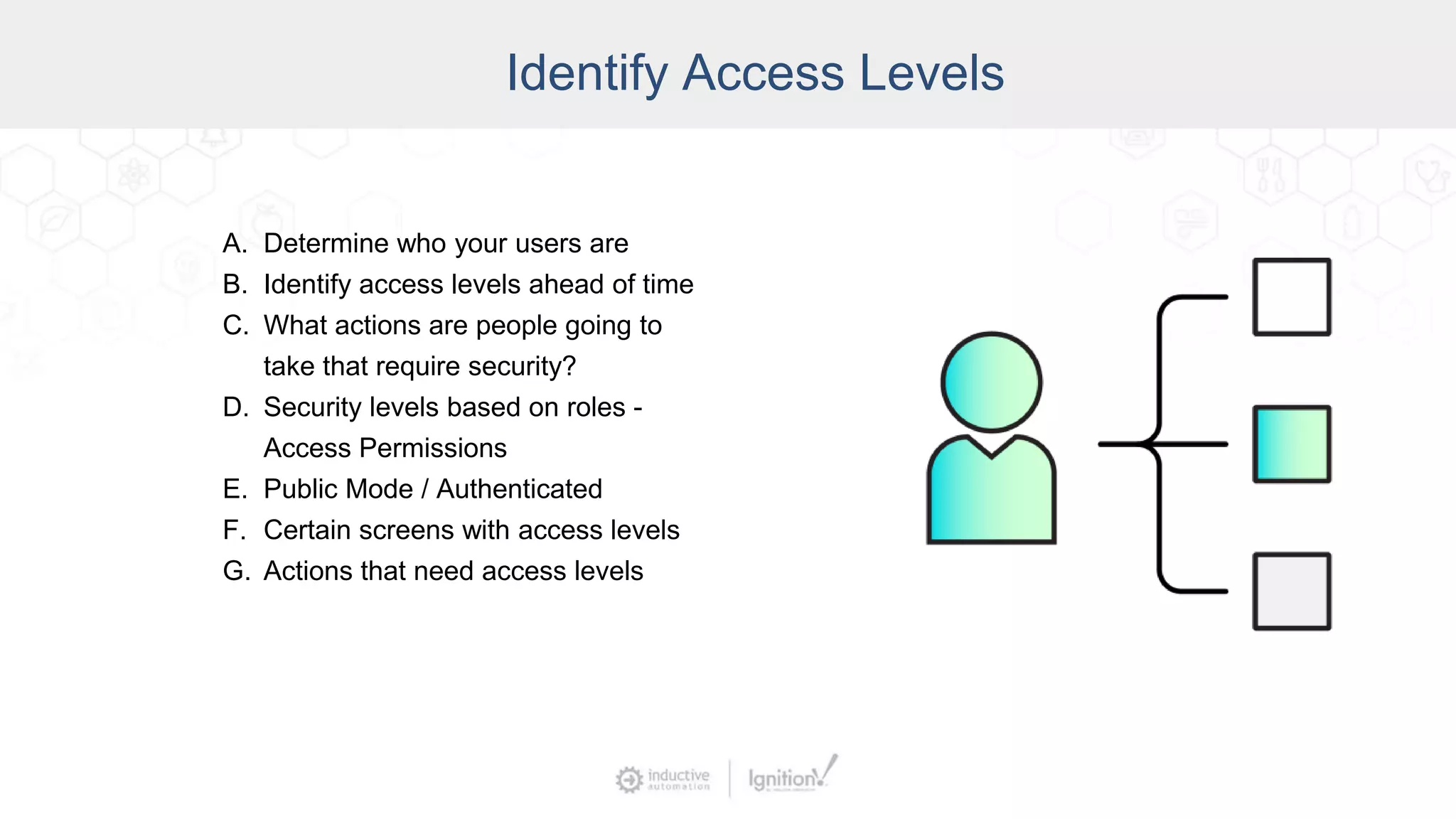

38. Identify Access Levels
A. Determine who your users are
B. Identify access levels ahead of time
C. What actions are people going to
take that require security?
D. Security levels based on roles -
Access Permissions
E. Public Mode / Authenticated
F. Certain screens with access levels
G. Actions that need access levels

39. Planning for Data

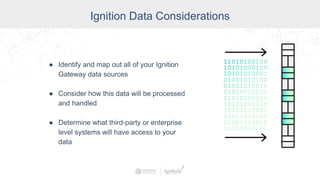

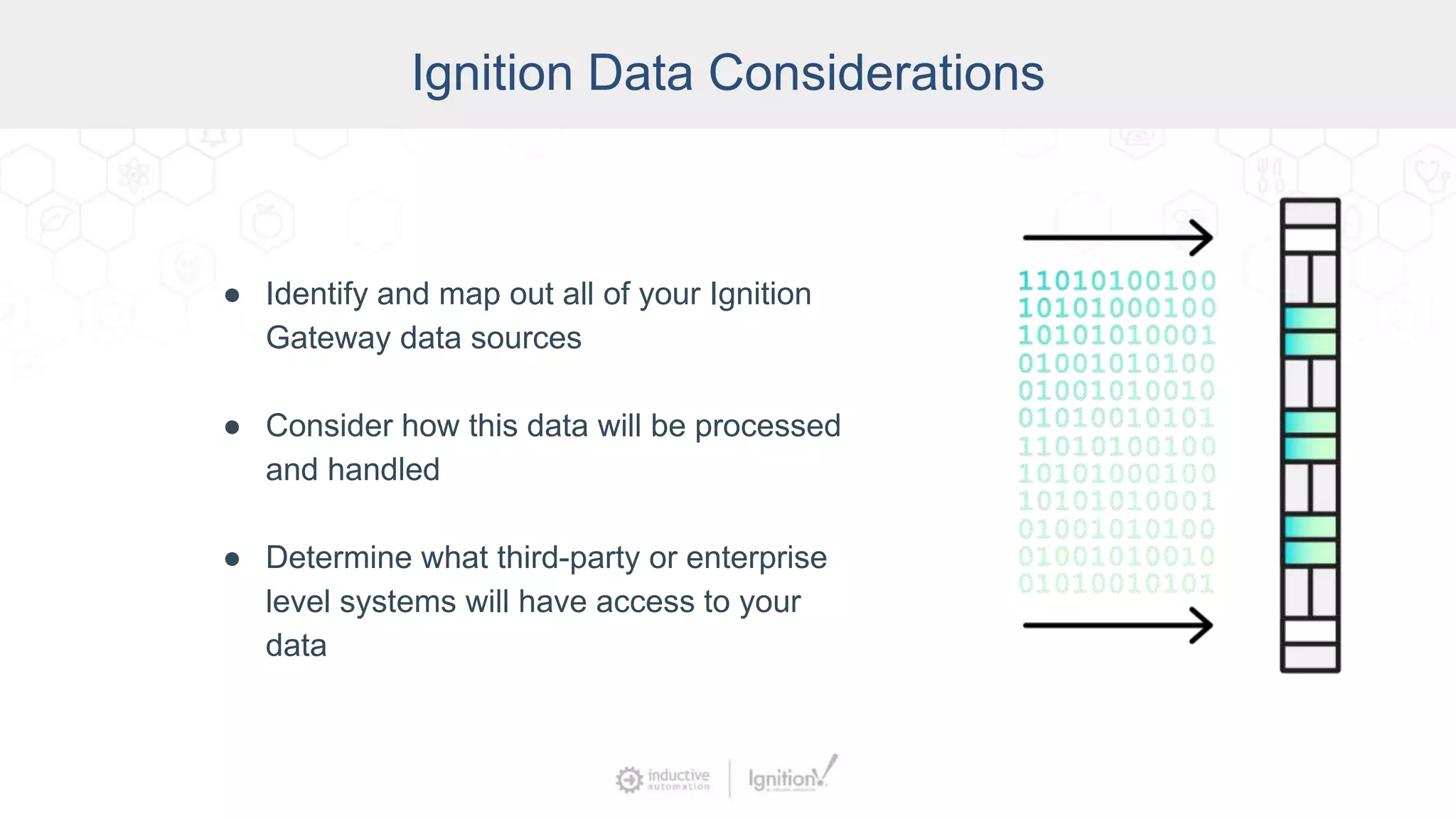

40. Ignition Data Considerations
● Identify and map out all of your Ignition
Gateway data sources
● Consider how this data will be processed
and handled
● Determine what third-party or enterprise
level systems will have access to your
data

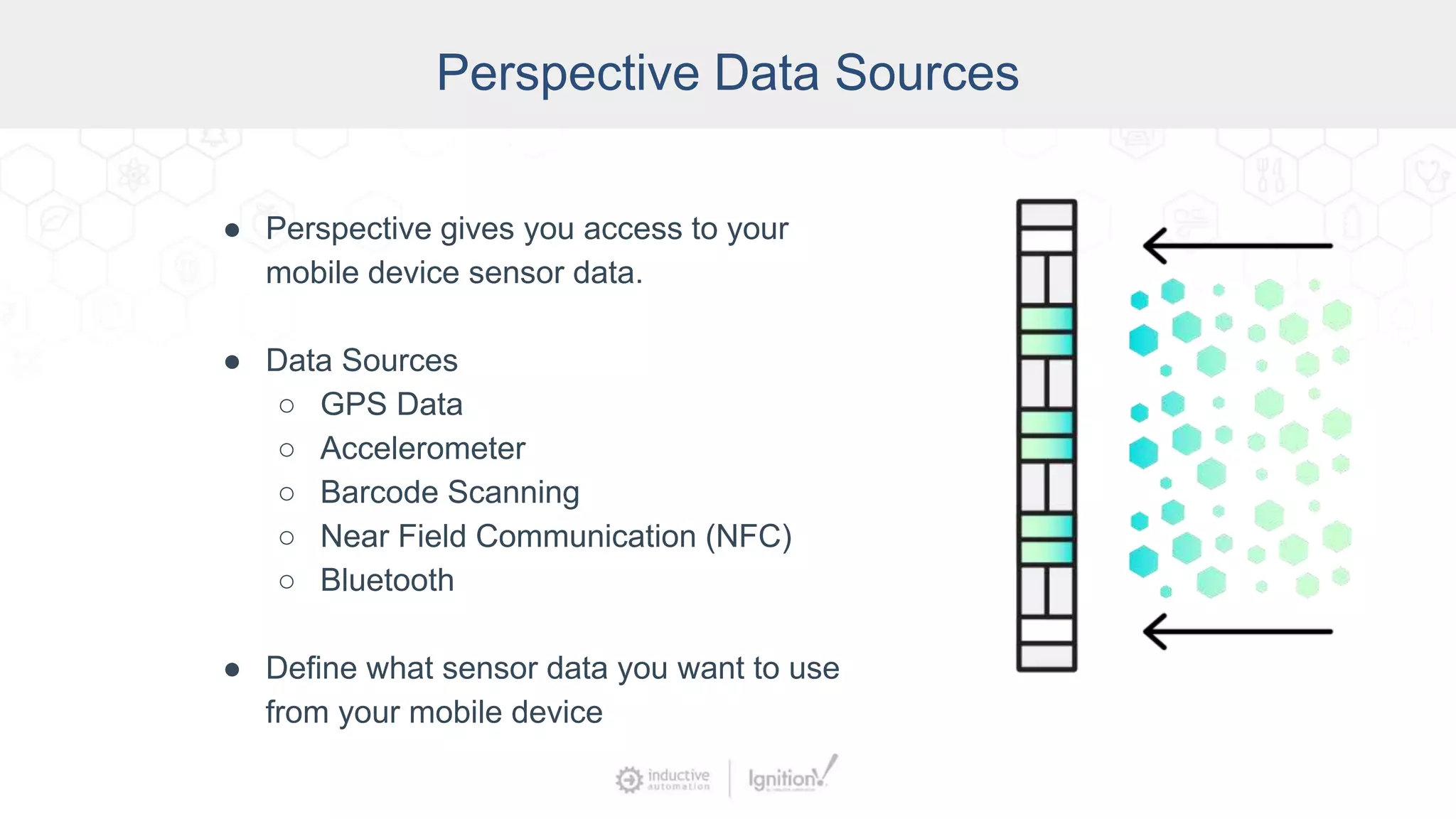

41. Perspective Data Sources
● Perspective gives you access to your
mobile device sensor data.
● Data Sources
○ GPS Data
○ Accelerometer
○ Barcode Scanning
○ Near Field Communication (NFC)
○ Bluetooth
● Define what sensor data you want to use
from your mobile device

42. GPS Data
● Geofencing
● Tag location when entering data
● Navigation based on location, etc.

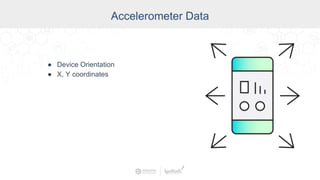

43. Accelerometer Data
● Device Orientation
● X, Y coordinates

44. Camera - Barcode Scanning
● Barcodes on the plant floor
● Define what that will look like on
your application
● Inventory Control
● Quick Navigation
● More Context

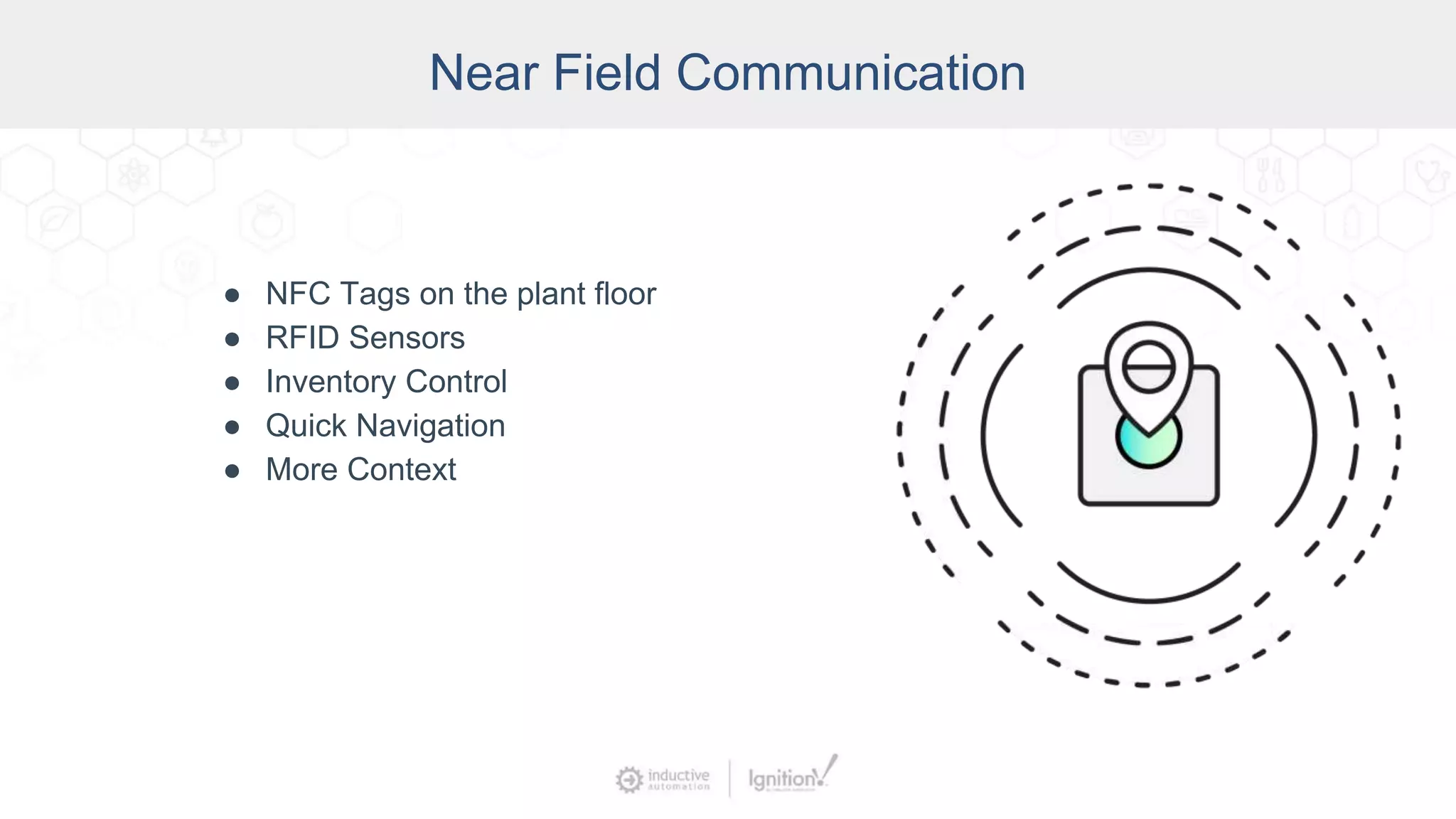

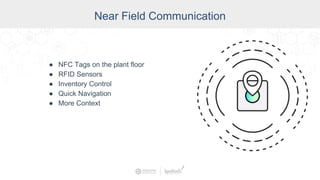

45. Near Field Communication
● NFC Tags on the plant floor
● RFID Sensors
● Inventory Control
● Quick Navigation
● More Context

46. Bluetooth
● Interface with low energy beacons for
humidity or temperature
● iBeacon
● Eddystone

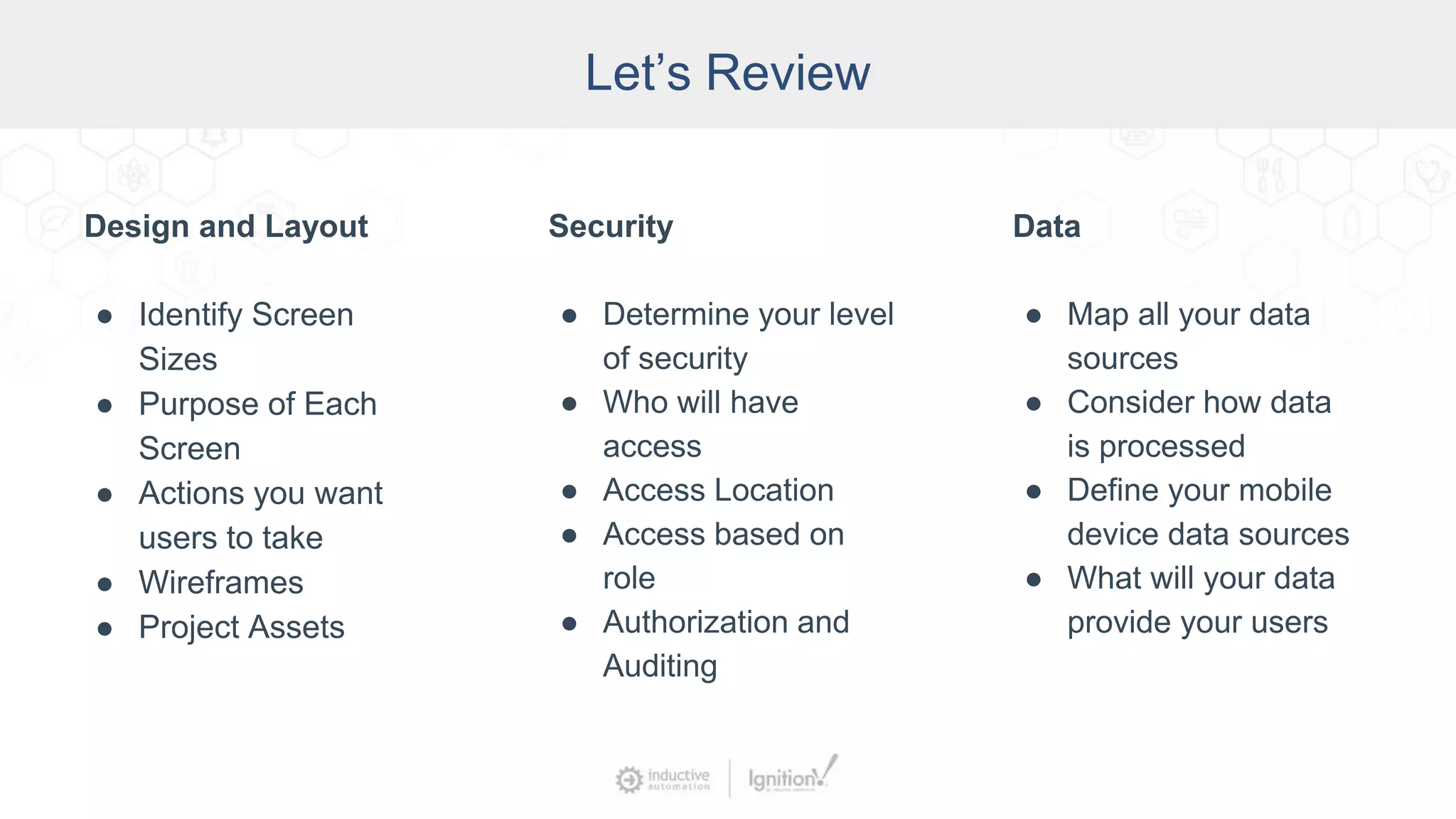

47. Let’s Review
Design and Layout
● Identify Screen
Sizes
● Purpose of Each
Screen
● Actions you want
users to take
● Wireframes
● Project Assets
Security
● Determine your level
of security
● Who will have
access
● Access Location
● Access based on
role
● Authorization and
Auditing
Data
● Map all your data
sources
● Consider how data
is processed
● Define your mobile
device data sources
● What will your data
provide your users

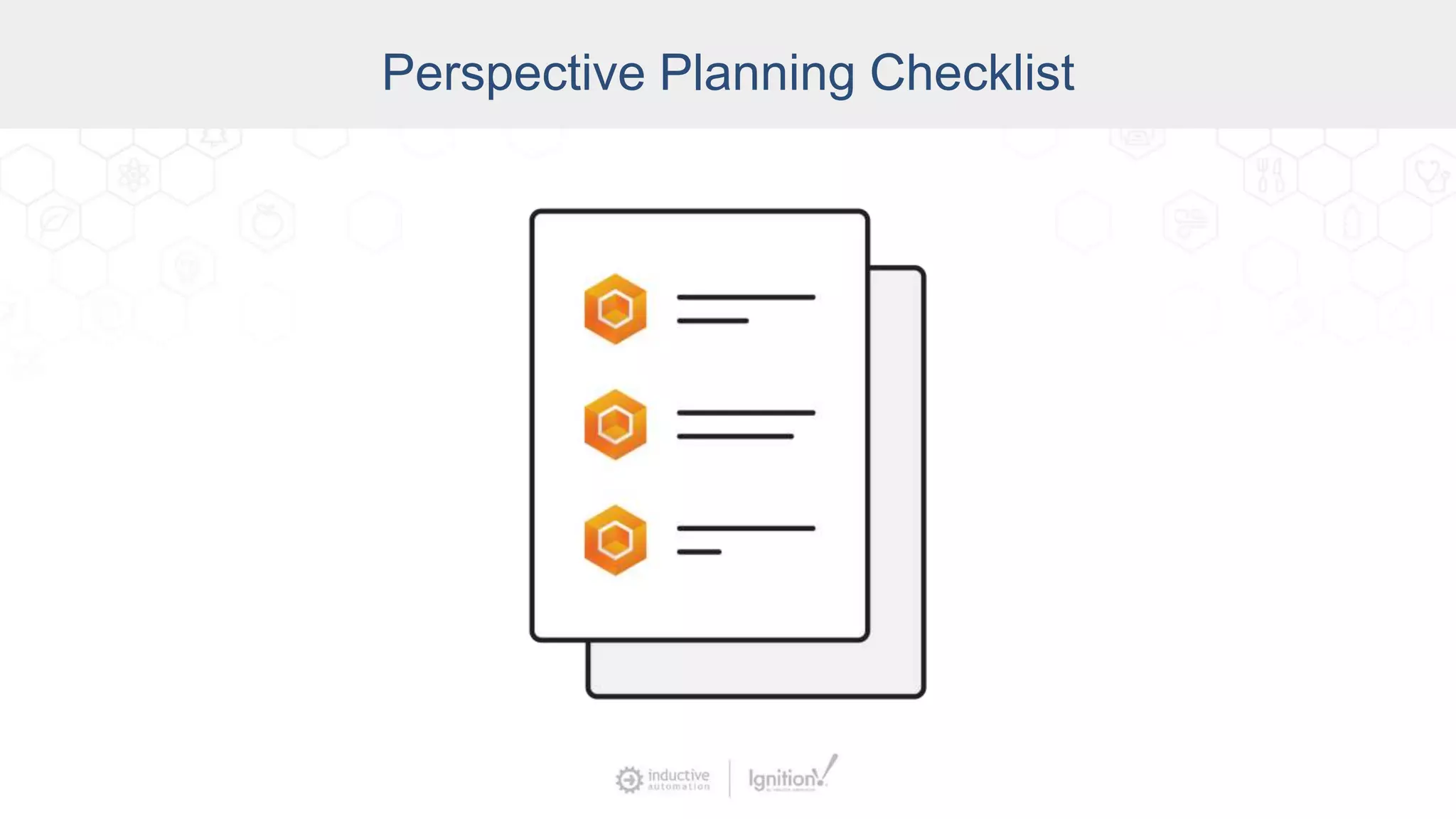

48. Perspective Planning Checklist
