- 2. HI, I’M ROBERT @ROBBEDOES ONTWITTER USER SYSTEM INTERACTION PDENG. EINDHOVEN, UNIVERSITY OF TECHNOLOGY MY BACKGROUND USER EXPERIENCE NASCOM BELGIUM J MY JOB
- 4. TODAY’S ! TOUCH POINTS • WHAT’SOUT THERE • INTERFACE DESIGN • INTERACTION DESIGN • WORKSHOP: LET’S GO HANDS ON!
- 5. TYPE OF TOUCH TECHNOLOGYAFFECTS • THE USER EXPERIENCE • THE INTERFACE DESIGN • THE INTERACTION DESIGN
- 6.
- 7. TRACK-! PADS YOUR FINGERS OR HANDS NEVER COVER INFORMATION INTERFACE ALWAYS VISIBLE
- 8. “IF YOU SEEA ! STYLUS ” THEY BLEW IT DIXIT STEVE JOBS
- 9. NOT ALWAYS, STEVE
- 10. USE CASE DRAWING • PRESSURE • ACCURACY • POINT ANDCLICK INTERFACE CURRENT SOFTWARE
- 11. BUT! LET’S STICK! TO SCREENS! …AND FINGERS! AND FINGERS ON THAT SAME SCREEN (YOU KNOW WHAT I MEAN)
- 12. OUT IN THE WILD WHATTECHNOLOGY DO I CHOOSE FOR MY PROJECT OR CLIENT?
- 13. CAPACITIVE BASED ON CONDUCTION SKINCONTACT MANDATORY. FAST. RESPONSIVE. EXPENSIVE. GREAT CHOICE FOR SMARTPHONES, TABLETS AND MP3 PLAYERS. MOST COMMON.
- 14. RESISTIVE BASED ON PRESSURE NOSKIN CONTACT MANDATORY. CHEAP. GREAT CHOICE FOR DIGITAL SIGNAGE, INDUSTRIAL & STYLUS OPERATED USE CASES

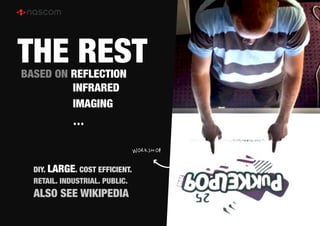

- 15. THE REST BASED ONREFLECTION INFRARED IMAGING … WORKSHOP DIY. LARGE. COST EFFICIENT. RETAIL. INDUSTRIAL. PUBLIC. ALSO SEE WIKIPEDIA
- 16. IF YOU KNOWTHE HARDWARE, THINK ABOUT HOW IT’S USED
- 17. MOBILE • MAINLY SINGLE TASK • SMALL SCREEN • PERSONAL USE BUT! DON'T DESIGN ONE PIECE OF THE PUZZLE DECLUTTER SINGLE FUNCTION DESIGN DESIGN FOR SINGLE USER
- 18. TABLET • SINGLE& MULTI TASK • AVERAGE SCREEN • ENTERTAIN / CONSUME MULTI FUNCTIONAL EXTRA REAL ESTATE DESIGN FOR 1 (MAX 2) USERS
- 19. BIG • LOADS OF REALESTATE • SPECIFIC CONTEXT OF USE • ADVERTISE. ENTERTAIN. MONITOR … DESIGN FOR USE CASES KIOSKS. SIGNAGE. WORK. OFTEN MULTIPLE USERS
- 20. ONCE YOU KNOWHOW IT’S USED, THINK ABOUT YOUR INTERFACE
- 21. MANY TOUCH DEVICESNOWADAYS! S DESIGN FOR MOBILE OFTEN EQUALS DESIGN FOR TOUCH DESIGN FOR TOUCH DOES NOT ALWAYS EQUAL DESIGN FOR MOBILE S OTHER MINDSET
- 22. MOBILE VS. TABLET LIST LIST + DETAILS
- 23. MIND THE GAP THE FOLD EXISTS TWICE F RF A CE IFFERE NT INTE D SAME FUNCTIONS?
- 25. S MA LL E R NAVIGAT ION MORE HEIGHT U CT S LESS PROD
- 26. WHEN DEFINING YOURINTERFACE, THINK ABOUT HOW YOU DESIGN IT
- 27. TOUCH! BASED DESIGN DON’T COMBINE METAPHORS APPLE DESIGN GUIDELINE PAPER + SCROLL?

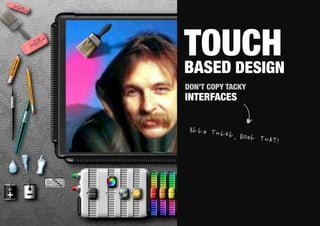

- 28. TOUCH! BASED DESIGN DON’T COPYTACKY INTERFACES BEEN TH ERE, DONE TH AT !
- 29. USE METAPHORS ONLY IF THEY BECOME FUNCTIONAL INSERT STACK IBOOKS APP IMAGE AVOID KI T SCH I MU S T B E HALFW AY
- 30. ENT REDESIGNED CONT LESS IS MORE ON MOBILE WHILE MAGAZINE STYLE • BIG IMAGES WORKS ON A TABLET • BEAUTIFUL TEXT • SCANNABLE HEADLINES

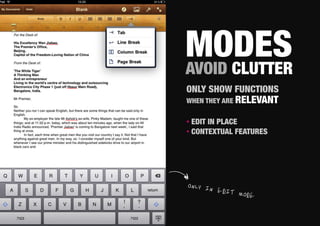

- 31. MODES! AVOID CLUTTER INSERT WEIRD INSCROLLING PAPER IMAGE ONLY SHOW FUNCTIONS WHEN THEY ARE RELEVANT • EDIT IN PLACE • CONTEXTUAL FEATURES ONLY IN EDIT M ODE
- 32. BLINK AFTER TAPLIVES I HOVER! RIP IS DEAD THINK STATES THINK PHYSICAL THINK BUTTONS A TEXT LINKS ARE UNUSABLE
- 33. PS! BREAK! THE CONTRAST OPTIMIZED WEB ON AN IPAD Lorem ipsum dolor sit amet, consectetur adipiscing elit. Lorem ipsum dolor sit amet, consectetur adipiscing elit. TIRING ON THE EYES A NOISE Lorem ipsum dolor sit amet, consectetur adipiscing elit.
- 34. TOUCH! OPTIMIZED WEB HTTP://IPHONE.CNET.COM LINKED AREA Q A
- 35. TOUCH! OPTIMIZED WEB HTTP://HM.COM/US/MOBILE A MOST RELEVANT FUNCTION IN A MOBILE CONTEXT
- 36. TOUCH! OPTIMIZED WEB HTTP://NIKE.COM ONAN IPAD A CLEANER, SLEEKER, FASTER! LARGE "TAPABLE" AREA SWIPE ME!
- 37. WHEN DESIGNING YOURINTERFACE, THINK ABOUT INTERACTIONS NATIVE APP LICATIONS
- 38. DESIGN FOR HOW USERSHOLD THEIR DEVICE THUMBS VS FINGERS. ONE HAND VS TWO HANDS
- 39. THUMBS HAVE EASY ACCESSTO LOWER PARTS OF THE SCREEN AND NEAREST CORNERS SUB MENU COVERED AFTER SELECTIONS MAIN MENU
- 40. FINGERS ARE USED MOREWHEN • THE DEVICE IS NOT HELD • THE DEVICE HAS A BIG SCREEN • PRECISE SELECTION IS NEEDED • USERS USE BOTH HANDS T WARNING: ASSUMPTIONS
- 41. TWO HANDS COULD BEA SHORTCUT DISCOVERA BLE, NOT CRITICAL 1. PINCH 2. PRESS TO MATCH SIZE

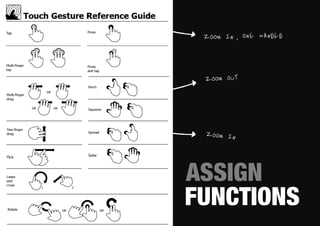

- 42. A ZOOM IN , ONE HANDED ZOOM OUT A ZOOM IN ASSIGN FUNCTIONS
- 43.
- 44. LET’S GET OURHANDS DIRTY WORKSHOP MULTITOUCH GROUP WORK
- 45. WORKSHOP! TOUCH APPLICATION EUROSCOOP MOBILE, TA BLET, KIOS K? • CHOOSE PLATFORM • FOCUS ON USE CASE • CREATE WIREFRAME TY P E FIREWORKS PROTO
- 46. FIN. NEED HELP? CONTACT! US THANK YOU WWW.NASCOM.BE
- 47. REFERENCES • WIKIPEDIA: TYPE OF TOUCH SCREENS HTTP://EN.WIKIPEDIA.ORG/WIKI/TOUCHSCREEN! • THE TOUCH GESTURE REFERENCE GUIDE! HTTP://WWW.LUKEW.COM/FF/ENTRY.ASP?1071! • ORIENTATION CSS HTTP://WWW.CLOUDFOUR.COM/IPAD-ORIENTATION-CSS/ • DESIGNING FOR IPAD REALITY CHECK HTTP://WWW.INFORMATIONARCHITECTS.JP/EN/DESIGNING-FOR-IPAD-REALITY-CHECK/ • MATT GEMMELL HTTP://MATTGEMMELL.COM/2010/03/05/IPAD-APPLICATION-DESIGN • DESIGN FOR THE IPAD .NET, ISSUE 204, AUGUST 2010
- 48. HANDSCANNER HTTP://WWW.FLICKR.COM/PHOTOS/DNORMAN/2230280579/ RUGGED TOUCHSCREEN! HTTP://GETAC.COM TOUCH TABLE AND PEOPLE ! HTTP://WWW.FRESHDV.COM/2007/05 + HTTP://WWW.MICROSOFT.COM WACOM TABLET HTTP://WWW.CARBODYDESIGN.COM/GALLERY/2007/11/16-WACOM-CINTIQ-12WX/1/ FLIPBOARD AND COFFEE MUG HTTP://WWW.FLIPBOARD.COM/ GUY USING TWO HANDS HTTP://WWW.FLICKR.COM/PHOTOS/LIQUENE/3177500623/SIZES/L/IN/PHOTOSTREAM/ MACBOOK + IPADS + IPHONES! HTTP://WWW.APPLE.COM JOBS HOLDING IPAD HTTP://WWW.SOFTSAILOR.COM/NEWS/19690-IPAD-WILL-NOT-SUPPORT-TETHERING-VIA-IPHONE- STEVE-JOBS-SAID.HTML JUNGLE TOY SOLDIERS HTTP://WWW.FLICKR.COM/PHOTOS/JCLOR/4694454104/ SURFACE GAME HTTP://WWW.FLICKR.COM/PHOTOS/IMAGESFORTHEFUTURE/4041849181/ HTC EVOLVE CONCEPT IMAGE CREDITS HTTP://WWW.HTC.COM
