Touchscreen UX design workshop

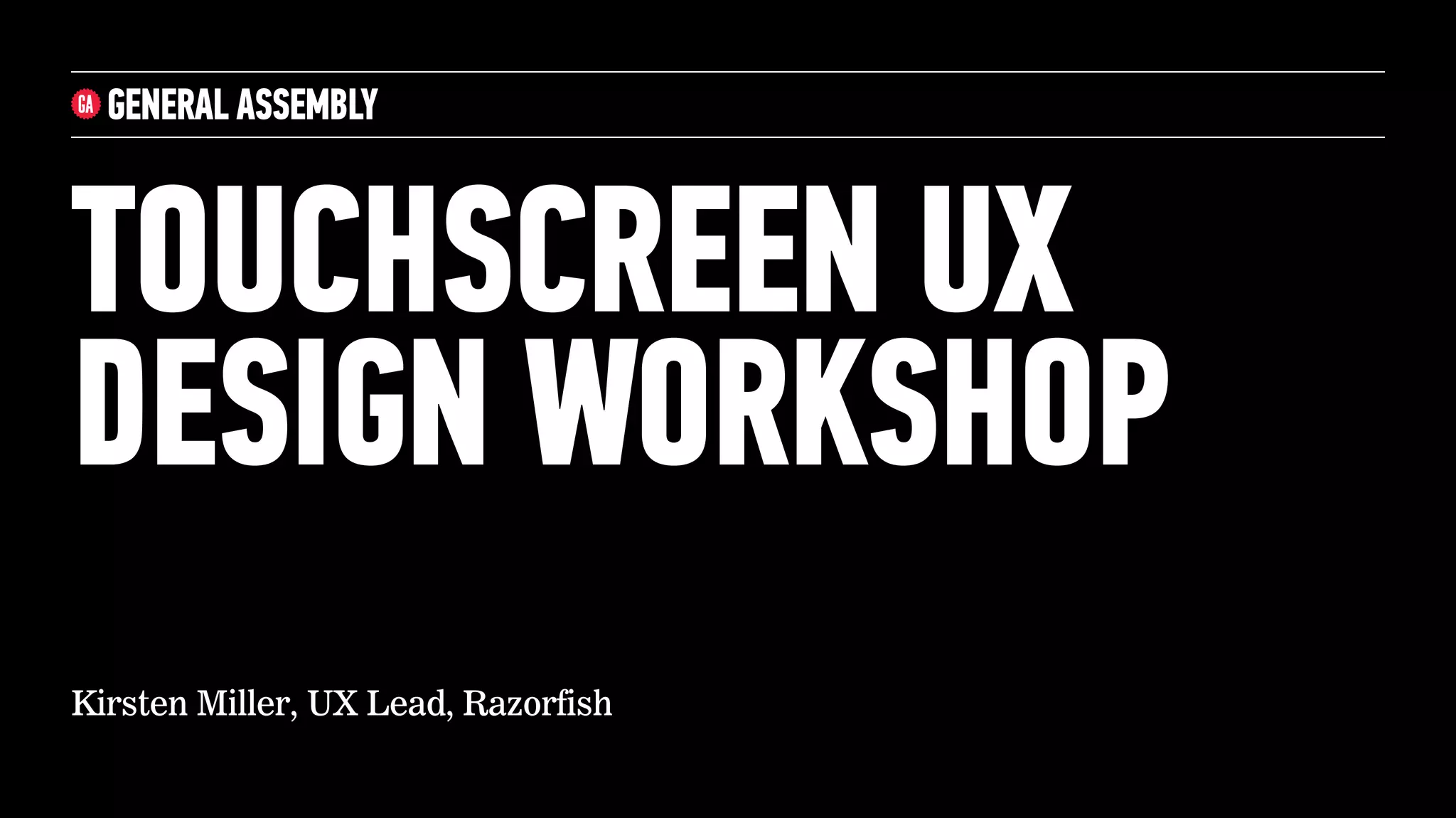

- 1. TOUCHSCREEN UX DESIGN WORKSHOP KirstenMiller, UX Lead, Razorfish

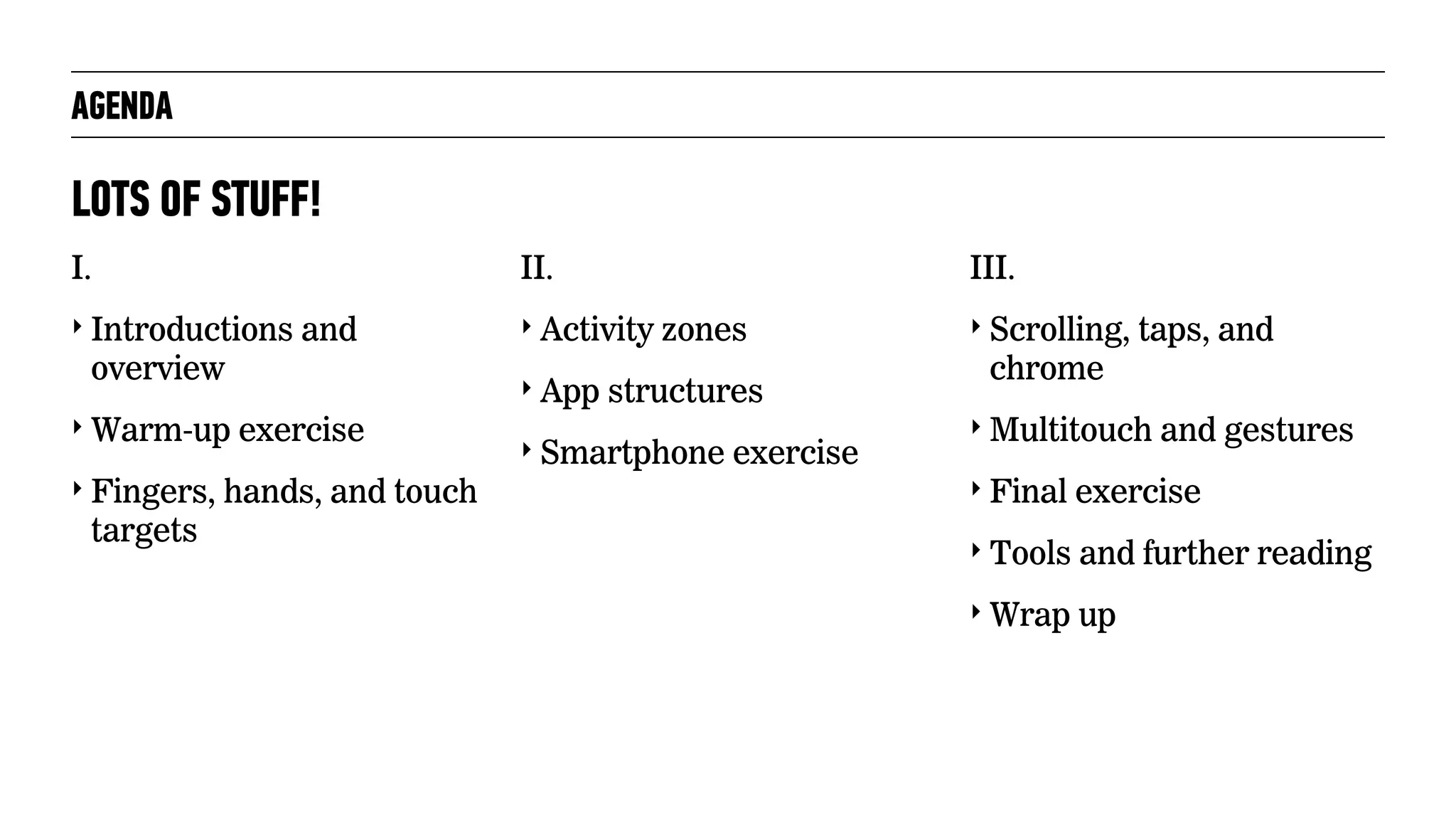

- 2. AGENDA I. ‣ Introductions and overview ‣Warm-up exercise ‣ Fingers, hands, and touch targets II. ‣ Activity zones ‣ App structures ‣ Smartphone exercise III. ‣ Scrolling, taps, and chrome ‣ Multitouch and gestures ‣ Final exercise ‣ Tools and further reading ‣ Wrap up LOTS OF STUFF!

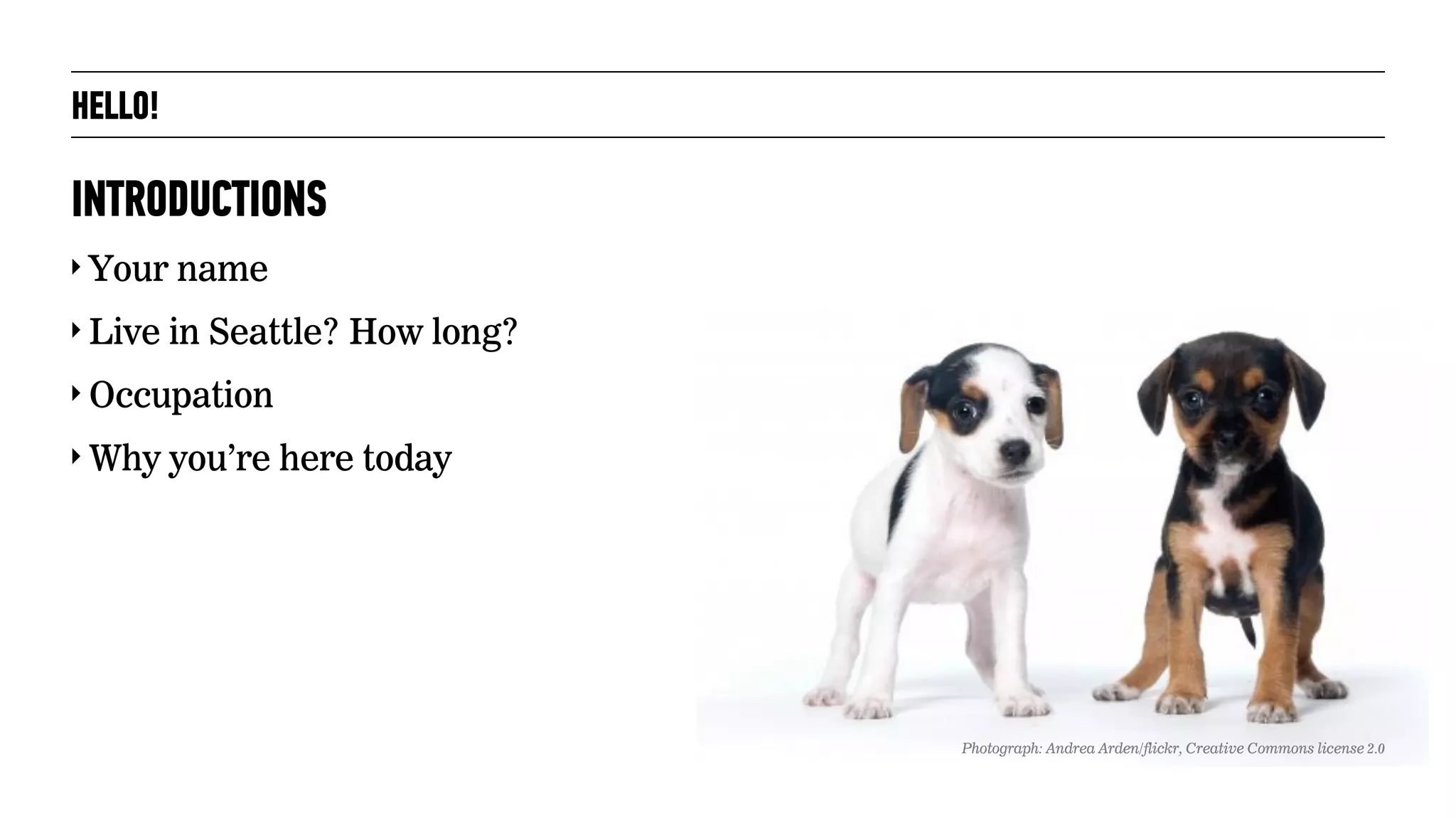

- 3. ‣ Your name ‣Live in Seattle? How long? ‣ Occupation ‣ Why you’re here today INTRODUCTIONS HELLO! Photograph: Andrea Arden/flickr, Creative Commons license 2.0

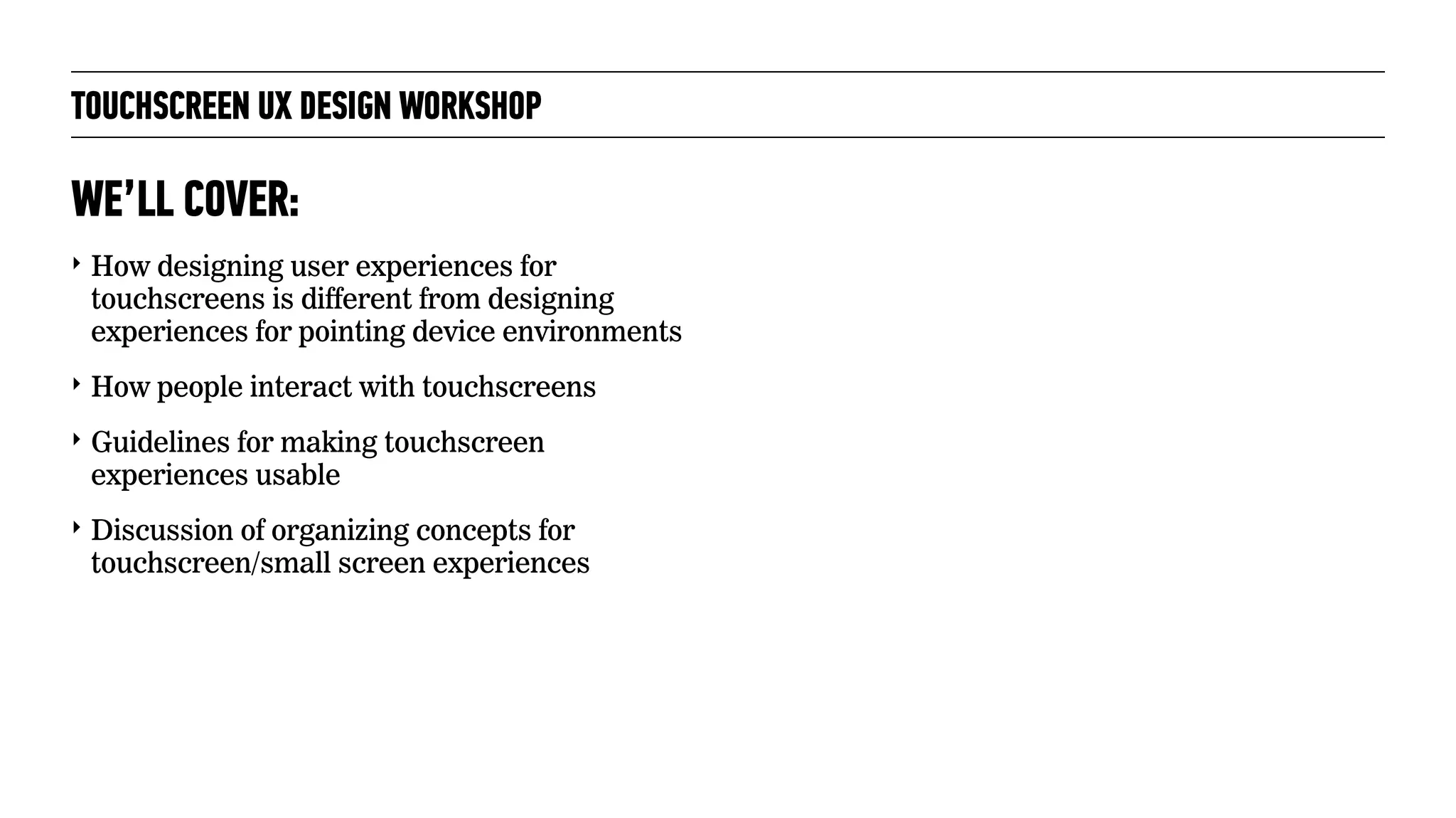

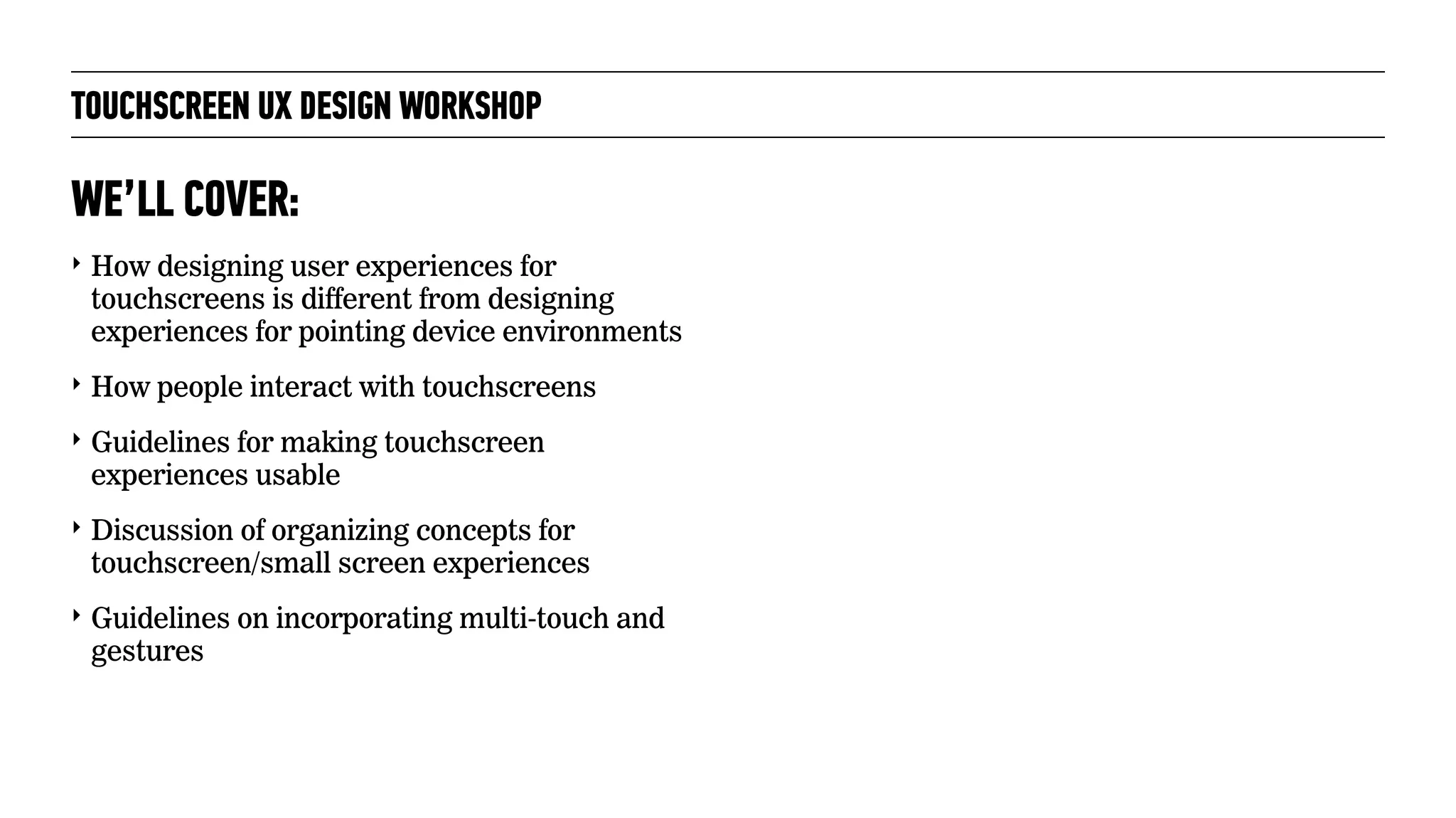

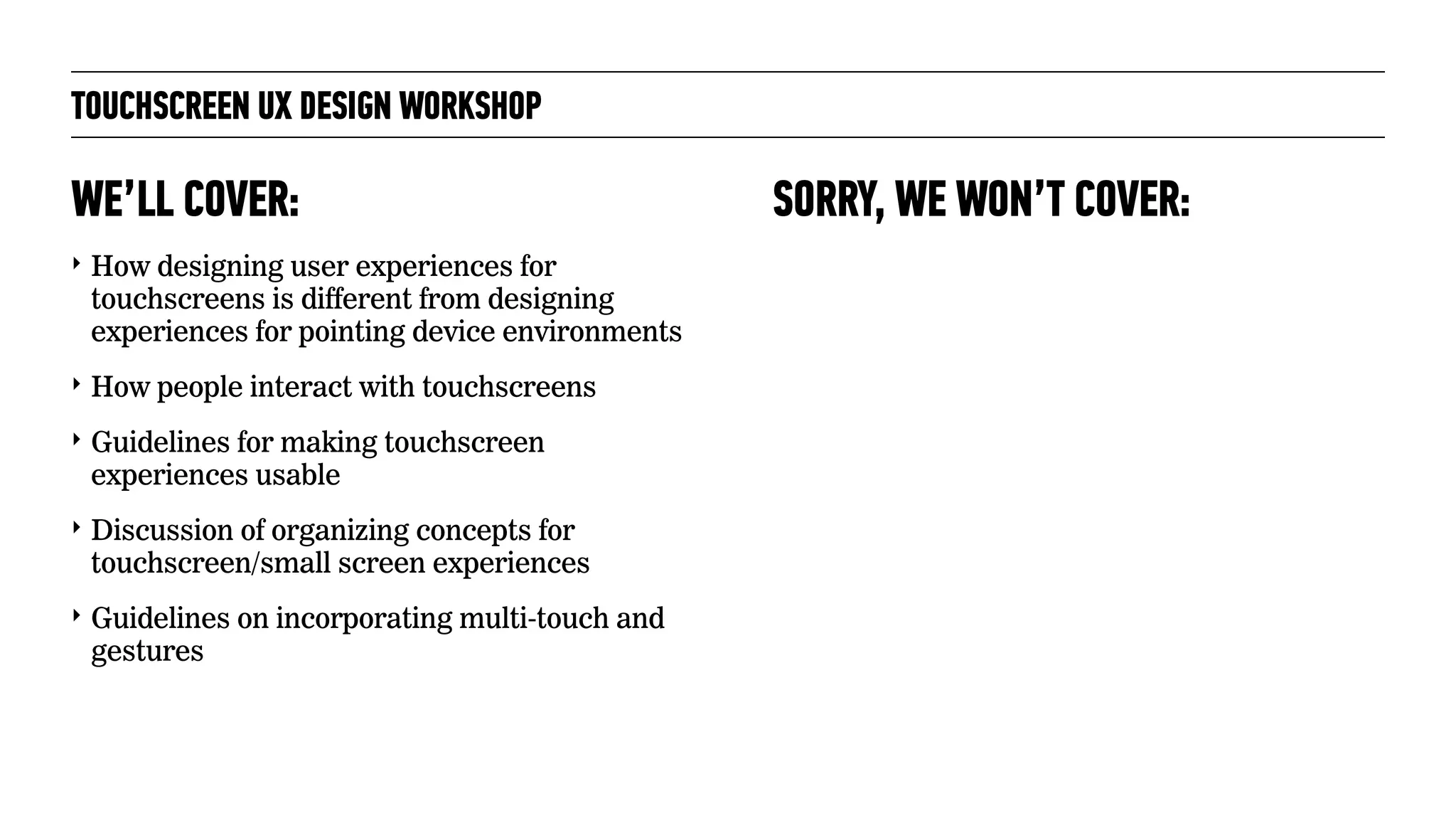

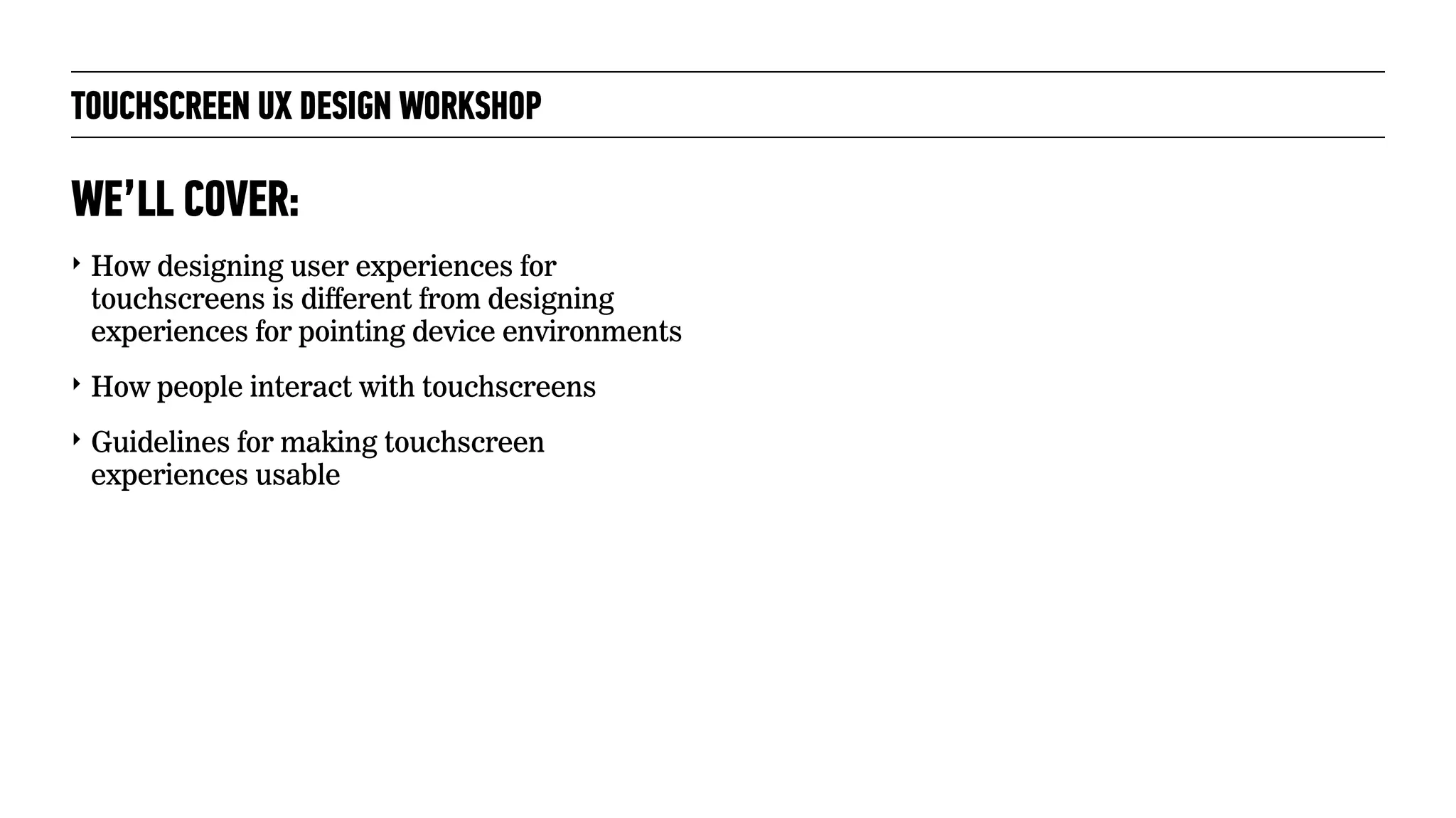

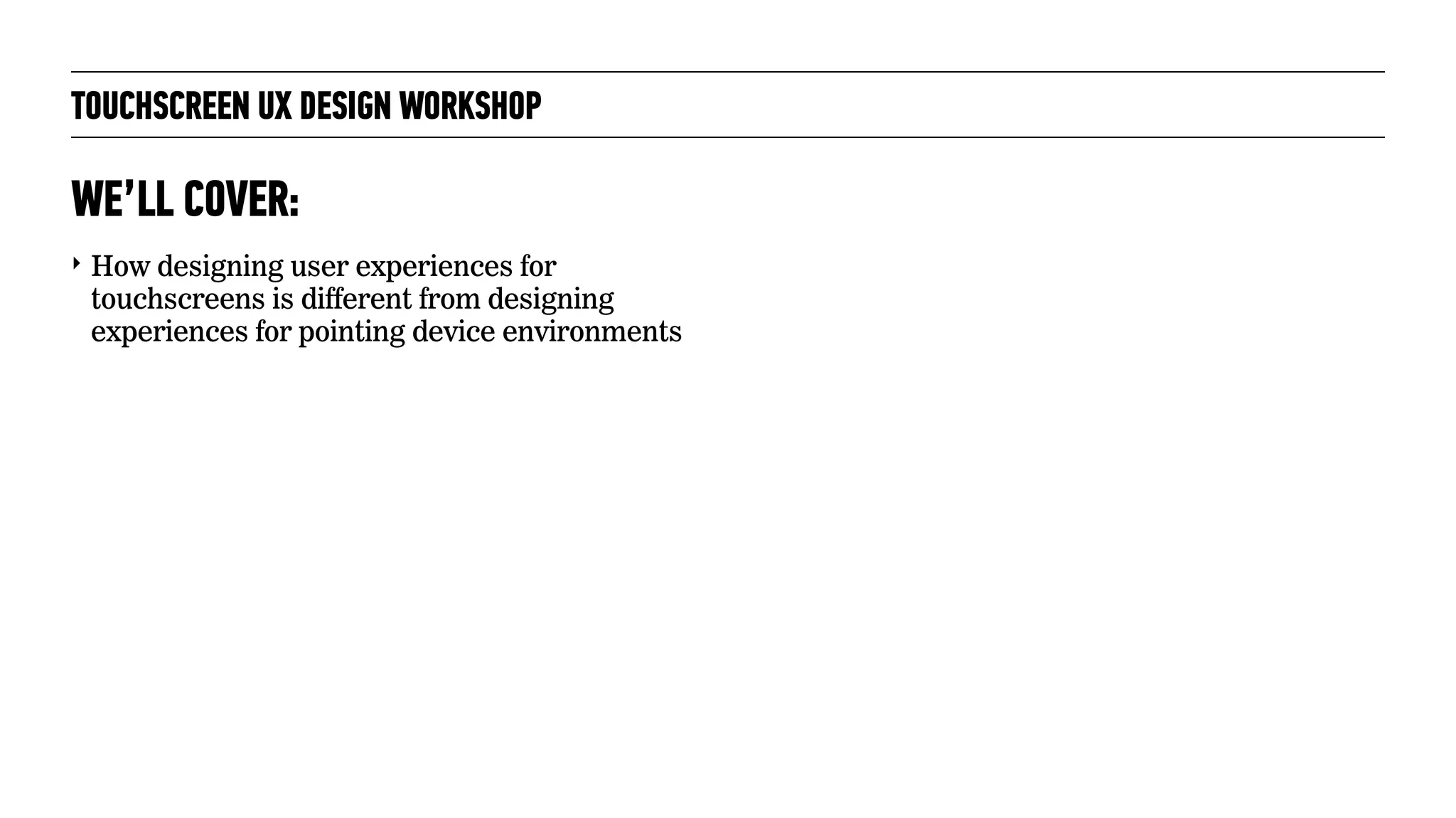

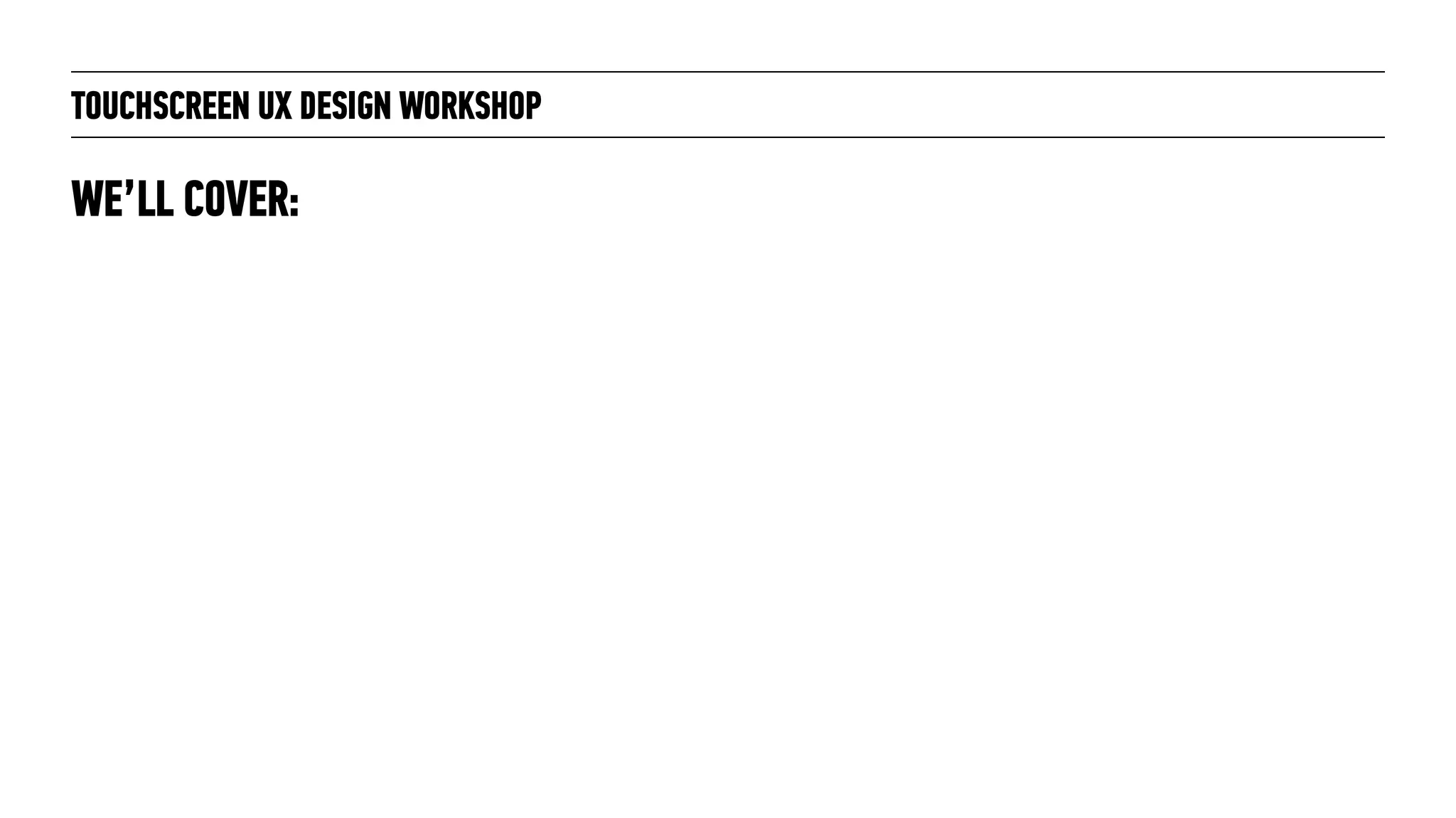

- 4. TOUCHSCREEN UX DESIGNWORKSHOP WE’LL COVER:
- 5. TOUCHSCREEN UX DESIGNWORKSHOP ‣ How designing user experiences for touchscreens is different from designing experiences for pointing device environments WE’LL COVER:
- 6. TOUCHSCREEN UX DESIGNWORKSHOP ‣ How designing user experiences for touchscreens is different from designing experiences for pointing device environments ‣ How people interact with touchscreens WE’LL COVER:

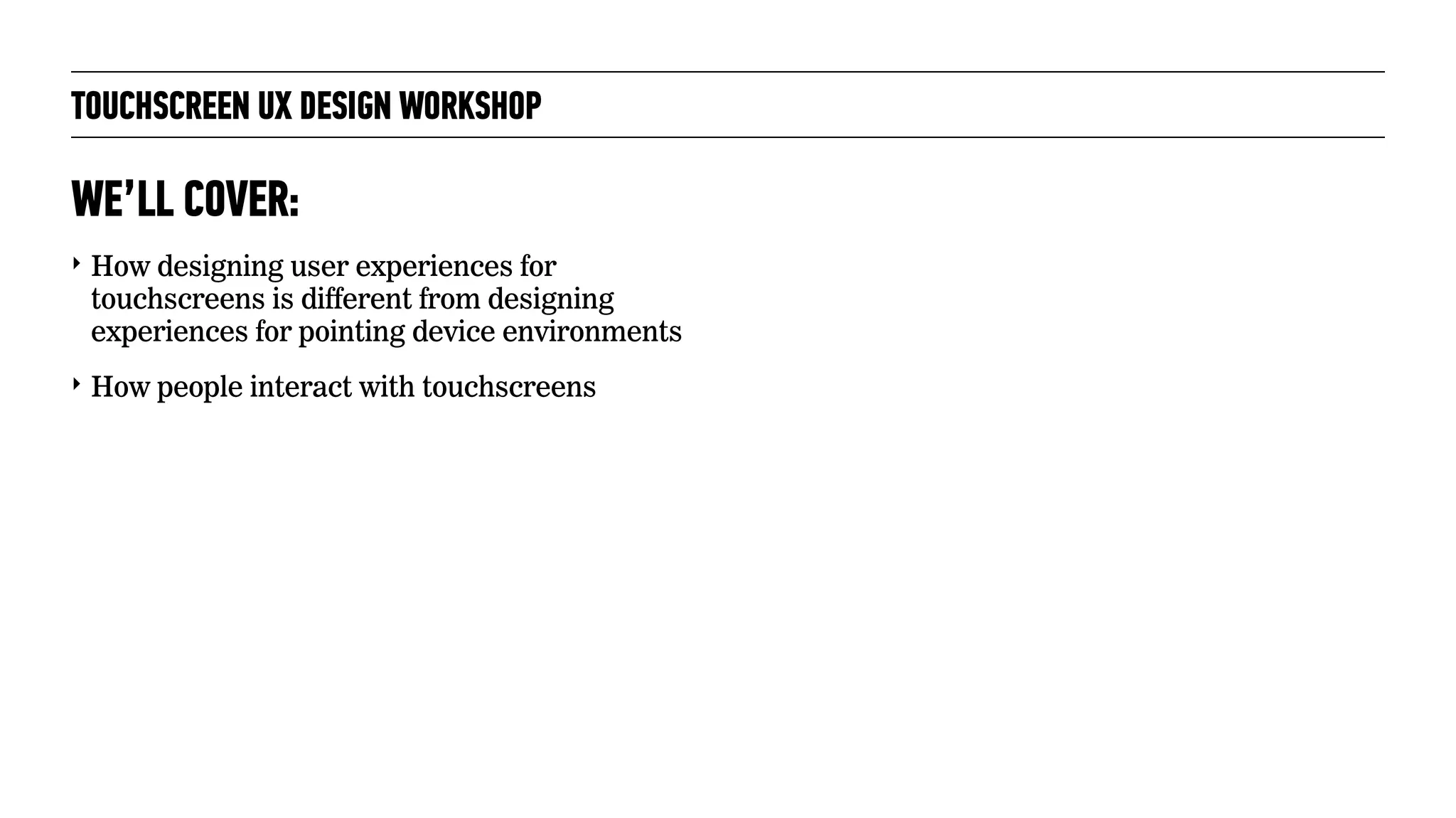

- 7. TOUCHSCREEN UX DESIGNWORKSHOP ‣ How designing user experiences for touchscreens is different from designing experiences for pointing device environments ‣ How people interact with touchscreens ‣ Guidelines for making touchscreen experiences usable WE’LL COVER:
- 8. TOUCHSCREEN UX DESIGNWORKSHOP ‣ How designing user experiences for touchscreens is different from designing experiences for pointing device environments ‣ How people interact with touchscreens ‣ Guidelines for making touchscreen experiences usable ‣ Discussion of organizing concepts for touchscreen/small screen experiences WE’LL COVER:
- 9. TOUCHSCREEN UX DESIGNWORKSHOP ‣ How designing user experiences for touchscreens is different from designing experiences for pointing device environments ‣ How people interact with touchscreens ‣ Guidelines for making touchscreen experiences usable ‣ Discussion of organizing concepts for touchscreen/small screen experiences ‣ Guidelines on incorporating multi-touch and gestures WE’LL COVER:
- 10. TOUCHSCREEN UX DESIGNWORKSHOP ‣ How designing user experiences for touchscreens is different from designing experiences for pointing device environments ‣ How people interact with touchscreens ‣ Guidelines for making touchscreen experiences usable ‣ Discussion of organizing concepts for touchscreen/small screen experiences ‣ Guidelines on incorporating multi-touch and gestures WE’LL COVER: SORRY, WE WON’T COVER:
- 11. TOUCHSCREEN UX DESIGNWORKSHOP ‣ How designing user experiences for touchscreens is different from designing experiences for pointing device environments ‣ How people interact with touchscreens ‣ Guidelines for making touchscreen experiences usable ‣ Discussion of organizing concepts for touchscreen/small screen experiences ‣ Guidelines on incorporating multi-touch and gestures WE’LL COVER: ‣ Platform, OS differences SORRY, WE WON’T COVER:
- 12. TOUCHSCREEN UX DESIGNWORKSHOP ‣ How designing user experiences for touchscreens is different from designing experiences for pointing device environments ‣ How people interact with touchscreens ‣ Guidelines for making touchscreen experiences usable ‣ Discussion of organizing concepts for touchscreen/small screen experiences ‣ Guidelines on incorporating multi-touch and gestures WE’LL COVER: ‣ Platform, OS differences ‣ In-depth discussion of screen resolution or responsive design considerations SORRY, WE WON’T COVER:
- 13. TOUCHSCREEN UX DESIGNWORKSHOP ‣ How designing user experiences for touchscreens is different from designing experiences for pointing device environments ‣ How people interact with touchscreens ‣ Guidelines for making touchscreen experiences usable ‣ Discussion of organizing concepts for touchscreen/small screen experiences ‣ Guidelines on incorporating multi-touch and gestures WE’LL COVER: ‣ Platform, OS differences ‣ In-depth discussion of screen resolution or responsive design considerations ‣ Coding/development SORRY, WE WON’T COVER:

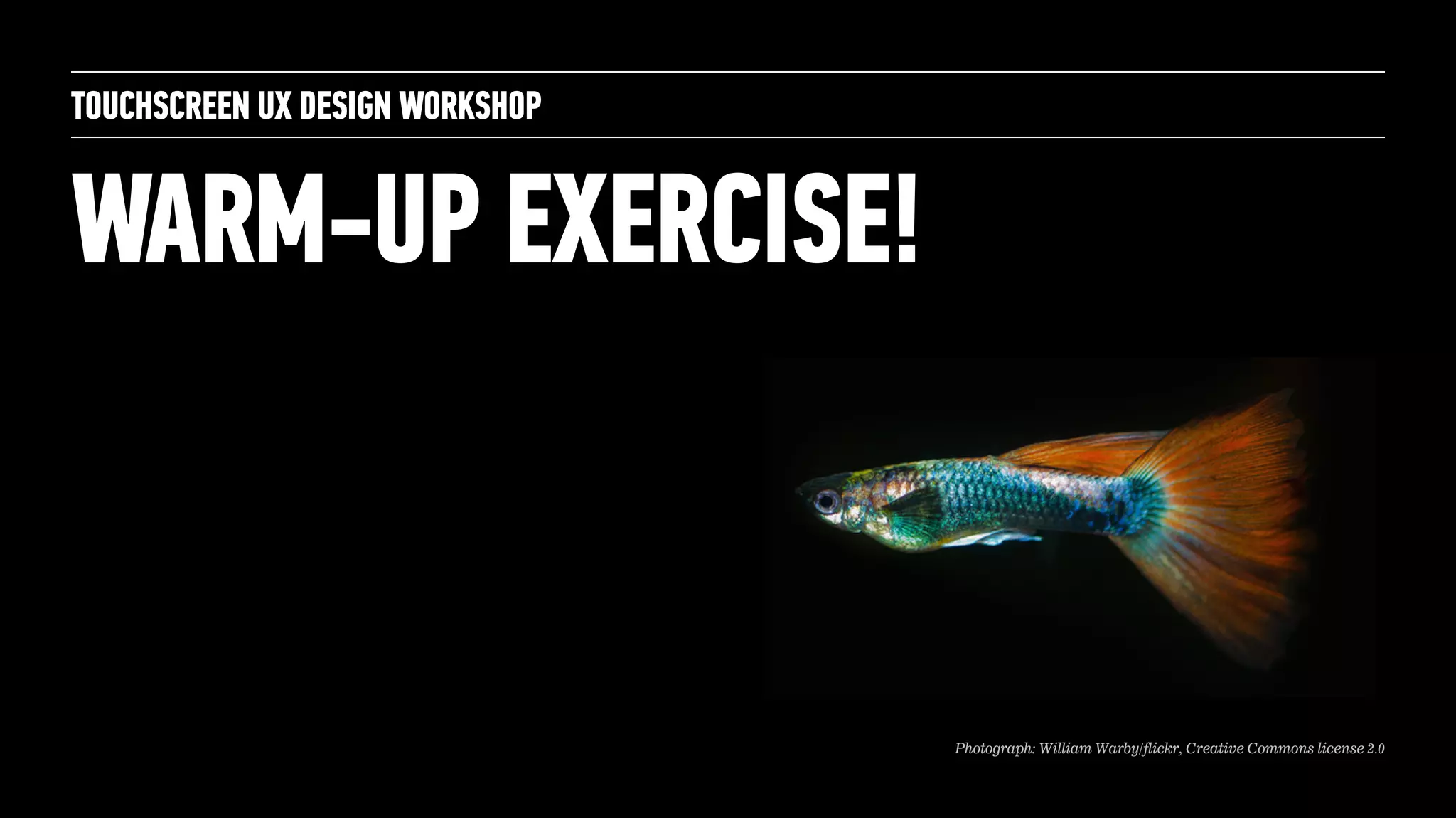

- 14. WARM-UP EXERCISE! TOUCHSCREEN UXDESIGN WORKSHOP Photograph: William Warby/flickr, Creative Commons license 2.0

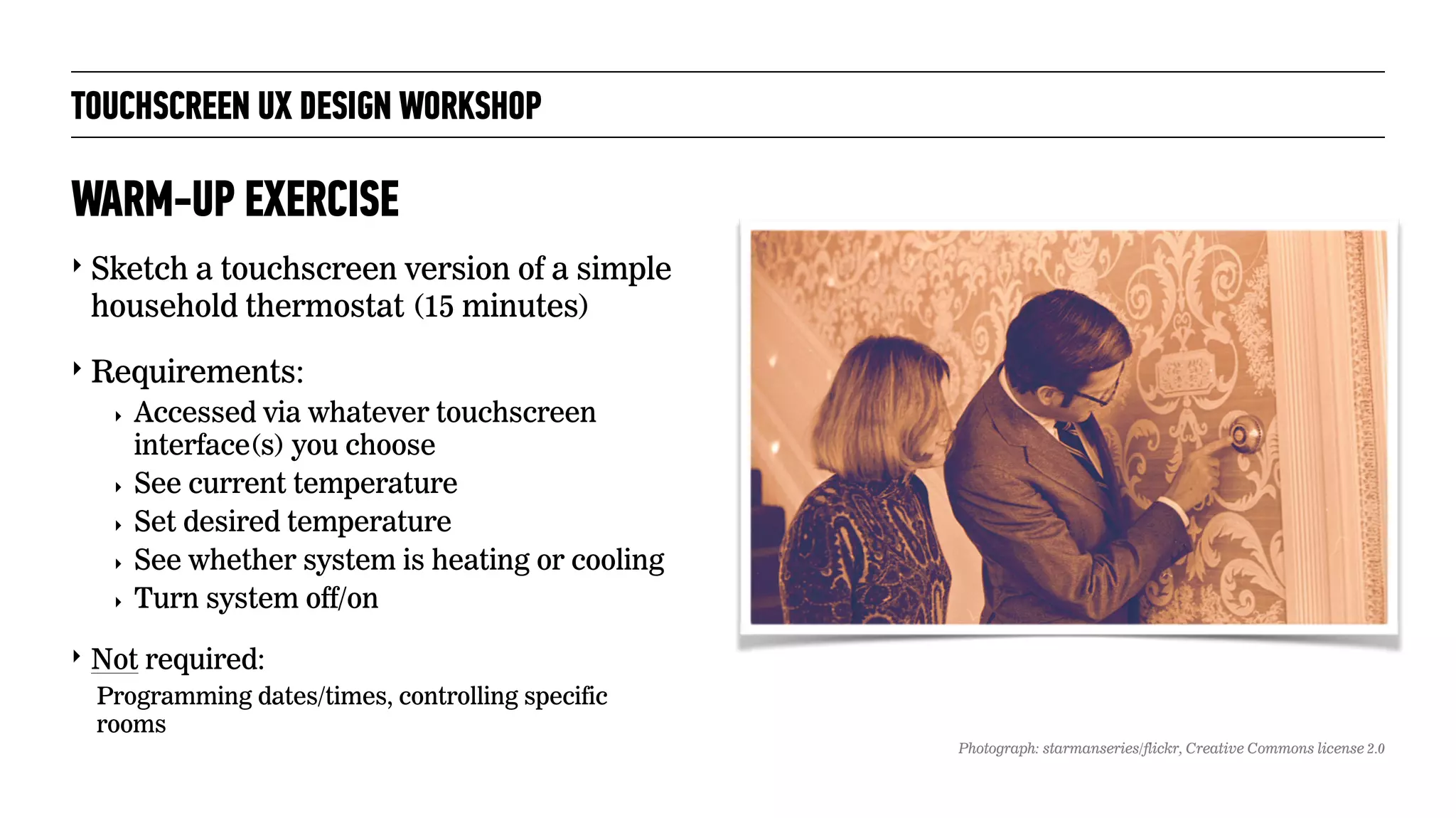

- 15. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Sketch a touchscreen version of a simple household thermostat (15 minutes) ‣ Requirements: ‣ Accessed via whatever touchscreen interface(s) you choose ‣ See current temperature ‣ Set desired temperature ‣ See whether system is heating or cooling ‣ Turn system off/on ‣ Not required: Programming dates/times, controlling specific rooms WARM-UP EXERCISE Photograph: starmanseries/flickr, Creative Commons license 2.0

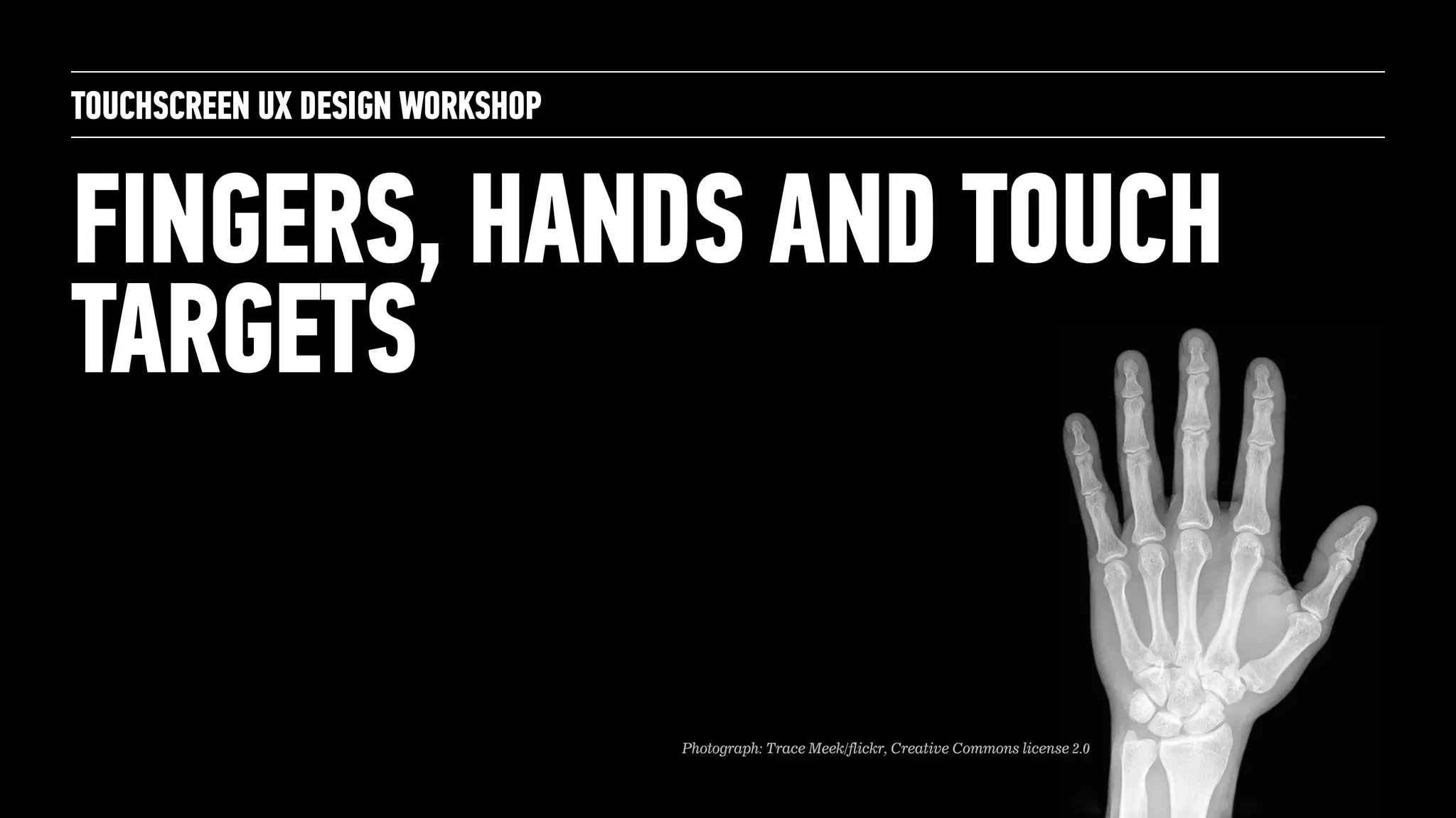

- 16. FINGERS, HANDS ANDTOUCH TARGETS TOUCHSCREEN UX DESIGN WORKSHOP Photograph: Trace Meek/flickr, Creative Commons license 2.0

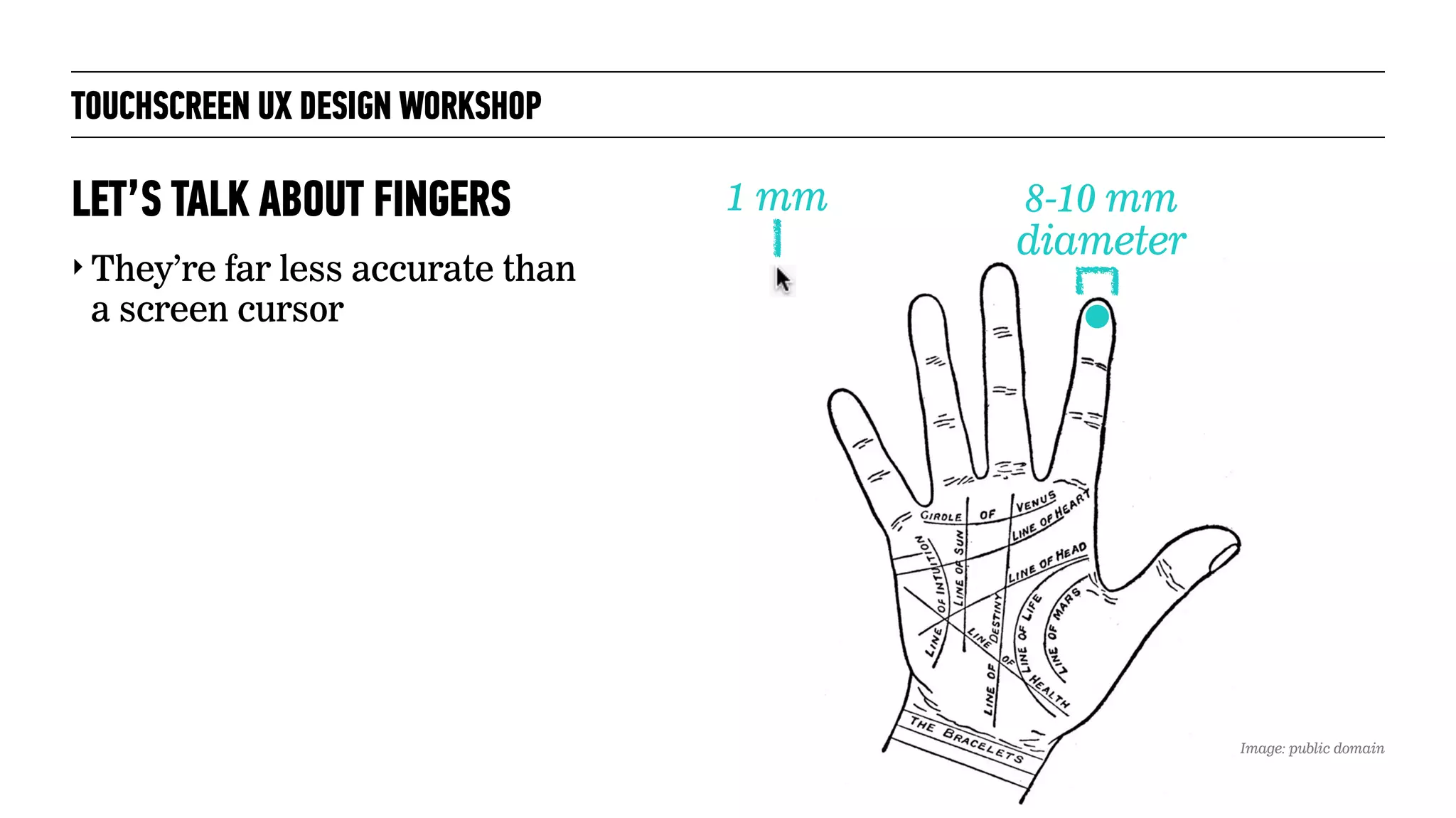

- 17. TOUCHSCREEN UX DESIGNWORKSHOP ‣ They’re far less accurate than a screen cursor LET’S TALK ABOUT FINGERS 1 mm 8-10 mm diameter Image: public domain

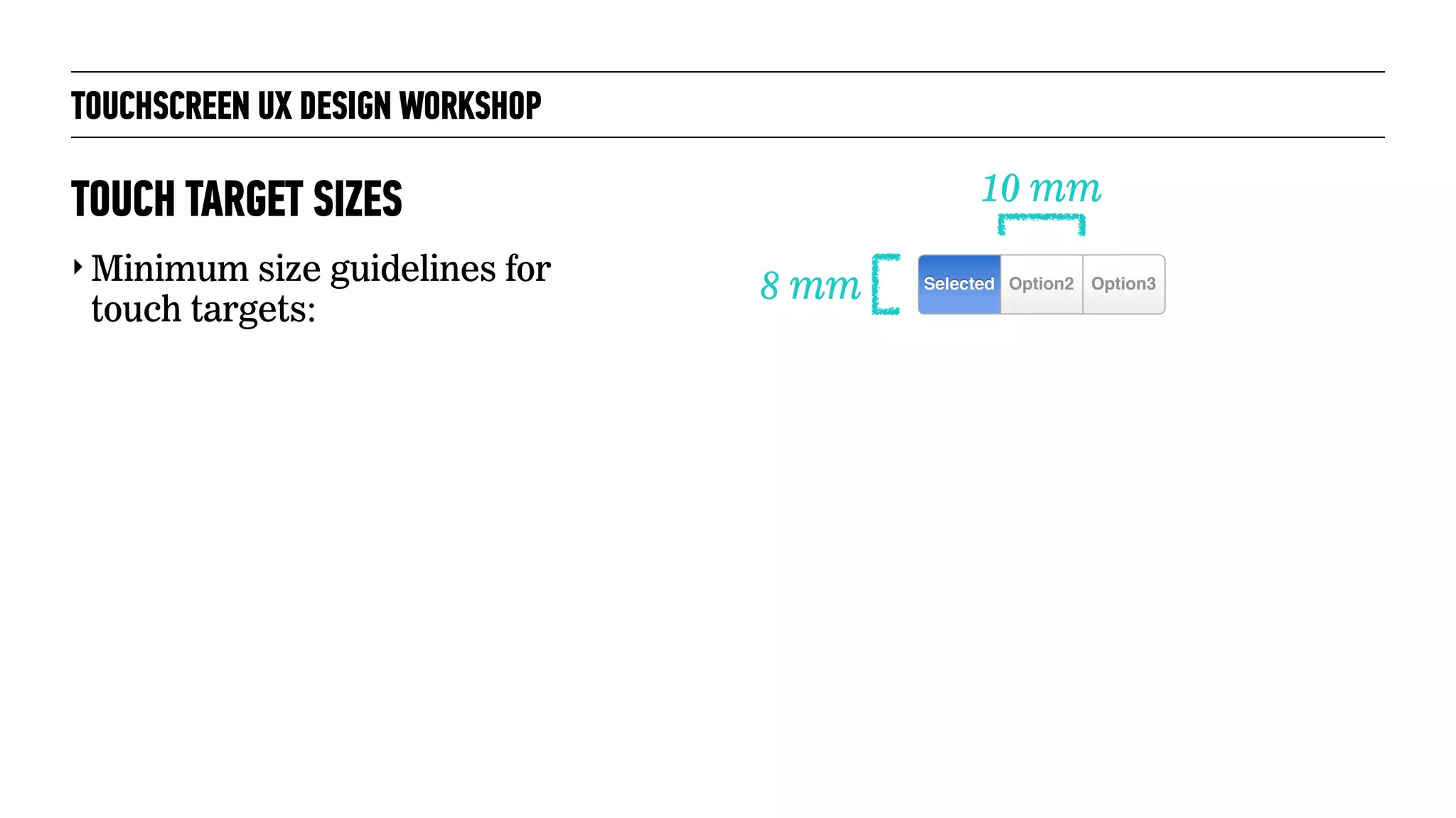

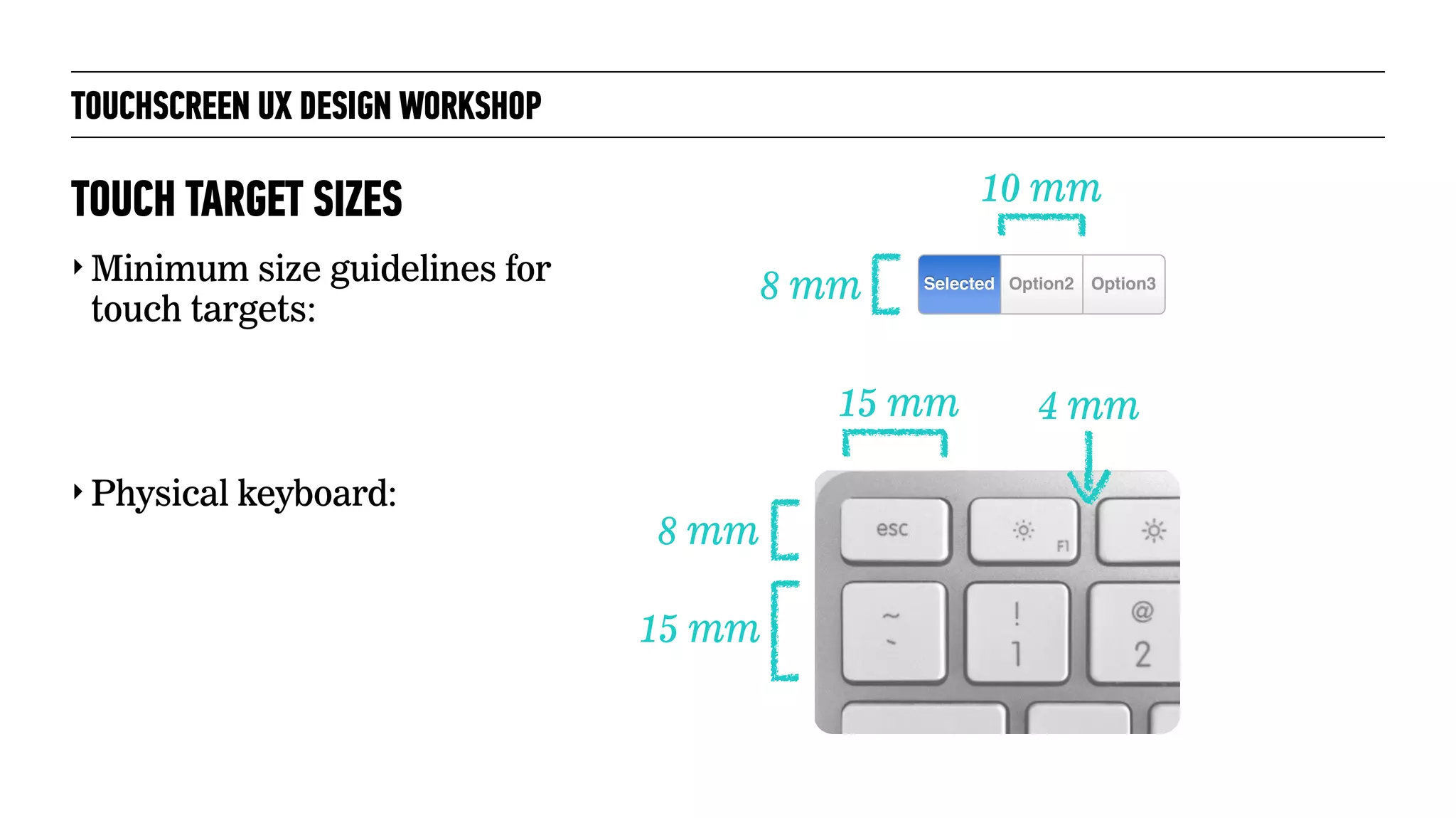

- 18. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Minimum size guidelines for touch targets: TOUCH TARGET SIZES 8 mm 10 mm Option3Selected Option2
- 19. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Minimum size guidelines for touch targets: ‣ Physical keyboard: TOUCH TARGET SIZES 8 mm 10 mm Option3Selected Option2 8 mm 15 mm 4 mm 15 mm

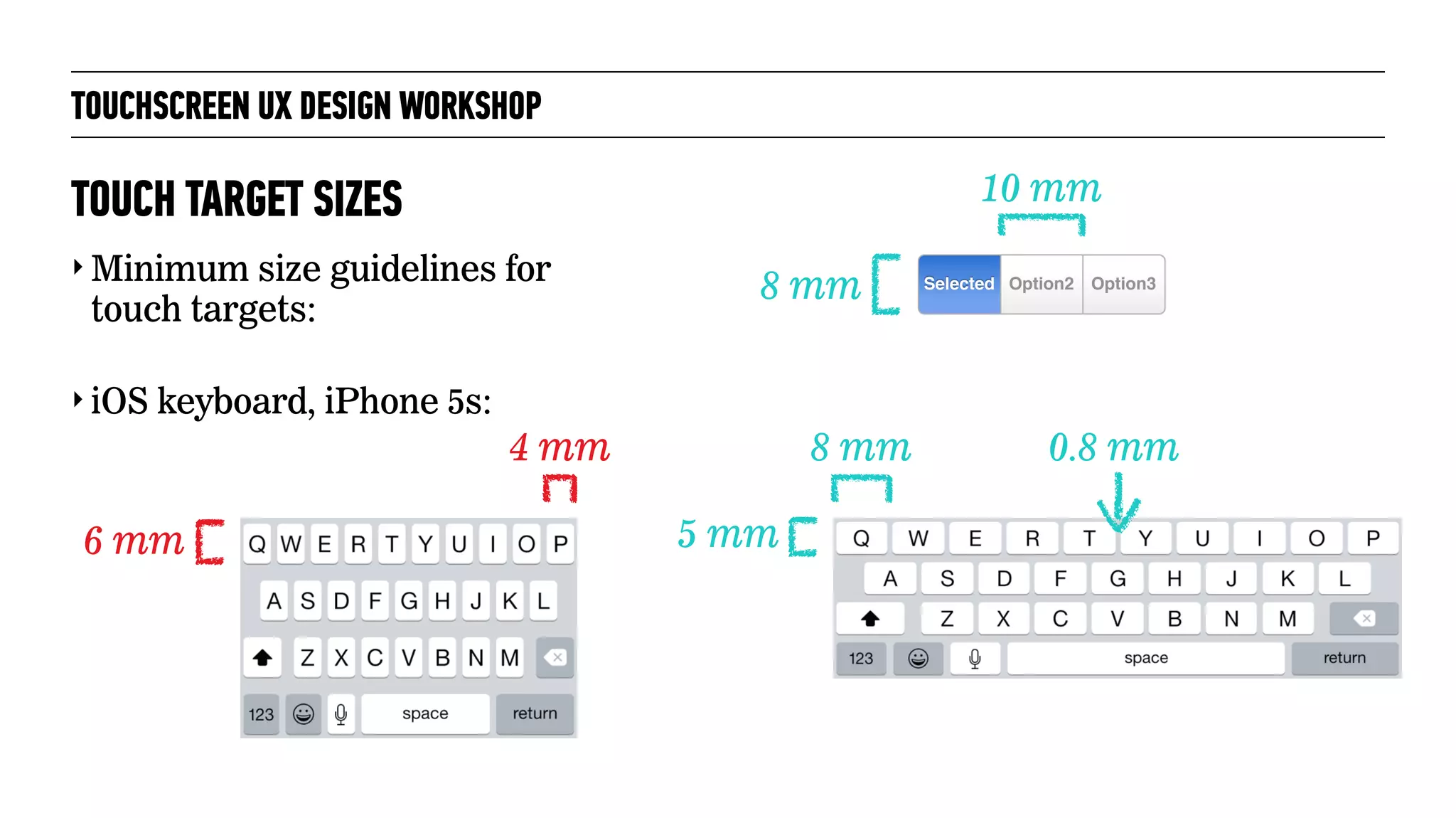

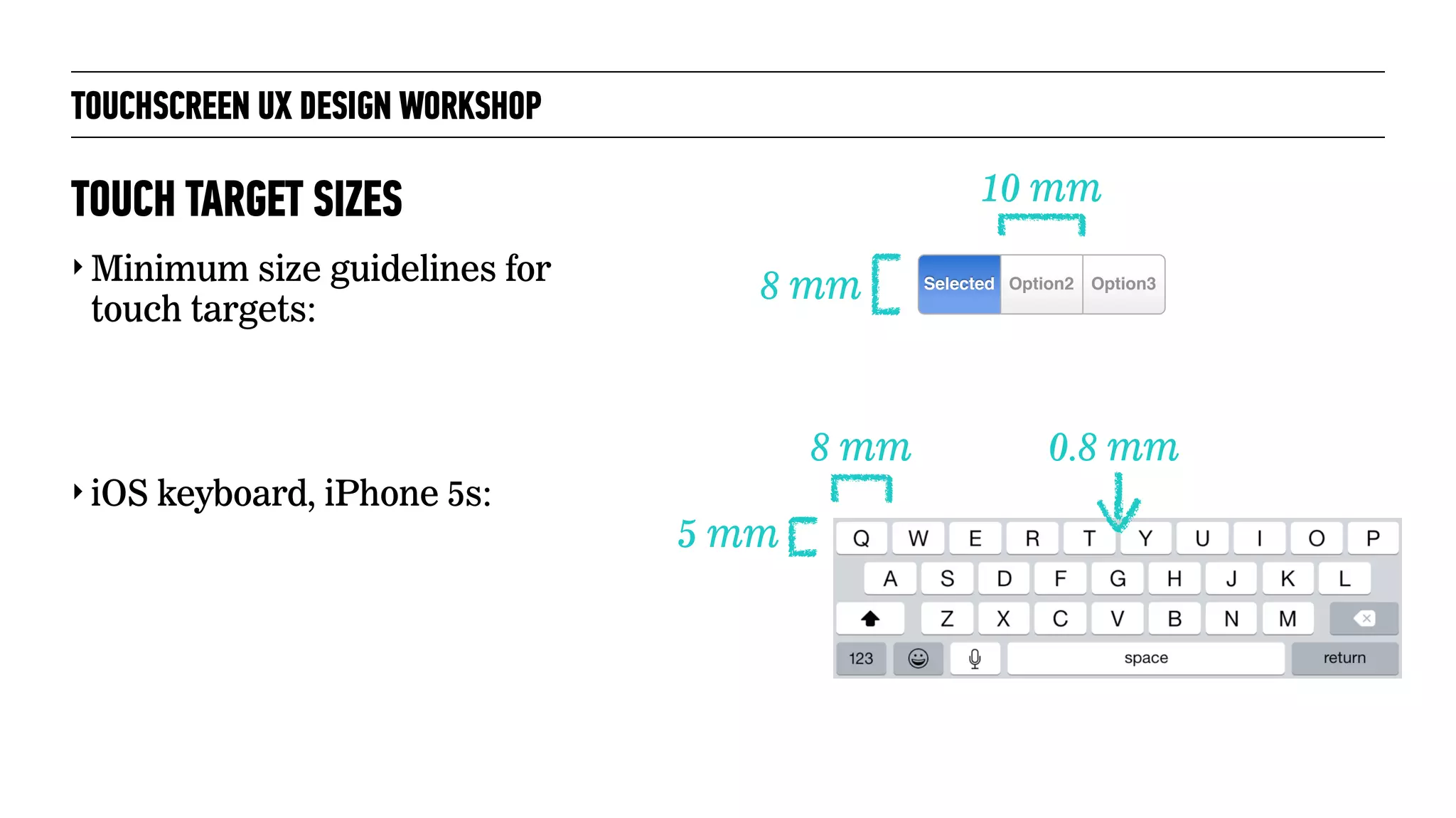

- 20. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Minimum size guidelines for touch targets: ‣ iOS keyboard, iPhone 5s: TOUCH TARGET SIZES 8 mm 10 mm Option3Selected Option2 5 mm 8 mm 0.8 mm
- 21. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Minimum size guidelines for touch targets: ‣ iOS keyboard, iPhone 5s: TOUCH TARGET SIZES 8 mm 10 mm Option3Selected Option2 5 mm 8 mm 0.8 mm4 mm 6 mm

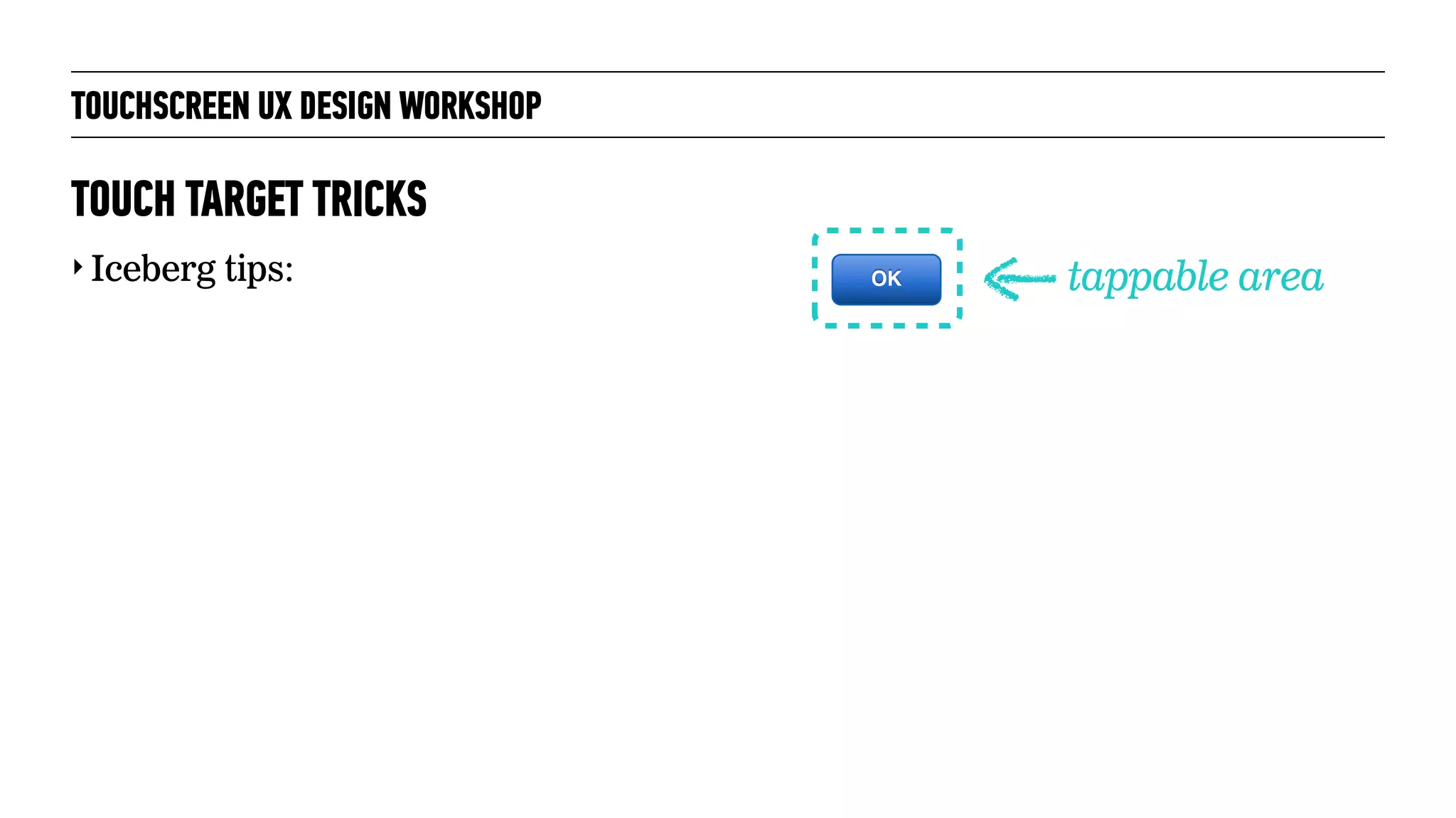

- 22. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Iceberg tips: TOUCH TARGET TRICKS OK tappable area

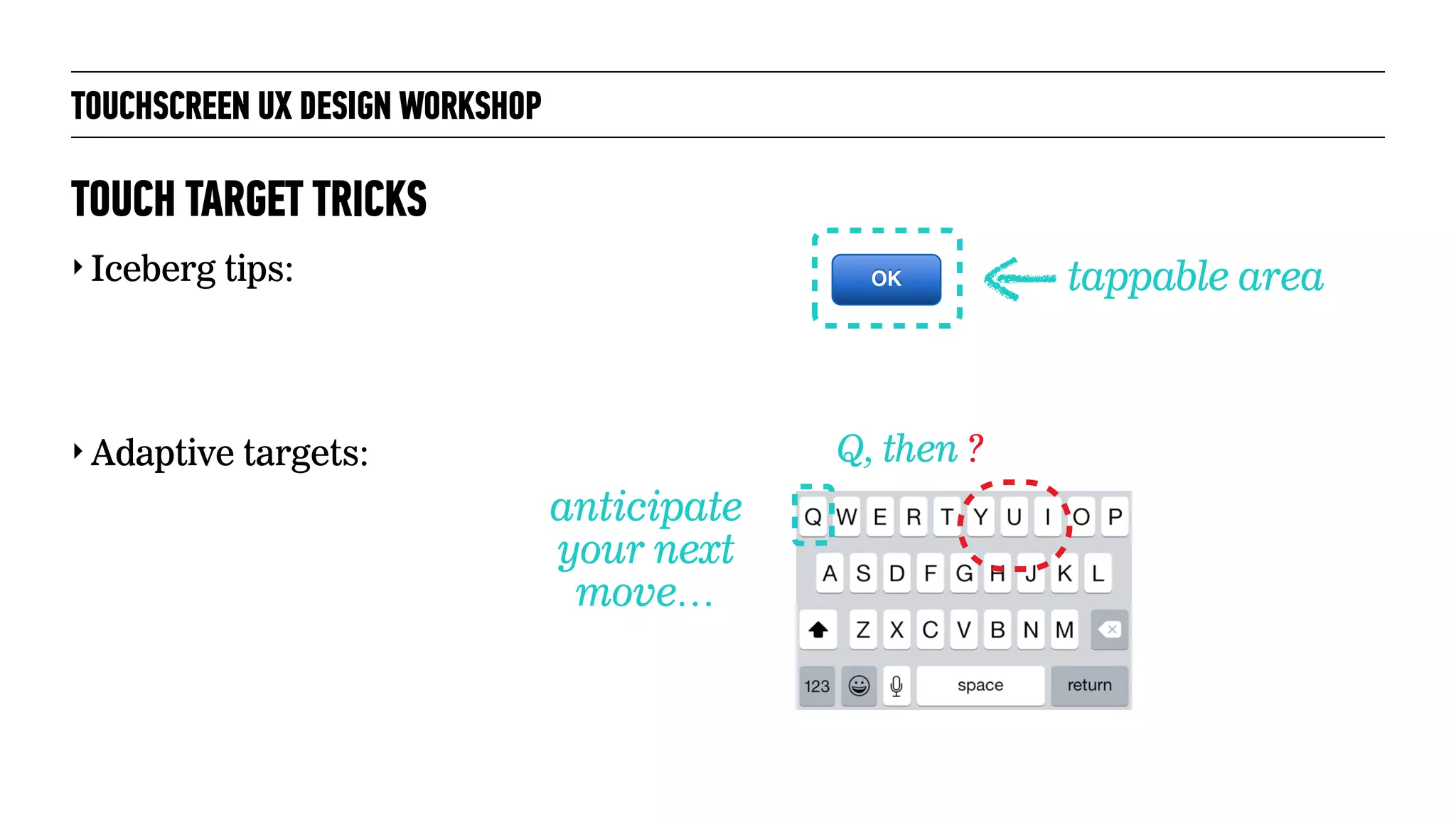

- 23. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Iceberg tips: ‣ Adaptive targets: TOUCH TARGET TRICKS tappable area Q, then ? anticipate your next move… OK

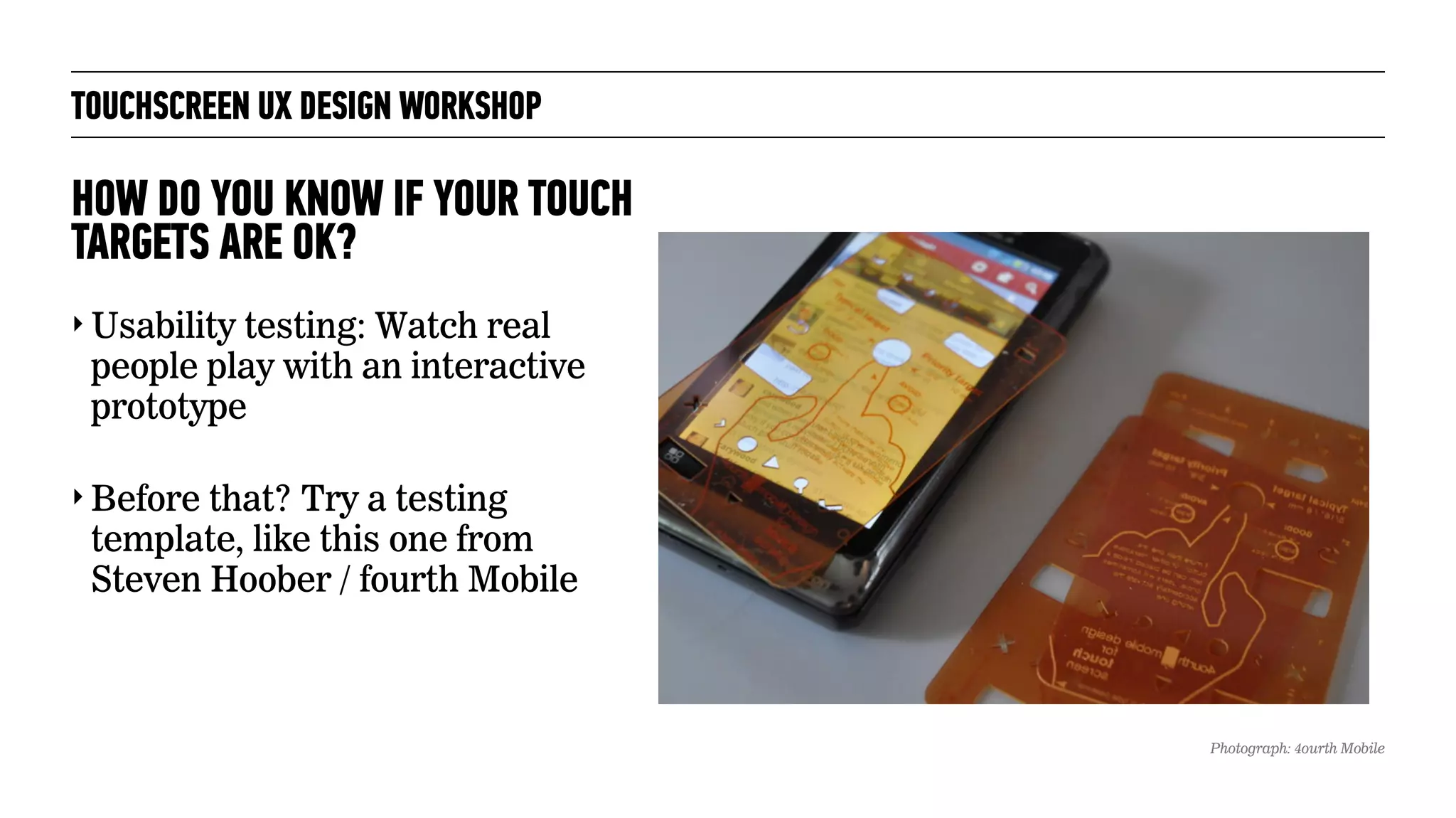

- 24. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Usability testing: Watch real people play with an interactive prototype ‣ Before that? Try a testing template, like this one from Steven Hoober / fourth Mobile HOW DO YOU KNOW IF YOUR TOUCH TARGETS ARE OK? Photograph: 4ourth Mobile

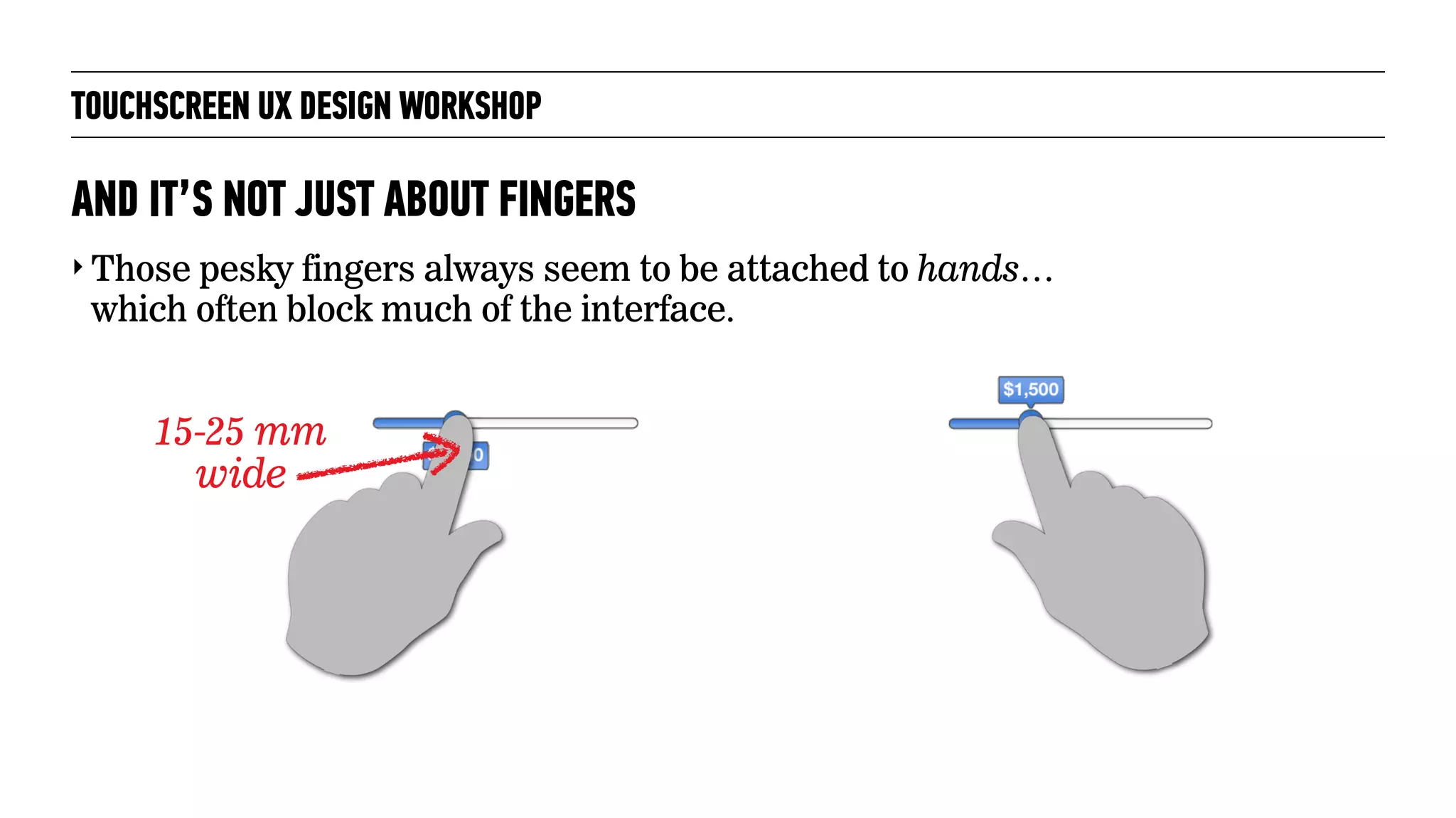

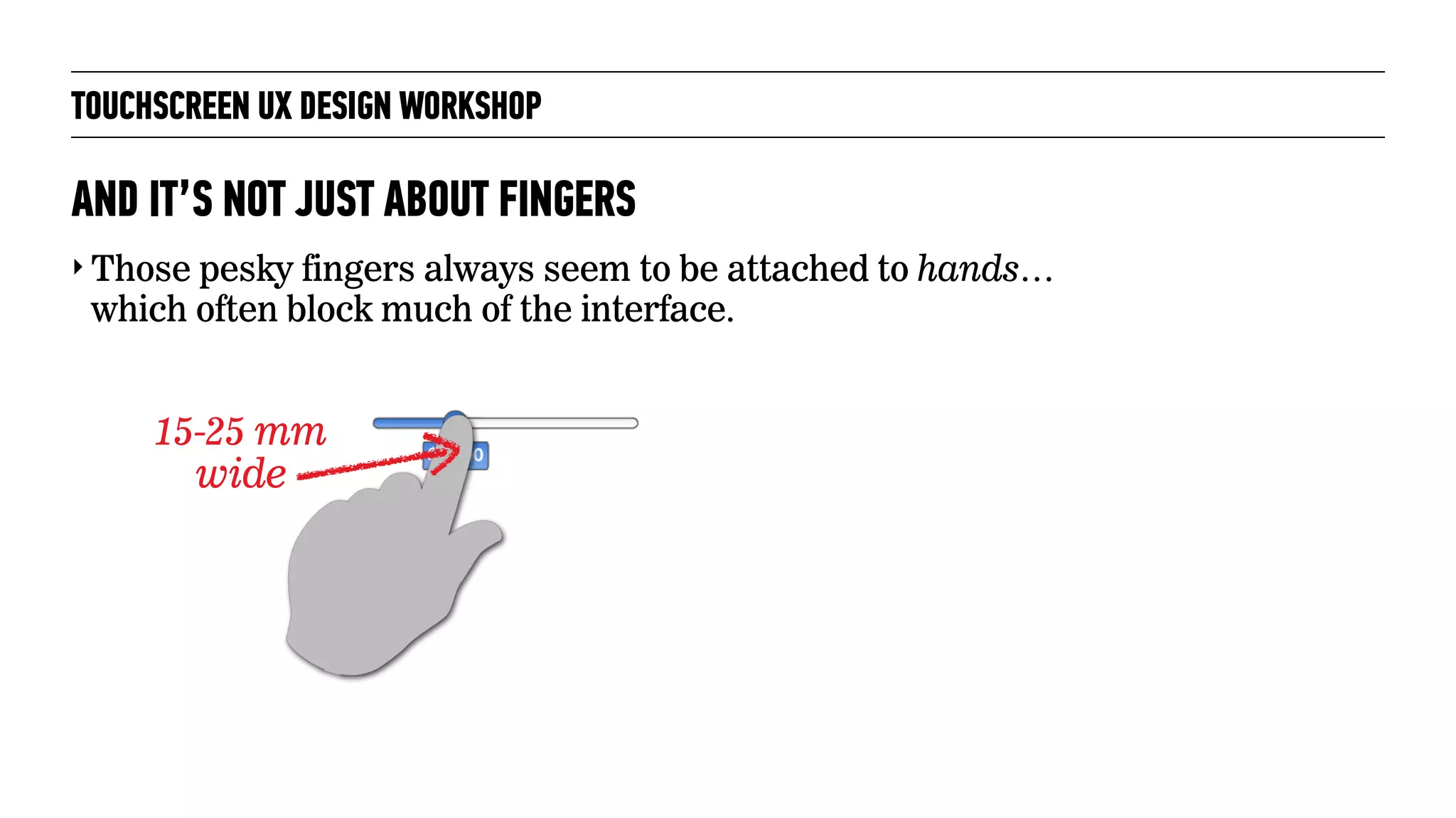

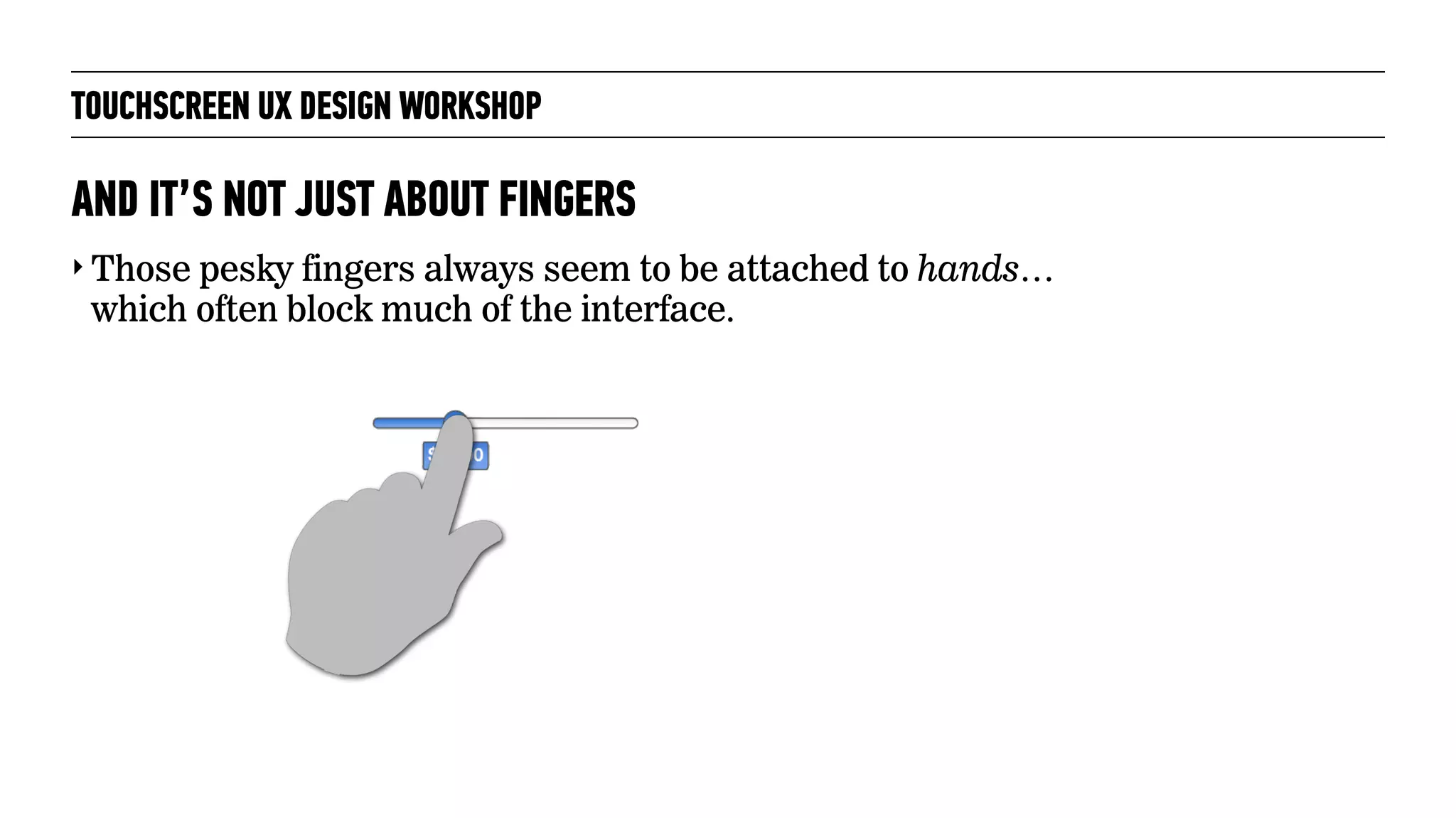

- 25. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Those pesky fingers always seem to be attached to hands… which often block much of the interface. AND IT’S NOT JUST ABOUT FINGERS
- 26. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Those pesky fingers always seem to be attached to hands… which often block much of the interface. AND IT’S NOT JUST ABOUT FINGERS
- 27. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Those pesky fingers always seem to be attached to hands… which often block much of the interface. AND IT’S NOT JUST ABOUT FINGERS 15-25 mm wide
- 28. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Those pesky fingers always seem to be attached to hands… which often block much of the interface. AND IT’S NOT JUST ABOUT FINGERS 15-25 mm wide

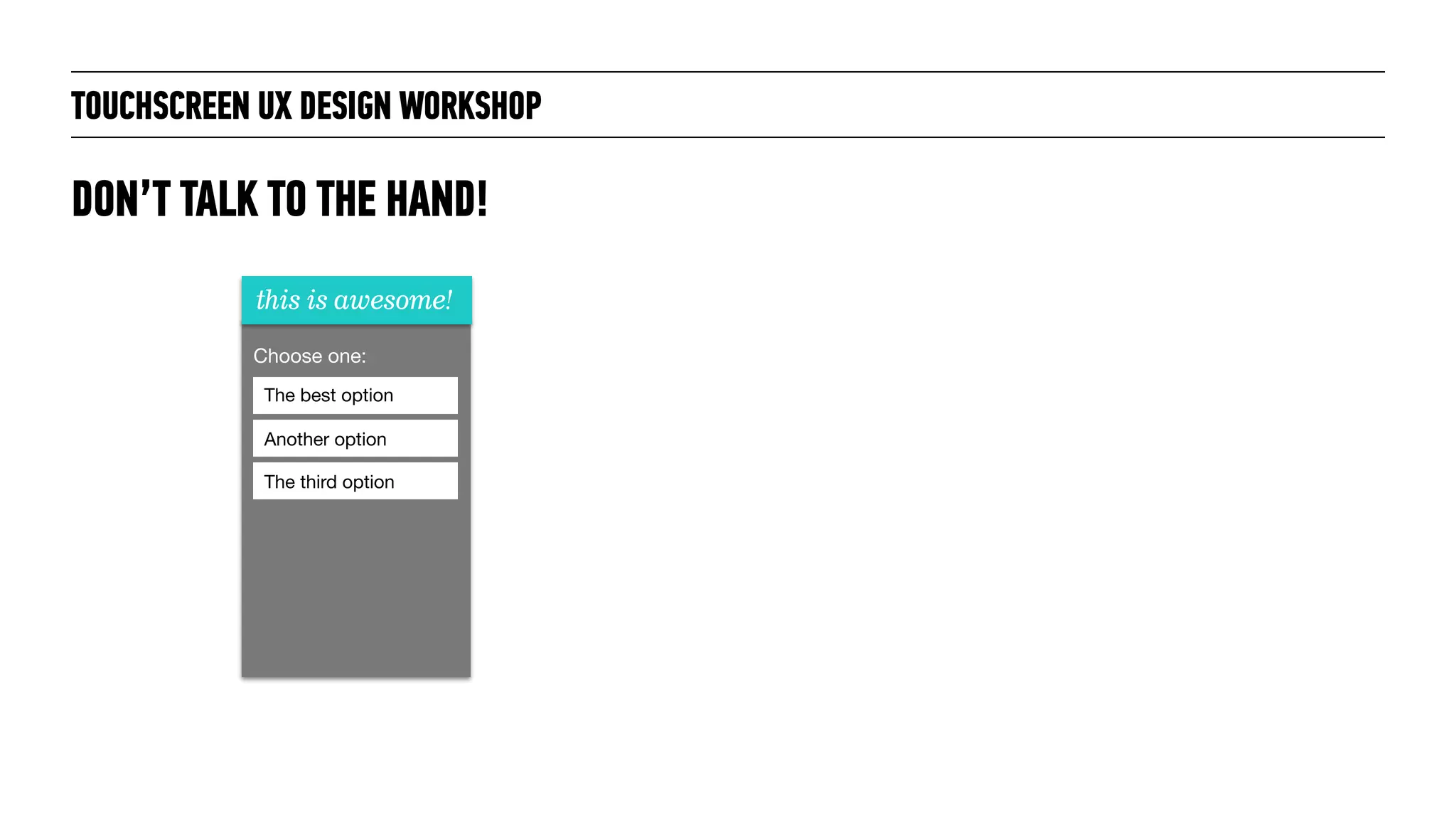

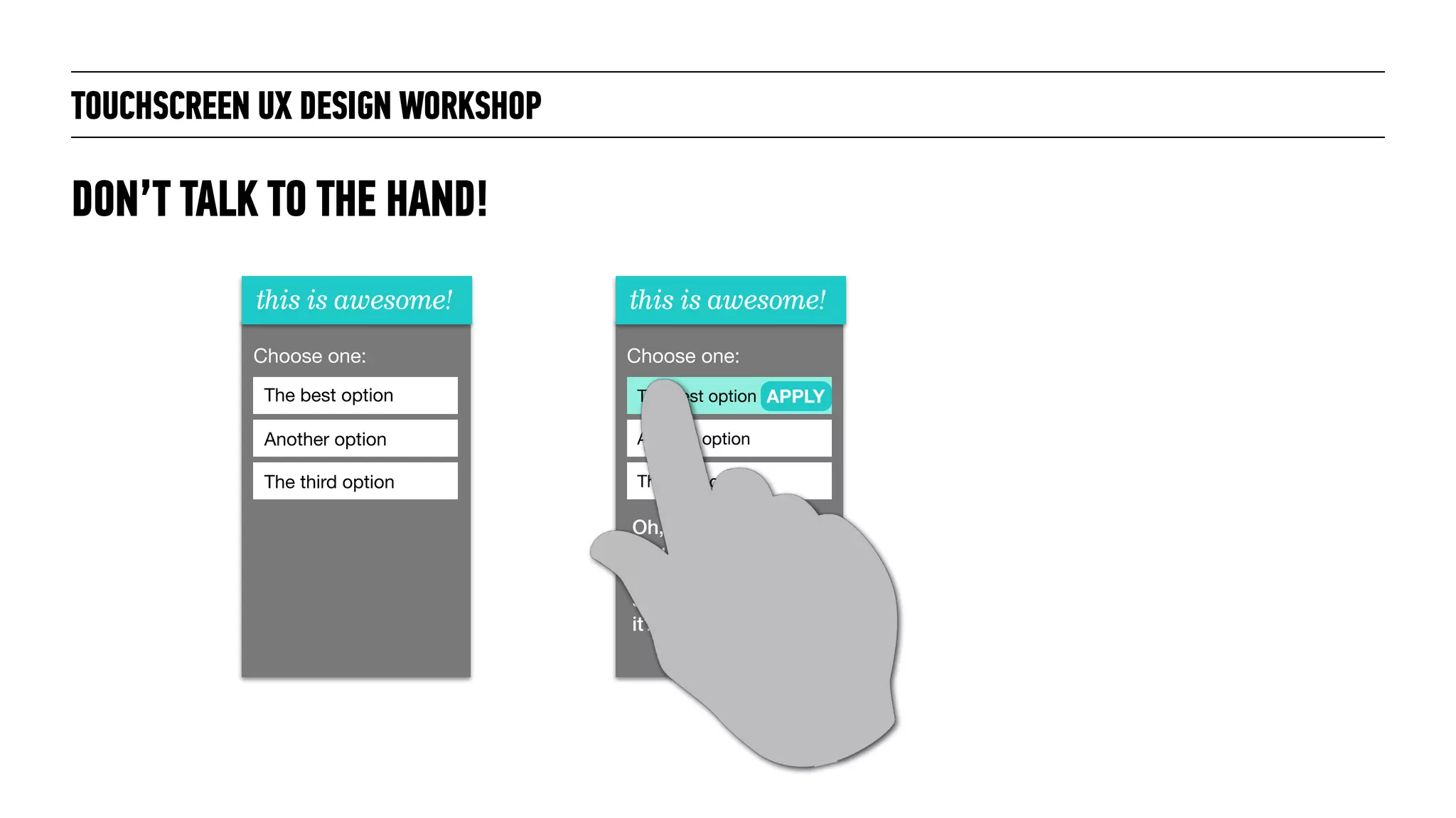

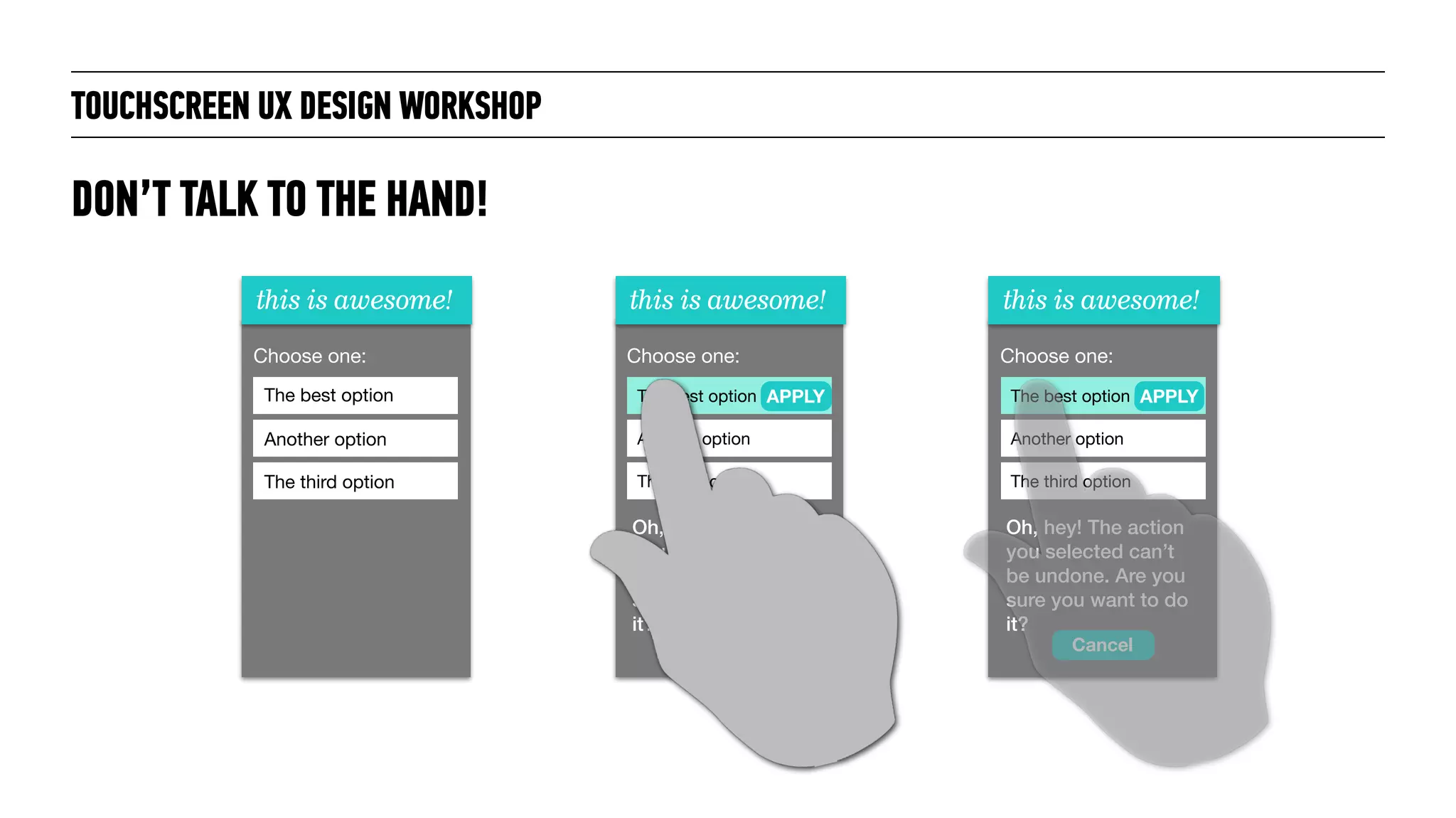

- 29. TOUCHSCREEN UX DESIGNWORKSHOP DON’T TALK TO THE HAND! this is awesome! Choose one: The best option Another option The third option
- 30. TOUCHSCREEN UX DESIGNWORKSHOP DON’T TALK TO THE HAND! this is awesome! Choose one: The best option Another option The third option this is awesome! Choose one: The best option Another option The third option APPLY Oh, hey! The action you selected can’t be undone. Are you sure you want to do it?
- 31. TOUCHSCREEN UX DESIGNWORKSHOP DON’T TALK TO THE HAND! this is awesome! Choose one: The best option Another option The third option this is awesome! Choose one: The best option Another option The third option APPLY Oh, hey! The action you selected can’t be undone. Are you sure you want to do it? this is awesome! Choose one: The best option Another option The third option Oh, hey! The action you selected can’t be undone. Are you sure you want to do it? APPLY Cancel
- 32. TOUCHSCREEN UX DESIGNWORKSHOP Photograph: Faith Goble/flickr, Creative Commons license 2.0 BREAK!
- 33. ACTIVITY ZONES TOUCHSCREEN UXDESIGN WORKSHOP Photograph: Faith Goble/flickr, Creative Commons license 2.0

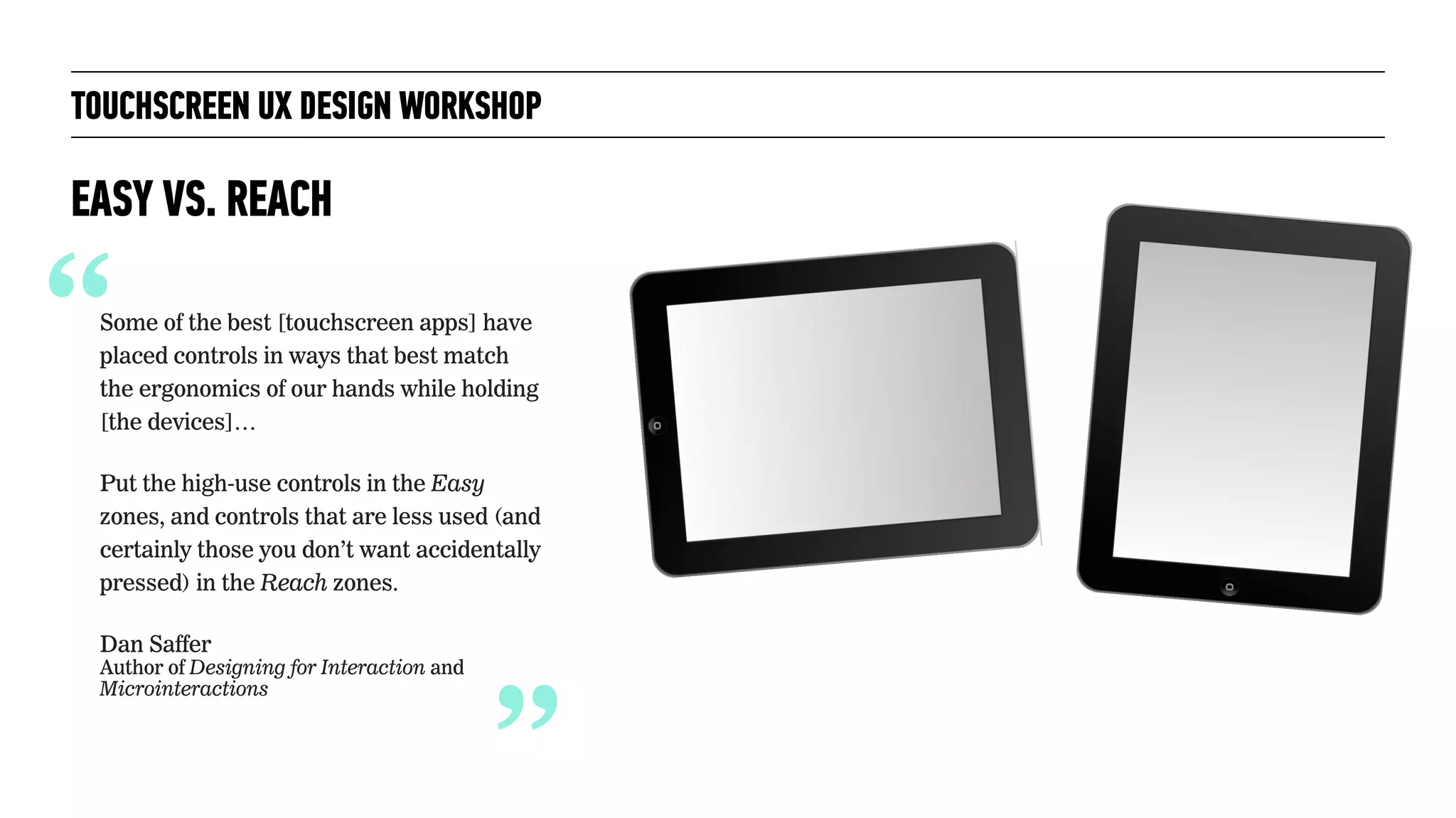

- 34. “Some of thebest [touchscreen apps] have placed controls in ways that best match the ergonomics of our hands while holding [the devices]… Put the high-use controls in the Easy zones, and controls that are less used (and certainly those you don’t want accidentally pressed) in the Reach zones. Dan Saffer Author of Designing for Interaction and Microinteractions TOUCHSCREEN UX DESIGN WORKSHOP EASY VS. REACH “
- 35. “Some of thebest [touchscreen apps] have placed controls in ways that best match the ergonomics of our hands while holding [the devices]… Put the high-use controls in the Easy zones, and controls that are less used (and certainly those you don’t want accidentally pressed) in the Reach zones. Dan Saffer Author of Designing for Interaction and Microinteractions TOUCHSCREEN UX DESIGN WORKSHOP EASY VS. REACH “
- 36. “Some of thebest [touchscreen apps] have placed controls in ways that best match the ergonomics of our hands while holding [the devices]… Put the high-use controls in the Easy zones, and controls that are less used (and certainly those you don’t want accidentally pressed) in the Reach zones. Dan Saffer Author of Designing for Interaction and Microinteractions TOUCHSCREEN UX DESIGN WORKSHOP EASY VS. REACH “

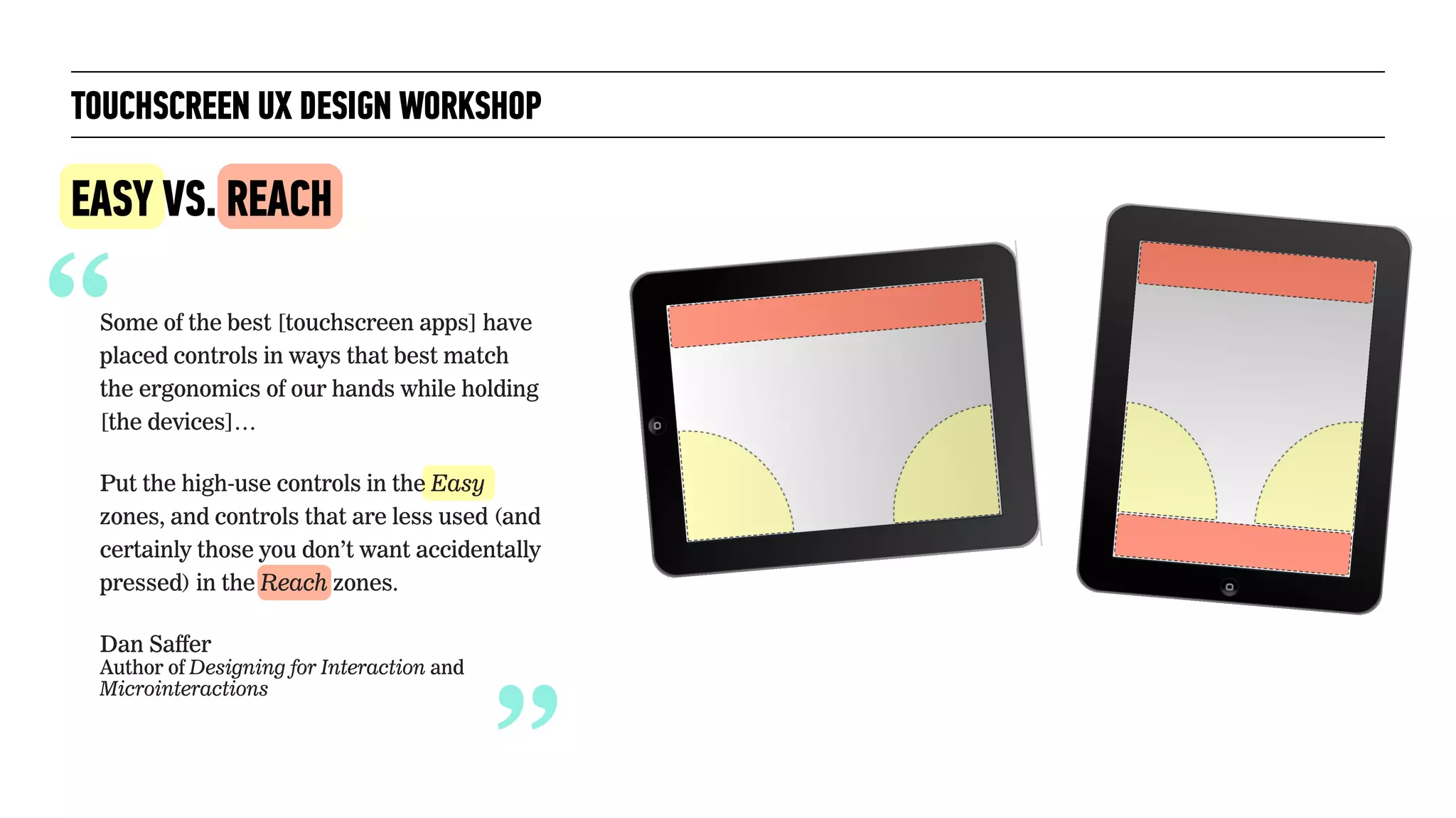

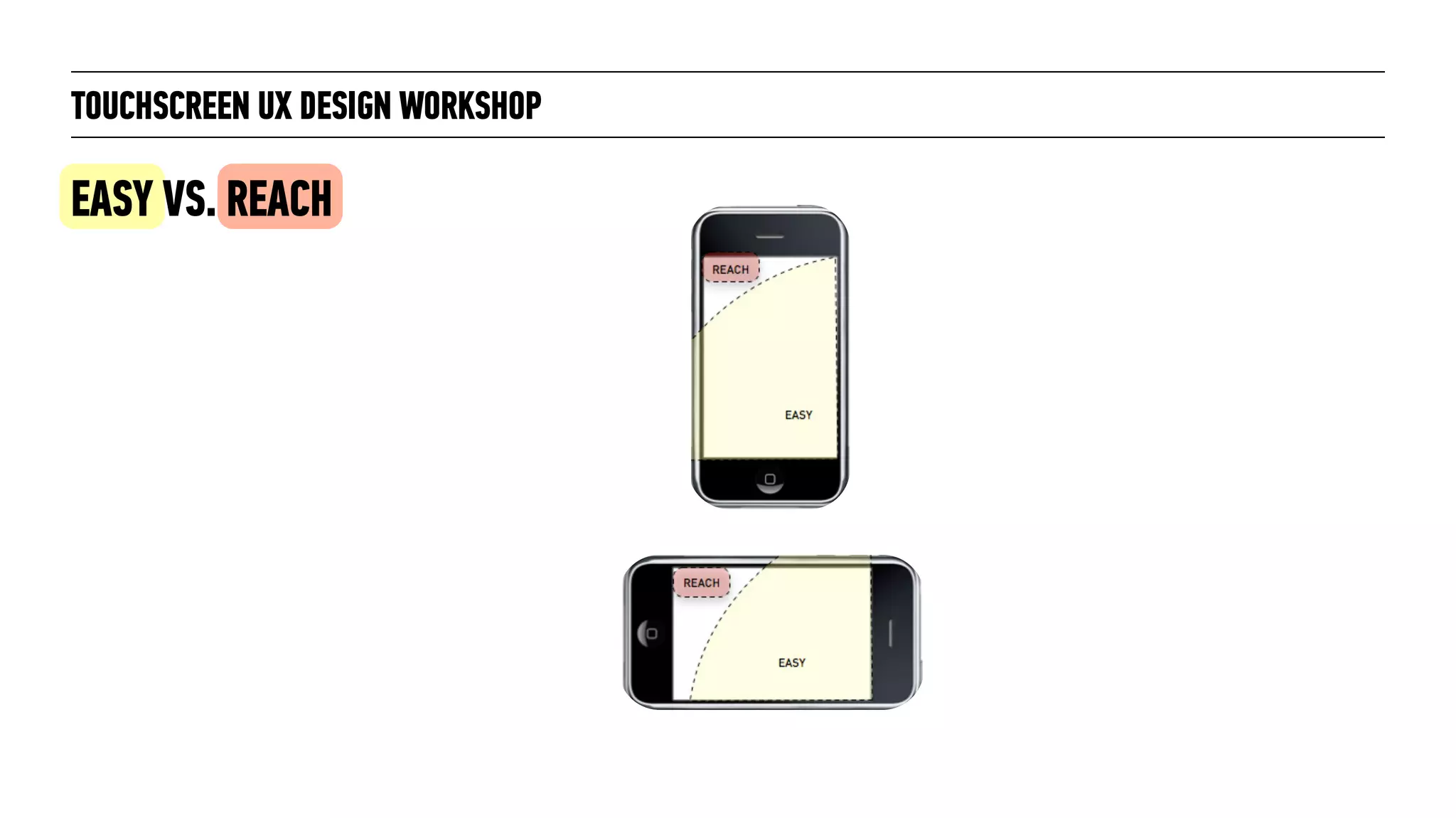

- 37. TOUCHSCREEN UX DESIGNWORKSHOP EASY VS. REACH

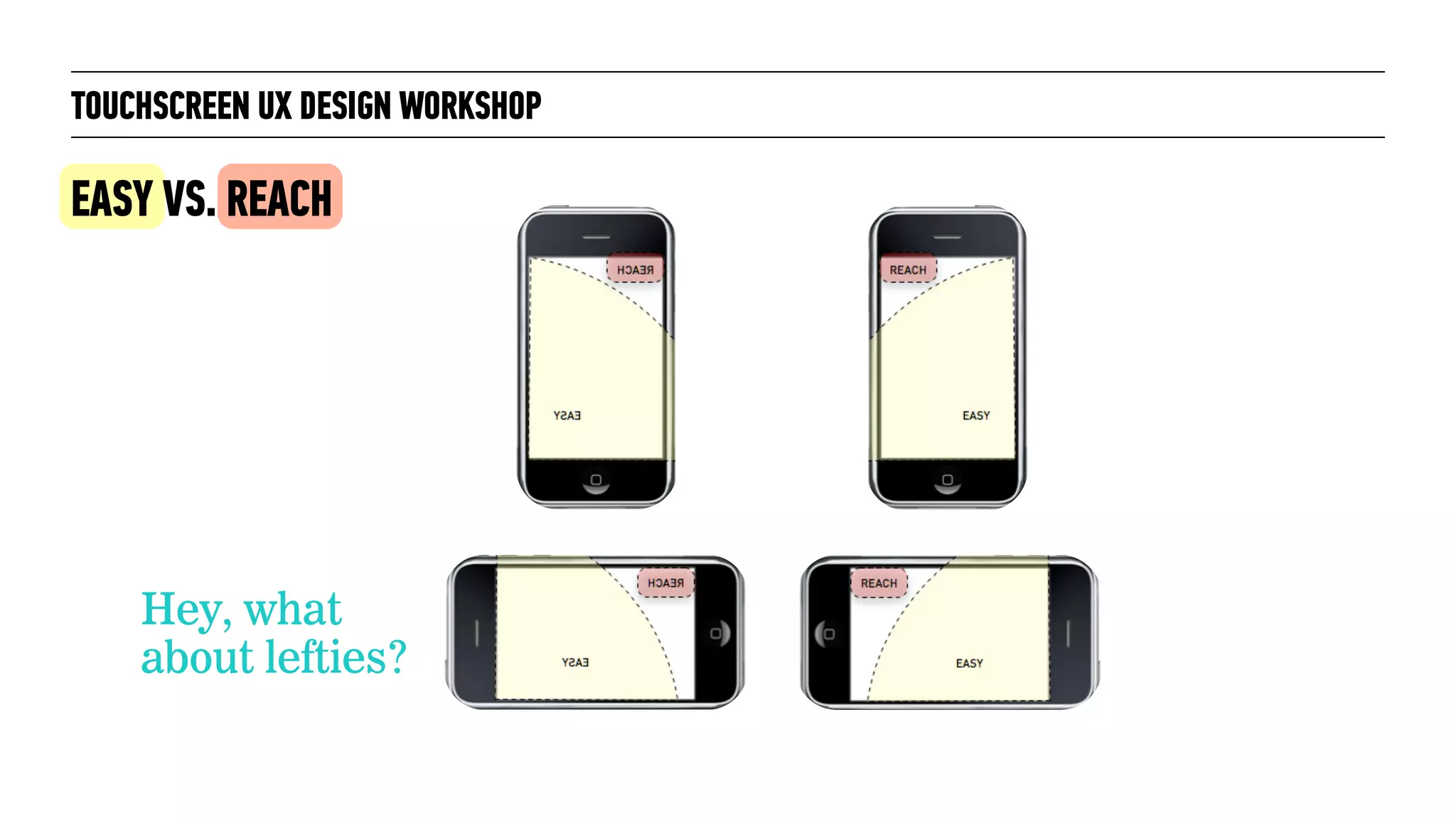

- 38. TOUCHSCREEN UX DESIGNWORKSHOP Hey, what about lefties? EASY VS. REACH
- 39. TOUCHSCREEN UX DESIGNWORKSHOP What about these people? EASY VS. REACH Photographs: Tom Newby/flickr, Creative Commons license 2.0 | NYC Media Lab/flickr, Creative Commons license 2.0

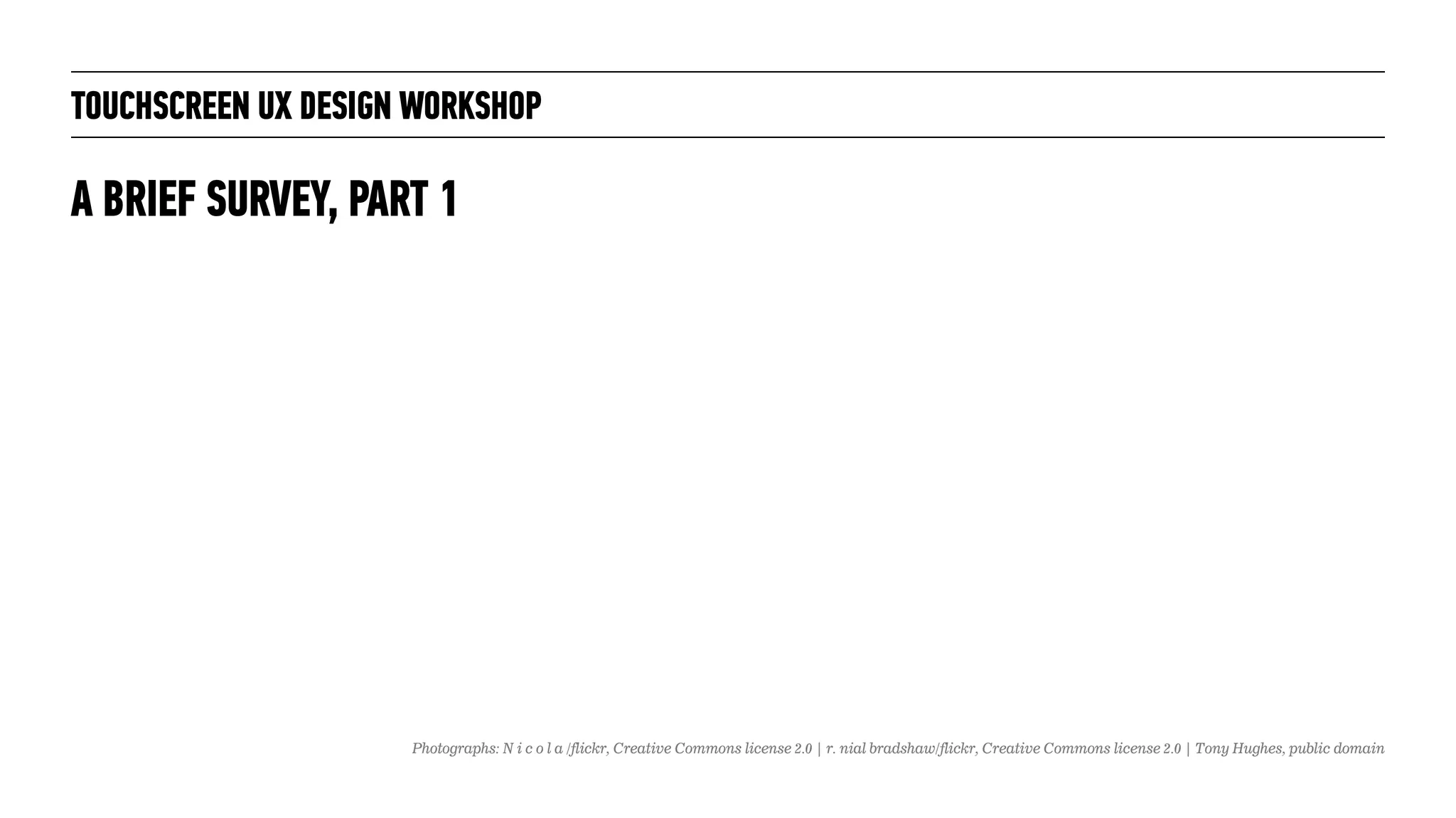

- 40. TOUCHSCREEN UX DESIGNWORKSHOP A BRIEF SURVEY, PART 1 Photographs: N i c o l a /flickr, Creative Commons license 2.0 | r. nial bradshaw/flickr, Creative Commons license 2.0 | Tony Hughes, public domain

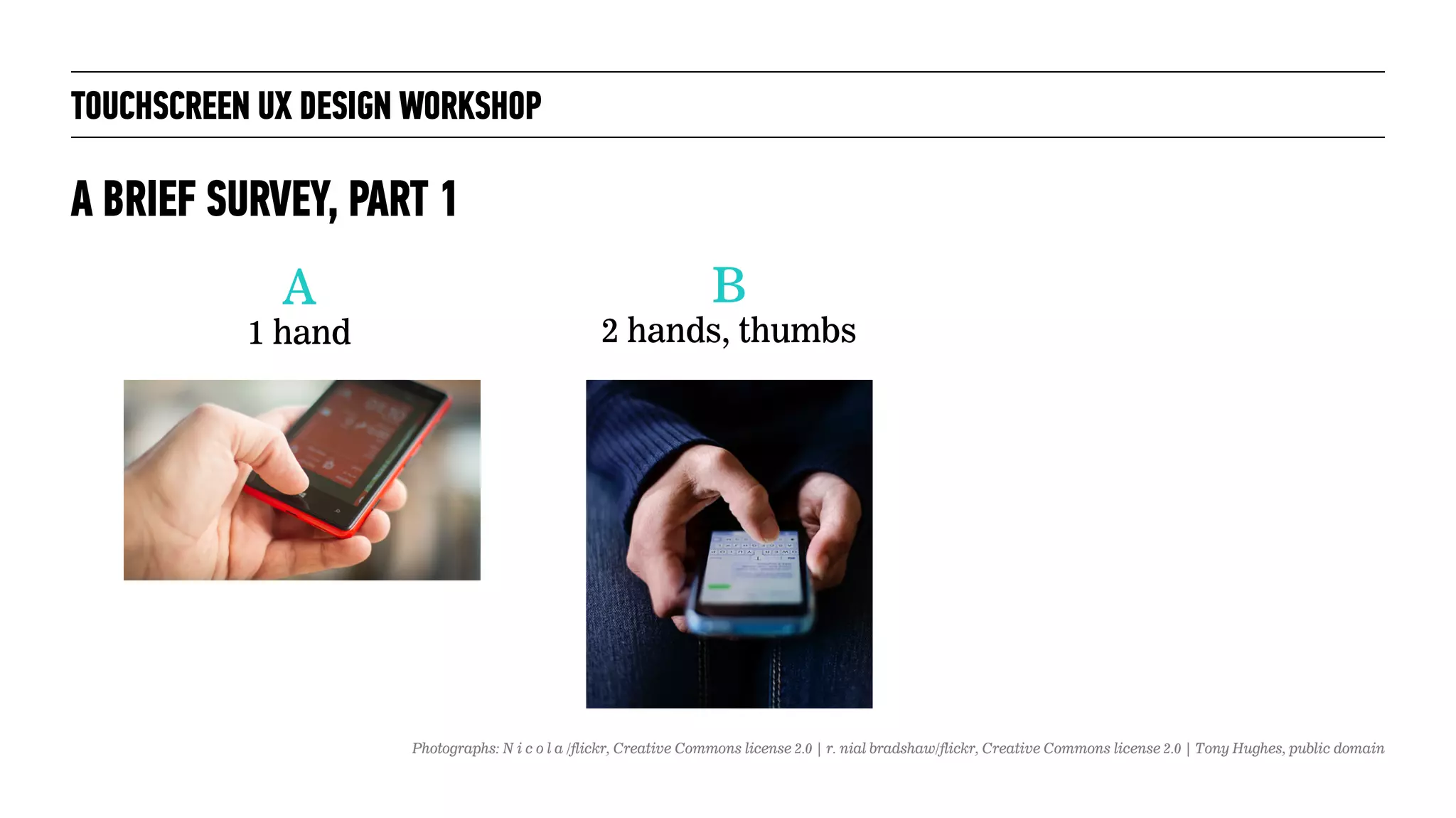

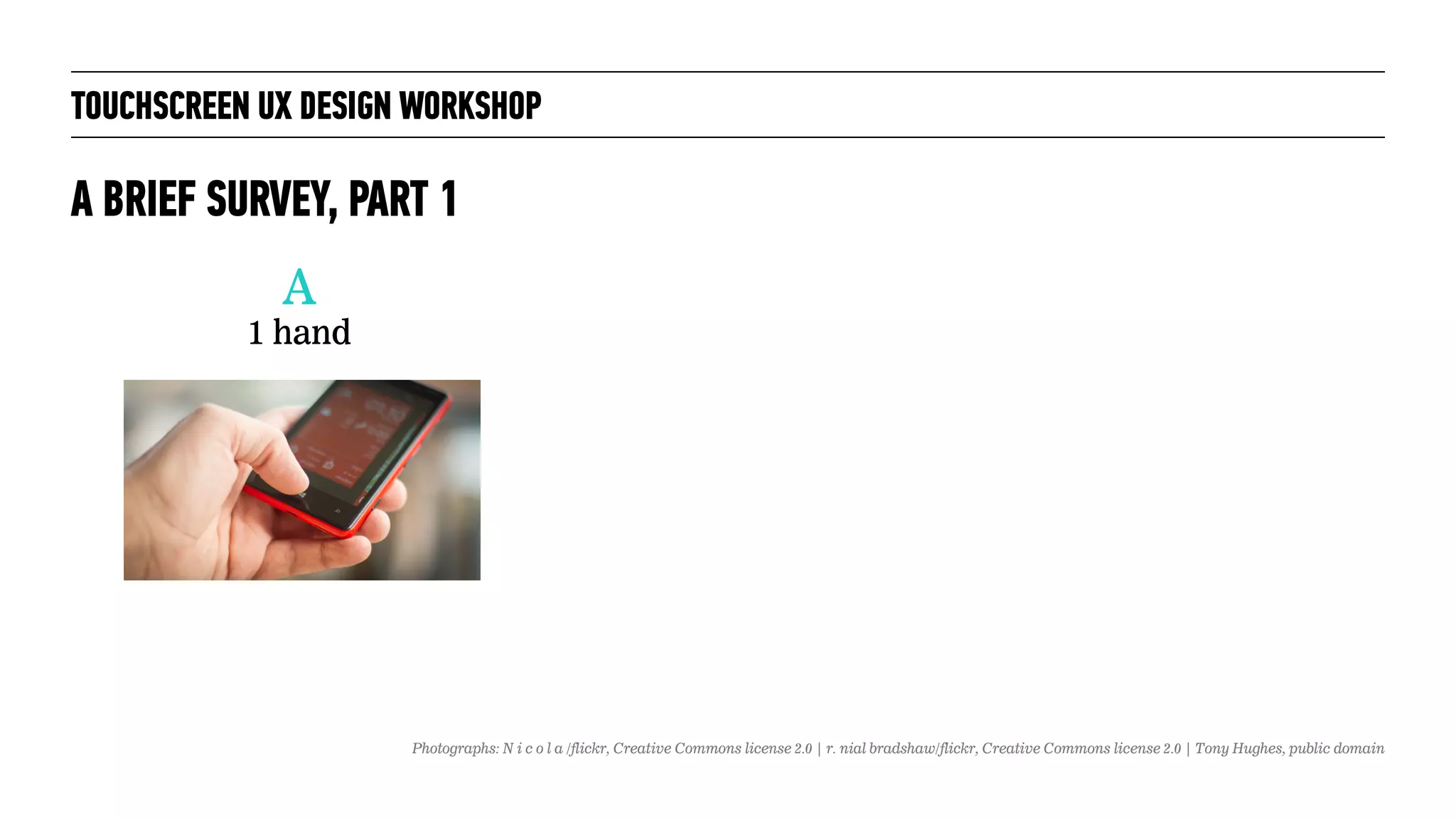

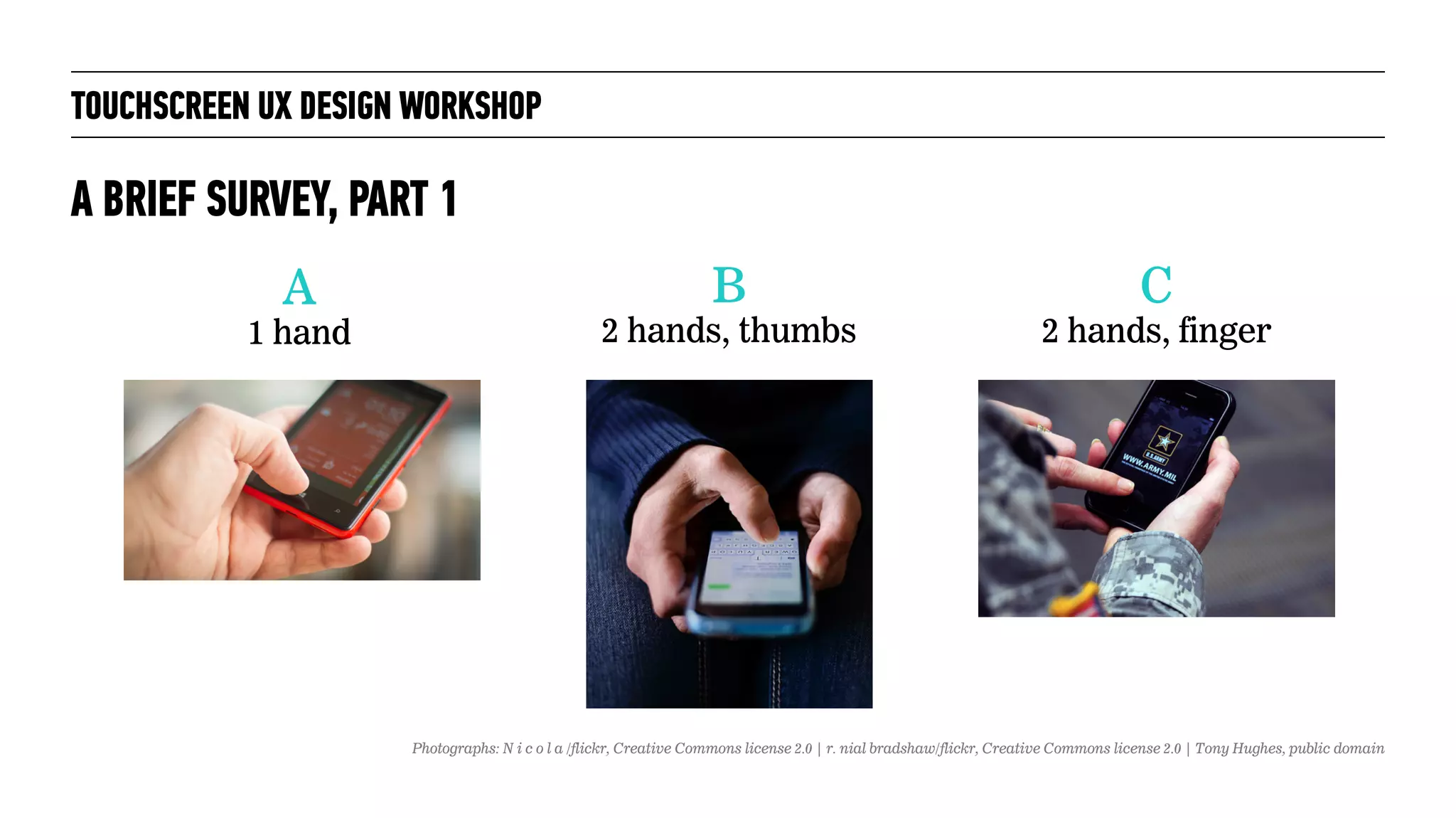

- 41. TOUCHSCREEN UX DESIGNWORKSHOP A BRIEF SURVEY, PART 1 A 1 hand Photographs: N i c o l a /flickr, Creative Commons license 2.0 | r. nial bradshaw/flickr, Creative Commons license 2.0 | Tony Hughes, public domain
- 42. TOUCHSCREEN UX DESIGNWORKSHOP A BRIEF SURVEY, PART 1 A 1 hand B 2 hands, thumbs Photographs: N i c o l a /flickr, Creative Commons license 2.0 | r. nial bradshaw/flickr, Creative Commons license 2.0 | Tony Hughes, public domain
- 43. TOUCHSCREEN UX DESIGNWORKSHOP A BRIEF SURVEY, PART 1 A 1 hand B 2 hands, thumbs C 2 hands, finger Photographs: N i c o l a /flickr, Creative Commons license 2.0 | r. nial bradshaw/flickr, Creative Commons license 2.0 | Tony Hughes, public domain
- 44. TOUCHSCREEN UX DESIGNWORKSHOP A BRIEF SURVEY, PART 2 A Thumbs B Finger Photographs: Serge Kij/flickr, Creative Commons license 2.0 | NYC Media Lab/flickr, Creative Commons license 2.0

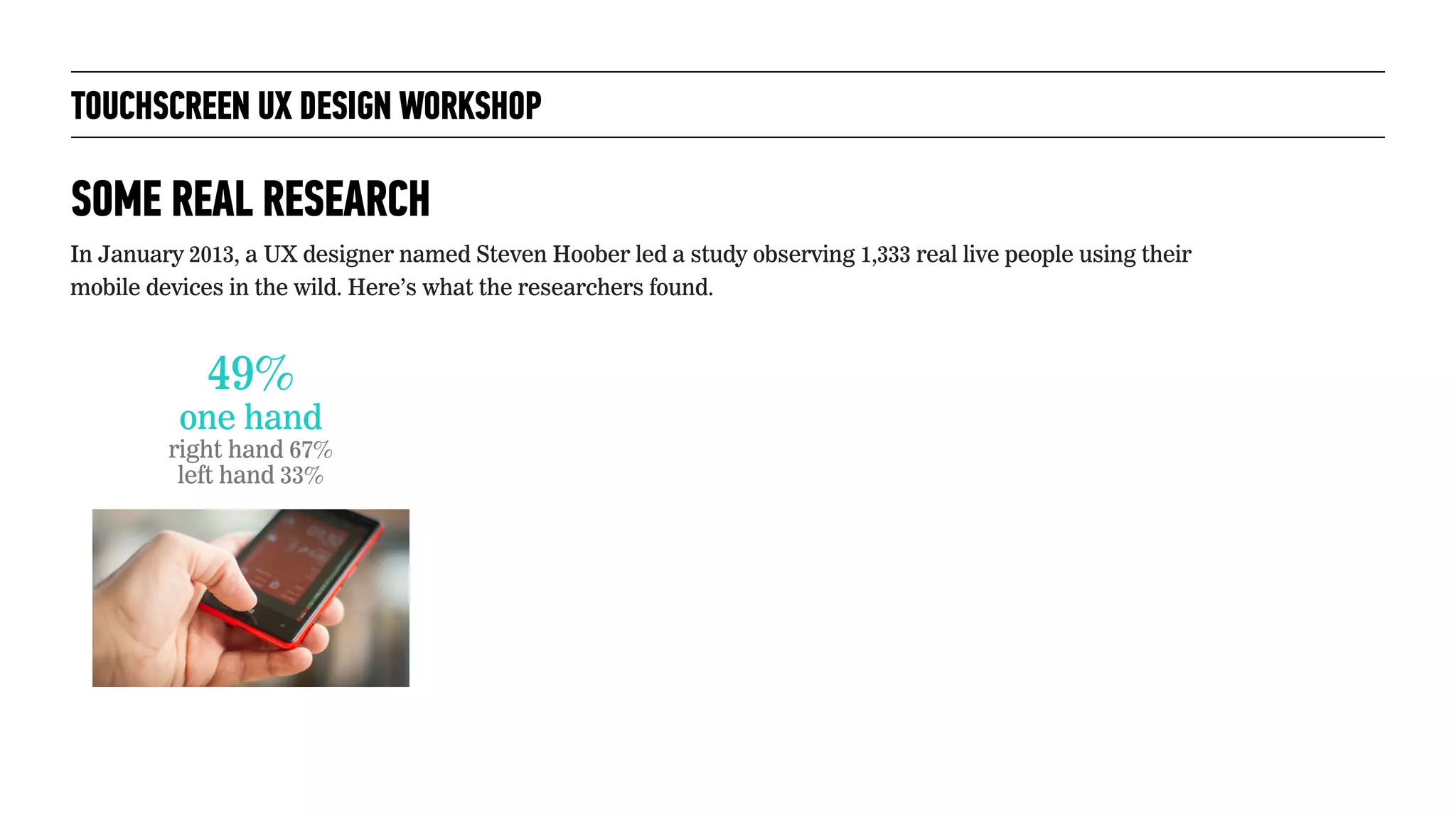

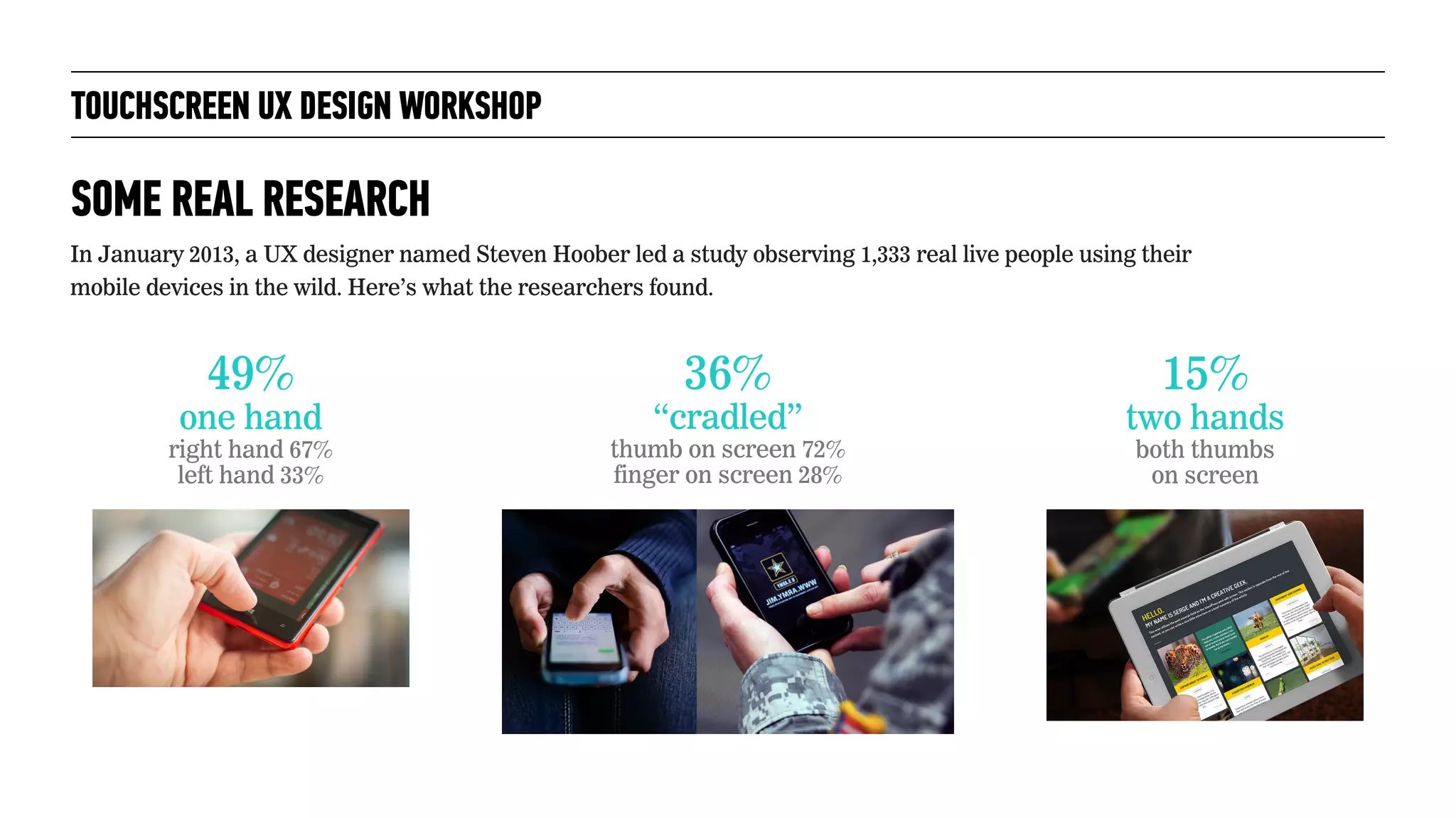

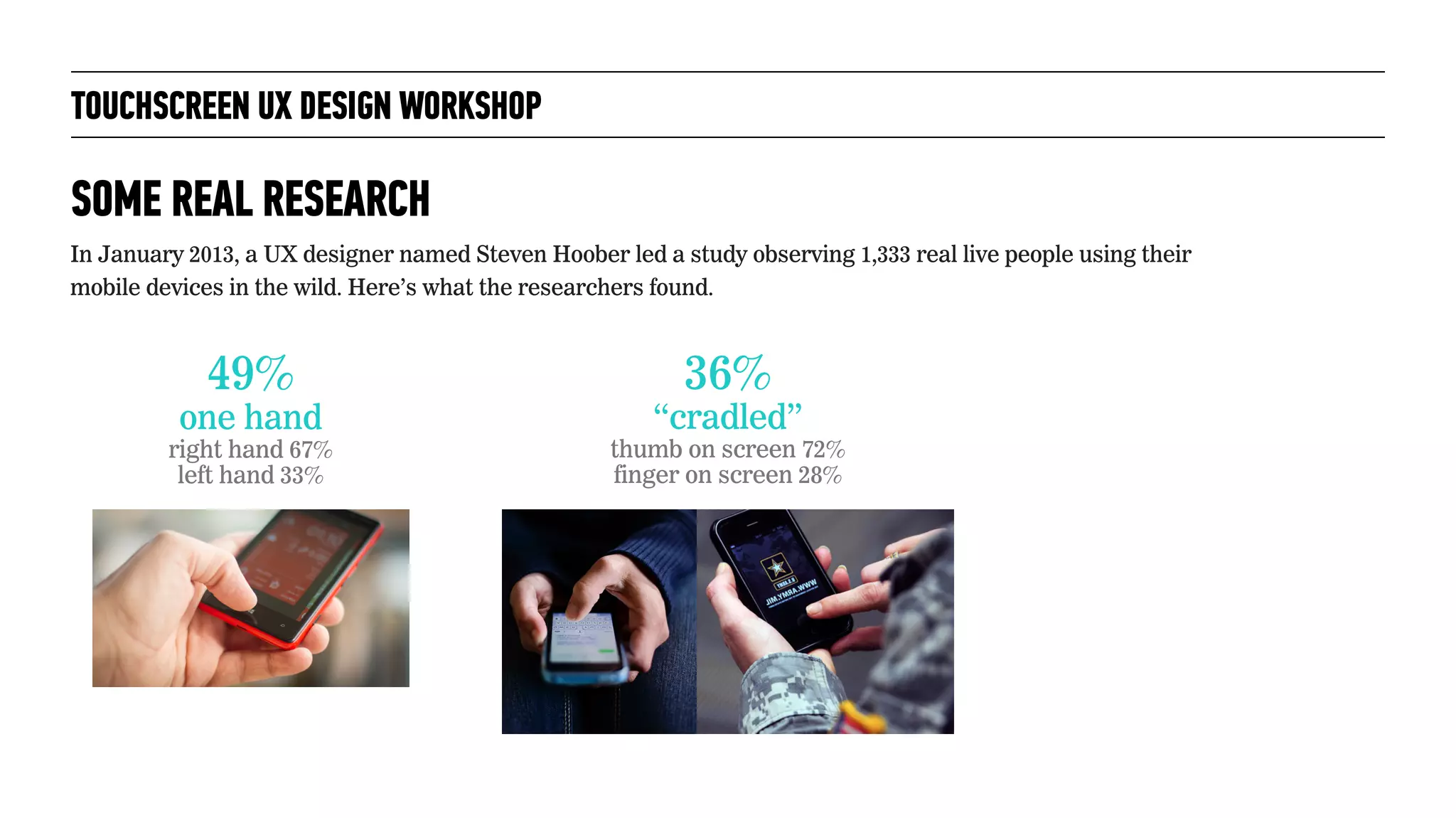

- 45. TOUCHSCREEN UX DESIGNWORKSHOP SOME REAL RESEARCH In January 2013, a UX designer named Steven Hoober led a study observing 1,333 real live people using their mobile devices in the wild. Here’s what the researchers found.
- 46. TOUCHSCREEN UX DESIGNWORKSHOP SOME REAL RESEARCH In January 2013, a UX designer named Steven Hoober led a study observing 1,333 real live people using their mobile devices in the wild. Here’s what the researchers found. 49% one hand right hand 67% left hand 33%
- 47. TOUCHSCREEN UX DESIGNWORKSHOP SOME REAL RESEARCH In January 2013, a UX designer named Steven Hoober led a study observing 1,333 real live people using their mobile devices in the wild. Here’s what the researchers found. 49% one hand right hand 67% left hand 33% 36% “cradled” thumb on screen 72% finger on screen 28%
- 48. TOUCHSCREEN UX DESIGNWORKSHOP SOME REAL RESEARCH In January 2013, a UX designer named Steven Hoober led a study observing 1,333 real live people using their mobile devices in the wild. Here’s what the researchers found. 49% one hand right hand 67% left hand 33% 36% “cradled” thumb on screen 72% finger on screen 28% 15% two hands both thumbs on screen
- 49. TOUCHSCREEN UX DESIGNWORKSHOP SOME REAL RESEARCH “The way in which users hold their phone is not a static state. Users change the way they’re holding their phone very often—sometimes every few seconds. “ See more at: http://www.uxmatters.com/mt/archives/2013/02/how-do-users-really-hold-mobile-devices.php
- 50. APP STRUCTURES TOUCHSCREEN UXDESIGN WORKSHOP Photograph: USGS Bee Inventory and Monitoring Lab/flickr, Creative Commons license 2.0

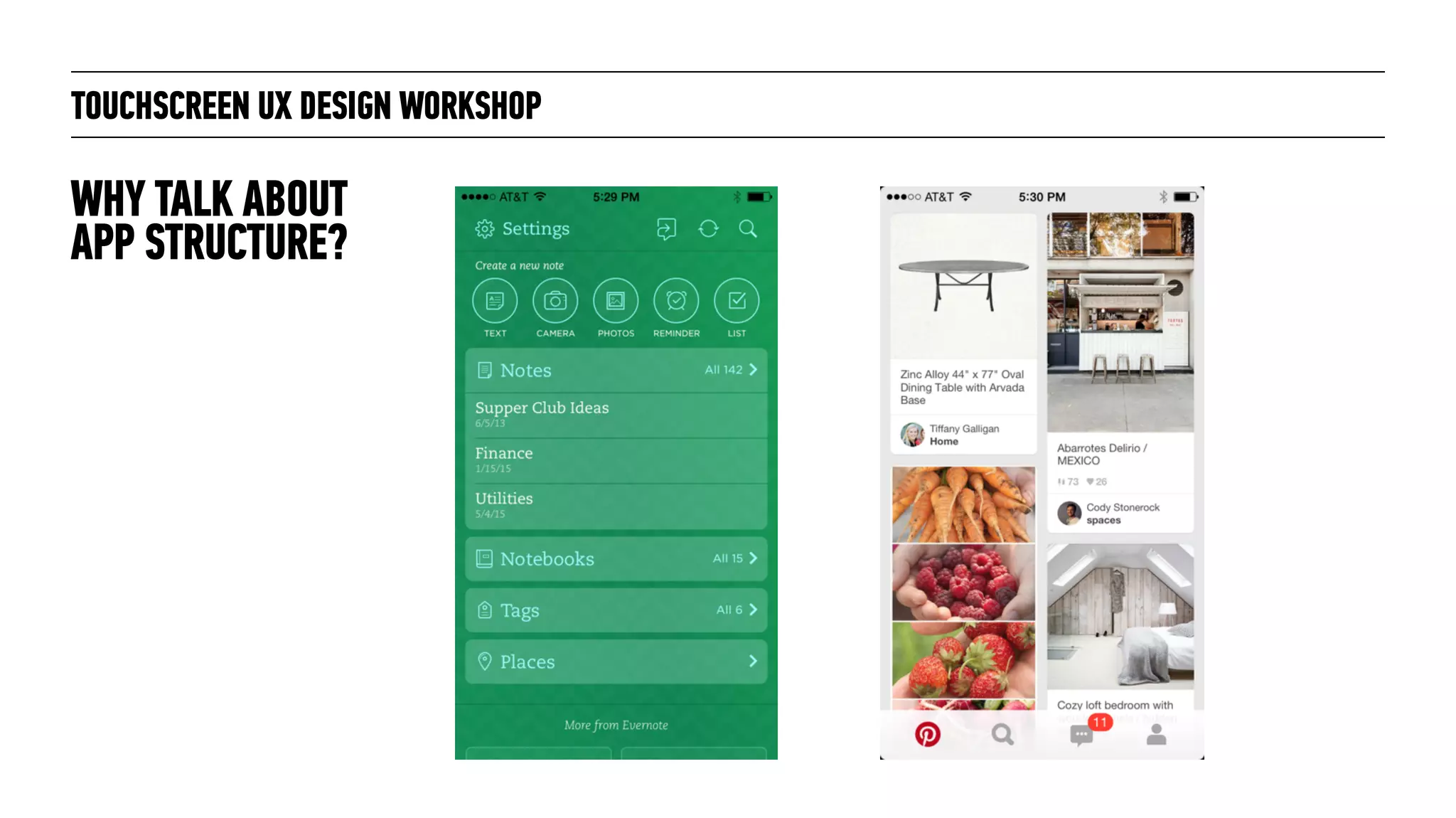

- 51. TOUCHSCREEN UX DESIGNWORKSHOP WHY TALK ABOUT APP STRUCTURE?

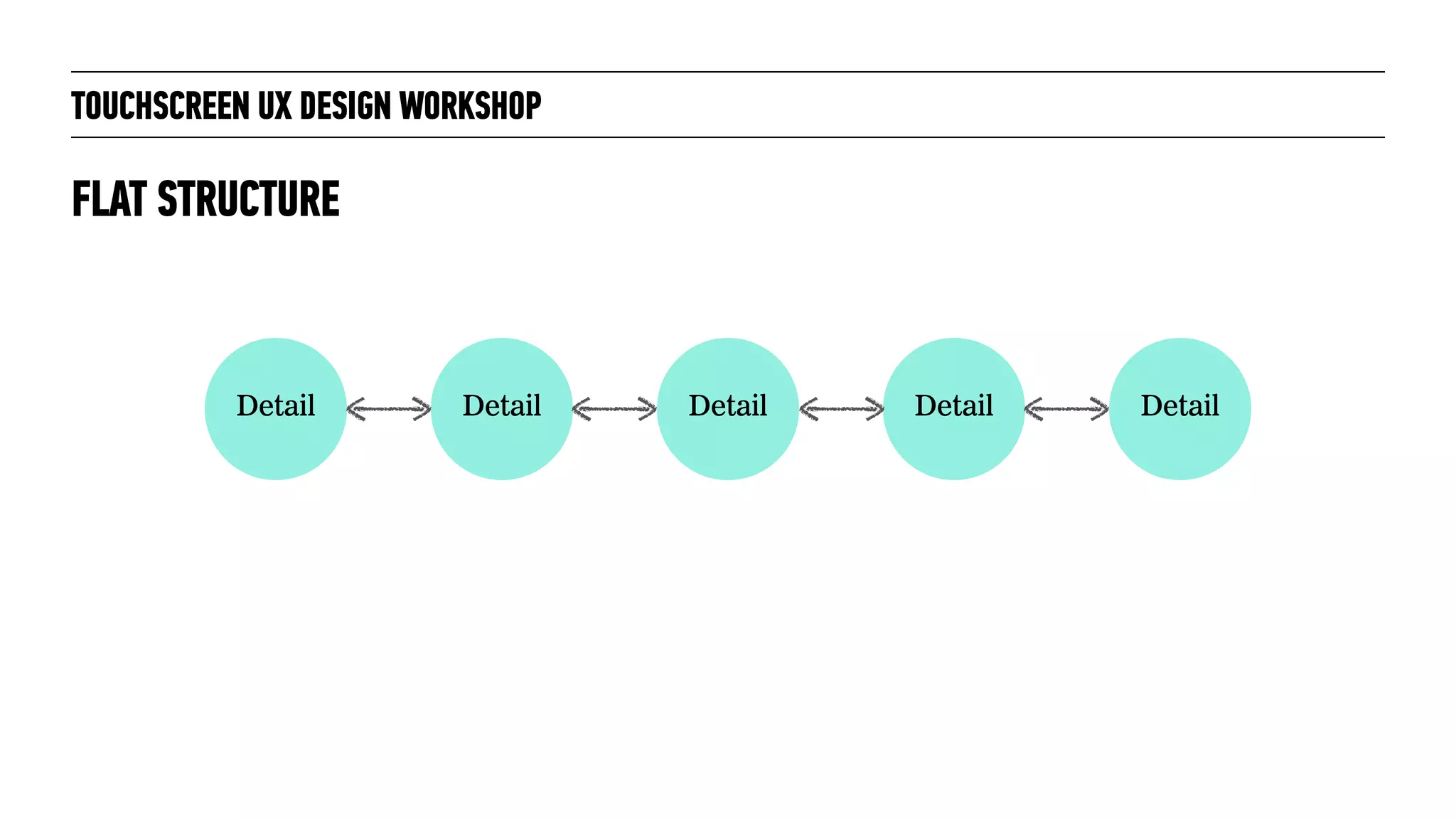

- 52. TOUCHSCREEN UX DESIGNWORKSHOP FLAT STRUCTURE Detail Detail Detail Detail Detail
- 53. TOUCHSCREEN UX DESIGNWORKSHOP FLAT STRUCTURE

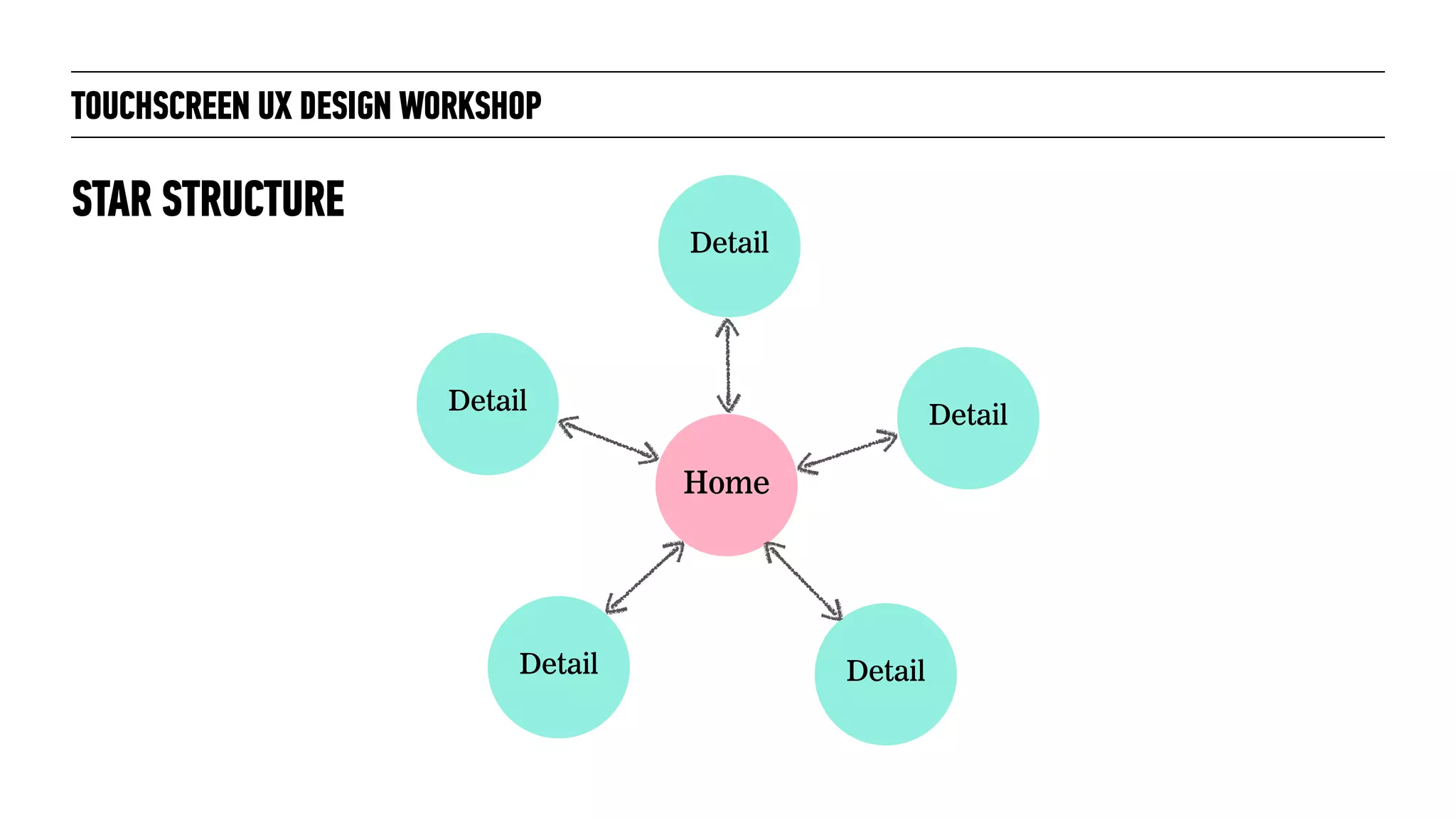

- 54. TOUCHSCREEN UX DESIGNWORKSHOP STAR STRUCTURE Detail Detail Home Detail Detail Detail

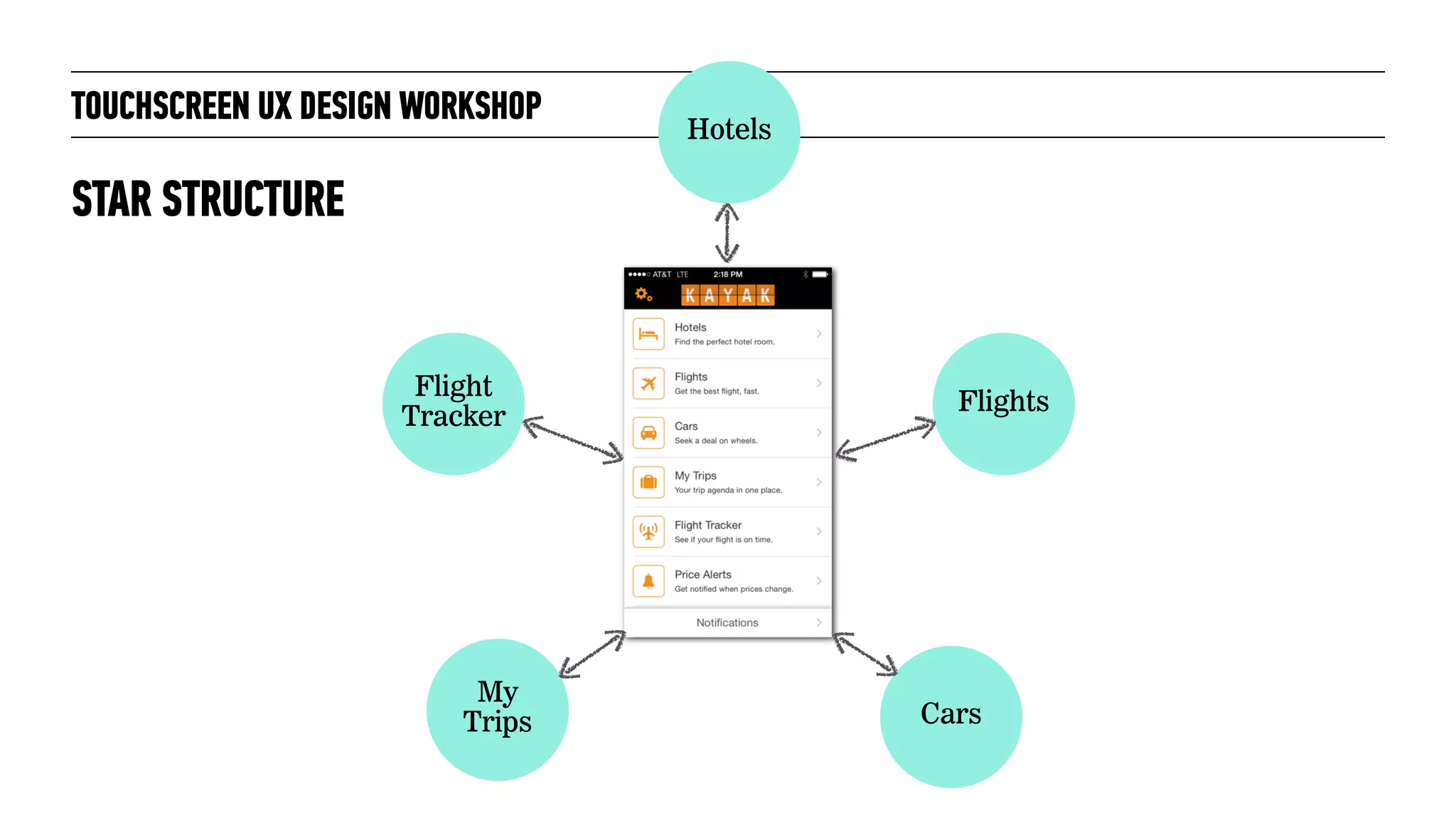

- 55. TOUCHSCREEN UX DESIGNWORKSHOP STAR STRUCTURE Flight Tracker My Trips Cars Flights Hotels

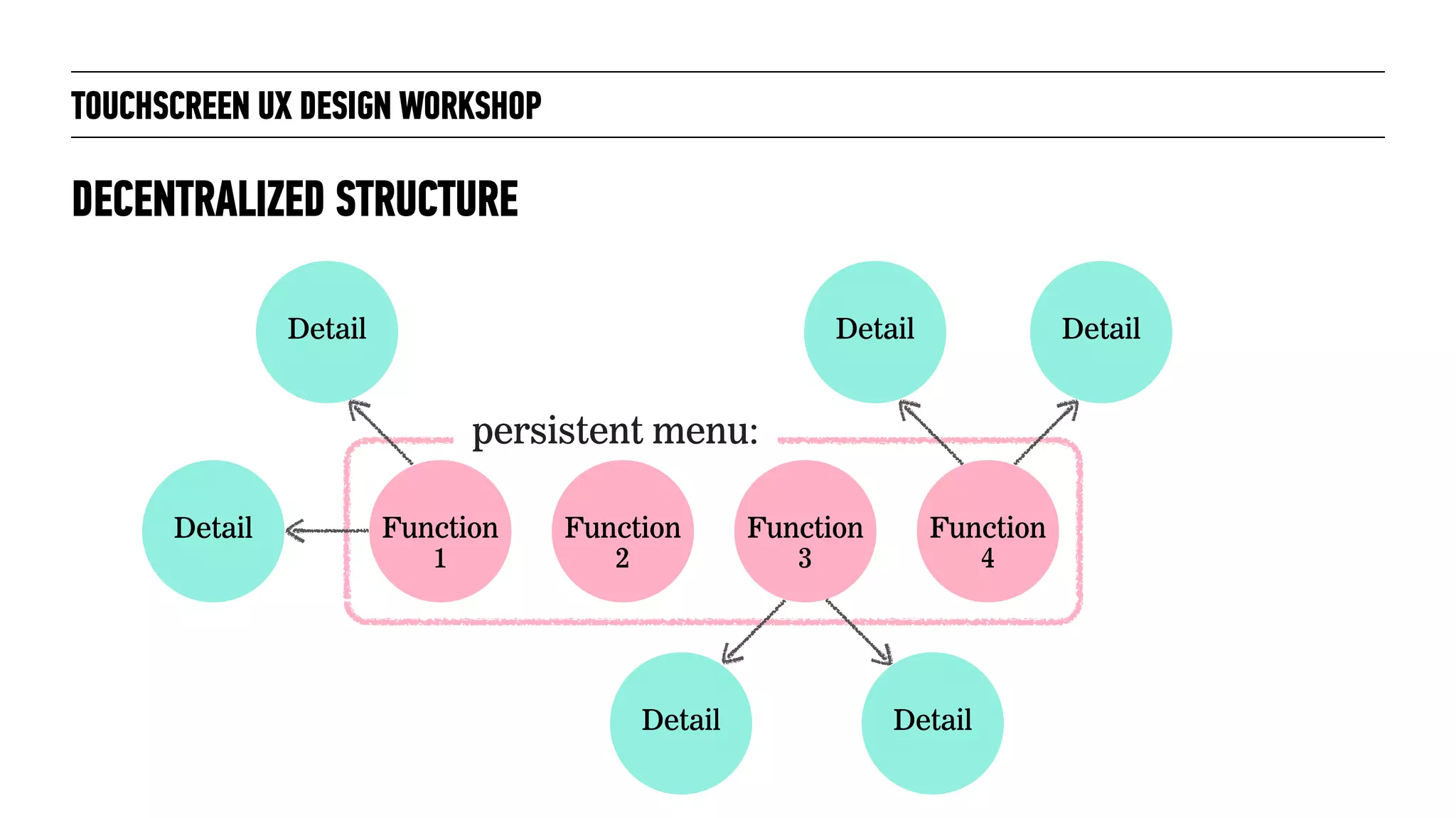

- 56. TOUCHSCREEN UX DESIGNWORKSHOP DECENTRALIZED STRUCTURE Detail Detail Function 1 DetailDetail Detail Function 2 Function 3 Function 4 Detail persistent menu:

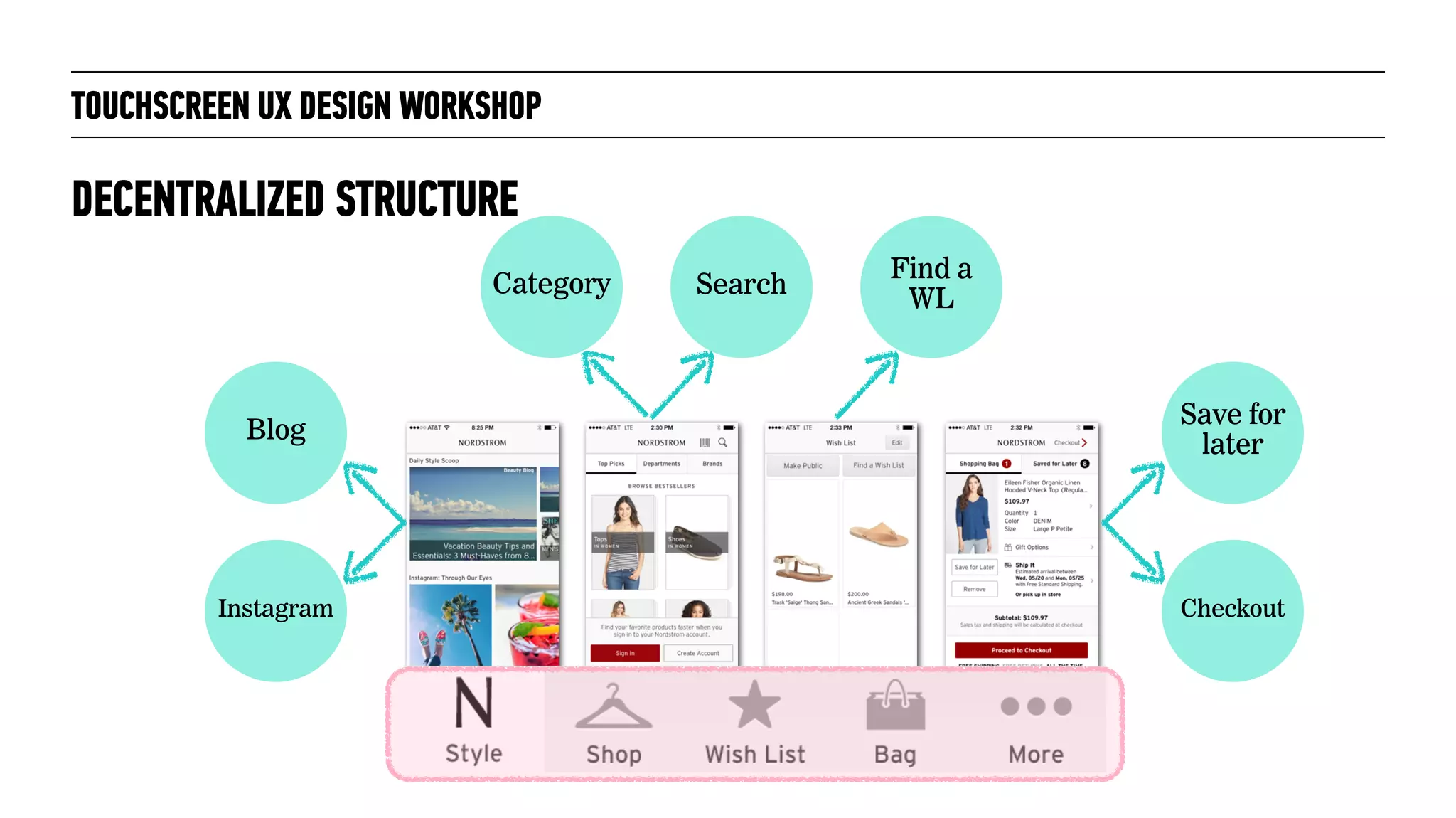

- 57. TOUCHSCREEN UX DESIGNWORKSHOP DECENTRALIZED STRUCTURE Blog Instagram Category Search Find a WL Save for later Checkout
- 58. SMARTPHONE APP EXERCISE! TOUCHSCREENUX DESIGN WORKSHOP Photograph: Janet Ramsden/flickr, Creative Commons license 2.0

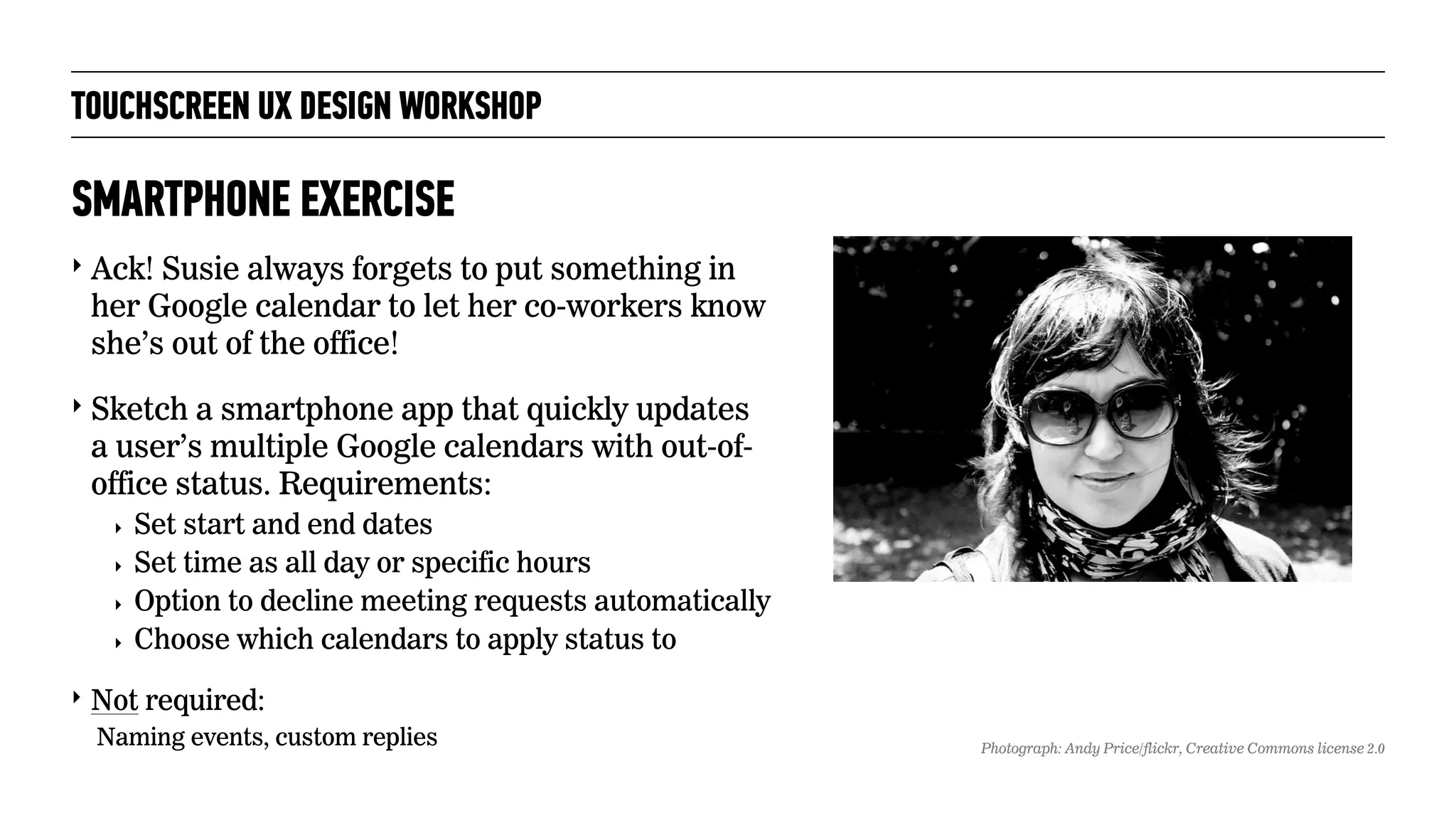

- 59. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Ack! Susie always forgets to put something in her Google calendar to let her co-workers know she’s out of the office! ‣ Sketch a smartphone app that quickly updates a user’s multiple Google calendars with out-of- office status. Requirements: ‣ Set start and end dates ‣ Set time as all day or specific hours ‣ Option to decline meeting requests automatically ‣ Choose which calendars to apply status to ‣ Not required: Naming events, custom replies SMARTPHONE EXERCISE Photograph: Andy Price/flickr, Creative Commons license 2.0
- 60. TOUCHSCREEN UX DESIGNWORKSHOP Photograph: Faith Goble/flickr, Creative Commons license 2.0 BREAK!

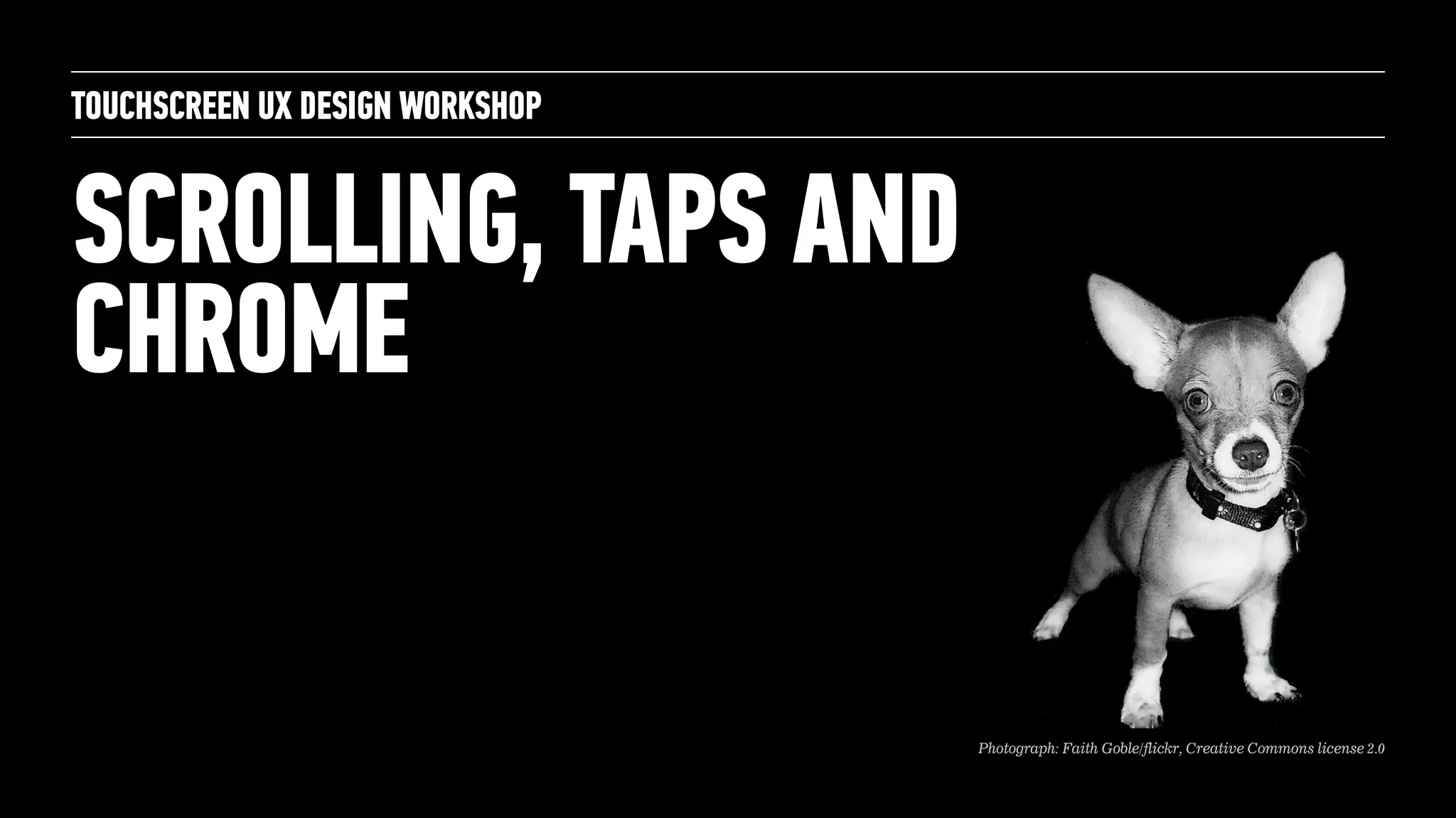

- 61. TOUCHSCREEN UX DESIGNWORKSHOP Photograph: Faith Goble/flickr, Creative Commons license 2.0 SCROLLING, TAPS AND CHROME

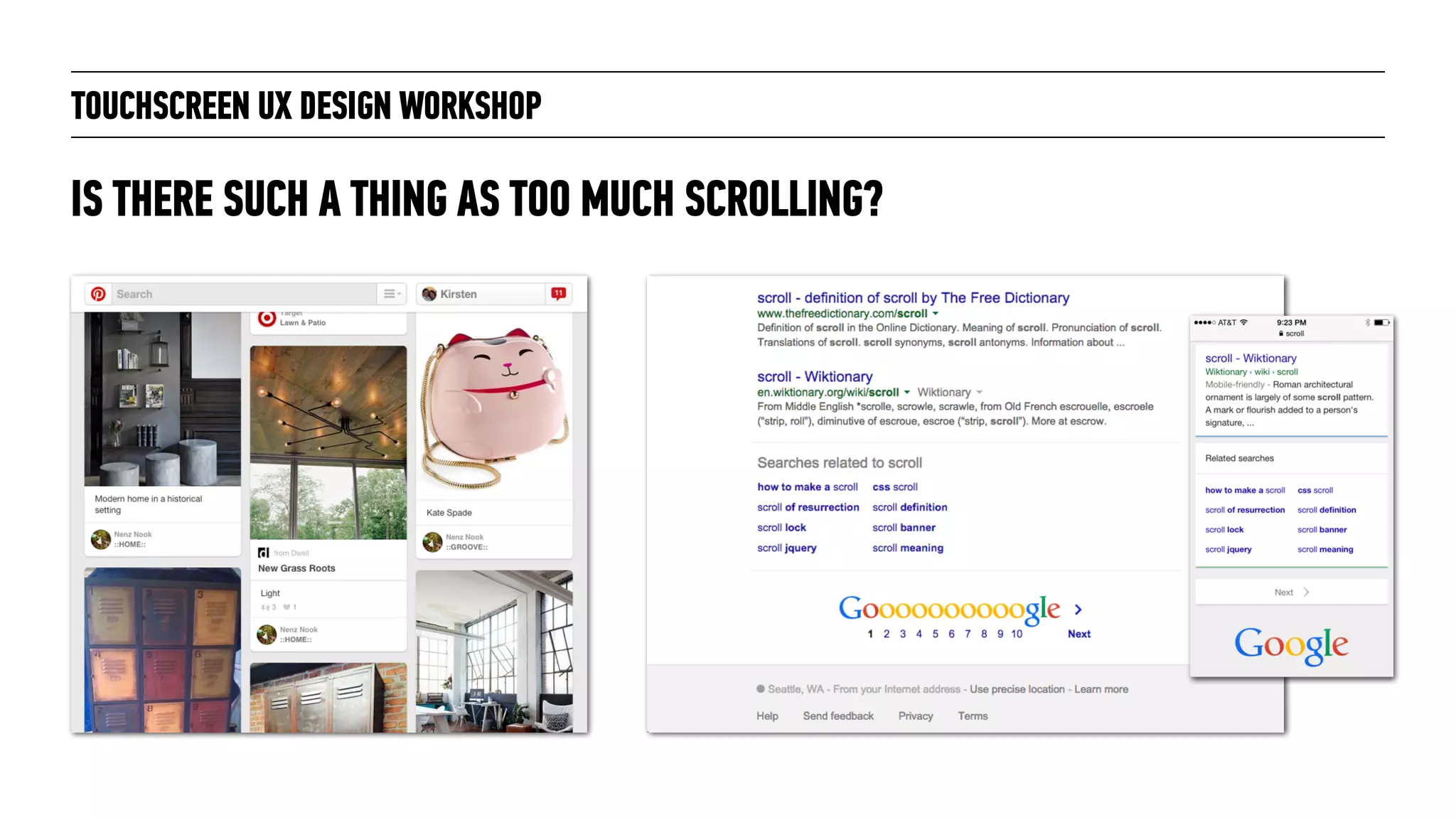

- 62. TOUCHSCREEN UX DESIGNWORKSHOP IS THERE SUCH A THING AS TOO MUCH SCROLLING?

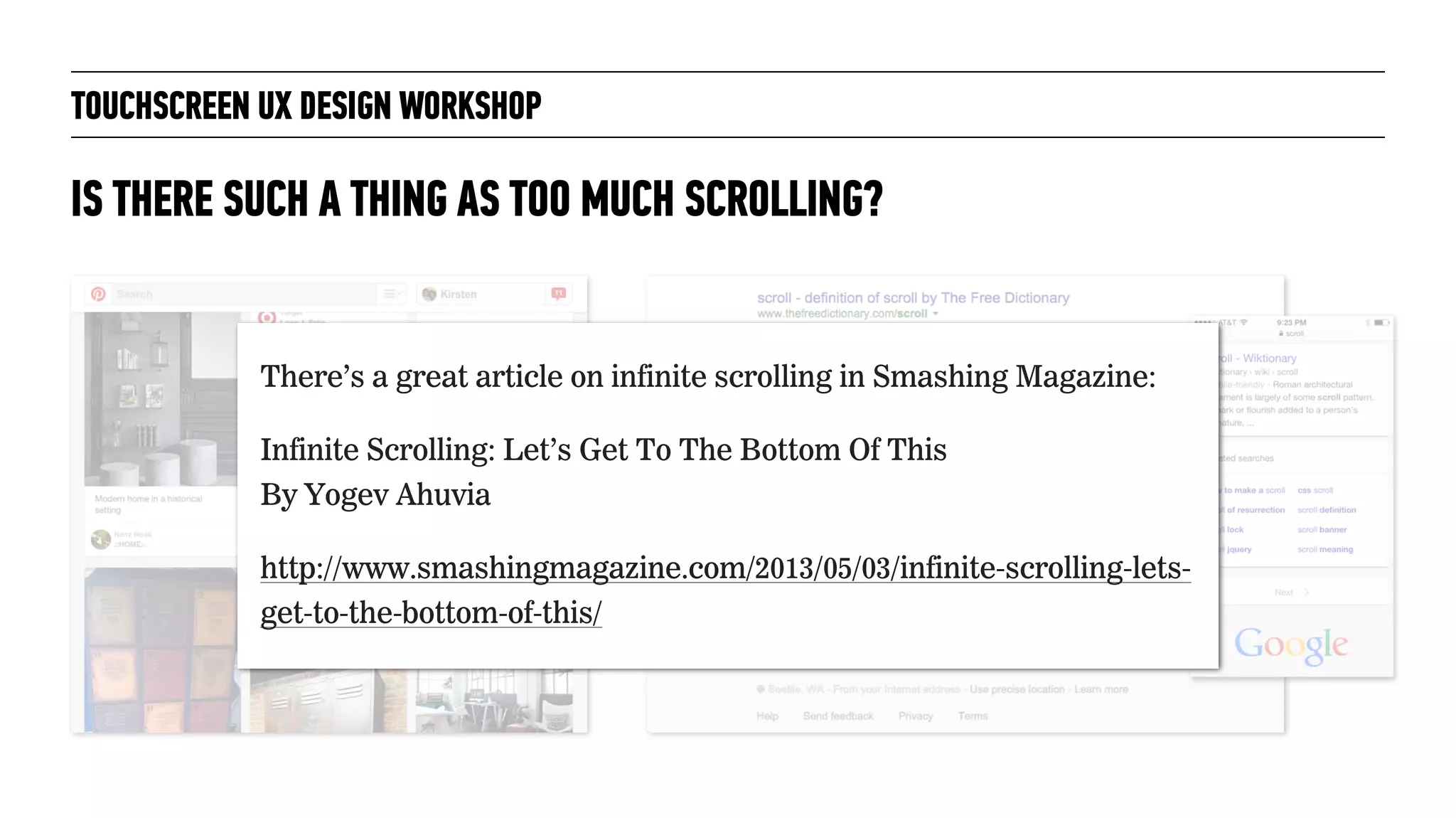

- 63. TOUCHSCREEN UX DESIGNWORKSHOP IS THERE SUCH A THING AS TOO MUCH SCROLLING? There’s a great article on infinite scrolling in Smashing Magazine: Infinite Scrolling: Let’s Get To The Bottom Of This By Yogev Ahuvia http://www.smashingmagazine.com/2013/05/03/infinite-scrolling-lets- get-to-the-bottom-of-this/
- 64. TOUCHSCREEN UX DESIGNWORKSHOP TOO MANY TAPS? Photograph: Jack Delano, Licensed under Public Domain via Wikimedia Commons
- 65. TOUCHSCREEN UX DESIGNWORKSHOP TOO MANY TAPS? “Counting taps is often a pointless exercise. Taps aren’t as odious as clicks. But watch for excess taps around high- frequency actions. Dan Saffer Author of Designing for Interaction and Microinteractions “ Photograph: Jack Delano, Licensed under Public Domain via Wikimedia Commons

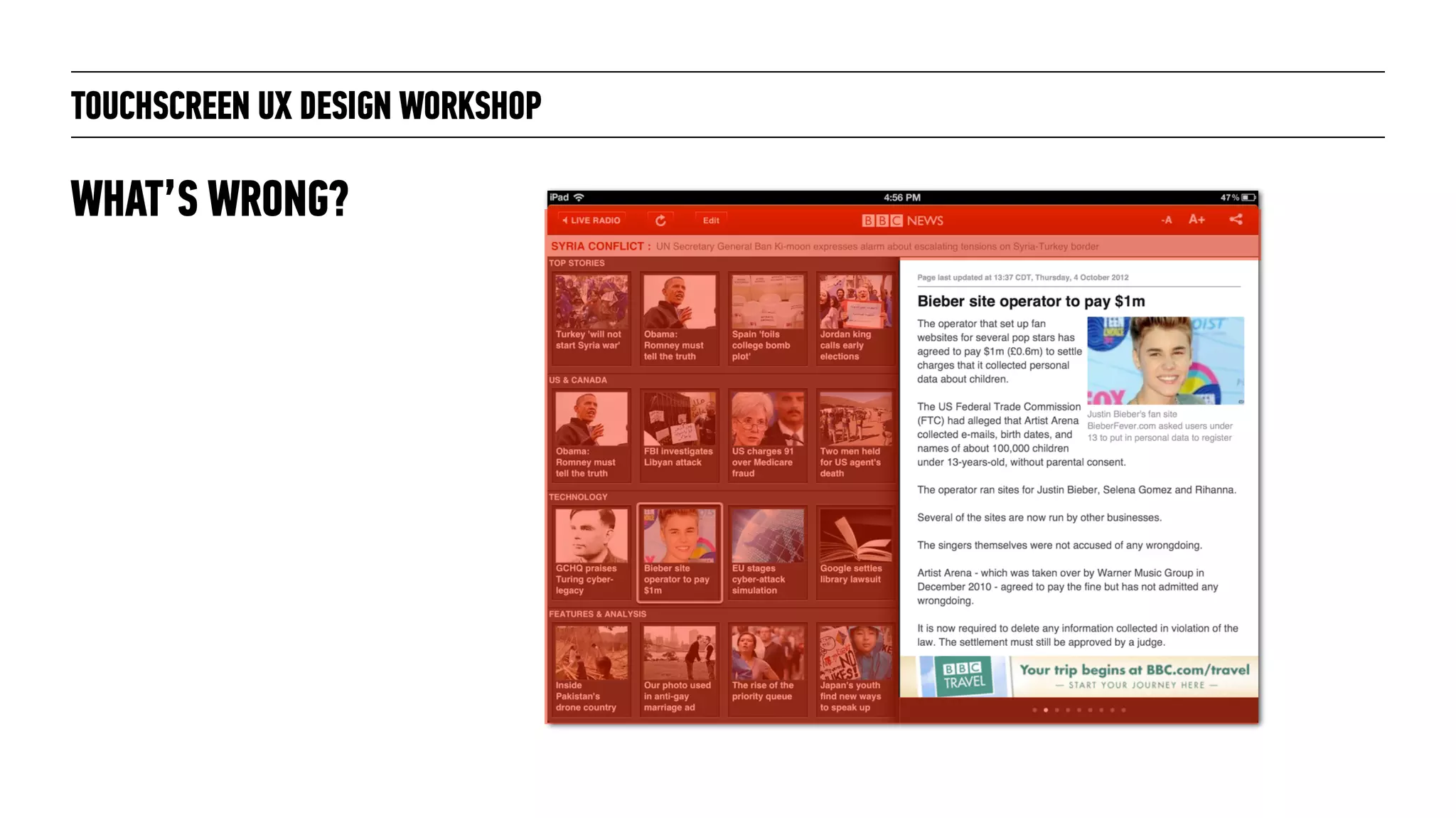

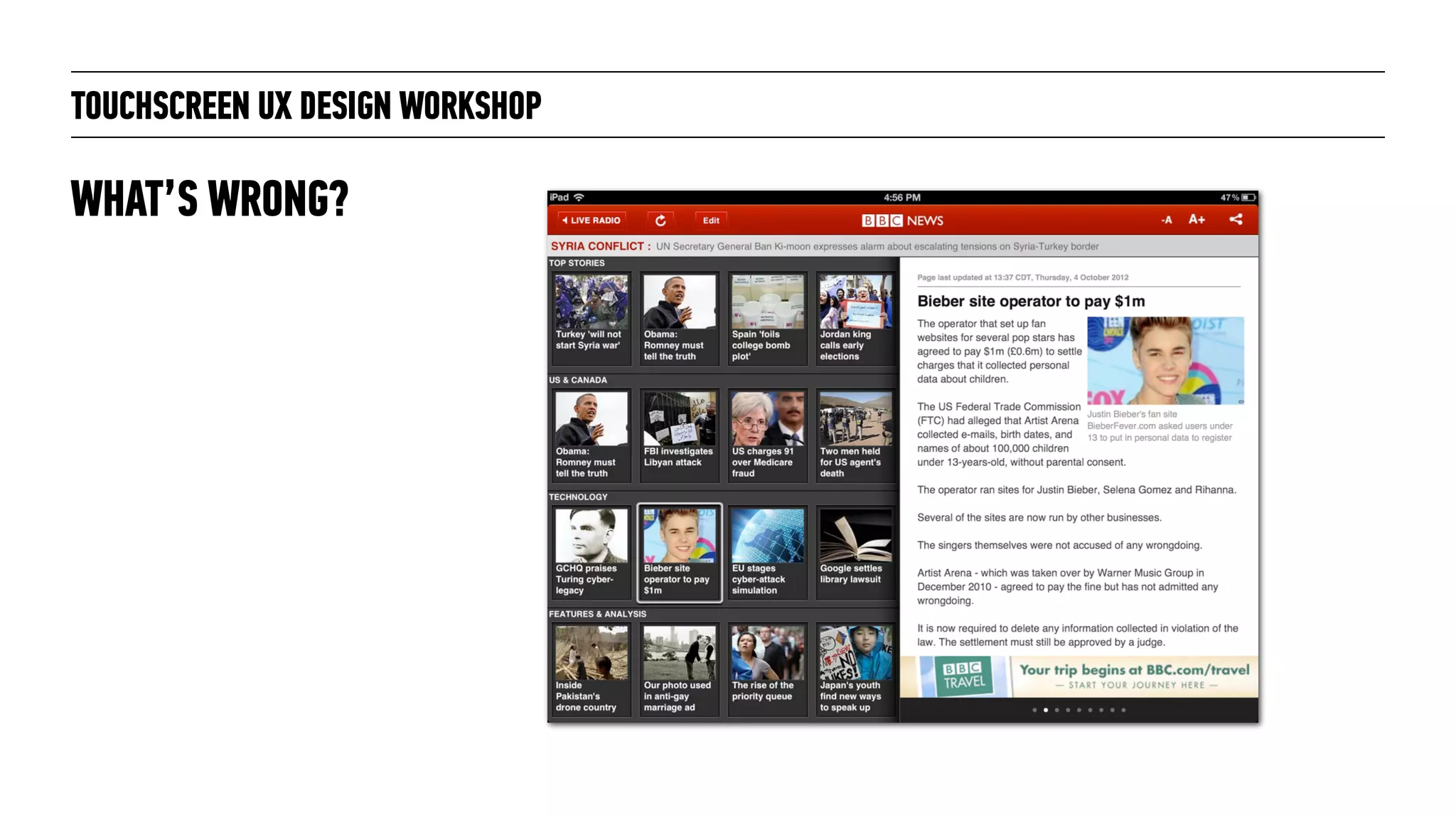

- 66. TOUCHSCREEN UX DESIGNWORKSHOP WHAT’S WRONG?
- 67. TOUCHSCREEN UX DESIGNWORKSHOP WHAT’S WRONG?

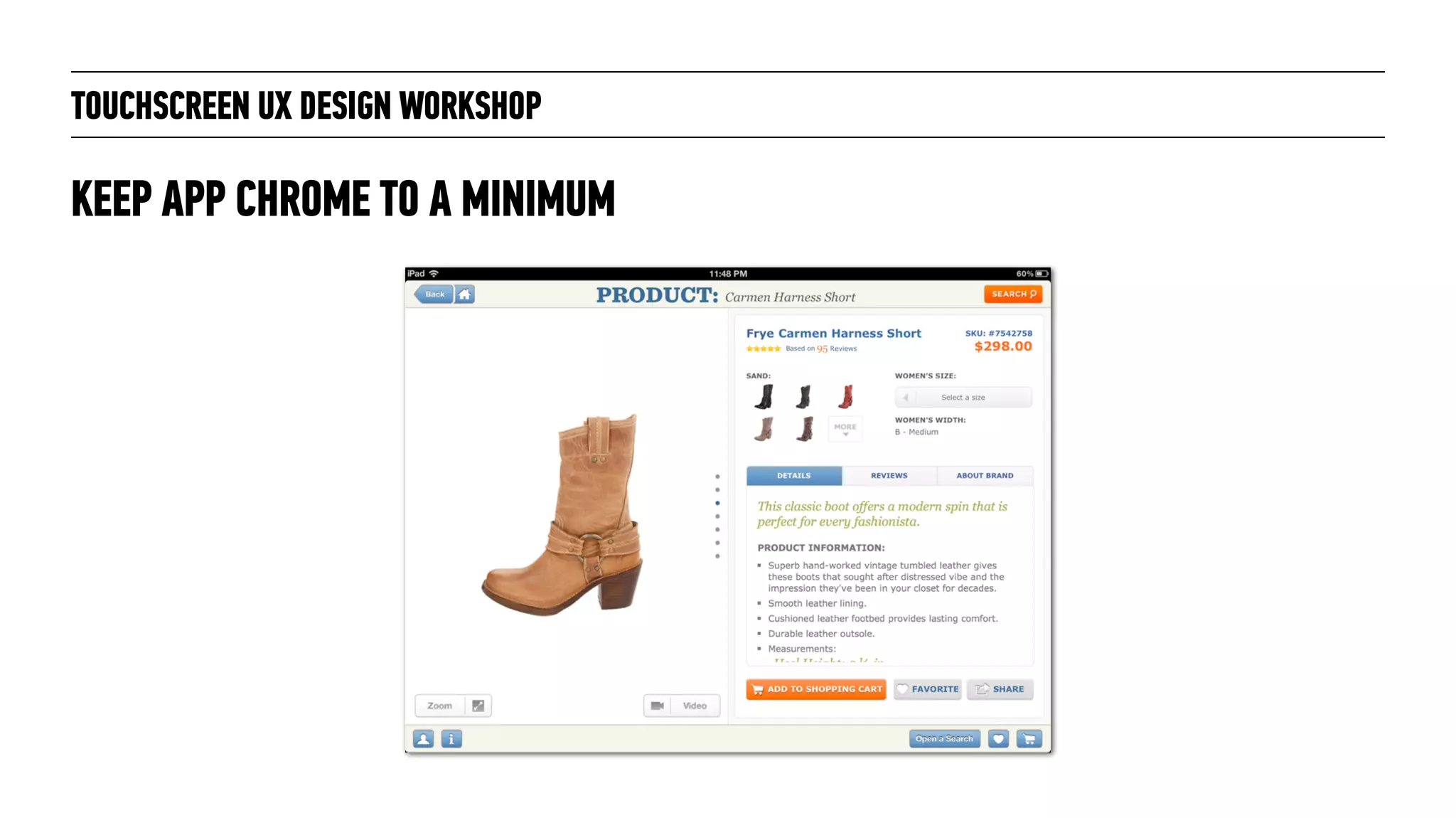

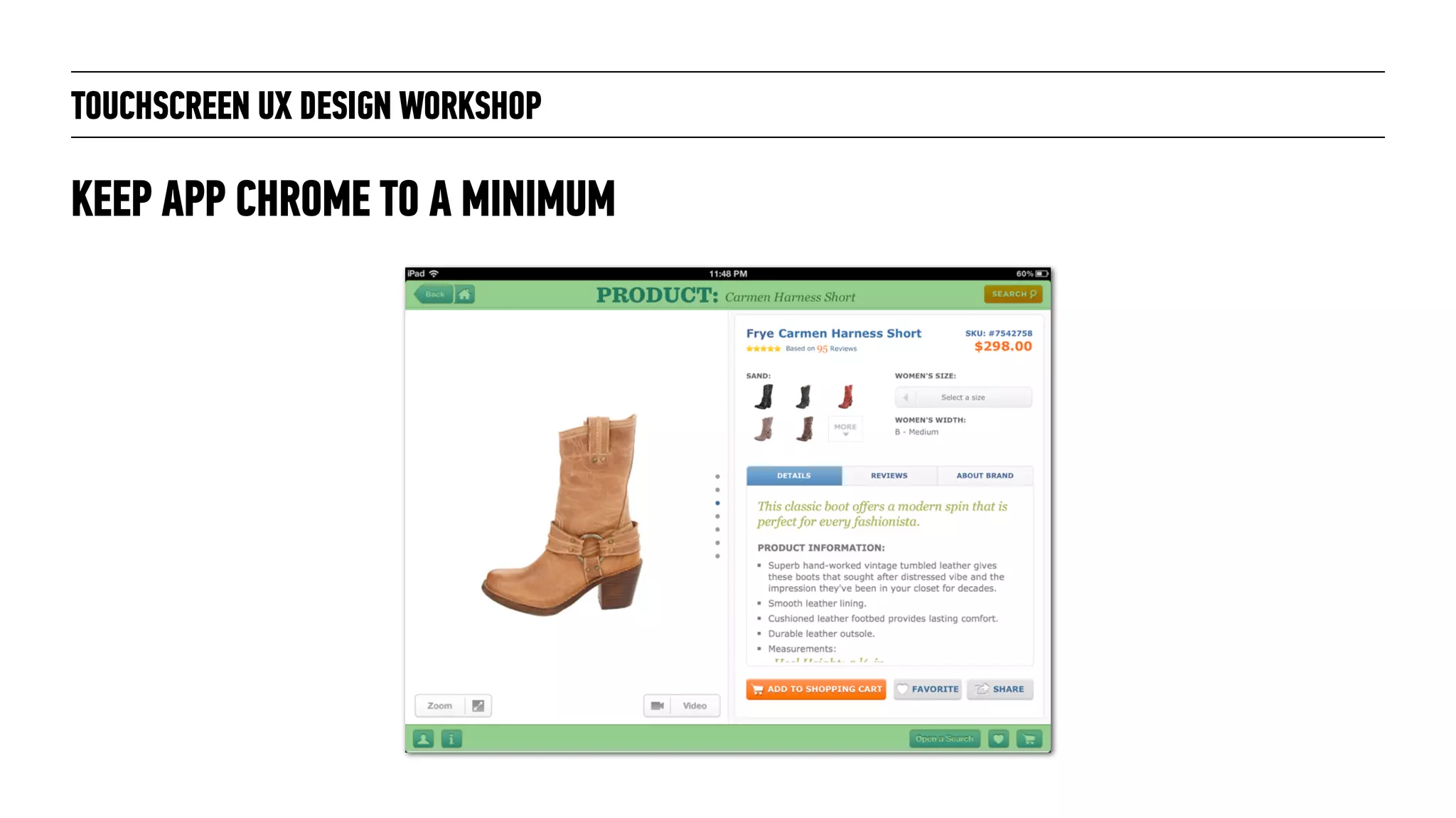

- 68. TOUCHSCREEN UX DESIGNWORKSHOP KEEP APP CHROME TO A MINIMUM
- 69. TOUCHSCREEN UX DESIGNWORKSHOP KEEP APP CHROME TO A MINIMUM
- 70. MULTITOUCH AND GESTURES TOUCHSCREENUX DESIGN WORKSHOP Photograph: Trace Meek/flickr, Creative Commons license 2.0

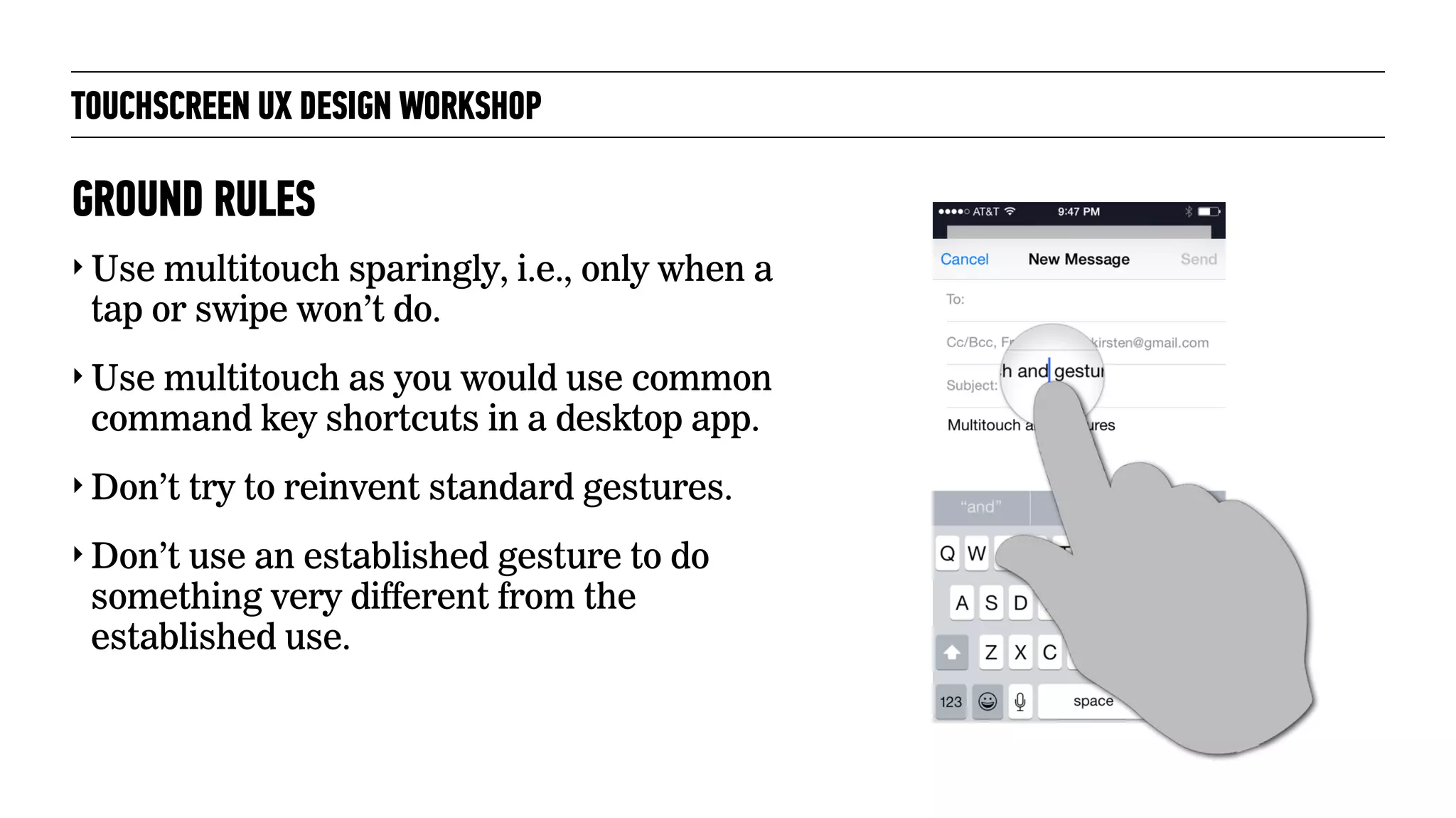

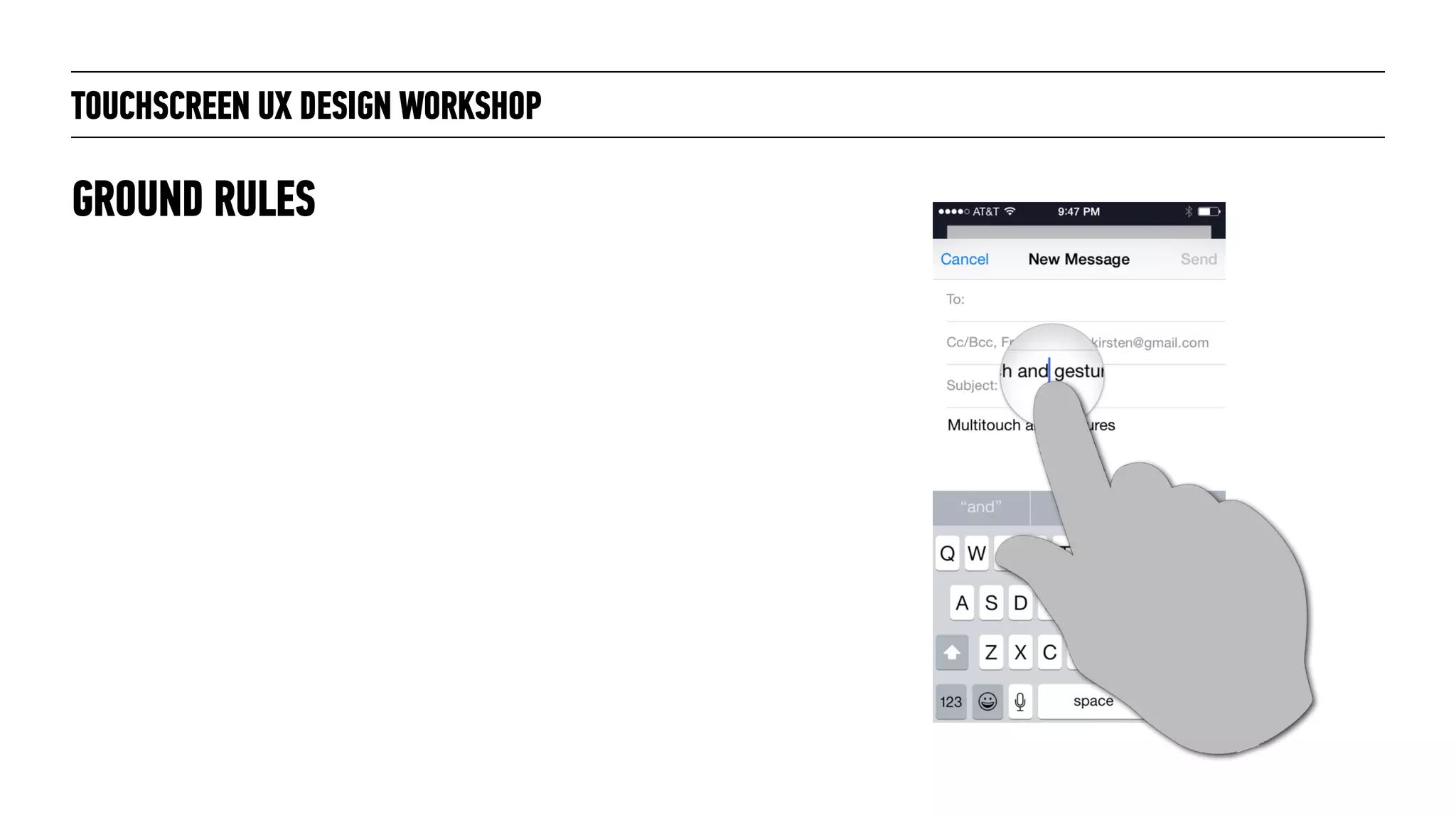

- 71. TOUCHSCREEN UX DESIGNWORKSHOP GROUND RULES

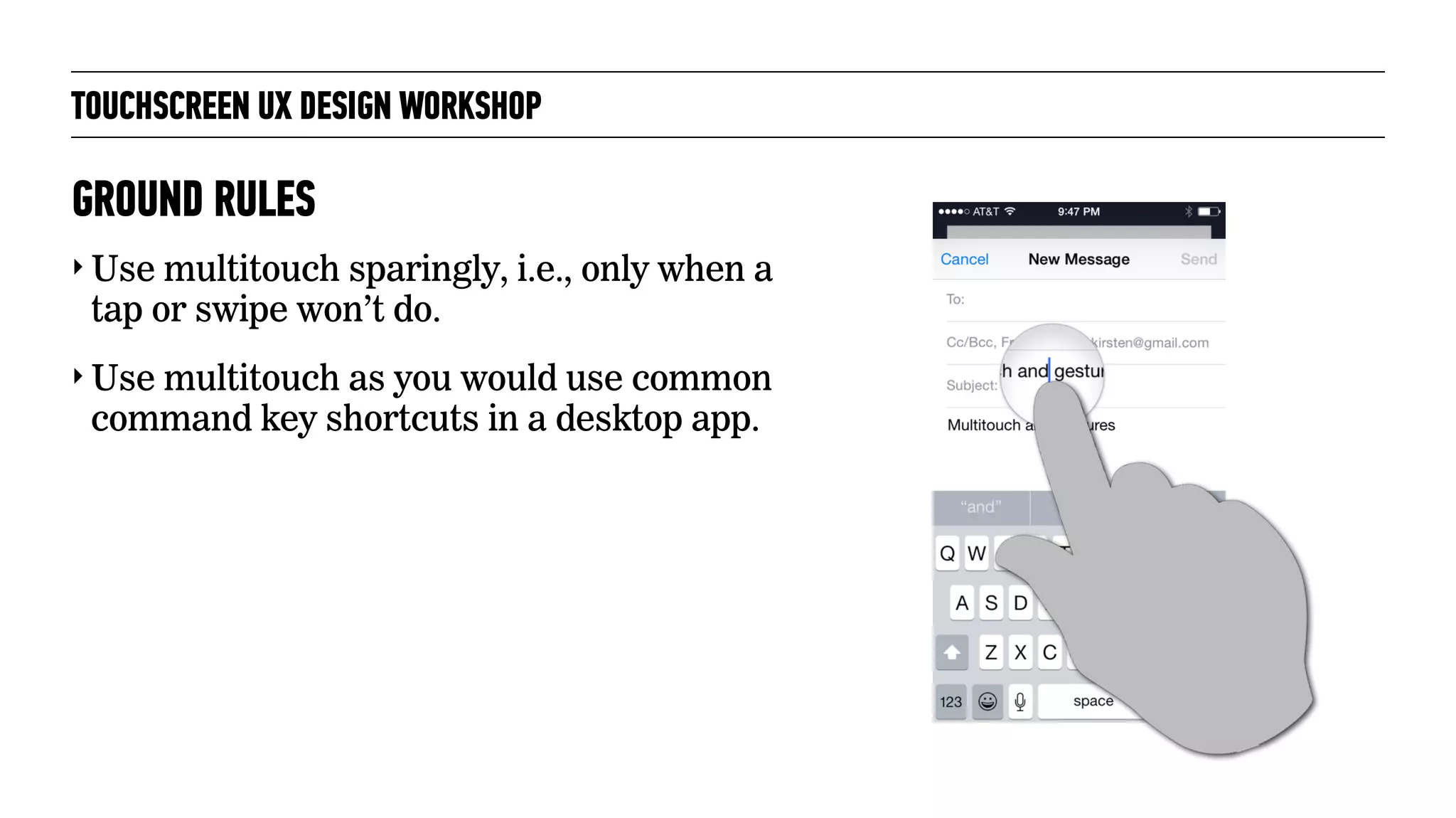

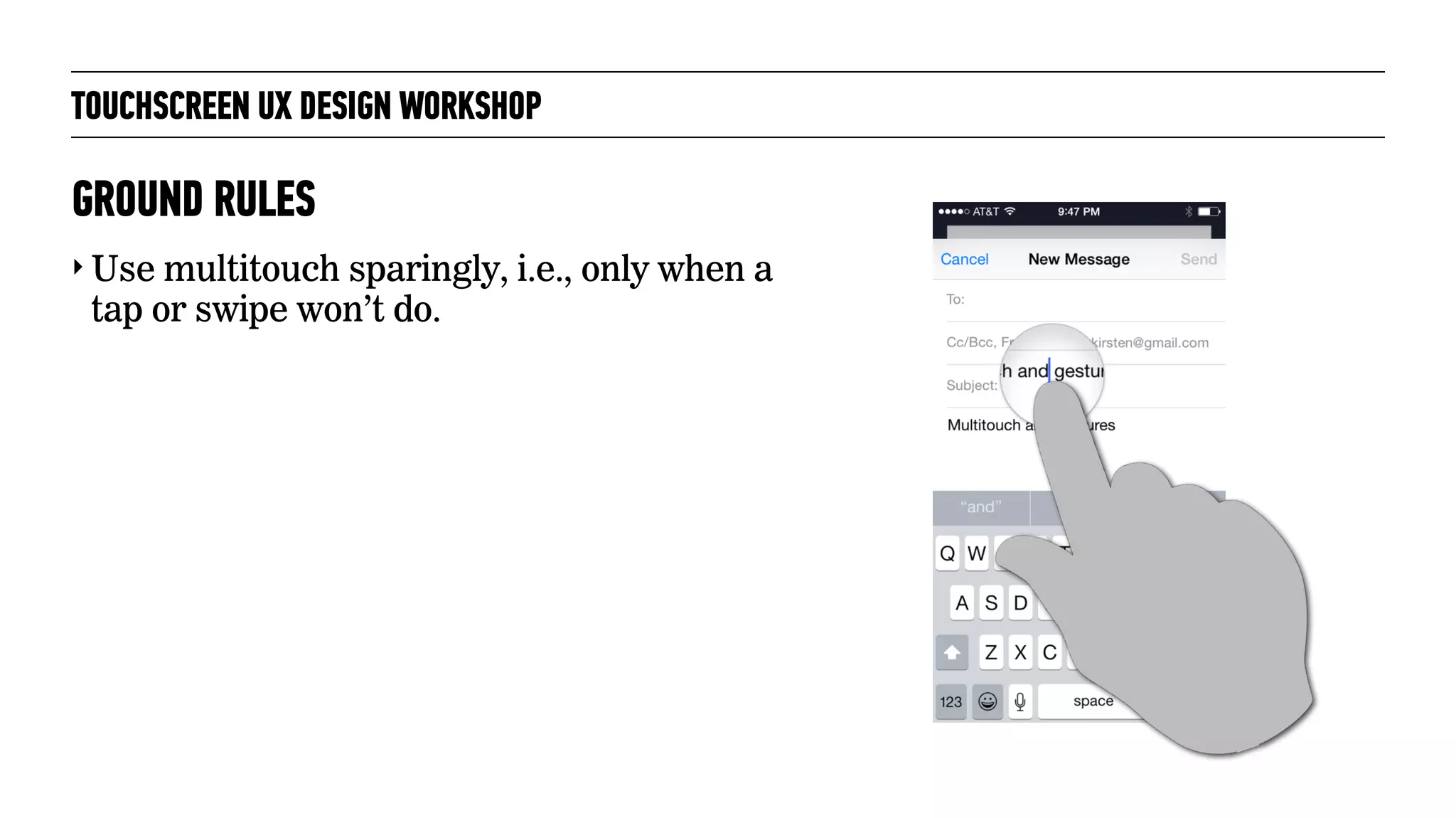

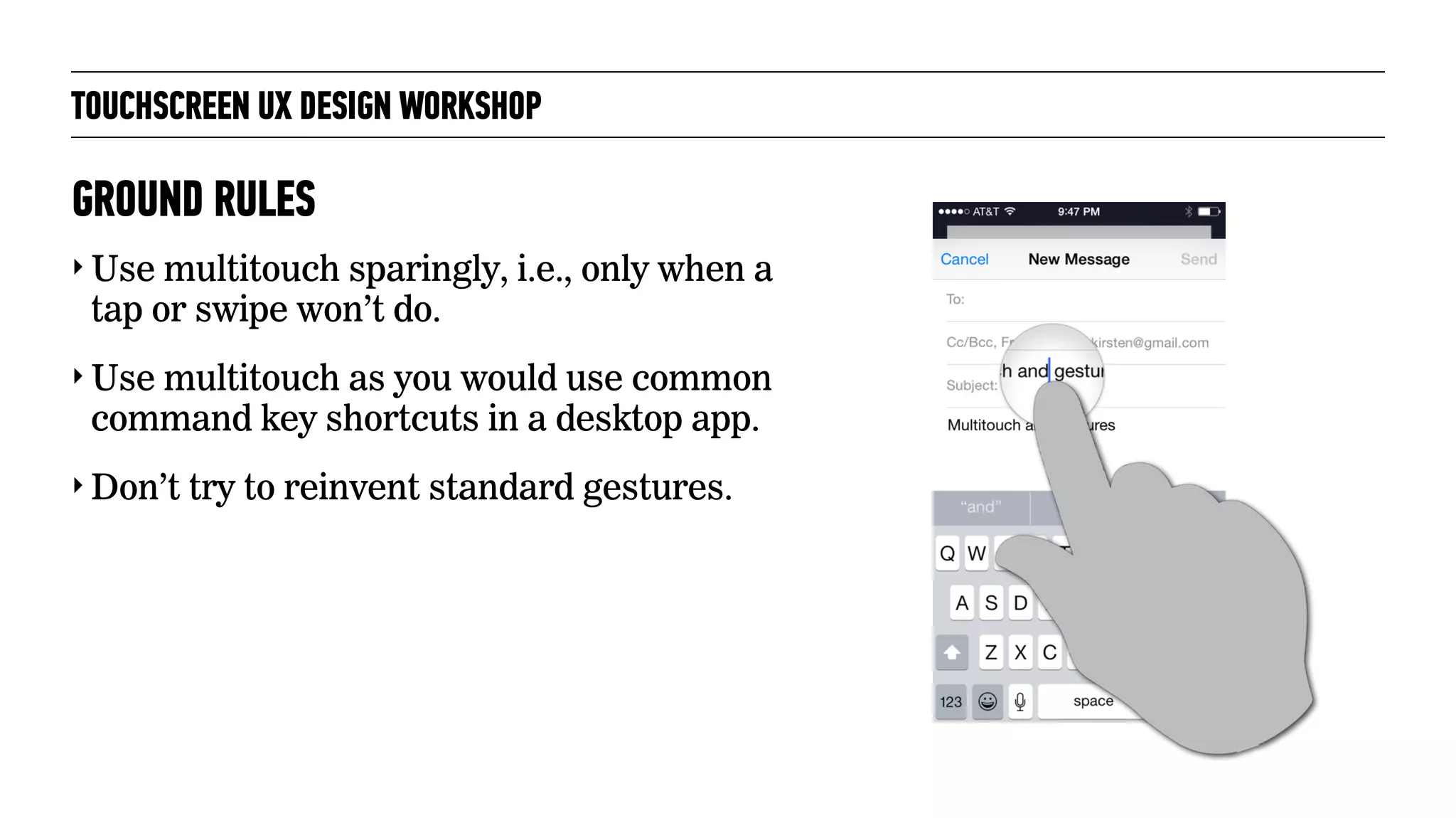

- 72. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Use multitouch sparingly, i.e., only when a tap or swipe won’t do. GROUND RULES
- 73. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Use multitouch sparingly, i.e., only when a tap or swipe won’t do. ‣ Use multitouch as you would use common command key shortcuts in a desktop app. GROUND RULES
- 74. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Use multitouch sparingly, i.e., only when a tap or swipe won’t do. ‣ Use multitouch as you would use common command key shortcuts in a desktop app. ‣ Don’t try to reinvent standard gestures. GROUND RULES
- 75. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Use multitouch sparingly, i.e., only when a tap or swipe won’t do. ‣ Use multitouch as you would use common command key shortcuts in a desktop app. ‣ Don’t try to reinvent standard gestures. ‣ Don’t use an established gesture to do something very different from the established use. GROUND RULES

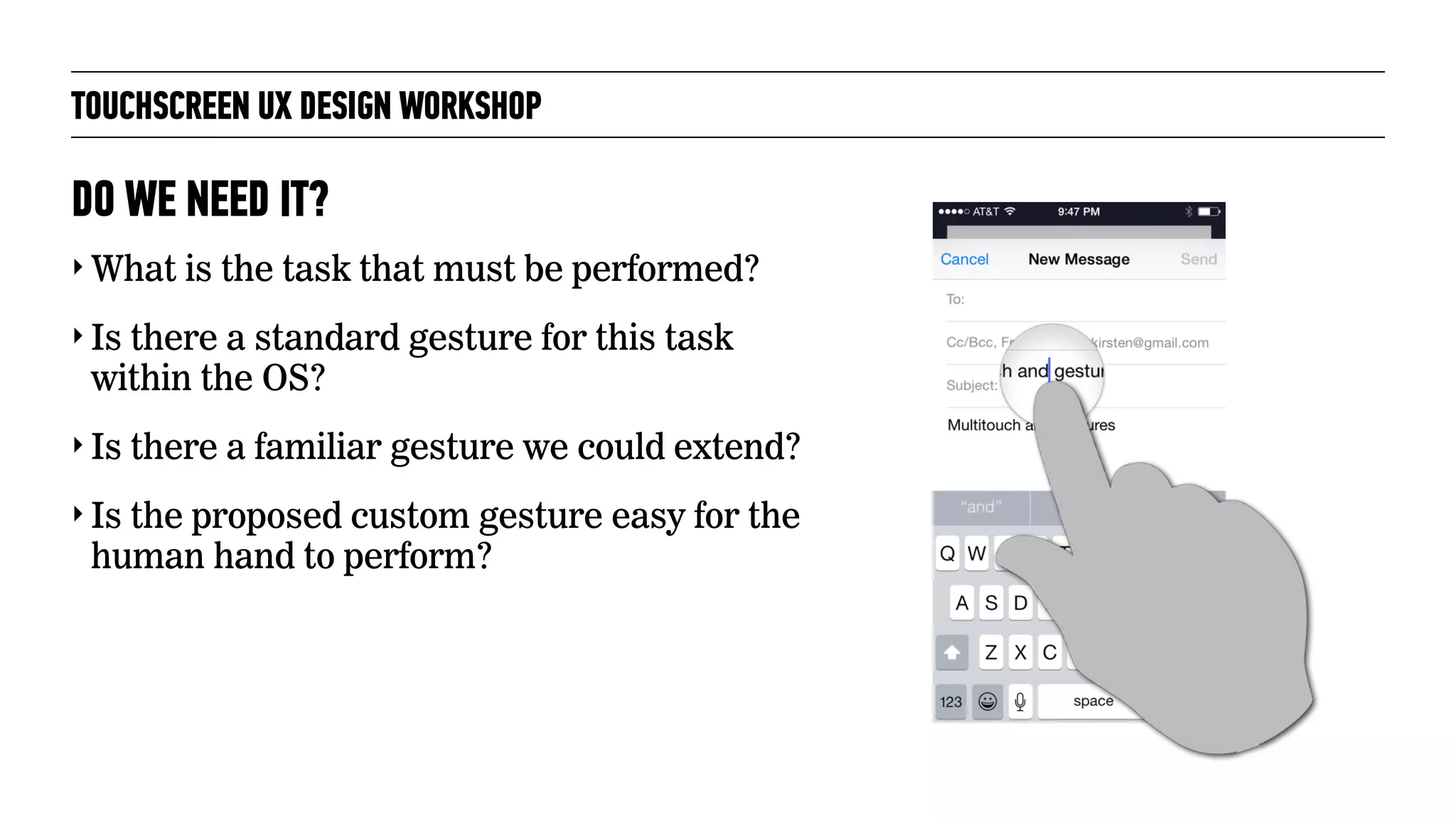

- 76. TOUCHSCREEN UX DESIGNWORKSHOP ‣ What is the task that must be performed? ‣ Is there a standard gesture for this task within the OS? ‣ Is there a familiar gesture we could extend? ‣ Is the proposed custom gesture easy for the human hand to perform? DO WE NEED IT?

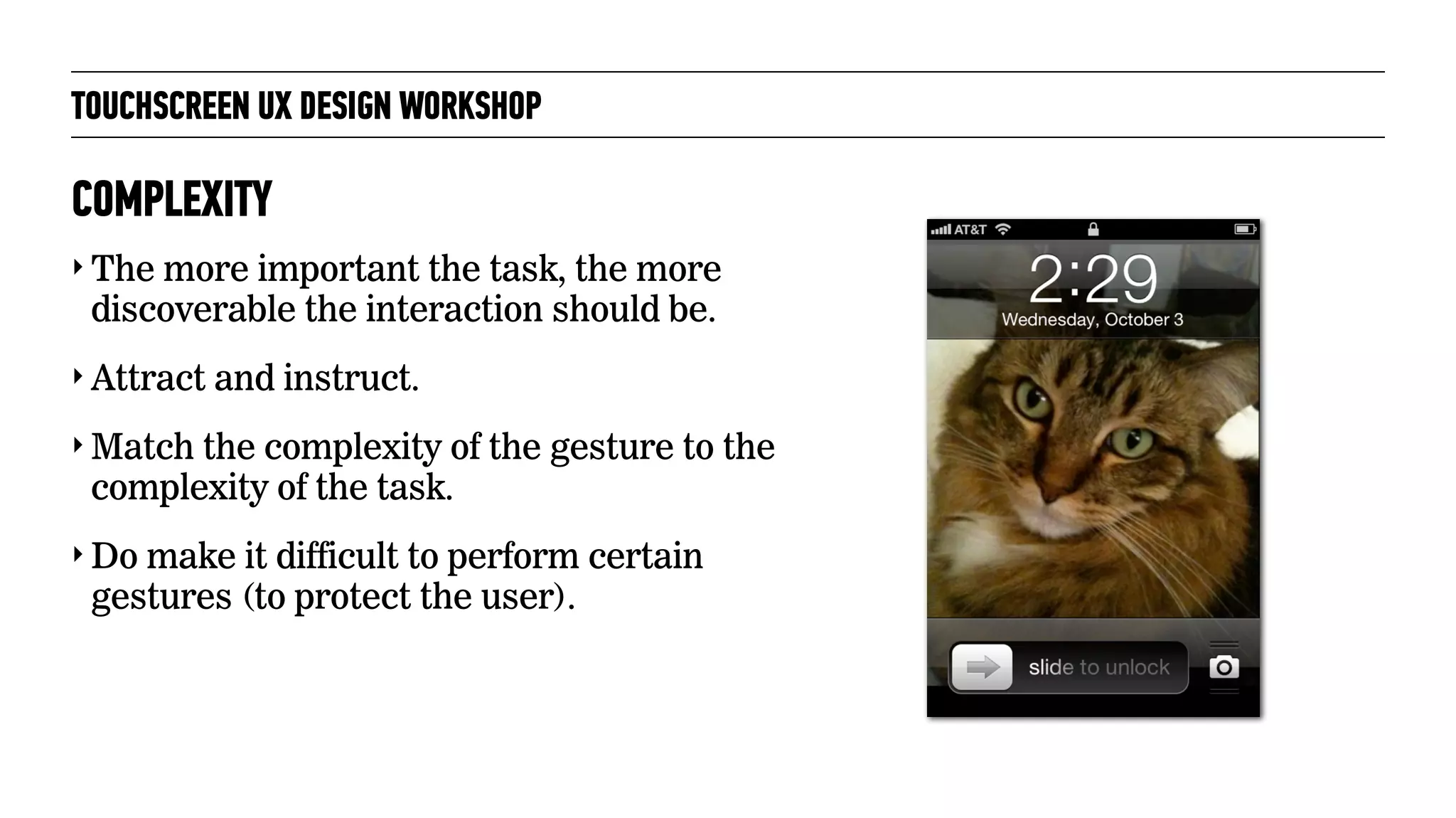

- 77. TOUCHSCREEN UX DESIGNWORKSHOP ‣ The more important the task, the more discoverable the interaction should be. ‣ Attract and instruct. ‣ Match the complexity of the gesture to the complexity of the task. ‣ Do make it difficult to perform certain gestures (to protect the user). COMPLEXITY
- 78. MULTITOUCH / GESTURE EXERCISE! TOUCHSCREENUX DESIGN WORKSHOP Photograph: Janet Ramsden/flickr, Creative Commons license 2.0
- 79. TOUCHSCREEN UX DESIGNWORKSHOP ‣ You’re working on a tablet app for creating simple architectural drawings. Identify touches and gestures for the following tasks: ‣ Add a window or door on an existing wall ‣ Remove a window or door on an existing wall ‣ Remove a wall to combine two rooms into one ‣ Switch between 2D (floorplan) and 3D (elevation) views ‣ Rotate the 3D view ‣ When in 3D view, make a wall invisible (to see through) and then visible again ‣ Not required: Adding rooms/walls, sizing anything MULTITOUCH / GESTURE EXERCISE
- 80. PROTOTYPING TOUCHSCREEN UX DESIGNWORKSHOP Photograph: William Warby/flickr, Creative Commons license 2.0

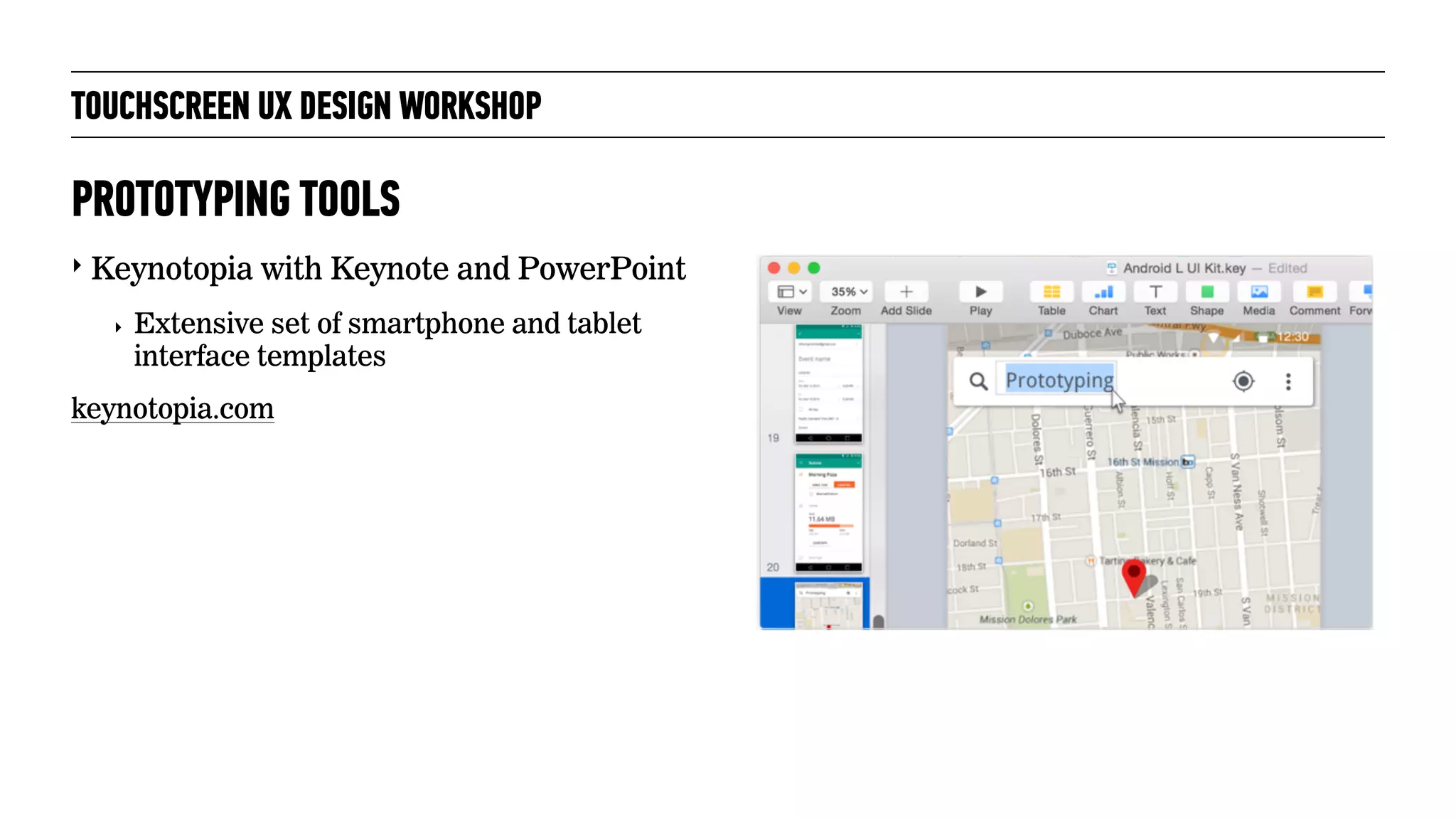

- 81. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Keynotopia with Keynote and PowerPoint ‣ Extensive set of smartphone and tablet interface templates keynotopia.com PROTOTYPING TOOLS

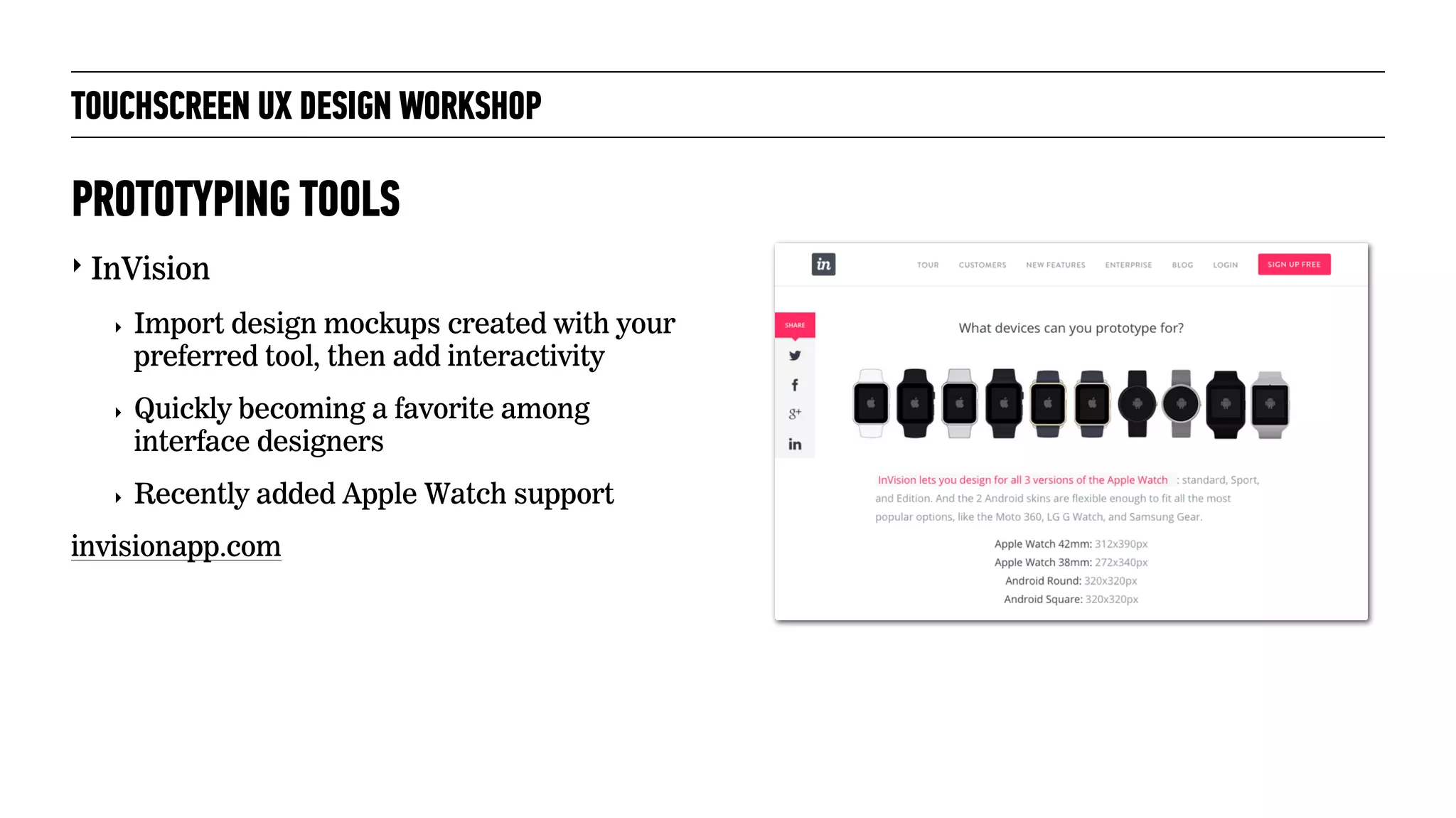

- 82. TOUCHSCREEN UX DESIGNWORKSHOP ‣ InVision ‣ Import design mockups created with your preferred tool, then add interactivity ‣ Quickly becoming a favorite among interface designers ‣ Recently added Apple Watch support invisionapp.com PROTOTYPING TOOLS

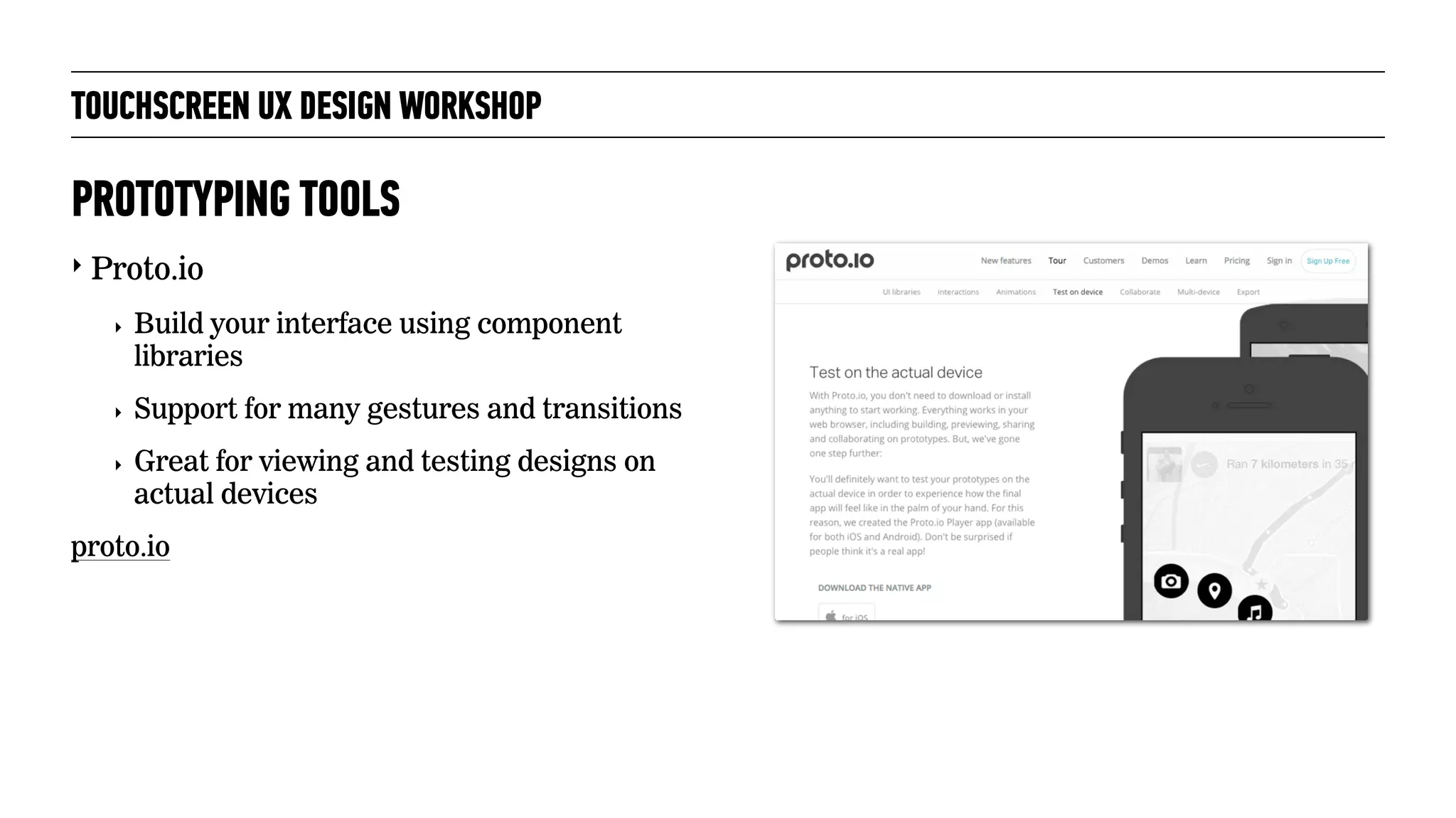

- 83. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Proto.io ‣ Build your interface using component libraries ‣ Support for many gestures and transitions ‣ Great for viewing and testing designs on actual devices proto.io PROTOTYPING TOOLS
- 84. CONTINUE LEARNING! TOUCHSCREEN UXDESIGN WORKSHOP Photograph: Faith Goble/flickr, Creative Commons license 2.0

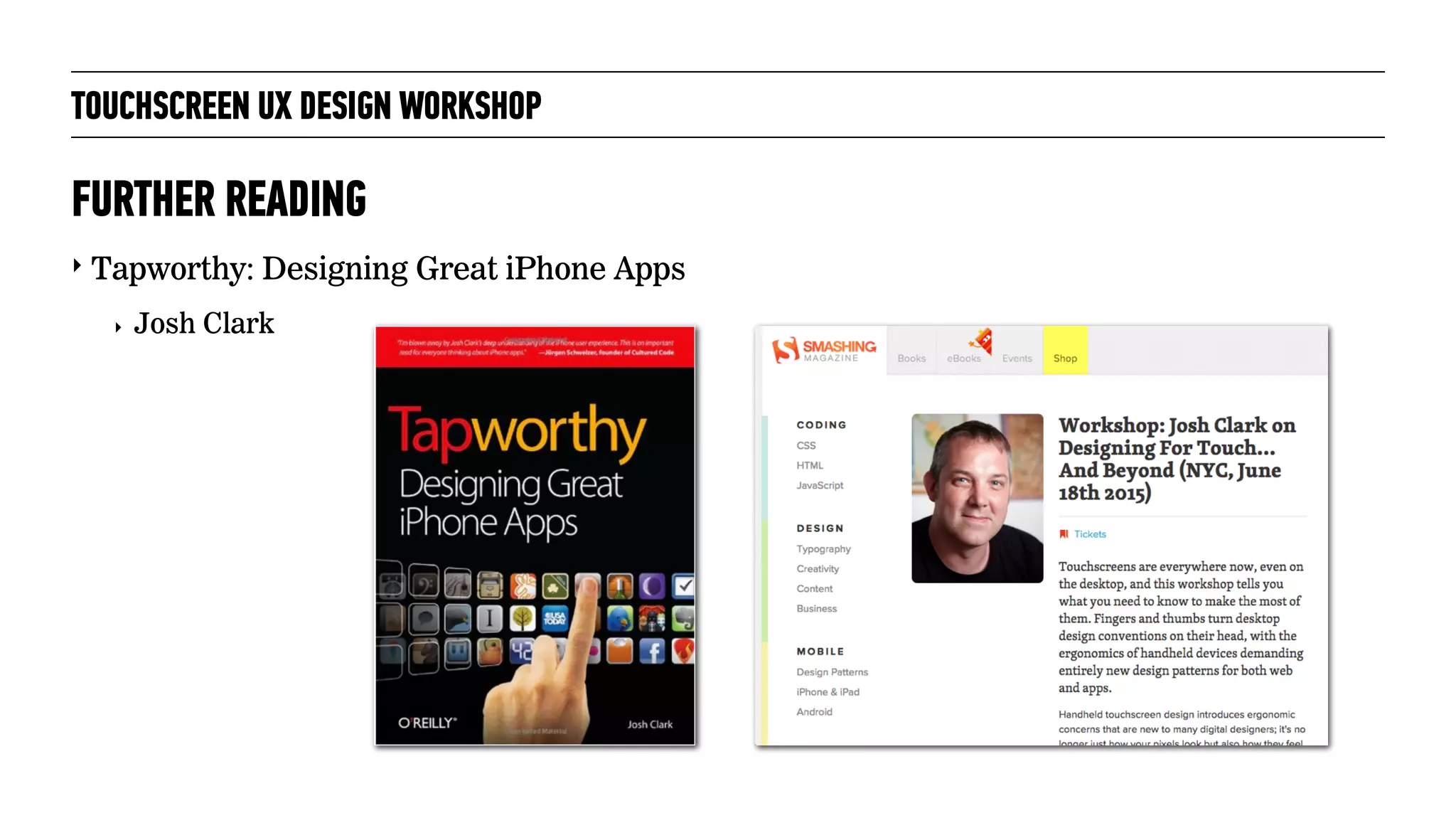

- 85. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Tapworthy: Designing Great iPhone Apps ‣ Josh Clark FURTHER READING

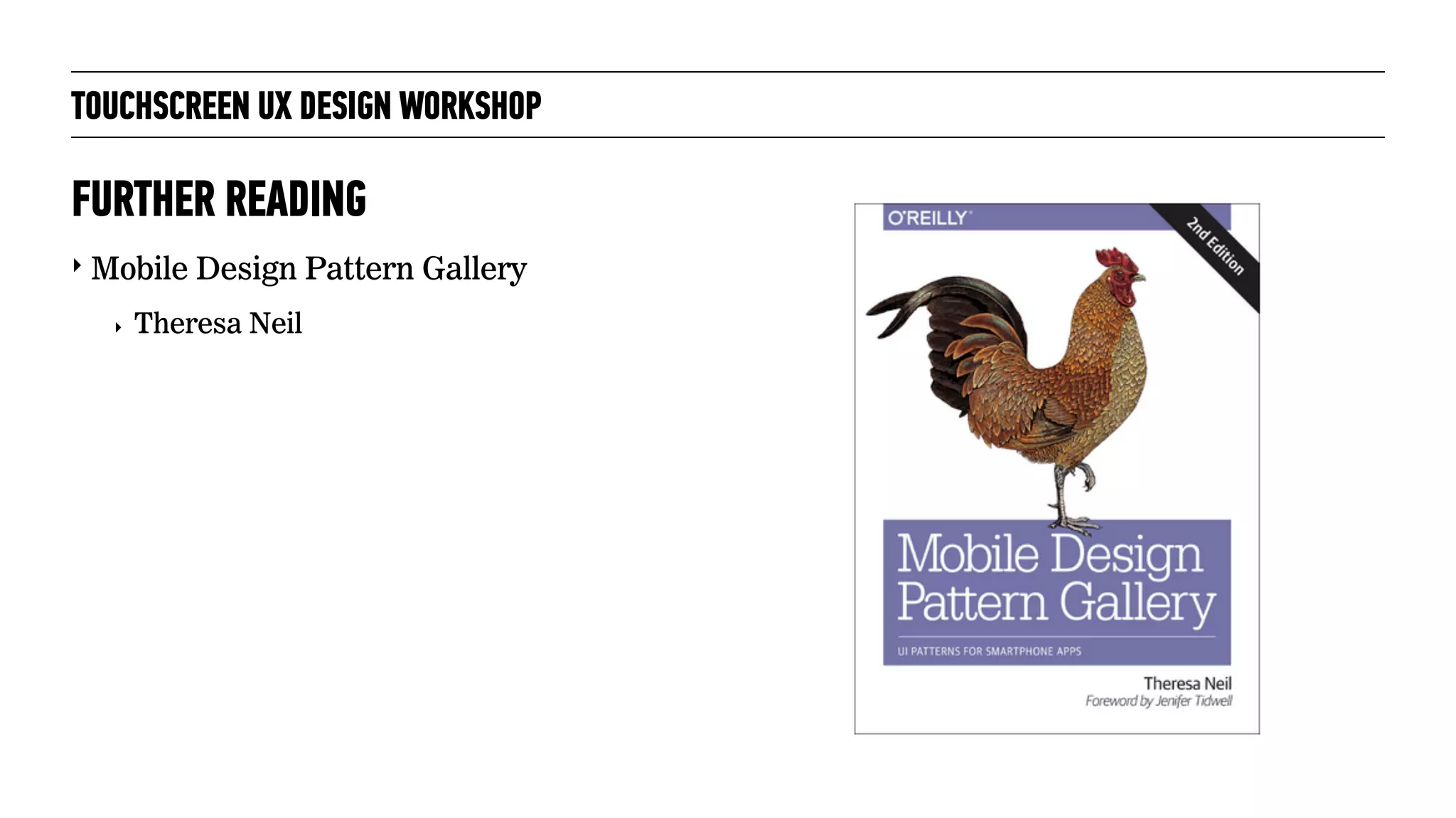

- 86. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Mobile Design Pattern Gallery ‣ Theresa Neil FURTHER READING

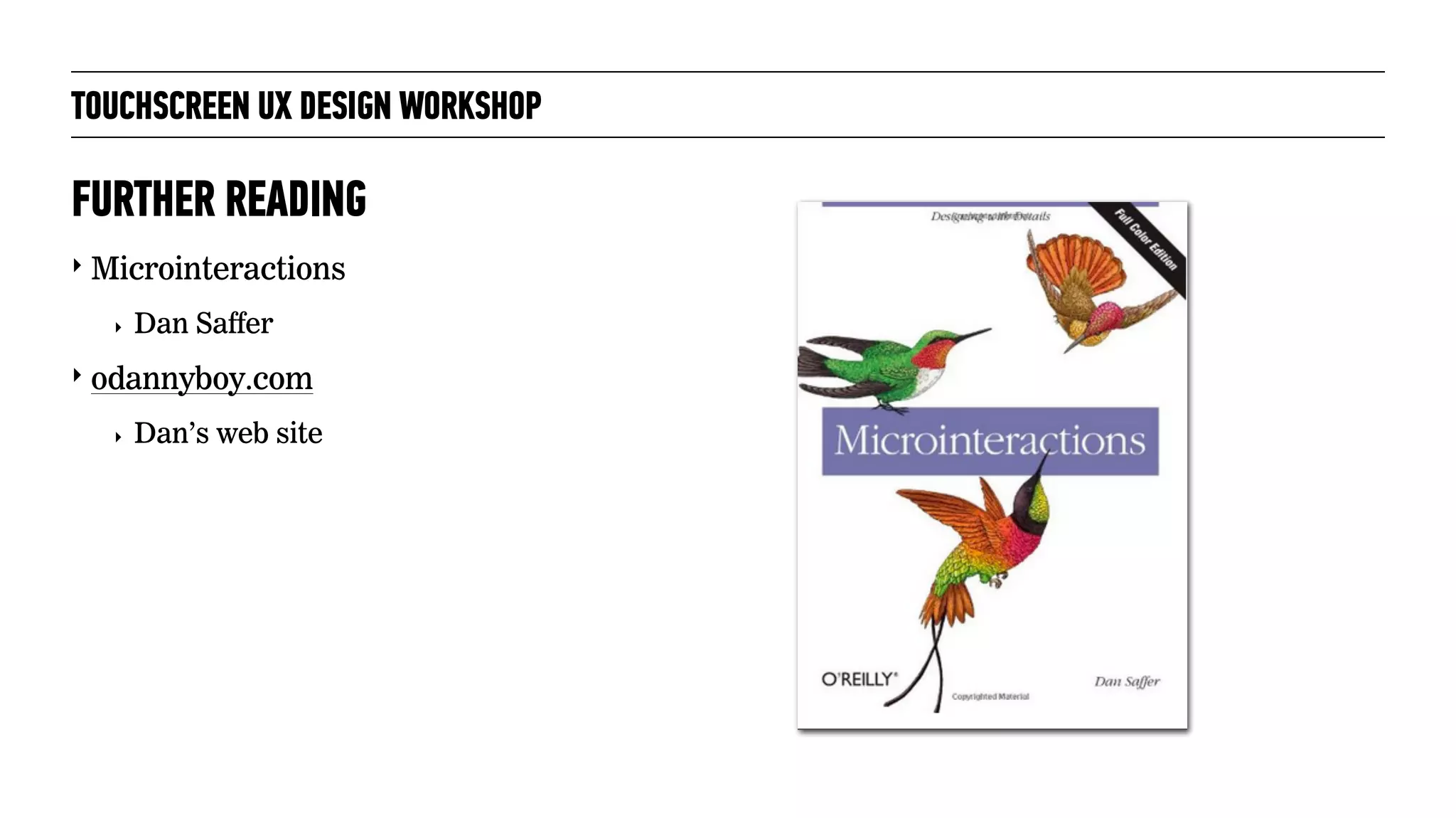

- 87. TOUCHSCREEN UX DESIGNWORKSHOP ‣ Microinteractions ‣ Dan Saffer ‣ odannyboy.com ‣ Dan’s web site FURTHER READING

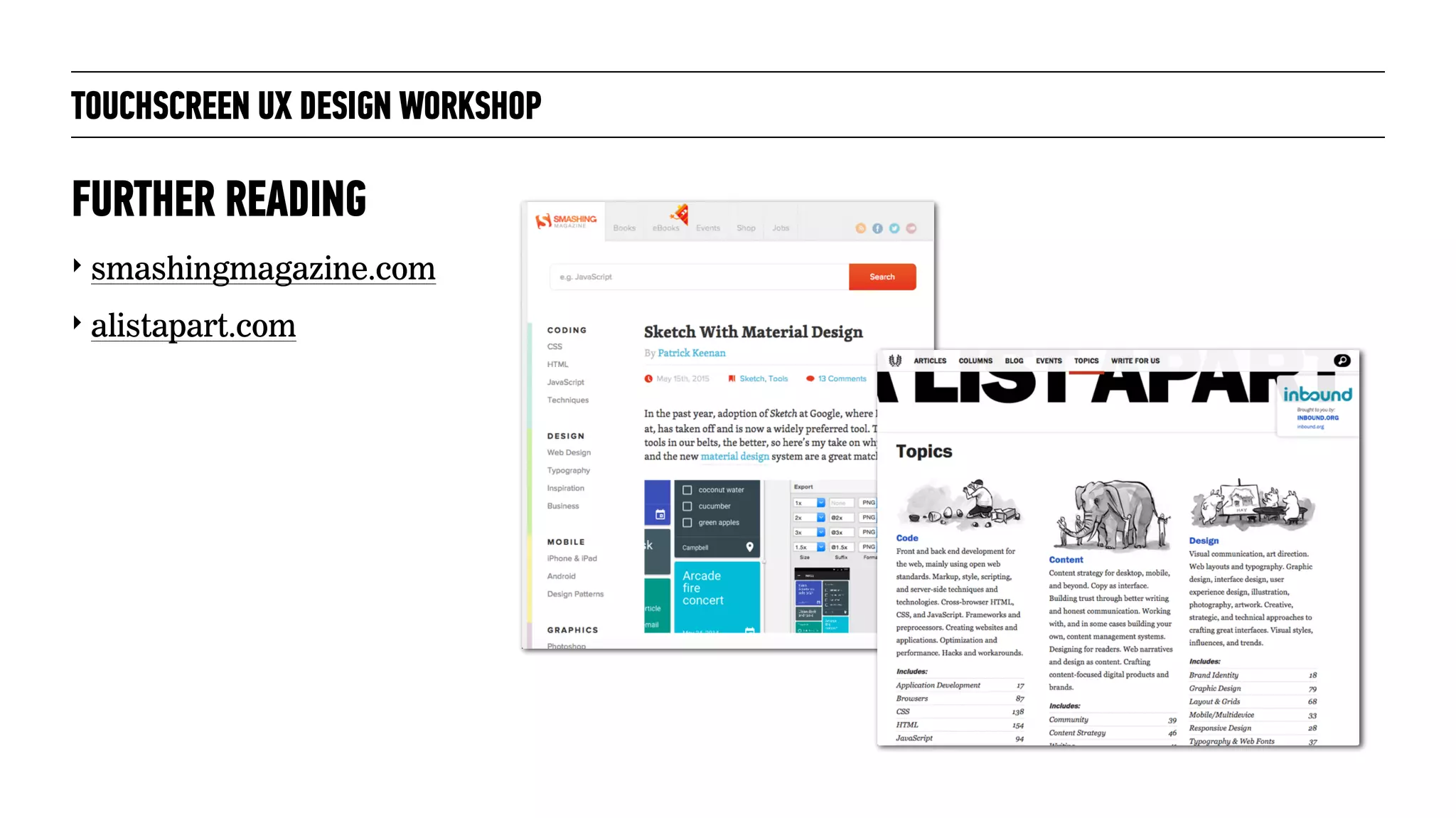

- 88. TOUCHSCREEN UX DESIGNWORKSHOP ‣ smashingmagazine.com ‣ alistapart.com FURTHER READING
