The document proposes two methods for estimating the depth of sound images using direction of arrival (DOA) information extracted from stereo signals. Method 1 estimates depth based on the shape of the DOA distribution modeled using a generalized Gaussian distribution (GGD), where a smoother distribution indicates a source is farther away. Method 2 applies activation-shared nonnegative matrix factorization (NMF) to extract features while maintaining directional information and reduce noise interfering with DOA estimation. Conventional NMF generates artificial fluctuations, while shared activation preserves source direction. An experiment calculates the correlation between estimated and reference depths from 6 datasets containing varying source combinations. Results show the proposed method achieves high correlation, confirming its efficacy over conventional methods

1. Depth Estimation of Sound Images Using
Directional Clustering and Activation-Shared
Nonnegative Matrix Factorization
Tomo Miyauchi, Daichi Kitamura,
Hiroshi Saruwatari, Satoshi Nakamura
(Nara Institute of Science and Technology, Japan)

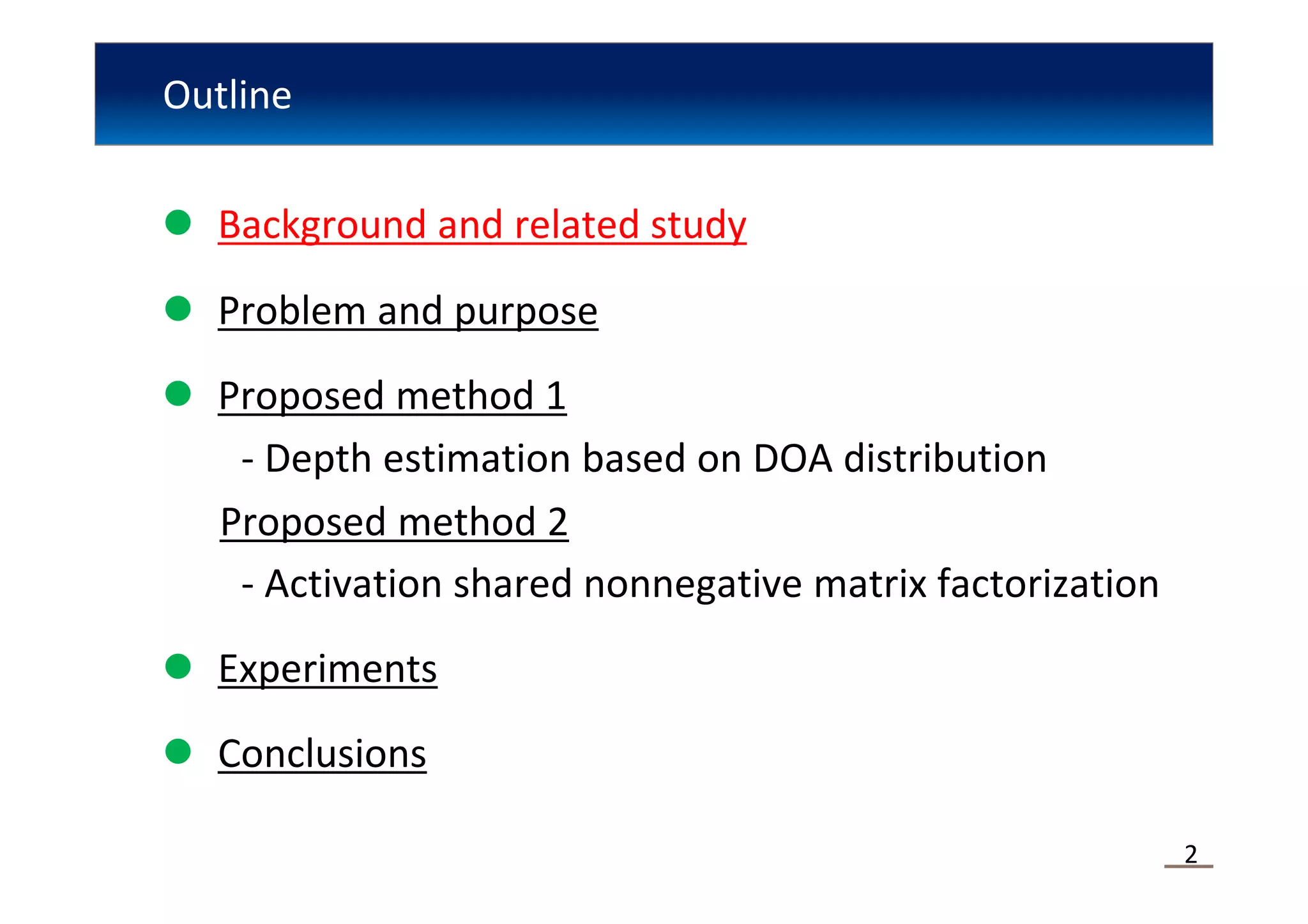

2. Outline
Background and related study
Problem and purpose
Proposed method 1
- Depth estimation based on DOA distribution
Proposed method 2
- Activation shared nonnegative matrix factorization
Experiments
Conclusions
2

3. Background
With the advent of 3D TV, the reproduction of 3D image is realized.
3D sound reproduction system has not been established yet.
Problem
Picture image
Sound image
3D TV
: Sound
Viewer feels uncomfortable due to mismatch of images.
To solve this problem, sound field reproduction technique
have been studied actively.
can present the “direction” and “depth” of
the sound images to the listener.
3

4. Related study: wave field synthesis
Sound field reproduction
WFS requires the primary source
information of sound images.
Representation "depth“
of sound images
1. Individual sound source
2. Localization information
Wave Field Synthesis (WFS)
[A. J. Berkhout, et al., 1993]
WFS allows us to create sound
images at the front of loudspeakers.
…
…
…
These information have been lost in
existing contents by down-mix.
×Drawback of WFS
↓
Up-mixing method are required.
Sound image
1
Source separation
Mixed signal → individual source
2
Listener
Localization estimation of
sound images
4

5. Flow of proposed up-mixer
Spatial sound system using existing contents
Stereo contents
Spatial sound
reproduction
1
Mixed multichannel signal
Conventional
method
Sound source
separation
Wave field
Synthesis
This study
2
Directional
estimation
New depth
Depth
estimation
Depth estimation of sound images has not been proposed
5

6. Related study: directional clustering [Araki, et al., 2007]
Individual sources of each cluster
Mixed stereo signal
: Inverse Fourier transform
L-ch input signal
L-ch input signal
: Fourier transform
L-ch input signal
1
R-ch input signal
R-ch input signal
R-ch input signal
Normalization
：Source component
Clustering
：Spatial representative vector
6

7. Outline
Background and related study
Problem and purpose
Proposed method 1
- Depth estimation based on DOA distribution
Proposed method 2
- Activation-shared multichannel NMF
Experiments
Conclusions
7

8. Problem and purpose
Problem WFS requires specific localization information of
individual sound sources to reproduce a sound field.
Up-mixer
Directional estimation method have been developed.
Directional estimation based on VBAP [Hirata, et al., 2011]
Purpose
Establishing new depth estimation method
How can we get depth information?
Proposed method
Depth estimation method using
direction of arrival (DOA) distribution
8

9. Outline
Background and related study
Problem and purpose
Proposed method 1
- Depth estimation based on DOA distribution
Proposed method 2
- Activation-shared multichannel NMF
Experiments
Conclusions
9

10. Proposed method 1: depth estimation based on DOA
DOA
→ “Direction of arrival” of sound waves
We estimate the depth using the DOA distribution.
Directional clustering
Weighted DOA histogram
Directional information
Amplitude
ratio of
Weighting term
Mixed signal
Frequency of
source components
Magnitude of each vector
Individual sources
Left
Center
Right
Direction of arrival
10

11. Proposed method 1: depth estimation based on DOA
In sound fields, when a sound source is far from the listener, sound waves
arrive from various directions owing to sound diffusion.
Frequency of
Close
source component
Difference of DOA shape corresponding to source distance
Close source
Observed DOA histogram
becomes spiky shape
Frequency of
Far
source component
Direction of arrival
Far source
Observed DOA histogram
becomes smooth shape
Direction of arrival
Observed DOA distribution of the target source
can be used as a cue for depth estimation.
11

12. Proposed method 1: modeling of DOA distribution
To model DOA, we propose a new modeling method using GGD.
Generalized Gaussian distribution: GGD [Box, et al., 1973]
Flexible family of probability
density function (PDF)
Shape of GGD changes
depending on βshape.
βshape = 2: Gaussian
distribution PDF
βshape = 1: Laplacian
distribution PDF
Definition of GGD
12

13. Proposed method 1: modeling of DOA distribution
Modeling of DOA distribution based on GGD parameter
Frequency of
source components
Close
Far
Direction of arrival
We propose a new depth estimation based on GGD.
Shape parameter βshape
is utilized as metric.
Source is close ⇔ βshape is small
Source is Far ⇔ βshape is large
13

14. Proposed method 2： problem in proposed method 1
Normalization problem
Small noise components
are enhanced.
× Problem of
L-ch
signal processing
R-ch
L-ch input signal
Frequency of
source components
Left
Binaural – recorded
R-ch input signal
Center
Right
Noise
DOA
Background noise and artificial distortion generated
by signal processing interfere with DOA histogram.
Feature extraction
Activation-shared multichannel NMF
14

15. Outline
Background and related study
Problem and purpose
Proposed method 1
- Depth estimation based on DOA distribution
Proposed method 2
- Activation-shared multichannel NMF
Experiments
Conclusions
15

16. Proposed method 2: activation-shared multichannel NMF
Nonnegative matrix factorization: NMF [Lee, et al., 2001]
Frequency
Frequency
Amplitude
— is a sparse representation.
— can extract significant features from the observed matrix.
Time
Observed matrix
(Spectrogram)
Time
Amplitude
Activation matrix
(Time-varying gain)
Basis matrix
(Spectral patterns)
Ω: Number of frequency bins
: Number of time frames
: Number of bases
The sparse representation provides high performance
for noise reduction, compression, and feature extraction.
We eliminate background noise and artificial distortion.
16

17. Proposed method 2: problem of conventional NMF
Conventional NMF
Directional
information
L-ch
NMF
NMFs are
applied in
parallel
R-ch
NMF
Conventional NMFs
generate an artificial
fluctuation.
Bases are trained
uncorrelated.
Amplitude
ratio
DOA information
is disturbed.
17

18. Proposed method 2: activation-shared multichannel NMF
Proposed method
Activation-shared multichannel NMF
NMF
Activation matrix
is shared through
all channels
R-ch
This reduces dimensionality of
input signal while maintaining
directional information.
L-ch
NMF
Cost function
: cost function,
: β-divergence,
: entries of matrices
18

19. Proposed method 2: activation-shared multichannel NMF
- divergence [Eguchi, et al., 2001]
Generalized divergence of variable
corresponding to .
: Euclidean distance
: Generalized Kullback-Leibler divergence
: Itakura–Saito divergence
19

20. Proposed method 2: activation-shared multichannel NMF
Derivation of optimal variables
Auxiliary function method is an optimization
scheme that uses the upper bound function.
1. Design the auxiliary function for
as
.
2. Minimize the original cost functions indirectly
by minimizing the auxiliary functions.
Using
-divergence
20

21. Proposed method 2: activation-shared multichannel NMF
Cost function
The first and second terms become convex or concave
functions with respect to value.
concave
convex
convex
concave
concave
convex
21

22. Proposed method 2: activation-shared multichannel NMF
Cost function
Upper bound function of each term is defined by applying
Convex: Jensen’s inequality
Concave: tangent line inequality
: Convex
function
: Concave
function
22

23. Proposed method 2: activation-shared multichannel NMF
The update rules for optimization are obtained from the
derivative of auxiliary function w.r.t. each objective variable.
Update rules
‫ﰀﰀ‬
are entries
of matrices
.
23

24. Frequency of
source components
Flow of proposed depth estimation method
Input stereo signal
R-ch
L-ch
STFT
Direction of arrival
Cluster L
Cluster C
Cluster R
Activation- Activation- Activationshared NMF shared NMF shared NMF
Depth
estimation
Depth
estimation
Depth
estimation
We can estimate depth information by
calculate shape parameter of DOA histogram.
Direction of arrival
Frequency of
source components
‫ﰀﰀ‬
Frequency of
source components
Weighted DOA histogram
Direction of arrival
24

25. Outline
Background and related study
Problem and purpose
Proposed method 1
- Depth estimation based on DOA distribution
Proposed method 2
- Activation-shared multichannel NMF
Experiments
Conclusions
25

26. Experimental conditions
Conditions
Mixing source parameter
Test source 1
Test source 2
Test source 3
: Target source
Reverberation time
intervals
NMF beta
: Interference source
NMF basis
at
Mixed stereo signals
consist of 3 instruments.
Conventional
method 1
Target source is located
center with 7 distances.
Conventional
Processed by conventional NMF
method 2
Combination related to
direction is 6 patterns.
Proposed
method
Weighted DOA histogram
（Not processed by NMF）
Processed by proposed NMF
26

27. Experimental conditions
Image method
[Allen, et al., 1979]
Geometry of image method
Real source
Technique of simulating
room impulse response
Image source
Volume of room
Source location
Microphone location
Absorption coefficient
Example of room impulse response
Reference sound sources
were generated using
image method.
Amplitude
– can be set arbitrarily
Time index
27

28. Experimental results
Results 1
: Target source
‫ﰀ‬ҏ
: Interference source
Data set 1
Target source: Vocal
Interference source (left): Piano
Interference source (right): Guitar
・ Results of conventional methods have no agreement with the oracle (image method).
・ Results of proposed method correctly estimates distance of the target source.
28

29. Experimental results: correlation coefficient
Results 2
Correlation coefficient
between reference value
and estimated value
Table Correlation coefficient of each method
Data set
1
2
3
4
5
6
‫ﰀ‬ҏ
Target source
Interference source (left)
Interference source (right)
Vocal
Piano
Guitar
Vocal
Guitar
Piano
Guitar
Piano
Vocal
Guitar
Vocal
Piano
Piano
Vocal
Guitar
Piano
Guitar
Vocal
Conventional method 1
Conventional method 2
Proposed method
0.350
0.189
0.986
0.532
0.165
0.925
0.154
0.044
0.777
0.277
-0.037
0.651
0.602
0.426
0.791
0.496
0.157
0.856
• Strong relation between the estimated value of proposed
method and the distance of the target source is indicated.
• The efficacy of the proposed method is confirmed.
29

30. Conclusions
We proposed a new depth estimation method of
sound source in mixed signal using the shape of DOA
distribution.
The shape of DOA distribution is modeling by GGD.
We also proposed a new feature extraction method
for the multichannel signal, activation-shared
multichannel NMF.
The result of the experiment indicated the efficacy of
the proposed method.
30

31. 䩐
31

32. Derivation of parameter βshape
×The maximum-likelihood based shape parameter
estimation has no closed-form solution in GGD.
we propose a closed-form parameter estimation
algorithm based on some approximation and kurtosis.
Kurtosis of DOA histogram
th moment of GGD
Relation equation of kurtosis and shape parameter
: Observed DOA histogram
: Gamma function
32

33. Derivation of parameter βshape
×There is no exact closed-form solution of the inverse function.
Introduce Modified String’s formula Approximation of
gamma function
Modified Stirling's formula
‫ﰀﰀ‬
Take a logarithm
33

34. Derivation of parameter βshape
This results in the following quadratic equation of
to be solved
we can derive the closed-form estimation
‫ﰀﰀ‬
closed-form estimate of shape parameter
Preparation of depth estimation method is completed.
34

35. Proposed method 2: activation-shared multichannel NMF
Preliminary experiment
Example of
DOA histogram
Weighted
DOA histogram
Direction of arrival [degree]
(Individually applied)
conventional NMF
Fluctuation are
generated in DOA
‫ﰀﰀ‬
L-ch
NMF
R-ch
NMF
Direction of arrival [degree]
(Activation-shared)
proposed NMF
Feature extraction
while maintaining
directional information
Center cluster DOA
of mixed source
(3 instrument)
L-ch
NMF
R-ch
NMF
Direction of arrival [degree]
35
