1. Drupal @ SF State 2011
Continuous Integration
Emanuele Quinto and Supakit Kiatrungrit (Nat)
Identity Management/Portal

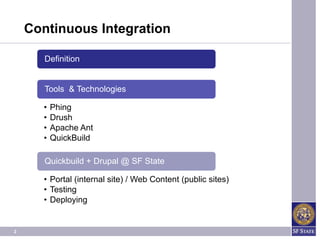

2. Continuous Integration
Definition
Tools & Technologies
• Phing
• Drush
• Apache Ant
• QuickBuild
Quickbuild + Drupal @ SF State
• Portal (internal site) / Web Content (public sites)
• Testing
• Deploying
2

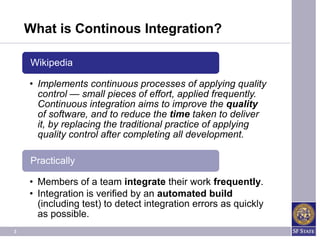

3. What is Continous Integration?
Wikipedia
• Implements continuous processes of applying quality
control — small pieces of effort, applied frequently.
Continuous integration aims to improve the quality
of software, and to reduce the time taken to deliver
it, by replacing the traditional practice of applying
quality control after completing all development.
Practically
• Members of a team integrate their work frequently.
• Integration is verified by an automated build
(including test) to detect integration errors as quickly
as possible.
3

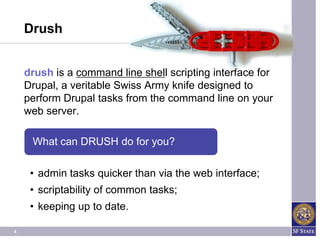

4. Drush
drush is a command line shell scripting interface for
Drupal, a veritable Swiss Army knife designed to
perform Drupal tasks from the command line on your
web server.
What can DRUSH do for you?
• admin tasks quicker than via the web interface;
• scriptability of common tasks;
• keeping up to date.
4

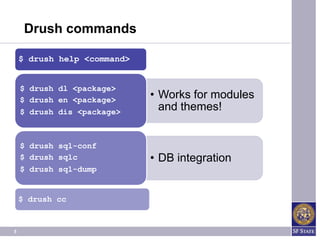

5. Drush commands
$ drush help <command>
$ drush dl <package>
$ drush en <package>
• Works for modules
$ drush dis <package>
and themes!
$ drush sql-conf
$ drush sqlc • DB integration
$ drush sql-dump
$ drush cc
5

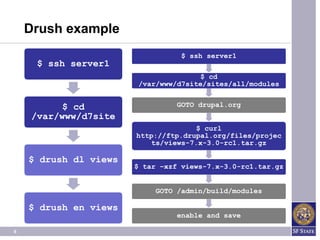

6. Drush example
$ ssh server1
$ ssh server1
$ cd
/var/www/d7site/sites/all/modules
$ cd GOTO drupal.org
/var/www/d7site
$ curl
http://ftp.drupal.org/files/projec
ts/views-7.x-3.0-rc1.tar.gz
$ drush dl views
$ tar –xzf views-7.x-3.0-rc1.tar.gz
GOTO /admin/build/modules
$ drush en views
enable and save
6

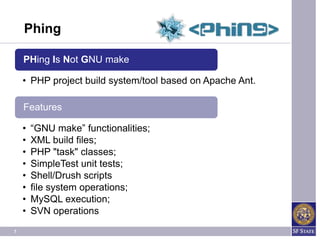

7. Phing
PHing Is Not GNU make
• PHP project build system/tool based on Apache Ant.
Features
• “GNU make” functionalities;
• XML build files;
• PHP "task" classes;
• SimpleTest unit tests;
• Shell/Drush scripts
• file system operations;
• MySQL execution;
• SVN operations
7

8. Phing example (1)
<copy todir=“build”>
<fileset defaultexcludes="false"
expandsymboliclinks="true"
• File System Task
dir=".">
<include name="**/*.php" />
</fileset>
</copy>
<simpletest todir="results">
<formatter type="plain"/>
<fileset dir="tests">
<include name="**/*Test*.php"/>
• Simple Test Task
<exclude name="**/Abstract*.php"/>
</fileset>
</simpletest>
8

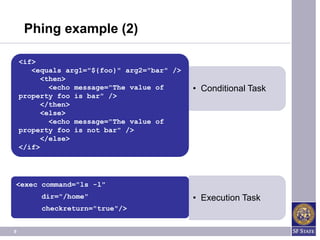

9. Phing example (2)
<if>
<equals arg1="${foo}" arg2="bar" />
<then>
<echo message="The value of • Conditional Task
property foo is bar" />
</then>
<else>
<echo message="The value of
property foo is not bar" />
</else>
</if>
<exec command="ls -l"
dir="/home" • Execution Task
checkreturn="true"/>
9

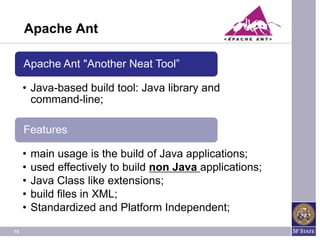

10. Apache Ant
Apache Ant "Another Neat Tool”
• Java-based build tool: Java library and
command-line;
Features
• main usage is the build of Java applications;
• used effectively to build non Java applications;
• Java Class like extensions;
• build files in XML;
• Standardized and Platform Independent;
10

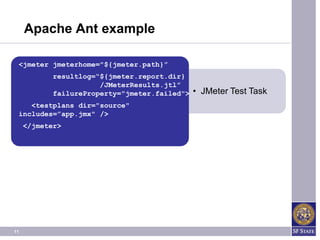

11. Apache Ant example
<jmeter jmeterhome="${jmeter.path}”
resultlog=“${jmeter.report.dir}
/JMeterResults.jtl”
failureProperty="jmeter.failed"> • JMeter Test Task
<testplans dir="source"
includes=”app.jmx" />
</jmeter>
11

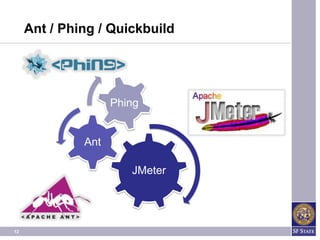

12. Ant / Phing / Quickbuild
Phing
Ant
JMeter
12

13. QUICKBUILD
13

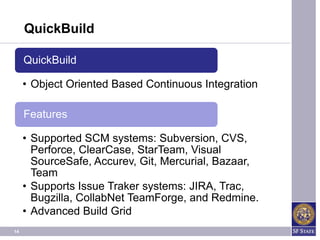

14. QuickBuild
QuickBuild
• Object Oriented Based Continuous Integration
Features
• Supported SCM systems: Subversion, CVS,
Perforce, ClearCase, StarTeam, Visual
SourceSafe, Accurev, Git, Mercurial, Bazaar,
Team
• Supports Issue Traker systems: JIRA, Trac,
Bugzilla, CollabNet TeamForge, and Redmine.
• Advanced Build Grid
14

15. QuickBuild
Features
• Native support for mainstream code
inspection and coverage tools, including
checkstyle, findbugs, emma, pmd, and
cobertura.
• Extensible via Plugins and RESTful API
• Proof Build
• Support to notify through: RSS, Email,
MSN Messenger, Google Talk, Jabber,
and the cross-platform tray monitor.
• Customizable User Dashboards
15

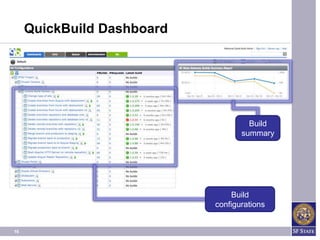

16. QuickBuild Dashboard
Build
summary
Build
configurations
16

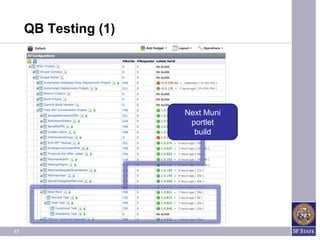

17. QB Testing (1)
Next Muni
portlet
build
17

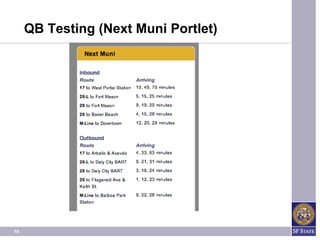

18. QB Testing (Next Muni Portlet)
18

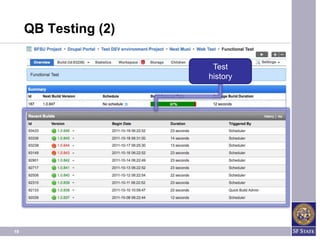

19. QB Testing (2)
Test
history
19

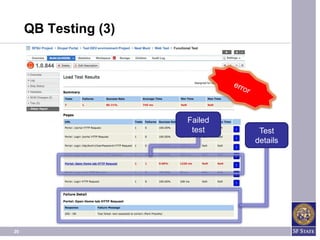

20. QB Testing (3)
Failed
test Test
details
20

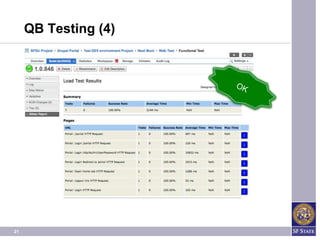

21. QB Testing (4)
21

22. PORTAL DEPLOYMENT
22

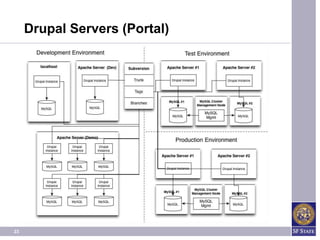

23. Drupal Servers (Portal)
23

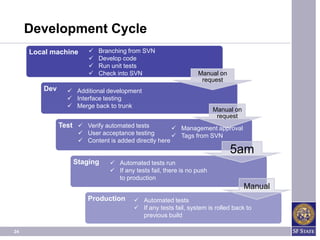

24. Development Cycle
Local machine  Branching from SVN
 Develop code
 Run unit tests
 Check into SVN Manual on
request
Dev  Additional development
 Interface testing
 Merge back to trunk
Manual on
request
Test  Verify automated tests  Management approval
 User acceptance testing  Tags from SVN
 Content is added directly here
5am
Staging  Automated tests run
 If any tests fail, there is no push
to production
Manual
Production  Automated tests
 If any tests fail, system is rolled back to
previous build
24

25. Deployment (1)
Portal
deployment
25

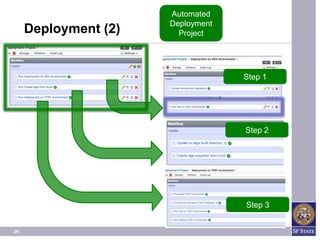

26. Automated
Deployment
Deployment (2) Project
Step 1
Step 2
Step 3
26

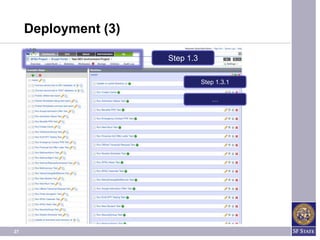

27. Deployment (3)
Step 1.3
Step 1.3.1
…
27

28. WEB CONTENT DEPLOYMENT
28

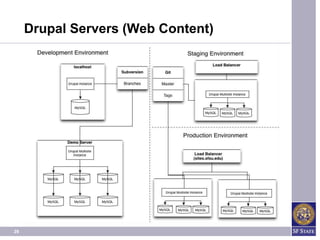

29. Drupal Servers (Web Content)
29

30. Acquia
Server
management
30

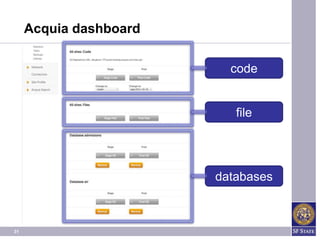

31. Acquia dashboard
code
file
databases
31

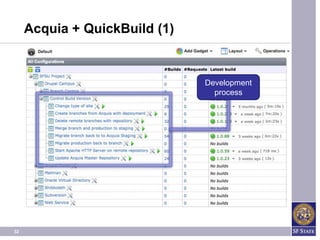

32. Acquia + QuickBuild (1)
Development
process
32

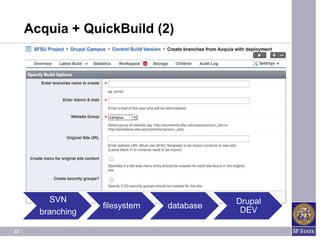

33. Acquia + QuickBuild (2)
SVN Drupal
filesystem database
branching DEV
33

34. Acquia + QuickBuild (3)
Drupal GIT
filesystem database
DEV merging
34

35. Q&A
THANK YOU
35

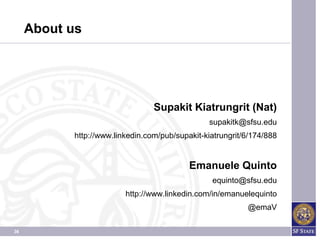

36. About us
Supakit Kiatrungrit (Nat)
supakitk@sfsu.edu
http://www.linkedin.com/pub/supakit-kiatrungrit/6/174/888
Emanuele Quinto
equinto@sfsu.edu
http://www.linkedin.com/in/emanuelequinto
@emaV
36
