Phing101 or How to staff a build orchestra

Phing 101 / How to staff a build orchestra #phpuceu11

Sonntag, 20. Februar 2011

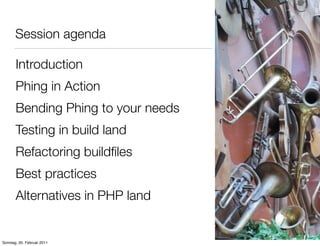

Session agenda

Introduction
Phing in Action
Bending Phing to your needs
Testing in build land
Refactoring buildﬁles
Best practices
Alternatives in PHP land

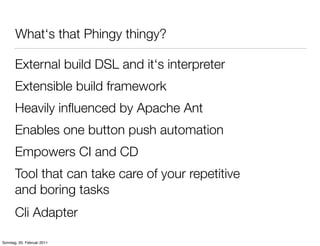

What‘s that Phingy thingy?

External build DSL and it‘s interpreter
Extensible build framework
Heavily inﬂuenced by Apache Ant
Enables one button push automation
Empowers CI and CD
Tool that can take care of your repetitive
and boring tasks
Cli Adapter

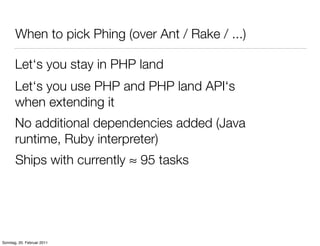

When to pick Phing (over Ant / Rake / ...)

Let‘s you stay in PHP land
Let‘s you use PHP and PHP land API‘s
when extending it
No additional dependencies added (Java
runtime, Ruby interpreter)
Ships with currently ≈ 95 tasks


Installing the conductor

$ pear channel-discover pear.phing.info

$ pear install phing/phing

$ pear install -a phing/phing

$ phing -v

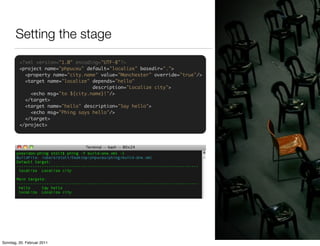

Setting the stage
<?xml version="1.0" encoding="UTF-8"?>
<project name="phpuceu" default="localize" basedir=".">
<property name="city.name" value="Manchester" override="true"/>
<target name="localize" depends="hello"
description="Localize city">
<echo msg="to ${city.name}!"/>
</target>
<target name="hello" description="Say hello">
<echo msg="Phing says hello"/>
</target>
</project>

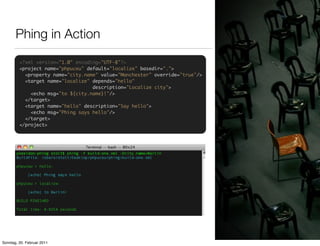

Phing in Action
<project name="phpuceu" default="localize" basedir=".">
<property name="city.name" value="Manchester" override="true"/>
<target name="localize" depends="hello"
description="Localize city">
<echo msg="to ${city.name}!"/>
</target>
<target name="hello" description="Say hello">
<echo msg="Phing says hello"/>
</target>
</project>

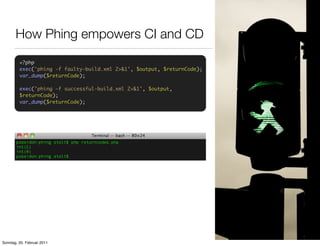

How Phing empowers CI and CD
<?php
exec('phing -f faulty-build.xml 2>&1', $output, $returnCode);
var_dump($returnCode);

exec('phing -f successful-build.xml 2>&1', $output,
$returnCode);
var_dump($returnCode);


How Phing empowers CI and CD


Why / when to automate

Identify repetitive, error-prone, and
boring tasks
Avoid repeated man tool and
tool --help look ups
Have a simple Cli Adapter, to
avoid the ‘bash hustle™‘
Save time, increase efﬁciency


Picking your orchestra staff

Get to know the official Phing
guide
Pick the tasks suitable for your
identified problem domain
Bundle them in callable targets
Define the orchestration flow

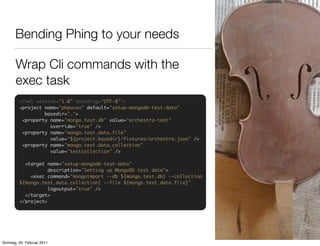

Wrap Cli commands with the
exec task
<project name="phpuceu" default="setup-mongodb-test-data"
basedir=".">
<property name="mongo.test.db" value="orchestra-test"
override="true" />
<property name="mongo.test.data.file"
value="${project.basedir}/fixtures/orchestra.json" />
<property name="mongo.test.data.collection"
value="testcollection" />

<target name="setup-mongodb-test-data"
description="Setting up MongoDb test data">
<exec command="mongoimport --db ${mongo.test.db} --collection
${mongo.test.data.collection} --file ${mongo.test.data.file}"
logoutput="true" />
</target>
</project>

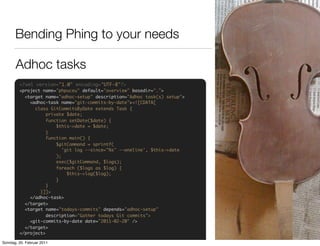

Adhoc tasks
<project name="phpuceu" default="overview" basedir=".">
<target name="adhoc-setup" description="Adhoc task(s) setup">
<adhoc-task name="git-commits-by-date"><![CDATA[
class GitCommitsByDate extends Task {
private $date;
function setDate($date) {
$this->date = $date;
}
function main() {
$gitCommand = sprintf(
'git log --since="%s" --oneline', $this->date
);
exec($gitCommand, $logs);
foreach ($logs as $log) {
$this->log($log);
}
}
}]]>
</adhoc-task>
</target>
<target name="todays-commits" depends="adhoc-setup"
description="Gather todays Git commits">
<git-commits-by-date date="2011-02-20" />
</target>
</project>

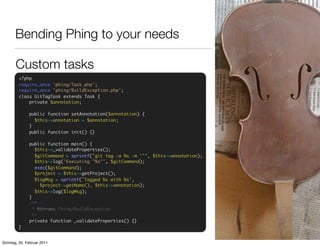

Custom tasks
<?php
require_once 'phing/Task.php';
require_once 'phing/BuildException.php';
class GitTagTask extends Task {
private $annotation;

public function setAnnotation($annotation) {
$this->annotation = $annotation;
}
public function init() {}

public function main() {
$this->_validateProperties();
$gitCommand = sprintf("git tag -a %s -m ''", $this->annotation);
$this->log('Executing "%s"', $gitCommand);
exec($gitCommand);
$project = $this->getProject();
$logMsg = sprintf('Tagged %s with %s',
$project->getName(), $this->annotation);
$this->log($logMsg);
}
/**
* @throws Phing/BuildException
*/
private function _validateProperties() {}
}



Using custom tasks
<project name="phpuceu" default="build" basedir=".">
<taskdef name="git-tag" classname="phing-tasks.GitTagTask" />
<property name="tagable.build" value="false" override="true" />
<property name="tag.annotation" value="" override="true" />

<target name="-tag-project">
<if>
<equals arg1="${tagable.build}" arg2="true" />
<then>
<git-tag annotation="${tag.annotation}"/>
</then>
<else>
<echo message="Skipping project tagging" />
</else>
</if>
</target>

<target name="build" depends="inspect,test,-tag-project">
<echo msg="Building..." />
</target>

<target name="inspect">
<echo msg="Inspecting..." />
</target>

<target name="test">
<echo msg="Testing..." />
</target>
</project>

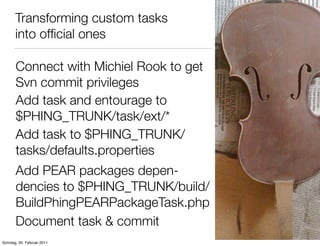

Transforming custom tasks
into ofﬁcial ones

Connect with Michiel Rook to get
Svn commit privileges
Add task and entourage to
$PHING_TRUNK/task/ext/*
Add task to $PHING_TRUNK/
tasks/defaults.properties
Add PEAR packages depen-
dencies to $PHING_TRUNK/build/
BuildPhingPEARPackageTask.php
Document task & commit

Crafting custom build listeners

Implement Phing‘s BuildListener
interface
Make it known to the Phing Cli at
runtime with the -logger option
To use it permanently add it to the
Phing bash script

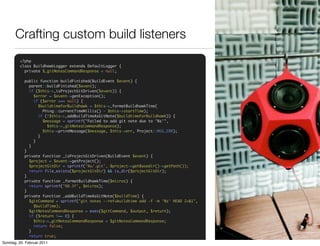

Crafting custom build listeners
<?php
class BuildhawkLogger extends DefaultLogger {
private $_gitNotesCommandResponse = null;

public function buildFinished(BuildEvent $event) {
parent::buildFinished($event);
if ($this->_isProjectGitDriven($event)) {
$error = $event->getException();
if ($error === null) {
$buildtimeForBuildhawk = $this->_formatBuildhawkTime(
Phing::currentTimeMillis() - $this->startTime);
if (!$this->_addBuildTimeAsGitNote($buildtimeForBuildhawk)) {
$message = sprintf("Failed to add git note due to '%s'",
$this->_gitNotesCommandResponse);
$this->printMessage($message, $this->err, Project::MSG_ERR);
}
}
}
}
private function _isProjectGitDriven(BuildEvent $event) {
$project = $event->getProject();
$projectGitDir = sprintf('%s/.git', $project->getBasedir()->getPath());
return file_exists($projectGitDir) && is_dir($projectGitDir);
}
private function _formatBuildhawkTime($micros) {
return sprintf("%0.3f", $micros);
}
private function _addBuildTimeAsGitNote($buildTime) {
$gitCommand = sprintf("git notes --ref=buildtime add -f -m '%s' HEAD 2>&1",
$buildTime);
$gitNotesCommandResponse = exec($gitCommand, $output, $return);
if ($return !== 0) {
$this->_gitNotesCommandResponse = $gitNotesCommandResponse;
return false;
}
return true;
Sonntag, 20. }
Februar 2011

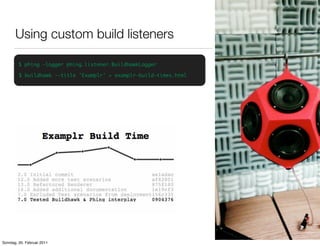

Using custom build listeners

$ phing -logger phing.listener.BuildhawkLogger

$ buildhawk --title 'Examplr' > examplr-build-times.html

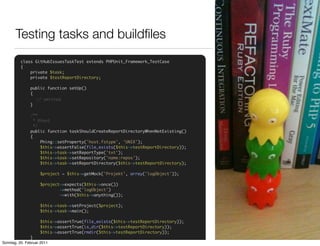

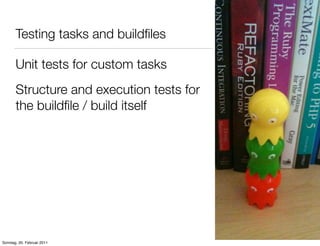

Testing tasks and buildﬁles

Unit tests for custom tasks
Structure and execution tests for
the buildﬁle / build itself


class GitHubIssuesTaskTest extends PHPUnit_Framework_TestCase {

private $task;
private $testReportDirectory;

Integration, formal tests for the
public function setUp() {
$this->task = new GitHubIssuesTask;

buildﬁle itself
$this->task->init();
$this->testReportDirectory = TEST_DIR
. DIRECTORY_SEPARATOR . 'test-ghi-dir';
}
/**
* @test
* @expectedException BuildException
* @dataProvider nonAcceptedReportTypesProvider
*/
public function taskShouldThrowExceptionOnNonAcceptedReportTypes($type) {
$this->task->setReportType($type);
$this->task->main();
}
* @return array
*/
public function nonAcceptedReportTypesProvider()
{
return array(
array('doc'),
array('vid'),
array('pdf'),
);
}
}


class GitHubIssuesTaskTest extends PHPUnit_Framework_TestCase
{
private $task;
private $testReportDirectory;

Integration, formal tests for the
public function setUp()
{

buildﬁle itself
}
// omitted

/**
* @test
*/
public function taskShouldCreateReportDirectoryWhenNotExisting()
{
Phing::setProperty('host.fstype', 'UNIX');
$this->assertFalse(file_exists($this->testReportDirectory));
$this->task->setReportType('txt');
$this->task->setRepository('name:repos');
$this->task->setReportDirectory($this->testReportDirectory);

$project = $this->getMock('Projekt', array('logObject'));

$project->expects($this->once())
->method('logObject')
->with($this->anything());

$this->task->setProject($project);
$this->task->main();

$this->assertTrue(file_exists($this->testReportDirectory));
$this->assertTrue(is_dir($this->testReportDirectory));
$this->assertTrue(rmdir($this->testReportDirectory));
}
}


/**
* @test
* @group structure
*/
public function buildfileShouldContainACleanTarget() {
$xml = new SimpleXMLElement($this->_buildfileXml);
$cleanElement = $xml->xpath("//target[@name='clean']");
$this->assertTrue(count($cleanElement) === 0,
"Buildfile doesn't contain a clean target");
}



/**

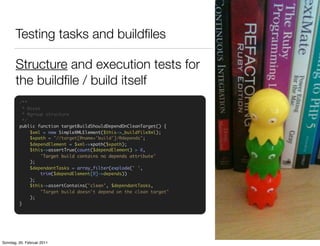

* @test
* @group structure
*/
public function targetBuildShouldDependOnCleanTarget() {
$xml = new SimpleXMLElement($this->_buildfileXml);
$xpath = "//target[@name='build']/@depends";
$dependElement = $xml->xpath($xpath);
$this->assertTrue(count($dependElement) > 0,
'Target build contains no depends attribute'
);
$dependantTasks = array_filter(explode(' ',
trim($dependElement[0]->depends))
);
$this->assertContains('clean', $dependantTasks,
"Target build doesn't depend on the clean target"
);
}



/**

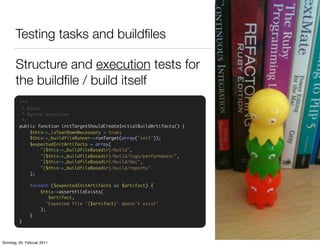

* @test
* @group execution
*/
public function initTargetShouldCreateInitialBuildArtifacts() {
$this->_isTearDownNecessary = true;
$this->_buildfileRunner->runTarget(array('init'));
$expectedInitArtifacts = array(
"{$this->_buildfileBasedir}/build",
"{$this->_buildfileBasedir}/build/logs/performance/",
"{$this->_buildfileBasedir}/build/doc",
"{$this->_buildfileBasedir}/build/reports"
);

foreach ($expectedInitArtifacts as $artifact) {
$this->assertFileExists(
$artifact,
"Expected file '{$artifact}' doesn't exist"
);
}
}

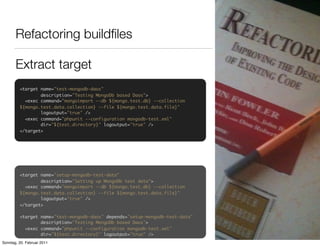

Extract target
<target name="test-mongodb-daos"
description="Testing MongoDb based Daos">
logoutput="true" />
<exec command="phpunit --configuration mongodb-test.xml"
dir="${test.directory}" logoutput="true" />
</target>

<target name="setup-mongodb-test-data"
description="Setting up MongoDb test data">
logoutput="true" />
</target>

<target name="test-mongodb-daos" depends="setup-mongodb-test-data"
description="Testing MongoDb based Daos">
<exec command="phpunit --configuration mongodb-test.xml"
dir="${test.directory}" logoutput="true" />
</target>

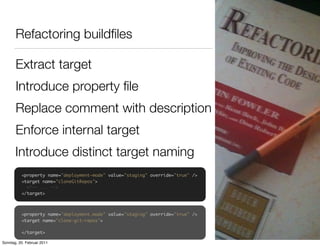

Extract target
Introduce property ﬁle
<property name="mongo.test.db" value="orchestra"
override="true" />
<property name="mongo.test.data.file"
value="${project.basedir}/fixtures/orchestra.json" />
<property name="mongo.test.data.collection"
value="testcollection" />

<property file="mongodb-test.properties" />

+
[mongodb-test.properties]
mongo.test.db=orchestra
mongo.test.data.file=fixtures/orchestra.json
mongo.test.data.collection

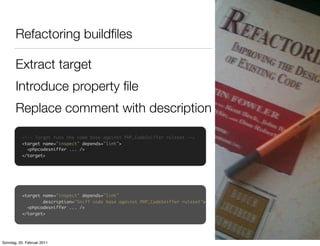

Extract target
Replace comment with description


<target name="inspect" depends="lint">
<phpcodesniffer ... />
</target>

<target name="inspect" depends="lint"
description="Sniff code base against PHP_CodeSniffer ruleset">
<phpcodesniffer ... />
</target>

Extract target
Enforce internal target
<target name="deploy" depends="test-setup, test, smoke-test"
description="Deploys the project into ...">

</target>

<target name="-deploy" depends="test-setup, test, smoke-test"
description="Deploys the project into ...">

</target>

Extract target
Enforce internal target
Introduce distinct target naming
<property name="deployment-mode" value="staging" override="true" />
<target name="cloneGitRepos">

</target>

<property name="deployment.mode" value="staging" override="true" />
<target name="clone-git-repos">

</target>

Best practices

Follow an iterative approach
Apply the Martin Fowler‘s / Don
Roberts “Rule of Three“
Describe your targets
Threat buildfiles as ‘first-class‘
code citizens
Establish a common buildfile
coding standard


Alternatives in PHP land

taskman
pake
phake
<?php
desc("Say hello");
task('hello', function() {
echo 'Phake says hello ';
});

desc("Localize city");
task('localize','hello', function($app) {
$cityName = 'Manchester';
if (isset($app['city.name']) && $app['city.name'] !== '') {
$cityName = $app['city.name'];
}
echo 'to ' . $cityName . '!' . PHP_EOL;
});

task('default', 'localize');


Brought to you by

@raphaelstolt

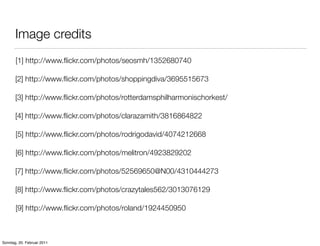

Image credits
[1] http://www.flickr.com/photos/seosmh/1352680740

[2] http://www.flickr.com/photos/shoppingdiva/3695515673

[3] http://www.flickr.com/photos/rotterdamsphilharmonischorkest/

[4] http://www.flickr.com/photos/clarazamith/3816864822

[5] http://www.flickr.com/photos/rodrigodavid/4074212668

[6] http://www.flickr.com/photos/melitron/4923829202

[7] http://www.flickr.com/photos/52569650@N00/4310444273

[8] http://www.flickr.com/photos/crazytales562/3013076129

[9] http://www.flickr.com/photos/roland/1924450950

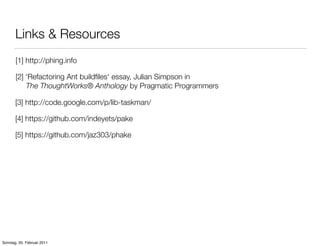

Links & Resources
[1] http://phing.info

[2] ‘Refactoring Ant buildﬁles‘ essay, Julian Simpson in
The ThoughtWorks® Anthology by Pragmatic Programmers

[3] http://code.google.com/p/lib-taskman/

[4] https://github.com/indeyets/pake

[5] https://github.com/jaz303/phake


Phing101 or How to staff a build orchestra

More Related Content

What's hot

Similar to Phing101 or How to staff a build orchestra

Recently uploaded

Phing101 or How to staff a build orchestra
