This document discusses Phing, an open source build tool for PHP projects that is based on Apache Ant. It provides instructions on how to install Phing globally using PEAR or with Composer. It also covers Phing basics like projects, targets, tasks and properties. Additionally, it demonstrates how to write custom tasks in PHP and use property files to customize builds.

1. Phing for power users
Stephan Hochdörfer, bitExpert AG

2. Phing for power users
About me
 Stephan Hochdörfer
 Head of IT at bitExpert AG, Germany
 enjoying PHP since 1999
 S.Hochdoerfer@bitExpert.de
 @shochdoerfer

3. Phing for power users
I used to be an Ant fanboy...

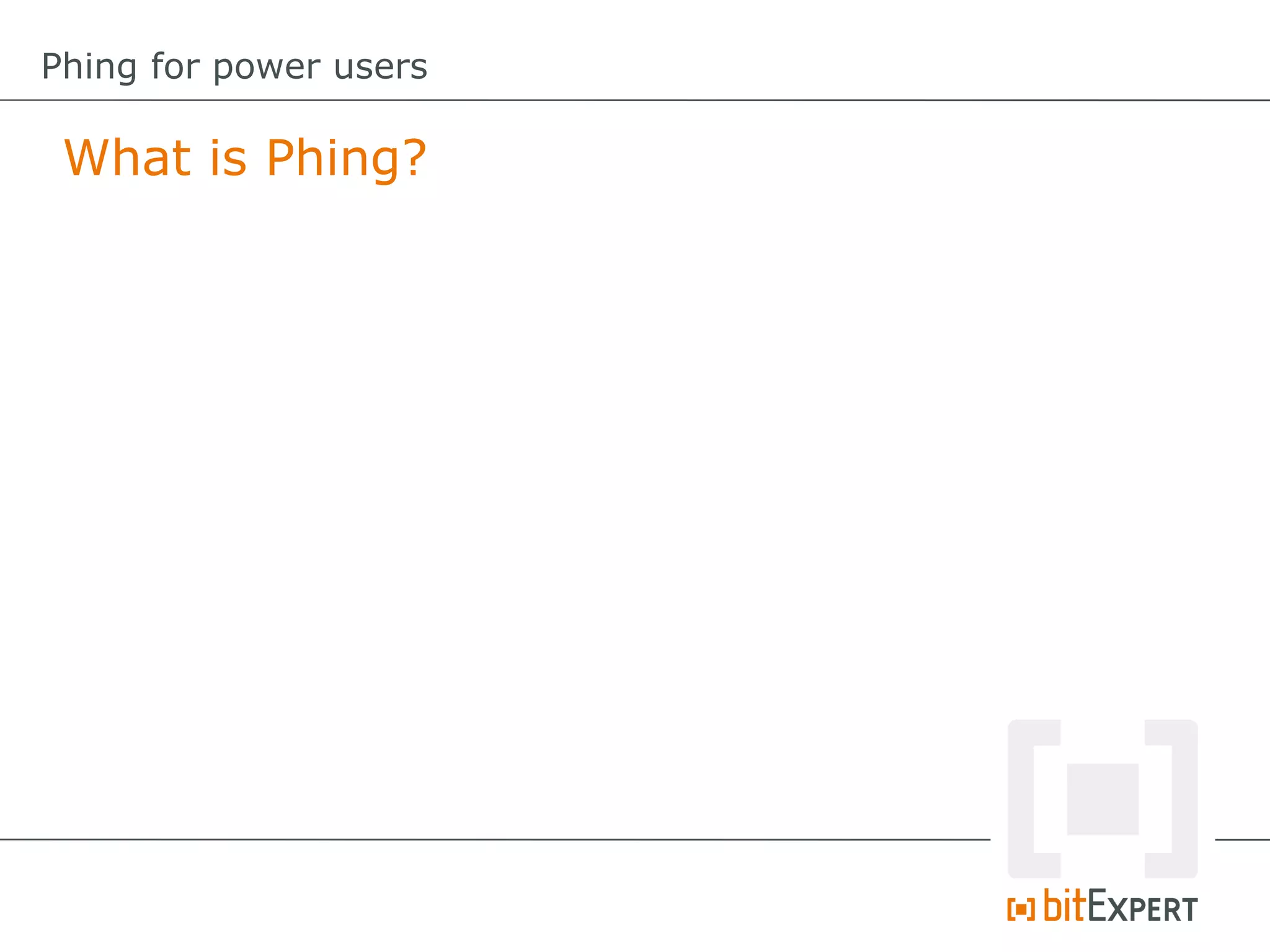

4. What is Phing?
Phing for power users

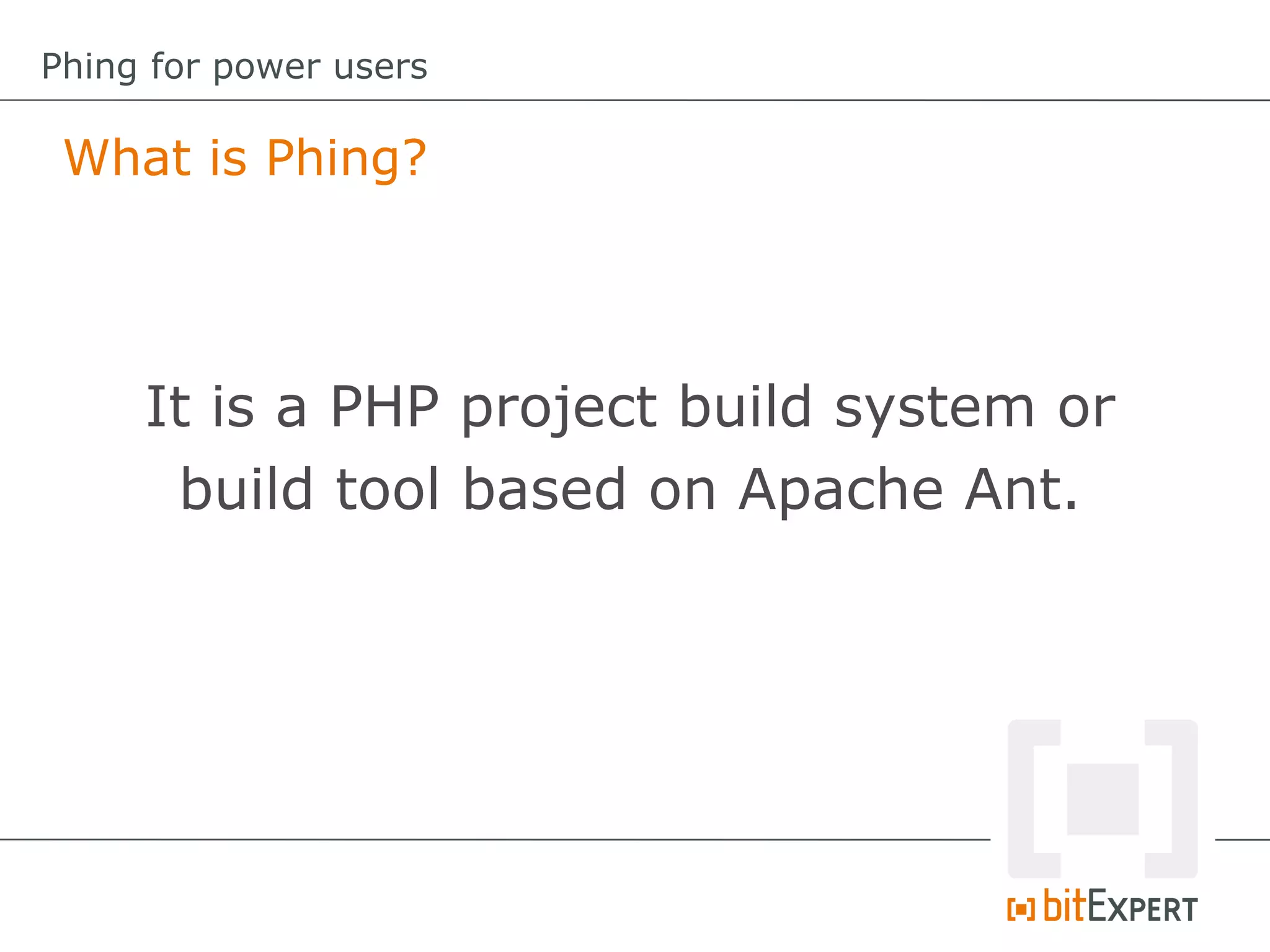

5. What is Phing?
Phing for power users
It is a PHP project build system or
build tool based on Apache Ant.

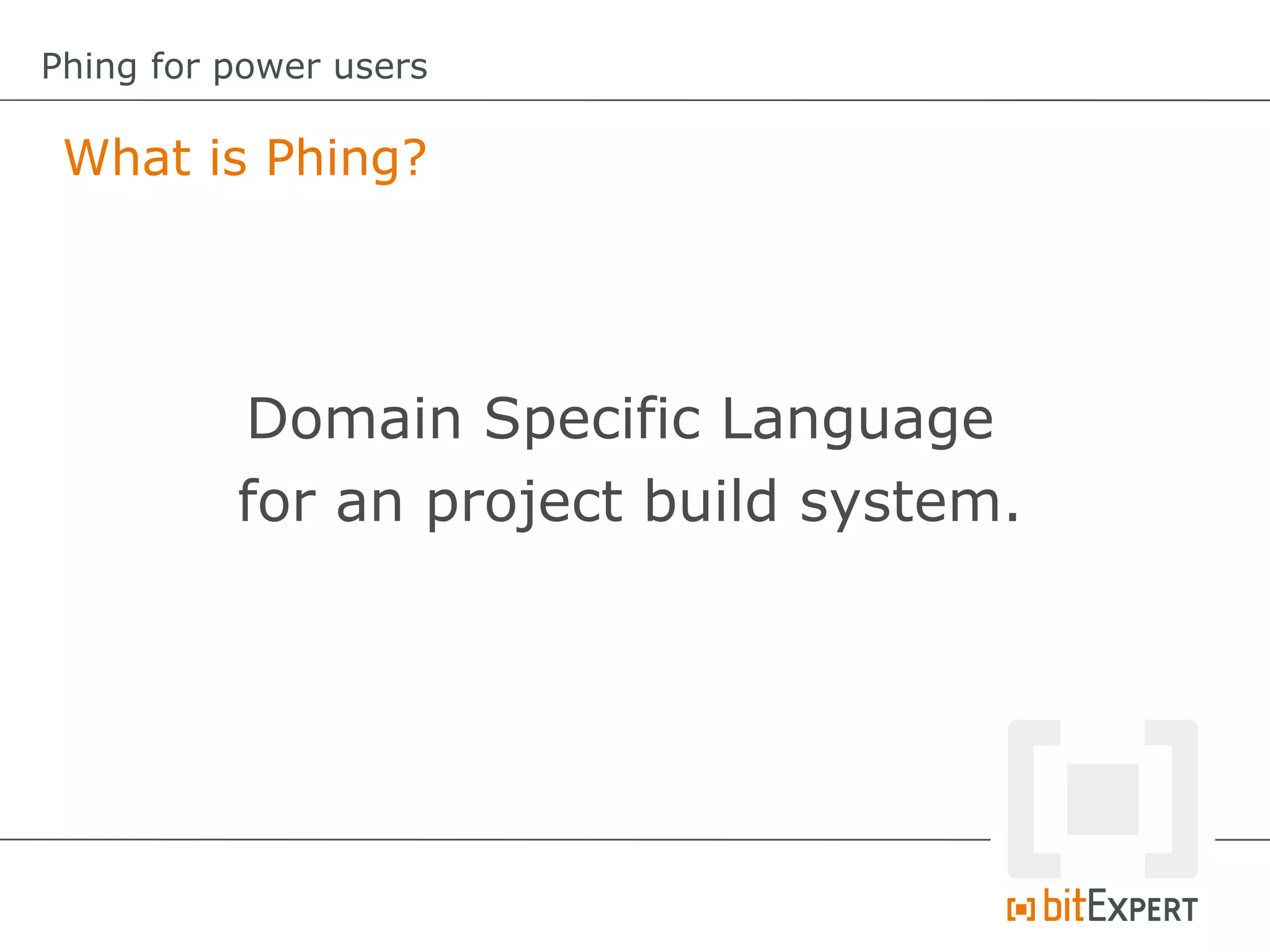

6. What is Phing?
Phing for power users
Domain Specific Language
for an project build system.

7. Phing for power users
A build system for PHP code? Srsly?

8. Glue for all 3rd party tools
Phing for power users

9. How to install Phing?
Phing for power users

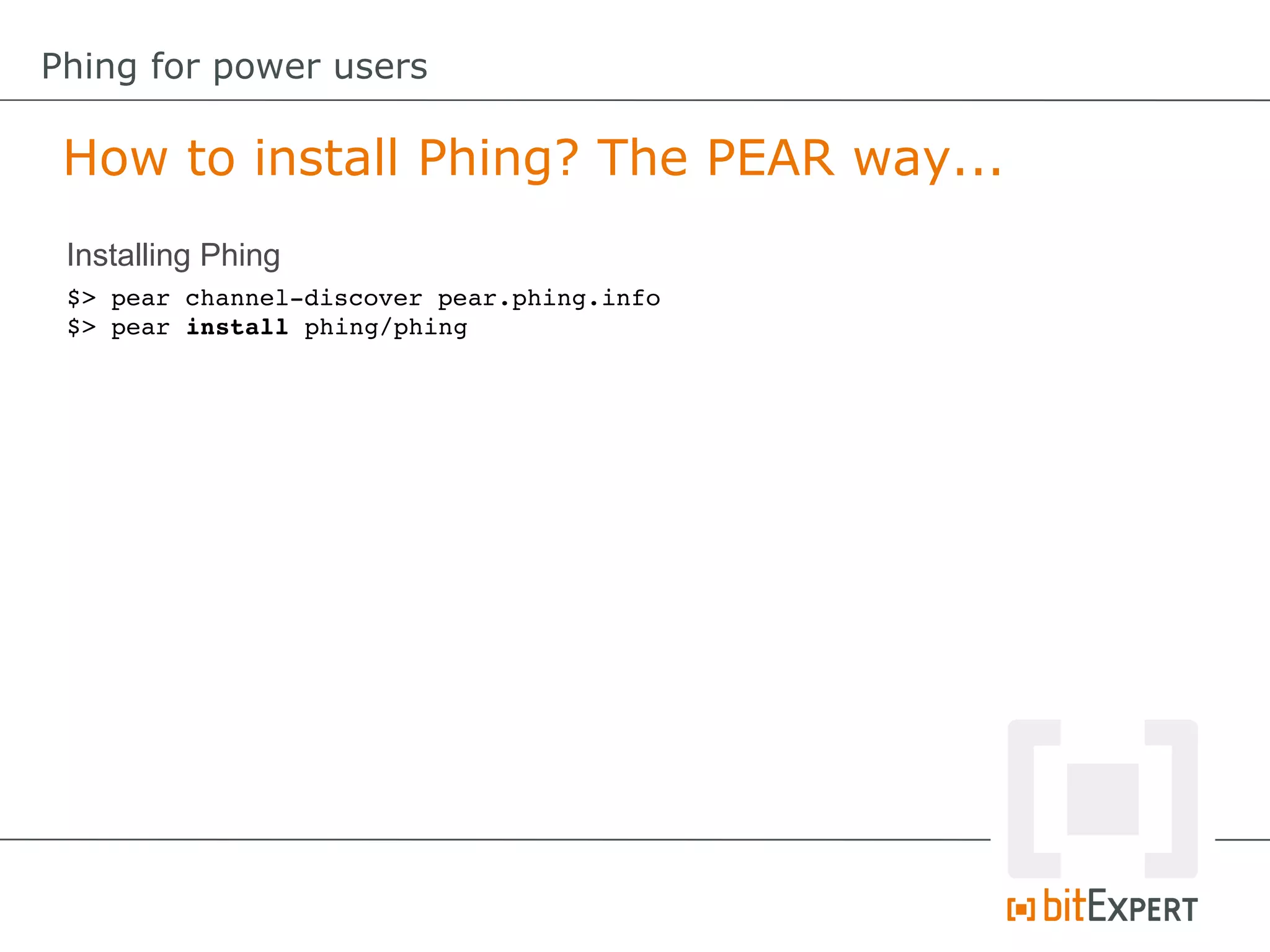

10. $> pear channel­discover pear.phing.info
$> pear install phing/phing
How to install Phing? The PEAR way...
Phing for power users
Installing Phing

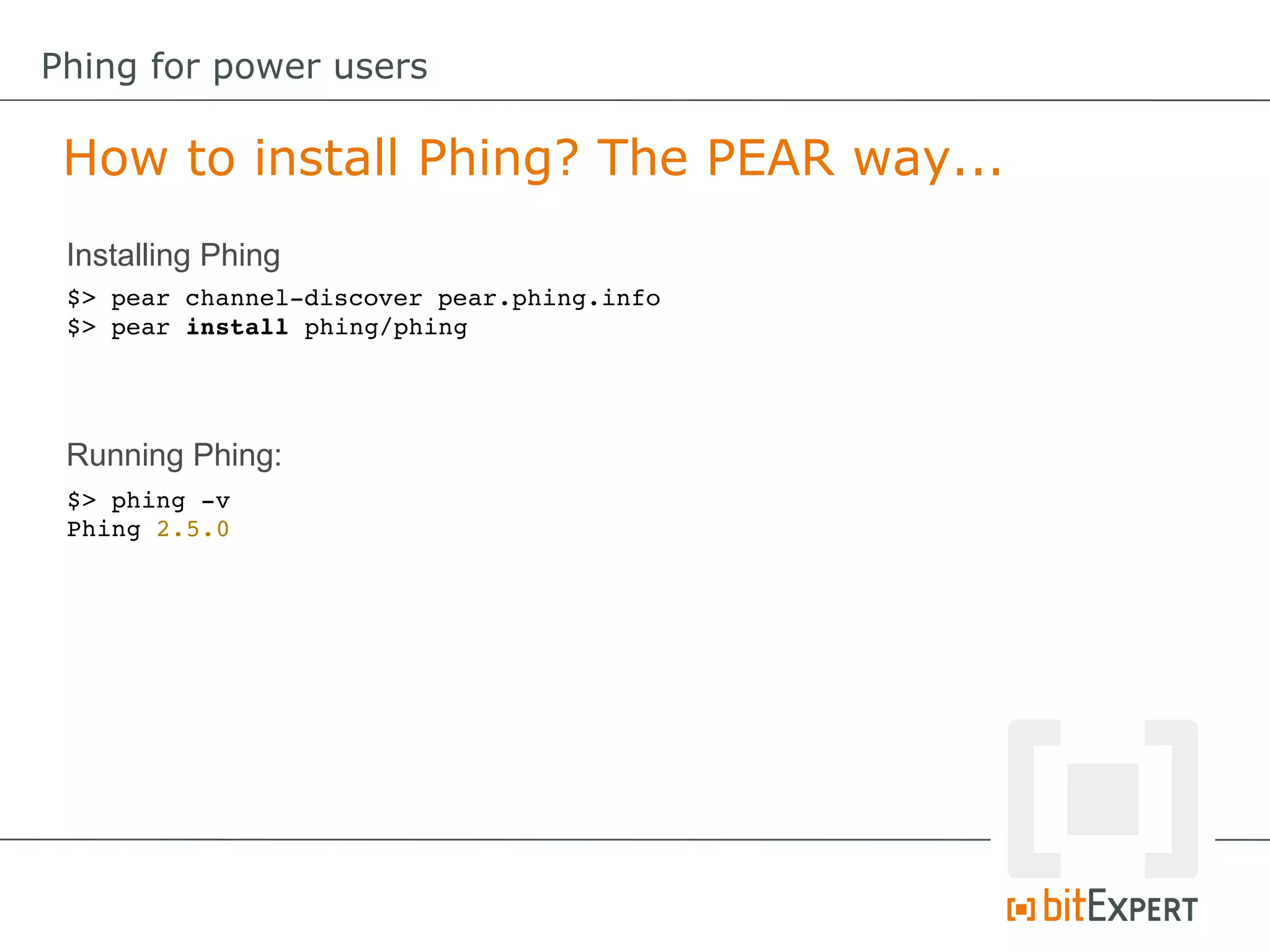

11. $> phing ­v
Phing 2.5.0
$> pear channel­discover pear.phing.info
$> pear install phing/phing
How to install Phing? The PEAR way...
Phing for power users
Installing Phing
Running Phing:

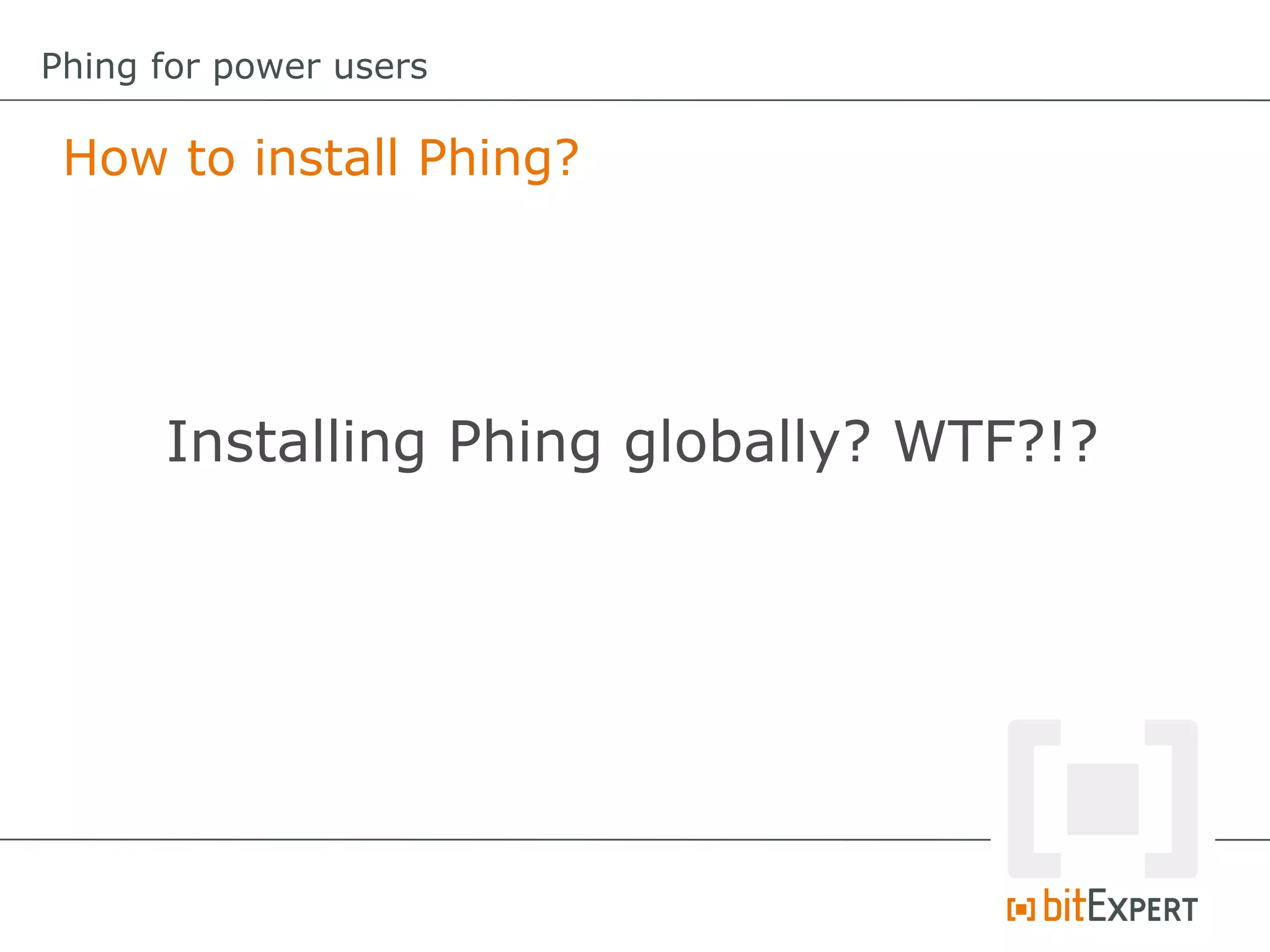

12. How to install Phing?
Phing for power users
Installing Phing globally? WTF?!?

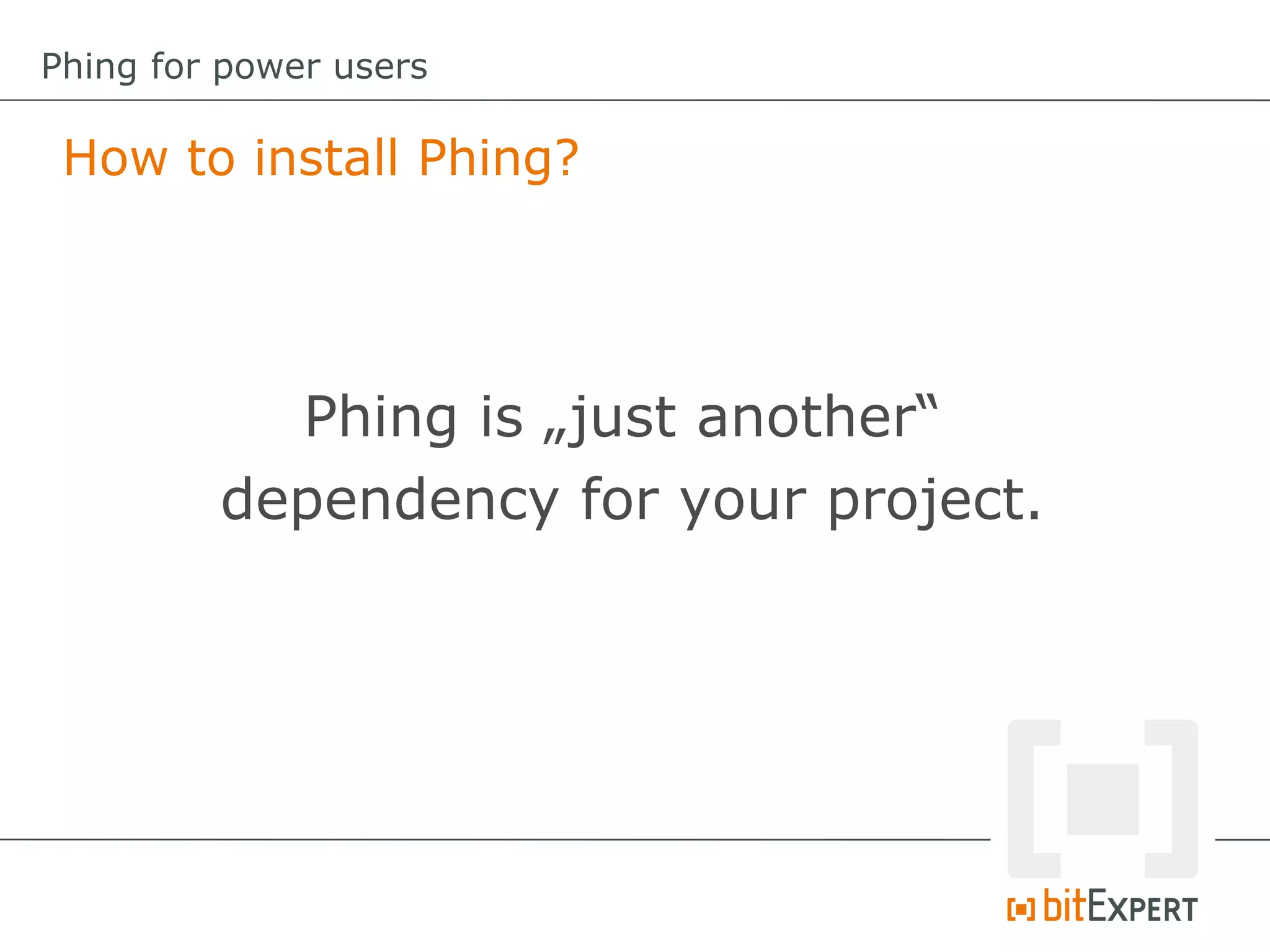

13. How to install Phing?
Phing for power users
Phing is „just another“
dependency for your project.

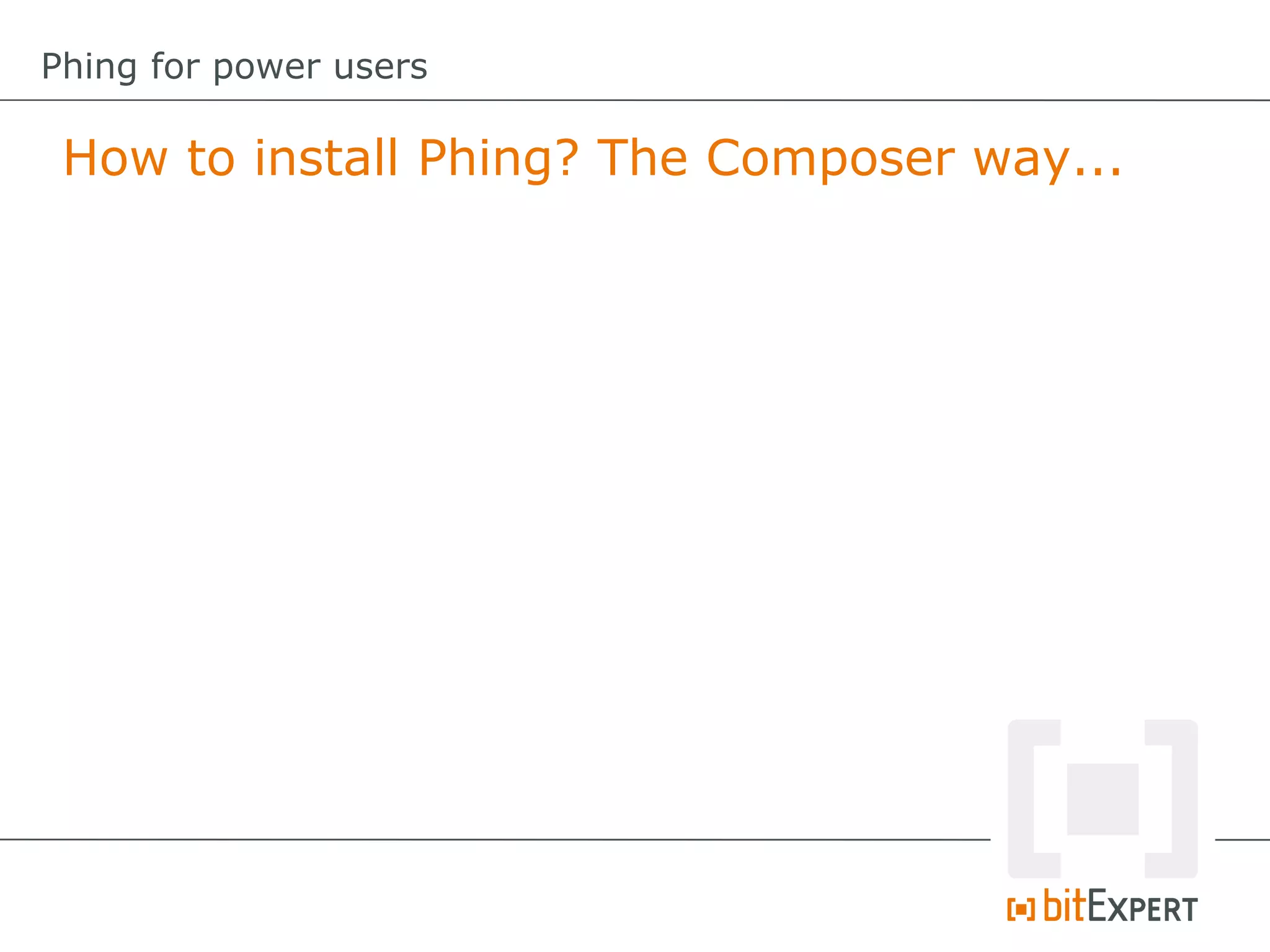

14. How to install Phing? The Composer way...
Phing for power users

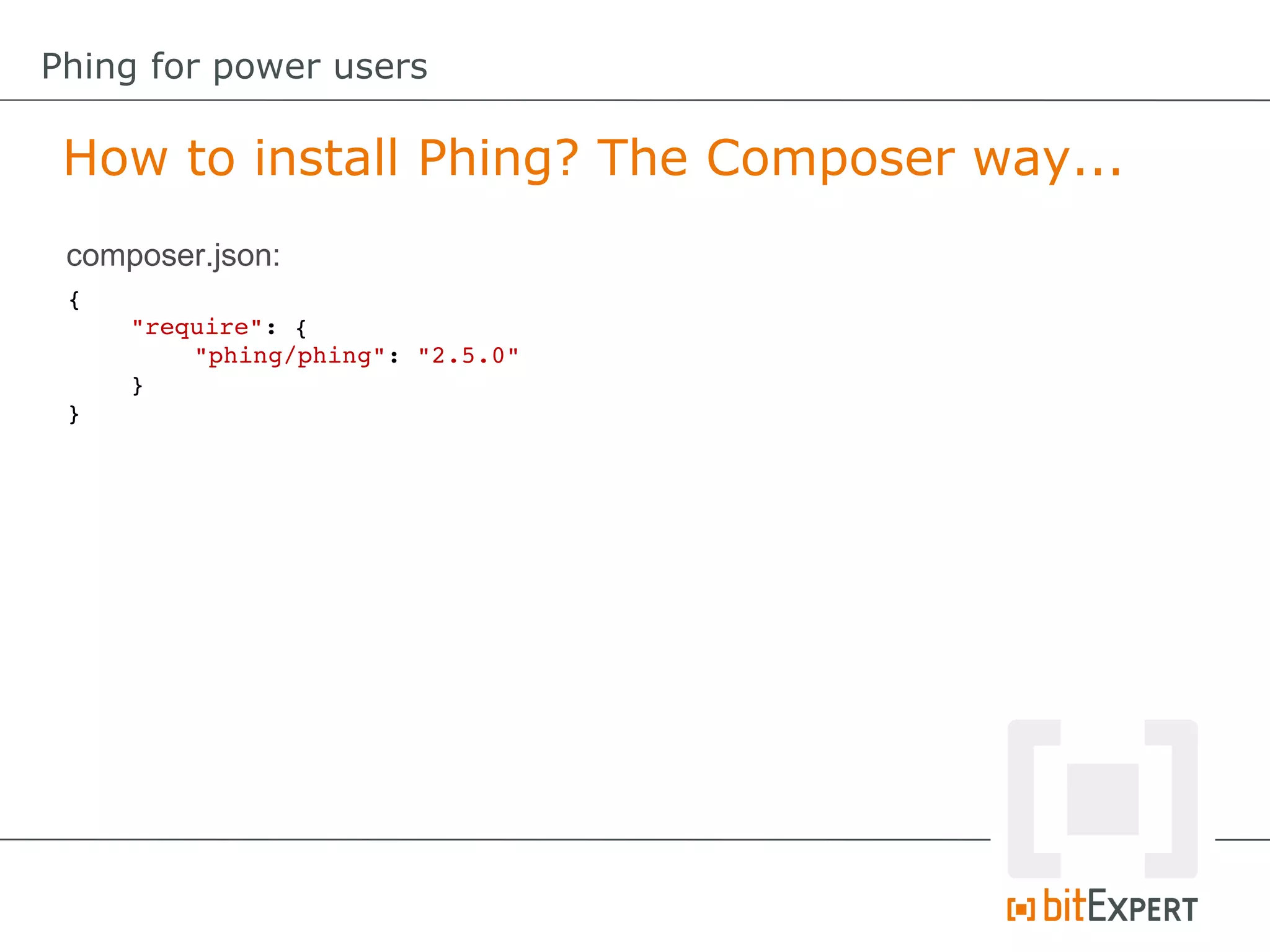

15. {
"require": {
"phing/phing": "2.5.0"
}
}
How to install Phing? The Composer way...
Phing for power users
composer.json:

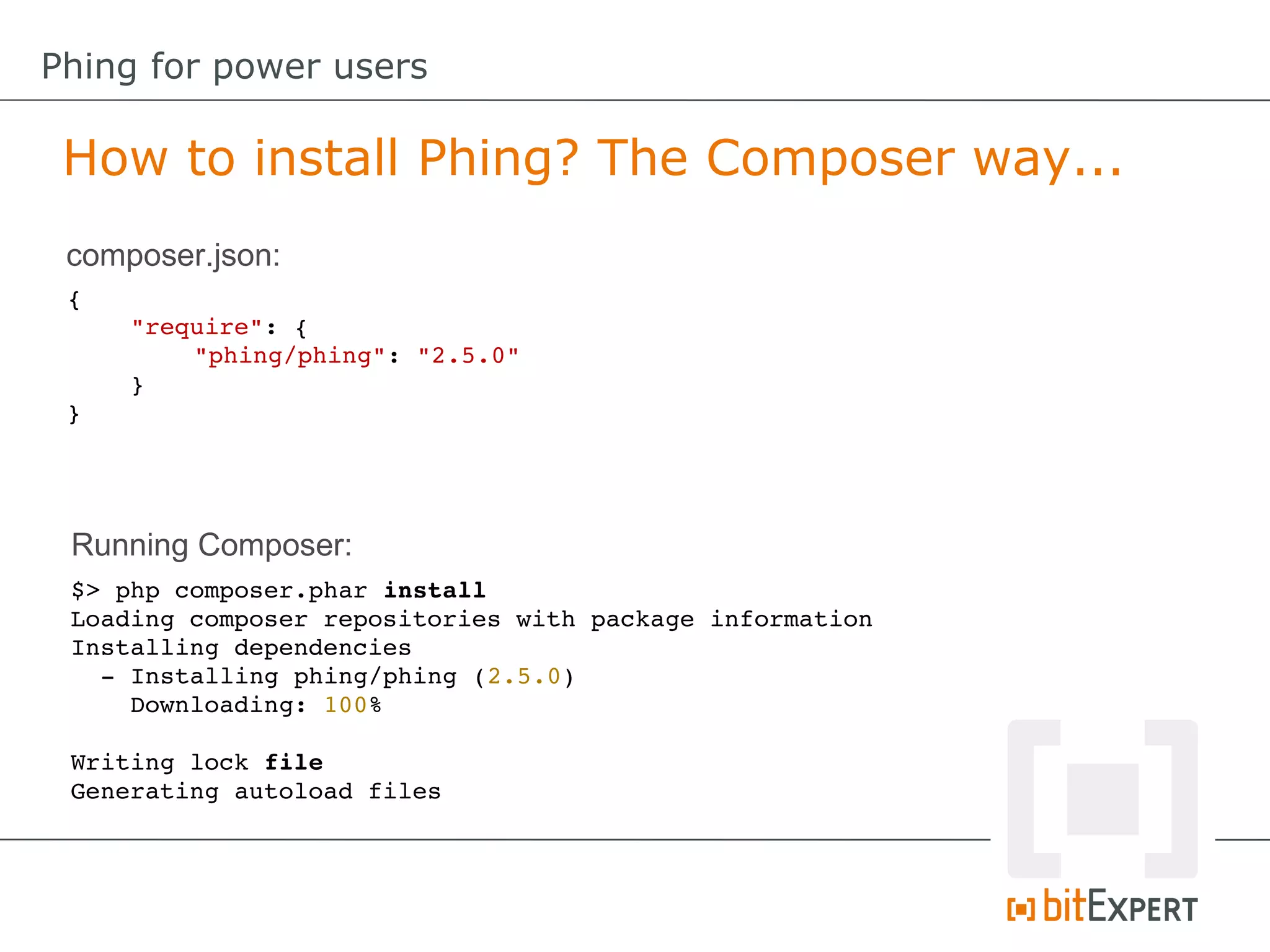

16. {
"require": {
"phing/phing": "2.5.0"
}
}
$> php composer.phar install
Loading composer repositories with package information
Installing dependencies
­ Installing phing/phing (2.5.0)
Downloading: 100%
Writing lock file
Generating autoload files
How to install Phing? The Composer way...
Phing for power users
composer.json:
Running Composer:

17. How to install Phing? The Composer way...
Phing for power users
/tmp/myproject
|­vendor
|­­­bin
|­­­­­@phing
|­­­composer
|­­­phing
|­­­­­phing
|­­­­­­­bin
|­­­­­­­­­phing
|­­­­­­­build
|­­­­­­­classes
|­­­­­­­docs
|­­­­­­­etc
|­­­­­­­test

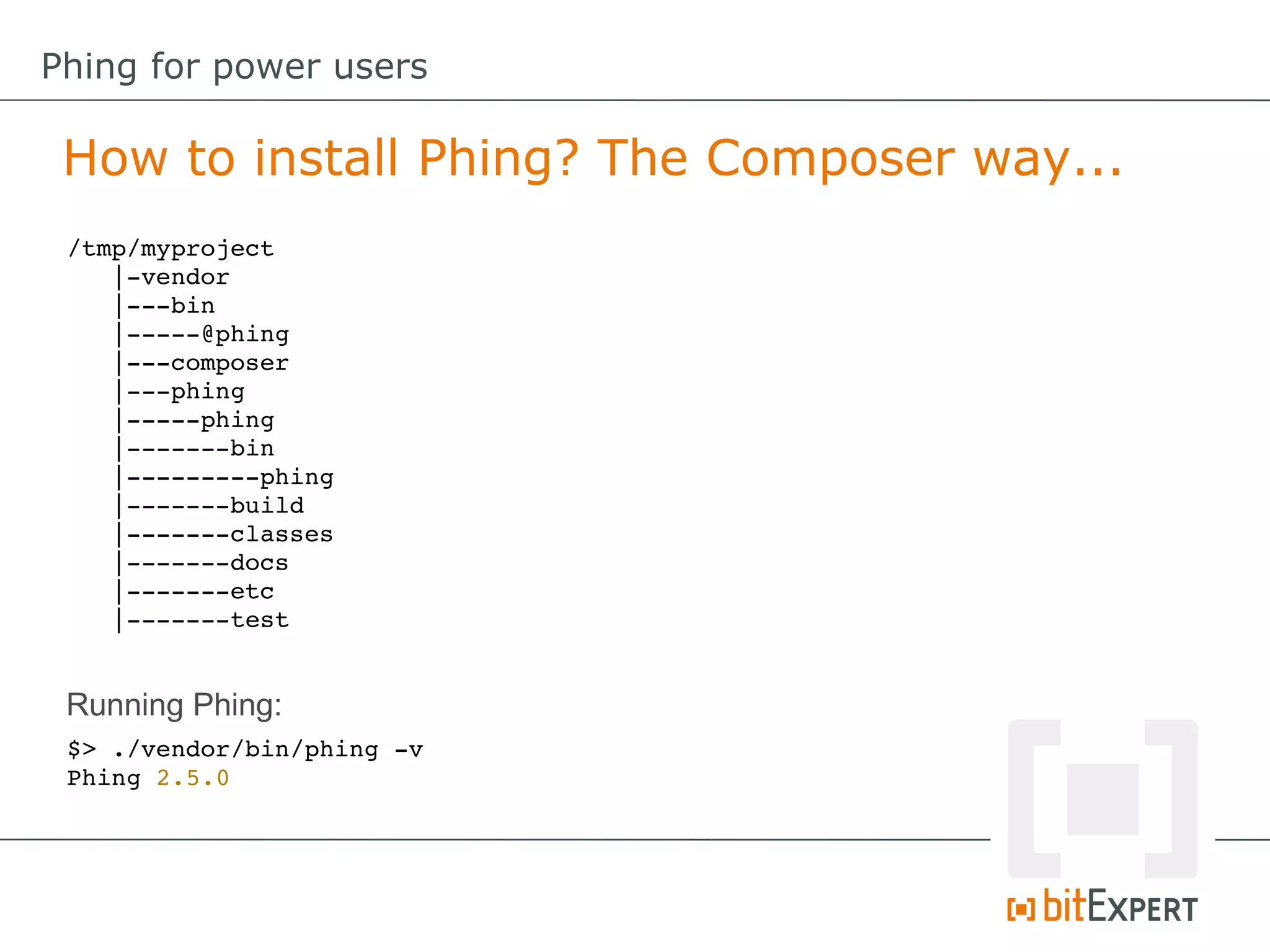

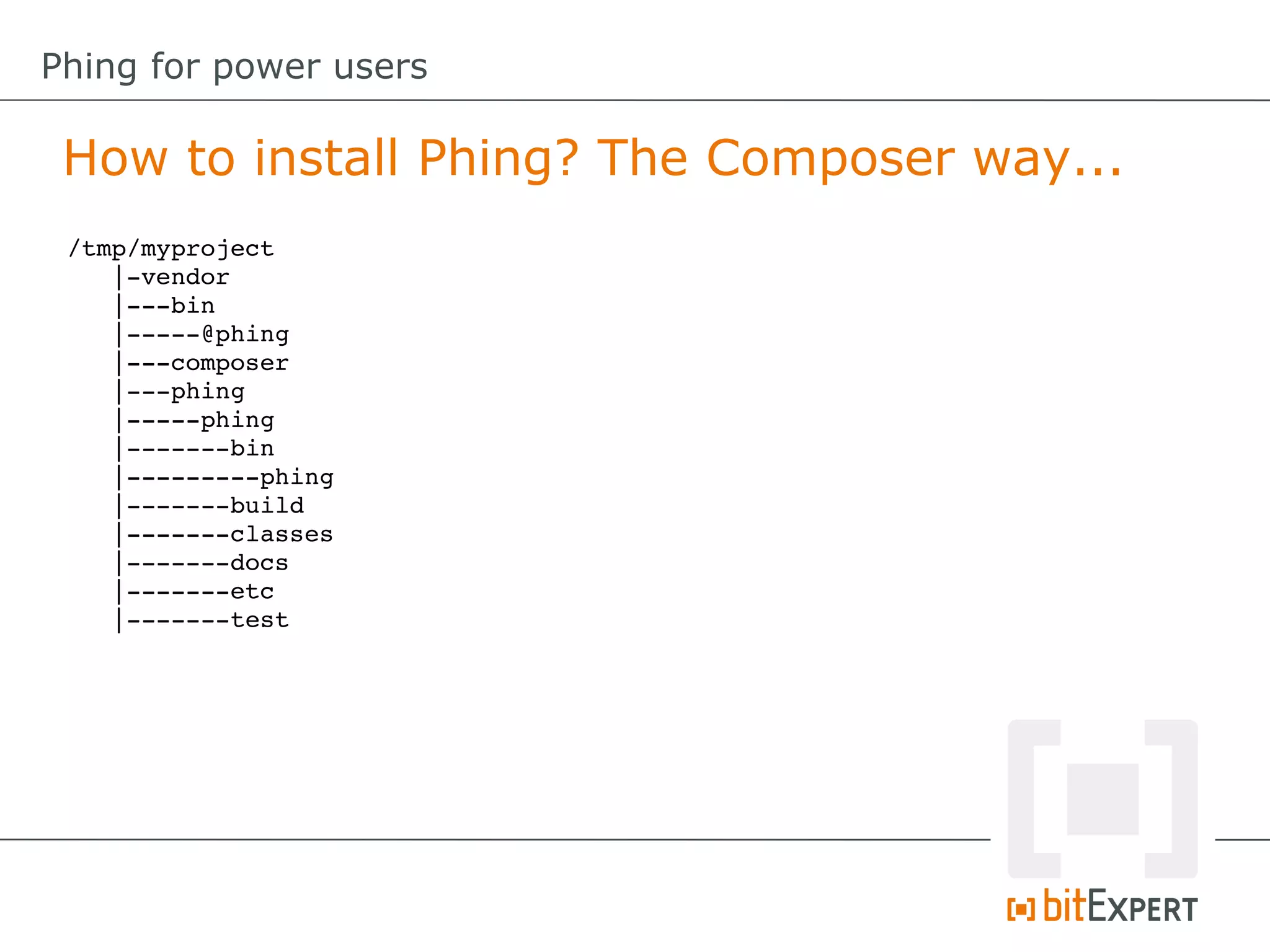

18. How to install Phing? The Composer way...
Phing for power users
/tmp/myproject
|­vendor
|­­­bin
|­­­­­@phing
|­­­composer
|­­­phing
|­­­­­phing
|­­­­­­­bin
|­­­­­­­­­phing
|­­­­­­­build
|­­­­­­­classes
|­­­­­­­docs
|­­­­­­­etc
|­­­­­­­test
$> ./vendor/bin/phing ­v
Phing 2.5.0
Running Phing:

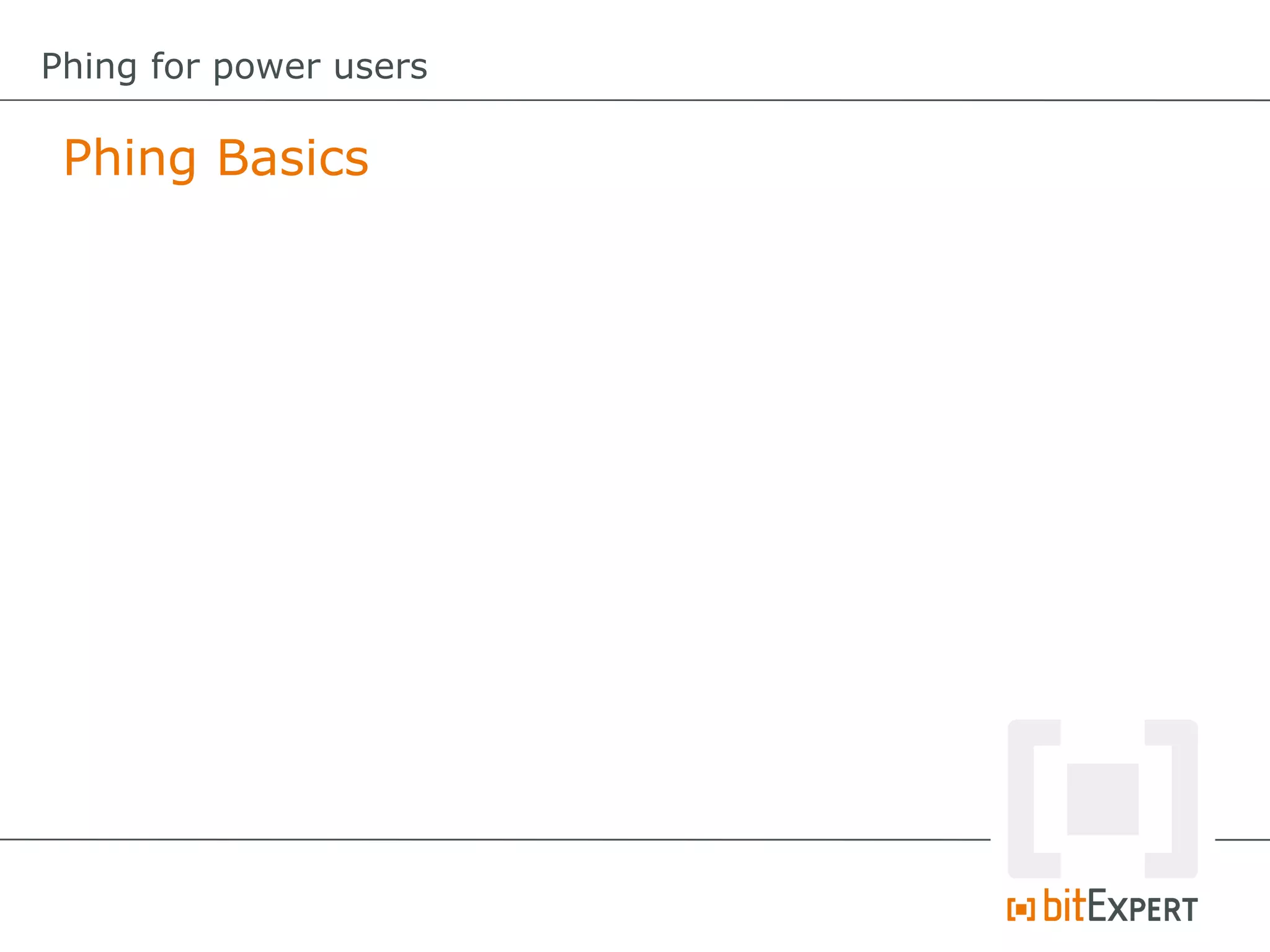

19. Phing Basics
Phing for power users

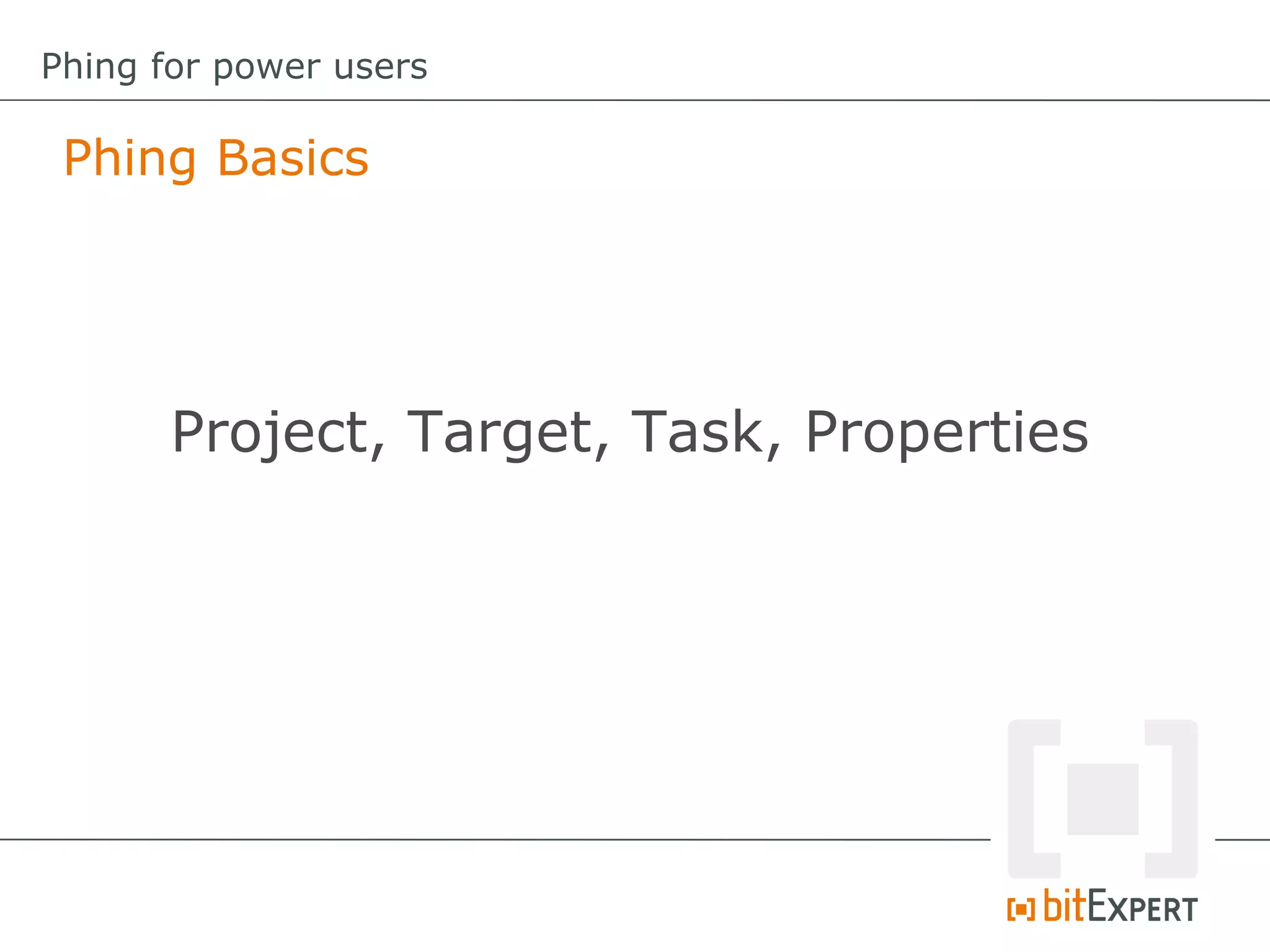

20. Phing Basics
Phing for power users
Project, Target, Task, Properties

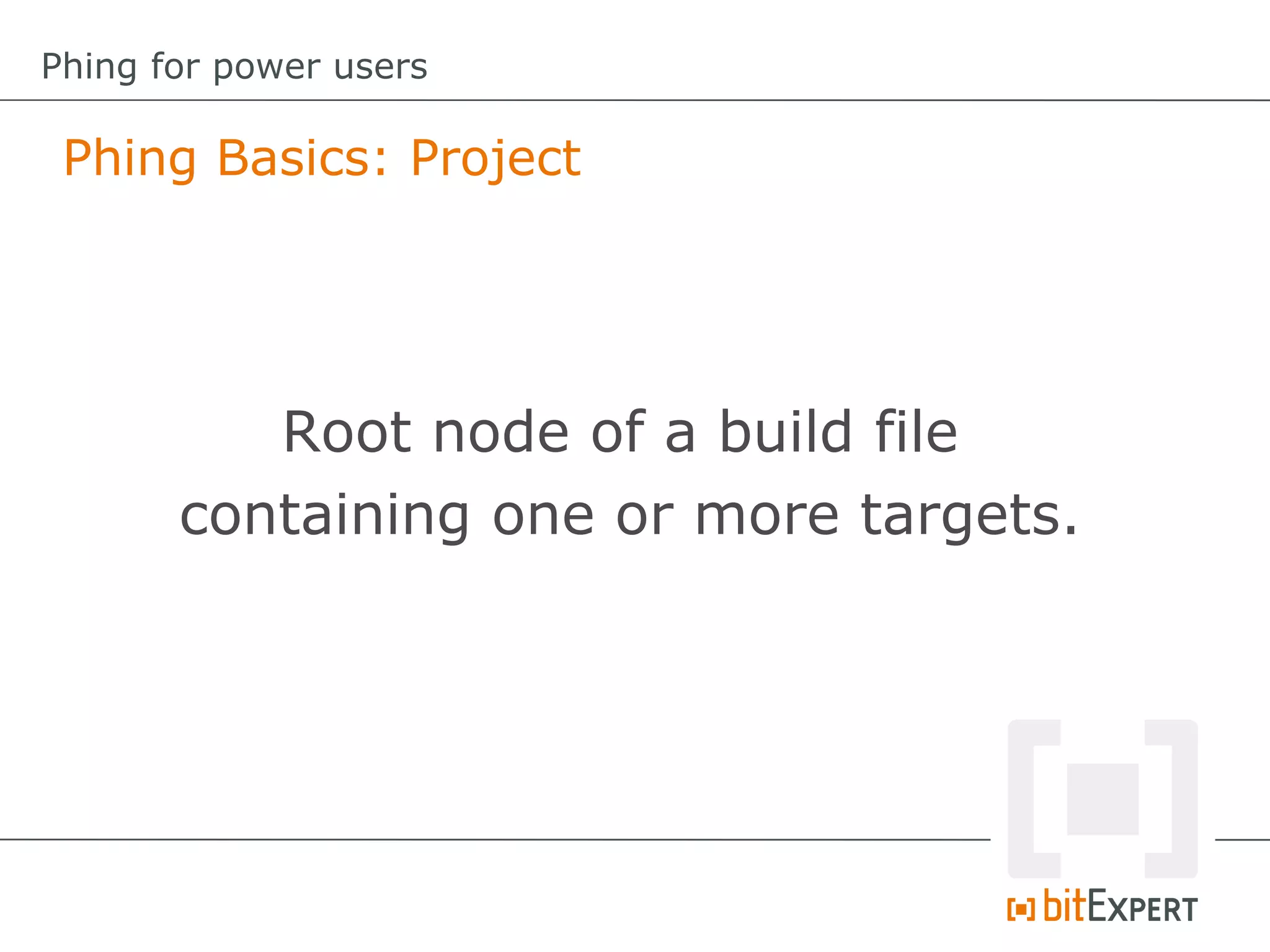

21. Phing Basics: Project
Phing for power users
Root node of a build file
containing one or more targets.

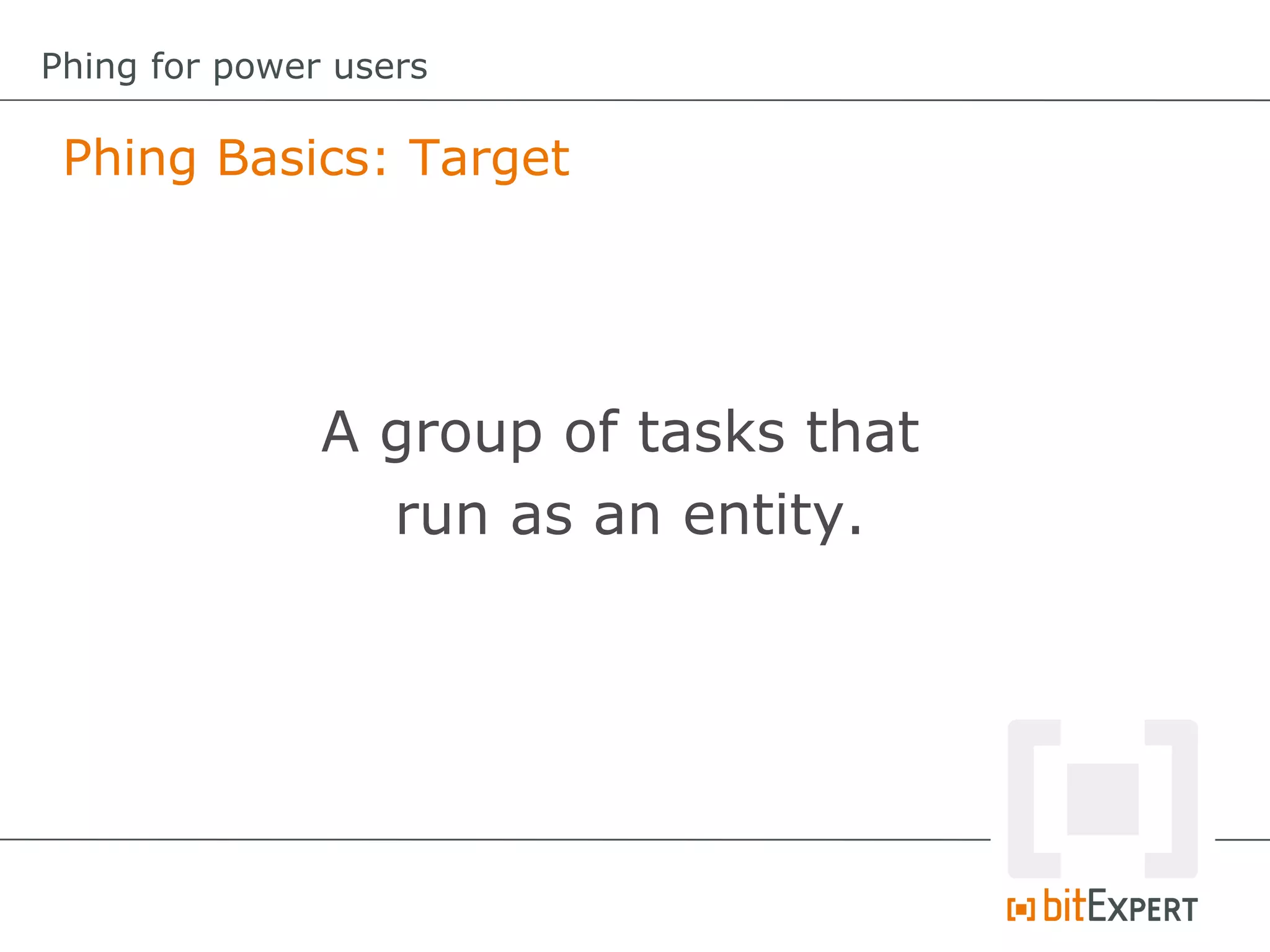

22. Phing Basics: Target
Phing for power users
A group of tasks that
run as an entity.

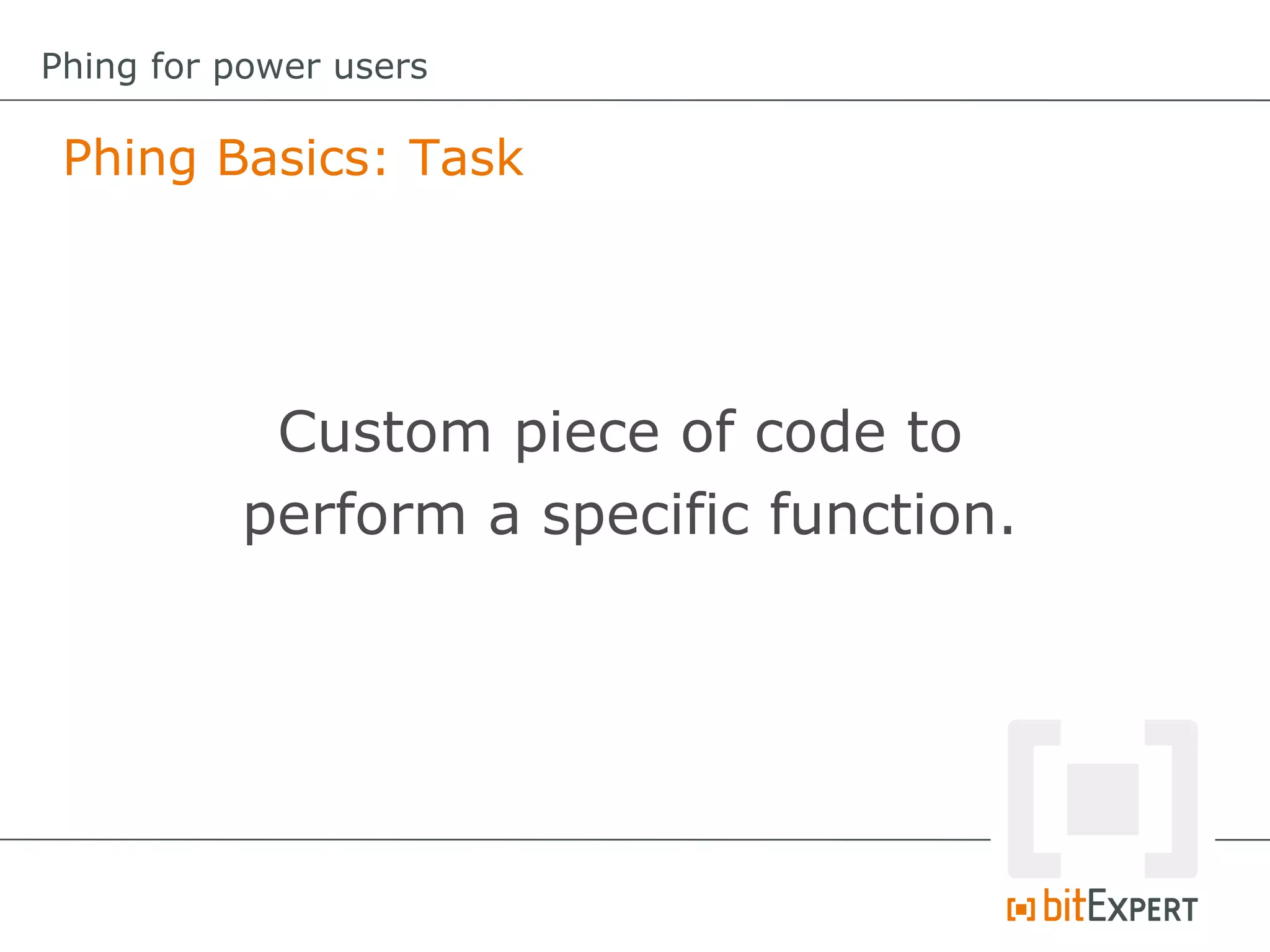

23. Phing Basics: Task
Phing for power users
Custom piece of code to
perform a specific function.

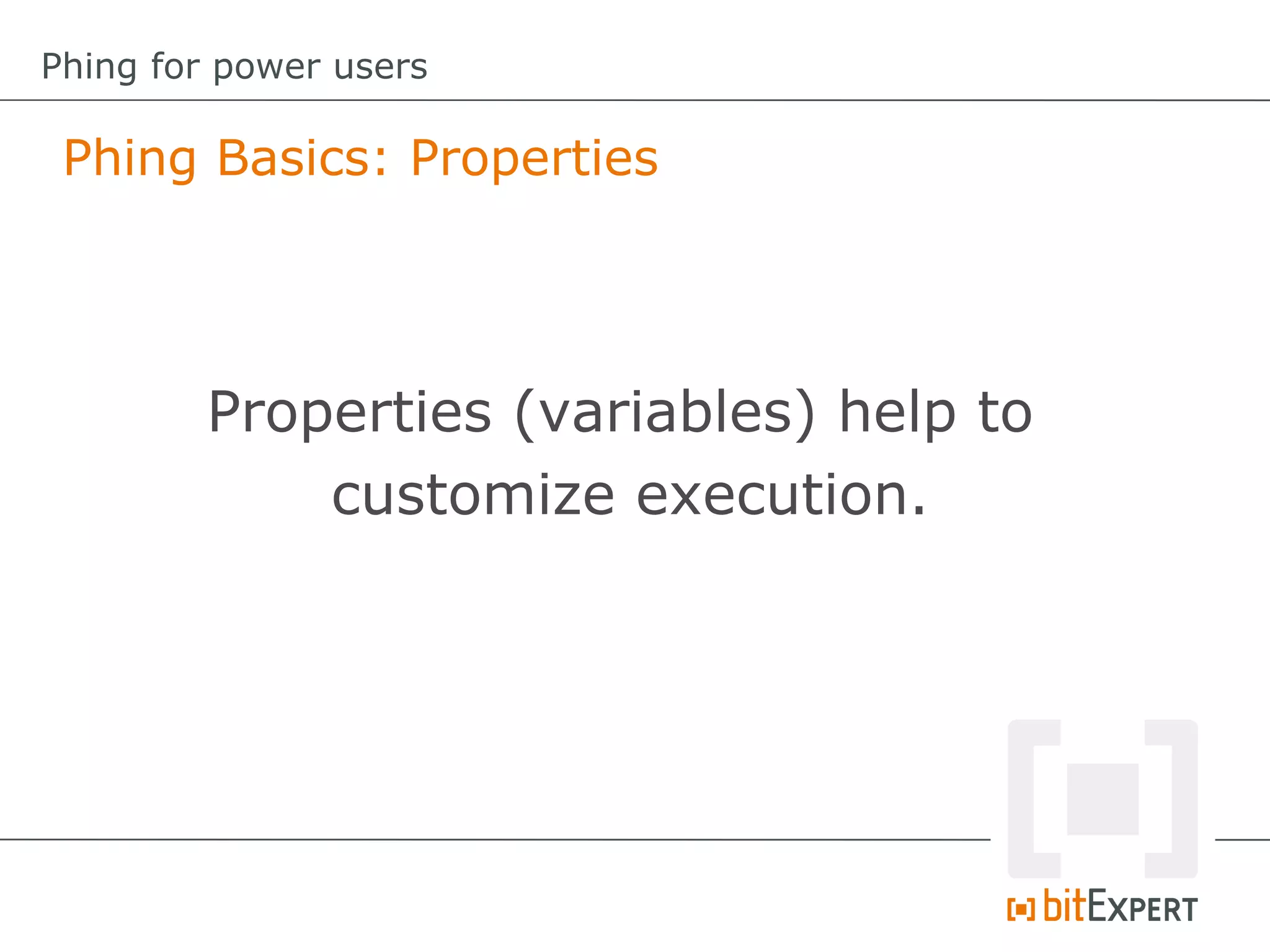

24. Phing Basics: Properties
Phing for power users
Properties (variables) help to
customize execution.

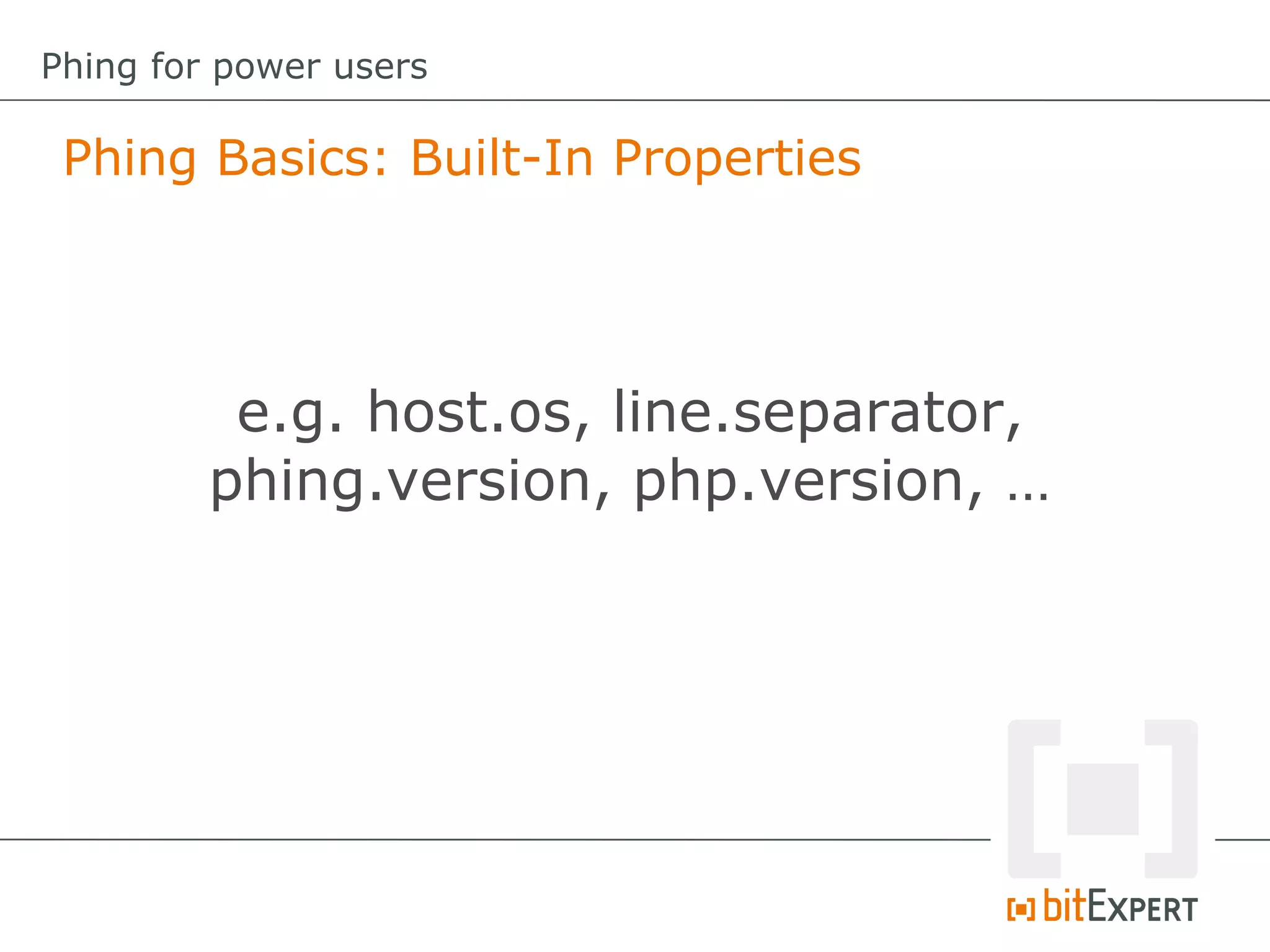

25. Phing Basics: Built-In Properties
Phing for power users
e.g. host.os, line.separator,
phing.version, php.version, …

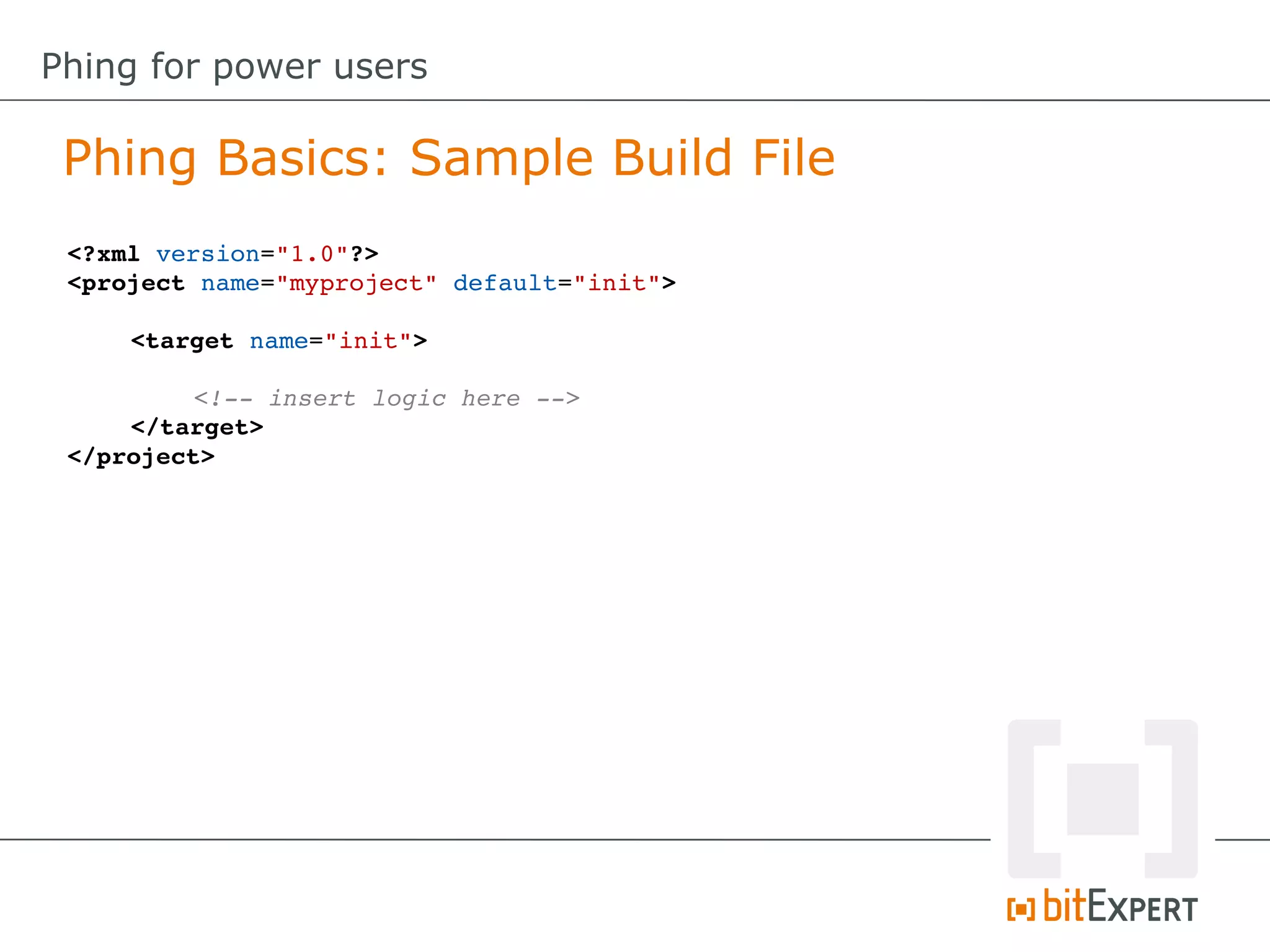

26. <?xml version="1.0"?>
<project name="myproject" default="init">
<target name="init">
<!­­ insert logic here ­­>
</target>
</project>
Phing Basics: Sample Build File
Phing for power users

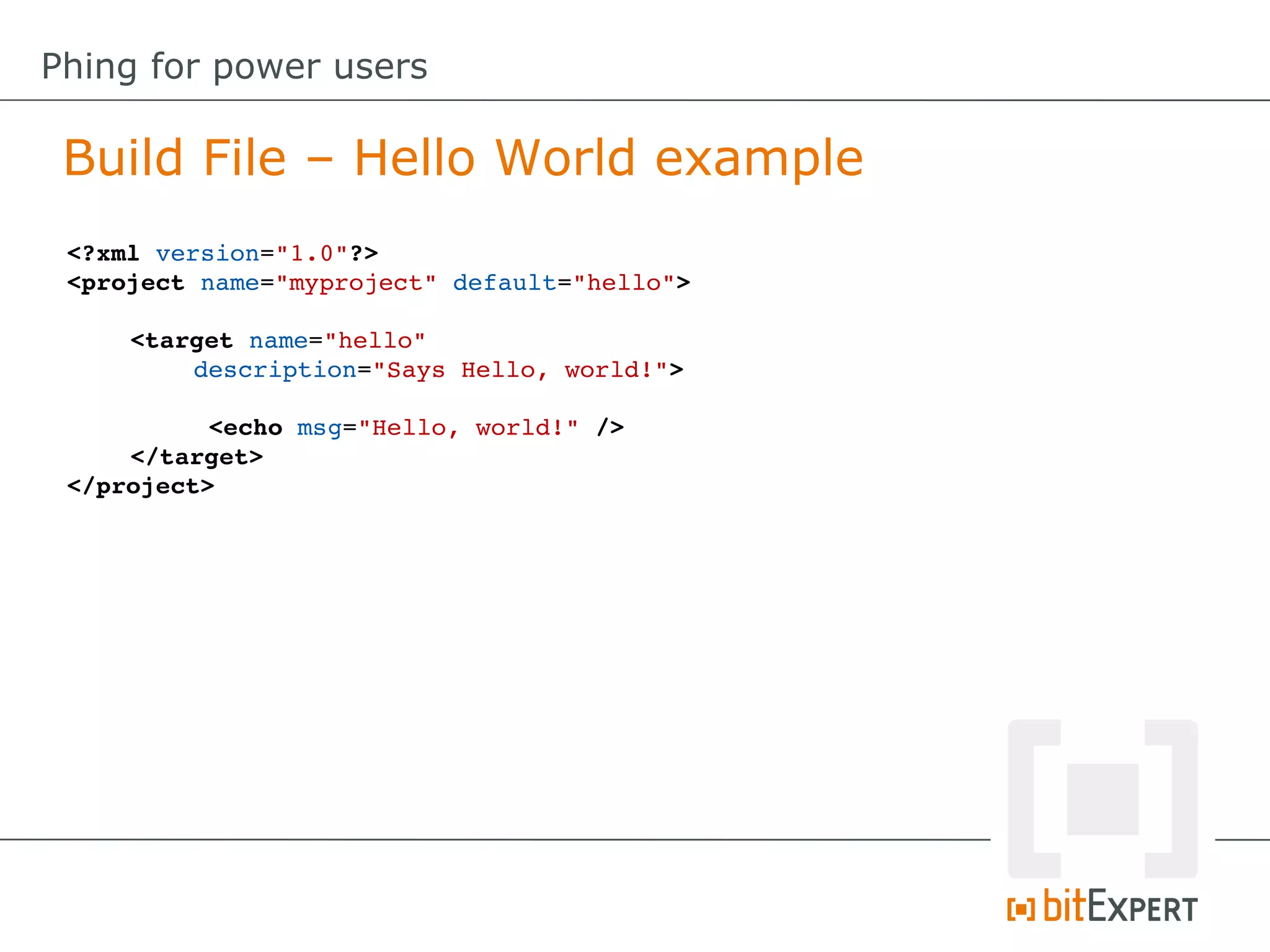

27. <?xml version="1.0"?>
<project name="myproject" default="hello">
<target name="hello"
description="Says Hello, world!">
<echo msg="Hello, world!" />
</target>
</project>
Build File – Hello World example
Phing for power users

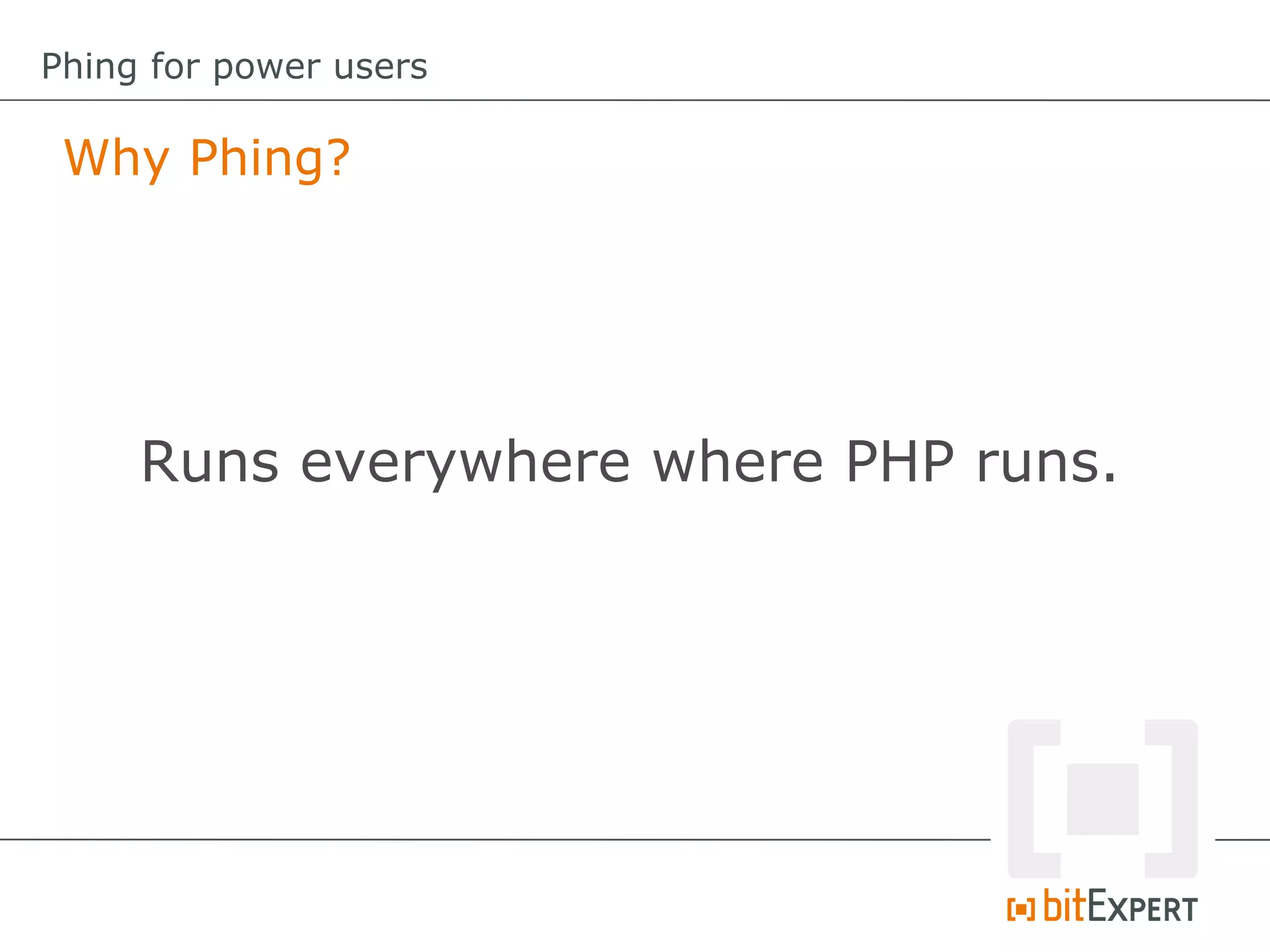

28. Why Phing?
Phing for power users
Runs everywhere where PHP runs.

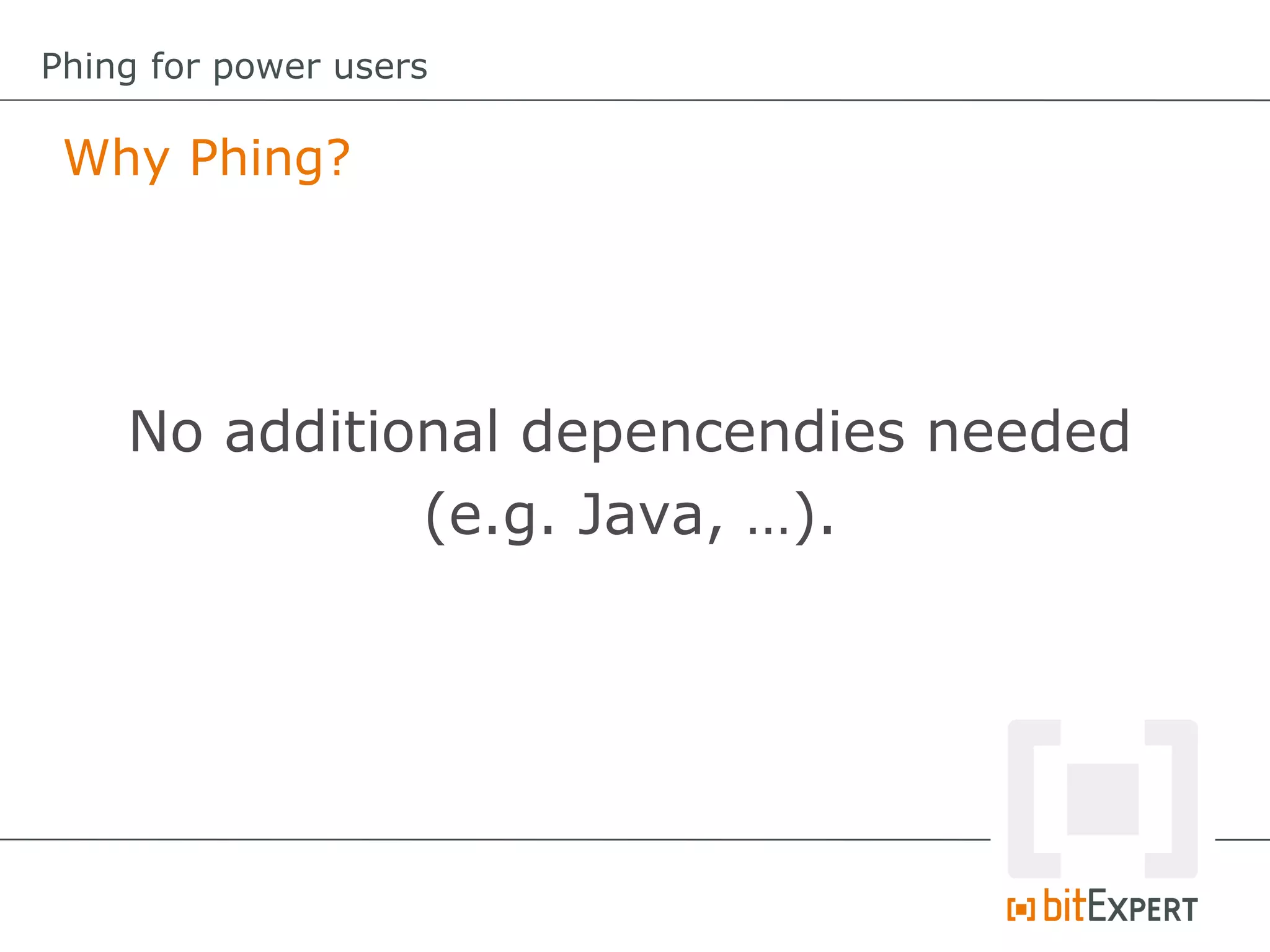

29. Why Phing?
Phing for power users
No additional depencendies needed
(e.g. Java, …).

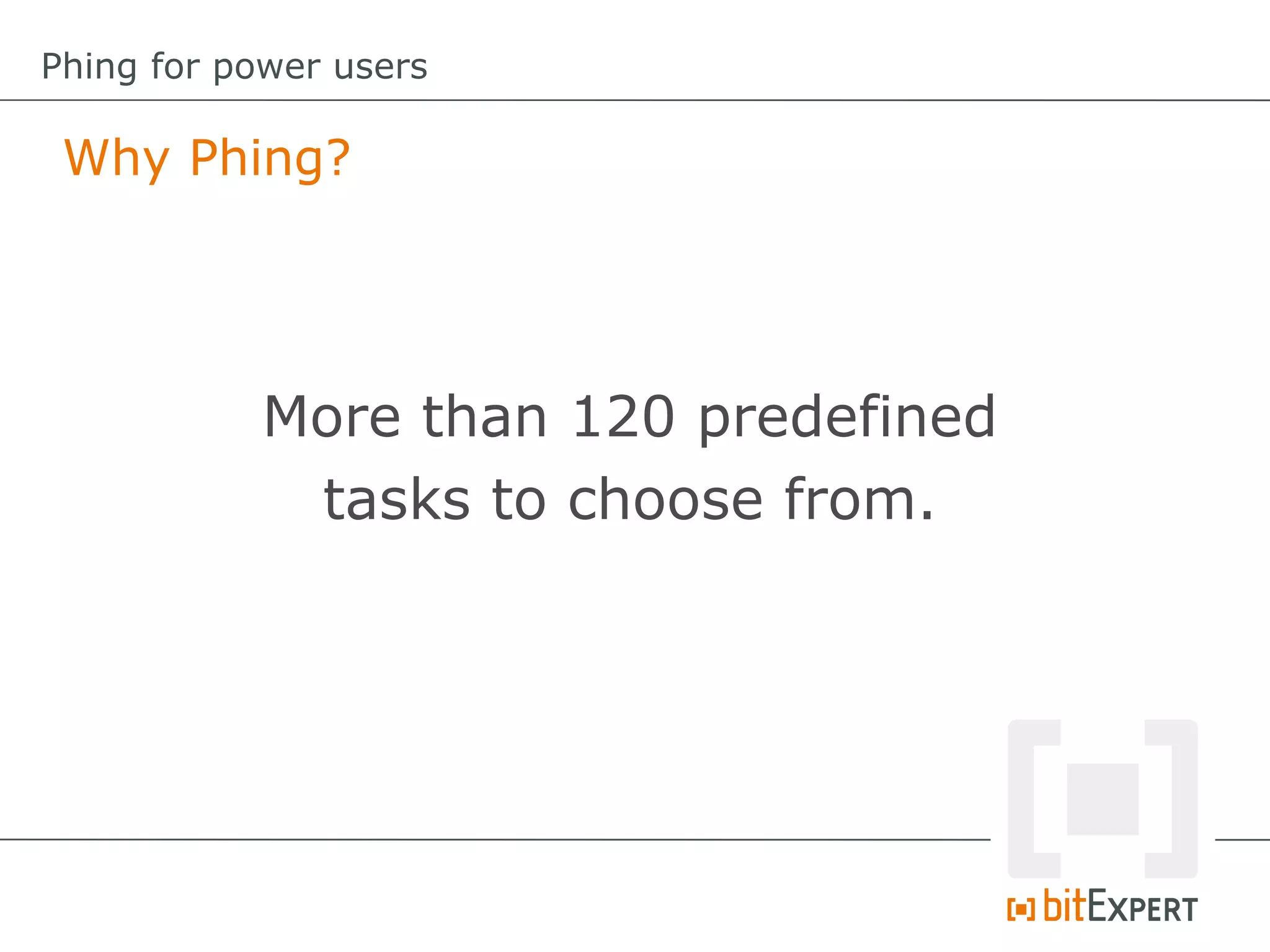

30. Why Phing?
Phing for power users
More than 120 predefined
tasks to choose from.

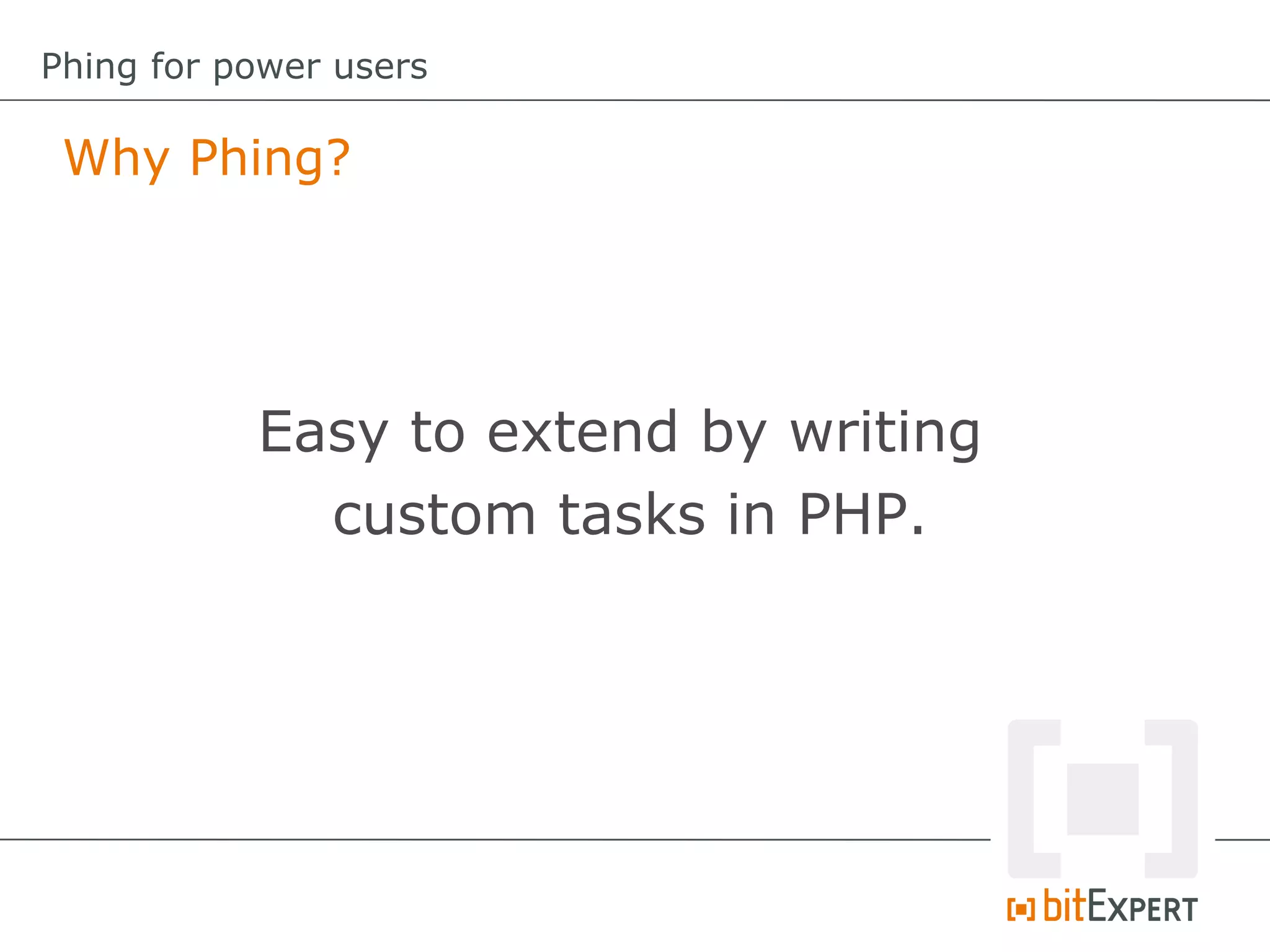

31. Why Phing?
Phing for power users
Easy to extend by writing
custom tasks in PHP.

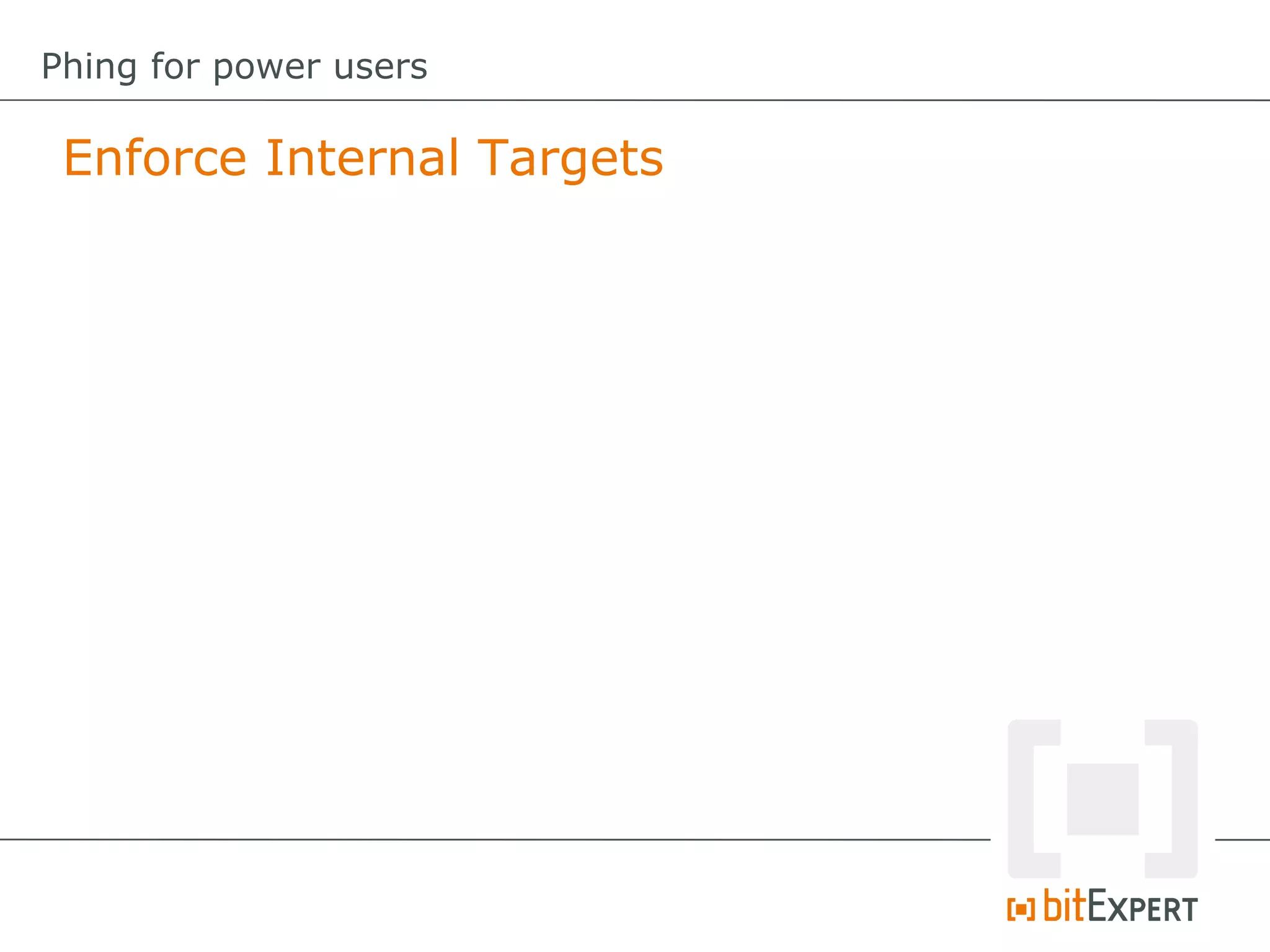

32. Enforce Internal Targets
Phing for power users

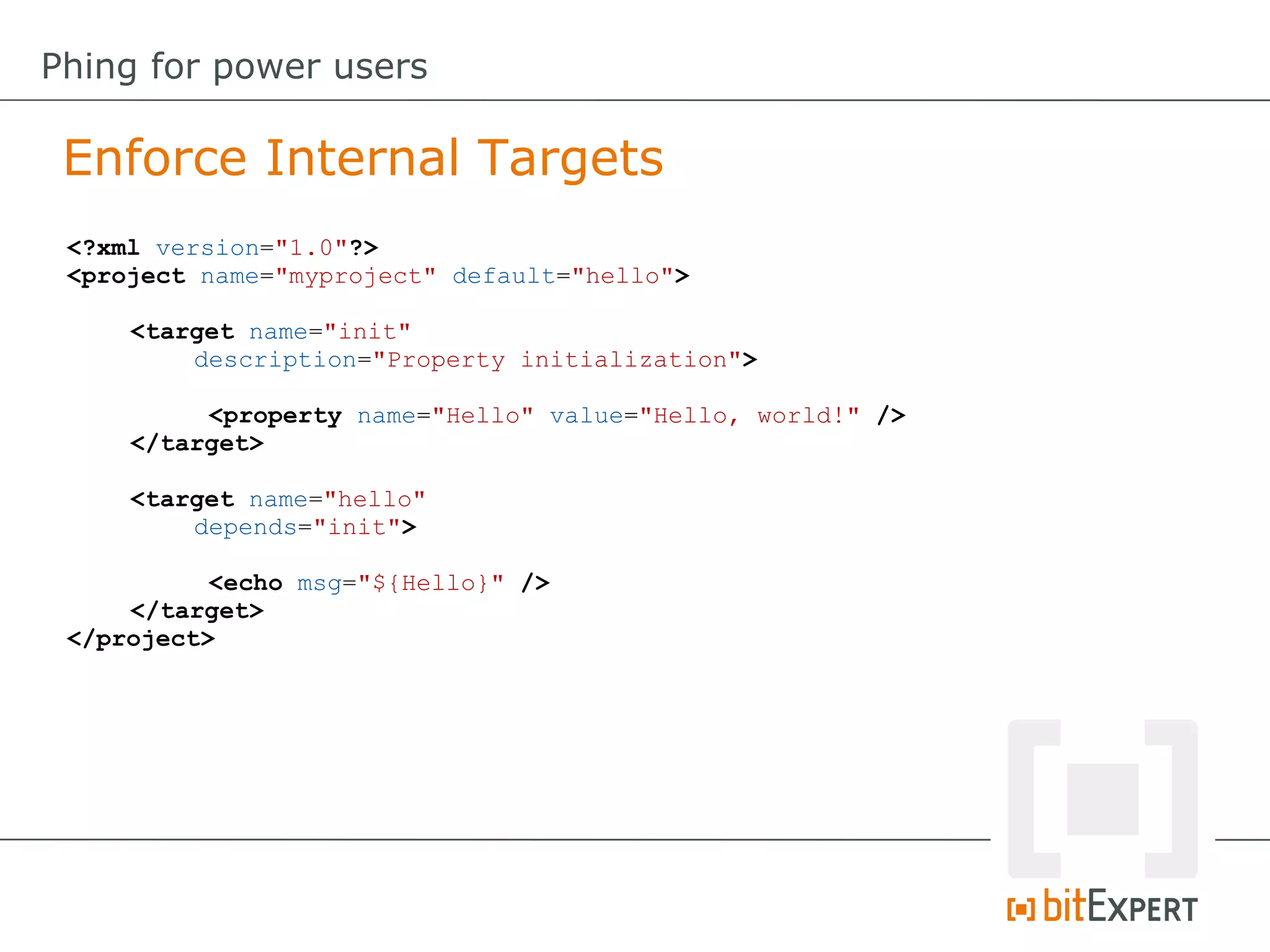

33. Enforce Internal Targets
Phing for power users
<?xml version="1.0"?>
<project name="myproject" default="hello">
<target name="init"
description="Property initialization">
<property name="Hello" value="Hello, world!" />
</target>
<target name="hello"
depends="init">
<echo msg="${Hello}" />
</target>
</project>

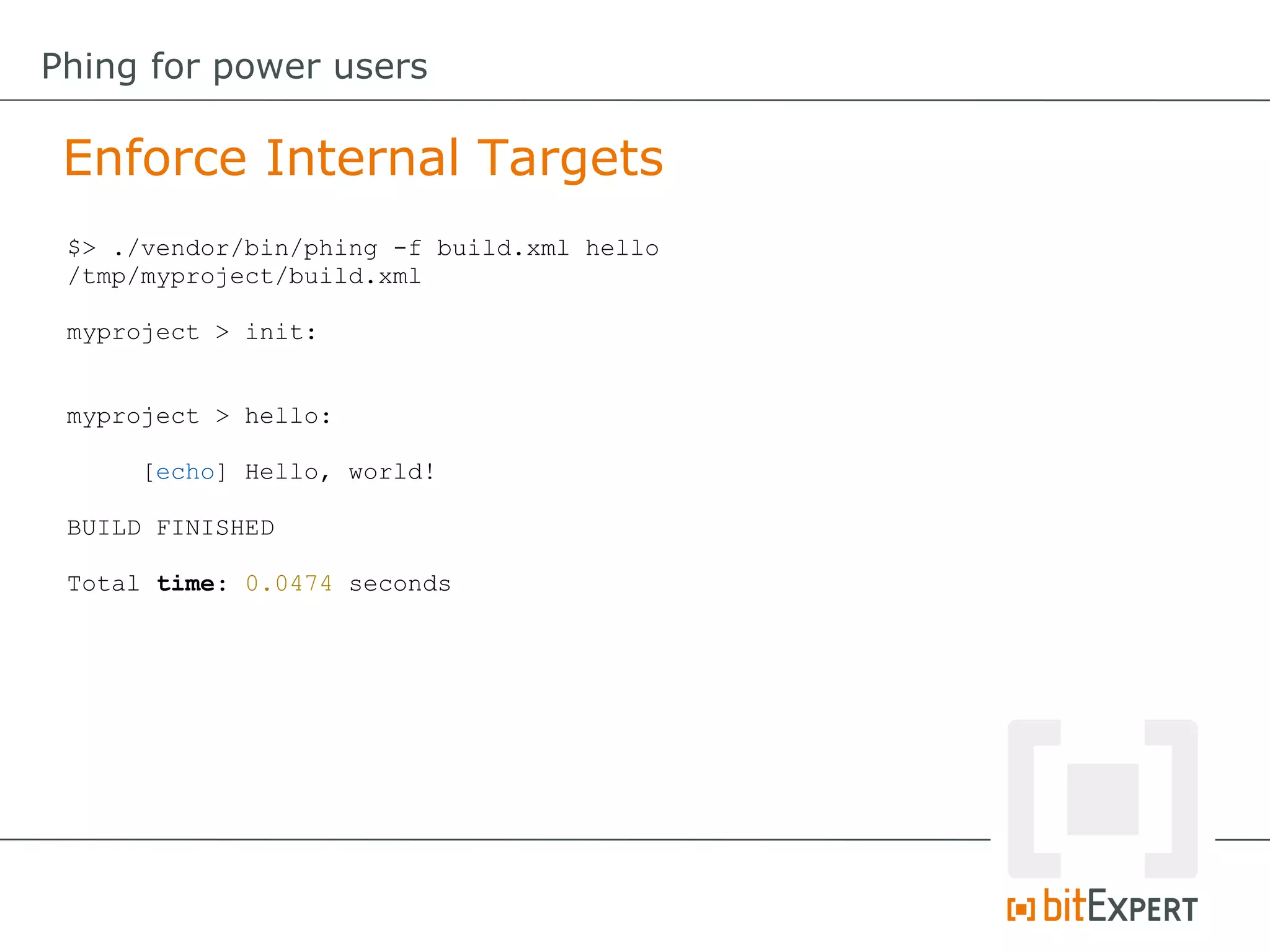

34. Enforce Internal Targets
Phing for power users
$> ./vendor/bin/phing -f build.xml hello
/tmp/myproject/build.xml
myproject > init:
myproject > hello:
[echo] Hello, world!
BUILD FINISHED
Total time: 0.0474 seconds

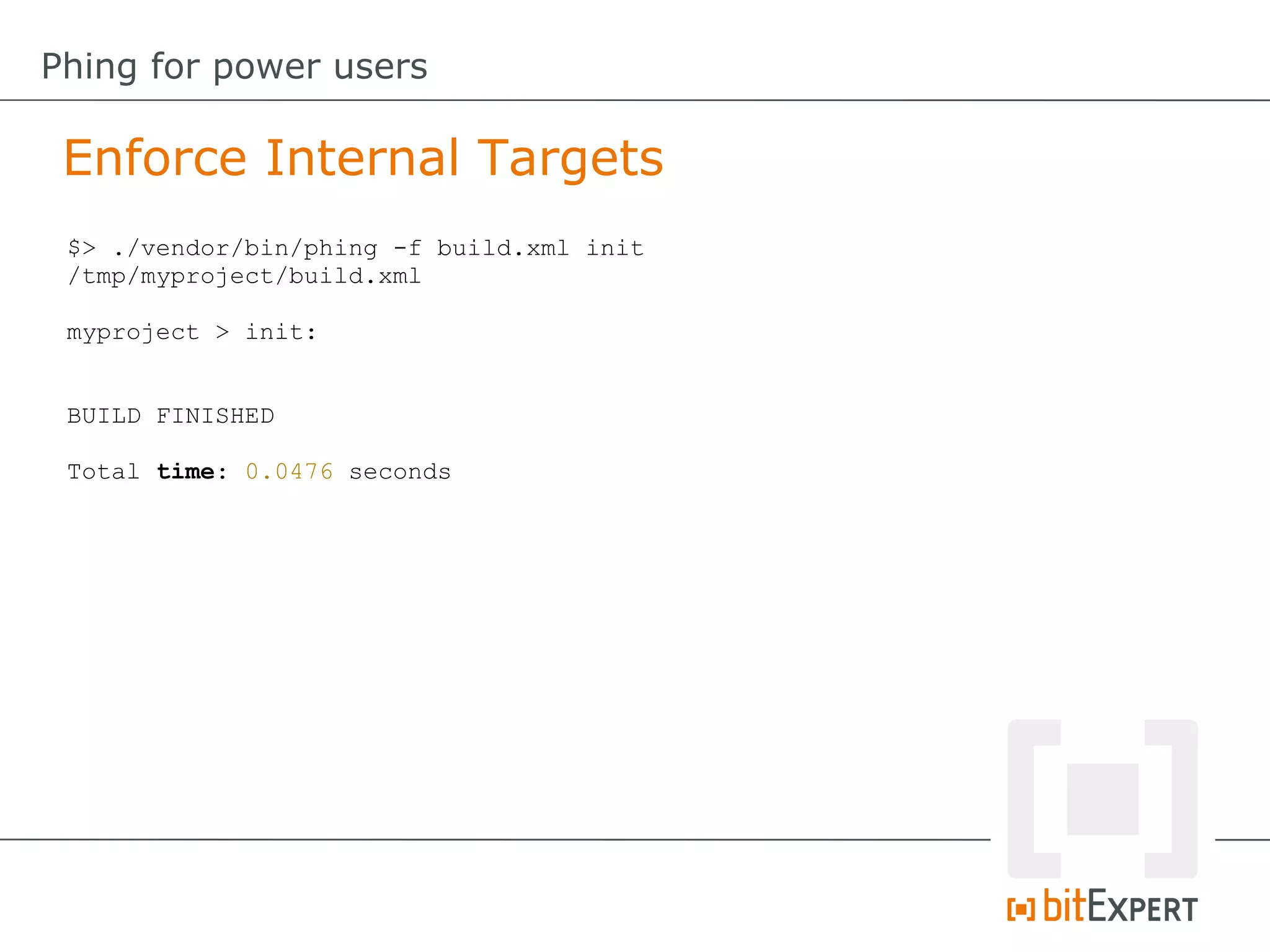

35. Enforce Internal Targets
Phing for power users
$> ./vendor/bin/phing -f build.xml init
/tmp/myproject/build.xml
myproject > init:
BUILD FINISHED
Total time: 0.0476 seconds

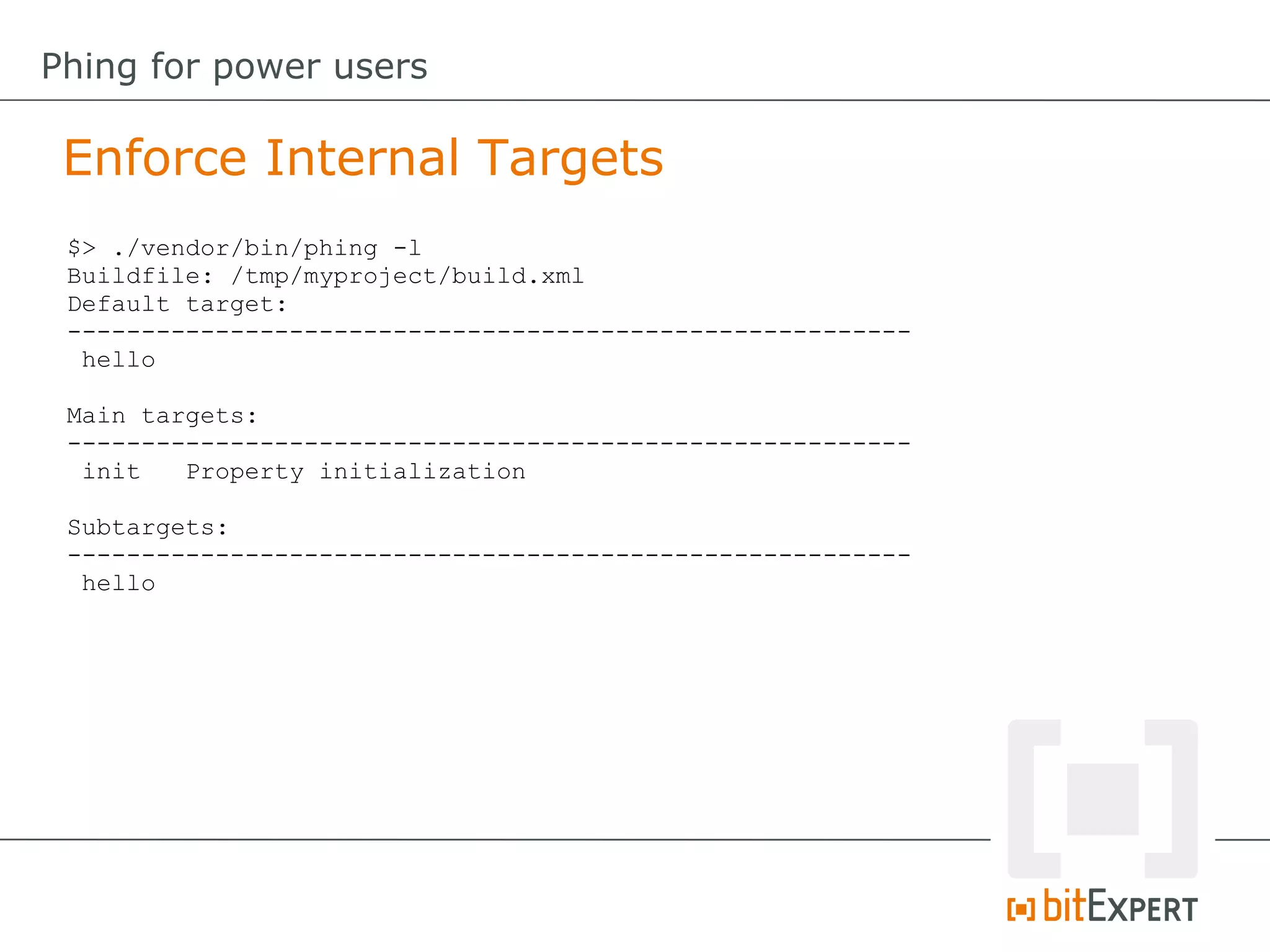

36. Enforce Internal Targets
Phing for power users
$> ./vendor/bin/phing -l
Buildfile: /tmp/myproject/build.xml
Default target:
---------------------------------------------------------
hello
Main targets:
---------------------------------------------------------
init Property initialization
Subtargets:
---------------------------------------------------------
hello

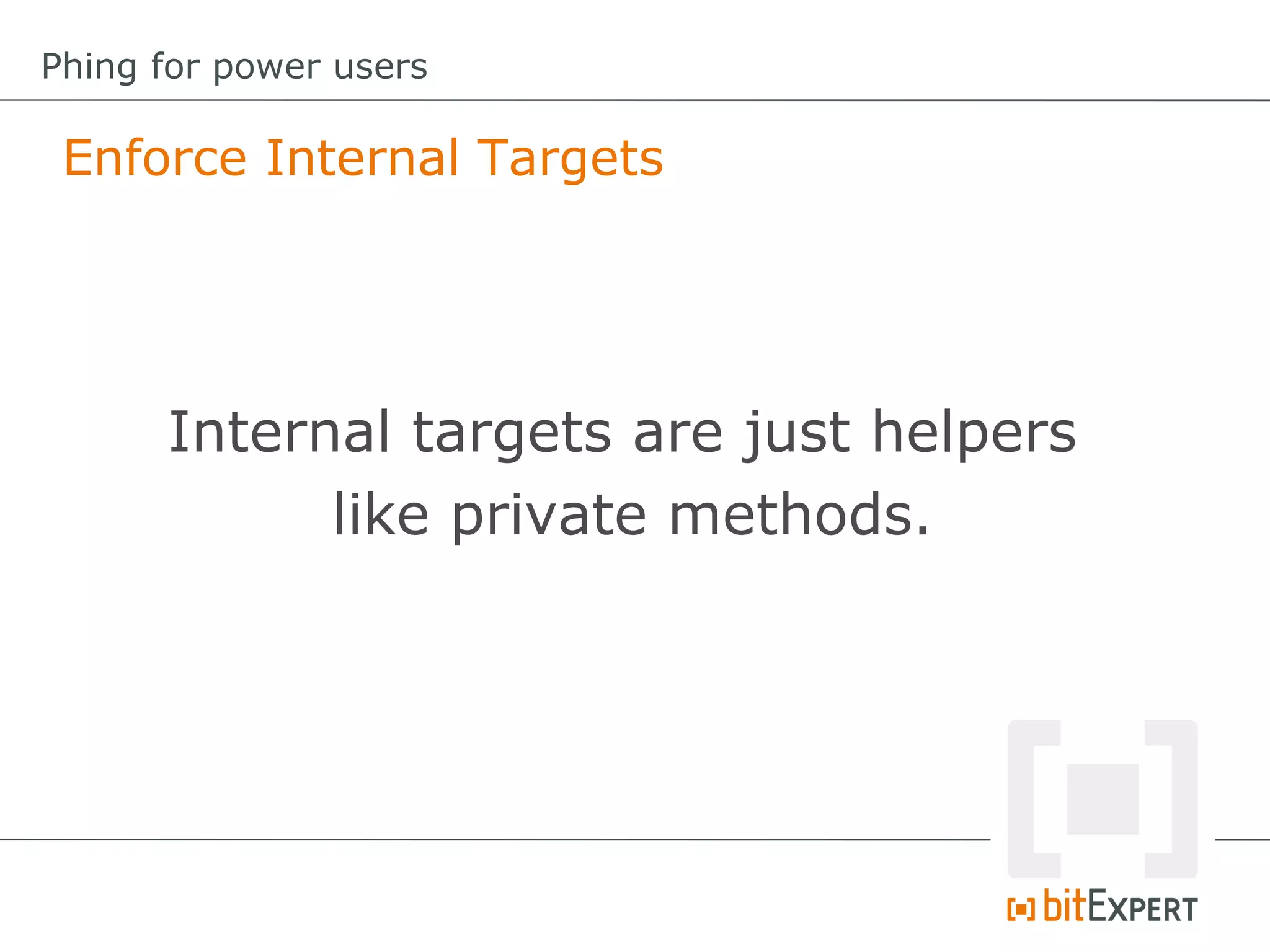

37. Enforce Internal Targets
Phing for power users
Internal targets are just helpers
like private methods.

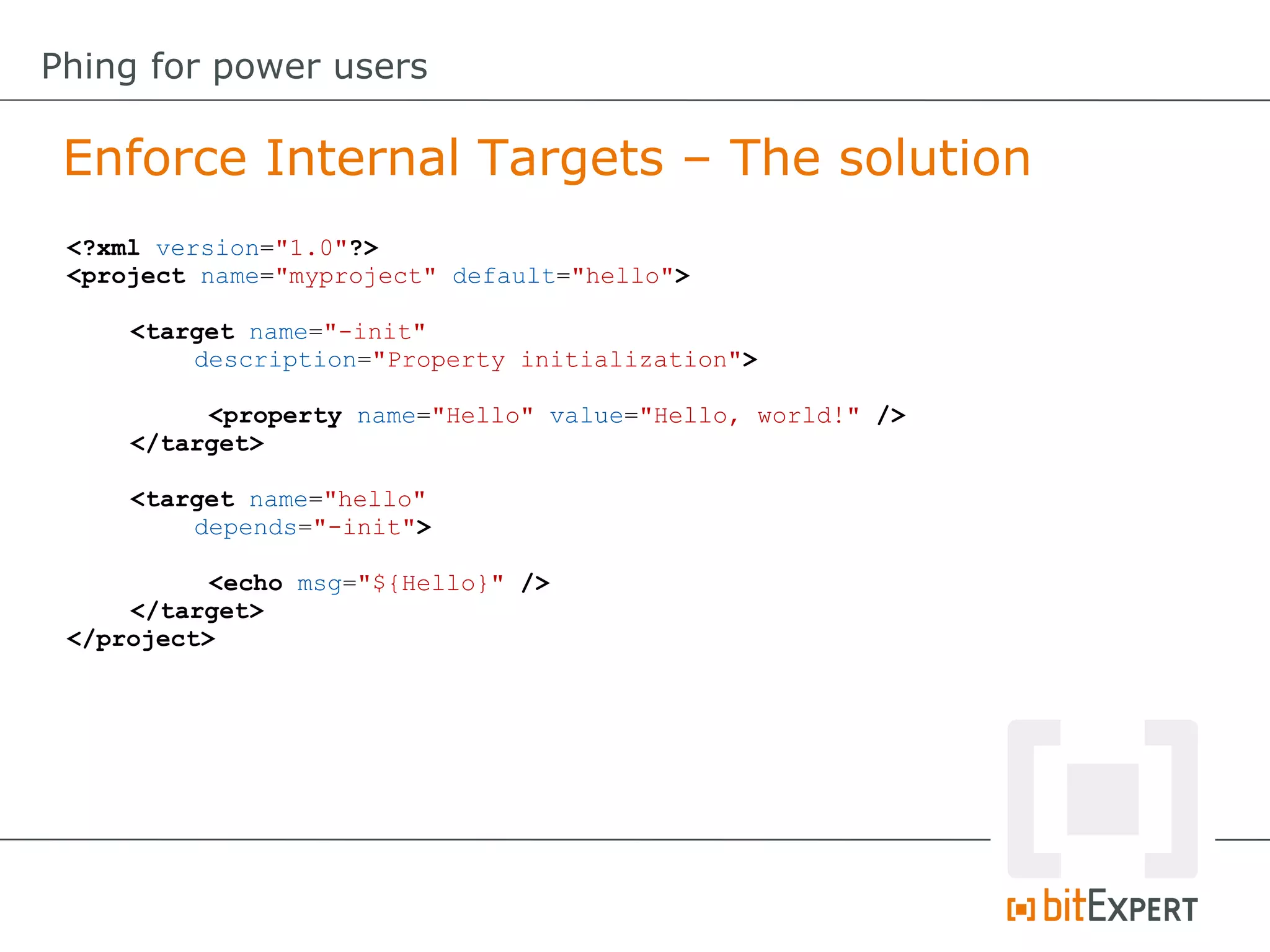

38. <?xml version="1.0"?>
<project name="myproject" default="hello">
<target name="-init"
description="Property initialization">
<property name="Hello" value="Hello, world!" />
</target>
<target name="hello"
depends="-init">
<echo msg="${Hello}" />
</target>
</project>
Enforce Internal Targets – The solution
Phing for power users

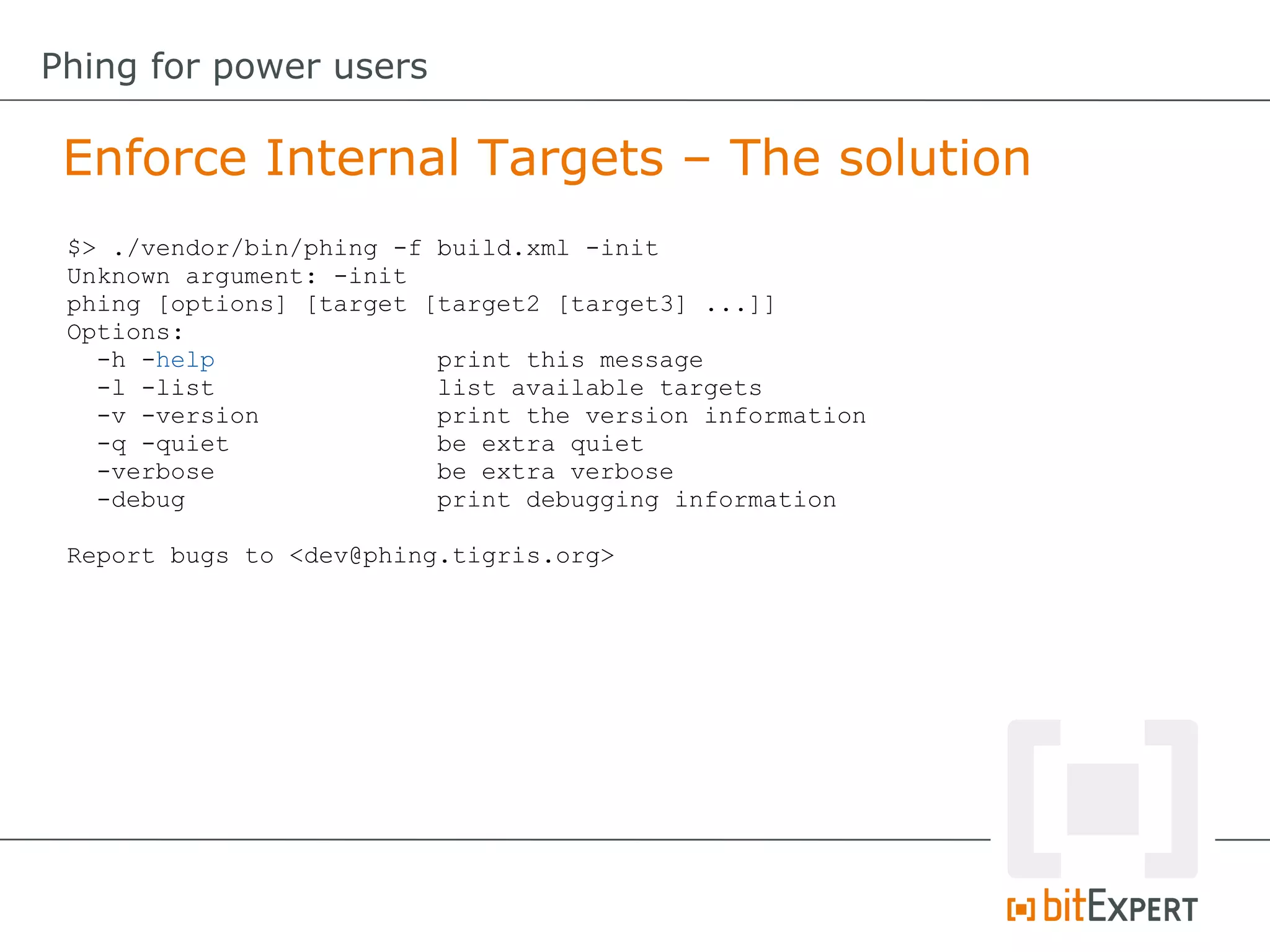

39. Enforce Internal Targets – The solution
Phing for power users
$> ./vendor/bin/phing -f build.xml -init
Unknown argument: -init
phing [options] [target [target2 [target3] ...]]
Options:
-h -help print this message
-l -list list available targets
-v -version print the version information
-q -quiet be extra quiet
-verbose be extra verbose
-debug print debugging information
Report bugs to <dev@phing.tigris.org>

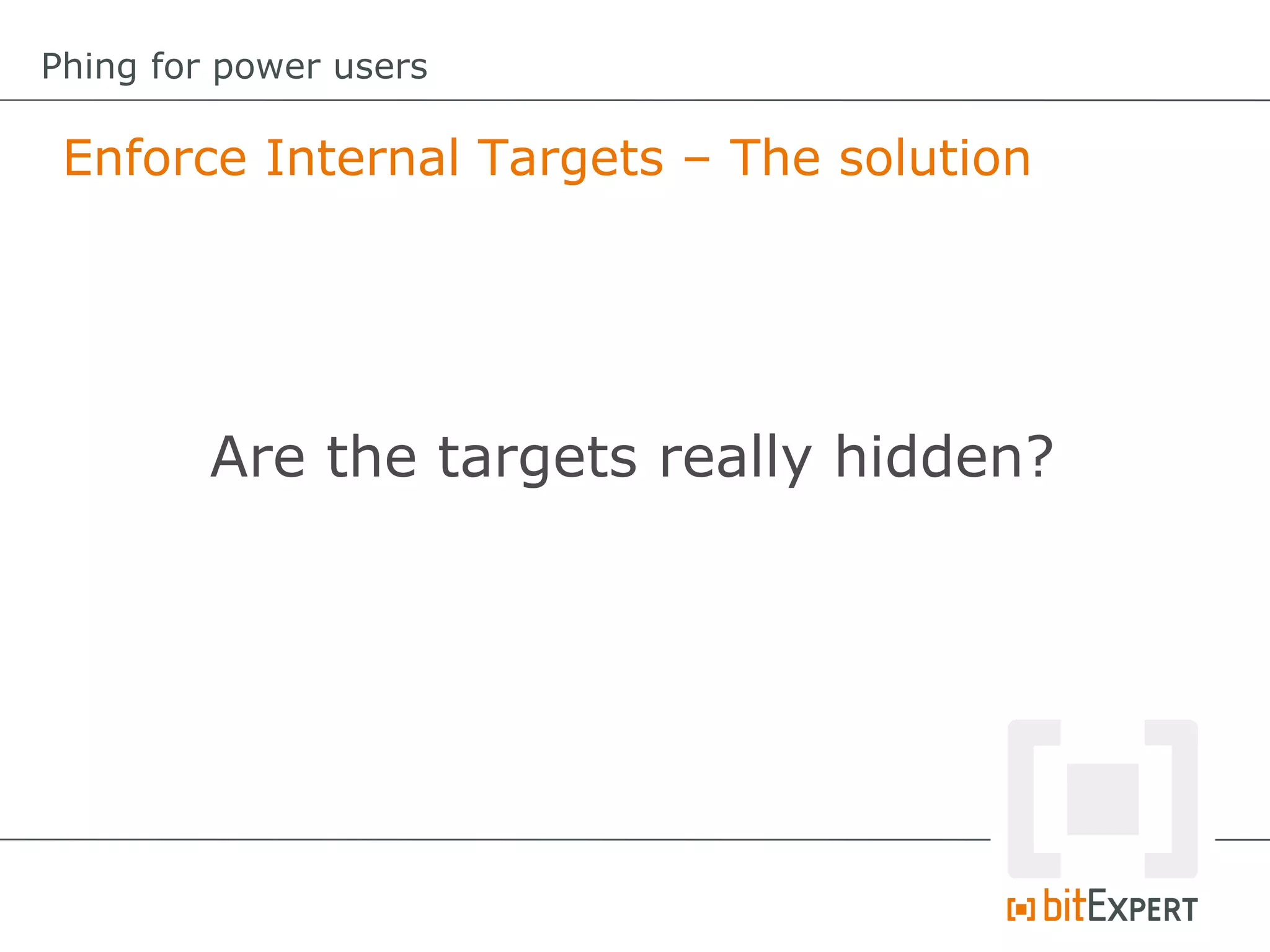

40. Enforce Internal Targets – The solution
Phing for power users
Are the targets really hidden?

41. Enforce Internal Targets
Phing for power users
$> ./vendor/bin/phing -l
Buildfile: /tmp/myproject/build.xml
Default target:
---------------------------------------------------------
hello
Main targets:
---------------------------------------------------------
-init Property initialization
Subtargets:
---------------------------------------------------------
hello

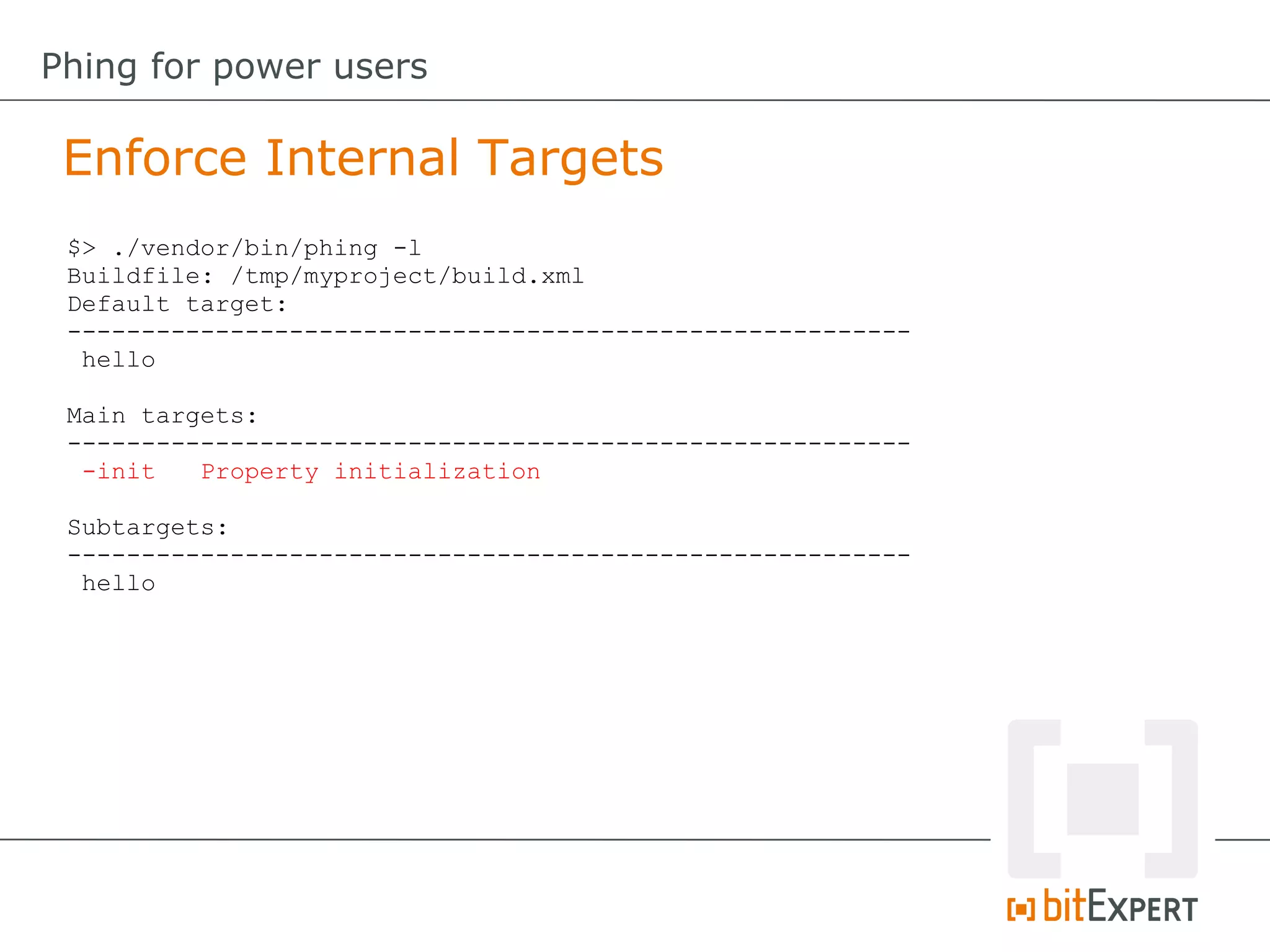

42. Enforce Internal Targets
Phing for power users
$> ./vendor/bin/phing -l
Buildfile: /tmp/myproject/build.xml
Default target:
---------------------------------------------------------
hello
Main targets:
---------------------------------------------------------
-init Property initialization
Subtargets:
---------------------------------------------------------
hello

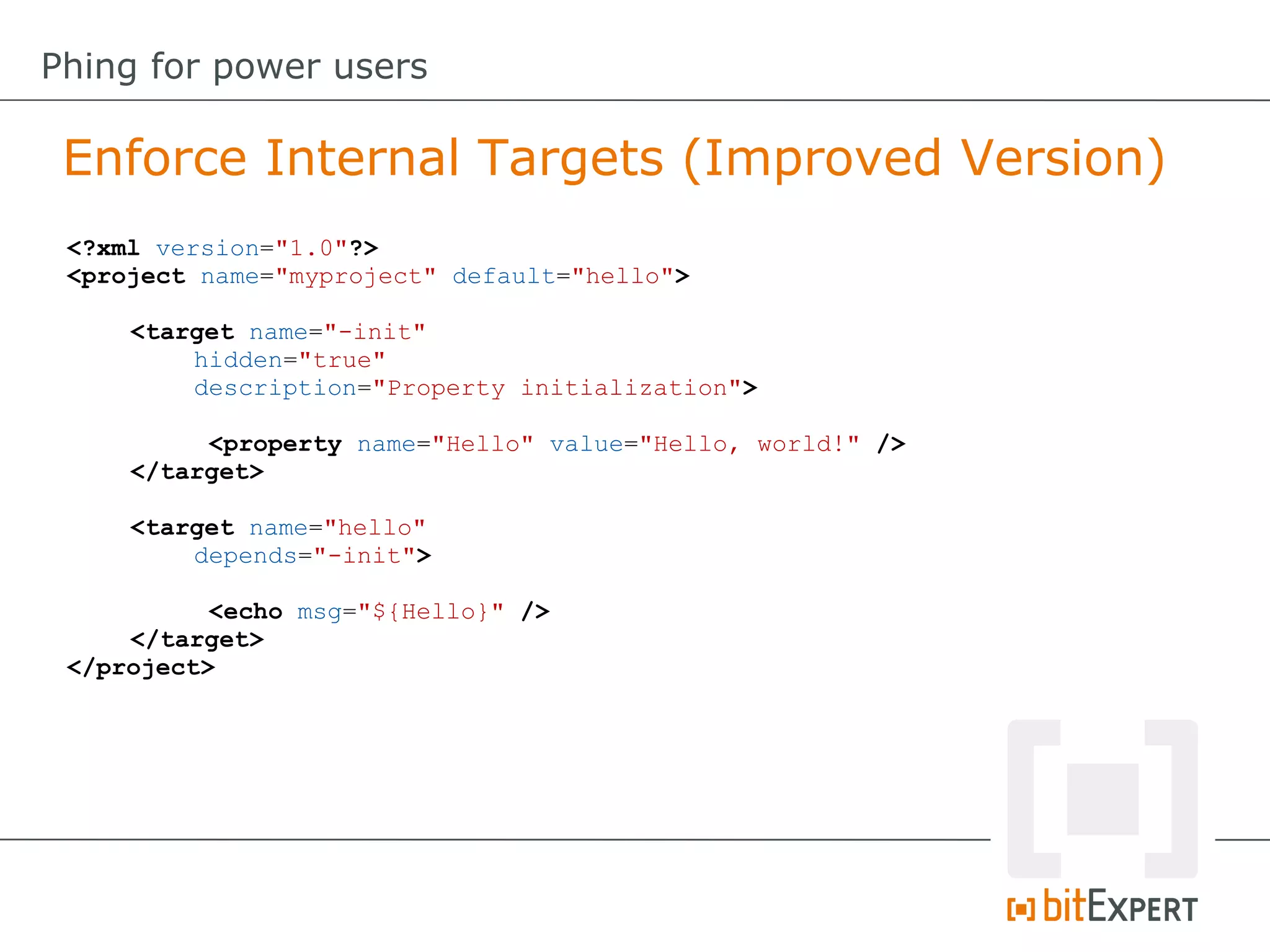

43. Enforce Internal Targets (Improved Version)
Phing for power users
<?xml version="1.0"?>
<project name="myproject" default="hello">
<target name="-init"
hidden="true"
description="Property initialization">
<property name="Hello" value="Hello, world!" />
</target>
<target name="hello"
depends="-init">
<echo msg="${Hello}" />
</target>
</project>

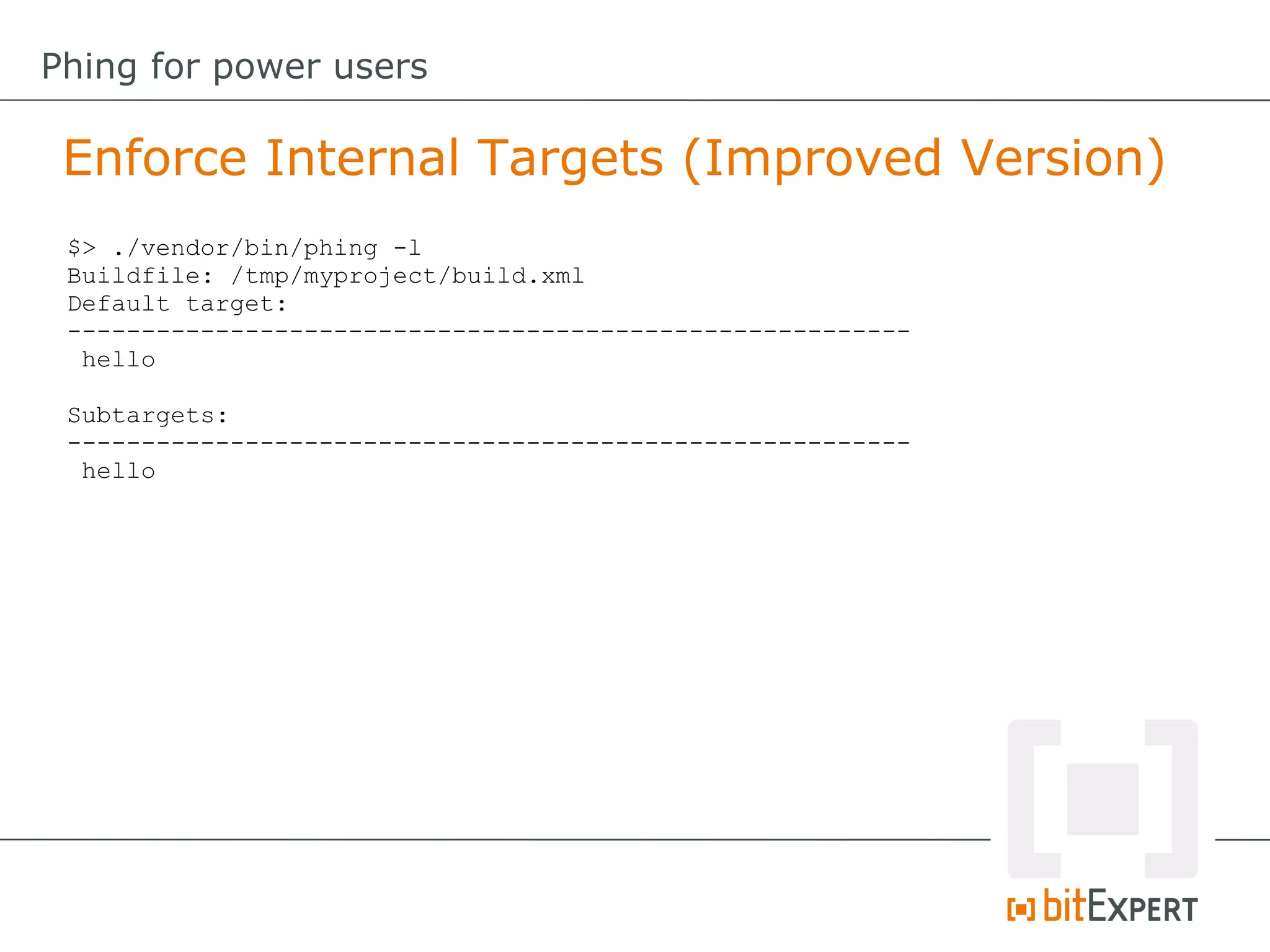

44. $> ./vendor/bin/phing -l
Buildfile: /tmp/myproject/build.xml
Default target:
---------------------------------------------------------
hello
Subtargets:
---------------------------------------------------------
hello
Enforce Internal Targets (Improved Version)
Phing for power users

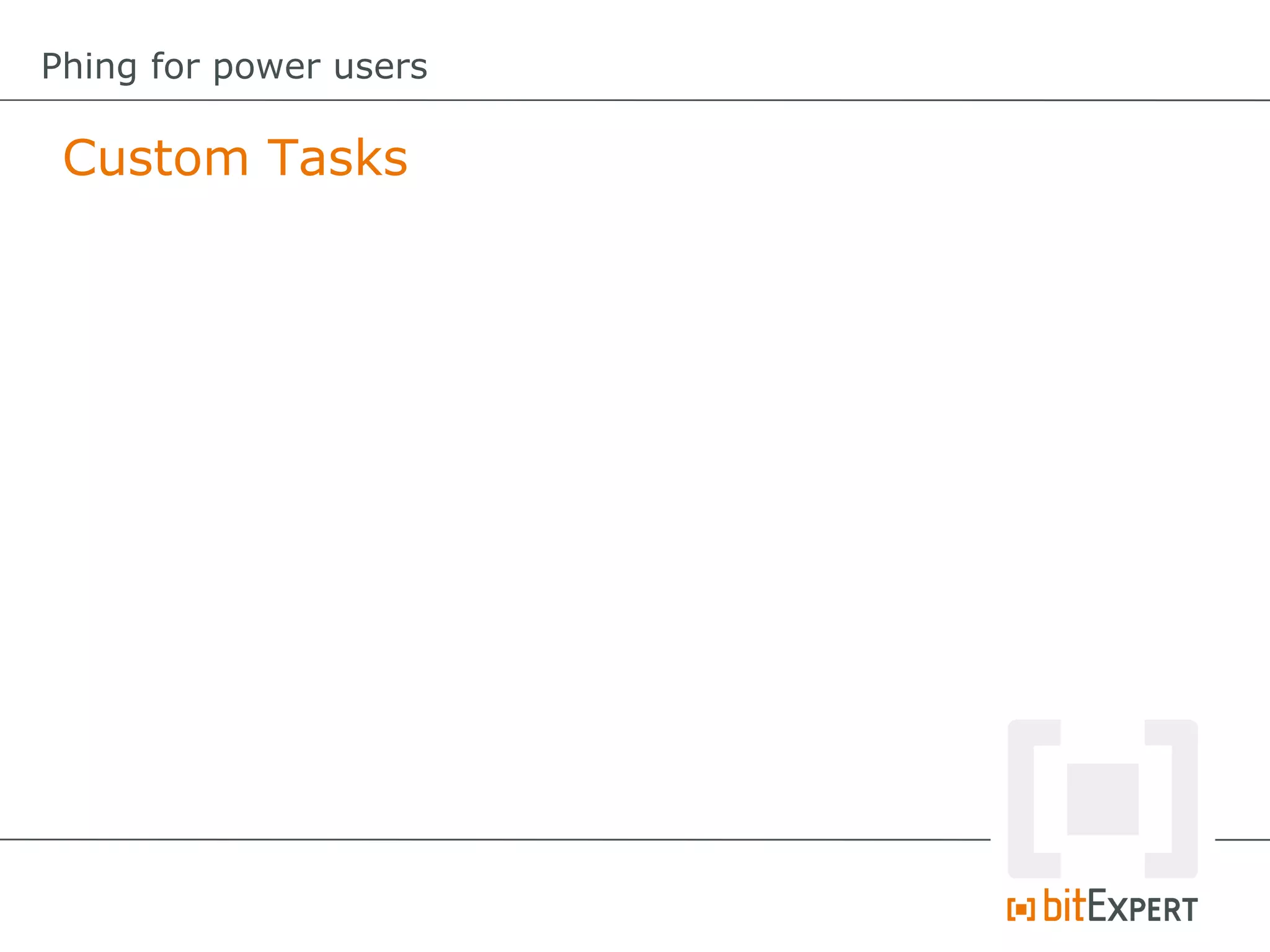

45. Custom Tasks
Phing for power users

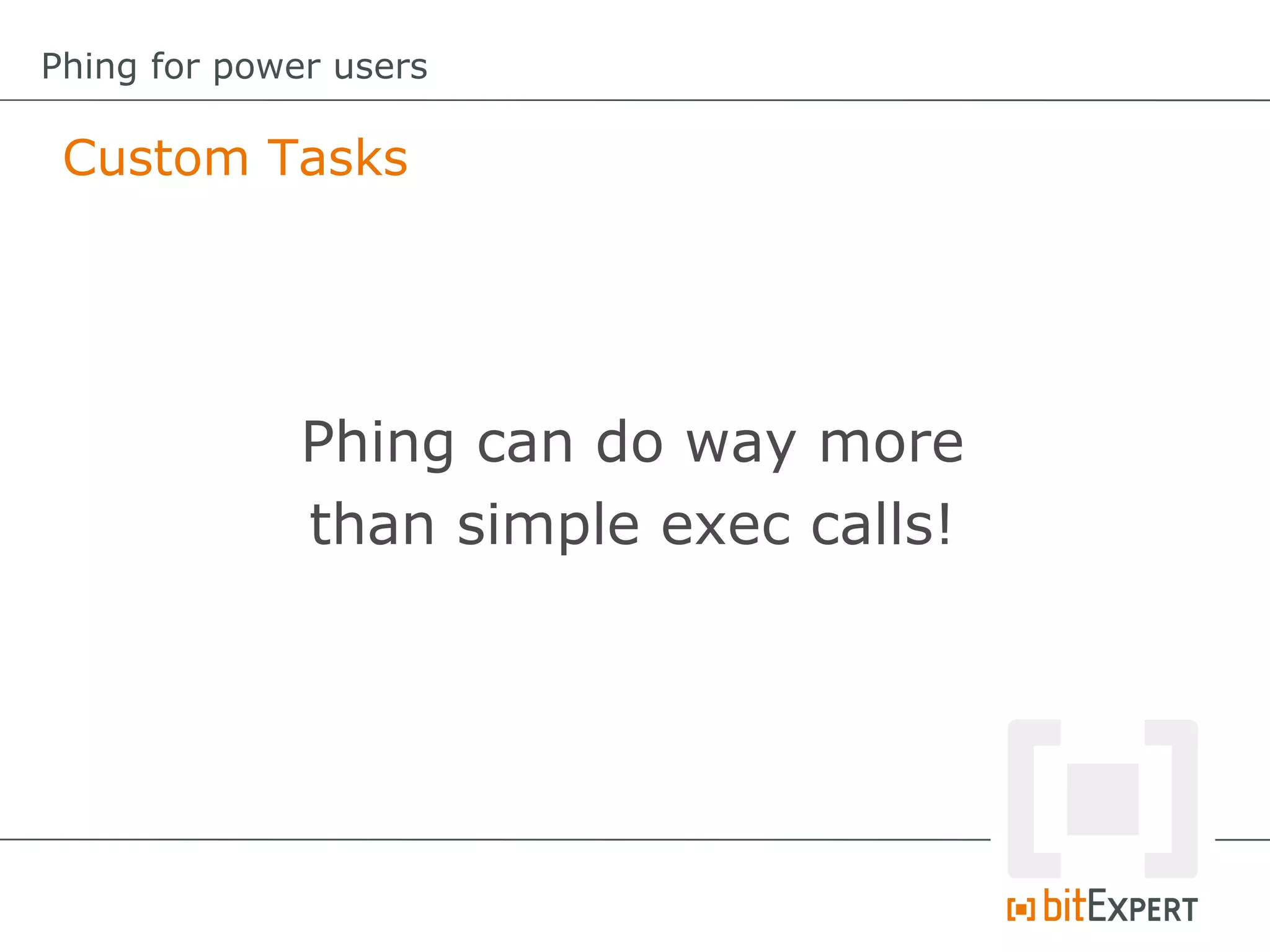

46. Custom Tasks
Phing for power users
Phing can do way more
than simple exec calls!

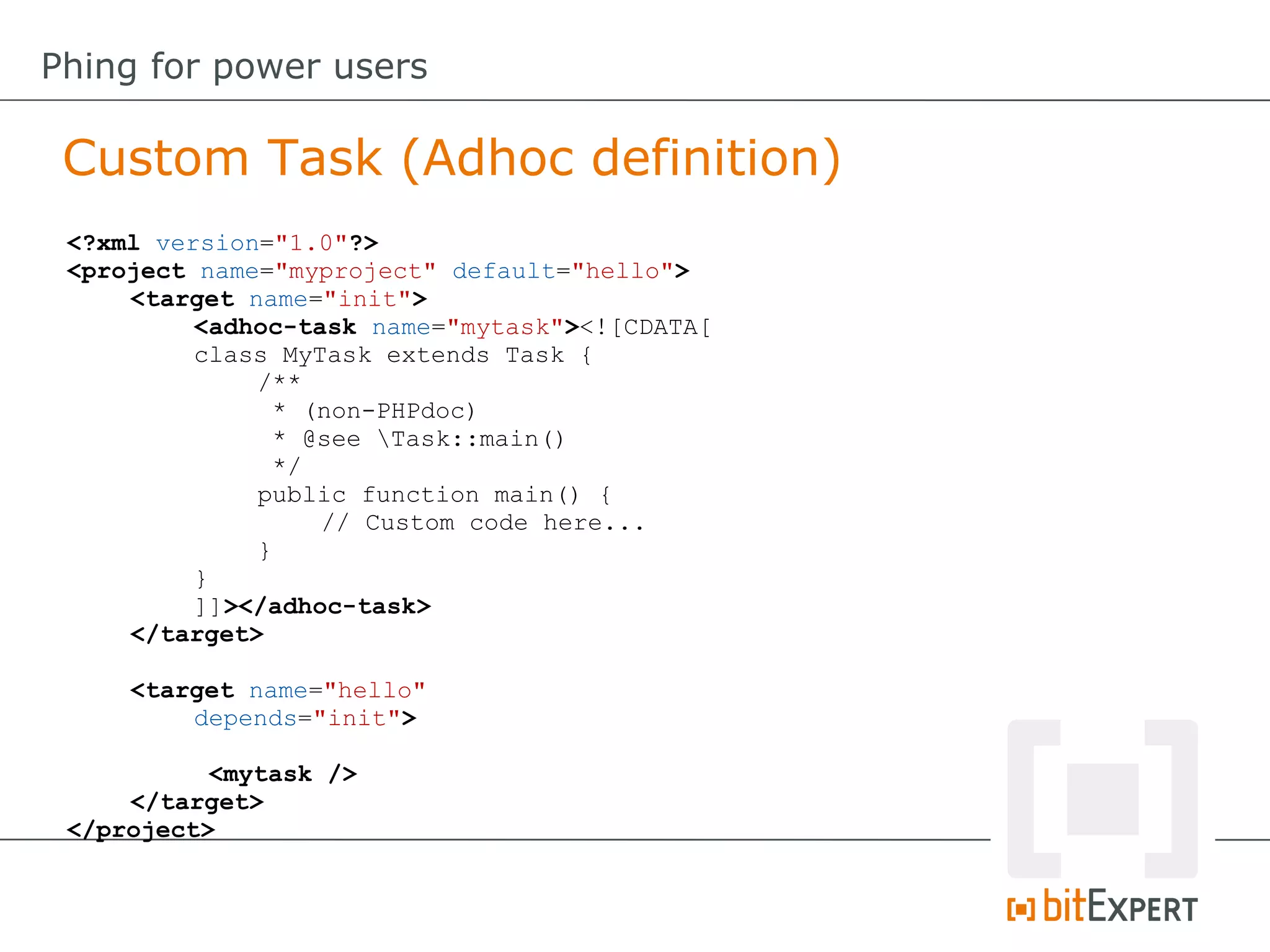

47. Custom Task (Adhoc definition)
Phing for power users
<?xml version="1.0"?>
<project name="myproject" default="hello">
<target name="init">
<adhoc-task name="mytask"><![CDATA[
class MyTask extends Task {
/**
* (non-PHPdoc)
* @see Task::main()
*/
public function main() {
// Custom code here...
}
}
]]></adhoc-task>
</target>
<target name="hello"
depends="init">
<mytask />
</target>
</project>

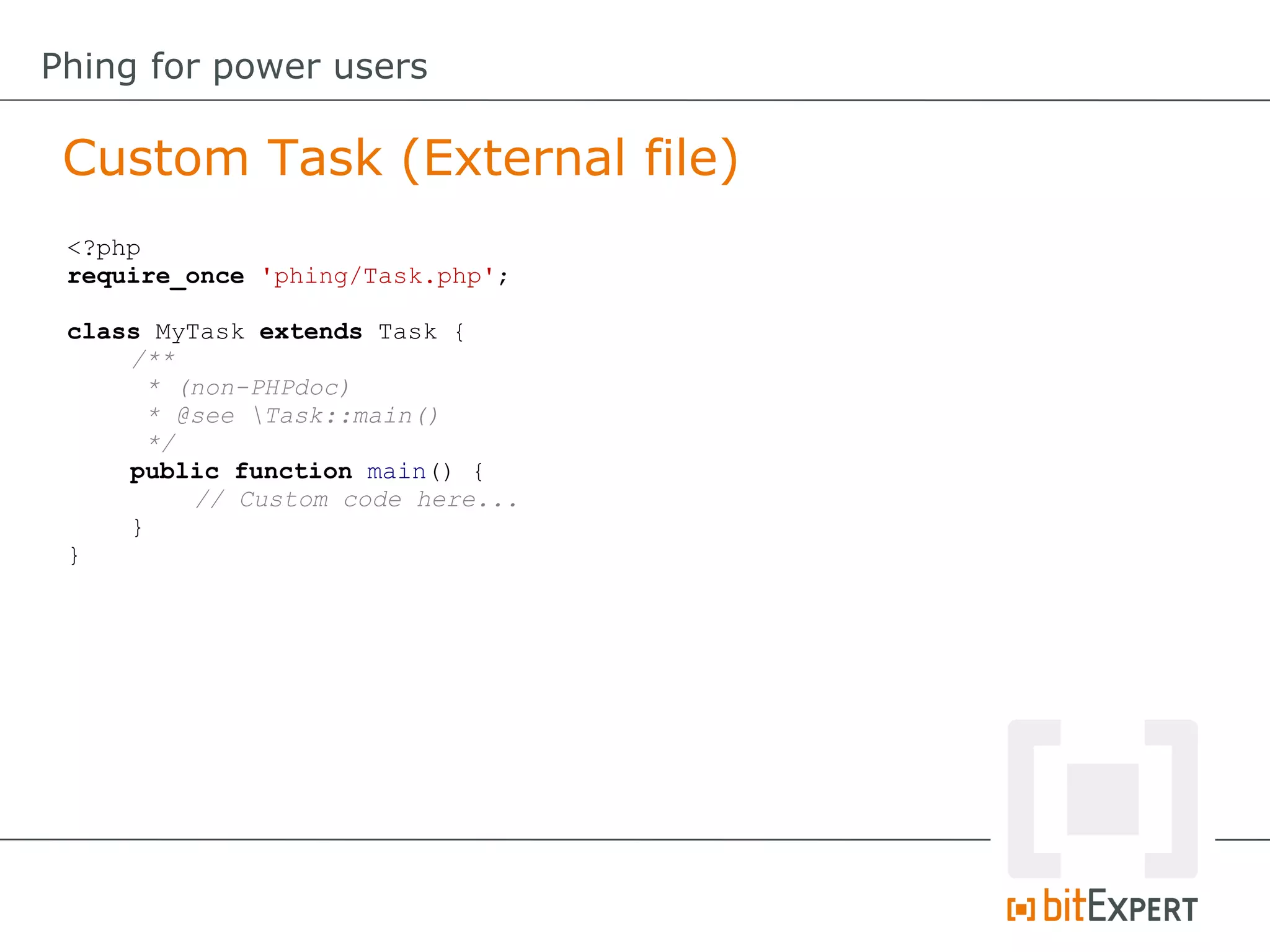

48. <?php
require_once 'phing/Task.php';
class MyTask extends Task {
/**
* (non-PHPdoc)
* @see Task::main()
*/
public function main() {
// Custom code here...
}
}
Custom Task (External file)
Phing for power users

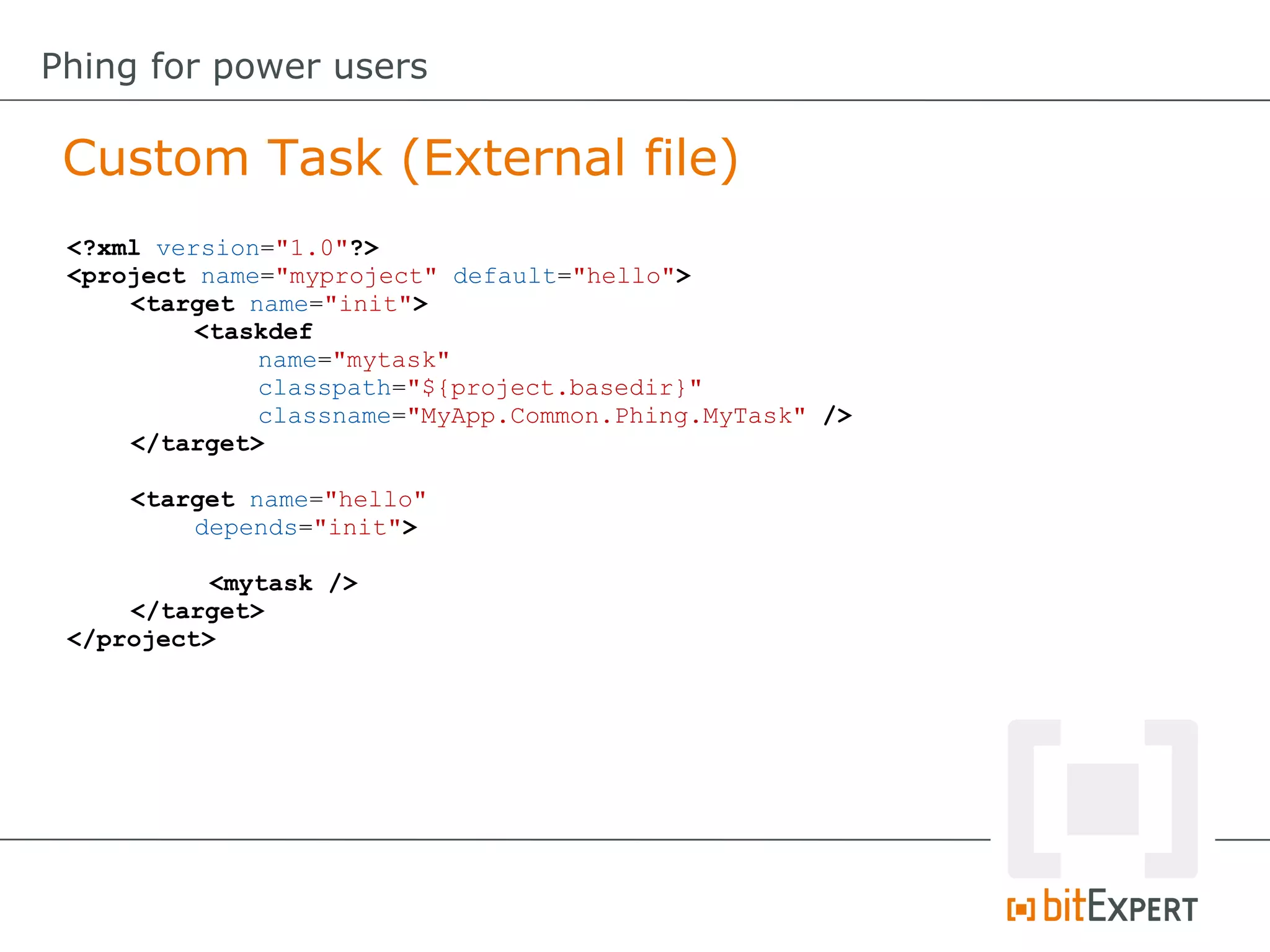

49. <?xml version="1.0"?>
<project name="myproject" default="hello">
<target name="init">
<taskdef
name="mytask"
classpath="${project.basedir}"
classname="MyApp.Common.Phing.MyTask" />
</target>
<target name="hello"
depends="init">
<mytask />
</target>
</project>
Custom Task (External file)
Phing for power users

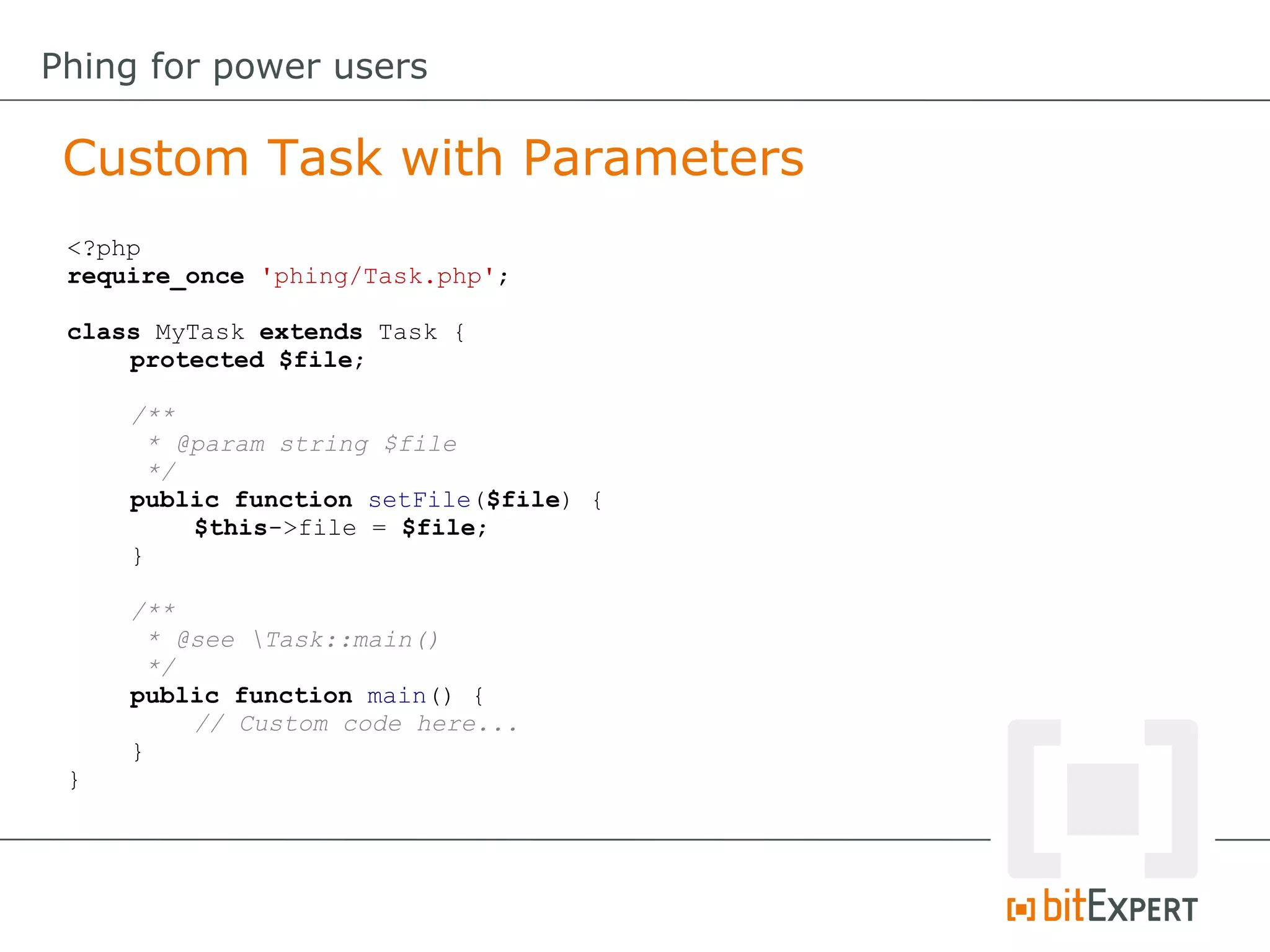

50. <?php
require_once 'phing/Task.php';
class MyTask extends Task {
protected $file;
/**
* @param string $file
*/
public function setFile($file) {
$this->file = $file;
}
/**
* @see Task::main()
*/
public function main() {
// Custom code here...
}
}
Custom Task with Parameters
Phing for power users

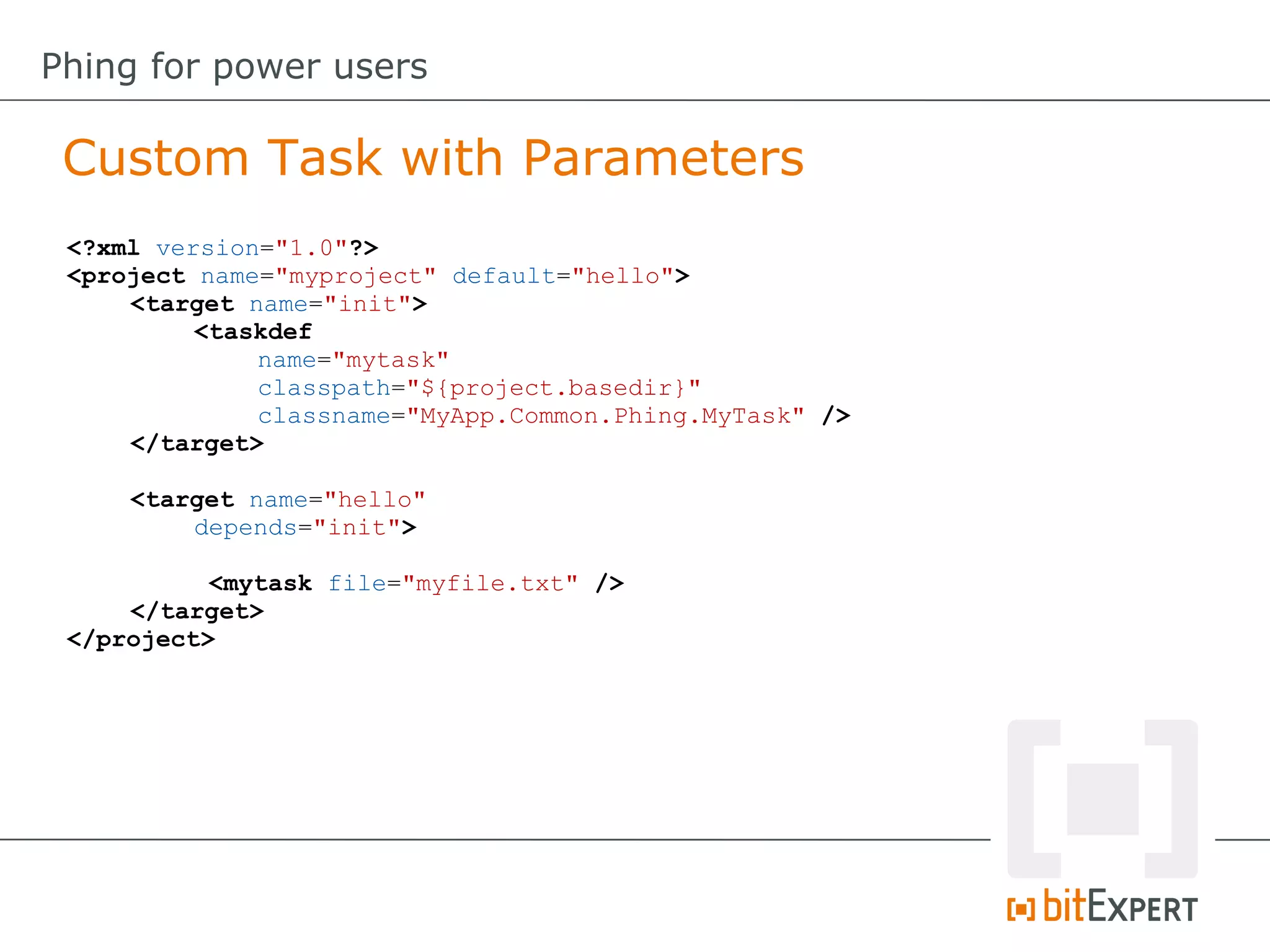

51. <?xml version="1.0"?>
<project name="myproject" default="hello">
<target name="init">
<taskdef
name="mytask"
classpath="${project.basedir}"
classname="MyApp.Common.Phing.MyTask" />
</target>
<target name="hello"
depends="init">
<mytask file="myfile.txt" />
</target>
</project>
Custom Task with Parameters
Phing for power users

52. Properties File
Phing for power users

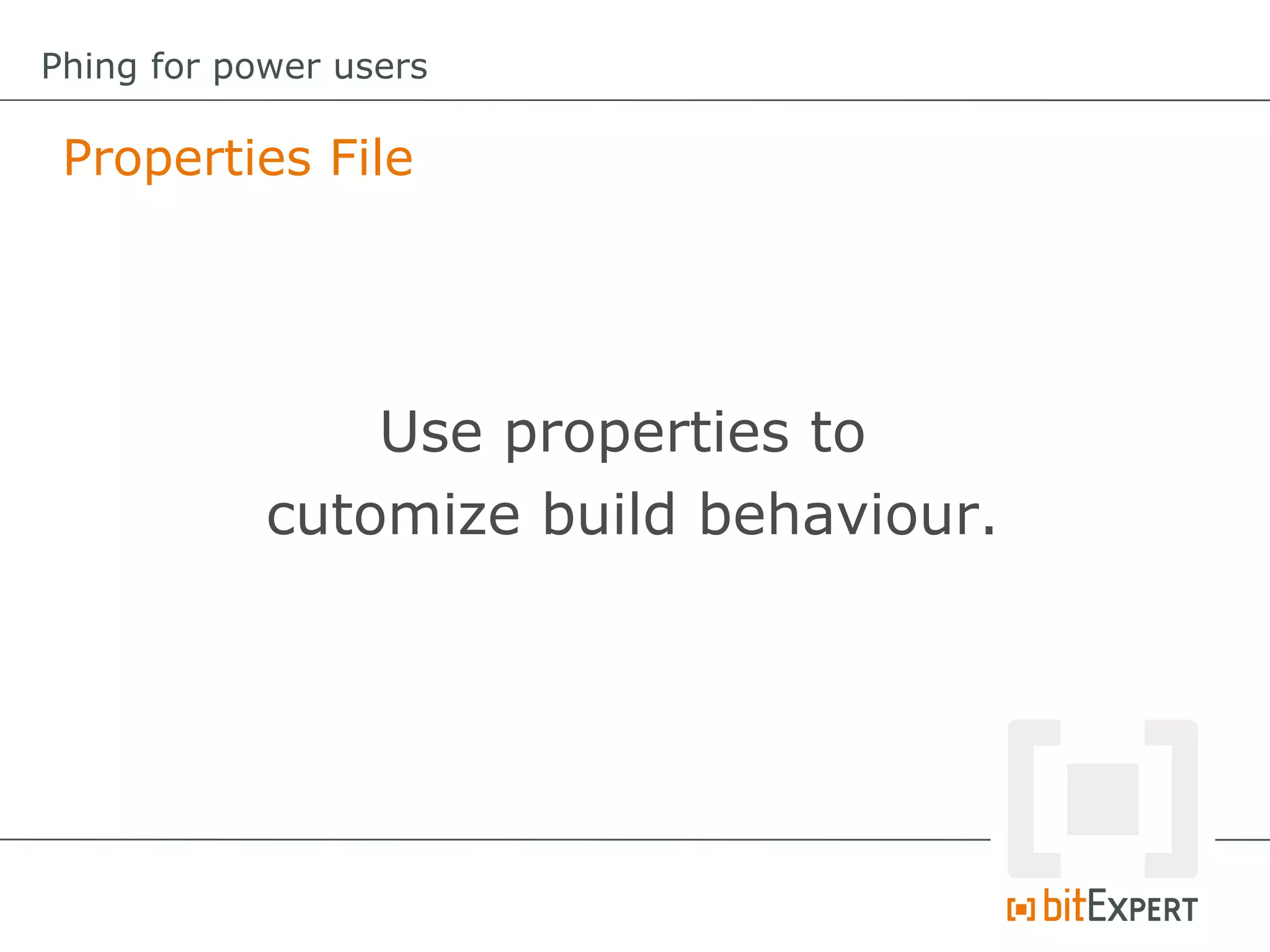

53. Properties File
Phing for power users
Use properties to
cutomize build behaviour.

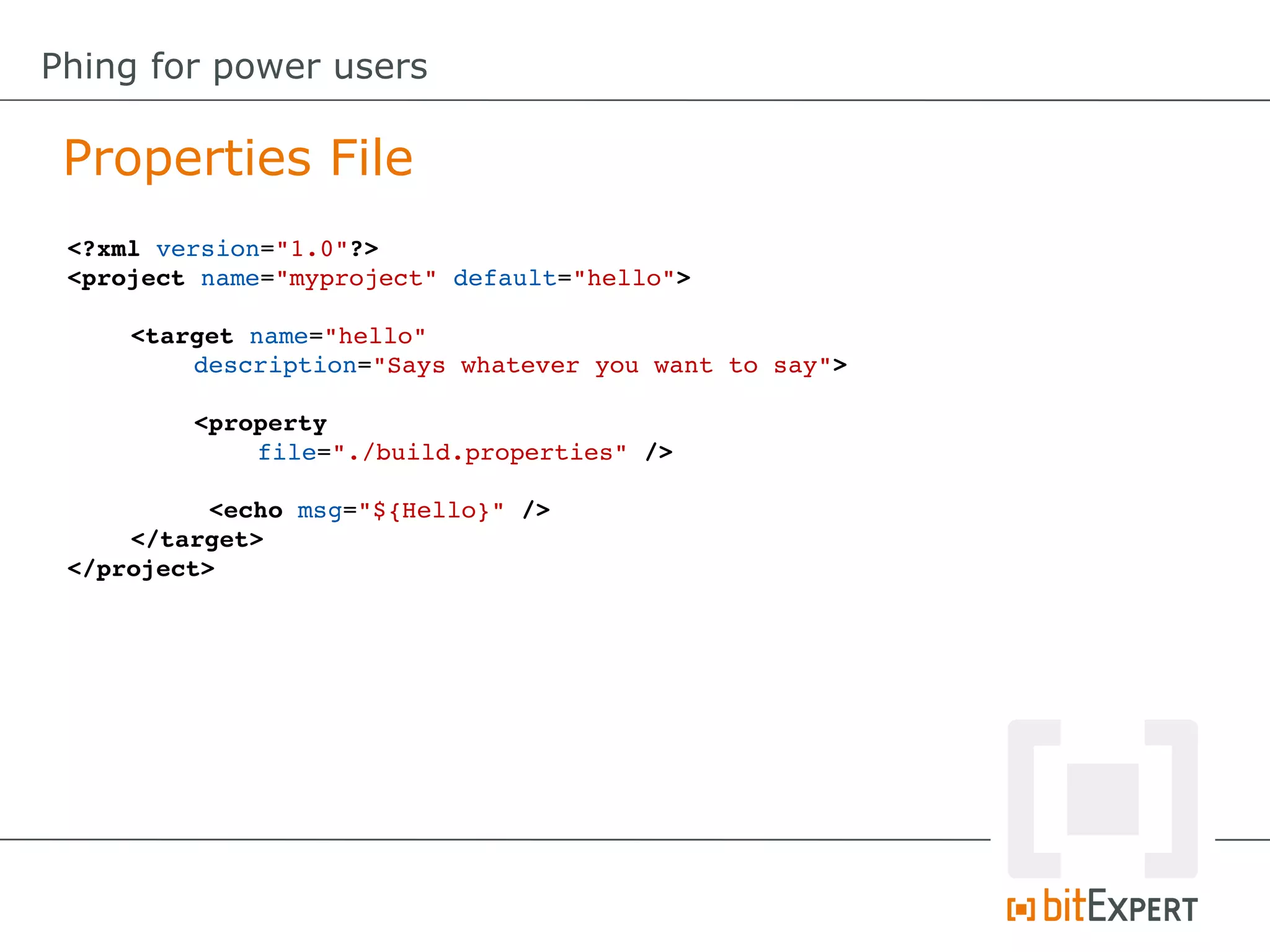

54. <?xml version="1.0"?>
<project name="myproject" default="hello">
<target name="hello"
description="Says whatever you want to say">
<property
file="./build.properties" />
<echo msg="${Hello}" />
</target>
</project>
Properties File
Phing for power users

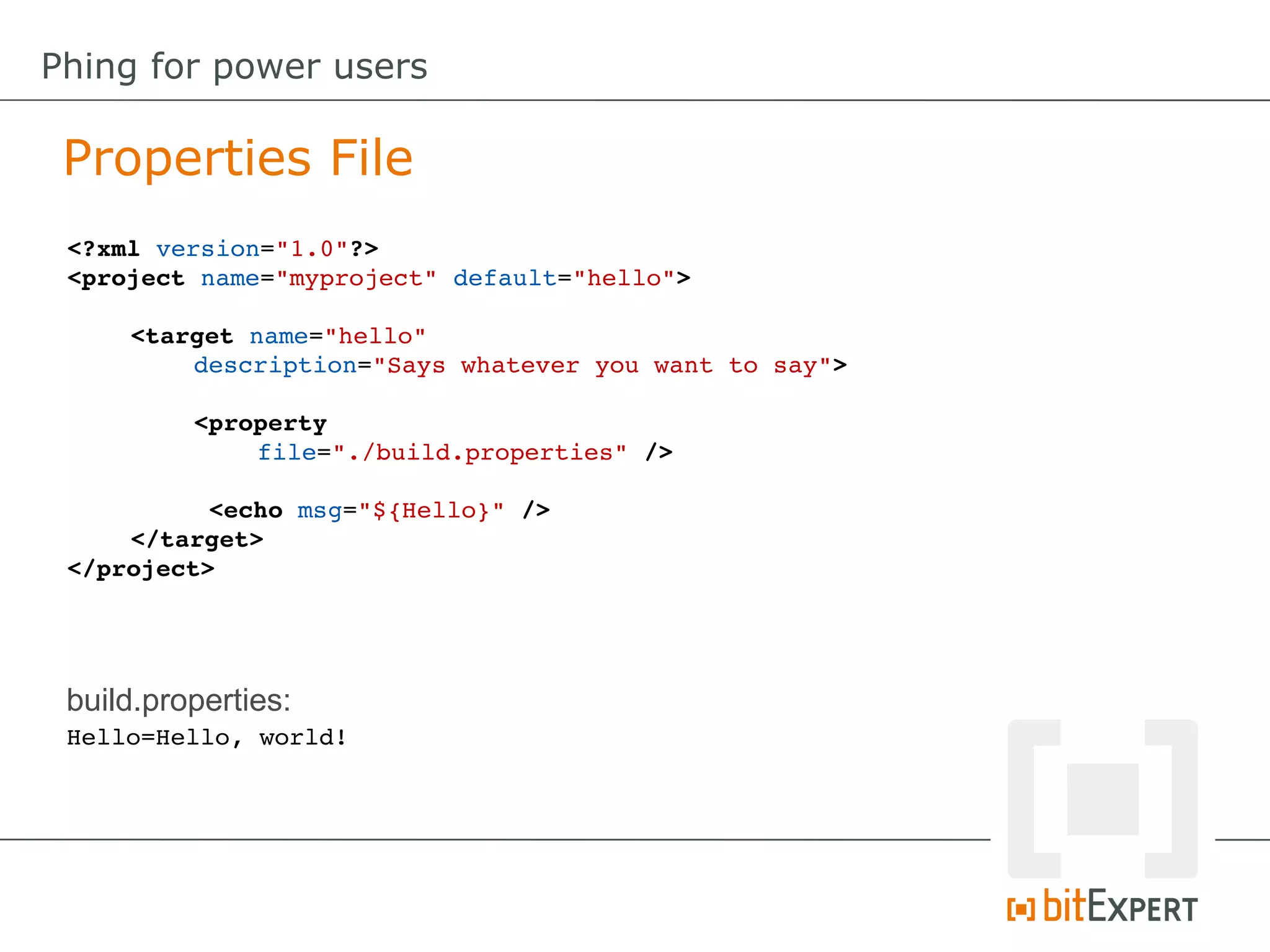

55. <?xml version="1.0"?>
<project name="myproject" default="hello">
<target name="hello"
description="Says whatever you want to say">
<property
file="./build.properties" />
<echo msg="${Hello}" />
</target>
</project>
Properties File
Phing for power users
Hello=Hello, world!
build.properties:

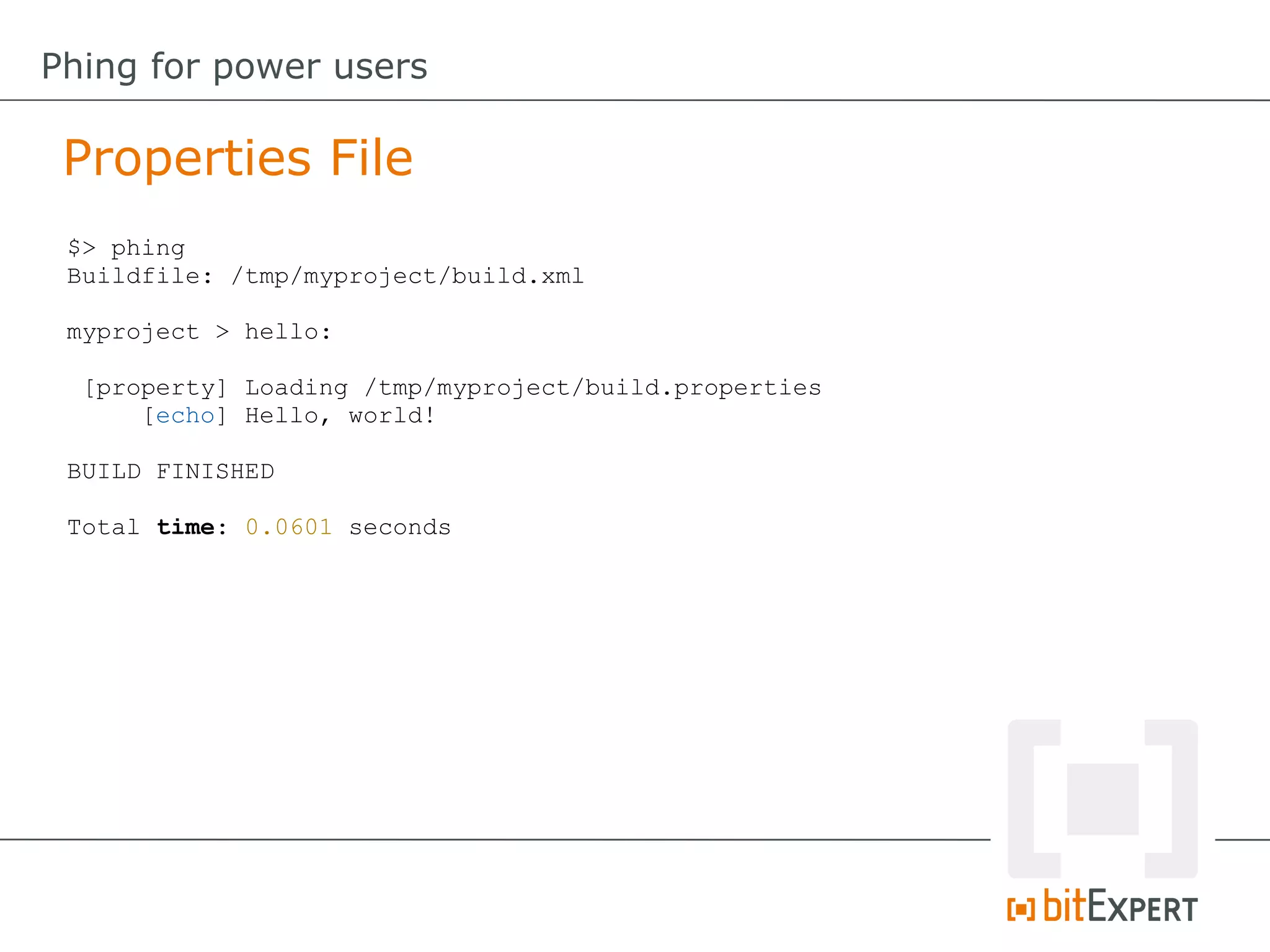

56. Properties File
Phing for power users
$> phing
Buildfile: /tmp/myproject/build.xml
myproject > hello:
[property] Loading /tmp/myproject/build.properties
[echo] Hello, world!
BUILD FINISHED
Total time: 0.0601 seconds

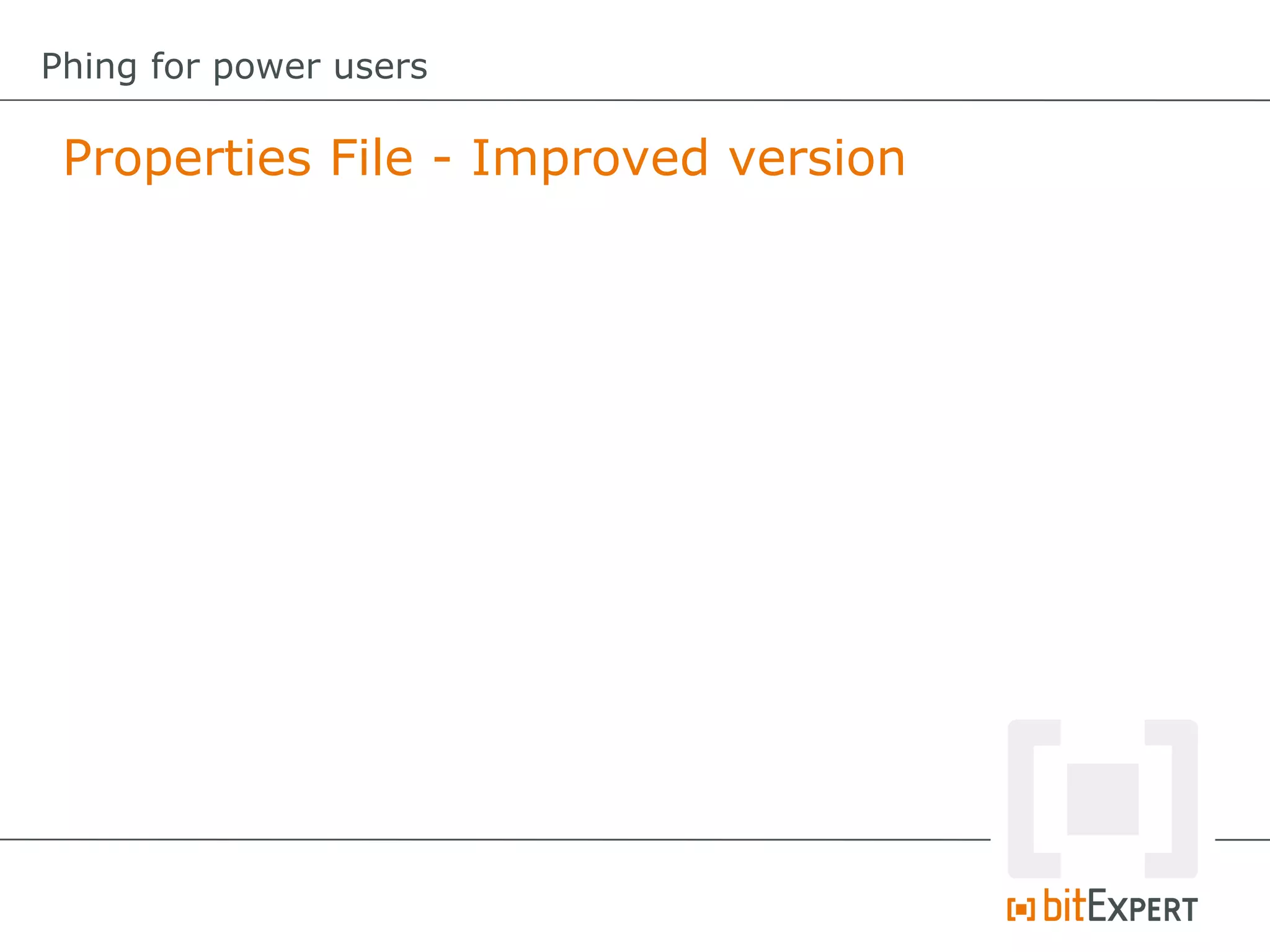

57. Properties File - Improved version
Phing for power users

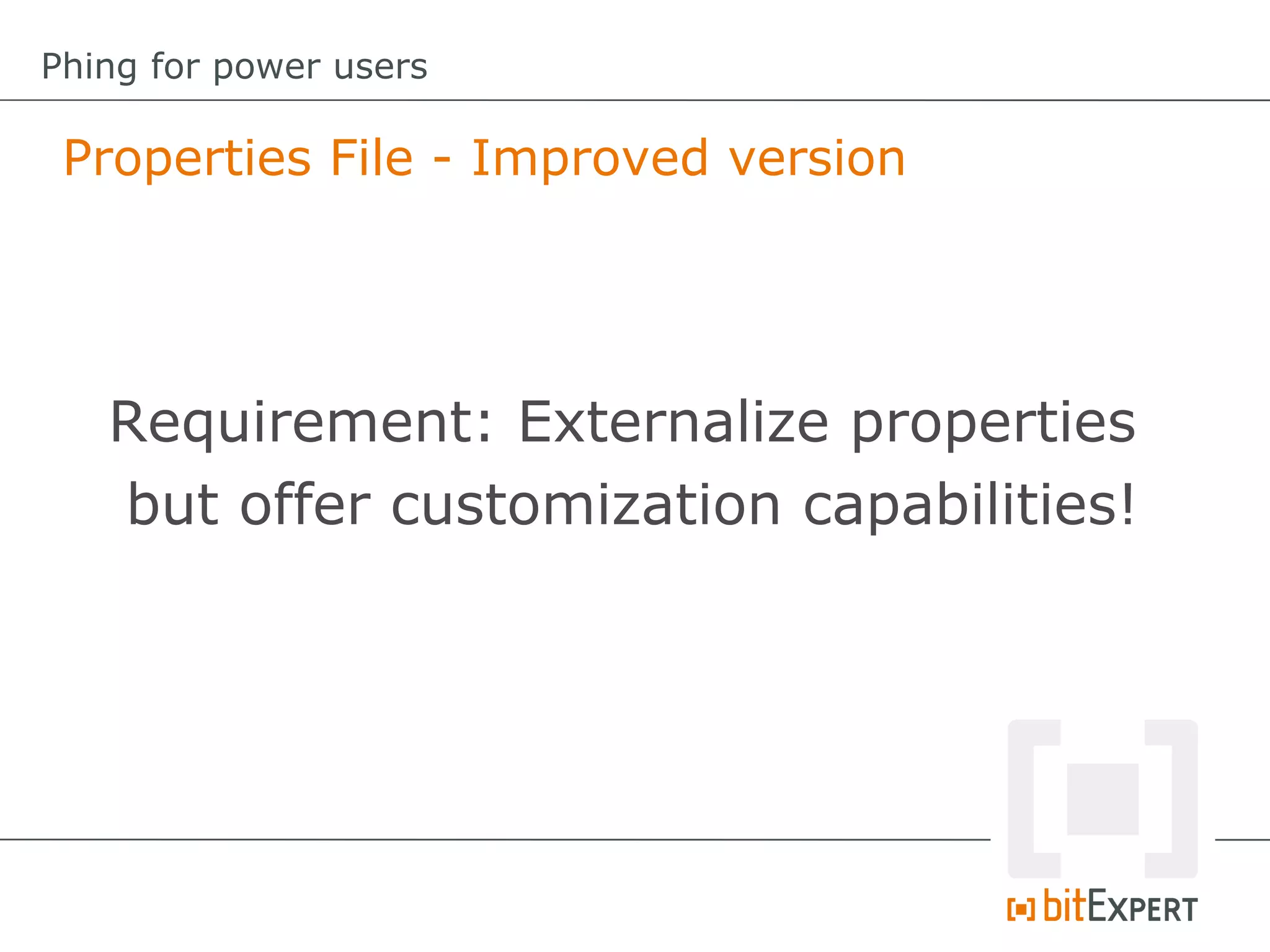

58. Properties File - Improved version
Phing for power users
Requirement: Externalize properties
but offer customization capabilities!

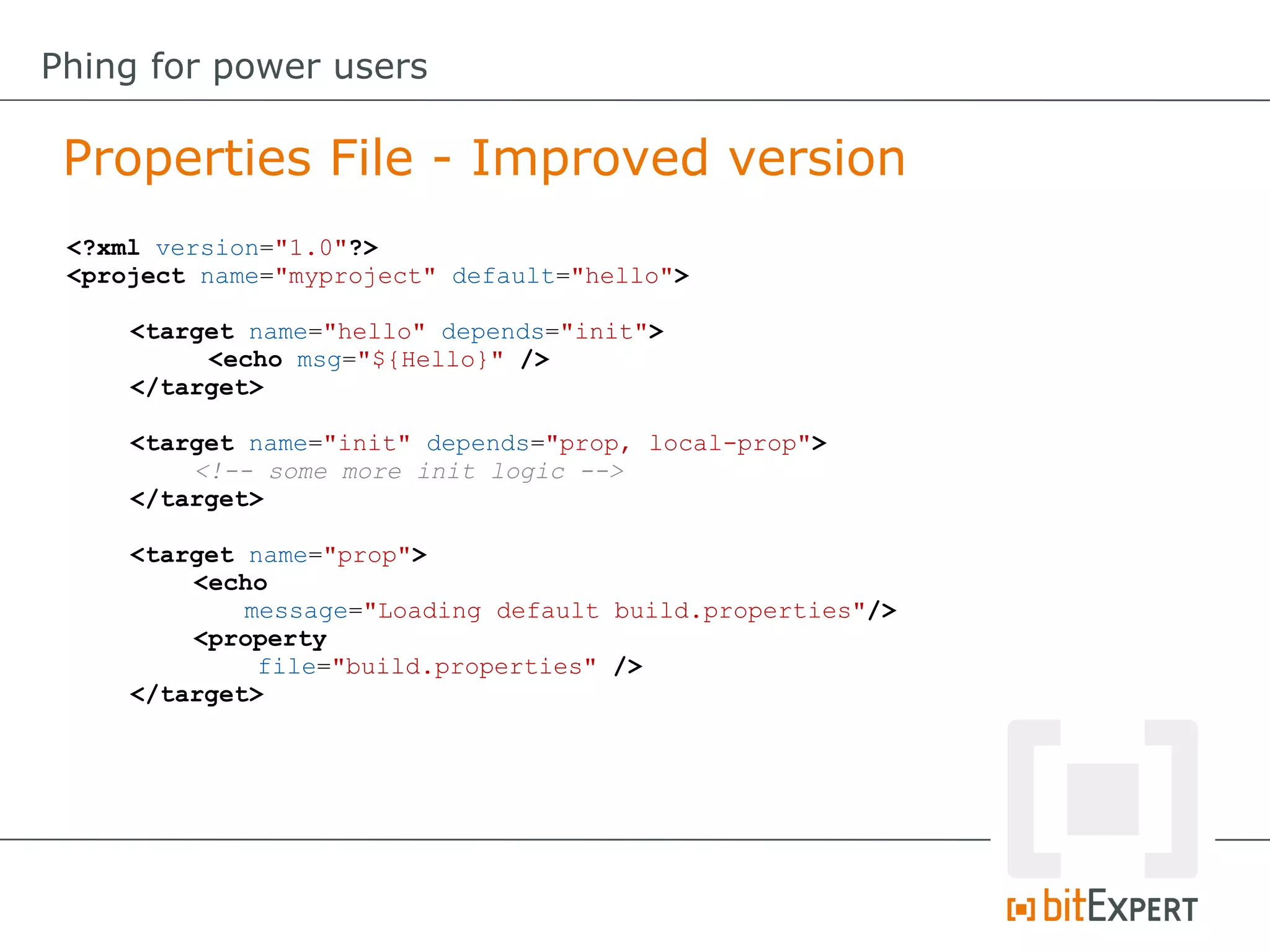

59. <?xml version="1.0"?>
<project name="myproject" default="hello">
<target name="hello" depends="init">
<echo msg="${Hello}" />
</target>
<target name="init" depends="prop, local-prop">
<!-- some more init logic -->
</target>
<target name="prop">
<echo
message="Loading default build.properties"/>
<property
file="build.properties" />
</target>
Properties File - Improved version
Phing for power users

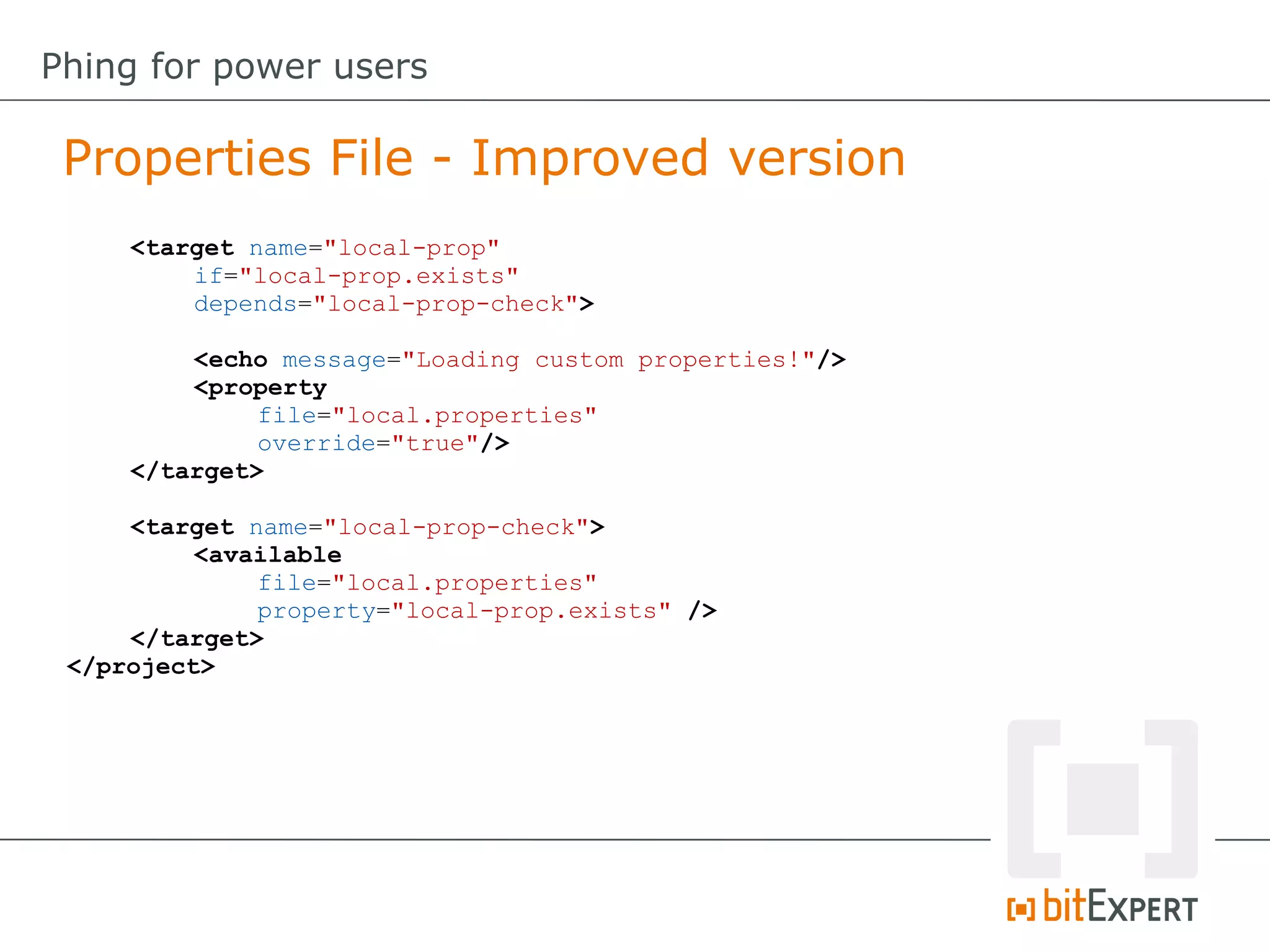

60. <target name="local-prop"
if="local-prop.exists"
depends="local-prop-check">
<echo message="Loading custom properties!"/>
<property
file="local.properties"
override="true"/>
</target>
<target name="local-prop-check">
<available
file="local.properties"
property="local-prop.exists" />
</target>
</project>
Properties File - Improved version
Phing for power users

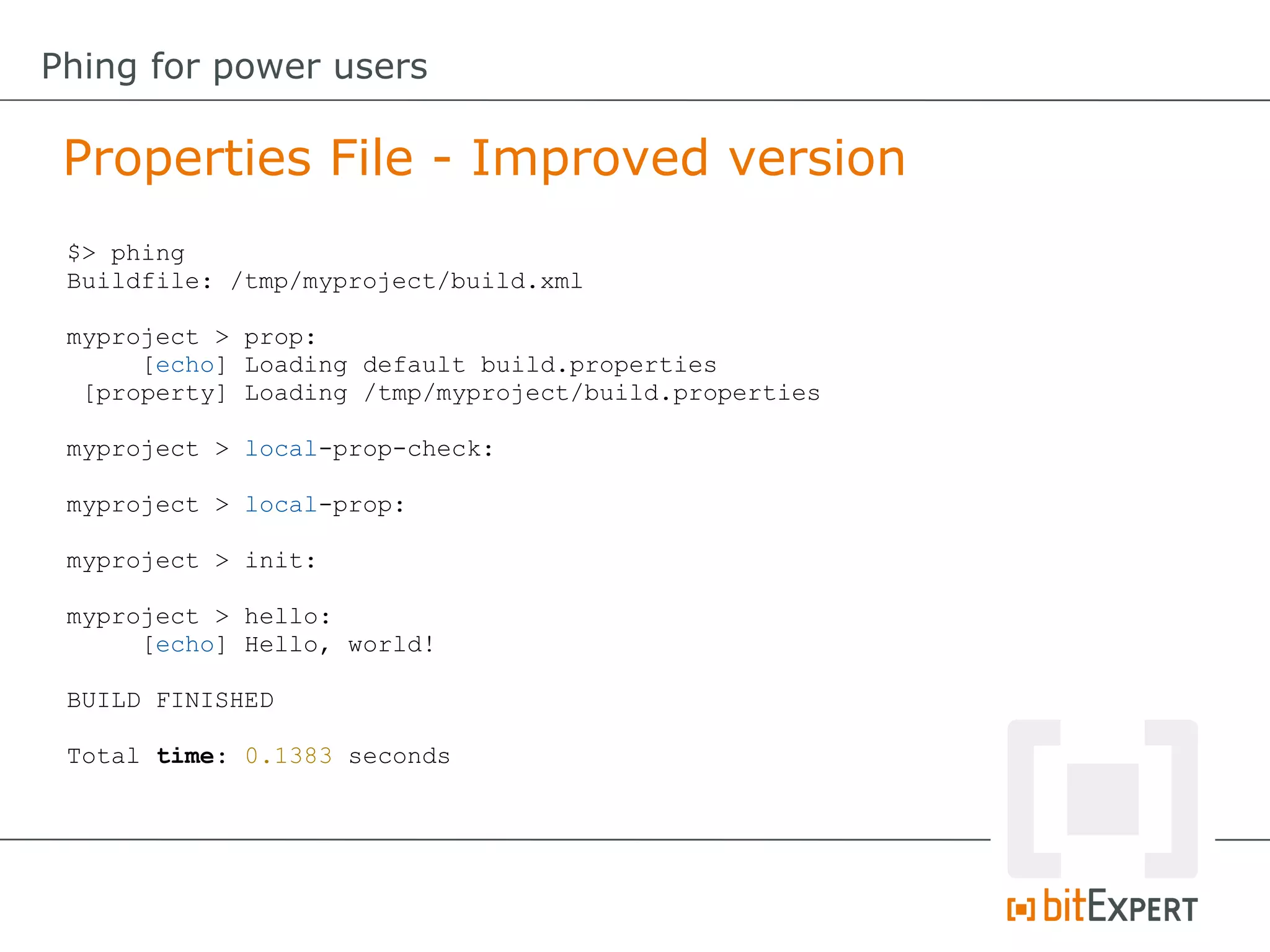

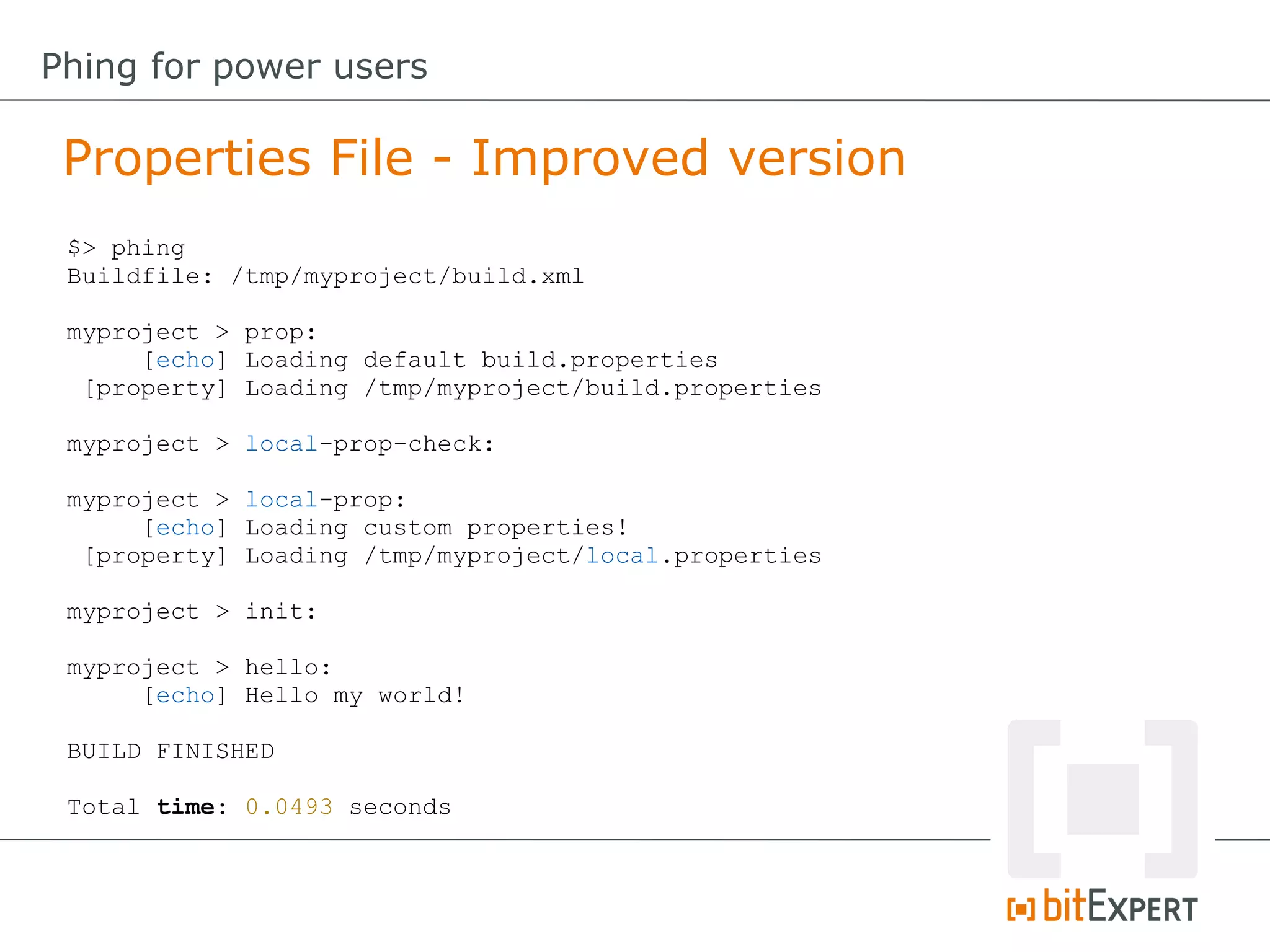

61. $> phing
Buildfile: /tmp/myproject/build.xml
myproject > prop:
[echo] Loading default build.properties
[property] Loading /tmp/myproject/build.properties
myproject > local-prop-check:
myproject > local-prop:
myproject > init:
myproject > hello:
[echo] Hello, world!
BUILD FINISHED
Total time: 0.1383 seconds
Properties File - Improved version
Phing for power users

62. $> phing
Buildfile: /tmp/myproject/build.xml
myproject > prop:
[echo] Loading default build.properties
[property] Loading /tmp/myproject/build.properties
myproject > local-prop-check:
myproject > local-prop:
[echo] Loading custom properties!
[property] Loading /tmp/myproject/local.properties
myproject > init:
myproject > hello:
[echo] Hello my world!
BUILD FINISHED
Total time: 0.0493 seconds
Properties File - Improved version
Phing for power users

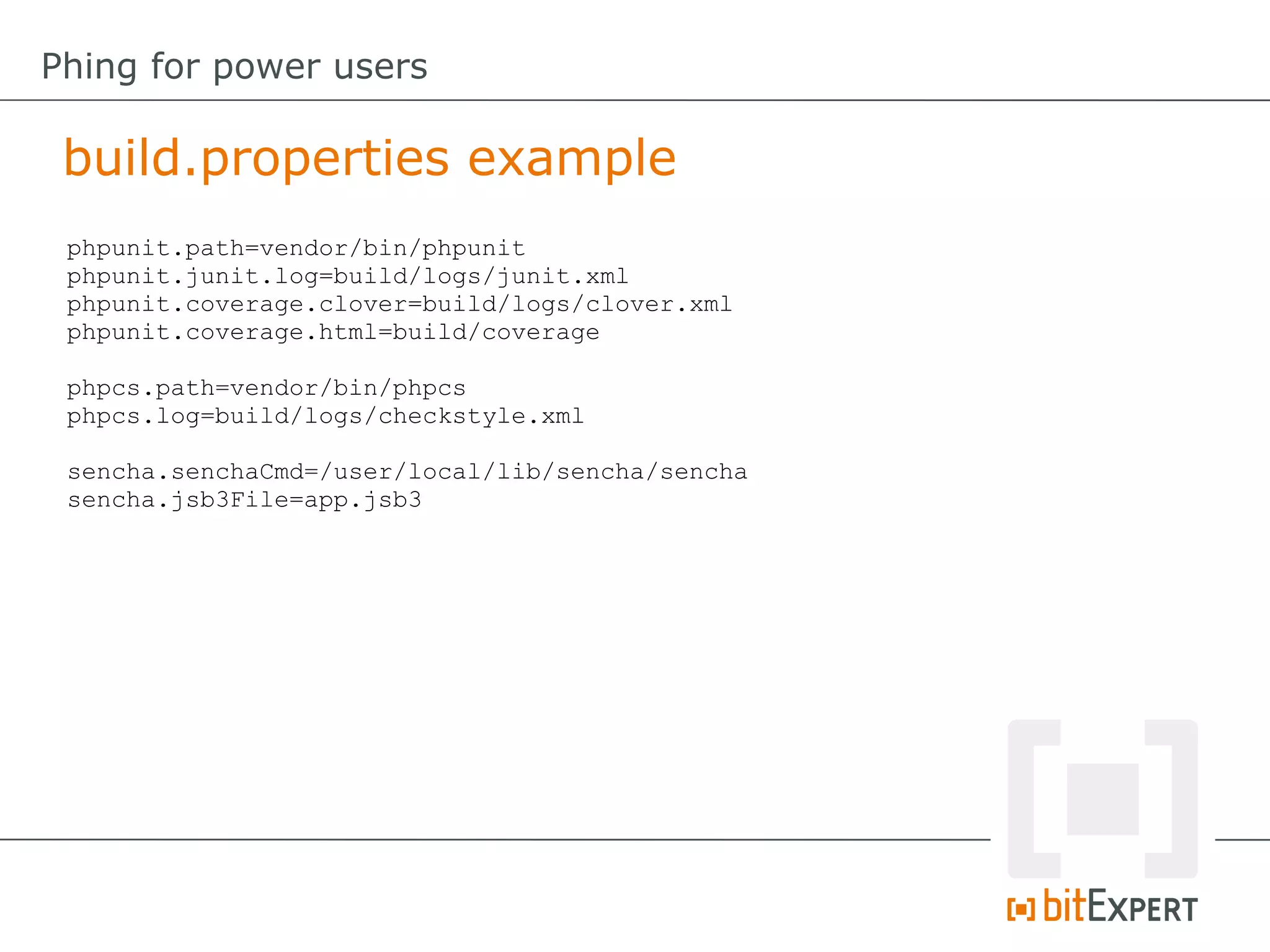

63. build.properties example
Phing for power users
phpunit.path=vendor/bin/phpunit
phpunit.junit.log=build/logs/junit.xml
phpunit.coverage.clover=build/logs/clover.xml
phpunit.coverage.html=build/coverage
phpcs.path=vendor/bin/phpcs
phpcs.log=build/logs/checkstyle.xml
sencha.senchaCmd=/user/local/lib/sencha/sencha
sencha.jsb3File=app.jsb3

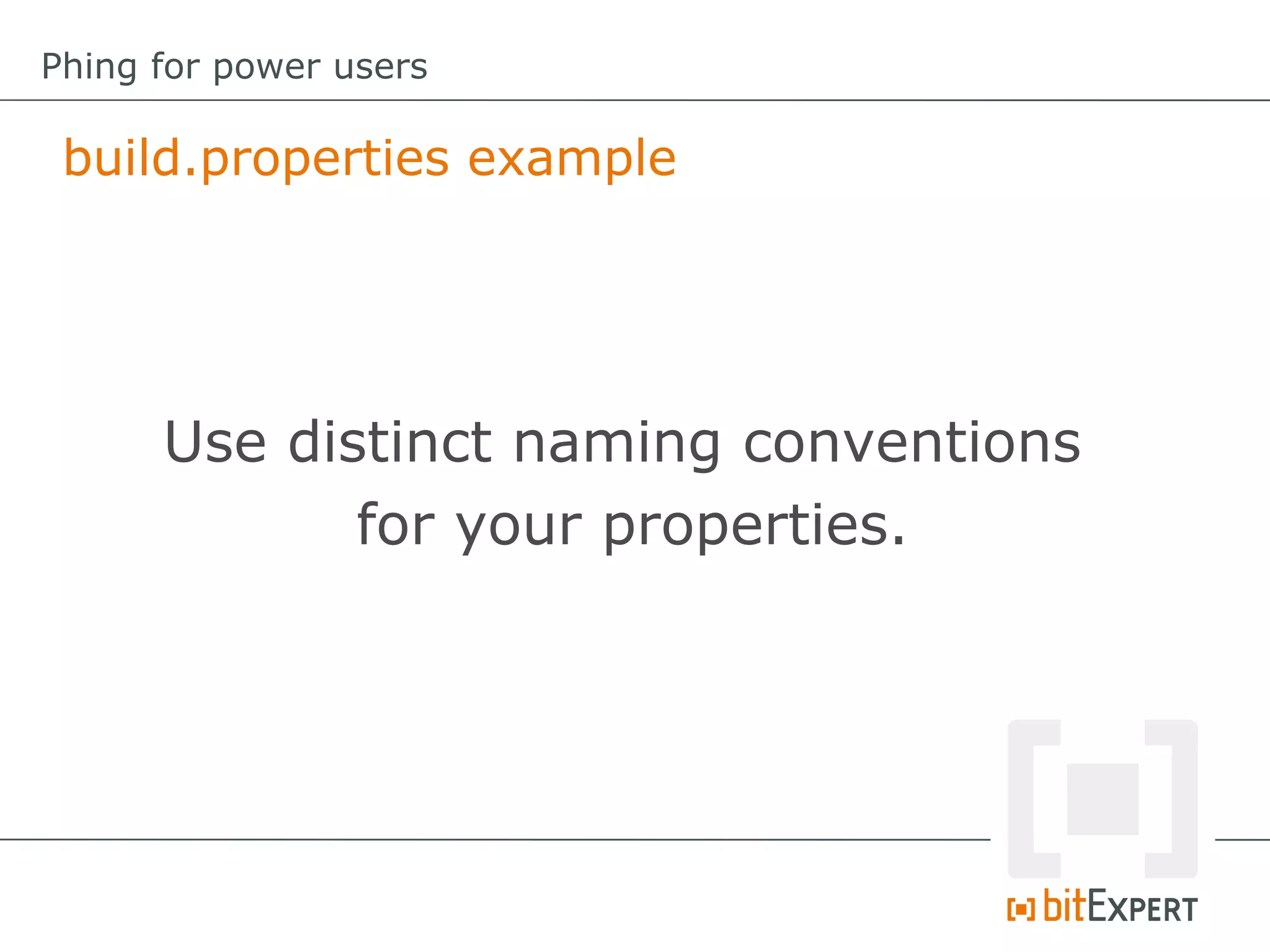

64. build.properties example
Phing for power users
Use distinct naming conventions
for your properties.

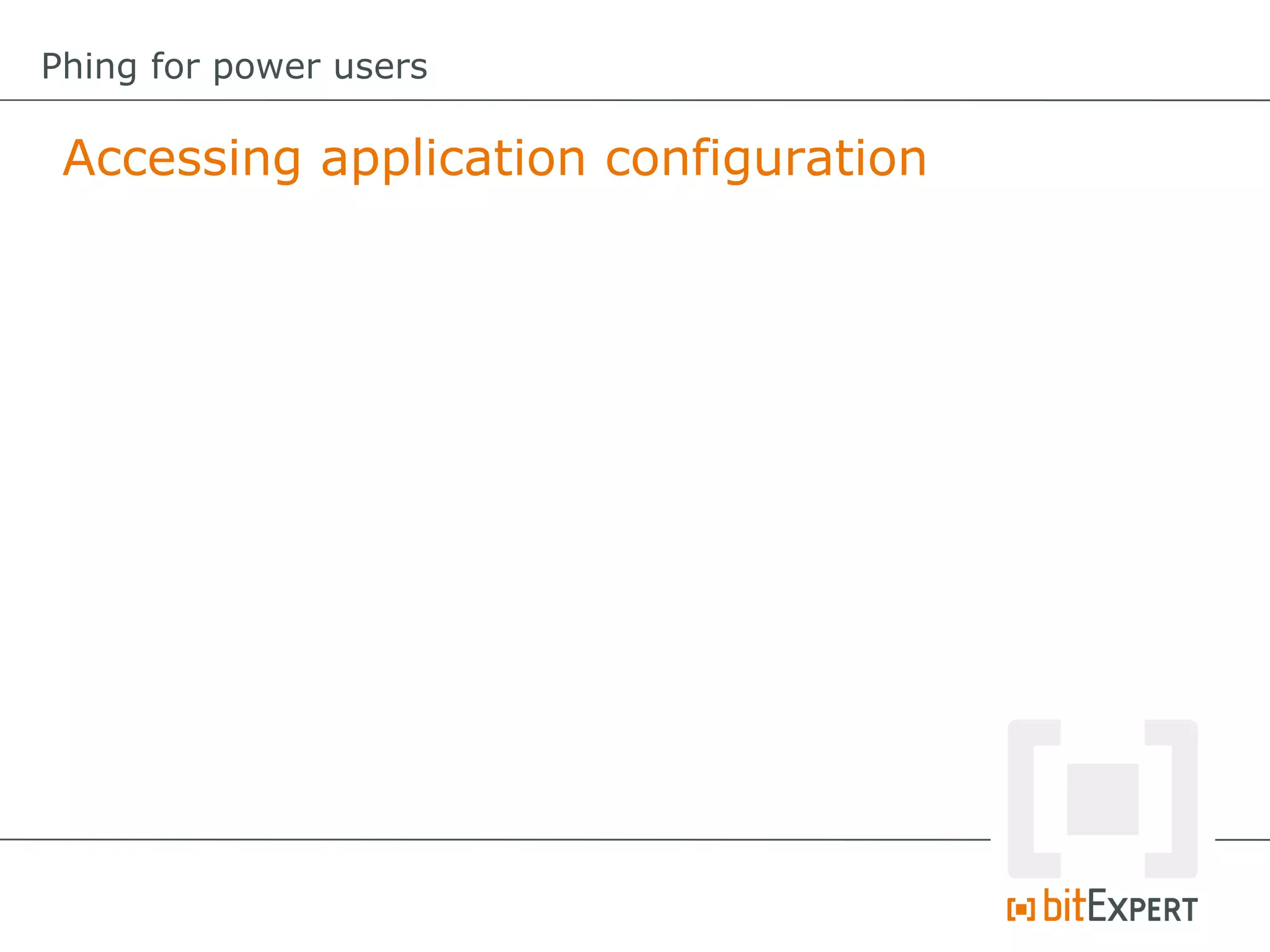

65. Accessing application configuration
Phing for power users

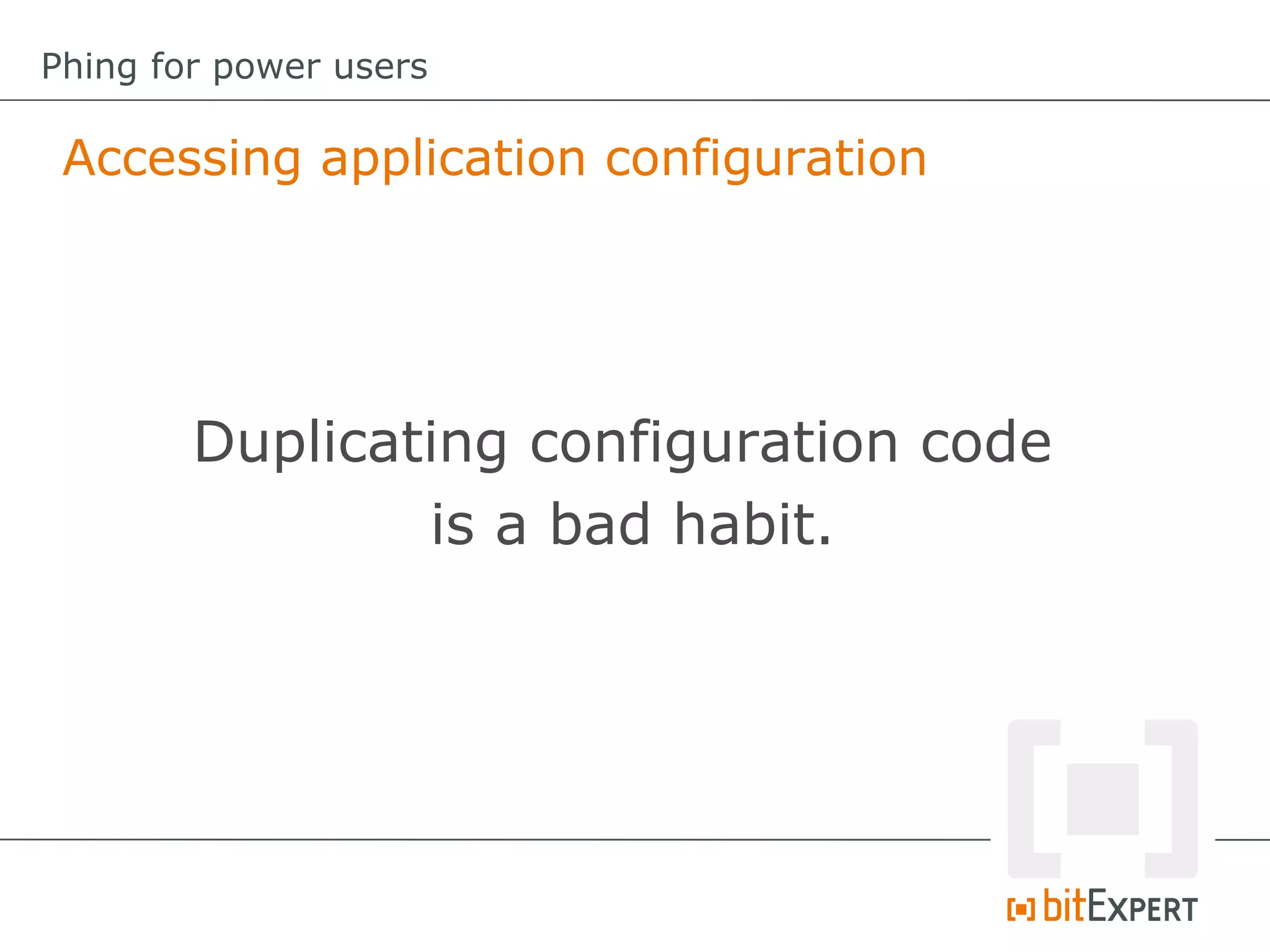

66. Accessing application configuration
Phing for power users
Duplicating configuration code
is a bad habit.

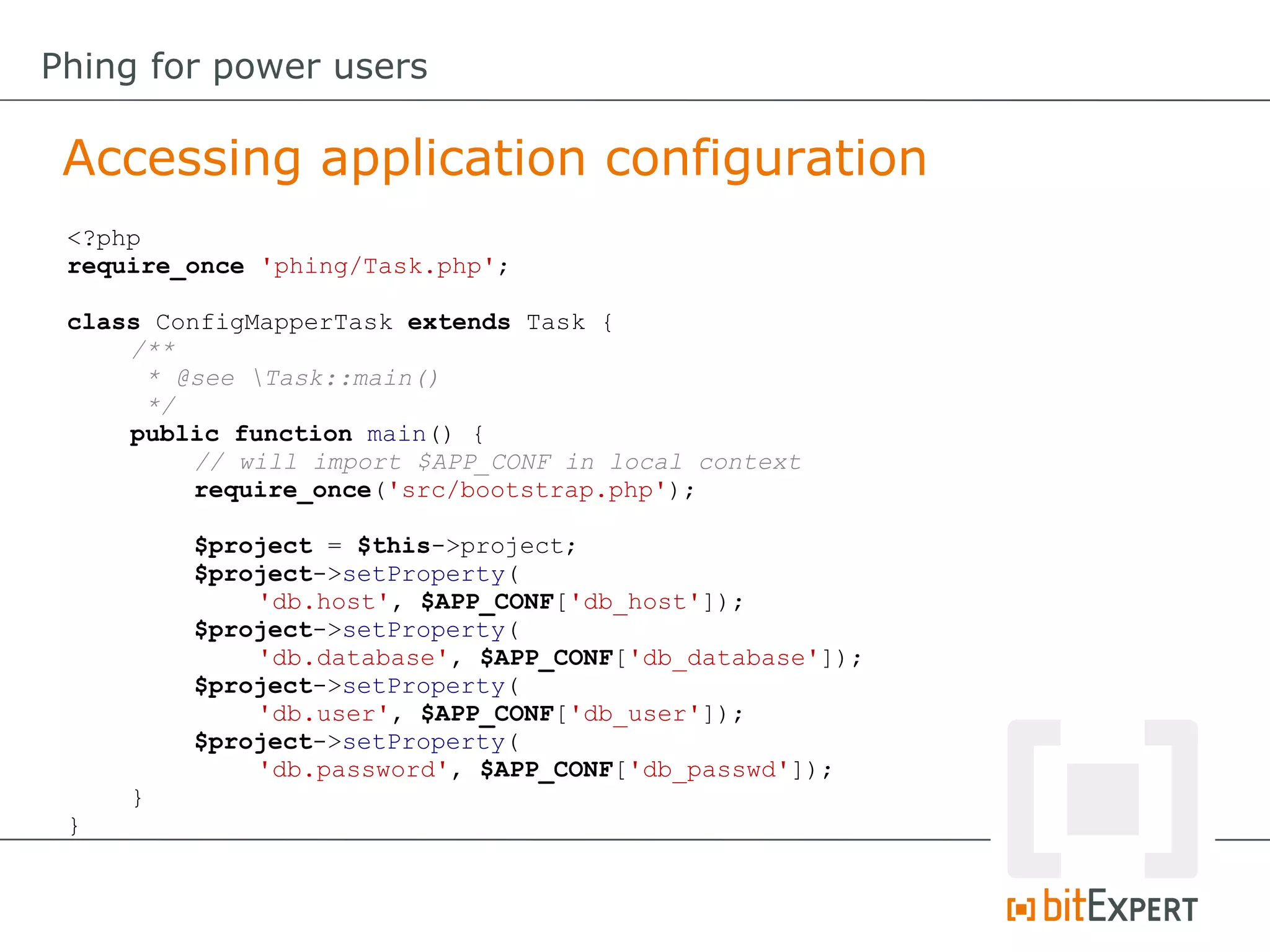

67. Accessing application configuration
Phing for power users
<?php
require_once 'phing/Task.php';
class ConfigMapperTask extends Task {
/**
* @see Task::main()
*/
public function main() {
// will import $APP_CONF in local context
require_once('src/bootstrap.php');
$project = $this->project;
$project->setProperty(
'db.host', $APP_CONF['db_host']);
$project->setProperty(
'db.database', $APP_CONF['db_database']);
$project->setProperty(
'db.user', $APP_CONF['db_user']);
$project->setProperty(
'db.password', $APP_CONF['db_passwd']);
}
}

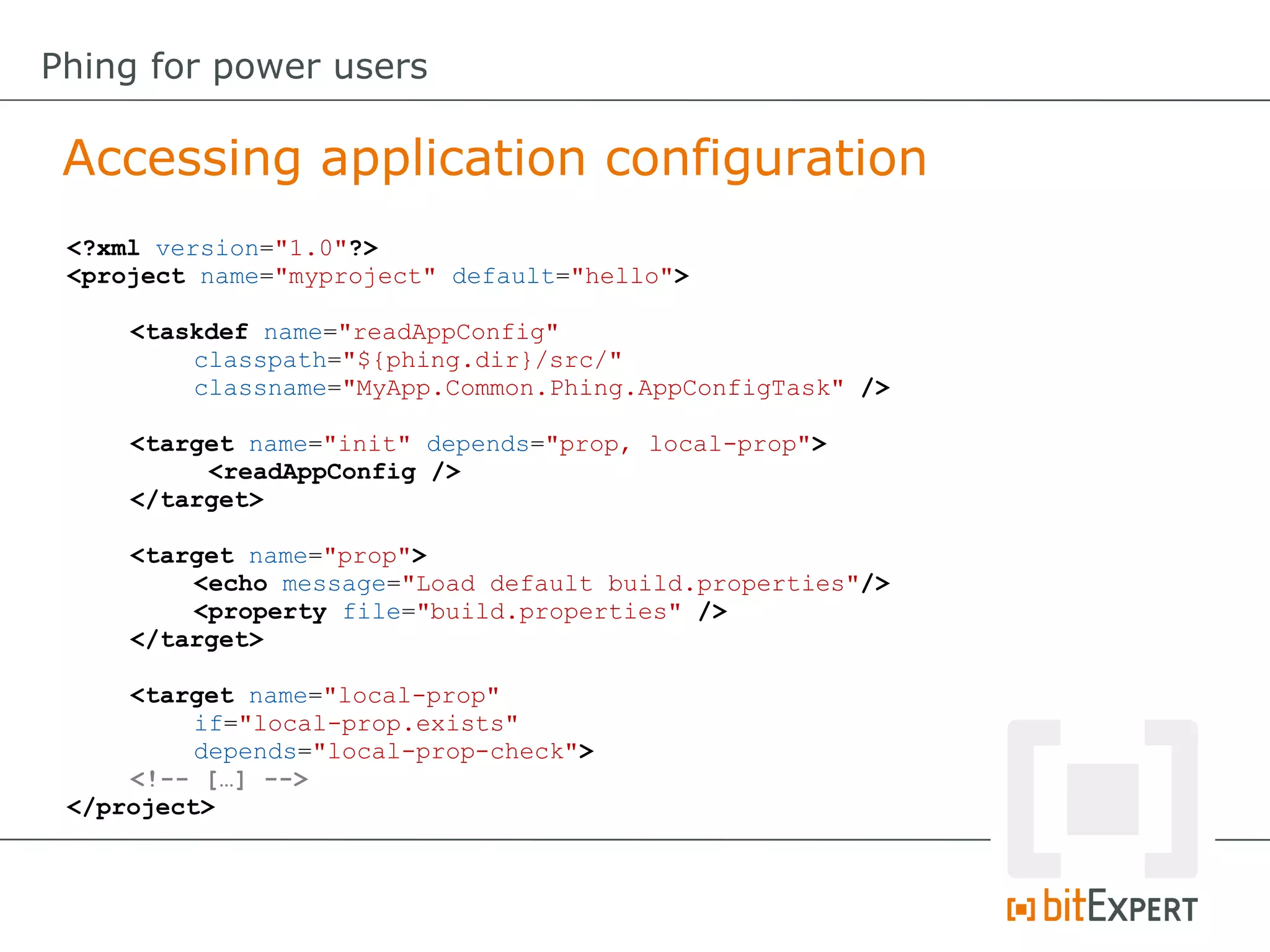

68. Accessing application configuration
Phing for power users
<?xml version="1.0"?>
<project name="myproject" default="hello">
<taskdef name="readAppConfig"
classpath="${phing.dir}/src/"
classname="MyApp.Common.Phing.AppConfigTask" />
<target name="init" depends="prop, local-prop">
<readAppConfig />
</target>
<target name="prop">
<echo message="Load default build.properties"/>
<property file="build.properties" />
</target>
<target name="local-prop"
if="local-prop.exists"
depends="local-prop-check">
<!-- […] -->
</project>

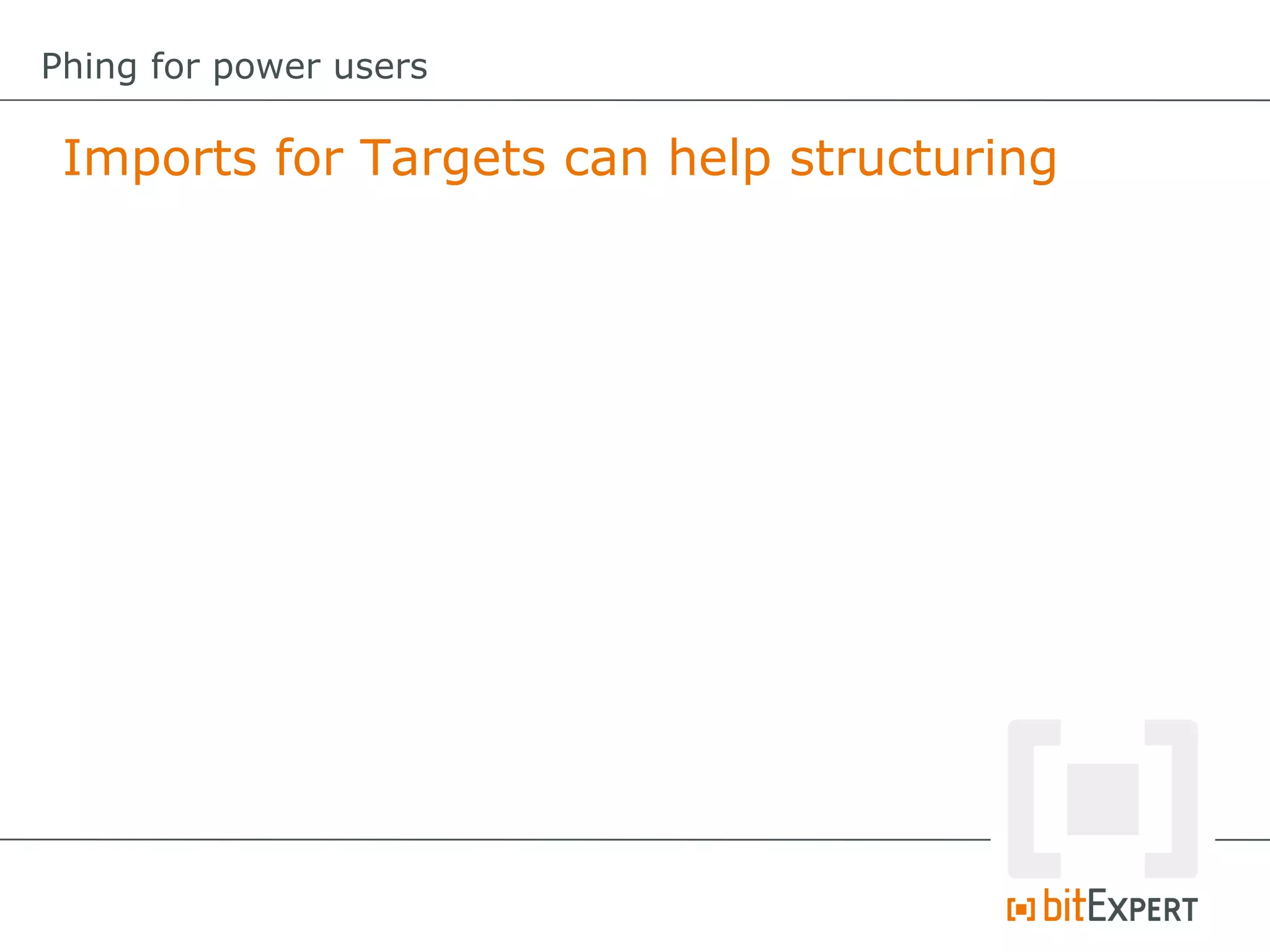

69. Imports for Targets can help structuring
Phing for power users

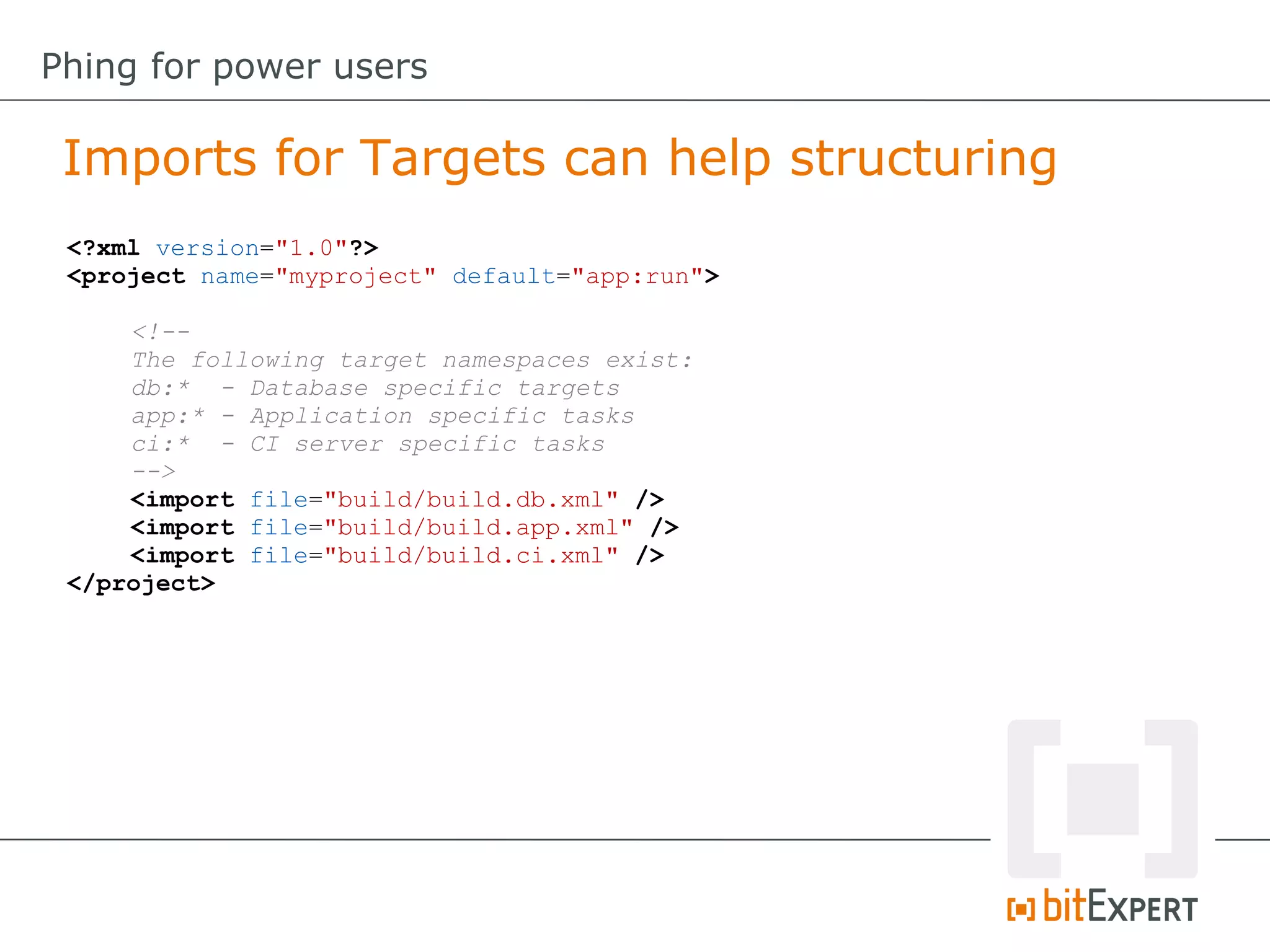

70. <?xml version="1.0"?>
<project name="myproject" default="app:run">
<!--
The following target namespaces exist:
db:* - Database specific targets
app:* - Application specific tasks
ci:* - CI server specific tasks
-->
<import file="build/build.db.xml" />
<import file="build/build.app.xml" />
<import file="build/build.ci.xml" />
</project>
Imports for Targets can help structuring
Phing for power users

71. <?xml version="1.0"?>
<project name="myproject" default="app:run">
<!--
The following target namespaces exist:
lib1:* - Targets imported from lib1
lib2:* - Targets imported from lib2
app:* - Local application targets
-->
<import file="vendor/vendor1/lib1/build/build.xml" />
<import file="vendor/vendor2/lib2/build/build.xml" />
<import file="build/build.app.xml" />
</project>

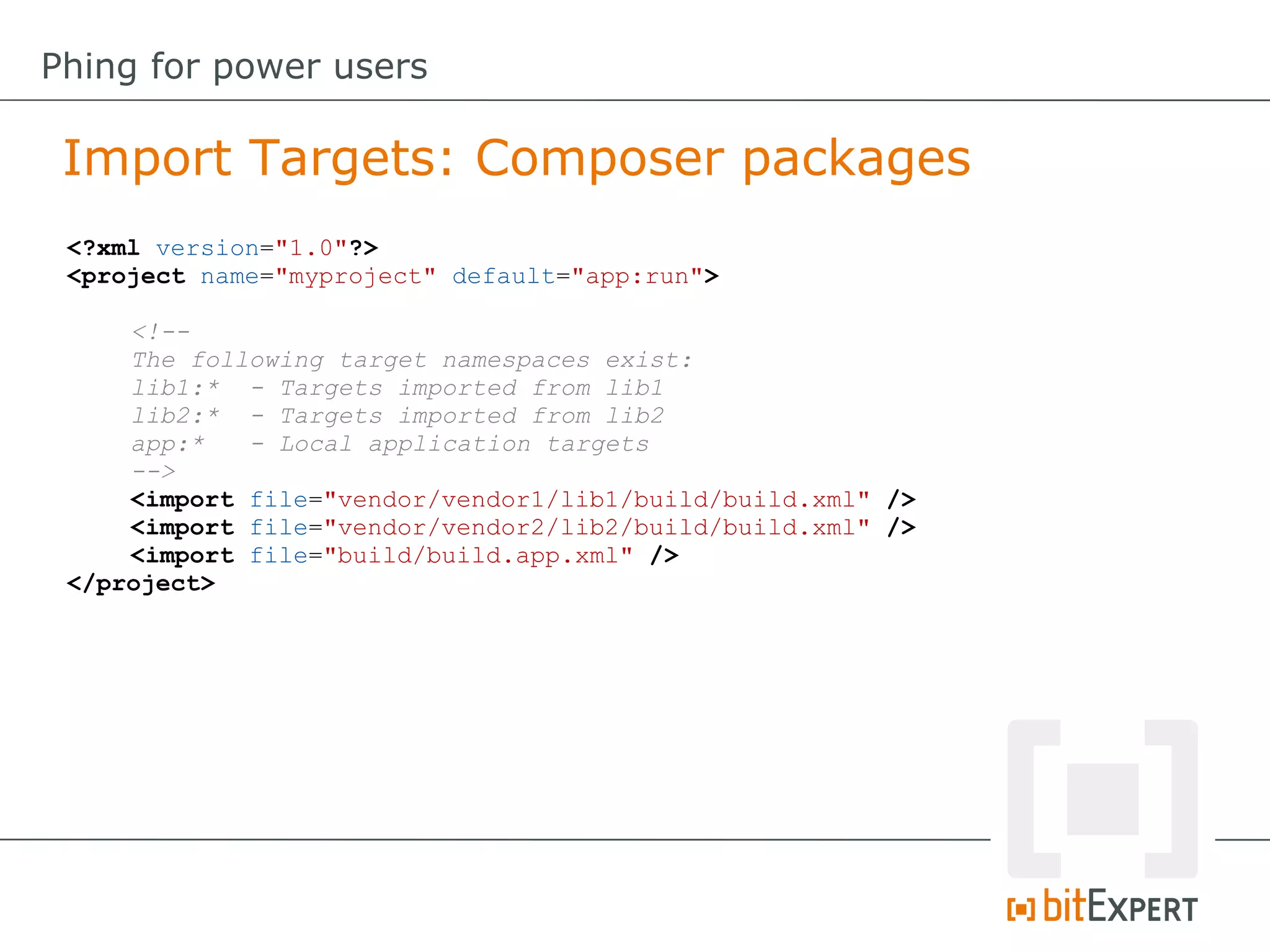

Import Targets: Composer packages
Phing for power users

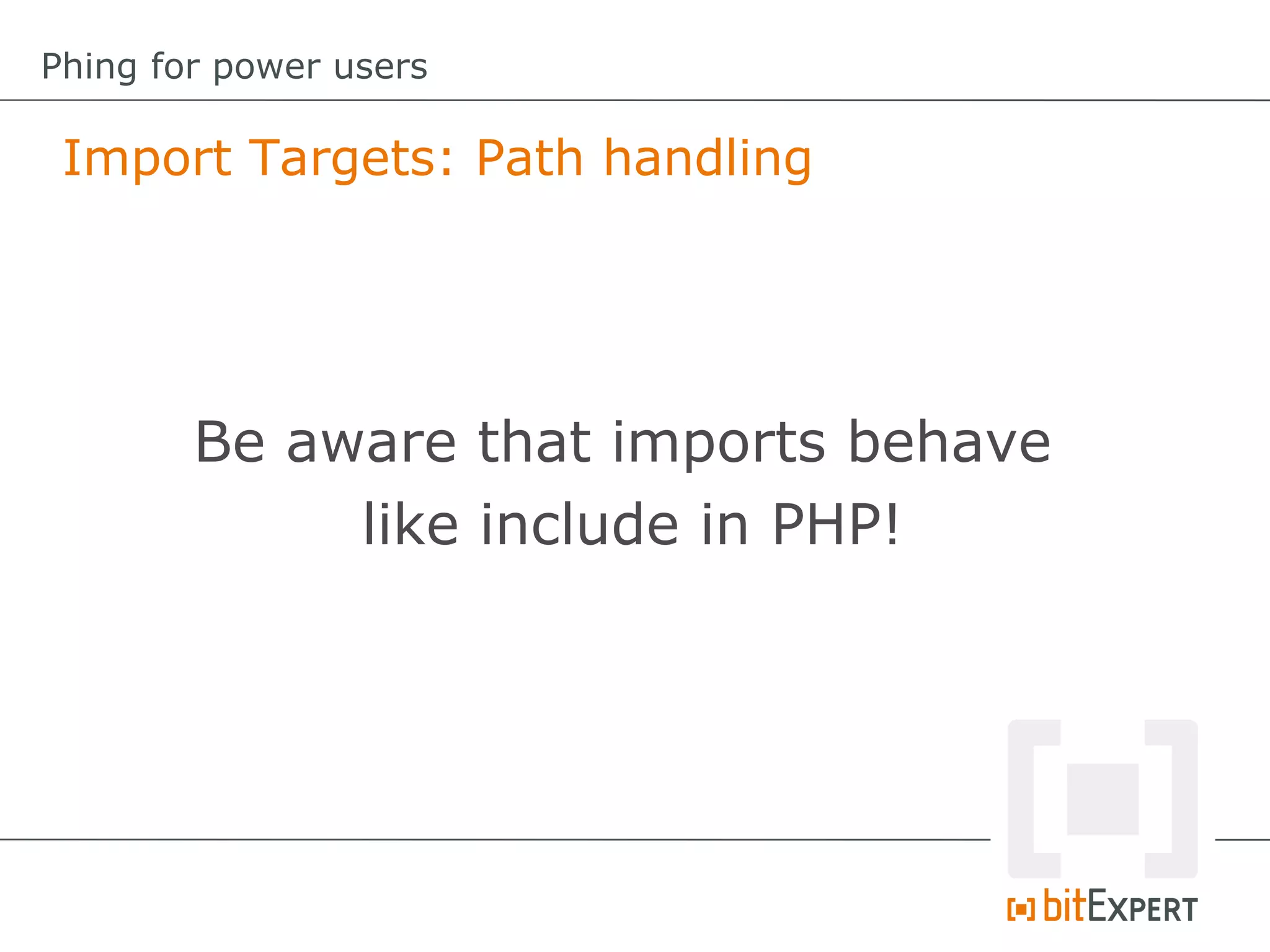

72. Import Targets: Path handling
Phing for power users
Be aware that imports behave
like include in PHP!

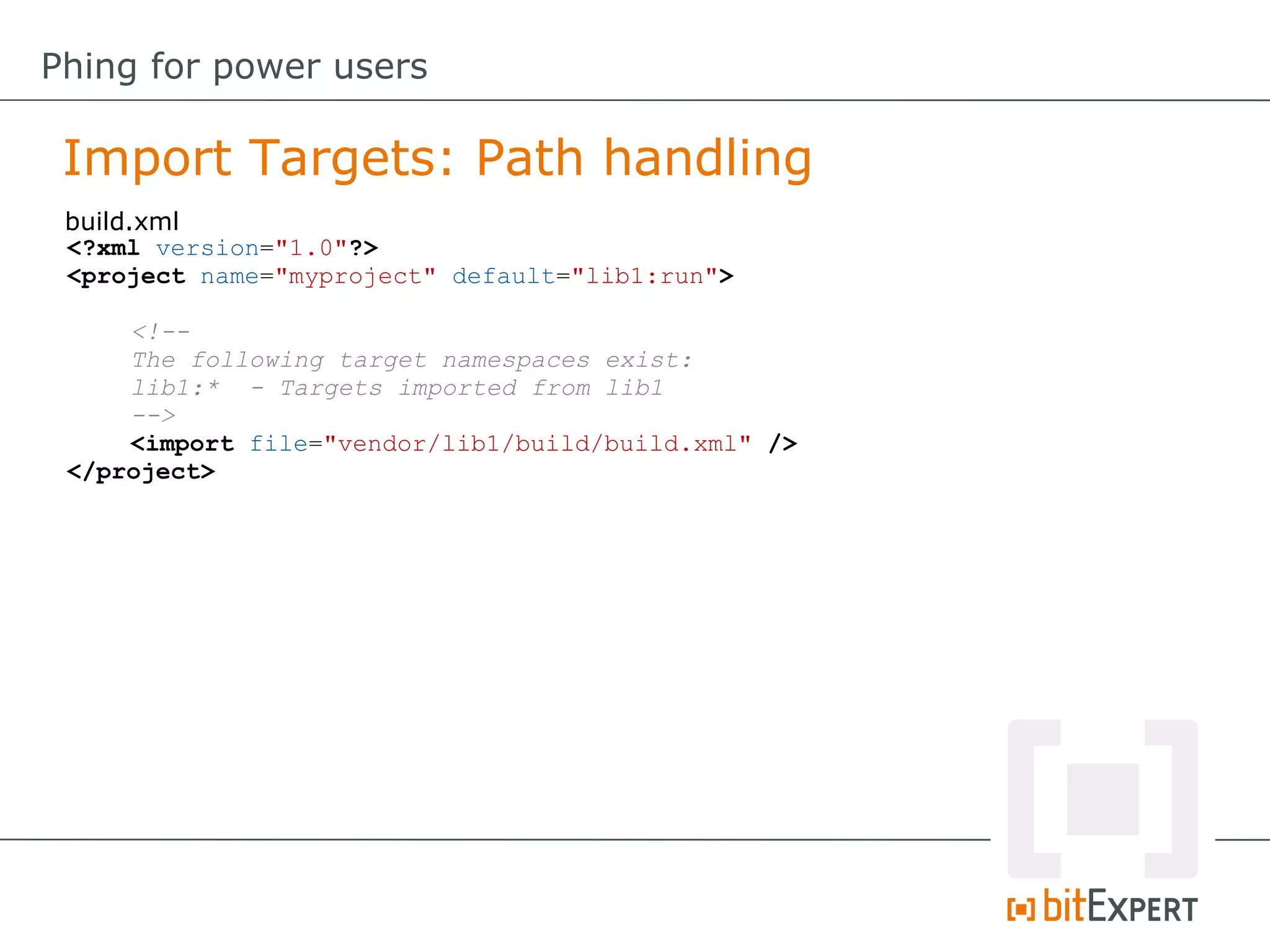

73. <?xml version="1.0"?>
<project name="myproject" default="lib1:run">
<!--
The following target namespaces exist:
lib1:* - Targets imported from lib1
-->
<import file="vendor/lib1/build/build.xml" />
</project>

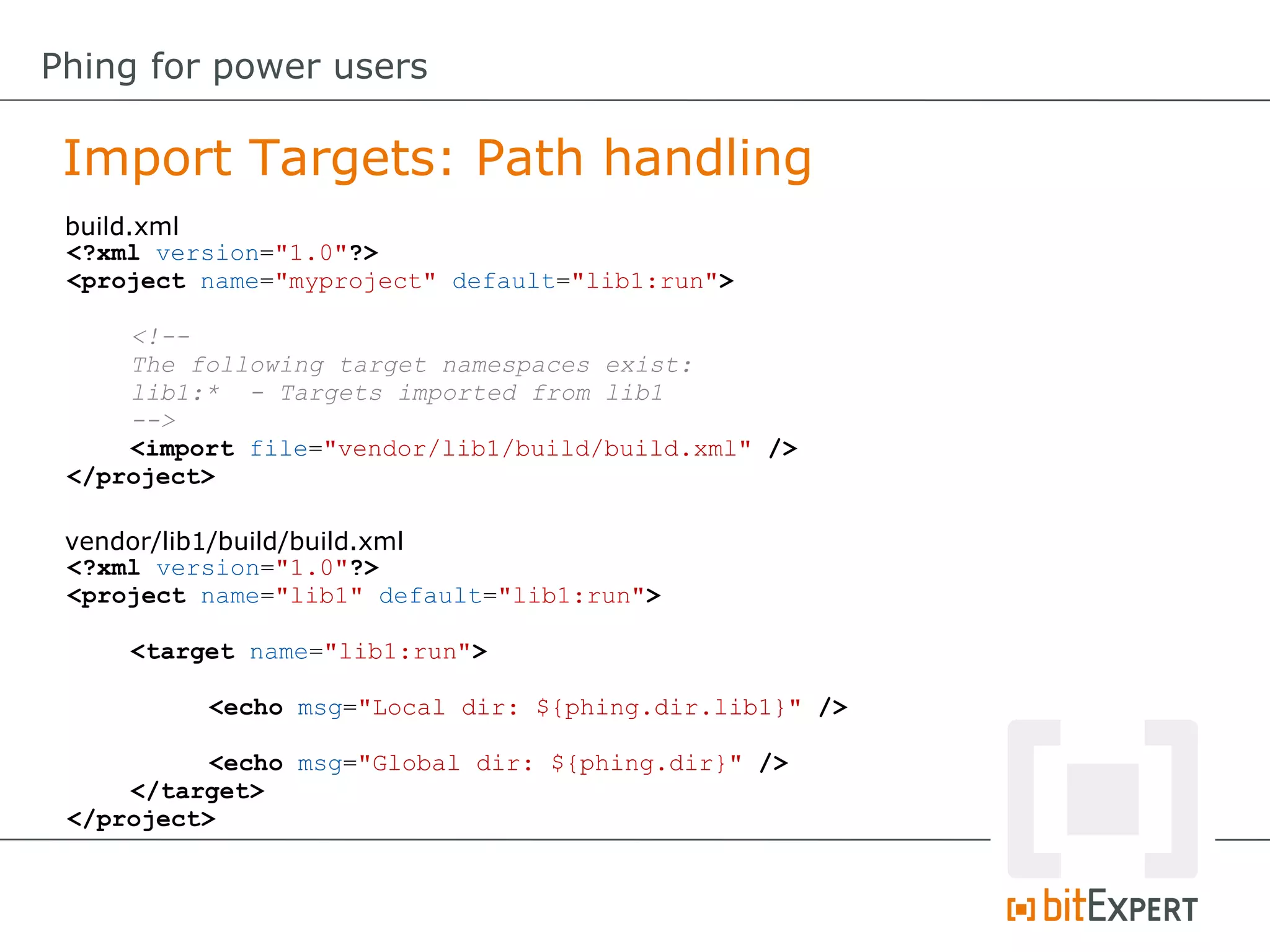

Import Targets: Path handling
Phing for power users
build.xml

74. <?xml version="1.0"?>
<project name="lib1" default="lib1:run">
<target name="lib1:run">
<echo msg="Local dir: ${phing.dir.lib1}" />
<echo msg="Global dir: ${phing.dir}" />
</target>
</project>
<?xml version="1.0"?>
<project name="myproject" default="lib1:run">
<!--
The following target namespaces exist:
lib1:* - Targets imported from lib1
-->
<import file="vendor/lib1/build/build.xml" />
</project>
Import Targets: Path handling
Phing for power users
build.xml
vendor/lib1/build/build.xml

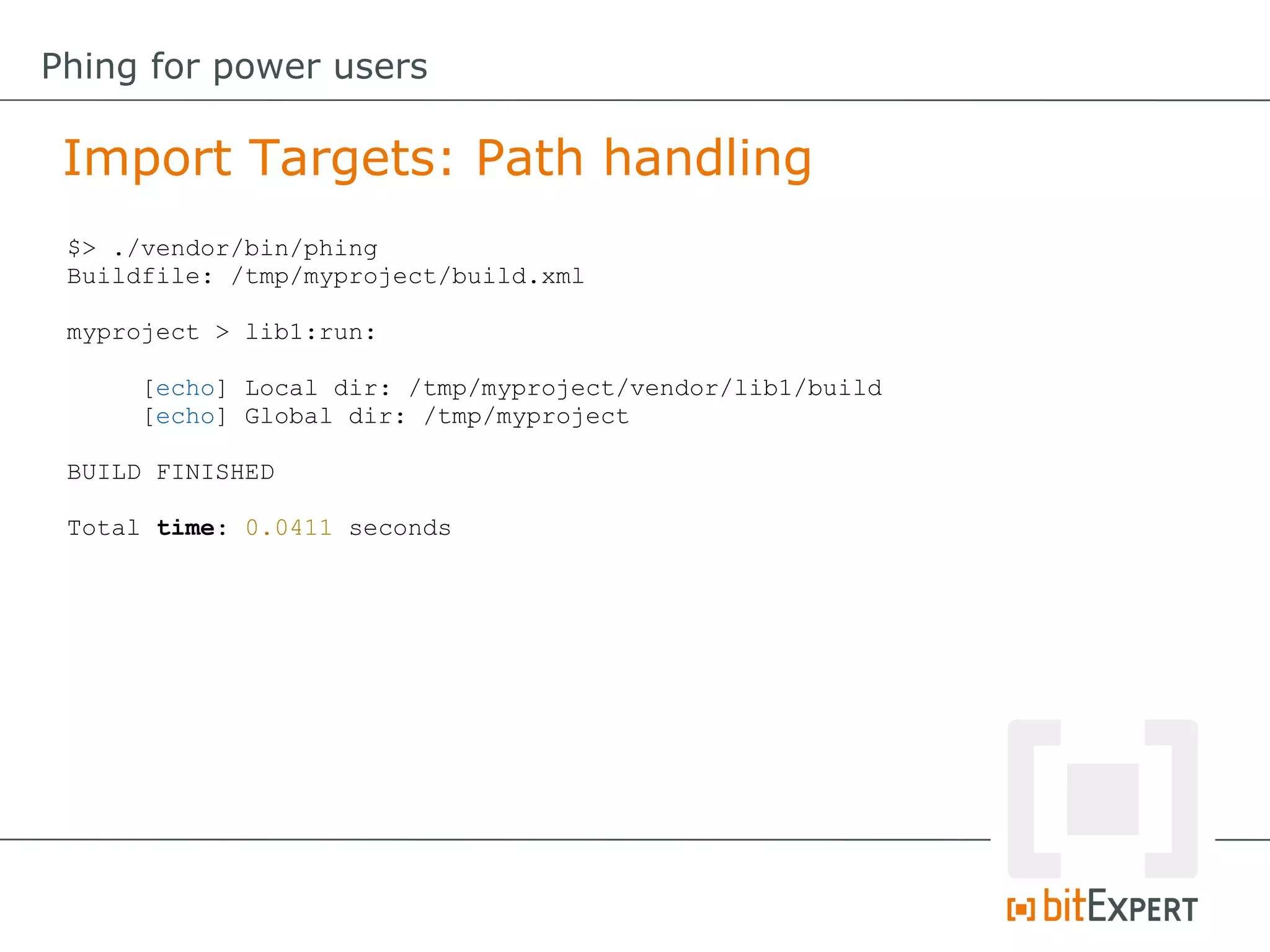

75. $> ./vendor/bin/phing
Buildfile: /tmp/myproject/build.xml
myproject > lib1:run:
[echo] Local dir: /tmp/myproject/vendor/lib1/build
[echo] Global dir: /tmp/myproject
BUILD FINISHED
Total time: 0.0411 seconds
Import Targets: Path handling
Phing for power users

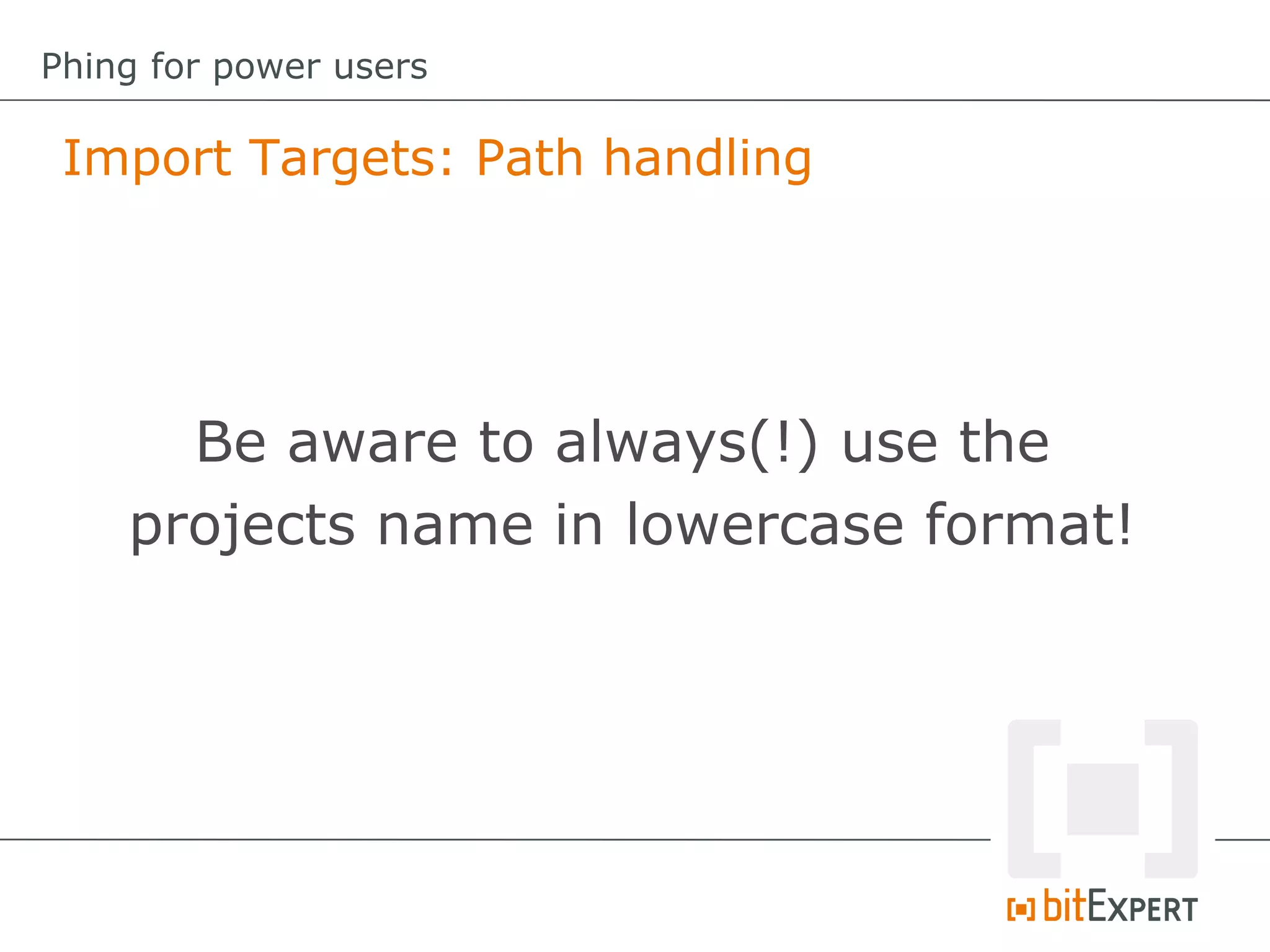

76. Import Targets: Path handling
Phing for power users
Be aware to always(!) use the
projects name in lowercase format!

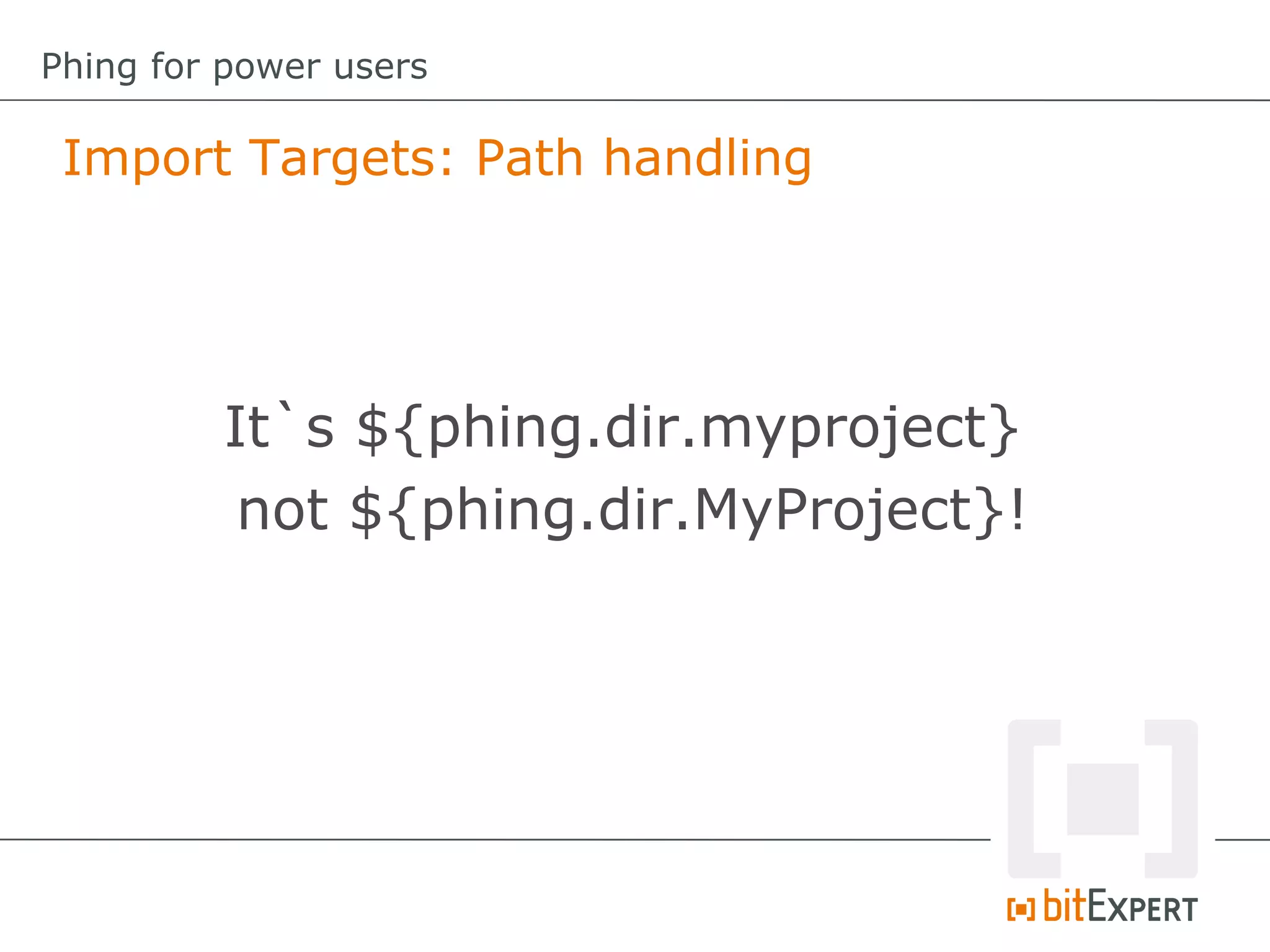

77. Import Targets: Path handling
Phing for power users
It`s ${phing.dir.myproject}
not ${phing.dir.MyProject}!

78. Distinct Target Naming
Phing for power users

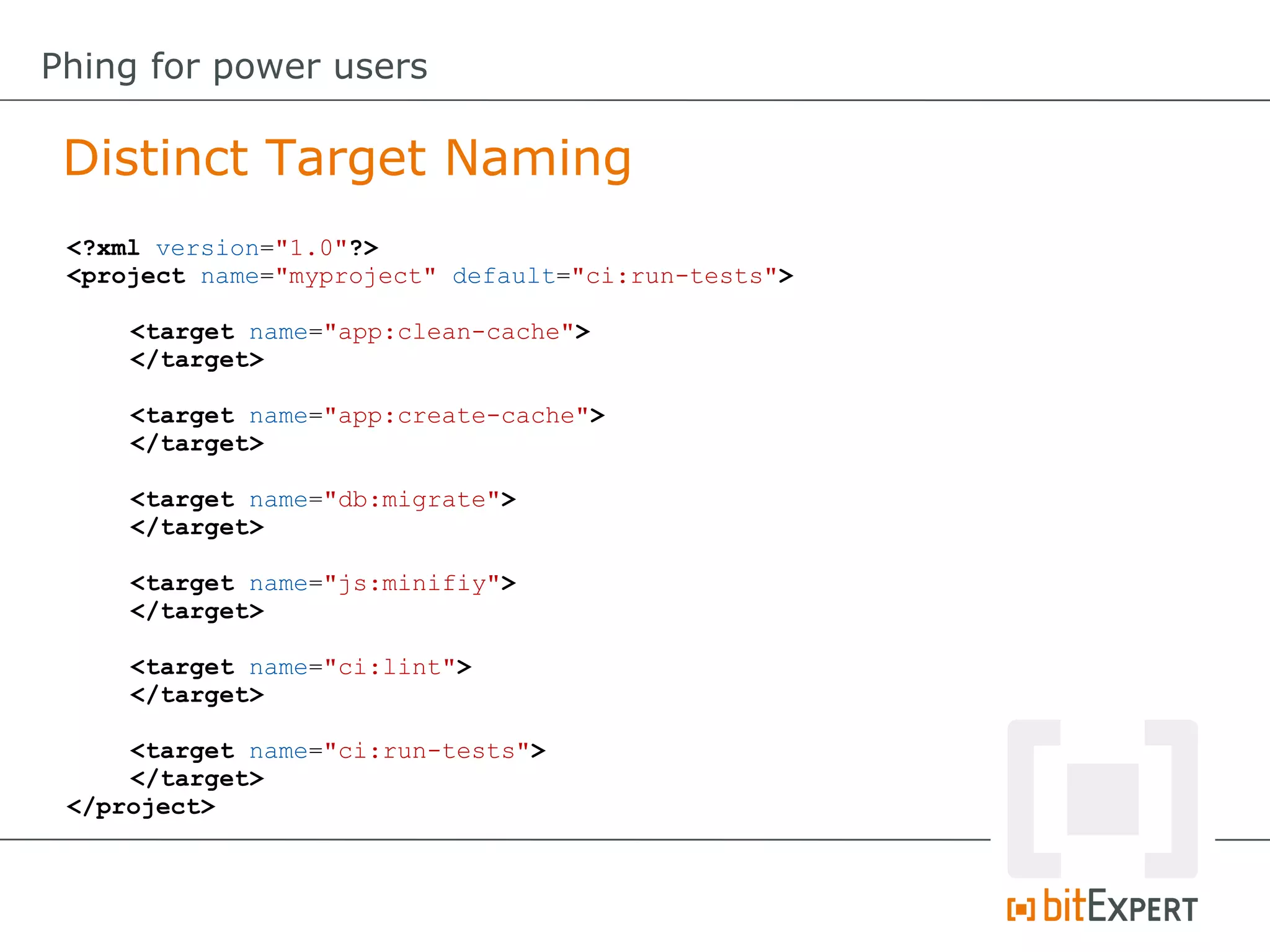

79. <?xml version="1.0"?>
<project name="myproject" default="ci:run-tests">
<target name="app:clean-cache">
</target>
<target name="app:create-cache">
</target>
<target name="db:migrate">
</target>
<target name="js:minifiy">
</target>
<target name="ci:lint">
</target>
<target name="ci:run-tests">
</target>
</project>
Distinct Target Naming
Phing for power users

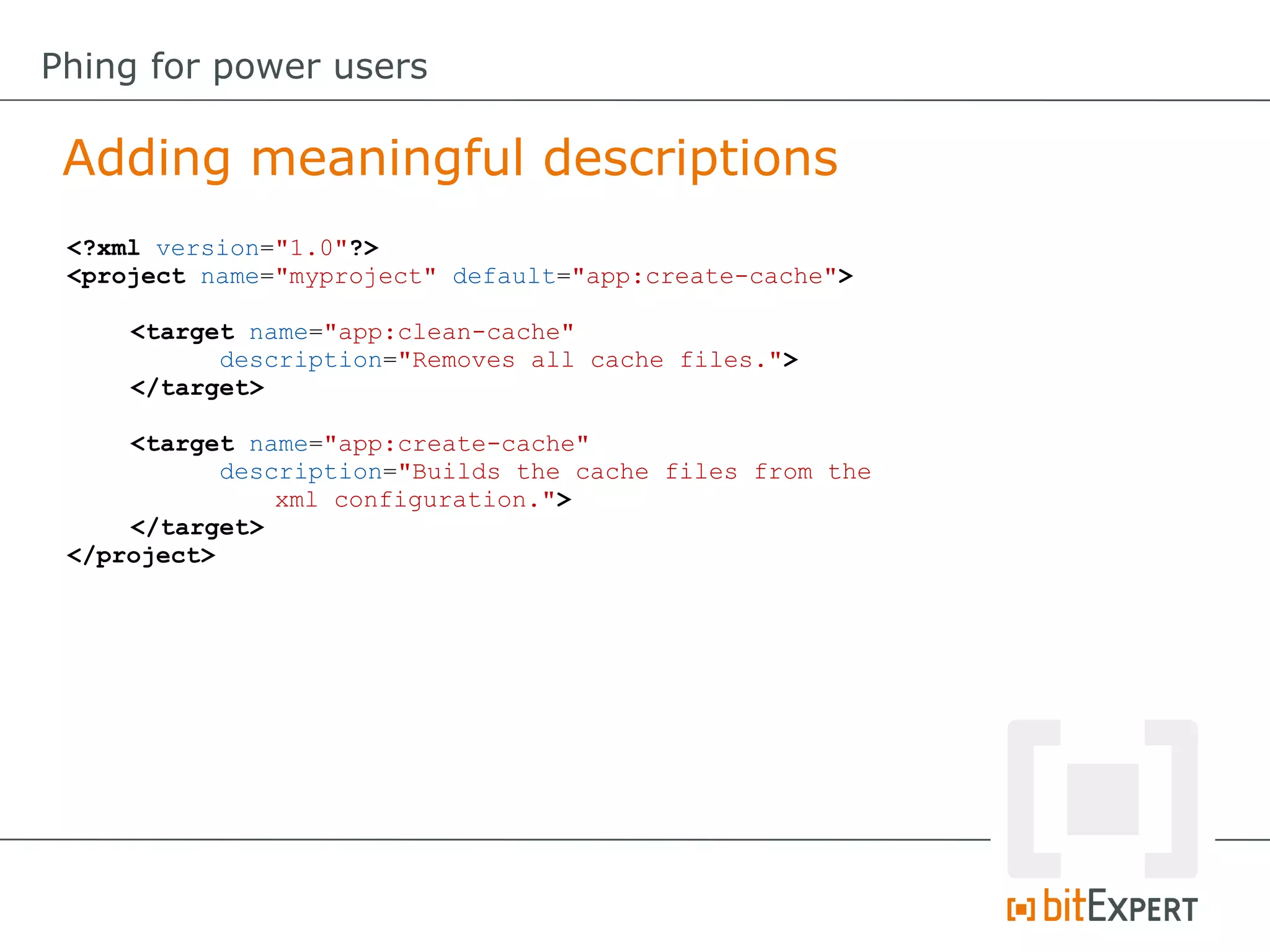

80. <?xml version="1.0"?>
<project name="myproject" default="app:create-cache">
<target name="app:clean-cache"
description="Removes all cache files.">
</target>
<target name="app:create-cache"
description="Builds the cache files from the
xml configuration.">
</target>
</project>
Adding meaningful descriptions
Phing for power users

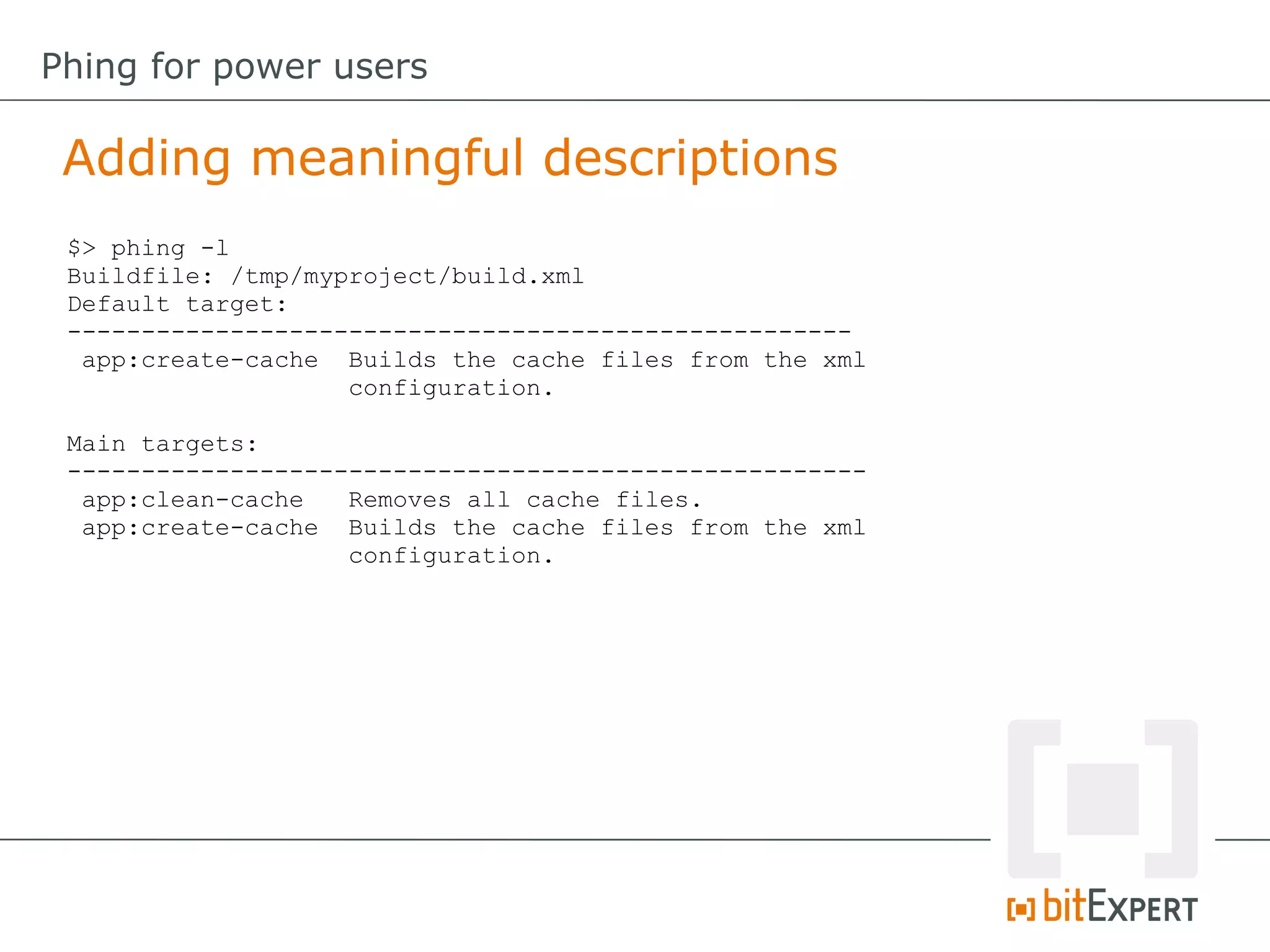

81. $> phing -l
Buildfile: /tmp/myproject/build.xml
Default target:
-----------------------------------------------------
app:create-cache Builds the cache files from the xml
configuration.
Main targets:
------------------------------------------------------
app:clean-cache Removes all cache files.
app:create-cache Builds the cache files from the xml
configuration.
Adding meaningful descriptions
Phing for power users

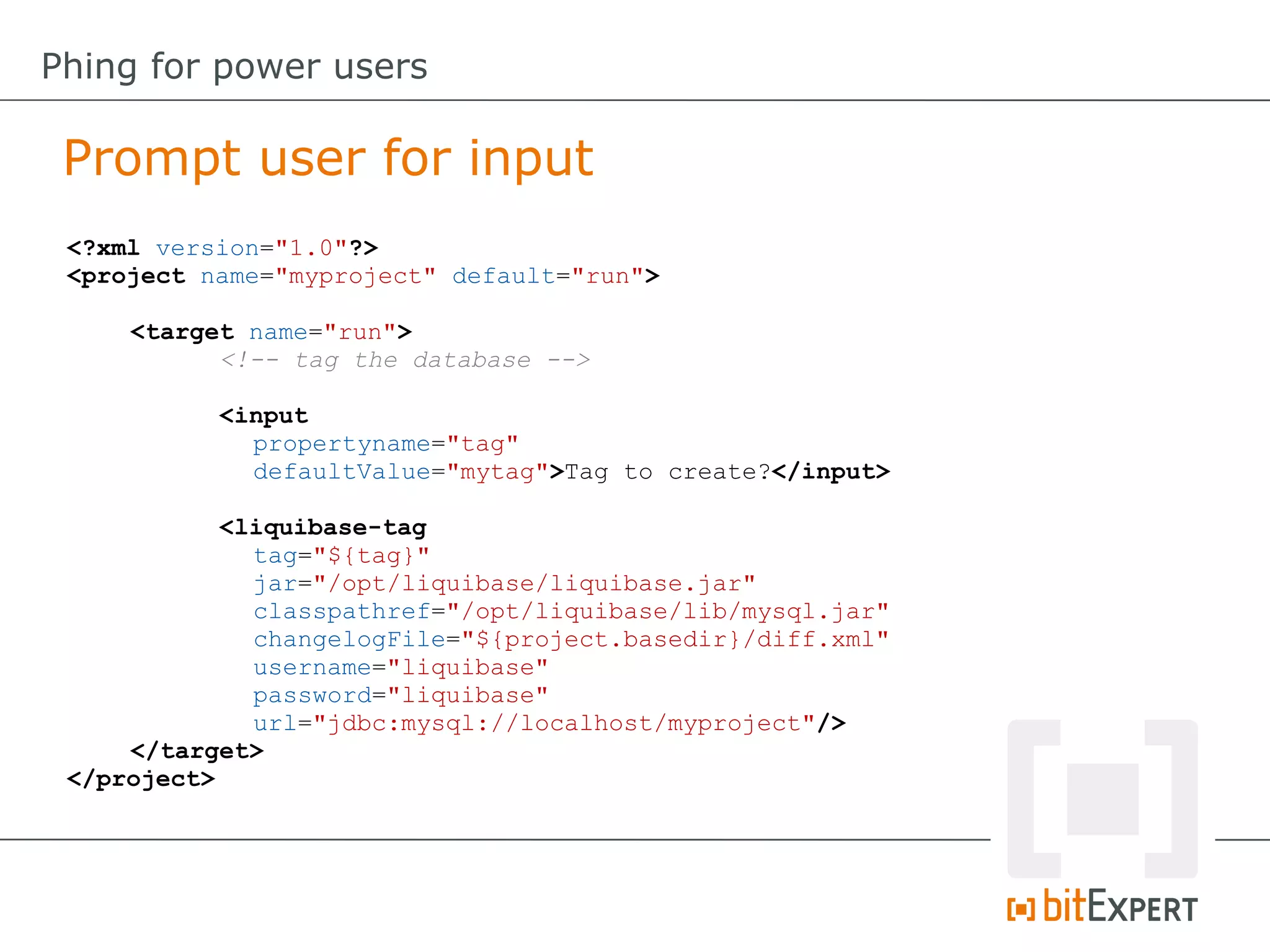

82. Prompt user for input
Phing for power users
<?xml version="1.0"?>
<project name="myproject" default="run">
<target name="run">
<!-- tag the database -->
<input
propertyname="tag"
defaultValue="mytag">Tag to create?</input>
<liquibase-tag
tag="${tag}"
jar="/opt/liquibase/liquibase.jar"
classpathref="/opt/liquibase/lib/mysql.jar"
changelogFile="${project.basedir}/diff.xml"
username="liquibase"
password="liquibase"
url="jdbc:mysql://localhost/myproject"/>
</target>
</project>

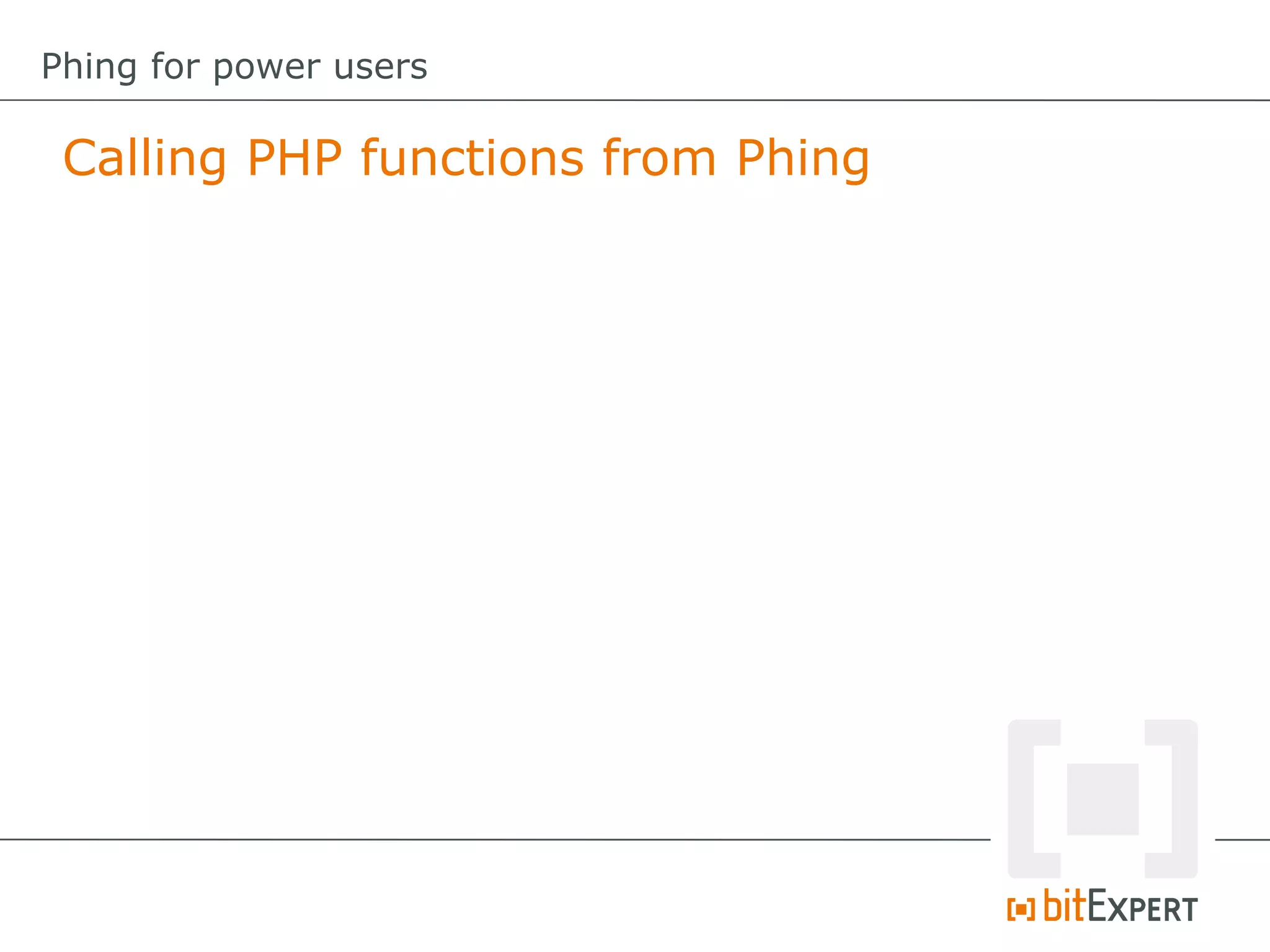

83. Calling PHP functions from Phing
Phing for power users

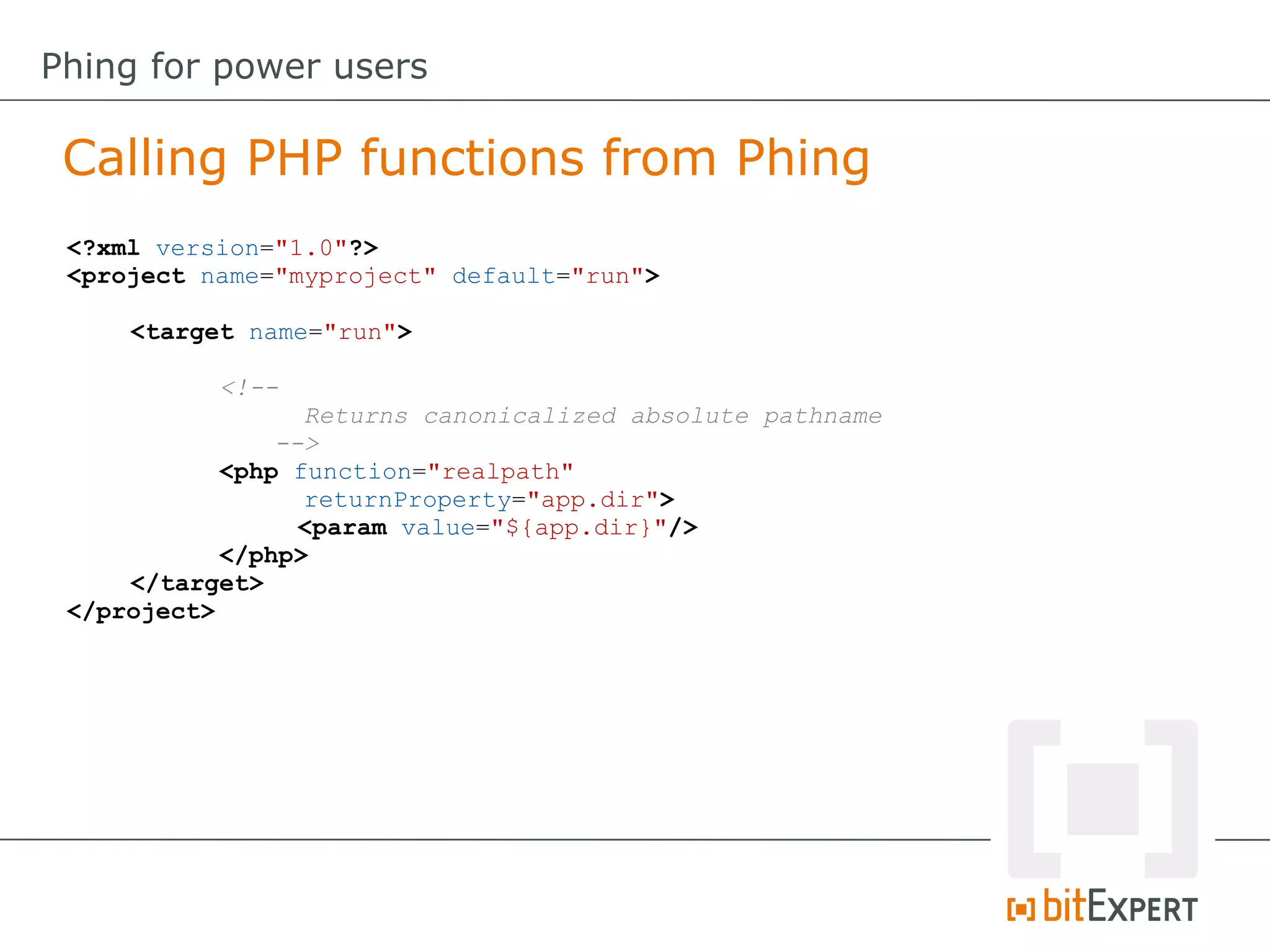

84. Calling PHP functions from Phing
Phing for power users
<?xml version="1.0"?>
<project name="myproject" default="run">
<target name="run">
<!--
Returns canonicalized absolute pathname
-->
<php function="realpath"
returnProperty="app.dir">
<param value="${app.dir}"/>
</php>
</target>
</project>

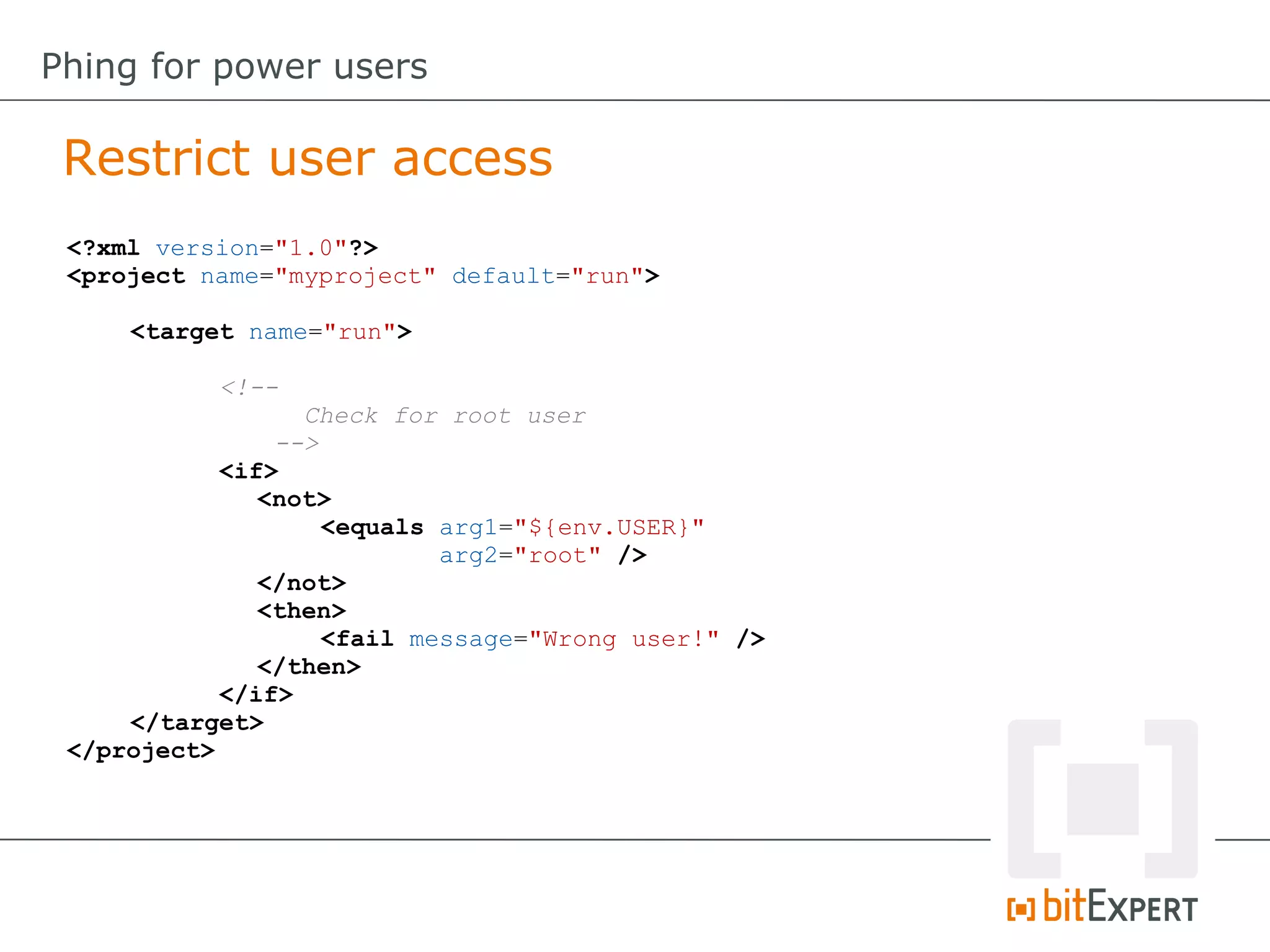

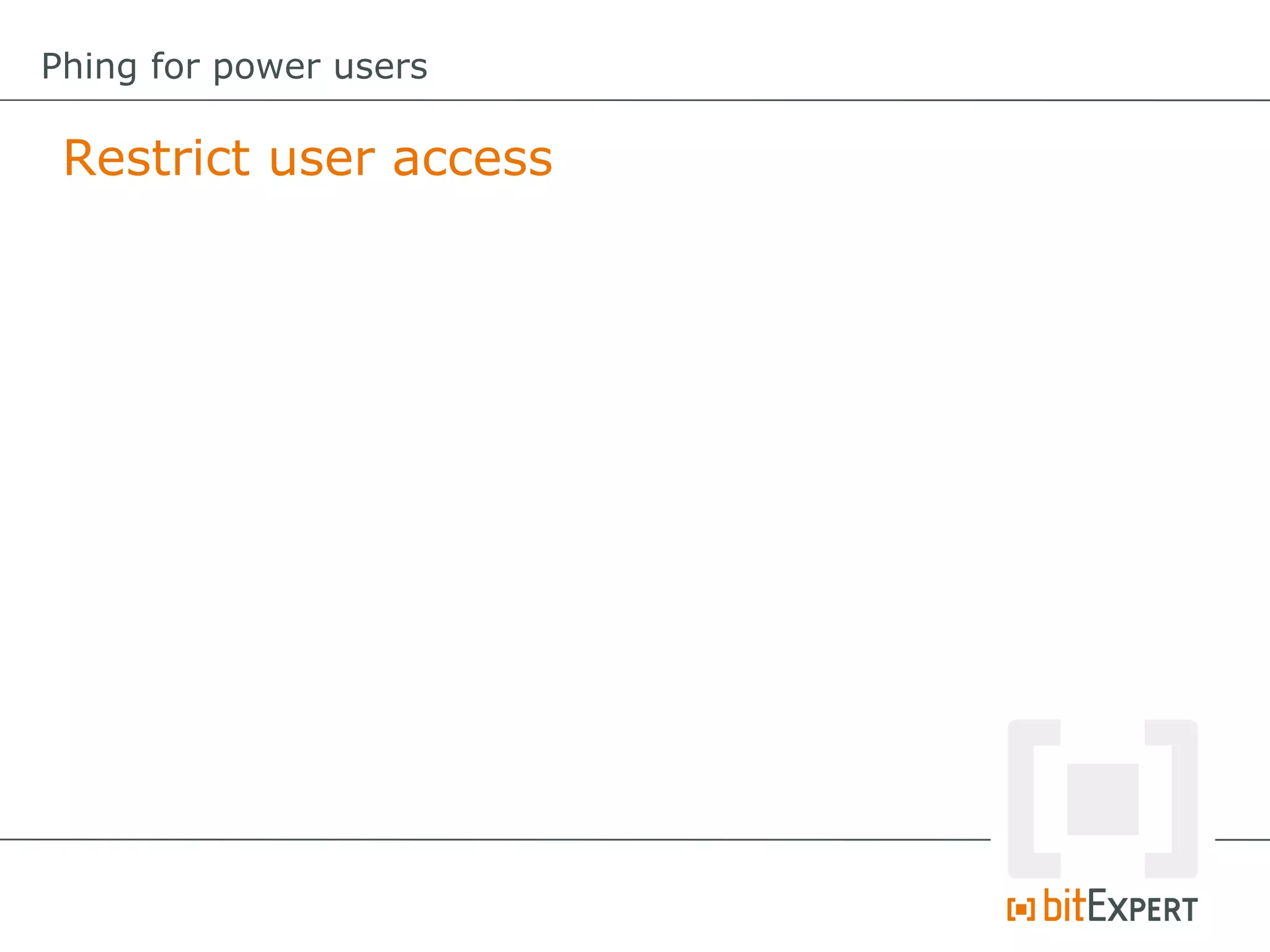

85. Restrict user access
Phing for power users

86. <?xml version="1.0"?>
<project name="myproject" default="run">
<target name="run">
<!--
Check for root user
-->
<if>
<not>
<equals arg1="${env.USER}"
arg2="root" />
</not>
<then>
<fail message="Wrong user!" />
</then>
</if>
</target>
</project>
Restrict user access
Phing for power users

87. Path handling
Phing for power users

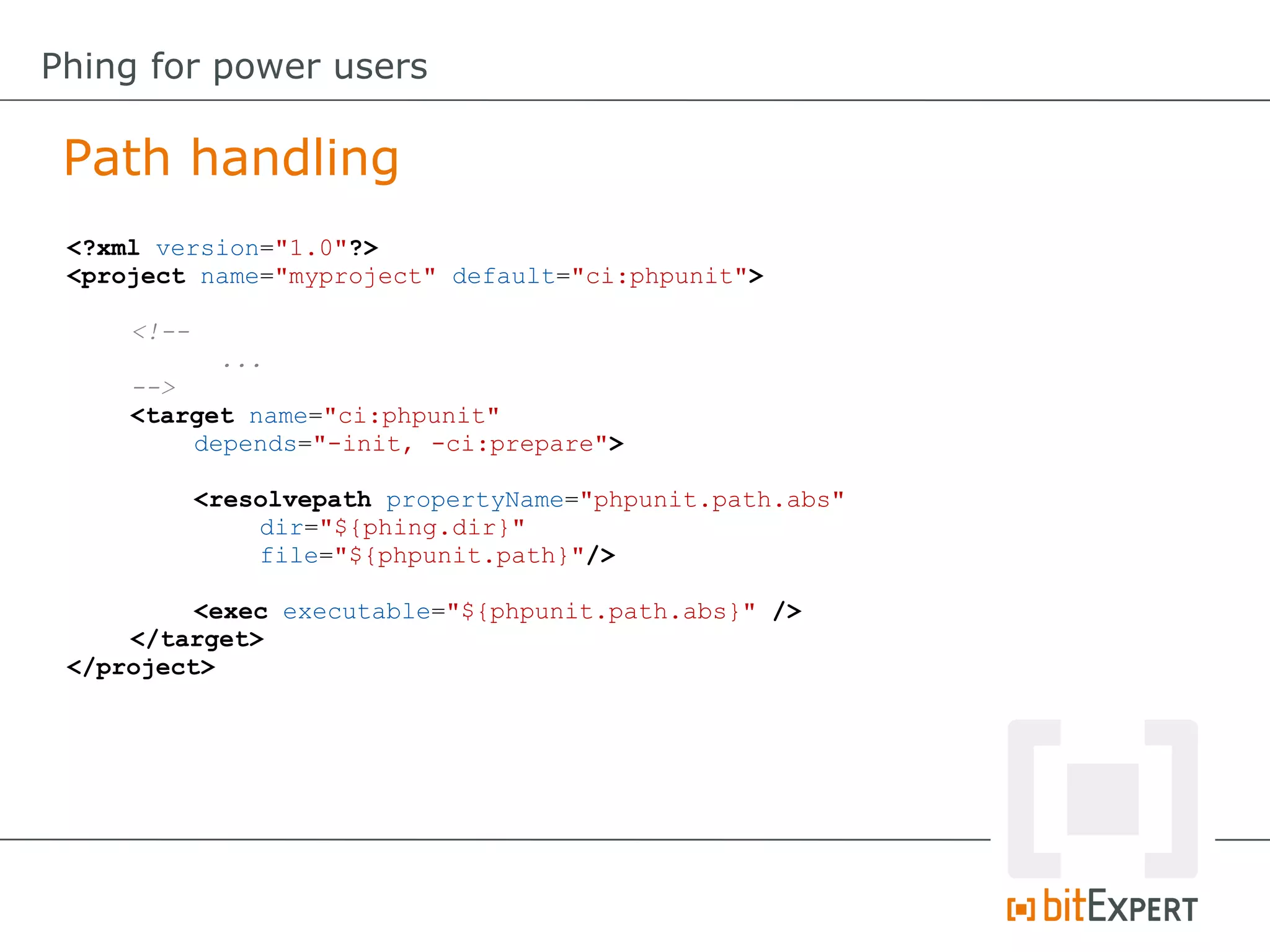

88. Path handling
Phing for power users
<?xml version="1.0"?>
<project name="myproject" default="ci:phpunit">
<!--
...
-->
<target name="ci:phpunit"
depends="-init, -ci:prepare">
<resolvepath propertyName="phpunit.path.abs"
dir="${phing.dir}"
file="${phpunit.path}"/>
<exec executable="${phpunit.path.abs}" />
</target>
</project>

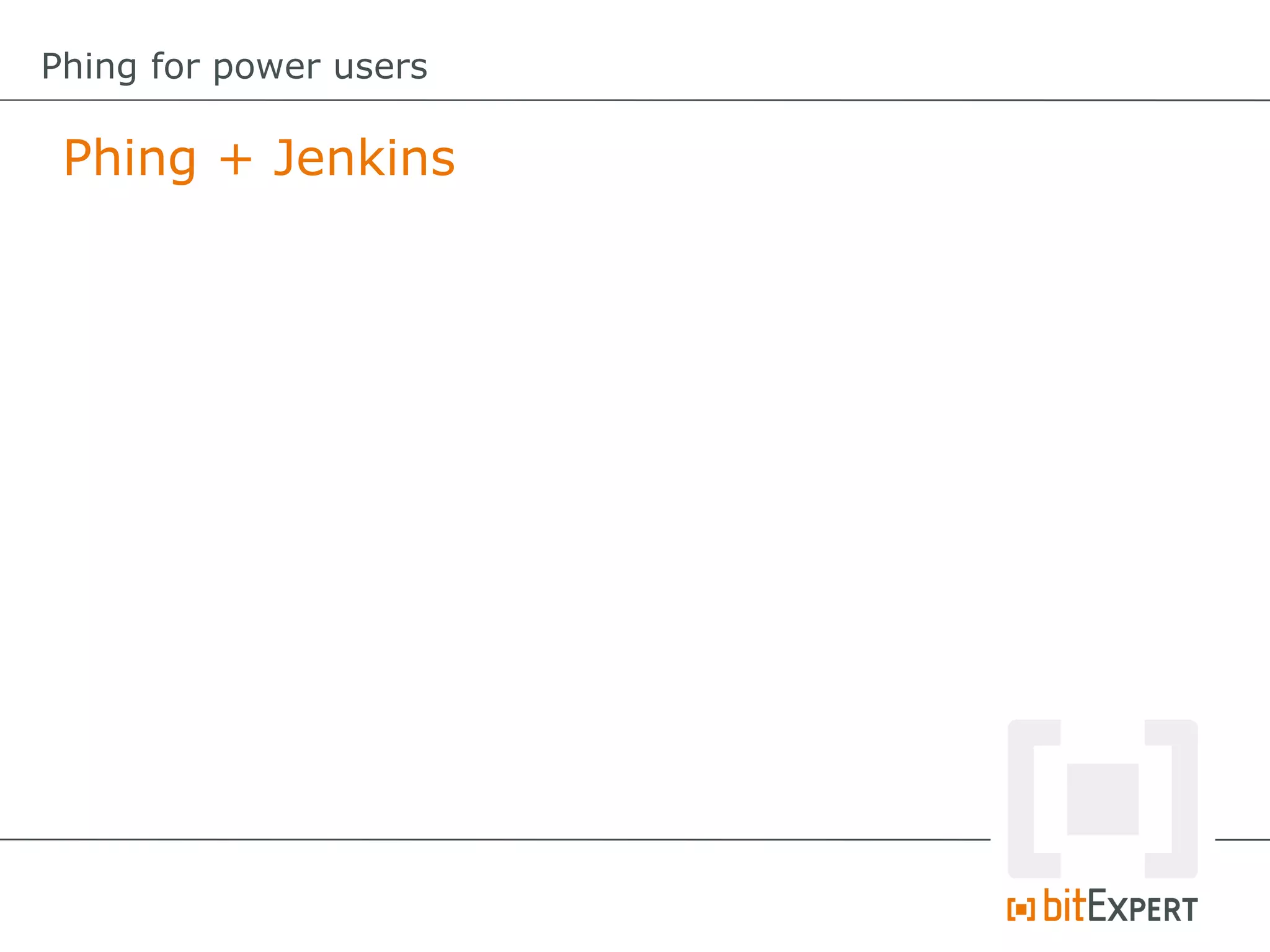

89. Phing + Jenkins
Phing for power users

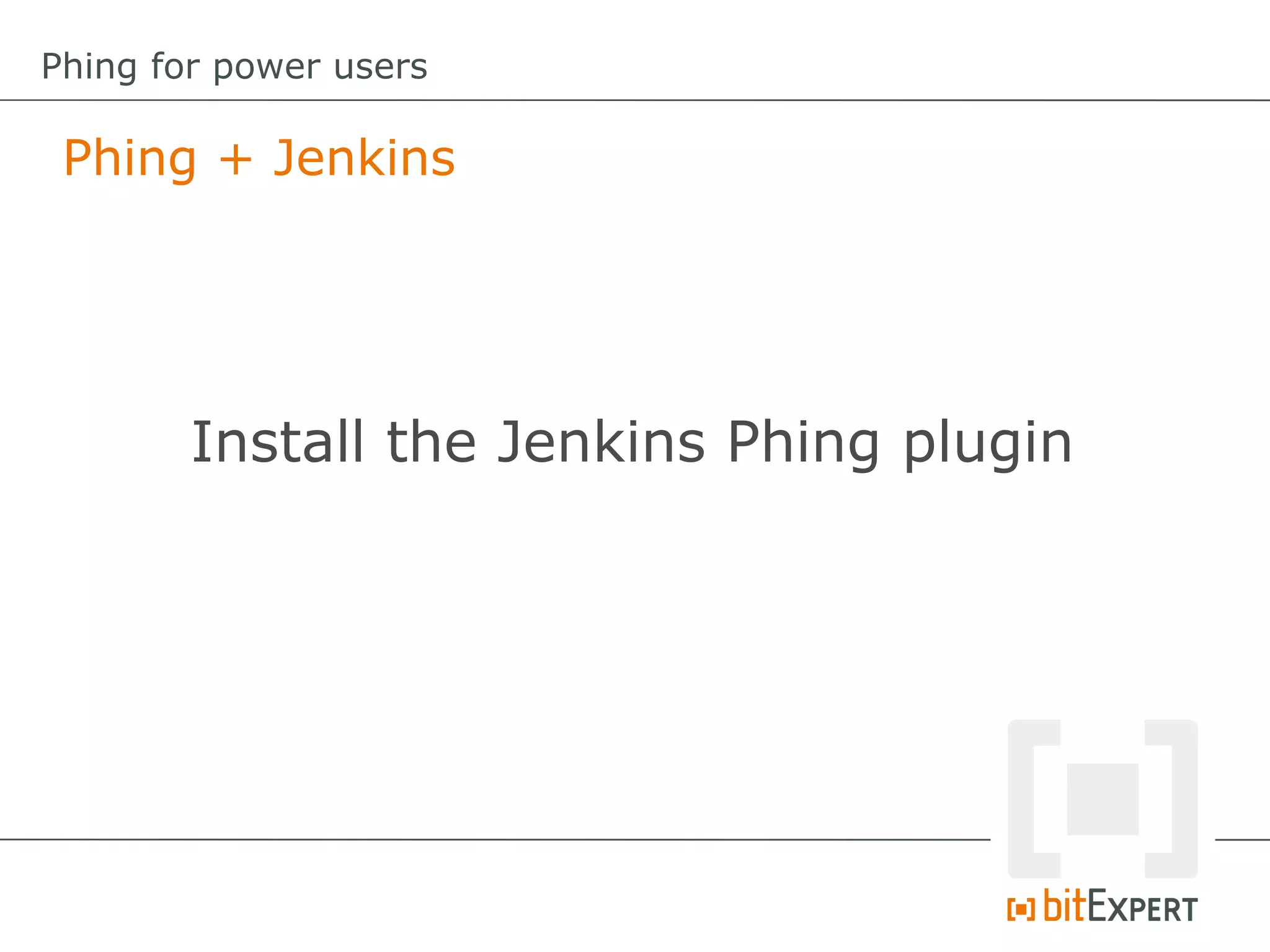

90. Phing + Jenkins
Phing for power users
Install the Jenkins Phing plugin

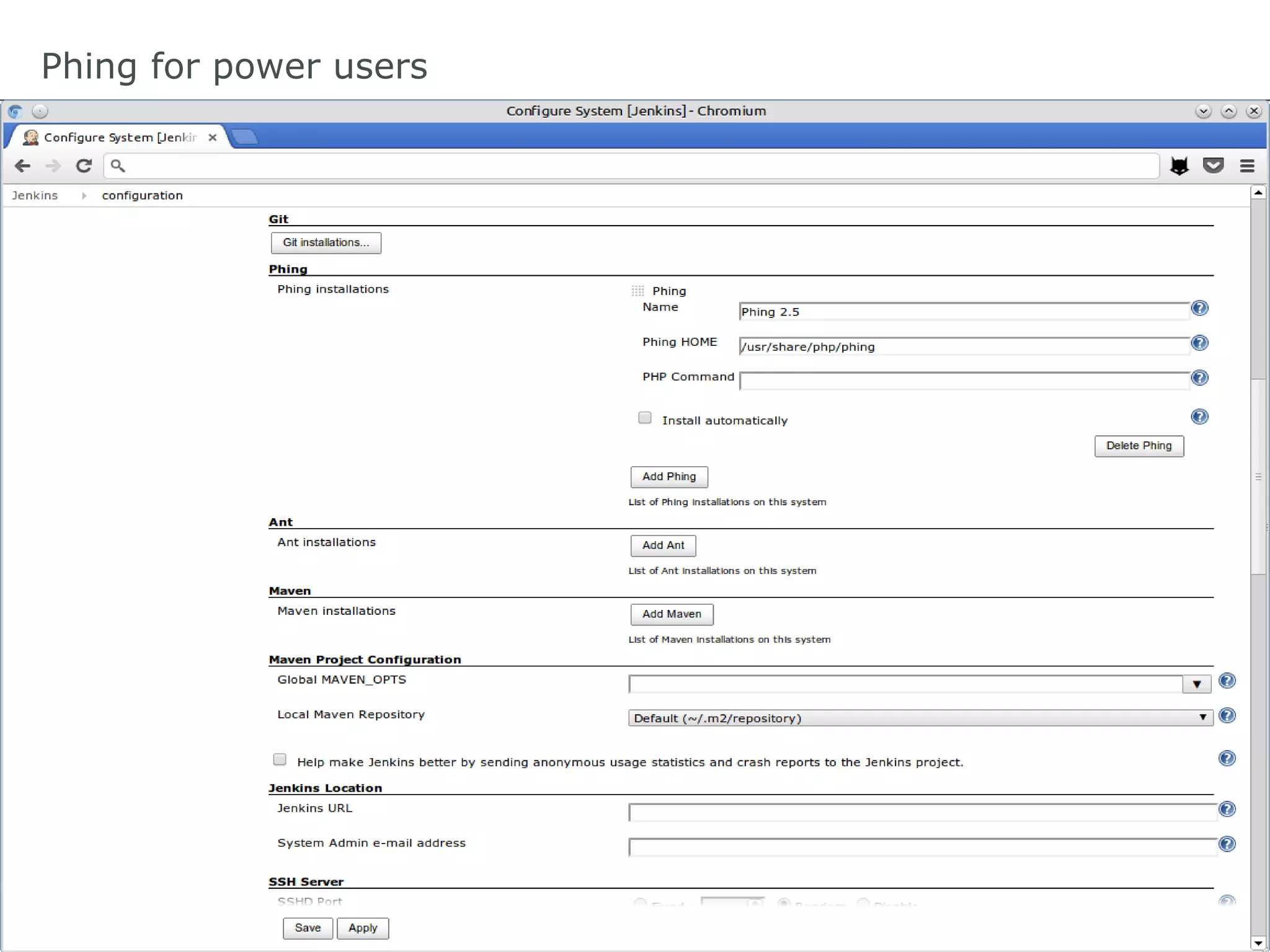

91. Phing for power users

92. Phing for power users

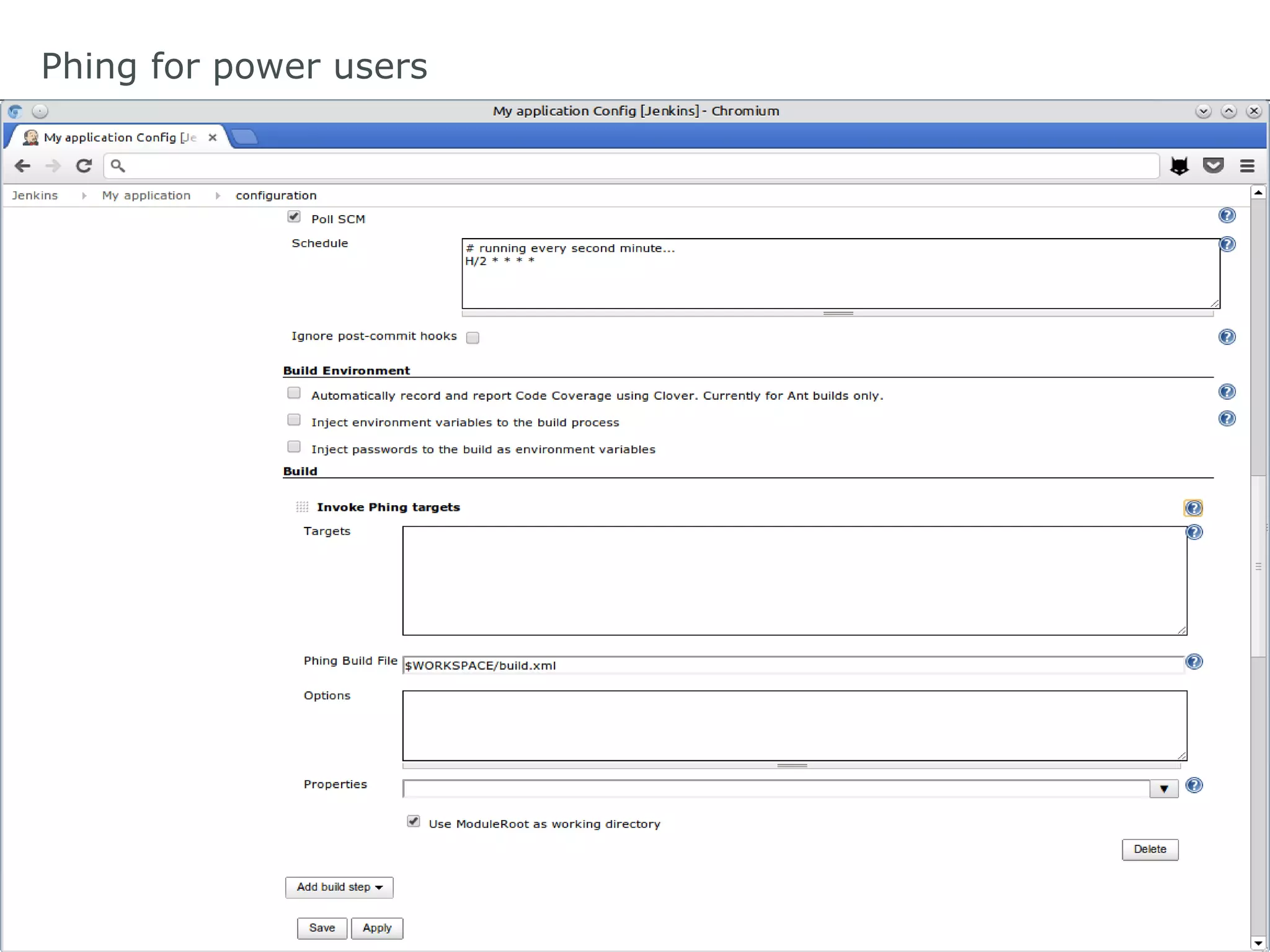

93. Phing for power users

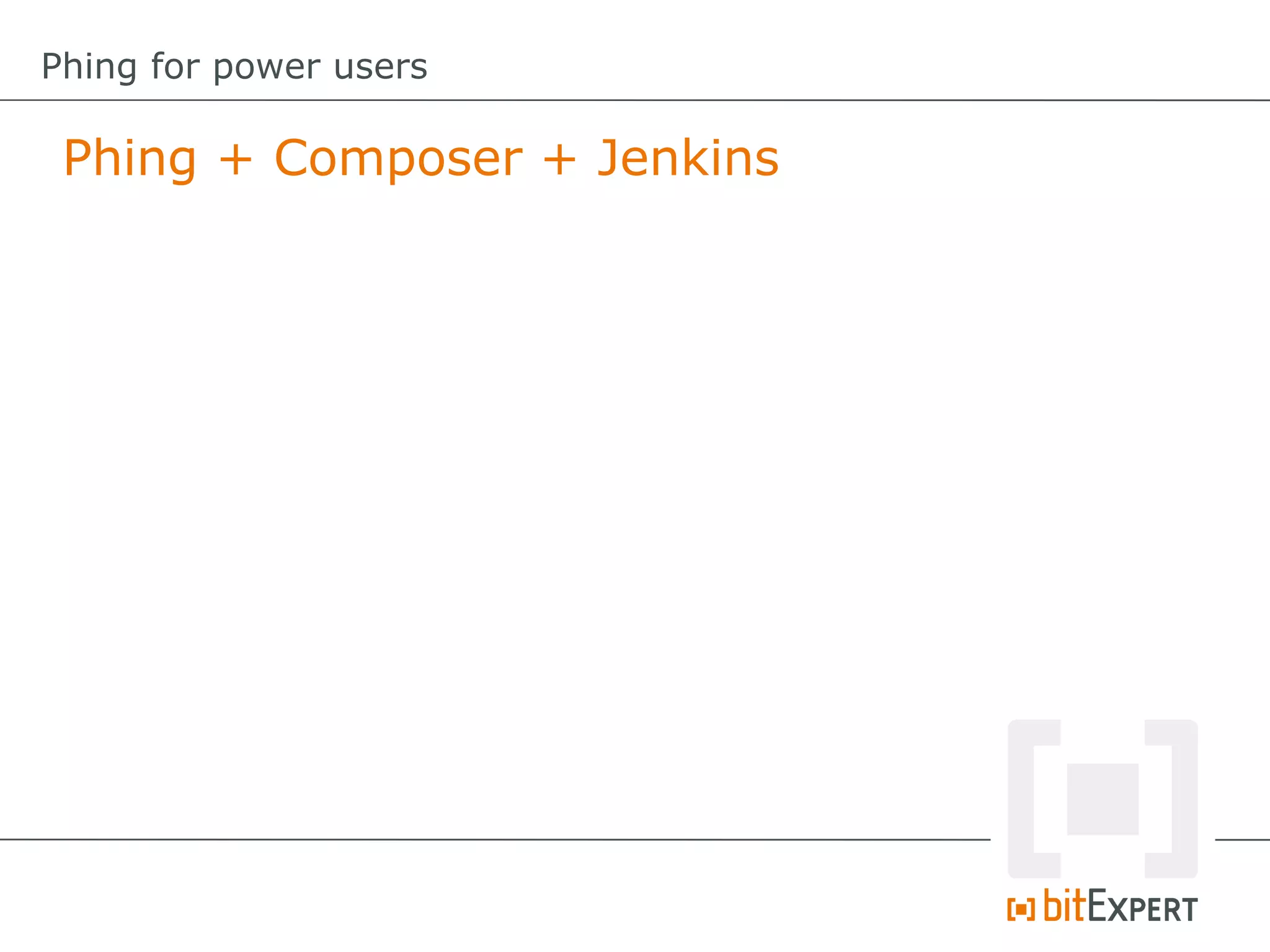

94. Phing + Composer + Jenkins
Phing for power users

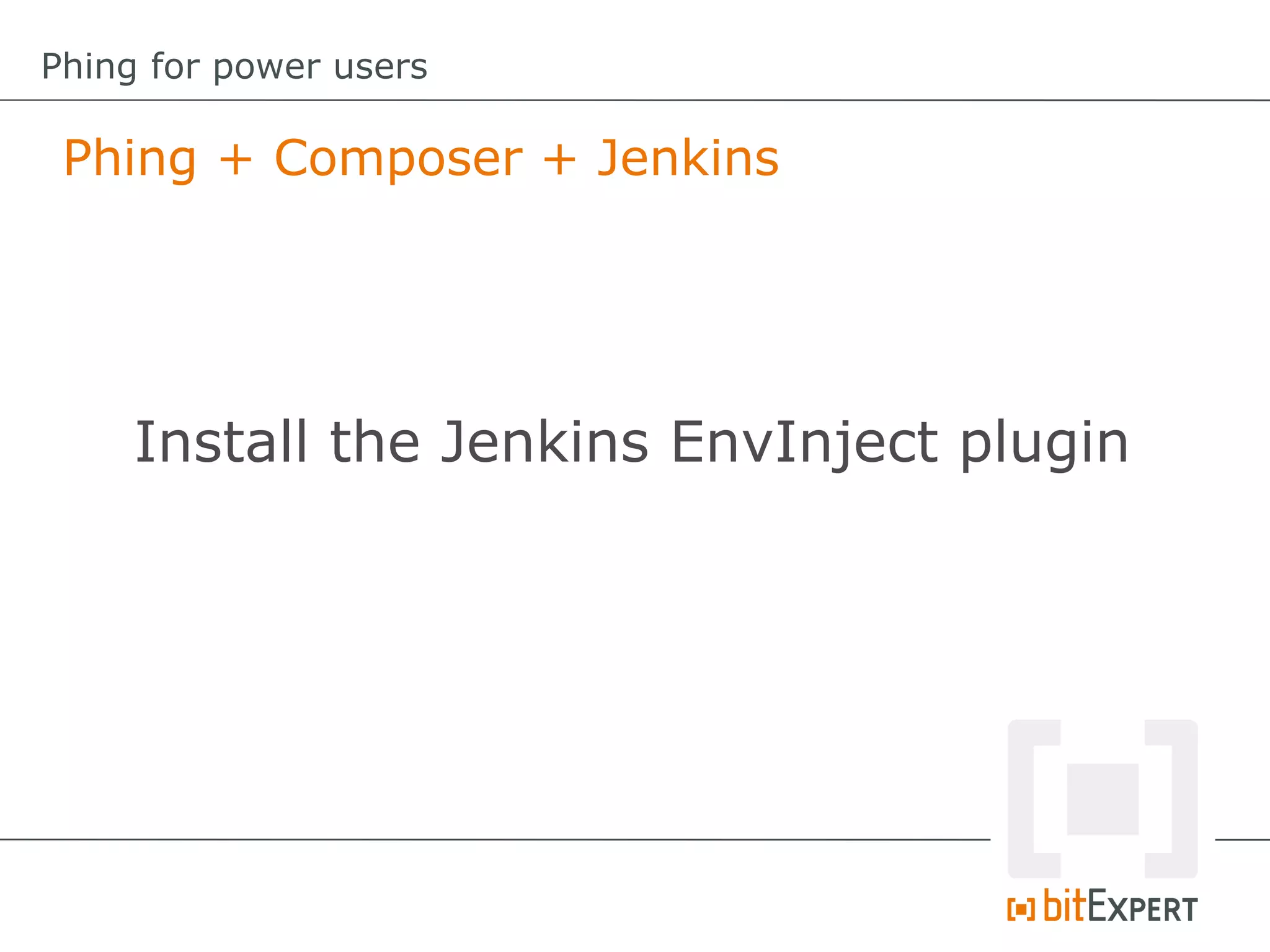

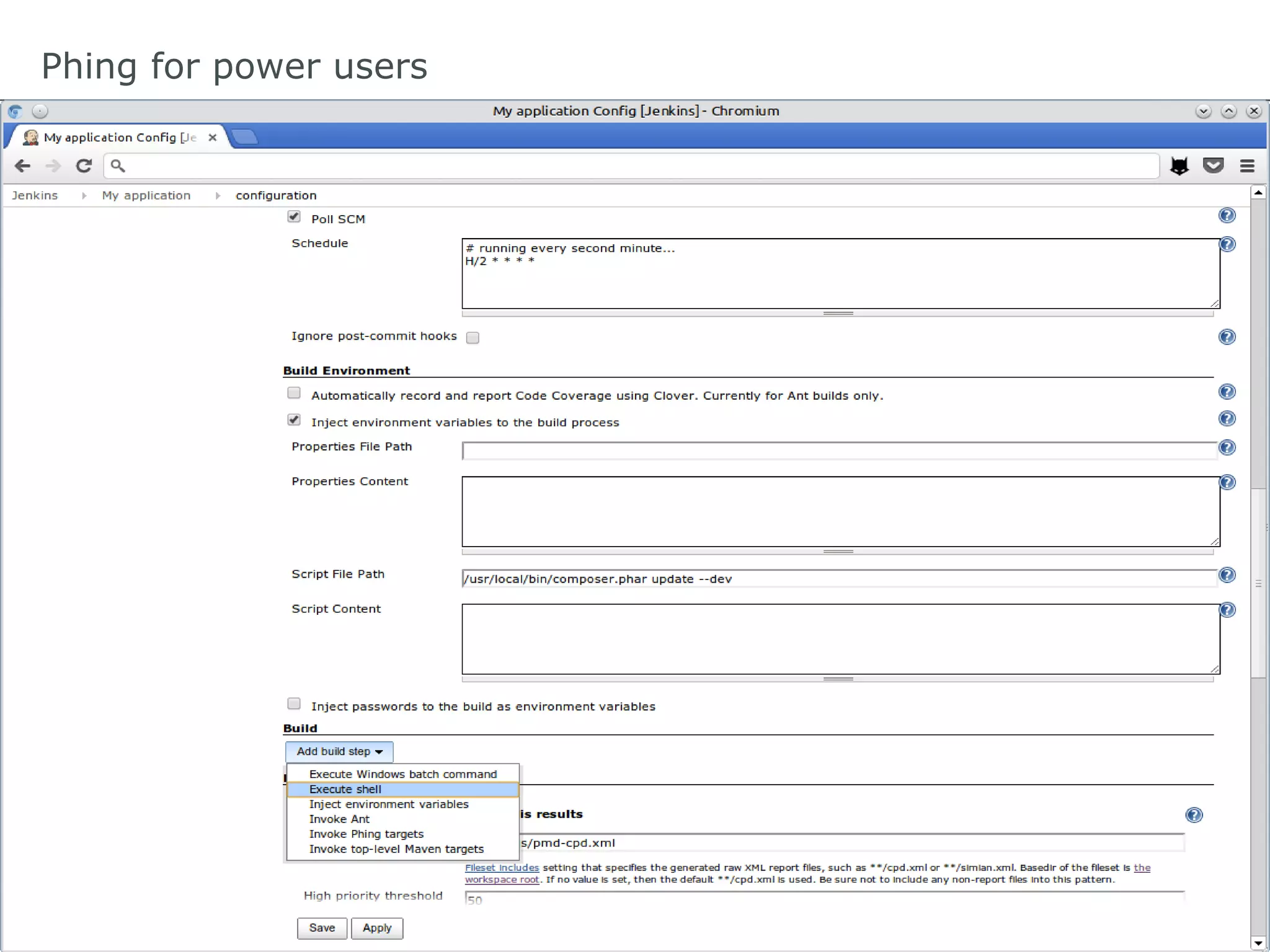

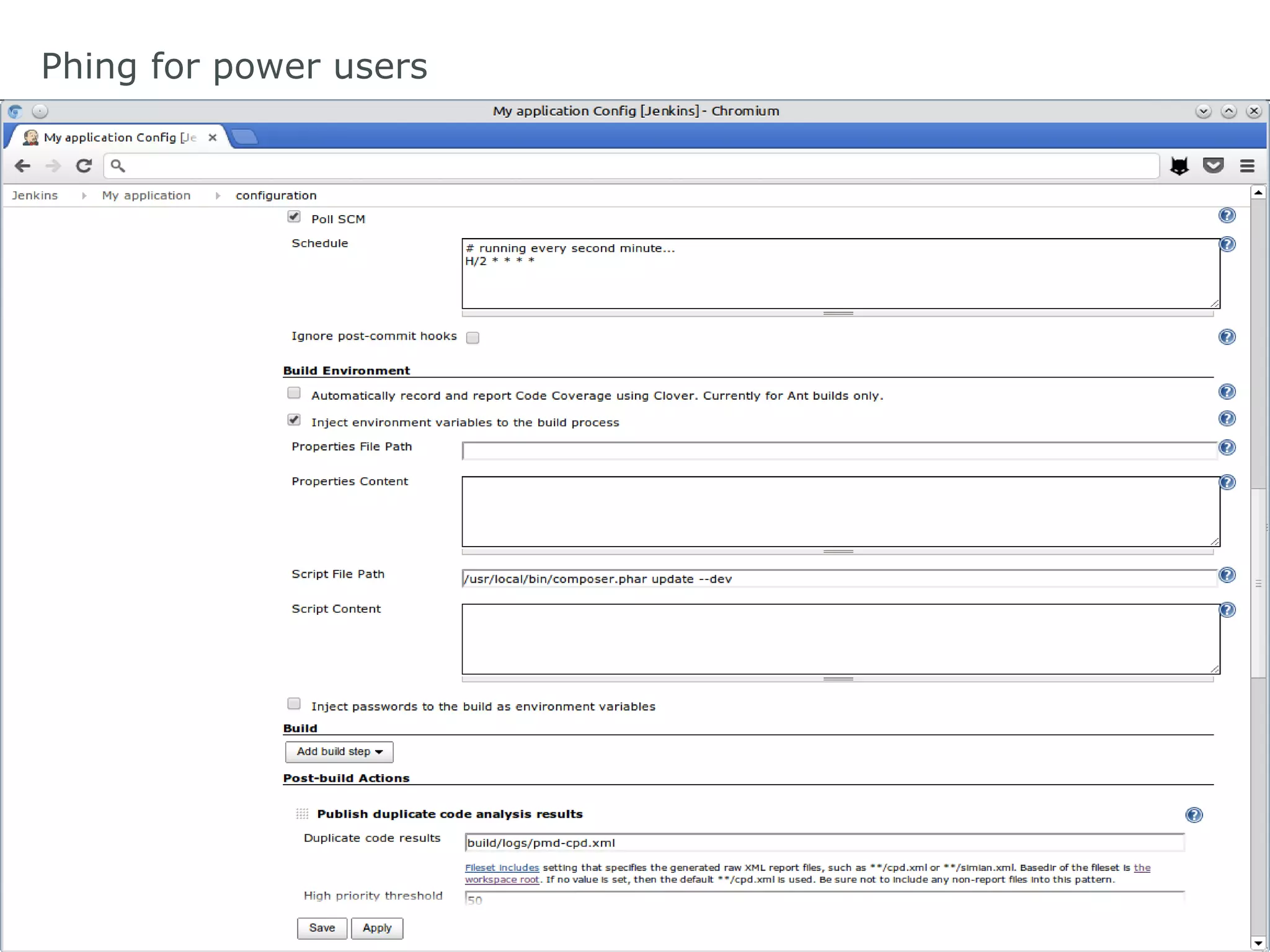

95. Phing + Composer + Jenkins
Phing for power users
Install the Jenkins EnvInject plugin

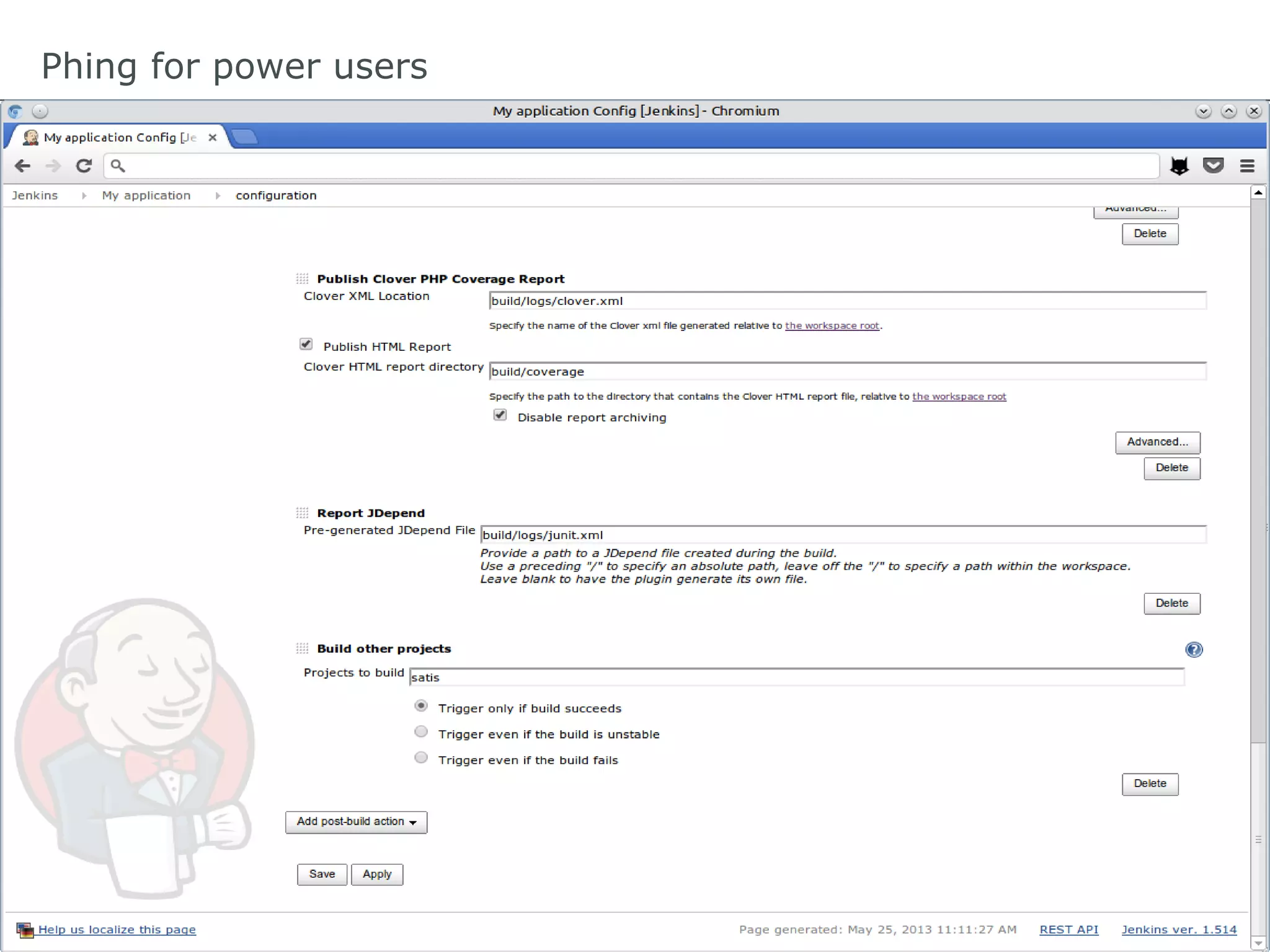

96. Phing for power users

97. Phing for power users

98. Phing for power users

99. Phing for power users

100. Follow conventions
Phing for power users

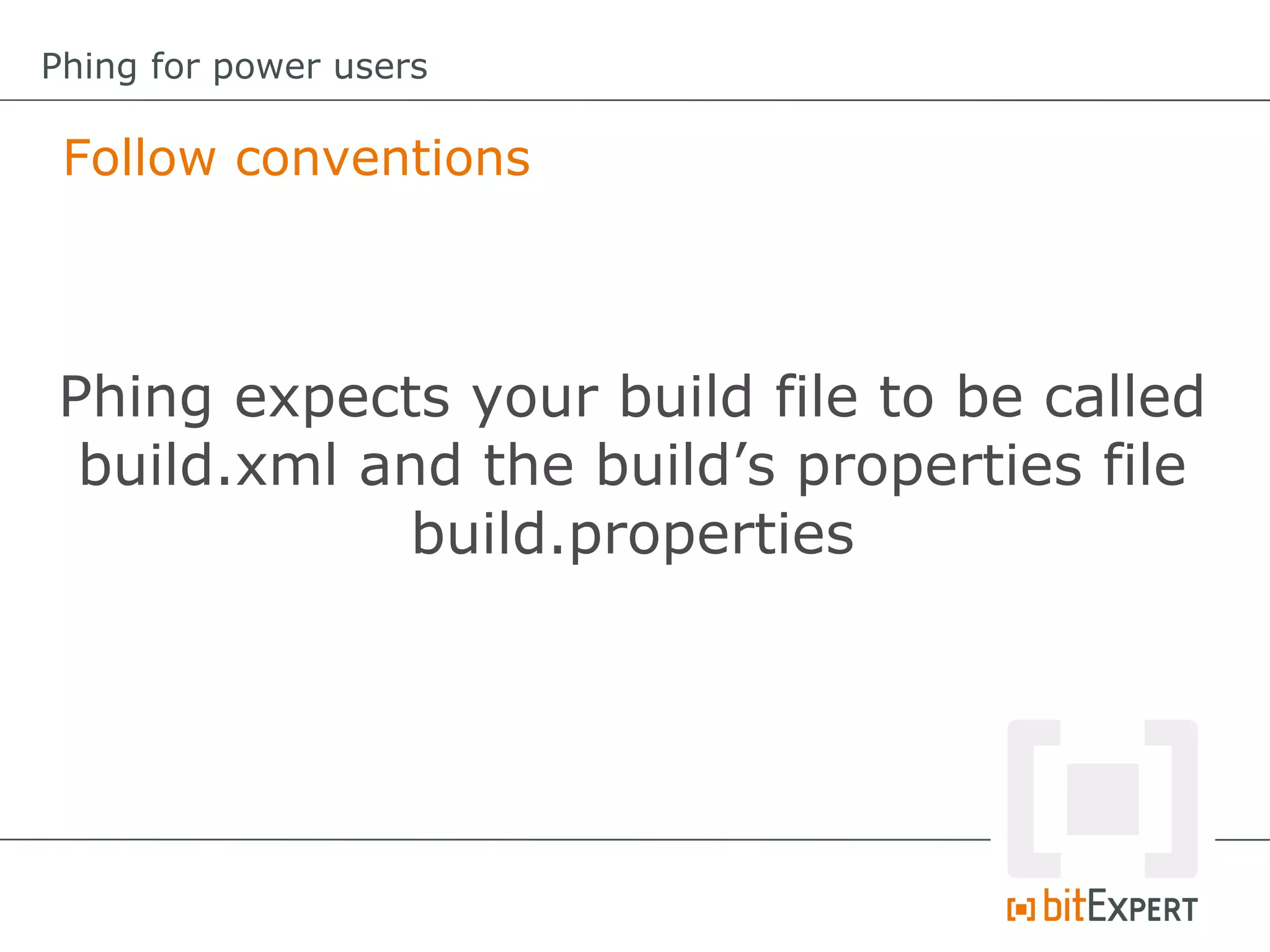

101. Follow conventions
Phing for power users
Phing expects your build file to be called
build.xml and the build’s properties file
build.properties

102. Follow conventions
Phing for power users
Pick meaningful, human-readable
names for targets and properties.

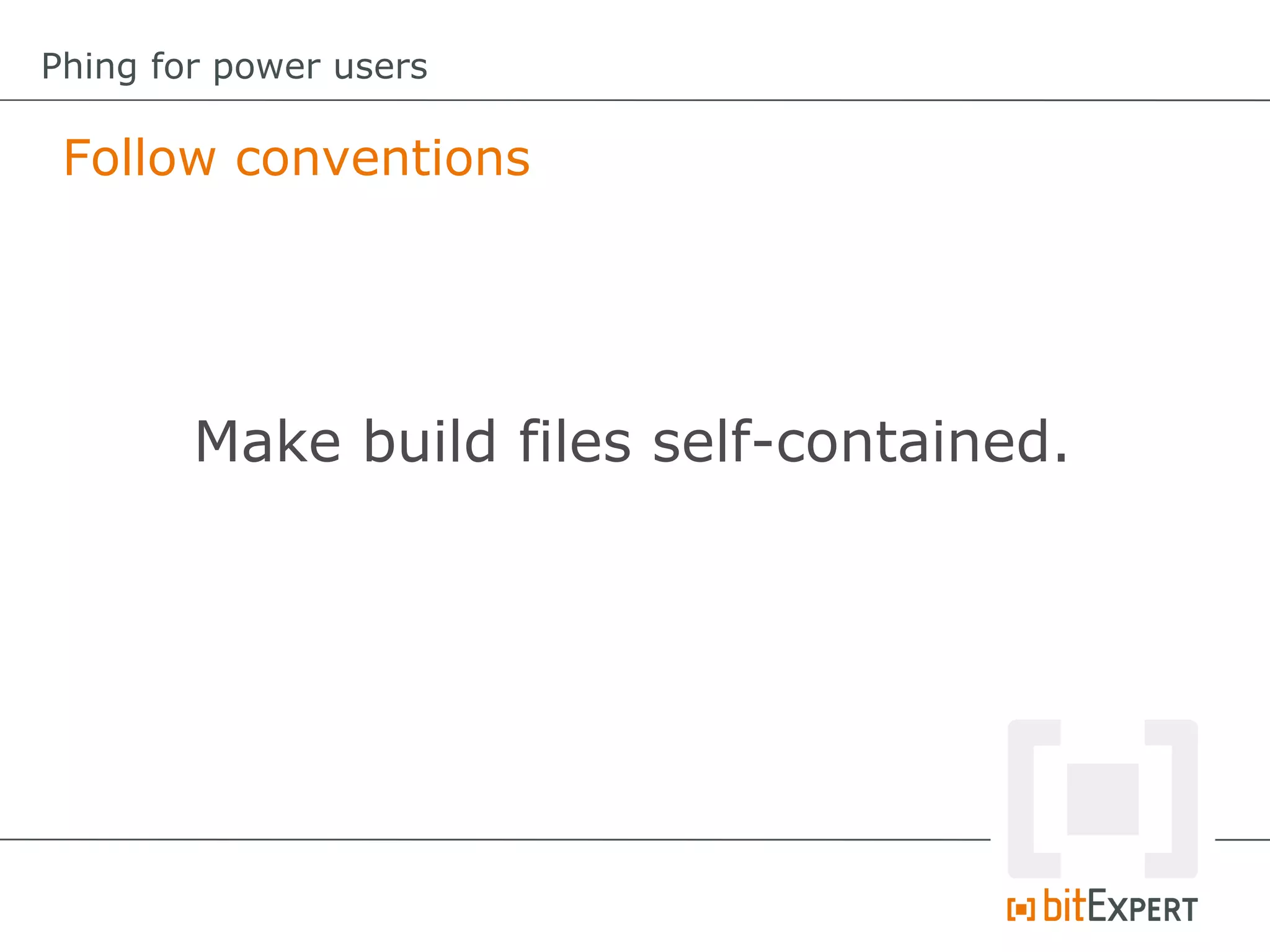

103. Follow conventions
Phing for power users
Make build files self-contained.

104. Thank you!

105. http://joind.in/9023

106. Phing for power users
Image Credits
http://www.sxc.hu/photo/629370
http://www.sxc.hu/photo/615731
