1. DEPLOYING NEXT-
GENERATION SYSTEMS
TWILIO ENGINEERING

2. WHY NEXT
GENERATION
SYSTEMS?
#twiliocon

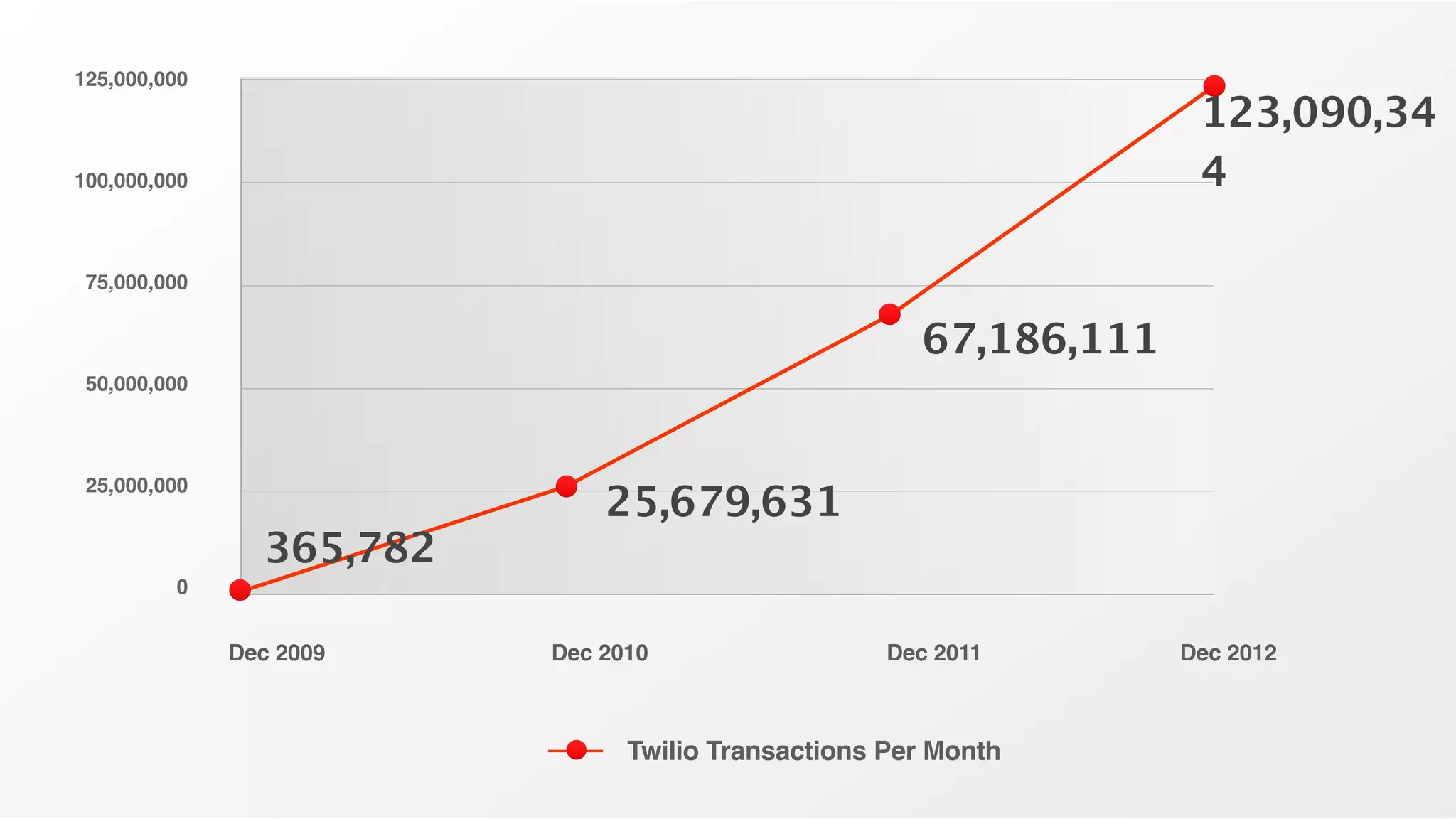

3. 125,000,000
123,090,34
100,000,000 4
75,000,000
67,186,111
e
50,000,000
25,679,631
25,000,000
365,782
0
Dec 2009 Dec 2010 Dec 2011 Dec 2012
Twilio Transactions Per Month

4. WHY ZERO
DOWNTIME?
#twiliocon

5. HI. I’M TIM
I’m Director of Engineering at twilio
#twiliocon

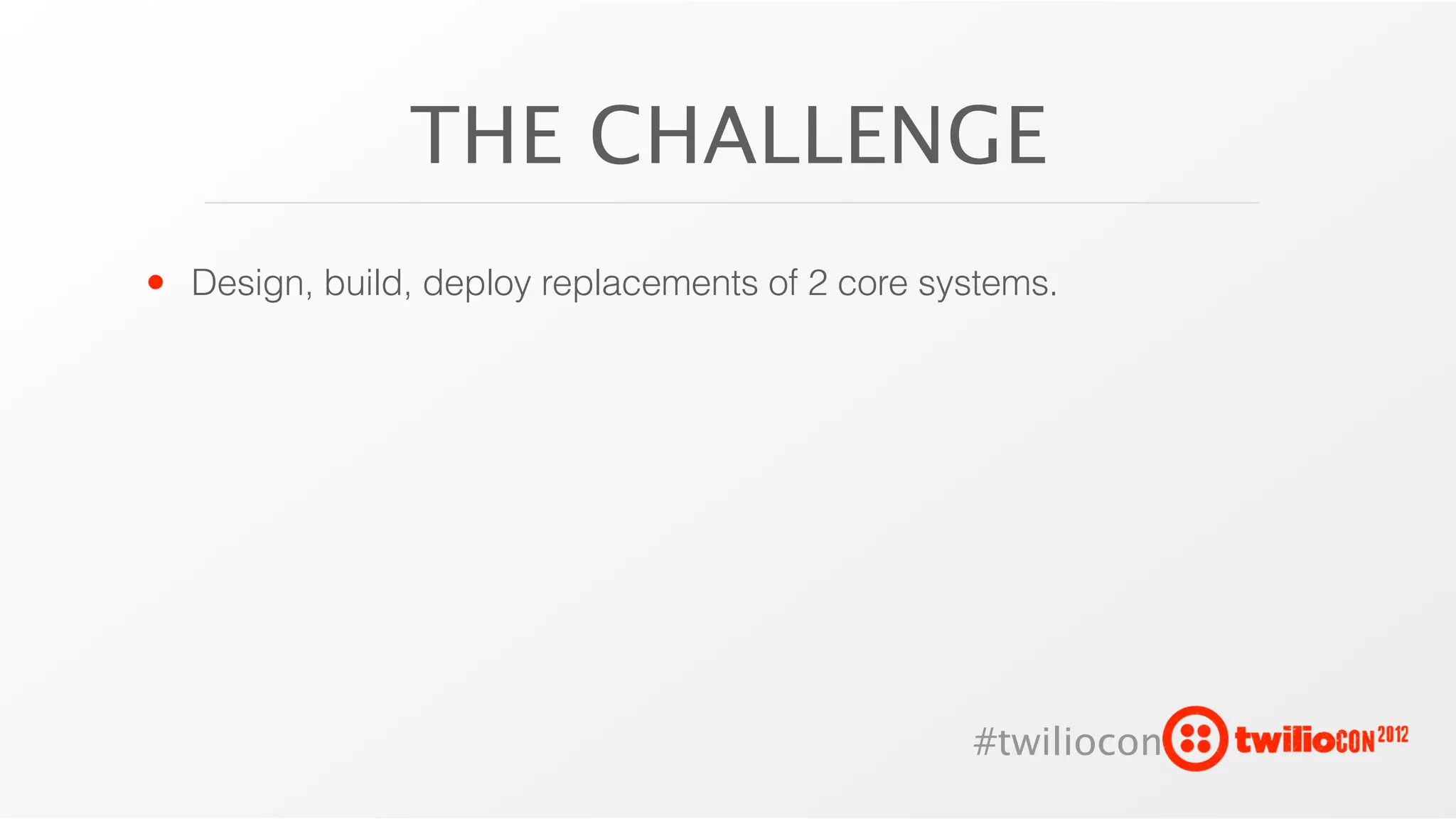

6. THE CHALLENGE
• Design, build, deploy replacements of 2 core systems.
#twiliocon

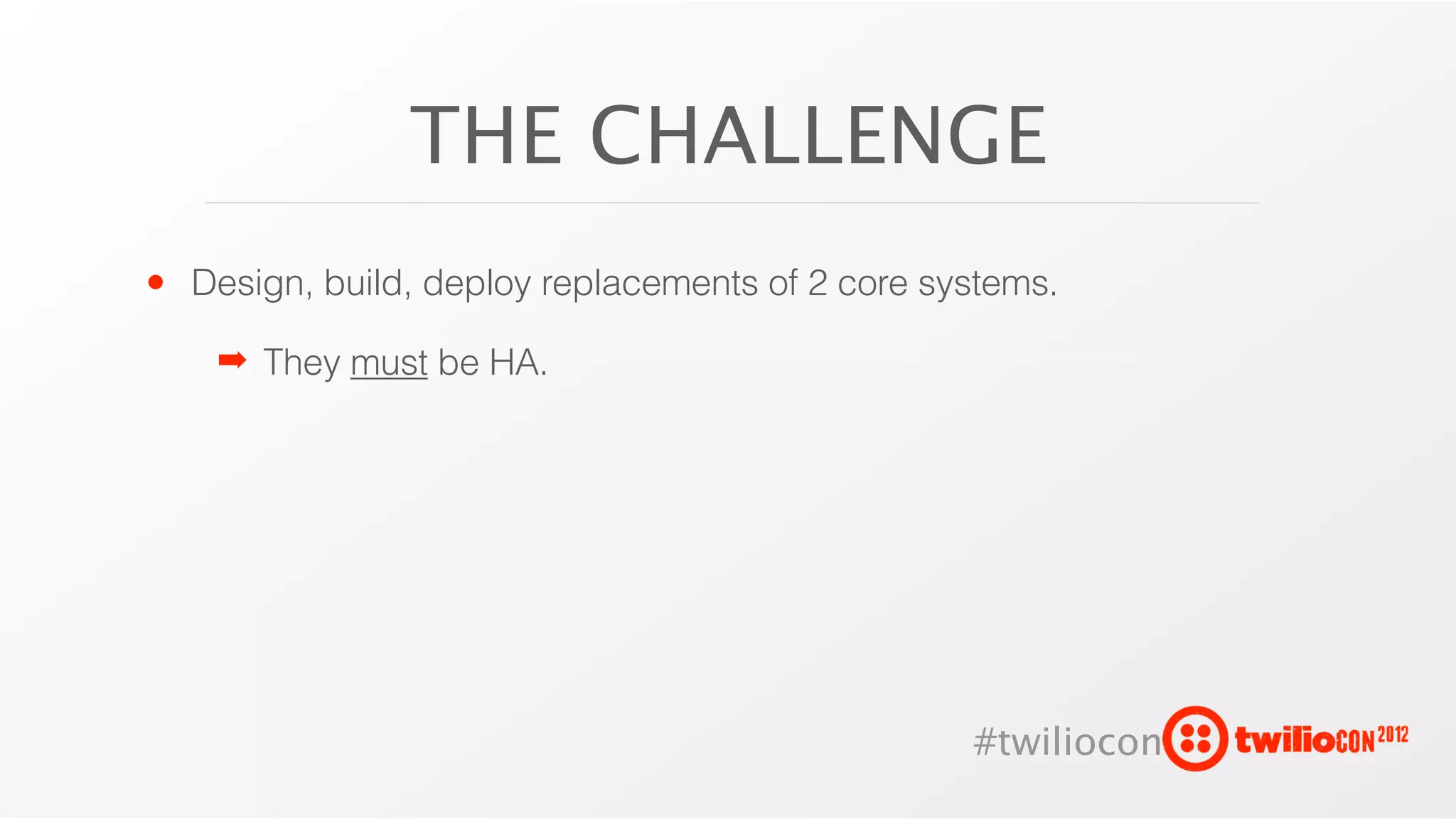

7. THE CHALLENGE
• Design, build, deploy replacements of 2 core systems.
➡ They must be HA.
#twiliocon

8. THE CHALLENGE
• Design, build, deploy replacements of 2 core systems.
➡ They must be HA.
➡ They must be horizontally-scalable.
#twiliocon

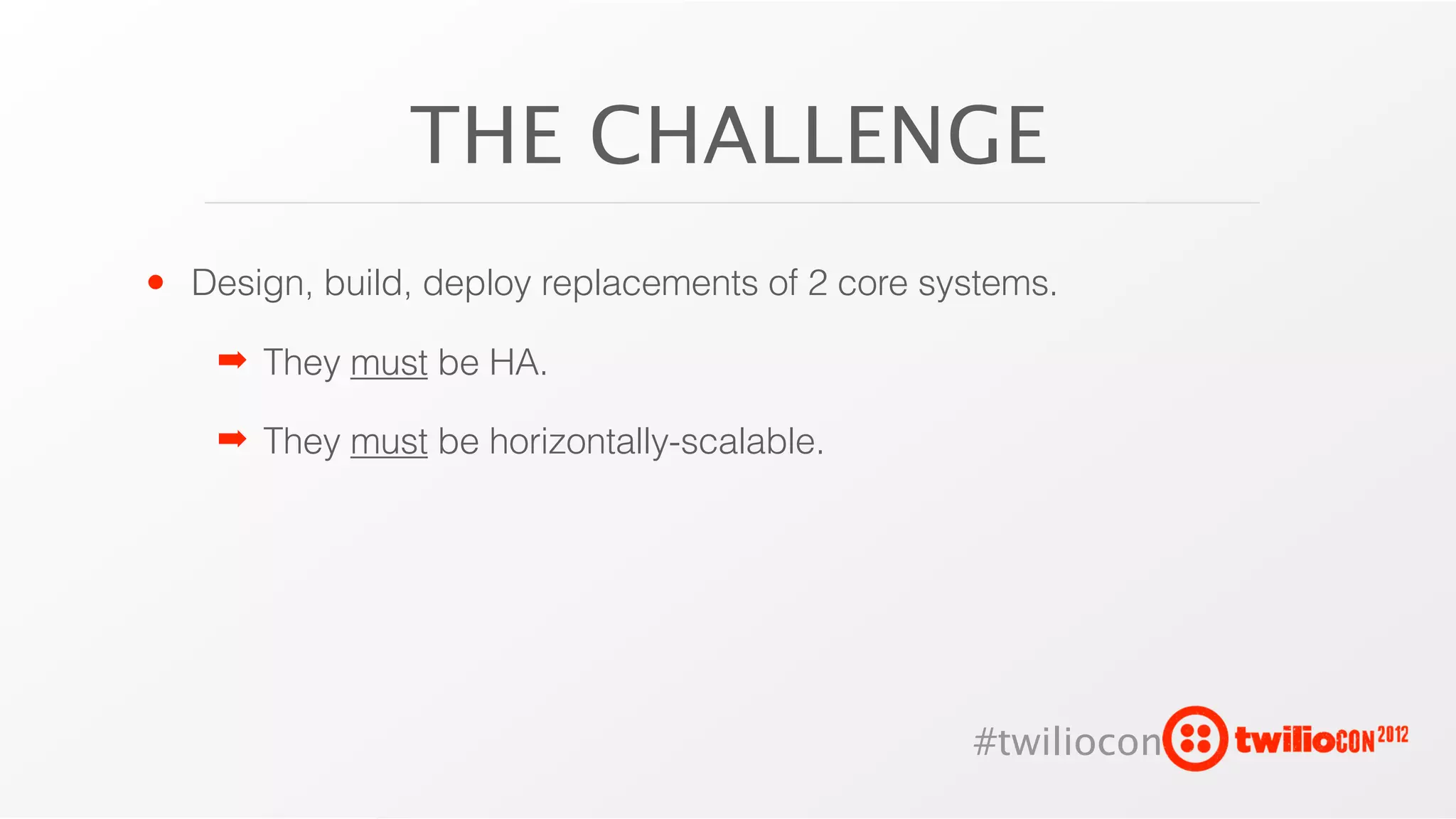

9. THE CHALLENGE
• Design, build, deploy replacements of 2 core systems.
➡ They must be HA.
➡ They must be horizontally-scalable.
#twiliocon

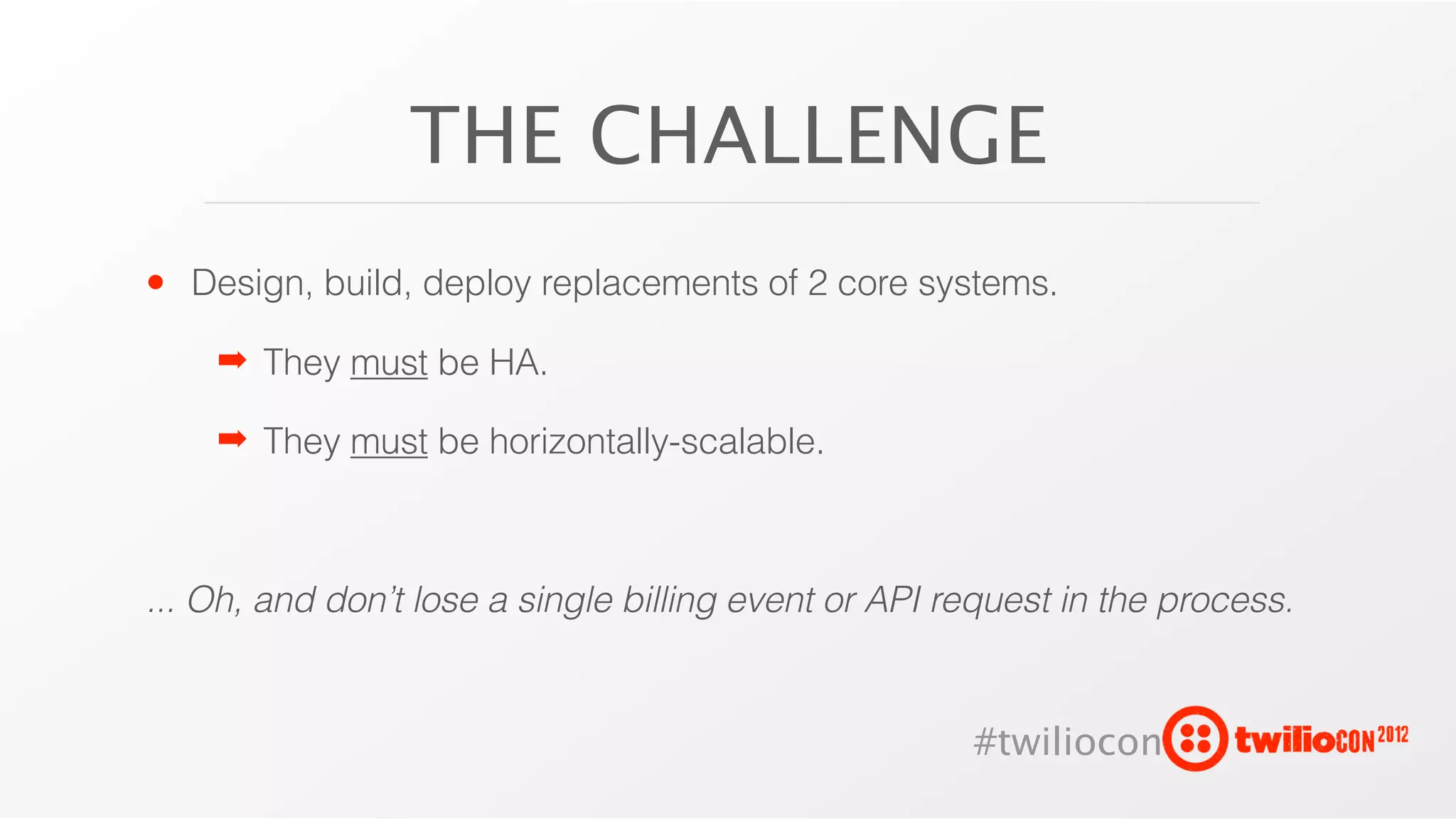

10. THE CHALLENGE
• Design, build, deploy replacements of 2 core systems.
➡ They must be HA.
➡ They must be horizontally-scalable.
... Oh, and don’t lose a single billing event or API request in the process.
#twiliocon

11. HI. I’M FRANK
I’m API-Team Engineering Lead at twilio
#twiliocon

12. OUT WITH THE OLD...
#twiliocon

13. OUT WITH THE OLD...
• Monolithic Codebase
#twiliocon

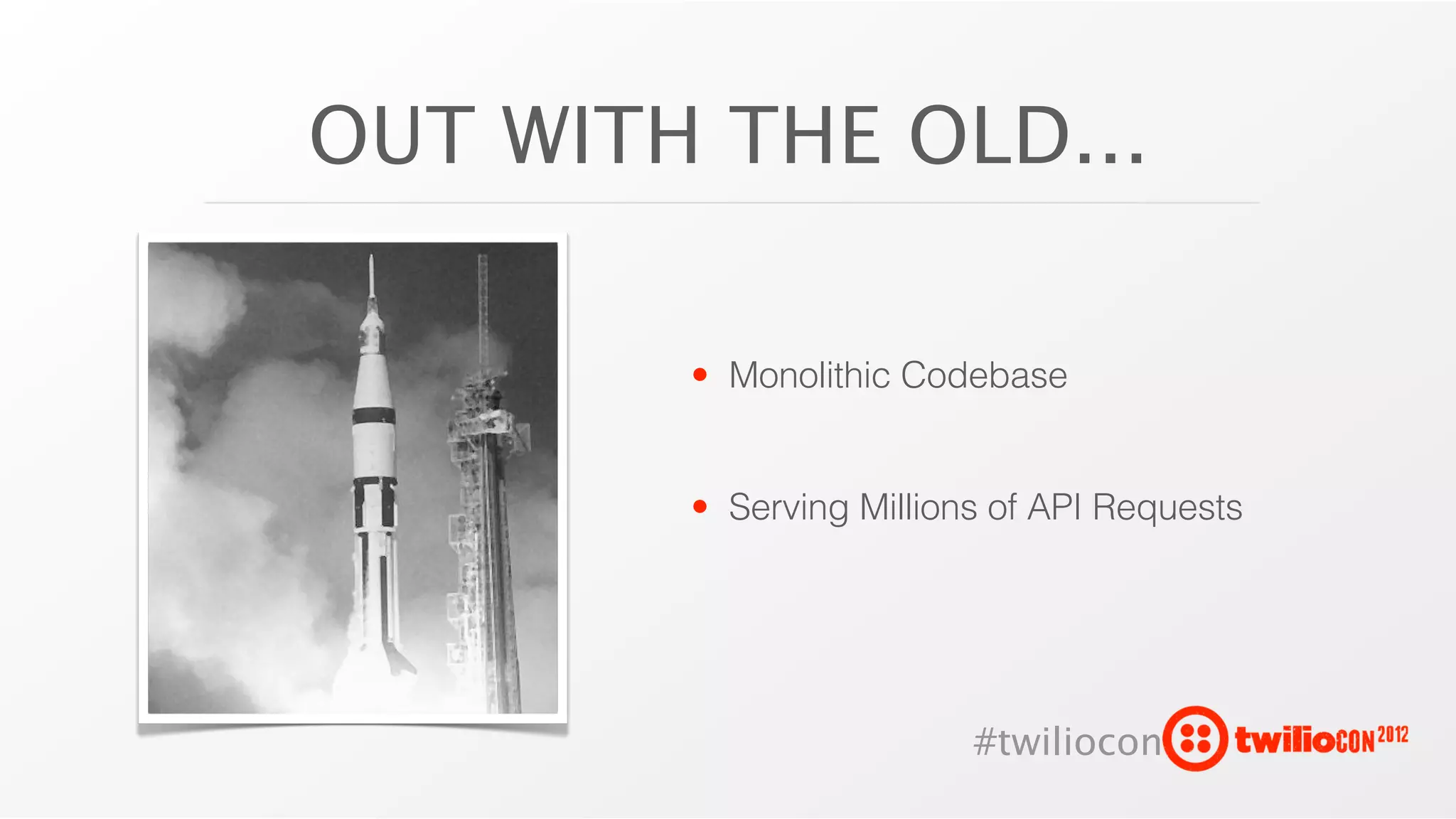

14. OUT WITH THE OLD...
• Monolithic Codebase
• Serving Millions of API Requests
#twiliocon

15. ... AND IN WITH THE NEW
#twiliocon

16. ... AND IN WITH THE NEW
• Python + Flask
#twiliocon

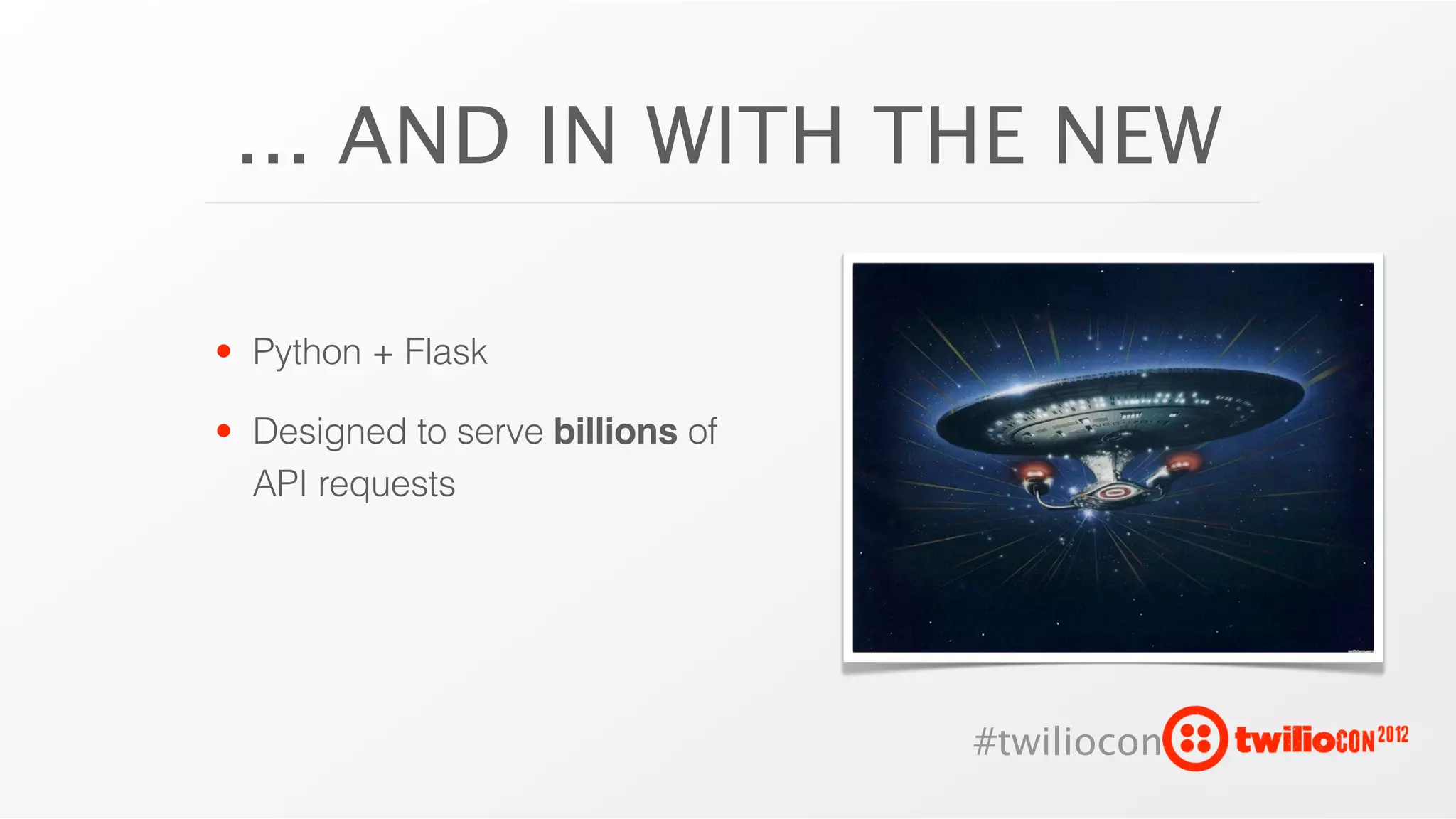

17. ... AND IN WITH THE NEW
• Python + Flask
• Designed to serve billions of
API requests
#twiliocon

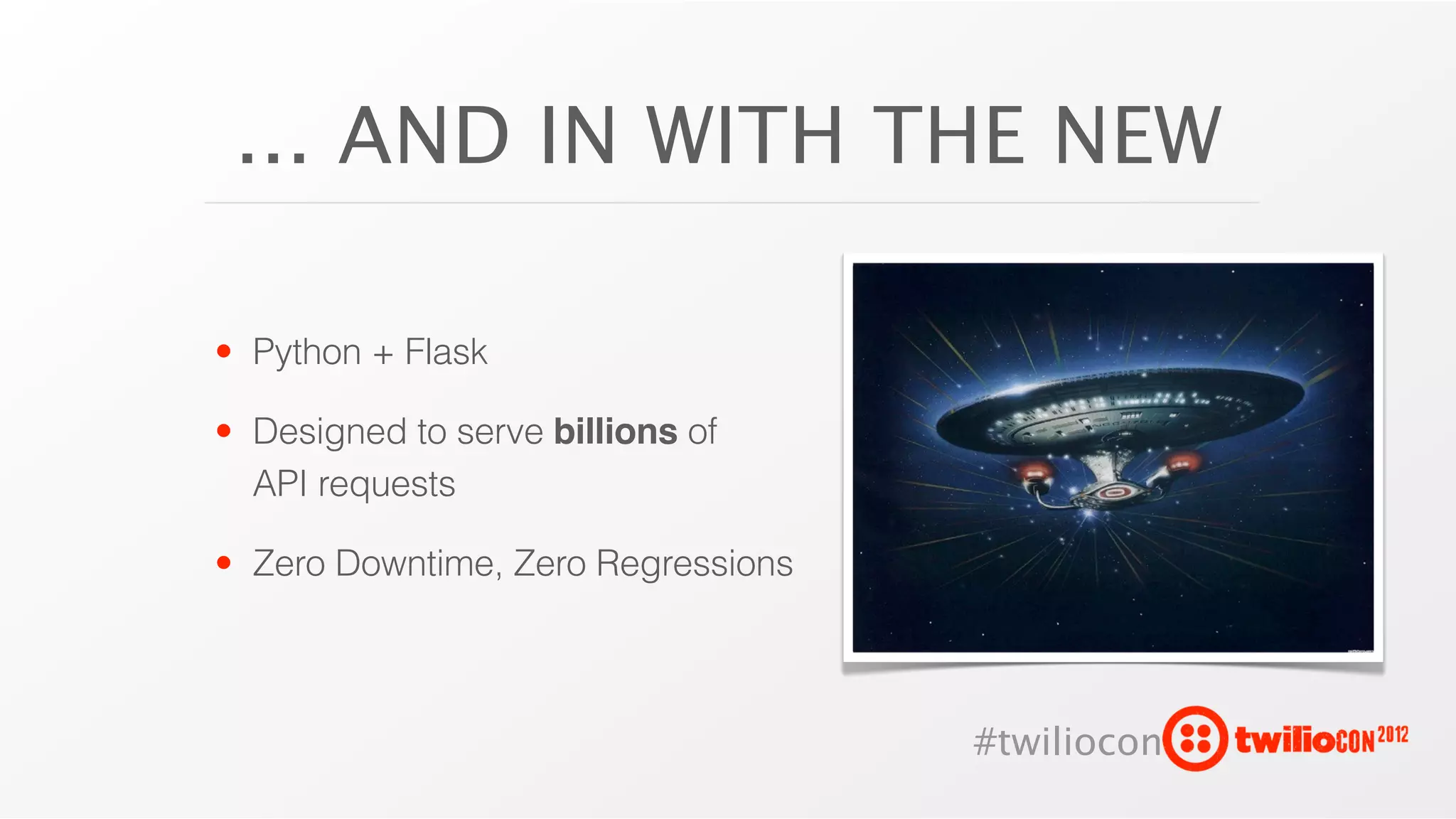

18. ... AND IN WITH THE NEW
• Python + Flask
• Designed to serve billions of
API requests
• Zero Downtime, Zero Regressions
#twiliocon

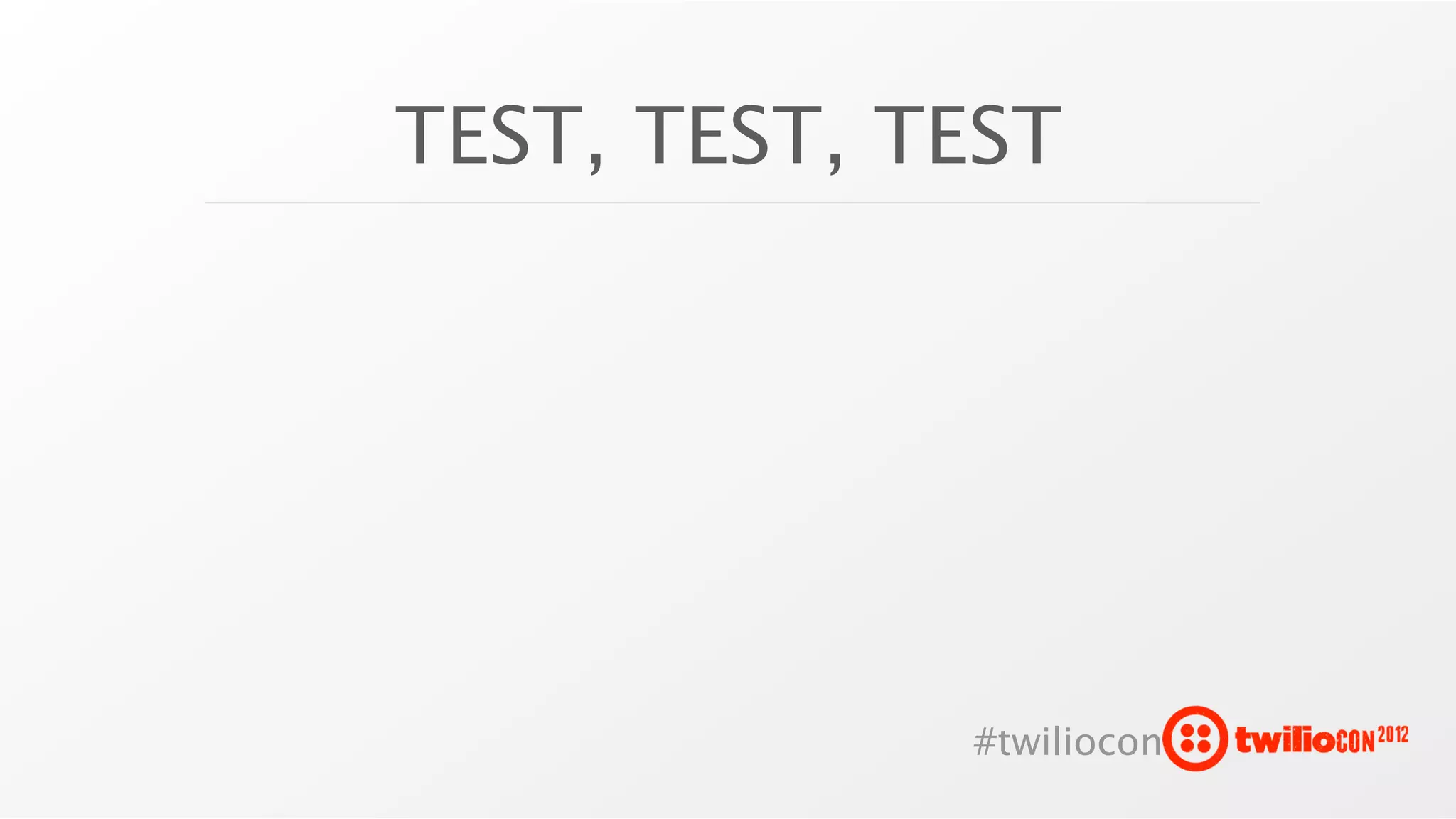

19. TEST, TEST, TEST
#twiliocon

20. TEST, TEST, TEST
• Unit & Functional tests for local development
#twiliocon

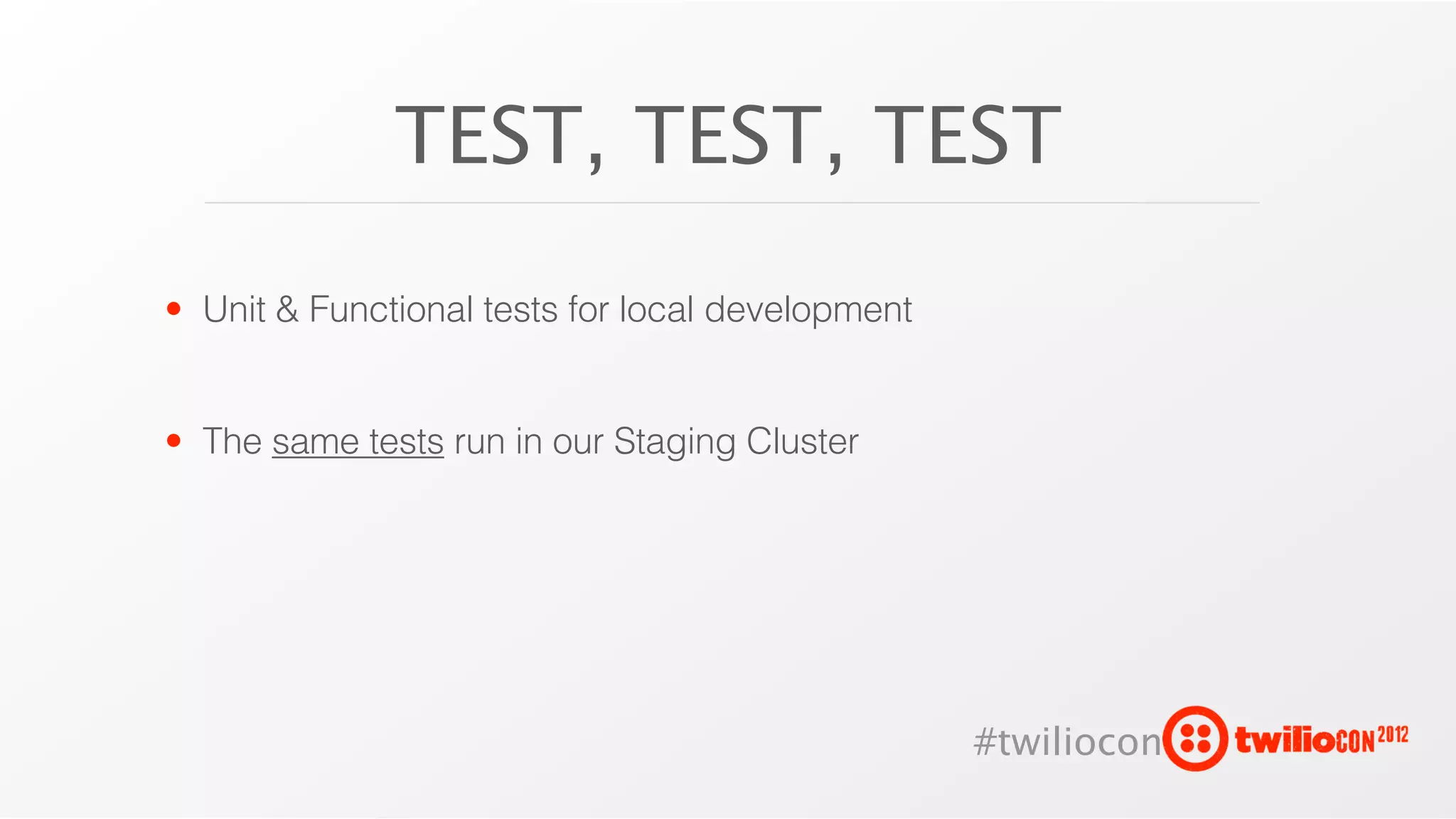

21. TEST, TEST, TEST
• Unit & Functional tests for local development
• The same tests run in our Staging Cluster
#twiliocon

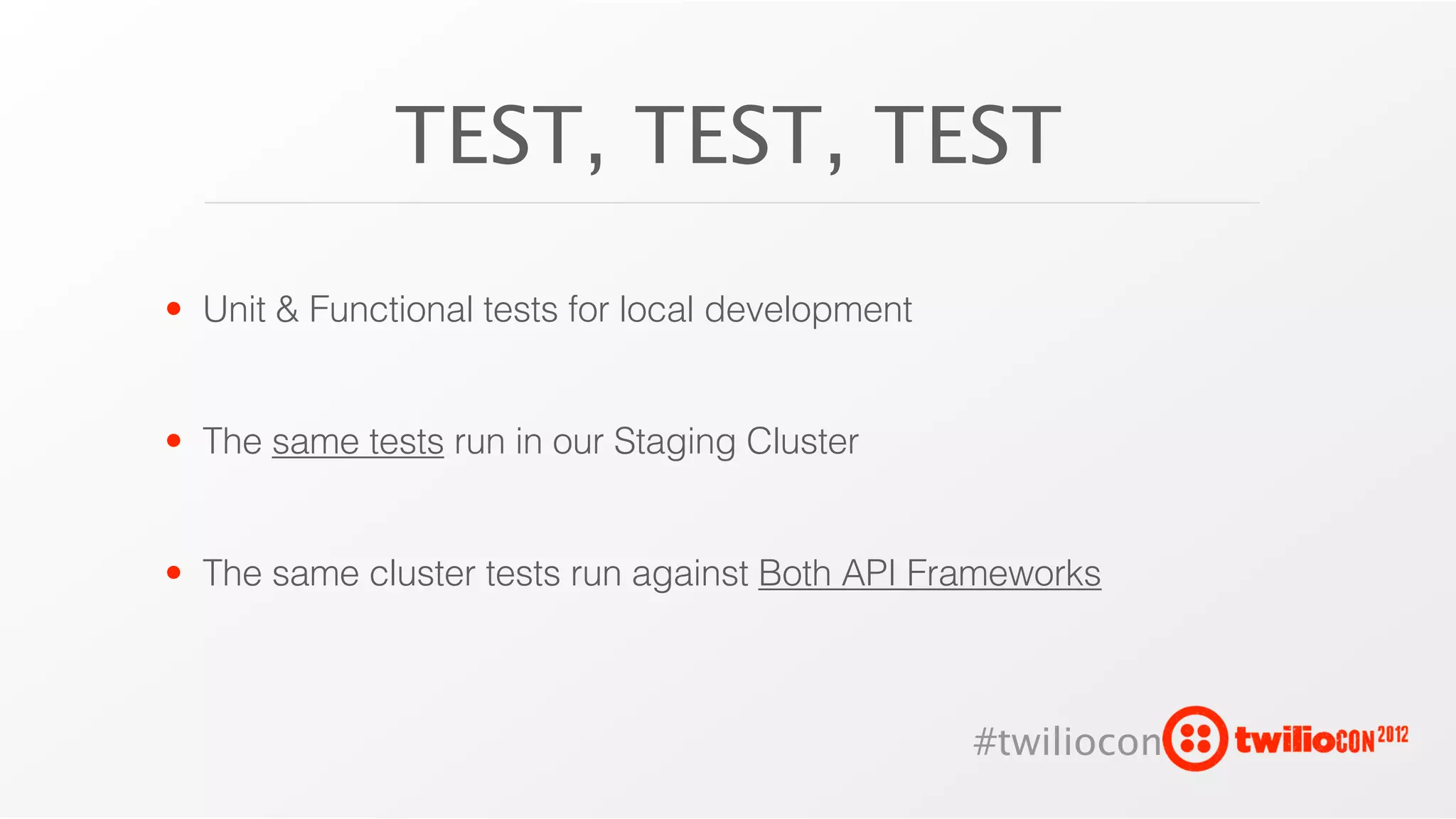

22. TEST, TEST, TEST
• Unit & Functional tests for local development
• The same tests run in our Staging Cluster
• The same cluster tests run against Both API Frameworks
#twiliocon

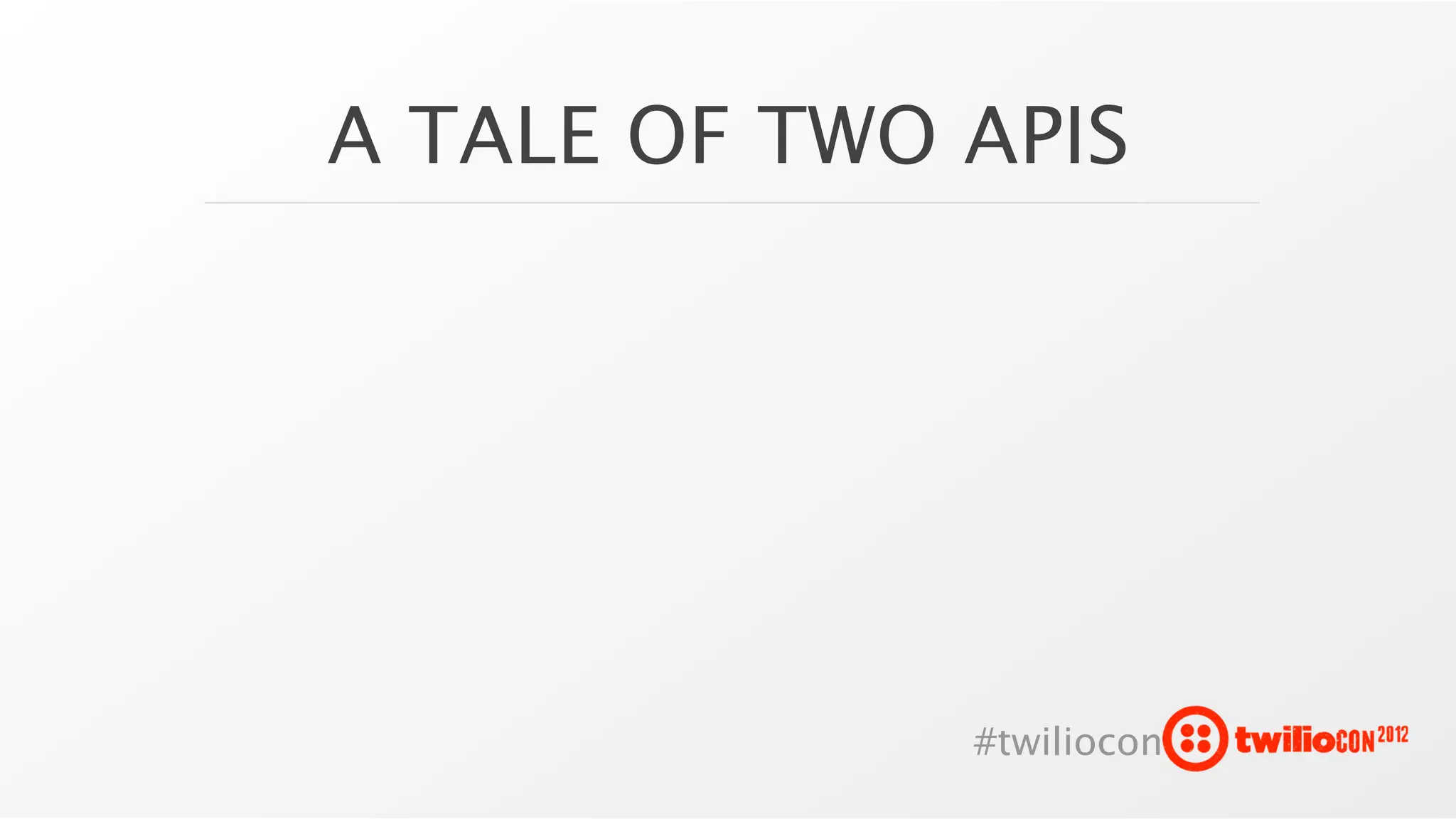

23. A TALE OF TWO APIS
#twiliocon

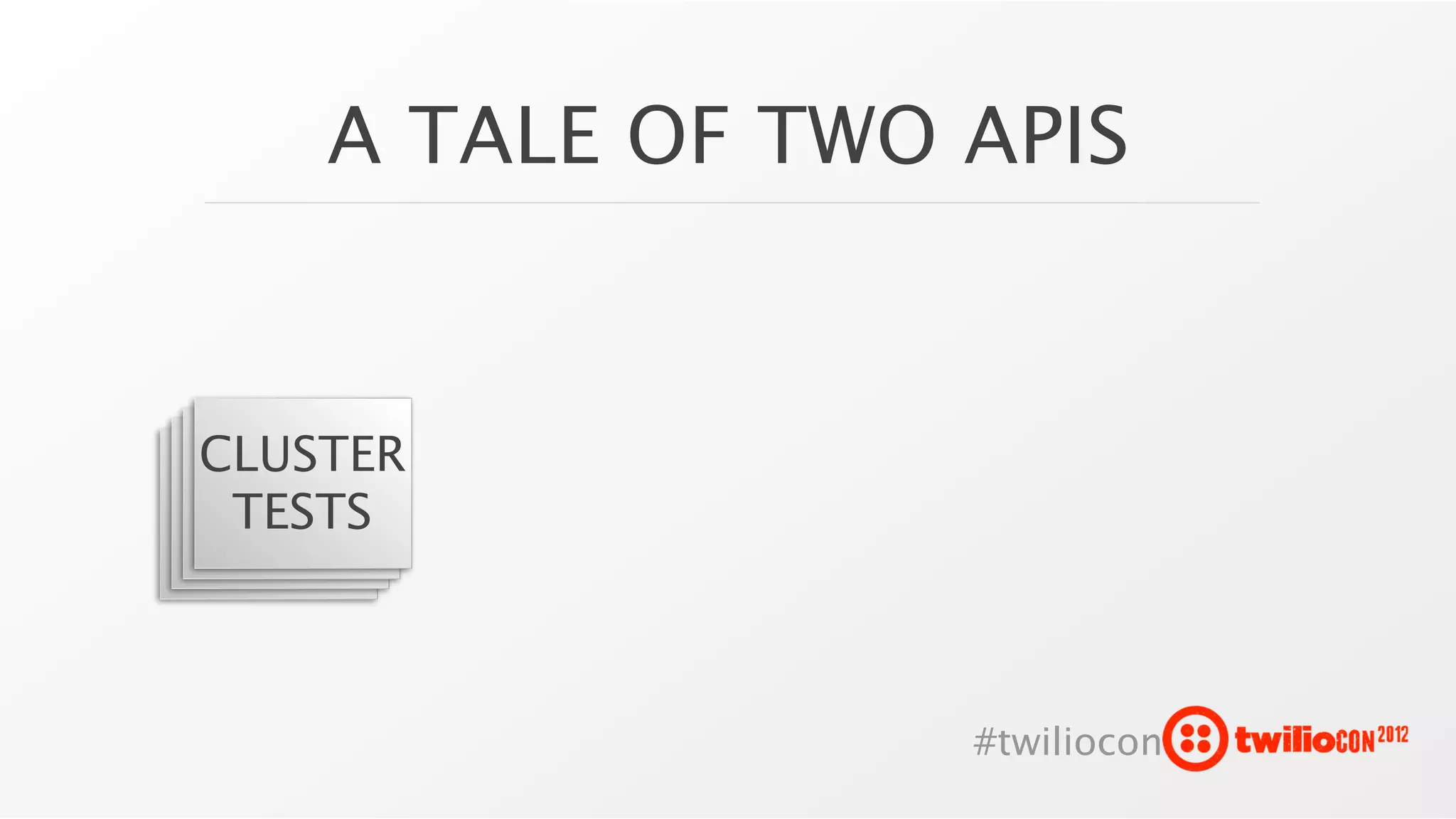

24. A TALE OF TWO APIS
CLUSTER
TESTS
#twiliocon

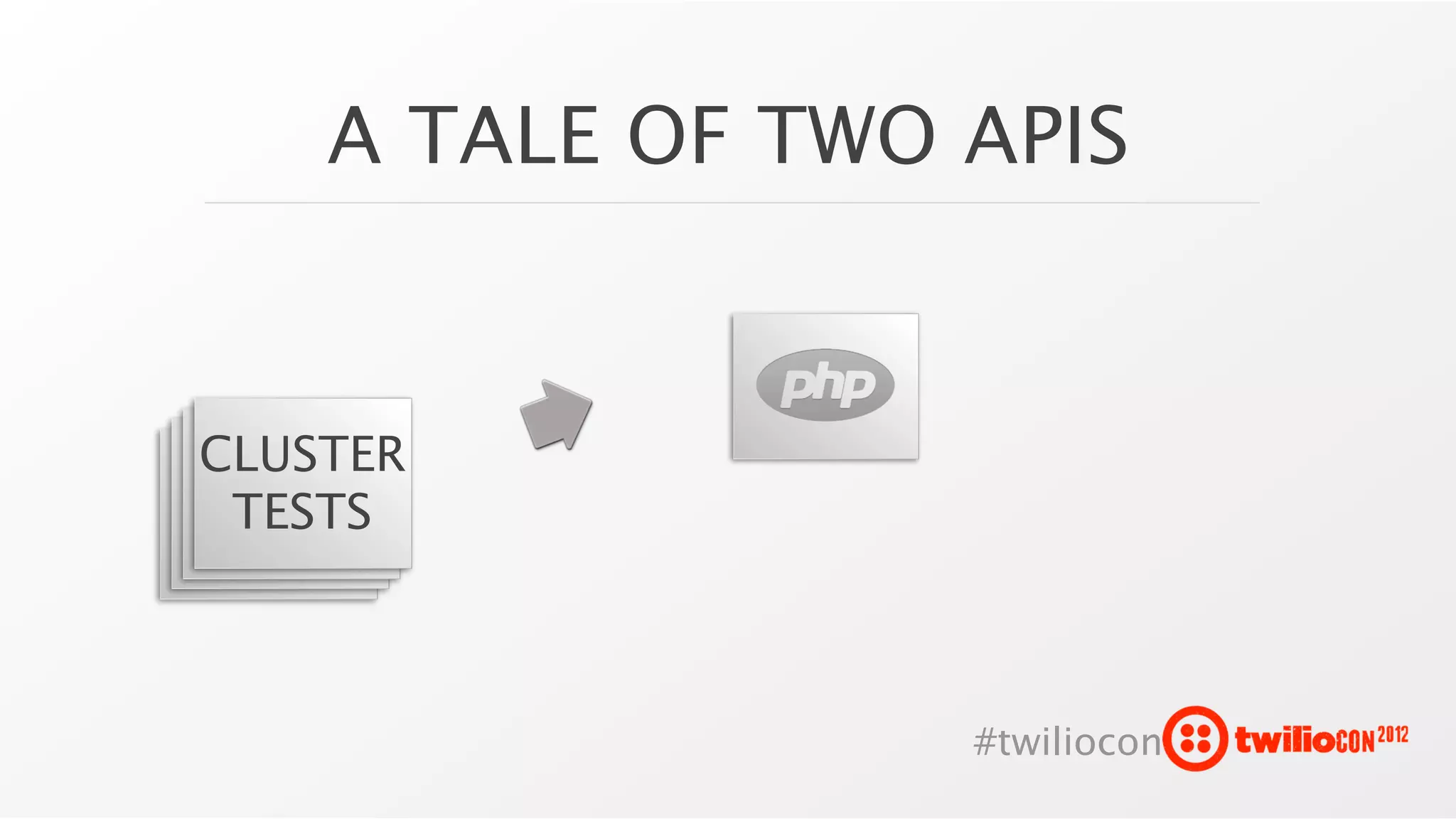

25. A TALE OF TWO APIS
CLUSTER
TESTS
#twiliocon

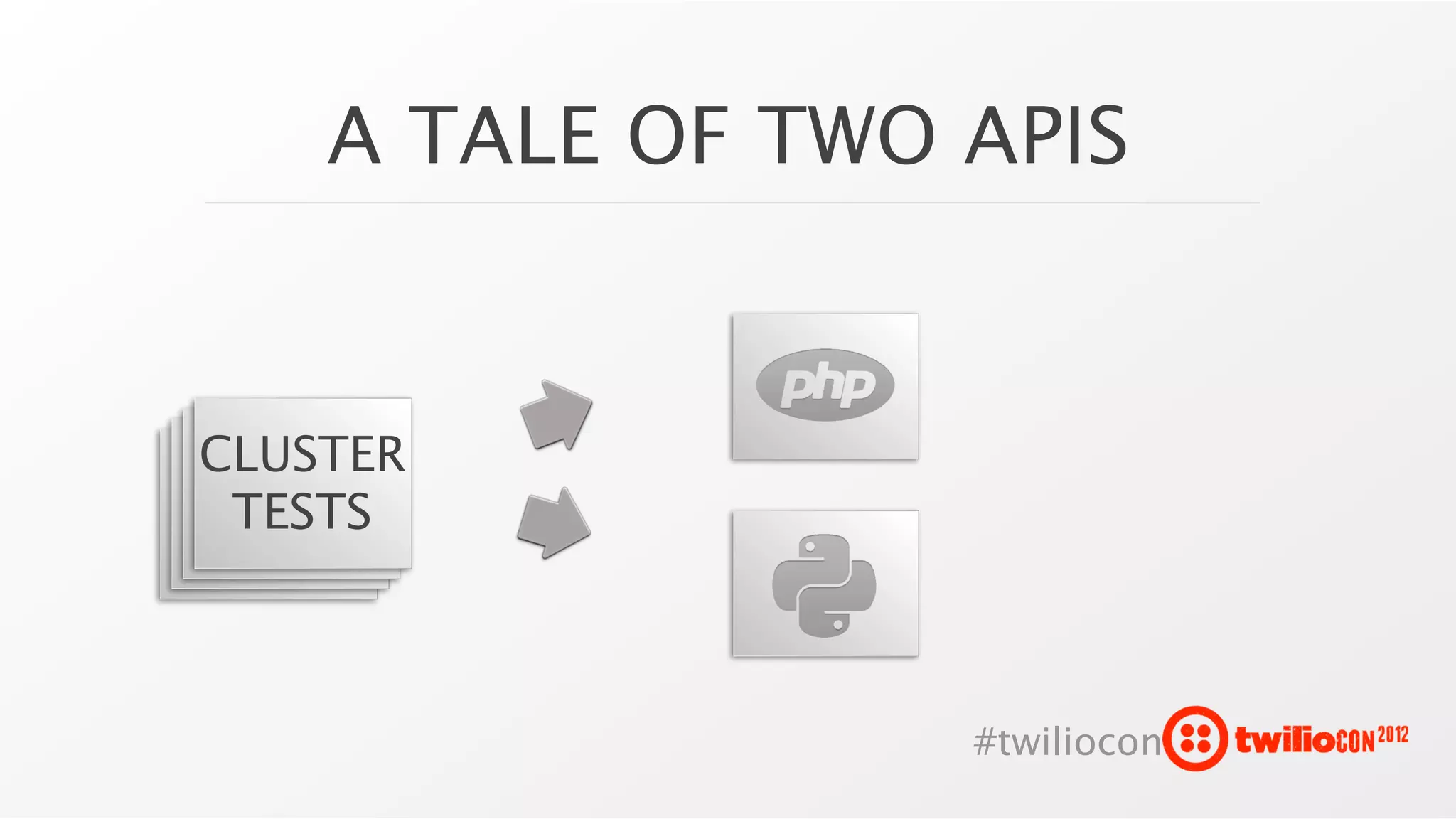

26. A TALE OF TWO APIS
CLUSTER
TESTS
#twiliocon

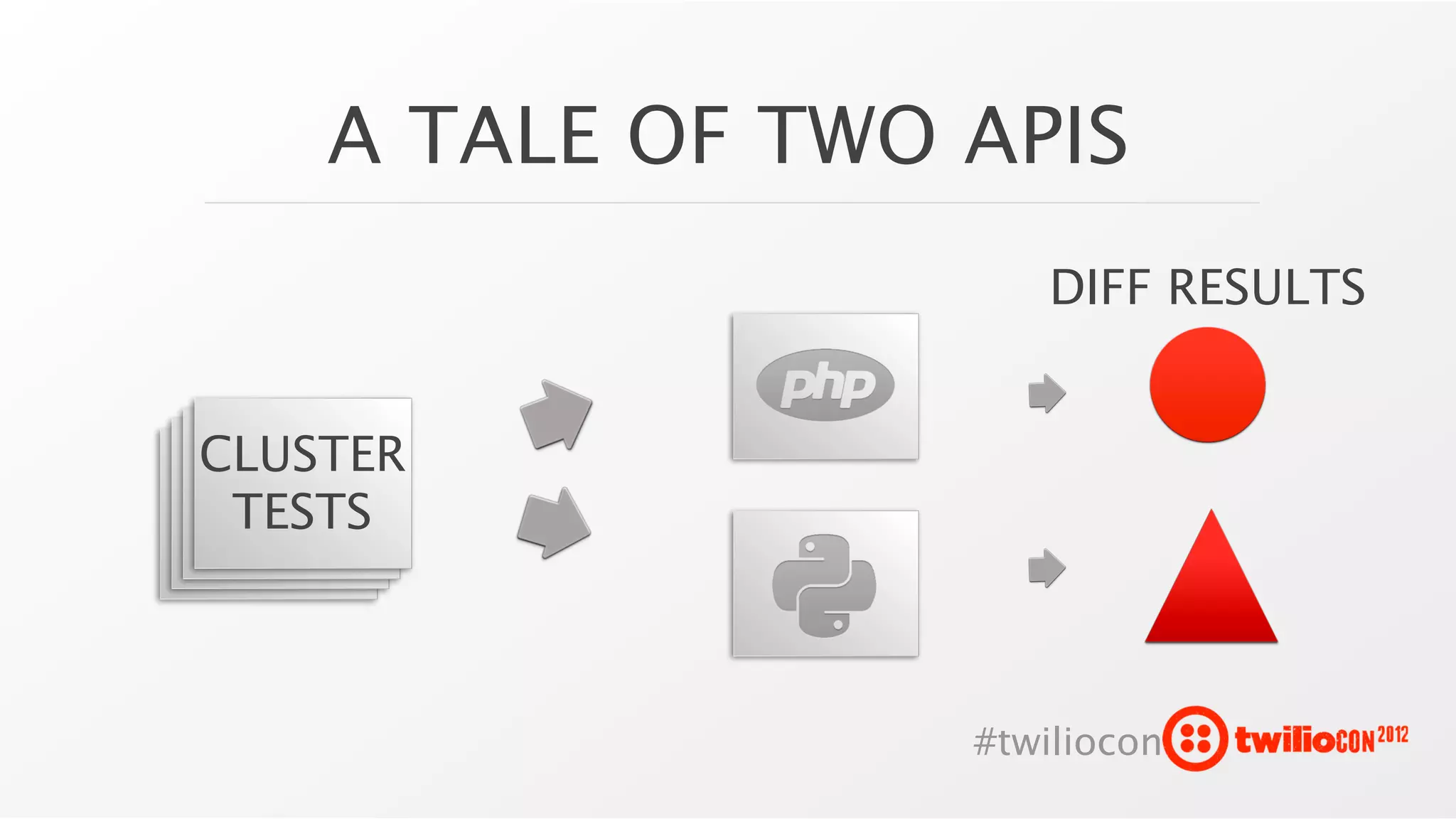

27. A TALE OF TWO APIS
DIFF RESULTS
CLUSTER
TESTS
#twiliocon

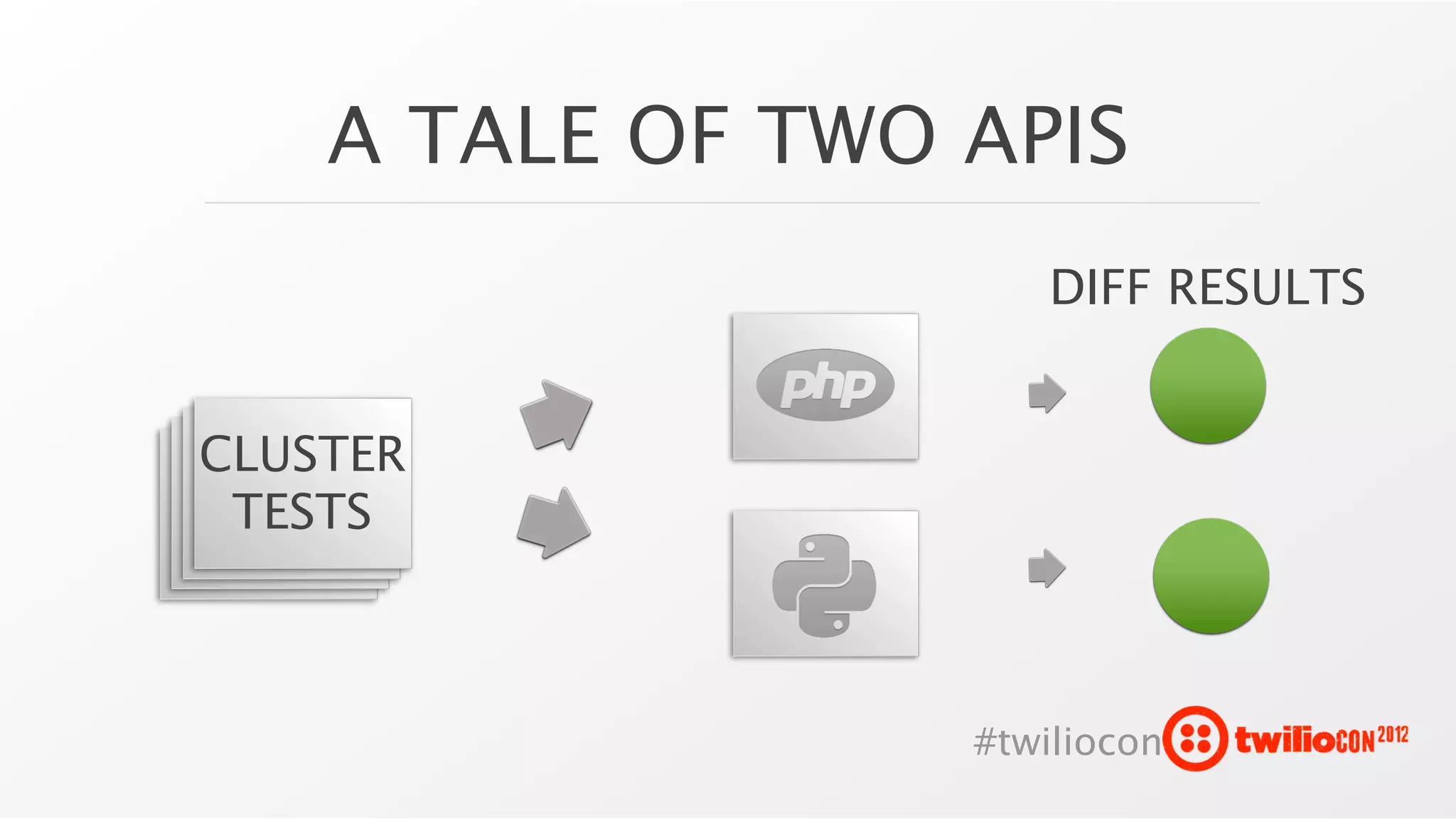

28. A TALE OF TWO APIS
DIFF RESULTS
CLUSTER
TESTS
#twiliocon

29. NGINX.CONF

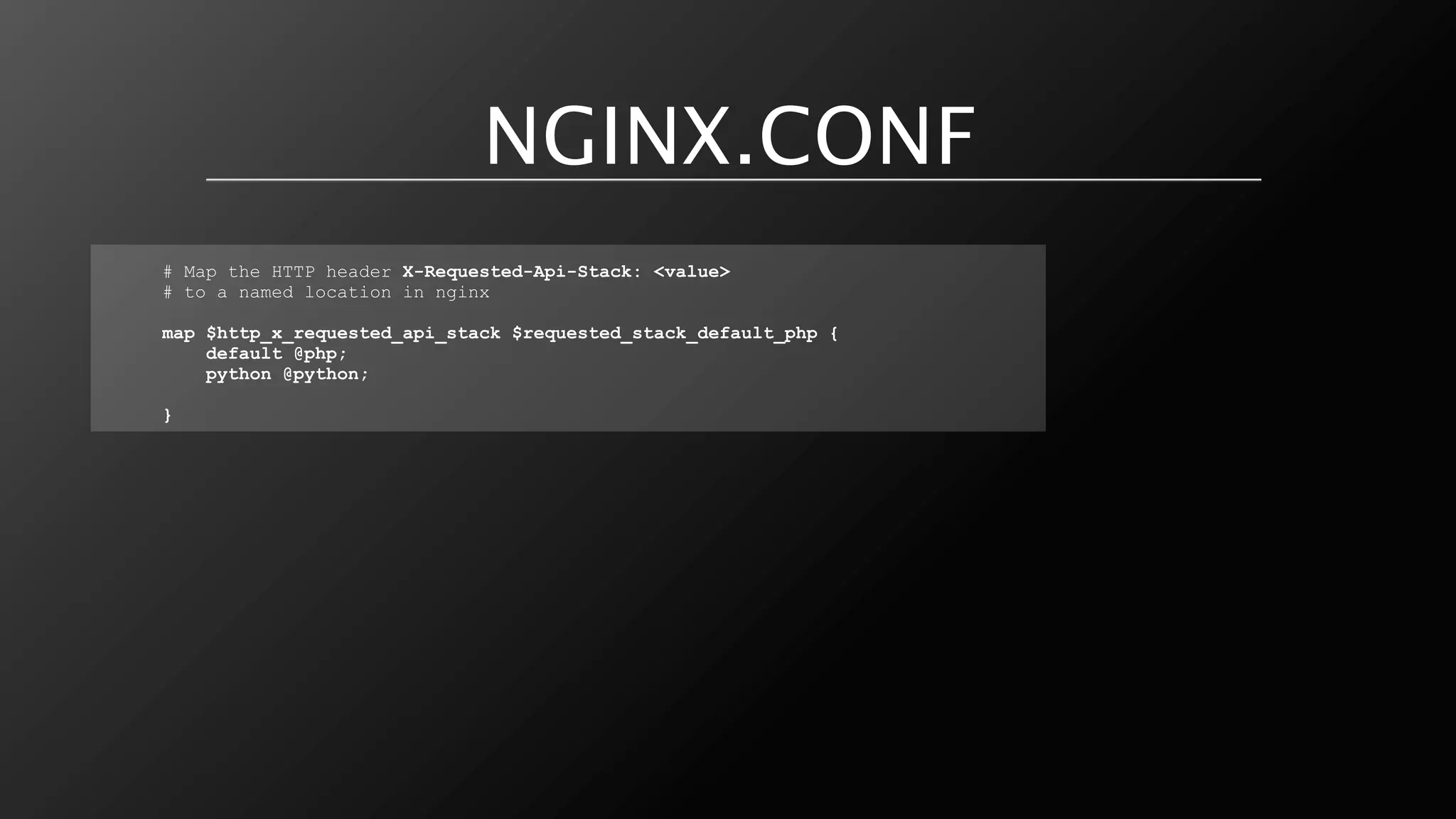

30. NGINX.CONF
# Map the HTTP header X-Requested-Api-Stack: <value>
# to a named location in nginx
map $http_x_requested_api_stack $requested_stack_default_php {
default @php;
python @python;
}

31. NGINX.CONF
# Map the HTTP header X-Requested-Api-Stack: <value>
# to a named location in nginx
map $http_x_requested_api_stack $requested_stack_default_php {
default @php;
python @python;
}

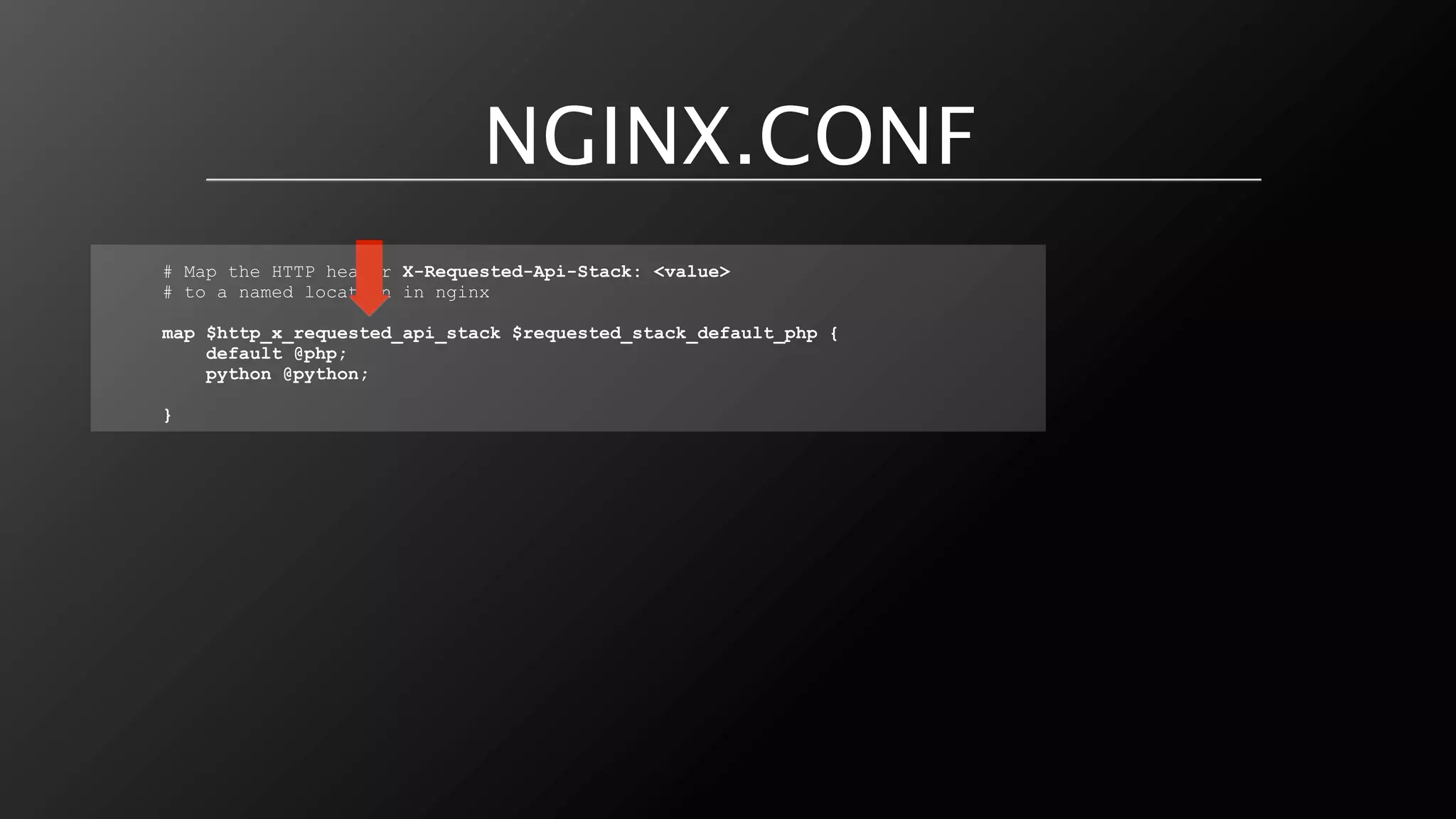

32. NGINX.CONF
# Map the HTTP header X-Requested-Api-Stack: <value>
# to a named location in nginx
map $http_x_requested_api_stack $requested_stack_default_php {
default @php;
python @python;
}

33. NGINX.CONF
# Map the HTTP header X-Requested-Api-Stack: <value>
# to a named location in nginx
map $http_x_requested_api_stack $requested_stack_default_php {
default @php;
python @python;
}

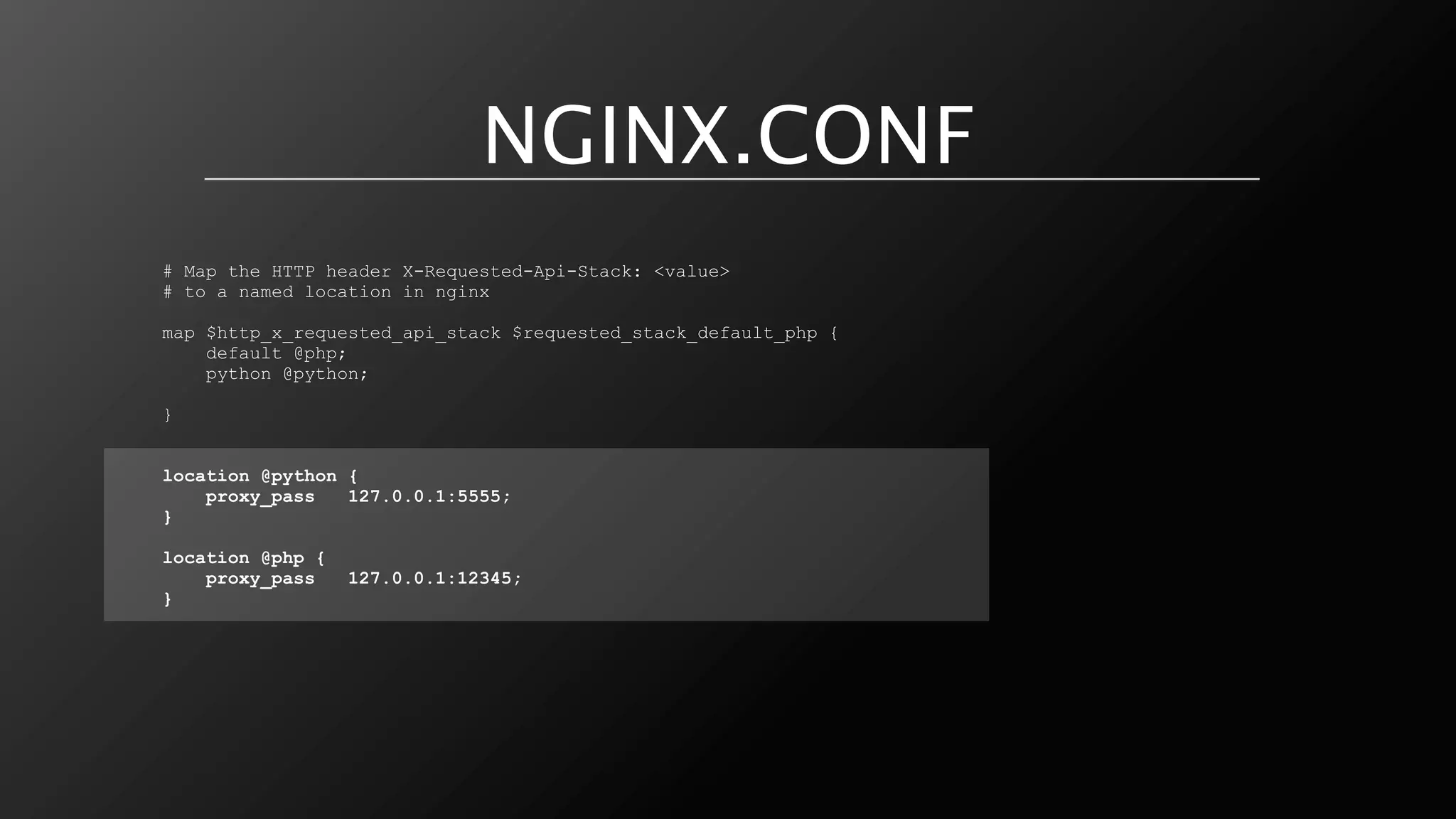

34. NGINX.CONF
# Map the HTTP header X-Requested-Api-Stack: <value>
# to a named location in nginx
map $http_x_requested_api_stack $requested_stack_default_php {
default @php;
python @python;
}
location @python {
proxy_pass 127.0.0.1:5555;
}
location @php {
proxy_pass 127.0.0.1:12345;
}

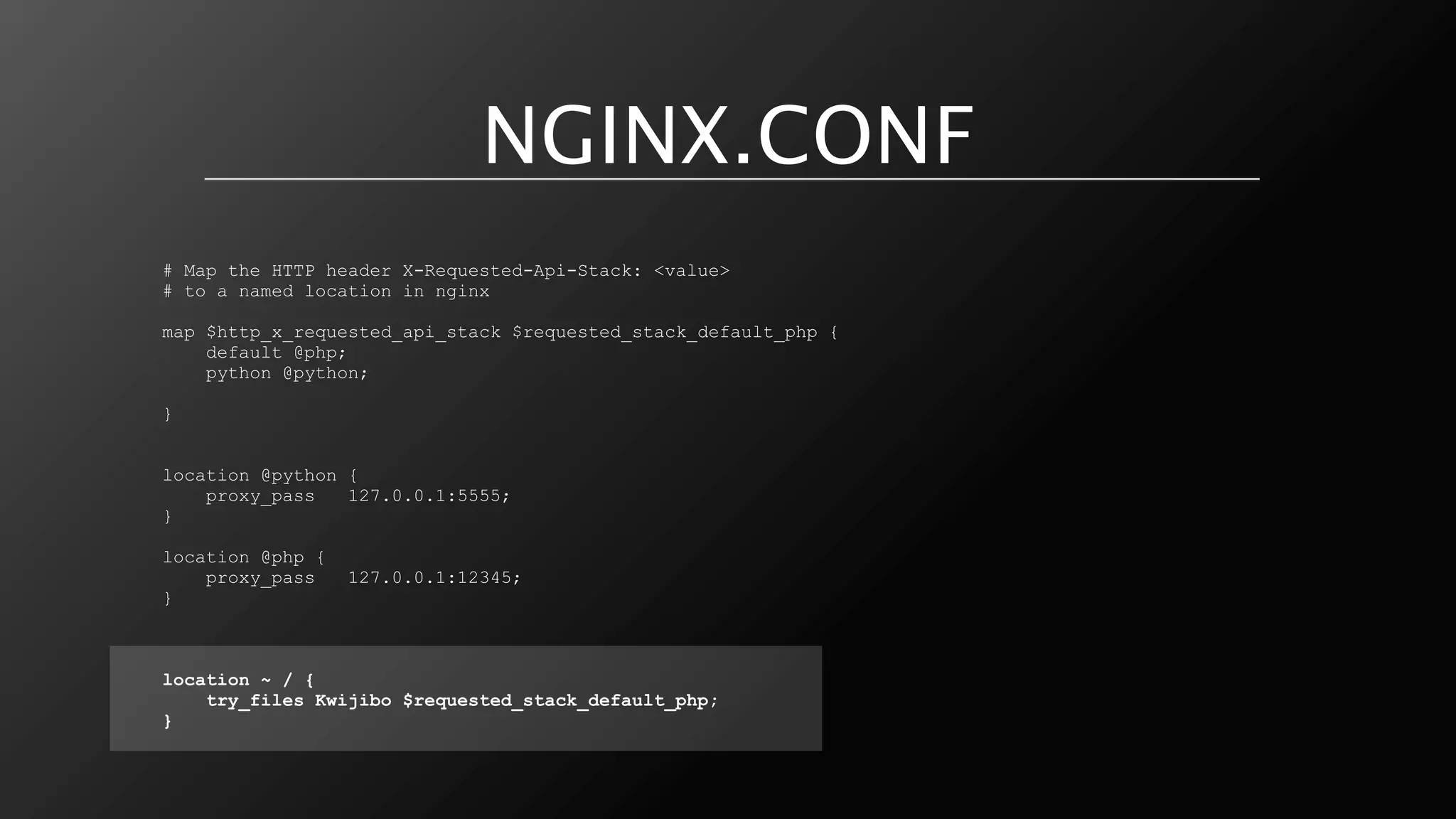

35. NGINX.CONF
# Map the HTTP header X-Requested-Api-Stack: <value>
# to a named location in nginx
map $http_x_requested_api_stack $requested_stack_default_php {
default @php;
python @python;
}
location @python {
proxy_pass 127.0.0.1:5555;
}
location @php {
proxy_pass 127.0.0.1:12345;
}
location ~ / {
try_files Kwijibo $requested_stack_default_php;
}

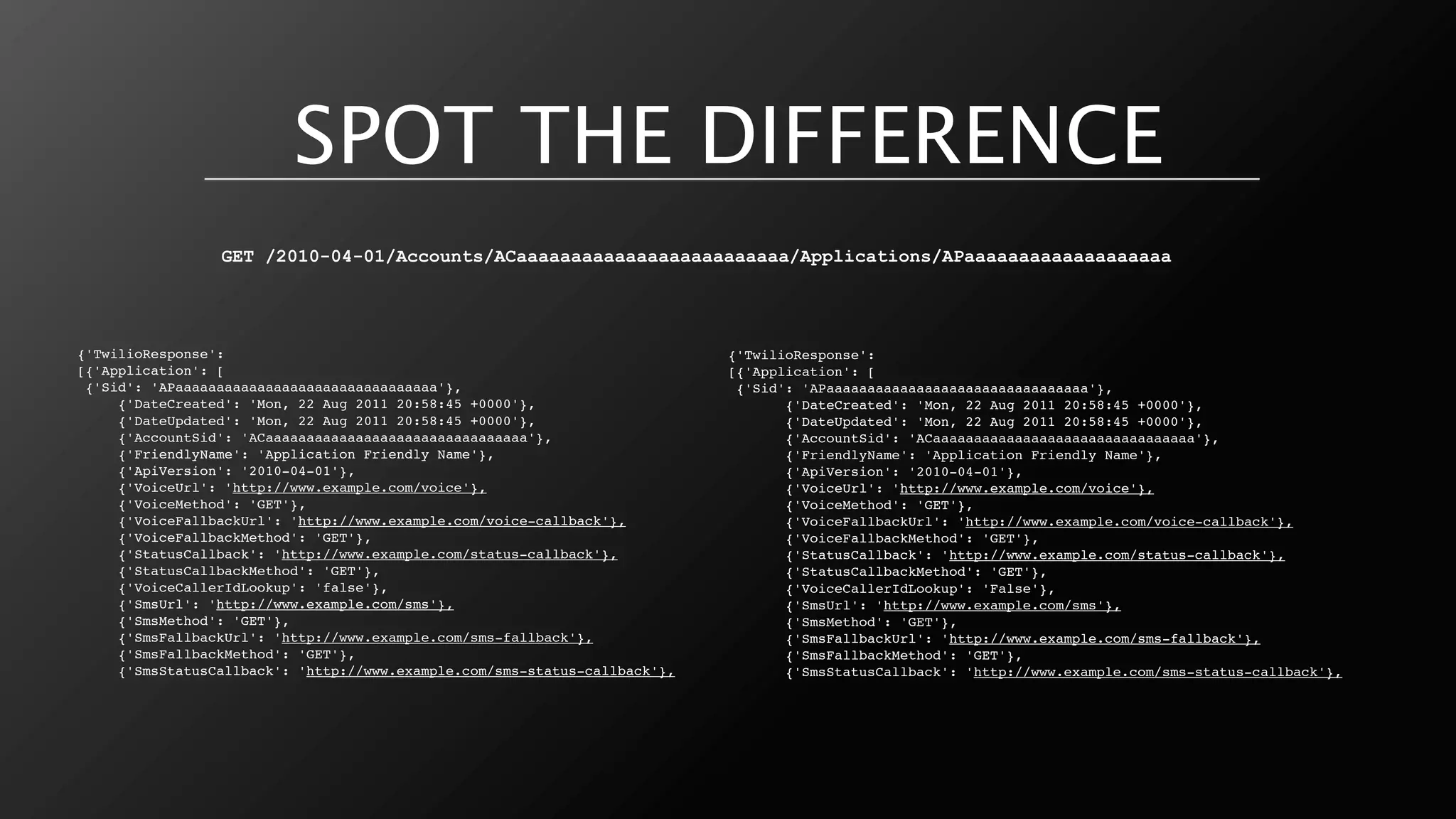

36. SPOT THE DIFFERENCE
GET /2010-04-01/Accounts/ACaaaaaaaaaaaaaaaaaaaaaaaaa/Applications/APaaaaaaaaaaaaaaaaaaa
{'TwilioResponse': {'TwilioResponse':
[{'Application': [ [{'Application': [
{'Sid': 'APaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa'}, {'Sid': 'APaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa'},
{'DateCreated': 'Mon, 22 Aug 2011 20:58:45 +0000'}, {'DateCreated': 'Mon, 22 Aug 2011 20:58:45 +0000'},
{'DateUpdated': 'Mon, 22 Aug 2011 20:58:45 +0000'}, {'DateUpdated': 'Mon, 22 Aug 2011 20:58:45 +0000'},
{'AccountSid': 'ACaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa'}, {'AccountSid': 'ACaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa'},
{'FriendlyName': 'Application Friendly Name'}, {'FriendlyName': 'Application Friendly Name'},
{'ApiVersion': '2010-04-01'}, {'ApiVersion': '2010-04-01'},
{'VoiceUrl': 'http://www.example.com/voice'}, {'VoiceUrl': 'http://www.example.com/voice'},
{'VoiceMethod': 'GET'}, {'VoiceMethod': 'GET'},
{'VoiceFallbackUrl': 'http://www.example.com/voice-callback'}, {'VoiceFallbackUrl': 'http://www.example.com/voice-callback'},
{'VoiceFallbackMethod': 'GET'}, {'VoiceFallbackMethod': 'GET'},
{'StatusCallback': 'http://www.example.com/status-callback'}, {'StatusCallback': 'http://www.example.com/status-callback'},
{'StatusCallbackMethod': 'GET'}, {'StatusCallbackMethod': 'GET'},
{'VoiceCallerIdLookup': 'false'}, {'VoiceCallerIdLookup': 'False'},
{'SmsUrl': 'http://www.example.com/sms'}, {'SmsUrl': 'http://www.example.com/sms'},
{'SmsMethod': 'GET'}, {'SmsMethod': 'GET'},
{'SmsFallbackUrl': 'http://www.example.com/sms-fallback'}, {'SmsFallbackUrl': 'http://www.example.com/sms-fallback'},
{'SmsFallbackMethod': 'GET'}, {'SmsFallbackMethod': 'GET'},
{'SmsStatusCallback': 'http://www.example.com/sms-status-callback'}, {'SmsStatusCallback': 'http://www.example.com/sms-status-callback'},

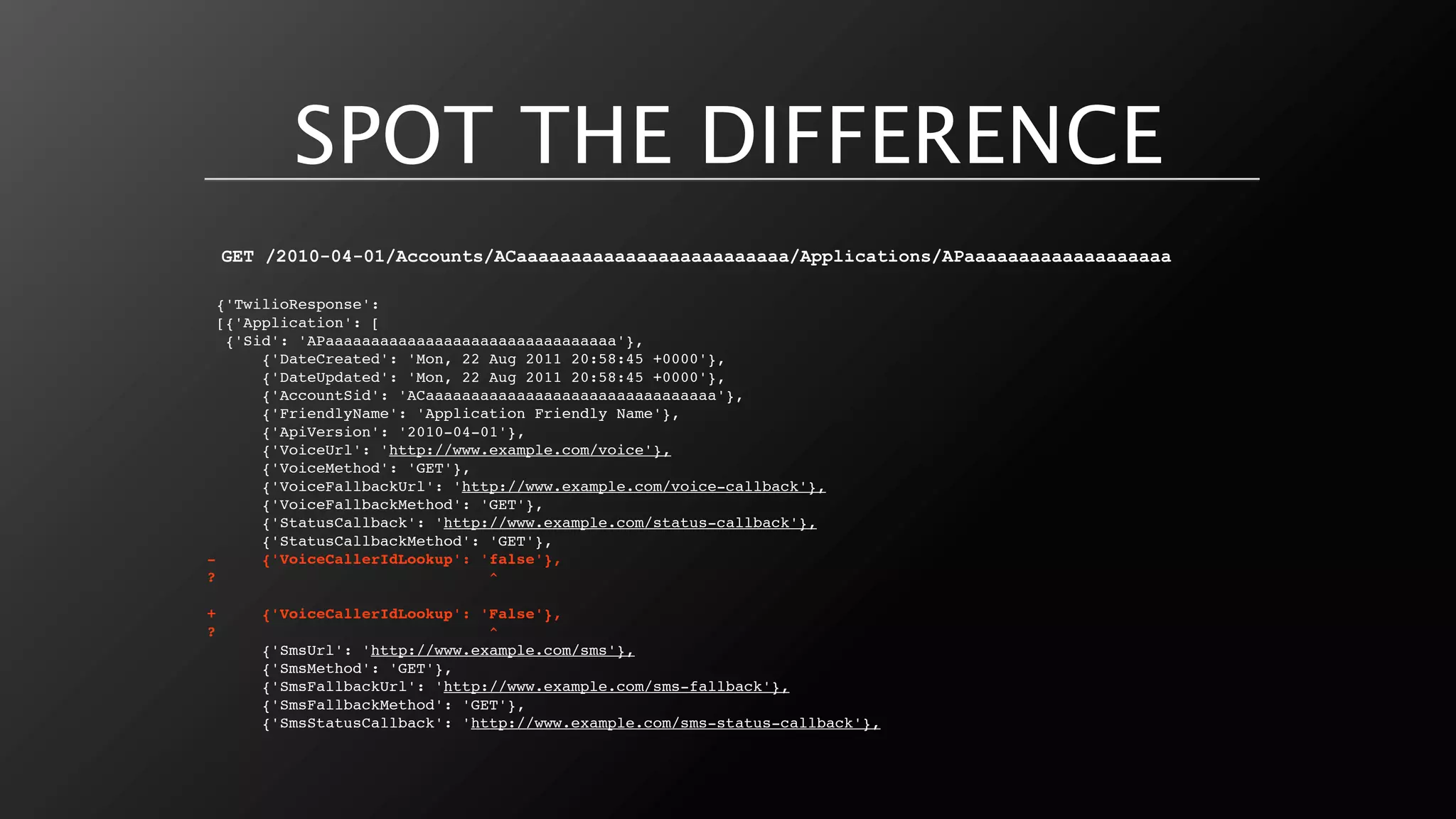

37. SPOT THE DIFFERENCE
GET /2010-04-01/Accounts/ACaaaaaaaaaaaaaaaaaaaaaaaaa/Applications/APaaaaaaaaaaaaaaaaaaa
{'TwilioResponse':
[{'Application': [
{'Sid': 'APaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa'},
{'DateCreated': 'Mon, 22 Aug 2011 20:58:45 +0000'},
{'DateUpdated': 'Mon, 22 Aug 2011 20:58:45 +0000'},
{'AccountSid': 'ACaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa'},
{'FriendlyName': 'Application Friendly Name'},
{'ApiVersion': '2010-04-01'},
{'VoiceUrl': 'http://www.example.com/voice'},
{'VoiceMethod': 'GET'},
{'VoiceFallbackUrl': 'http://www.example.com/voice-callback'},
{'VoiceFallbackMethod': 'GET'},
{'StatusCallback': 'http://www.example.com/status-callback'},
{'StatusCallbackMethod': 'GET'},
- {'VoiceCallerIdLookup': 'false'},
? ^
+ {'VoiceCallerIdLookup': 'False'},
? ^
{'SmsUrl': 'http://www.example.com/sms'},
{'SmsMethod': 'GET'},
{'SmsFallbackUrl': 'http://www.example.com/sms-fallback'},
{'SmsFallbackMethod': 'GET'},
{'SmsStatusCallback': 'http://www.example.com/sms-status-callback'},

38. ALL GROWN UP
#twiliocon

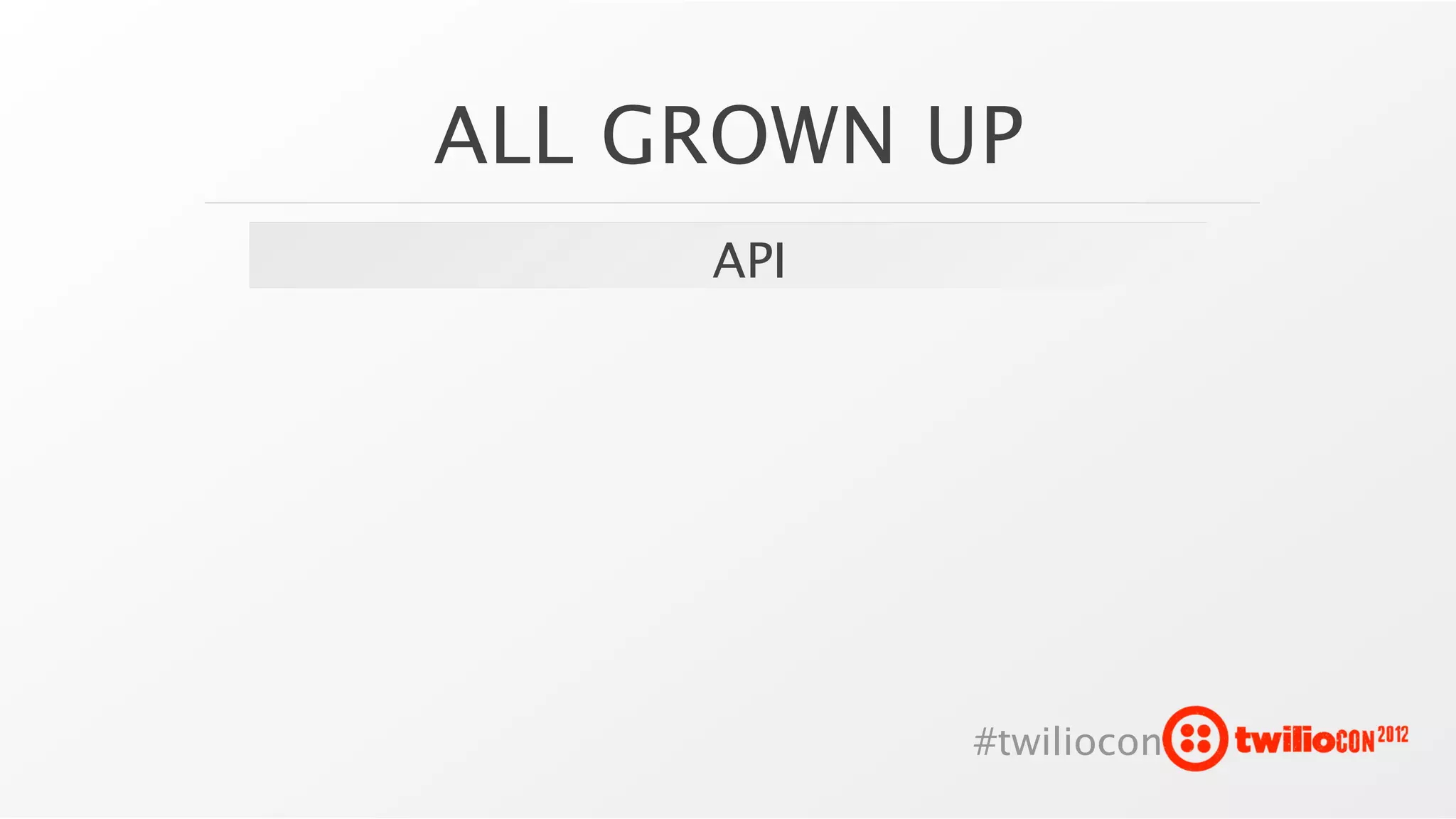

39. ALL GROWN UP
API
#twiliocon

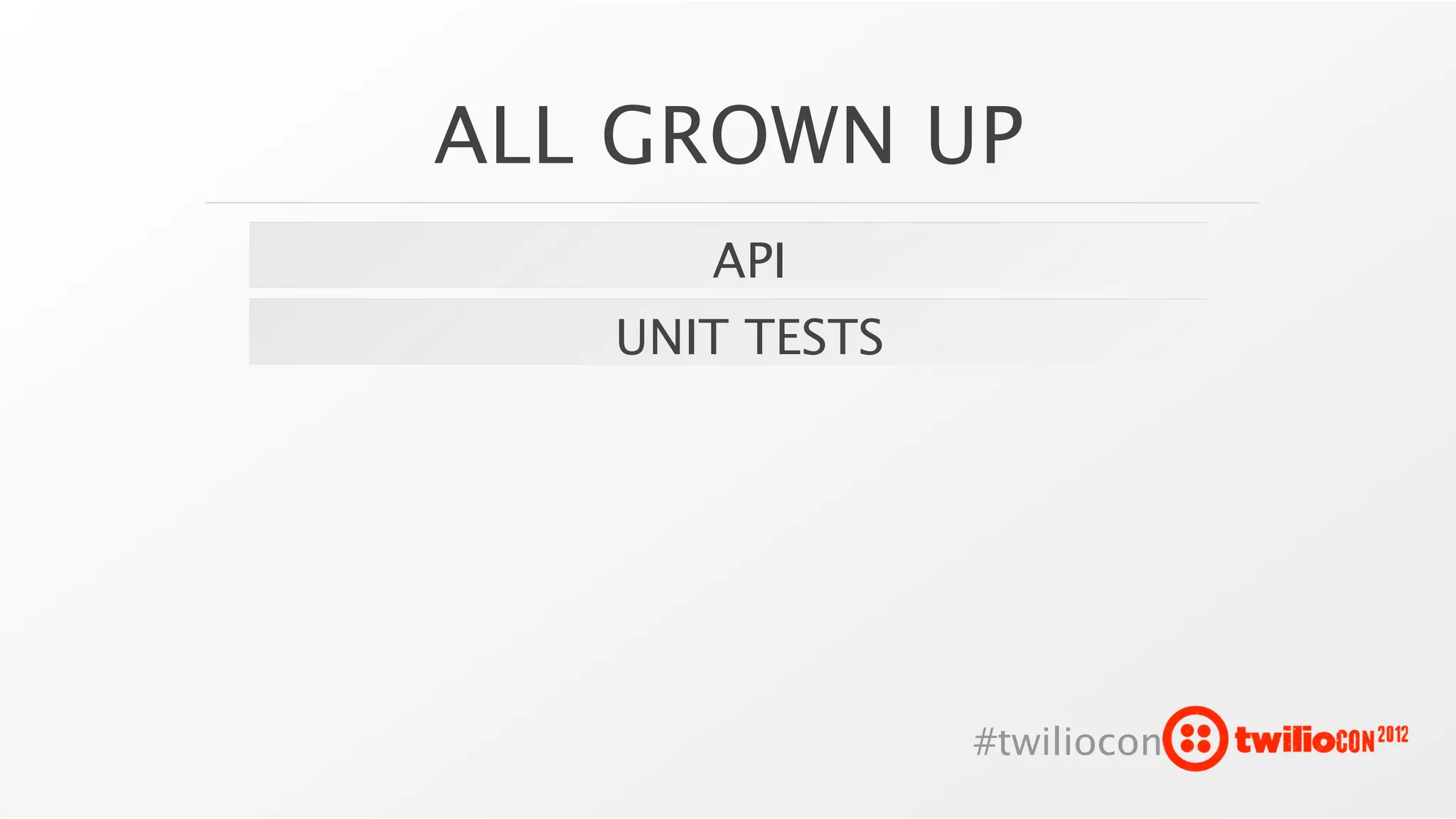

40. ALL GROWN UP
API
UNIT TESTS
#twiliocon

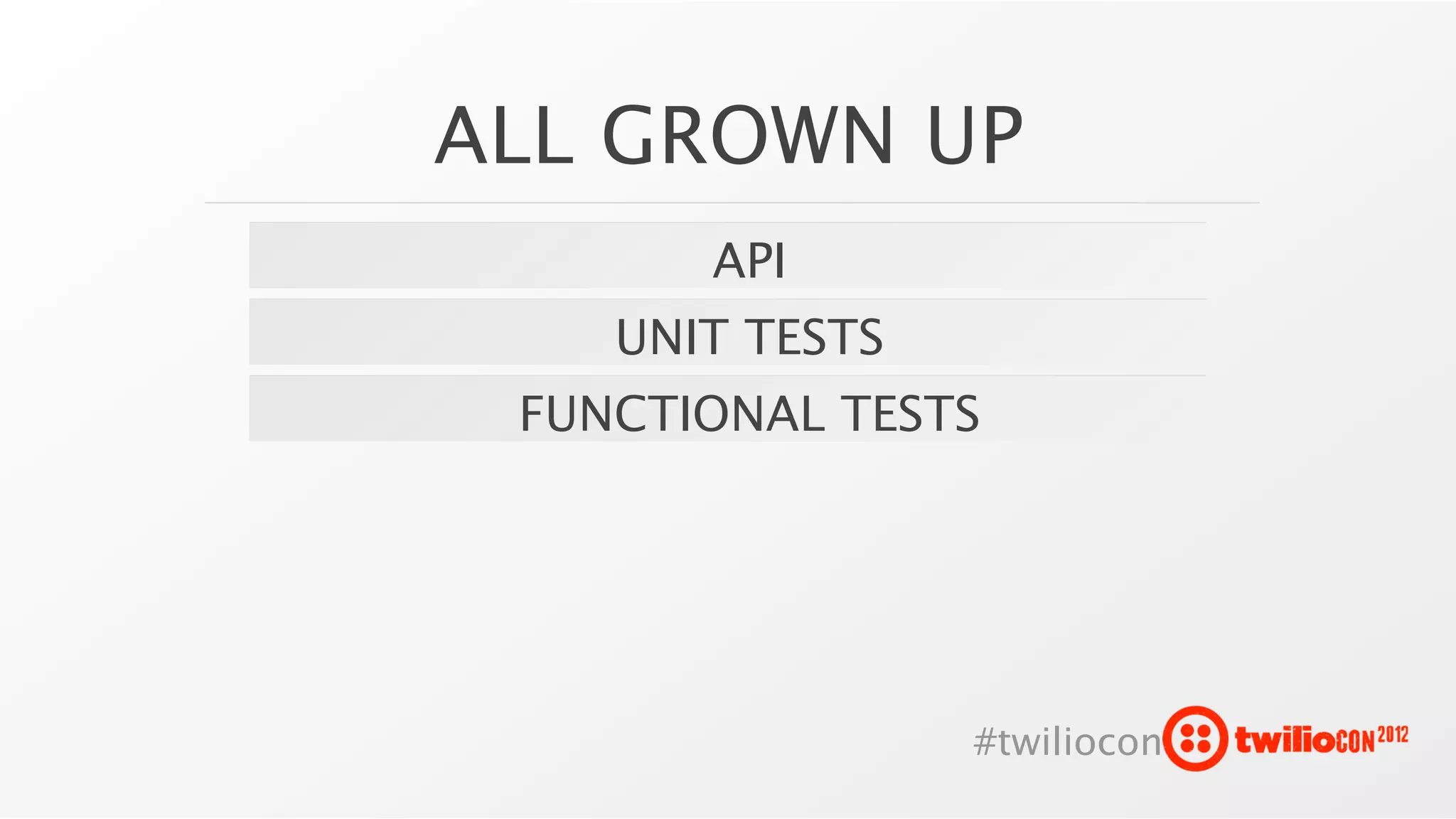

41. ALL GROWN UP
API
UNIT TESTS
FUNCTIONAL TESTS
#twiliocon

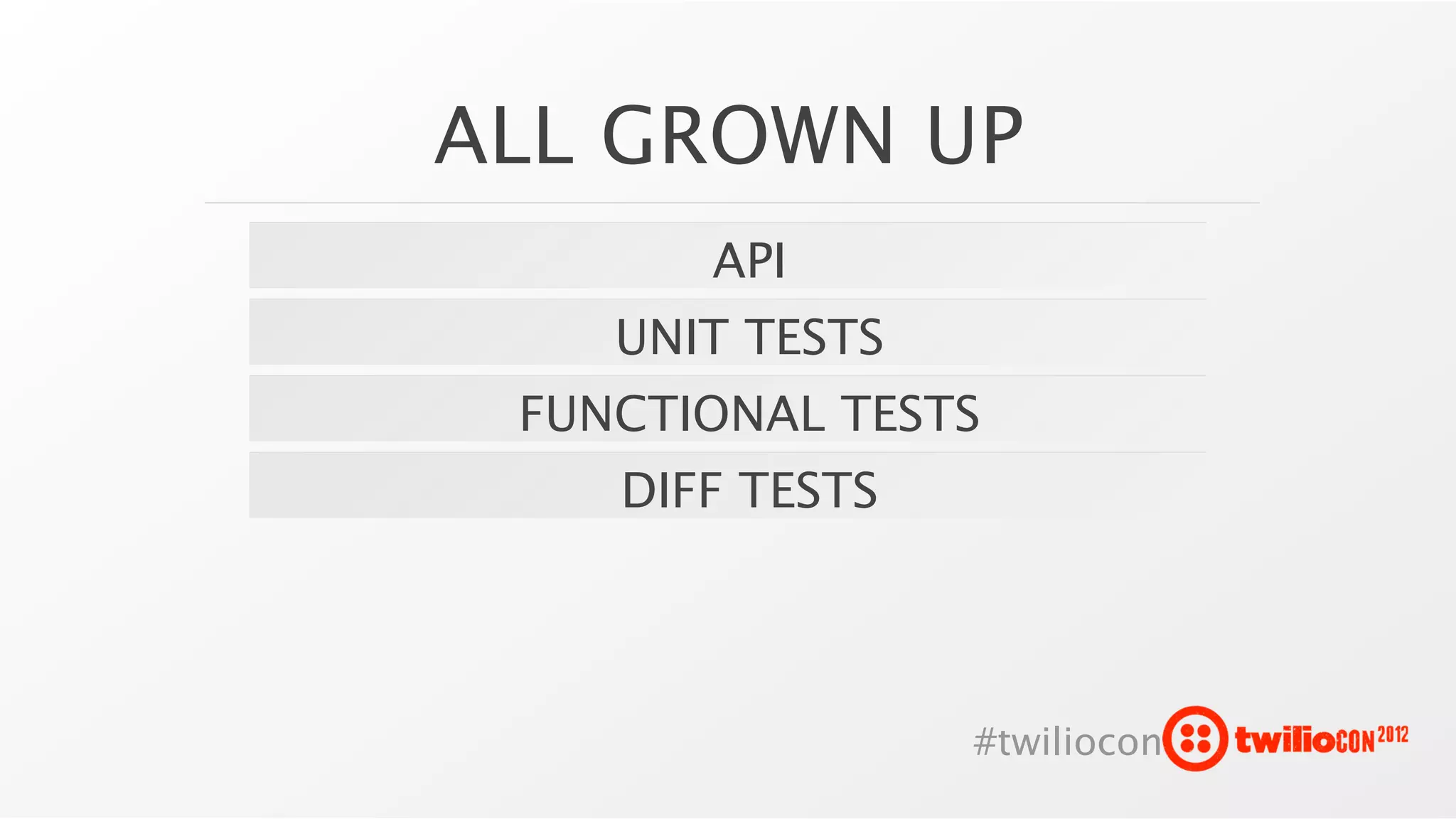

42. ALL GROWN UP
API
UNIT TESTS
FUNCTIONAL TESTS
DIFF TESTS
#twiliocon

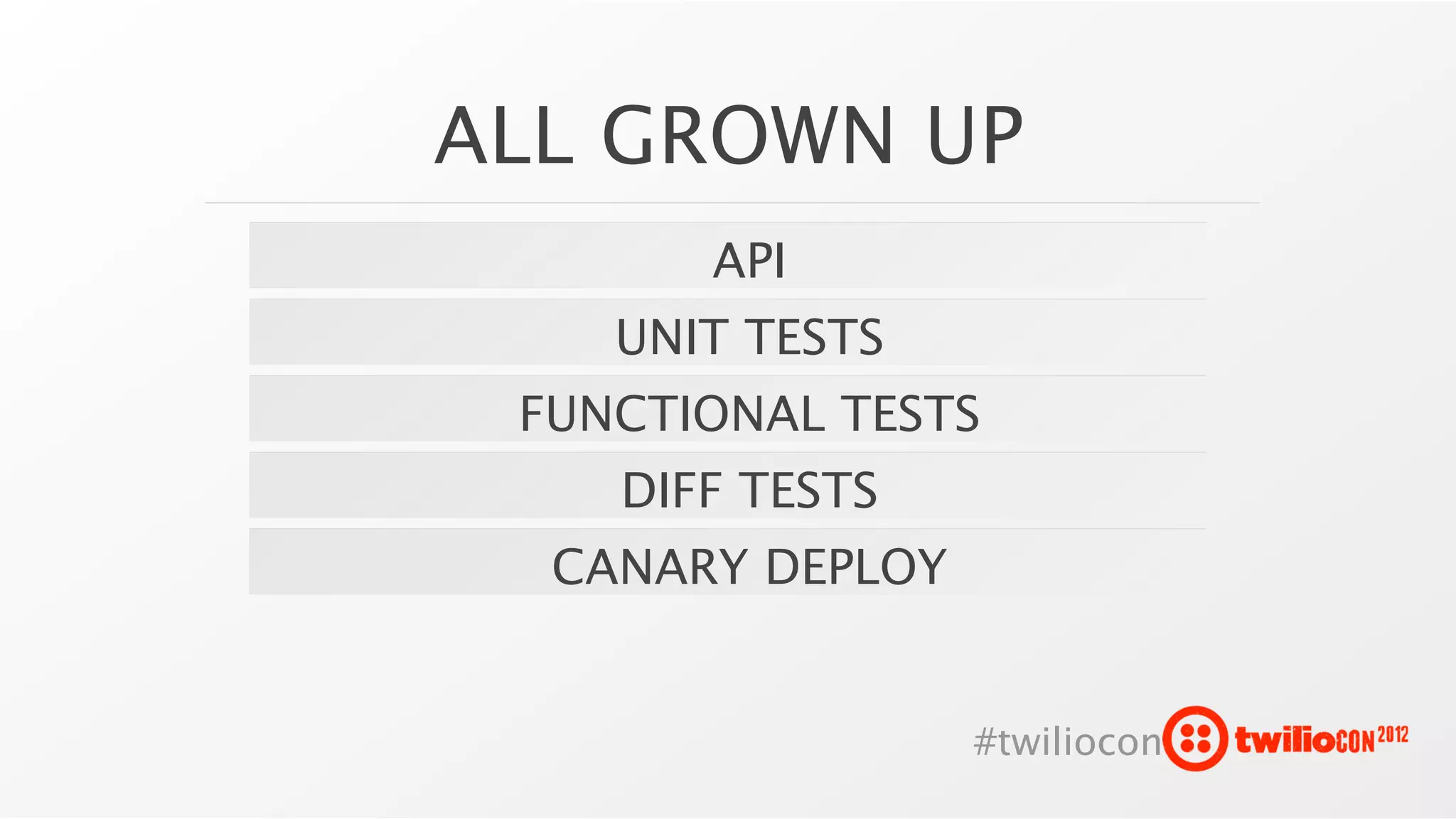

43. ALL GROWN UP
API
UNIT TESTS
FUNCTIONAL TESTS
DIFF TESTS
CANARY DEPLOY
#twiliocon

44. ALL GROWN UP
API
UNIT TESTS
FUNCTIONAL TESTS
DIFF TESTS
CANARY DEPLOY
API
#twiliocon

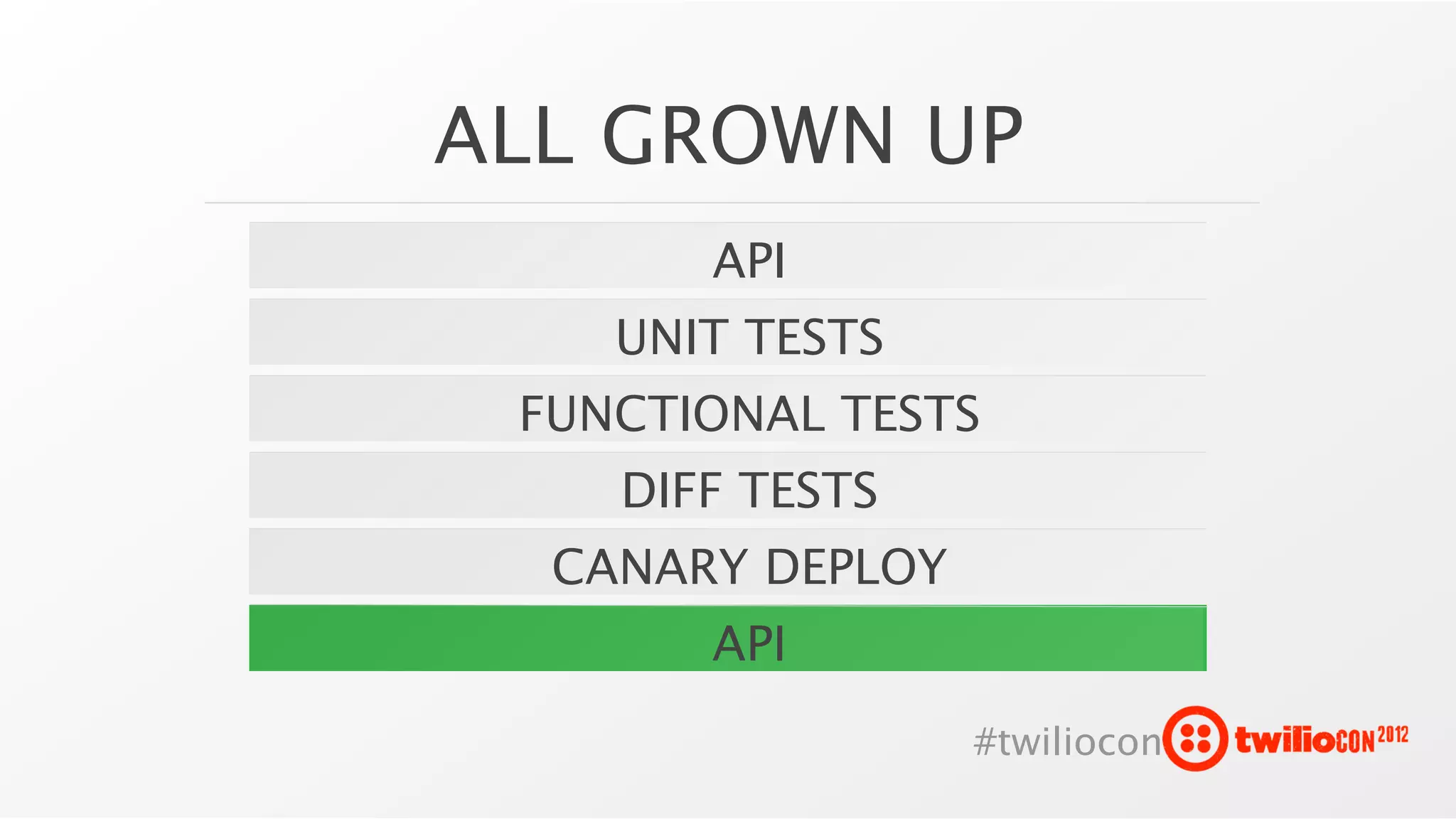

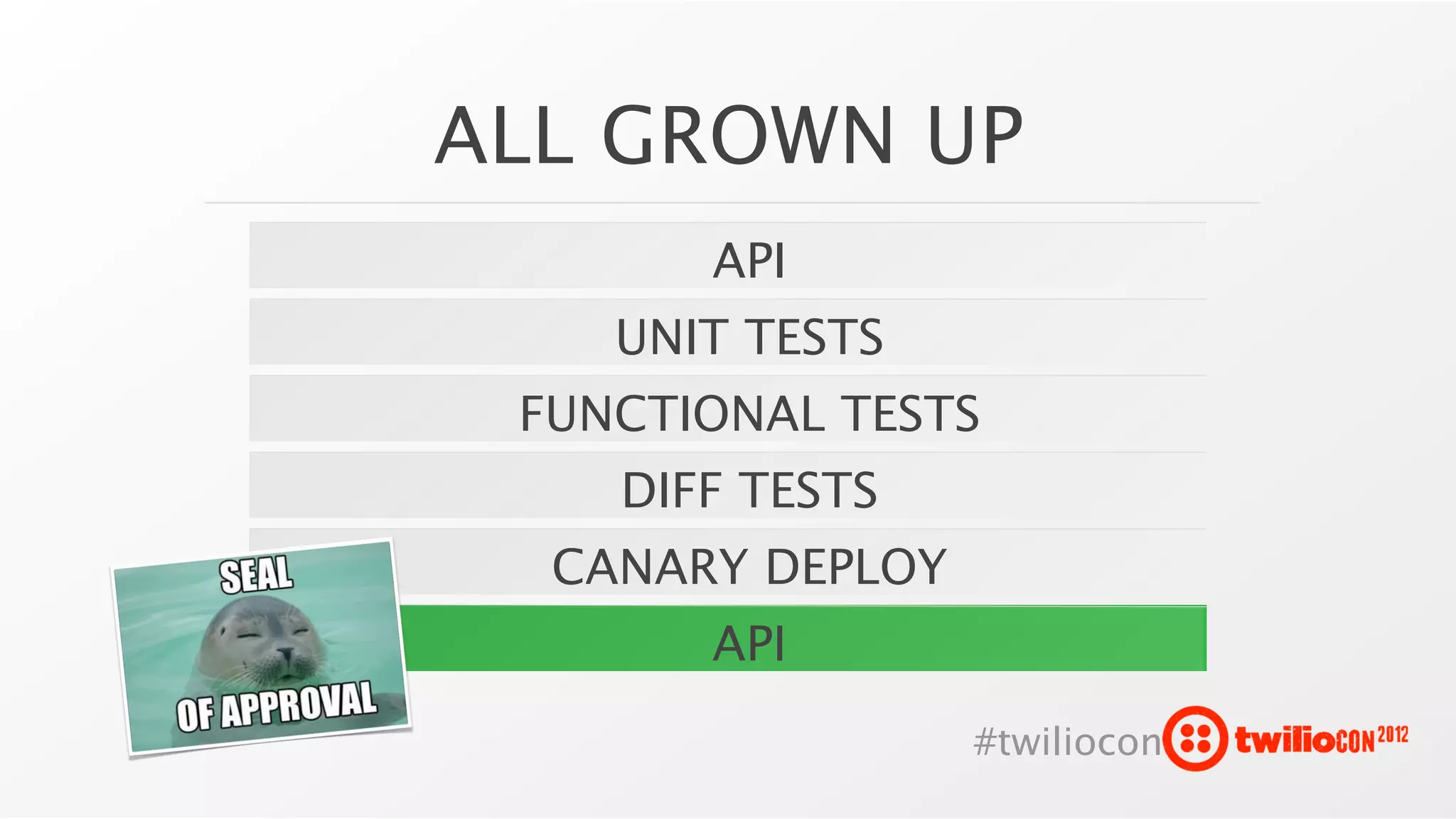

45. ALL GROWN UP
API
UNIT TESTS
FUNCTIONAL TESTS
DIFF TESTS
CANARY DEPLOY
API
#twiliocon

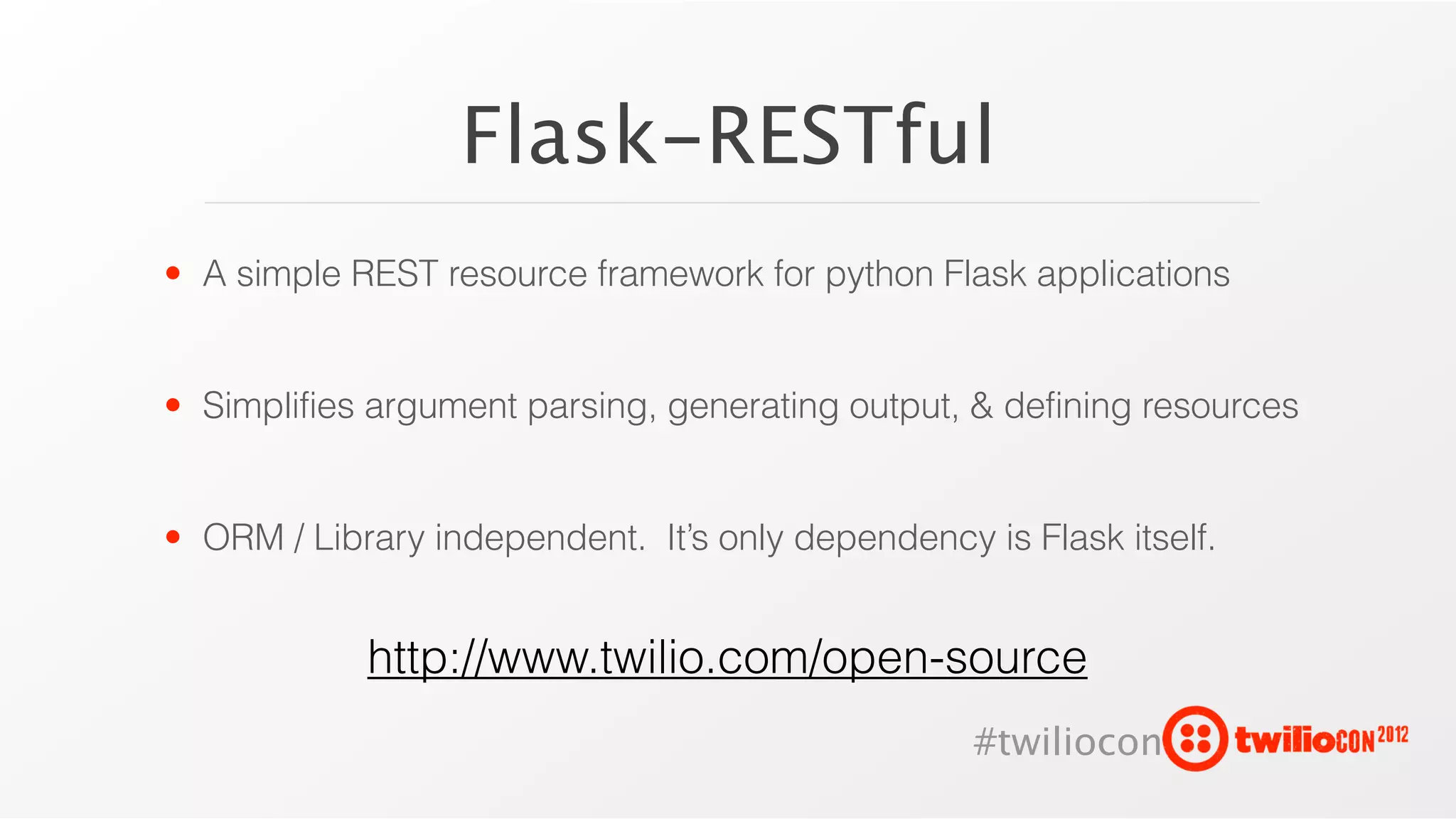

46. Flask-RESTful
• A simple REST resource framework for python Flask applications
• Simplifies argument parsing, generating output, & defining resources
• ORM / Library independent. It’s only dependency is Flask itself.
http://www.twilio.com/open-source
#twiliocon

47. HI. I’M ADAM
I’m MicroTransactions-Team Engineering Lead at twilio
#twiliocon

48. REWIND TO 2009

49. NERDY TELECOM
STARTUP SEEKS
RELIABLE HA
#twiliocon

50. MICRO-TRANSACTIONS @TWILIO
#twiliocon

51. MICRO-TRANSACTIONS @TWILIO
#twiliocon

52. MICRO-TRANSACTIONS @TWILIO
#twiliocon

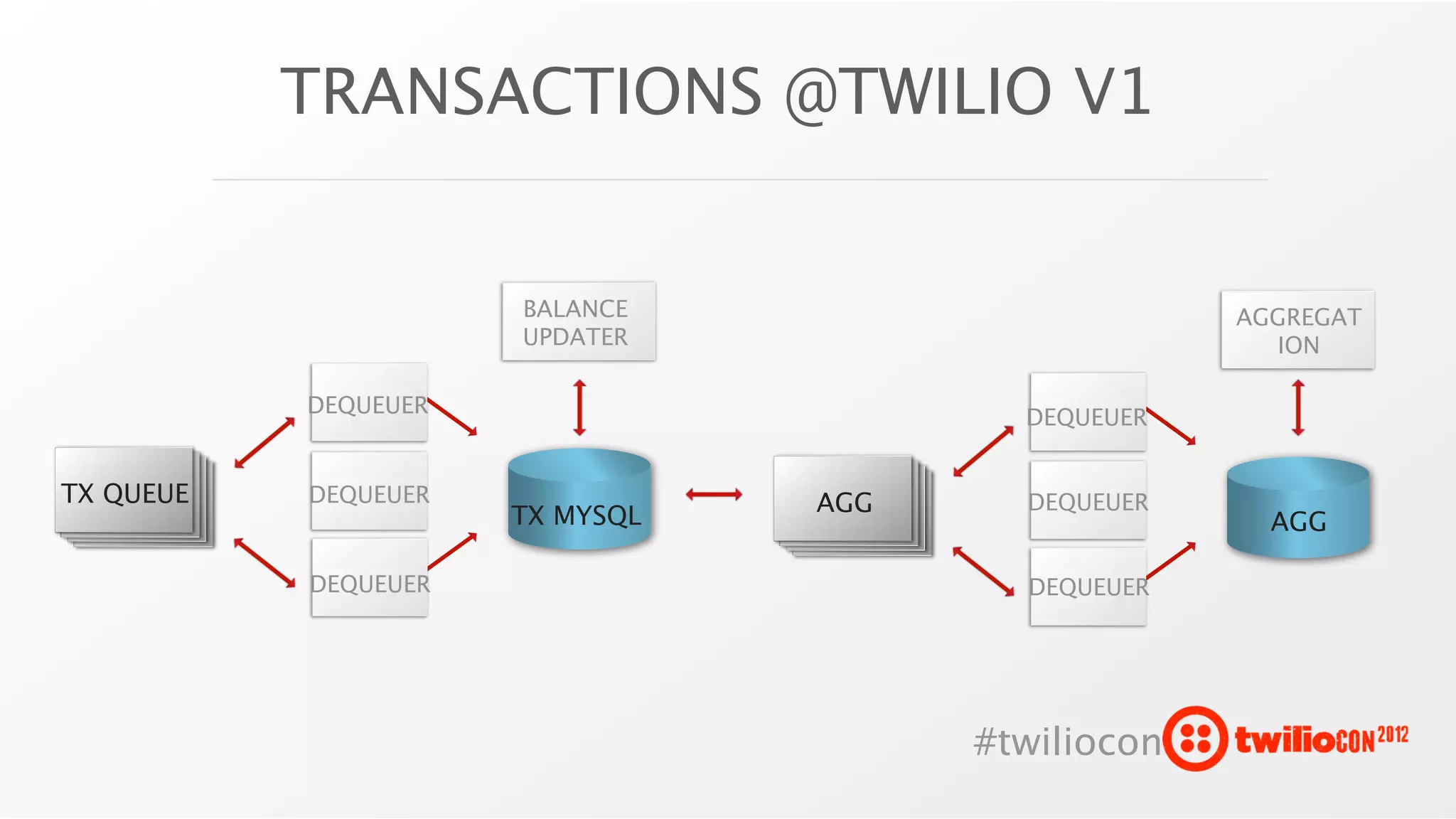

53. TRANSACTIONS @TWILIO V1
BALANCE AGGREGAT
UPDATER ION
DEQUEUER
DEQUEUER
TX QUEUE DEQUEUER AGG DEQUEUER
TX MYSQL AGG
DEQUEUER DEQUEUER
#twiliocon

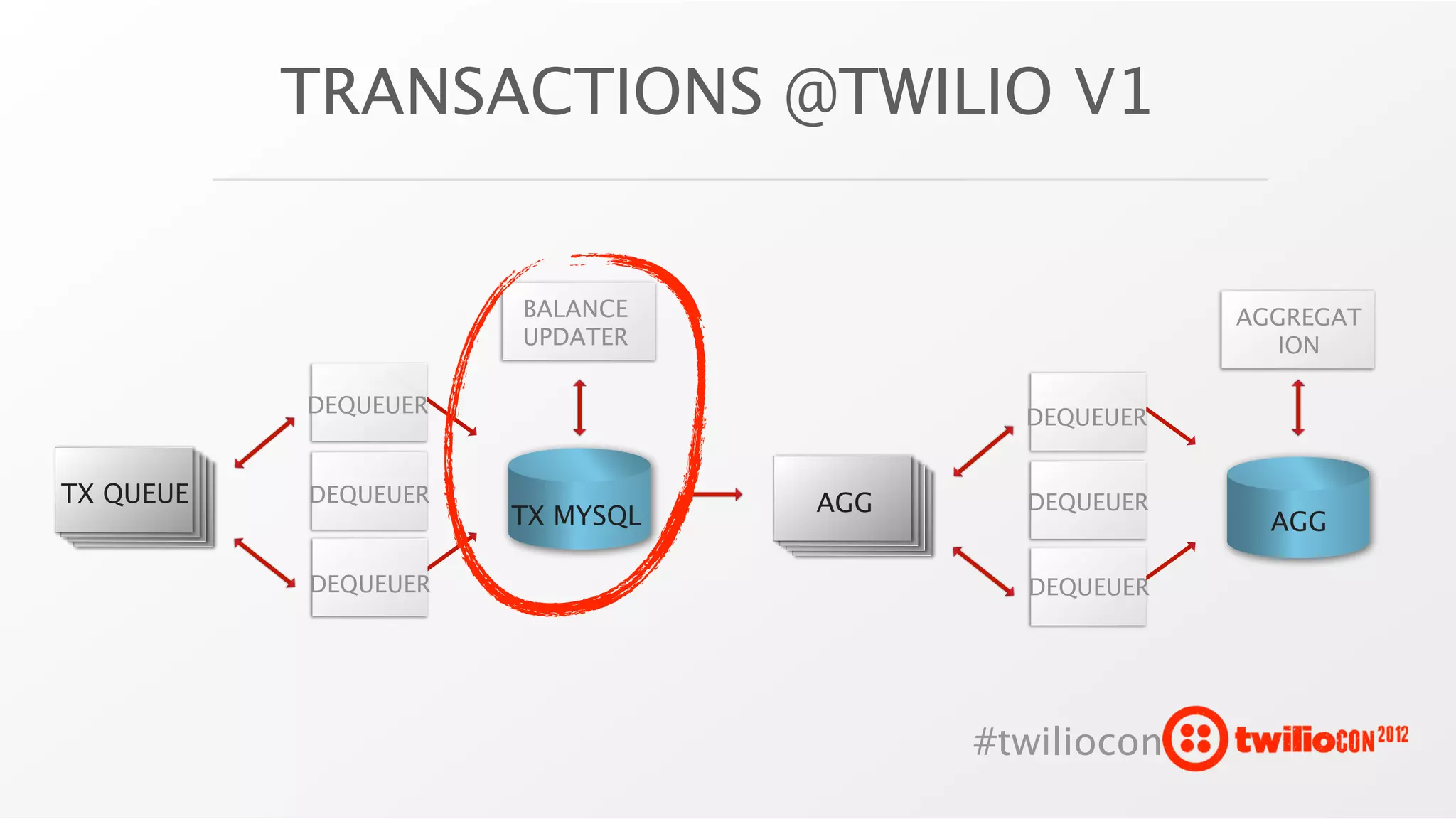

54. TRANSACTIONS @TWILIO V1
BALANCE AGGREGAT
UPDATER ION
DEQUEUER
DEQUEUER
TX QUEUE DEQUEUER AGG DEQUEUER
TX MYSQL AGG
DEQUEUER DEQUEUER
#twiliocon

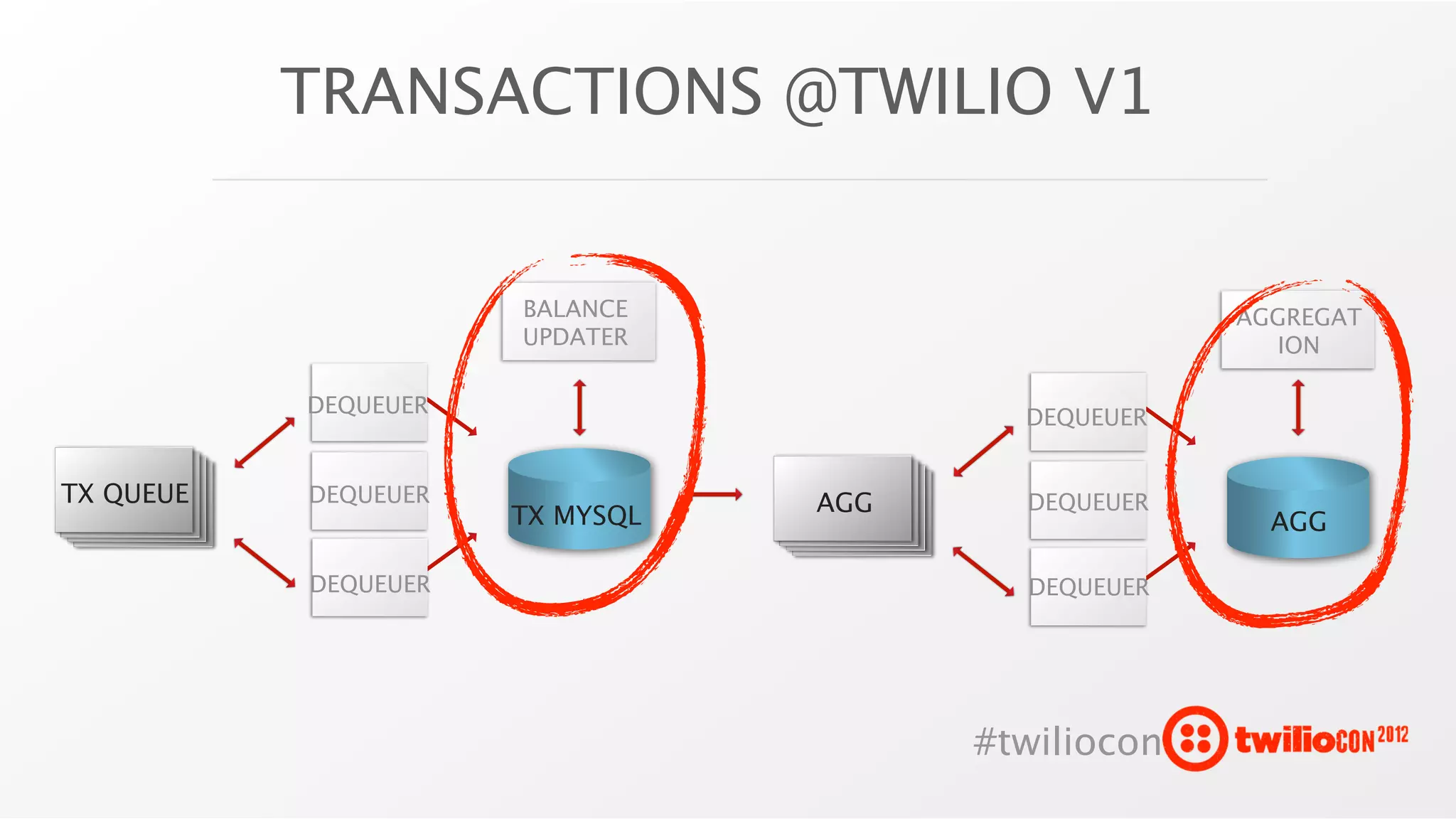

55. TRANSACTIONS @TWILIO V1
BALANCE AGGREGAT
UPDATER ION
DEQUEUER
DEQUEUER
TX QUEUE DEQUEUER AGG DEQUEUER
TX MYSQL AGG
DEQUEUER DEQUEUER
#twiliocon

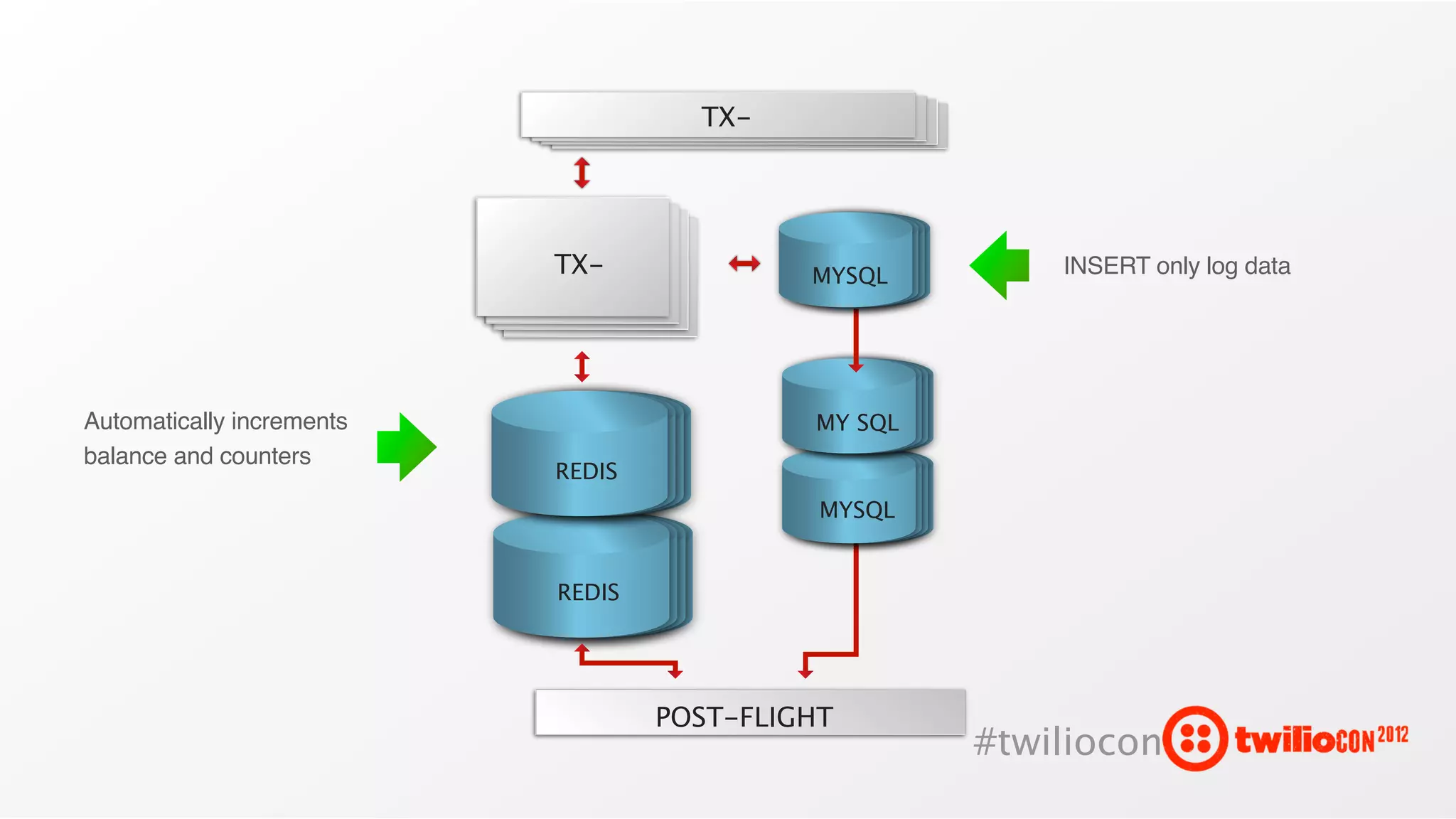

57. TX-
TX- MYSQL INSERT only log data
Automatically increments MY SQL
balance and counters
REDIS
MYSQL
REDIS
POST-FLIGHT
#twiliocon

58. ONLINE SYSTEM UPGRADES
#twiliocon

59. ONLINE SYSTEM UPGRADES
• Double book-keeping with
Shadow Mode
#twiliocon

60. ONLINE SYSTEM UPGRADES
• Double book-keeping with
Shadow Mode
• Rollback support with
Account Flags & Feature Flags
#twiliocon

61. ONLINE SYSTEM UPGRADES
• Double book-keeping with
Shadow Mode
• Rollback support with
Account Flags & Feature Flags
• Gradual rollout
#twiliocon

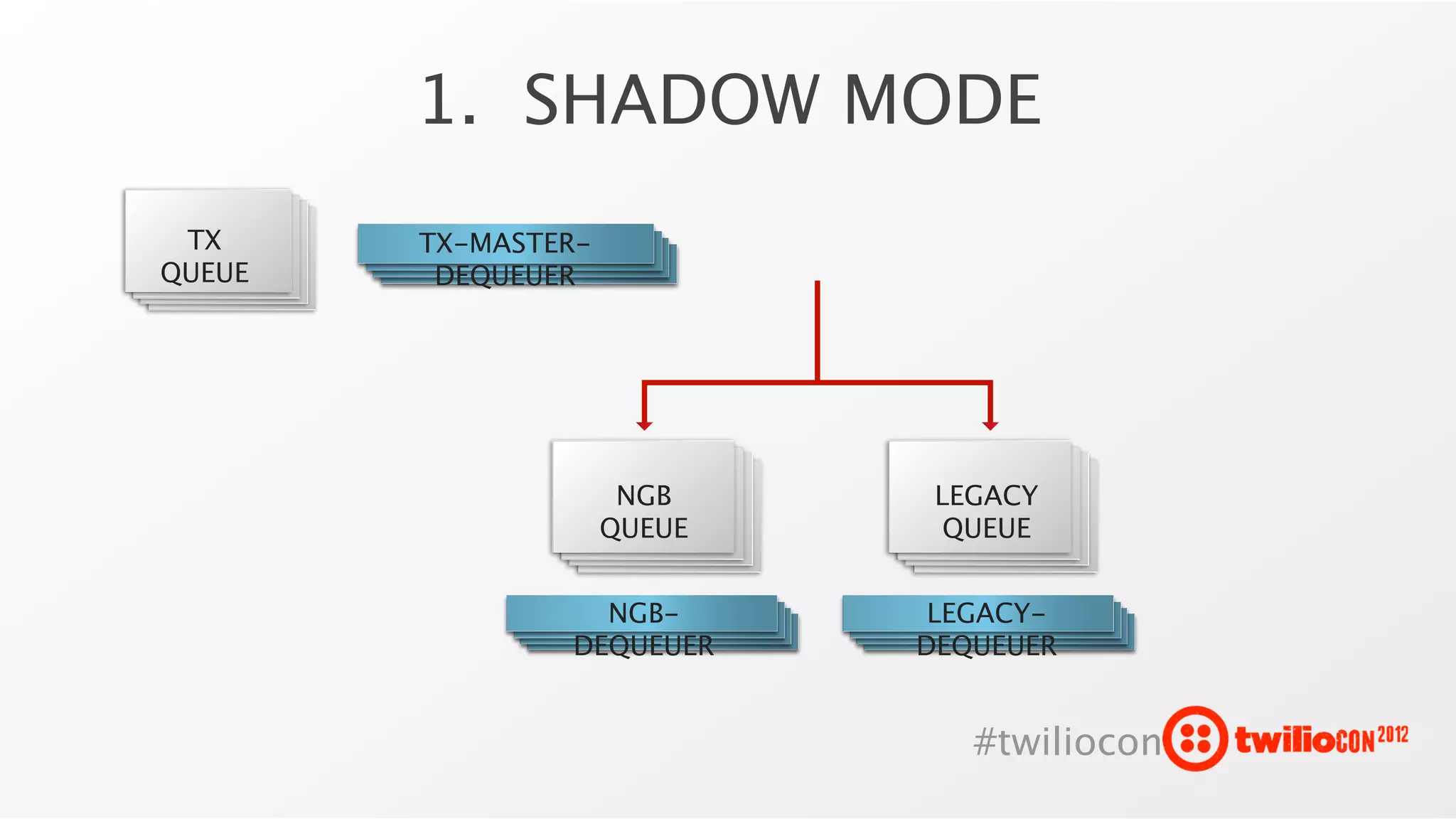

62. 1. SHADOW MODE
TX TX-MASTER-
QUEUE DEQUEUER
NGB LEGACY
QUEUE QUEUE
NGB- LEGACY-
DEQUEUER DEQUEUER
#twiliocon

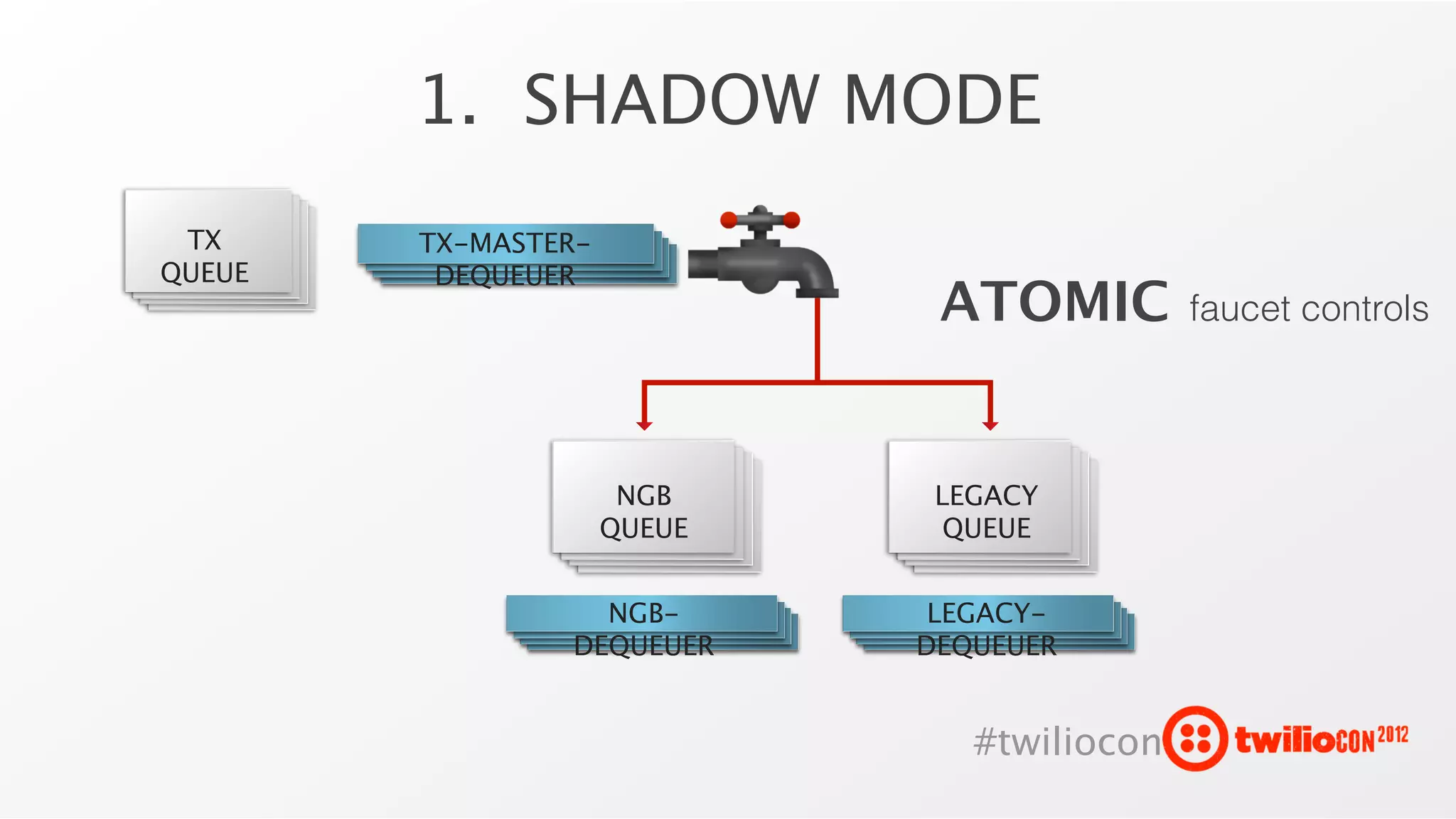

63. 1. SHADOW MODE
TX TX-MASTER-
QUEUE DEQUEUER
ATOMIC faucet controls
NGB LEGACY
QUEUE QUEUE
NGB- LEGACY-
DEQUEUER DEQUEUER
#twiliocon

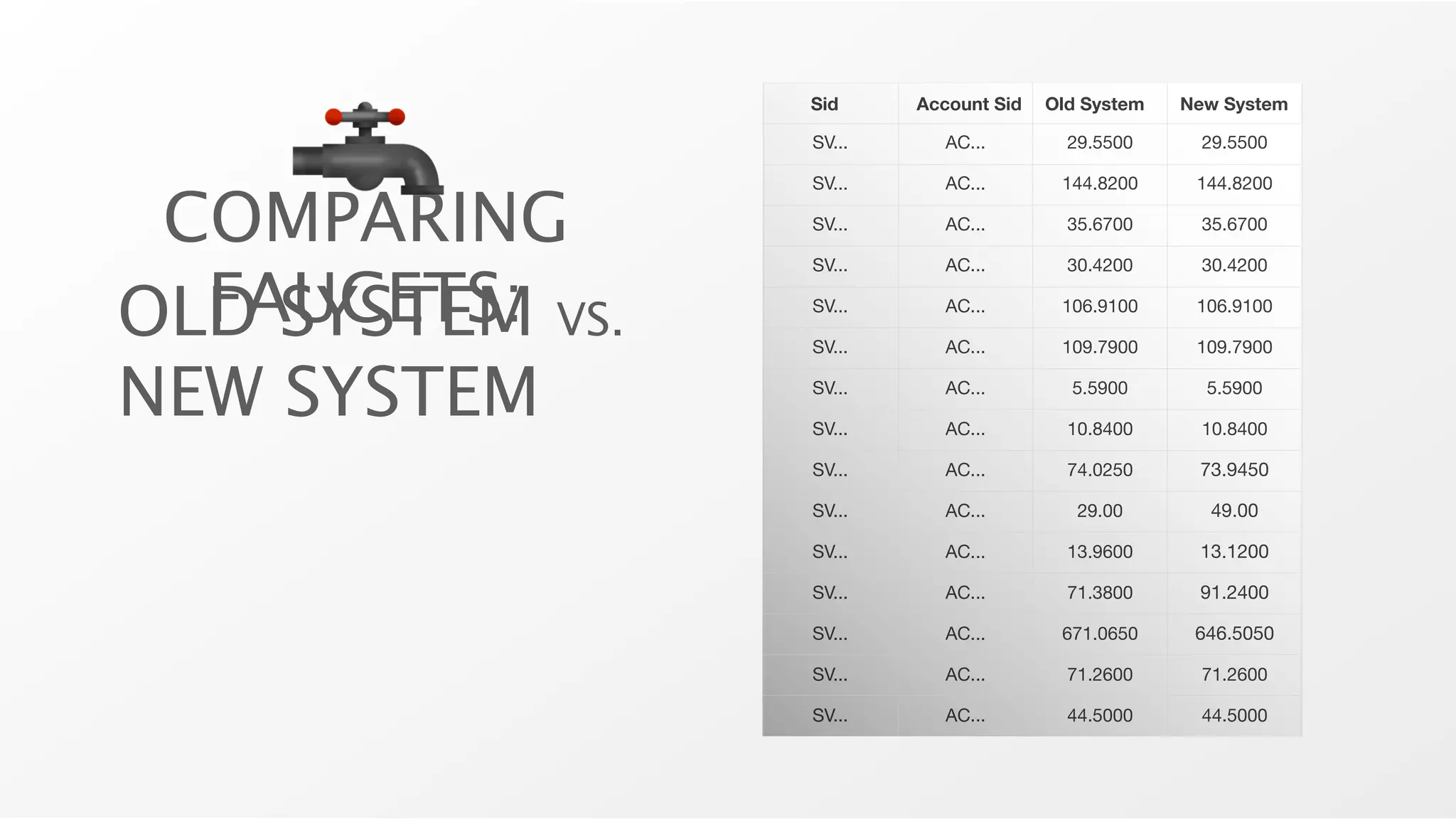

64. Sid Account Sid Old System New System
SV... AC... 29.5500 29.5500
SV... AC... 144.8200 144.8200
COMPARING SV...
SV...
AC...
AC...
35.6700
30.4200
35.6700
30.4200
FAUCETS: VS.
OLD SYSTEM SV...
SV...
AC...
AC...
106.9100
109.7900
106.9100
109.7900
NEW SYSTEM SV...
SV...
AC...
AC...
5.5900
10.8400
5.5900
10.8400
SV... AC... 74.0250 73.9450
SV... AC... 29.00 49.00
SV... AC... 13.9600 13.1200
SV... AC... 71.3800 91.2400
SV... AC... 671.0650 646.5050
SV... AC... 71.2600 71.2600
SV... AC... 44.5000 44.5000

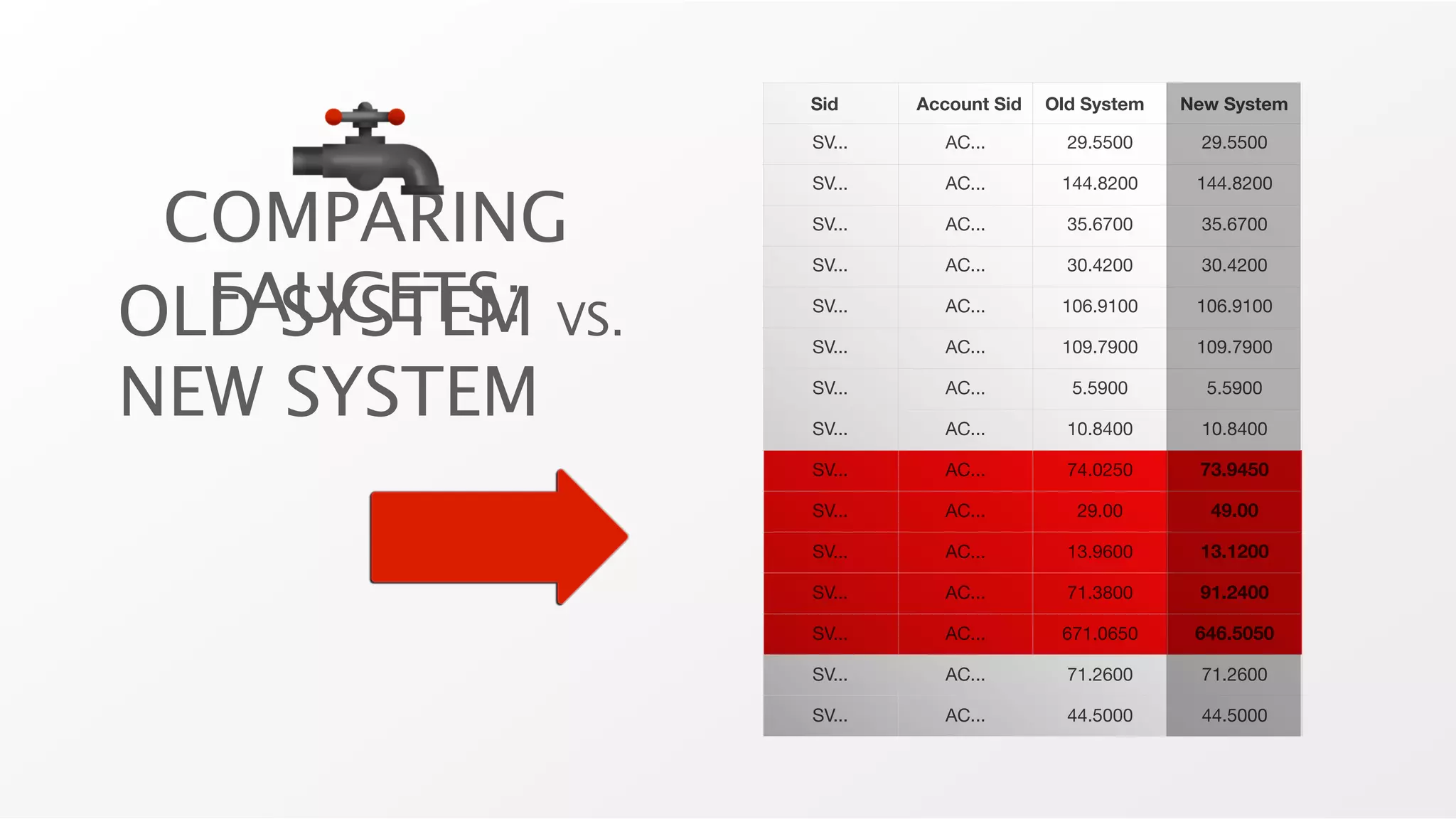

65. Sid Account Sid Old System New System
SV... AC... 29.5500 29.5500
SV... AC... 144.8200 144.8200
COMPARING SV...
SV...
AC...
AC...
35.6700
30.4200
35.6700
30.4200
FAUCETS: VS.
OLD SYSTEM SV...
SV...
AC...
AC...
106.9100
109.7900
106.9100
109.7900
NEW SYSTEM SV...
SV...
AC...
AC...
5.5900
10.8400
5.5900
10.8400
SV... AC... 74.0250 73.9450
SV... AC... 29.00 49.00
SV... AC... 13.9600 13.1200
SV... AC... 71.3800 91.2400
SV... AC... 671.0650 646.5050
SV... AC... 71.2600 71.2600
SV... AC... 44.5000 44.5000

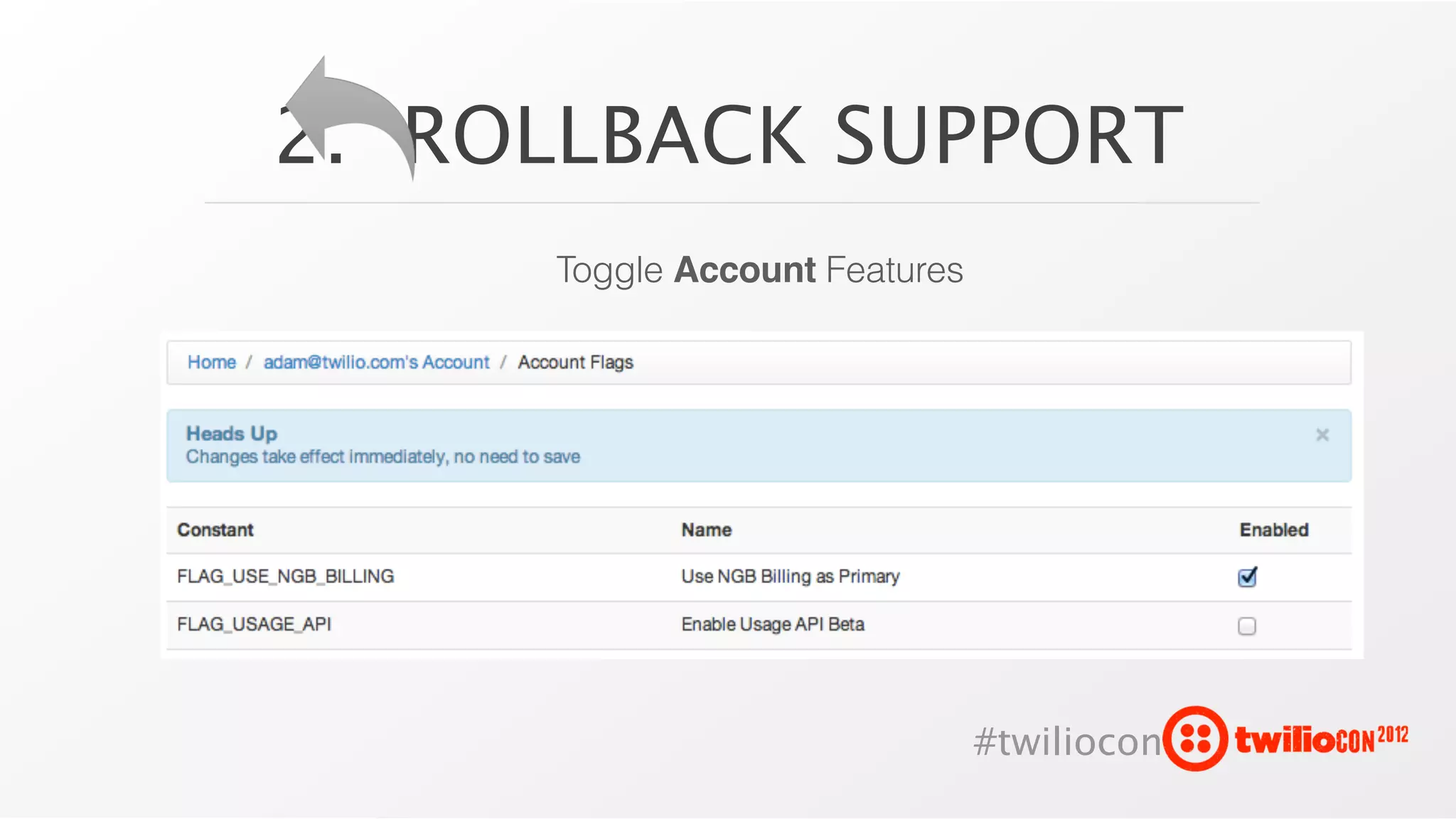

66. 2. ROLLBACK SUPPORT
Toggle Account Features
#twiliocon

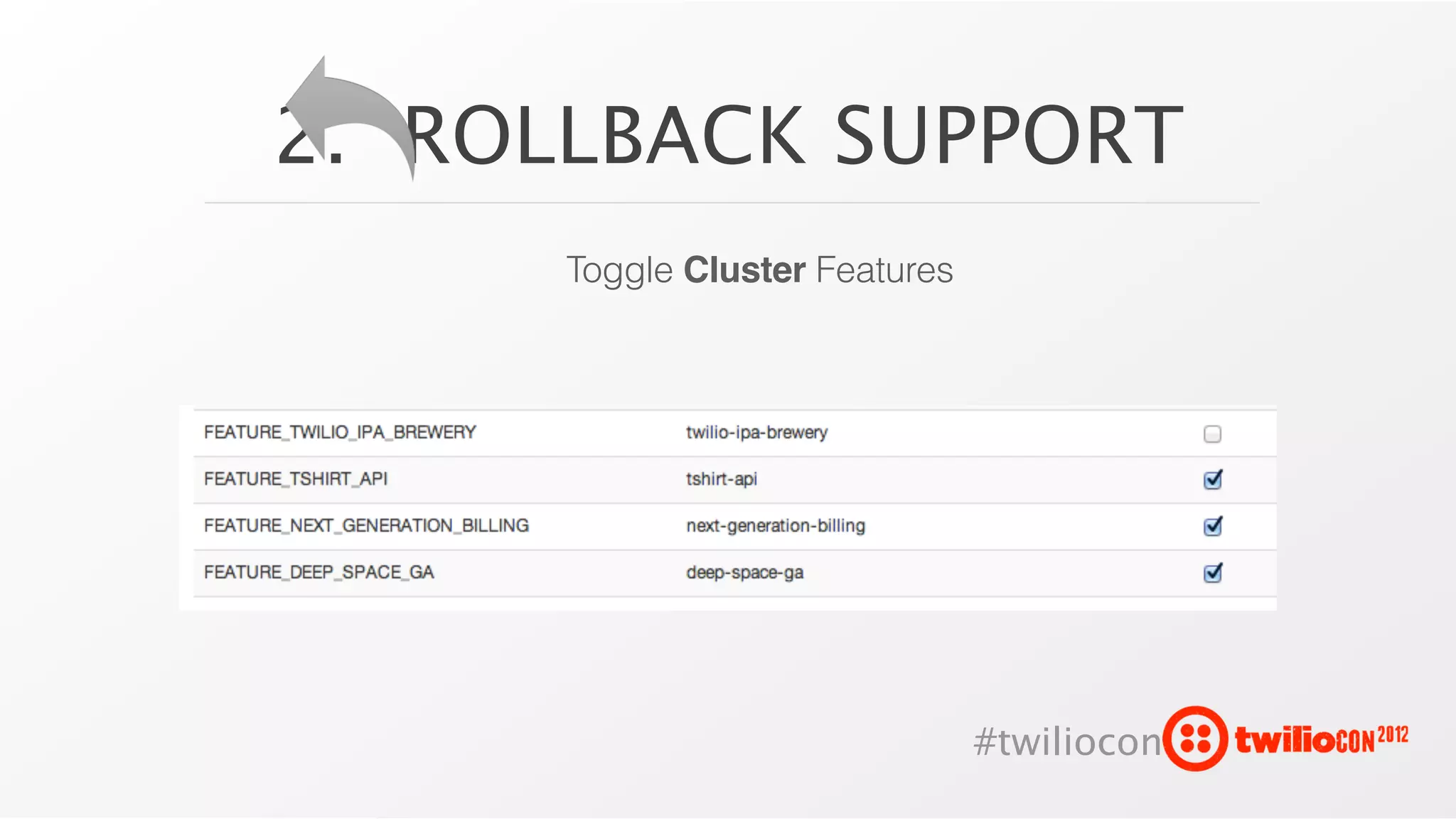

67. 2. ROLLBACK SUPPORT
Toggle Cluster Features
#twiliocon

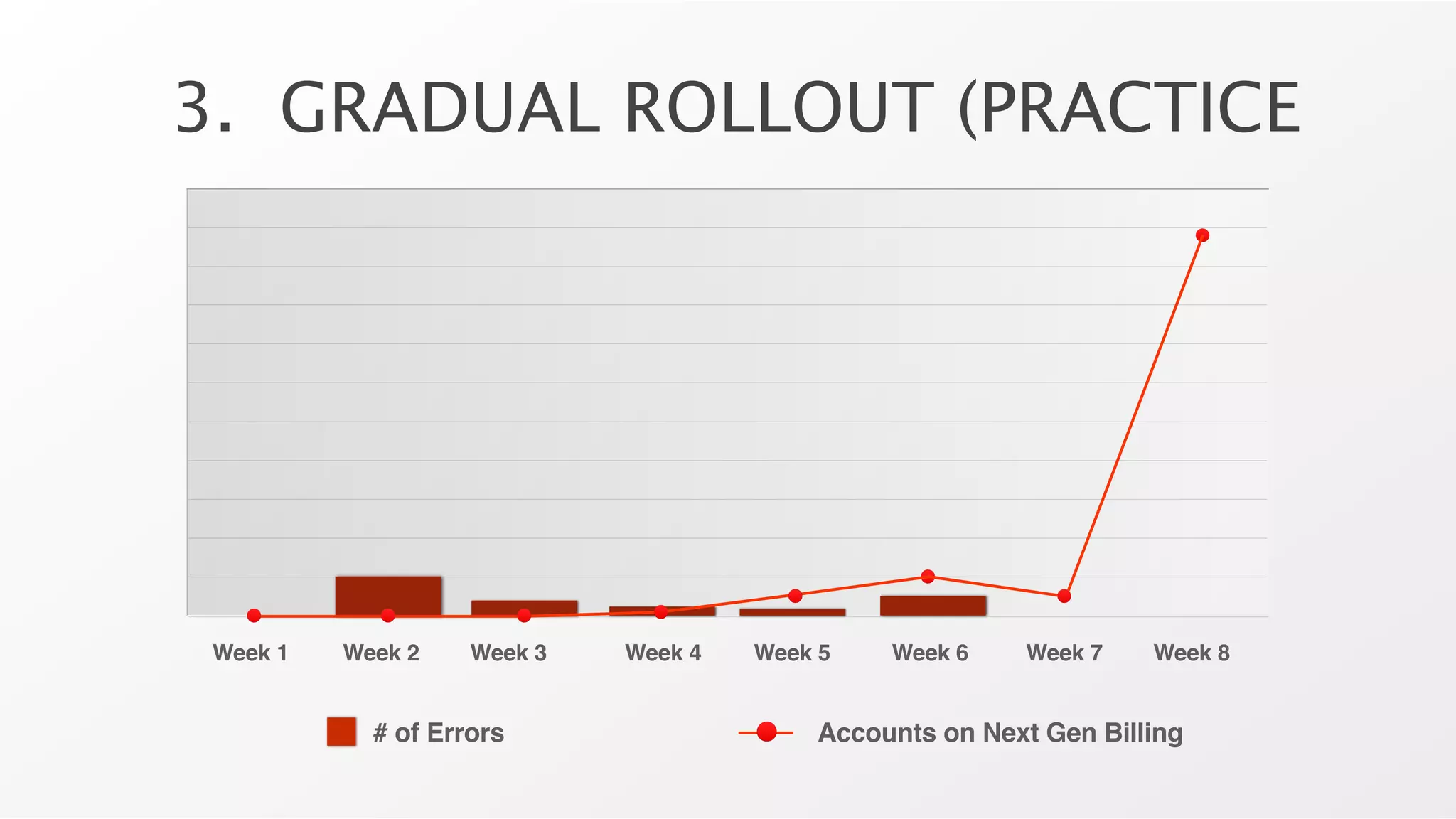

68. 3. GRADUAL ROLLOUT (PRACTICE
e
Week 1 Week 2 Week 3 Week 4 Week 5 Week 6 Week 7 Week 8
# of Errors Accounts on Next Gen Billing

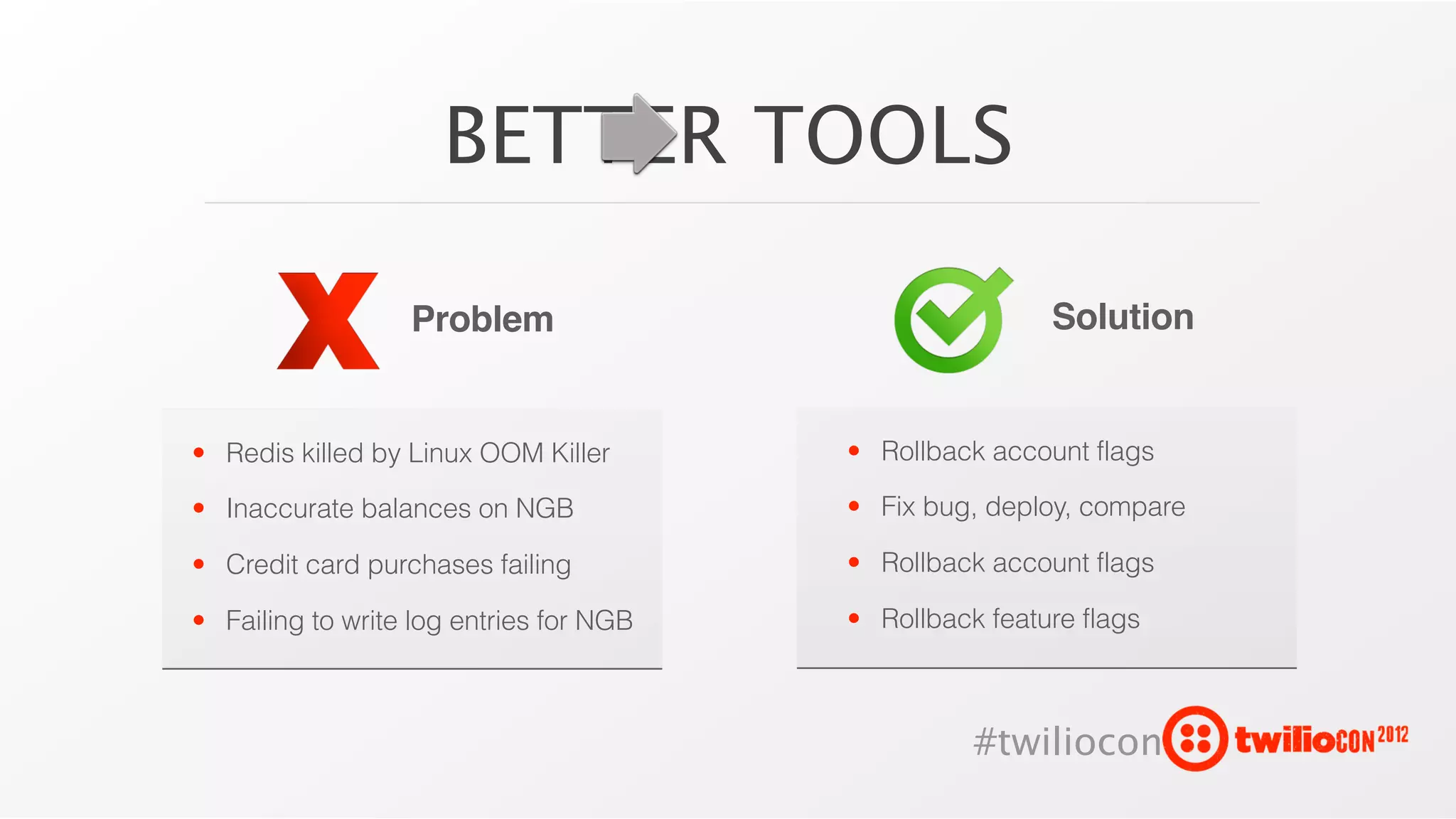

69. BETTER TOOLS
Problem Solution
• Redis killed by Linux OOM Killer • Rollback account flags
• Inaccurate balances on NGB • Fix bug, deploy, compare
• Credit card purchases failing • Rollback account flags
• Failing to write log entries for NGB • Rollback feature flags
#twiliocon

70. THANK YOU
COME ASK US QUESTIONS!
