The document discusses the lifecycle of code under test, including defining inputs and outputs, initial testing with positive and negative cases, handling bugs, refactoring code, adding abstraction, how future work may affect tests, and handling legacy code. It provides an example of a function to add two strings, injecting a bug, and walking through testing the code at different stages of the lifecycle from initial testing to refactoring and abstraction.

1. Confidential & Proprietary
www.leadingedje.com
A Lifecycle of
Code Under Test
Bob Fornal
Twitter: @rfornal
https://dev.to/rfornal

2. Confidential & Proprietary
www.leadingedje.com
Confidential & Proprietary
www.leadingedje.com
This Talk

3. Confidential & Proprietary
www.leadingedje.com
Confidential & Proprietary
www.leadingedje.com

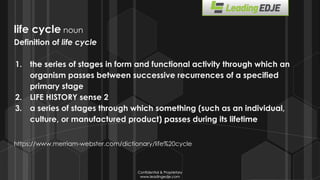

life cycle noun
Definition of life cycle
1. the series of stages in form and functional activity through which an
organism passes between successive recurrences of a specified
primary stage
2. LIFE HISTORY sense 2
3. a series of stages through which something (such as an individual,
culture, or manufactured product) passes during its lifetime
https://www.merriam-webster.com/dictionary/life%20cycle

4. Confidential & Proprietary
www.leadingedje.com
Confidential & Proprietary
www.leadingedje.com
Software Development Life Cycle
https://stackoverflow.com/questions/876089/who-wrote-this-programing-saying-always-code-as-if-the-guy-who-ends-up-maintai
https://producttribe.com/project-management/sdlc-guide
Always code as if the guy who
ends up maintaining your code
will be a violent psychopath who
knows where you live.
- John Woods

5. Confidential & Proprietary
www.leadingedje.com
Confidential & Proprietary
www.leadingedje.com

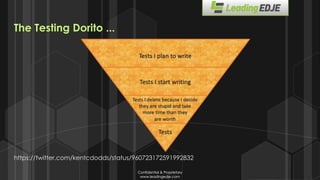

The Testing Dorito ...
https://twitter.com/kentcdodds/status/960723172591992832

6. Confidential & Proprietary
www.leadingedje.com
Confidential & Proprietary
www.leadingedje.com
Testing Forms (Unit / Integration / QA)

7. Confidential & Proprietary
www.leadingedje.com
Confidential & Proprietary
www.leadingedje.com

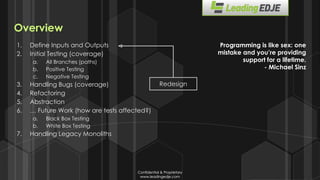

Overview
1. Define Inputs and Outputs
2. Initial Testing (coverage)
a. All Branches (paths)
b. Positive Testing
c. Negative Testing
3. Handling Bugs (coverage)
4. Refactoring
5. Abstraction
6. … Future Work (how are tests affected?)
a. Black Box Testing
b. White Box Testing
7. Handling Legacy Monoliths
Programming is like sex: one
mistake and you’re providing
support for a lifetime.
- Michael Sinz
Redesign

8. Confidential & Proprietary
www.leadingedje.com
Confidential & Proprietary
www.leadingedje.com

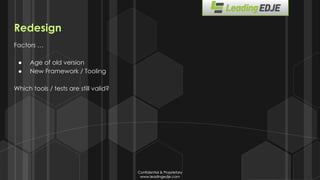

Redesign
Factors …
● Age of old version
● New Framework / Tooling
Which tools / tests are still valid?

9. Confidential & Proprietary
www.leadingedje.com
Confidential & Proprietary
www.leadingedje.com

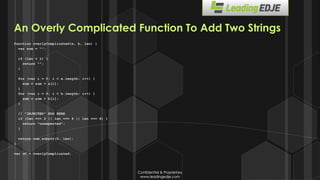

An Overly Complicated Function To Add Two Strings
function overlyComplicated(a, b, len) {
var sum = “”;
if (len < 1) {
return “”;
}
for (var i = 0; i < a.length; i++) {
sum = sum + a[i];
}
for (var i = 0; i < b.length; i++) {
sum = sum + b[i];
}
// ”INJECTED” BUG HERE
if (len === 2 || len === 4 || len === 6) {
return “unexpected”;
}
return sum.substr(0, len);
}
var oC = overlyComplicated;

10. Confidential & Proprietary
www.leadingedje.com
Confidential & Proprietary
www.leadingedje.com
function overlyComplicated(a, b, len) {
var sum = “”;
if (len < 1) {
return “”;
}
for (var i = 0; i < a.length; i++) {
sum = sum + a[i];
}
for (var i = 0; i < b.length; i++) {
sum = sum + b[i];
}
// ”INJECTED” BUG HERE
if (len === 2 || len === 4 || len === 6) {
return “unexpected”;
}
return sum.substr(0, len);
}
var oC = overlyComplicated;
Inputs
● a: string of some length.
● b: string of some length.
● len: number (integer) of characters of the combined to
return.
Outputs
● string of “len” characters.
Examples
● (“abc”, “def”, 0) returns “”
● (“abc”, “def”, 1) returns “a”
● (“abc”, “def”, 3) returns “abc”
● (“abc”, “def”, 5) returns “abcde”
Define Inputs and Outputs

11. Confidential & Proprietary
www.leadingedje.com
Confidential & Proprietary
www.leadingedje.com

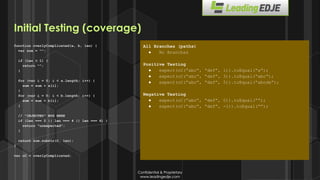

function overlyComplicated(a, b, len) {
var sum = “”;
if (len < 1) {
return “”;
}
for (var i = 0; i < a.length; i++) {
sum = sum + a[i];
}
for (var i = 0; i < b.length; i++) {
sum = sum + b[i];
}
// ”INJECTED” BUG HERE
if (len === 2 || len === 4 || len === 6) {
return “unexpected”;
}
return sum.substr(0, len);
}
var oC = overlyComplicated;
All Branches (paths)
● No Branches
Positive Testing
● expect(oC(“abc”, “def”, 1)).toEqual(“a”);
● expect(oC(“abc”, “def”, 3)).toEqual(“abc”);
● expect(oC(“abc”, “def”, 5)).toEqual(“abcde”);
Negative Testing
● expect(oC(“abc”, “def”, 0)).toEqual(“”);
● expect(oC(“abc”, “def”, -1)).toEqual(“”);
Initial Testing (coverage)

12. Confidential & Proprietary
www.leadingedje.com
Confidential & Proprietary
www.leadingedje.com
function overlyComplicated(a, b, len) {
var sum = “”;
if (len < 1) {
return “”;
}
for (var i = 0; i < a.length; i++) {
sum = sum + a[i];
}
for (var i = 0; i < b.length; i++) {
sum = sum + b[i];
}
// ”INJECTED” BUG HERE
if (len === 2 || len === 4 || len === 6) {
return “unexpected”;
}
return sum.substr(0, len);
}
var oC = overlyComplicated;

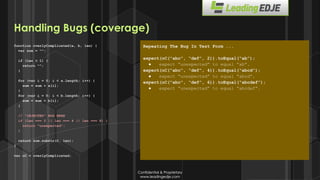

Repeating The Bug In Test Form ...
expect(oC(“abc”, “def”, 2)).toEqual(“ab”);
● expect “unexpected” to equal “ab”.
expect(oC(“abc”, “def”, 4)).toEqual(“abcd”);
● expect “unexpected” to equal “abcd”.
expect(oC(“abc”, “def”, 6)).toEqual(“abcdef”);
● expect “unexpected” to equal “abcdef”.
Handling Bugs (coverage)

13. Confidential & Proprietary
www.leadingedje.com
Confidential & Proprietary
www.leadingedje.com
function overlyComplicated(a, b, len) {
var sum = “”;
if (len < 1) {
return “”;
}
for (var i = 0; i < a.length; i++) {
sum = sum + a[i];
}
for (var i = 0; i < b.length; i++) {
sum = sum + b[i];
}
// ”INJECTED” BUG HERE
// if (len === 2 || len === 4 || len === 6) {
// return “unexpected”;
// }
return sum.substr(0, len);
}
var oC = overlyComplicated;
After Fixing The Bug
● expect(oC(“abc”, “def”, 2)).toEqual(“ab”);
● expect(oC(“abc”, “def”, 4)).toEqual(“abcd”);
● expect(oC(“abc”, “def”, 6)).toEqual(“abcdef”);
Handling Bugs (coverage)

14. Confidential & Proprietary
www.leadingedje.com
Confidential & Proprietary
www.leadingedje.com
function overlyComplicated(a, b, len) {
var sum = “”;
if (len < 1) {
return “”;
}
sum = a + b;
sum = sum.substr(0, len);
return sum;
// for (var i = 0; i < a.length; i++) {
// sum = sum + a[i];
// }
// for (var i = 0; i < b.length; i++) {
// sum = sum + b[i];
// }
// return sum.substr(0, len);
}
var oC = overlyComplicated;
After Refactor
... Previous Tests Should Still Pass
Positive Testing
● expect(oCAS(“abc”, “def”, 1)).toEqual(“a”);
● expect(oCAS(“abc”, “def”, 3)).toEqual(“abc”);
● expect(oCAS(“abc”, “def”, 5)).toEqual(“abcde”);
Negative Testing
● expect(oCAS(“abc”, “def”, 0)).toEqual(“”);
● expect(oCAS(“abc”, “def”, -1)).toEqual(“”);
Bug Testing
● expect(oCAS(“abc”, “def”, 2)).toEqual(“ab”);
● expect(oCAS(“abc”, “def”, 4)).toEqual(“abcd”);
● expect(oCAS(“abc”, “def”, 6)).toEqual(“abcdef”);
Refactoring

15. Confidential & Proprietary
www.leadingedje.com
Confidential & Proprietary
www.leadingedje.com

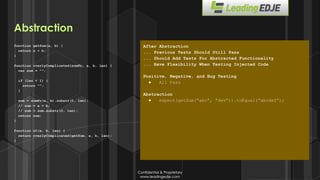

function getSum(a, b) {
return a + b;
}
function overlyComplicated(sumFn, a, b, len) {
var sum = “”;
if (len < 1) {
return “”;
}
sum = sumFn(a, b).substr(0, len);
// sum = a + b;
// sum = sum.substr(0, len);
return sum;
}
function oC(a, b, len) {
return overlyComplicated(getSum, a, b, len);
}
After Abstraction
... Previous Tests Should Still Pass
... Should Add Tests For Abstracted Functionality
... Have Flexibility When Testing Injected Code
Positive, Negative, and Bug Testing
● All Pass
Abstraction
● expect(getSum(“abc”, “dev”)).toEqual(“abcdef”);
Abstraction

16. Confidential & Proprietary
www.leadingedje.com
Confidential & Proprietary
www.leadingedje.com

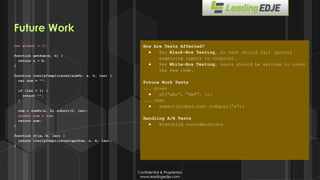

var global = {};
function getSum(a, b) {
return a + b;
}
function overlyComplicated(sumFn, a, b, len) {
var sum = “”;
if (len < 1) {
return “”;
}
sum = sumFn(a, b).substr(0, len);
global.sum = sum;
return sum;
}
function oC(a, b, len) {
return overlyComplicated(getSum, a, b, len);
}
How Are Tests Affected?
● Per Black-Box Testing, no test should fail (purely
examining inputs to outputs).
● Per White-Box Testing, tests should be written to cover
the new code.
Future Work Tests
... given
● oC(“abc”, “def”, 1);
... then
● expect(global.sum).toEqual(“a”);
Handling A/B Tests
● Branching considerations
Future Work

17. Confidential & Proprietary
www.leadingedje.com
Confidential & Proprietary
www.leadingedje.com

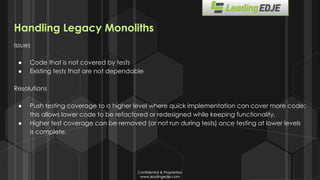

Handling Legacy Monoliths
Issues
● Code that is not covered by tests
● Existing tests that are not dependable
Resolutions
● Push testing coverage to a higher level where quick implementation can cover more code;
this allows lower code to be refactored or redesigned while keeping functionality.
● Higher test coverage can be removed (or not run during tests) once testing at lower levels
is complete.

18. Confidential & Proprietary
www.leadingedje.com
Confidential & Proprietary
www.leadingedje.com

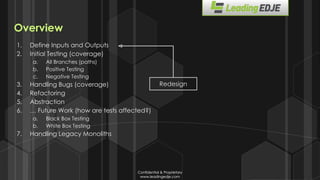

Overview
1. Define Inputs and Outputs
2. Initial Testing (coverage)
a. All Branches (paths)
b. Positive Testing
c. Negative Testing
3. Handling Bugs (coverage)
4. Refactoring
5. Abstraction
6. … Future Work (how are tests affected?)
a. Black Box Testing
b. White Box Testing
7. Handling Legacy Monoliths
Redesign

19. Confidential & Proprietary
www.leadingedje.com
Confidential & Proprietary
www.leadingedje.com
Questions ...
