The document discusses building a lightweight web module to inject content from one site into another cross-domain using JSONP. It covers topics like same-domain callbacks using hidden proxy iframes, API design using configuration objects, minimizing JavaScript size through techniques like removing comments and whitespace, and evolving code through patterns like the immediate function pattern. The document provides examples of minimizing code size through techniques like short variable names and replacing methods with equivalent but shorter alternatives.

1. Build Lightweight Web ModuleMorgan Cheng@morganchengMay 26th, 2011

2. Expand Thriving Web Site

3. Inject Your Content Into Other Sites

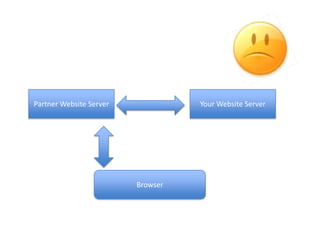

4. Partner Website ServerYour Website ServerBrowser

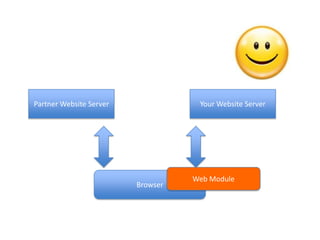

5. Partner Website ServerYour Website ServerWeb ModuleBrowser

6. Cross Domain

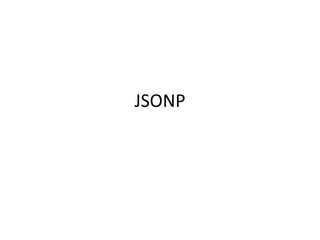

7. JSONP

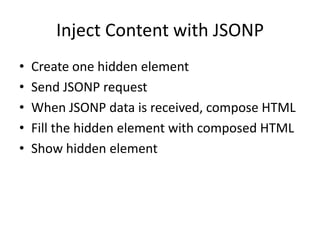

8. Inject Content with JSONPCreate one hidden elementSend JSONP request When JSONP data is received, compose HTMLFill the hidden element with composed HTMLShow hidden element

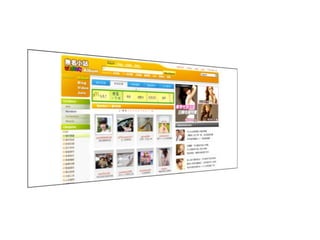

9. Inject an iframe

11. iframe covering whole viewport

12. It is easy to create abigiframe. The hard part is how to close it.

13. Same Domain CallbackHidden Proxy Iframe

14. Time to Wear Hacker’s Hat

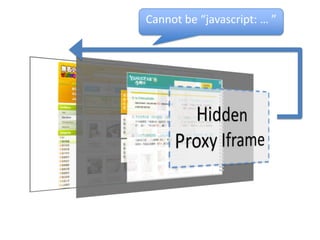

15. Cannot be “javascript: … ”Hidden Proxy Iframe

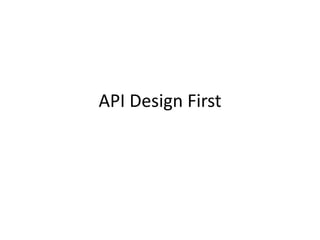

16. API Design First

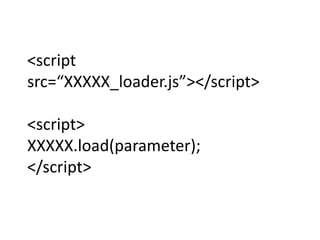

17. <script src=“XXXXX_loader.js”></script><script>XXXXX.load(parameter);</script>

18. YAHOO.ABC.load(parameter);

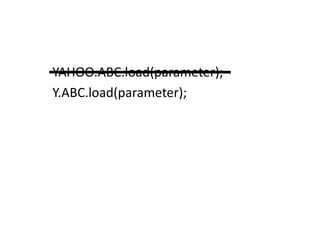

19. YAHOO.ABC.load(parameter);Y.ABC.load(parameter);

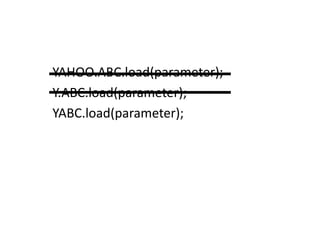

20. YAHOO.ABC.load(parameter);Y.ABC.load(parameter);YABC.load(parameter);

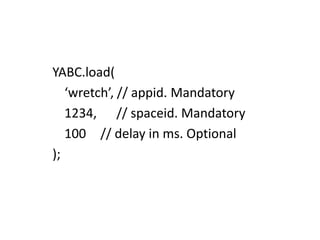

21. YABC.load( ‘wretch’, // appid. Mandatory 1234, // spaceid. Mandatory 100 // delay in ms. Optional);

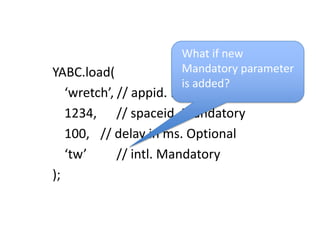

22. YABC.load( ‘wretch’, // appid. Mandatory 1234, // spaceid. Mandatory 100, // delay in ms. Optional ‘tw’ // intl. Mandatory);What if new Mandatory parameter is added?

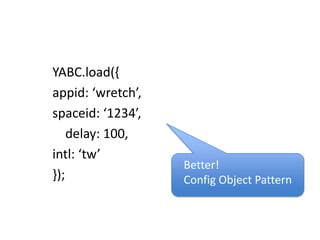

23. YABC.load({appid: ‘wretch’,spaceid: ‘1234’, delay: 100,intl: ‘tw’});Better!Config Object Pattern

24. Be Disciplined

25. Rules #1: Don’t Assume Too Much on Hosting PageWhat?You Don’t Have YUI?

26. Rules #2: Don’t Be Obstructive to Hosting Page

27. Rules #3: Don’t Impact Hosting Page Performance

28. In a Word, We Have To DIY

29. And, It MUST Be Lightweight

30. Simplest Feature vs. Rich Feature

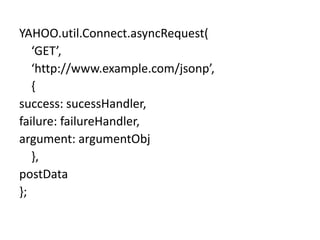

31. YAHOO.util.Connect.asyncRequest( ‘GET’, ‘http://www.example.com/jsonp’, {success: sucessHandler,failure: failureHandler,argument: argumentObj },postData};

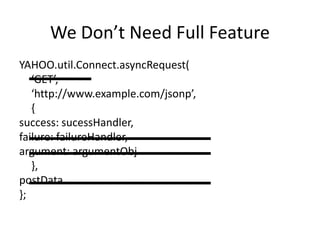

32. We Don’t Need Full FeatureYAHOO.util.Connect.asyncRequest( ‘GET’, ‘http://www.example.com/jsonp’, {success: sucessHandler,failure: failureHandler,argument: argumentObj },postData};

33. This is What We Need

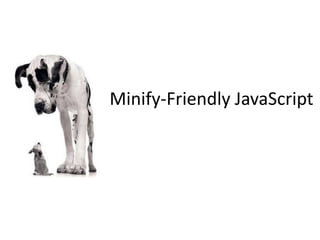

34. Minify-Friendly JavaScript

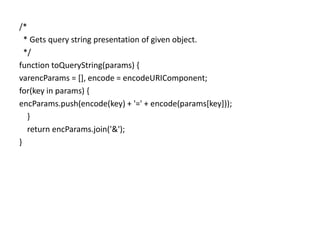

35. /* * Gets query string presentation of given object. */function toQueryString(params) {varencParams = [], encode = encodeURIComponent;for(key in params) {encParams.push(encode(key) + '=' + encode(params[key])); } return encParams.join('&');}

36. /* * Gets query string presentation of given object. */function toQueryString(params) {varencParams = [], encode = encodeURIComponent;for(key in params) {encParams.push(encode(key) + '=' + encode(params[key])); } return encParams.join('&');}function toQueryString(c){var a=[],b=encodeURIComponent;for(key in c){a.push(b(key)+"="+b(c[key]))}returna.join("&")};Before 287 bytesAfter 119 bytesCompression Rate: 59%Minify

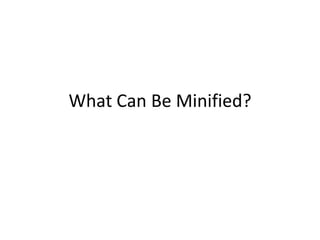

37. What Can Be Minified?

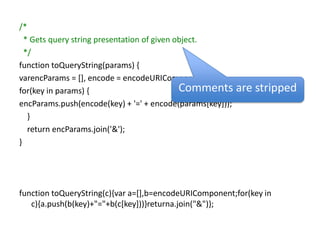

38. /* * Gets query string presentation of given object. */function toQueryString(params) {varencParams = [], encode = encodeURIComponent;for(key in params) {encParams.push(encode(key) + '=' + encode(params[key])); } return encParams.join('&');}function toQueryString(c){var a=[],b=encodeURIComponent;for(key in c){a.push(b(key)+"="+b(c[key]))}returna.join("&")};Comments are stripped

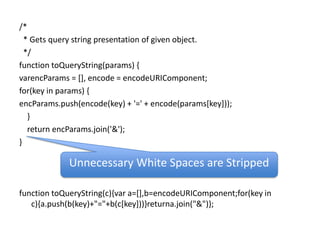

39. /* * Gets query string presentation of given object. */function toQueryString(params) {varencParams = [], encode = encodeURIComponent;for(key in params) {encParams.push(encode(key) + '=' + encode(params[key])); } return encParams.join('&');}function toQueryString(c){var a=[],b=encodeURIComponent;for(key in c){a.push(b(key)+"="+b(c[key]))}returna.join("&")};Unnecessary White Spaces are Stripped

40. /* * Gets query string presentation of given object. */function toQueryString(params) {varencParams = [], encode = encodeURIComponent;for(key in params) {encParams.push(encode(key) + '=' + encode(params[key])); } return encParams.join('&');}function toQueryString(c){var a=[],b=encodeURIComponent;for(key in c){a.push(b(key)+"="+b(c[key]))}returna.join("&")};Argument Names are Obfuscated

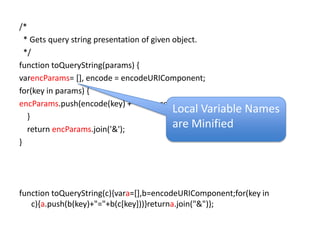

41. /* * Gets query string presentation of given object. */function toQueryString(params) {varencParams= [], encode = encodeURIComponent;for(key in params) {encParams.push(encode(key) + '=' + encode(params[key])); } return encParams.join('&');}function toQueryString(c){vara=[],b=encodeURIComponent;for(key in c){a.push(b(key)+"="+b(c[key]))}returna.join("&")};Local Variable Names are Minified

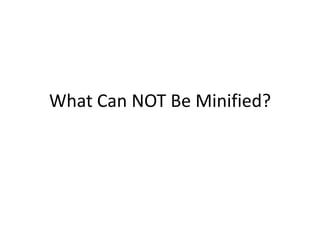

42. What Can NOT Be Minified?

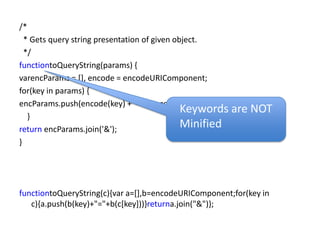

43. /* * Gets query string presentation of given object. */functiontoQueryString(params) {varencParams = [], encode = encodeURIComponent;for(key in params) {encParams.push(encode(key) + '=' + encode(params[key])); }return encParams.join('&');}functiontoQueryString(c){var a=[],b=encodeURIComponent;for(key in c){a.push(b(key)+"="+b(c[key]))}returna.join("&")};Keywords are NOT Minified

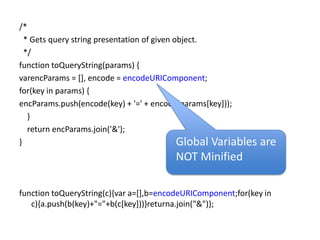

44. /* * Gets query string presentation of given object. */function toQueryString(params) {varencParams = [], encode = encodeURIComponent;for(key in params) {encParams.push(encode(key) + '=' + encode(params[key])); } return encParams.join('&');}function toQueryString(c){var a=[],b=encodeURIComponent;for(key in c){a.push(b(key)+"="+b(c[key]))}returna.join("&")};Global Variables are NOT Minified

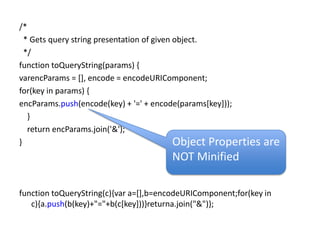

45. /* * Gets query string presentation of given object. */function toQueryString(params) {varencParams = [], encode = encodeURIComponent;for(key in params) {encParams.push(encode(key) + '=' + encode(params[key])); } return encParams.join('&');}function toQueryString(c){var a=[],b=encodeURIComponent;for(key in c){a.push(b(key)+"="+b(c[key]))}returna.join("&")};Object Properties are NOT Minified

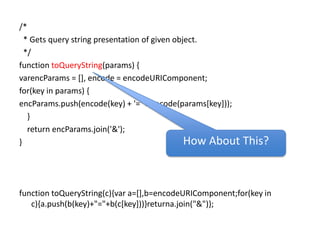

46. /* * Gets query string presentation of given object. */function toQueryString(params) {varencParams = [], encode = encodeURIComponent;for(key in params) {encParams.push(encode(key) + '=' + encode(params[key])); } return encParams.join('&');}function toQueryString(c){var a=[],b=encodeURIComponent;for(key in c){a.push(b(key)+"="+b(c[key]))}returna.join("&")};How About This?

47. Wait, Do We Need Minify If All Browsers Support Gzip?

48. JavaScript?GzipGzip is no-loss compressionIt Doesn’t Understand JavaScript

49. ~15% “Accept-Encoding: gzip, deflate”HTTP Headers Are Stripped

50. Evolution of Code

51. YABC = {load: function() { // do something }};

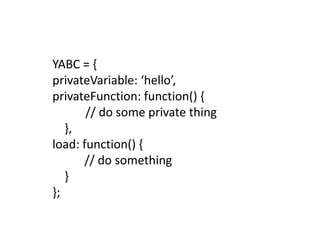

52. YABC = {privateVariable: ‘hello’,privateFunction: function() { // do some private thing },load: function() { // do something }};

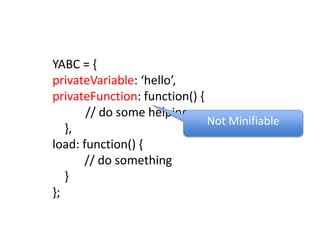

53. YABC = {privateVariable: ‘hello’,privateFunction: function() { // do some helping },load: function() { // do something }};Not Minifiable

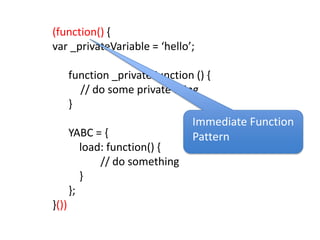

54. (function() {var _privateVariable = ‘hello’;function _privateFunction () { // do some private thing}YABC = { load: function() { // do something }};}())Immediate Function Pattern

55. (function() {var_privateVariable= ‘hello’;function _privateFunction() { // do some private thing}YABC = { load: function() { // do something }};}())Minifiable

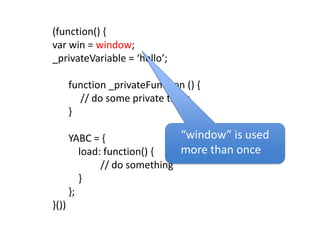

56. (function() {var win = window; _privateVariable = ‘hello’;function _privateFunction () { // do some private thing}YABC = { load: function() { // do something }};}())“window” is used more than once

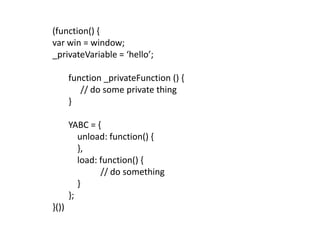

57. (function() {var win = window; _privateVariable = ‘hello’;function _privateFunction () { // do some private thing}YABC = { unload: function() { }, load: function() { // do something }};}())

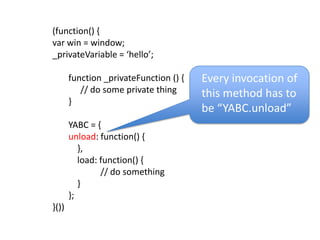

58. (function() {var win = window; _privateVariable = ‘hello’;function _privateFunction () { // do some private thing}YABC = {unload: function() { }, load: function() { // do something }};}())Every invocation of this method has to be “YABC.unload”

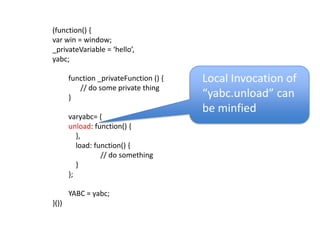

59. (function() {var win = window; _privateVariable = ‘hello’,yabc;function _privateFunction () { // do some private thing}varyabc= {unload: function() { }, load: function() { // do something }};YABC = yabc;}())Local Invocation of “yabc.unload” can be minfied

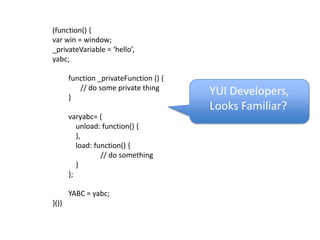

60. (function() {var win = window; _privateVariable = ‘hello’,yabc;function _privateFunction () { // do some private thing}varyabc= { unload: function() { }, load: function() { // do something }};YABC = yabc;}())YUI Developers,Looks Familiar?

61. Be a JavaScript Ninjia

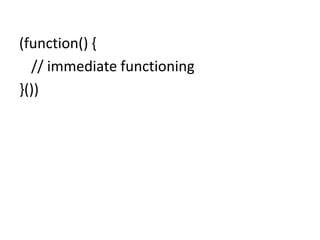

62. (function() { // immediate functioning}())

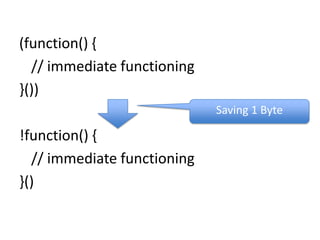

63. (function() { // immediate functioning}())!function() { // immediate functioning}()Saving 1 Byte

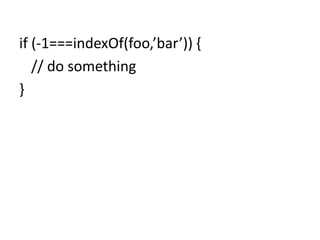

64. if (-1===indexOf(foo,’bar’)) { // do something}

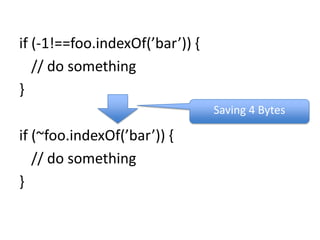

65. if (-1!==foo.indexOf(’bar’)) { // do something}if (~foo.indexOf(’bar’)) { // do something}Saving 4 Bytes

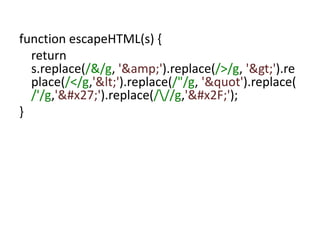

66. function escapeHTML(s) { return s.replace(/&/g, '&amp;').replace(/>/g, '&gt;').replace(/</g,'&lt;').replace(/"/g, '&quot').replace(/'/g,'&#x27;').replace(/\//g,'&#x2F;');}

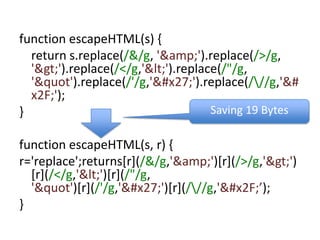

67. function escapeHTML(s) { return s.replace(/&/g, '&amp;').replace(/>/g, '&gt;').replace(/</g,'&lt;').replace(/"/g, '&quot').replace(/'/g,'&#x27;').replace(/\//g,'&#x2F;');}function escapeHTML(s, r) {r='replace';returns[r](/&/g,'&amp;')[r](/>/g,'&gt;')[r](/</g,'&lt;')[r](/"/g, '&quot')[r](/'/g,'&#x27;')[r](/\//g,'&#x2F;’);}Saving 19 Bytes

68. History of code size

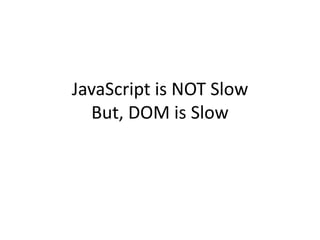

69. JavaScript is NOT SlowBut, DOM is Slow

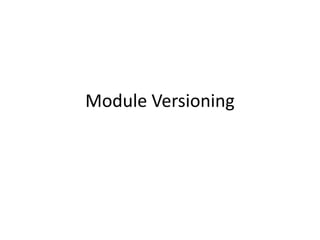

70. Module Versioning

71. Traditionally …http://www.example.com/v1/loader.jshttp://www.example.com/loader_20110510.js

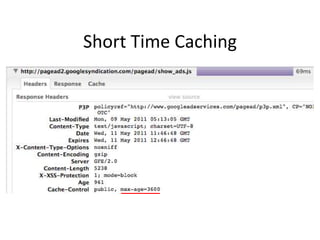

72. Short Time Caching

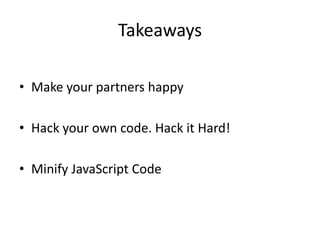

73. TakeawaysMake your partners happyHack your own code. Hack it Hard!Minify JavaScript Code

74. Thank You!
