1. MULTI-OBJECT TRACKING : SIMPLE
ONLINE AND REALTIME TRACKING WITH
DEEPASSOCIATION METRIC(DEEP SORT)
김 경 훈
Vision & Display Systems Lab.
Dept. of Electronic Engineering, Sogang University

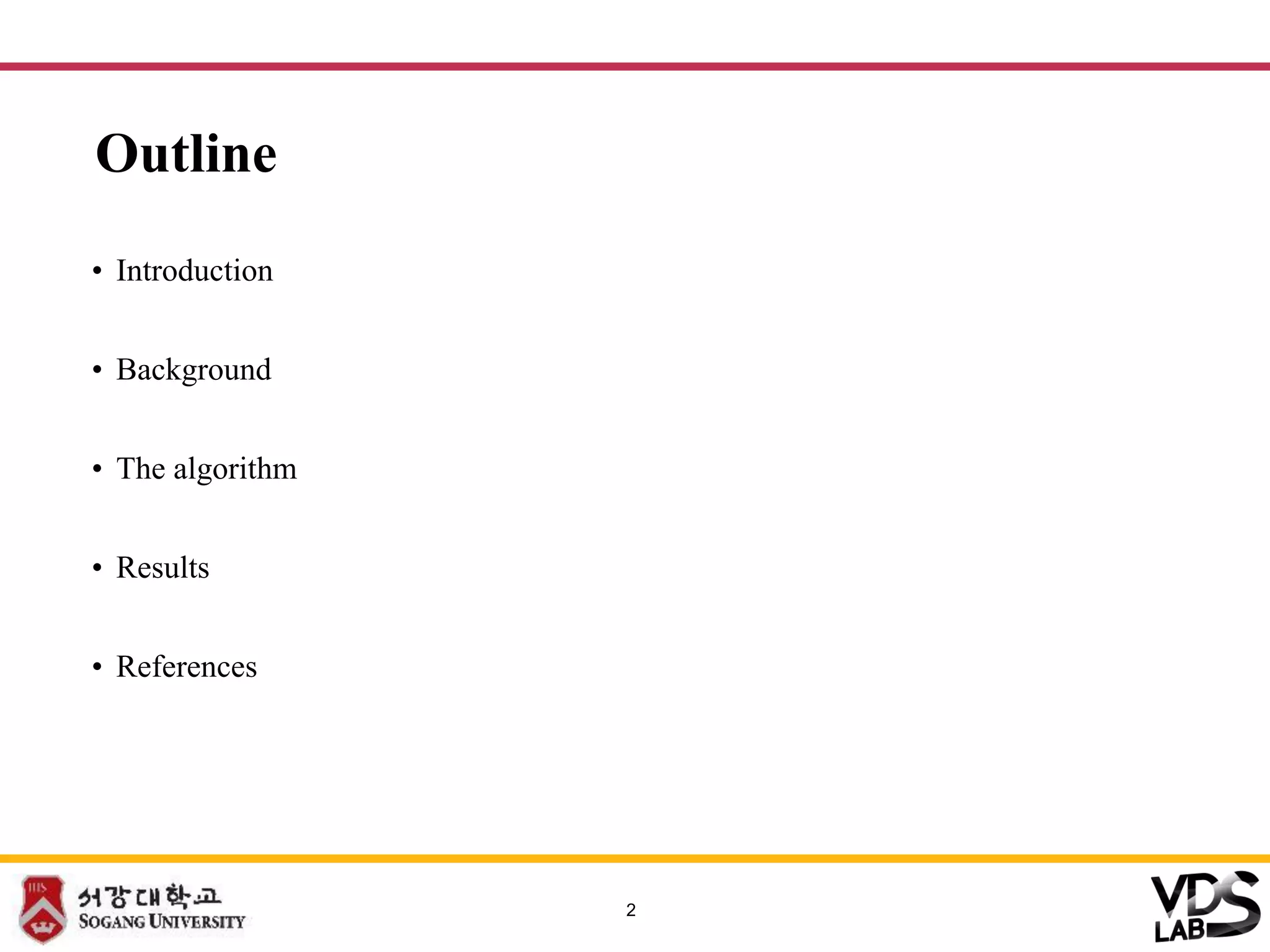

2. Outline
• Introduction
• Background
• The algorithm
• Results
• References
2

3. Introduction
• Object Tracking
▪ Object tracking is the process of locating moving objects over time in videos.
▪ Why can’t using only object detection for tracking?
− Association problem, occlusion problem
3

4. Object Tracker Classification
• Tracker 분류
4

5. Object Tracker Classification
• Tracker 분류
5
Detectionbasedtracking

6. Multi Object Tracking(MOT)
• MOT Problem
▪ State Estimation
▪ data association, assignment
6

7. SORT 1/2
• SimpleOnlineandRealtimeTracking–ICIP2016
(235citation)
▪ StateEstimation
− Kalmanfilter(Linear) -[x,y,a,h,vx,vy,va,vh]
▪ DataAssociation
− Hungarianmethod
• High speed and high accuracy
• Simple model
▪ location and size of bounding box -> state estimation
▪ Focus on real-time speed
− Disregarding long-term occlusion
8

8. SORT 2/2
• Estimation Model
▪ Kalman Filter(Linear)
− X = [ x, y, a, h, vx, vy, va, vh ]
• Data Association
9
x, y : location of bounding box
a : aspect ratio
h : height
v(x,y,a,h) : respective velocities

9. SORT 2/2
• Hungarian algorithm
▪ assignment problem
− O(N!) -> (𝑁3
)
11

10. SORT 2/2
• Hungarian algorithm
▪ assignment problem
− O(N!) -> (𝑁3
)
12

11. SORT 2/2
• Assignment problem
▪ Hungarian algorithm
− O(N!) -> (n3) 로 해결
13
Detection / Tracking Estimation 1 Estimation 2 Estimation 3
Detection 1 IOU = 0 IOU = 0 IOU = 0
Detection 2 IOU = 0.56 IOU = 0 IOU = 0
Detection 3 IOU = 0 IOU = 0.77 IOU = 0
1
2
3

12. DEEP SORT 1/4
• SimpleOnlineandRealtimeTrackingwithaDeepAssociationMetric-2017arxiv
(154citation)
• To solve assignment problem more effectively
▪ Squared Mahalanobis distance
− Useful for short-term occlusion
▪ The cosine distance considers appearance information
− Useful for long-term occlusion
14

13. DEEP SORT 2/4
• Euclidean distance
▪ Which is the same in all directions really doesn’t reflect the class structure
and the data that tends to be distributed.
• Mahalanobis distance
▪ Incorporate the uncertainties from Kalman filter
▪ Thresholding this distance can give good actual association
15

14. DEEP SORT 3/4
• The occlusion problem
▪ To solve long-term occlusion
− Using the appearance feature vector
− D = Lambda ∗ 𝐷𝑘 + ( 1 − Lambda ) ∗ 𝐷𝑎
҉ 𝐷𝑘 is the Mahalanobis distance
҉ 𝐷𝑎 is the cosine distace between the appearance feature vectors
҉ Lambda is the weighting factor
16

15. Result
17
• Tracking results on the MOT16 challenge. We compare to other published
methods with non-standard detections.
• Depend on detection algorithm

16. DEEP SORT 4/4
• Conclusion
▪ If the bounding boxes are too big than background is reducing the effectiveness of the
algorithm
▪ If people are dressed similarly as happens in sports that can results in similar features
and ID switching.
18

17. References
• Multiple Object Tracking: A Literature Review
• SimpleOnlineandRealtimeTracking
• SimpleOnlineandRealtimeTrackingwithDeepCosineMetric
20

18. 21
Thank You
