From ensembles to computer networks
- 1. From ensembles to computer networks Sevvandi Kandanaarachchi Data61 MLRG Seminar 21st April 2022 1

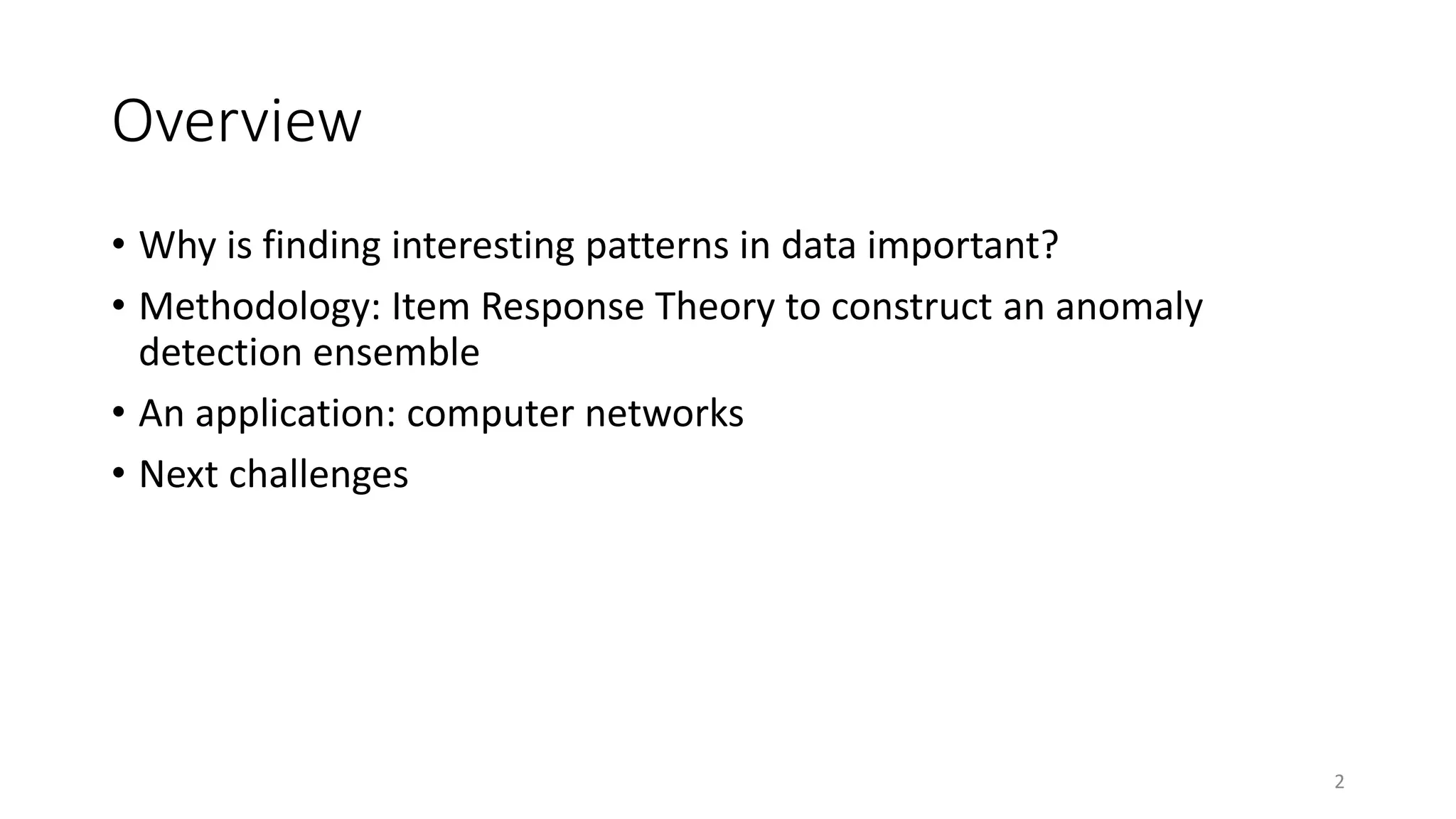

- 2. Overview • Why is finding interesting patterns in data important? • Methodology: Item Response Theory to construct an anomaly detection ensemble • An application: computer networks • Next challenges 2
- 4. Interesting patterns in data – Why? • We live in a data-rich world • Phones and personal smart devices • Videos/CCTV • Satellites roaming around the planet • Social media and content generation • Wearable technology (heart rate monitor) This Photo by Unknown Author is licensed under CC BY-SA 4
- 5. What should we focus upon? • Impossible to go through all the data in real time • But we want to know when something “important” happens • Important – context dependent • A person who is monitored has had a fall (wearables) • Deforestation (satellite data) • A group harmful to society is gaining popularity (social media – national security) • A bushfire starting off This Photo by Unknown Author is licensed under CC BY This Photo by Unknown Author is licensed under CC BY-ND 5
- 6. Challenges • Automated tools to extract these events of interest • Early detection is super important • High accuracy • Low false positive rates • Complex, noisy data Goals • To allocate resources effectively and efficiently • Prevent disaster from happening • Or minimize the loss 6
- 7. A critical piece – finding the interesting bit • It can be called many names • Events, anomalies, outliers, novelties, emerging threats • Can’t always train a model to find the interesting bit • Can’t lock in what is interesting • Training a model on certain fraud/intrusions/cyber attacks is not optimal, because there are new types of fraud/attacks, always! • Antivirus – known viruses only • You want something more “intelligent” and accurate • Alerts you when something weird happens with high accuracy • Flexible (can evolve) • A shift of focus over time • Previously outliers were detected to be discarded – they make the model worse • Now, we want to know about the anomalies – they are telling us something interesting 7
- 8. We looked at interesting patterns in data. Next, we look at some specific research. 8
- 9. An anomaly detection ensemble using Item Response Theory Unsupervised Anomaly Detection Ensembles using Item Response Theory Sevvandi Kandanaarachchi Information Sciences (2022) 9
- 10. What are we trying to do? Achieve Higher Accuracy New methods with better accuracy Build an ensemble from existing methods 10
- 11. What are we trying to do? Achieve Higher Accuracy New methods with better accuracy Build an ensemble from existing methods 11
- 12. Specific challenges • In regression we have 𝑥, 𝑦 → (𝑥, 𝑦 ) • So you can use e = 𝑦 − 𝑦 in your ensemble • The models can be weighted by their accuracy But… • Unsupervised anomaly detection does not have 𝑦 • We have 𝑥 → each AD method gives 𝑦1, 𝑦2, 𝑦3, 𝑦4 → Ensemble gives 𝑦𝑒𝑛𝑠 12
- 13. What is an anomaly detection ensemble? Dataset Unsupervised AD methods The AD methods are heterogenous methods AD ensemble Ensemble Score The data 𝑥 The anomaly scores 𝑦1, 𝑦2 𝑦3 𝑦4, 𝑦5 , 𝑦6, 𝑦7 13
- 14. We use Item Response Theory to construct the ensemble Explain IRT How we use it to construct an AD ensemble 14
- 15. What is Item Response Theory (IRT)? • A set of models used in educational psychometrics/social sciences • Premise - intrinsic “quality” that cannot be measured directly • Racial prejudice or stress proneness • Political inclinations • Verbal or mathematical ability • A test instrument • A survey • Exam This Photo by Unknown Author is licensed under CC BY-SA 15
- 16. IRT Survey responses Exam marks IRT Model Output Discrimination of each test item Difficulty of each test item Participant ability (hidden quality) 16
- 17. IRT in education • 𝑁 Students answer 𝑛 questions • Your input to the IRT model is a matrix of marks 𝑌𝑁×𝑛 • Fit the IRT model • You get as your output • Test item discrimination • Test item difficulty • Student ability (latent trait) • Focus is on item discrimination and difficulty Q 1 Q 2 Q 3 Q 4 Stu 1 0.95 0.87 0.67 0.84 Stu 2 0.57 0.49 0.78 0.77 Stu n 0.75 0.86 0.57 0.45 17
- 18. IRT in psychometrics • A survey • Rosenberg's Self-Esteem Scale • I feel I am a person of worth (Strongly Agree/Agree/Neutral/... ) • Use original responses (no marking as in education) • Fit the IRT model • Output • Participants self-esteem (hidden quality = latent trait) • Question discrimination • Question difficulty • Focus is on the hidden ability 18
- 19. IRT in Data Science/Machine Learning • Relatively new area of research • From performance data find • Ability of classifiers • Discrimination/difficulty of datasets • 2019 - Item response theory in AI: Analysing machine learning classifiers at the instance level – F. Martínez-Plumed et al. 19
- 20. IRT ensemble for anomaly detection Latent trait = the anomalousness of the observations = the ensemble score High values → high anomalousness, low values → low anomalousness Matrix of anomaly scores 𝑌𝑁×𝑛 IRT Model = 20
- 21. Example • AD methods (DDoutlier, h2o, e1071) • KNN_AGG • LOF • COF • INFLO • KDEOS • LDF • LDOF • Autoencoders – Deep learning • OCSVM – One class Support Vector Machine • Isolation Forest – Tree based method Nearest neighbourhood-based methods Density/distance based Dataset Unsupervised AD methods AD ensemble Ensemble Score 21
- 22. Unsupervised AD methods output 𝑌𝑁×𝑛 = 22
- 24. Fitting the IRT model • Maximising the expectation • 𝐸 = 𝑁 𝑗(ln 𝛼𝑗 + ln |𝛾𝑗|) − 1/ 2 𝑖 𝑗 𝛼𝑗 2 𝛽𝑗 + 𝛾𝑗𝑧𝑖𝑗 − 𝜇𝑖 𝑡 2 +
- 25. Why does it work? • Ensemble scores 𝜃𝑖 = 𝑗 𝛼𝑗 2 (𝛽𝑗+𝛾𝑗𝑧𝑖𝑗) 𝑗 𝛼𝑗 2 𝜃𝑖 - ensemble score for the 𝑖𝑡ℎ observation 𝛼𝑗 - discrimination 𝛾𝑗 - scaling parameters for the 𝑗𝑡ℎ AD method 𝛽𝑗 - difficulty 𝑧𝑖𝑗 - anomaly score of the 𝑗𝑡ℎ AD method on the 𝑖𝑡ℎ observation 25
- 26. Why does it work? 𝜃𝑖 = 𝑗 𝛼𝑗 2 (𝛽𝑗+𝛾𝑗𝑧𝑖𝑗) 𝑗 𝛼𝑗 2 = 𝑗(𝑐𝑗 + 𝑤𝑗𝑧𝑖𝑗) • Ensemble scores are a weighted average of the original anomaly scores • The weights 𝑤𝑗 depend on the discrimination and scaling parameters of each anomaly detection method • AD Methods with higher discrimination get higher weights • Ensemble accentuates better methods and downplays noisy methods Each AD method has a weight 26
- 27. This work • R package – outlierensembles – on CRAN • Extends R package EstCRM for IRT • Includes other anomaly detection ensembles as well • More details on the paper https://arxiv.org/abs/2106.06243 27
- 28. We looked at an AD ensemble. Next, we dive into an application. 28
- 29. An application in computer network security Honeyboost: Boosting honeypot performance with data fusion and anomaly detection Sevvandi Kandanaarachchi, Hideya Ochiai (UTokyo), Asha Rao (RMIT) Expert Systems with Applications (2022) 29
- 30. LAN Security Monitoring Project • Between 12 ASEAN and SAARC countries • Boost cyber-resilience among partners • Countries in low economic conditions • Cost effective methods • Focus on Local Area Networks (LAN) Average Monthly Malware Encounter Rate, 2018 (Microsoft, Security Intelligence Report, 2019) About 10 nodes in Japan 3 nodes in Malaysia 1 node in Laos 6 nodes in Thailand 2 nodes in Myanmar 4 nodes in Indonesia 2 nodes in Cambodia 2 nodes in India 2 node in Philippines 4 nodes in Vietnam 30
- 31. LAN: Local Area Network LAN-Security Monitoring Device (honeypot) Smartphones Printer Smart Appliances Data Server Inside a Local Area Network (LAN) • Devices communicating with each other • Any suspicious behaviour? • Detect malware in action 31
- 32. The Data • Several protocol features • Features derived by looking at packet headers • Features specific to the protocol • Each protocol has a different number of features Timestamp From_Node F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 1553585825, '172.16.1.107', 80, 2, 64, 0, 2, 0, 0, 0, 0, 1, 1 1553585890, '172.16.1.107', 80, 2, 64, 0, 2, 0, 0, 0, 0, 1, 1 1553660565, '172.16.1.107', 80, 1, 64, 0, 1, 0, 0, 0, 0, 1, 1 1553660570, '172.16.1.107', 80, 1, 64, 0, 1, 0, 0, 0, 0, 0, 0 1553667575, '172.16.1.107', 80, 3, 64, 0, 3, 0, 0, 0, 0, 2, 2 1553667580, '172.16.1.107', 80, 1, 64, 0, 1, 0, 0, 0, 0, 0, 0 1553751195, '172.16.1.208', 80, 1, 64, 0, 1, 0, 0, 0, 0, 0, 0 Protocol 1 Timestamp From_Node G1 G2 G3 1554351595, '172.16.1.86', 3702, 2, 652 1554351595, '172.16.1.86', 137, 2, 78 1554351595, '172.16.1.86', 1900, 4, 146 1554351595, '172.16.1.86', 7, 1, 28 Protocol 2 32
- 33. Varying-dimensional time series • Sort by time, then by node • Different protocols have different features • Finding anomalies from varying-dimensional time series • 400 computers/nodes = 400 varying-dimensional time series • Which ones are anomalous? time 33
- 34. Varying- dimensional time series for each node multivariate time series Compute features The methodology • Using a window model • We know the real anomalous nodes and the times (they access something they shouldn’t - honeypot) AD method lookout 34
- 35. Varying- dimensional time series for each node multivariate time series Timestamp Protocol ARP count ARP degree TCP PC1 TCP PC2 UDP PC1 UDP PC2 30 ARP 10 12 0 0 0 0 55 TCP 0 0 -2.15 1.75 0 0 85 UDP 0 0 0 0 3.56 0.45 Node A 35
- 36. multivariate time series Compute features Timest amp Protoc ol ARP count ARP degree TCP PC1 TCP PC2 UDP PC1 UDP PC2 30 ARP 10 12 0 0 0 0 55 TCP 0 0 -2.15 1.75 0 0 85 UDP 0 0 0 0 3.56 0.45 Node A 𝑅17 MV time series for each node gets transformed to a point in 𝑅17 Feature space for all nodes 36
- 37. Features • The total length of line segments in 𝑅6 • The maximum time difference • Number of protocols used • Number of TCP calls/UDP calls • Total length of line segments in each protocol space • Line of best fit in in each protocol space • Sum of errors squared for the line of best fit TCP PC1 TCP PC2 37
- 38. AD method - lookout • lookout - work with Rob Hyndman. Published in JCGS (2021) • Uses Extreme Value Theory (EVT) to find anomalies • Applicability: Computer network traffic has heavy tails – EVT can handle that Feature space AD method lookout 38
- 39. Results • We identify real anomalies before they access the honeypot (they shouldn’t do that) • The nodes behave in an anomalous way before a “breach” is triggered • We can predict a breach using this method • Low false positives • Visualize anomalies develop • Discover patterns of suspicious behaviour 39
- 40. Thoughts ... • This was a classic data science problem • We were given the data and the problem context and asked to tackle it • How do you formulate the problem? • Many building blocks • Identifying anomalies and visualising them aids decision making • Bonus: open up a research avenue • Underlying general research problem, not application-specific 40
- 41. Another way to think about this problem • Model the network dynamics • Find suspicious behaviour in a network • Network dynamics not commonly used in cyber security • Public datasets do not facilitate that • Growth potential in this area • Tom Bernardi’s MSc project 41
- 43. Next challenges for the field • Networks • Anomalies/events in networks (computer networks) • Nuwan’s MSc Project on behavioural biometrics • Visualization of networks at different granularities • Dynamic networks – echo chambers – how they form • Event detection in spatiotemporal data • Applications in epidemiology • Can you identify a hotspot before it happens? • Ecology • Algorithm bias • Bias in data + bias in algorithm 43
- 44. Recap: ensembles to networks • Broad applicability in detecting interesting patterns in data • Applications in cyber security, wearable sensors, satellite data, social media • Core research problem ties back to statistics/maths • Need robust, highly accurate methodologies that can capture these patterns • Exciting field. Thrilled to be part of it! Stats & Maths This Photo by Unknown Author is licensed under CC BY-SA 44
- 46. Extra Slides 46
- 48. Continuous IRT model • Samejima, 1969 – Continuous Response Model • Wang and Zeng, 1998 – Procedure to compute item parameters using expectation maximization for Samejima’s model • Shojima, 2005 – Non-iterative item parameter solution in each EM cycle • Zopluoglu, 2015 – EstCRM R package implements Shojima’s 2005 model • Update the loglikelihood – to include negative discrimination items 48
- 50. Example with iterations Data in 𝑅6 - first 2 dimensions shown, others normally distributed Evaluation metric – Area under ROC Iteration 5 Iteration 10 50
- 51. Comparison on a data repository 51
- 53. LAN Security Monitoring • ‘LAN-Security Monitoring Device’ to capture suspicious/ malicious activities that happen inside a LAN. LAN: Local Area Network LAN-Security Monitoring Device Honeypot - a trap for attackers Smartphones Printer Smart Appliances Data Server 53
- 55. Findings • Suspicious nodes that do not access the honeypot Feature space for all nodes lookout This node does not access the honeypot This node does not access the honeypot 55
