DBMS Architecture, Query Processing and
Optimization
Christalin Nelson | SOCS
1 of 42
At a Glance
• DBMS Architecture
• Introduction to Query Processing
• Translating SQL Queries into Relational Algebra
• Algorithms for External Sorting
• Algorithms for SELECT and JOIN Operations
• Algorithms for PROJECT and Set Operations
• Implementing Aggregate Operations and OUTER JOIN
7-Apr-24
Christalin Nelson | SOCS
2 of 42
7-Apr-24
DBMS Instance (1/5)
• A single occurrence of a DBMS running on a server
– It includes the memory structures and processes necessary to manage the DB
– Multiple DBs can be managed by a single DBMS instance, each identified by a unique
name
• Serves as the runtime environment for
– Managing DB operations
– Providing essential services
– Maintaining the overall integrity & performance of DB system
Christalin Nelson | SOCS
3 of 42
7-Apr-24
DBMS Instance (2/5)
• Memory Allocation
– Allocates memory for various purposes
• For caching frequently accessed data, storing execution plans, maintaining connection
information, and managing internal structures like locks and latches
– Controlled by parameters specified during the DBMS instance startup or through
configuration settings
• Process Management
– Manage various processes
• Processes can be responsible for handling client requests, executing queries, managing
transactions, and performing administrative tasks
– Processes: Include listener processes, user processes, server processes, and
background processes
Christalin Nelson | SOCS
4 of 42
7-Apr-24
DBMS Instance (3/5)
• Session Management
– Track user sessions (represent connections established by clients to interact with DB)
– Involves: allocating resources to each session, maintaining session state, and enforcing
security and access controls
• Resource Management
– Oversee resource allocation & usage to ensure fair distribution & optimal performance
– Resources (such as CPU, memory, disk I/O, and network bandwidth) are managed to
prioritize critical tasks and prevent resource contention
Christalin Nelson | SOCS
5 of 42
7-Apr-24
DBMS Instance (4/5)
• Configuration and Parameter Settings
– Allows administrators to configure various settings and parameters to tailor the
system behavior according to specific requirements
– Configuration options: Includes memory allocation settings, parallel processing
degree, caching mechanisms, logging levels, and security policies
• Database Startup and Shutdown
– Control the startup and shutdown processes of the associated DBs
– During startup: Instance initializes data structures, allocates memory, opens DB files,
and starts background processes
– During shutdown: Instance ensures data integrity, flushes dirty pages to disk, releases
resources, and terminates active connections gracefully
Christalin Nelson | SOCS
6 of 42
7-Apr-24
DBMS Instance (5/5)
• Monitoring and Diagnostics
– Provides tools and utilities for monitoring system performance, diagnosing issues, and
troubleshooting errors
– Monitoring capabilities: Include real-time performance metrics, database activity logs,
system health checks, and alerting mechanisms
• High Availability and Failover
– Supports high availability configurations to ensure continuous availability of DBs in
case of hardware failures, software crashes, or network outages
– High availability features: Include clustering, replication, automated failover, and
disaster recovery solutions
Christalin Nelson | SOCS
7 of 42
7-Apr-24
DBMS Internal Memory Structure
• Components
– Buffer Pool: Stores data pages temporarily in memory, facilitating faster access to
frequently accessed data
– Data Cache: Stores frequently accessed data rows or indexes in memory to minimize
disk I/O
– Transaction Log Buffer: Stores transaction log records temporarily before writing them
to the transaction log file on disk
– Execution Stack: Stores information about currently executing transactions, queries, or
stored procedures
– Metadata Cache: Stores metadata information such as table structures, indexes, and
permissions for quick access
Christalin Nelson | SOCS
8 of 42
7-Apr-24
Background Processes
• Background processes are employed by DBMS to manage various tasks
• Tasks include
– Checkpoint Process: Writes modified data pages from buffer pool to disk periodically
to ensure data consistency and recovery
– Log Writer Process: Writes transaction log records from log buffer to transaction log
file on disk
– Archiver Process: Archives transaction log files to provide point-in-time recovery
– Lock Manager: Manages concurrency control by handling lock requests from
concurrent transactions
– Backup & Restore Processes: Handle DB backup and restoration tasks
Christalin Nelson | SOCS
9 of 42
7-Apr-24
Data Types
• DBMS supports various data types to represent different kinds of data
• Types
– Numeric: Integer, Floating Point, Decimal
– Character: Char, Varchar, Text
– Date and Time: Date, Time, Timestamp
– Binary: Blob, Binary Large Object
– Spatial: Geometry, Geography
Christalin Nelson | SOCS
10 of 42
7-Apr-24
Roles & Privileges
• DBMS provides mechanisms for managing access control through roles and
privileges
– Roles
• Predefined sets of privileges that can be assigned to users or groups of users.
– Privileges
• Permissions granted to users or roles to perform specific operations on database objects
such as tables, views, procedures, and sequences.
• Common privileges: SELECT, INSERT, UPDATE, DELETE, EXECUTE, CREATE, ALTER, and DROP
Christalin Nelson | SOCS
11 of 42
7-Apr-24
Introduction to Query Processing (1/3)
• A query is expressed in a high-level query language (such as SQL)
• DBMS uses special techniques internally to process, optimize, and execute high-
level queries
• Typical steps when processing a high-level query
– Scanner
• Identifies query tokens (i.e. SQL keywords, attribute names, and
relation names)
– Parser
• Checks the query syntax to determine whether it is formulated
according to syntax rules (rules of grammar) of query language.
– Validation
• Check that all attributes and relation names are valid and
semantically meaningful names in the schema of the particular
database being queried.
Christalin Nelson | SOCS
12 of 42
7-Apr-24
Introduction to Query Processing (2/3)
• Internal Representation of Query
– Query tree
– Query graph
• Query Optimization
– Process of choosing a suitable execution strategy (or Query plan) for Query processing
– 2 main Techniques employed
• (1) Order the operations in a Query execution strategy based on heuristic rules (The rules
typically reorder the operations in a Query tree)
– A heuristic works well in most cases but is not guaranteed to work well in every case
• (2) Systematically estimate the cost of different execution strategies and choose the
execution plan with the lowest cost estimate
• Code Generator
– Generates the code to execute that plan
Christalin Nelson | SOCS
13 of 42
7-Apr-24
Introduction to Query Processing (3/3)
• Runtime database processor
– Execute query code (compiled/interpreted mode) to produce query result
• Executed directly (interpreted mode)
• Stored and executed later whenever needed (compiled mode)
– Runtime error results in an error message
Christalin Nelson | SOCS
14 of 42
7-Apr-24
Translating SQL Queries (1/2)
• SQL Query  Query Blocks  Relational algebra exp. (Query Tree)  Optimized
• Query block
– The basic unit that can be translated into algebraic operators
– Can contain a single SELECT-FROM-WHERE expression
– Can include GROUP BY and HAVING clauses if these are part of the block
– Nested queries within a query  Identified as separate query blocks
– Aggregate operators (E.g. MAX, MIN, SUM, COUNT)  Included in extended algebra
Christalin Nelson | SOCS
15 of 42
Translating SQL Queries (2/2)
SELECT LNAME, FNAME
FROM EMPLOYEE
WHERE SALARY > (SELECT MAX (SALARY)
FROM EMPLOYEE
WHERE DNO = 5);
SELECT MAX (SALARY)
FROM EMPLOYEE
WHERE DNO = 5
SELECT LNAME, FNAME
FROM EMPLOYEE
WHERE SALARY > ??? (say X)
πLNAME, FNAME (σSALARY > X (EMPLOYEE))
SQL Query
Extended relational
algebra expression
2 Query Modules
7-Apr-24
Christalin Nelson | SOCS
ℱMAX SALARY (σDNO=5 (EMPLOYEE))
16 of 42
7-Apr-24
Algorithms for External Sorting (1/3)
• External sorting
– Sorting algorithms that are suitable for large files of records that do not fit entirely in
main memory and are stored on disk (E.g. most database files)
• Sort-Merge strategy
– Requires Buffer space in main memory (part of DBMS cache)
• Divided into individual buffers (each buffer can hold the contents of exactly one disk block)
– (1) Sorting Phase
• Read small subfiles (runs) of the main file into buffer  Sort using internal sort algorithm
 Write back to Disk as temporarily sorted subfiles
– (2) Merging Phase
• Merge sorted runs with one or more Merge passes
• The larger sorted subfiles are merged in turn
Christalin Nelson | SOCS
17 of 42
7-Apr-24
Algorithms for External Sorting (2/3)
• Number of Initial runs (nR)
– nR = ⌐(b/nB)¬
• Here, b – Size of Disk file (or) no. of file blocks, nB – no. of available main memory buffers
• Number of Merge passes (nP)
– nP = ⌐(logdM
(nR))¬
– Degree of merging (dM) = No. of sorted runs that can be merged per merge step = Min (nB-1, nR)
• Example:
– (Q) Size of disk file is 1024 file blocks. Number of main memory buffers available is 5. Find the
number of Initial Runs and Number of Merge passes
• nR = ceiling [1024/5] = 205 (i.e. 204 runs of size 5 blocks each & the last run of size 4 blocks)
• nP = ceiling[log4(205)] = 4
– 205  52 larger sorted subfiles  13  4  Final Sorted File
• Cost incurred
Christalin Nelson | SOCS
18 of 42
7-Apr-24 Christalin Nelson | SOCS
19 of 42
7-Apr-24
Algorithms for SELECT Operations (1/7)
• Implementing SELECT operation (Relational Algebra)
– Sample Operation taken for consideration
• (OP1): s SSN='123456789' (EMPLOYEE)
• (OP2): s DNUMBER>5(DEPARTMENT)
• (OP3): s DNO=5(EMPLOYEE)
• (OP4): s DNO=5 AND SALARY>30000 AND SEX=F(EMPLOYEE)
• (OP5): s ESSN=123456789 AND PNO=10(WORKS_ON)
Christalin Nelson | SOCS
20 of 42
7-Apr-24
Algorithms for SELECT Operations (2/7)
• Search Methods for simple Selection (1/3)
– S1. Linear search (brute force)
• Records are grouped into disk blocks  Copy DB to MM buffer  Search records inside
disk block (i.e Test whether its attribute values satisfy the selection condition)
– S2. Binary search
• Selection condition involves an equality comparison on a key attribute on which the file is
ordered.
– Example: SSN is the ordering attribute in s SSN='123456789' (EMPLOYEE)
– S3. Using a primary index (or) hash key to retrieve a single record
• If the selection condition involves an equality comparison on a key attribute with a primary
index (or a hash key), use the primary index (or the hash key) to retrieve the record.
– Example: s SSN='123456789' (EMPLOYEE)
Christalin Nelson | SOCS
21 of 42
7-Apr-24
Algorithms for SELECT Operations (3/7)
• Search Methods for simple Selection (2/3)
– S3. Using a primary index (or) hash key to retrieve a single record
• If the selection condition involves an equality comparison on a key attribute with a primary
index (or a hash key), use the primary index (or the hash key) to retrieve the record.
– Example: s SSN='123456789' (EMPLOYEE)
– S4. Using a primary index to retrieve multiple records
• If the comparison condition is >, ≥, <, or ≤ on a key attribute with a primary index, use the
index to find the record satisfying the corresponding equality condition, then retrieve all
subsequent records in the (ordered) file.
– S5. Using a clustering index to retrieve multiple records
• If the selection condition involves an equality comparison on a non-key attribute with a
clustering index, use the clustering index to retrieve all the records satisfying the selection
condition.
– Example: s DNO=5(EMPLOYEE)
Christalin Nelson | SOCS
22 of 42
7-Apr-24
Algorithms for SELECT Operations (4/7)
• Search Methods for Simple Selection (3/3)
– S6. Using a secondary (B+ tree) index on an equality comparison
• Retrieve a single record if the indexing field is a key
(Or)
Retrieve multiple records if the indexing field is not a key
• Retrieve records on conditions involving >,>=, <, or <= (for range queries)
– A Search operation can be
• File scan (S1, S2)
• Index scan (S3a, S4, S5, and S6)
• S4 & S6 applies to Range Queries
Christalin Nelson | SOCS
23 of 42
7-Apr-24
Algorithms for SELECT Operations (5/7)
• Search Methods for Complex Selection (1/2)
– Conjunctive selection?
• Contains many simple select conditions connected with AND.
• E.g. s DNO=5 AND SALARY>30000 AND SEX=F(EMPLOYEE)
– S7. Conjunctive selection using an individual index
• If an attribute involved in any single simple condition in the conjunctive condition has an access
path that permits the use of one of the methods S2 to S6: (1) Use that condition to retrieve the
records  (2) Check whether each retrieved record satisfies the remaining simple conditions in
the conjunctive condition.
– Example: s DNO=5 AND SALARY>30000 AND SEX=F(EMPLOYEE)
– S8. Conjunctive selection using a composite index
• If two or more attributes are involved in equality conditions in the conjunctive condition & a
composite index (or hash) exists on the combined field, we can use the index directly.
– Example: If an index has been created on the composite key (Essn, Pno) of WORKS_ON table  Use
the index directly
» s ESSN=123456789 AND PNO=10(WORKS_ON)
Christalin Nelson | SOCS
24 of 42
7-Apr-24

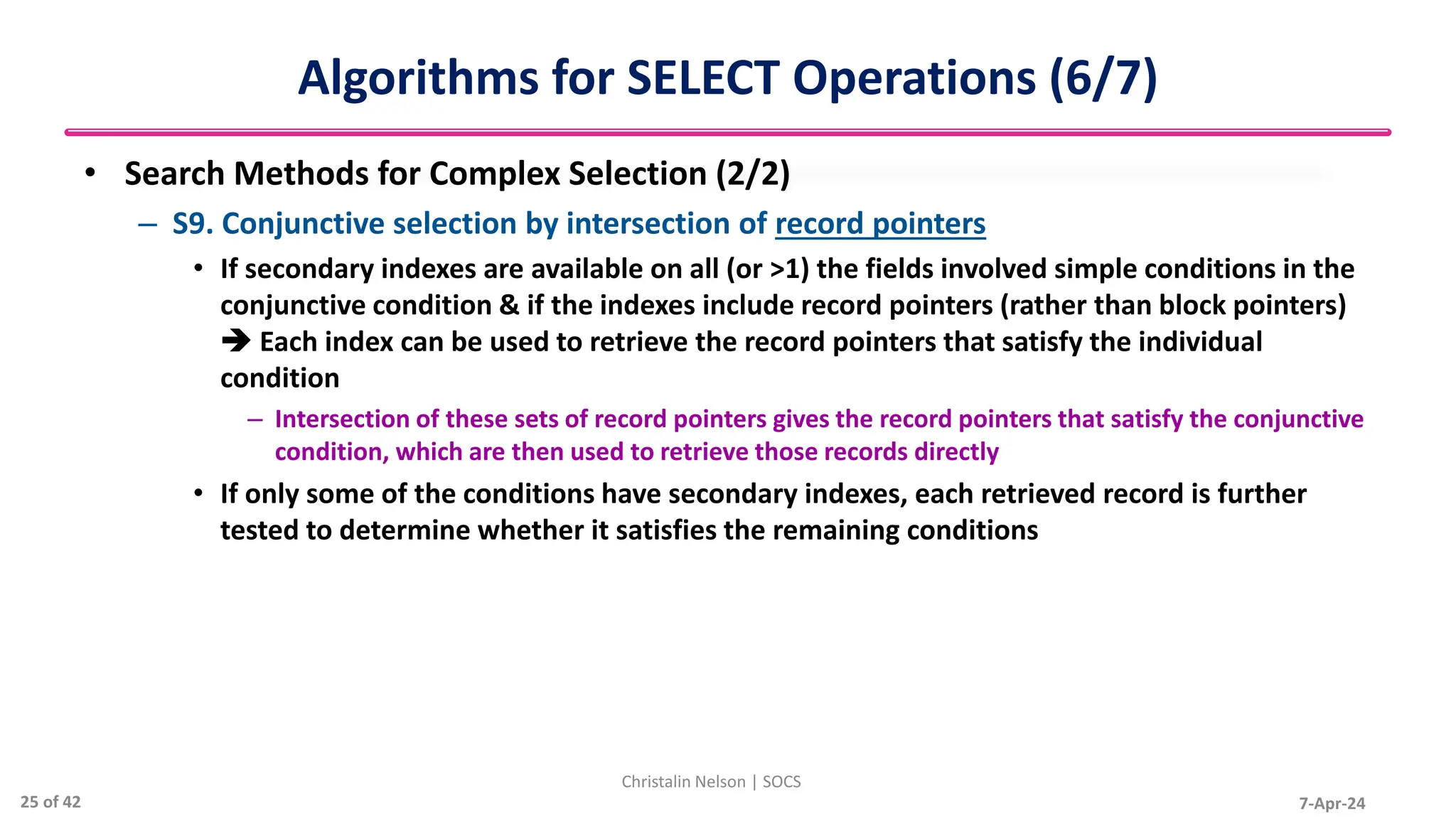

Algorithms for SELECT Operations (6/7)
• Search Methods for Complex Selection (2/2)
– S9. Conjunctive selection by intersection of record pointers
• If secondary indexes are available on all (or >1) the fields involved simple conditions in the
conjunctive condition & if the indexes include record pointers (rather than block pointers)
 Each index can be used to retrieve the record pointers that satisfy the individual
condition
– Intersection of these sets of record pointers gives the record pointers that satisfy the conjunctive
condition, which are then used to retrieve those records directly
• If only some of the conditions have secondary indexes, each retrieved record is further
tested to determine whether it satisfies the remaining conditions
Christalin Nelson | SOCS
25 of 42
7-Apr-24
Algorithms for SELECT Operations (7/7)
• Search Methods
– Whenever a single condition specifies the selection, we can only check whether an
access path exists on the attribute involved in that condition. If an access path exists,
the method corresponding to that access path is used; otherwise, the “brute force”
linear search approach of method S1 is used. (OP1, OP2 and OP3)
– For conjunctive selection conditions, whenever more than one of the attributes
involved in the conditions has an access path, query optimization should be done to
choose the access path that retrieves the fewest records most efficiently.
– Disjunctive selection conditions (Uses OR)
Christalin Nelson | SOCS
26 of 42
7-Apr-24
Algorithms on Join Operations (1/8)
• Join (EQUIJOIN, NATURAL JOIN)
– Two-way join: Join on 2 files
• e.g. R A=B S
– Multi-way joins: Joins involving >2 files
• e.g. R A=B S C=D T
– Examples
• (OP6): EMPLOYEE DNO=DNUMBER DEPARTMENT
• (OP7): DEPARTMENT MGRSSN=SSN EMPLOYEE
• Factors affecting JOIN performance
– Available buffer space
– Join selection factor
– Choice of inner VS outer relation
Christalin Nelson | SOCS
27 of 42
7-Apr-24

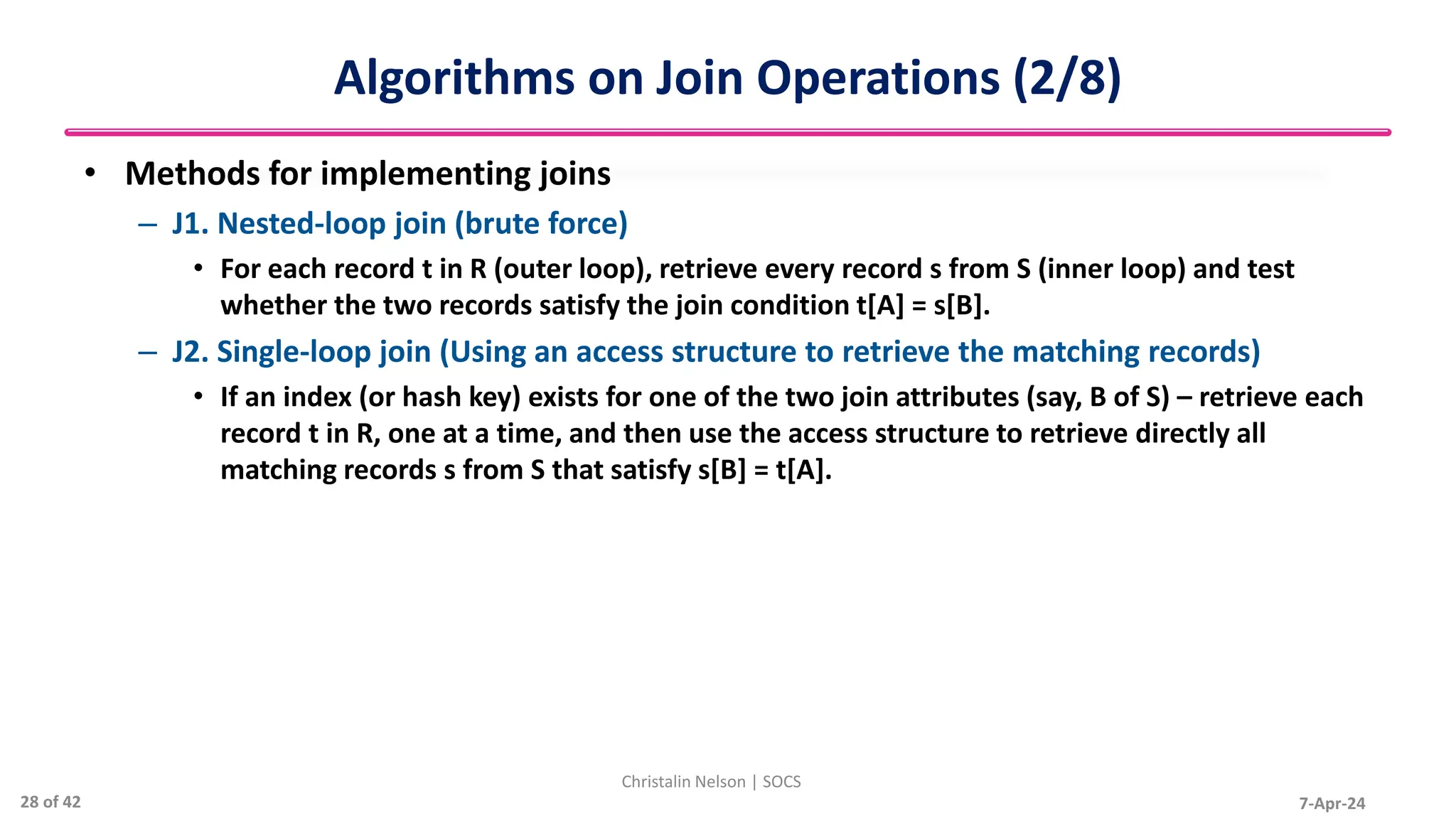

Algorithms on Join Operations (2/8)
• Methods for implementing joins
– J1. Nested-loop join (brute force)
• For each record t in R (outer loop), retrieve every record s from S (inner loop) and test
whether the two records satisfy the join condition t[A] = s[B].
– J2. Single-loop join (Using an access structure to retrieve the matching records)
• If an index (or hash key) exists for one of the two join attributes (say, B of S) – retrieve each
record t in R, one at a time, and then use the access structure to retrieve directly all
matching records s from S that satisfy s[B] = t[A].
Christalin Nelson | SOCS
28 of 42
7-Apr-24

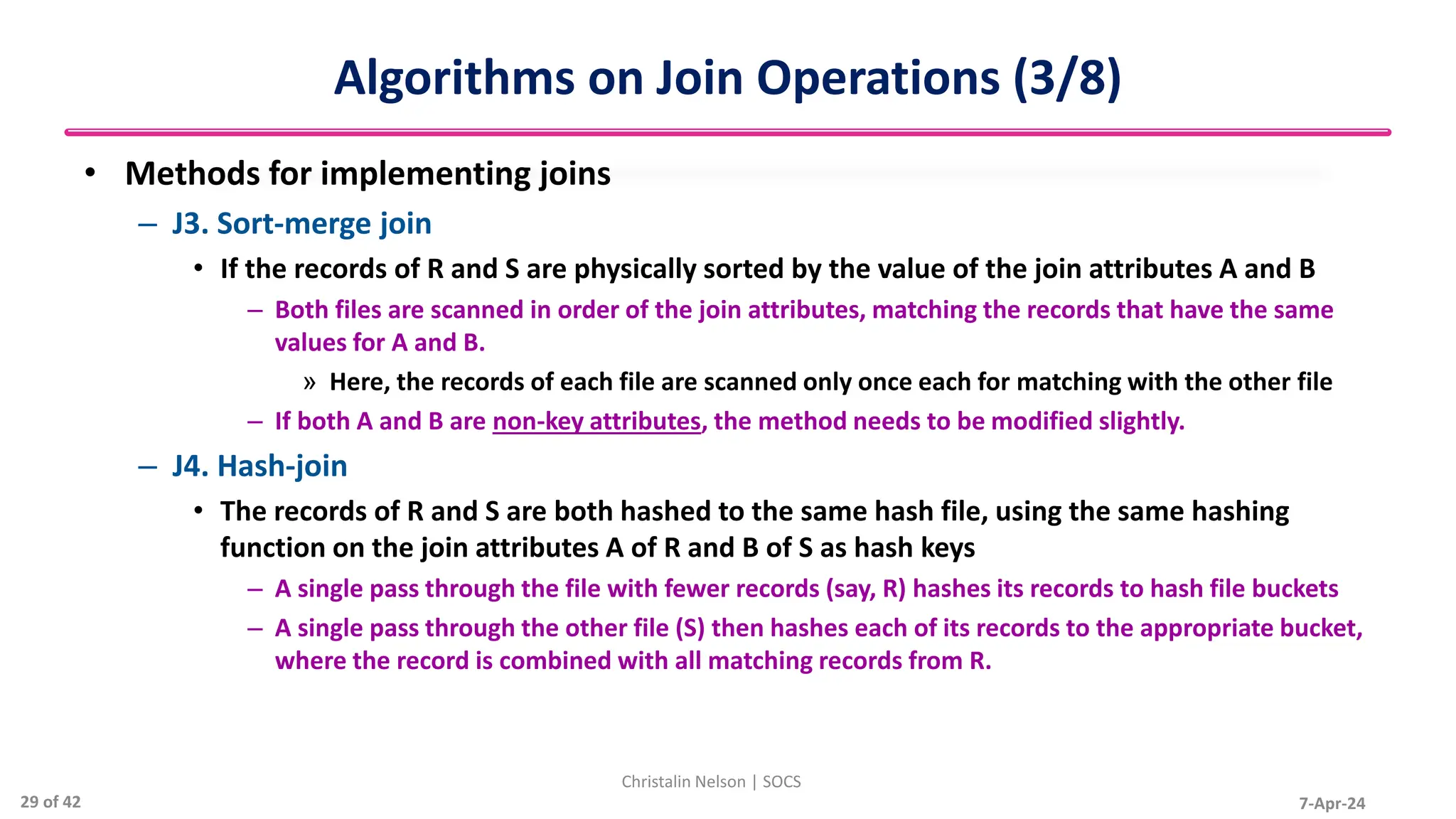

Algorithms on Join Operations (3/8)
• Methods for implementing joins
– J3. Sort-merge join
• If the records of R and S are physically sorted by the value of the join attributes A and B
– Both files are scanned in order of the join attributes, matching the records that have the same
values for A and B.
» Here, the records of each file are scanned only once each for matching with the other file
– If both A and B are non-key attributes, the method needs to be modified slightly.
– J4. Hash-join
• The records of R and S are both hashed to the same hash file, using the same hashing
function on the join attributes A of R and B of S as hash keys
– A single pass through the file with fewer records (say, R) hashes its records to hash file buckets
– A single pass through the other file (S) then hashes each of its records to the appropriate bucket,
where the record is combined with all matching records from R.
Christalin Nelson | SOCS
29 of 42
7-Apr-24
Algorithms on Join Operations (4/8)
Christalin Nelson | SOCS
30 of 42
7-Apr-24
Algorithms on Join Operations (5/8)
Christalin Nelson | SOCS
31 of 42
7-Apr-24
Algorithms on Join Operations (6/8)
• Partition hash join (1/2)
– Partitioning phase
• Each file (R and S) is first partitioned into M partitions using a partitioning hash function on
the join attributes: R1, R2, R3, ...... Rm and S1, S2, S3, ...... Sm
• Min. In-memory buffers needed: M+1
• A disk sub-file is created per partition to store the tuples for that partition.
– Joining (or) Probing phase
• Involves M iterations (one per partitioned file)
• Iteration ‘i’ involves joining partitions Ri and Si
Christalin Nelson | SOCS
32 of 42
7-Apr-24

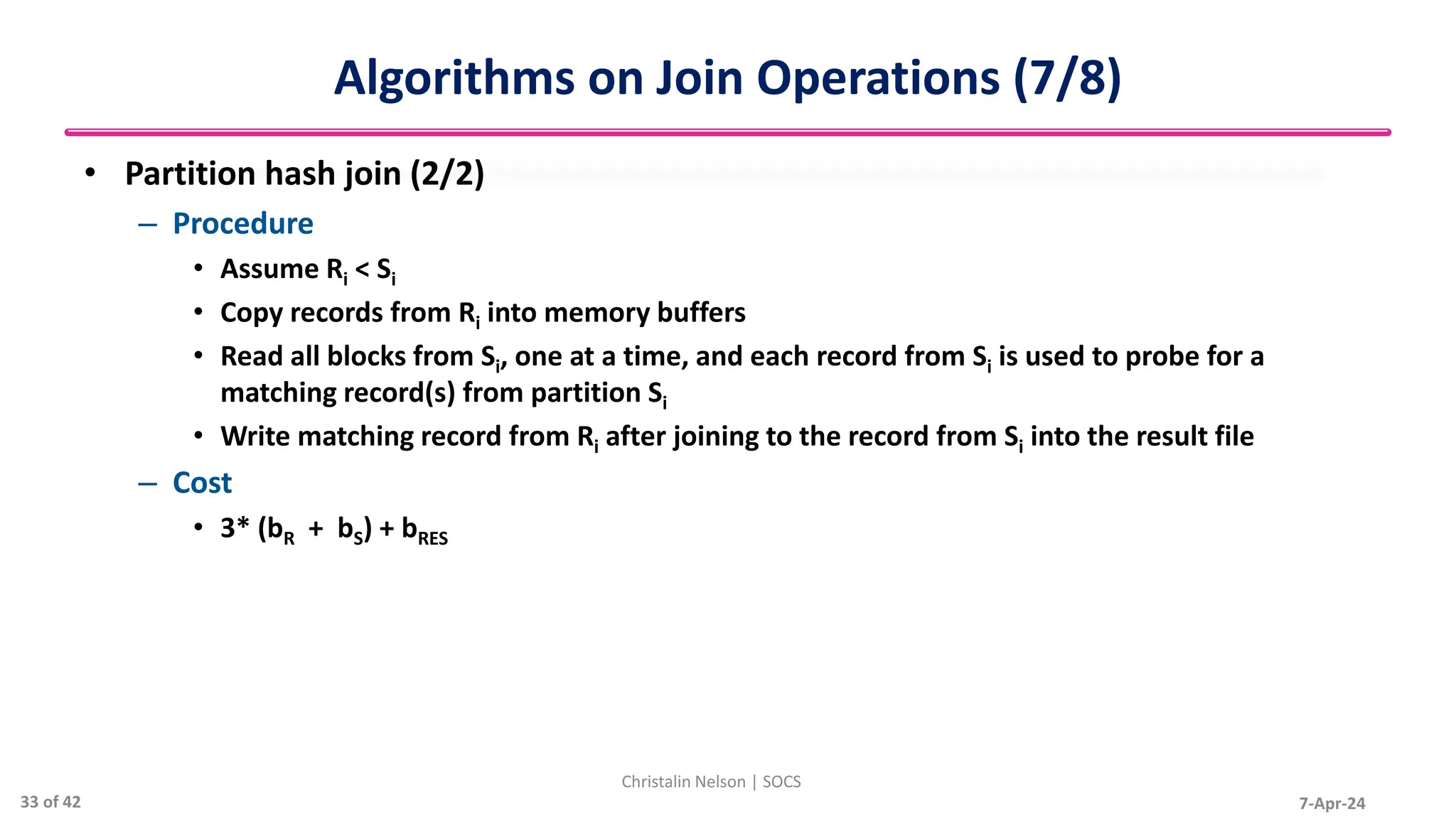

Algorithms on Join Operations (7/8)
• Partition hash join (2/2)
– Procedure
• Assume Ri < Si
• Copy records from Ri into memory buffers
• Read all blocks from Si, one at a time, and each record from Si is used to probe for a
matching record(s) from partition Si
• Write matching record from Ri after joining to the record from Si into the result file
– Cost
• 3* (bR + bS) + bRES
Christalin Nelson | SOCS
33 of 42
7-Apr-24
Algorithms on Join Operations (8/8)
• Hybrid Hash join
– Same as a Partition Hash join except the following
• Difference: Joining phase of one of the partitions is included during the partitioning phase
– Partitioning phase
• Allocate buffers for smaller relation (one block for each of the M-1 partitions, remaining
blocks to partition 1)
• Repeat for the larger relation in the pass-through S
– Joining phase
• M-1 iterations are needed for the partitions R2, R3, R4 , ......Rm and S2, S3, S4, ......Sm
• R1 and S1 are joined during the partitioning of S1, and results of joining R1 and S1 are
already written to the disk by the end of the partitioning phase
Christalin Nelson | SOCS
34 of 42
7-Apr-24
Algorithm for Project Operations
• <attribute list>(R)
– If <attribute list> has a key of relation R, extract all tuples from R with only the values
for the attributes in <attribute list>
– If <attribute list> does NOT include a key of relation R, duplicated tuples must be
removed from the results
• Methods to remove duplicate tuples
– Sorting
– Hashing
Christalin Nelson | SOCS
35 of 42
7-Apr-24
Algorithm for Set Operation (1/2)
• Set operations
– CARTESIAN PRODUCT, UNION, INTERSECTION, SET DIFFERENCE
• CARTESIAN PRODUCT of relations R and S
– Includes all possible combinations of records from R and S. The attribute of the result
includes all attributes of R and S.
– Cost analysis
• If R has n records and j attributes & S has m records and k attributes, the result relation will
have n*m records and j+k attributes.
• CARTESIAN PRODUCT operation is very expensive and should be avoided if possible
Christalin Nelson | SOCS
36 of 42
7-Apr-24

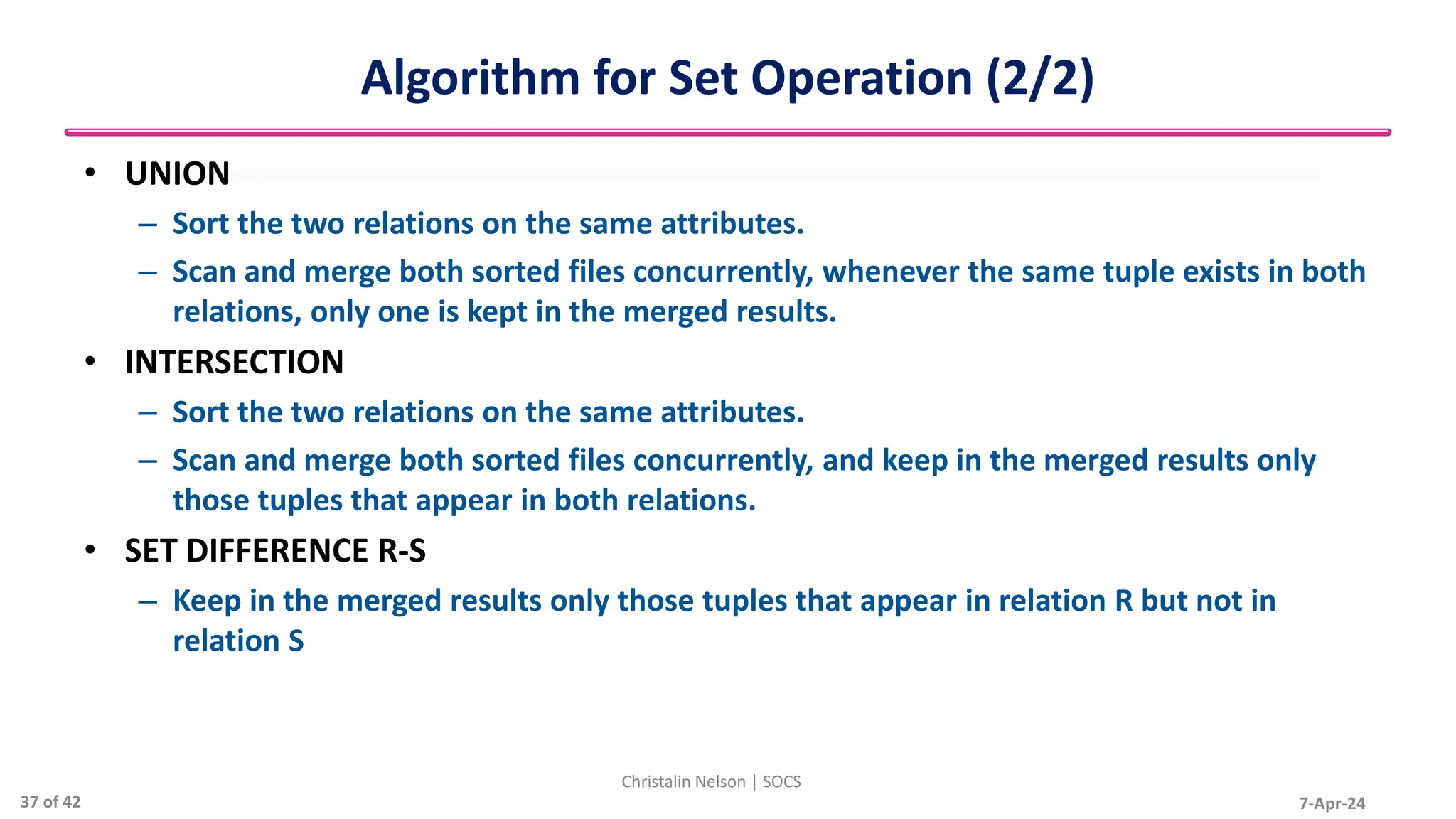

Algorithm for Set Operation (2/2)
• UNION
– Sort the two relations on the same attributes.
– Scan and merge both sorted files concurrently, whenever the same tuple exists in both
relations, only one is kept in the merged results.
• INTERSECTION
– Sort the two relations on the same attributes.
– Scan and merge both sorted files concurrently, and keep in the merged results only
those tuples that appear in both relations.
• SET DIFFERENCE R-S
– Keep in the merged results only those tuples that appear in relation R but not in
relation S
Christalin Nelson | SOCS
37 of 42
7-Apr-24

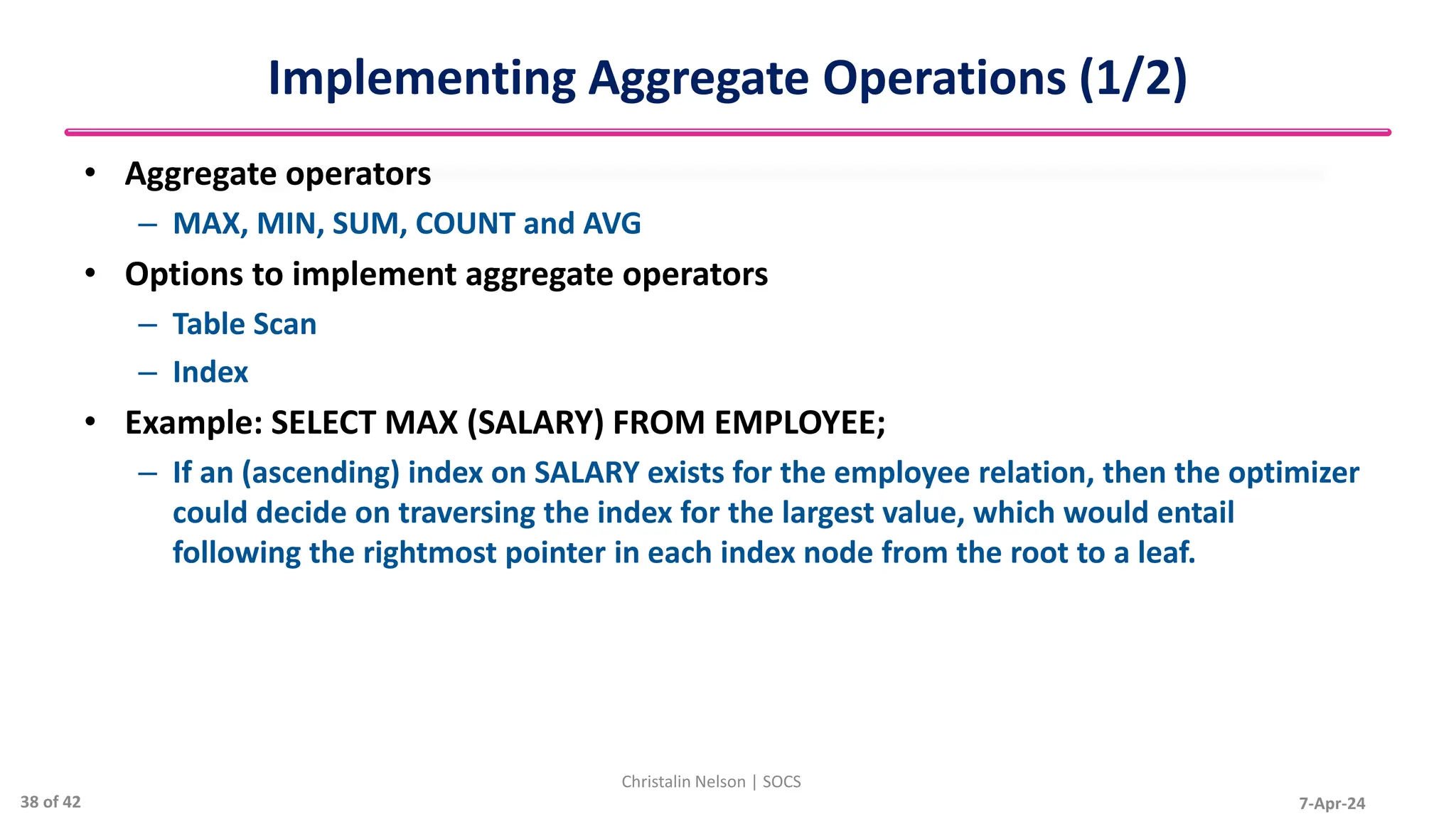

Implementing Aggregate Operations (1/2)
• Aggregate operators
– MAX, MIN, SUM, COUNT and AVG
• Options to implement aggregate operators
– Table Scan
– Index
• Example: SELECT MAX (SALARY) FROM EMPLOYEE;
– If an (ascending) index on SALARY exists for the employee relation, then the optimizer
could decide on traversing the index for the largest value, which would entail
following the rightmost pointer in each index node from the root to a leaf.
Christalin Nelson | SOCS
38 of 42
7-Apr-24
Implementing Aggregate Operations (2/2)
• SUM, COUNT and AVG
– For a dense index (each record has one index entry)
• Apply the associated computation to the values in the index.
– For a non-dense index (actual no. of records associated with each index entry must be
accounted for)
• With GROUP BY
– The aggregate operator must be applied separately to each group of tuples
• Use sorting or hashing on group attributes to partition the file into the appropriate groups
• Computes the aggregate function for the tuples in each group.
Christalin Nelson | SOCS
39 of 42
7-Apr-24
Implementing Outer Joins (1/2)
• Outer Join Operators
– FULL OUTER JOIN, LEFT OUTER JOIN, and RIGHT OUTER JOIN
• Full outer join
– Result: Equivalent to Union of results of the left and right outer joins.
– Example
• SELECT FNAME, DNAME FROM (EMPLOYEE LEFT OUTER JOIN DEPARTMENT ON DNO =
DNUMBER);
– Note: The result of this query is a table of employee names and their associated departments.
» It is similar to a regular join result, with the exception that if an employee does not have an
associated department, the employee's name will still appear in the resulting table,
although the department name would be indicated as null.
Christalin Nelson | SOCS
40 of 42
7-Apr-24
Implementing Outer Joins (2/2)
• Modifying Join Algorithms
– Nested Loop or Sort-Merge joins can be modified to implement Outer Join
• E.g. for Left outer join, use the left relation as the outer relation and constructs result from
every tuple in the left relation.
– If there is a match, the concatenated tuple is saved in the result
– However, if an outer tuple does not match, then the tuple is still included in the result but is
padded with a null value(s)
Christalin Nelson | SOCS
41 of 42
Thank You
Christalin Nelson | SOCS
42 of 42 7-Apr-24

More Related Content

What's hot

Overview of Databases and Data Modelling-1.pdf
Overview of Databases and Data Modelling-1.pdfOverview of Databases and Data Modelling-1.pdf
Overview of Databases and Data Modelling-1.pdfChristalin Nelson

File organization (part 1)
File organization (part 1)File organization (part 1)
File organization (part 1)SURBHI SAROHA

Understanding oracle rac internals part 2 - slides
Understanding oracle rac internals   part 2 - slidesUnderstanding oracle rac internals   part 2 - slides
Understanding oracle rac internals part 2 - slidesMohamed Farouk

Concurrency Management
Concurrency ManagementConcurrency Management
Concurrency ManagementSURBHI SAROHA

File Structures(Part 2)
File Structures(Part 2)File Structures(Part 2)
File Structures(Part 2)SURBHI SAROHA

Raid (Redundant Array of Inexpensive Disks) in Computer Architecture
Raid (Redundant Array of Inexpensive Disks) in Computer ArchitectureRaid (Redundant Array of Inexpensive Disks) in Computer Architecture
Raid (Redundant Array of Inexpensive Disks) in Computer ArchitectureAiman Hafeez

My First 100 days with an Exadata (PPT)
My First 100 days with an Exadata (PPT)My First 100 days with an Exadata (PPT)
My First 100 days with an Exadata (PPT)Gustavo Rene Antunez

Oracle Database Performance Tuning Advanced Features and Best Practices for DBAs
Oracle Database Performance Tuning Advanced Features and Best Practices for DBAsOracle Database Performance Tuning Advanced Features and Best Practices for DBAs
Oracle Database Performance Tuning Advanced Features and Best Practices for DBAsZohar Elkayam

Reducing Your E-Business Suite Storage Footprint Using Oracle Advanced Compre...
Reducing Your E-Business Suite Storage Footprint Using Oracle Advanced Compre...Reducing Your E-Business Suite Storage Footprint Using Oracle Advanced Compre...
Reducing Your E-Business Suite Storage Footprint Using Oracle Advanced Compre...Andrejs Karpovs

My Experience Using Oracle SQL Plan Baselines 11g/12c
My Experience Using Oracle SQL Plan Baselines 11g/12cMy Experience Using Oracle SQL Plan Baselines 11g/12c
My Experience Using Oracle SQL Plan Baselines 11g/12cNelson Calero

Oracle DB Performance Tuning Tips
Oracle DB Performance Tuning TipsOracle DB Performance Tuning Tips
Oracle DB Performance Tuning TipsAsanka Dilruk

Understanding my database through SQL*Plus using the free tool eDB360
Understanding my database through SQL*Plus using the free tool eDB360Understanding my database through SQL*Plus using the free tool eDB360
Understanding my database through SQL*Plus using the free tool eDB360Carlos Sierra


What's hot (20)

Overview of Databases and Data Modelling-1.pdf
Overview of Databases and Data Modelling-1.pdfOverview of Databases and Data Modelling-1.pdf
Overview of Databases and Data Modelling-1.pdf

Sql commands
Sql commandsSql commands
Sql commands

Database overview
Database overviewDatabase overview
Database overview

Storage system architecture
Storage system architectureStorage system architecture
Storage system architecture

Deadlocks
DeadlocksDeadlocks
Deadlocks

File organization (part 1)
File organization (part 1)File organization (part 1)
File organization (part 1)

Understanding oracle rac internals part 2 - slides
Understanding oracle rac internals   part 2 - slidesUnderstanding oracle rac internals   part 2 - slides
Understanding oracle rac internals part 2 - slides

Process Synchronization
Process SynchronizationProcess Synchronization
Process Synchronization

Process Management
Process ManagementProcess Management
Process Management

Concurrency Management
Concurrency ManagementConcurrency Management
Concurrency Management

File Structures(Part 2)
File Structures(Part 2)File Structures(Part 2)
File Structures(Part 2)

Raid (Redundant Array of Inexpensive Disks) in Computer Architecture
Raid (Redundant Array of Inexpensive Disks) in Computer ArchitectureRaid (Redundant Array of Inexpensive Disks) in Computer Architecture
Raid (Redundant Array of Inexpensive Disks) in Computer Architecture

DB2 utilities
DB2 utilitiesDB2 utilities
DB2 utilities

My First 100 days with an Exadata (PPT)
My First 100 days with an Exadata (PPT)My First 100 days with an Exadata (PPT)
My First 100 days with an Exadata (PPT)

DB2 on Mainframe
DB2 on MainframeDB2 on Mainframe
DB2 on Mainframe

Oracle Database Performance Tuning Advanced Features and Best Practices for DBAs
Oracle Database Performance Tuning Advanced Features and Best Practices for DBAsOracle Database Performance Tuning Advanced Features and Best Practices for DBAs
Oracle Database Performance Tuning Advanced Features and Best Practices for DBAs

Reducing Your E-Business Suite Storage Footprint Using Oracle Advanced Compre...
Reducing Your E-Business Suite Storage Footprint Using Oracle Advanced Compre...Reducing Your E-Business Suite Storage Footprint Using Oracle Advanced Compre...
Reducing Your E-Business Suite Storage Footprint Using Oracle Advanced Compre...

My Experience Using Oracle SQL Plan Baselines 11g/12c
My Experience Using Oracle SQL Plan Baselines 11g/12cMy Experience Using Oracle SQL Plan Baselines 11g/12c
My Experience Using Oracle SQL Plan Baselines 11g/12c

Oracle DB Performance Tuning Tips
Oracle DB Performance Tuning TipsOracle DB Performance Tuning Tips
Oracle DB Performance Tuning Tips

Understanding my database through SQL*Plus using the free tool eDB360
Understanding my database through SQL*Plus using the free tool eDB360Understanding my database through SQL*Plus using the free tool eDB360
Understanding my database through SQL*Plus using the free tool eDB360


Similar to DBMSArchitecture_QueryProcessingandOptimization.pdf

Database performance tuning and query optimization
Database performance tuning and query optimizationDatabase performance tuning and query optimization
Database performance tuning and query optimizationDhani Ahmad

Presentation cloud control enterprise manager 12c
Presentation   cloud control enterprise manager 12cPresentation   cloud control enterprise manager 12c
Presentation cloud control enterprise manager 12cxKinAnx

Database Systems Design, Implementation, and Management
Database Systems Design, Implementation, and ManagementDatabase Systems Design, Implementation, and Management
Database Systems Design, Implementation, and ManagementOllieShoresna

Database management systems components
Database management systems componentsDatabase management systems components
Database management systems componentsmuhammad bilal

Adbms 37 query optimisation
Adbms 37 query optimisationAdbms 37 query optimisation
Adbms 37 query optimisationVaibhav Khanna

Performance Tuning And Optimization Microsoft SQL Database
Performance Tuning And Optimization Microsoft SQL DatabasePerformance Tuning And Optimization Microsoft SQL Database
Performance Tuning And Optimization Microsoft SQL DatabaseTung Nguyen Thanh

Taking Splunk to the Next Level - Architecture Breakout Session
Taking Splunk to the Next Level - Architecture Breakout SessionTaking Splunk to the Next Level - Architecture Breakout Session
Taking Splunk to the Next Level - Architecture Breakout SessionSplunk

Oracle Database Introduction
Oracle Database IntroductionOracle Database Introduction
Oracle Database IntroductionChhom Karath

Student projects with open source CSQL
Student projects with open source CSQLStudent projects with open source CSQL
Student projects with open source CSQLPrabakaran Thirumalai

RMAN in 12c: The Next Generation (PPT)
RMAN in 12c: The Next Generation (PPT)RMAN in 12c: The Next Generation (PPT)
RMAN in 12c: The Next Generation (PPT)Gustavo Rene Antunez

Dynamics ax performance tuning
Dynamics ax performance tuningDynamics ax performance tuning
Dynamics ax performance tuningOutsourceAX

Database management system lecture notes
Database management system lecture notesDatabase management system lecture notes
Database management system lecture notesUTSAHSINGH2

Best storage engine for MySQL
Best storage engine for MySQLBest storage engine for MySQL
Best storage engine for MySQLtomflemingh2

MemSQL 201: Advanced Tips and Tricks Webcast
MemSQL 201: Advanced Tips and Tricks WebcastMemSQL 201: Advanced Tips and Tricks Webcast
MemSQL 201: Advanced Tips and Tricks WebcastSingleStore

DBA 101 : Calling all New Database Administrators (PPT)
DBA 101 : Calling all New Database Administrators (PPT)DBA 101 : Calling all New Database Administrators (PPT)
DBA 101 : Calling all New Database Administrators (PPT)Gustavo Rene Antunez


Similar to DBMSArchitecture_QueryProcessingandOptimization.pdf (20)

Chapter 11new
Chapter 11newChapter 11new
Chapter 11new

Database performance tuning and query optimization
Database performance tuning and query optimizationDatabase performance tuning and query optimization
Database performance tuning and query optimization

Rdbms
RdbmsRdbms
Rdbms

Oracle DBA
Oracle DBAOracle DBA
Oracle DBA

Presentation cloud control enterprise manager 12c
Presentation   cloud control enterprise manager 12cPresentation   cloud control enterprise manager 12c
Presentation cloud control enterprise manager 12c

Database Systems Design, Implementation, and Management
Database Systems Design, Implementation, and ManagementDatabase Systems Design, Implementation, and Management
Database Systems Design, Implementation, and Management

Database management systems components
Database management systems componentsDatabase management systems components
Database management systems components

Adbms 37 query optimisation
Adbms 37 query optimisationAdbms 37 query optimisation
Adbms 37 query optimisation

Performance Tuning And Optimization Microsoft SQL Database
Performance Tuning And Optimization Microsoft SQL DatabasePerformance Tuning And Optimization Microsoft SQL Database
Performance Tuning And Optimization Microsoft SQL Database

Taking Splunk to the Next Level - Architecture Breakout Session
Taking Splunk to the Next Level - Architecture Breakout SessionTaking Splunk to the Next Level - Architecture Breakout Session
Taking Splunk to the Next Level - Architecture Breakout Session

Oracle Database Introduction
Oracle Database IntroductionOracle Database Introduction
Oracle Database Introduction

Student projects with open source CSQL
Student projects with open source CSQLStudent projects with open source CSQL
Student projects with open source CSQL

RMAN in 12c: The Next Generation (PPT)
RMAN in 12c: The Next Generation (PPT)RMAN in 12c: The Next Generation (PPT)
RMAN in 12c: The Next Generation (PPT)

Dynamics ax performance tuning
Dynamics ax performance tuningDynamics ax performance tuning
Dynamics ax performance tuning

Database management system lecture notes
Database management system lecture notesDatabase management system lecture notes
Database management system lecture notes

Best storage engine for MySQL
Best storage engine for MySQLBest storage engine for MySQL
Best storage engine for MySQL

MemSQL 201: Advanced Tips and Tricks Webcast
MemSQL 201: Advanced Tips and Tricks WebcastMemSQL 201: Advanced Tips and Tricks Webcast
MemSQL 201: Advanced Tips and Tricks Webcast

Os
OsOs
Os

DBA 101 : Calling all New Database Administrators (PPT)
DBA 101 : Calling all New Database Administrators (PPT)DBA 101 : Calling all New Database Administrators (PPT)
DBA 101 : Calling all New Database Administrators (PPT)

Oracle 10g Introduction 1
Oracle 10g Introduction 1Oracle 10g Introduction 1
Oracle 10g Introduction 1


More from Christalin Nelson

More from Christalin Nelson (15)

Packages and Subpackages in Java
Packages and Subpackages in JavaPackages and Subpackages in Java
Packages and Subpackages in Java

Bitwise complement operator
Bitwise complement operatorBitwise complement operator
Bitwise complement operator

Advanced Data Structures - Vol.2
Advanced Data Structures - Vol.2Advanced Data Structures - Vol.2
Advanced Data Structures - Vol.2

CPU Scheduling
CPU SchedulingCPU Scheduling
CPU Scheduling

Applications of Stack
Applications of StackApplications of Stack
Applications of Stack

Data Storage and Information Management
Data Storage and Information ManagementData Storage and Information Management
Data Storage and Information Management

Application Middleware Overview
Application Middleware OverviewApplication Middleware Overview
Application Middleware Overview

Network security
Network securityNetwork security
Network security

Directory services
Directory servicesDirectory services
Directory services

System overview
System overviewSystem overview
System overview

Storage overview
Storage overviewStorage overview
Storage overview

Computer Fundamentals-2
Computer Fundamentals-2Computer Fundamentals-2
Computer Fundamentals-2

Computer Fundamentals - 1
Computer Fundamentals - 1Computer Fundamentals - 1
Computer Fundamentals - 1

Advanced data structures vol. 1
Advanced data structures   vol. 1Advanced data structures   vol. 1
Advanced data structures vol. 1

Programming in c++
Programming in c++Programming in c++
Programming in c++


Recently uploaded

Dementia (Alzheimer & vasular dementia).
Dementia (Alzheimer & vasular dementia).Dementia (Alzheimer & vasular dementia).
Dementia (Alzheimer & vasular dementia).Mohamed Rizk Khodair

philosophy and it's principles based on the life
philosophy and it's principles based on the lifephilosophy and it's principles based on the life
philosophy and it's principles based on the lifeNitinDeodare

Spring gala 2024 photo slideshow - Celebrating School-Community Partnerships
Spring gala 2024 photo slideshow - Celebrating School-Community PartnershipsSpring gala 2024 photo slideshow - Celebrating School-Community Partnerships
Spring gala 2024 photo slideshow - Celebrating School-Community Partnershipsexpandedwebsite

How to Manage Closest Location in Odoo 17 Inventory
How to Manage Closest Location in Odoo 17 InventoryHow to Manage Closest Location in Odoo 17 Inventory
How to Manage Closest Location in Odoo 17 InventoryCeline George

e-Sealing at EADTU by Kamakshi Rajagopal
e-Sealing at EADTU by Kamakshi Rajagopale-Sealing at EADTU by Kamakshi Rajagopal
e-Sealing at EADTU by Kamakshi RajagopalEADTU

diagnosting testing bsc 2nd sem.pptx....
diagnosting testing bsc 2nd sem.pptx....diagnosting testing bsc 2nd sem.pptx....
diagnosting testing bsc 2nd sem.pptx....Ritu480198

TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...
TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...
TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...Nguyen Thanh Tu Collection

24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...
24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...
24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...Nguyen Thanh Tu Collection

The Liver & Gallbladder (Anatomy & Physiology).pptx
The Liver &  Gallbladder (Anatomy & Physiology).pptxThe Liver &  Gallbladder (Anatomy & Physiology).pptx
The Liver & Gallbladder (Anatomy & Physiology).pptxVishal Singh

MOOD STABLIZERS DRUGS.pptx
MOOD     STABLIZERS           DRUGS.pptxMOOD     STABLIZERS           DRUGS.pptx
MOOD STABLIZERS DRUGS.pptxPoojaSen20

8 Tips for Effective Working Capital Management
8 Tips for Effective Working Capital Management8 Tips for Effective Working Capital Management
8 Tips for Effective Working Capital ManagementMBA Assignment Experts

SURVEY I created for uni project research
SURVEY I created for uni project researchSURVEY I created for uni project research
SURVEY I created for uni project researchCaitlinCummins3

Major project report on Tata Motors and its marketing strategies
Major project report on Tata Motors and its marketing strategiesMajor project report on Tata Motors and its marketing strategies
Major project report on Tata Motors and its marketing strategiesAmanpreetKaur157993

DEMONSTRATION LESSON IN ENGLISH 4 MATATAG CURRICULUM
DEMONSTRATION LESSON IN ENGLISH 4 MATATAG CURRICULUMDEMONSTRATION LESSON IN ENGLISH 4 MATATAG CURRICULUM
DEMONSTRATION LESSON IN ENGLISH 4 MATATAG CURRICULUMELOISARIVERA8

會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽
會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽
會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽中 央社

Andreas Schleicher presents at the launch of What does child empowerment mean...
Andreas Schleicher presents at the launch of What does child empowerment mean...Andreas Schleicher presents at the launch of What does child empowerment mean...
Andreas Schleicher presents at the launch of What does child empowerment mean...EduSkills OECD

會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文
會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文
會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文中 央社

The basics of sentences session 4pptx.pptx
The basics of sentences session 4pptx.pptxThe basics of sentences session 4pptx.pptx
The basics of sentences session 4pptx.pptxheathfieldcps1

Graduate Outcomes Presentation Slides - English (v3).pptx
Graduate Outcomes Presentation Slides - English (v3).pptxGraduate Outcomes Presentation Slides - English (v3).pptx
Graduate Outcomes Presentation Slides - English (v3).pptxneillewis46


Recently uploaded (20)

Dementia (Alzheimer & vasular dementia).
Dementia (Alzheimer & vasular dementia).Dementia (Alzheimer & vasular dementia).
Dementia (Alzheimer & vasular dementia).

philosophy and it's principles based on the life
philosophy and it's principles based on the lifephilosophy and it's principles based on the life
philosophy and it's principles based on the life

Including Mental Health Support in Project Delivery, 14 May.pdf
Including Mental Health Support in Project Delivery, 14 May.pdfIncluding Mental Health Support in Project Delivery, 14 May.pdf
Including Mental Health Support in Project Delivery, 14 May.pdf

Spring gala 2024 photo slideshow - Celebrating School-Community Partnerships
Spring gala 2024 photo slideshow - Celebrating School-Community PartnershipsSpring gala 2024 photo slideshow - Celebrating School-Community Partnerships
Spring gala 2024 photo slideshow - Celebrating School-Community Partnerships

How to Manage Closest Location in Odoo 17 Inventory
How to Manage Closest Location in Odoo 17 InventoryHow to Manage Closest Location in Odoo 17 Inventory
How to Manage Closest Location in Odoo 17 Inventory

e-Sealing at EADTU by Kamakshi Rajagopal
e-Sealing at EADTU by Kamakshi Rajagopale-Sealing at EADTU by Kamakshi Rajagopal
e-Sealing at EADTU by Kamakshi Rajagopal

diagnosting testing bsc 2nd sem.pptx....
diagnosting testing bsc 2nd sem.pptx....diagnosting testing bsc 2nd sem.pptx....
diagnosting testing bsc 2nd sem.pptx....

TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...
TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...
TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...

24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...
24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...
24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...

The Liver & Gallbladder (Anatomy & Physiology).pptx
The Liver &  Gallbladder (Anatomy & Physiology).pptxThe Liver &  Gallbladder (Anatomy & Physiology).pptx
The Liver & Gallbladder (Anatomy & Physiology).pptx

MOOD STABLIZERS DRUGS.pptx
MOOD     STABLIZERS           DRUGS.pptxMOOD     STABLIZERS           DRUGS.pptx
MOOD STABLIZERS DRUGS.pptx

8 Tips for Effective Working Capital Management
8 Tips for Effective Working Capital Management8 Tips for Effective Working Capital Management
8 Tips for Effective Working Capital Management

SURVEY I created for uni project research
SURVEY I created for uni project researchSURVEY I created for uni project research
SURVEY I created for uni project research

Major project report on Tata Motors and its marketing strategies
Major project report on Tata Motors and its marketing strategiesMajor project report on Tata Motors and its marketing strategies
Major project report on Tata Motors and its marketing strategies

DEMONSTRATION LESSON IN ENGLISH 4 MATATAG CURRICULUM
DEMONSTRATION LESSON IN ENGLISH 4 MATATAG CURRICULUMDEMONSTRATION LESSON IN ENGLISH 4 MATATAG CURRICULUM
DEMONSTRATION LESSON IN ENGLISH 4 MATATAG CURRICULUM

會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽
會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽
會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽

Andreas Schleicher presents at the launch of What does child empowerment mean...
Andreas Schleicher presents at the launch of What does child empowerment mean...Andreas Schleicher presents at the launch of What does child empowerment mean...
Andreas Schleicher presents at the launch of What does child empowerment mean...

會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文
會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文
會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文會考英文

The basics of sentences session 4pptx.pptx
The basics of sentences session 4pptx.pptxThe basics of sentences session 4pptx.pptx
The basics of sentences session 4pptx.pptx

Graduate Outcomes Presentation Slides - English (v3).pptx
Graduate Outcomes Presentation Slides - English (v3).pptxGraduate Outcomes Presentation Slides - English (v3).pptx
Graduate Outcomes Presentation Slides - English (v3).pptx


DBMSArchitecture_QueryProcessingandOptimization.pdf

  • 1. DBMS Architecture, Query Processing and Optimization Christalin Nelson | SOCS 1 of 42
  • 2. At a Glance • DBMS Architecture • Introduction to Query Processing • Translating SQL Queries into Relational Algebra • Algorithms for External Sorting • Algorithms for SELECT and JOIN Operations • Algorithms for PROJECT and Set Operations • Implementing Aggregate Operations and OUTER JOIN 7-Apr-24 Christalin Nelson | SOCS 2 of 42
  • 3. 7-Apr-24 DBMS Instance (1/5) • A single occurrence of a DBMS running on a server – It includes the memory structures and processes necessary to manage the DB – Multiple DBs can be managed by a single DBMS instance, each identified by a unique name • Serves as the runtime environment for – Managing DB operations – Providing essential services – Maintaining the overall integrity & performance of DB system Christalin Nelson | SOCS 3 of 42
  • 4. 7-Apr-24 DBMS Instance (2/5) • Memory Allocation – Allocates memory for various purposes • For caching frequently accessed data, storing execution plans, maintaining connection information, and managing internal structures like locks and latches – Controlled by parameters specified during the DBMS instance startup or through configuration settings • Process Management – Manage various processes • Processes can be responsible for handling client requests, executing queries, managing transactions, and performing administrative tasks – Processes: Include listener processes, user processes, server processes, and background processes Christalin Nelson | SOCS 4 of 42
  • 5. 7-Apr-24 DBMS Instance (3/5) • Session Management – Track user sessions (represent connections established by clients to interact with DB) – Involves: allocating resources to each session, maintaining session state, and enforcing security and access controls • Resource Management – Oversee resource allocation & usage to ensure fair distribution & optimal performance – Resources (such as CPU, memory, disk I/O, and network bandwidth) are managed to prioritize critical tasks and prevent resource contention Christalin Nelson | SOCS 5 of 42
  • 6. 7-Apr-24 DBMS Instance (4/5) • Configuration and Parameter Settings – Allows administrators to configure various settings and parameters to tailor the system behavior according to specific requirements – Configuration options: Includes memory allocation settings, parallel processing degree, caching mechanisms, logging levels, and security policies • Database Startup and Shutdown – Control the startup and shutdown processes of the associated DBs – During startup: Instance initializes data structures, allocates memory, opens DB files, and starts background processes – During shutdown: Instance ensures data integrity, flushes dirty pages to disk, releases resources, and terminates active connections gracefully Christalin Nelson | SOCS 6 of 42
  • 7. 7-Apr-24 DBMS Instance (5/5) • Monitoring and Diagnostics – Provides tools and utilities for monitoring system performance, diagnosing issues, and troubleshooting errors – Monitoring capabilities: Include real-time performance metrics, database activity logs, system health checks, and alerting mechanisms • High Availability and Failover – Supports high availability configurations to ensure continuous availability of DBs in case of hardware failures, software crashes, or network outages – High availability features: Include clustering, replication, automated failover, and disaster recovery solutions Christalin Nelson | SOCS 7 of 42
  • 8. 7-Apr-24 DBMS Internal Memory Structure • Components – Buffer Pool: Stores data pages temporarily in memory, facilitating faster access to frequently accessed data – Data Cache: Stores frequently accessed data rows or indexes in memory to minimize disk I/O – Transaction Log Buffer: Stores transaction log records temporarily before writing them to the transaction log file on disk – Execution Stack: Stores information about currently executing transactions, queries, or stored procedures – Metadata Cache: Stores metadata information such as table structures, indexes, and permissions for quick access Christalin Nelson | SOCS 8 of 42
  • 9. 7-Apr-24 Background Processes • Background processes are employed by DBMS to manage various tasks • Tasks include – Checkpoint Process: Writes modified data pages from buffer pool to disk periodically to ensure data consistency and recovery – Log Writer Process: Writes transaction log records from log buffer to transaction log file on disk – Archiver Process: Archives transaction log files to provide point-in-time recovery – Lock Manager: Manages concurrency control by handling lock requests from concurrent transactions – Backup & Restore Processes: Handle DB backup and restoration tasks Christalin Nelson | SOCS 9 of 42
  • 10. 7-Apr-24 Data Types • DBMS supports various data types to represent different kinds of data • Types – Numeric: Integer, Floating Point, Decimal – Character: Char, Varchar, Text – Date and Time: Date, Time, Timestamp – Binary: Blob, Binary Large Object – Spatial: Geometry, Geography Christalin Nelson | SOCS 10 of 42
  • 11. 7-Apr-24 Roles & Privileges • DBMS provides mechanisms for managing access control through roles and privileges – Roles • Predefined sets of privileges that can be assigned to users or groups of users. – Privileges • Permissions granted to users or roles to perform specific operations on database objects such as tables, views, procedures, and sequences. • Common privileges: SELECT, INSERT, UPDATE, DELETE, EXECUTE, CREATE, ALTER, and DROP Christalin Nelson | SOCS 11 of 42
  • 12. 7-Apr-24 Introduction to Query Processing (1/3) • A query is expressed in a high-level query language (such as SQL) • DBMS uses special techniques internally to process, optimize, and execute high- level queries • Typical steps when processing a high-level query – Scanner • Identifies query tokens (i.e. SQL keywords, attribute names, and relation names) – Parser • Checks the query syntax to determine whether it is formulated according to syntax rules (rules of grammar) of query language. – Validation • Check that all attributes and relation names are valid and semantically meaningful names in the schema of the particular database being queried. Christalin Nelson | SOCS 12 of 42
  • 13. 7-Apr-24 Introduction to Query Processing (2/3) • Internal Representation of Query – Query tree – Query graph • Query Optimization – Process of choosing a suitable execution strategy (or Query plan) for Query processing – 2 main Techniques employed • (1) Order the operations in a Query execution strategy based on heuristic rules (The rules typically reorder the operations in a Query tree) – A heuristic works well in most cases but is not guaranteed to work well in every case • (2) Systematically estimate the cost of different execution strategies and choose the execution plan with the lowest cost estimate • Code Generator – Generates the code to execute that plan Christalin Nelson | SOCS 13 of 42
  • 14. 7-Apr-24 Introduction to Query Processing (3/3) • Runtime database processor – Execute query code (compiled/interpreted mode) to produce query result • Executed directly (interpreted mode) • Stored and executed later whenever needed (compiled mode) – Runtime error results in an error message Christalin Nelson | SOCS 14 of 42
  • 15. 7-Apr-24 Translating SQL Queries (1/2) • SQL Query  Query Blocks  Relational algebra exp. (Query Tree)  Optimized • Query block – The basic unit that can be translated into algebraic operators – Can contain a single SELECT-FROM-WHERE expression – Can include GROUP BY and HAVING clauses if these are part of the block – Nested queries within a query  Identified as separate query blocks – Aggregate operators (E.g. MAX, MIN, SUM, COUNT)  Included in extended algebra Christalin Nelson | SOCS 15 of 42
  • 16. Translating SQL Queries (2/2) SELECT LNAME, FNAME FROM EMPLOYEE WHERE SALARY > (SELECT MAX (SALARY) FROM EMPLOYEE WHERE DNO = 5); SELECT MAX (SALARY) FROM EMPLOYEE WHERE DNO = 5 SELECT LNAME, FNAME FROM EMPLOYEE WHERE SALARY > ??? (say X) πLNAME, FNAME (σSALARY > X (EMPLOYEE)) SQL Query Extended relational algebra expression 2 Query Modules 7-Apr-24 Christalin Nelson | SOCS ℱMAX SALARY (σDNO=5 (EMPLOYEE)) 16 of 42
  • 17. 7-Apr-24 Algorithms for External Sorting (1/3) • External sorting – Sorting algorithms that are suitable for large files of records that do not fit entirely in main memory and are stored on disk (E.g. most database files) • Sort-Merge strategy – Requires Buffer space in main memory (part of DBMS cache) • Divided into individual buffers (each buffer can hold the contents of exactly one disk block) – (1) Sorting Phase • Read small subfiles (runs) of the main file into buffer  Sort using internal sort algorithm  Write back to Disk as temporarily sorted subfiles – (2) Merging Phase • Merge sorted runs with one or more Merge passes • The larger sorted subfiles are merged in turn Christalin Nelson | SOCS 17 of 42
  • 18. 7-Apr-24 Algorithms for External Sorting (2/3) • Number of Initial runs (nR) – nR = ⌐(b/nB)¬ • Here, b – Size of Disk file (or) no. of file blocks, nB – no. of available main memory buffers • Number of Merge passes (nP) – nP = ⌐(logdM (nR))¬ – Degree of merging (dM) = No. of sorted runs that can be merged per merge step = Min (nB-1, nR) • Example: – (Q) Size of disk file is 1024 file blocks. Number of main memory buffers available is 5. Find the number of Initial Runs and Number of Merge passes • nR = ceiling [1024/5] = 205 (i.e. 204 runs of size 5 blocks each & the last run of size 4 blocks) • nP = ceiling[log4(205)] = 4 – 205  52 larger sorted subfiles  13  4  Final Sorted File • Cost incurred Christalin Nelson | SOCS 18 of 42
  • 19. 7-Apr-24 Christalin Nelson | SOCS 19 of 42
  • 20. 7-Apr-24 Algorithms for SELECT Operations (1/7) • Implementing SELECT operation (Relational Algebra) – Sample Operation taken for consideration • (OP1): s SSN='123456789' (EMPLOYEE) • (OP2): s DNUMBER>5(DEPARTMENT) • (OP3): s DNO=5(EMPLOYEE) • (OP4): s DNO=5 AND SALARY>30000 AND SEX=F(EMPLOYEE) • (OP5): s ESSN=123456789 AND PNO=10(WORKS_ON) Christalin Nelson | SOCS 20 of 42
  • 21. 7-Apr-24 Algorithms for SELECT Operations (2/7) • Search Methods for simple Selection (1/3) – S1. Linear search (brute force) • Records are grouped into disk blocks  Copy DB to MM buffer  Search records inside disk block (i.e Test whether its attribute values satisfy the selection condition) – S2. Binary search • Selection condition involves an equality comparison on a key attribute on which the file is ordered. – Example: SSN is the ordering attribute in s SSN='123456789' (EMPLOYEE) – S3. Using a primary index (or) hash key to retrieve a single record • If the selection condition involves an equality comparison on a key attribute with a primary index (or a hash key), use the primary index (or the hash key) to retrieve the record. – Example: s SSN='123456789' (EMPLOYEE) Christalin Nelson | SOCS 21 of 42
  • 22. 7-Apr-24 Algorithms for SELECT Operations (3/7) • Search Methods for simple Selection (2/3) – S3. Using a primary index (or) hash key to retrieve a single record • If the selection condition involves an equality comparison on a key attribute with a primary index (or a hash key), use the primary index (or the hash key) to retrieve the record. – Example: s SSN='123456789' (EMPLOYEE) – S4. Using a primary index to retrieve multiple records • If the comparison condition is >, ≥, <, or ≤ on a key attribute with a primary index, use the index to find the record satisfying the corresponding equality condition, then retrieve all subsequent records in the (ordered) file. – S5. Using a clustering index to retrieve multiple records • If the selection condition involves an equality comparison on a non-key attribute with a clustering index, use the clustering index to retrieve all the records satisfying the selection condition. – Example: s DNO=5(EMPLOYEE) Christalin Nelson | SOCS 22 of 42
  • 23. 7-Apr-24 Algorithms for SELECT Operations (4/7) • Search Methods for Simple Selection (3/3) – S6. Using a secondary (B+ tree) index on an equality comparison • Retrieve a single record if the indexing field is a key (Or) Retrieve multiple records if the indexing field is not a key • Retrieve records on conditions involving >,>=, <, or <= (for range queries) – A Search operation can be • File scan (S1, S2) • Index scan (S3a, S4, S5, and S6) • S4 & S6 applies to Range Queries Christalin Nelson | SOCS 23 of 42
  • 24. 7-Apr-24 Algorithms for SELECT Operations (5/7) • Search Methods for Complex Selection (1/2) – Conjunctive selection? • Contains many simple select conditions connected with AND. • E.g. s DNO=5 AND SALARY>30000 AND SEX=F(EMPLOYEE) – S7. Conjunctive selection using an individual index • If an attribute involved in any single simple condition in the conjunctive condition has an access path that permits the use of one of the methods S2 to S6: (1) Use that condition to retrieve the records  (2) Check whether each retrieved record satisfies the remaining simple conditions in the conjunctive condition. – Example: s DNO=5 AND SALARY>30000 AND SEX=F(EMPLOYEE) – S8. Conjunctive selection using a composite index • If two or more attributes are involved in equality conditions in the conjunctive condition & a composite index (or hash) exists on the combined field, we can use the index directly. – Example: If an index has been created on the composite key (Essn, Pno) of WORKS_ON table  Use the index directly » s ESSN=123456789 AND PNO=10(WORKS_ON) Christalin Nelson | SOCS 24 of 42
  • 25. 7-Apr-24 Algorithms for SELECT Operations (6/7) • Search Methods for Complex Selection (2/2) – S9. Conjunctive selection by intersection of record pointers • If secondary indexes are available on all (or >1) the fields involved simple conditions in the conjunctive condition & if the indexes include record pointers (rather than block pointers)  Each index can be used to retrieve the record pointers that satisfy the individual condition – Intersection of these sets of record pointers gives the record pointers that satisfy the conjunctive condition, which are then used to retrieve those records directly • If only some of the conditions have secondary indexes, each retrieved record is further tested to determine whether it satisfies the remaining conditions Christalin Nelson | SOCS 25 of 42
  • 26. 7-Apr-24 Algorithms for SELECT Operations (7/7) • Search Methods – Whenever a single condition specifies the selection, we can only check whether an access path exists on the attribute involved in that condition. If an access path exists, the method corresponding to that access path is used; otherwise, the “brute force” linear search approach of method S1 is used. (OP1, OP2 and OP3) – For conjunctive selection conditions, whenever more than one of the attributes involved in the conditions has an access path, query optimization should be done to choose the access path that retrieves the fewest records most efficiently. – Disjunctive selection conditions (Uses OR) Christalin Nelson | SOCS 26 of 42
  • 27. 7-Apr-24 Algorithms on Join Operations (1/8) • Join (EQUIJOIN, NATURAL JOIN) – Two-way join: Join on 2 files • e.g. R A=B S – Multi-way joins: Joins involving >2 files • e.g. R A=B S C=D T – Examples • (OP6): EMPLOYEE DNO=DNUMBER DEPARTMENT • (OP7): DEPARTMENT MGRSSN=SSN EMPLOYEE • Factors affecting JOIN performance – Available buffer space – Join selection factor – Choice of inner VS outer relation Christalin Nelson | SOCS 27 of 42
  • 28. 7-Apr-24 Algorithms on Join Operations (2/8) • Methods for implementing joins – J1. Nested-loop join (brute force) • For each record t in R (outer loop), retrieve every record s from S (inner loop) and test whether the two records satisfy the join condition t[A] = s[B]. – J2. Single-loop join (Using an access structure to retrieve the matching records) • If an index (or hash key) exists for one of the two join attributes (say, B of S) – retrieve each record t in R, one at a time, and then use the access structure to retrieve directly all matching records s from S that satisfy s[B] = t[A]. Christalin Nelson | SOCS 28 of 42
  • 29. 7-Apr-24 Algorithms on Join Operations (3/8) • Methods for implementing joins – J3. Sort-merge join • If the records of R and S are physically sorted by the value of the join attributes A and B – Both files are scanned in order of the join attributes, matching the records that have the same values for A and B. » Here, the records of each file are scanned only once each for matching with the other file – If both A and B are non-key attributes, the method needs to be modified slightly. – J4. Hash-join • The records of R and S are both hashed to the same hash file, using the same hashing function on the join attributes A of R and B of S as hash keys – A single pass through the file with fewer records (say, R) hashes its records to hash file buckets – A single pass through the other file (S) then hashes each of its records to the appropriate bucket, where the record is combined with all matching records from R. Christalin Nelson | SOCS 29 of 42
  • 30. 7-Apr-24 Algorithms on Join Operations (4/8) Christalin Nelson | SOCS 30 of 42
  • 31. 7-Apr-24 Algorithms on Join Operations (5/8) Christalin Nelson | SOCS 31 of 42
  • 32. 7-Apr-24 Algorithms on Join Operations (6/8) • Partition hash join (1/2) – Partitioning phase • Each file (R and S) is first partitioned into M partitions using a partitioning hash function on the join attributes: R1, R2, R3, ...... Rm and S1, S2, S3, ...... Sm • Min. In-memory buffers needed: M+1 • A disk sub-file is created per partition to store the tuples for that partition. – Joining (or) Probing phase • Involves M iterations (one per partitioned file) • Iteration ‘i’ involves joining partitions Ri and Si Christalin Nelson | SOCS 32 of 42
  • 33. 7-Apr-24 Algorithms on Join Operations (7/8) • Partition hash join (2/2) – Procedure • Assume Ri < Si • Copy records from Ri into memory buffers • Read all blocks from Si, one at a time, and each record from Si is used to probe for a matching record(s) from partition Si • Write matching record from Ri after joining to the record from Si into the result file – Cost • 3* (bR + bS) + bRES Christalin Nelson | SOCS 33 of 42
  • 34. 7-Apr-24 Algorithms on Join Operations (8/8) • Hybrid Hash join – Same as a Partition Hash join except the following • Difference: Joining phase of one of the partitions is included during the partitioning phase – Partitioning phase • Allocate buffers for smaller relation (one block for each of the M-1 partitions, remaining blocks to partition 1) • Repeat for the larger relation in the pass-through S – Joining phase • M-1 iterations are needed for the partitions R2, R3, R4 , ......Rm and S2, S3, S4, ......Sm • R1 and S1 are joined during the partitioning of S1, and results of joining R1 and S1 are already written to the disk by the end of the partitioning phase Christalin Nelson | SOCS 34 of 42
  • 35. 7-Apr-24 Algorithm for Project Operations • <attribute list>(R) – If <attribute list> has a key of relation R, extract all tuples from R with only the values for the attributes in <attribute list> – If <attribute list> does NOT include a key of relation R, duplicated tuples must be removed from the results • Methods to remove duplicate tuples – Sorting – Hashing Christalin Nelson | SOCS 35 of 42
  • 36. 7-Apr-24 Algorithm for Set Operation (1/2) • Set operations – CARTESIAN PRODUCT, UNION, INTERSECTION, SET DIFFERENCE • CARTESIAN PRODUCT of relations R and S – Includes all possible combinations of records from R and S. The attribute of the result includes all attributes of R and S. – Cost analysis • If R has n records and j attributes & S has m records and k attributes, the result relation will have n*m records and j+k attributes. • CARTESIAN PRODUCT operation is very expensive and should be avoided if possible Christalin Nelson | SOCS 36 of 42
  • 37. 7-Apr-24 Algorithm for Set Operation (2/2) • UNION – Sort the two relations on the same attributes. – Scan and merge both sorted files concurrently, whenever the same tuple exists in both relations, only one is kept in the merged results. • INTERSECTION – Sort the two relations on the same attributes. – Scan and merge both sorted files concurrently, and keep in the merged results only those tuples that appear in both relations. • SET DIFFERENCE R-S – Keep in the merged results only those tuples that appear in relation R but not in relation S Christalin Nelson | SOCS 37 of 42
  • 38. 7-Apr-24 Implementing Aggregate Operations (1/2) • Aggregate operators – MAX, MIN, SUM, COUNT and AVG • Options to implement aggregate operators – Table Scan – Index • Example: SELECT MAX (SALARY) FROM EMPLOYEE; – If an (ascending) index on SALARY exists for the employee relation, then the optimizer could decide on traversing the index for the largest value, which would entail following the rightmost pointer in each index node from the root to a leaf. Christalin Nelson | SOCS 38 of 42
  • 39. 7-Apr-24 Implementing Aggregate Operations (2/2) • SUM, COUNT and AVG – For a dense index (each record has one index entry) • Apply the associated computation to the values in the index. – For a non-dense index (actual no. of records associated with each index entry must be accounted for) • With GROUP BY – The aggregate operator must be applied separately to each group of tuples • Use sorting or hashing on group attributes to partition the file into the appropriate groups • Computes the aggregate function for the tuples in each group. Christalin Nelson | SOCS 39 of 42
  • 40. 7-Apr-24 Implementing Outer Joins (1/2) • Outer Join Operators – FULL OUTER JOIN, LEFT OUTER JOIN, and RIGHT OUTER JOIN • Full outer join – Result: Equivalent to Union of results of the left and right outer joins. – Example • SELECT FNAME, DNAME FROM (EMPLOYEE LEFT OUTER JOIN DEPARTMENT ON DNO = DNUMBER); – Note: The result of this query is a table of employee names and their associated departments. » It is similar to a regular join result, with the exception that if an employee does not have an associated department, the employee's name will still appear in the resulting table, although the department name would be indicated as null. Christalin Nelson | SOCS 40 of 42
  • 41. 7-Apr-24 Implementing Outer Joins (2/2) • Modifying Join Algorithms – Nested Loop or Sort-Merge joins can be modified to implement Outer Join • E.g. for Left outer join, use the left relation as the outer relation and constructs result from every tuple in the left relation. – If there is a match, the concatenated tuple is saved in the result – However, if an outer tuple does not match, then the tuple is still included in the result but is padded with a null value(s) Christalin Nelson | SOCS 41 of 42
  • 42. Thank You Christalin Nelson | SOCS 42 of 42 7-Apr-24
