- 1.
- 2. Introduction Wireless networkshave given a privilege to organizations to have less cables and slightly less management, but few more hardware component. However, wired networks offer low losses. In order to offer mobility and future ready services, network designed for ABC technologies comprises of both wireless and wired network. SNM has analyzed the key requirements of ABC technologies and crafted a comprehensive solution that will fulfill the ABC’s current and future business needs.

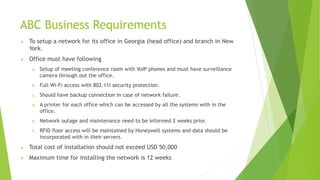

- 3. ABC Business Requirements To setup a network for its office in Georgia (head office) and branch in New York. Office must have following a. Setup of meeting conference room with VoIP phones and must have surveillance camera through out the office. b. Full Wi-Fi access with 802.11i security protection. c. Should have backup connection in case of network failure. d. A printer for each office which can be accessed by all the systems with in the office. e. Network outage and maintenance need to be informed 2 weeks prior. f. RFID floor access will be maintained by Honeywell systems and data should be incorporated with in their servers. Total cost of installation should not exceed USD 50,000 Maximum time for installing the network is 12 weeks
- 4. Physical Diagram ofNew York office

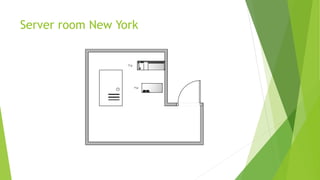

- 5. Server room NewYork

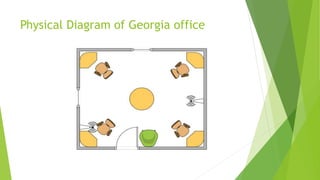

- 6. Physical Diagram ofGeorgia office
- 7. Server Room NewYork

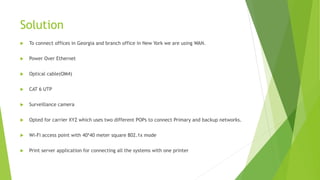

- 8. Solution To connectoffices in Georgia and branch office in New York we are using WAN. Power Over Ethernet Optical cable(OM4) CAT 6 UTP Surveillance camera Opted for carrier XYZ which uses two different POPs to connect Primary and backup networks. Wi-Fi access point with 40*40 meter square 802.1x mode Print server application for connecting all the systems with one printer

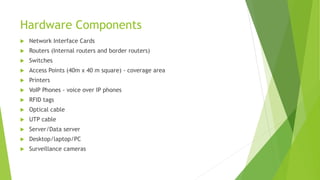

- 9. Hardware Components NetworkInterface Cards Routers (Internal routers and border routers) Switches Access Points (40m x 40 m square) - coverage area Printers VoIP Phones - voice over IP phones RFID tags Optical cable UTP cable Server/Data server Desktop/laptop/PC Surveillance cameras

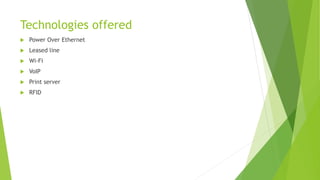

- 10. Technologies offered PowerOver Ethernet Leased line Wi-Fi VoIP Print server RFID

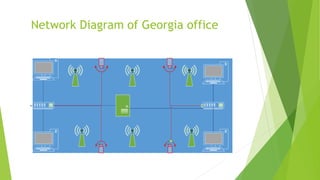

- 11. Network Diagram ofGeorgia office

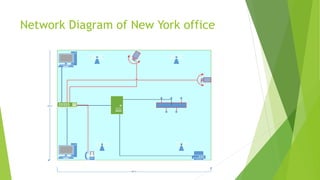

- 12. Network Diagram ofNew York office
- 13.

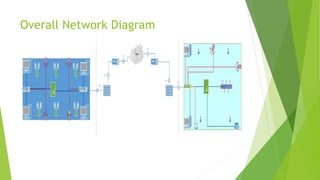

- 14.

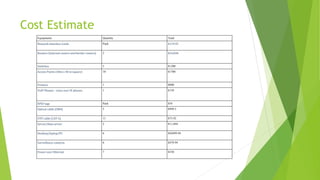

- 15. Cost Estimate Equipments QuantityTotal Network Interface Cards Pack $119.95 Routers (Internal routers and border routers) 2 $24,048 Switches 3 $1200 Access Points (40m x 40 m square) 10 $1700 Printers 1 $800 VoIP Phones - voice over IP phones 1 $159 RFID tags Pack $54 Optical cable (OM4) 5 $999.5 UTP cable (CAT 6) 11 $73.92 Server/Data server 2 $11,894 Desktop/laptop/PC 6 $42699.94 Surveillance cameras 6 $479.94 Power over Ethernet 7 $330

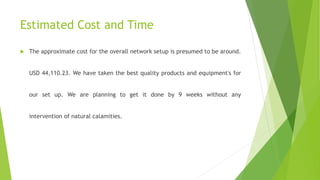

- 16. Estimated Cost andTime The approximate cost for the overall network setup is presumed to be around. USD 44,110.23. We have taken the best quality products and equipment's for our set up. We are planning to get it done by 9 weeks without any intervention of natural calamities.
