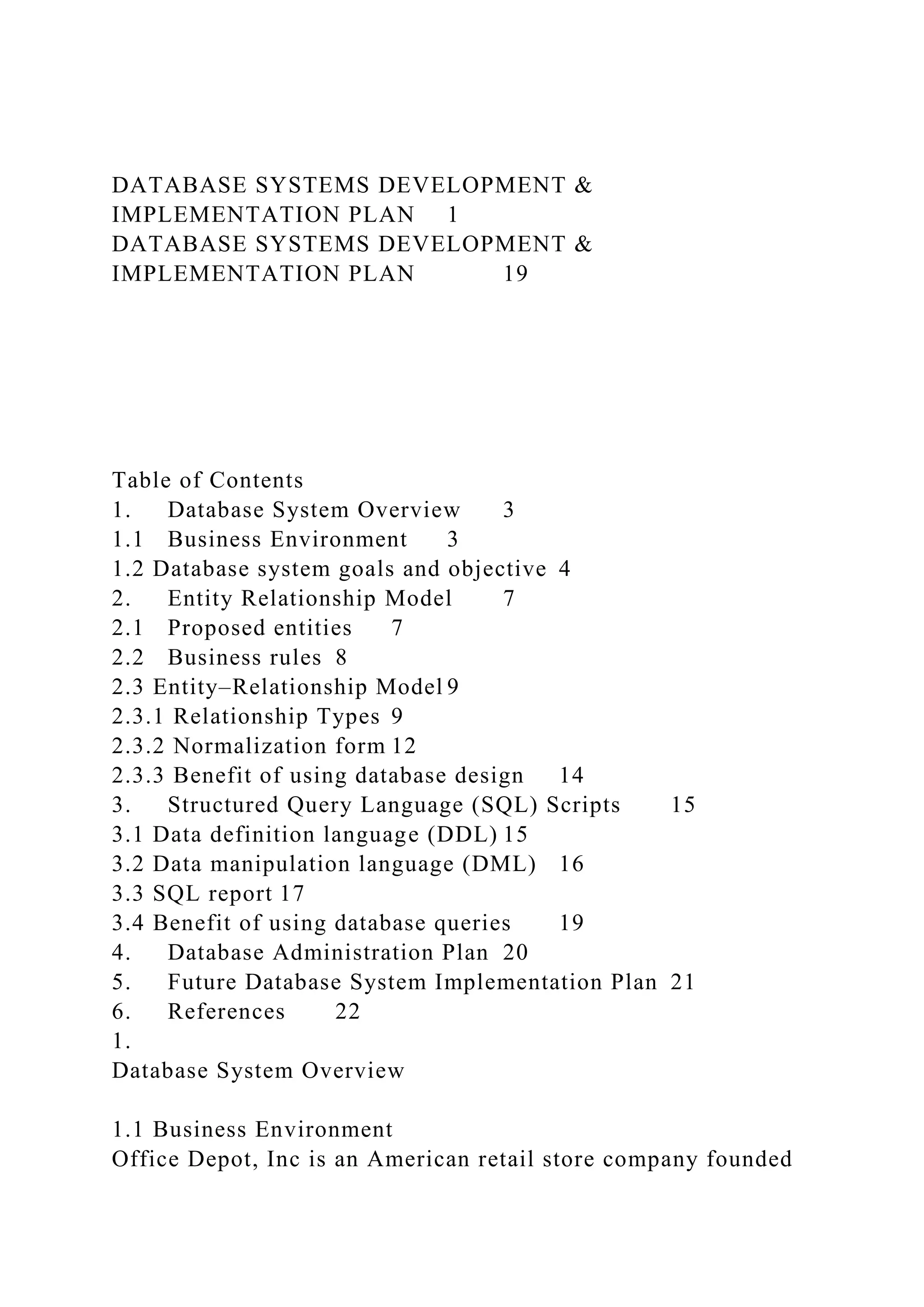

DATABASE SYSTEMS DEVELOPMENT & IMPLEMENTATION PLAN1DATABASE SYS.docx

DATABASE SYSTEMS DEVELOPMENT &
IMPLEMENTATION PLAN 1

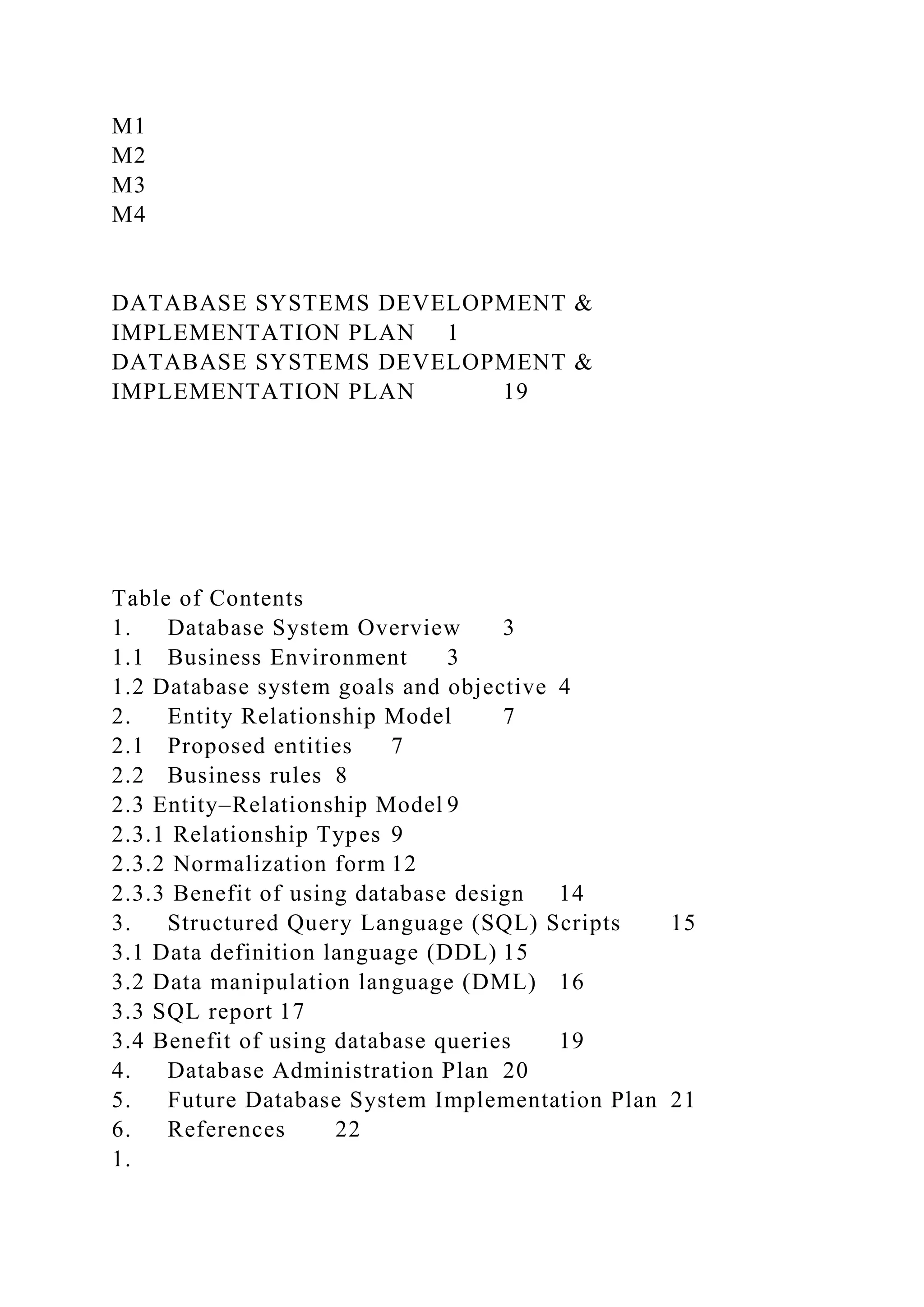

Table of Contents
1. Database System Overview 3
1.1 Business Environment 3
1.2 Database system goals and objective 4
2. Entity Relationship Model 7
2.1 Proposed entities 7
2.2 Business rules 8
2.3 Entity–Relationship Model 9
2.3.1 Relationship Types 9
2.3.2 Normalization form 12
2.3.3 Benefit of using database design 14
3. Structured Query Language (SQL) Scripts 15

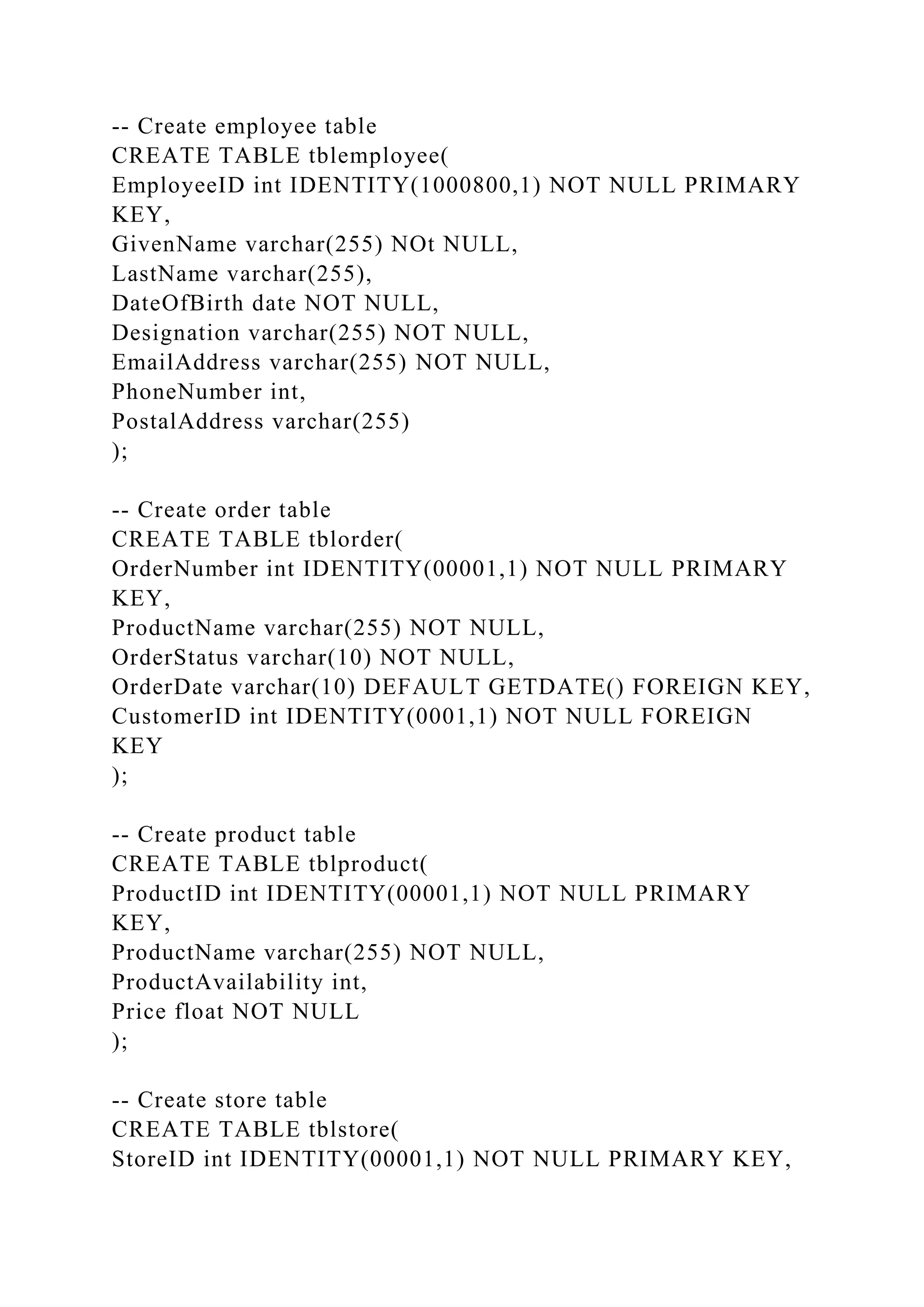

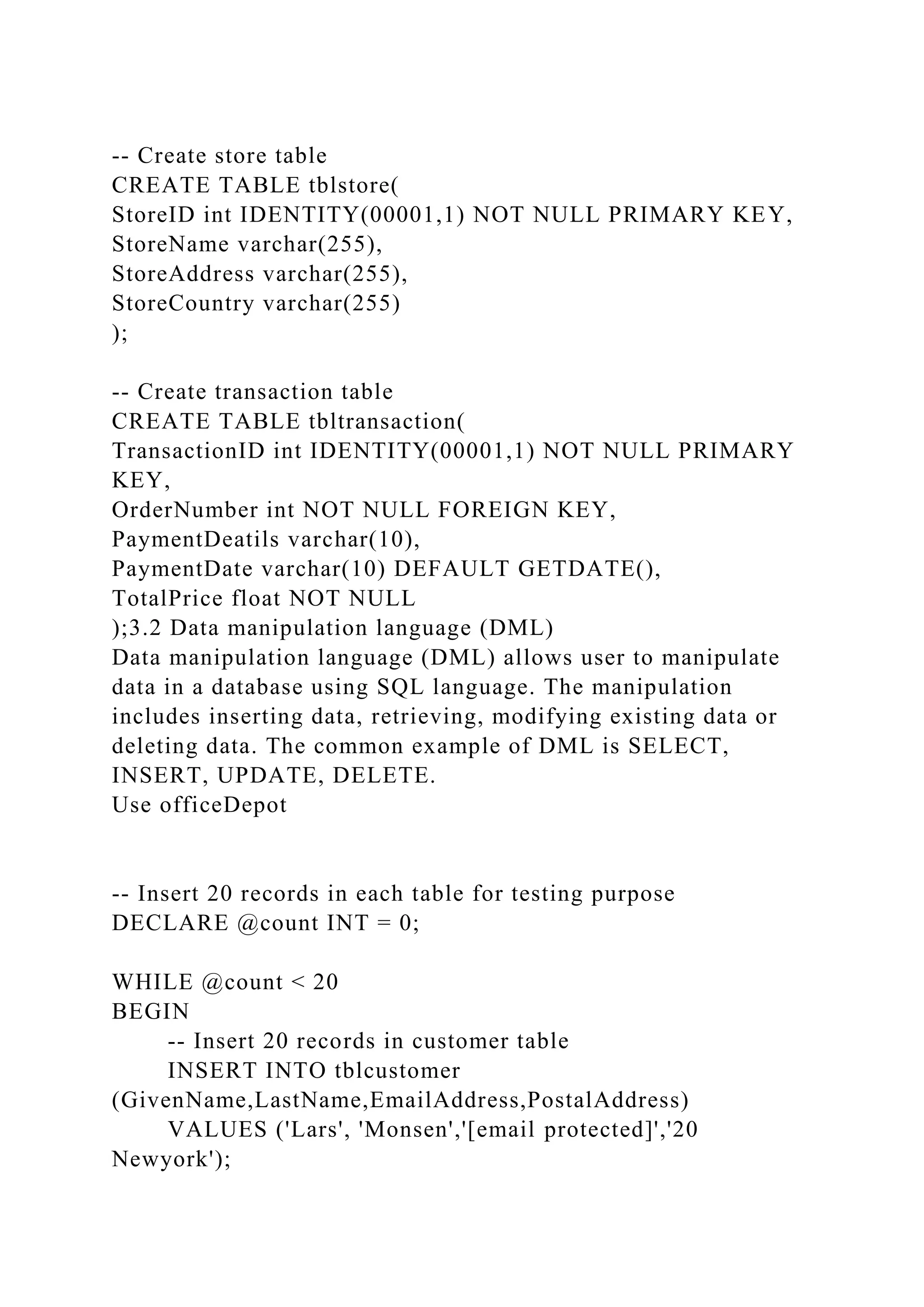

3.1 Data definition language (DDL) 15

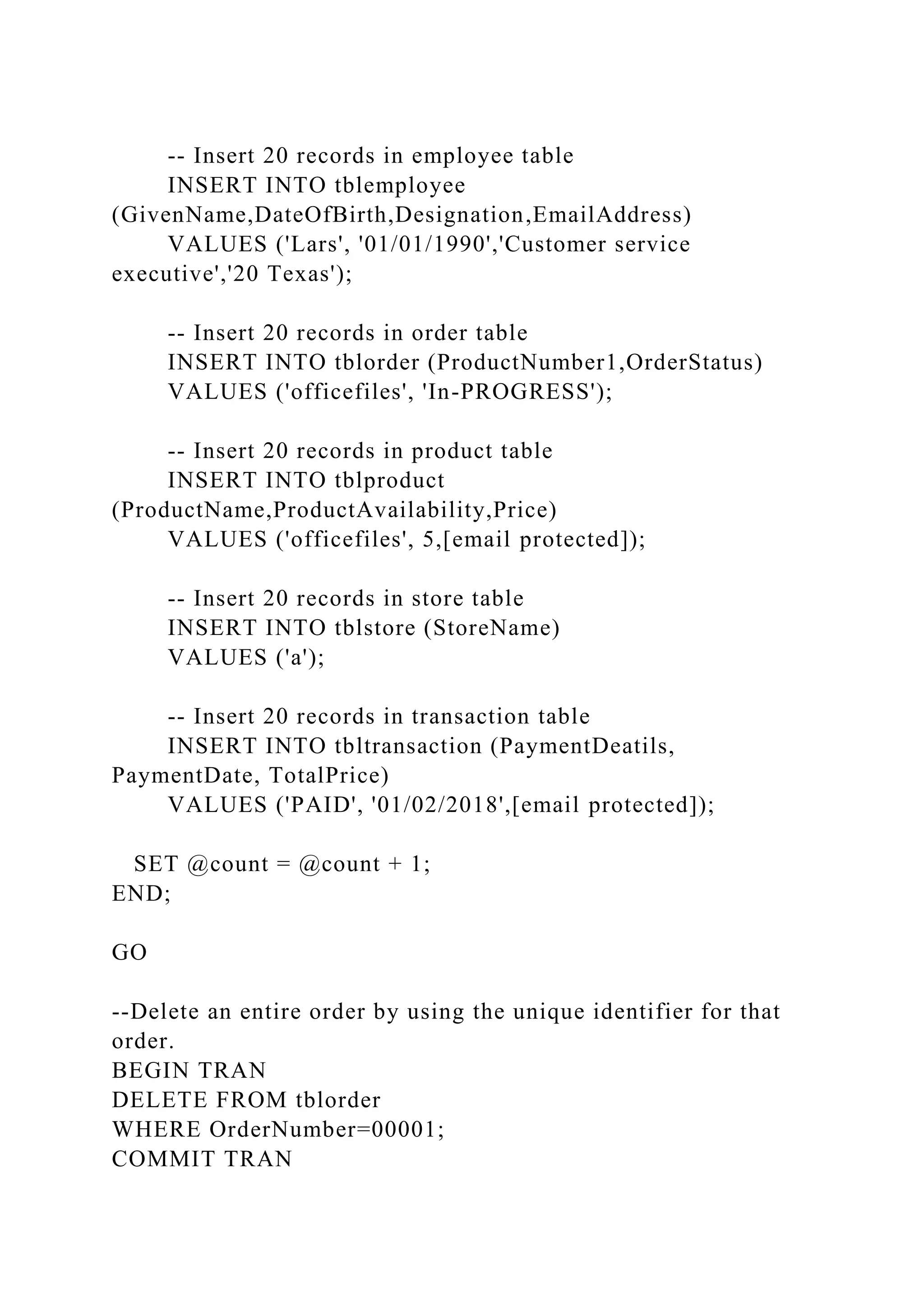

3.2 Data manipulation language (DML) 16

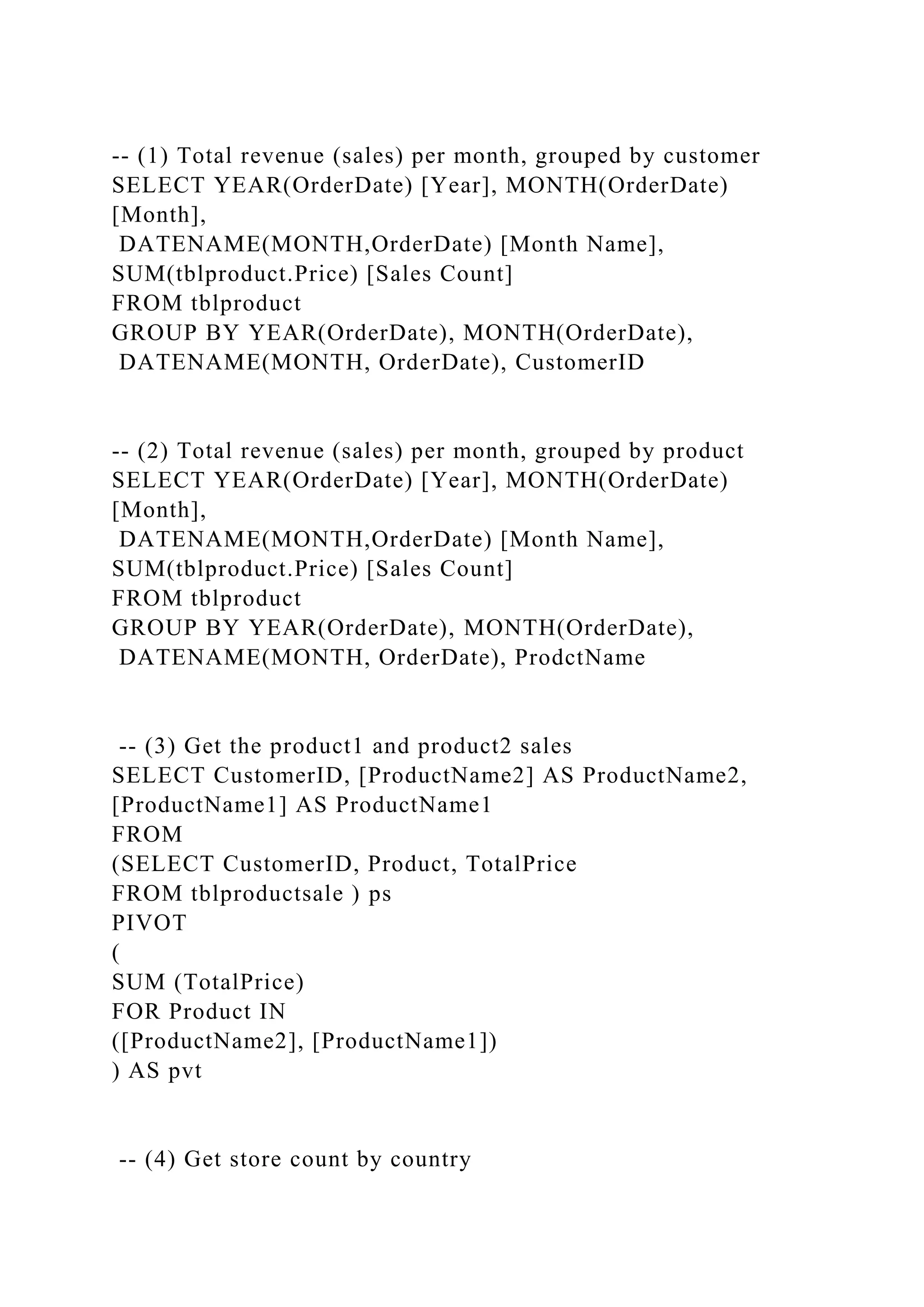

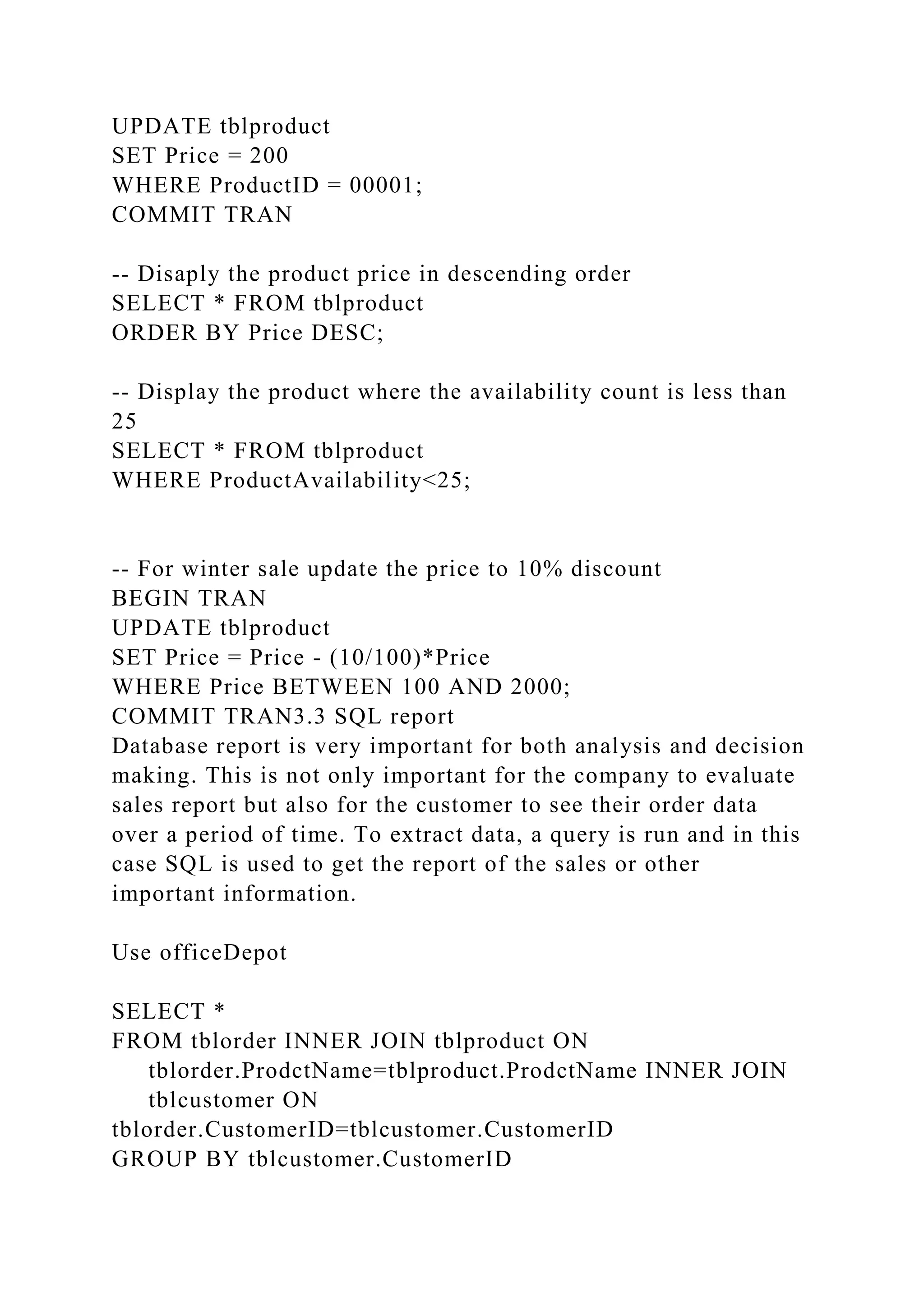

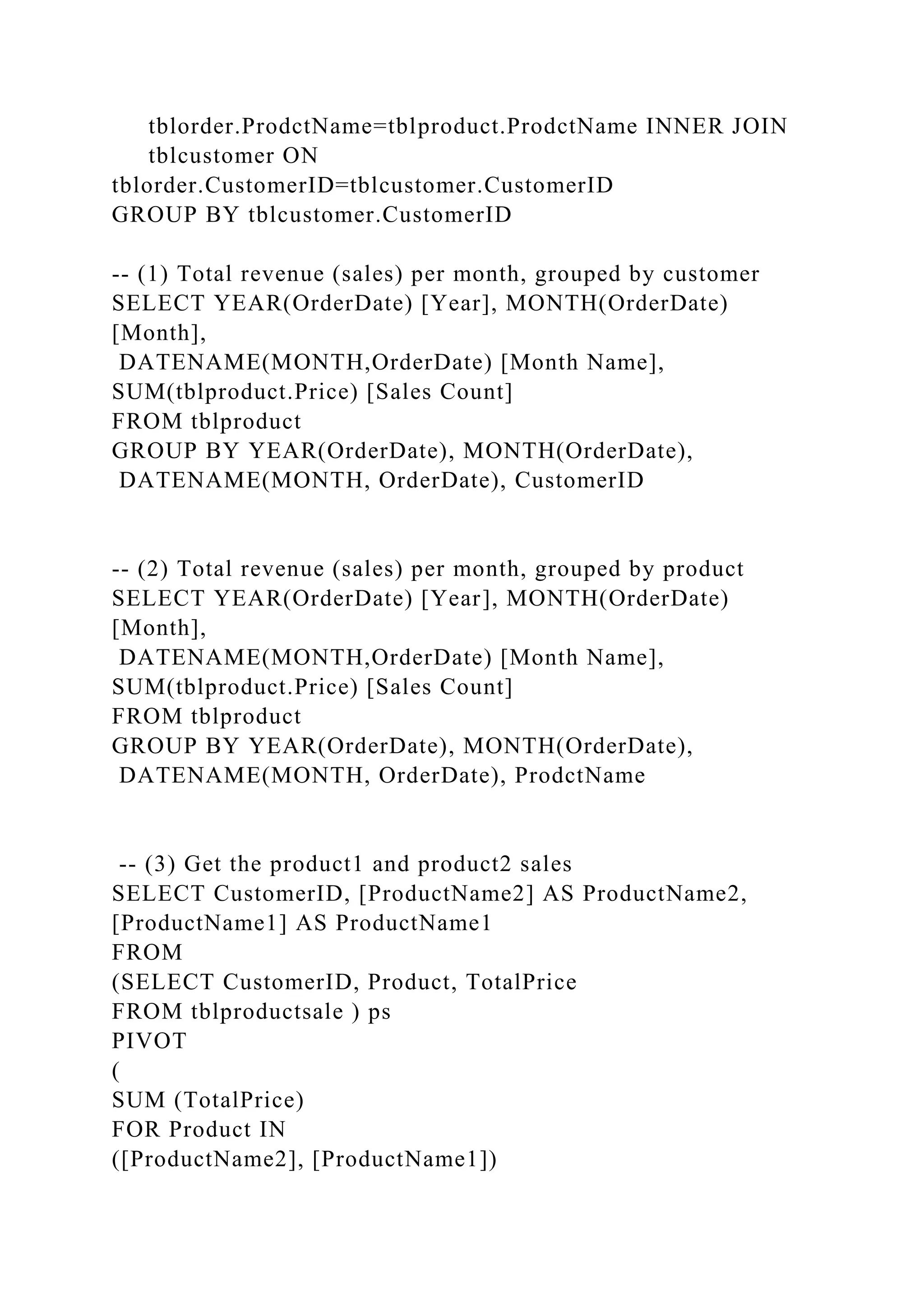

3.3 SQL report 17

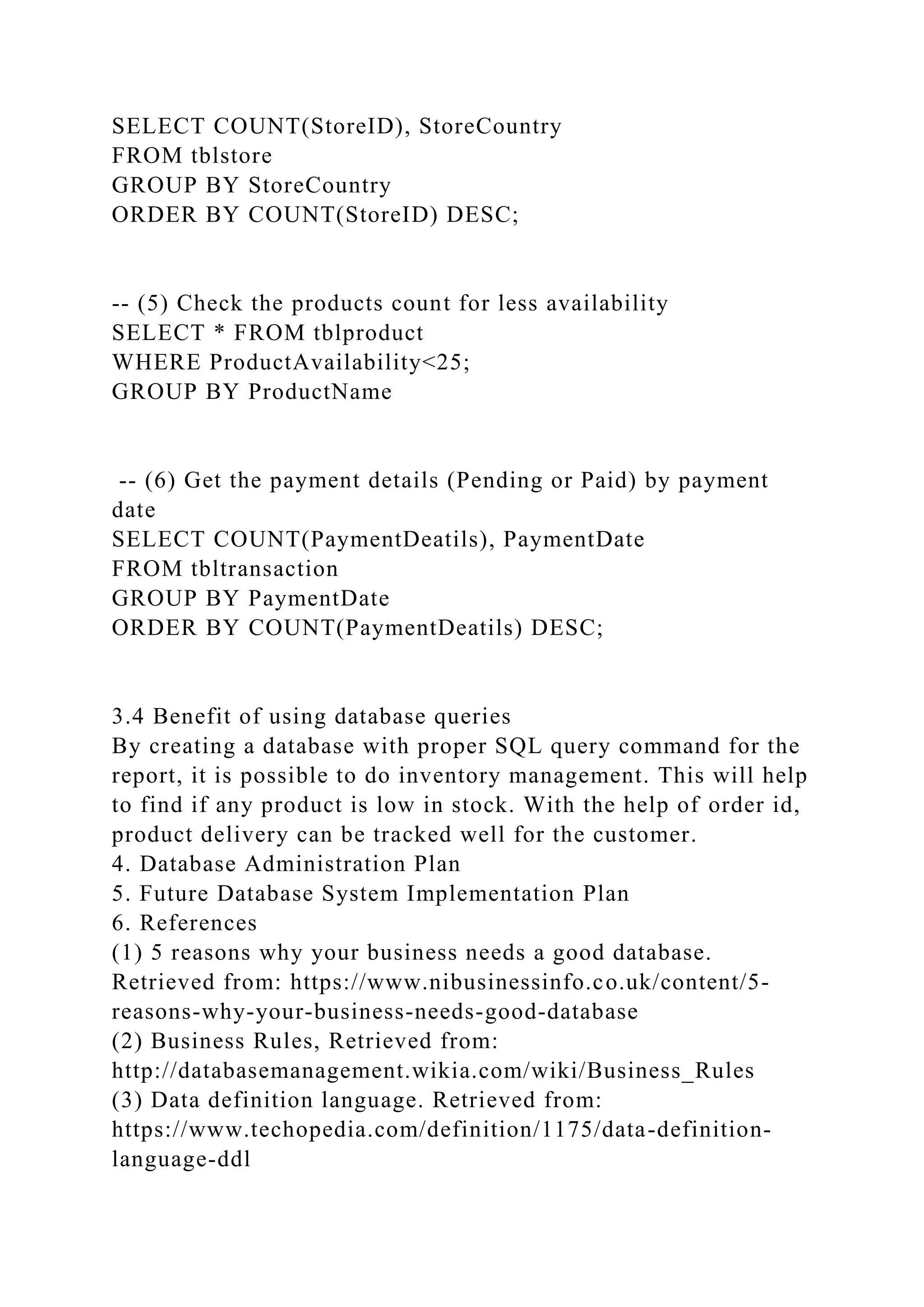

3.4 Benefit of using database queries 19
4. Database Administration Plan 20
5. Future Database System Implementation Plan 21
6. References 22
1.

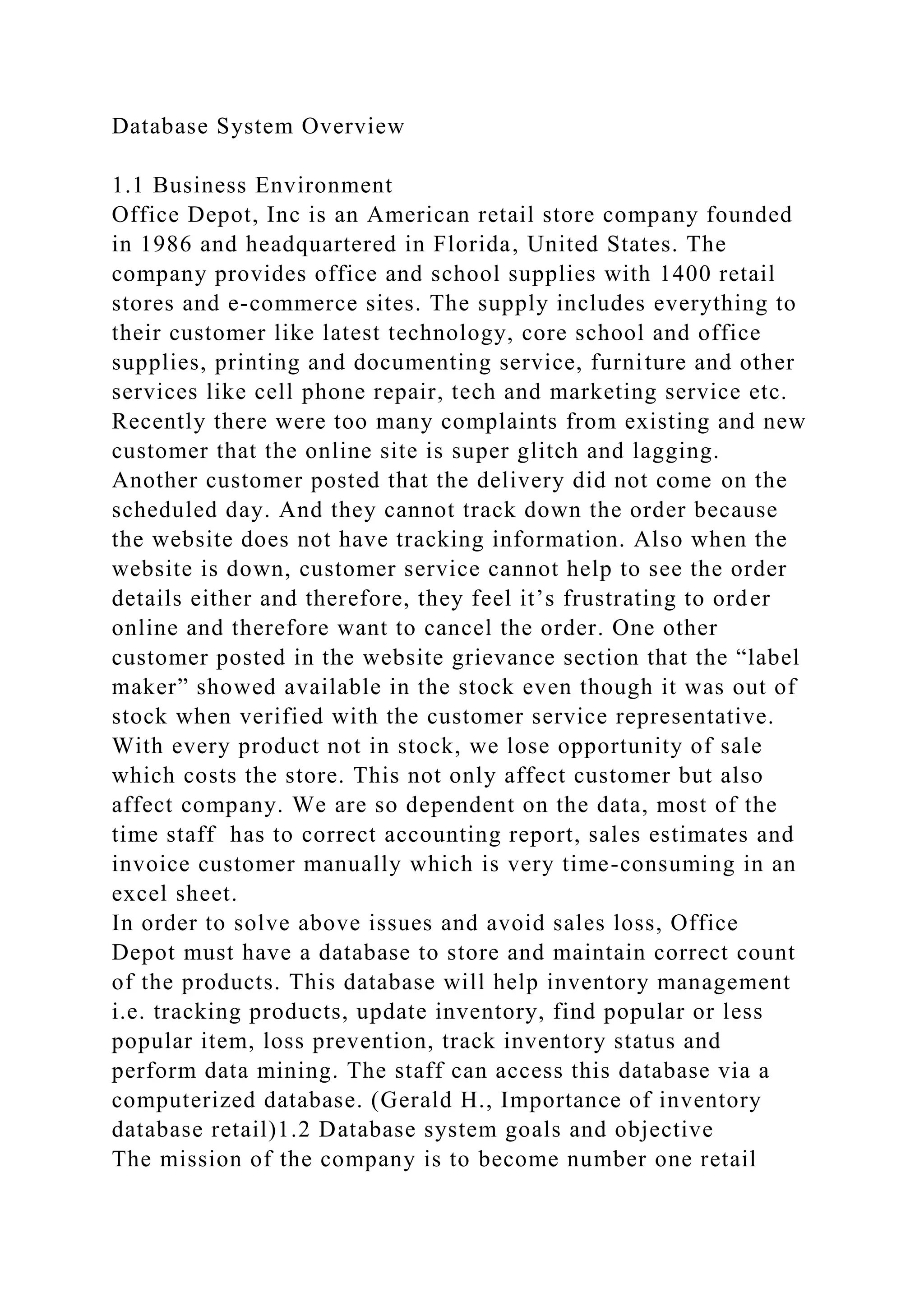

Database System Overview
1.1 Business Environment

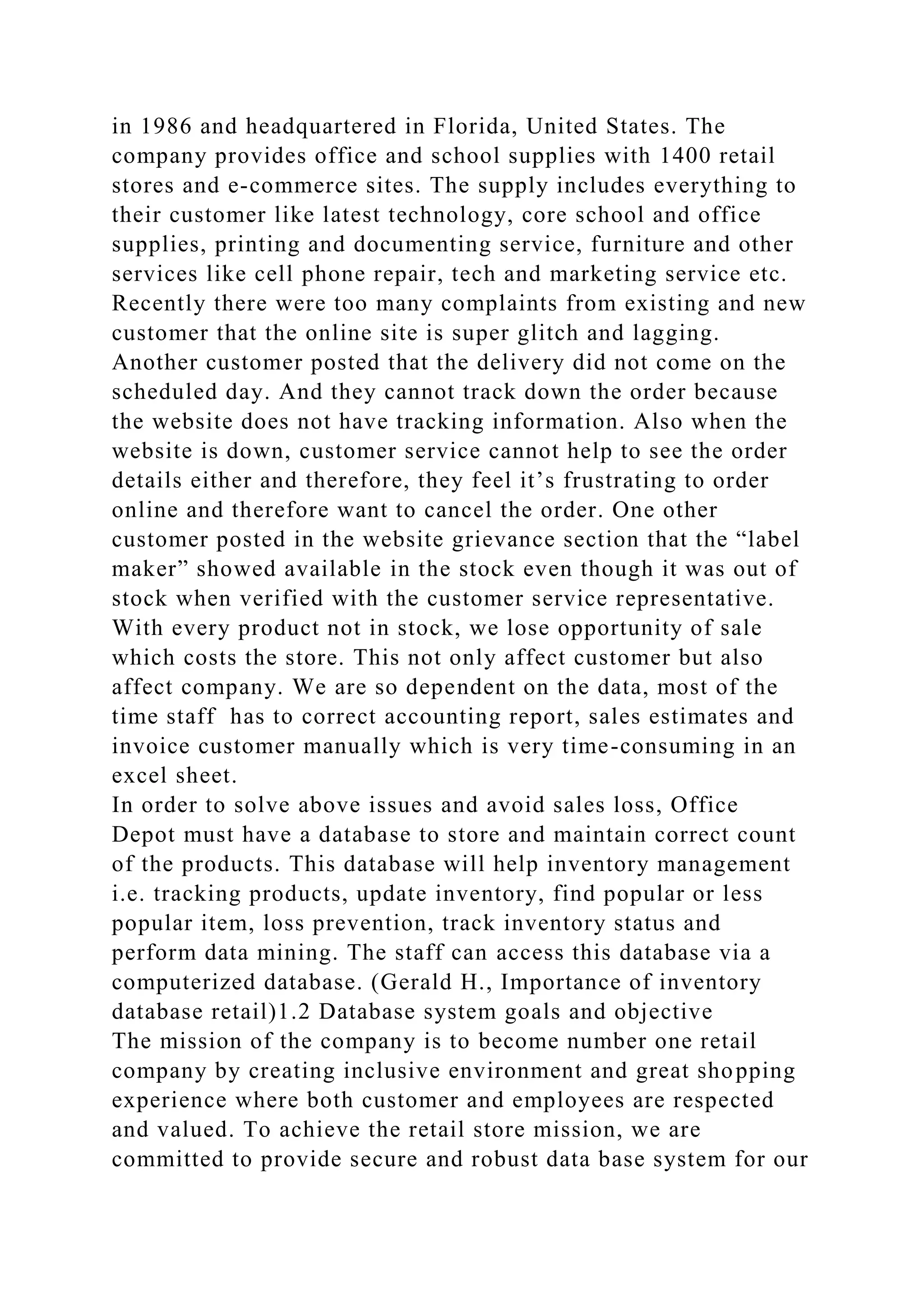

Office Depot, Inc is an American retail store company founded

in 1986 and headquartered in Florida, United States. The
company provides office and school supplies with 1400 retail
stores and e-commerce sites. The supply includes everything to
their customer like latest technology, core school and office
supplies, printing and documenting service, furniture and other
services like cell phone repair, tech and marketing service etc.
Recently there were too many complaints from existing and new
customer that the online site is super glitch and lagging.
Another customer posted that the delivery did not come on the
scheduled day. And they cannot track down the order because
the website does not have tracking information. Also when the
website is down, customer service cannot help to see the order
details either and therefore, they feel it’s frustrating to order
online and therefore want to cancel the order. One other
customer posted in the website grievance section that the “label
maker” showed available in the stock even though it was out of
stock when verified with the customer service representative.
With every product not in stock, we lose opportunity of sale
which costs the store. This not only affect customer but also
affect company. We are so dependent on the data, most of the
time staff has to correct accounting report, sales estimates and
invoice customer manually which is very time-consuming in an
excel sheet.
In order to solve above issues and avoid sales loss, Office
Depot must have a database to store and maintain correct count
of the products. This database will help inventory management
i.e. tracking products, update inventory, find popular or less
popular item, loss prevention, track inventory status and
perform data mining. The staff can access this database via a
computerized database. (Gerald H., Importance of inventory

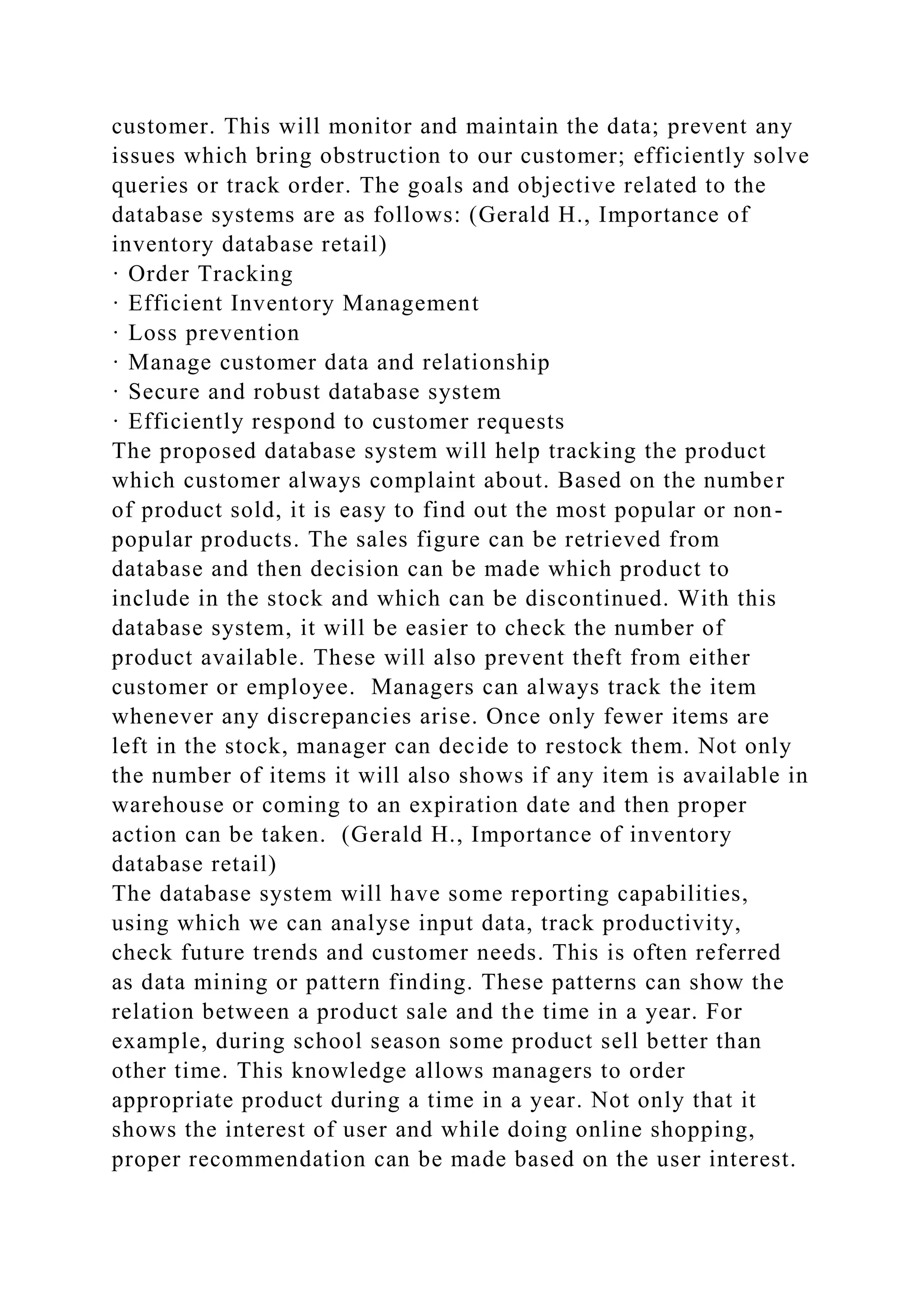

database retail)1.2 Database system goals and objective

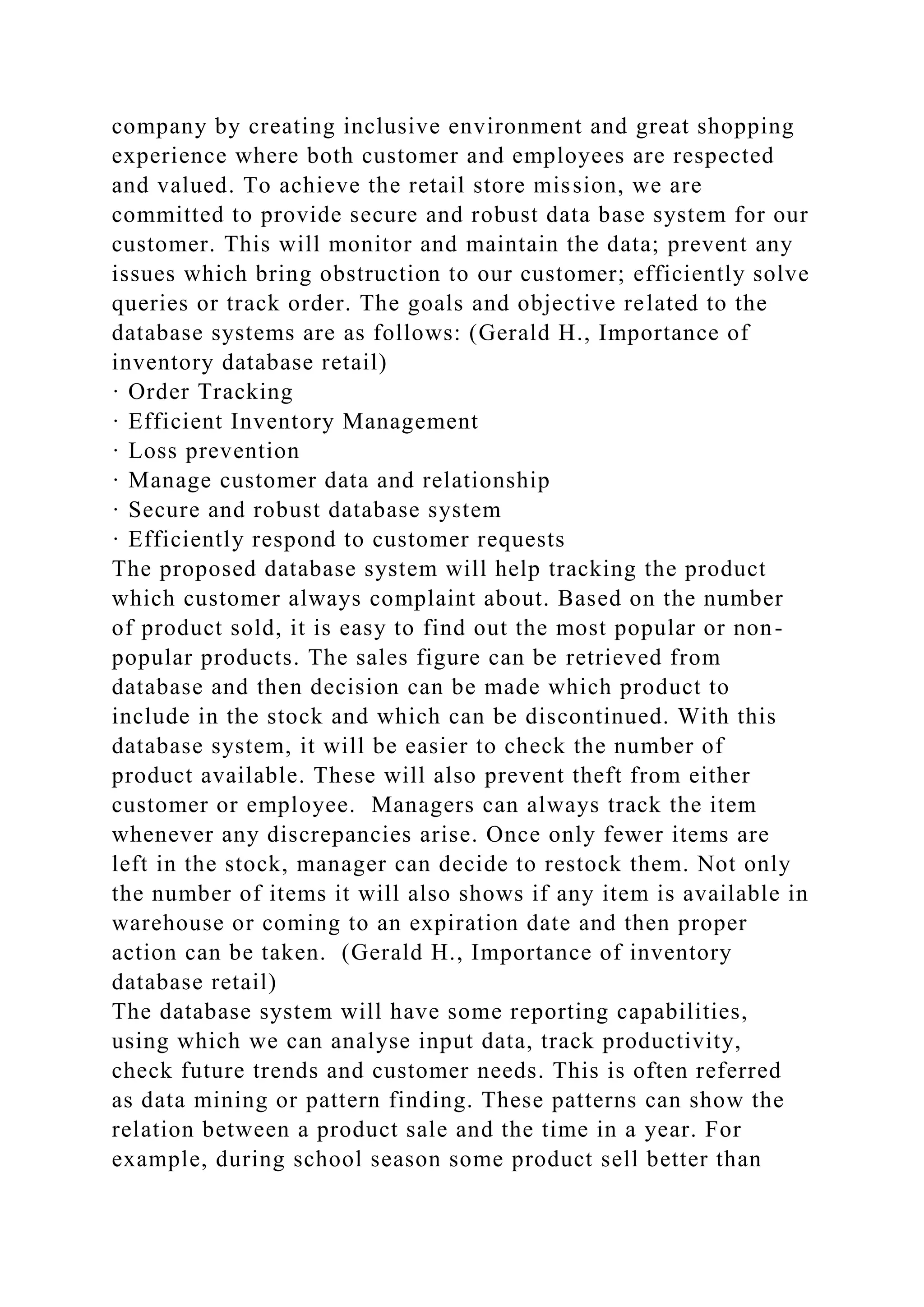

The mission of the company is to become number one retail
company by creating inclusive environment and great shopping
experience where both customer and employees are respected
and valued. To achieve the retail store mission, we are
committed to provide secure and robust data base system for our

customer. This will monitor and maintain the data; prevent any
issues which bring obstruction to our customer; efficiently solve
queries or track order. The goals and objective related to the
database systems are as follows: (Gerald H., Importance of
inventory database retail)
· Order Tracking
· Efficient Inventory Management
· Loss prevention
· Manage customer data and relationship
· Secure and robust database system
· Efficiently respond to customer requests
The proposed database system will help tracking the product
which customer always complaint about. Based on the number
of product sold, it is easy to find out the most popular or non-
popular products. The sales figure can be retrieved from
database and then decision can be made which product to
include in the stock and which can be discontinued. With this
database system, it will be easier to check the number of
product available. These will also prevent theft from either
customer or employee. Managers can always track the item
whenever any discrepancies arise. Once only fewer items are
left in the stock, manager can decide to restock them. Not only
the number of items it will also shows if any item is available in
warehouse or coming to an expiration date and then proper
action can be taken. (Gerald H., Importance of inventory
database retail)
The database system will have some reporting capabilities,
using which we can analyse input data, track productivity,
check future trends and customer needs. This is often referred
as data mining or pattern finding. These patterns can show the
relation between a product sale and the time in a year. For

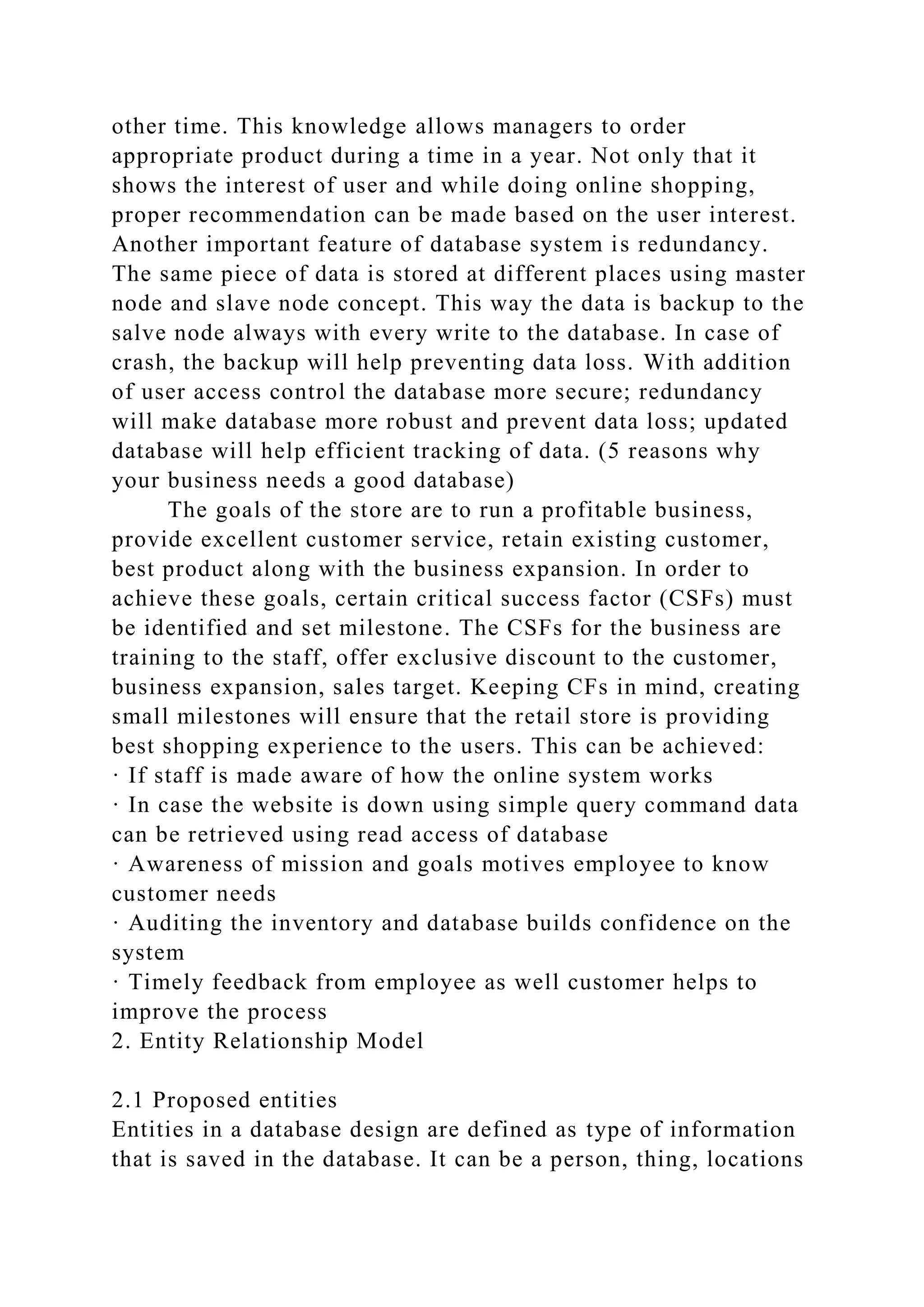

example, during school season some product sell better than
other time. This knowledge allows managers to order
appropriate product during a time in a year. Not only that it
shows the interest of user and while doing online shopping,
proper recommendation can be made based on the user interest.

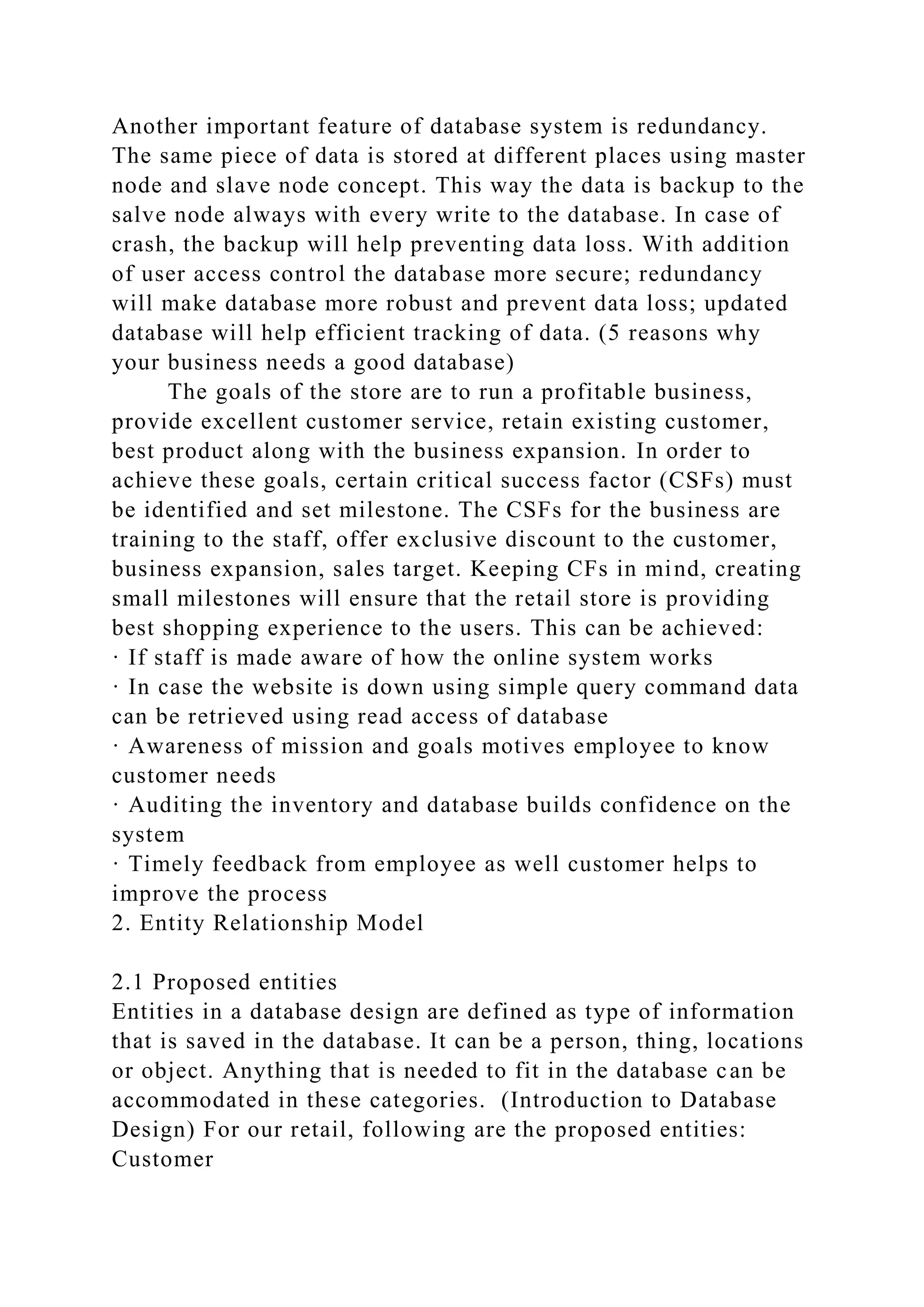

Another important feature of database system is redundancy.
The same piece of data is stored at different places using master
node and slave node concept. This way the data is backup to the
salve node always with every write to the database. In case of
crash, the backup will help preventing data loss. With addition
of user access control the database more secure; redundancy
will make database more robust and prevent data loss; updated
database will help efficient tracking of data. (5 reasons why
your business needs a good database)
The goals of the store are to run a profitable business,
provide excellent customer service, retain existing customer,
best product along with the business expansion. In order to
achieve these goals, certain critical success factor (CSFs) must
be identified and set milestone. The CSFs for the business are
training to the staff, offer exclusive discount to the customer,
business expansion, sales target. Keeping CFs in mind, creating
small milestones will ensure that the retail store is providing
best shopping experience to the users. This can be achieved:
· If staff is made aware of how the online system works
· In case the website is down using simple query command data
can be retrieved using read access of database
· Awareness of mission and goals motives employee to know
customer needs
· Auditing the inventory and database builds confidence on the
system
· Timely feedback from employee as well customer helps to
improve the process
2. Entity Relationship Model
2.1 Proposed entities
Entities in a database design are defined as type of information
that is saved in the database. It can be a person, thing, locations

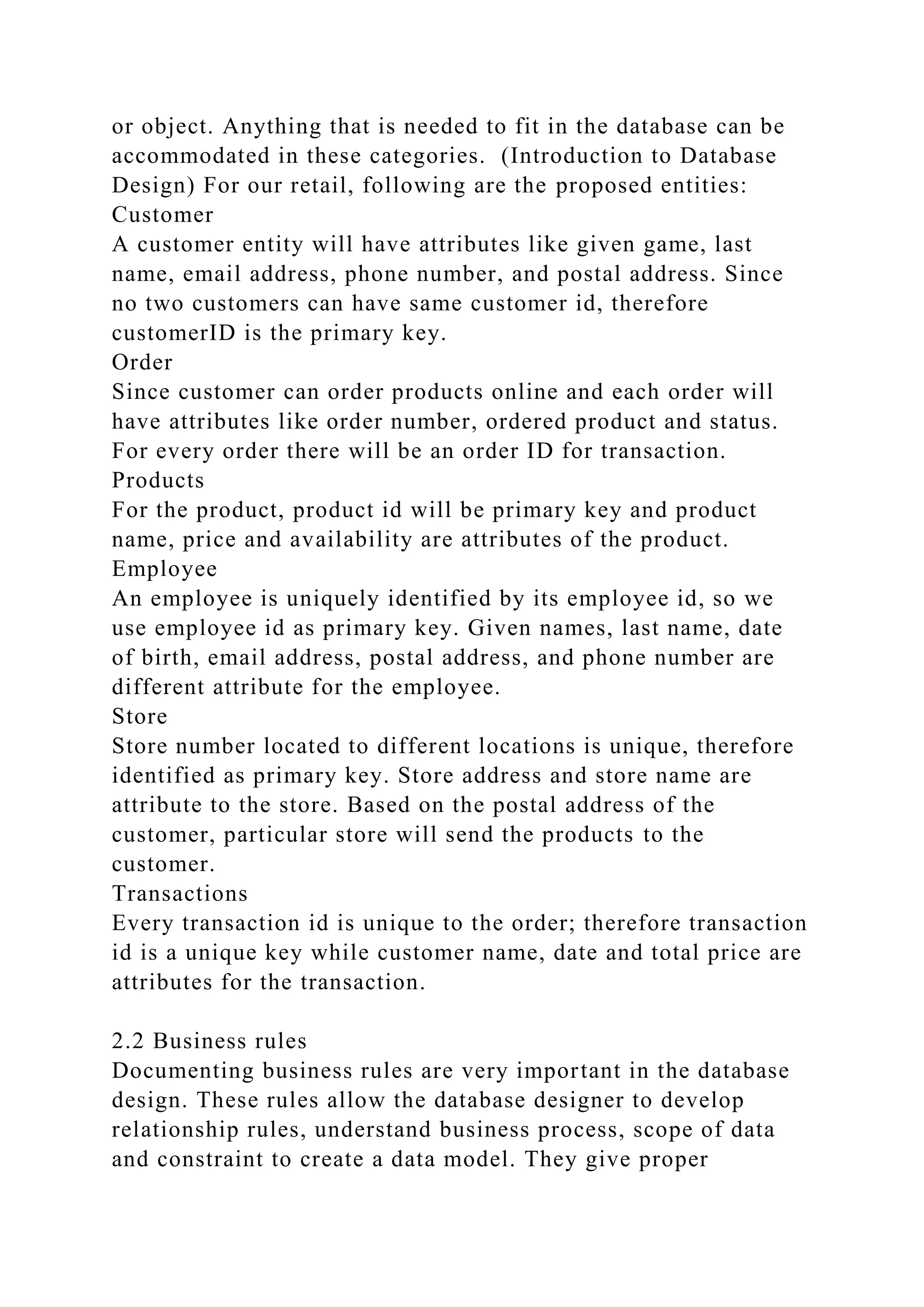

or object. Anything that is needed to fit in the database can be
accommodated in these categories. (Introduction to Database
Design) For our retail, following are the proposed entities:
Customer

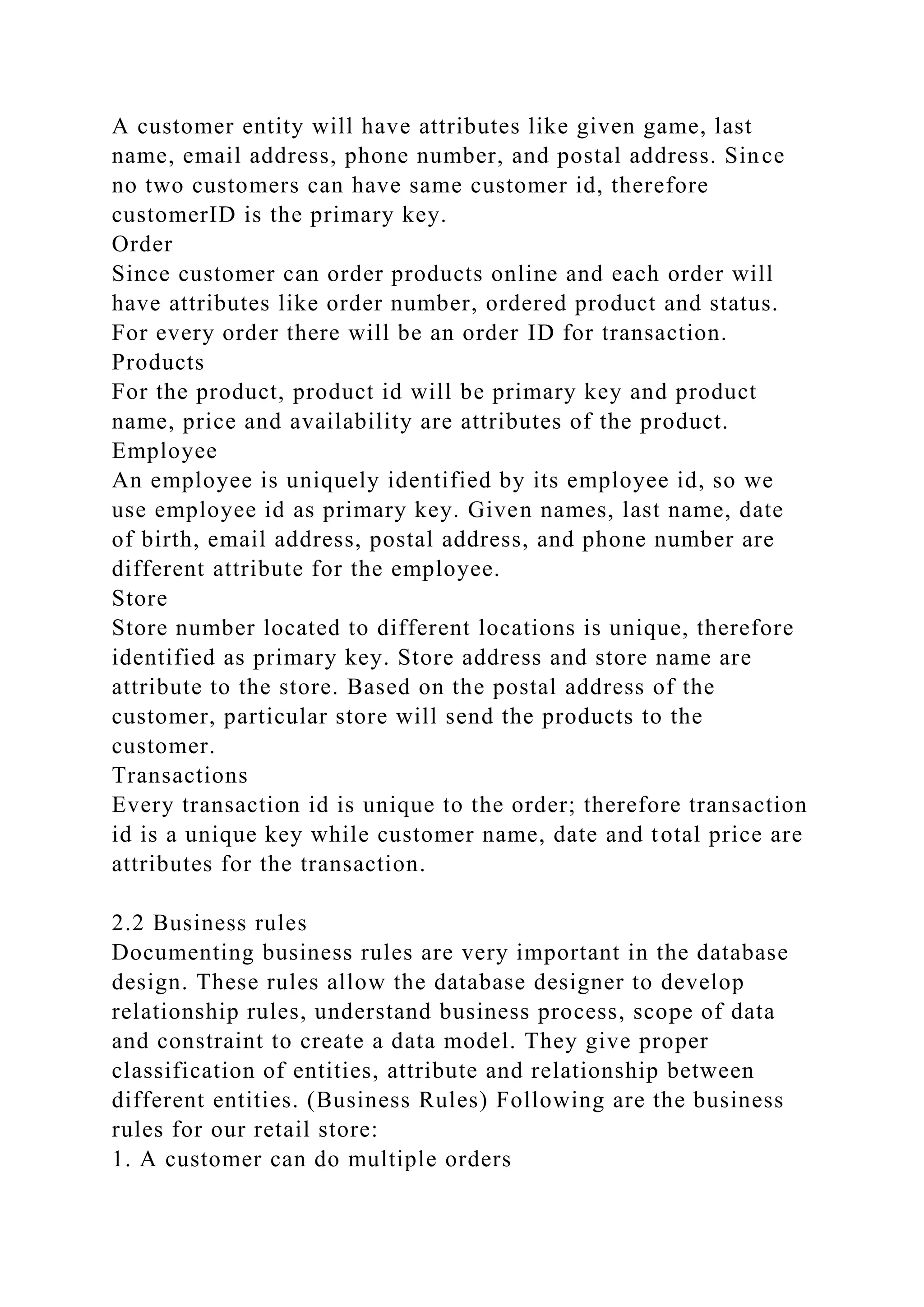

A customer entity will have attributes like given game, last
name, email address, phone number, and postal address. Since
no two customers can have same customer id, therefore
customerID is the primary key.
Order
Since customer can order products online and each order will
have attributes like order number, ordered product and status.
For every order there will be an order ID for transaction.
Products
For the product, product id will be primary key and product
name, price and availability are attributes of the product.
Employee
An employee is uniquely identified by its employee id, so we
use employee id as primary key. Given names, last name, date
of birth, email address, postal address, and phone number are
different attribute for the employee.
Store
Store number located to different locations is unique, therefore
identified as primary key. Store address and store name are
attribute to the store. Based on the postal address of the
customer, particular store will send the products to the
customer.
Transactions
Every transaction id is unique to the order; therefore transaction
id is a unique key while customer name, date and total price are
attributes for the transaction.

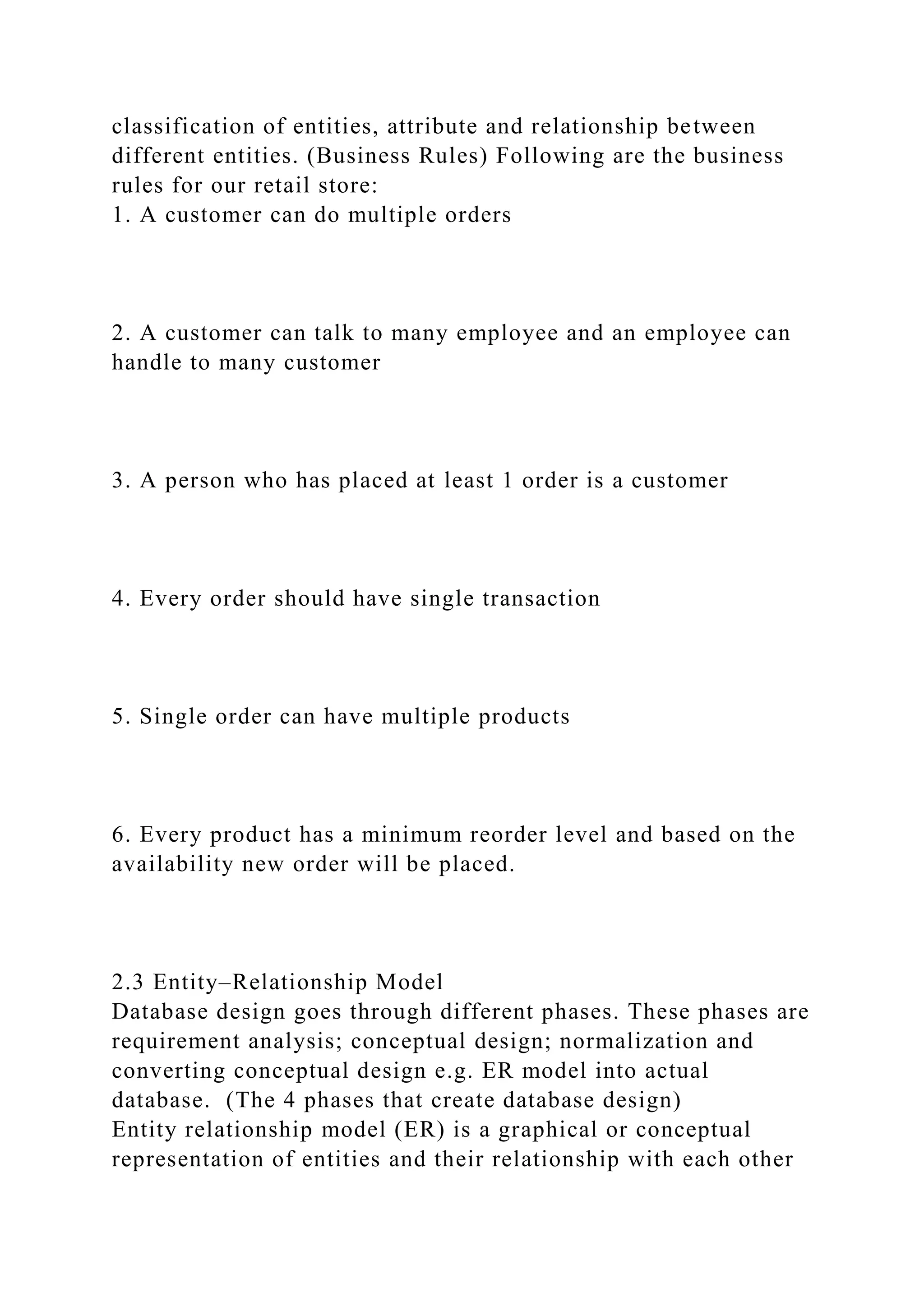

2.2 Business rules
Documenting business rules are very important in the database
design. These rules allow the database designer to develop
relationship rules, understand business process, scope of data
and constraint to create a data model. They give proper
classification of entities, attribute and relationship between
different entities. (Business Rules) Following are the business
rules for our retail store:
1. A customer can do multiple orders

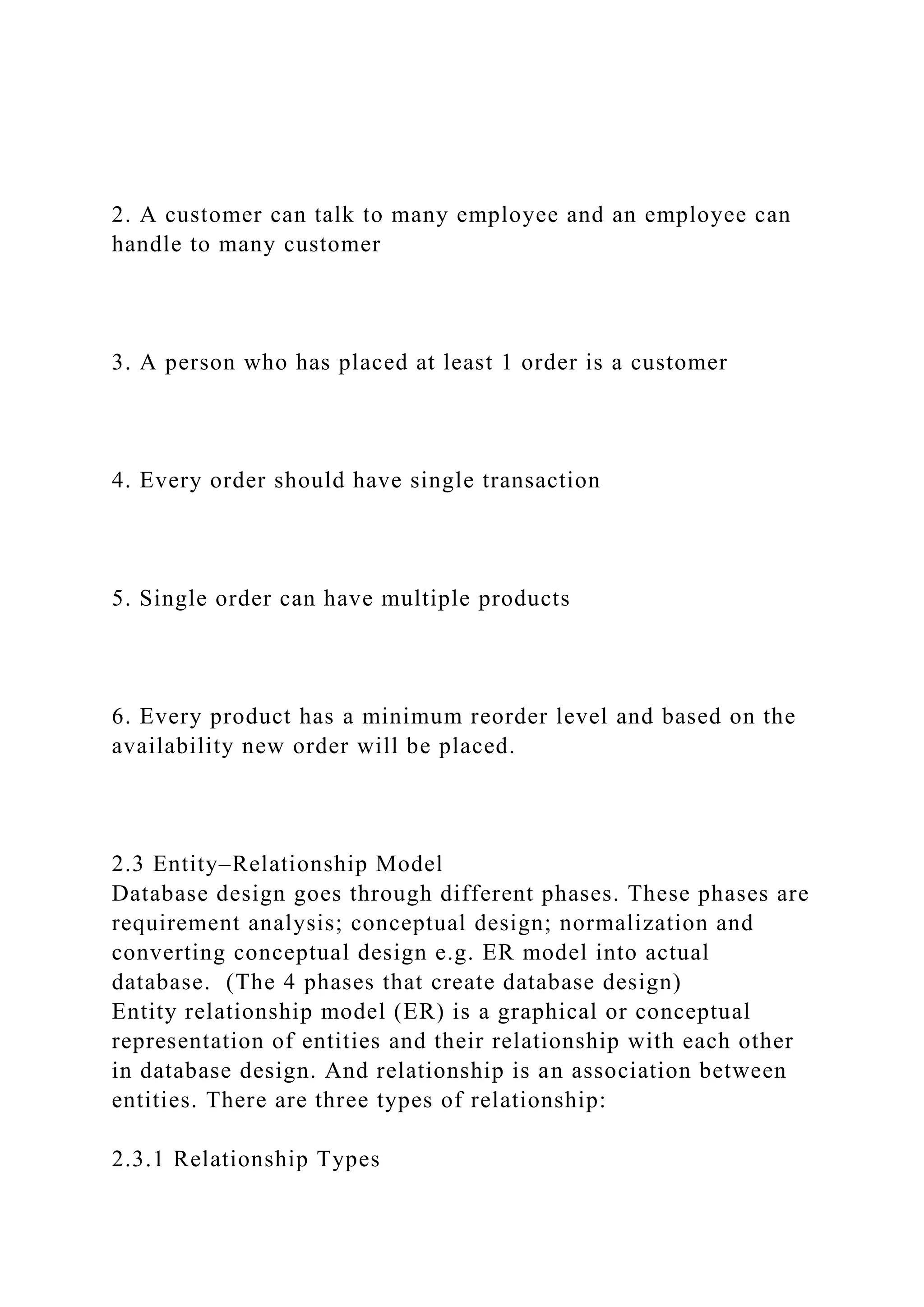

2. A customer can talk to many employee and an employee can
handle to many customer
3. A person who has placed at least 1 order is a customer
4. Every order should have single transaction
5. Single order can have multiple products
6. Every product has a minimum reorder level and based on the
availability new order will be placed.
2.3 Entity–Relationship Model
Database design goes through different phases. These phases are
requirement analysis; conceptual design; normalization and
converting conceptual design e.g. ER model into actual
database. (The 4 phases that create database design)
Entity relationship model (ER) is a graphical or conceptual
representation of entities and their relationship with each other
in database design. And relationship is an association between
entities. There are three types of relationship:

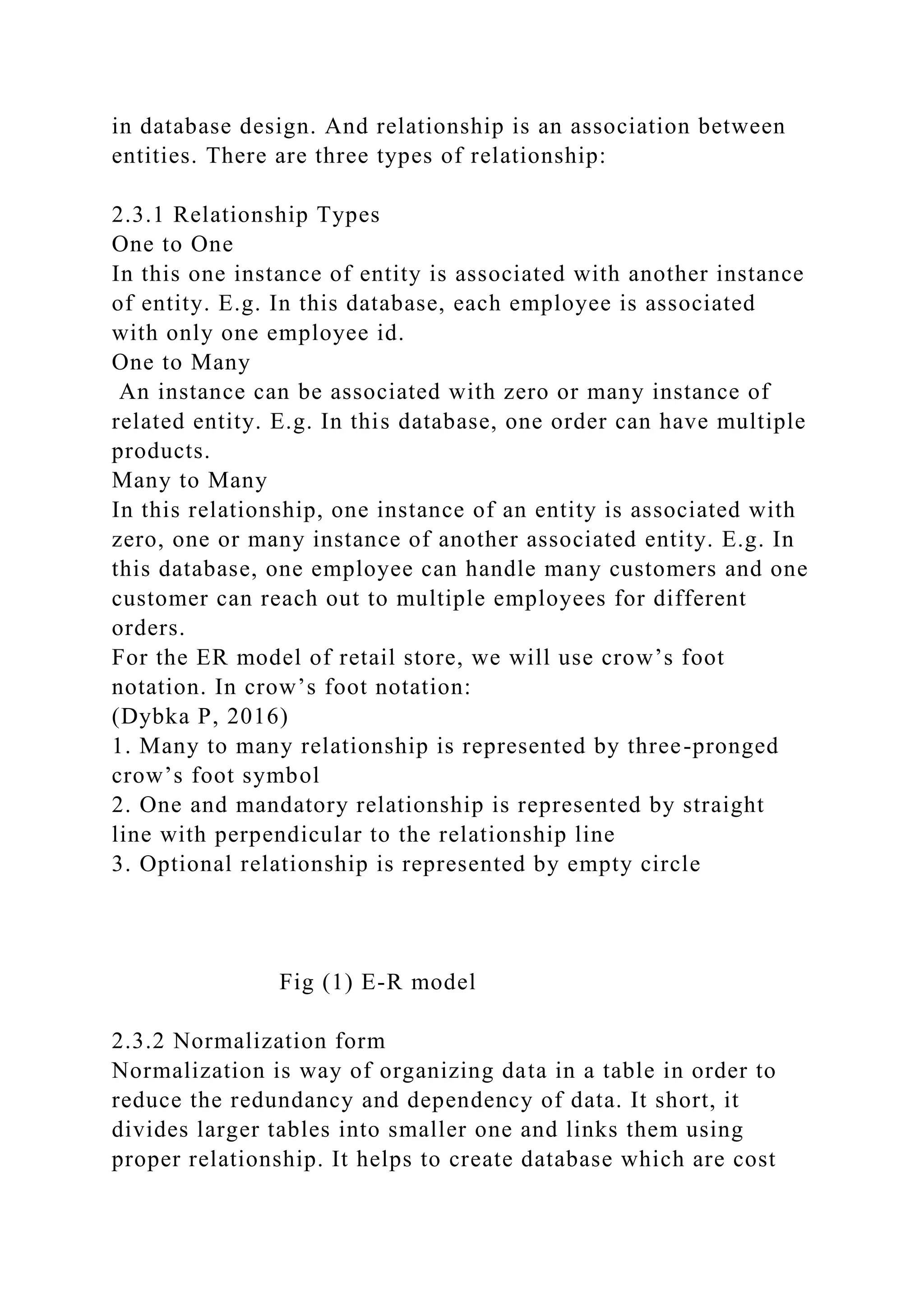

2.3.1 Relationship Types

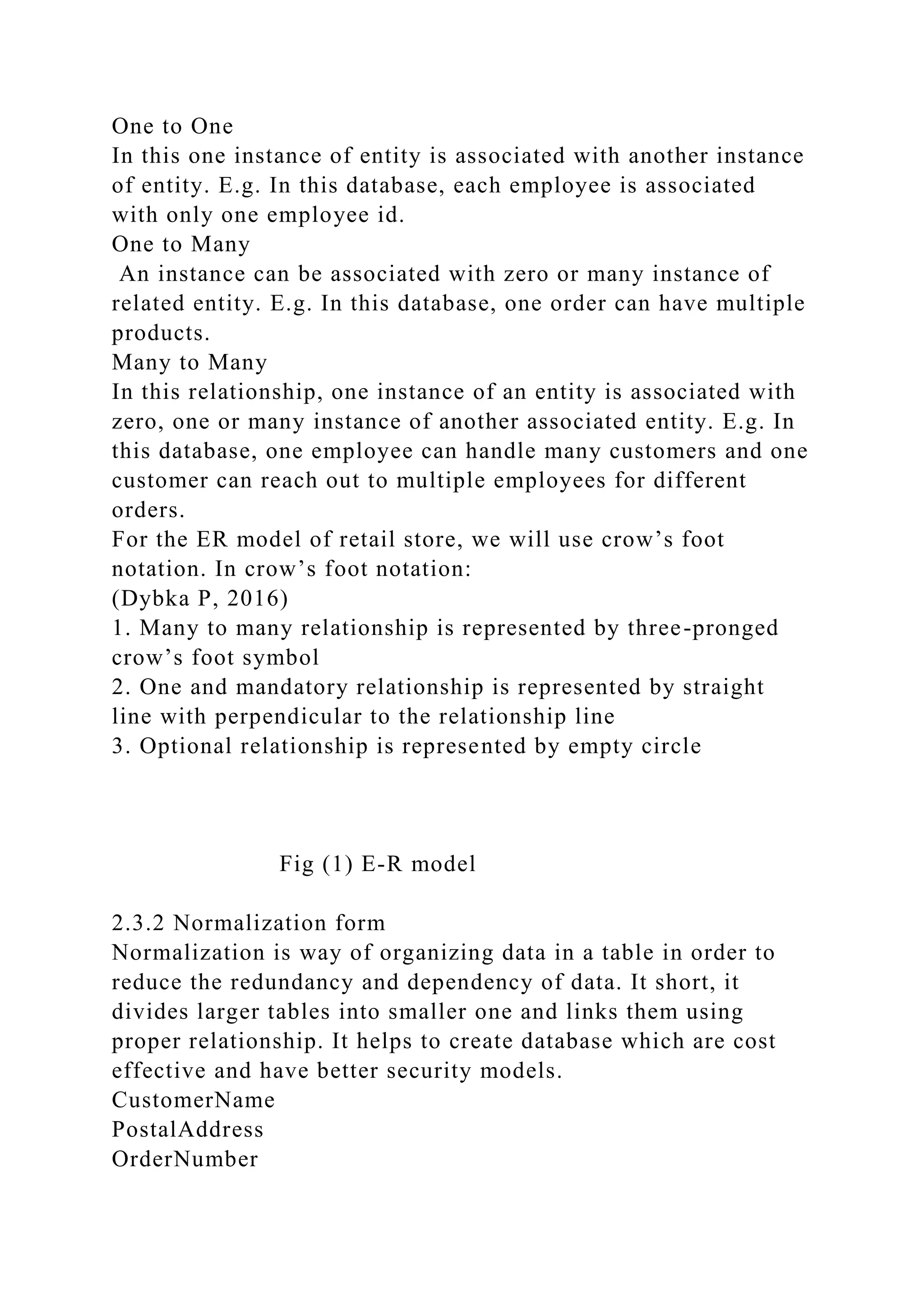

One to One
In this one instance of entity is associated with another instance
of entity. E.g. In this database, each employee is associated
with only one employee id.
One to Many
An instance can be associated with zero or many instance of
related entity. E.g. In this database, one order can have multiple
products.
Many to Many
In this relationship, one instance of an entity is associated with
zero, one or many instance of another associated entity. E.g. In
this database, one employee can handle many customers and one
customer can reach out to multiple employees for different
orders.
For the ER model of retail store, we will use crow’s foot
notation. In crow’s foot notation:
(Dybka P, 2016)
1. Many to many relationship is represented by three-pronged
crow’s foot symbol
2. One and mandatory relationship is represented by straight
line with perpendicular to the relationship line
3. Optional relationship is represented by empty circle

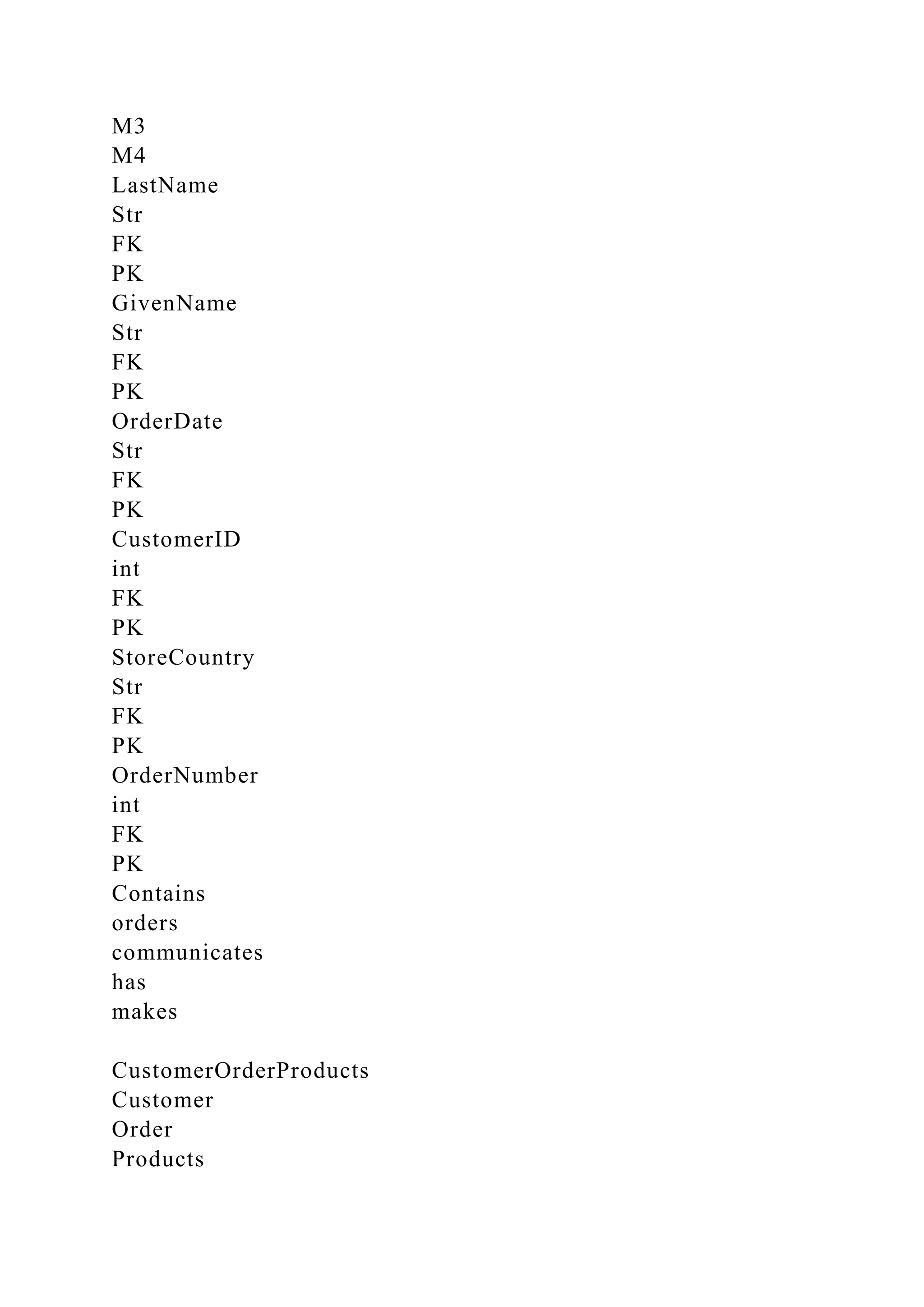

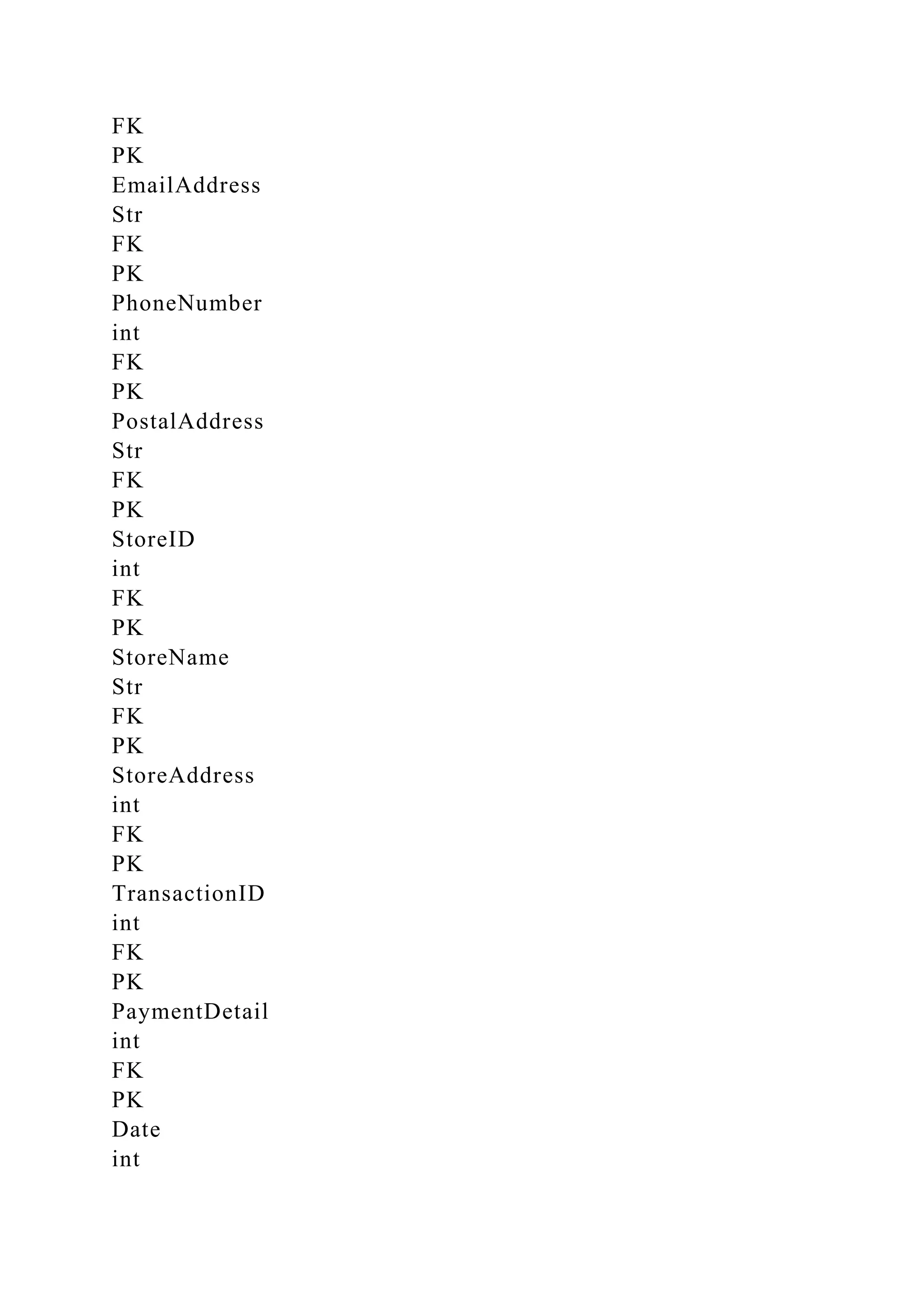

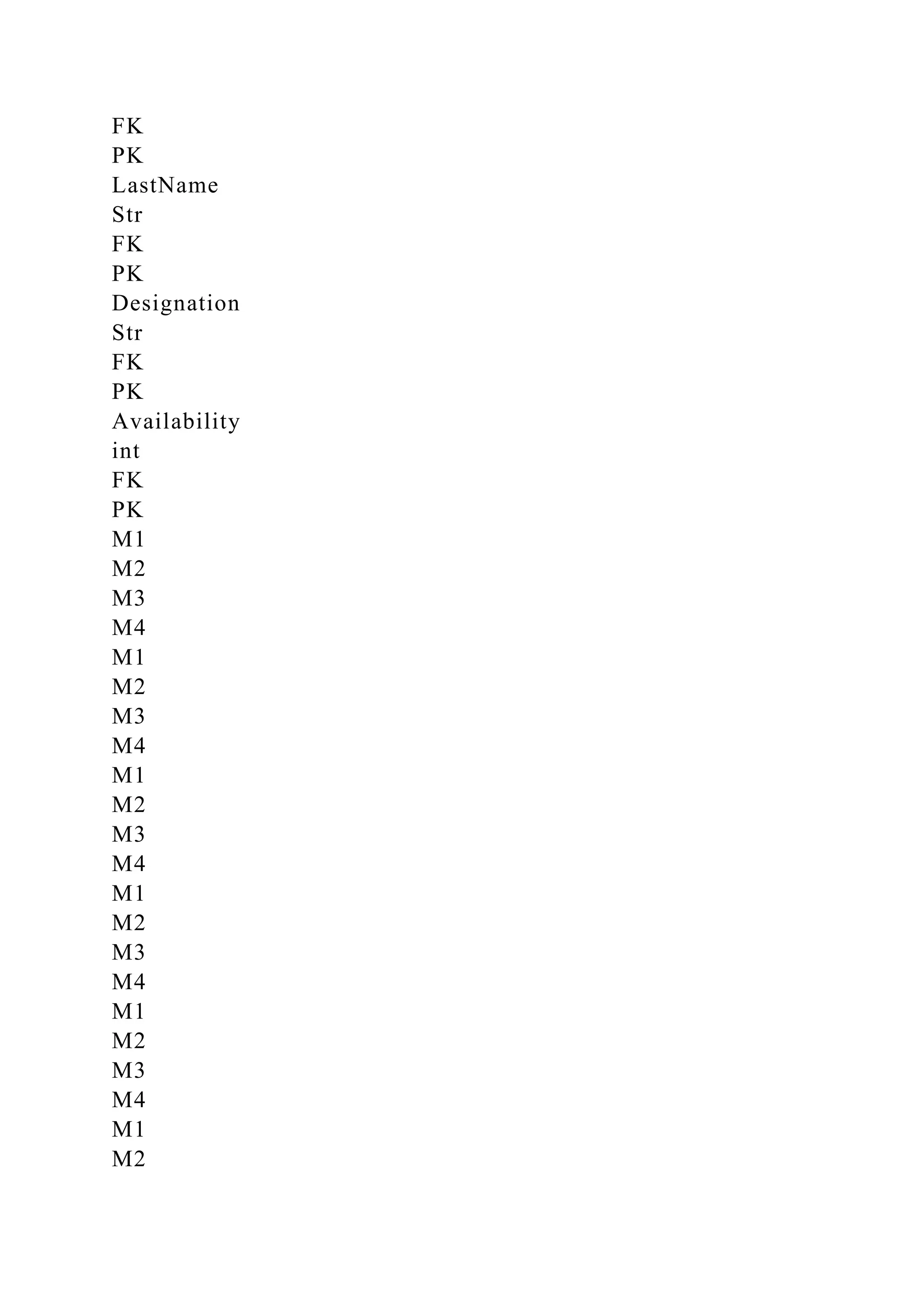

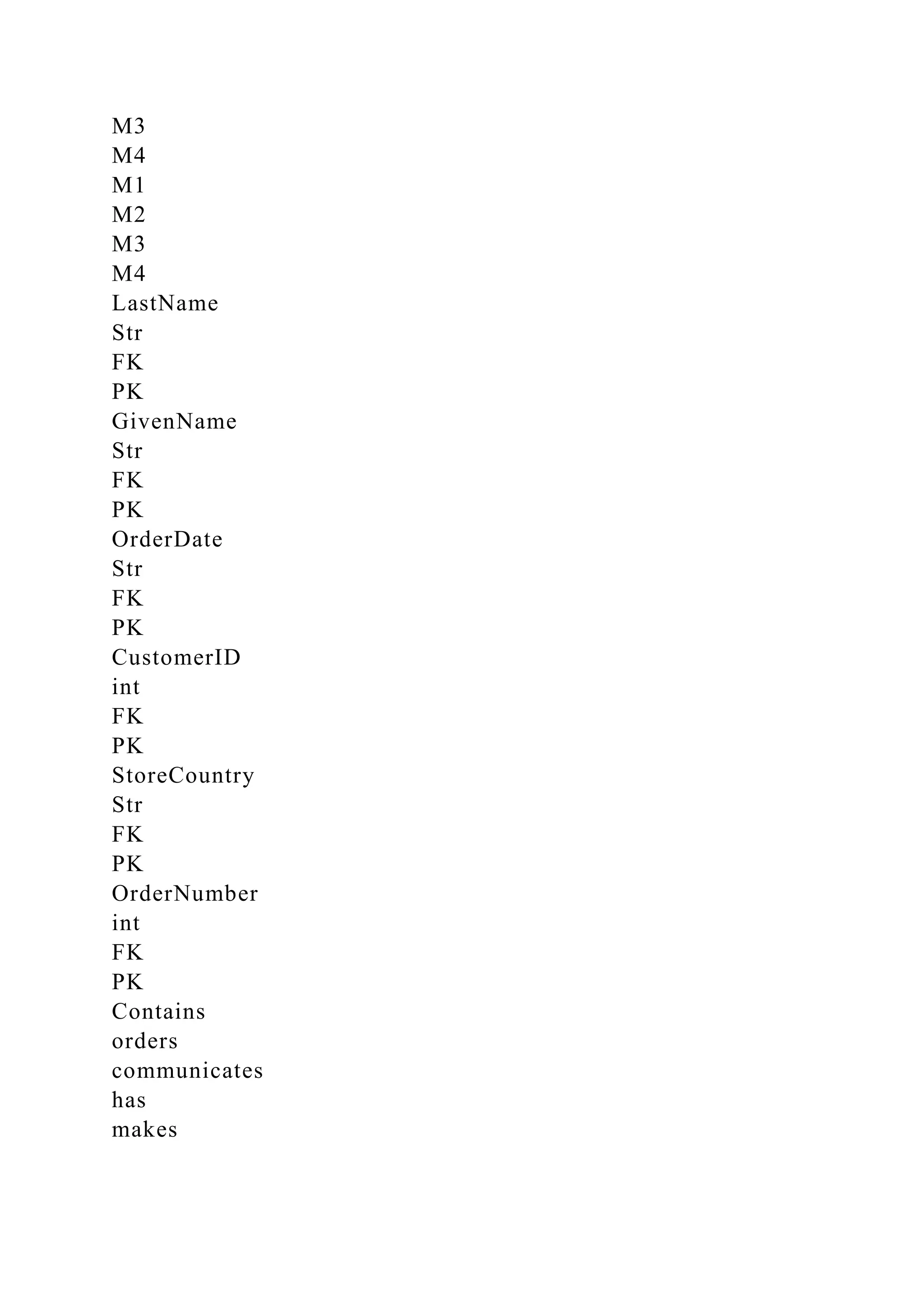

Fig (1) E-R model

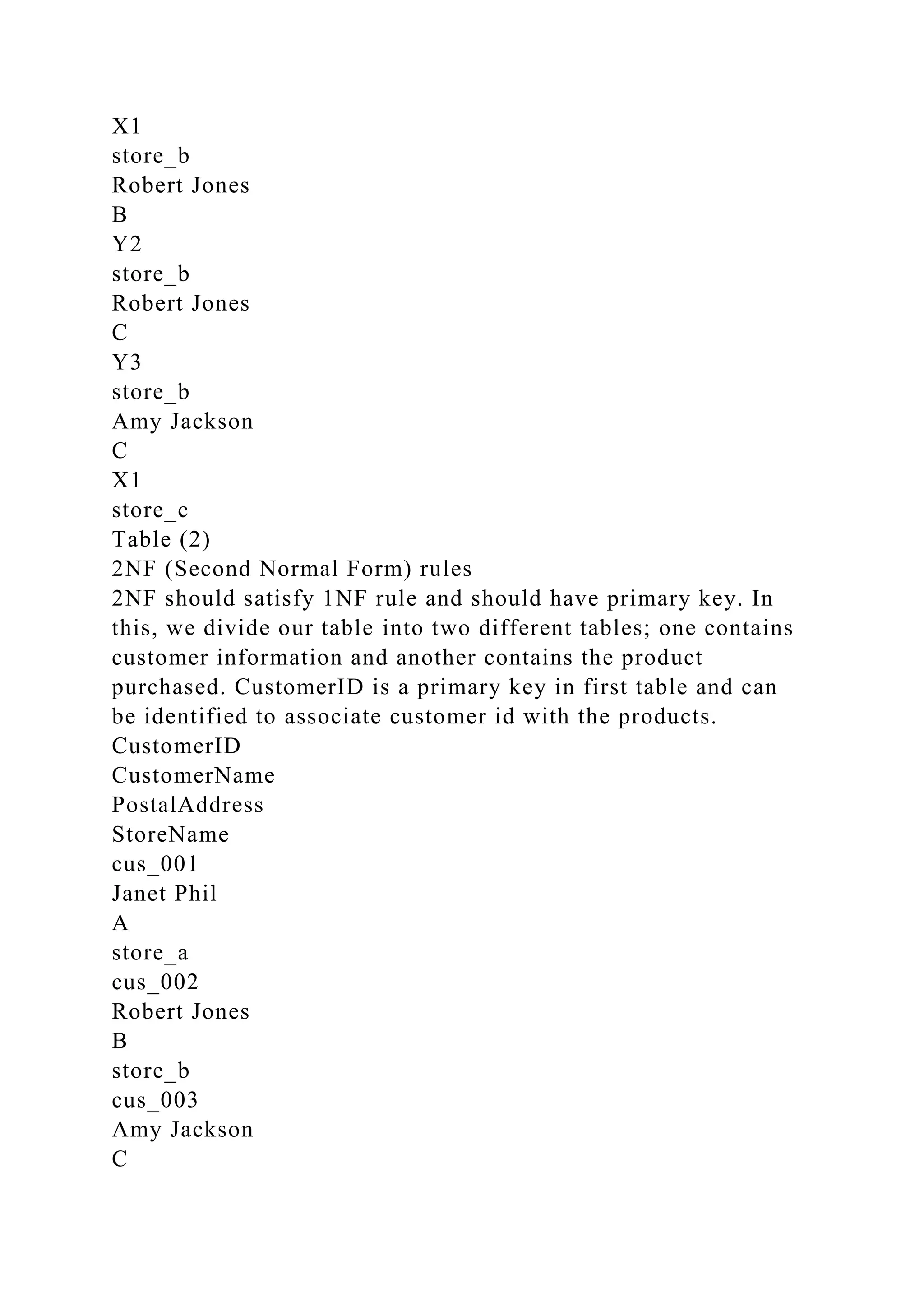

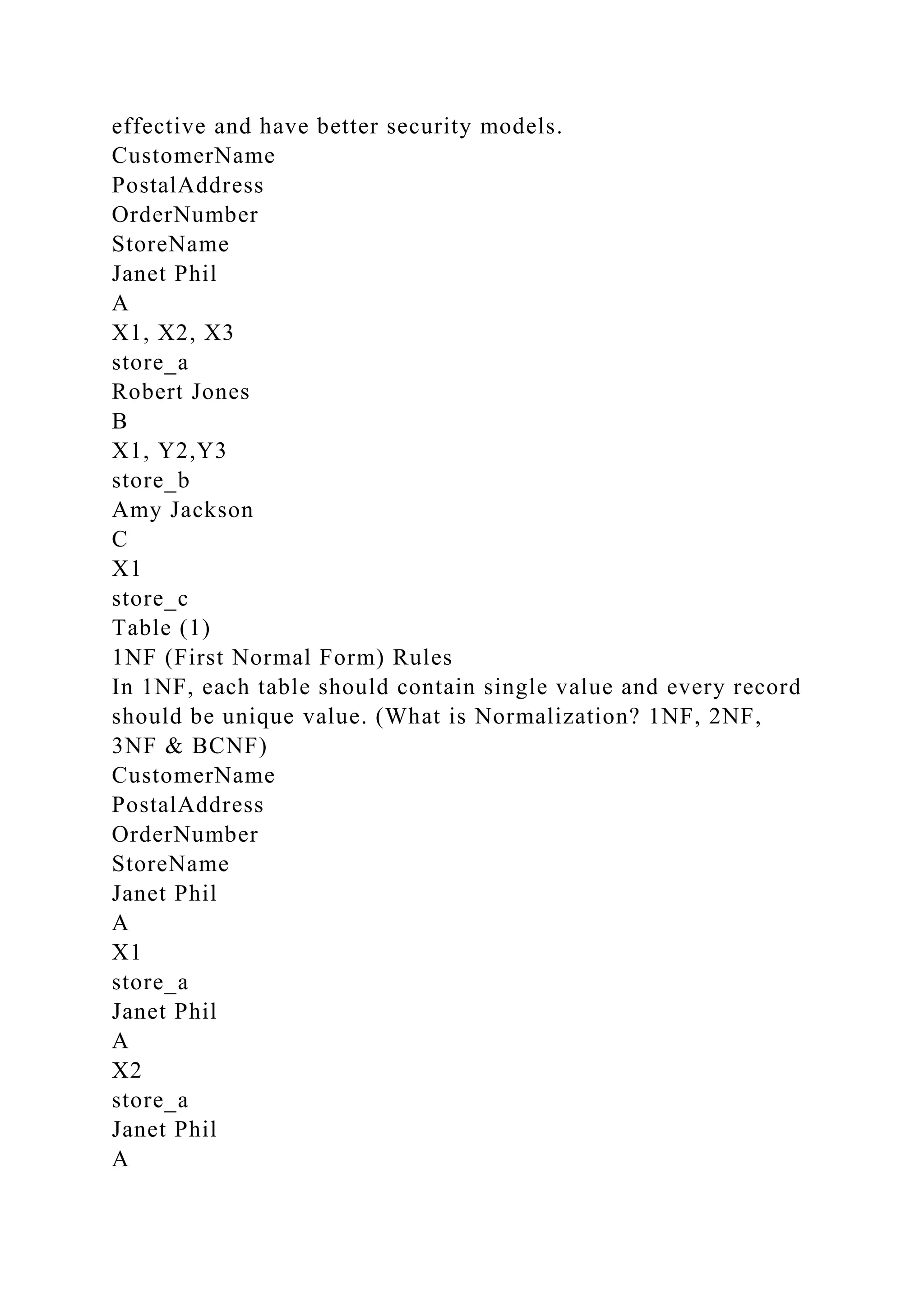

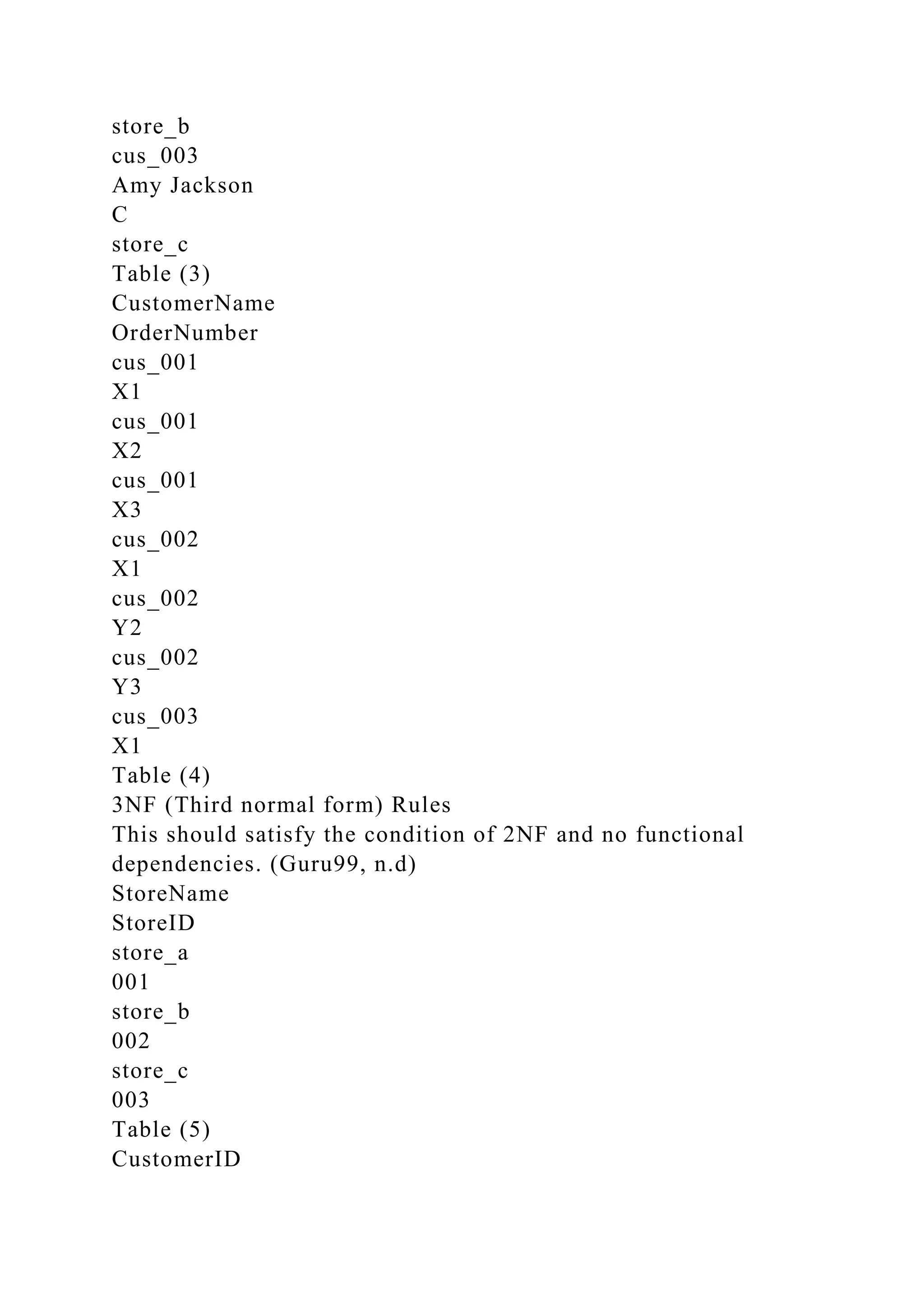

2.3.2 Normalization form
Normalization is way of organizing data in a table in order to
reduce the redundancy and dependency of data. It short, it
divides larger tables into smaller one and links them using
proper relationship. It helps to create database which are cost
effective and have better security models.

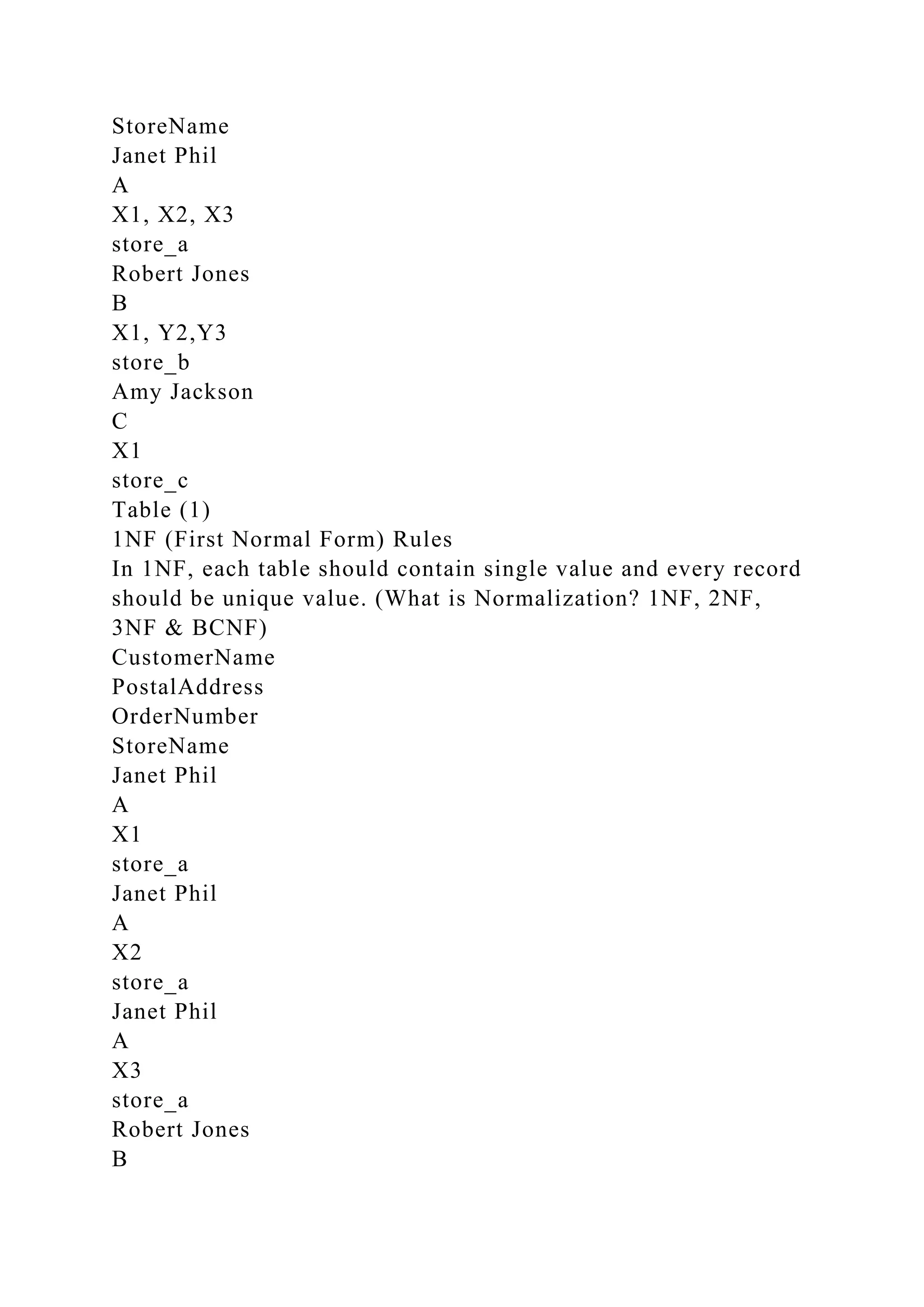

CustomerName
PostalAddress
OrderNumber

StoreName
Janet Phil
A
X1, X2, X3
store_a
Robert Jones
B
X1, Y2,Y3
store_b
Amy Jackson
C
X1
store_c
Table (1)
1NF (First Normal Form) Rules
In 1NF, each table should contain single value and every record
should be unique value. (What is Normalization? 1NF, 2NF,
3NF & BCNF)
CustomerName
PostalAddress
OrderNumber
StoreName
Janet Phil
A
X1
store_a
Janet Phil
A
X2
store_a
Janet Phil
A
X3
store_a

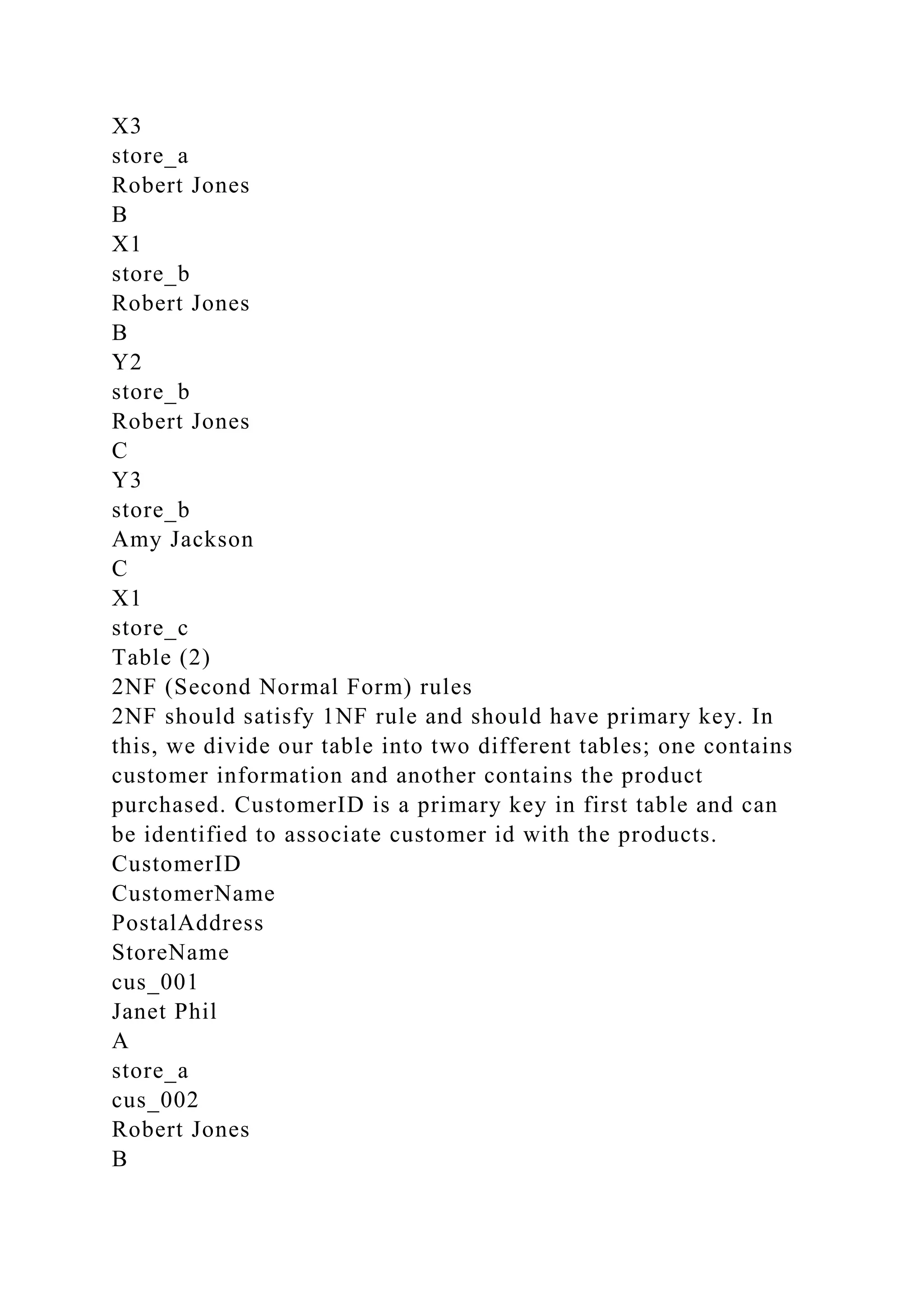

Robert Jones
B

X1
store_b
Robert Jones
B
Y2
store_b
Robert Jones
C
Y3
store_b
Amy Jackson
C
X1
store_c
Table (2)
2NF (Second Normal Form) rules
2NF should satisfy 1NF rule and should have primary key. In
this, we divide our table into two different tables; one contains
customer information and another contains the product
purchased. CustomerID is a primary key in first table and can
be identified to associate customer id with the products.
CustomerID
CustomerName
PostalAddress
StoreName
cus_001
Janet Phil
A
store_a
cus_002
Robert Jones
B
store_b
cus_003
Amy Jackson
C

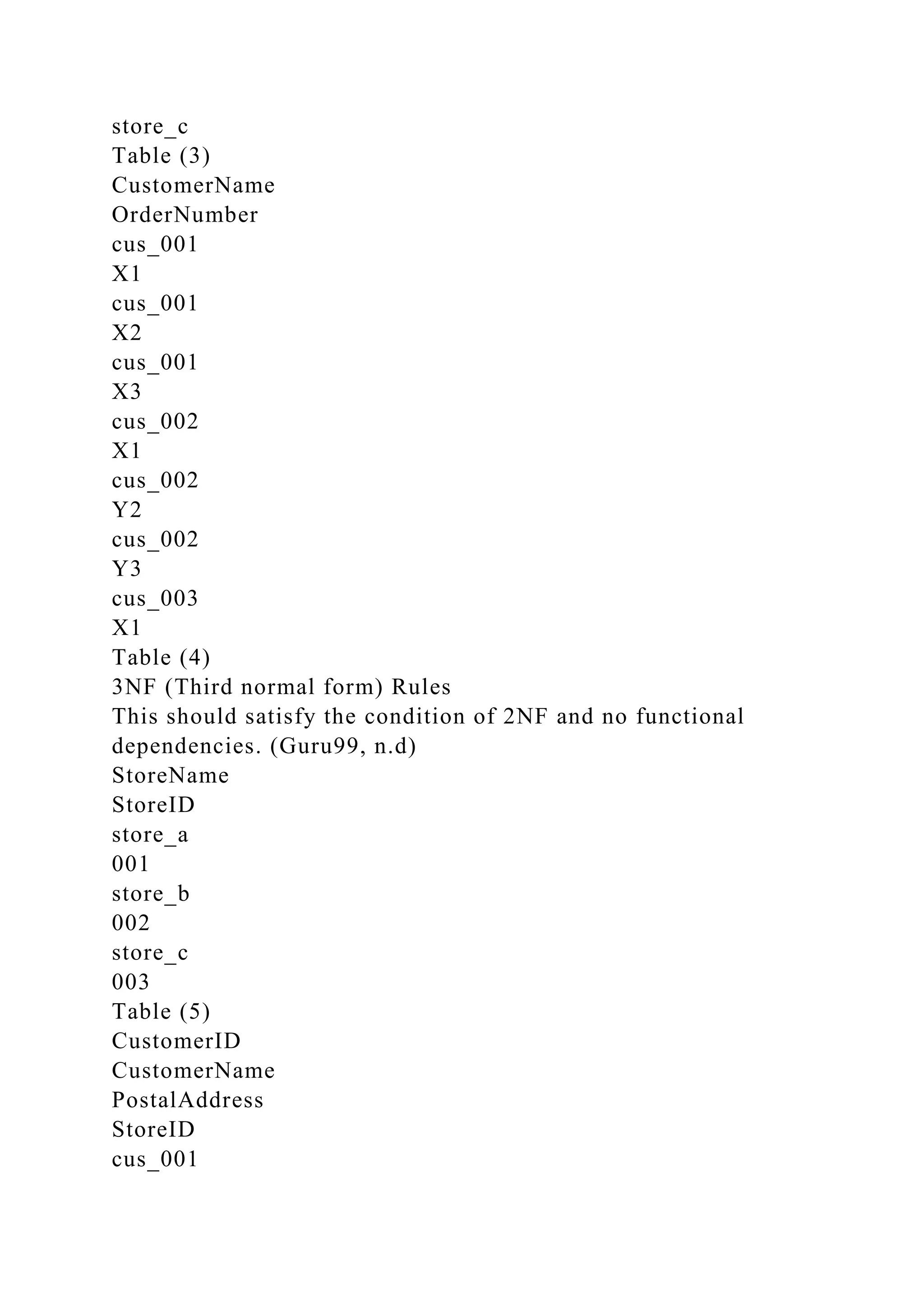

store_c
Table (3)
CustomerName
OrderNumber
cus_001
X1
cus_001
X2
cus_001
X3
cus_002
X1
cus_002
Y2
cus_002
Y3
cus_003
X1
Table (4)
3NF (Third normal form) Rules
This should satisfy the condition of 2NF and no functional
dependencies. (Guru99, n.d)
StoreName
StoreID
store_a
001
store_b
002
store_c
003
Table (5)

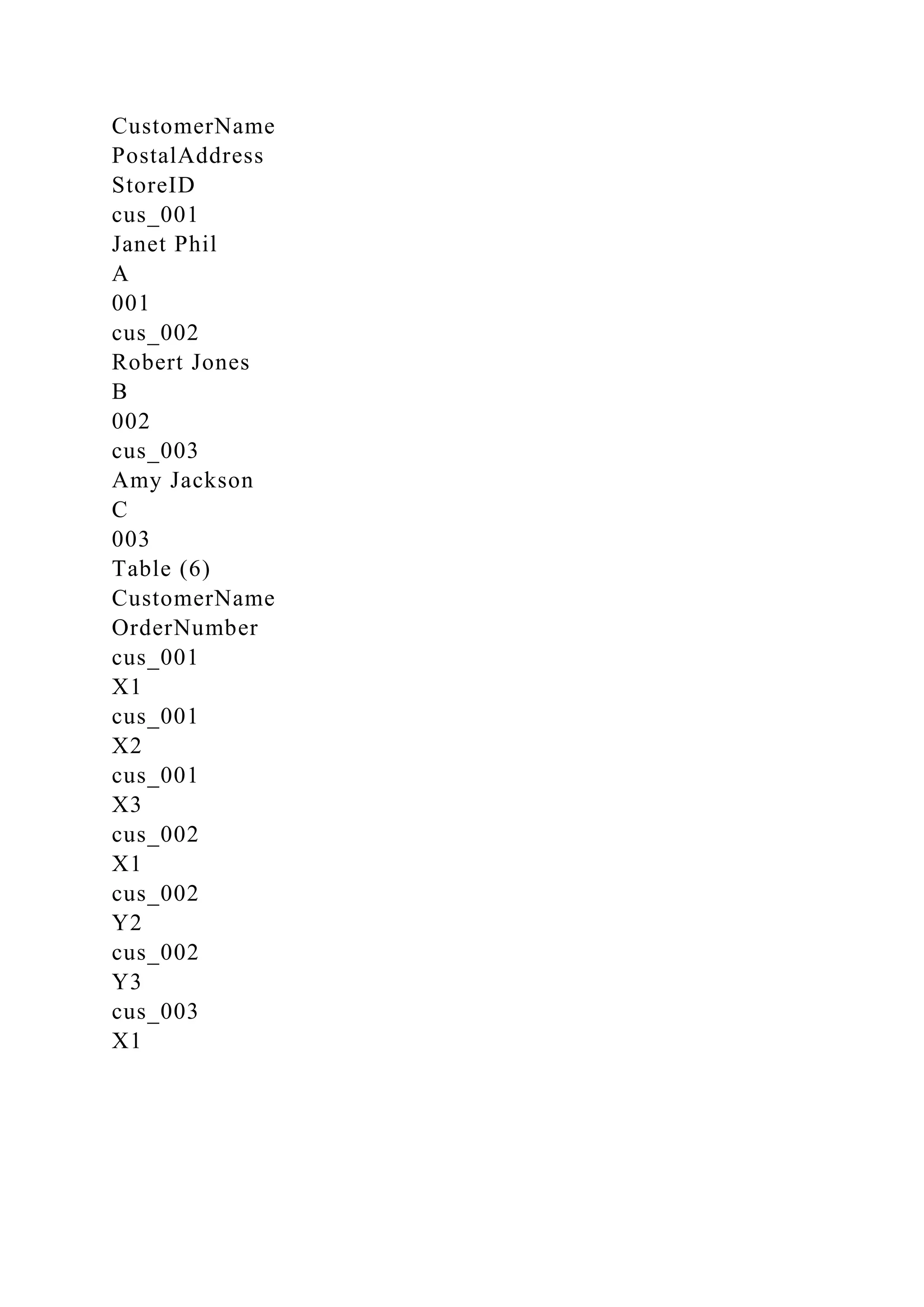

CustomerID
CustomerName
PostalAddress
StoreID

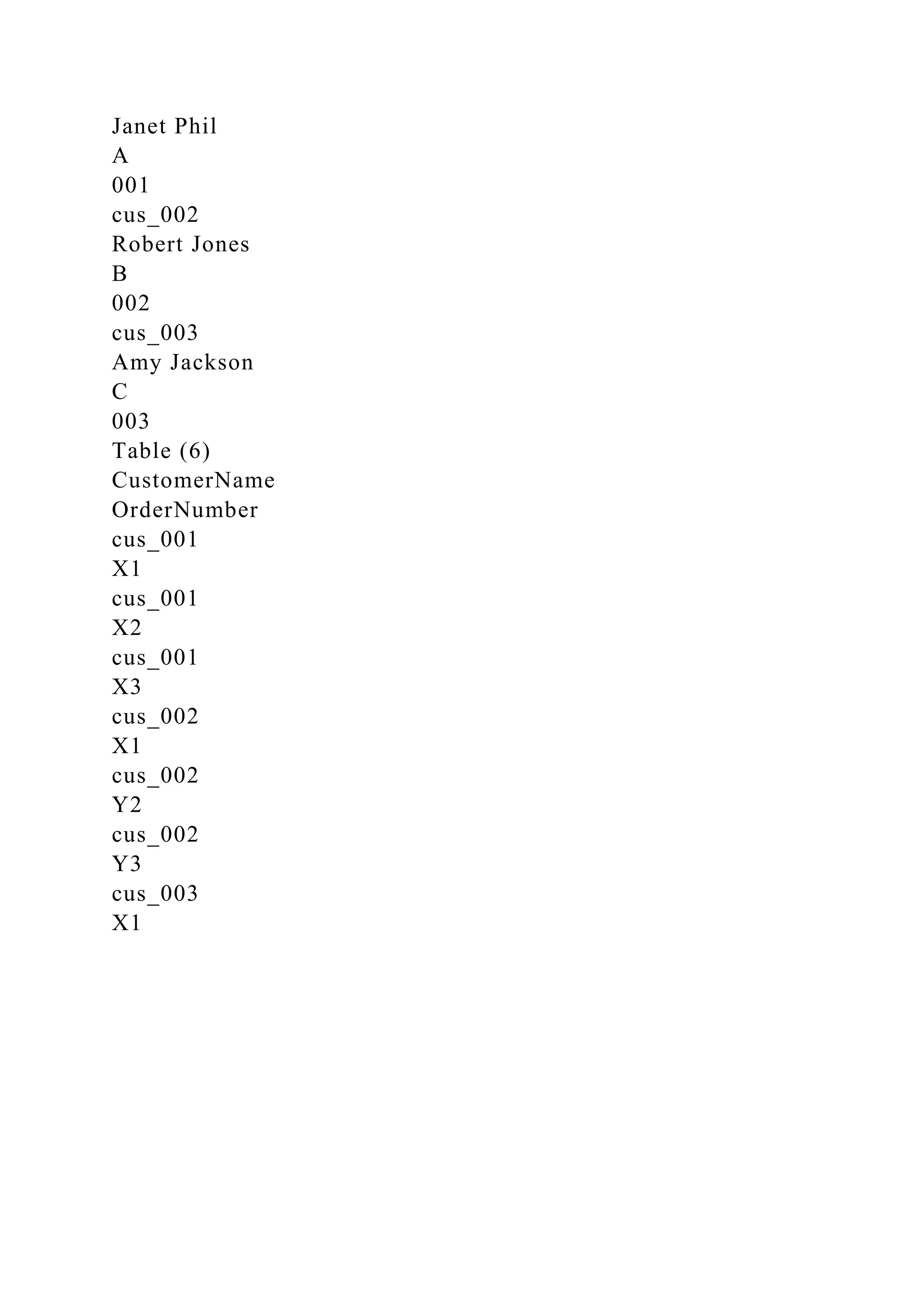

cus_001

Janet Phil
A
001
cus_002
Robert Jones
B
002
cus_003
Amy Jackson
C
003
Table (6)
CustomerName
OrderNumber
cus_001
X1
cus_001
X2
cus_001
X3
cus_002
X1
cus_002
Y2
cus_002
Y3
cus_003
X1

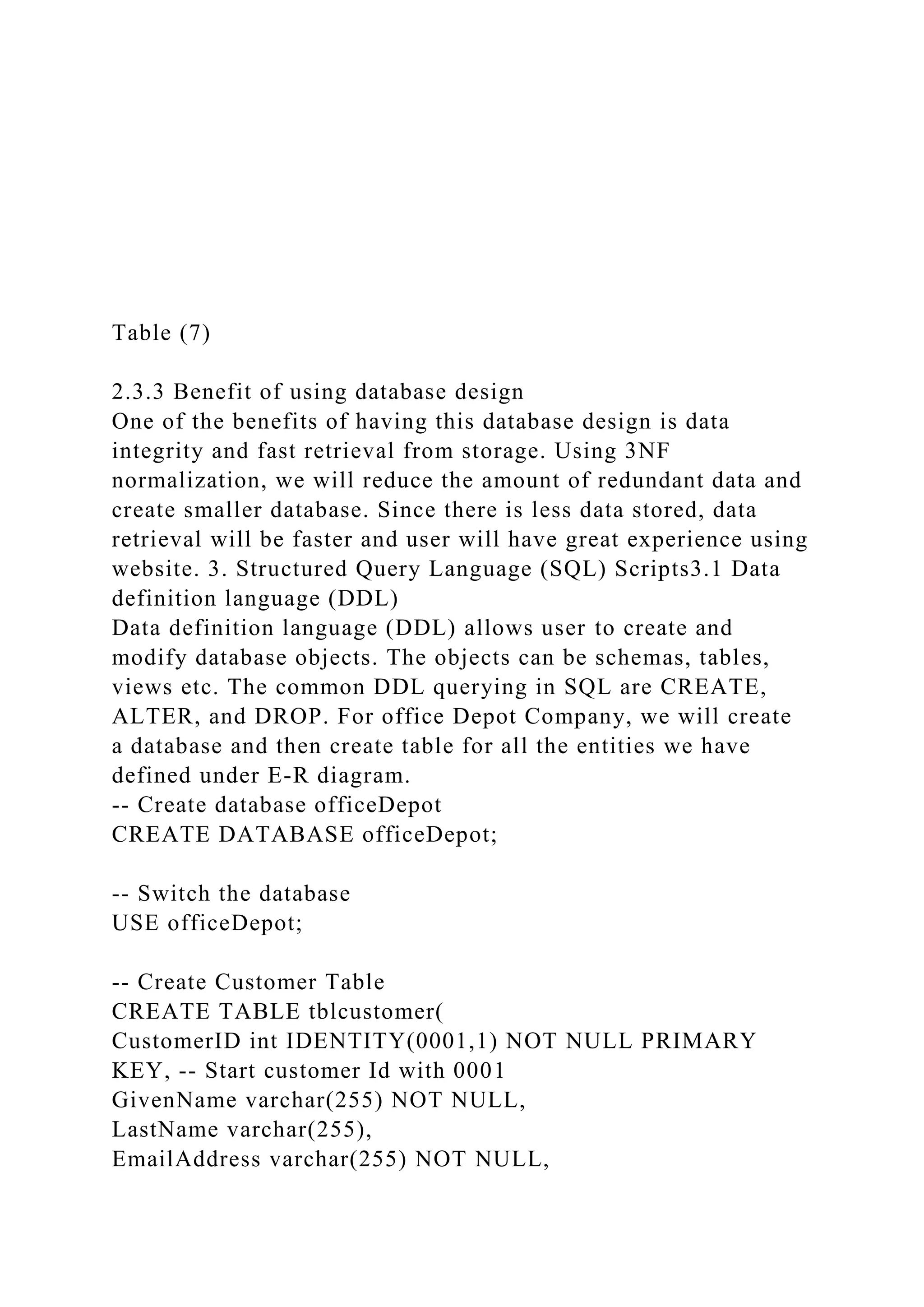

Table (7)
2.3.3 Benefit of using database design
One of the benefits of having this database design is data
integrity and fast retrieval from storage. Using 3NF
normalization, we will reduce the amount of redundant data and
create smaller database. Since there is less data stored, data
retrieval will be faster and user will have great experience using
website. 3. Structured Query Language (SQL) Scripts3.1 Data
definition language (DDL)
Data definition language (DDL) allows user to create and
modify database objects. The objects can be schemas, tables,
views etc. The common DDL querying in SQL are CREATE,
ALTER, and DROP. For office Depot Company, we will create
a database and then create table for all the entities we have
defined under E-R diagram.
-- Create database officeDepot
CREATE DATABASE officeDepot;
-- Switch the database
USE officeDepot;
-- Create Customer Table
CREATE TABLE tblcustomer(
CustomerID int IDENTITY(0001,1) NOT NULL PRIMARY
KEY, -- Start customer Id with 0001
GivenName varchar(255) NOT NULL,
LastName varchar(255),
EmailAddress varchar(255) NOT NULL,
PhoneNumber int,
PostalAddress varchar(255) NOT NULL,
);

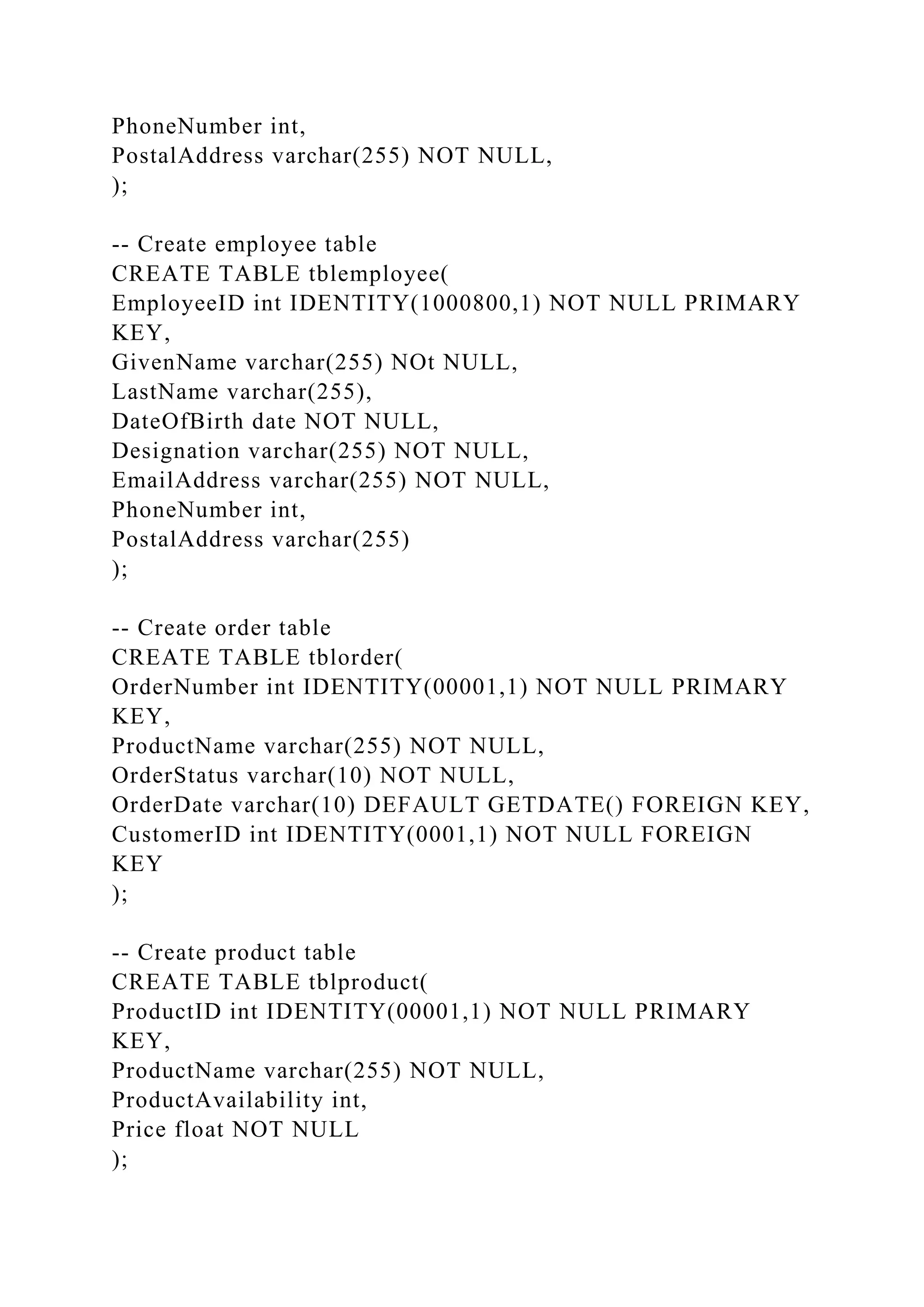

-- Create employee table
CREATE TABLE tblemployee(
EmployeeID int IDENTITY(1000800,1) NOT NULL PRIMARY
KEY,
GivenName varchar(255) NOt NULL,
DateOfBirth date NOT NULL,
Designation varchar(255) NOT NULL,
PhoneNumber int,
PostalAddress varchar(255)
);
-- Create order table
CREATE TABLE tblorder(
OrderNumber int IDENTITY(00001,1) NOT NULL PRIMARY
KEY,
ProductName varchar(255) NOT NULL,
OrderStatus varchar(10) NOT NULL,
OrderDate varchar(10) DEFAULT GETDATE() FOREIGN KEY,
CustomerID int IDENTITY(0001,1) NOT NULL FOREIGN
KEY
);
-- Create product table
CREATE TABLE tblproduct(
ProductID int IDENTITY(00001,1) NOT NULL PRIMARY
KEY,
ProductAvailability int,
Price float NOT NULL
);
-- Create store table
CREATE TABLE tblstore(
StoreID int IDENTITY(00001,1) NOT NULL PRIMARY KEY,

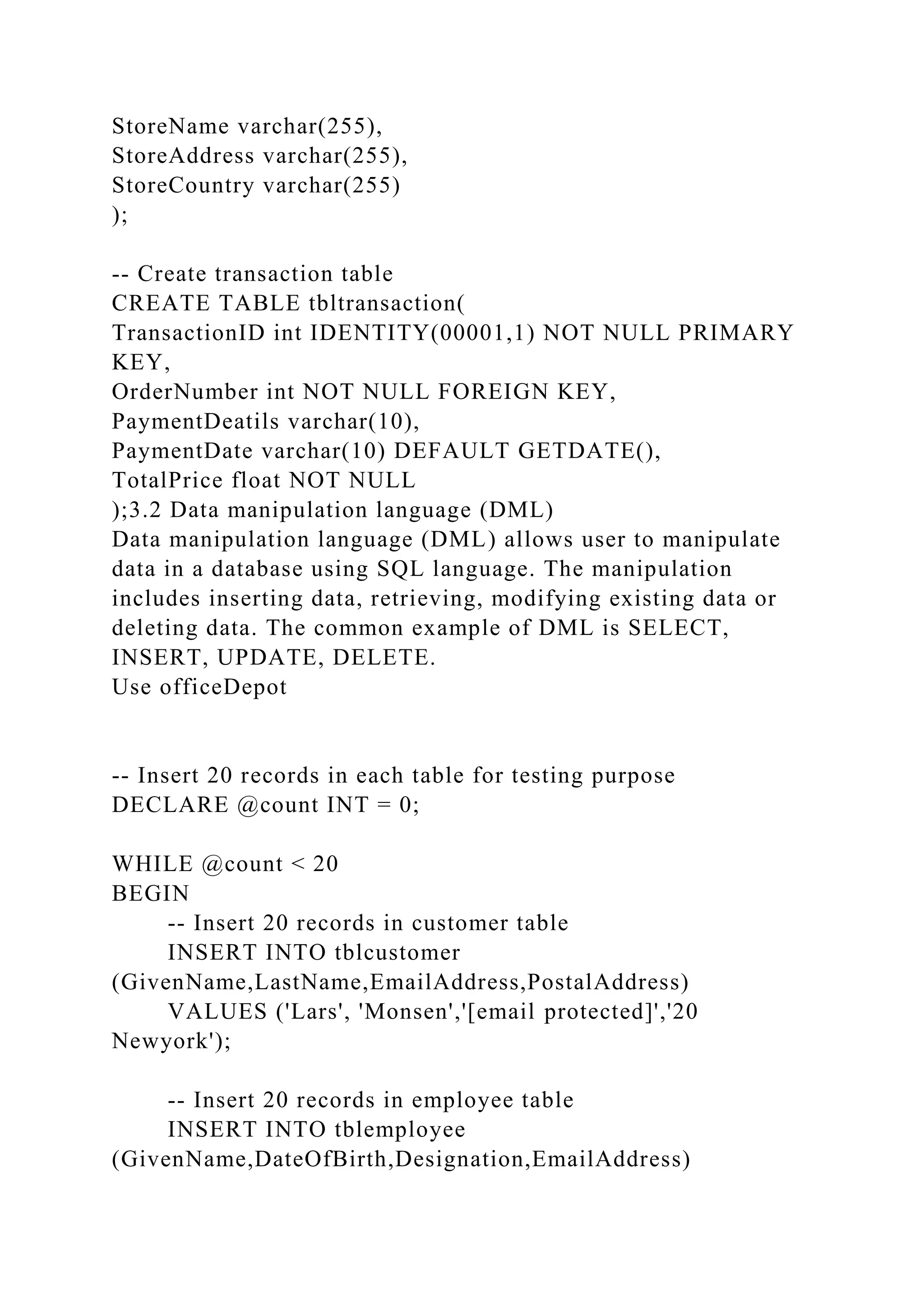

StoreName varchar(255),
StoreAddress varchar(255),
StoreCountry varchar(255)
);
-- Create transaction table
CREATE TABLE tbltransaction(
TransactionID int IDENTITY(00001,1) NOT NULL PRIMARY
KEY,
OrderNumber int NOT NULL FOREIGN KEY,
PaymentDeatils varchar(10),
PaymentDate varchar(10) DEFAULT GETDATE(),
TotalPrice float NOT NULL
);3.2 Data manipulation language (DML)
Data manipulation language (DML) allows user to manipulate
data in a database using SQL language. The manipulation
includes inserting data, retrieving, modifying existing data or
deleting data. The common example of DML is SELECT,
INSERT, UPDATE, DELETE.
Use officeDepot
-- Insert 20 records in each table for testing purpose
DECLARE @count INT = 0;
WHILE @count < 20
BEGIN
-- Insert 20 records in customer table
INSERT INTO tblcustomer
(GivenName,LastName,EmailAddress,PostalAddress)
VALUES ('Lars', 'Monsen','[email protected]','20
Newyork');
-- Insert 20 records in employee table
INSERT INTO tblemployee
(GivenName,DateOfBirth,Designation,EmailAddress)

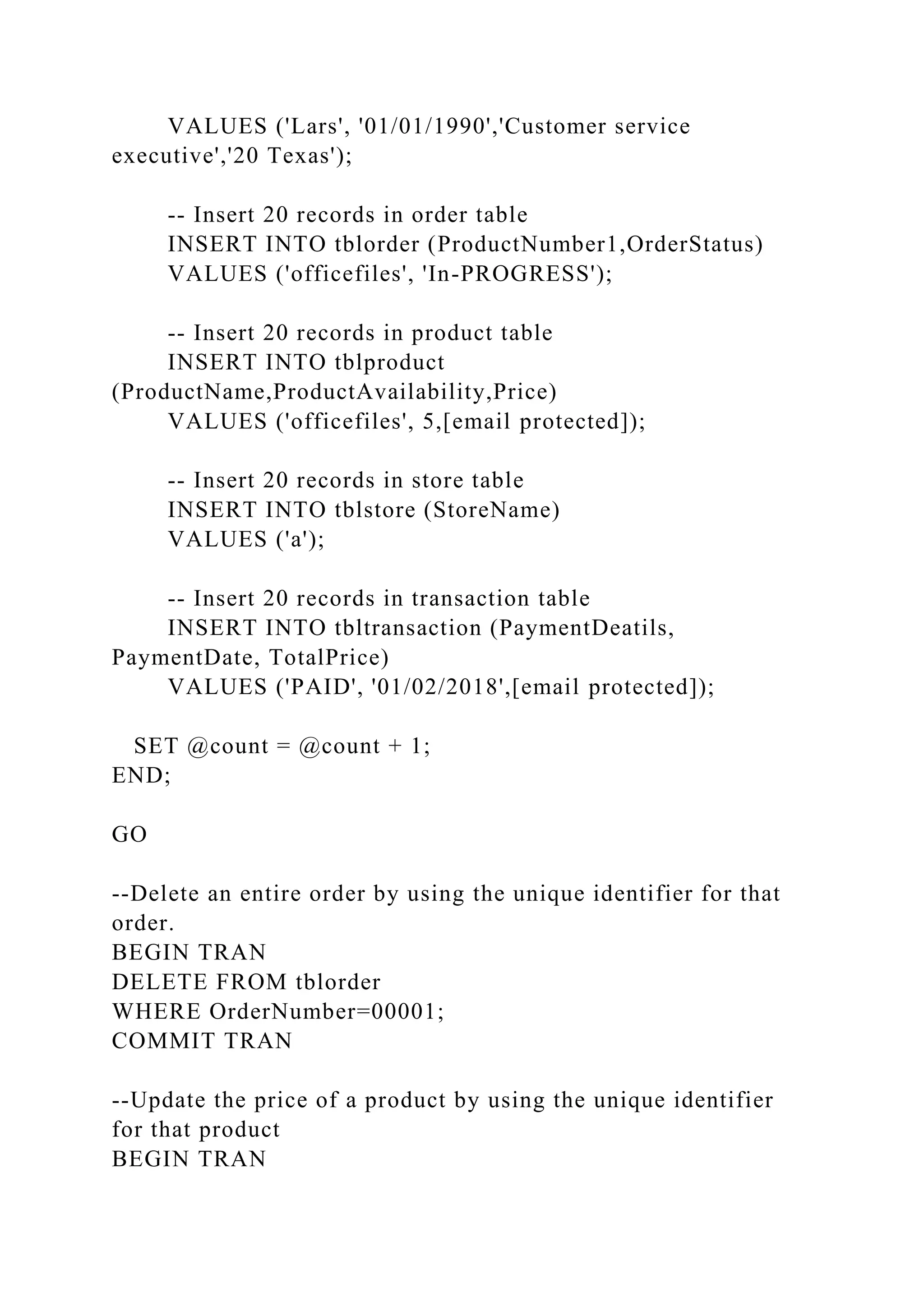

VALUES ('Lars', '01/01/1990','Customer service
executive','20 Texas');
-- Insert 20 records in order table
INSERT INTO tblorder (ProductNumber1,OrderStatus)
VALUES ('officefiles', 'In-PROGRESS');
-- Insert 20 records in product table
INSERT INTO tblproduct
(ProductName,ProductAvailability,Price)
VALUES ('officefiles', 5,[email protected]);
-- Insert 20 records in store table
INSERT INTO tblstore (StoreName)
VALUES ('a');
-- Insert 20 records in transaction table
INSERT INTO tbltransaction (PaymentDeatils,
PaymentDate, TotalPrice)
VALUES ('PAID', '01/02/2018',[email protected]);
SET @count = @count + 1;
END;
GO
--Delete an entire order by using the unique identifier for that
order.
BEGIN TRAN
DELETE FROM tblorder
WHERE OrderNumber=00001;
COMMIT TRAN

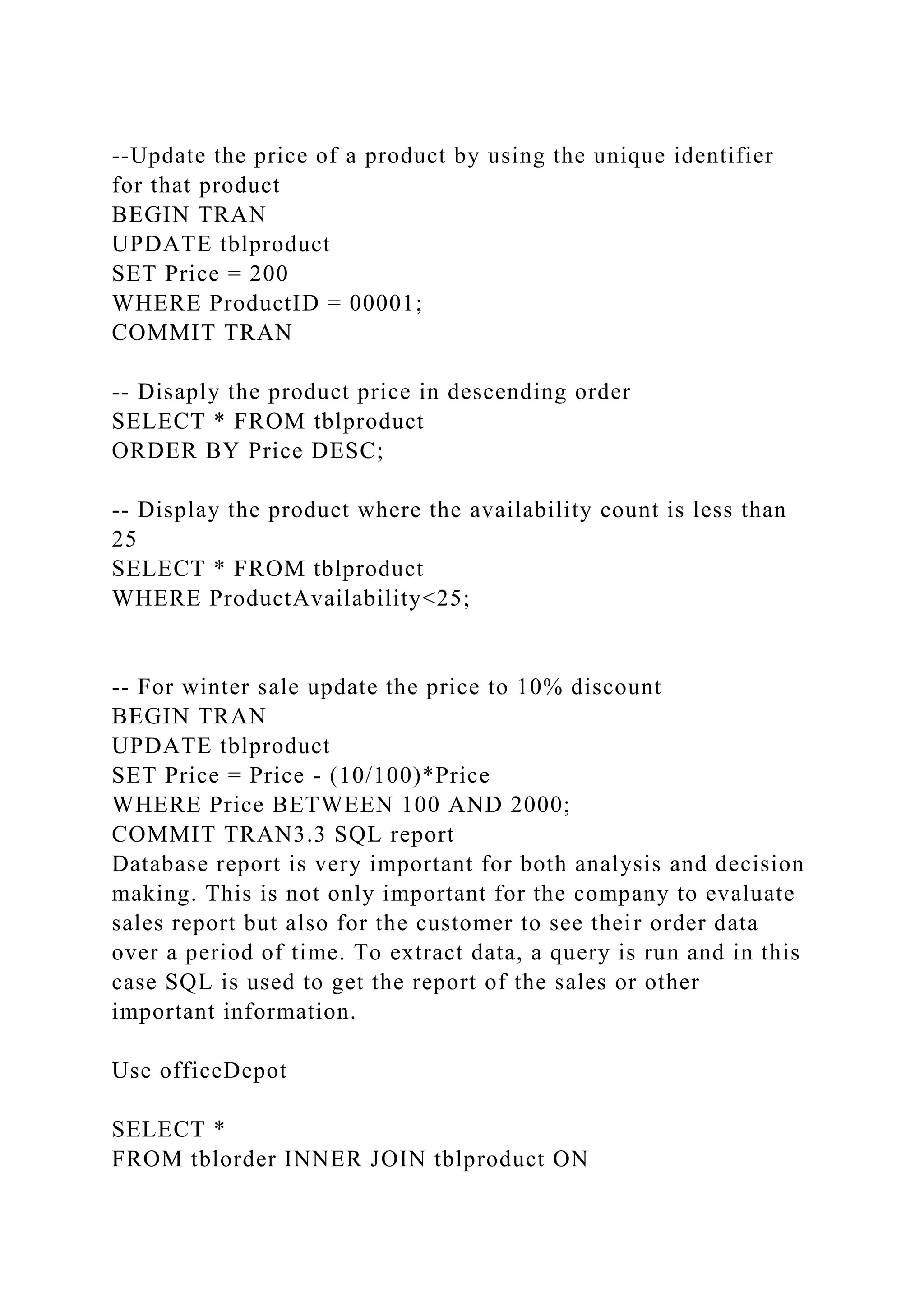

--Update the price of a product by using the unique identifier
for that product
BEGIN TRAN

UPDATE tblproduct
SET Price = 200
WHERE ProductID = 00001;
COMMIT TRAN
-- Disaply the product price in descending order
SELECT * FROM tblproduct
ORDER BY Price DESC;
-- Display the product where the availability count is less than
25
WHERE ProductAvailability<25;
-- For winter sale update the price to 10% discount
BEGIN TRAN
UPDATE tblproduct
SET Price = Price - (10/100)*Price
WHERE Price BETWEEN 100 AND 2000;
COMMIT TRAN3.3 SQL report
Database report is very important for both analysis and decision
making. This is not only important for the company to evaluate
sales report but also for the customer to see their order data
over a period of time. To extract data, a query is run and in this
case SQL is used to get the report of the sales or other
important information.
Use officeDepot
SELECT *
FROM tblorder INNER JOIN tblproduct ON
tblorder.ProdctName=tblproduct.ProdctName INNER JOIN
tblcustomer ON
tblorder.CustomerID=tblcustomer.CustomerID
GROUP BY tblcustomer.CustomerID

-- (1) Total revenue (sales) per month, grouped by customer
SELECT YEAR(OrderDate) [Year], MONTH(OrderDate)
[Month],
DATENAME(MONTH,OrderDate) [Month Name],
SUM(tblproduct.Price) [Sales Count]
FROM tblproduct
GROUP BY YEAR(OrderDate), MONTH(OrderDate),
DATENAME(MONTH, OrderDate), CustomerID
-- (2) Total revenue (sales) per month, grouped by product
[Month],
FROM tblproduct
DATENAME(MONTH, OrderDate), ProdctName
-- (3) Get the product1 and product2 sales
SELECT CustomerID, [ProductName2] AS ProductName2,
[ProductName1] AS ProductName1
FROM
(SELECT CustomerID, Product, TotalPrice
FROM tblproductsale ) ps
PIVOT
(
SUM (TotalPrice)
FOR Product IN
([ProductName2], [ProductName1])

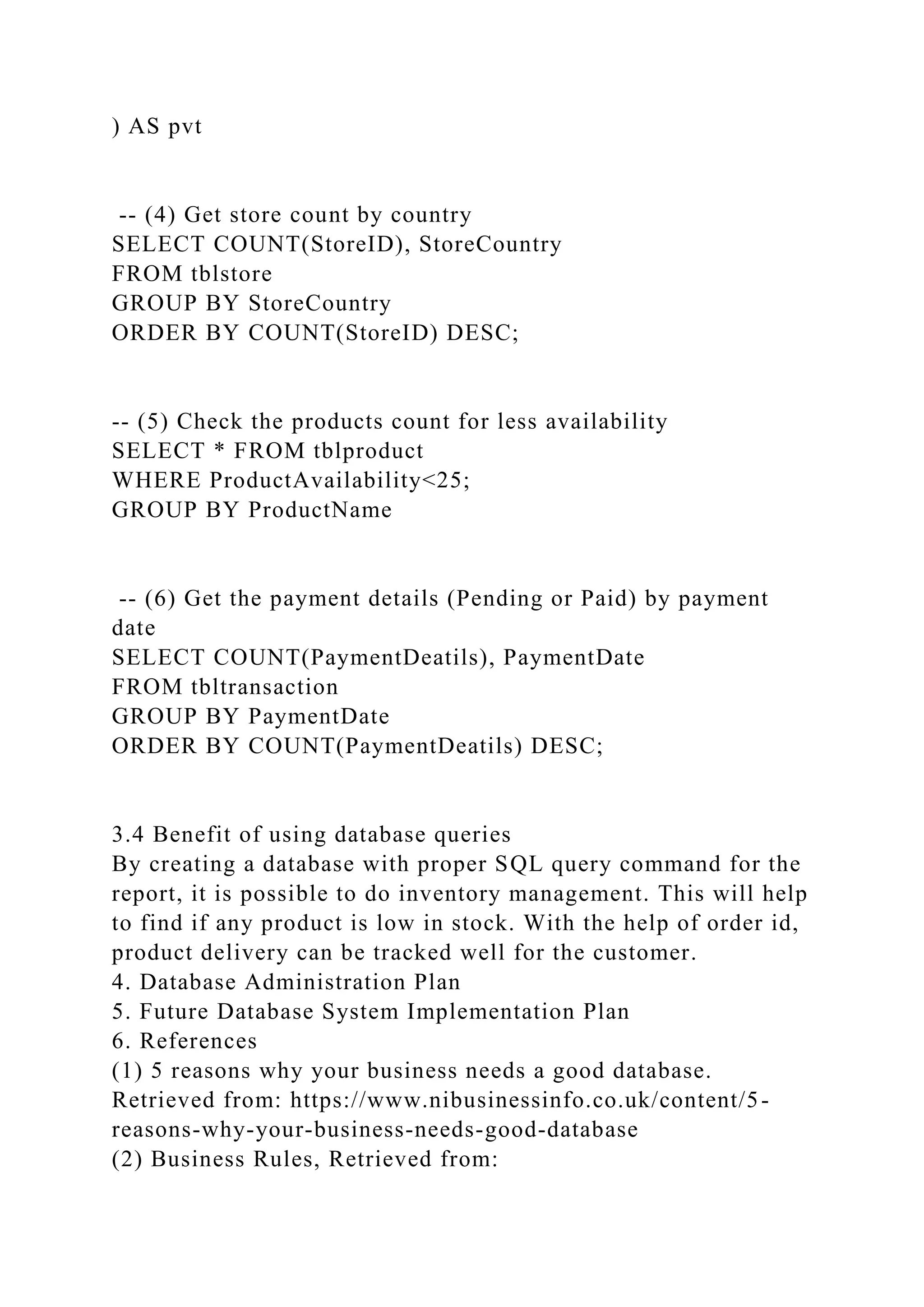

) AS pvt
-- (4) Get store count by country

SELECT COUNT(StoreID), StoreCountry
FROM tblstore
GROUP BY StoreCountry
ORDER BY COUNT(StoreID) DESC;
-- (5) Check the products count for less availability
GROUP BY ProductName
-- (6) Get the payment details (Pending or Paid) by payment
date
SELECT COUNT(PaymentDeatils), PaymentDate
FROM tbltransaction
GROUP BY PaymentDate
ORDER BY COUNT(PaymentDeatils) DESC;
3.4 Benefit of using database queries
By creating a database with proper SQL query command for the
report, it is possible to do inventory management. This will help
to find if any product is low in stock. With the help of order id,
product delivery can be tracked well for the customer.
4. Database Administration Plan
5. Future Database System Implementation Plan
6. References
(1) 5 reasons why your business needs a good database.
Retrieved from: https://www.nibusinessinfo.co.uk/content/5-
reasons-why-your-business-needs-good-database

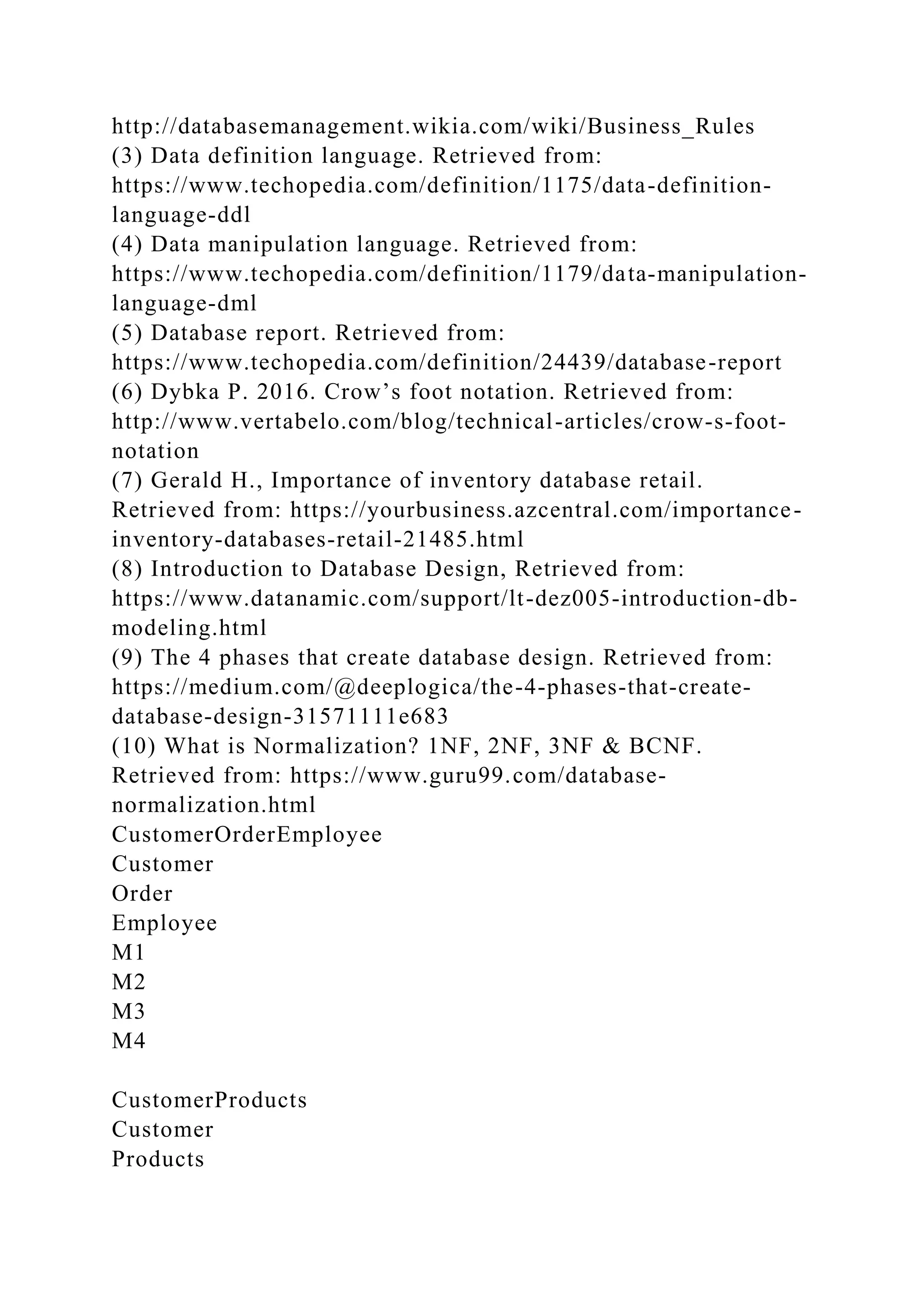

(2) Business Rules, Retrieved from:
http://databasemanagement.wikia.com/wiki/Business_Rules
(3) Data definition language. Retrieved from:
https://www.techopedia.com/definition/1175/data-definition-
language-ddl

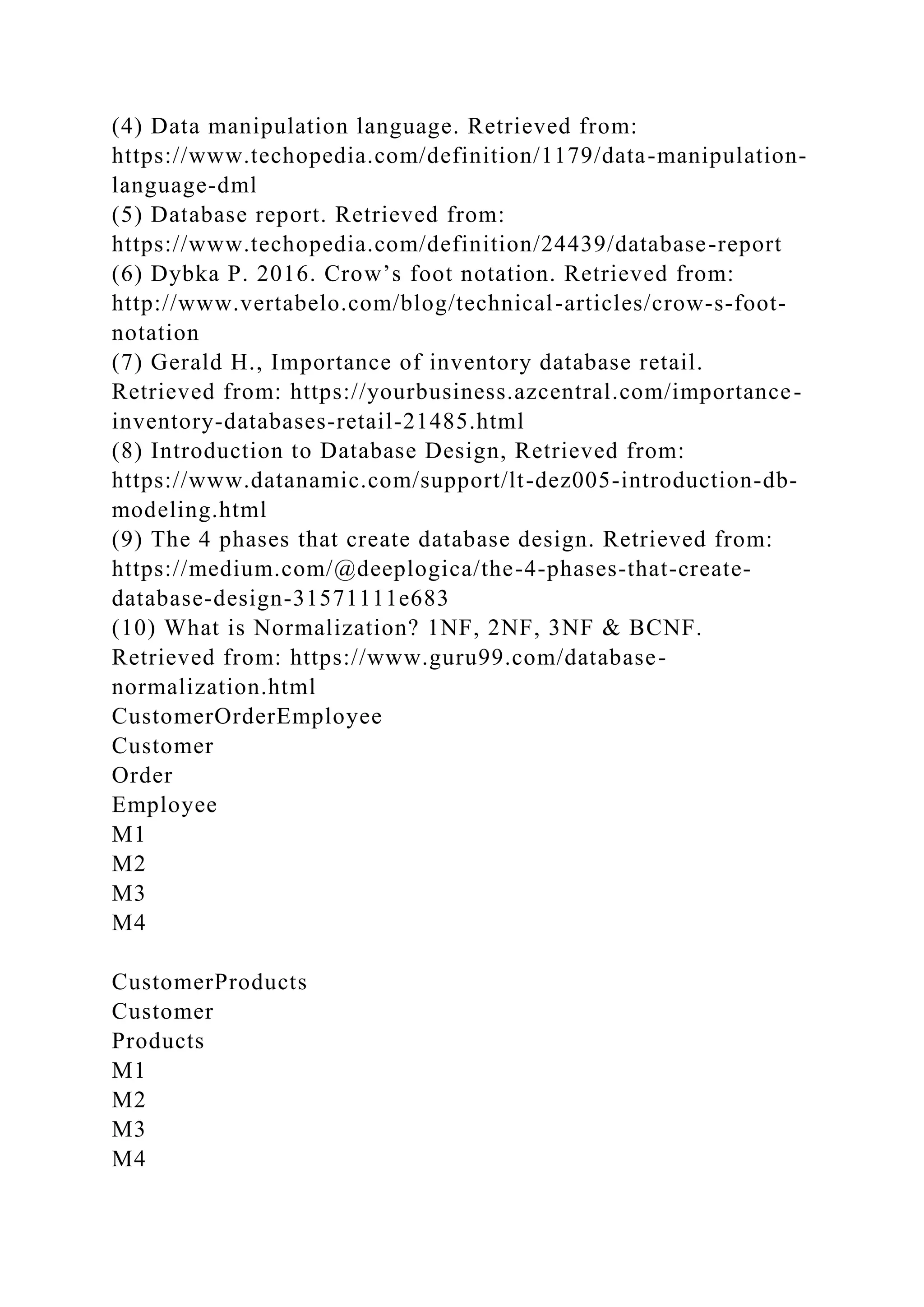

(4) Data manipulation language. Retrieved from:
https://www.techopedia.com/definition/1179/data-manipulation-
language-dml
(5) Database report. Retrieved from:
https://www.techopedia.com/definition/24439/database-report
(6) Dybka P. 2016. Crow’s foot notation. Retrieved from:
http://www.vertabelo.com/blog/technical-articles/crow-s-foot-
notation
(7) Gerald H., Importance of inventory database retail.
Retrieved from: https://yourbusiness.azcentral.com/importance-
inventory-databases-retail-21485.html
(8) Introduction to Database Design, Retrieved from:
https://www.datanamic.com/support/lt-dez005-introduction-db-
modeling.html
(9) The 4 phases that create database design. Retrieved from:
https://medium.com/@deeplogica/the-4-phases-that-create-
database-design-31571111e683
(10) What is Normalization? 1NF, 2NF, 3NF & BCNF.
Retrieved from: https://www.guru99.com/database-
normalization.html
CustomerOrderEmployee
Customer
Order
Employee
M1
M2
M3
M4
CustomerProducts
Customer
Products
M1
M2
M3
M4

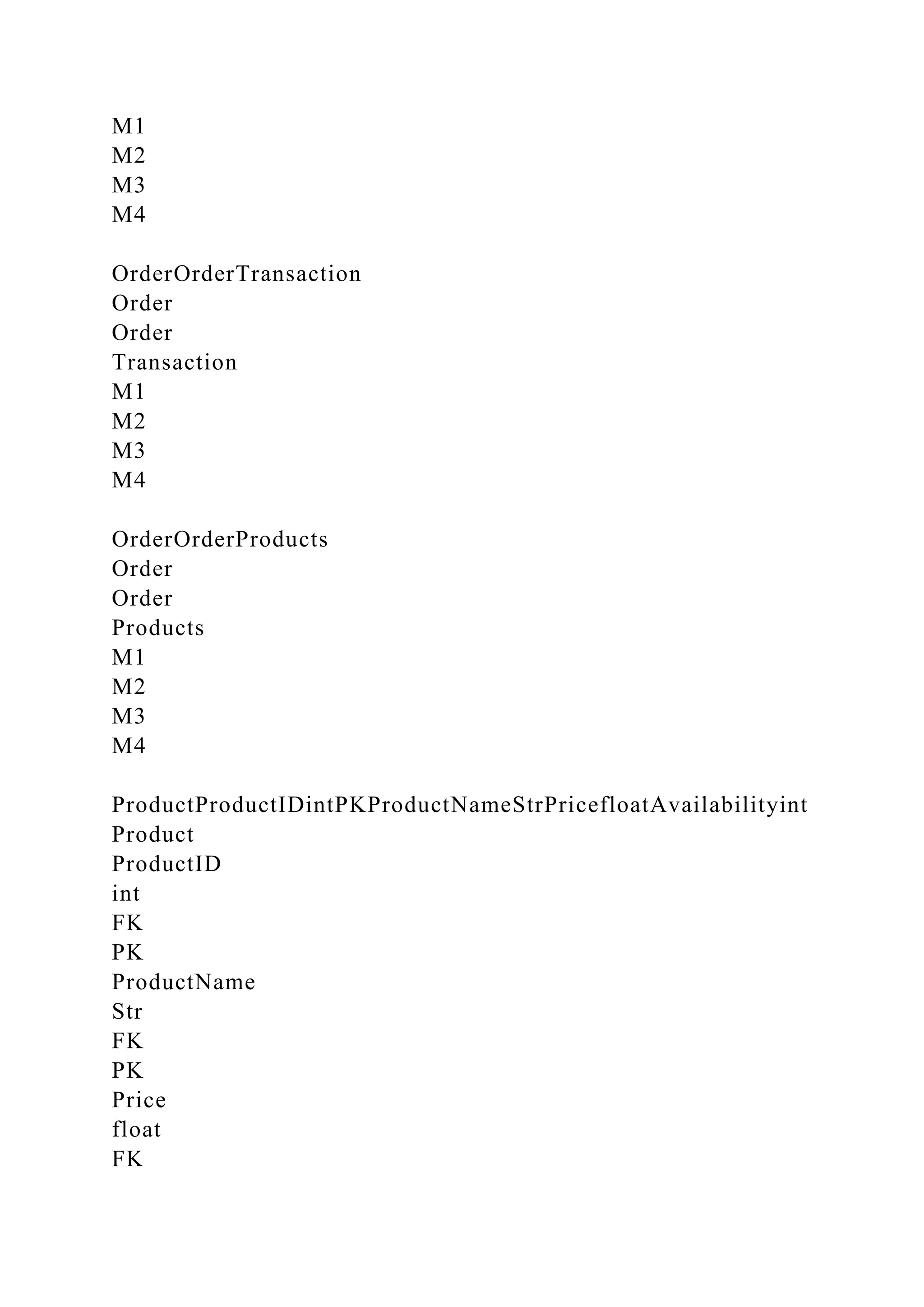

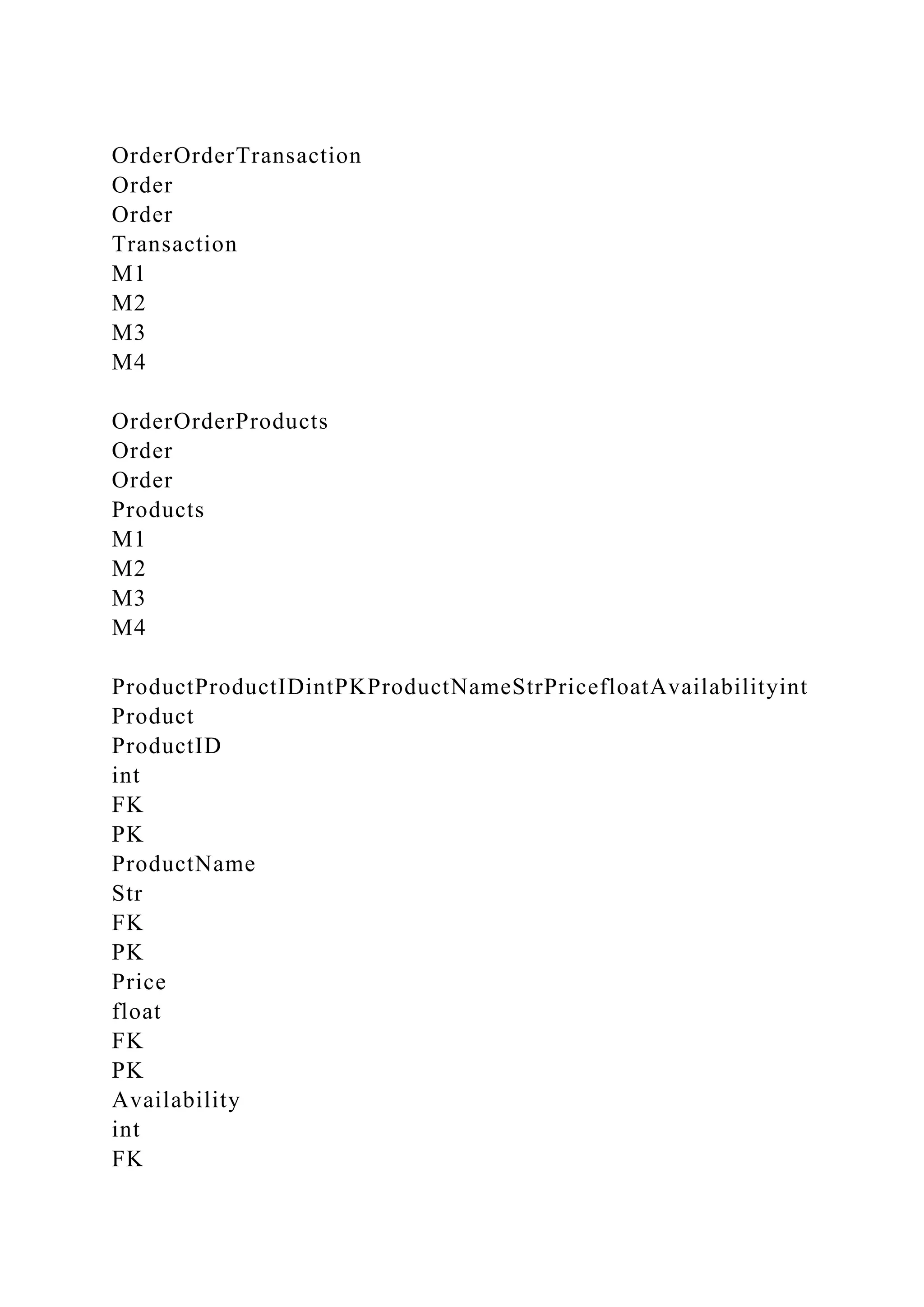

OrderOrderTransaction
Order
Order
Transaction
M1
M2
M3
M4
OrderOrderProducts
Order
Order
Products
M1
M2
M3
M4
ProductProductIDintPKProductNameStrPricefloatAvailabilityint
Product
ProductID
int
FK
PK
ProductName
Str
FK
PK
Price
float
FK
PK
Availability
int
FK

PK

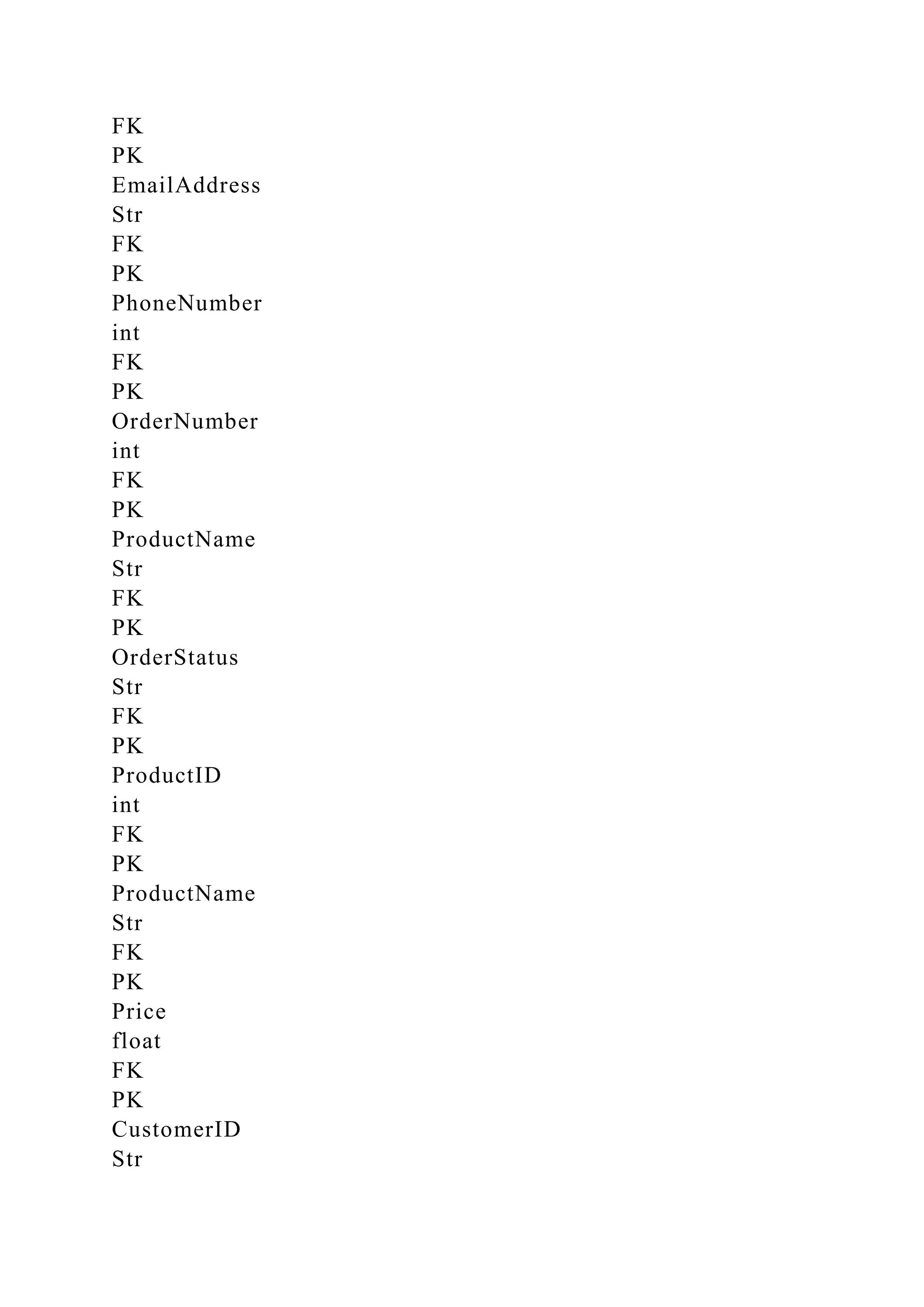

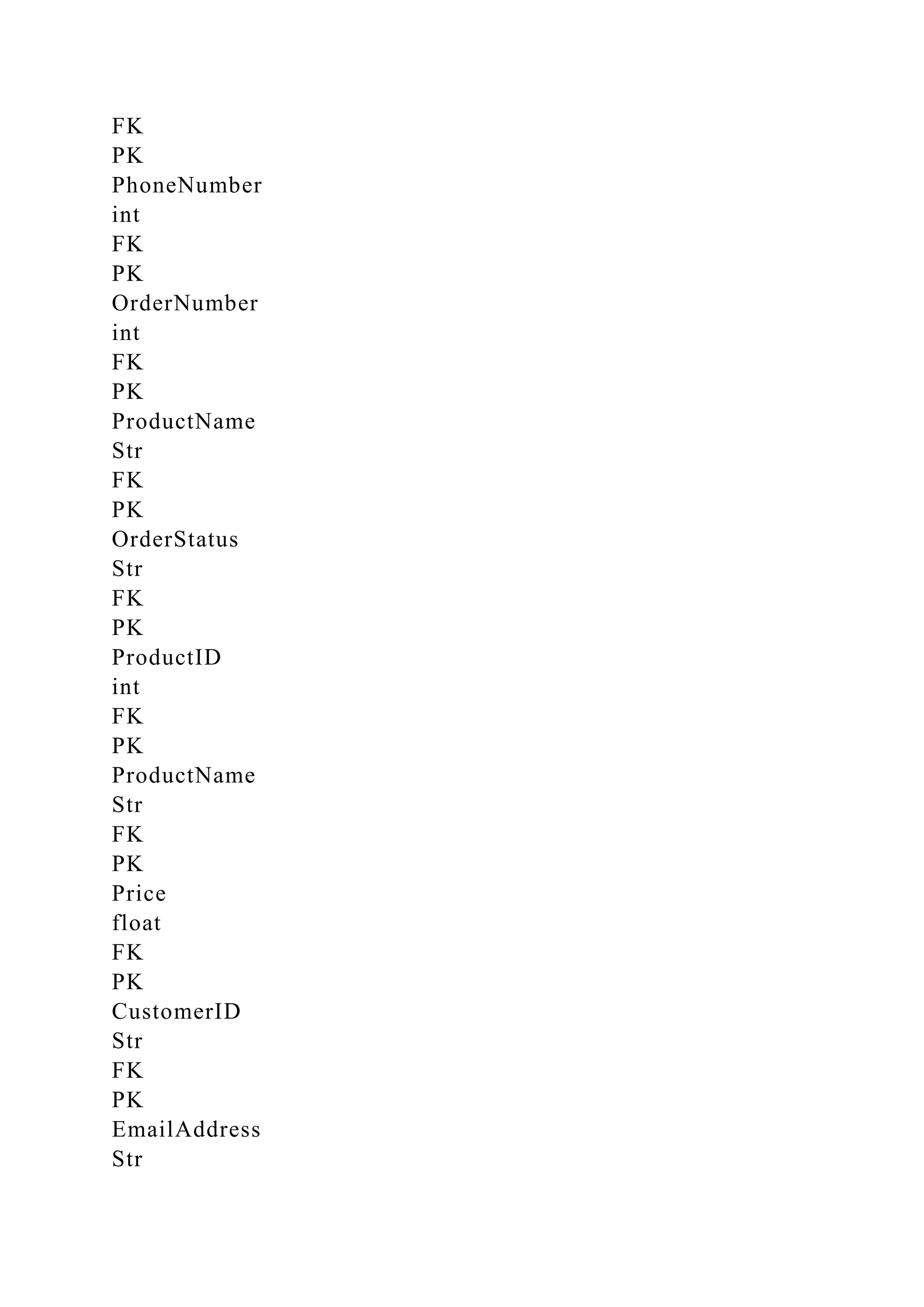

EmployeeOrderProductCustomerStoreTransactionEmployee
IDintPKGivenNameStrPostalAddressStrDateOfBirthintEmailAd
dressStrPhoneNumberintOrderNumberintPKProductNameStrOrd
erStatusStrProductIDintPKProductNameStrPricefloatCustomerI
DStrPKEmailAddressStrPhoneNumberintPostalAddressStrStoreI
DintPKStoreNameStrStoreAddressintTransactionIDintPKPayme
ntDetailintDateintTotalPricefloatLastNameStrDesignationStrAv
ailabilityintLastNameStrGivenNameStrOrderDateStrCustomerID
intFKStoreCountryStrOrderNumberintFKContainsorderscommu
nicateshasmakes
Employee
Order
Product
Customer
Store
Transaction
Employee ID
int
FK
PK
GivenName
Str
FK
PK
PostalAddress
Str
FK
PK
DateOfBirth
int
FK
PK
EmailAddress
Str

FK
PK
PhoneNumber
int
FK
PK
OrderNumber
int
FK
PK
ProductName
Str
FK
PK
OrderStatus
Str
FK
PK
ProductID
int
FK
PK
ProductName
Str
FK
PK
Price
float
FK
PK
CustomerID
Str
FK
PK
EmailAddress
Str

FK
PK

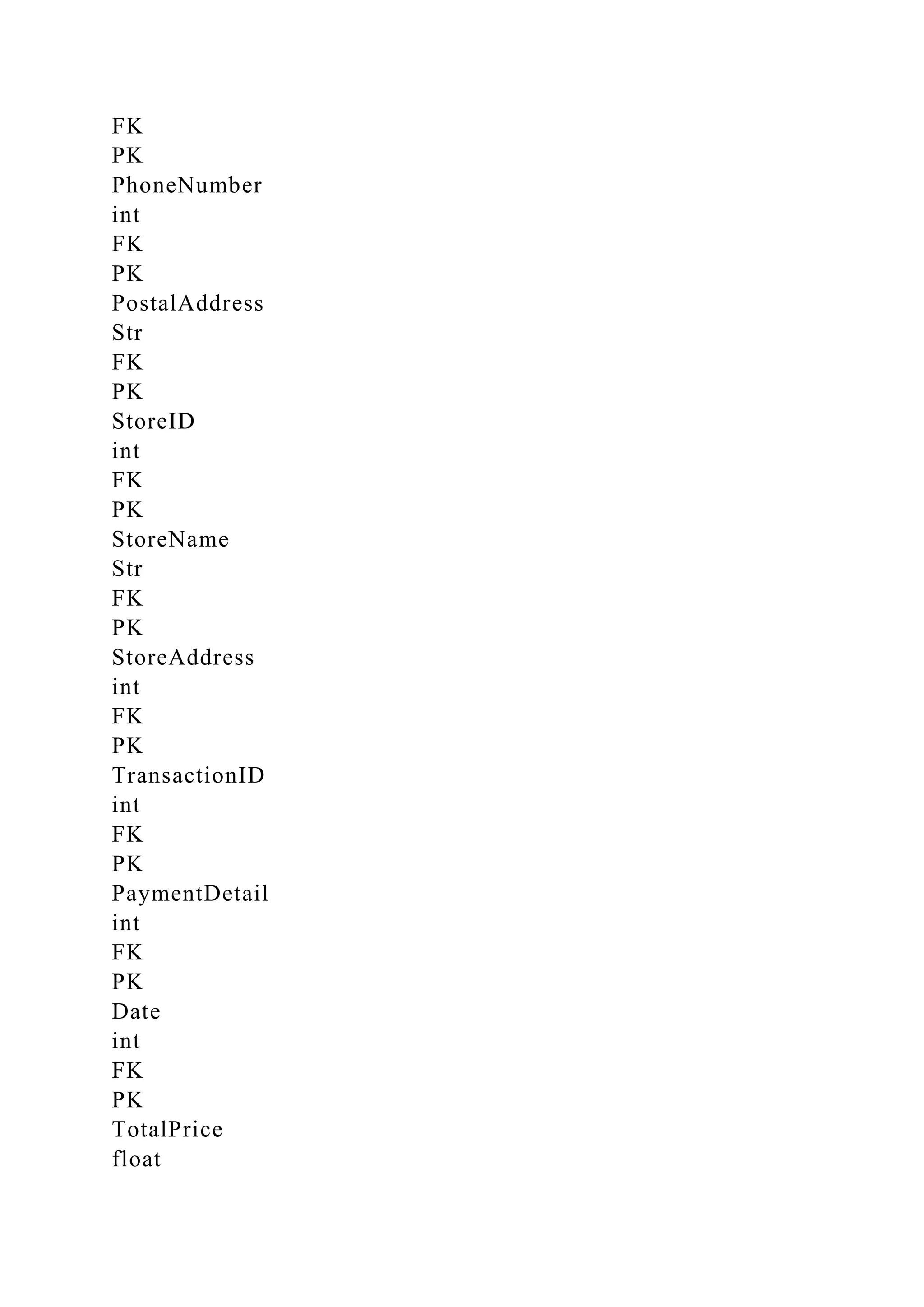

PhoneNumber
int
FK
PK
PostalAddress
Str
FK
PK
StoreID
int
FK
PK
StoreName
Str
FK
PK
StoreAddress
int
FK
PK
TransactionID
int
FK
PK
PaymentDetail
int
FK
PK
Date
int
FK
PK

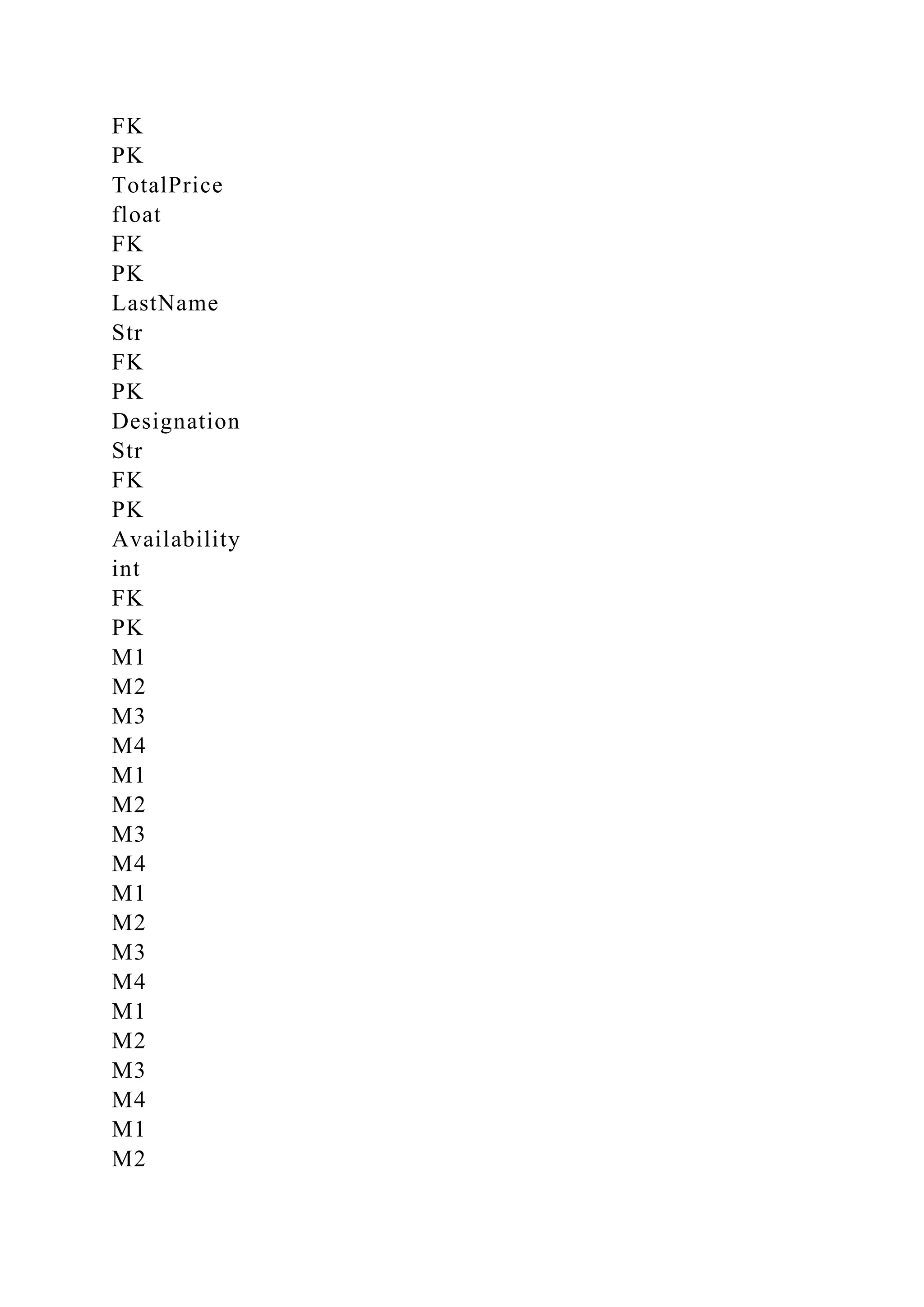

TotalPrice
float

FK
PK
LastName
Str
FK
PK
Designation
Str
FK
PK
Availability
int
FK
PK
M1
M2
M3
M4
M1
M2
M3
M4
M1
M2
M3
M4
M1
M2
M3
M4
M1
M2
M3
M4
M1
M2

M3
M4
LastName
Str
FK
PK
GivenName
Str
FK
PK
OrderDate
Str
FK
PK
CustomerID
int
FK
PK
StoreCountry
Str
FK
PK
OrderNumber
int
FK
PK
Contains
orders
communicates
has
makes
CustomerOrderProducts
Customer
Order
Products

M1
M2
M3
M4
Table of Contents
1. Database System Overview 3
1.1 Business Environment 3
1.2 Database system goals and objective 4
2. Entity Relationship Model 7
2.1 Proposed entities 7
2.2 Business rules 8
2.3 Entity–Relationship Model 9
2.3.1 Relationship Types 9
2.3.2 Normalization form 12
2.3.3 Benefit of using database design 14
3. Structured Query Language (SQL) Scripts 15
3.1 Data definition language (DDL) 15
3.2 Data manipulation language (DML) 16
3.3 SQL report 17
3.4 Benefit of using database queries 19
4. Database Administration Plan 20
5. Future Database System Implementation Plan 21
6. References 22
1.

Database System Overview
1.1 Business Environment
Office Depot, Inc is an American retail store company founded
in 1986 and headquartered in Florida, United States. The
company provides office and school supplies with 1400 retail
stores and e-commerce sites. The supply includes everything to
their customer like latest technology, core school and office
supplies, printing and documenting service, furniture and other
services like cell phone repair, tech and marketing service etc.
Recently there were too many complaints from existing and new
customer that the online site is super glitch and lagging.
Another customer posted that the delivery did not come on the
scheduled day. And they cannot track down the order because
the website does not have tracking information. Also when the
website is down, customer service cannot help to see the order
details either and therefore, they feel it’s frustrating to order
online and therefore want to cancel the order. One other
customer posted in the website grievance section that the “label
maker” showed available in the stock even though it was out of
stock when verified with the customer service representative.
With every product not in stock, we lose opportunity of sale
which costs the store. This not only affect customer but also
affect company. We are so dependent on the data, most of the
time staff has to correct accounting report, sales estimates and
invoice customer manually which is very time-consuming in an
excel sheet.
In order to solve above issues and avoid sales loss, Office
Depot must have a database to store and maintain correct count
of the products. This database will help inventory management
i.e. tracking products, update inventory, find popular or less
popular item, loss prevention, track inventory status and
perform data mining. The staff can access this database via a
computerized database. (Gerald H., Importance of inventory
database retail)1.2 Database system goals and objective
The mission of the company is to become number one retail

company by creating inclusive environment and great shopping
experience where both customer and employees are respected
and valued. To achieve the retail store mission, we are
committed to provide secure and robust data base system for our
customer. This will monitor and maintain the data; prevent any
issues which bring obstruction to our customer; efficiently solve
queries or track order. The goals and objective related to the
database systems are as follows: (Gerald H., Importance of
inventory database retail)
· Order Tracking
· Efficient Inventory Management
· Loss prevention
· Manage customer data and relationship
· Secure and robust database system
· Efficiently respond to customer requests
The proposed database system will help tracking the product
which customer always complaint about. Based on the number
of product sold, it is easy to find out the most popular or non-
popular products. The sales figure can be retrieved from
database and then decision can be made which product to
include in the stock and which can be discontinued. With this
database system, it will be easier to check the number of
product available. These will also prevent theft from either
customer or employee. Managers can always track the item
whenever any discrepancies arise. Once only fewer items are
left in the stock, manager can decide to restock them. Not only
the number of items it will also shows if any item is available in
warehouse or coming to an expiration date and then proper
action can be taken. (Gerald H., Importance of inventory
database retail)
The database system will have some reporting capabilities,
using which we can analyse input data, track productivity,
check future trends and customer needs. This is often referred
as data mining or pattern finding. These patterns can show the
relation between a product sale and the time in a year. For
example, during school season some product sell better than

other time. This knowledge allows managers to order
appropriate product during a time in a year. Not only that it
shows the interest of user and while doing online shopping,
proper recommendation can be made based on the user interest.
Another important feature of database system is redundancy.
The same piece of data is stored at different places using master
node and slave node concept. This way the data is backup to the
salve node always with every write to the database. In case of
crash, the backup will help preventing data loss. With addition
of user access control the database more secure; redundancy
will make database more robust and prevent data loss; updated
database will help efficient tracking of data. (5 reasons why
your business needs a good database)
The goals of the store are to run a profitable business,
provide excellent customer service, retain existing customer,
best product along with the business expansion. In order to
achieve these goals, certain critical success factor (CSFs) must
be identified and set milestone. The CSFs for the business are
training to the staff, offer exclusive discount to the customer,
business expansion, sales target. Keeping CFs in mind, creating
small milestones will ensure that the retail store is providing
best shopping experience to the users. This can be achieved:
· If staff is made aware of how the online system works
· In case the website is down using simple query command data
can be retrieved using read access of database
· Awareness of mission and goals motives employee to know
customer needs
· Auditing the inventory and database builds confidence on the
system
· Timely feedback from employee as well customer helps to
improve the process
2. Entity Relationship Model
2.1 Proposed entities
Entities in a database design are defined as type of information
that is saved in the database. It can be a person, thing, locations

or object. Anything that is needed to fit in the database can be
accommodated in these categories. (Introduction to Database
Design) For our retail, following are the proposed entities:
Customer
A customer entity will have attributes like given game, last
name, email address, phone number, and postal address. Since
no two customers can have same customer id, therefore
customerID is the primary key.
Order
Since customer can order products online and each order will
have attributes like order number, ordered product and status.
For every order there will be an order ID for transaction.
Products
For the product, product id will be primary key and product
name, price and availability are attributes of the product.
Employee
An employee is uniquely identified by its employee id, so we
use employee id as primary key. Given names, last name, date
of birth, email address, postal address, and phone number are
different attribute for the employee.
Store
Store number located to different locations is unique, therefore
identified as primary key. Store address and store name are
attribute to the store. Based on the postal address of the
customer, particular store will send the products to the
customer.
Transactions
Every transaction id is unique to the order; therefore transaction
id is a unique key while customer name, date and total price are
attributes for the transaction.
2.2 Business rules
Documenting business rules are very important in the database
design. These rules allow the database designer to develop
relationship rules, understand business process, scope of data
and constraint to create a data model. They give proper

classification of entities, attribute and relationship between
different entities. (Business Rules) Following are the business
rules for our retail store:
1. A customer can do multiple orders
2. A customer can talk to many employee and an employee can
handle to many customer
3. A person who has placed at least 1 order is a customer
4. Every order should have single transaction
5. Single order can have multiple products
6. Every product has a minimum reorder level and based on the
availability new order will be placed.
2.3 Entity–Relationship Model
Database design goes through different phases. These phases are
requirement analysis; conceptual design; normalization and
converting conceptual design e.g. ER model into actual
database. (The 4 phases that create database design)
Entity relationship model (ER) is a graphical or conceptual
representation of entities and their relationship with each other

in database design. And relationship is an association between
entities. There are three types of relationship:
2.3.1 Relationship Types
One to One
In this one instance of entity is associated with another instance
of entity. E.g. In this database, each employee is associated
with only one employee id.
One to Many
An instance can be associated with zero or many instance of
related entity. E.g. In this database, one order can have multiple
products.
Many to Many
In this relationship, one instance of an entity is associated with
zero, one or many instance of another associated entity. E.g. In
this database, one employee can handle many customers and one
customer can reach out to multiple employees for different
orders.
For the ER model of retail store, we will use crow’s foot
notation. In crow’s foot notation:
(Dybka P, 2016)
1. Many to many relationship is represented by three-pronged
crow’s foot symbol
2. One and mandatory relationship is represented by straight
line with perpendicular to the relationship line
3. Optional relationship is represented by empty circle
Fig (1) E-R model
2.3.2 Normalization form
Normalization is way of organizing data in a table in order to
reduce the redundancy and dependency of data. It short, it
divides larger tables into smaller one and links them using
proper relationship. It helps to create database which are cost

effective and have better security models.
CustomerName
PostalAddress
OrderNumber
StoreName
Janet Phil
A
X1, X2, X3
store_a
Robert Jones
B
X1, Y2,Y3
store_b
Amy Jackson
C
X1
store_c
Table (1)
1NF (First Normal Form) Rules
In 1NF, each table should contain single value and every record
should be unique value. (What is Normalization? 1NF, 2NF,
3NF & BCNF)
CustomerName
PostalAddress
OrderNumber
StoreName
Janet Phil
A
X1
store_a
Janet Phil
A
X2
store_a
Janet Phil
A

X3
store_a
Robert Jones
B
X1
store_b
Robert Jones
B
Y2
store_b
Robert Jones
C
Y3
store_b
Amy Jackson
C
X1
store_c
Table (2)
2NF (Second Normal Form) rules
2NF should satisfy 1NF rule and should have primary key. In
this, we divide our table into two different tables; one contains
customer information and another contains the product
purchased. CustomerID is a primary key in first table and can
be identified to associate customer id with the products.
CustomerID
CustomerName
PostalAddress
StoreName
cus_001
Janet Phil
A
store_a
cus_002
Robert Jones
B

store_b
cus_003
Amy Jackson
C
store_c
Table (3)
CustomerName
OrderNumber
cus_001
X1
cus_001
X2
cus_001
X3
cus_002
X1
cus_002
Y2
cus_002
Y3
cus_003
X1
Table (4)
3NF (Third normal form) Rules
This should satisfy the condition of 2NF and no functional
dependencies. (Guru99, n.d)
StoreName
StoreID
store_a
001
store_b
002
store_c
003
Table (5)
CustomerID

CustomerName
PostalAddress
StoreID
cus_001
Janet Phil
A
001
cus_002
Robert Jones
B
002
cus_003
Amy Jackson
C
003
Table (6)
CustomerName
OrderNumber
cus_001
X1
cus_001
X2
cus_001
X3
cus_002
X1
cus_002
Y2
cus_002
Y3
cus_003
X1

Table (7)
2.3.3 Benefit of using database design
One of the benefits of having this database design is data
integrity and fast retrieval from storage. Using 3NF
normalization, we will reduce the amount of redundant data and
create smaller database. Since there is less data stored, data
retrieval will be faster and user will have great experience using
website. 3. Structured Query Language (SQL) Scripts3.1 Data
definition language (DDL)
Data definition language (DDL) allows user to create and
modify database objects. The objects can be schemas, tables,
views etc. The common DDL querying in SQL are CREATE,
ALTER, and DROP. For office Depot Company, we will create
a database and then create table for all the entities we have
defined under E-R diagram.
-- Create database officeDepot
CREATE DATABASE officeDepot;
-- Switch the database
USE officeDepot;
-- Create Customer Table
CREATE TABLE tblcustomer(
CustomerID int IDENTITY(0001,1) NOT NULL PRIMARY
KEY, -- Start customer Id with 0001
GivenName varchar(255) NOT NULL,

PhoneNumber int,
PostalAddress varchar(255) NOT NULL,
);
-- Create employee table
CREATE TABLE tblemployee(
EmployeeID int IDENTITY(1000800,1) NOT NULL PRIMARY
KEY,
GivenName varchar(255) NOt NULL,
DateOfBirth date NOT NULL,
Designation varchar(255) NOT NULL,
PhoneNumber int,
PostalAddress varchar(255)
);
-- Create order table
CREATE TABLE tblorder(
OrderNumber int IDENTITY(00001,1) NOT NULL PRIMARY
KEY,
OrderStatus varchar(10) NOT NULL,
OrderDate varchar(10) DEFAULT GETDATE() FOREIGN KEY,
CustomerID int IDENTITY(0001,1) NOT NULL FOREIGN
KEY
);
-- Create product table
CREATE TABLE tblproduct(
ProductID int IDENTITY(00001,1) NOT NULL PRIMARY
KEY,
ProductAvailability int,
Price float NOT NULL
);

-- Create store table
CREATE TABLE tblstore(
StoreID int IDENTITY(00001,1) NOT NULL PRIMARY KEY,
StoreName varchar(255),
StoreAddress varchar(255),
StoreCountry varchar(255)
);
-- Create transaction table
CREATE TABLE tbltransaction(
TransactionID int IDENTITY(00001,1) NOT NULL PRIMARY
KEY,
OrderNumber int NOT NULL FOREIGN KEY,
PaymentDeatils varchar(10),
PaymentDate varchar(10) DEFAULT GETDATE(),
TotalPrice float NOT NULL
);3.2 Data manipulation language (DML)
Data manipulation language (DML) allows user to manipulate
data in a database using SQL language. The manipulation
includes inserting data, retrieving, modifying existing data or
deleting data. The common example of DML is SELECT,
INSERT, UPDATE, DELETE.
Use officeDepot
-- Insert 20 records in each table for testing purpose
DECLARE @count INT = 0;
WHILE @count < 20
BEGIN
-- Insert 20 records in customer table
INSERT INTO tblcustomer
(GivenName,LastName,EmailAddress,PostalAddress)
VALUES ('Lars', 'Monsen','[email protected]','20
Newyork');

-- Insert 20 records in employee table
INSERT INTO tblemployee
(GivenName,DateOfBirth,Designation,EmailAddress)
VALUES ('Lars', '01/01/1990','Customer service
executive','20 Texas');
-- Insert 20 records in order table
INSERT INTO tblorder (ProductNumber1,OrderStatus)
VALUES ('officefiles', 'In-PROGRESS');
-- Insert 20 records in product table
INSERT INTO tblproduct
(ProductName,ProductAvailability,Price)
VALUES ('officefiles', 5,[email protected]);
-- Insert 20 records in store table
INSERT INTO tblstore (StoreName)
VALUES ('a');
-- Insert 20 records in transaction table
INSERT INTO tbltransaction (PaymentDeatils,
PaymentDate, TotalPrice)
VALUES ('PAID', '01/02/2018',[email protected]);
SET @count = @count + 1;
END;
GO
--Delete an entire order by using the unique identifier for that
order.
BEGIN TRAN
DELETE FROM tblorder
WHERE OrderNumber=00001;
COMMIT TRAN

--Update the price of a product by using the unique identifier
for that product
BEGIN TRAN
UPDATE tblproduct
SET Price = 200
WHERE ProductID = 00001;
COMMIT TRAN
-- Disaply the product price in descending order
ORDER BY Price DESC;
-- Display the product where the availability count is less than
25
-- For winter sale update the price to 10% discount
BEGIN TRAN
UPDATE tblproduct
SET Price = Price - (10/100)*Price
WHERE Price BETWEEN 100 AND 2000;
COMMIT TRAN3.3 SQL report
Database report is very important for both analysis and decision
making. This is not only important for the company to evaluate
sales report but also for the customer to see their order data
over a period of time. To extract data, a query is run and in this
case SQL is used to get the report of the sales or other
important information.
Use officeDepot
SELECT *
FROM tblorder INNER JOIN tblproduct ON

tblorder.ProdctName=tblproduct.ProdctName INNER JOIN
tblcustomer ON
tblorder.CustomerID=tblcustomer.CustomerID
GROUP BY tblcustomer.CustomerID
-- (1) Total revenue (sales) per month, grouped by customer
[Month],
FROM tblproduct
DATENAME(MONTH, OrderDate), CustomerID
-- (2) Total revenue (sales) per month, grouped by product
[Month],
FROM tblproduct
DATENAME(MONTH, OrderDate), ProdctName
-- (3) Get the product1 and product2 sales
SELECT CustomerID, [ProductName2] AS ProductName2,
[ProductName1] AS ProductName1
FROM
(SELECT CustomerID, Product, TotalPrice
FROM tblproductsale ) ps
PIVOT
(
SUM (TotalPrice)
FOR Product IN
([ProductName2], [ProductName1])

) AS pvt
-- (4) Get store count by country
SELECT COUNT(StoreID), StoreCountry
FROM tblstore
GROUP BY StoreCountry
ORDER BY COUNT(StoreID) DESC;
-- (5) Check the products count for less availability
GROUP BY ProductName
-- (6) Get the payment details (Pending or Paid) by payment
date
SELECT COUNT(PaymentDeatils), PaymentDate
FROM tbltransaction
GROUP BY PaymentDate
ORDER BY COUNT(PaymentDeatils) DESC;
3.4 Benefit of using database queries
By creating a database with proper SQL query command for the
report, it is possible to do inventory management. This will help
to find if any product is low in stock. With the help of order id,
product delivery can be tracked well for the customer.
4. Database Administration Plan
5. Future Database System Implementation Plan
6. References
(1) 5 reasons why your business needs a good database.
Retrieved from: https://www.nibusinessinfo.co.uk/content/5-
reasons-why-your-business-needs-good-database
(2) Business Rules, Retrieved from:

http://databasemanagement.wikia.com/wiki/Business_Rules
(3) Data definition language. Retrieved from:
https://www.techopedia.com/definition/1175/data-definition-
language-ddl
(4) Data manipulation language. Retrieved from:
https://www.techopedia.com/definition/1179/data-manipulation-
language-dml
(5) Database report. Retrieved from:
https://www.techopedia.com/definition/24439/database-report
(6) Dybka P. 2016. Crow’s foot notation. Retrieved from:
http://www.vertabelo.com/blog/technical-articles/crow-s-foot-
notation
(7) Gerald H., Importance of inventory database retail.
Retrieved from: https://yourbusiness.azcentral.com/importance-
inventory-databases-retail-21485.html
(8) Introduction to Database Design, Retrieved from:
https://www.datanamic.com/support/lt-dez005-introduction-db-
modeling.html
(9) The 4 phases that create database design. Retrieved from:
https://medium.com/@deeplogica/the-4-phases-that-create-
database-design-31571111e683
(10) What is Normalization? 1NF, 2NF, 3NF & BCNF.
Retrieved from: https://www.guru99.com/database-
normalization.html
CustomerOrderEmployee
Customer
Order
Employee
M1
M2
M3
M4
CustomerProducts
Customer
Products

M1
M2
M3
M4
OrderOrderTransaction
Order
Order
Transaction
M1
M2
M3
M4
OrderOrderProducts
Order
Order
Products
M1
M2
M3
M4
ProductProductIDintPKProductNameStrPricefloatAvailabilityint
Product
ProductID
int
FK
PK
ProductName
Str
FK
PK
Price
float
FK

PK
Availability
int
FK
PK
EmployeeOrderProductCustomerStoreTransactionEmployee
IDintPKGivenNameStrPostalAddressStrDateOfBirthintEmailAd
dressStrPhoneNumberintOrderNumberintPKProductNameStrOrd
erStatusStrProductIDintPKProductNameStrPricefloatCustomerI
DStrPKEmailAddressStrPhoneNumberintPostalAddressStrStoreI
DintPKStoreNameStrStoreAddressintTransactionIDintPKPayme
ntDetailintDateintTotalPricefloatLastNameStrDesignationStrAv
ailabilityintLastNameStrGivenNameStrOrderDateStrCustomerID
intFKStoreCountryStrOrderNumberintFKContainsorderscommu
nicateshasmakes
Employee
Order
Product
Customer
Store
Transaction
Employee ID
int
FK
PK
GivenName
Str
FK
PK
PostalAddress
Str
FK
PK
DateOfBirth
int

FK
PK
EmailAddress
Str
FK
PK
PhoneNumber
int
FK
PK
OrderNumber
int
FK
PK
ProductName
Str
FK
PK
OrderStatus
Str
FK
PK
ProductID
int
FK
PK
ProductName
Str
FK
PK
Price
float
FK
PK
CustomerID
Str

FK
PK
EmailAddress
Str
FK
PK
PhoneNumber
int
FK
PK
PostalAddress
Str
FK
PK
StoreID
int
FK
PK
StoreName
Str
FK
PK
StoreAddress
int
FK
PK
TransactionID
int
FK
PK
PaymentDetail
int
FK
PK
Date
int

FK
PK
TotalPrice
float
FK
PK
LastName
Str
FK
PK
Designation
Str
FK
PK
Availability
int
FK
PK
M1
M2
M3
M4
M1
M2
M3
M4
M1
M2
M3
M4
M1
M2
M3
M4
M1
M2

M3
M4
M1
M2
M3
M4
LastName
Str
FK
PK
GivenName
Str
FK
PK
OrderDate
Str
FK
PK
CustomerID
int
FK
PK
StoreCountry
Str
FK
PK
OrderNumber
int
FK
PK
Contains
orders
communicates
has
makes

CustomerOrderProducts
Customer
Order
Products
M1
M2
M3
M4

DATABASE SYSTEMS DEVELOPMENT & IMPLEMENTATION PLAN1DATABASE SYS.docx

Recommended

Recommended

More Related Content

Similar to DATABASE SYSTEMS DEVELOPMENT & IMPLEMENTATION PLAN1DATABASE SYS.docx

Similar to DATABASE SYSTEMS DEVELOPMENT & IMPLEMENTATION PLAN1DATABASE SYS.docx (20)

More from whittemorelucilla

More from whittemorelucilla (20)

Recently uploaded

Recently uploaded (20)

DATABASE SYSTEMS DEVELOPMENT & IMPLEMENTATION PLAN1DATABASE SYS.docx
