This document discusses data schema integration, which involves identifying correspondences between elements in different data schemas that describe the same real-world concepts, and resolving conflicts between the schemas. The integration process includes schema transformation to homogenize the schemas, schema matching to discover correspondences, and schema integration to generate a unified schema and mapping rules between the integrated schema and source schemas. This resolves conflicts through classification, structural, descriptive and other transformations. Semi-automatic and manual methods can be used for the integration process.

1. Mustafa Jarrar
Lecture Notes, Web Data Management (MCOM7348)
University of Birzeit, Palestine
1st Semester, 2013
Data Schema Integration
Dr. Mustafa Jarrar
University of Birzeit
mjarrar@birzeit.edu
www.jarrar.info
Jarrar © 2013
1

2. Watch this lecture and download the slides from
http://jarrar-courses.blogspot.com/2013/11/web-data-management.html
Jarrar © 2013
2

3. Data Schema Integration: A simple example
In ORM:
bornIn/
locatedIn/
/WorksIn
Employee
City
Region
Integrated
schema
locatedIn/
Organization
/WorksIn
Employee
Organization
Municipality
locatedIn/
bornIn/
Worker
City
Schema 2
Region
Organization
locatedIn
/
Schema 3
Schema 1
Jarrar © 2013
3

4. Data Schema Integration: A simple example
Source: Carlo Batini
In ER:
Employee
born
City
in
works
Organization
Region
Integrated
schema
in
Employee
works
Organization
Empoloyee
born
City
in
Schema 2
Schema 1
Region
Municipality
Organization
in
Schema 3
Jarrar © 2013
4

5. Challenges of Data Schema Integration
Source: Carlo Batini
Schema Integration has two major challenges:
1. Identification of all portions of schemas that pertain to the
same concept, in such a way to unify such different
representations in the global schema.
2. Identification, analysis and resolution of the different
types of conflicts (heterogeneities) in different schemas.
Jarrar © 2013
5

6. Framework for Schema Integration
Local
Schemas
Schemas
Transformation
Transformation
Rules
Schemas
Matching
Matching
Rules
Schemas
Integration
Integration
Rules
Integrated Schema
and mappings
Source: Advances in Object-Oriented Data Modeling, M. P. Papazoglou, S. Spaccapietra, Z. Tari (Eds.), The MIT Press, 2000
Jarrar © 2013
6

7. Framework for Schema Integration
0. Define the integration strategy
If the number of local schemas to be integrated is large, the order of
schema integration becomes important. Several strategies can be
adopted.
Input: n source schemas
Output: n source schemas + integration strategies
Method used: heuristics
S1
S2
S3
S1
S2
S3 S4
One shot strategy
- Efficient integration
process
S3 S4
S2
IS1
IS1
IS
S1
IS2
IS2
IS
…
IS
Pair at a time strategy
- Priority to most relevant
and stable schemas.
- The integration process is
- Many correspondences
more efficient
between concepts have to
be considered together.
Jarrar © 2013
Balanced Strategy
-e.g.: Production, Marketing,
Sales.
-To be preferred when the
cohesion among schemas is high.
7

8. Framework for Schema Integration
Source: Stefano Spaccapietra
1. Schema transformation (or Pre-integration)
Input: n source schemas
Output: n source schemas homogeneized
Methods used: Model and Design Homogeneization
Reduce model heterogeneities as much as possible to make
the sources more suitable for integration.
Goal: use a single, common data model and format.
Transformation
Source DBs
Integration
Homogeneized DBs
Jarrar © 2013
DW
8

9. Schema Transformation
Schema Transformation involves:
• Data model homogeneization
– Where all data sources are described using the same data model.
• Design homogeneization
– Enforce standard design rules to reduce the number of structural
conflicts (e.g., Normalization: one fact in one place)
• Reverse Engineering
– Reverse engineer the schema from existing data (such as COBOL
files, spreadsheets, legacy relational databases, legacy objectoriented databases).
Jarrar © 2013
9

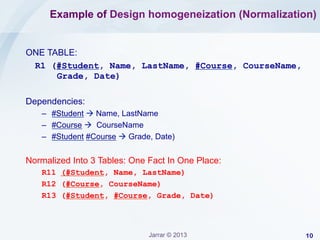

10. Example of Design homogeneization (Normalization)
ONE TABLE:
R1 (#Student, Name, LastName, #Course, CourseName,
Grade, Date)
Dependencies:
– #Student à Name, LastName
– #Course à CourseName
– #Student #Course à Grade, Date)
Normalized Into 3 Tables: One Fact In One Place:
R11 (#Student, Name, LastName)
R12 (#Course, CourseName)
R13 (#Student, #Course, Grade, Date)
Jarrar © 2013
10

11. Example of Reverse Engineering
Source: Stefano Spaccapietra
Jarrar © 2013
11

12. Schema Matching
2. Schema matching (Correspondences investigation)
Input: n source schemas
Output: n source schemas + correspondences
Method used: techniques to discover correspondences
Correspondences relate (schema) elements which describe
the same phenomena of the real world.
– This step aims at finding and describing all semantic links between
elements of the input schemas and the corresponding data.
– By doing so, one matches between the schemas to be integrated.
– This step fixes the conflicts found in the schema.
Jarrar © 2013
12

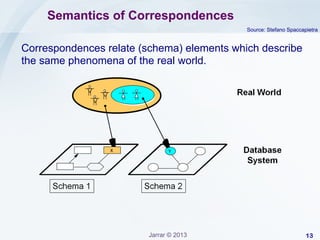

13. Semantics of Correspondences
Source: Stefano Spaccapietra
Correspondences relate (schema) elements which describe
the same phenomena of the real world.
Jarrar © 2013
13

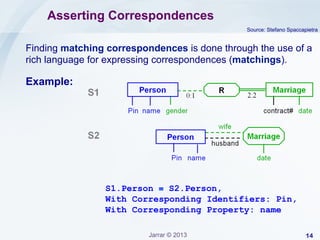

14. Asserting Correspondences
Source: Stefano Spaccapietra
Finding matching correspondences is done through the use of a
rich language for expressing correspondences (matchings).
Example:
S1.Person ≡ S2.Person,
With Corresponding Identifiers: Pin,
With Corresponding Property: name
Jarrar © 2013
14

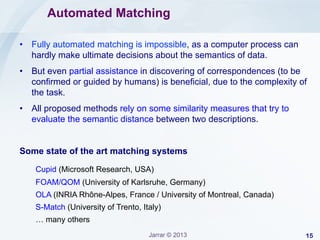

15. Automated Matching
• Fully automated matching is impossible, as a computer process can
hardly make ultimate decisions about the semantics of data.
• But even partial assistance in discovering of correspondences (to be
confirmed or guided by humans) is beneficial, due to the complexity of
the task.
• All proposed methods rely on some similarity measures that try to
evaluate the semantic distance between two descriptions.
Some state of the art matching systems
Cupid (Microsoft Research, USA)
FOAM/QOM (University of Karlsruhe, Germany)
OLA (INRIA Rhône-Alpes, France / University of Montreal, Canada)
S-Match (University of Trento, Italy)
… many others
Jarrar © 2013
15

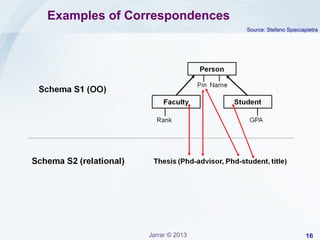

16. Examples of Correspondences
Source: Stefano Spaccapietra
Jarrar © 2013
16

17. Examples of Correspondences
Previous example
Employee
/WorksIn
Municipality
locatedIn/
Organization
Organization
Schema 1
Worker
Schema 3
bornIn/
City
locatedIn/
Region
Schema 2
Jarrar © 2013
17

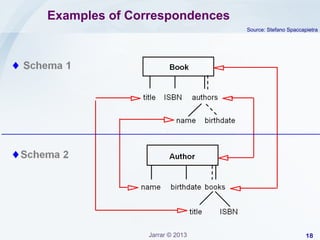

18. Examples of Correspondences
Source: Stefano Spaccapietra
Jarrar © 2013
18

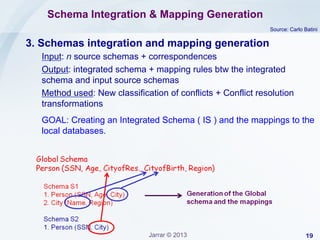

19. Schema Integration & Mapping Generation
Source: Carlo Batini
3. Schemas integration and mapping generation
Input: n source schemas + correspondences
Output: integrated schema + mapping rules btw the integrated
schema and input source schemas
Method used: New classification of conflicts + Conflict resolution
transformations
GOAL: Creating an Integrated Schema ( IS ) and the mappings to the
local databases.
Jarrar © 2013
19

20. GAV and LAV Integration
Research has identified two methods to set up mappings between the
integrated schema and the input schemas:
(1) GAV (Global As View): proposes to define the integrated schema
as a view over input schemas.
GAV is usually considered simpler and more efficient for processing
queries on the integrated database, but is weaker in supporting
evolution of the global system through addition of new sources.
(2) LAV (Local As View): proposes to define the local schemas as
views over the integrated schema.
LAV generates issues of incomplete information, which adds
complexity in handling global queries, but it better supports dynamic
addition and removal of source.
Jarrar © 2013
20

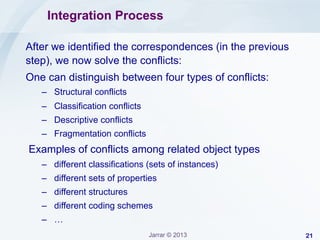

21. Integration Process
After we identified the correspondences (in the previous
step), we now solve the conflicts:
One can distinguish between four types of conflicts:
– Structural conflicts
– Classification conflicts
– Descriptive conflicts
– Fragmentation conflicts
Examples of conflicts among related object types
– different classifications (sets of instances)
– different sets of properties
– different structures
– different coding schemes
– …
Jarrar © 2013
21

22. Integration Rules
Rules defining the strategy to solve conflicts
Example rules:
– If an class corresponds to an attribute, keep the class
– If the population of a class is included in the population of another
class, build an is-a hierarchy
Integration rules depend on how you want the integrated
schema to look like
Jarrar © 2013
22

23. Structural Conflicts
Source: Stefano Spaccapietra
Different schema element types, e.g.: class, attribute, relationship
Library example:
– S1 : Book is a class
– S2 : books is an attribute of Author
S1
Conflict resolution :
Choose the less constraining structure
S2
– Integrated Schema: Book is a class
Jarrar © 2013
23

24. Classification Conflicts
• Corresponding elements describe different sets of real world objects
– S1.Faculty CONTAINS S2.PhD-advisor
• Conflict Resolution:
– Generalization / Specialization hierarchy
S1
Faculty
Faculty
S2
Phd-advisor
Phd-advisor
– Merging
Faculty
Jarrar © 2013
24

25. Descriptive Conflicts
Corresponding types have different properties, or corresponding
properties are described in different ways
Object / Entity / Relationship type:
– Naming conflicts :
• synonyms Node , Extremity
• homonyms Highway (EU) , Highway (USA)
– Composition conflicts : different attributes and methods
• Employee ( E# , name , address )
• Employee ( E# , position , salary , department )
Jarrar © 2013
25

26. Integration Methods: Manual
Source: Stefano Spaccapietra
First method: manual integration
“ do it yourself ”
a language
mapping
rules
integrated
schema
schemas
DBA
Easy to implement , Flexible
BUT
time consuming for the DBA
Jarrar © 2013
26

27. Integration Methods: Semi-Automatic
Second method : semi-automatic integration
“ tell me about the problem, I will try to fix it “
correspondences
mapping rules
TOOL
integrated
schema
schemas
DBA
Opens to visual CASE tools, integration servers
BUT knowledge acquisition can be painful
Jarrar © 2013
27

28. References and Acknowledgement
• Carlo Batini: Course on Data Integration. BZU IT Summer School
2011.
• Stefano Spaccapietra: Information Integration. Presentation at the IFIP
Academy. Porto Alegre. 2005.
• Chris Bizer: The Emerging Web of Linked Data. Presentation at SRI
International, Artificial Intelligence Center. Menlo Park, USA. 2009.
Thanks to Anton Deik for helping me preparing this lecture
Jarrar © 2013
28
