L17 Data Source Layer

1. HÖNNUN OG SMÍÐI HUGBÚNAÐAR 2015
L17 Data Source Layer

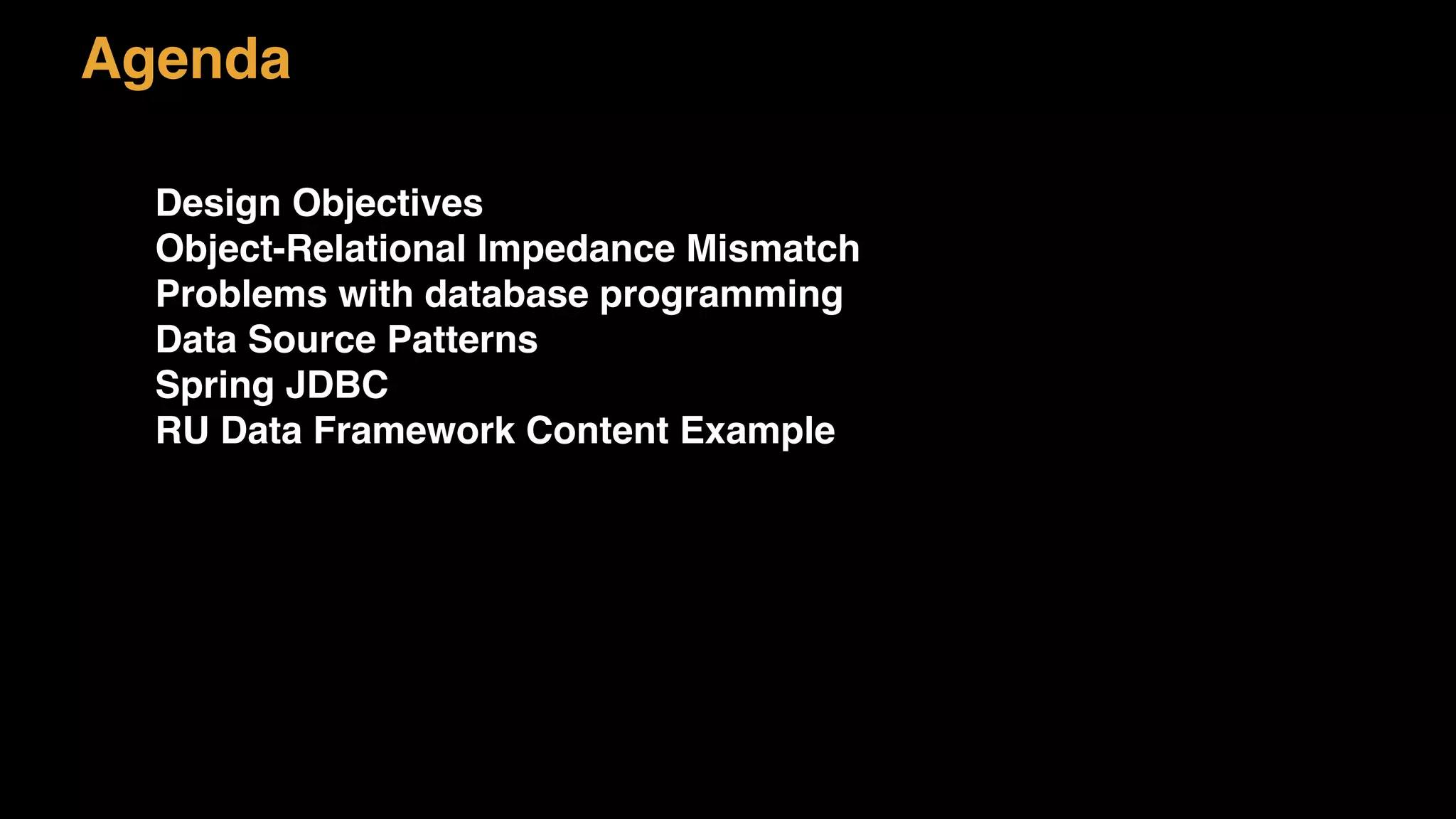

2. Agenda
Design Objectives
Object-Relational Impedance Mismatch
Problems with database programming
Data Source Patterns
Spring JDBC
RU Data Framework Content Example

3. Reading
Object-relational
impedance mismatch
Data Source Pattern
• Data Transfer Object
• Row Data Gateway
• Table Data Gateway
• Active Record
• Data Mapper
• Record set

4. Design Objectives

5. The Three Layers
▪ Presentation
– User’s interface to the system
– User can be another system
– Accepts input, displays views
▪ Domain
– The Application of the system
– The “Business logic”
– Has the tendency to creep into presentation and data source
▪ Data Source
– Connection to the database

6. We are dealing with relational databases
• Wide-spread and well understood
• SQL based, transactionally safe
• These are important in enterprise software
Drawbacks
• Bottleneck in a modern Internet system
• Impedance Mismatch
Alternatives
• NoSQL databases
• Object-Relational Mappers (ORM)
Relational Databases

7. Programs need to interface the Data Source
• Usually this means relational databases
Database vendors usually supply drivers for database
Rational databases use SQL language
• Fairly standard
Connecting to Data Sources
Database
classes
Driver DatabsaseProgram

8. Objectives
▪ Hide SQL from the Domain Layer
▪ Access to database needs to ensure
– Speed and data integrity
– Concurrent access of many clients
▪ Database independence
– It can be an objective to keep the system independent of particular
database technology
▪ Data Source Layer needs to be maintainable
– Database will change

9. Impedance Mismatch
Object Oriented
world
classes,
interfaces,
encapsulation,
inheritance,
polymorphism
Relational
Database world
Tables, view,
primary keys,
foreign keys,
stored
procedures
Object-Relational
impedance mismatch

10. Mapping Objects to Tables
▪ Object Relational Impedance Mismatch
▪ Objects are different than tables
– Encapsulation, Accessibility, Interfaces, classes, inheritance
▪ Data types are different
– Booleans, dates, string etc.
▪ Structural differences
– Classes contain other classes

11. The Legacy Problem
▪ In most cases the data model exists
– The schema already exists
– We cannot assume that we create the schema
▪ Data tends to stick where it lends
– Cannot assume that our application controls the schema
– The schema will likely outlive the application

12. The Usability Problem
▪ The Database API determines the usability of the data access
– Should be easy to use
▪ The programming model is important
– Does matter how efficient and good a persistence framework is, if it
is complex and cumbersome to use
▪ Tools may help, but should not be used to conceal excessive
complexity
– If tools are required to generate data access the programming
model is likely to be complex

13. Using Databases
▪ Programmers tend to want to solve all problems in their domain
– Should we solve all problems in our object domain?
– Should we write everything in Java or C#?
▪ Databases are good at what they do
– But it’s necessary to let them do it in a natural way

14. Database Code
▪ Database programming can be very repetitive
– Opportunities for reusability
– JDBC is pretty low-level
▪ Too much similar code is bad!
– Don’t write code unless you have to
– Try to write code for the business layer
▪ Persistence Frameworks are difficult to build
– Use the frameworks that exist
– Examples: Spring JBDC, Hibernate, JPA, NHibernate, iBatis
https://en.wikipedia.org/wiki/List_of_object-relational_mapping_software

15. Which of these statements is false
A) Data tends to stick where it lends
B) Database programming tends to be low-level
C) Objects tend to map nicely to the database
D) Database programming tends to be repetitive
QUIZ

16. Data Source Patterns

17. Domain Layer Patterns Recap
▪ Transaction Script
– Organises business logic by procedures where each procedure
handles a single request from the presentation
▪ Domain Model
– An object model of the domain that incorporates both behaviour
and data
▪ Table Module
– A single instance that handles the business logic for all rows in a
database table or view

18. Good Design
▪ Separate database code from other code
– Provide database classes to access the database
– All SQL code in the same place
– Factories for each database
– Use of Connection Pools
▪ Error handling
– SQLException is isolated in the Data Source Layer
– Wrap in domain specific exceptions – use of runtime exceptions

19. Design Example
▪ Domain Model uses gateways

20. Useful Patterns
▪ Data Transfer Object
– An object that carries data between processes in order to deduce
the number of method calls
▪ Record Set
– An in-memory representation of tabular data

21. Data Transfer Object
An object that carries data between processes in order to deduce the
number of method calls
▪ Object that is used to transfer data between layers
– Data Source returns data objects to web layer

22. Data Transfer Object
▪ How it Works
– Similar to Value Object but is constructed to carry data between
layers
– Data source layer creates DTO for transfer
– DTOs holds data – get/set method
– Can be mutable or immutable
– Could have methods to transform data – for example serialize the
data or convert to XML
– Simple Domain Objects can be used as DTO
• Creates dependencies

23. Data Transfer Object
▪ Assembling DTO from domain objects
– Assembler reduces dependencies
▪ When To Use It
– Whenever you need to transfer multiple items of data between two
processes in a single method call

24. Record Set
▪ An in-memory representation of tabular data
▪ How It Works
– Contains the result of a database query
– Common in ADO.NET and JDBC
– One record is current, clients can traverse the set
– Usually provided by the database code
▪ When to Use It
– When returning data from a query

25. Data Source Patterns
▪ Table Data Gateway
– Acts as a Gateway to a database table
▪ Row Data Gateway
– Acts as a Gateway to a single record in a data source
▪ Active Record
– Wraps a row in a database table or view, encapsulates the database
access, and adds domain logic on that data
▪ Data Mapper
– A layer of Mappers that moves data between objects and database
while keeping them independent

26. Pattern Overview

27. Data Source Layer
▪ Domain layer has influence on the patterns
▪ Transaction Script
– Table Data Gateway for single access to a table
– Row Data Gateway for single access to a row of a table
▪ Domain Model
– Active Record or Row Data Gateway
– Data Mapper
▪ Table Module
– Table Data Gateway with Record Set

28. Data Source Patterns
▪ Table Data Gateway
– Acts as a Gateway to a database table
▪ Row Data Gateway
– Acts as a Gateway to a single record in a data source
▪ Active Record
– Wraps a row in a database table or view, encapsulates the database
access, and adds domain logic on that data
▪ Data Mapper
– A layer of Mappers that moves data between objects and database
while keeping them independent

29. Table Data Gateway
An object that acts as a Gateway to a database table. One
instance handles all the rows in the table.
▪ Also called Data Access Objects – DAO
▪ How It Works
– Simple interface to a table with several find methods and methods
for maintaining data
– CRUD methods (Create, Read, Update, Delete)
– Acts as a gateway to a table
– One gateway for each table
– Finders return Collection of DTOs or Record Set

30. Table Data Gateway
▪ When to Use It
– Works for Table Module since it is based on Record Set
– Useful for web application where Domain Model is used

31. Row Data Gateway
An object that acts as a Gateway to a single record in a data
source.There is only one instance per row.
▪ How It Works
– Object that is exactly one
single record
– Each table column is a
field in the object
– Do not have logic
– Finder object
– Can be generated

32. Row Data Gateway
▪ When to Use It
– Works well for simple domain layer for example Transaction Script

33. Active Record
An object that wraps a row in a database table or view,
encapsulates the database access, and adds domain logic on that
data
▪ How It Works
– Each object can read and
store itself
– Contain domain logic
▪ When to Use It
– When Domain Logic is not
too complex
– When using Transaction Script
+insert()
+update()
+delete()
+getExemption()
+isFlaggedForAudit(in CompanyID)
+getTaxableEarnings()
-lastname
-firstname
-NumerOfDependents
Person

34. Data Mapper
A layer of Mappers that moves data between objects and a
database while keeping them independent of each other and the
mapper itself
▪ Separates the in-memory objects from the database

35. Data Mapper
▪ How It works
– Simple Data Mappers map in-memory object to table on a field-to-
field basis
– Others need to map more complicated object hierarchies to multiple
tables
– Mapper uses Identity Map to see if object is already loaded
▪ For insert and updates
– The mapper must know what objects have changed, which are new,
and which must be destroyed
– Unit of Work pattern

36. Data Mapper
▪ When to Use It
– Database and object model must be independent
– Data Mappers are useful with Domain Model
– For simple Domain Model an Active Record could be used, but as
it becomes more complicated some mapping is needed
▪ O/R mapping solutions can provide the mappers
– For example Hibernate

37. Data Mapper
▪ Simple example
– Loading from the database

38. Data Mapper
▪ Simple example
– Updating data
– Client asks the mapper to save a domain object
– The mapper pulls the data out of the domain object and saves to the
database

39. Data Source class maps nicely to the rows in a table and contains
some useful methods
A) Row Data Gateway
B) Table Data Gateway
C) Active Record
D) Data Mapper
QUIZ

40. Spring JDBC

41. Spring JDBC
▪ Spring JDBC packages
– org.springframework.jdbc
▪ datasource
– Classes for connecting to the database
▪ core
– Base classes for accessing the database – JdbcTemplate
▪ object
– Classes that support updating, inserting and deleting data from the
database
▪ support
– Utility classes

42. Loading the DataSource
▪ Code
▪ Configuration – data.xml
Resource res = new FileSystemResource("data.xml");
XmlBeanFactory factory = new XmlBeanFactory(res);
DataSource ds = (DataSource)factory.getBean("dataSource");
<beans>
<bean id="dataSource“ class=
"org.springframework.jdbc.datasource.DriverManagerDataSource">
<property name="driverClassName">
<value>net.sourceforge.jtds.jdbc.Driver</value>
</property>
<property name="url”>
<value>jdbc:jtds:sqlserver://honn.ru.is:1433</value>
</property>
<property name="username"><value>andri</value></property>
<property name="password"><value>abc123</value></property>
</bean>
</beans>

43. JdbcTemplate
▪ Main class of core package
– Simplifies queries
▪ Template Method pattern
– JdbcTemplate handles the
processing and calls our code
– Dependency Injection

44. JdbcTemplate Example
ParameterizedRowMapper<String> rm = new ParameterizedRowMapper<String>()
{
public String mapRow(ResultSet rs, int rowNum)
throws SQLException
{
return rs.getString("title");
}
};
JdbcTemplate tpl = new JdbcTemplate(getDataSource());
Collection<String> col = tpl.query("select * from contents", rm);
for(String s : col)
{
System.out.println(s);
}
Kenya's elephants send text messages to rangers
(AP)
Flexible OLEDs could be part of lighting's future
(AP)

45. Collecting Data
▪ Spring Interface RowMapper
– An interface used by JdbcTemplate for mapping returned result
sets
– Class that implements this interface can be used to collect data
public interface ParameterizedRowMapper<T> extends RowMapper<T>
{
Object mapRow(ResultSet rs, int rowNum) throws SQLException;
}

46. ContentRowMapper
public class ContentRowMapper implements
ParameterizedRowMapper<Content>
{
public Content mapRow(ResultSet rs, int rowNum) throws SQLException
{
Content content = new Content (rs.getInt (1), // id
rs.getString (2), // title
rs.getString (3), // link
rs.getString (4), // description
rs.getDate (5), // pubdate
rs.getString(6)); // author
return content;
}
}

47. Using ContentRowMapper
▪ JdbcTemplate method query takes RowMapper interface as
parameter
ContentRowMapper crm = new ContentRowMapper();
JdbcTemplate tpl = new JdbcTemplate(ds);
List l = tpl.query("select * from contents", crm);
Iterator i = l.iterator();
Content cont;
while (i.hasNext())
{
cont = (Content) i.next();
System.out.println(cont);
}

48. Insert
▪ SimpleJdbcInsert
– Class for inserts
public int add(Content content)
{
SimpleJdbcInsert insertContent =
new SimpleJdbcInsert(getDataSource())
.withTableName("contents")
.usingGeneratedKeyColumns("id");
Map<String, Object> parameters = new HashMap<String, Object>(5);
parameters.put("title", content.getTitle());
parameters.put("link", content.getLink());
parameters.put("description", content.getDescription());
parameters.put("pubdate", content.getPubDate());
parameters.put("author", content.getAuthor());
return insertContent.executeAndReturnKey(parameters).intValue();
}

49. RU Data Framework Content Example

50. Content Example
▪ Table contents
– Contains content information
CREATE TABLE contents
(
id int Identity (1, 1) primary key NOT NULL,
title varchar(128),
link varchar(512) unique,
description text,
pubDate datetime,
author varchar(128),
)

51. Content Example
▪ Gateway class for the contents table
– ContentDataGateway interface contains the CRUD operations
– Class ContentData implements the gateway and provides the
JDBC code
– Content is simple
JavaBean – acts as
Data Transfer
Object

52. RU Data Framework
▪ Classes and interfaces for accessing the database
– Implementation of the Data Gateway
▪ For Table Data Gateway
– Each table has an Gateway interface
– Implementation in Data classes
– Factory pattern returns the implementation for each Date Gateway

53. RuDataAccessFactory
▪ Factory for creating Gateway interfaces
– Reads information about the DataSource
– Spring Bean Definition file: data.xml
– Uses Spring Bean Factory
– RuDataAccessFactory reads information on each gateway
interface and which classes to use as implementation
– Code using the gateway interface calls getDataAccess in the
factory class
factory = RuDataAccessFactory.getInstance("data.xml");
contentDataGateway = (ContentDataGateway)
factory.getDataAccess("contentDataAccess");

54. Data Definition
▪ File data.xml
<beans>
<!-- Data Source -->
<bean id="dataSource"
class="org.springframework.jdbc.datasource.DriverManagerDataSource" >
<property name="driv erClassName">
<value>net.sourceforge.jtds.jdbc.Driver</value></property>
<property name="url">
<value>jdbc:jtds:sqlserver://honn.ru.is:1433</value></property>
<property name="username"><value>andri</value></property>
<property name="password"><value>abc123</value></property>
</bean>
<!– Content Gateway Interface -->
<bean id="contentGateway"
class="is.ru.honn.tube.data.content.ContentData"/>
</bean>
</beans>

55. DataSource
▪ DataSource is a connection to a database
– Driver Class Name (net.sourceforge.jtds.jdbc.Driver)
– URL (jdbc:jtds:sqlserver://honn.ru.is:1433)
– username (andri)
– password (abc123)
▪ RU framework uses Spring
– Load the DataSource information
– DriverManagerDataSource
extends
AbstractDataSource
which implements
DataSource

56. DataSource in Ru Framework
▪ RU Framework uses Spring to get DataSource

57. Using RU Framework

58. RuDataAccess
▪ RuDataAccess is base interface for Data gateway interfaces
– All gateway interfaces extend RuDataAccess
– Has methods to set and get DataSource

59. RuData
▪ RuData is a class implementing RuDataAccess
– Handles DataSource
– Data classes extend this class

60. ContentDataGateway
▪ Contains all the method that are needed to manage contents
– Gateway to the contents table
– Pattern Table Data Gateway
public interface ContentDataGateway extends RuDataAccess
{
public int add(Content content);
public List<Content> getContents();
}

61. ContentData
public class ContentData extends RuData implements ContentDataGateway
{
public int add(Content content)
{
SimpleJdbcInsert insertContent =
new SimpleJdbcInsert(getDataSource())
.withTableName("contents")
.usingGeneratedKeyColumns("id");
Map<String, Object> parameters = new HashMap<String, Object>(5);
parameters.put("title", content.getTitle());
parameters.put("link", content.getLink());
parameters.put("description", content.getDescription());
parameters.put("pubdate", content.getPubDate());
parameters.put("author", content.getAuthor());
return insertContent.executeAndReturnKey(parameters).intValue();
}

62. ContentData
public List getContents()
{
JdbcTemplate queryContent = new JdbcTemplate(getDataSource());
List<Content> contents = queryContent.query
("select * from contents", new ContentRowMapper());
return contents;
}

63. Usage
public class ContentServiceData implements ContentService {
private ContentDataGateway contentDataGateway = null;
public ContentServiceData()
{
RuDataAccessFactory factory = null;
try {
factory = RuDataAccessFactory.getInstance("data.xml");
} catch (RuException e) { ... }
contentDataGateway = (ContentDataGateway)
factory.getDataAccess("contentDataGateway");
}
public void addContent(Content content)
{
contentDataGateway.add(content);
}
public List<Content> getContents()
{
return contentDataGateway.getContents();
}
}

64. Contents
▪ Use ContentServiceData instead of a Service Stub
– Change one line in the app.xml file
<bean id="contentService"
class="is.ru.honn.tube.service.ContentServiceData">
</bean>

65. Contents
▪ Use ContentServiceData instead of a Service Stub
– Change one line in the app.xml file

66. RU Database
▪ hrnem.ru.is
▪ Each student has their own database
▪ Username and passwords sent out
▪ Check the access

67. Summary
▪ Design Objectives
– Object-relational impedance mismatch
– The Usability Problem
– The Legacy Problem
▪ Patterns
– Table Data Gateway
– Row Data Gateway
– Active Record
– Data Mapper
– Data Transfer Object and Record set
