Data Scenarios 2020: 6 Amazing Transformations
- 1. Data Scenarios 2020: AmazingTransformations Dmitri, Grant and Sienna
- 2. Today’s Spiritual Experiences 1. Seethe world through new eyes. 2. Now try to understand it. 3. Worry less over your bills. 4. You can do anything! Including using R. 5. Augmented Reality in a new light. 6. Immerse in virtual environments. 7. Soar high above your problems. Relax and let FME guide you
- 3. Computer Vision A fieldof Machine Learning with the goal of helping computers “see” and “understand” what’s in an image.
- 4. Last year, youasked if it was possible to use Computer Vision with geospatial data. We went home and tried it.

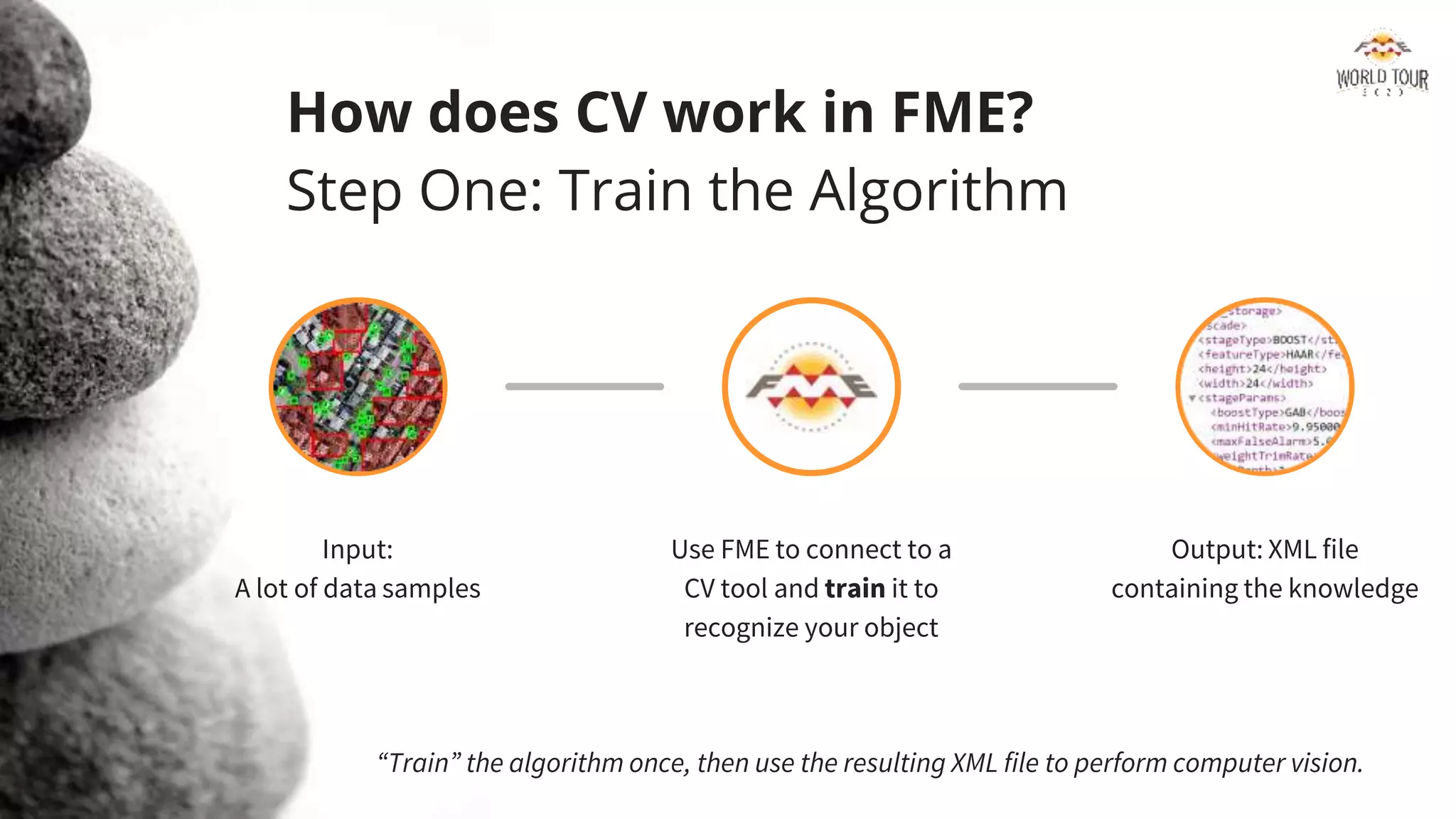

- 5. How does CVwork in FME? Step One: Train the Algorithm Input: A lot of data samples Use FME to connect to a CV tool and train it to recognize your object Output: XML file containing the knowledge “Train” the algorithm once, then use the resulting XML file to perform computer vision.

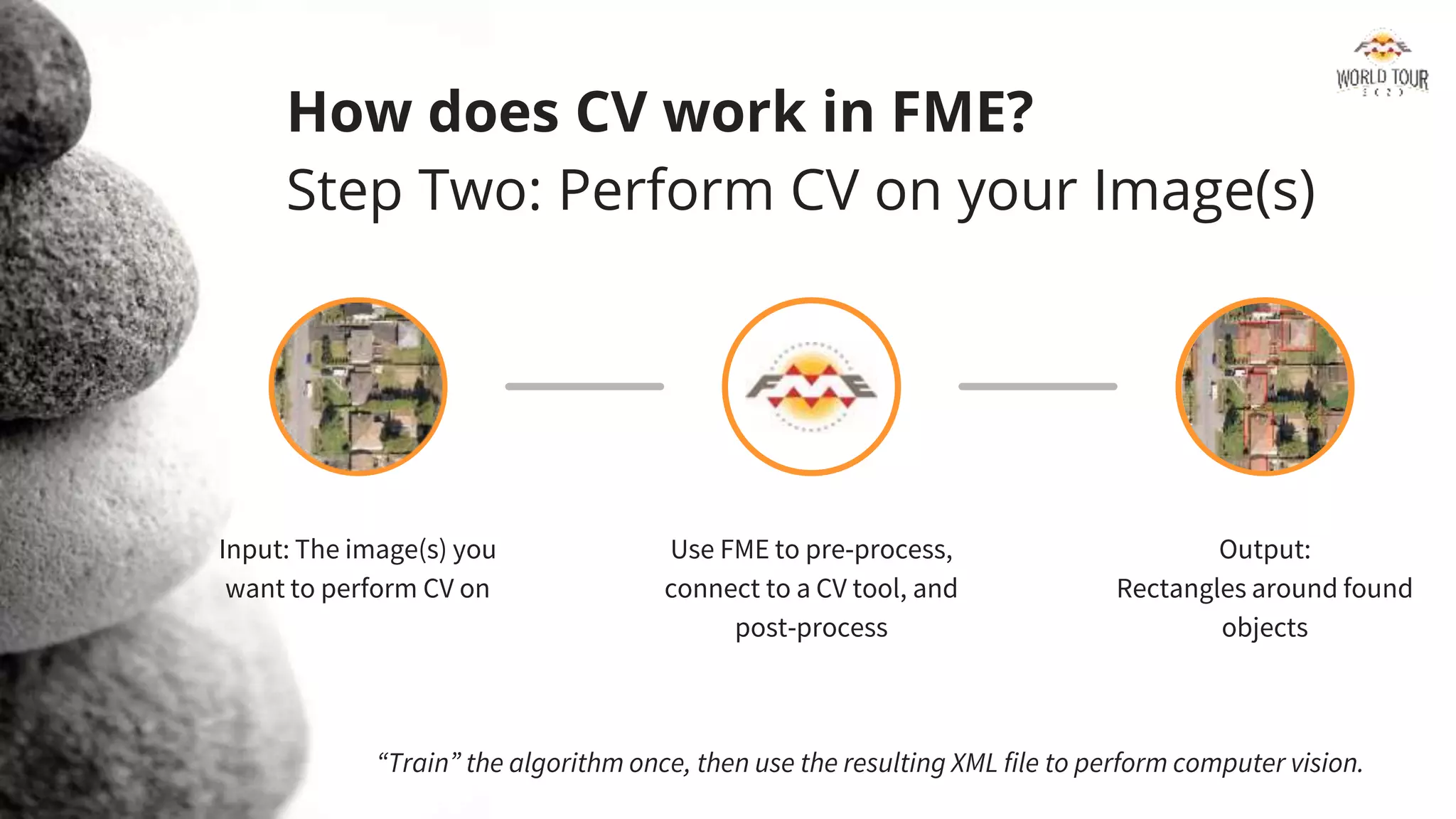

- 6. How does CVwork in FME? Step Two: Perform CV on your Image(s) Input: The image(s) you want to perform CV on Use FME to pre-process, connect to a CV tool, and post-process Output: Rectangles around found objects “Train” the algorithm once, then use the resulting XML file to perform computer vision.

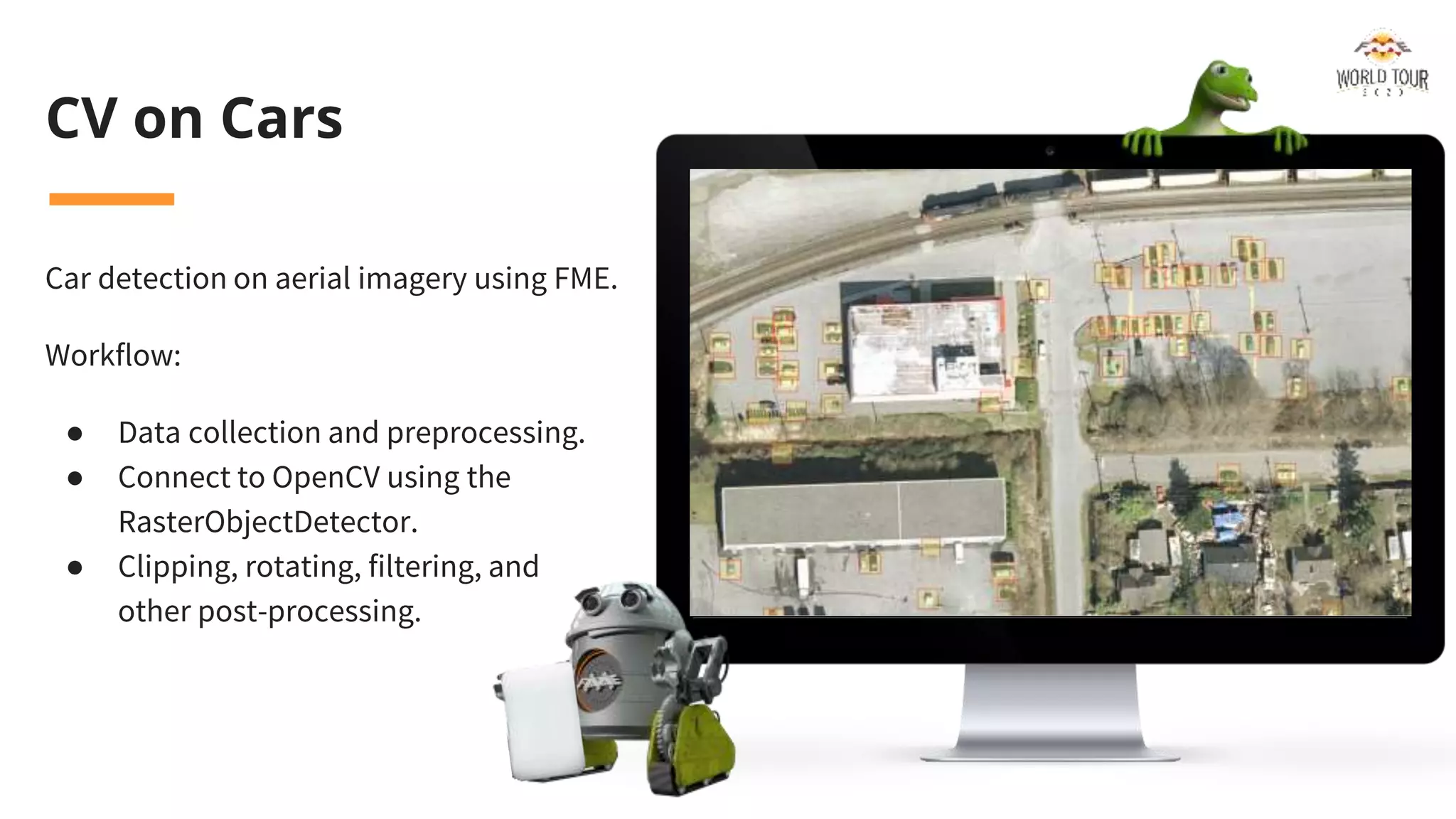

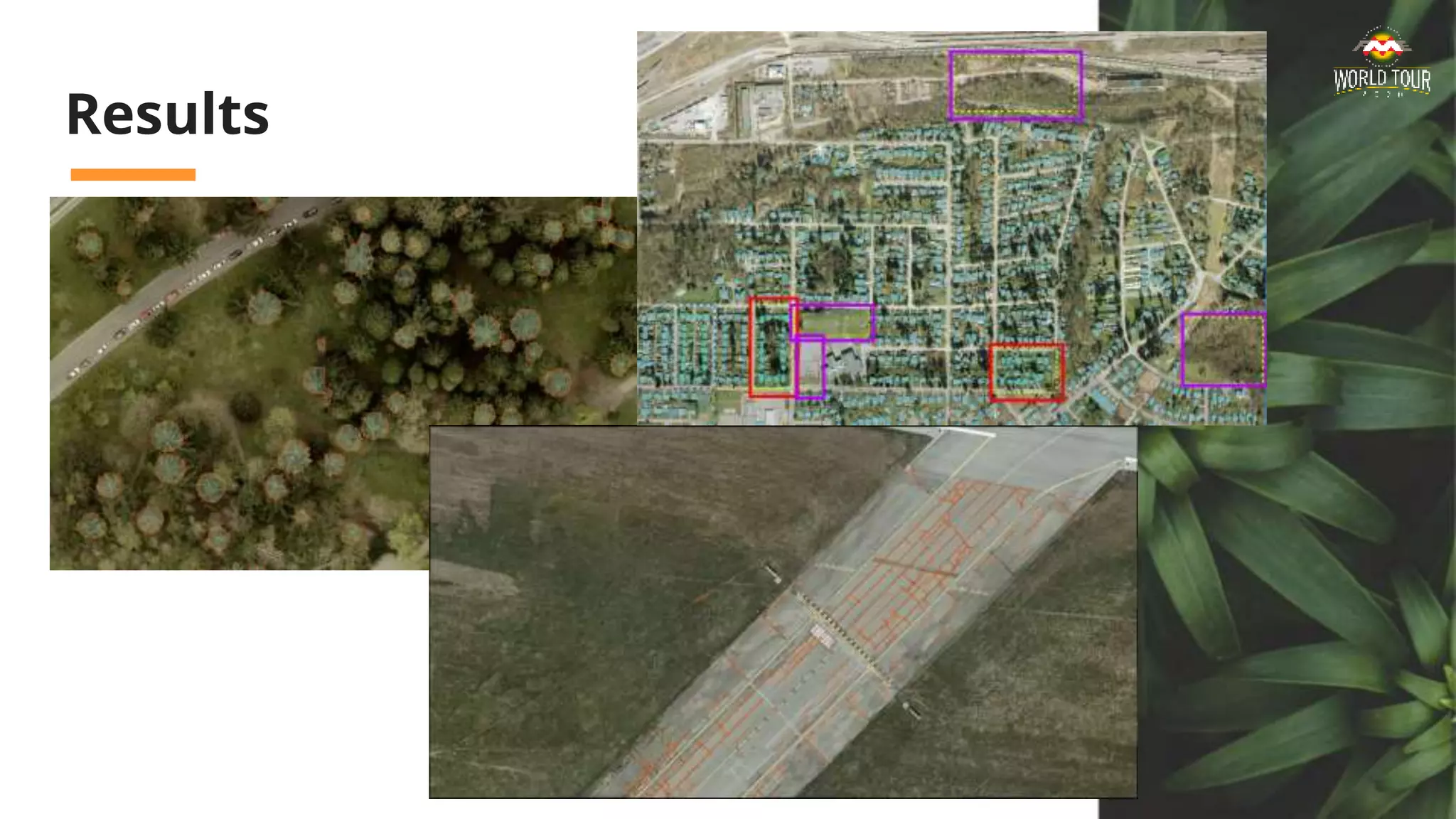

- 7. CV on Cars Cardetection on aerial imagery using FME. Workflow: ● Data collection and preprocessing. ● Connect to OpenCV using the RasterObjectDetector. ● Clipping, rotating, filtering, and other post-processing.

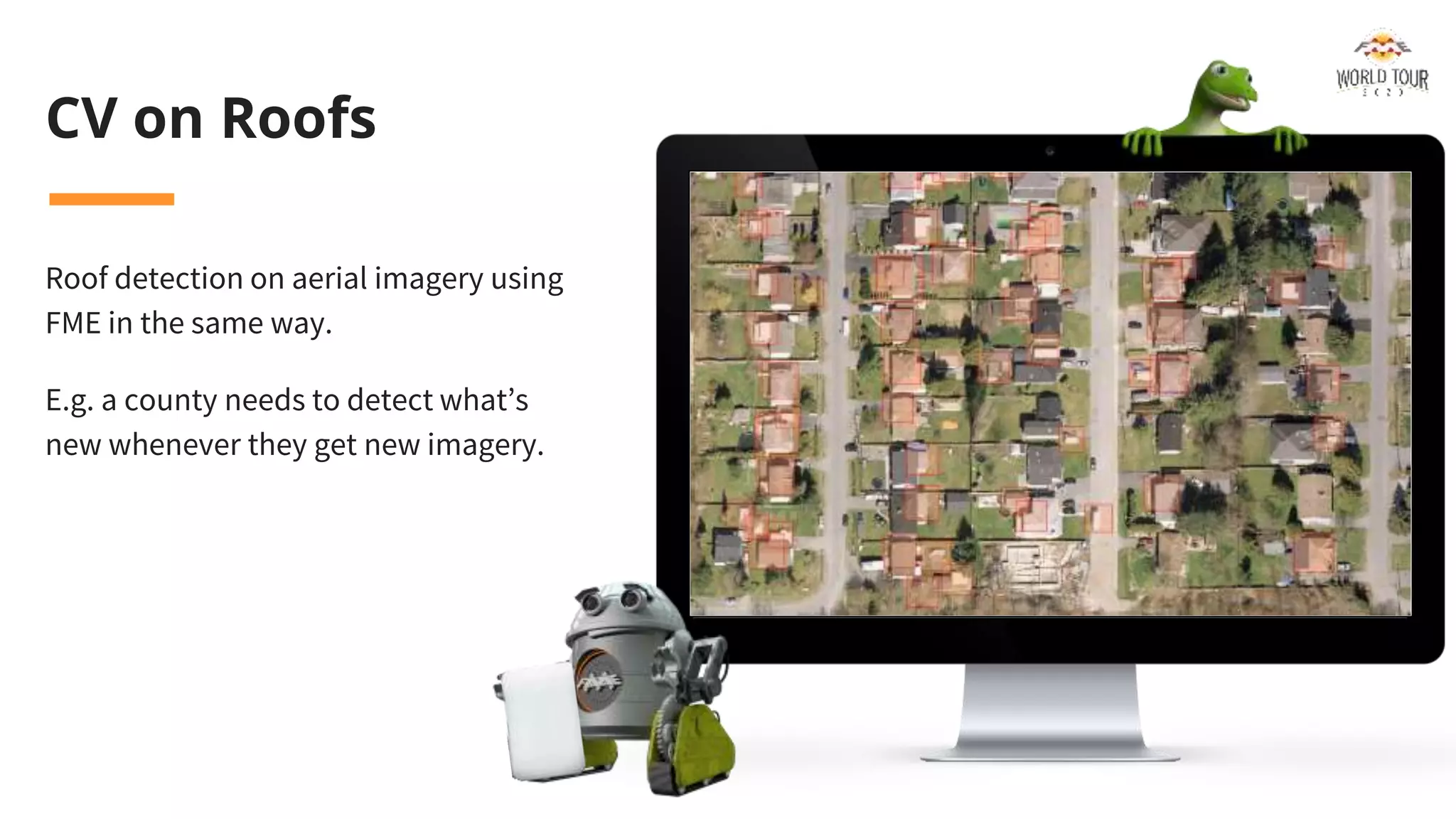

- 8. CV on Roofs Roofdetection on aerial imagery using FME in the same way. E.g. a county needs to detect what’s new whenever they get new imagery.

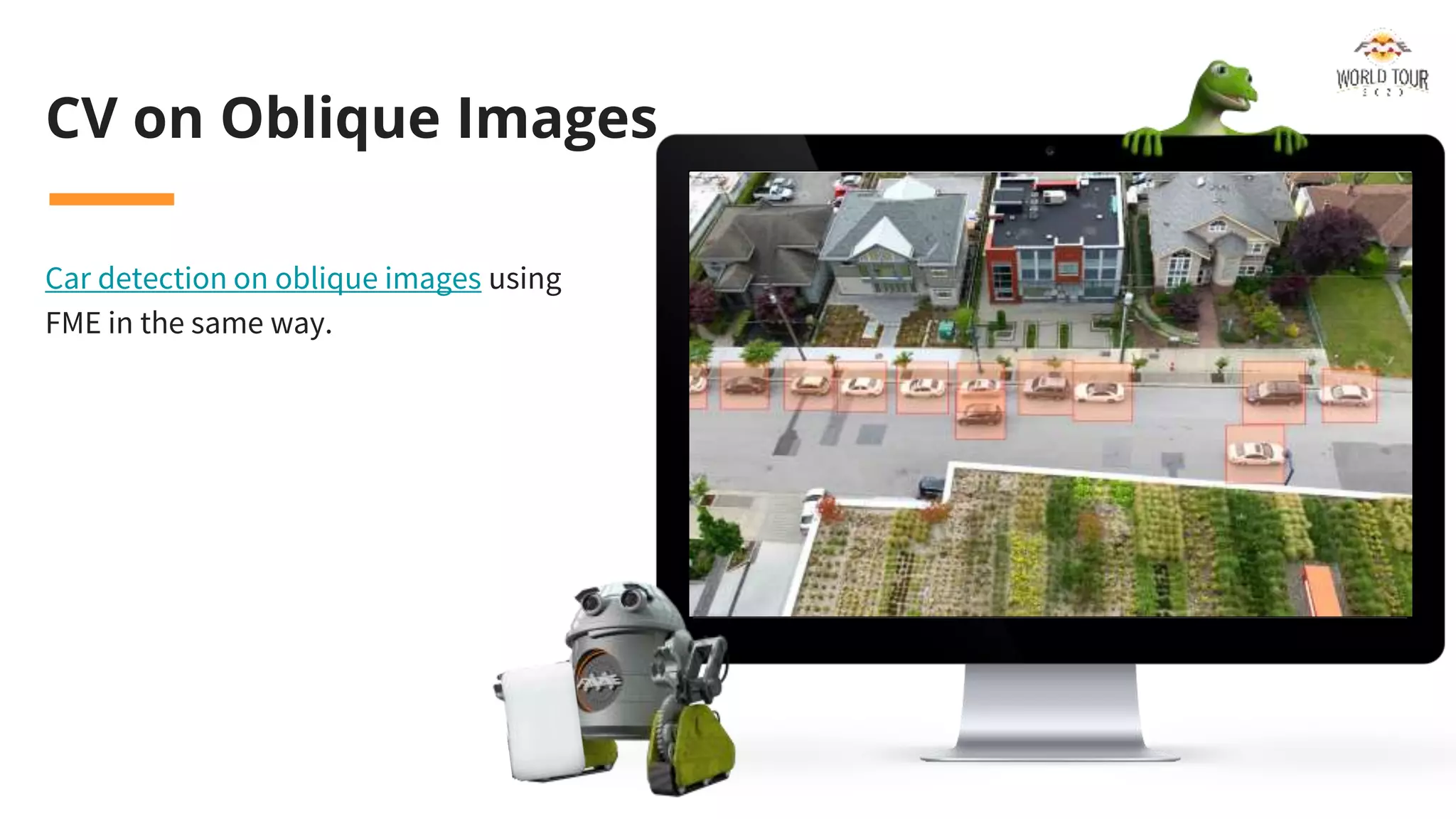

- 9. CV on ObliqueImages Car detection on oblique images using FME in the same way.

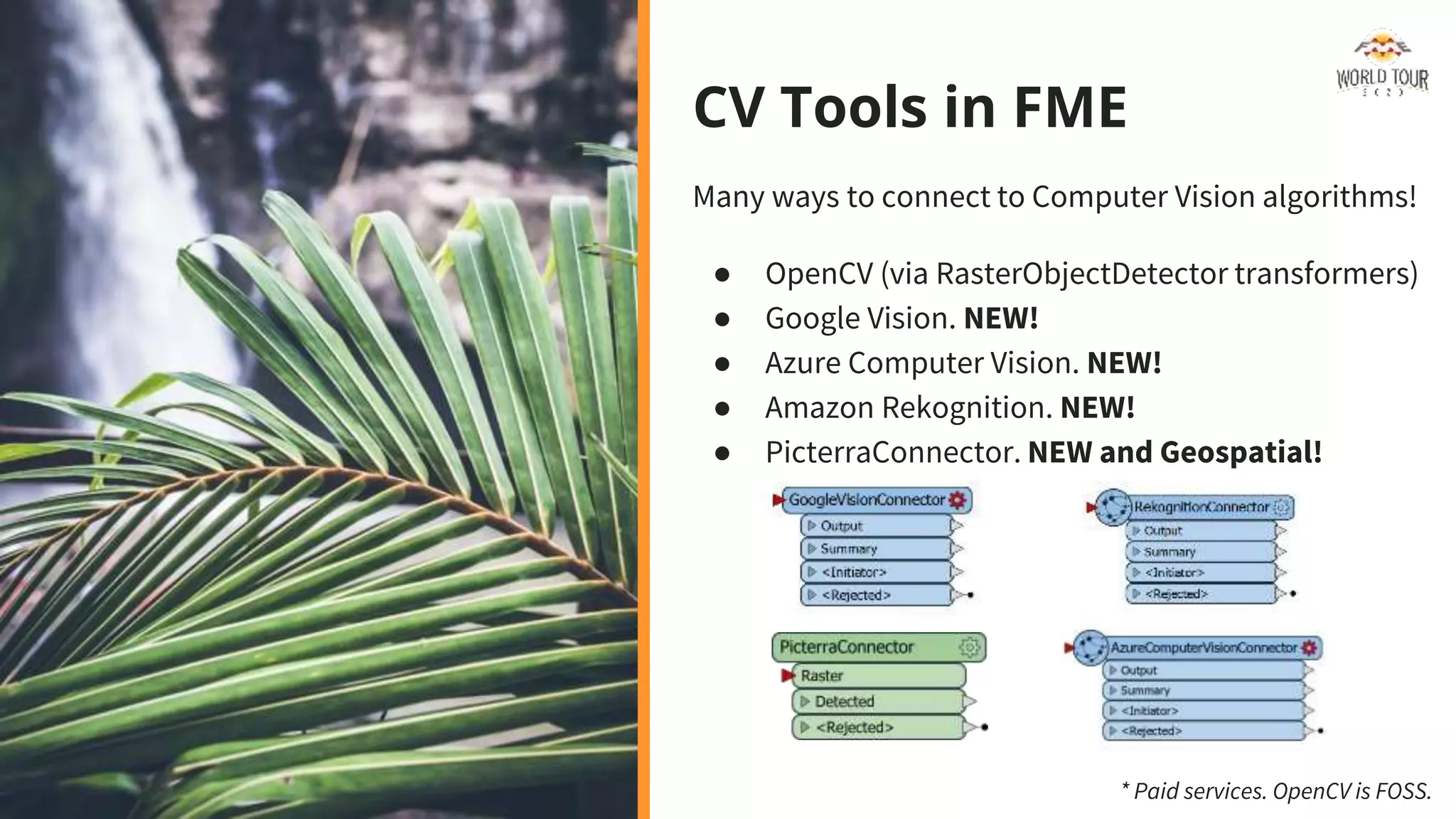

- 10. CV Tools inFME Many ways to connect to Computer Vision algorithms! ● OpenCV (via RasterObjectDetector transformers) ● Google Vision. NEW! ● Azure Computer Vision. NEW! ● Amazon Rekognition. NEW! ● PicterraConnector. NEW and Geospatial! * Paid services. OpenCV is FOSS.
- 11. Example: Face detectionand augmented objects with Google Vision Do you want to try the mask on? Do you want to make your own filter?

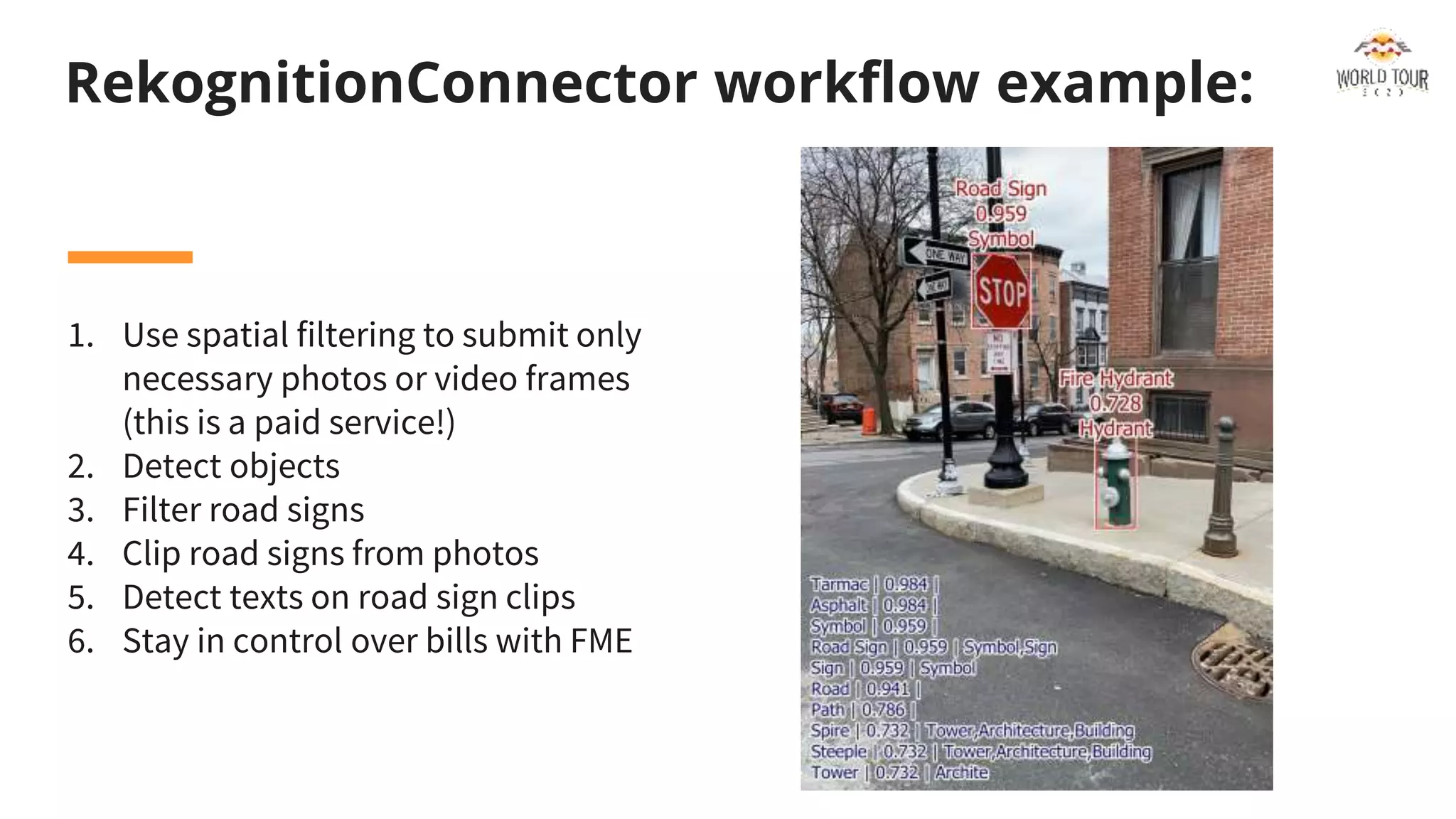

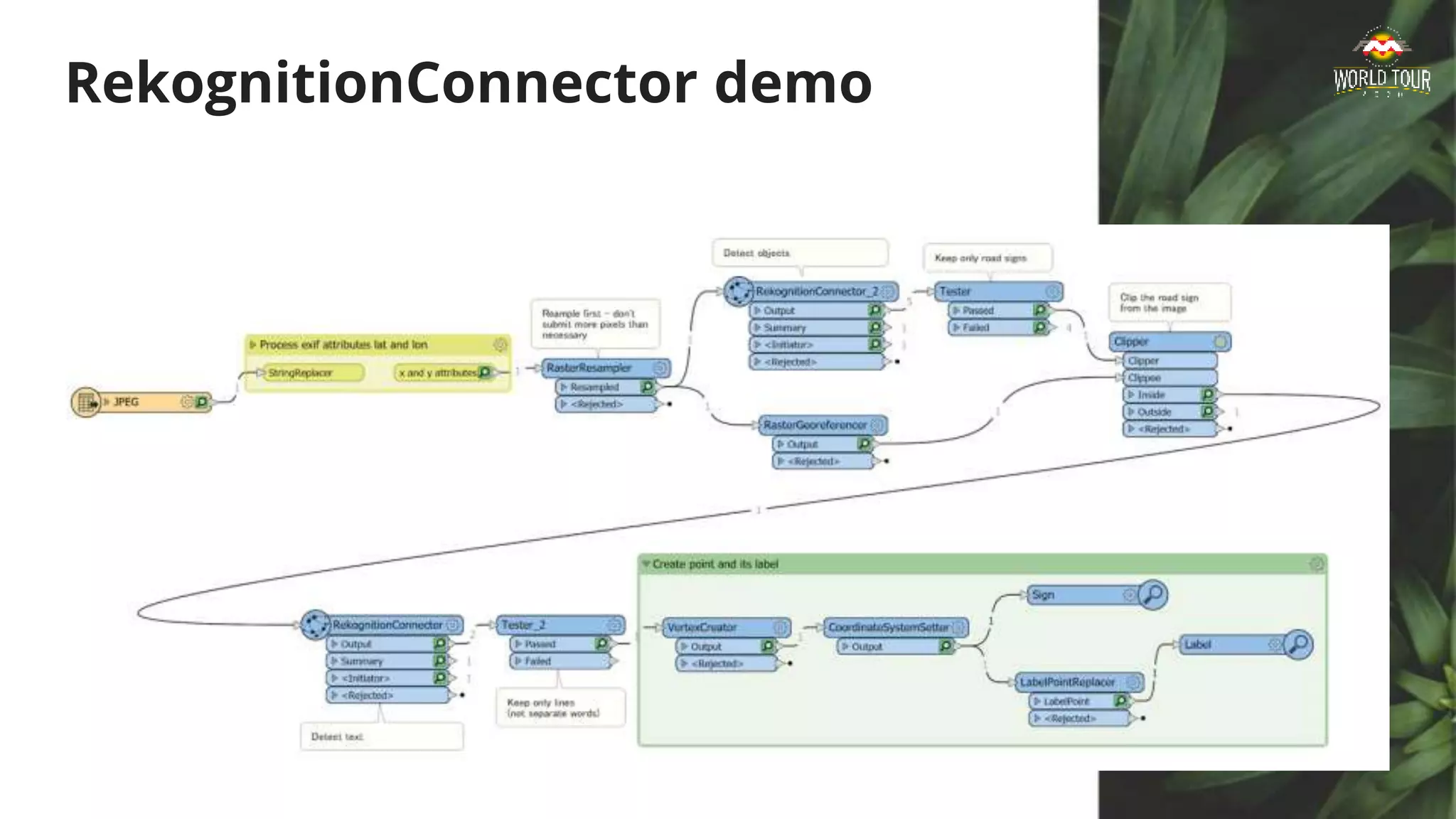

- 12. RekognitionConnector workflow example: 1.Use spatial filtering to submit only necessary photos or video frames (this is a paid service!) 2. Detect objects 3. Filter road signs 4. Clip road signs from photos 5. Detect texts on road sign clips 6. Stay in control over bills with FME
- 13.
- 14. What is Picterra Picterra- cloud-based computer vision platform for geospatial data Examples: ● Ongoing building construction: results ● Road cracks: results ● Pinnipeds counting: blog, results ● Sheep counting and Cownter project ● Railway assets: results ● Weed (shattercane) detection: blog, results

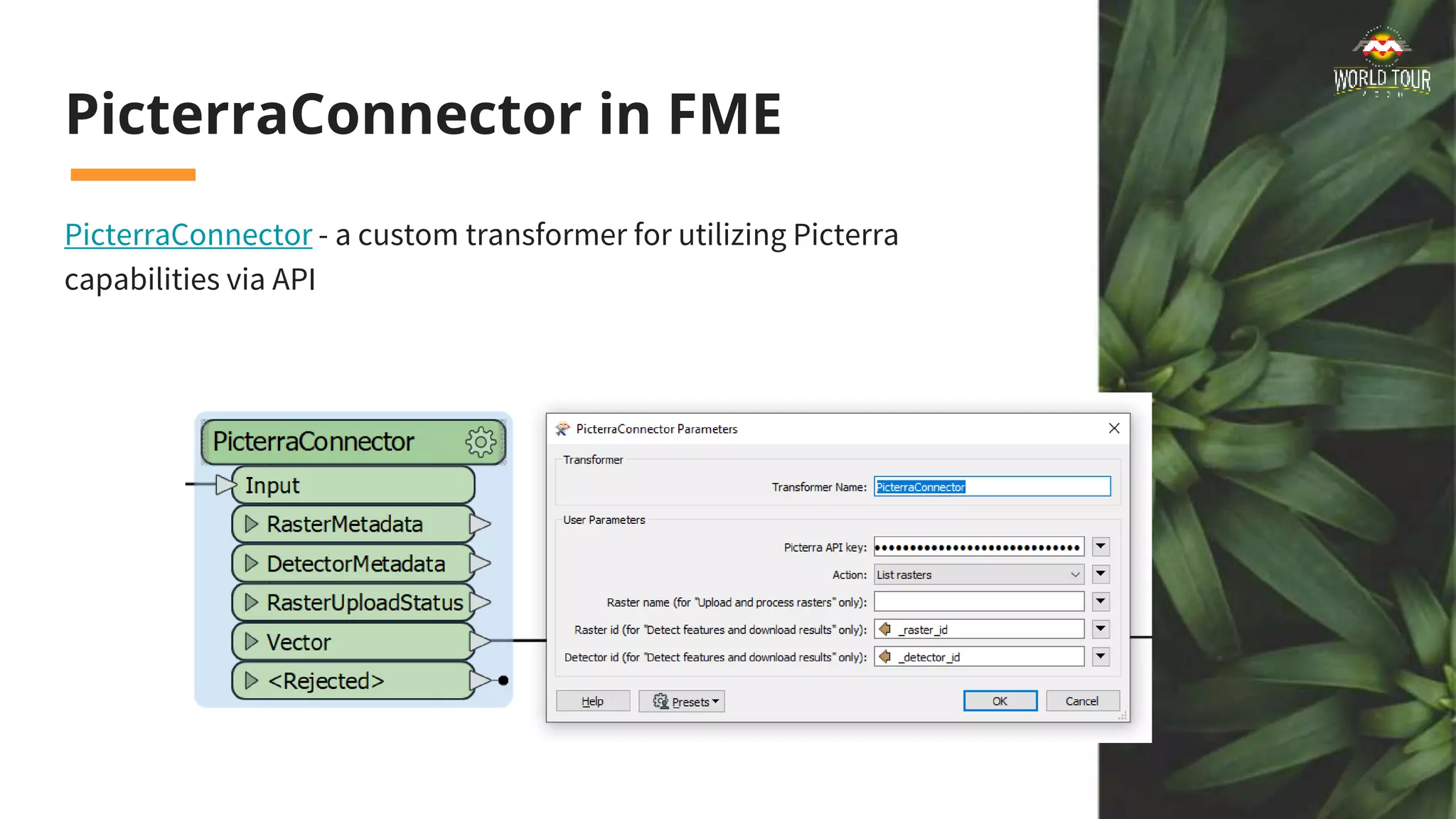

- 15. PicterraConnector in FME PicterraConnector- a custom transformer for utilizing Picterra capabilities via API
- 16.

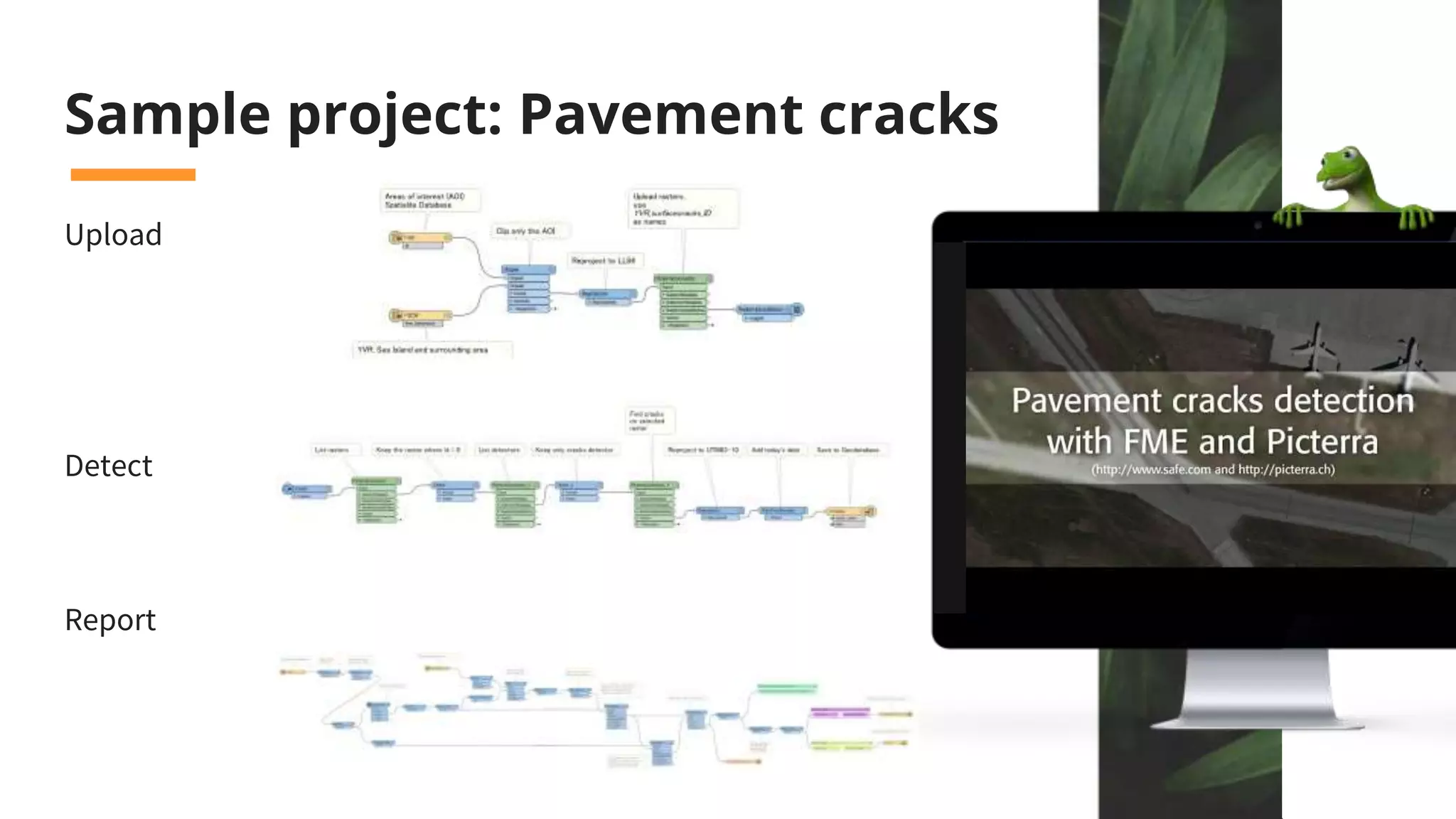

- 17. Sample project: Pavementcracks Upload Detect Report
- 18.
- 19. Which detection projectwas most interesting? What would you like to detect on your imagery? Talk to us via Q&A or send us an email!

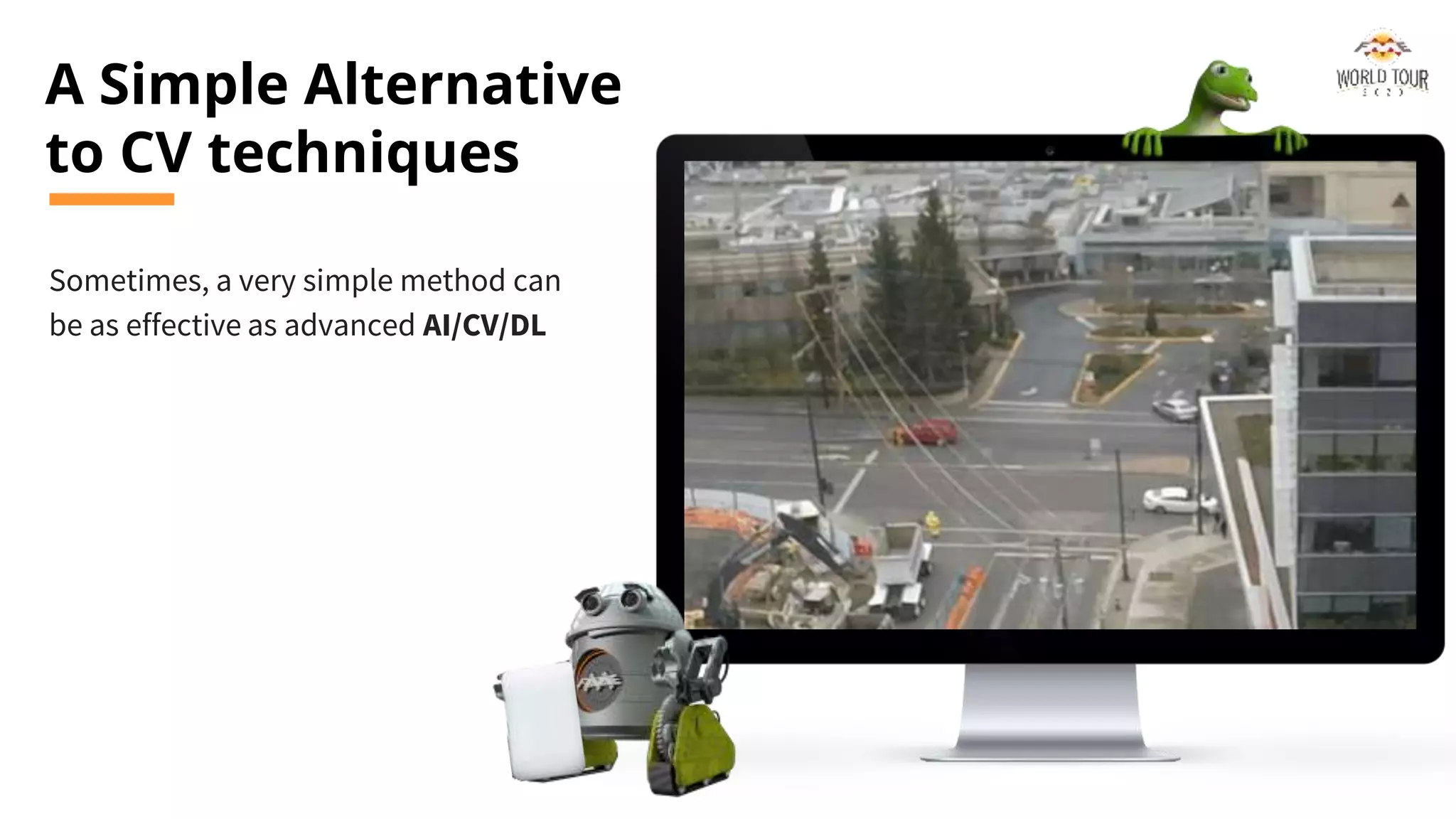

- 20. A Simple Alternative toCV techniques Sometimes, a very simple method can be as effective as advanced AI/CV/DL

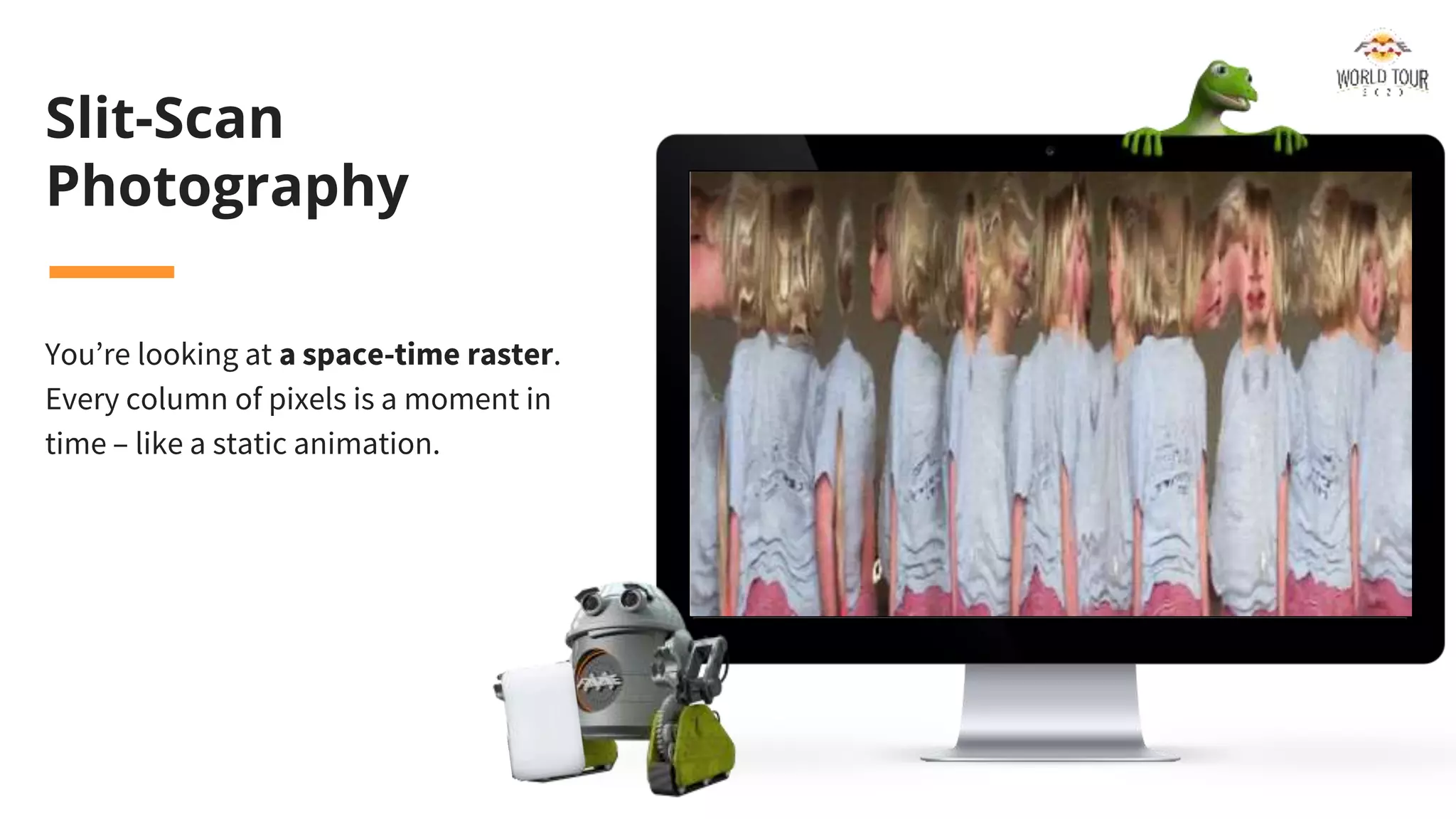

- 21. Slit-Scan Photography You’re looking ata space-time raster. Every column of pixels is a moment in time – like a static animation.

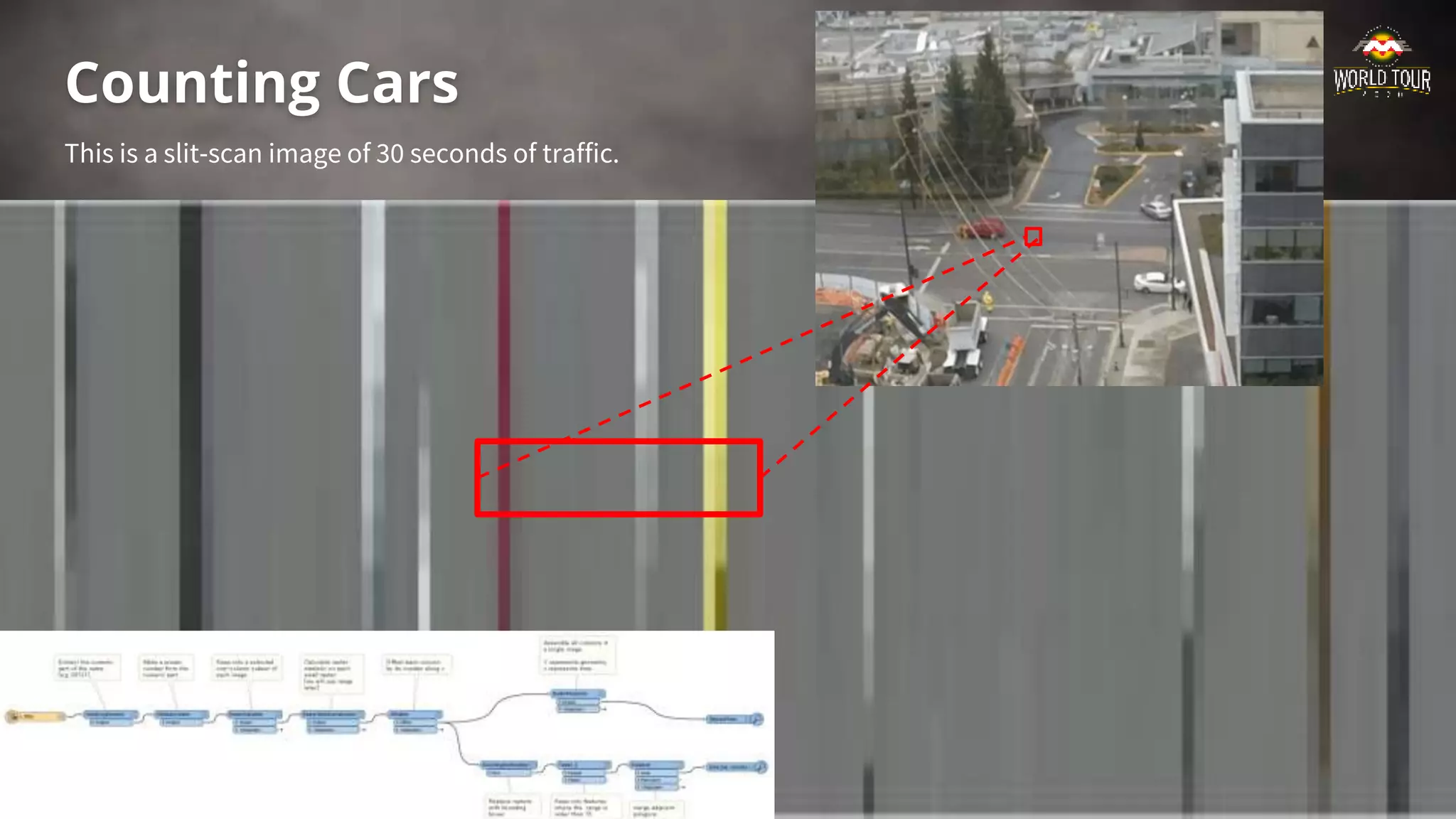

- 22. Counting Cars This isa slit-scan image of 30 seconds of traffic.

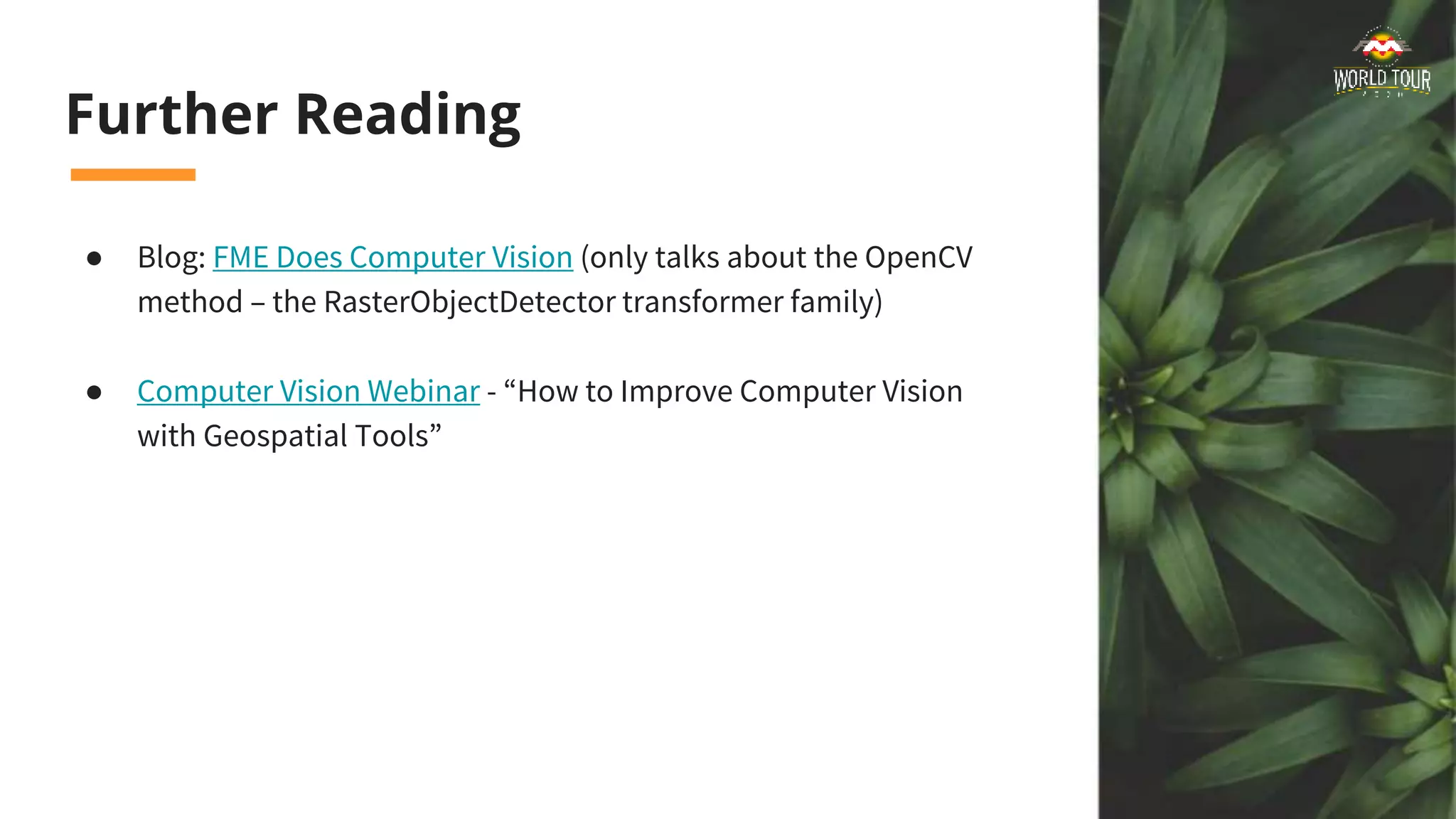

- 23. Further Reading ● Blog:FME Does Computer Vision (only talks about the OpenCV method – the RasterObjectDetector transformer family) ● Computer Vision Webinar - “How to Improve Computer Vision with Geospatial Tools”
- 24. Natural language processingis a subfield of linguistics, computer science, information engineering, and artificial intelligence concerned with how to program computers to process and analyze large amounts of natural language data Natural Language Processing

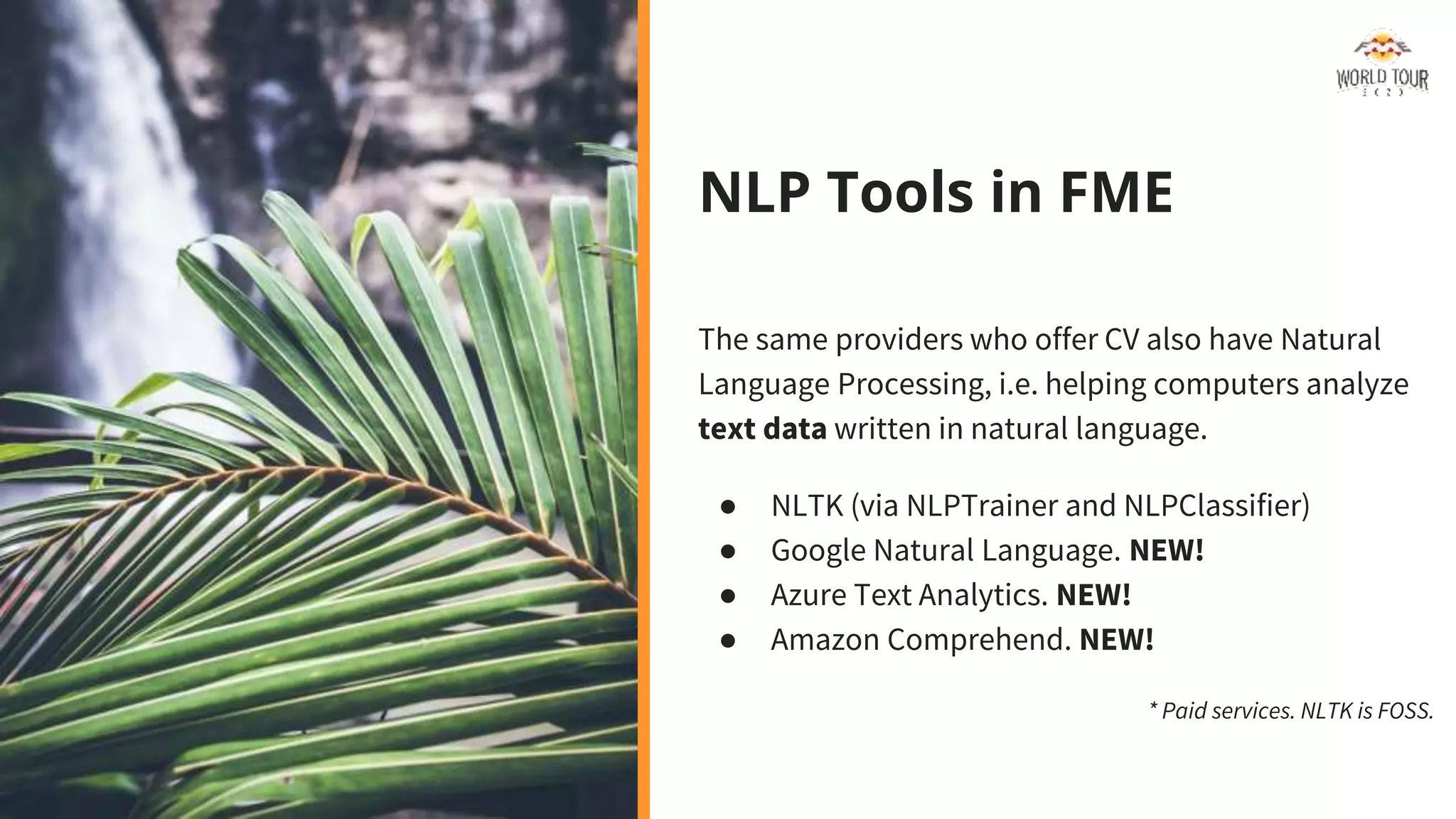

- 25. NLP Tools inFME The same providers who offer CV also have Natural Language Processing, i.e. helping computers analyze text data written in natural language. ● NLTK (via NLPTrainer and NLPClassifier) ● Google Natural Language. NEW! ● Azure Text Analytics. NEW! ● Amazon Comprehend. NEW! * Paid services. NLTK is FOSS.

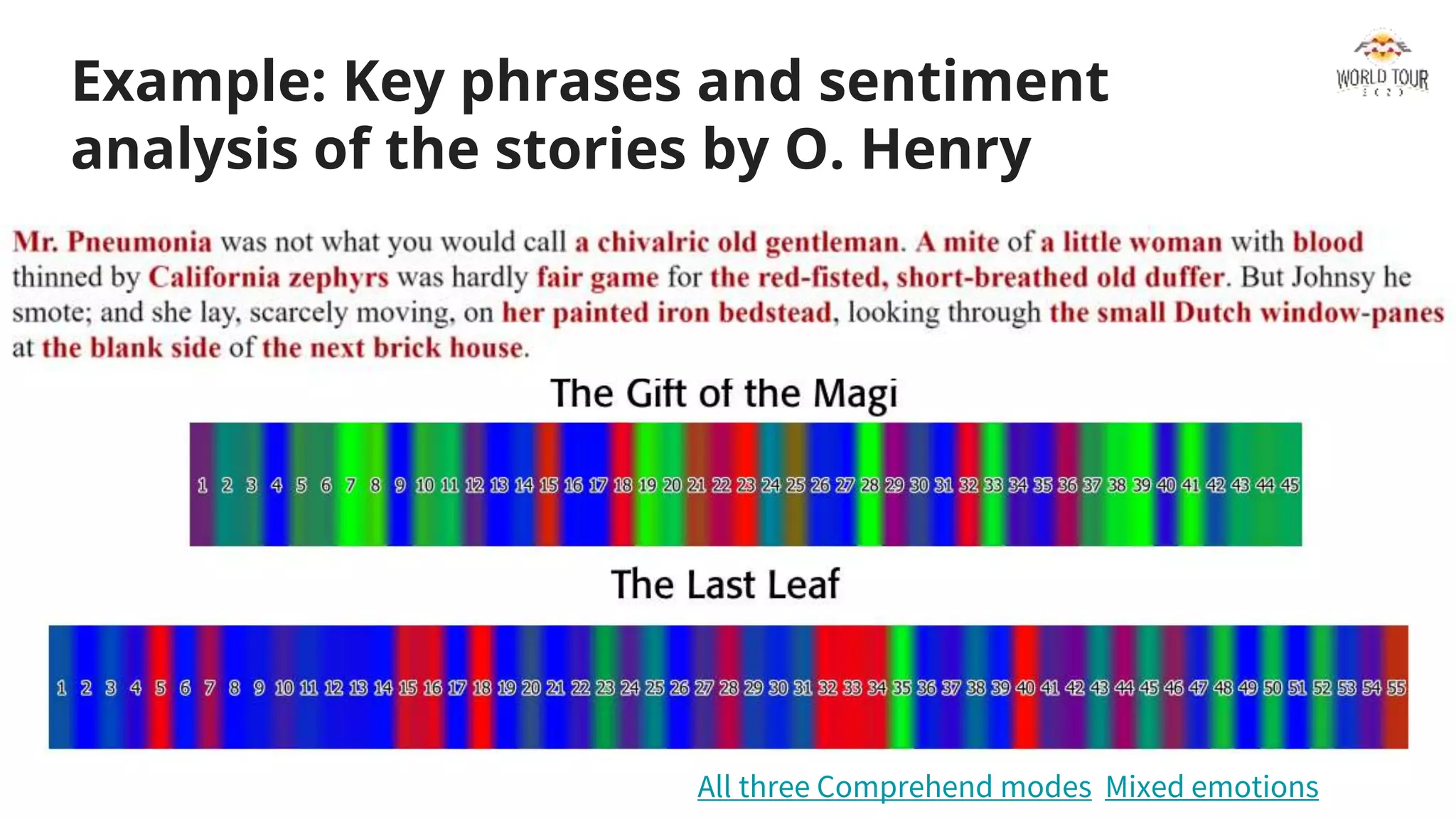

- 26. Example: Key phrasesand sentiment analysis of the stories by O. Henry All three Comprehend modes Mixed emotions

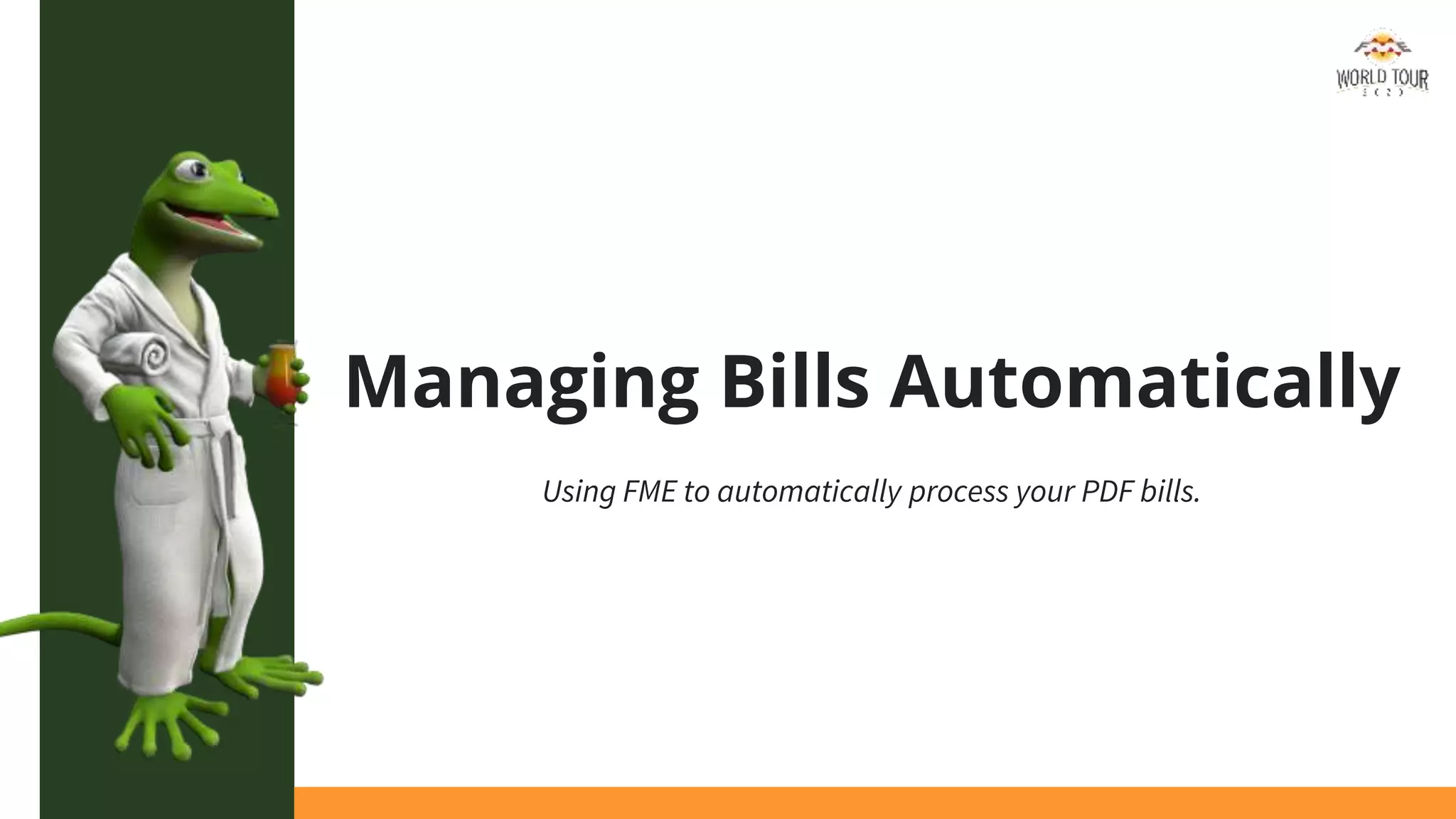

- 27. Managing Bills Automatically UsingFME to automatically process your PDF bills.

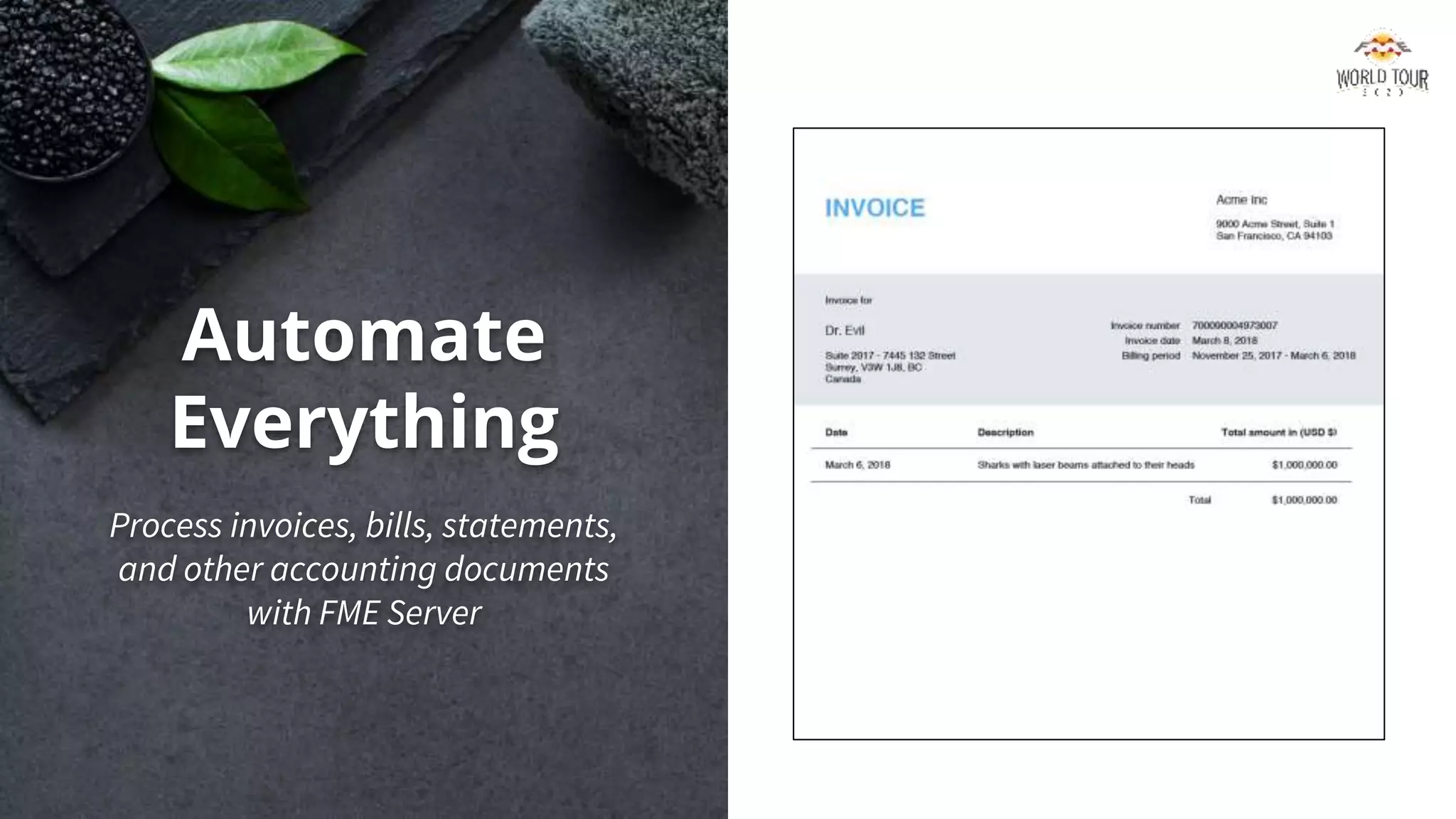

- 28. Automate Everything Process invoices, bills,statements, and other accounting documents with FME Server

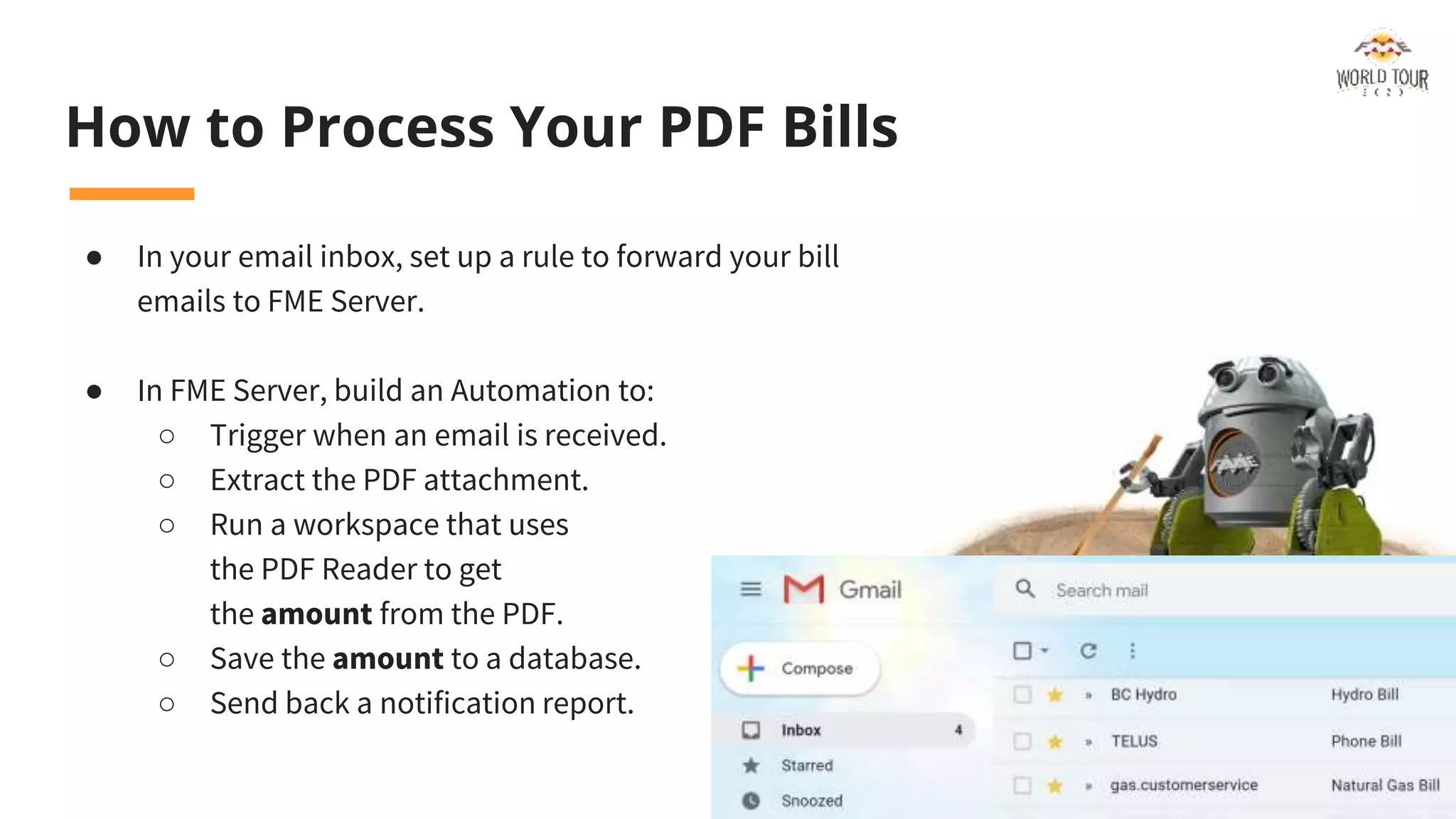

- 29. How to ProcessYour PDF Bills ● In your email inbox, set up a rule to forward your bill emails to FME Server. ● In FME Server, build an Automation to: ○ Trigger when an email is received. ○ Extract the PDF attachment. ○ Run a workspace that uses the PDF Reader to get the amount from the PDF. ○ Save the amount to a database. ○ Send back a notification report.

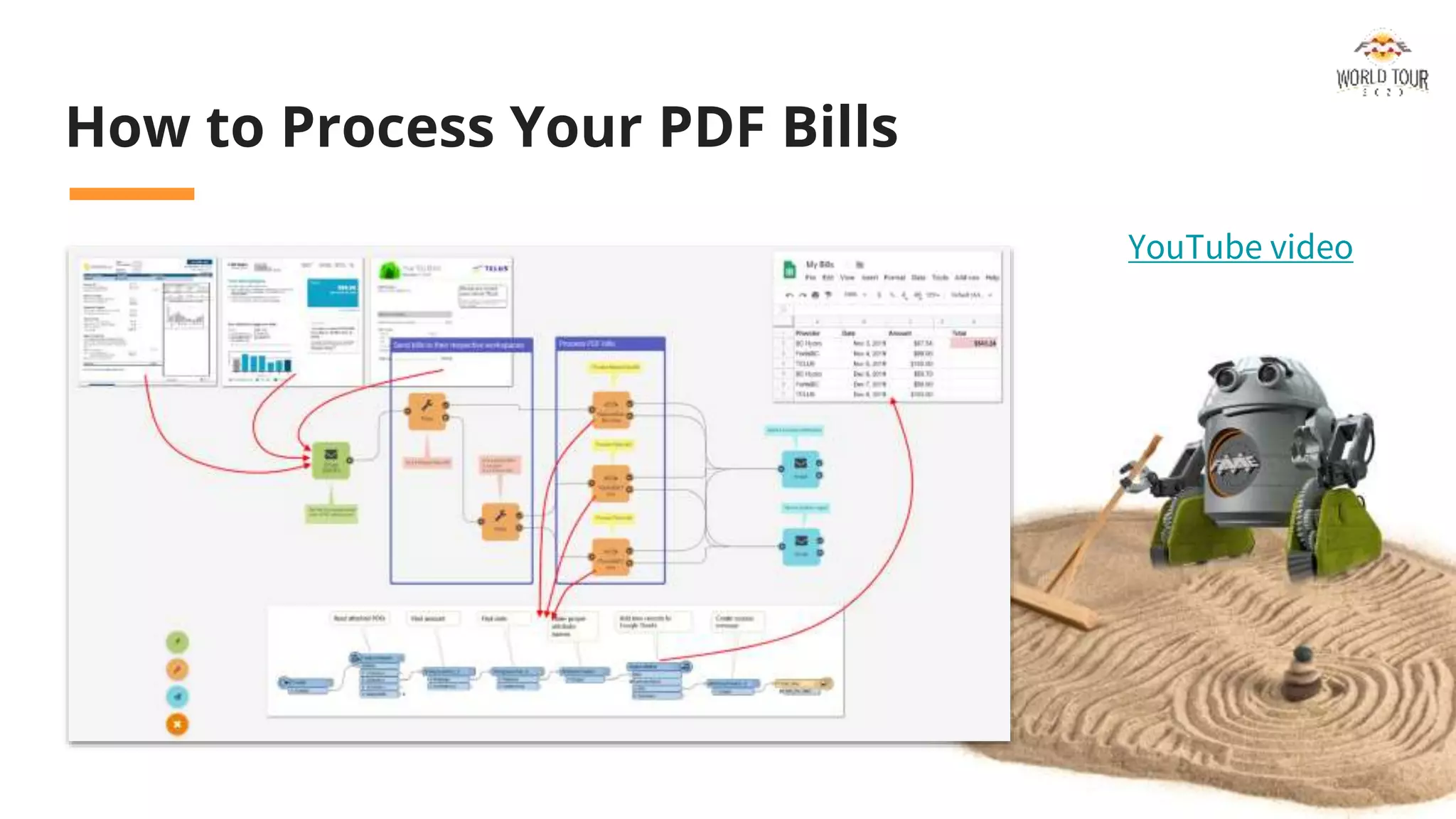

- 30. How to ProcessYour PDF Bills YouTube video

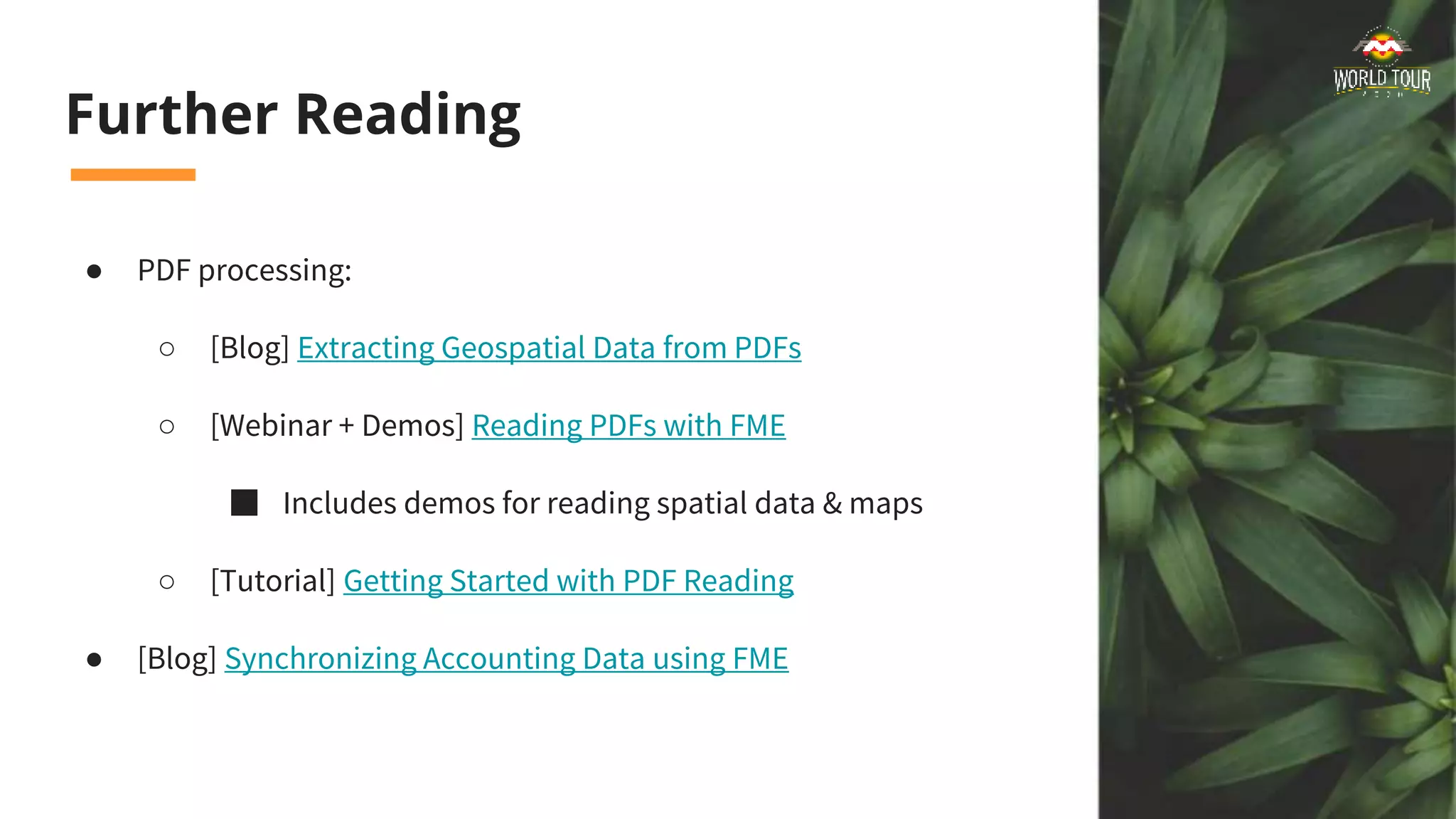

- 31. Further Reading ● PDFprocessing: ○ [Blog] Extracting Geospatial Data from PDFs ○ [Webinar + Demos] Reading PDFs with FME ■ Includes demos for reading spatial data & maps ○ [Tutorial] Getting Started with PDF Reading ● [Blog] Synchronizing Accounting Data using FME
- 32.
- 33. BC Cancer andSafe Initiative ● BC Cancer has too much data to manually analyze. ● We want to reduce their manual processes by producing FME Workspaces to help them analyze this data. ● By using the RCaller transformer, we can better integrate statistics into FME.

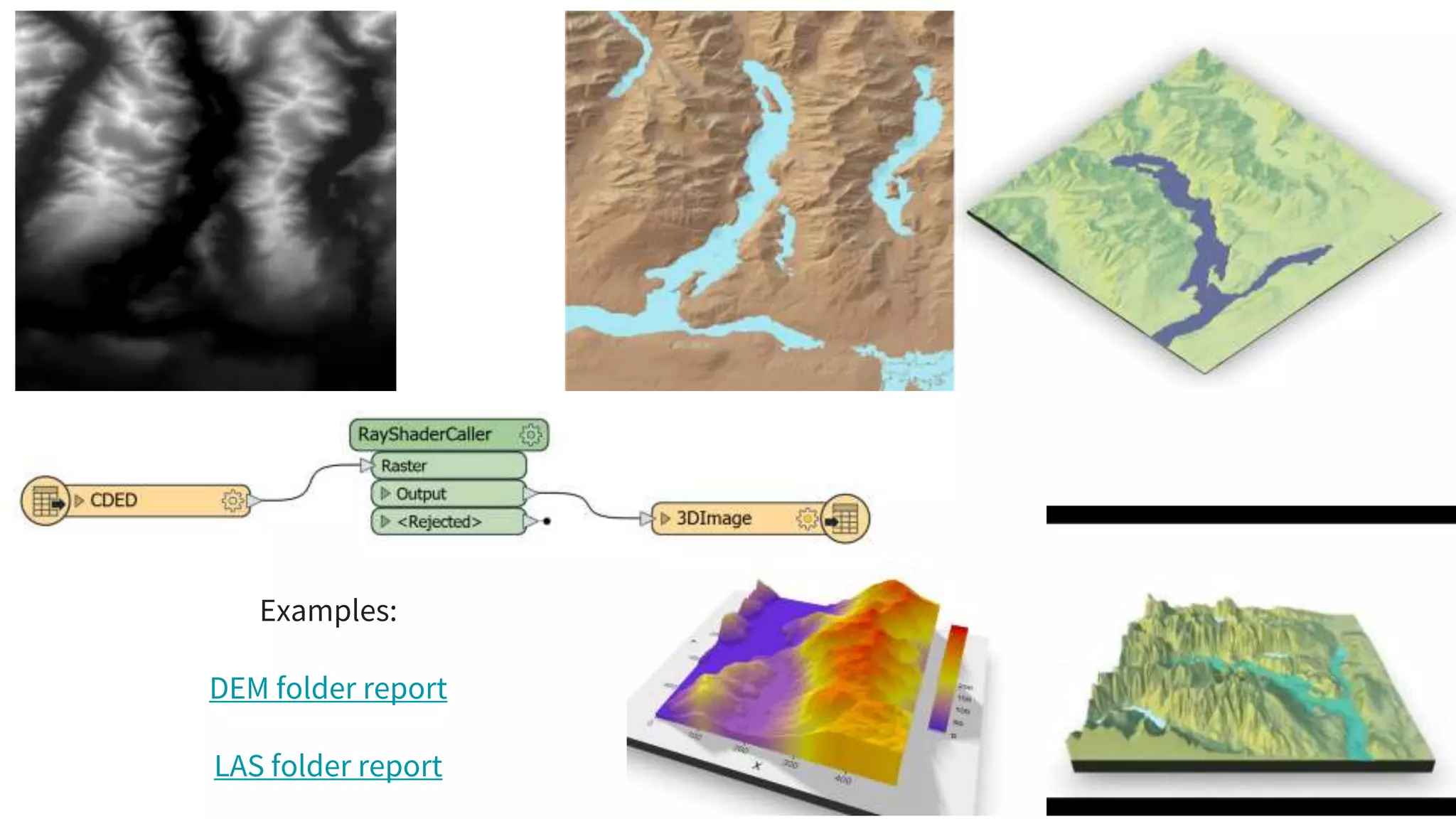

- 35. Examples: DEM folder report LASfolder report

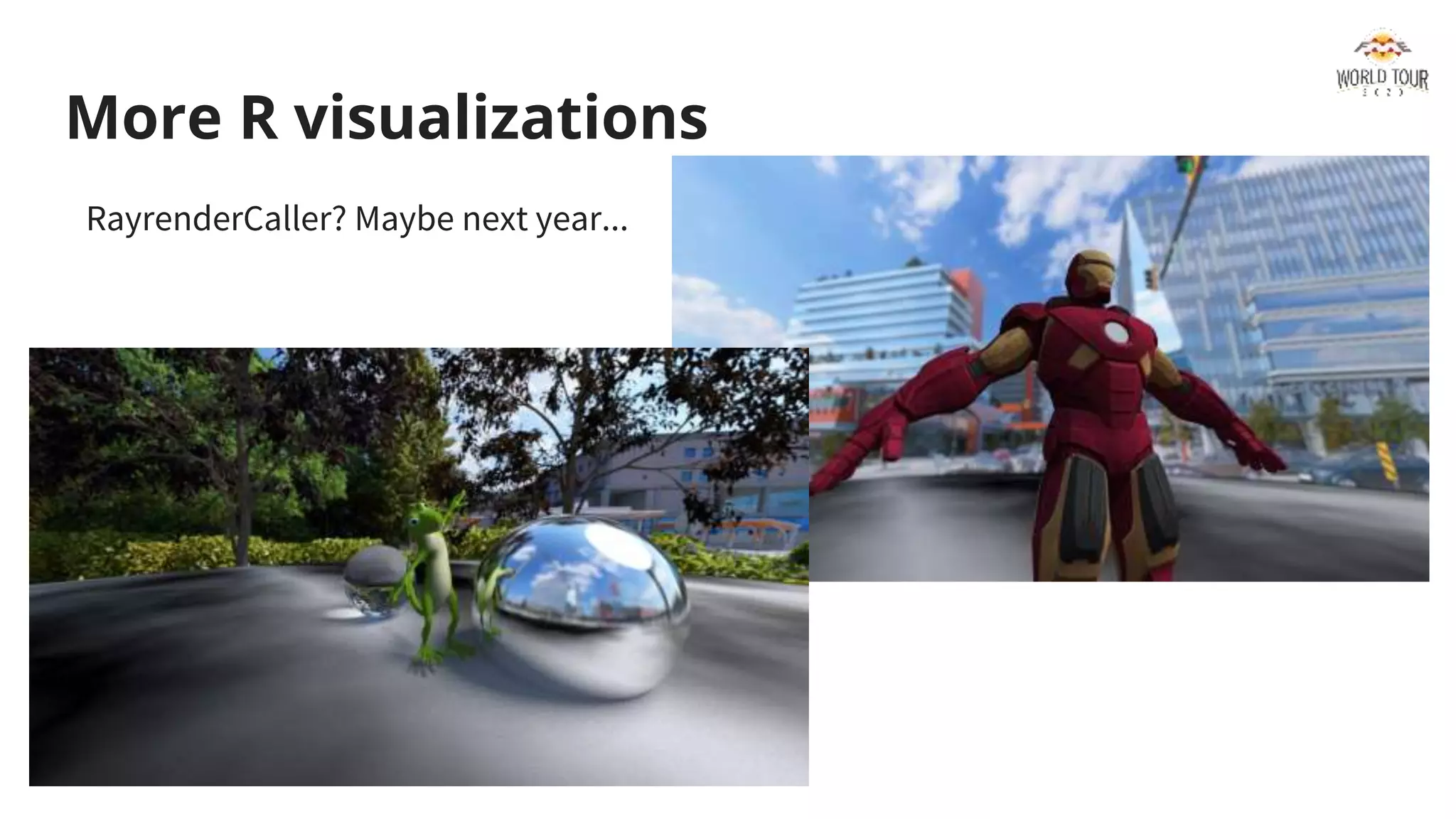

- 36. RayrenderCaller? Maybe nextyear... More R visualizations
- 37. Augmented Reality AR hasall been fun and games … but what about practical use cases?

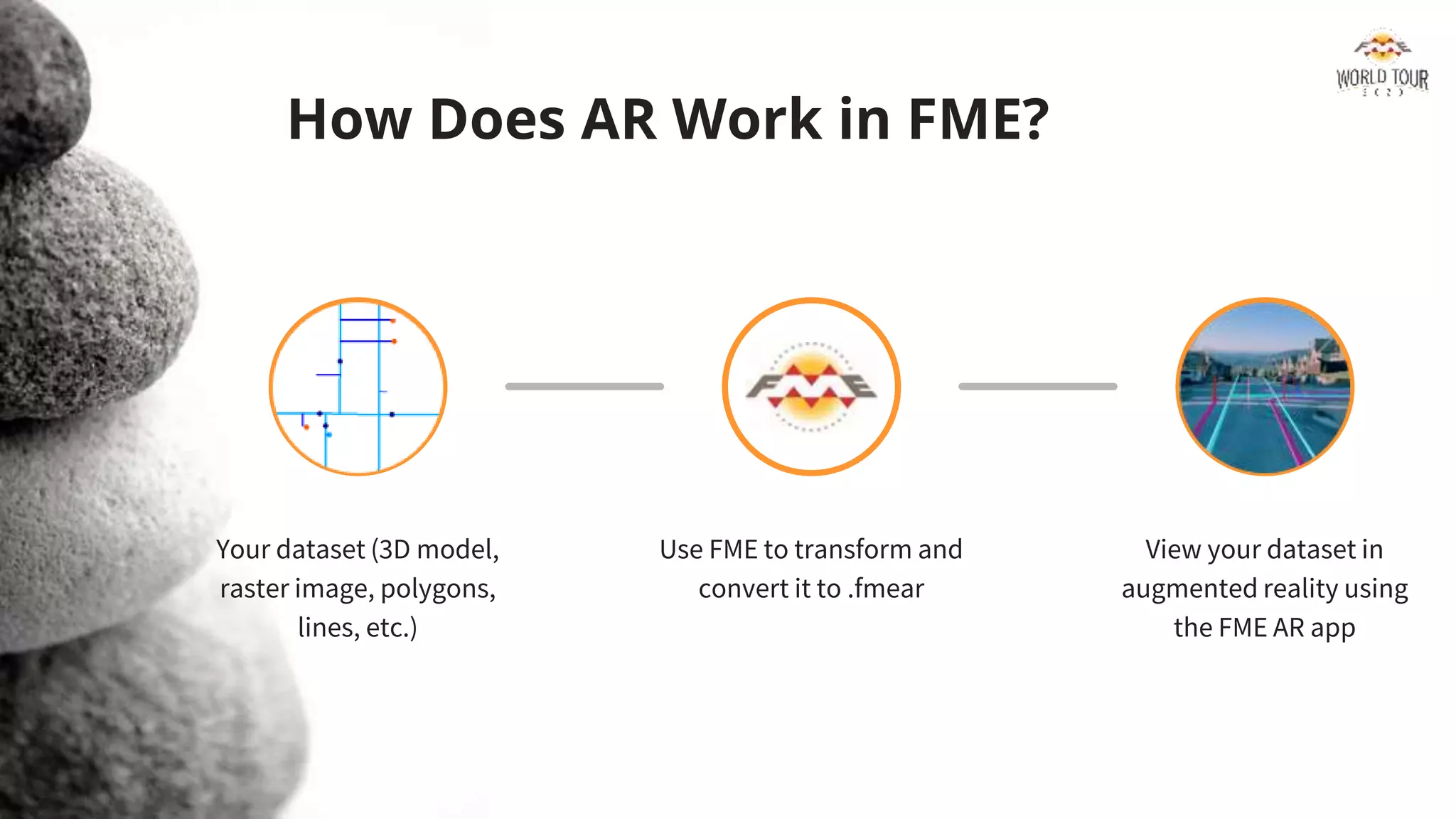

- 38. How Does ARWork in FME? Your dataset (3D model, raster image, polygons, lines, etc.) Use FME to transform and convert it to .fmear View your dataset in augmented reality using the FME AR app

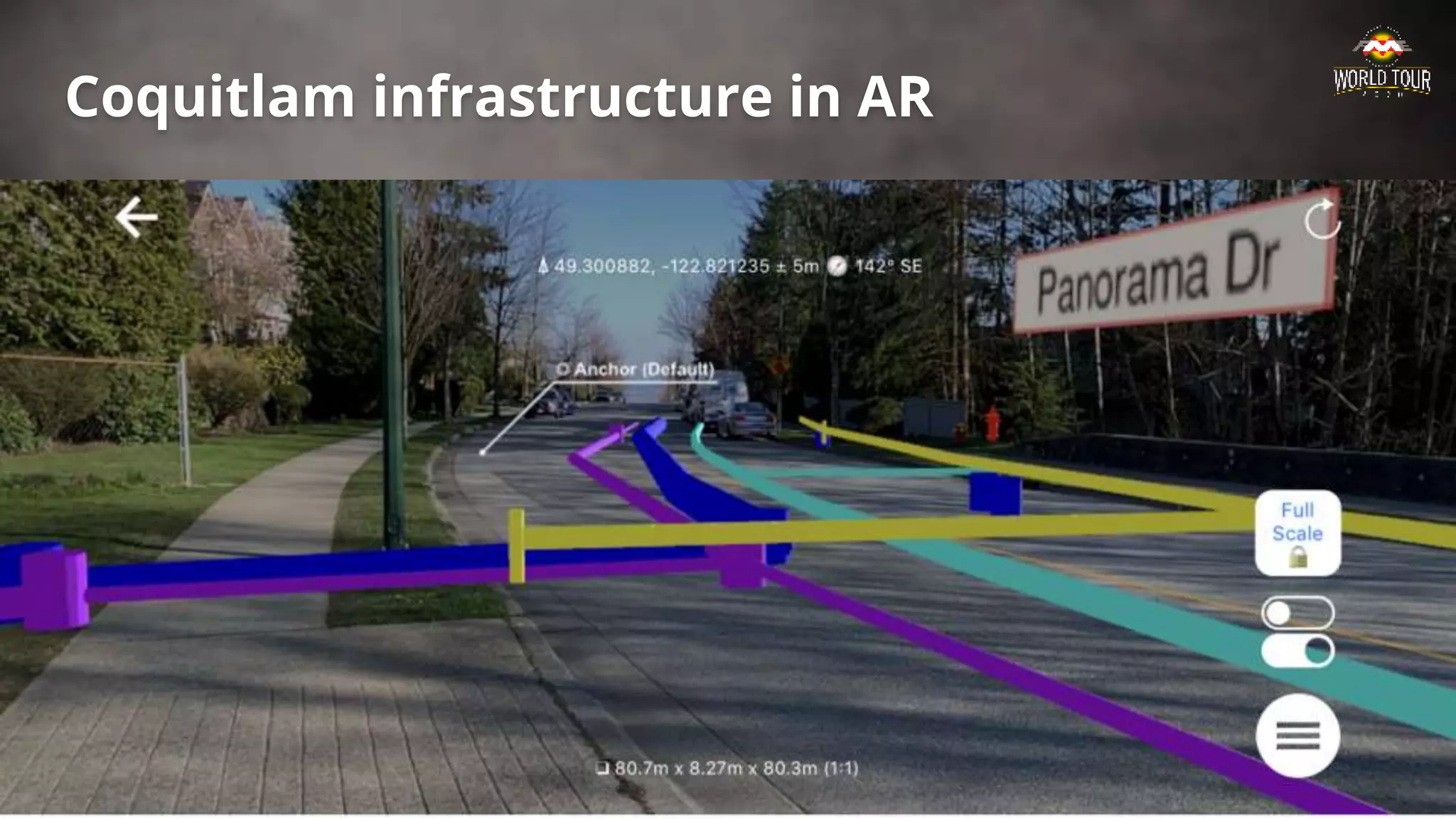

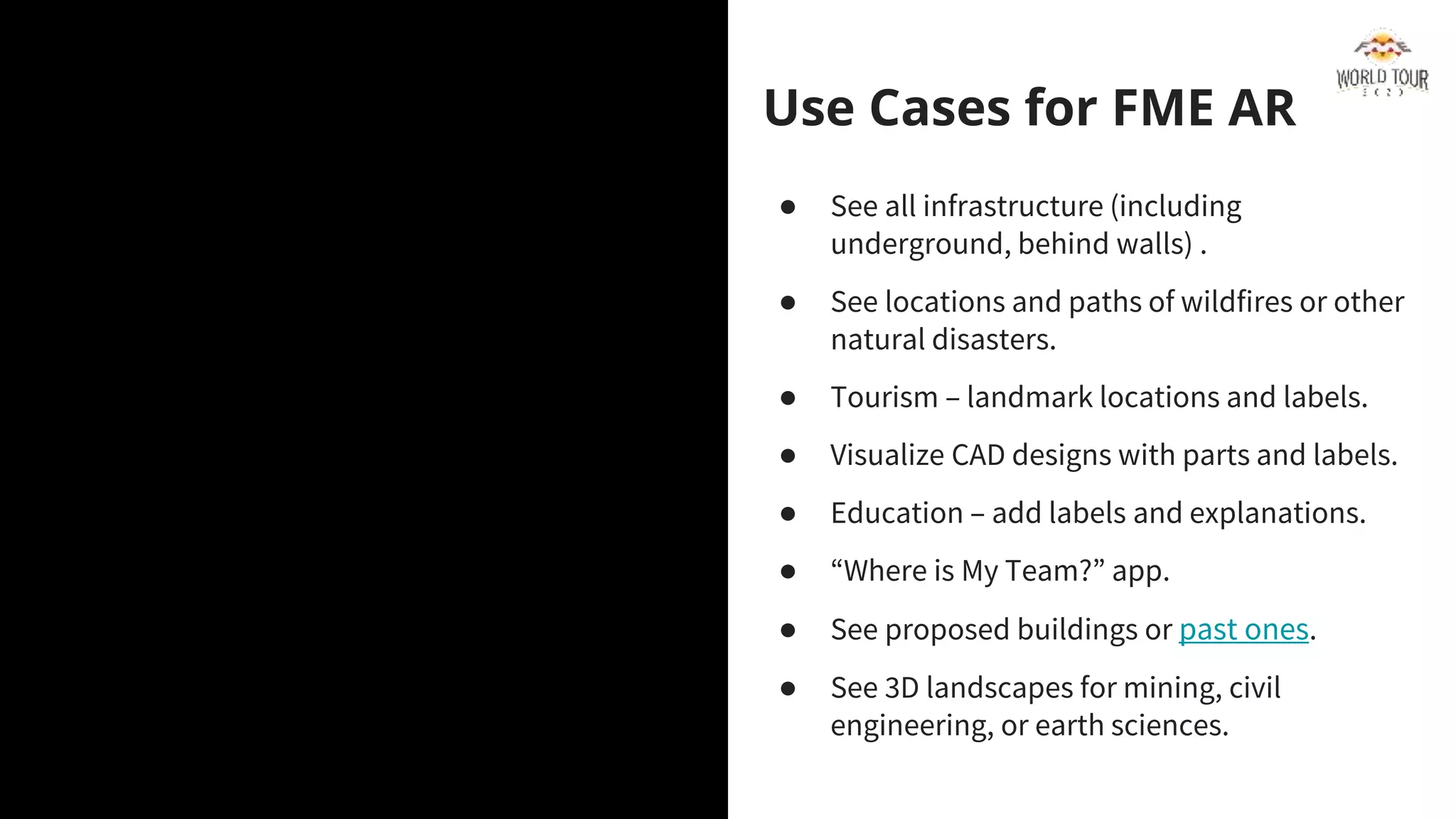

- 39. FME Data Spa What’sthis theme all about? Use Cases for FME AR ● See all infrastructure (including underground, behind walls) . ● See locations and paths of wildfires or other natural disasters. ● Tourism – landmark locations and labels. ● Visualize CAD designs with parts and labels. ● Education – add labels and explanations. ● “Where is My Team?” app. ● See proposed buildings or past ones. ● See 3D landscapes for mining, civil engineering, or earth sciences.
- 40.
- 41.

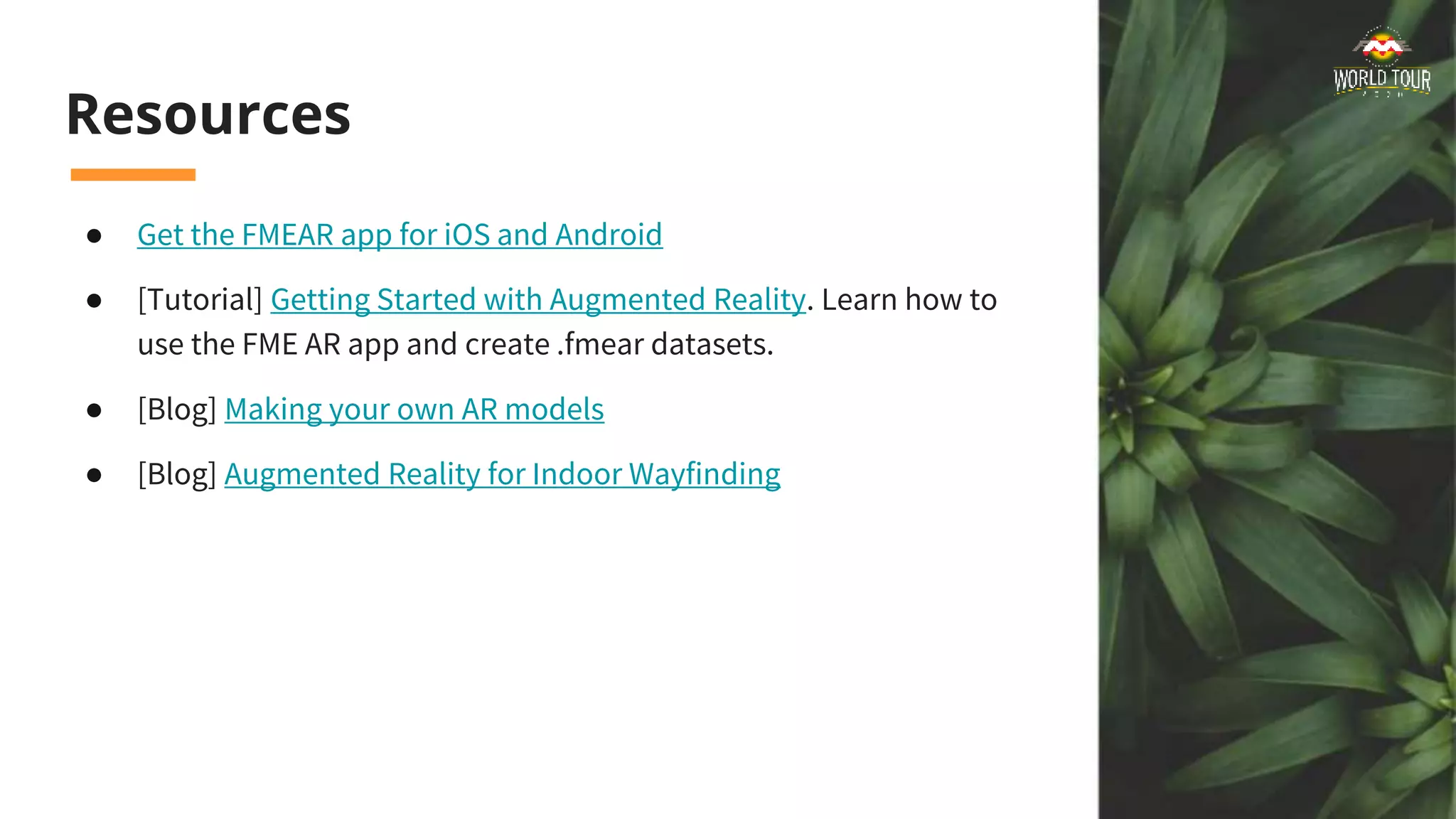

- 42. Resources ● Get theFMEAR app for iOS and Android ● [Tutorial] Getting Started with Augmented Reality. Learn how to use the FME AR app and create .fmear datasets. ● [Blog] Making your own AR models ● [Blog] Augmented Reality for Indoor Wayfinding
- 43. What do youthink about AR? Is it still a toy or do you think it can be used for serious things? Do you want to try it? Tell us more in Q&A or email us later!
- 44. Gaming Engines Explore yourdata in a real-time virtual environment! Practical use cases for bringing data into Unreal Engine.

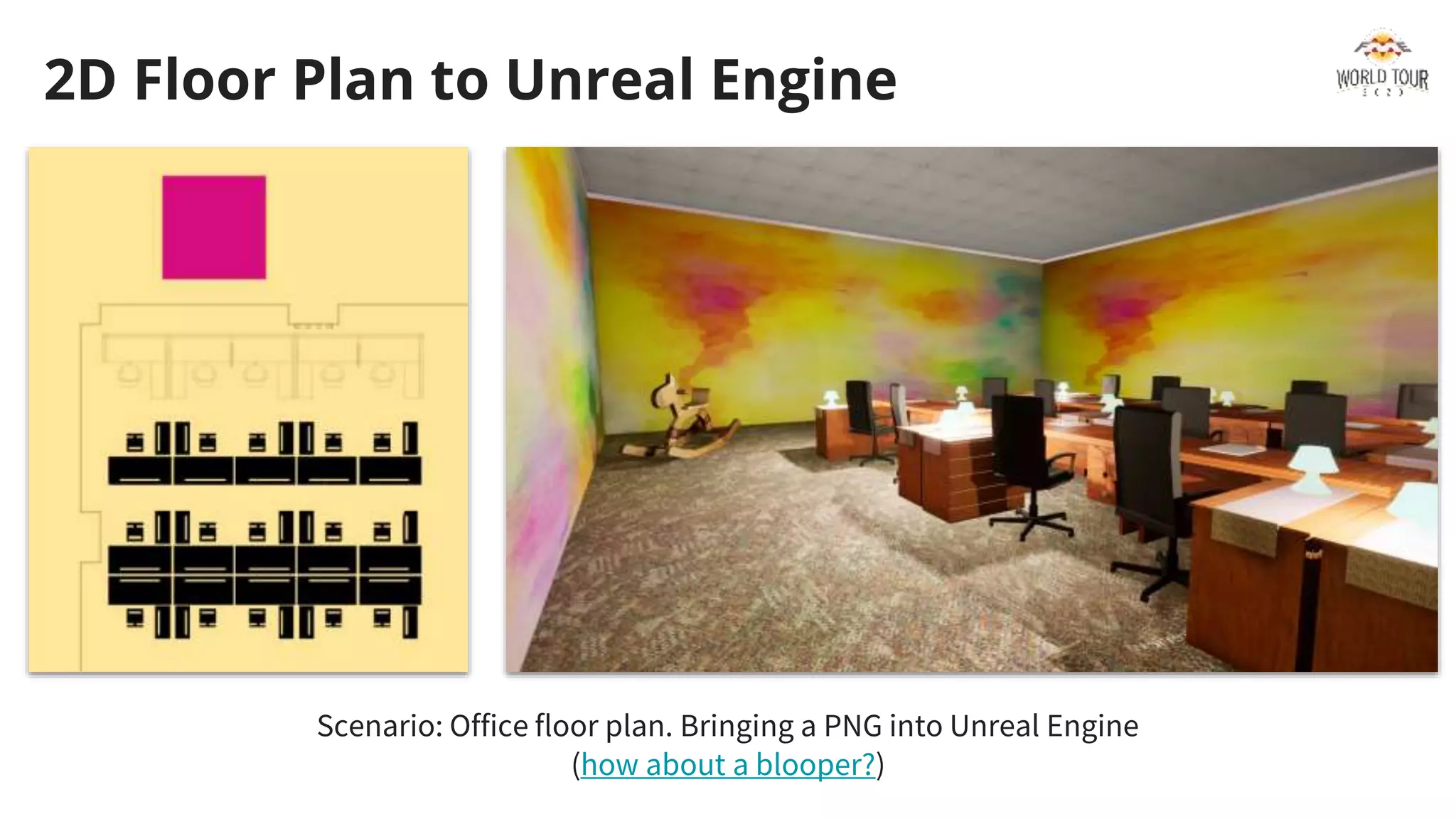

- 45. Scenario: Office floorplan. Bringing a PNG into Unreal Engine (how about a blooper?) 2D Floor Plan to Unreal Engine

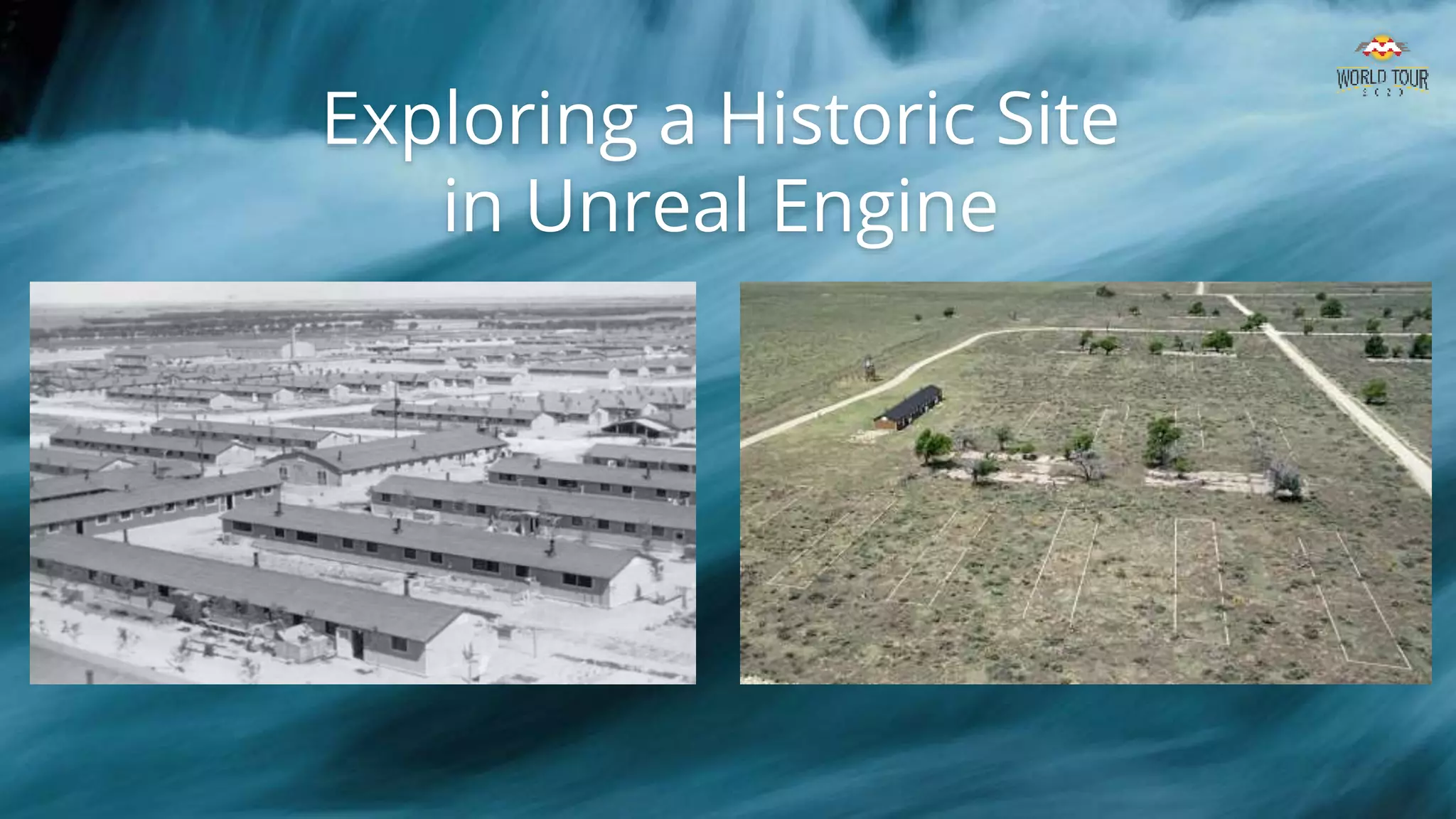

- 46. Exploring a HistoricSite in Unreal Engine

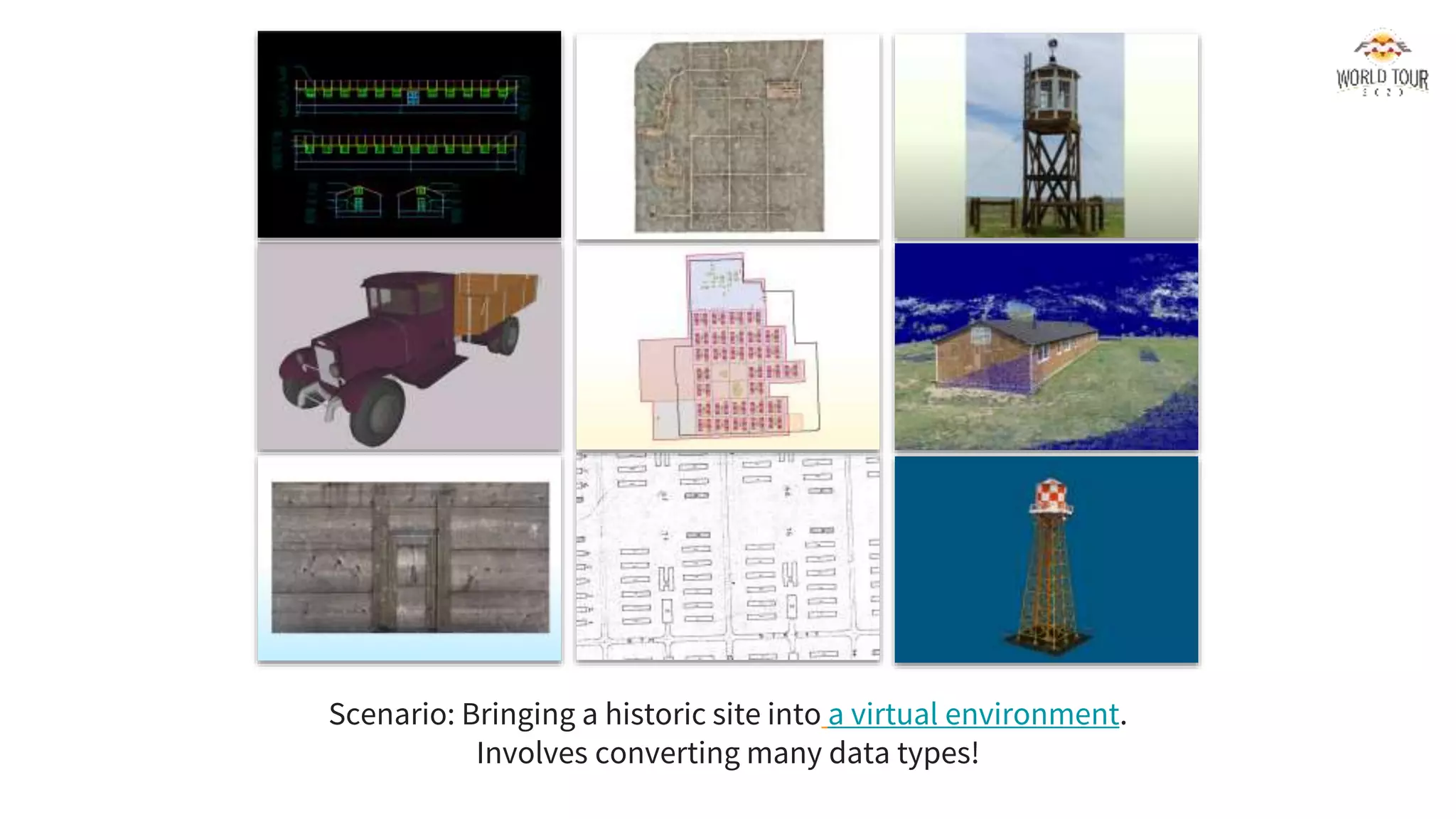

- 47. Scenario: Bringing ahistoric site into a virtual environment. Involves converting many data types!

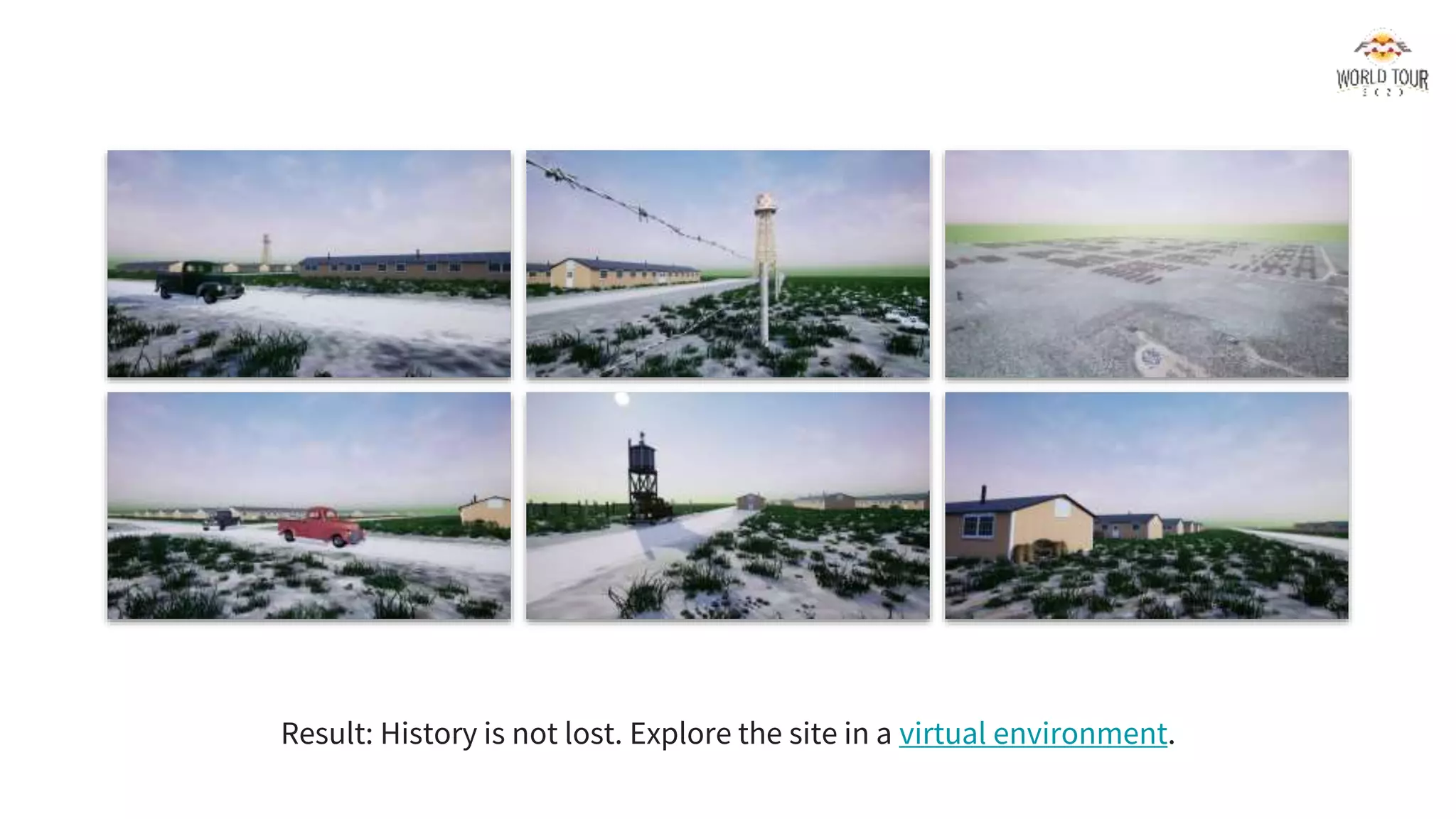

- 48. Result: History isnot lost. Explore the site in a virtual environment.

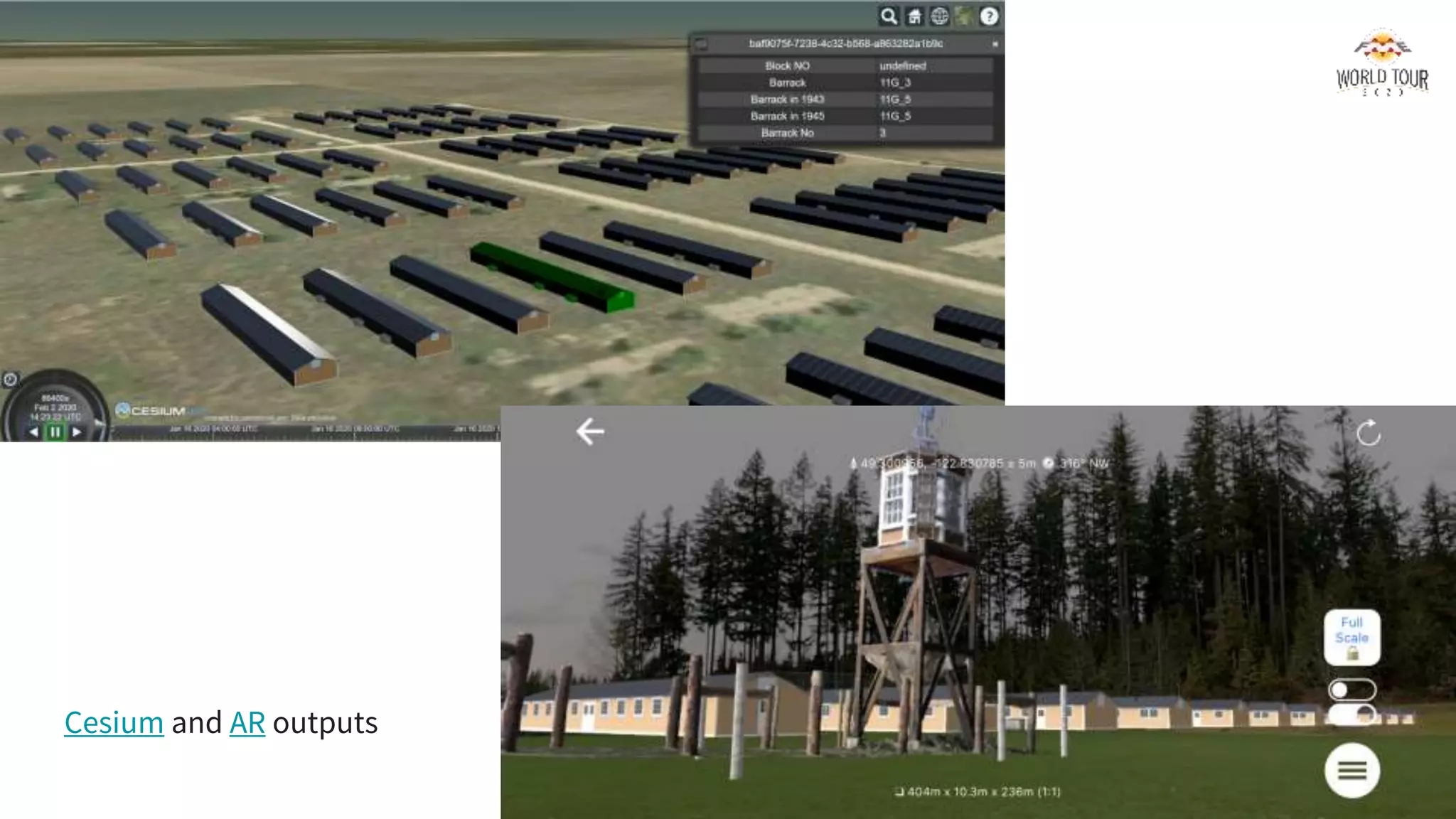

- 49. Cesium and ARoutputs STILL NEED TO MAKE AR SCREENSHOT

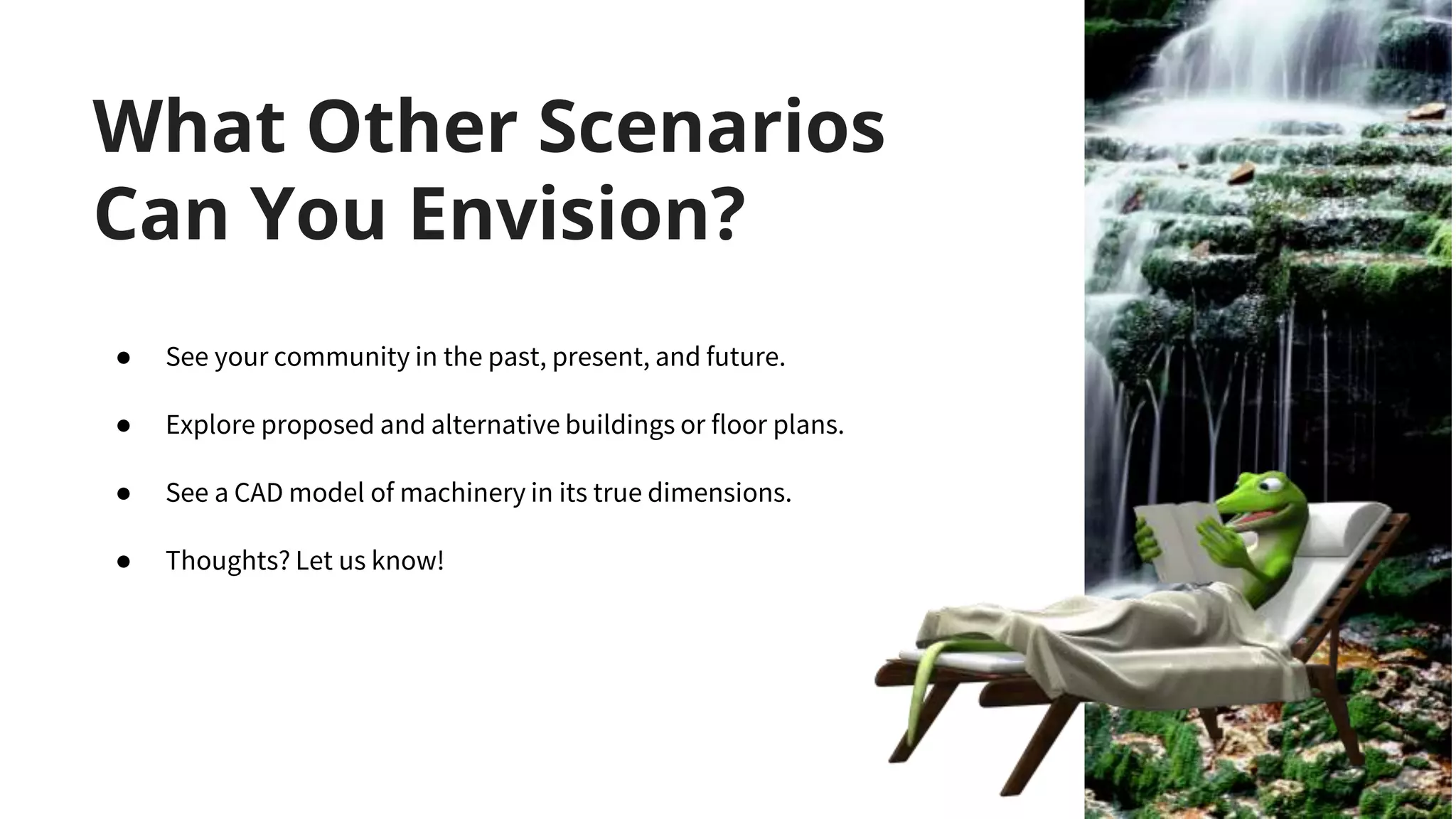

- 50. What Other Scenarios CanYou Envision? ● See your community in the past, present, and future. ● Explore proposed and alternative buildings or floor plans. ● See a CAD model of machinery in its true dimensions. ● Thoughts? Let us know!
- 51.

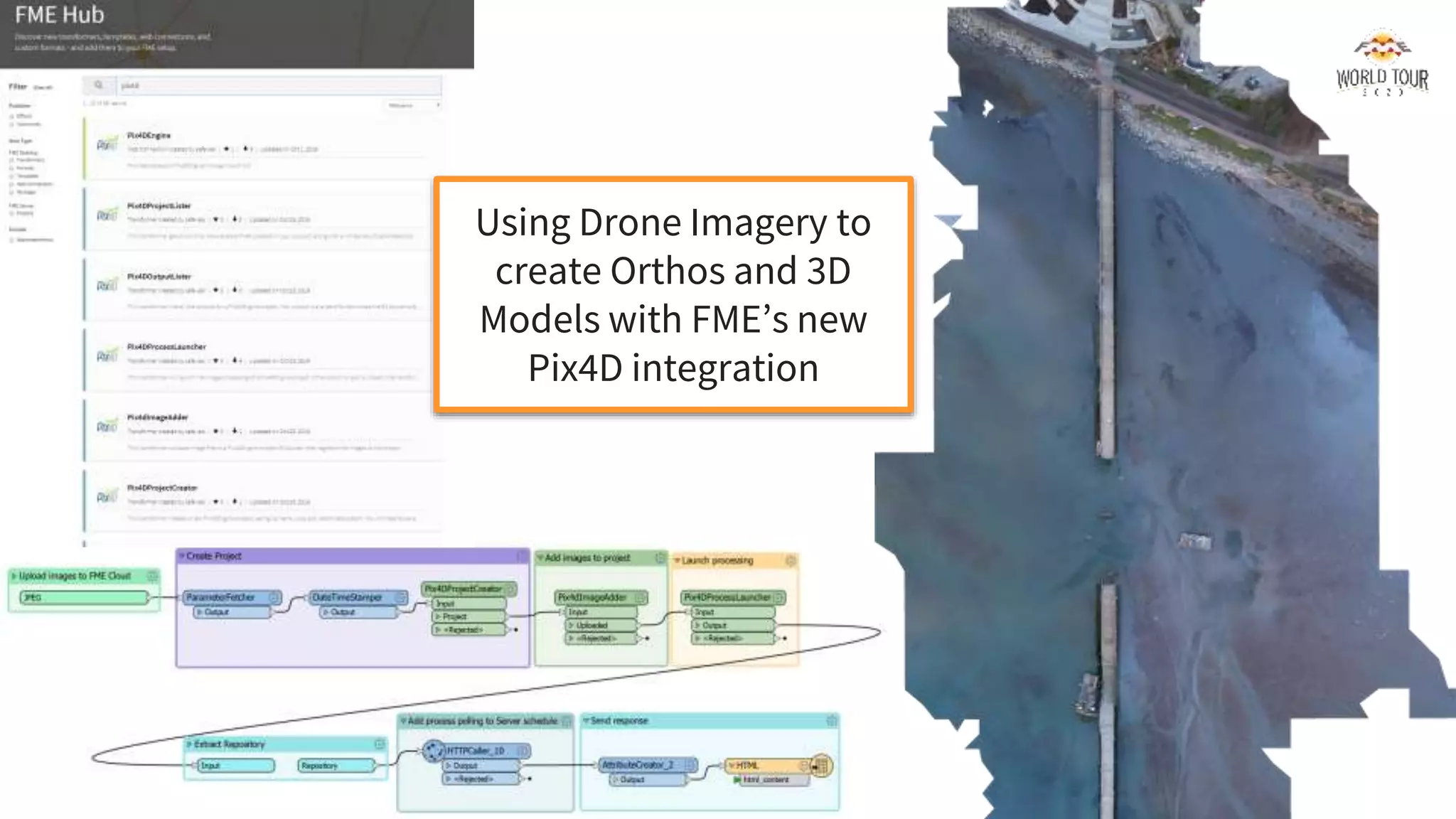

- 52. Using Drone Imageryto create Orthos and 3D Models with FME’s new Pix4D integration

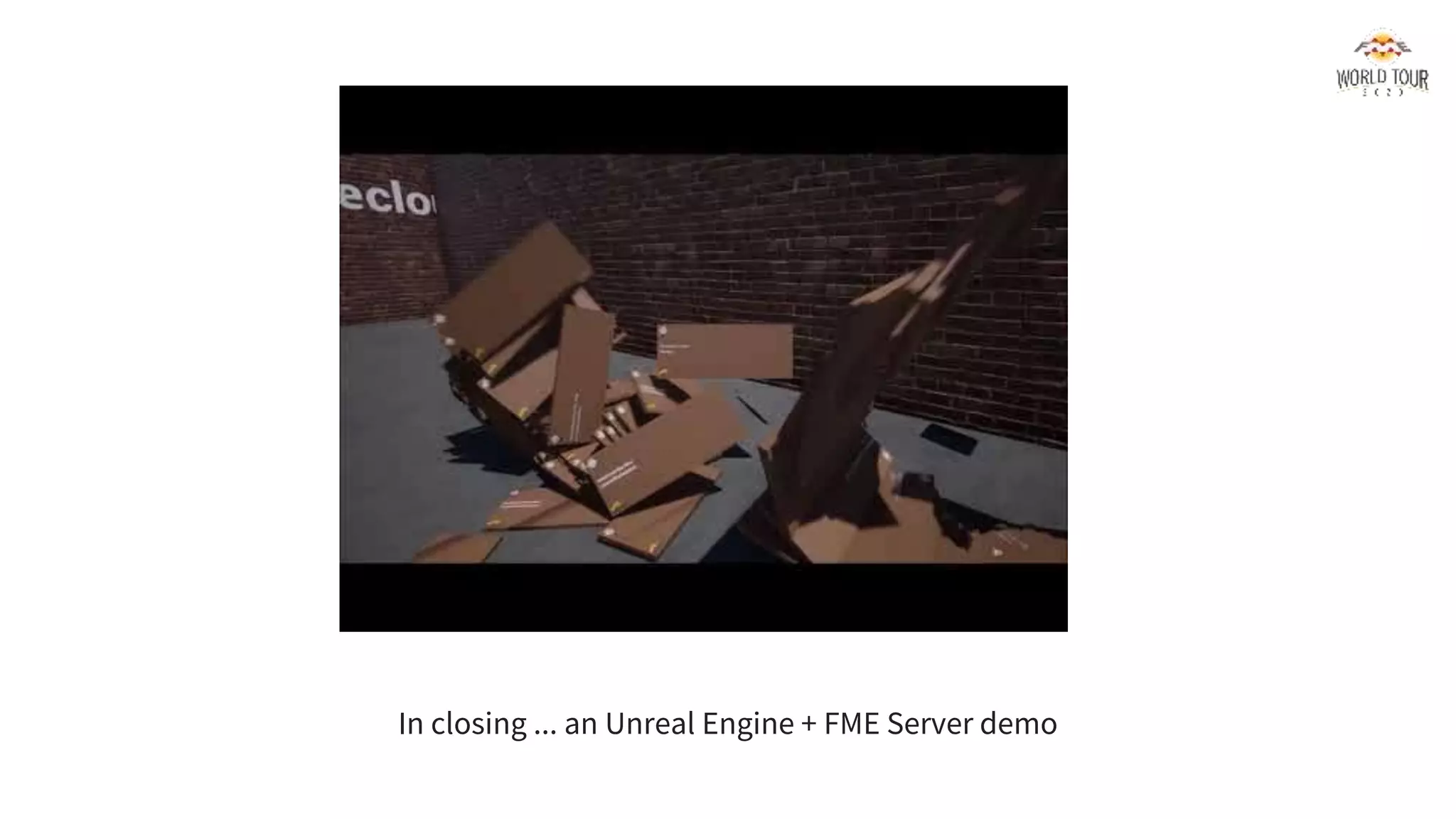

- 53. In closing ...an Unreal Engine + FME Server demo
- 54. We hope youfeel invigorated and enlightened after this spiritual data journey.
- 55. All workspaces shownin this presentation can be found here: http://fme.ly/hxk

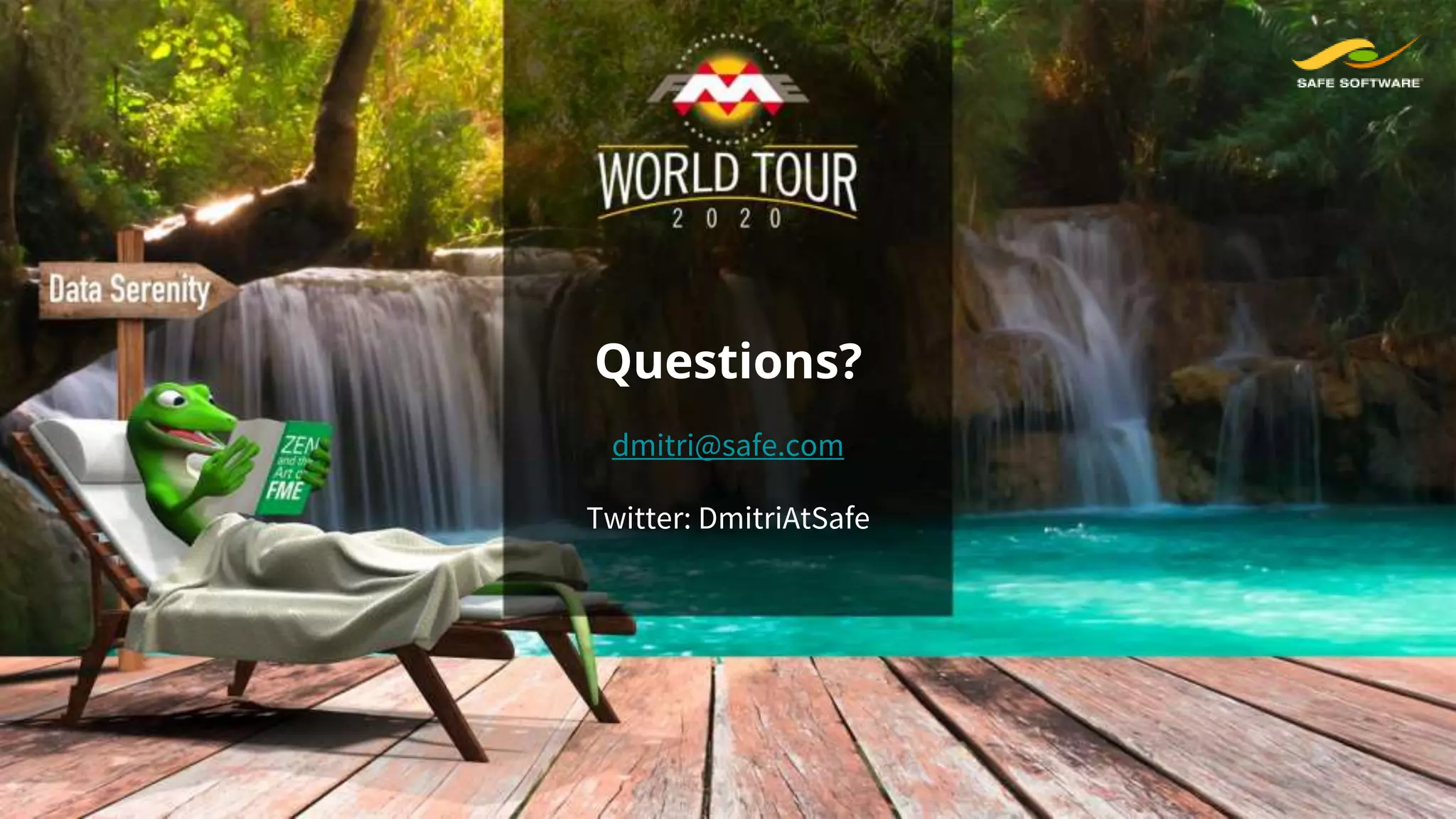

- 56.
Editor's Notes
- #2 [Abstract] Get inspired by a few of the most cutting-edge scenarios our team has been working on over the last year, including applying machine learning to geospatial data, real-world use cases for immersive environments, photogrammetry, and more. Relax and let FME guide you on this enlightening journey of new data transformation possibilities!
- #4 Computer Vision (or “CV”) is a field of Machine Learning with the goal of helping computers “see” and understand what’s in an image. Let’s look at what we’ve done with CV in the last year.
- #6 You train it once and then you get back an XML file containing the knowledge. Then you can use the XML file to do CV.
- #7 You train it once and then you get back an XML file containing the knowledge. Then you can use the XML file to do CV.
- #8 Real use case: counting cars in a parking lot.
- #9 Real/potential use cases: People are currently testing whether this can be used to find landmines. Huge safety win – can send drones instead of people. County use case - to update their basemaps by identifying changes. Other places do roof counting for taxation purposes. Other use cases - counting/finding objects like garbage bins. Detecting vegetation is also an area of interest. Multispectral imagery helps here, since plants give off infrared.
- #10 Easily train different imagery sources – aerial, drones, ordinary photos. Doesn’t need to be a perfectly aerial shot.
- #11 Before we get into how it works, here are the CV tools available in FME. Some of these are available via FME Hub and some are regular FME transformers. The last 4 are new in FME 2020. https://www.gislounge.com/when-ai-goes-wrong-in-spatial-reasoning/ Paid services - the vendor charges, not us. Using these FME transformers are of course free. OpenCV is the free option because it’s a FOSS library.
- #12 Every team can talk to Dmitri to get their faces harrypotterized Google Vision can detect facial features and then we place objects on the image
- #13 Dmitri’s video blog for spatial filtering example
- #14 Dmitri’s video blog for spatial filtering example
- #23 Related to CV: you can use FME to count moving objects - like cars, birds. This picture is slit-scan photography.
- #24 FME was used to create this raster containing tens of thousands of pixels. The X axis represents time. ~5 frames per second. For more info, see the CV webinar: https://www.safe.com/webinars/how-to-improve-computer-vision-with-geospatial-tools/
- #28 https://safe-scenarios.s3-us-west-2.amazonaws.com/images/ThreeModesForTwitter.jpg https://safe-scenarios.s3-us-west-2.amazonaws.com/images/VermalStory.png
- #29 Segway: now that you’ve used Google/Microsoft/Amazon’s paid service to perform CV, you’ve got a bunch of bills to deal with...
- #30 Last year we demoed extracting geospatial data & map info from PDFs. This demo focuses on text-based PDFs.
- #31 Workspaces will be available for people to download and try themselves.
- #32 Input bills: PDF, emails, hosted (use httpcaller) Workspace for each bill type Erin and Dmitri spoke about creating a video for this. There is a demo showing how it all works. It requires some setup ahead of time, but then it just works and looks quite impressive. WT2020 cloud machine catches emails sent to billcatcher@fmewt2020-safe-software.fmecloud.com with PDF attachments and subjects “Natural Gas Bill”, “Hydro Bill”, “Phone Bill”. So these emails should be sent from some email to the email of the presenter (who previously set up forwarding of such emails to the address above). Then the automation processes the PDFs, extracts senders and amounts to pay, adds those records to Google Sheet and calculates a new total. Then it reports back to the presenter via email a success or failure.
- #35 Could mention that our new Safe office is in the health tech district. We’re across from BC Cancer and started an initiative with them and SFU NeuroTech. We originally started working with BC Cancer to see if we could analyze 3D data using FME. You might remember from last year’s World Tour. However, upon a demo of FME Dr. Krauze (the clinician we were working with) saw potential to use FME with her tabular data. BC Cancer has large datasets that no one is looking at because of the large amount of work needed to analyze the data. We are working with BC Cancer to create a “data pipeline” that we feed data into FME and produce charts

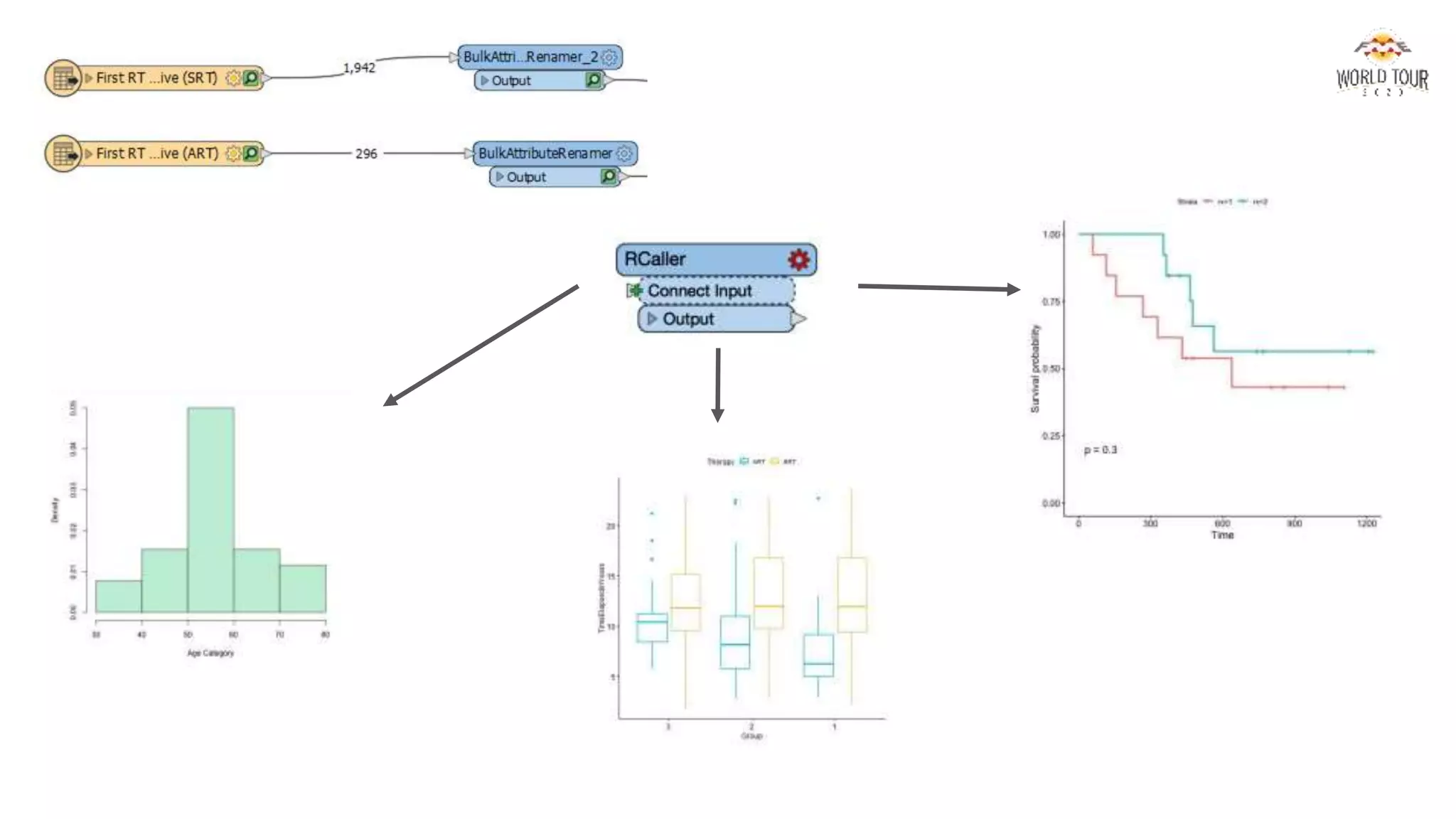

- #36 Large amounts of data can be read in, the attributes can be managed in one workflow and charts can be produced. From left to right, we have a histogram (how many people of each age are in the study-- please note this is fake data). In the middle we have a box plot, with the various risk groups (real data- I can’t remember if the groups are real). Then, on the right we have a kaplan meier chart. This is analyzes survival probability over time.
- #37 Take a DEM or other numeric raster (or any raster for that matter) and turn it into a 3D image or video. rayshader (https://www.rayshader.com/) is an open source package for producing 2D and 3D data visualizations in R. rayshader uses elevation data in a base R matrix and a combination of raytracing, spherical texture mapping, overlays, and ambient occlusion to generate beautiful topographic 2D and 3D maps. In addition to maps, rayshader also allows the user to translate ggplot2 objects into beautiful 3D data visualizations. Video - https://youtu.be/35b4aMy9f-w Or https://www.dropbox.com/s/n2cy5dl5xk4t14n/rayshaderVideo.mp4?dl=0 Conclude by mentioning that Safe aims to look more closely at R integration possibilities in the near future.
- #41 If you need the video as a file instead of the Youtube, here is the link: https://www.dropbox.com/s/7nj8gxubklwbmz5/Landmarks0.mp4?dl=0 For Live demo (as of January 2020, only for iPhones): Add a few landmarks for your WT stop - something evenly spread around the venue. The workspace searches within 100 km radius https://docs.google.com/spreadsheets/d/1wUu0m659an9tufjoL33e3pmhCfy5dzce9dxYhIGjUWI/edit#gid=414062125 Server app: https://fmewt2020-safe-software.fmecloud.com/fmeserver/apps/Landmarks Direct link: https://fmewt2020-safe-software.fmecloud.com/fmeserver/#/workspaces/run/AR/Landmarks.fmw/fmedatastreaming Through FME Data Express, use your current location or adjust to a place you know has landmarks around (Safe office), set the label width (1 is good for short names, longer names require 2, maybe more), and choose units (km or mi), fmear will be streamed back, open in FME AR app.
- #47 This is a real scenario.
- #48 Important note to presenters: DO NOT talk about the social/historical implications of this project. Just talk about the fact that FME is being used to bring data representing a historic site into a game environment.
- #49 Data types: CAD, point cloud, drone, 3D, etc.
- #51 Cesium & AR images https://safe-scenarios.s3-us-west-2.amazonaws.com/Cesium/amache/amache.html
- #52 Let us know what you’d like to do with Unreal. We can guide development in this format based on what our customers our interested in.
- #53 This is about the need to combine photos to make continuous orthoimagery and 3D models
- #54 (Transition from the historic site project where objects like water tower were created in Pix4D and not FME… here we’re demonstrating Pix4D integration with FME)
- #55 This game is a fun visualization of an FME Server deployment. It constantly polls FME Server using the REST API to get the current number of engines and jobs that are running. [0:00] Each cube represents an FME Engine. The balls are jobs that are queued, running, or completed. When the job completes, it explodes and launches across the room into a pit that collects all of the completed jobs. Why do completed jobs explode? Because it’s awesome! This particular FME Server is an internal one we have that runs a lot of workspaces on a schedule. [0:44]The red ball in the completed pit is a failed job. Successful ones are green. Queued are yellow. Running is blue. Notice you can pick up and interact with the jobs/balls. [1:11] We also tried rendering all the workspaces in the repository as flat brown polygons. Every polygon has physics properties attached to it, so there’s a lot going on here in terms of rendering. [1:42] Unreal has good VR support so you can actually put on a headset and go right inside FME Server. (Word of warning: the explosions are even louder and scarier in VR.) As a backup consider saving the source video on your machine: https://www.dropbox.com/s/kp22g0bug3ycgsp/FMEServer-UnrealEngine.mp4?dl=0, or https://drive.google.com/file/d/1TtrcfDN7AcKrNfO8h7YcW-CSmH8CpEaR/view?usp=sharing
- #56 Repeat your message you started with
