Speech of Dmytro Shapovalov, Infrastructure Engineer at Cossack Labs, at Ruby Meditation #25 Kyiv 08.12.2018 Next conference - http://www.rubymeditation.com/ Making secure applications is not easy, especially when encryption tools are difficult and incomprehensible. We will talk about typical data security problems in web apps and how to implement encryption properly. We will review cryptographic approaches and exact tools that ensure that no sensitive data leaks from the application or database. Announcements and conference materials https://www.fb.me/RubyMeditation News https://twitter.com/RubyMeditation Photos https://www.instagram.com/RubyMeditation The stream of Ruby conferences (not just ours) https://t.me/RubyMeditation

1. Data encryption
for Ruby web applications
Dmytro Shapovalov
Infrastructure Engineer @ Cossack Labs

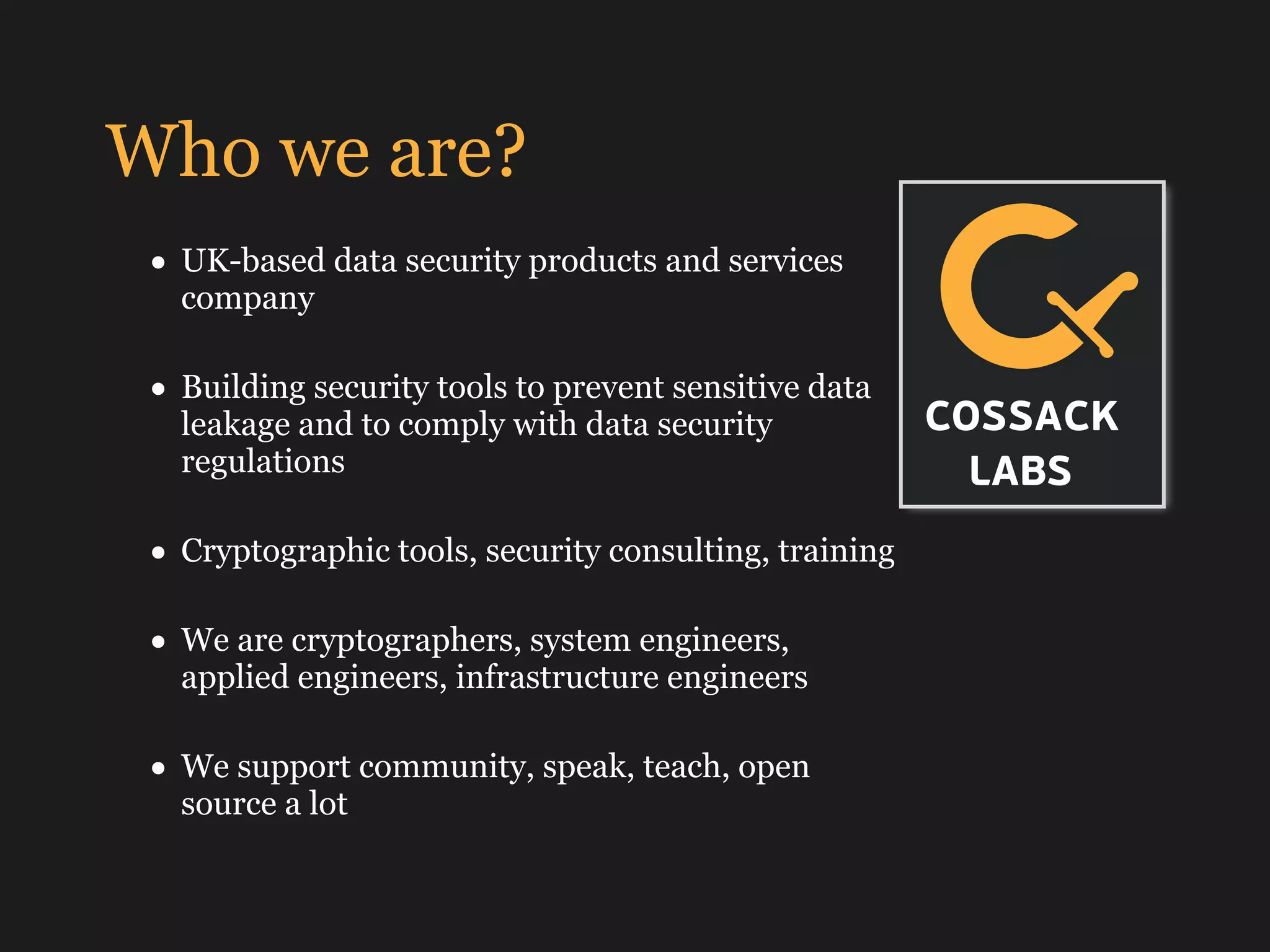

2. Who we are?
• UK-based data security products and services
company
• Building security tools to prevent sensitive data
leakage and to comply with data security
regulations
• Cryptographic tools, security consulting, training
• We are cryptographers, system engineers,
applied engineers, infrastructure engineers
• We support community, speak, teach, open
source a lot

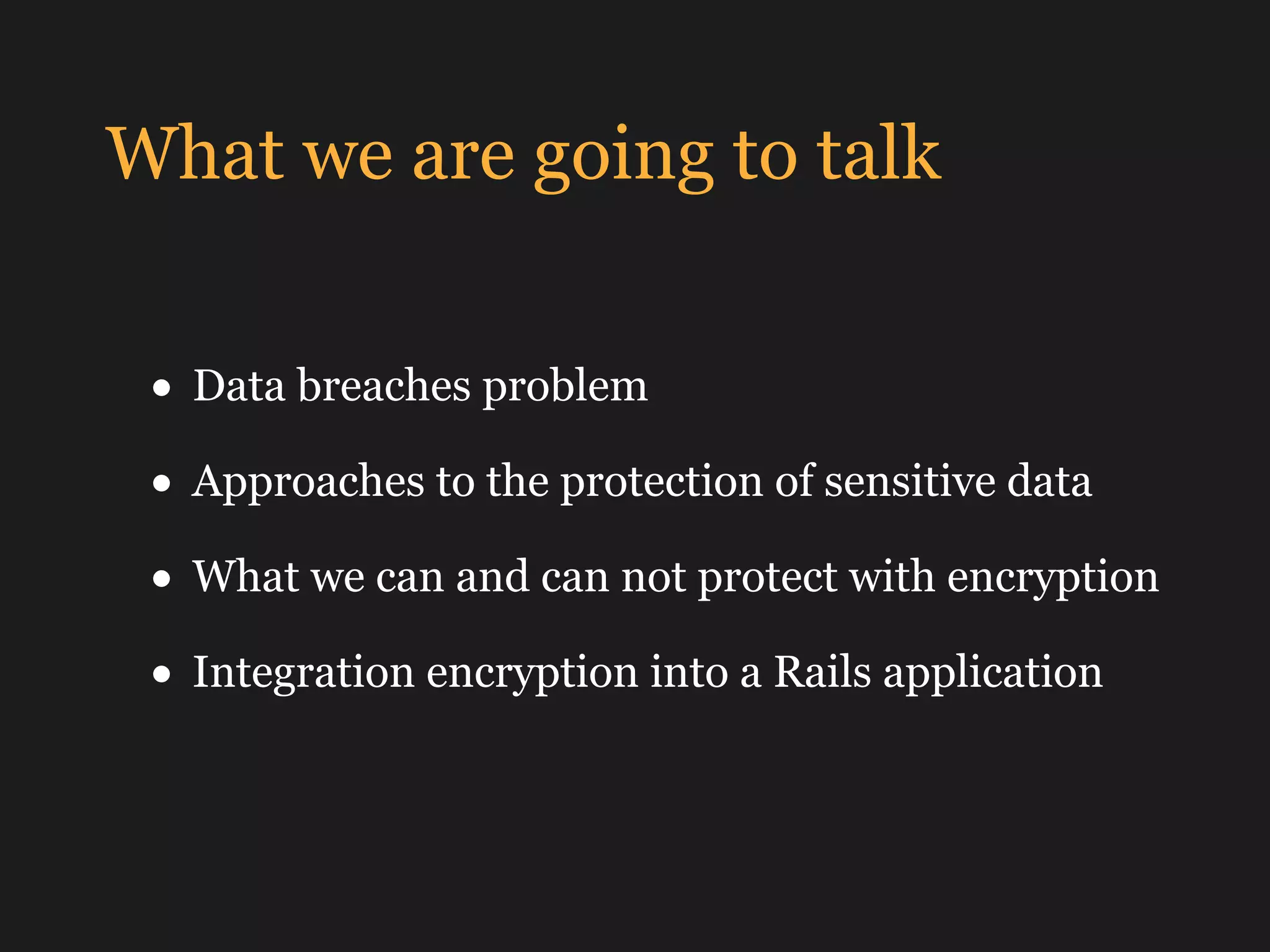

3. What we are going to talk
• Data breaches problem
• Approaches to the protection of sensitive data
• What we can and can not protect with encryption
• Integration encryption into a Rails application

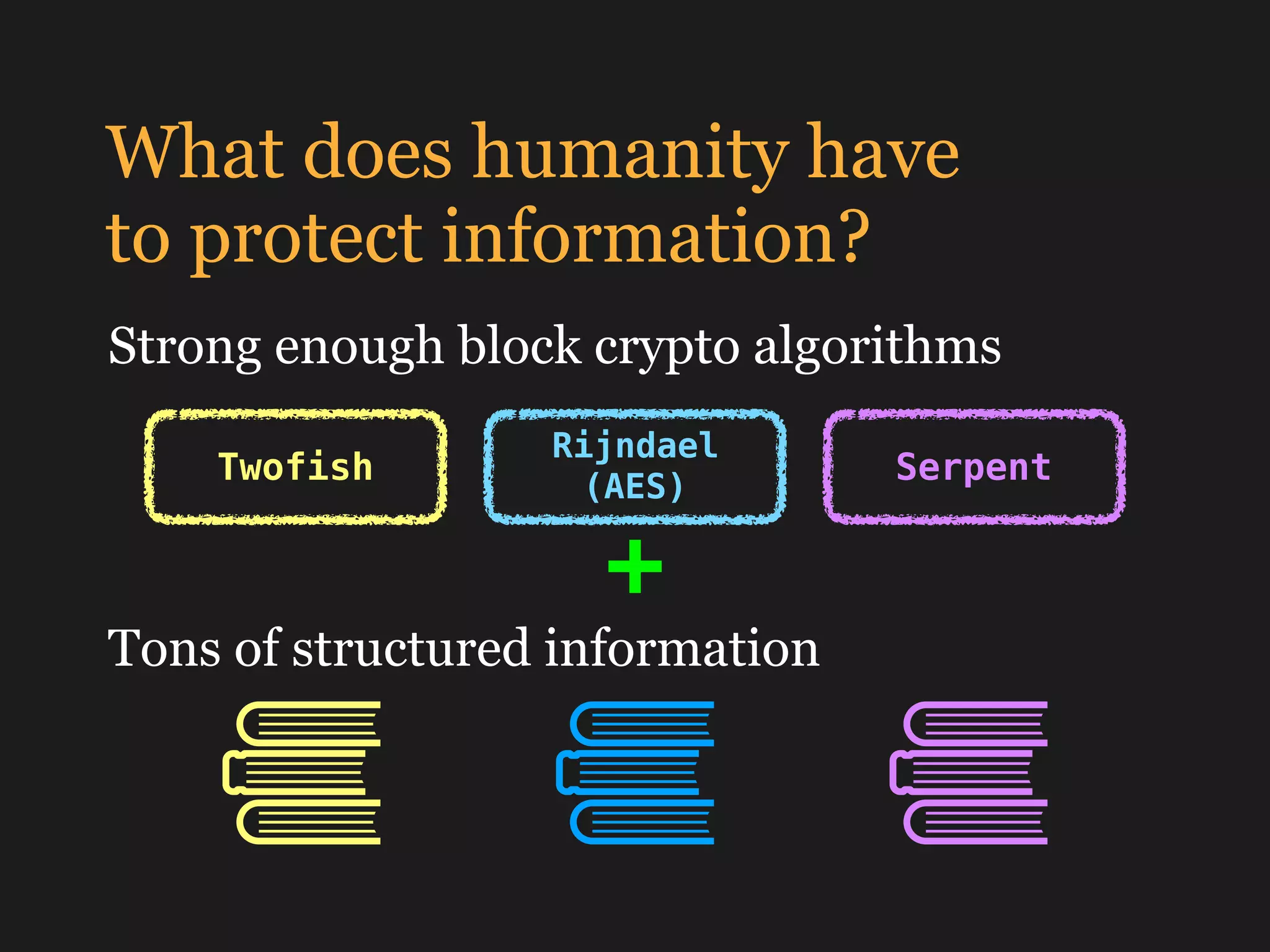

4. What does humanity have
to protect information?
Strong enough block crypto algorithms
Rijndael
(AES)
Twofish Serpent
Tons of structured information
+

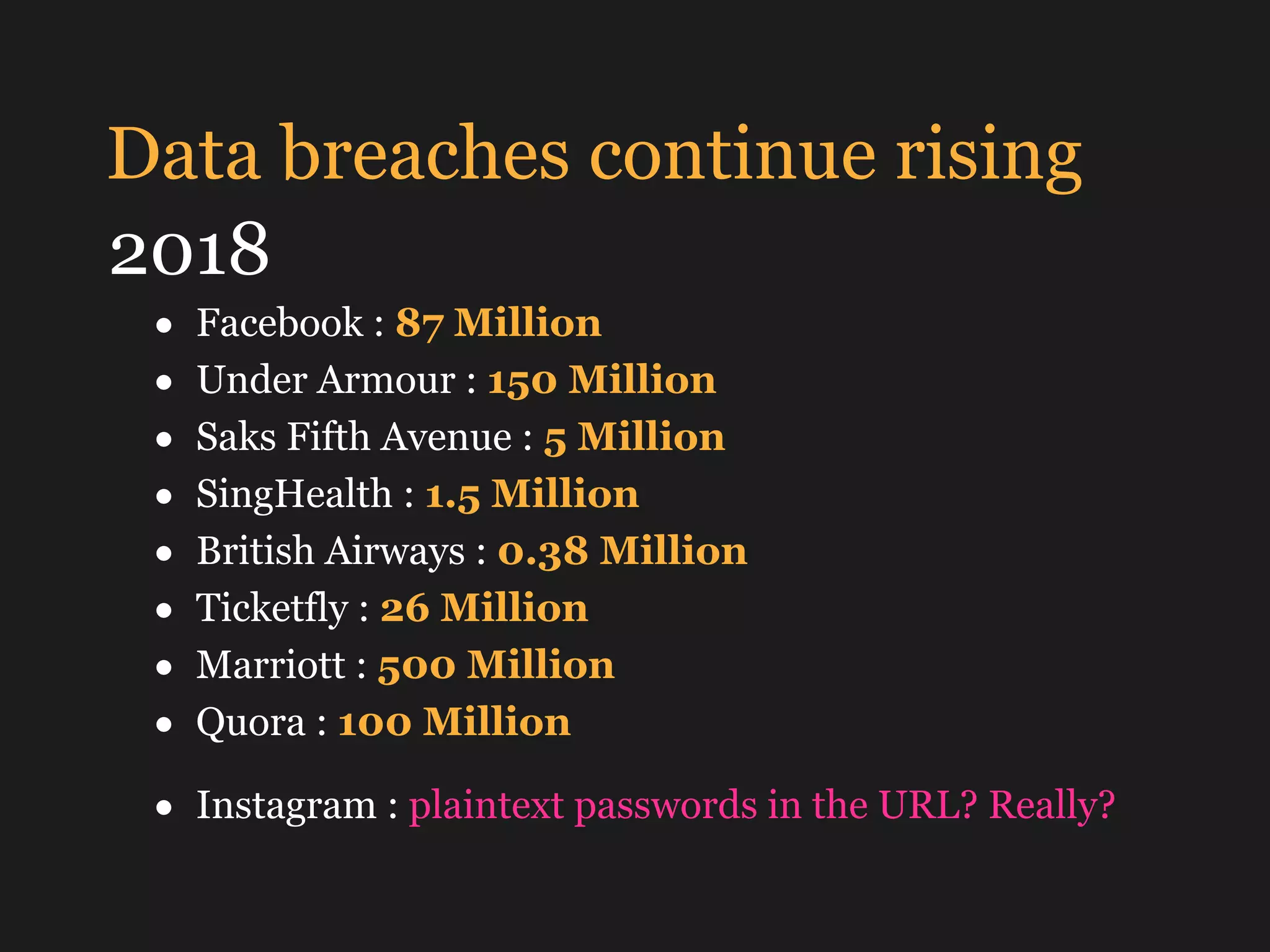

5. Data breaches continue rising
2018
• Facebook : 87 Million
• Under Armour : 150 Million
• Saks Fifth Avenue : 5 Million
• SingHealth : 1.5 Million
• British Airways : 0.38 Million
• Ticketfly : 26 Million
• Marriott : 500 Million
• Quora : 100 Million
• Instagram : plaintext passwords in the URL? Really?

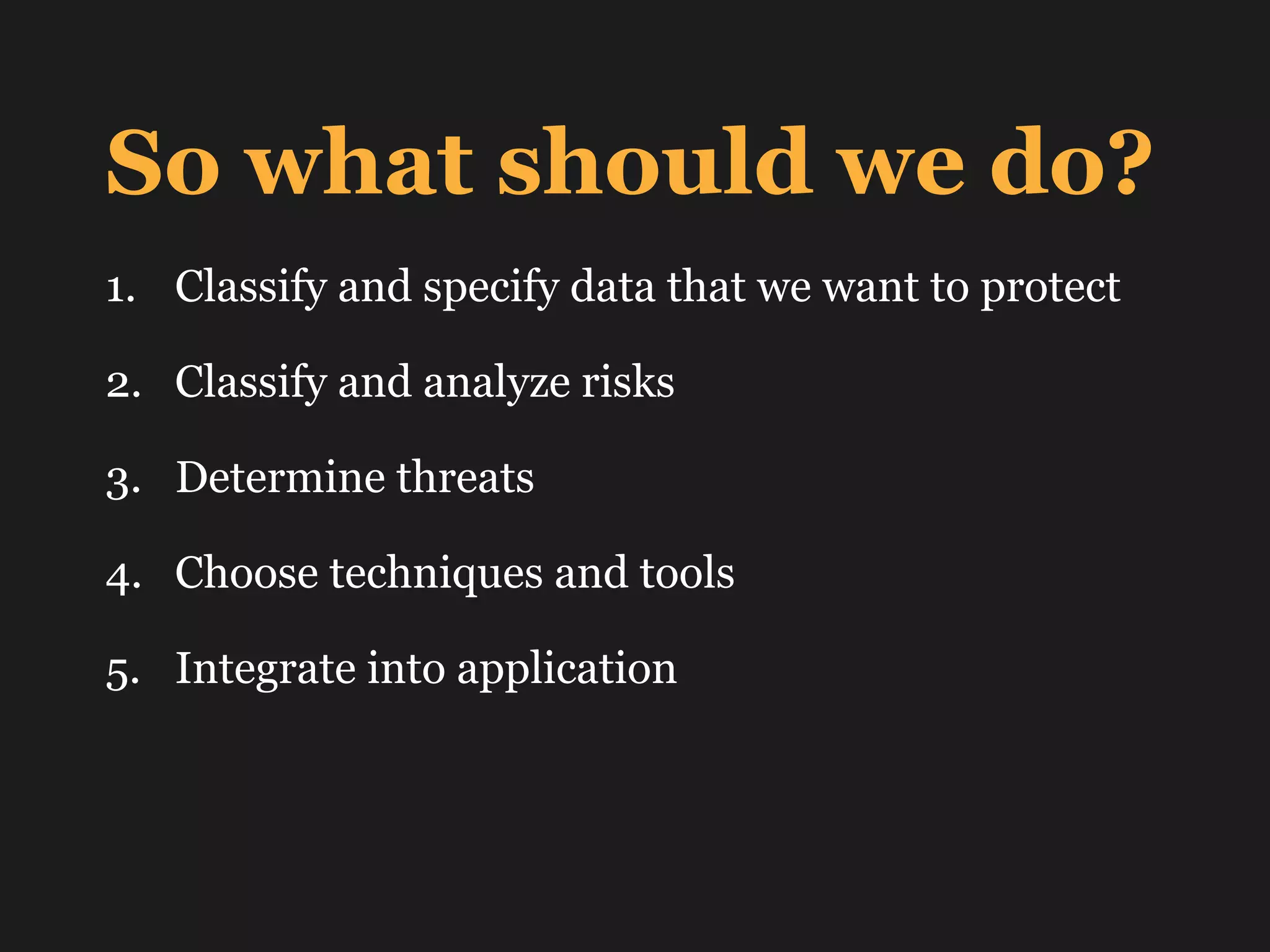

6. So what should we do?
1. Classify and specify data that we want to protect
2. Classify and analyze risks
3. Determine threats
4. Choose techniques and tools
5. Integrate into application

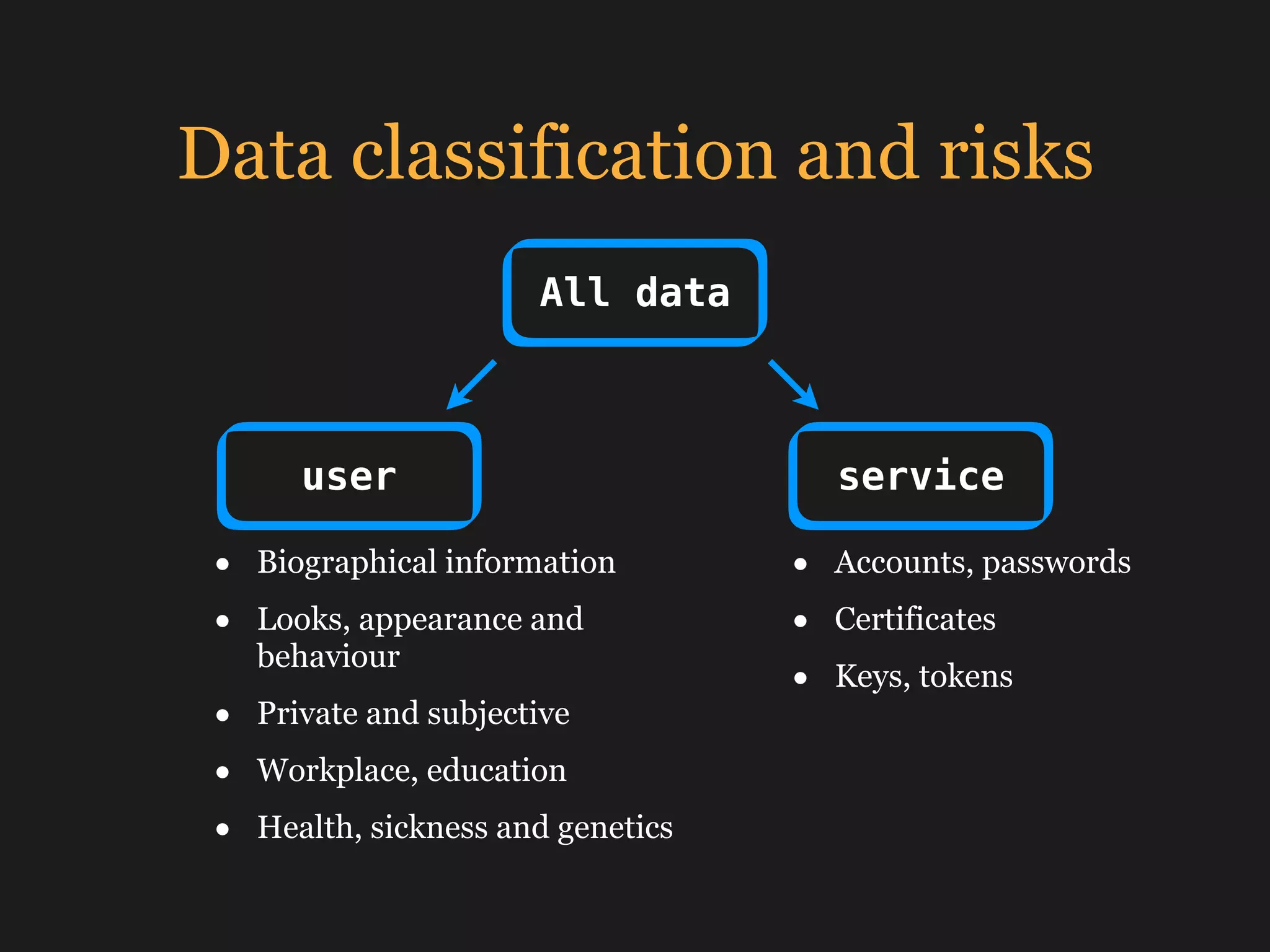

7. Data classification and risks
All data
user service
• Biographical information
• Looks, appearance and
behaviour
• Private and subjective
• Workplace, education
• Health, sickness and genetics
• Accounts, passwords
• Certificates
• Keys, tokens

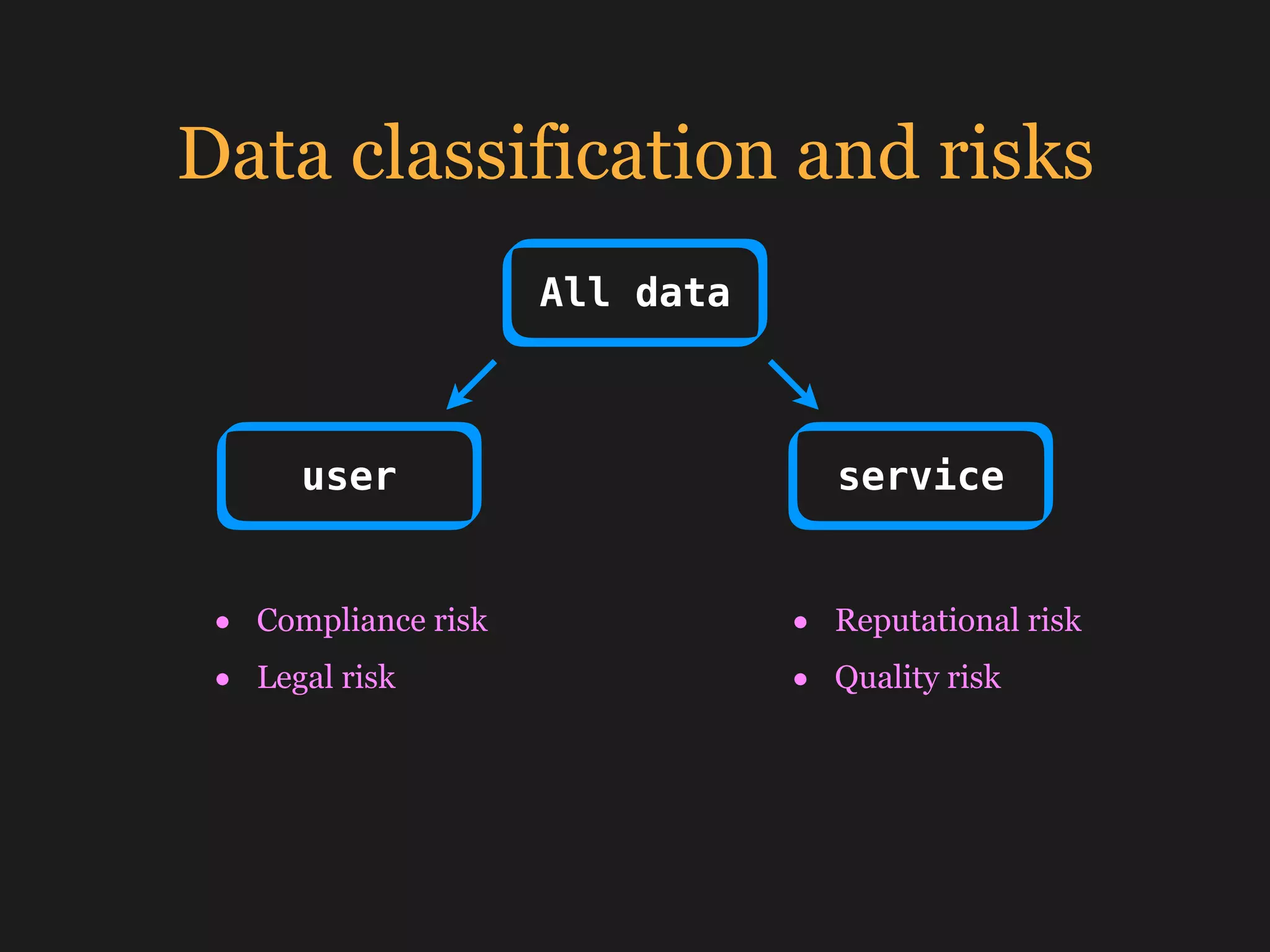

8. Data classification and risks
All data
user service
• Compliance risk
• Legal risk
• Reputational risk
• Quality risk

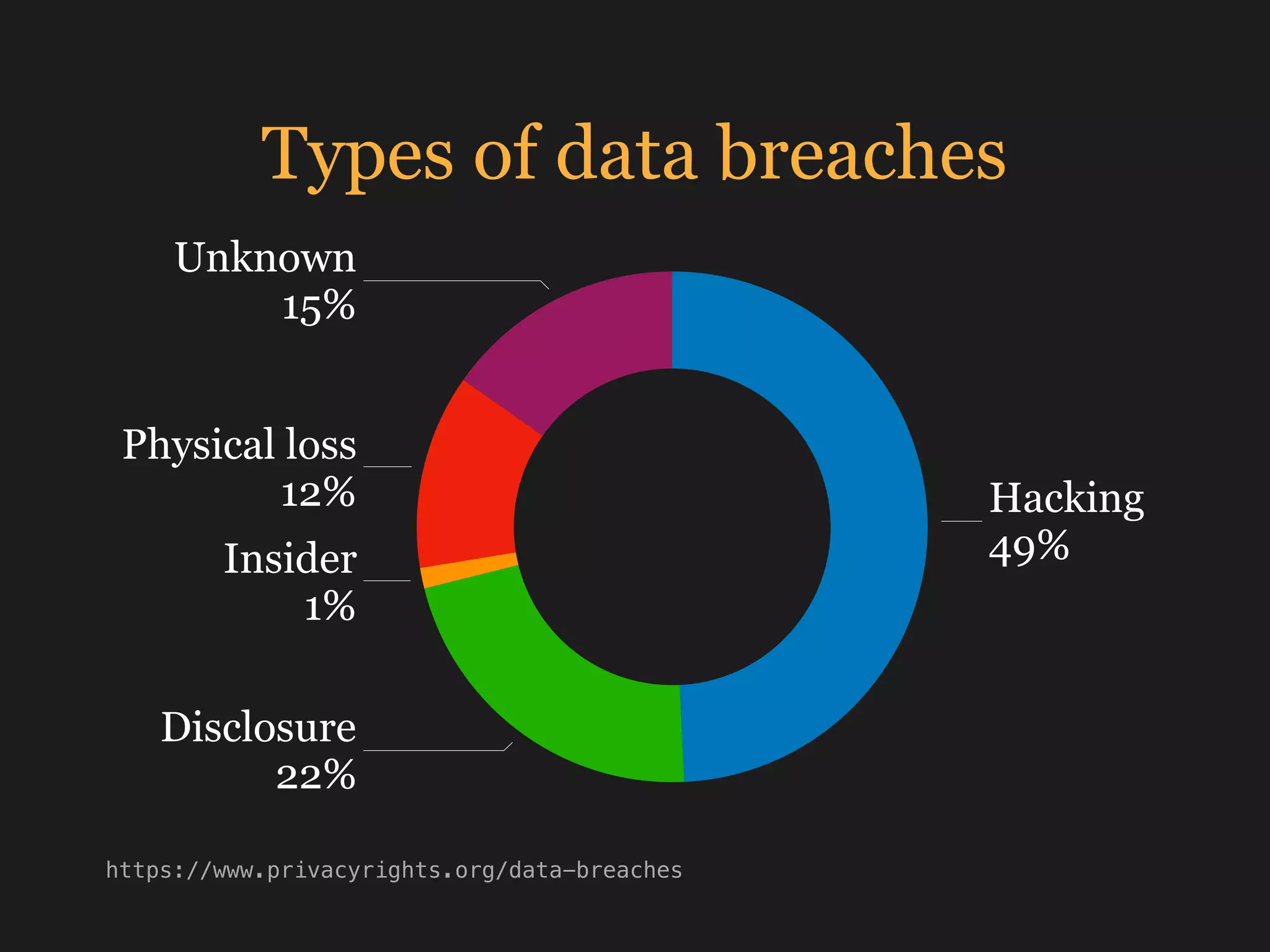

9. Types of data breaches
Unknown
15%
Physical loss
12%
Insider
1%
Disclosure
22%
Hacking
49%
https://www.privacyrights.org/data-breaches

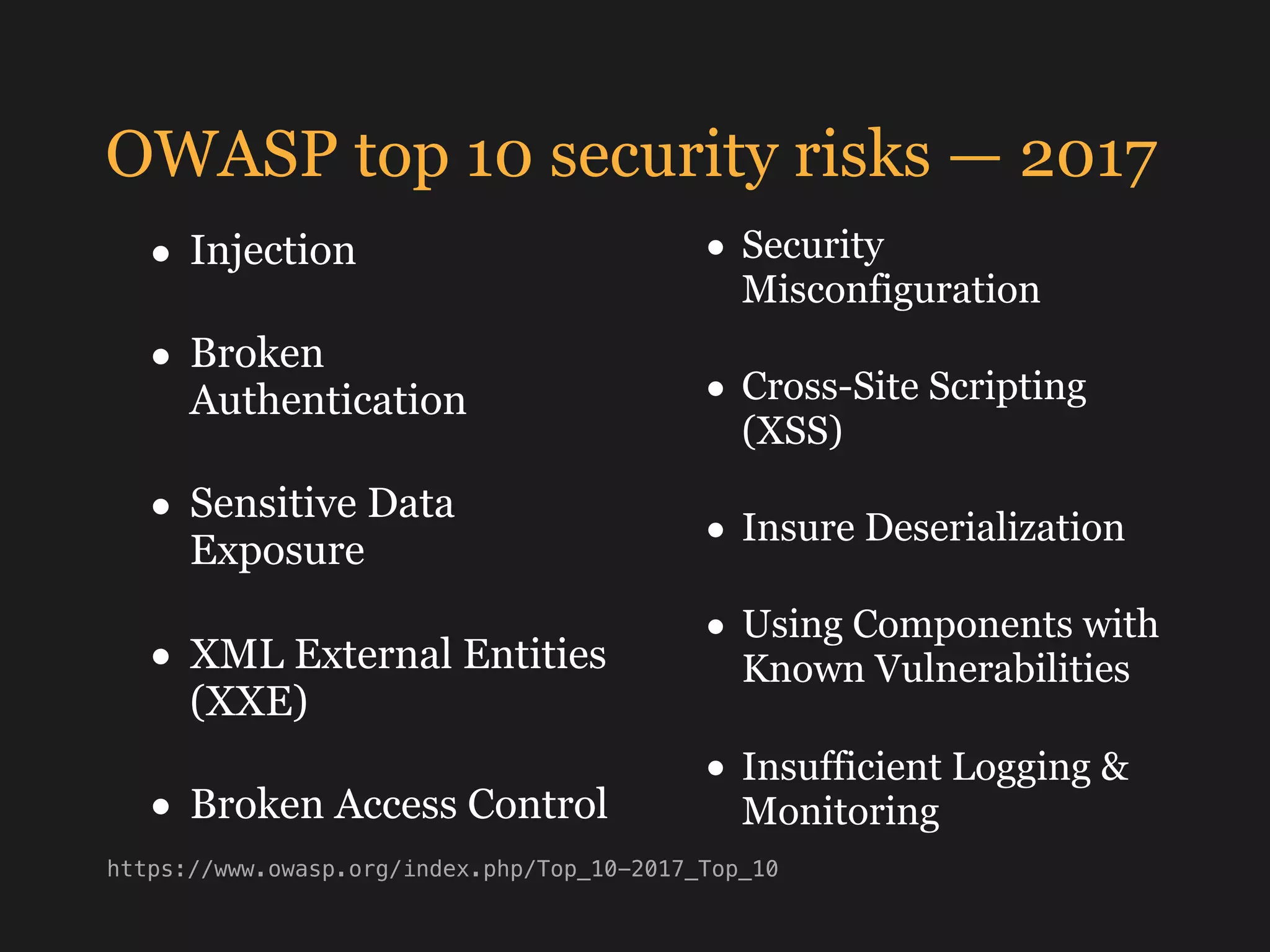

10. OWASP top 10 security risks — 2017
• Security
Misconfiguration
• Cross-Site Scripting
(XSS)
• Insure Deserialization
• Using Components with
Known Vulnerabilities
• Insufficient Logging &
Monitoring
• Injection
• Broken
Authentication
• Sensitive Data
Exposure
• XML External Entities
(XXE)
• Broken Access Control
https://www.owasp.org/index.php/Top_10-2017_Top_10

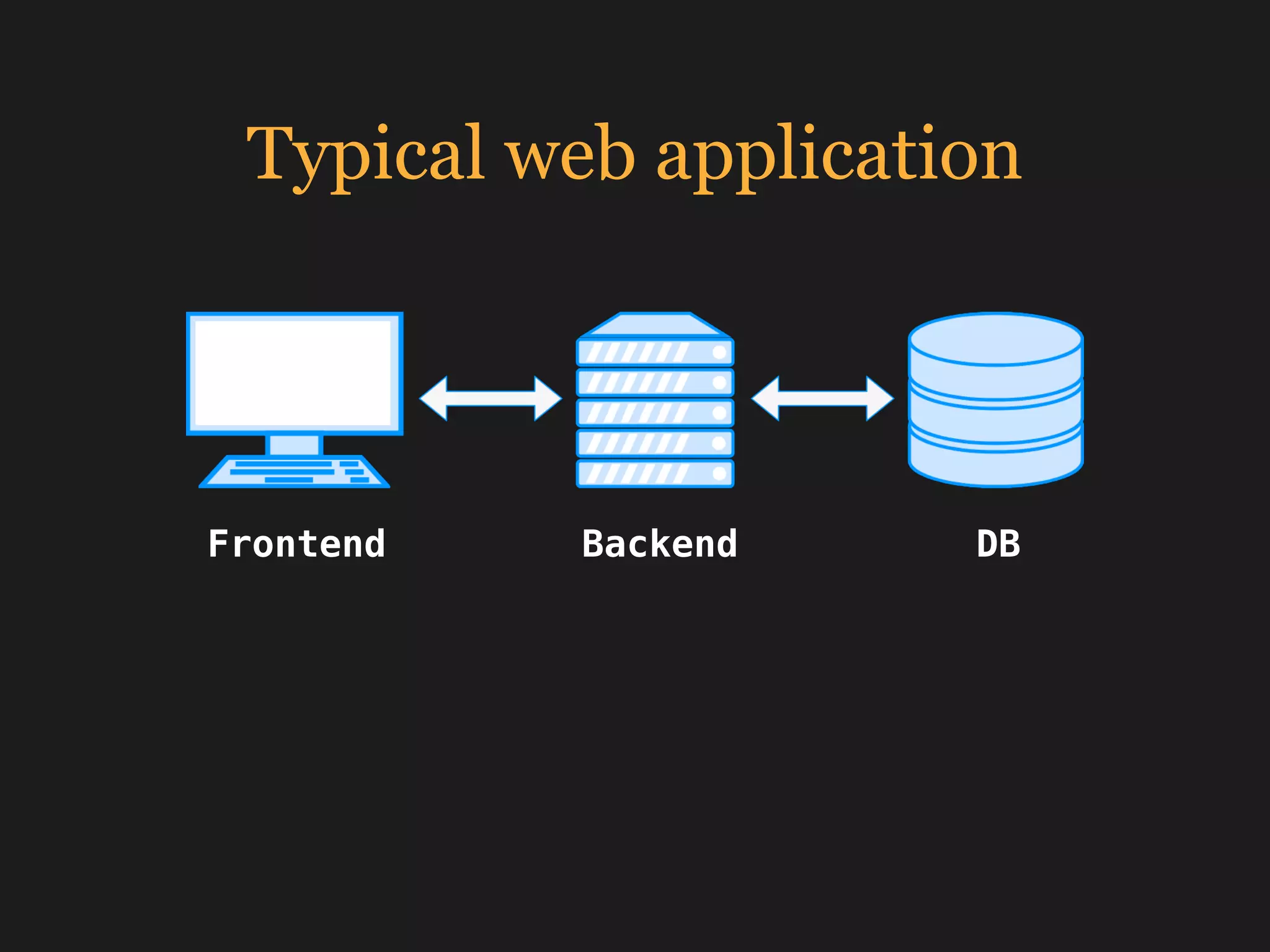

11. Typical web application
Frontend Backend DB

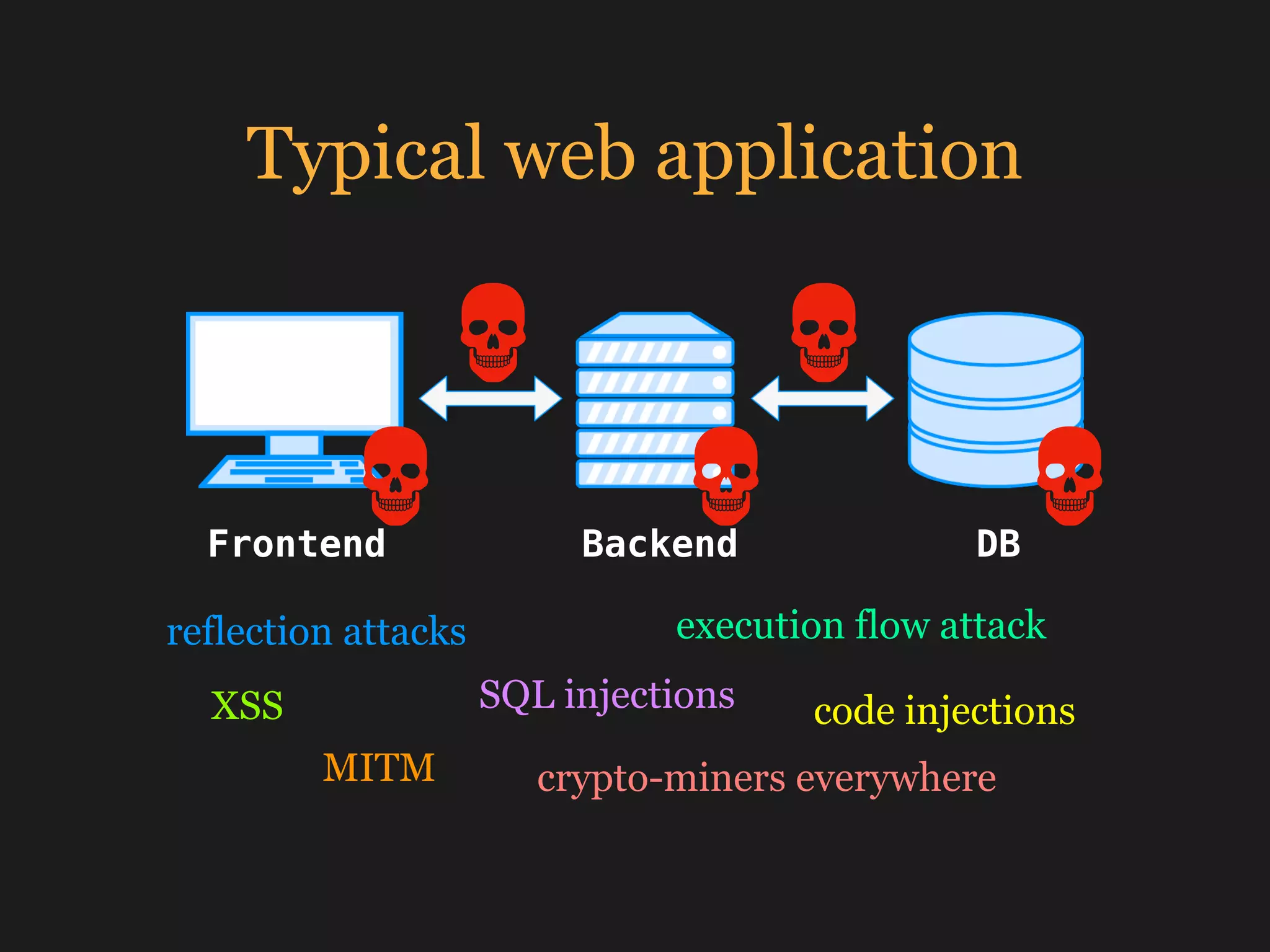

12. Typical web application
reflection attacks
XSS
MITM
SQL injections code injections
execution flow attack
crypto-miners everywhere
Frontend Backend DB

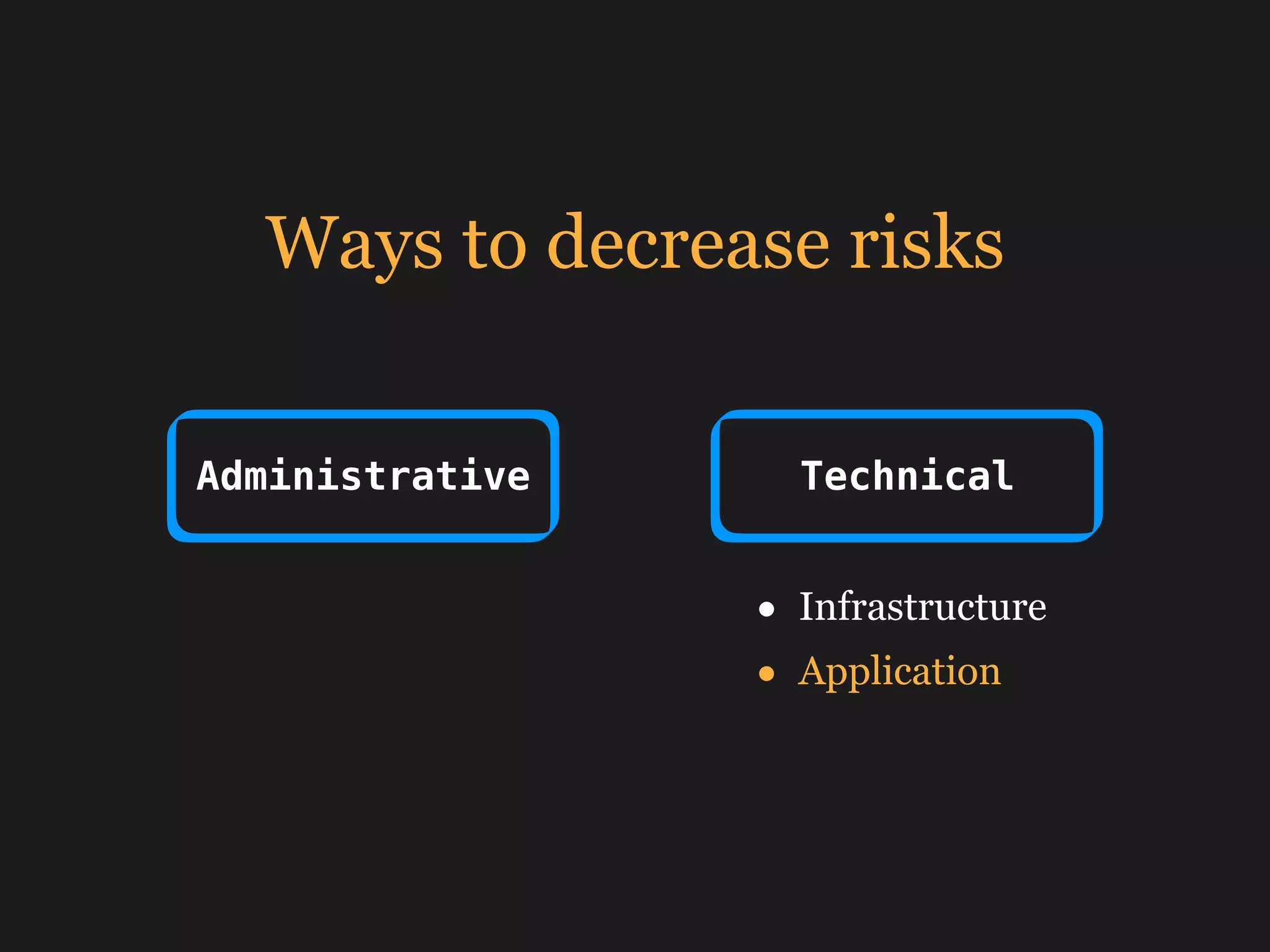

13. Ways to decrease risks
Administrative Technical
• Infrastructure
• Application

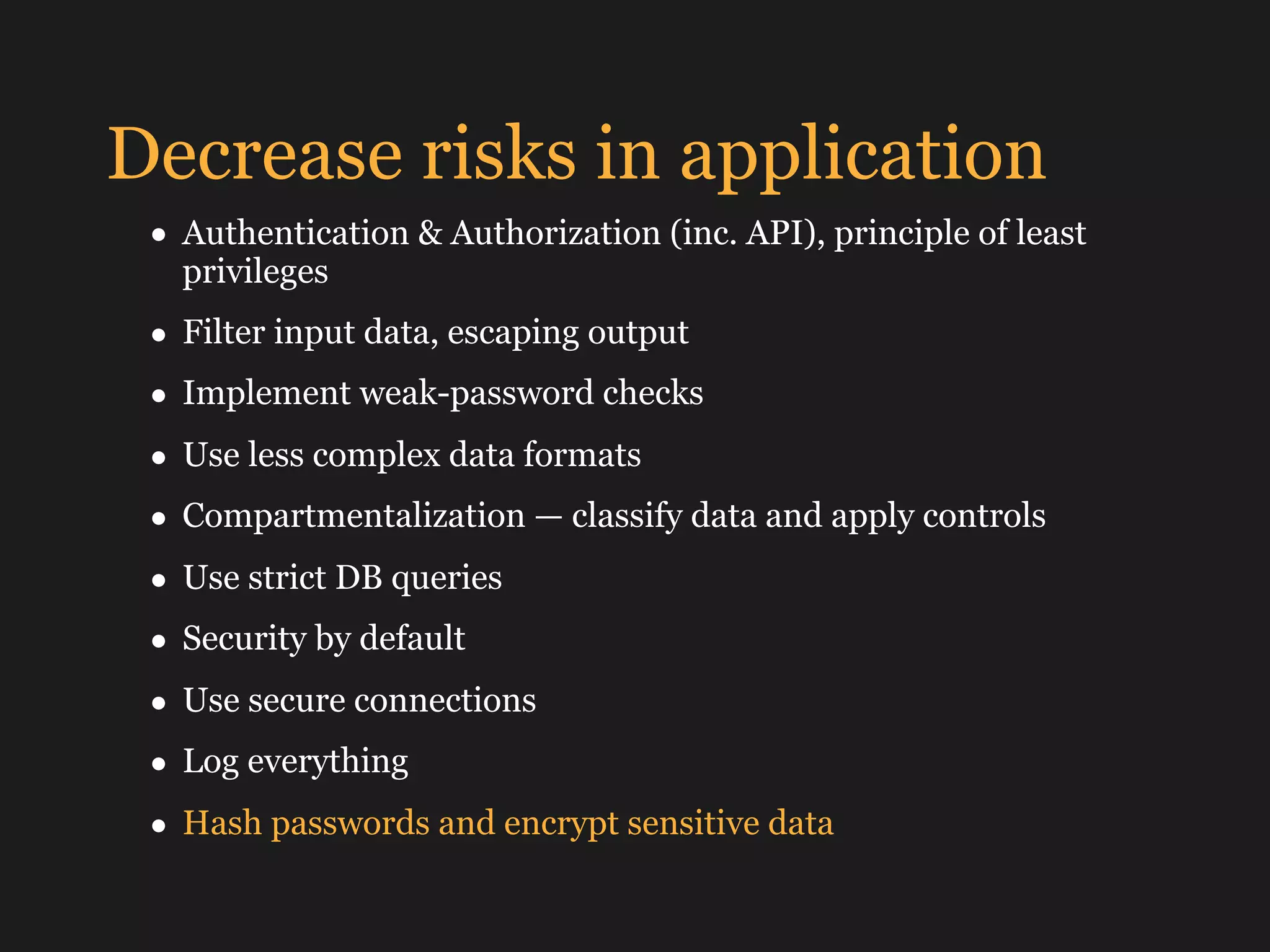

14. Decrease risks in application
• Authentication & Authorization (inc. API), principle of least
privileges
• Filter input data, escaping output
• Implement weak-password checks
• Use less complex data formats
• Compartmentalization — classify data and apply controls
• Use strict DB queries
• Security by default
• Use secure connections
• Log everything
• Hash passwords and encrypt sensitive data

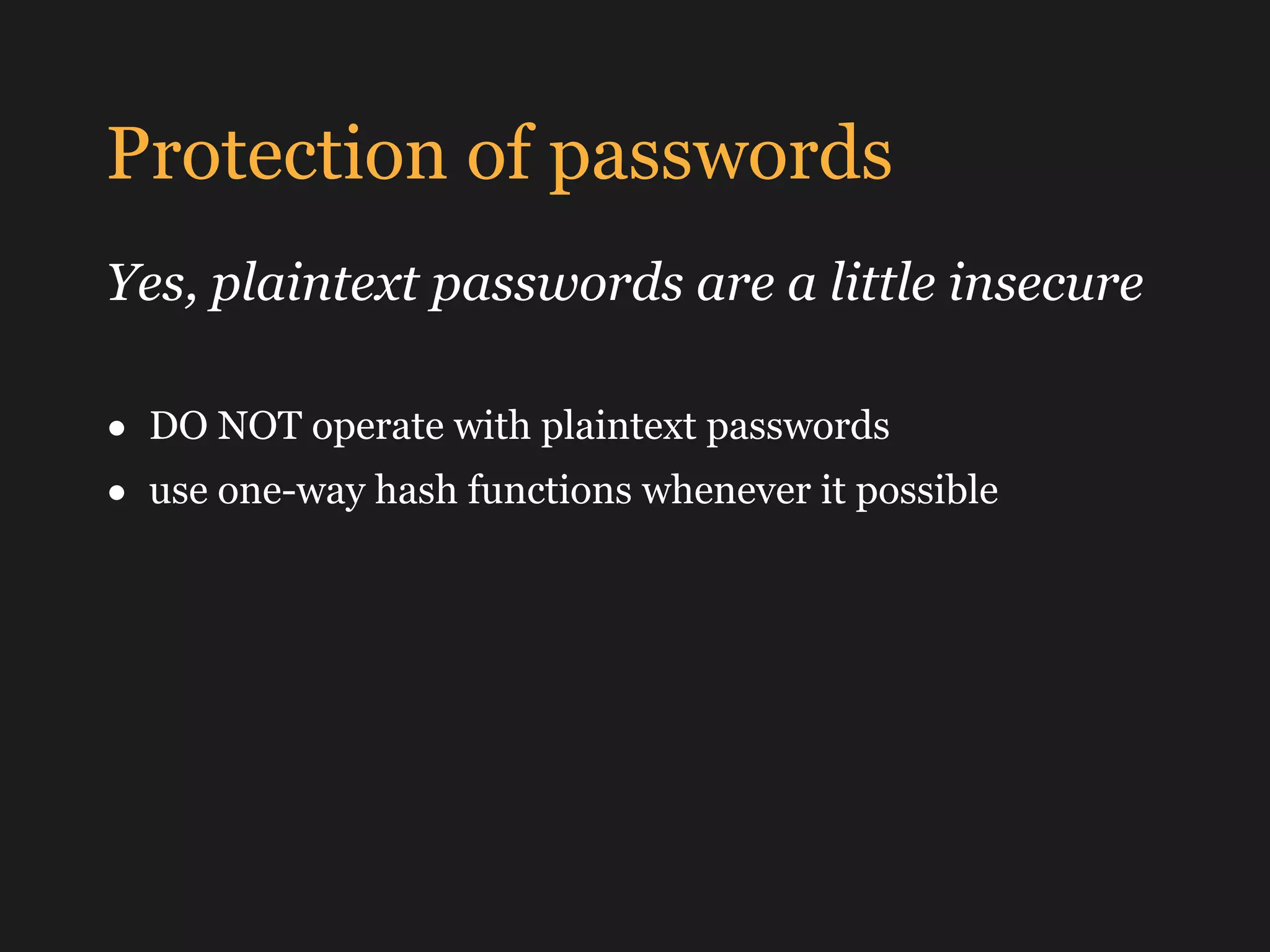

15. Protection of passwords
Yes, plaintext passwords are a little insecure
• DO NOT operate with plaintext passwords
• use one-way hash functions whenever it possible

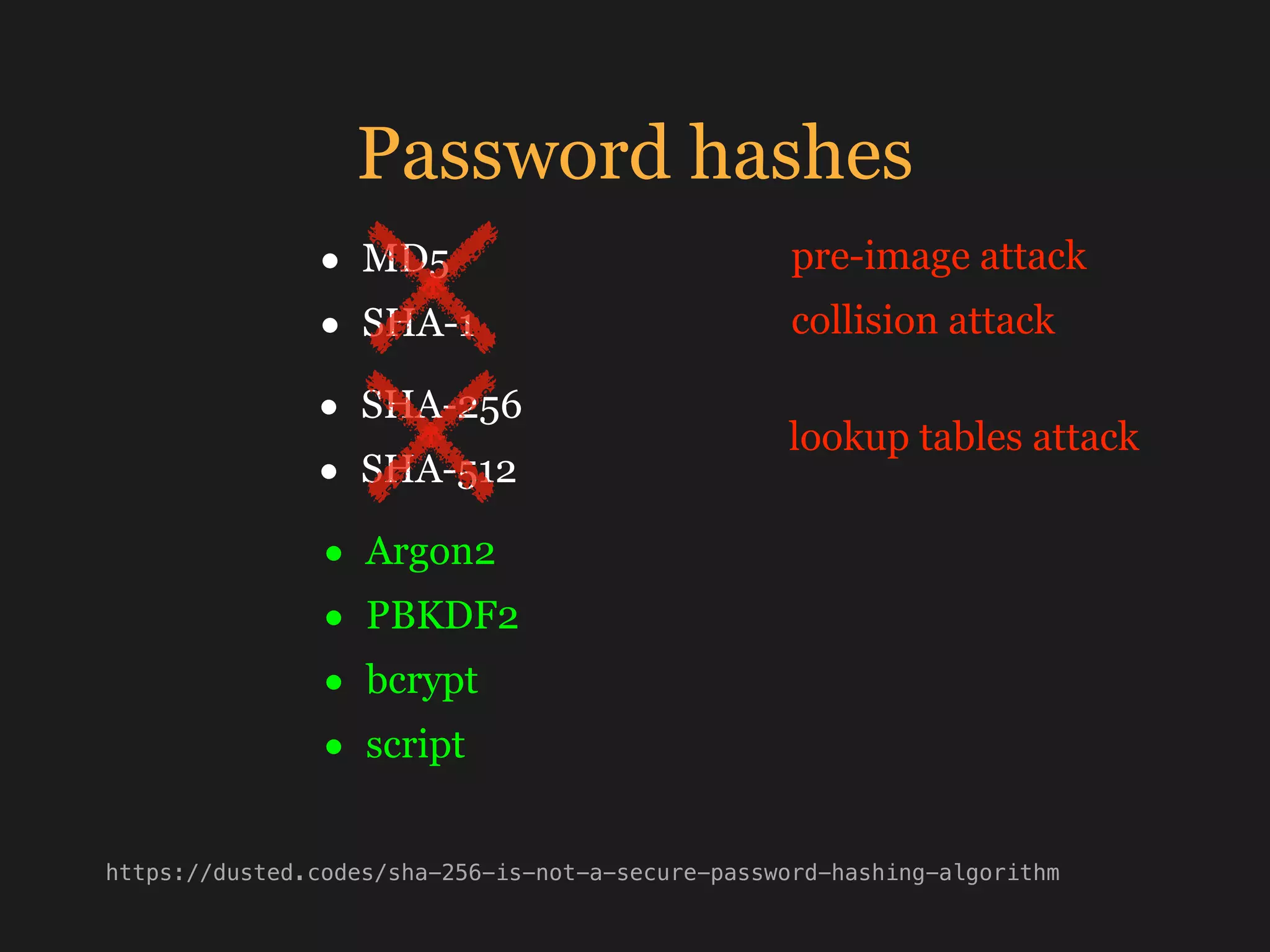

16. Password hashes
• MD5
• SHA-1
• Argon2
• PBKDF2
• bcrypt
• script
• MD5
• SHA-1
https://dusted.codes/sha-256-is-not-a-secure-password-hashing-algorithm
• SHA-256
• SHA-512
pre-image attack
collision attack
lookup tables attack

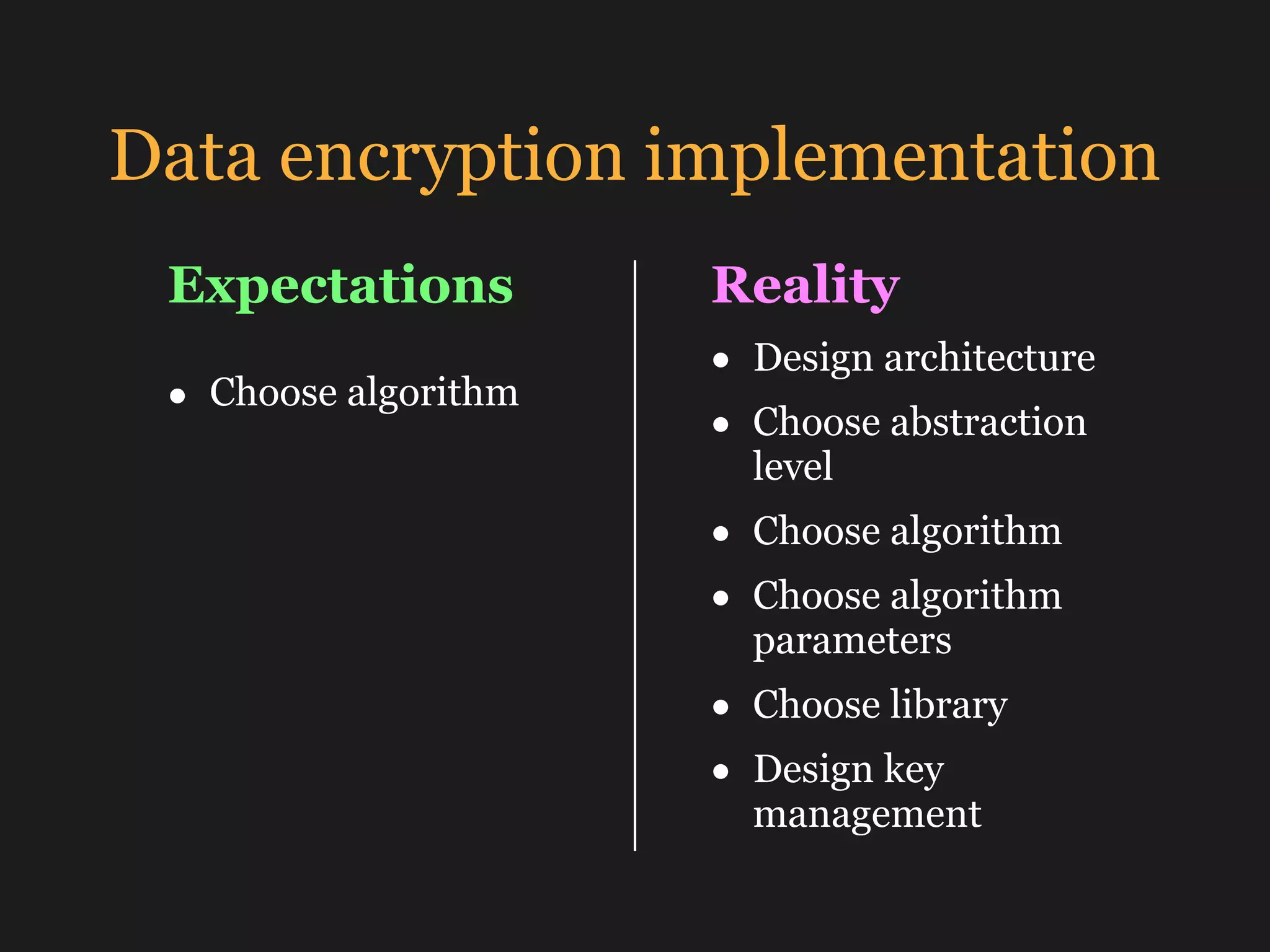

17. Data encryption implementation
• Choose algorithm
Expectations Reality
• Design architecture
• Choose abstraction
level
• Choose algorithm
• Choose algorithm
parameters
• Choose library
• Design key
management

18. Encryption integrationcomplexity
abstraction level

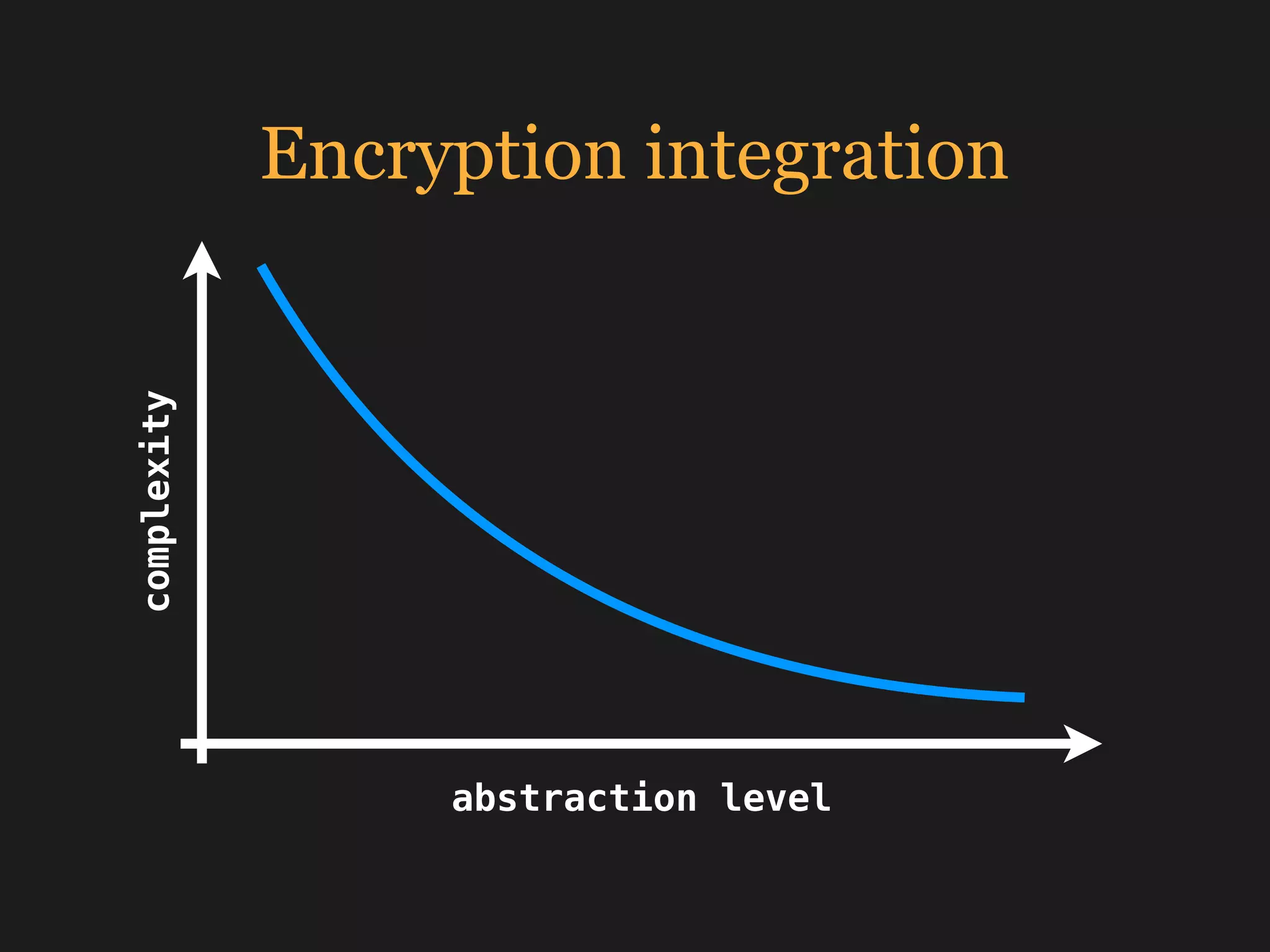

19. Encryption integrationcomplexity
abstraction level
Cipher
Library
Suite

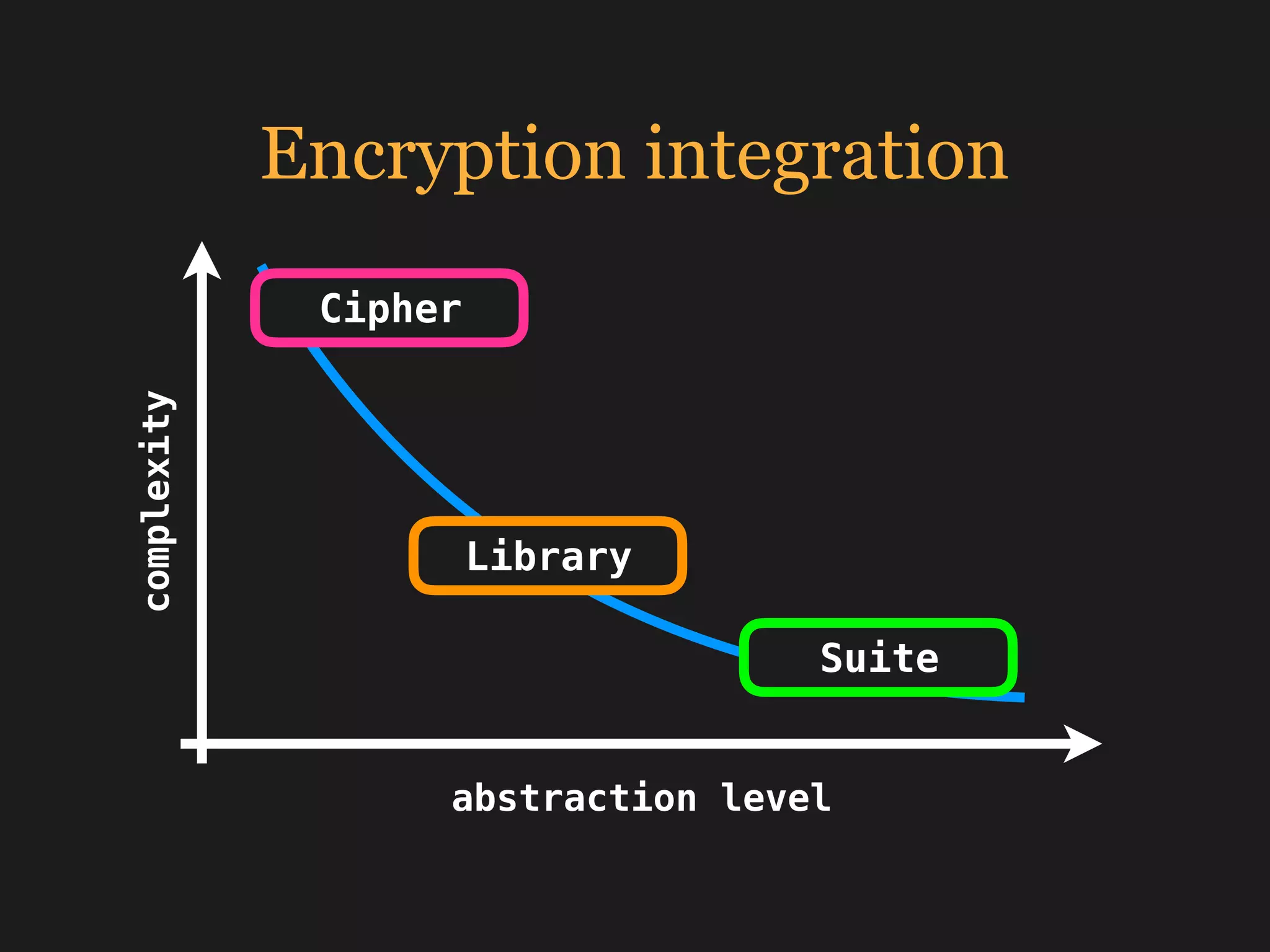

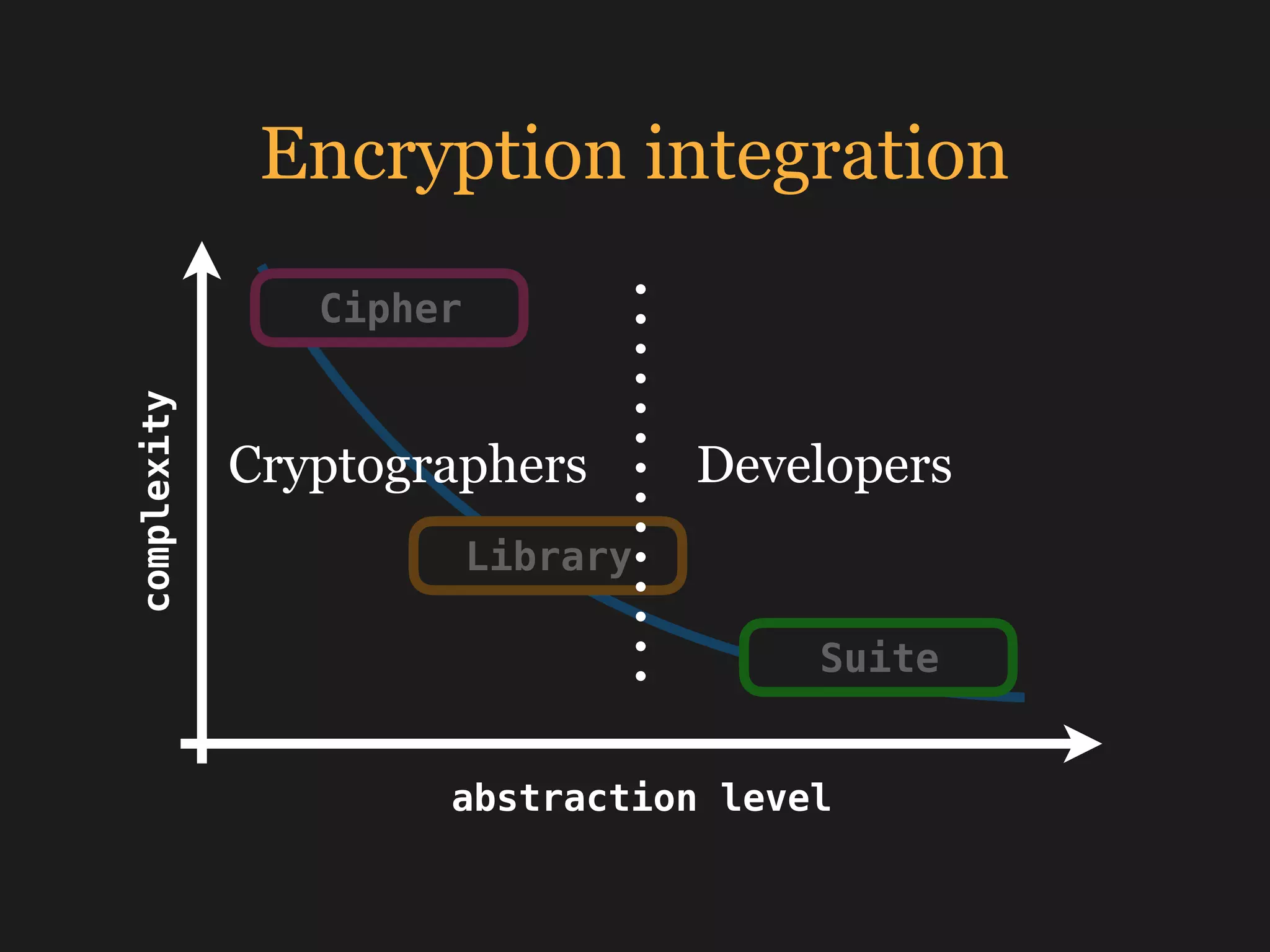

20. Encryption integrationcomplexity
abstraction level
Cipher
Library
Suite
Cryptographers Developers

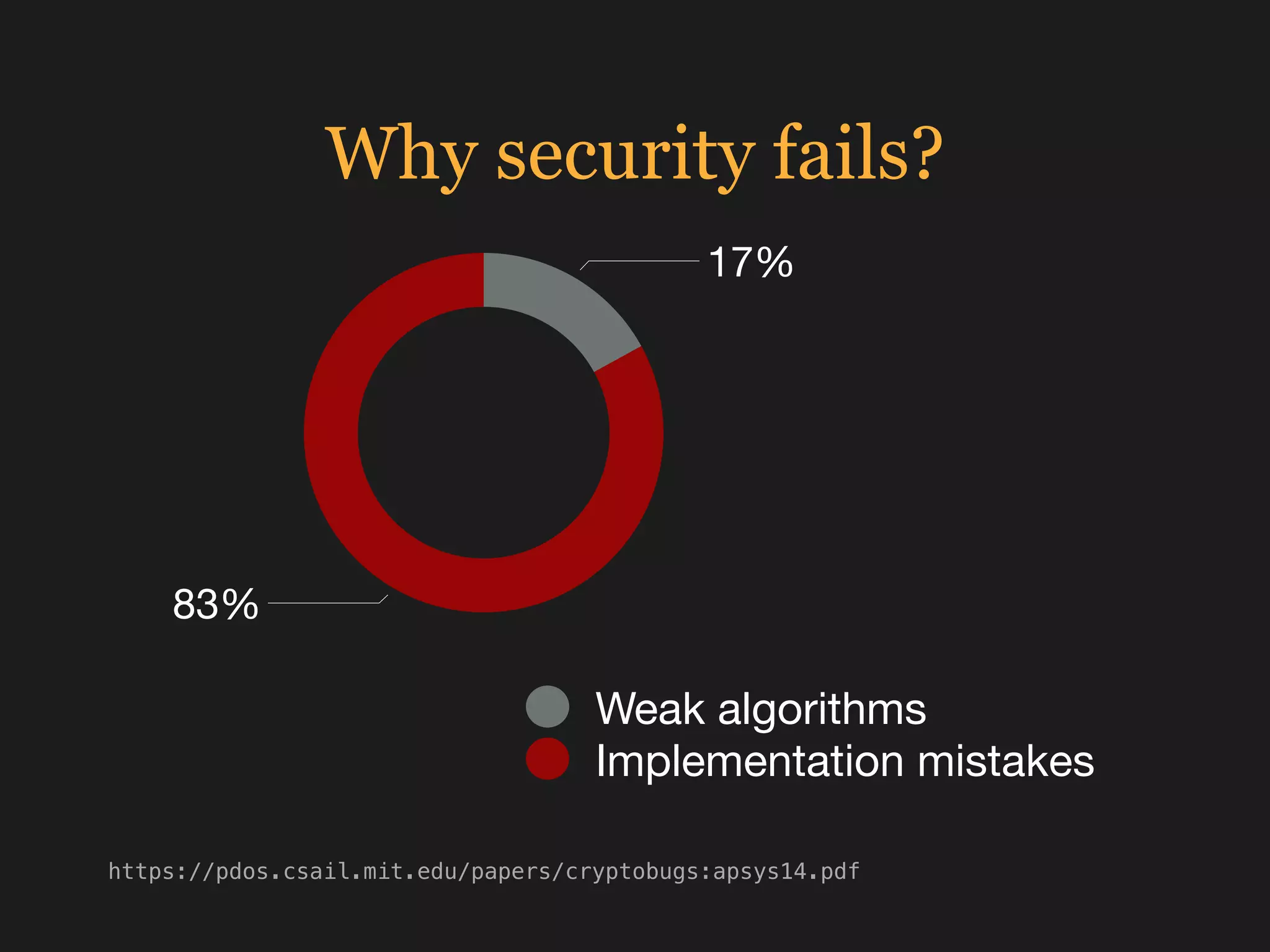

21. Why security fails?
83%
17%
Weak algorithms
Implementation mistakes
https://pdos.csail.mit.edu/papers/cryptobugs:apsys14.pdf

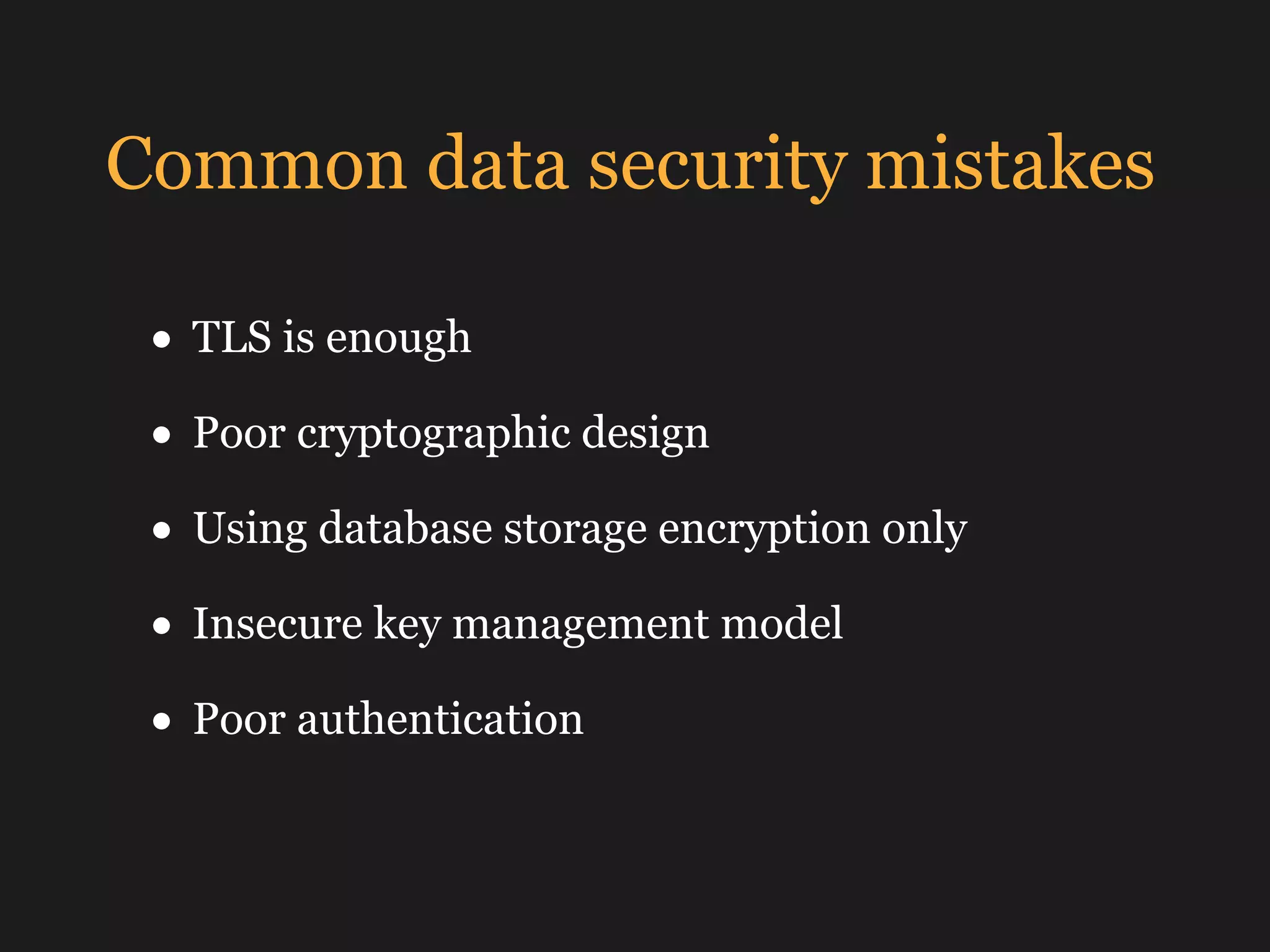

22. Common data security mistakes
• TLS is enough
• Poor cryptographic design
• Using database storage encryption only
• Insecure key management model
• Poor authentication

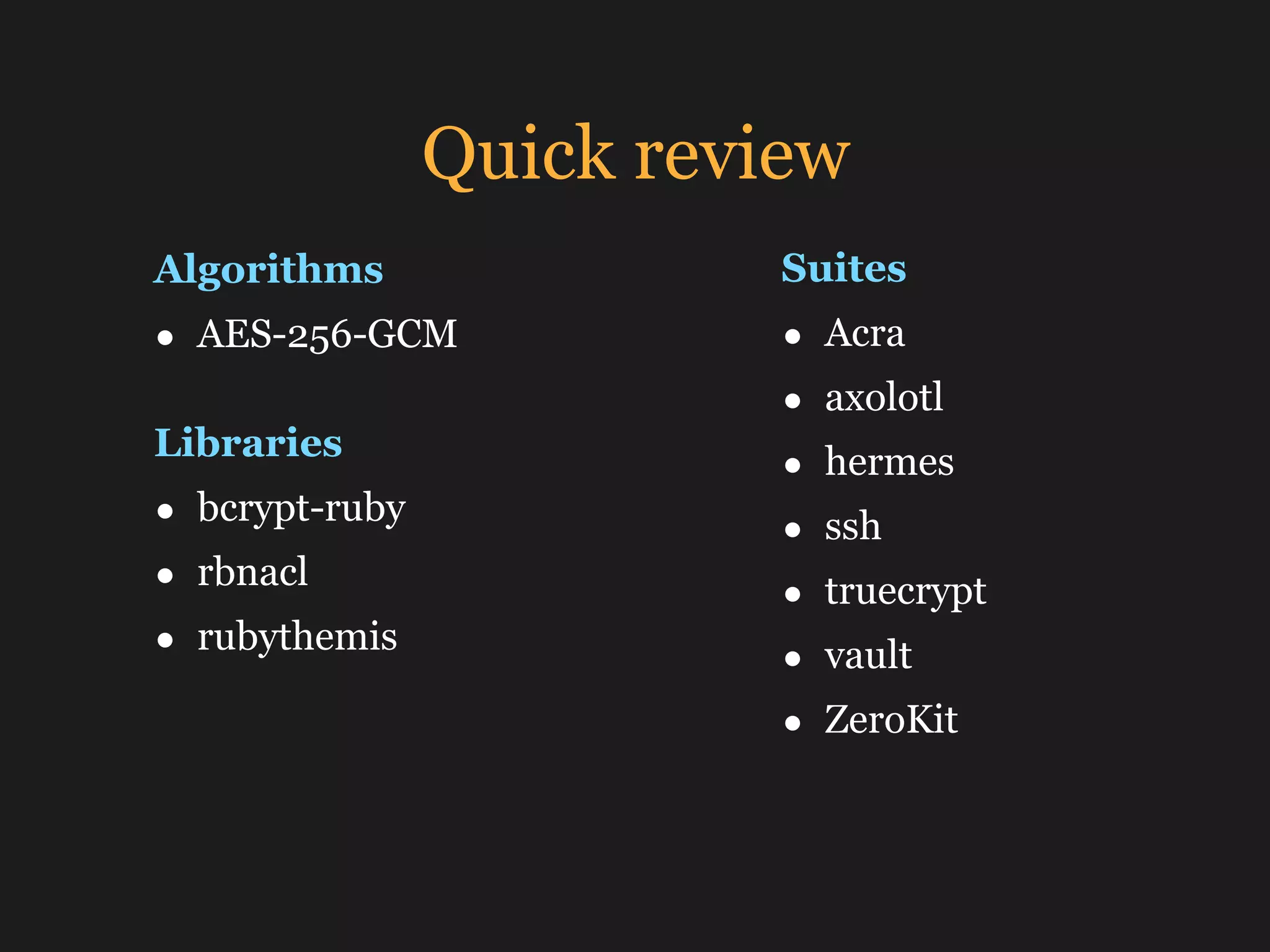

24. Quick review
Algorithms
• AES-256-GCM
Libraries
• bcrypt-ruby
• rbnacl
• rubythemis
Suites
• Acra
• axolotl
• hermes
• ssh
• truecrypt
• vault
• ZeroKit

25. What the implementation
of data encryption
should look like?

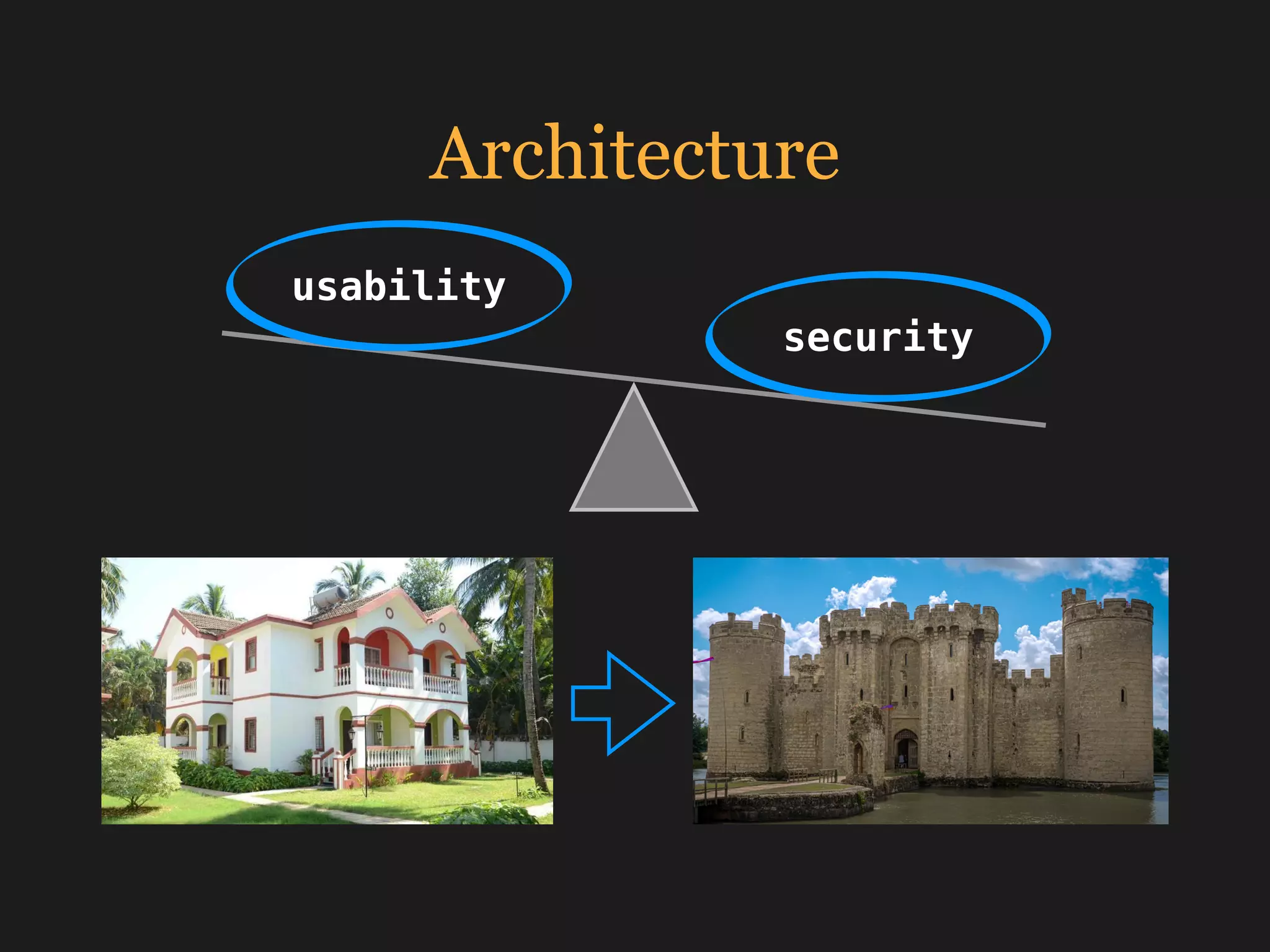

26. Architecture
usability
security

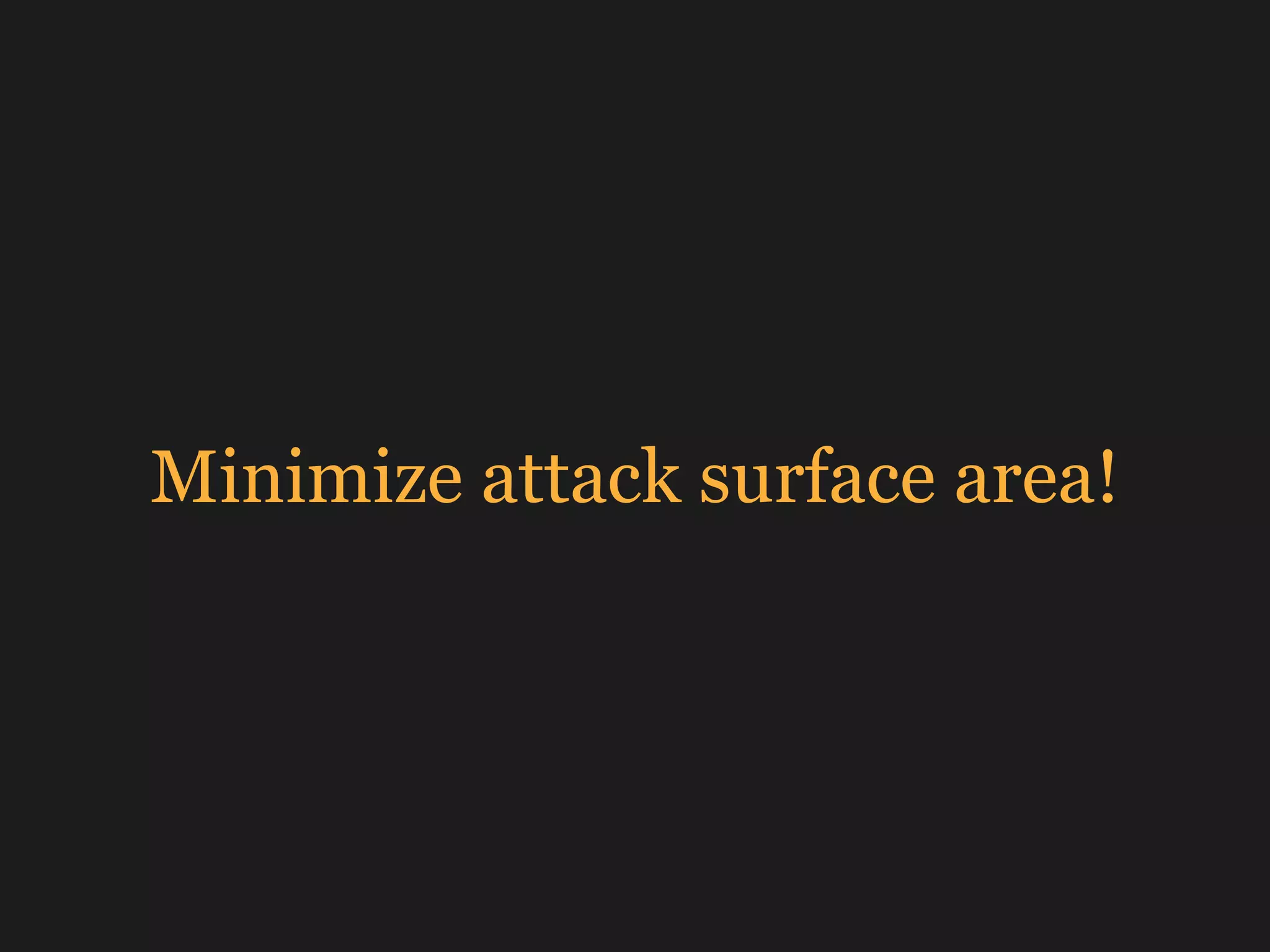

27. Minimize attack surface area!

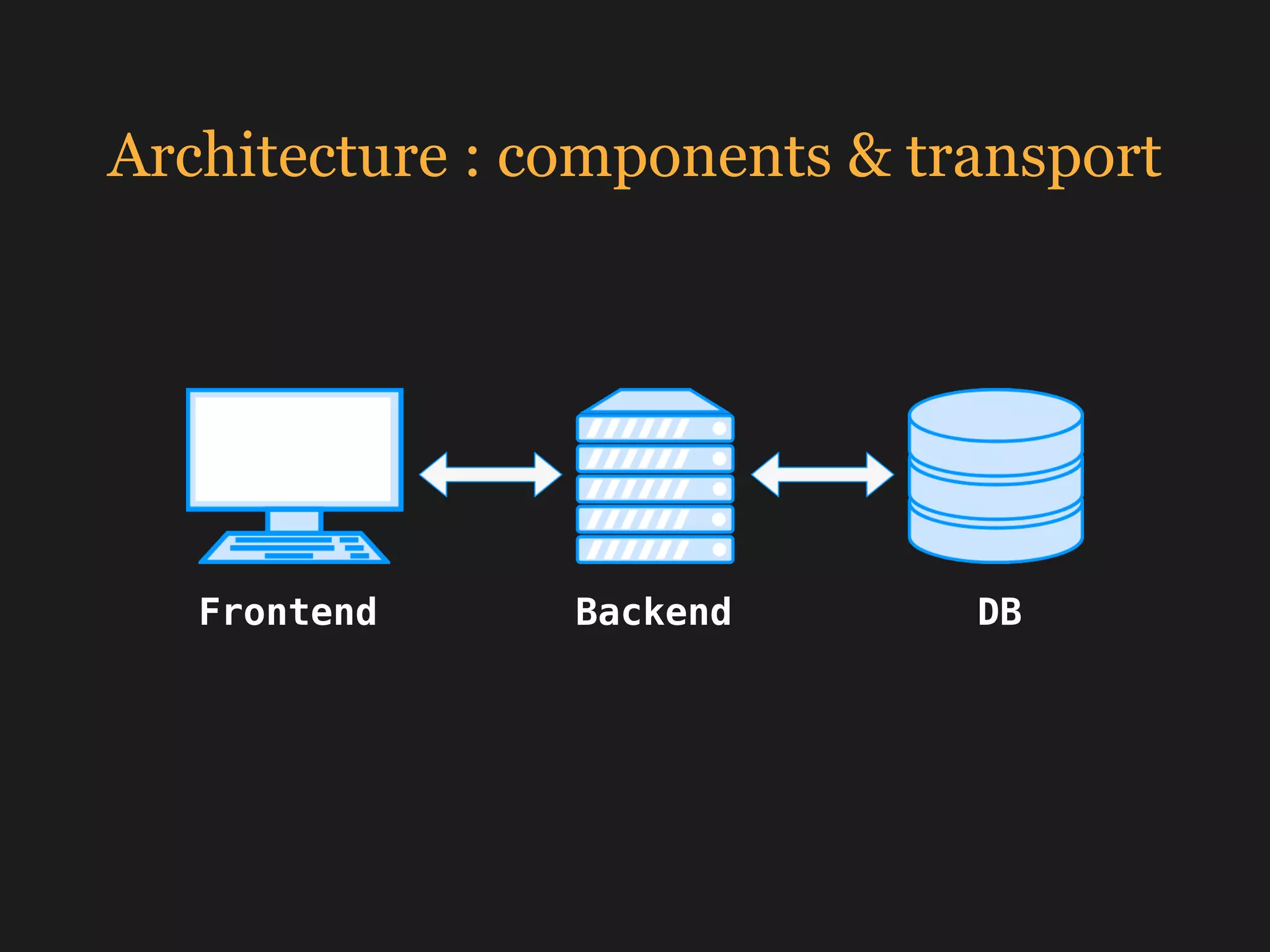

28. Frontend Backend DB
Architecture : components & transport

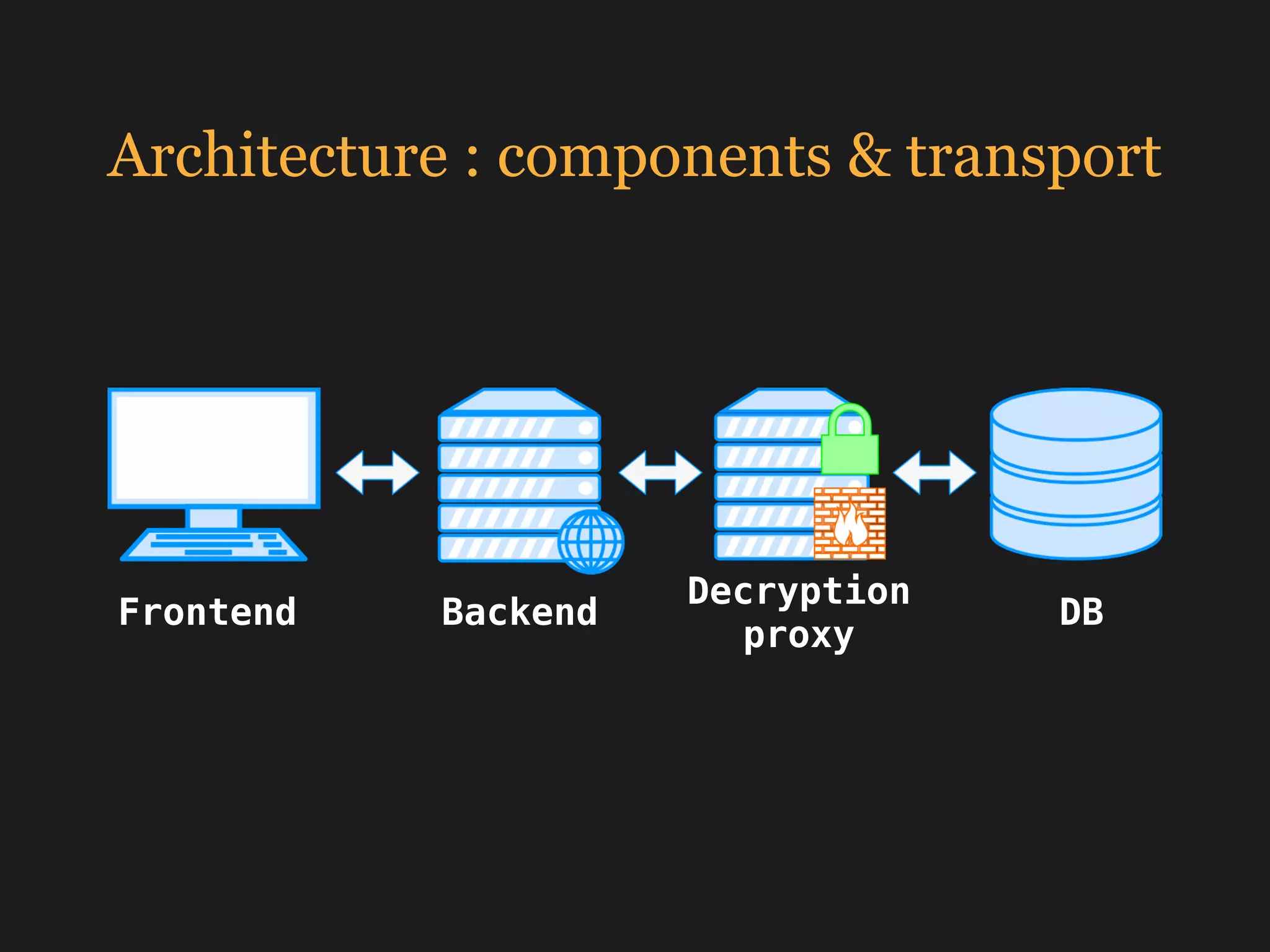

29. Architecture : components & transport
Frontend Backend
Decryption
proxy
DB

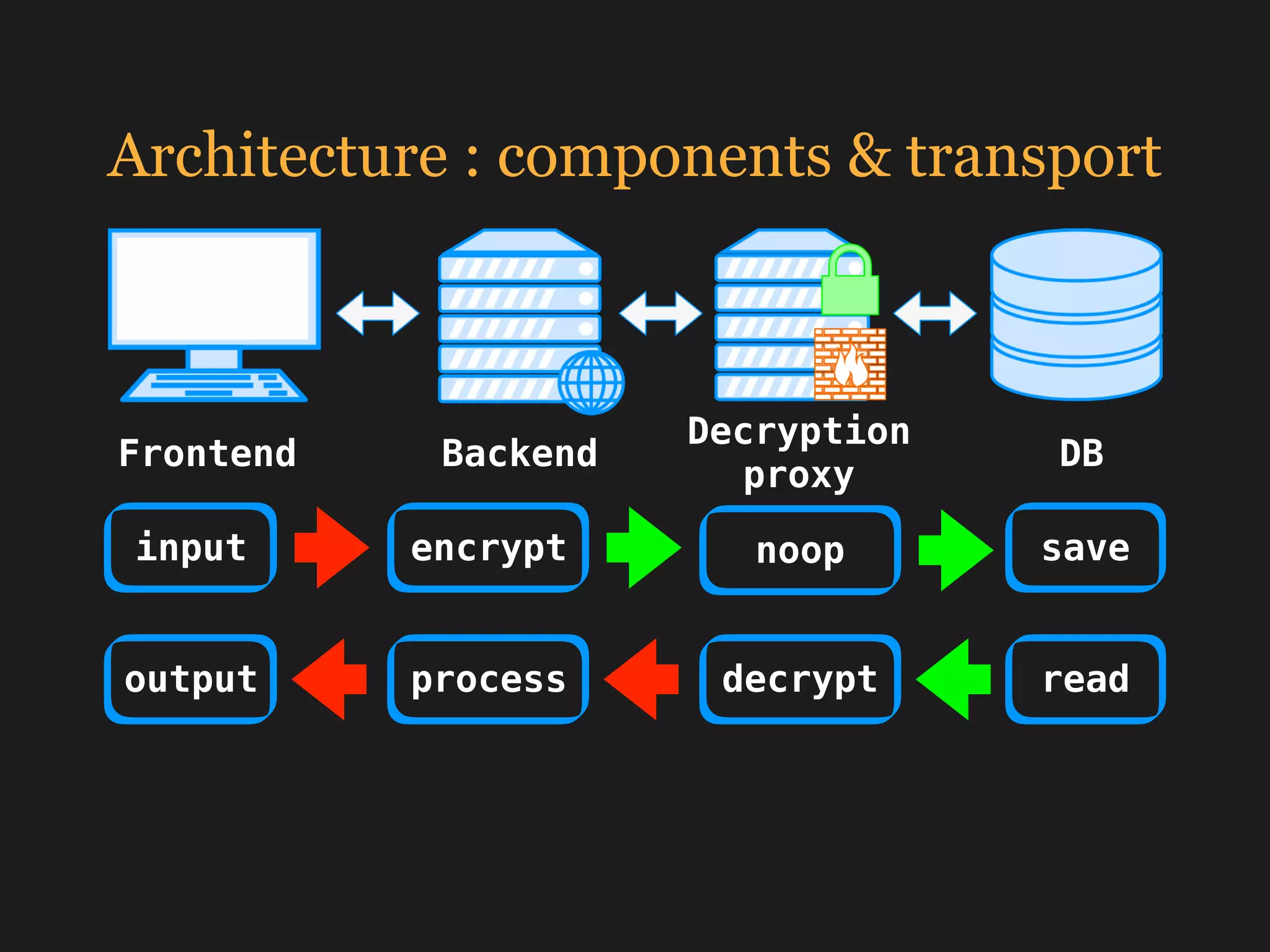

30. Architecture : components & transport
Frontend Backend
Decryption
proxy
DB
input encrypt save
output process decrypt read
noop

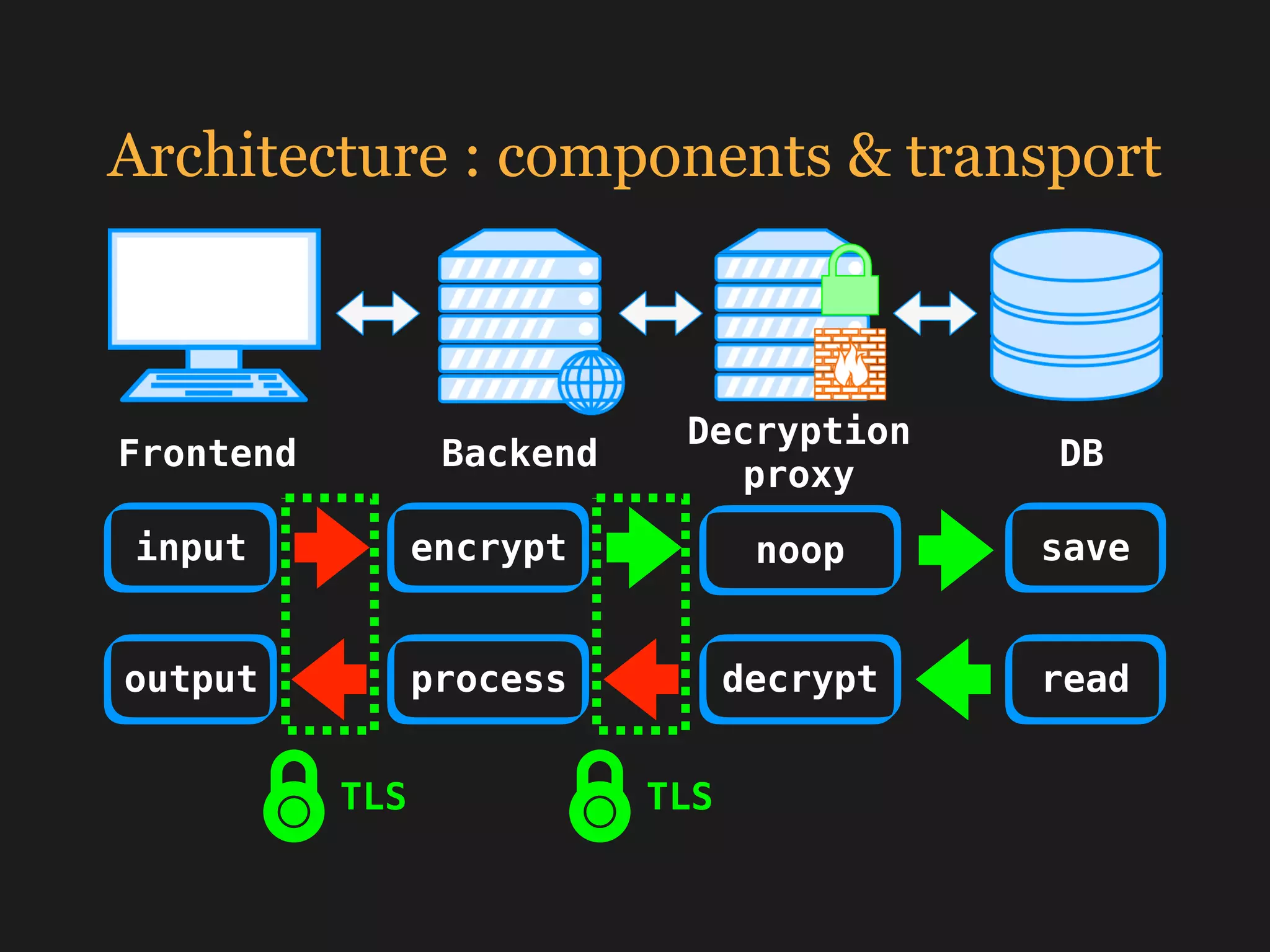

31. Architecture : components & transport
Frontend Backend
Decryption
proxy
DB
input encrypt save
output process decrypt read
noop
TLS TLS

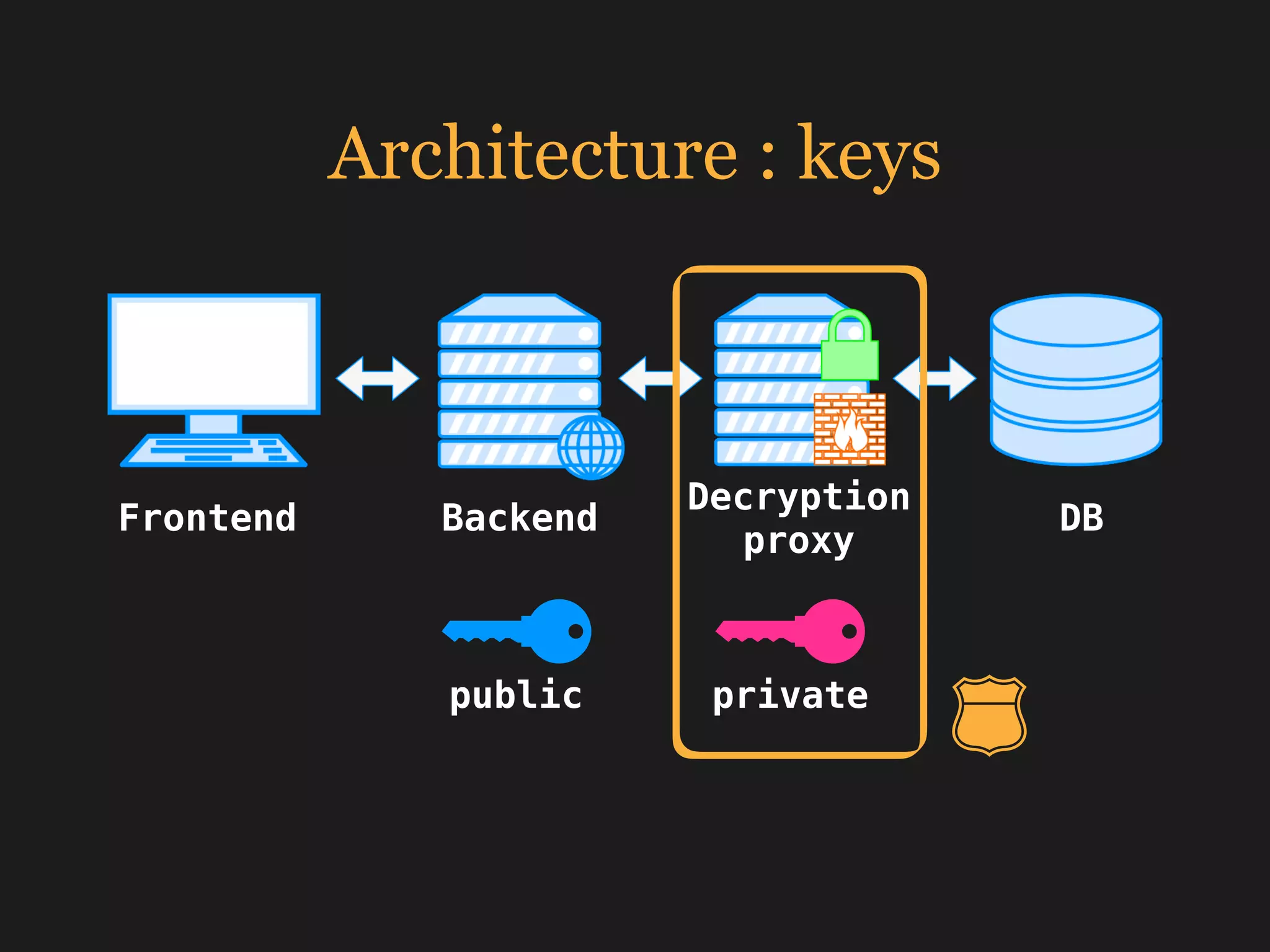

32. Architecture : keys
Frontend Backend
Decryption
proxy
DB
public private

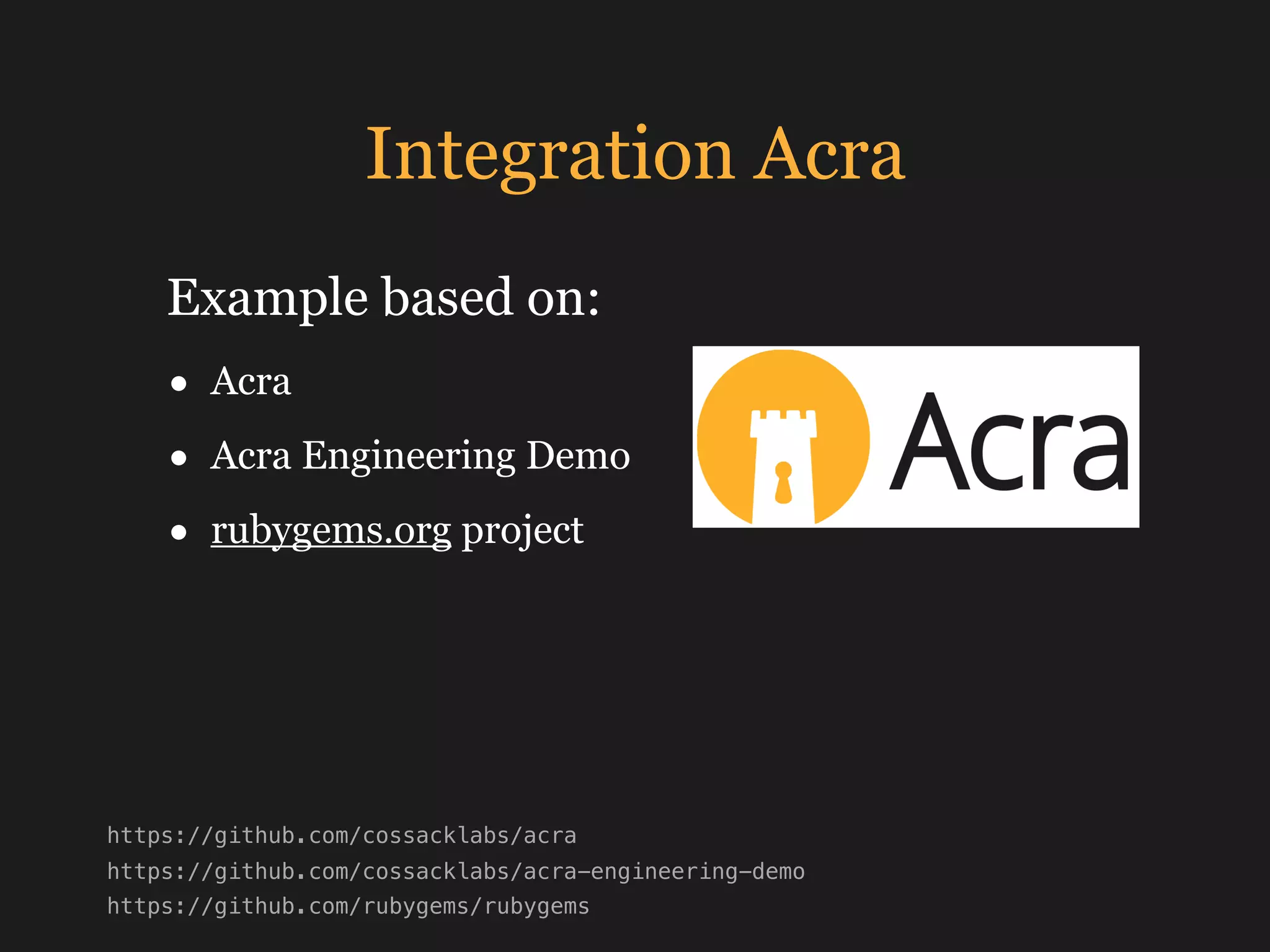

33. Integration Acra
• Acra
• Acra Engineering Demo
• rubygems.org project
Example based on:
https://github.com/rubygems/rubygems
https://github.com/cossacklabs/acra-engineering-demo
https://github.com/cossacklabs/acra

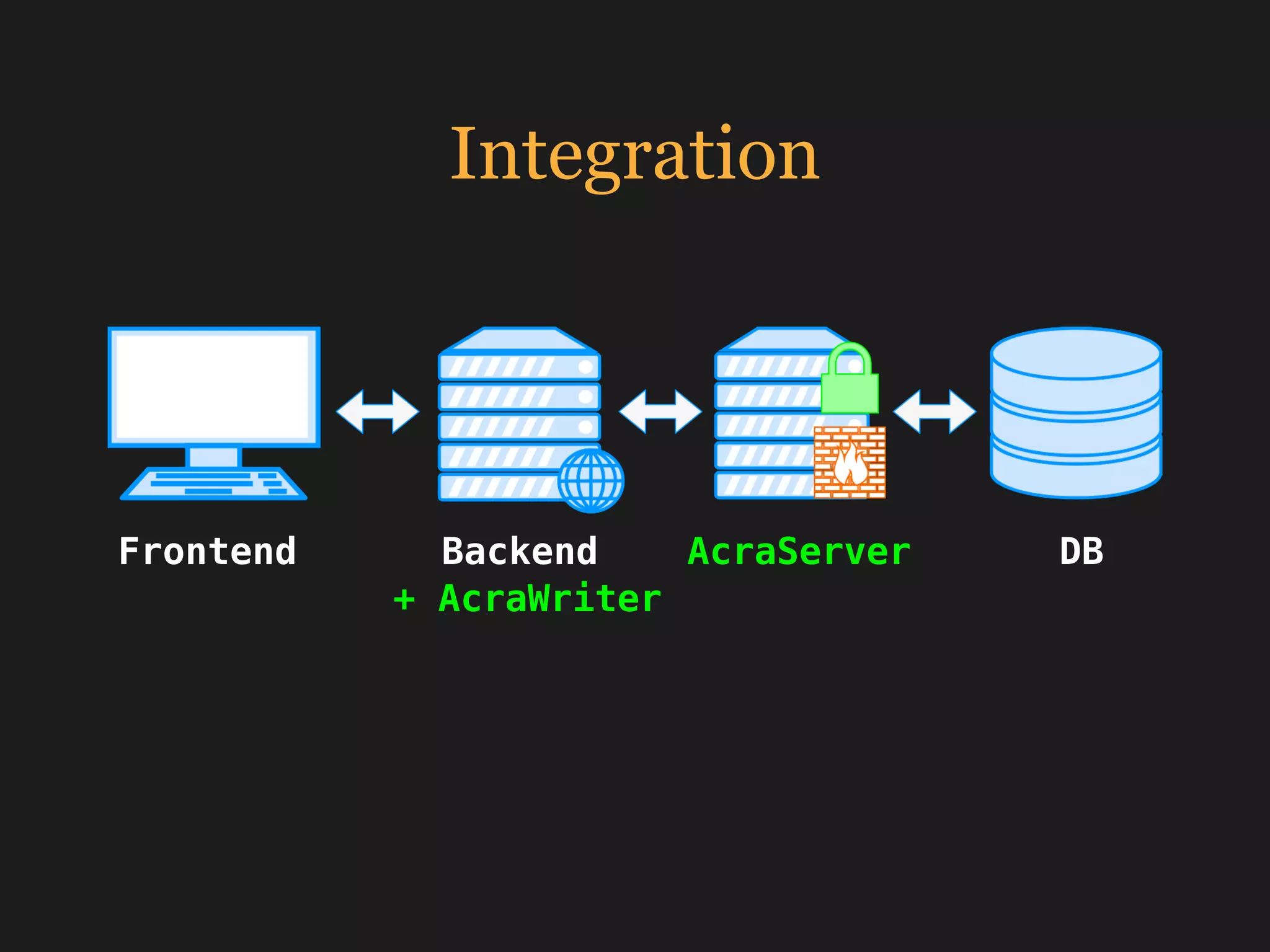

34. Integration
Frontend Backend AcraServer DB
+ AcraWriter

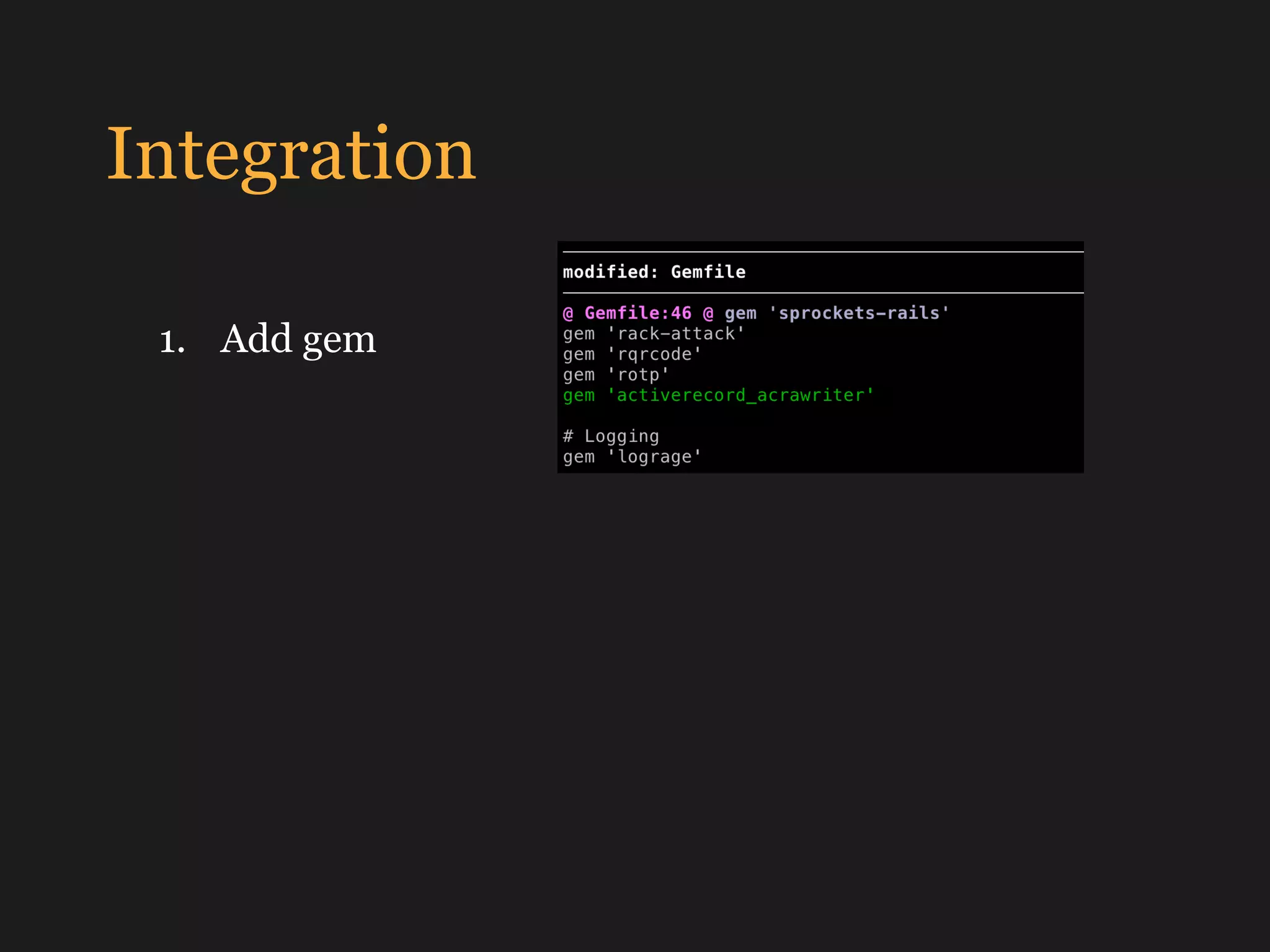

35. Integration
1. Add gem

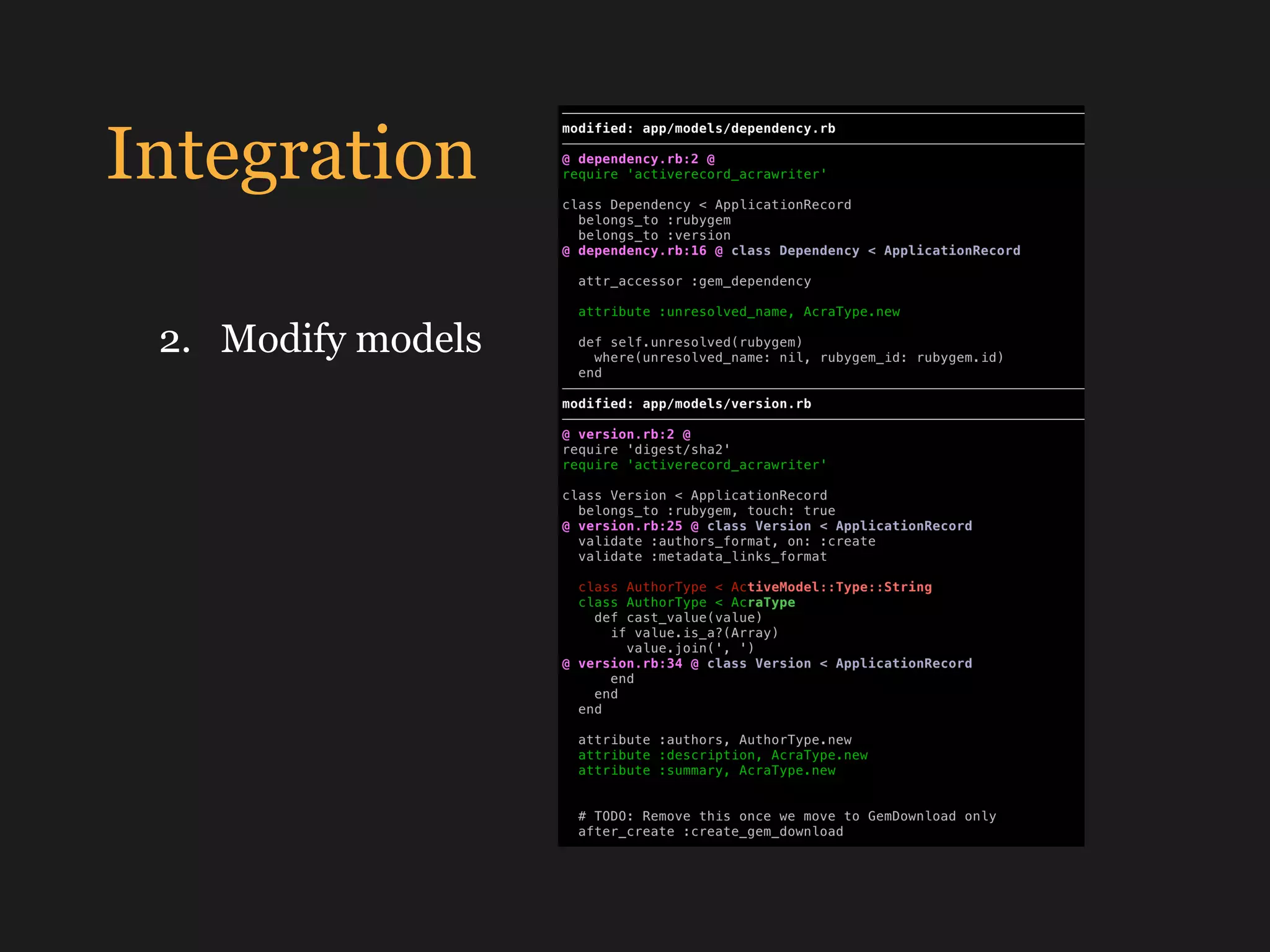

36. Integration
2. Modify models

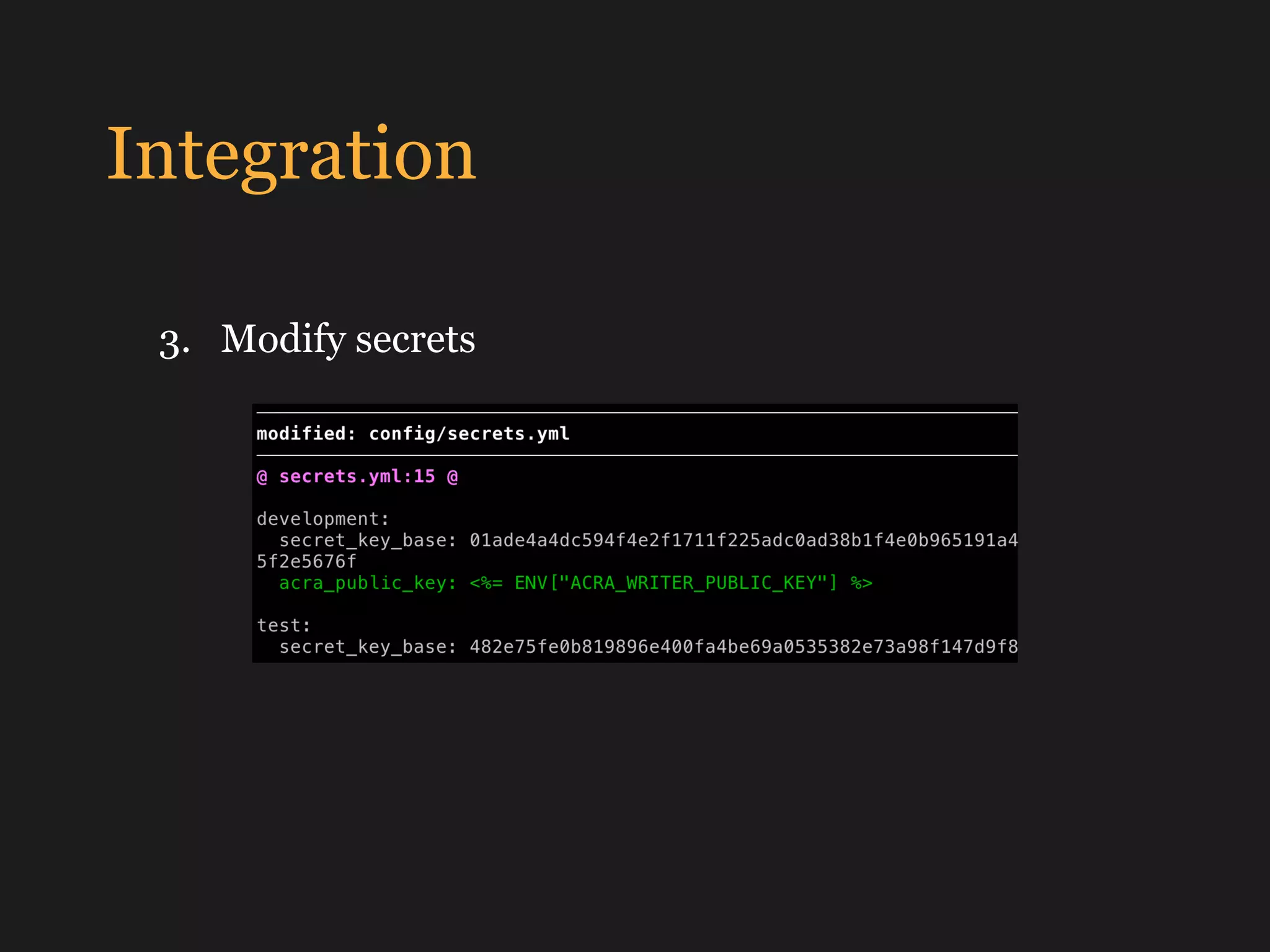

37. Integration
3. Modify secrets

38. Integration
4. Change DB host to AcraServer
5. Convert DB columns to binary

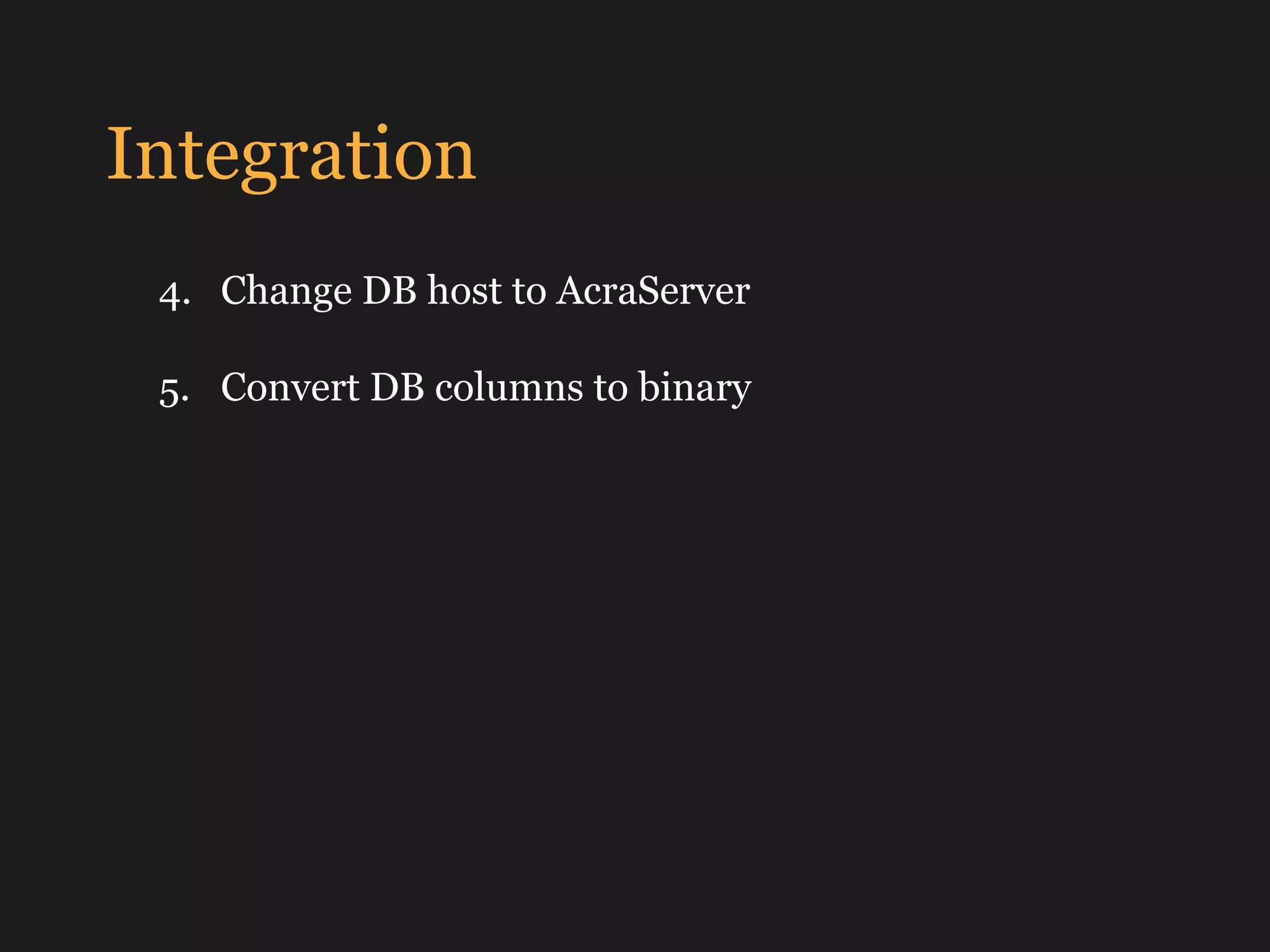

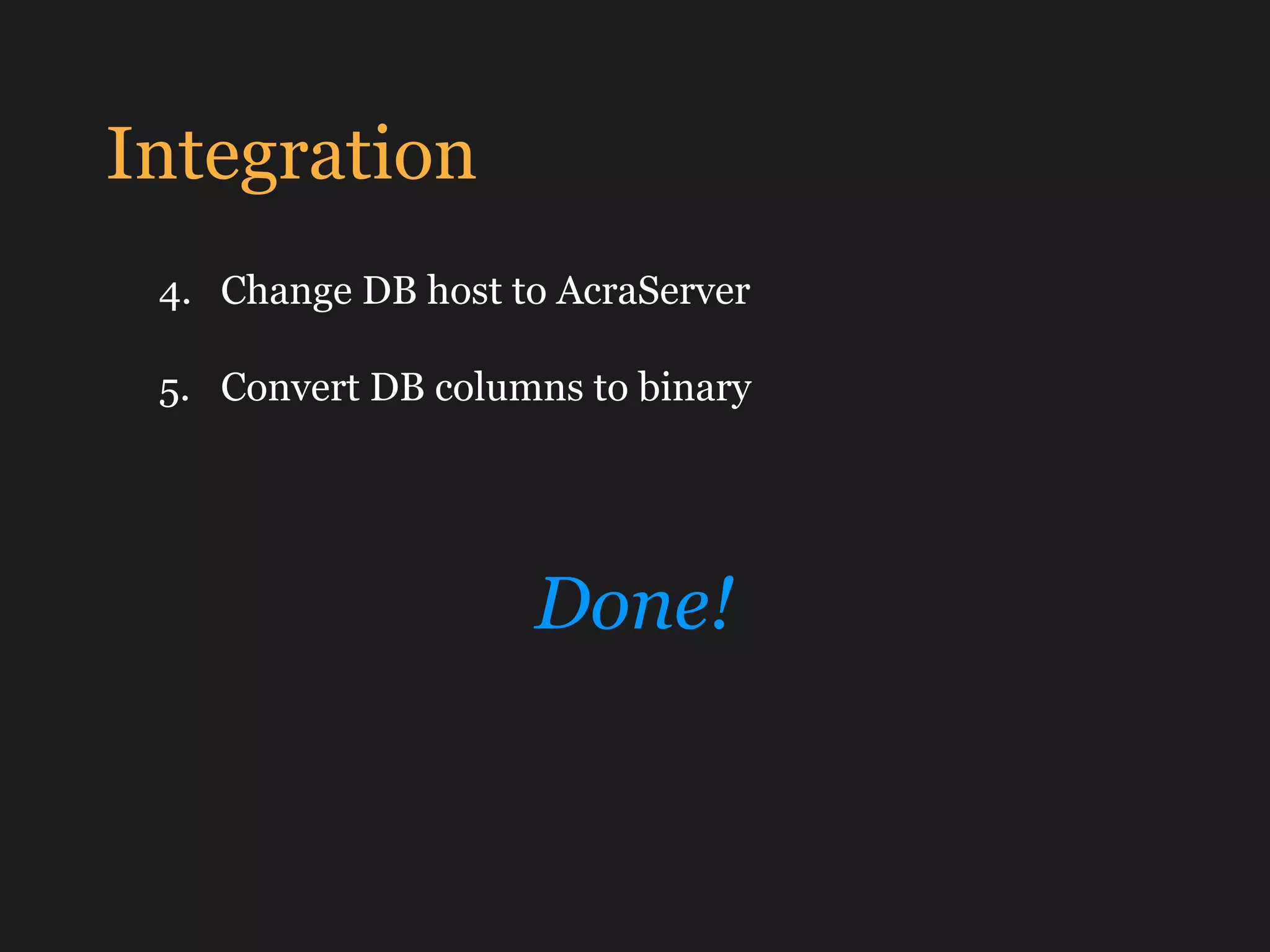

39. Integration
4. Change DB host to AcraServer
5. Convert DB columns to binary
Done!

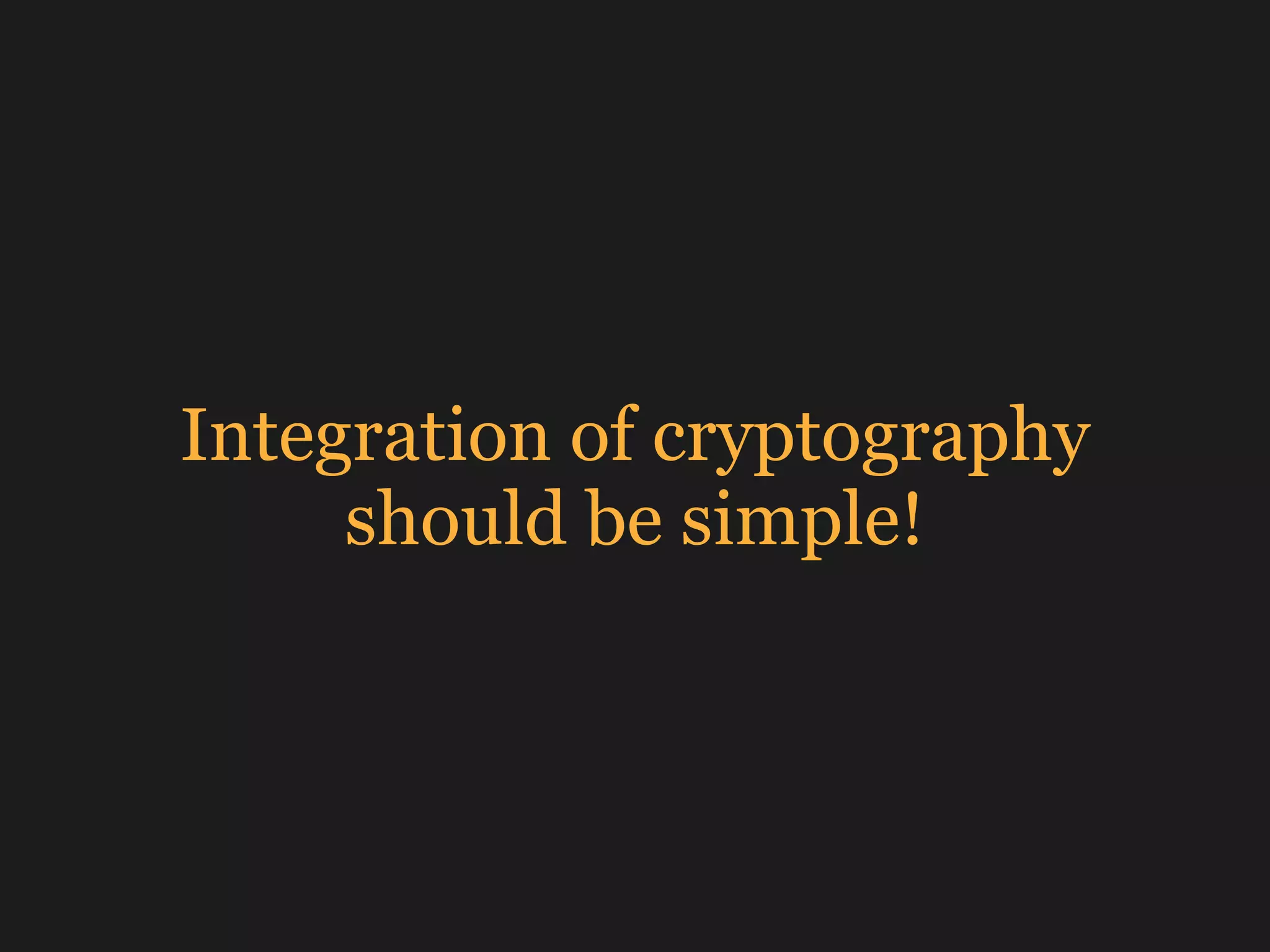

40. Integration of cryptography
should be simple!

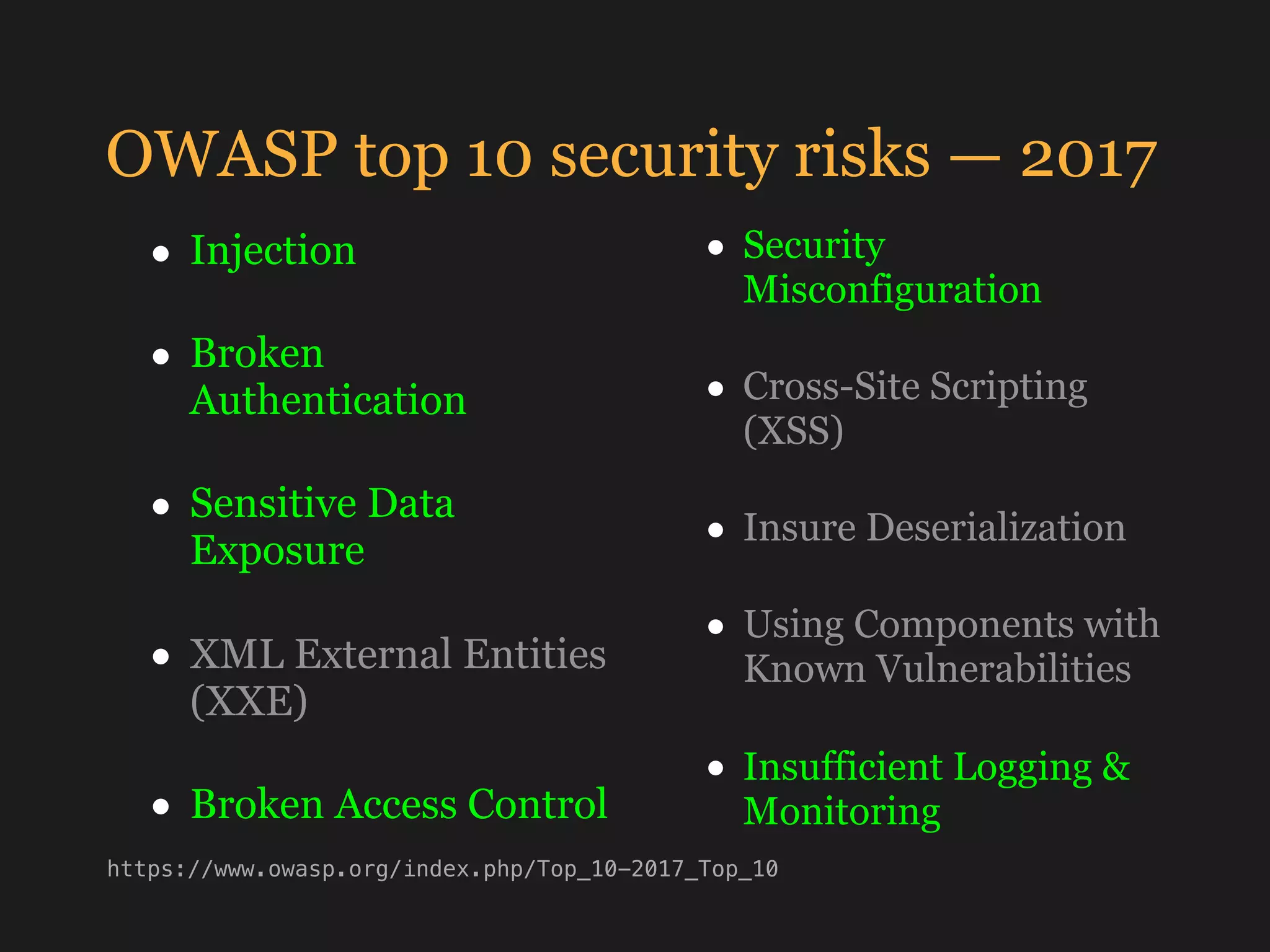

41. OWASP top 10 security risks — 2017
• Security
Misconfiguration
• Cross-Site Scripting
(XSS)
• Insure Deserialization
• Using Components with
Known Vulnerabilities
• Insufficient Logging &
Monitoring
• Injection
• Broken
Authentication
• Sensitive Data
Exposure
• XML External Entities
(XXE)
• Broken Access Control
https://www.owasp.org/index.php/Top_10-2017_Top_10

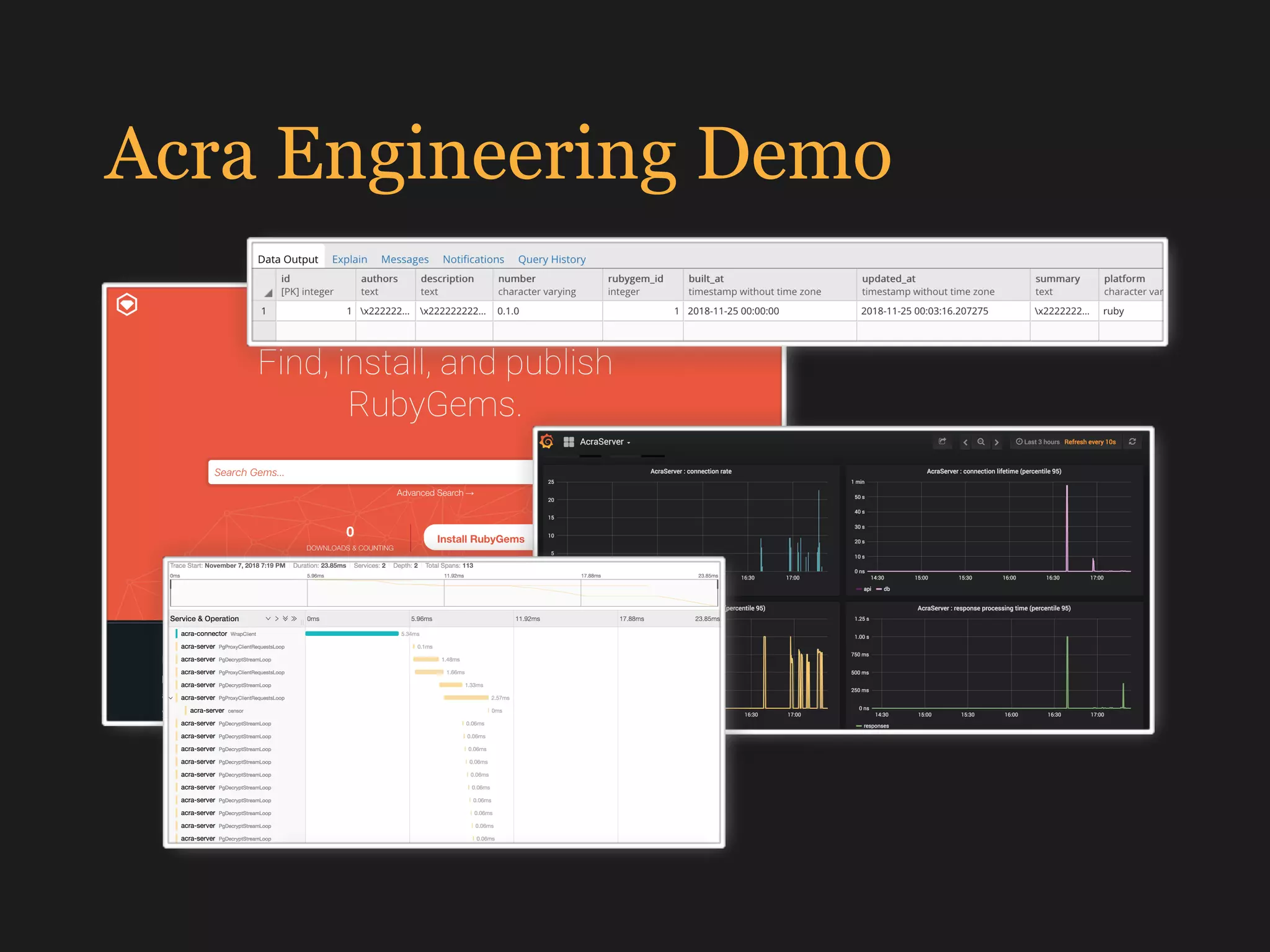

42. Acra Engineering Demo

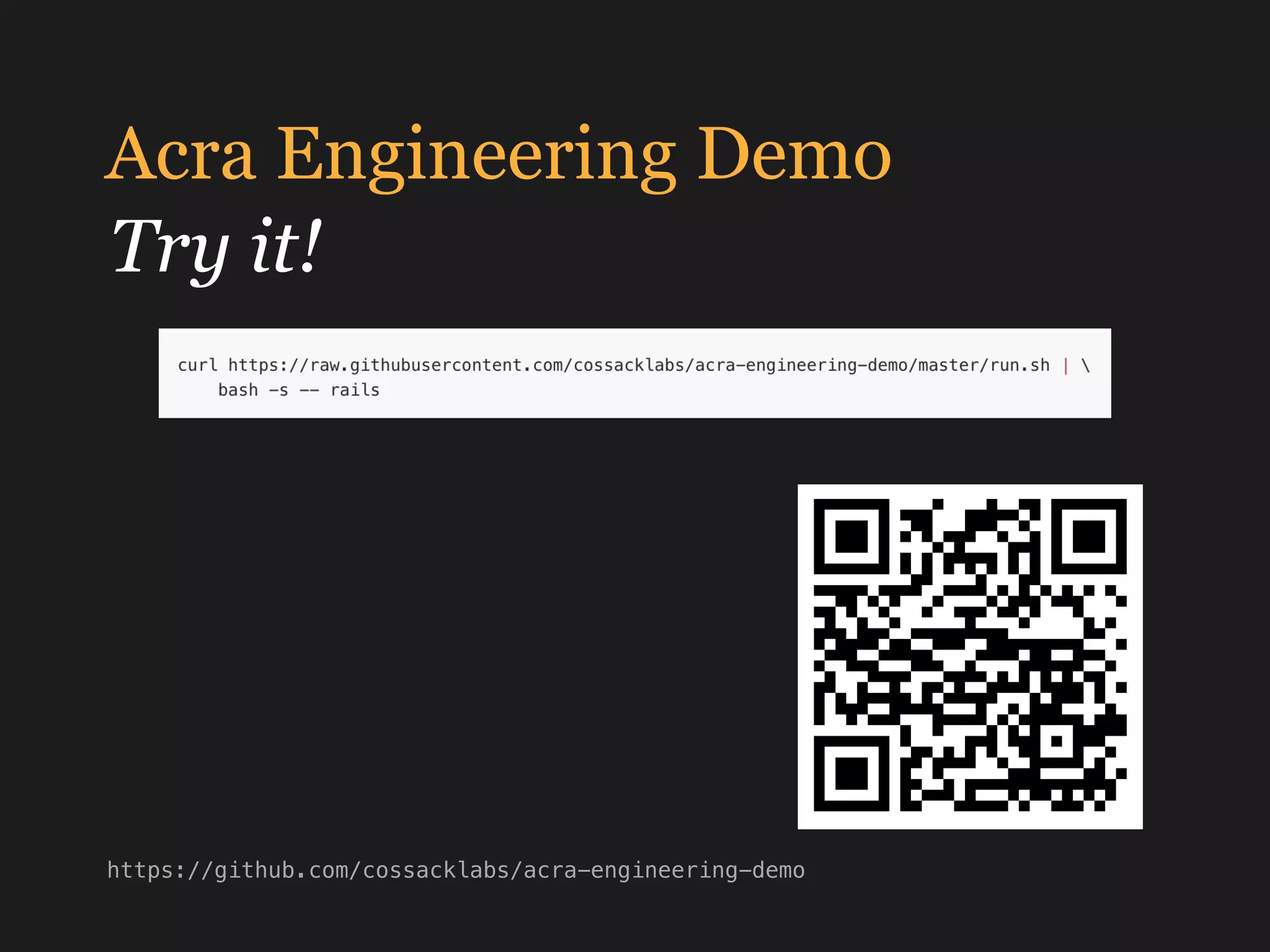

43. Acra Engineering Demo
https://github.com/cossacklabs/acra-engineering-demo
Try it!

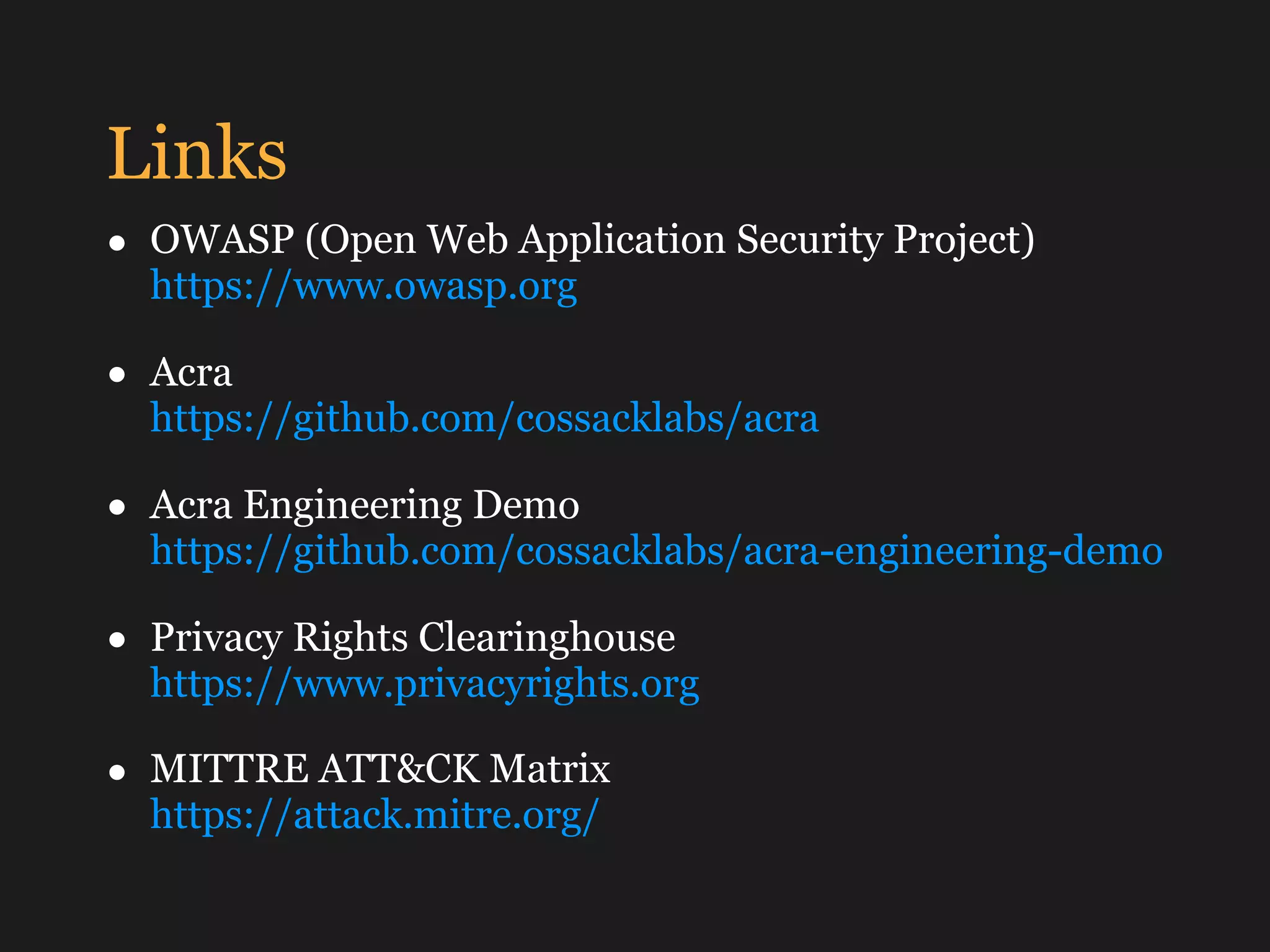

44. Links
• OWASP (Open Web Application Security Project)
https://www.owasp.org
• Acra
https://github.com/cossacklabs/acra
• Acra Engineering Demo
https://github.com/cossacklabs/acra-engineering-demo
• Privacy Rights Clearinghouse
https://www.privacyrights.org
• MITTRE ATT&CK Matrix
https://attack.mitre.org/

45. Dmytro Shapovalov
Infrastructure Engineer @ Cossack Labs
Thank you!
shadinua
shad.in.ua
shad.in.ua
