1. From The If Jungle to A
Civilised Railway Station
By Botond Orban

2. About Me
Botond Orban Enthusiast IT Guy, Architect
Enthusiastic about Ruby
https://github.com/orbanbotond
@orbanbotond

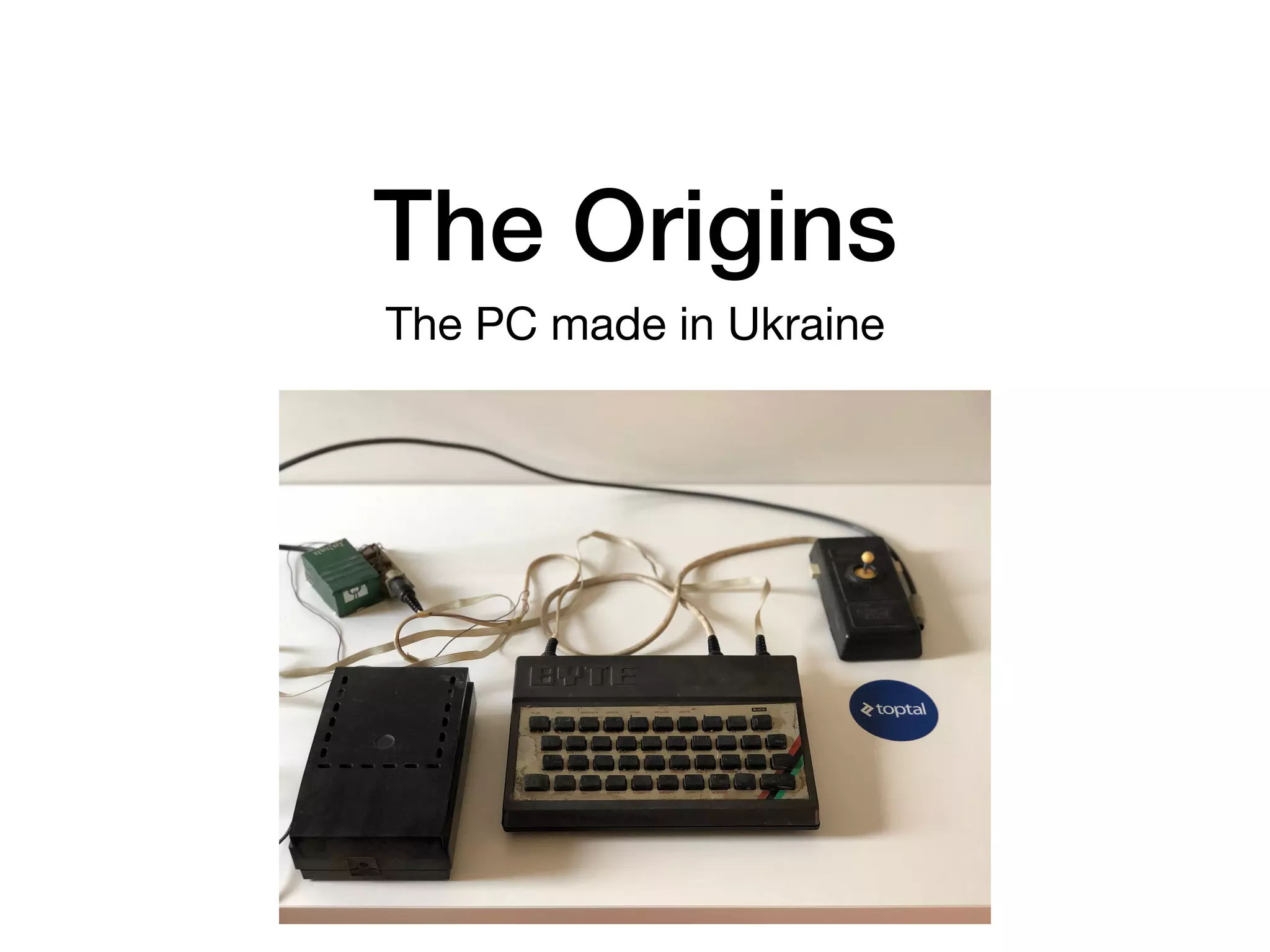

3. The Origins
The PC made in Ukraine

4. Code can be written
in a better way!

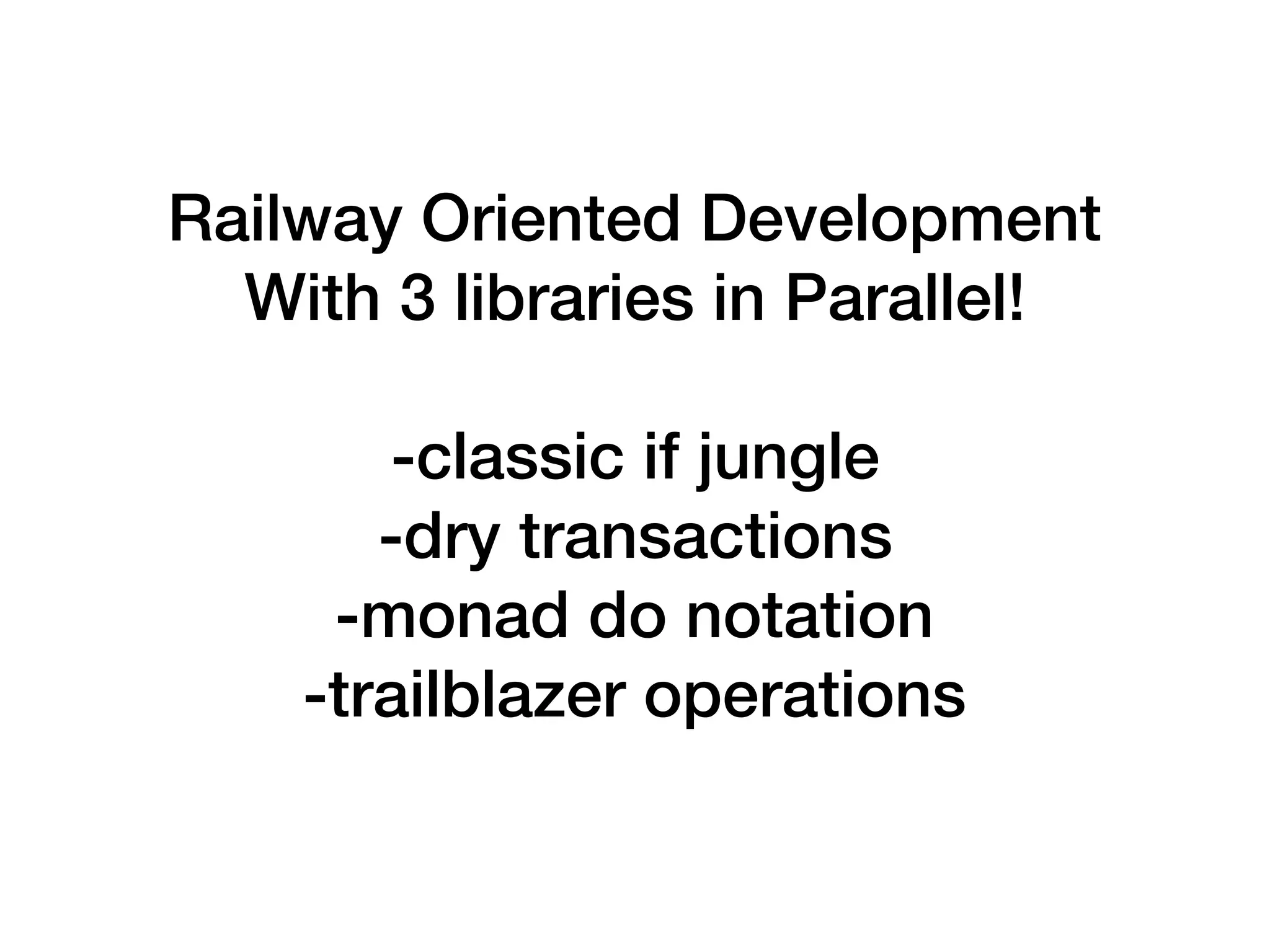

5. Railway Oriented Development
With 3 libraries in Parallel!
-classic if jungle
-dry transactions
-monad do notation
-trailblazer operations

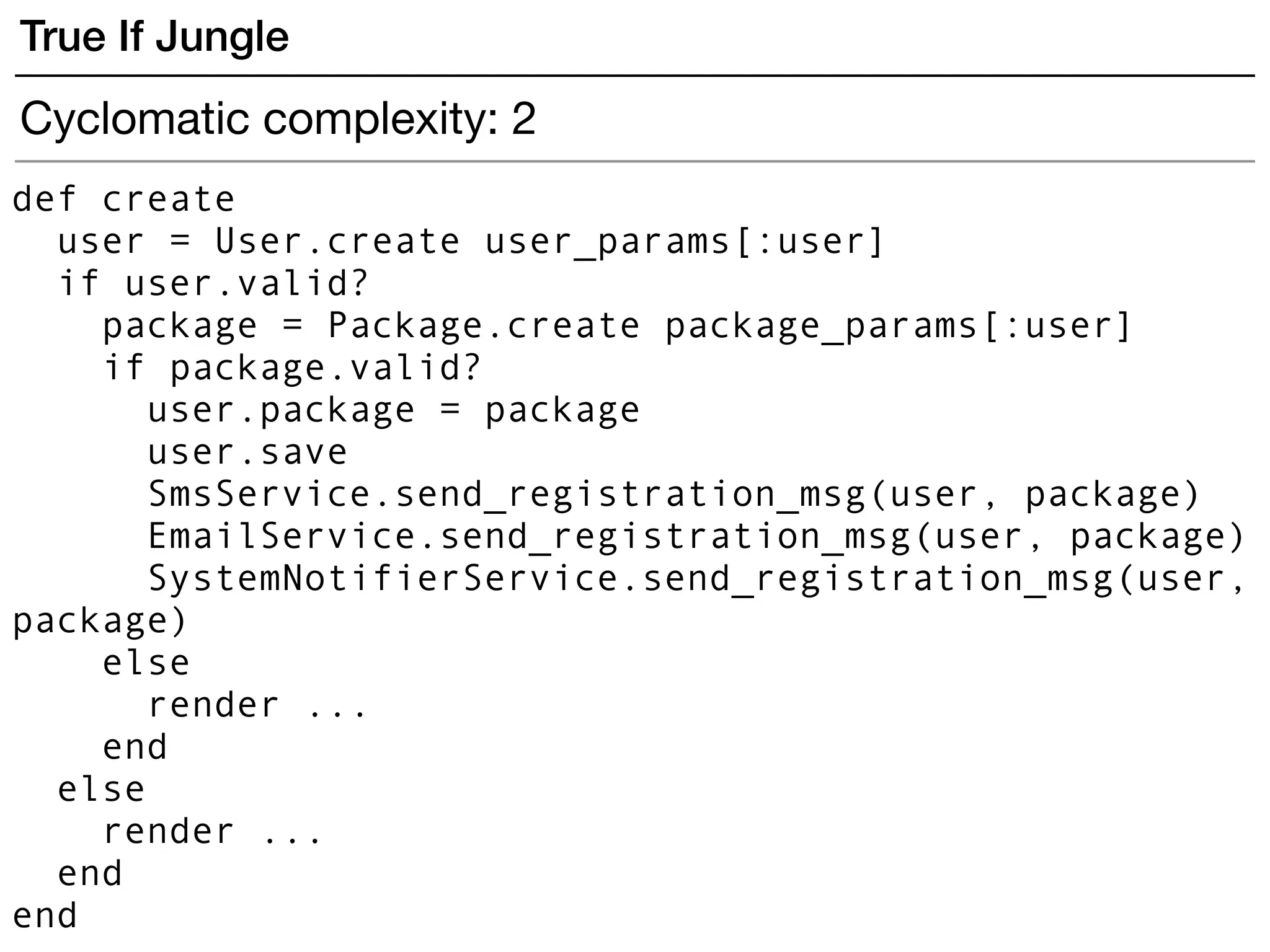

6. def create
user = User.create user_params[:user]
if user.valid?
package = Package.create package_params[:user]
if package.valid?
user.package = package
user.save
SmsService.send_registration_msg(user, package)
EmailService.send_registration_msg(user, package)
SystemNotifierService.send_registration_msg(user,
package)
else
render ...
end
else
render ...
end
end
True If Jungle
Cyclomatic complexity: 2

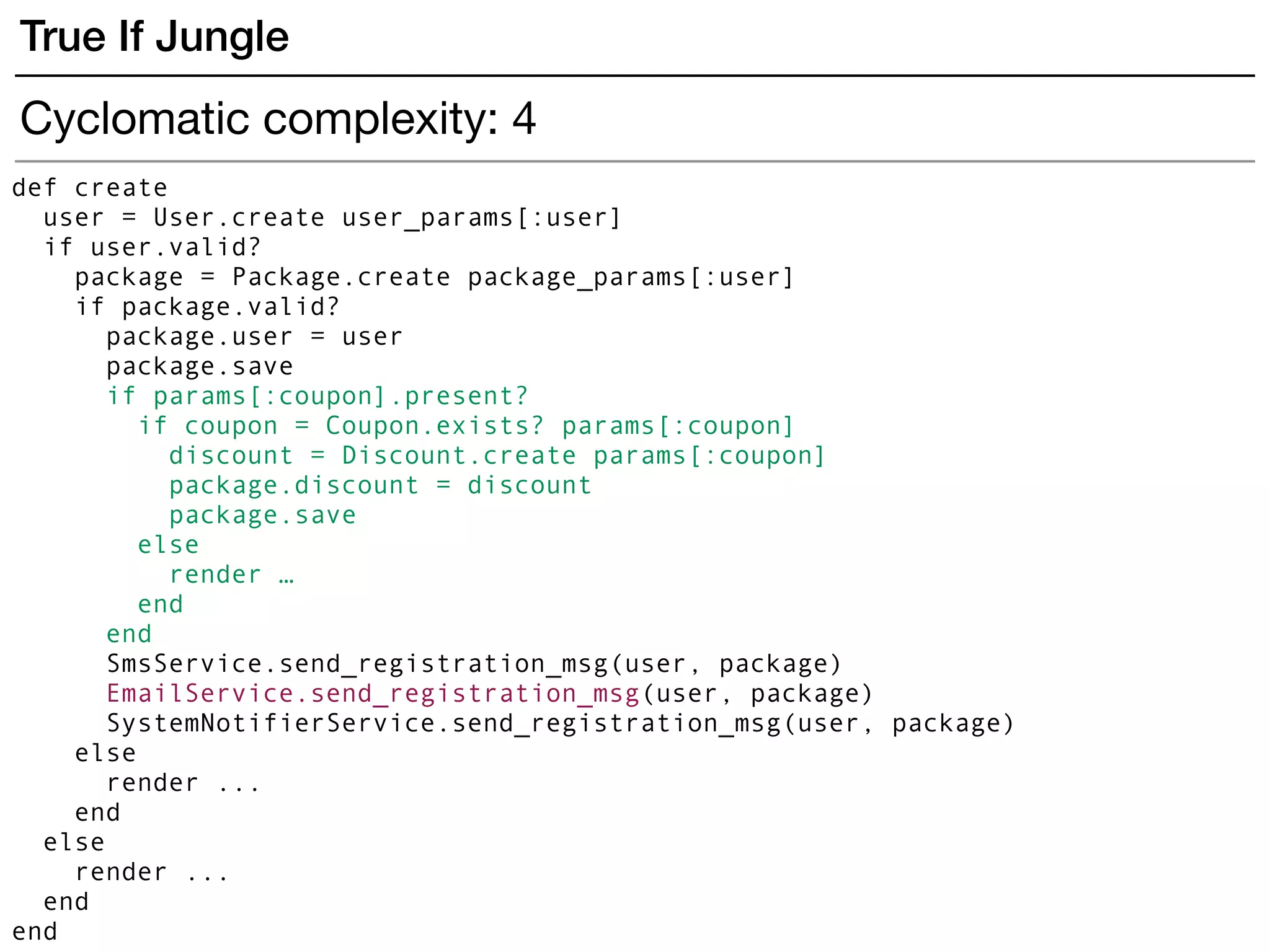

7. def create
user = User.create user_params[:user]
if user.valid?
package = Package.create package_params[:user]
if package.valid?
package.user = user
package.save
if params[:coupon].present?
if coupon = Coupon.exists? params[:coupon]
discount = Discount.create params[:coupon]
package.discount = discount
package.save
else
render …
end
end
SmsService.send_registration_msg(user, package)
EmailService.send_registration_msg(user, package)
SystemNotifierService.send_registration_msg(user, package)
else
render ...
end
else
render ...
end
end
True If Jungle
Cyclomatic complexity: 4

8. True If Jungle
def create
user = User.create user_params[:user]
if user.valid?
package = Package.create package_params[:user]
if package.valid?
package.user = user
package.save
if params[:coupon].present?
if Coupon.exists? params[:coupon]
discount = Discount.create params[:coupon]
if discount.allowsUser? user
package.discount = discount
package.save
else
render ...
end
else
render ...
end
end
SmsService.send_registration_msg(user, package)
EmailService.send_registration_msg(user, package)
SystemNotifierService.send_registration_msg(user, package)
else
render ...
end
else
render ...
end
end
Cyclomatic complexity: 5

9. Example 1
f(x) = ax+b

10. No Library
If Jungle

11. If Jungle Implementation
Specs:
f(a,b) = a+b, a is infinite
context 'add' do
subject { add.call params: params }
context 'negative cases' do
context 'params infinite' do
let(:params) { [(1.0/0.0), 2] }
specify 'Be a failure with a proper error
message' do
expect(subject[:validation]).to eq 'must
be a real number'
end
end
end

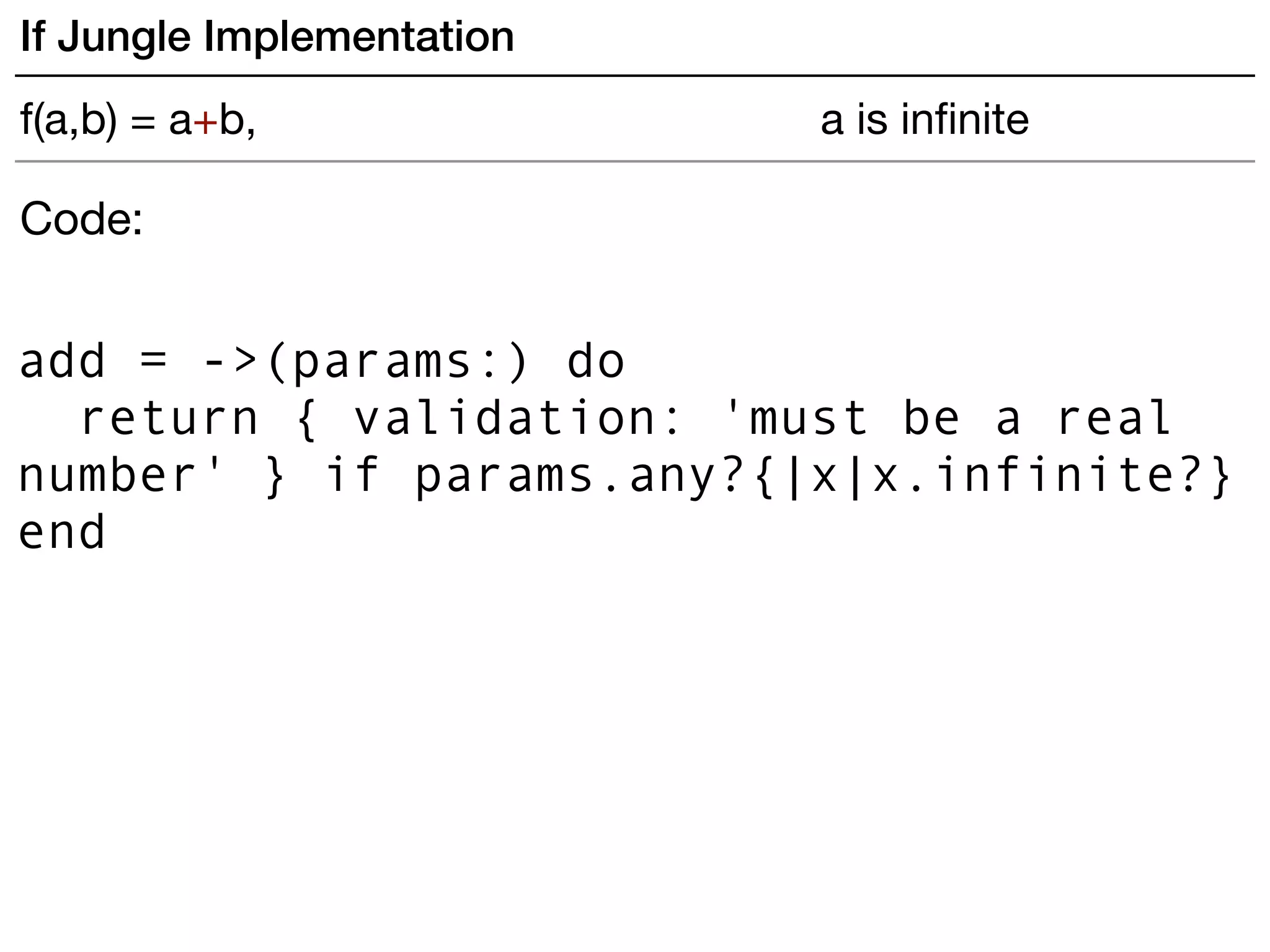

12. add = ->(params:) do
return { validation: 'must be a real
number' } if params.any?{|x|x.infinite?}
end
Code:
If Jungle Implementation
f(a,b) = a+b, a is infinite

13. Specs:
context 'add' do
subject { add.call params: params }
let(:params) { [2,3,4] }
context 'negative cases' do …
context 'positive cases' do
specify 'Be a success with the proper correct
output' do
expect(subject[:operation_result]).to
eq(params.reduce(0) { |acc, x| acc + x })
end
end
end
If Jungle Implementation
f(a,b) = a+b,

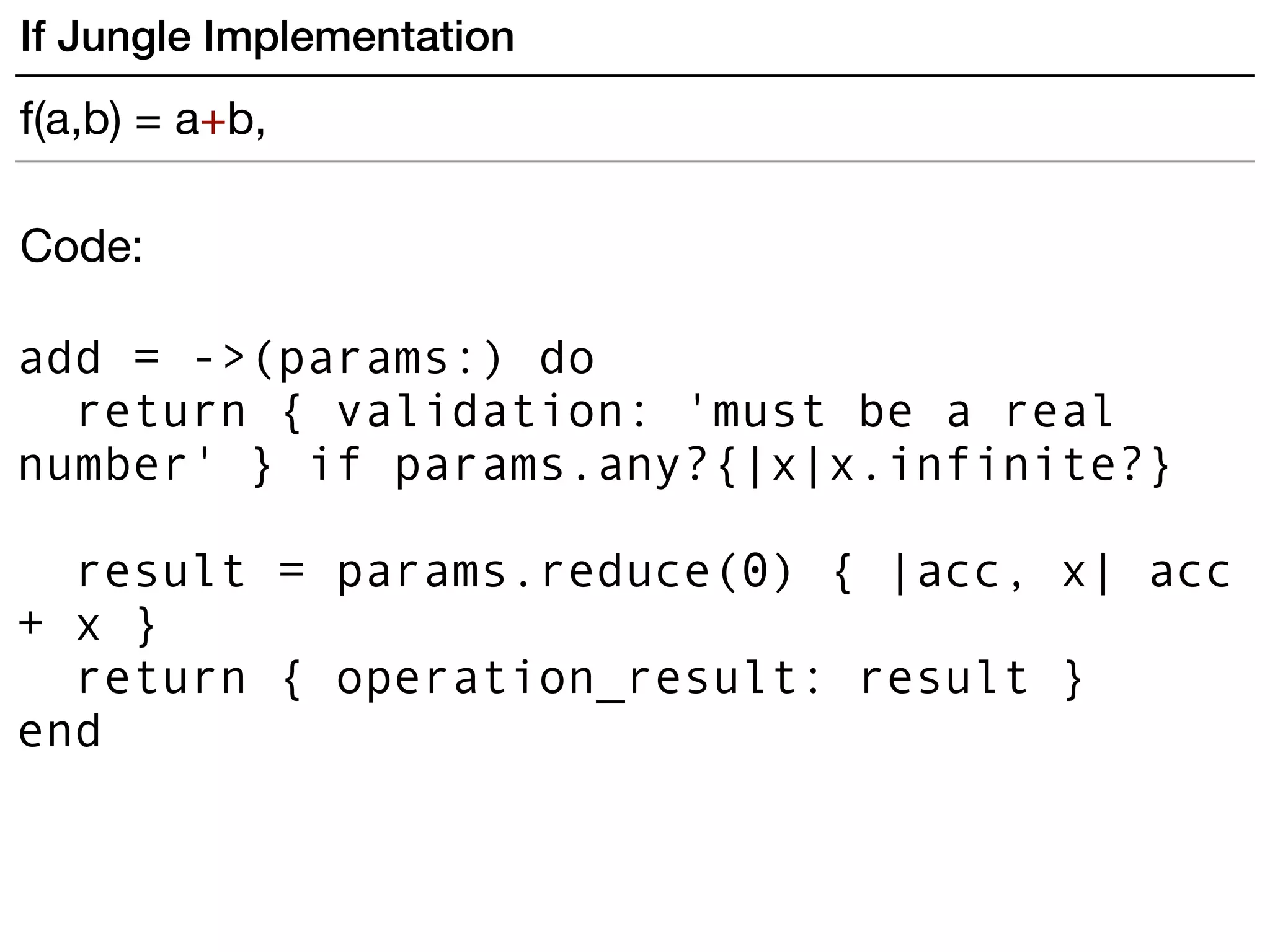

14. Code:
add = ->(params:) do
return { validation: 'must be a real
number' } if params.any?{|x|x.infinite?}
result = params.reduce(0) { |acc, x| acc
+ x }
return { operation_result: result }
end
If Jungle Implementation
f(a,b) = a+b,

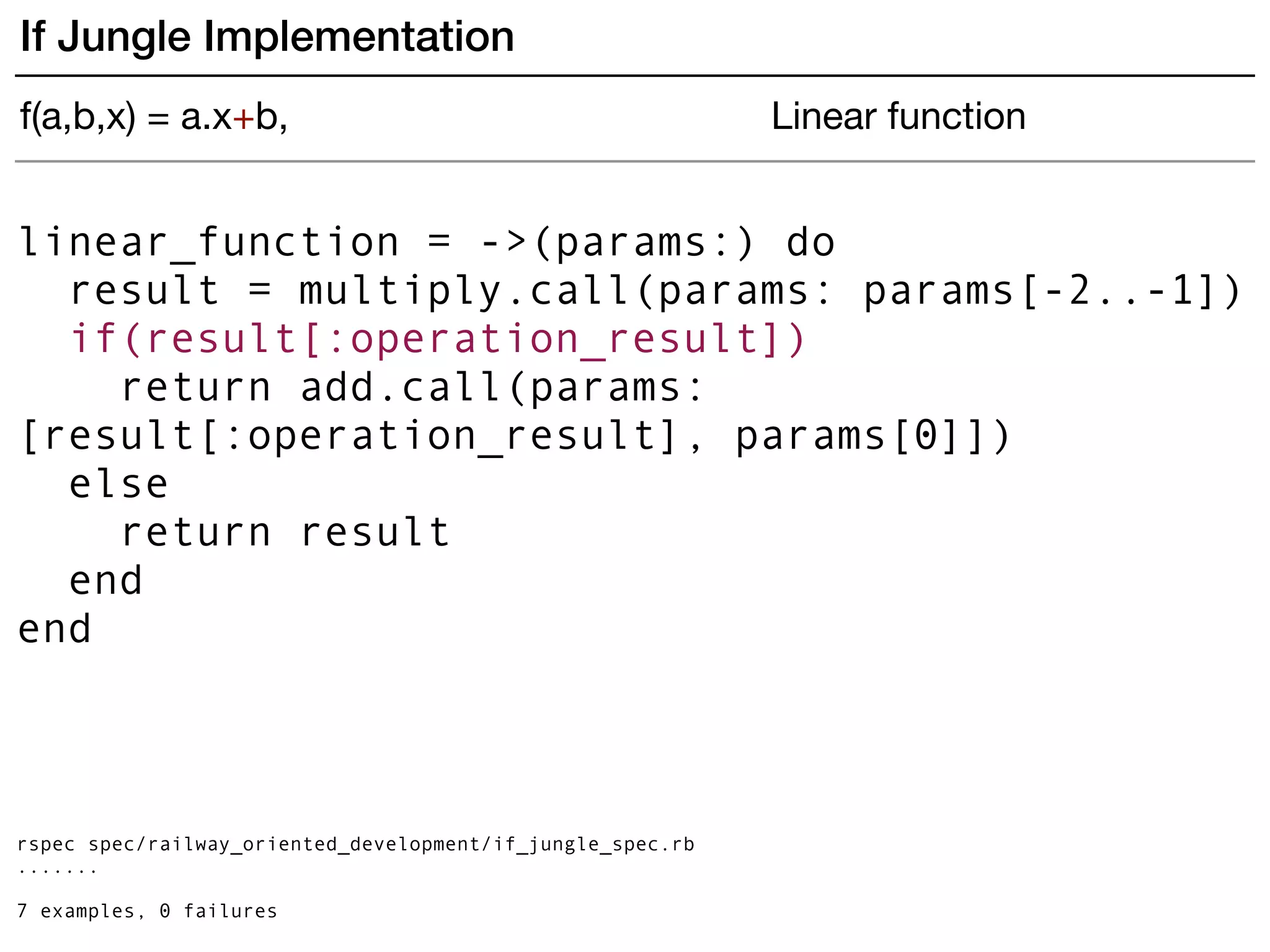

15. linear_function = ->(params:) do
result = multiply.call(params: params[-2..-1])
if(result[:operation_result])
return add.call(params:
[result[:operation_result], params[0]])
else
return result
end
end
rspec spec/railway_oriented_development/if_jungle_spec.rb
.......
7 examples, 0 failures
If Jungle Implementation
f(a,b,x) = a.x+b, Linear function

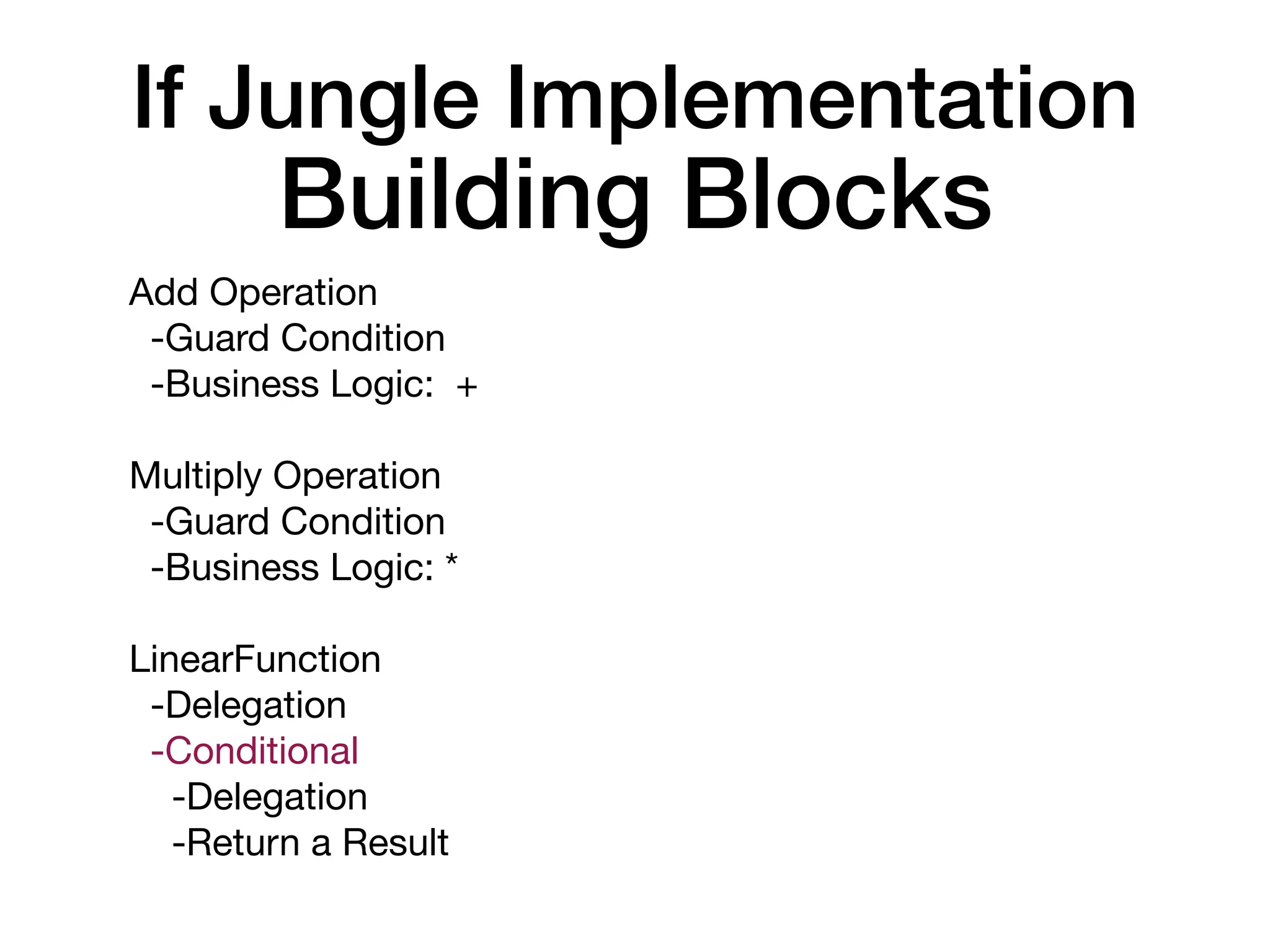

16. Building Blocks
Add Operation
-Guard Condition
-Business Logic: +
Multiply Operation
-Guard Condition
-Business Logic: *
LinearFunction
-Delegation
-Conditional
-Delegation
-Return a Result
If Jungle Implementation

17. 1st library
Dry Transactions

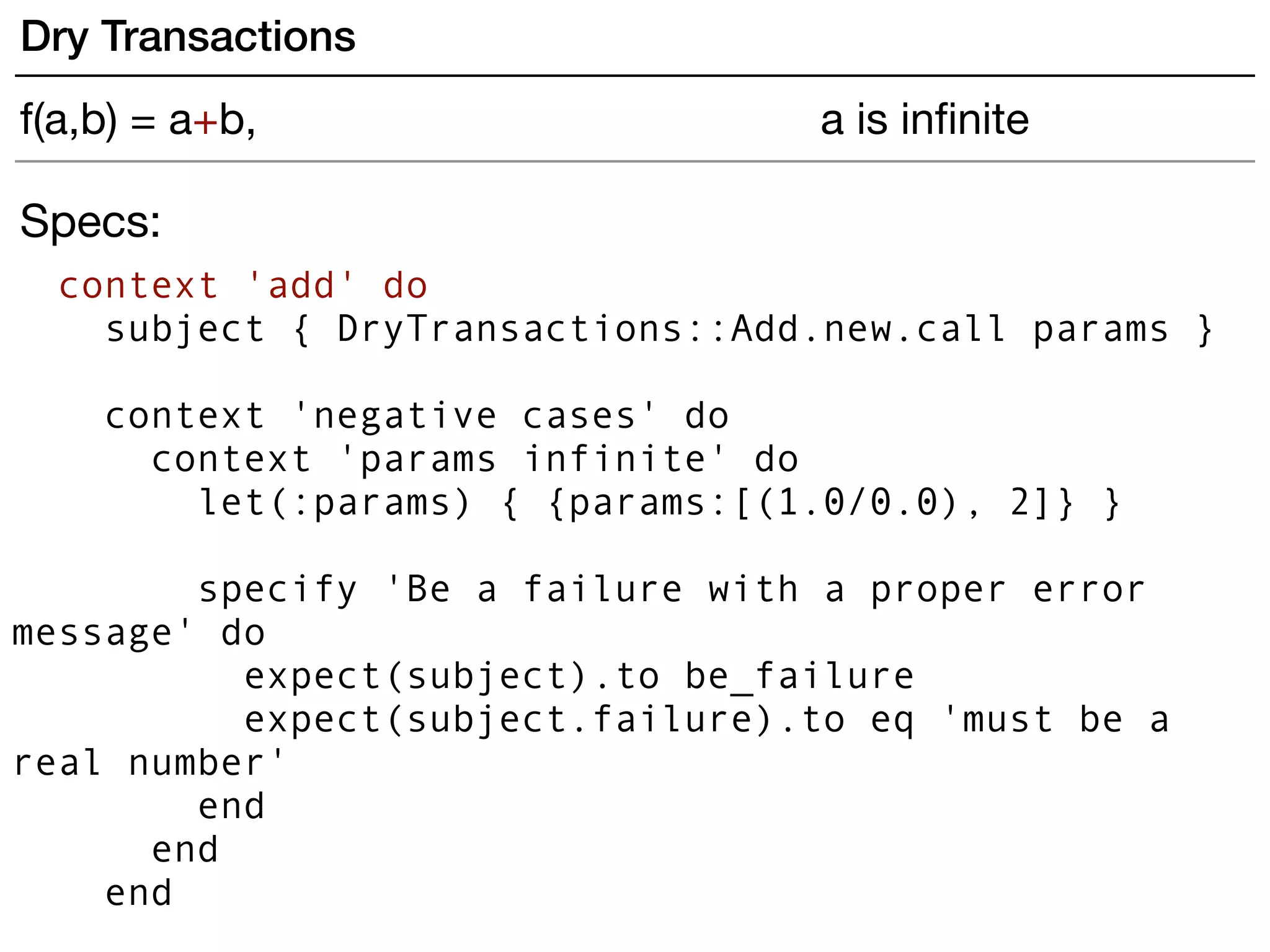

18. Specs:
context 'add' do
subject { DryTransactions::Add.new.call params }
context 'negative cases' do
context 'params infinite' do
let(:params) { {params:[(1.0/0.0), 2]} }
specify 'Be a failure with a proper error
message' do
expect(subject).to be_failure
expect(subject.failure).to eq 'must be a
real number'
end
end
end
Dry Transactions
f(a,b) = a+b, a is infinite

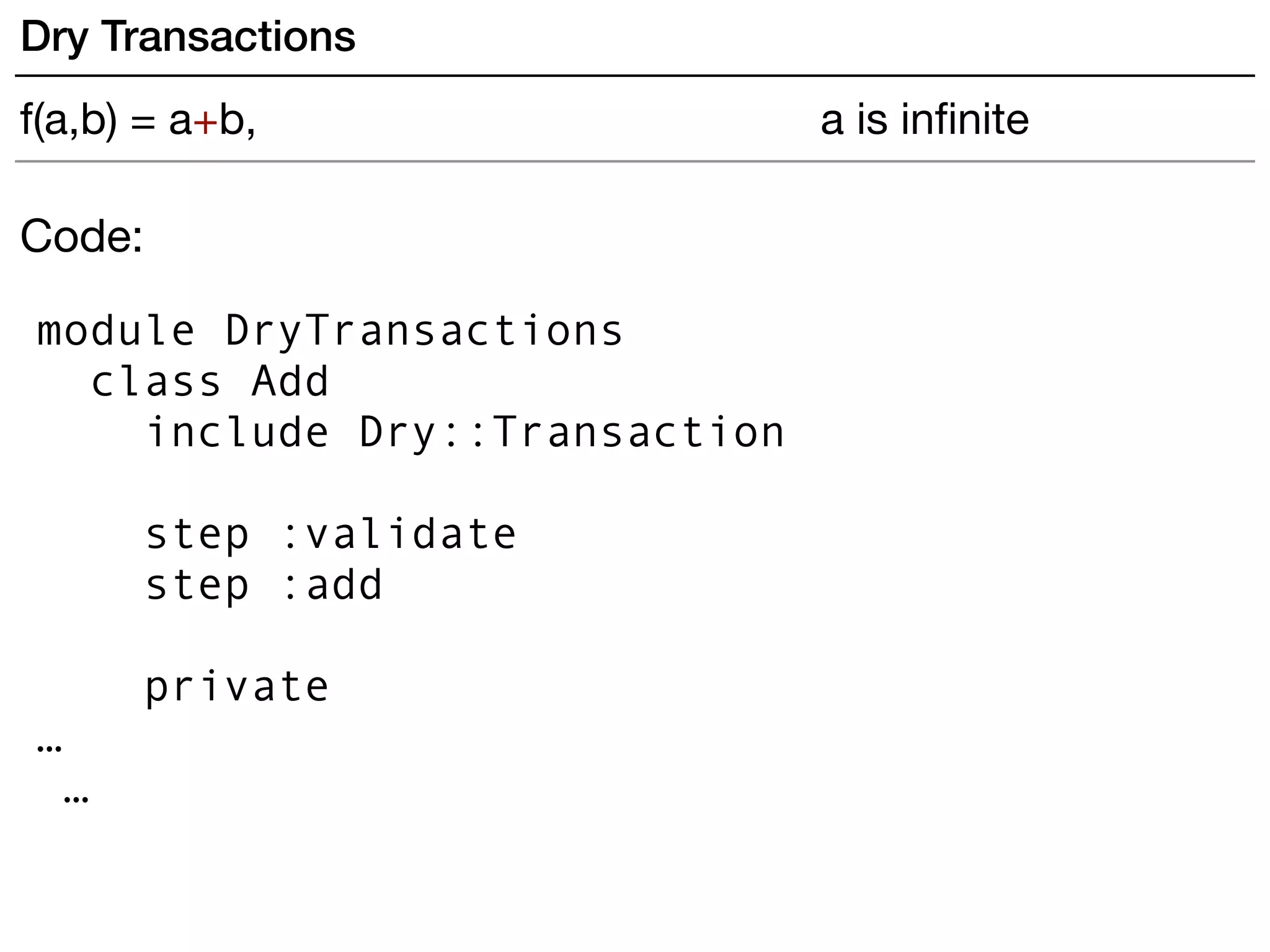

19. Code:
module DryTransactions
class Add
include Dry::Transaction
step :validate
step :add
private
…
…
Dry Transactions
f(a,b) = a+b, a is infinite

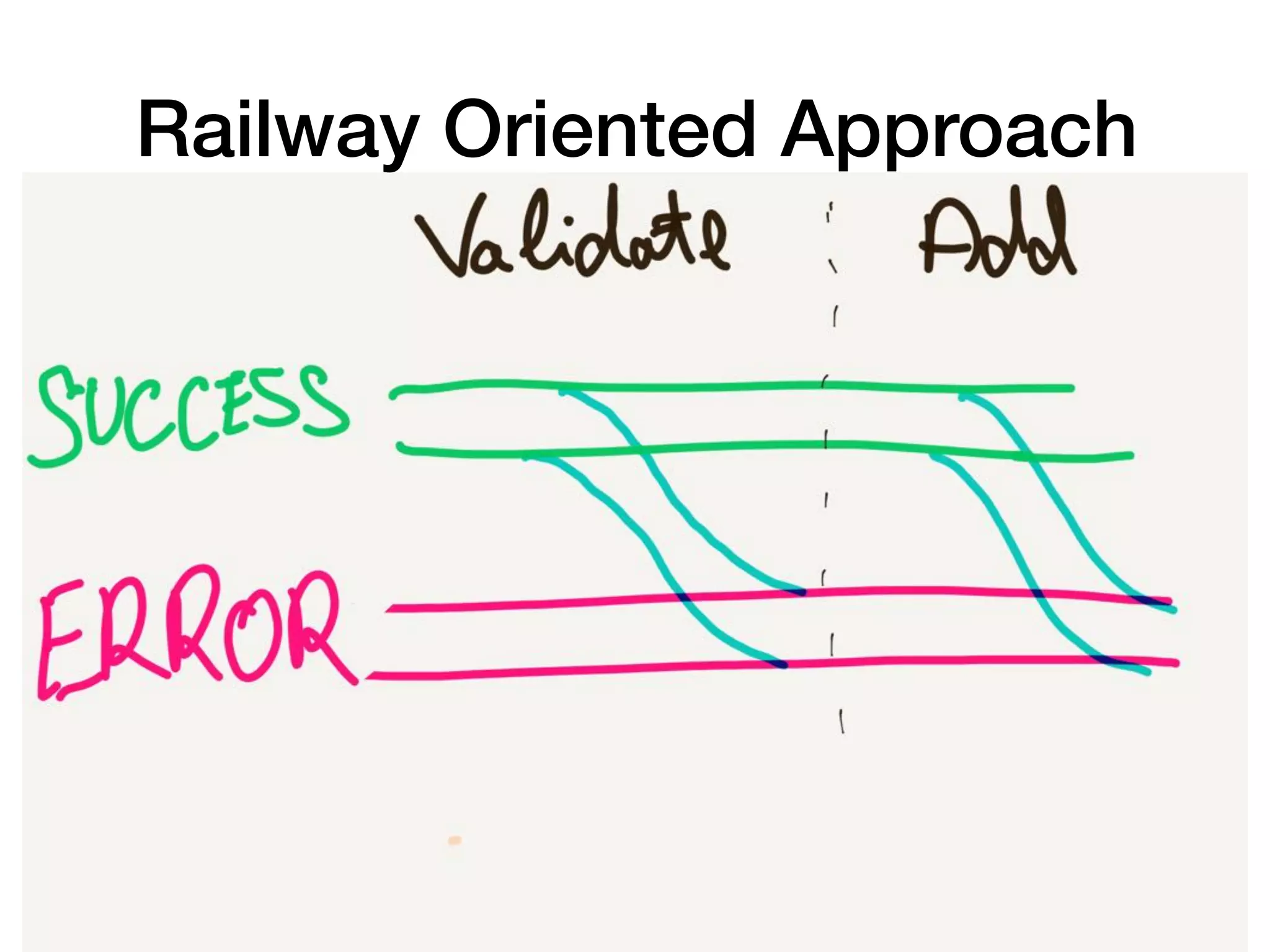

20. Railway Oriented Approach

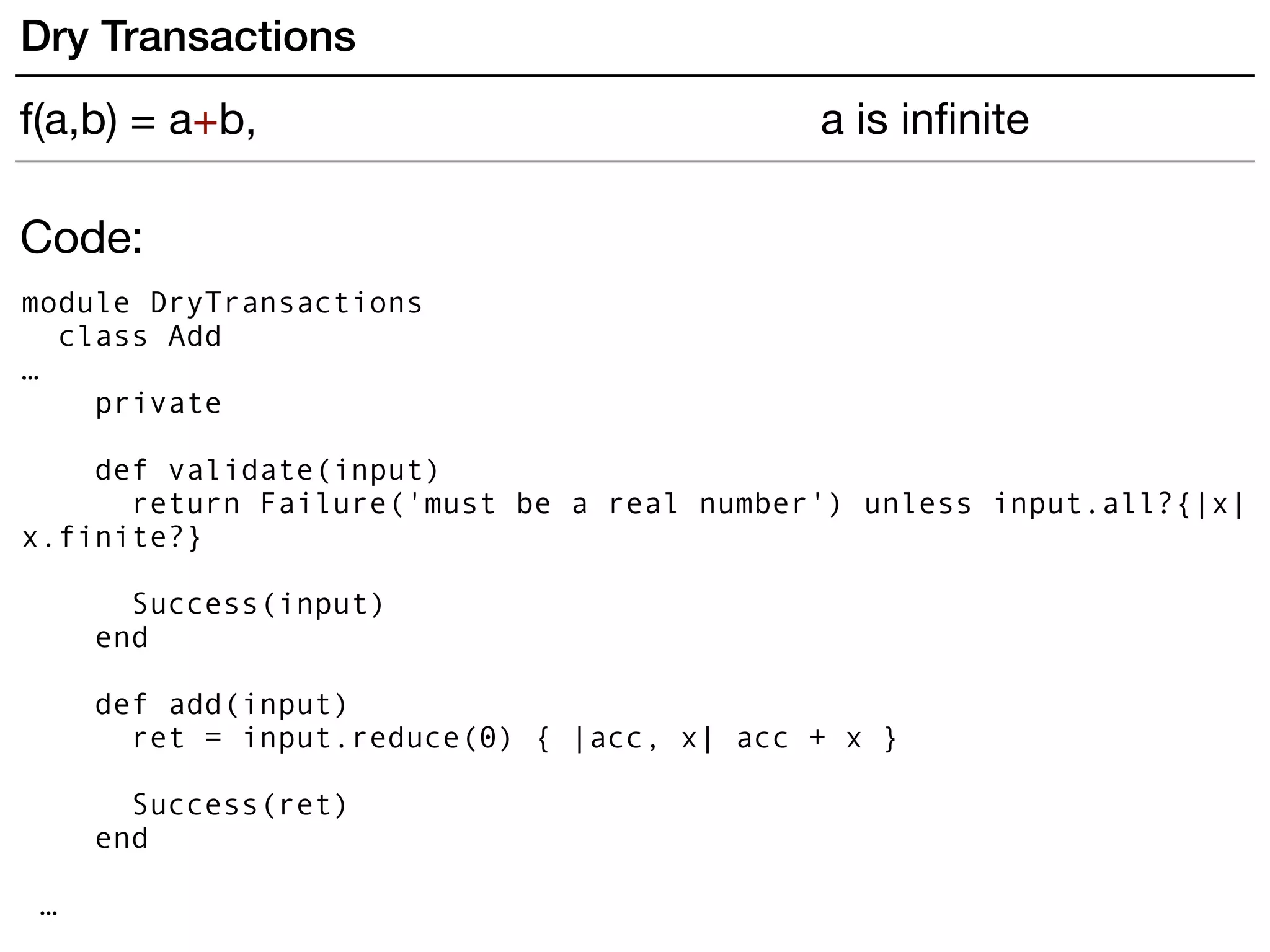

21. Code:
module DryTransactions
class Add
…
private
def validate(input)
return Failure('must be a real number') unless input.all?{|x|
x.finite?}
Success(input)
end
def add(input)
ret = input.reduce(0) { |acc, x| acc + x }
Success(ret)
end
…
Dry Transactions
f(a,b) = a+b, a is infinite

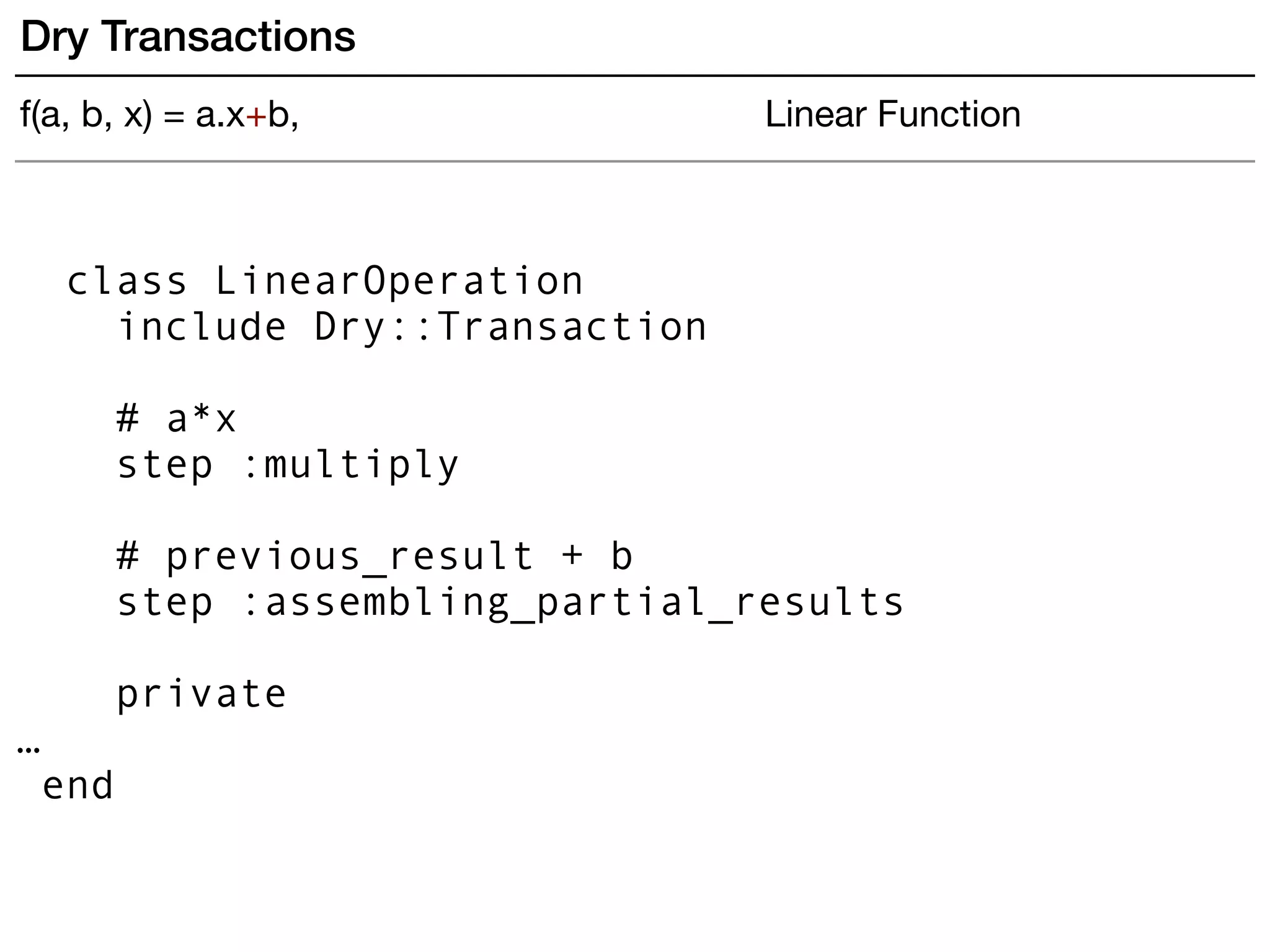

22. class LinearOperation
include Dry::Transaction
# a*x
step :multiply
# previous_result + b
step :assembling_partial_results
private
…
end
Dry Transactions
f(a, b, x) = a.x+b, Linear Function

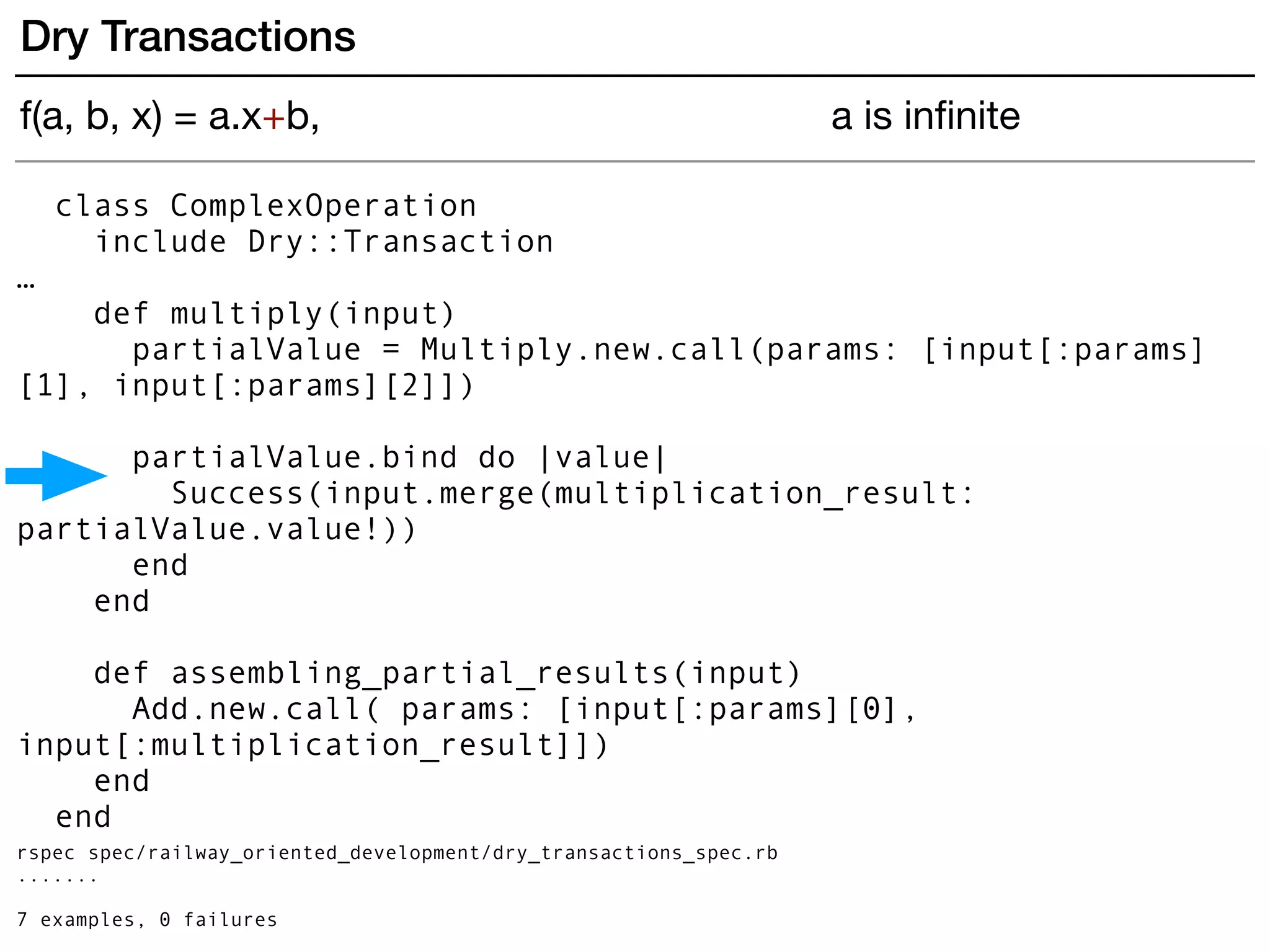

23. class ComplexOperation
include Dry::Transaction
…
def multiply(input)
partialValue = Multiply.new.call(params: [input[:params]
[1], input[:params][2]])
partialValue.bind do |value|
Success(input.merge(multiplication_result:
partialValue.value!))
end
end
def assembling_partial_results(input)
Add.new.call( params: [input[:params][0],
input[:multiplication_result]])
end
end
rspec spec/railway_oriented_development/dry_transactions_spec.rb
.......
7 examples, 0 failures
Dry Transactions
f(a, b, x) = a.x+b, a is infinite

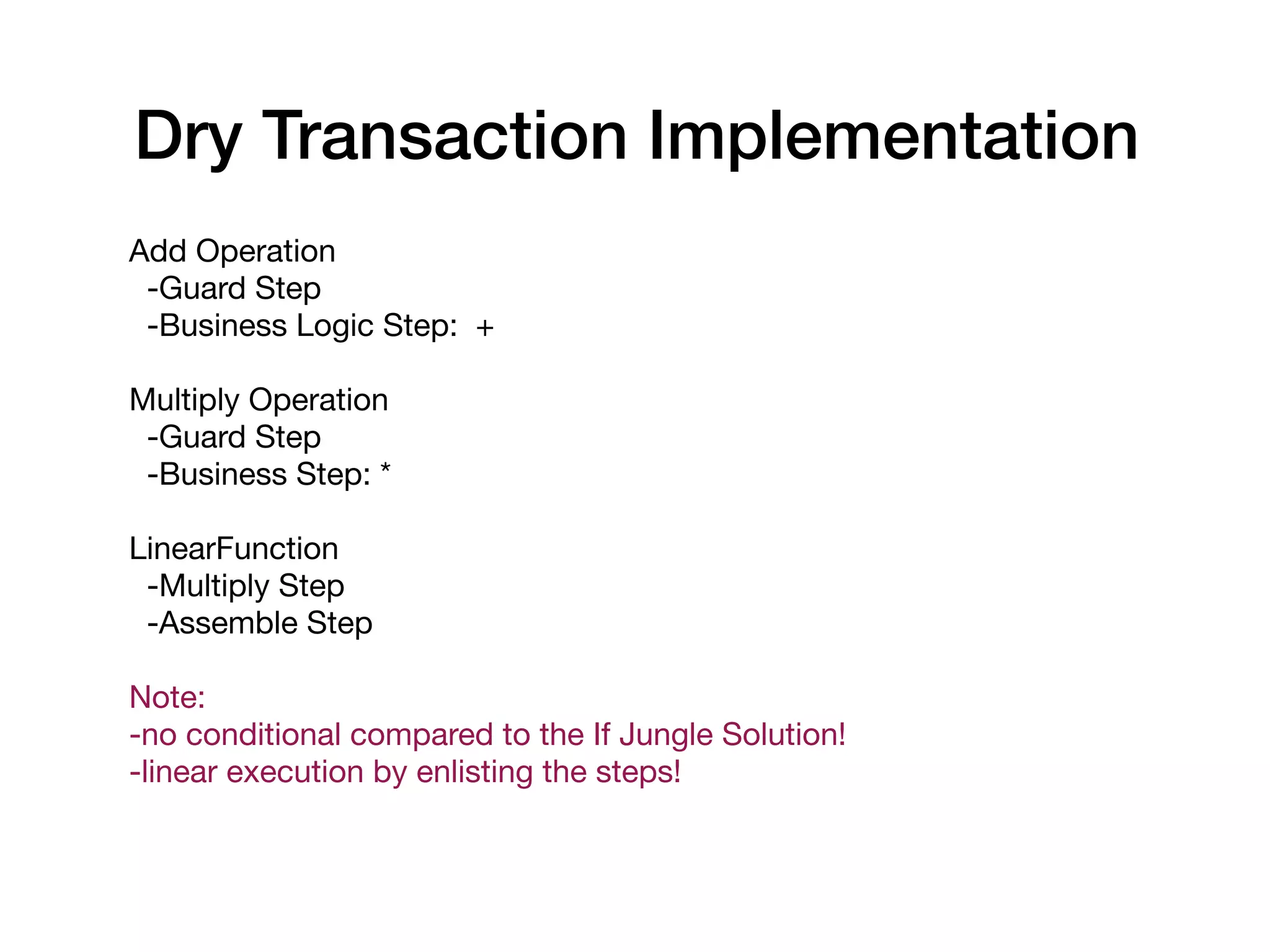

24. Dry Transaction Implementation
Add Operation
-Guard Step
-Business Logic Step: +
Multiply Operation
-Guard Step
-Business Step: *
LinearFunction
-Multiply Step
-Assemble Step
Note:
-no conditional compared to the If Jungle Solution!
-linear execution by enlisting the steps!

25. 2rd library
Monad Do Notation

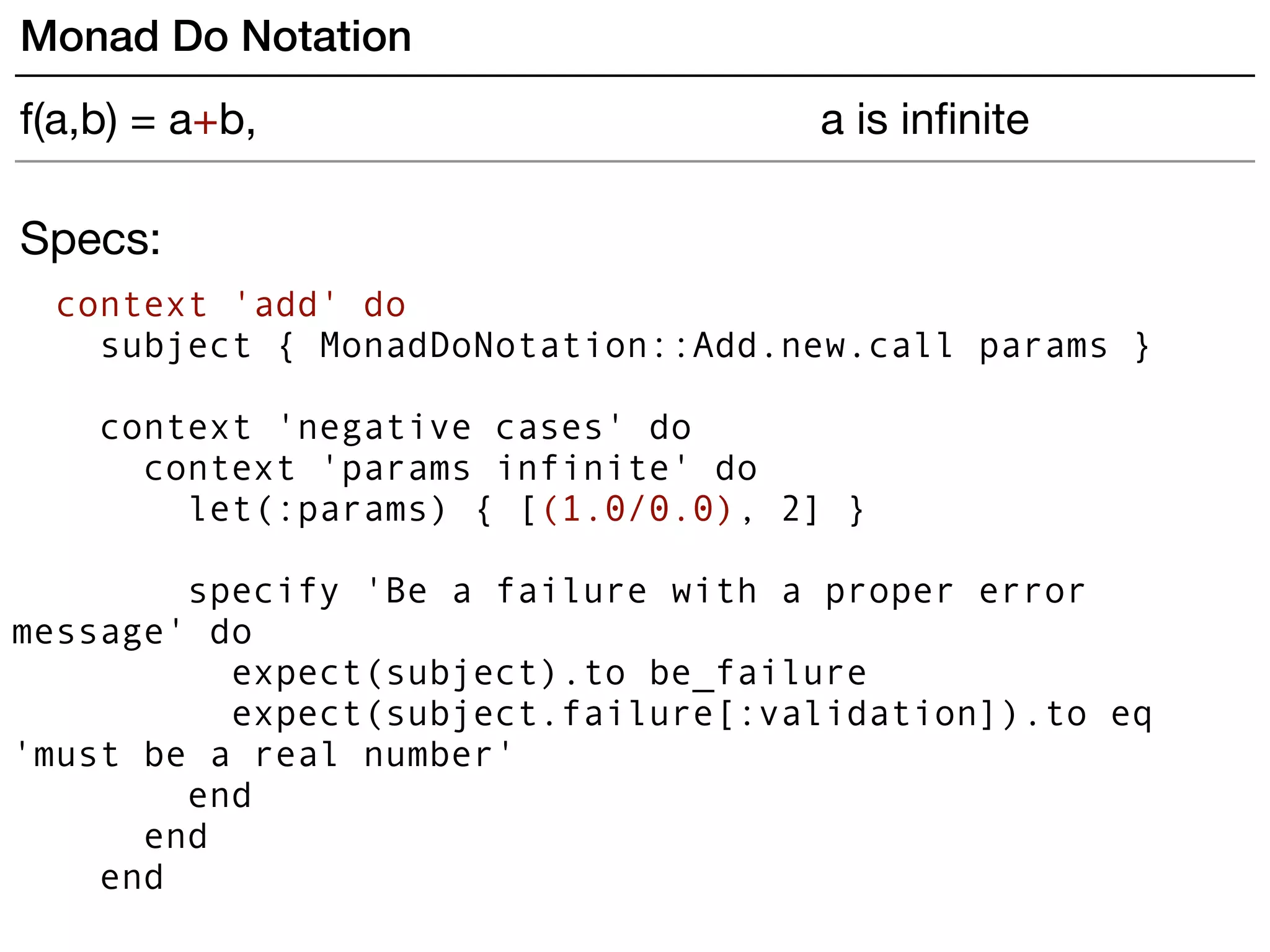

26. Specs:
context 'add' do
subject { MonadDoNotation::Add.new.call params }
context 'negative cases' do
context 'params infinite' do
let(:params) { [(1.0/0.0), 2] }
specify 'Be a failure with a proper error
message' do
expect(subject).to be_failure
expect(subject.failure[:validation]).to eq
'must be a real number'
end
end
end
Monad Do Notation
f(a,b) = a+b, a is infinite

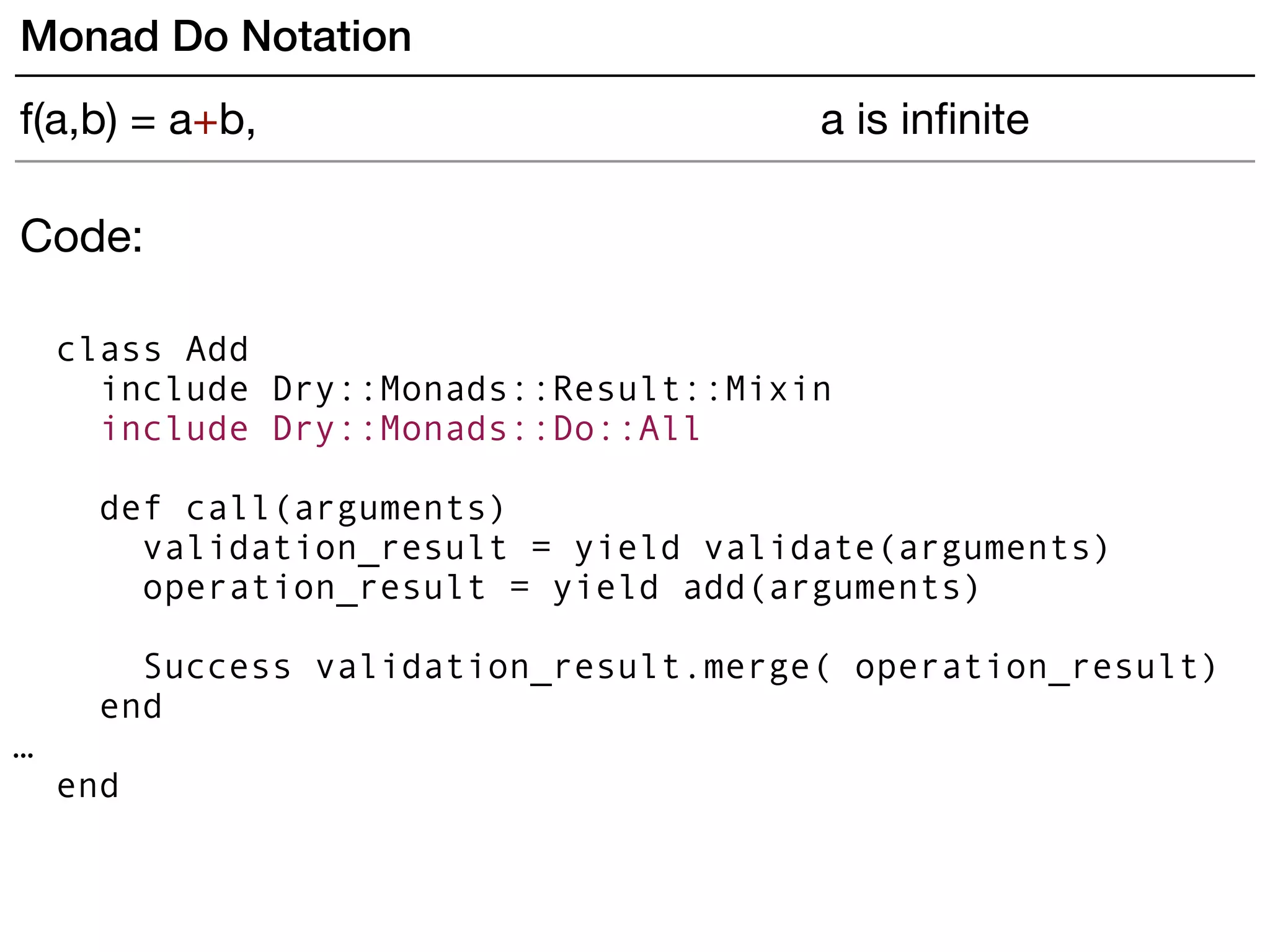

27. Code:
class Add
include Dry::Monads::Result::Mixin
include Dry::Monads::Do::All
def call(arguments)
validation_result = yield validate(arguments)
operation_result = yield add(arguments)
Success validation_result.merge( operation_result)
end
…
end
Monad Do Notation
f(a,b) = a+b, a is infinite

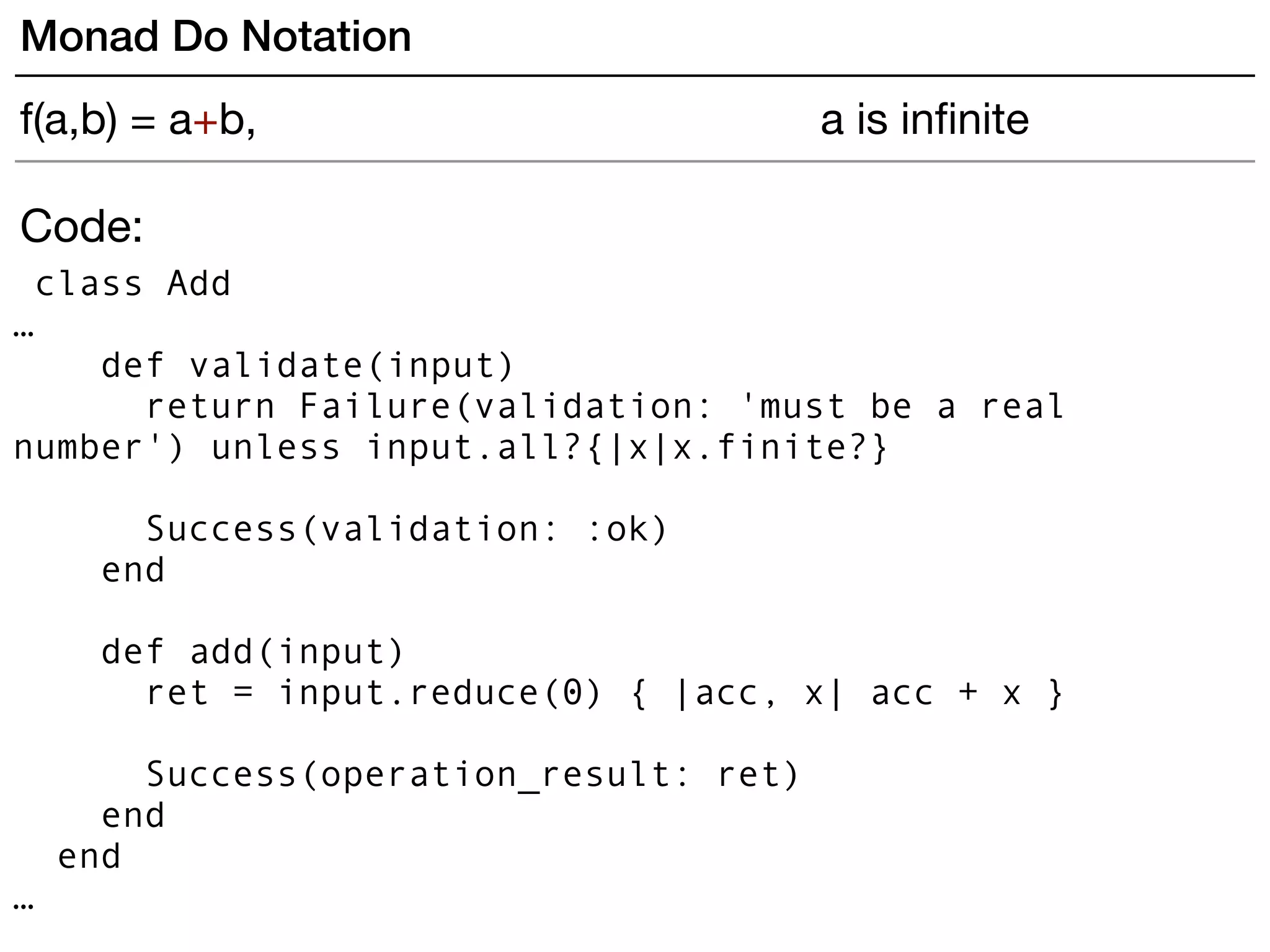

28. Code:
class Add
…
def validate(input)
return Failure(validation: 'must be a real
number') unless input.all?{|x|x.finite?}
Success(validation: :ok)
end
def add(input)
ret = input.reduce(0) { |acc, x| acc + x }
Success(operation_result: ret)
end
end
…
Monad Do Notation
f(a,b) = a+b, a is infinite

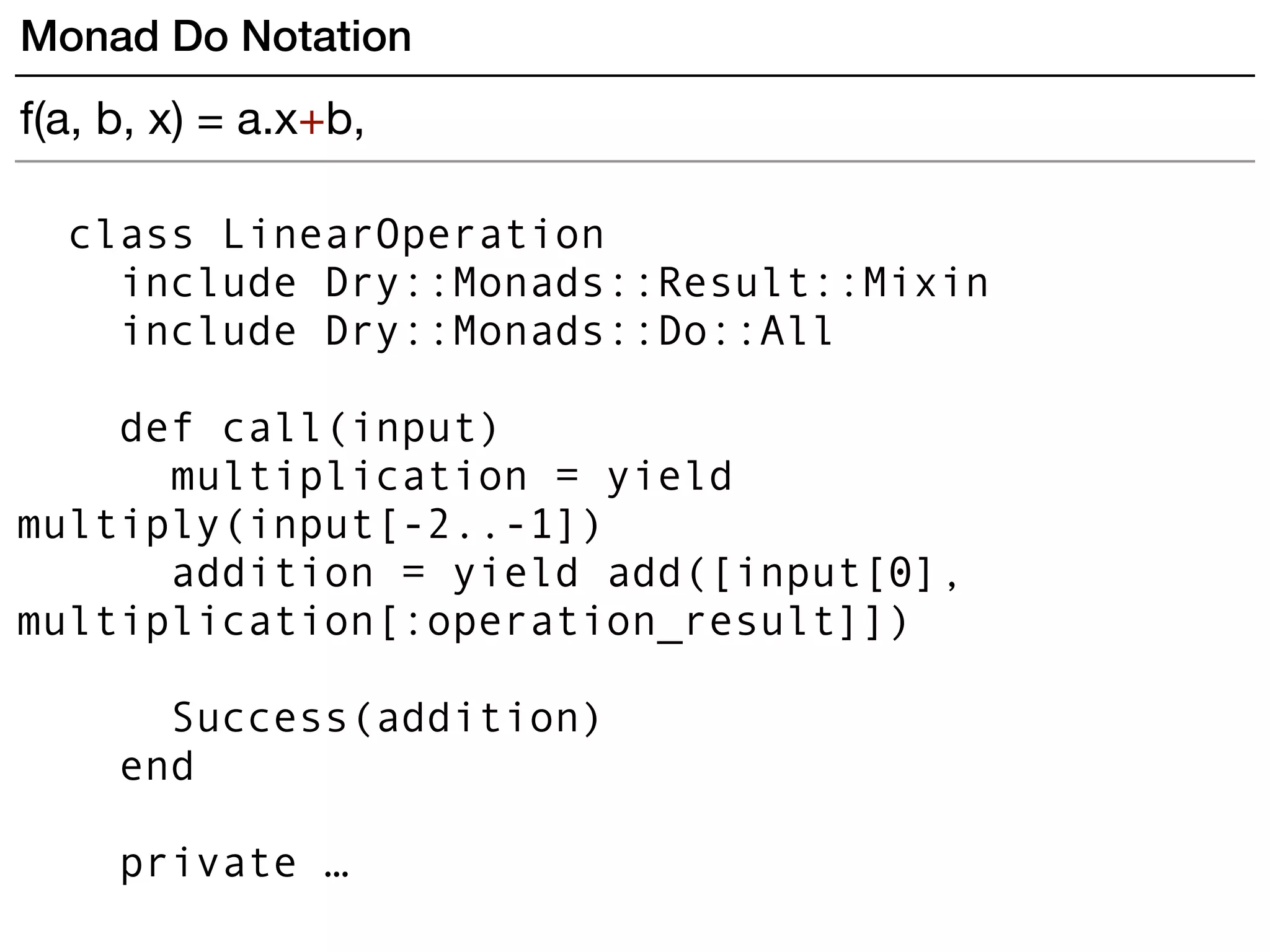

29. class LinearOperation
include Dry::Monads::Result::Mixin
include Dry::Monads::Do::All
def call(input)
multiplication = yield
multiply(input[-2..-1])
addition = yield add([input[0],
multiplication[:operation_result]])
Success(addition)
end
private …
Monad Do Notation
f(a, b, x) = a.x+b,

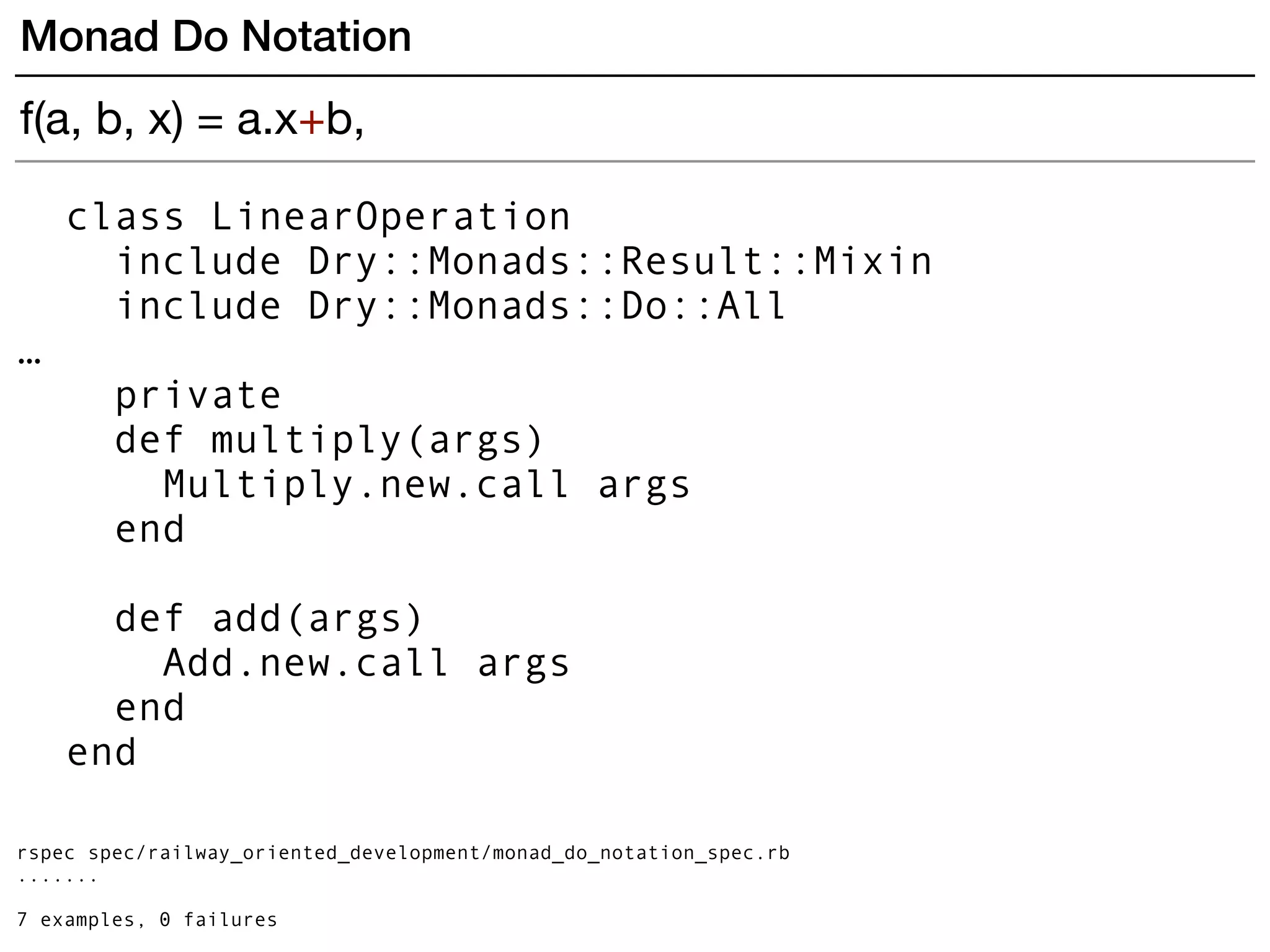

30. class LinearOperation
include Dry::Monads::Result::Mixin
include Dry::Monads::Do::All
…
private
def multiply(args)
Multiply.new.call args
end
def add(args)
Add.new.call args
end
end
rspec spec/railway_oriented_development/monad_do_notation_spec.rb
.......
7 examples, 0 failures
Monad Do Notation
f(a, b, x) = a.x+b,

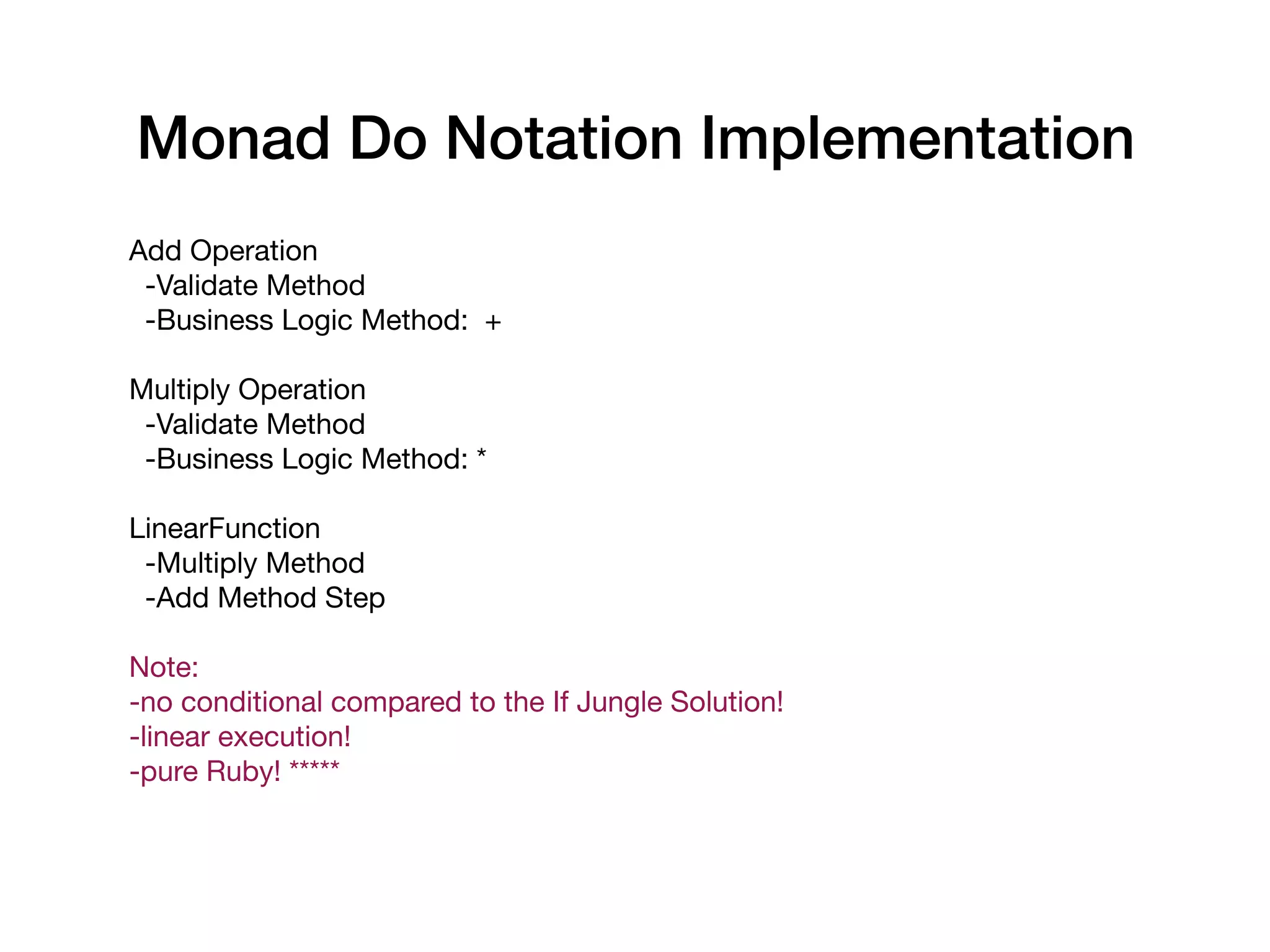

31. Add Operation
-Validate Method
-Business Logic Method: +
Multiply Operation
-Validate Method
-Business Logic Method: *
LinearFunction
-Multiply Method
-Add Method Step
Note:
-no conditional compared to the If Jungle Solution!
-linear execution!
-pure Ruby! *****
Monad Do Notation Implementation

32. 3rd library
Trailblazer Operations

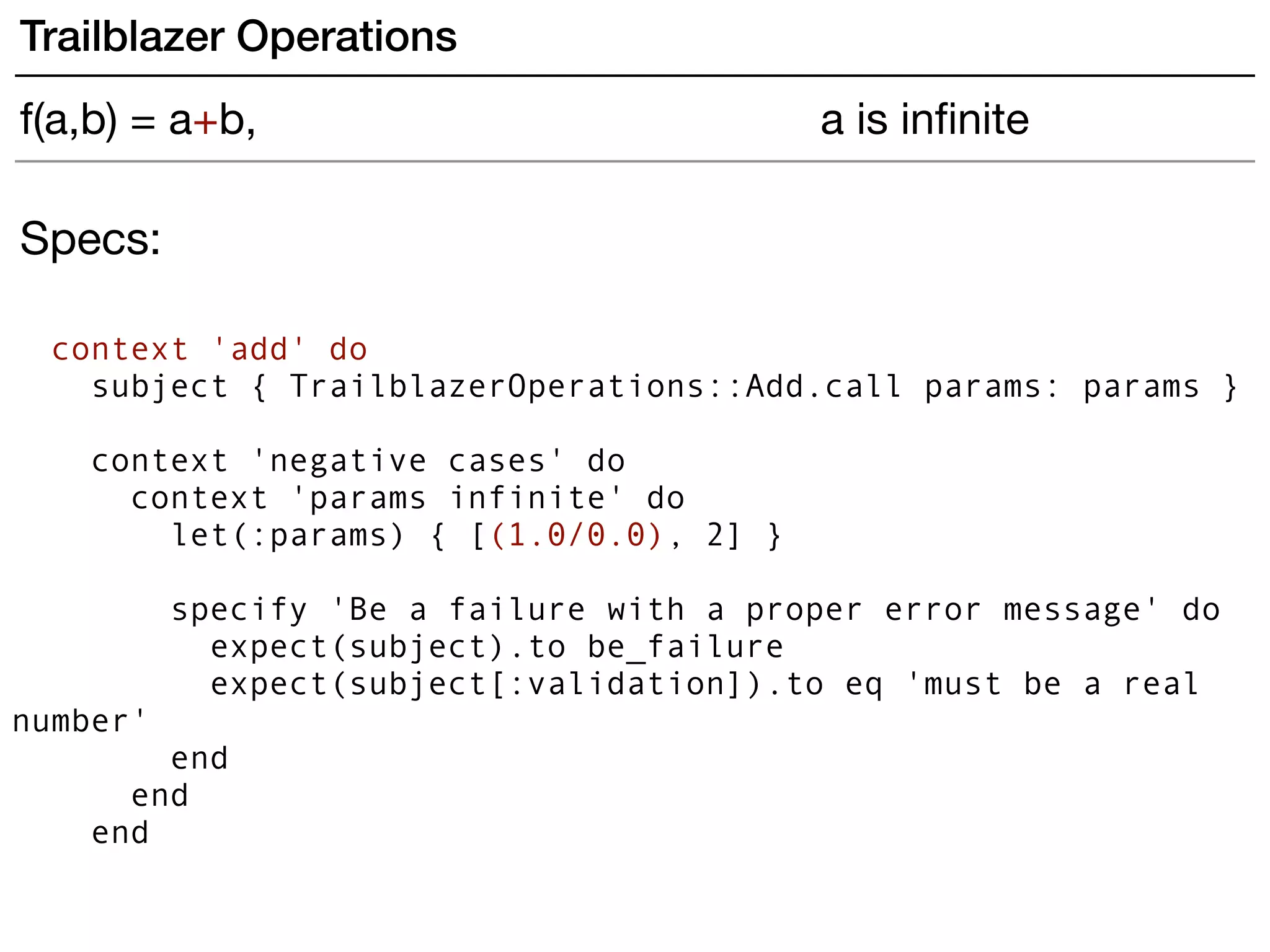

33. Specs:
context 'add' do
subject { TrailblazerOperations::Add.call params: params }
context 'negative cases' do
context 'params infinite' do
let(:params) { [(1.0/0.0), 2] }
specify 'Be a failure with a proper error message' do
expect(subject).to be_failure
expect(subject[:validation]).to eq 'must be a real
number'
end
end
end
Trailblazer Operations
f(a,b) = a+b, a is infinite

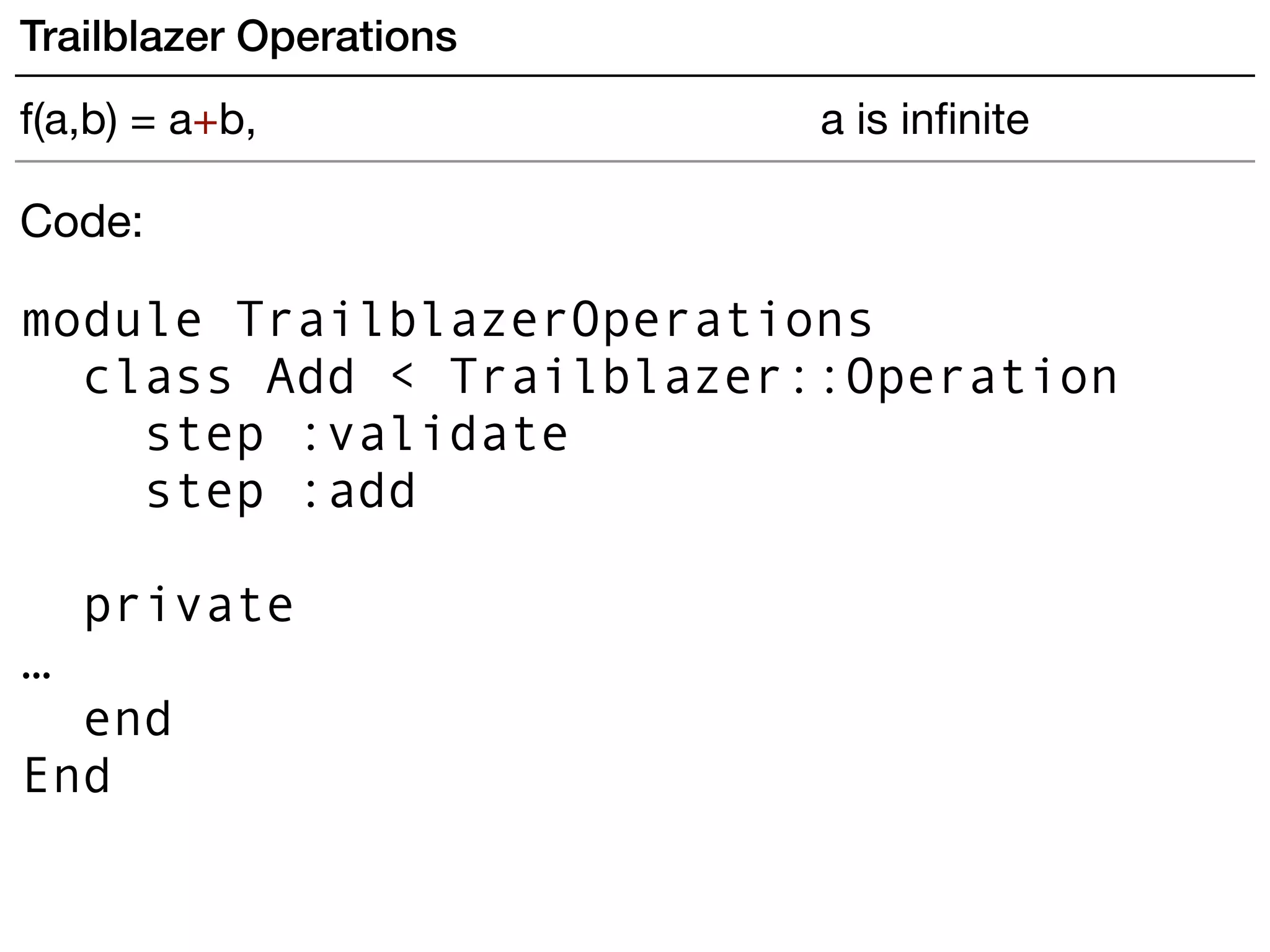

34. Code:
module TrailblazerOperations
class Add < Trailblazer::Operation
step :validate
step :add
private
…
end
End
Trailblazer Operations
f(a,b) = a+b, a is infinite

35. Railway Oriented Approach

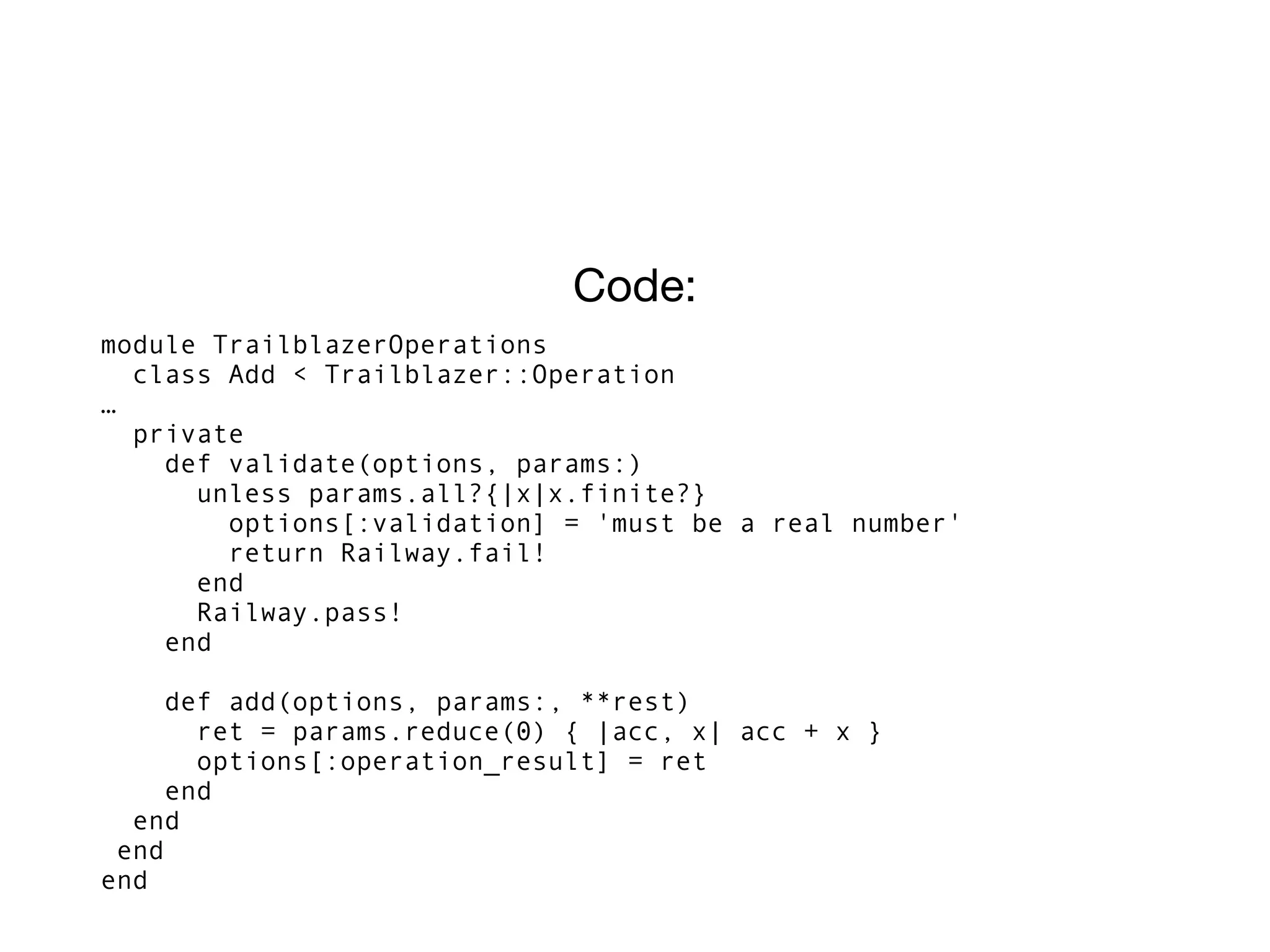

36. Code:
module TrailblazerOperations
class Add < Trailblazer::Operation
…
private
def validate(options, params:)
unless params.all?{|x|x.finite?}
options[:validation] = 'must be a real number'
return Railway.fail!
end
Railway.pass!
end
def add(options, params:, **rest)
ret = params.reduce(0) { |acc, x| acc + x }
options[:operation_result] = ret
end
end
end
end

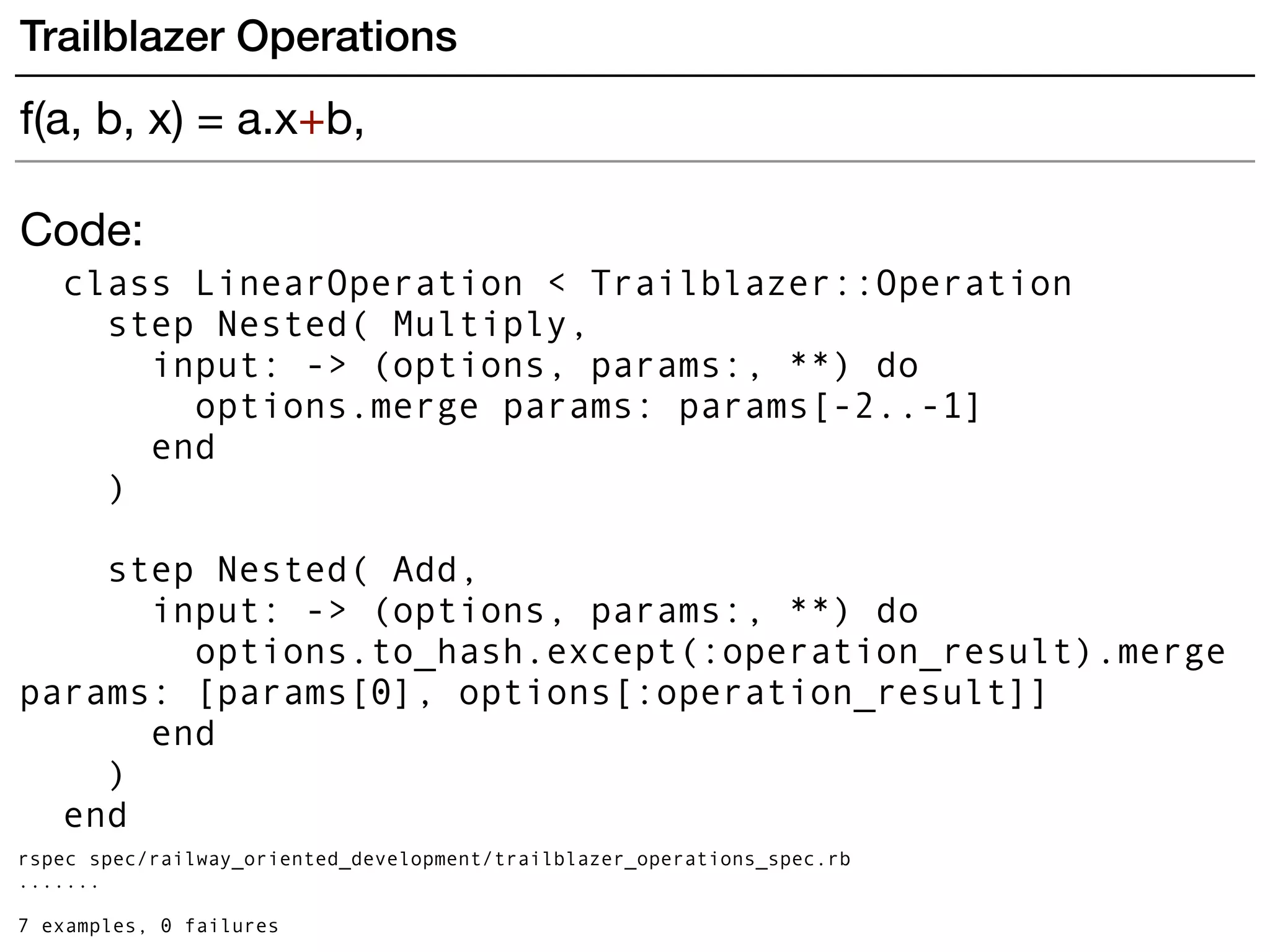

37. Code:
class LinearOperation < Trailblazer::Operation
step Nested( Multiply,
input: -> (options, params:, **) do
options.merge params: params[-2..-1]
end
)
step Nested( Add,
input: -> (options, params:, **) do
options.to_hash.except(:operation_result).merge
params: [params[0], options[:operation_result]]
end
)
end
rspec spec/railway_oriented_development/trailblazer_operations_spec.rb
.......
7 examples, 0 failures
Trailblazer Operations
f(a, b, x) = a.x+b,

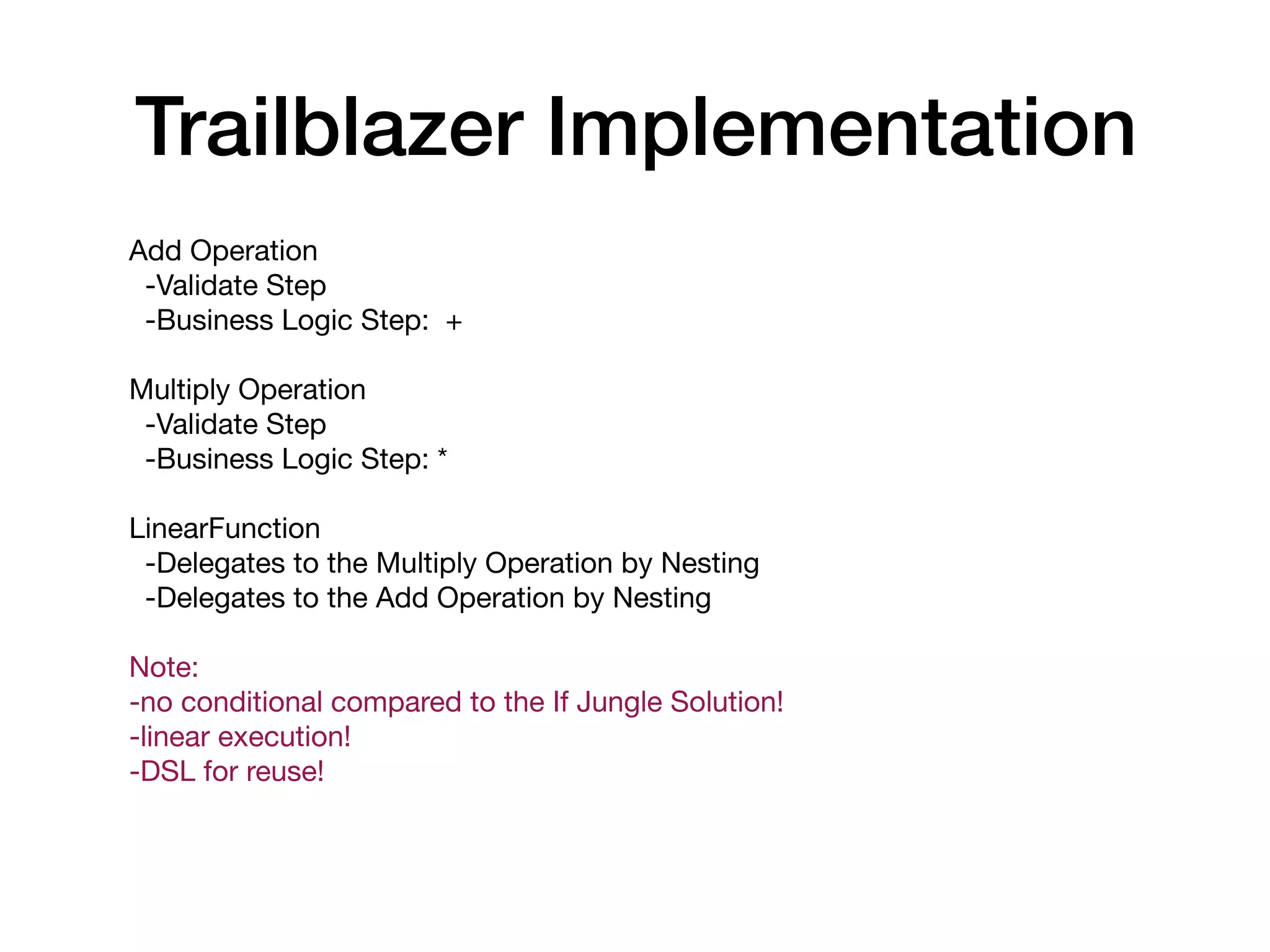

38. Add Operation
-Validate Step
-Business Logic Step: +
Multiply Operation
-Validate Step
-Business Logic Step: *
LinearFunction
-Delegates to the Multiply Operation by Nesting
-Delegates to the Add Operation by Nesting
Note:
-no conditional compared to the If Jungle Solution!
-linear execution!
-DSL for reuse!
Trailblazer Implementation

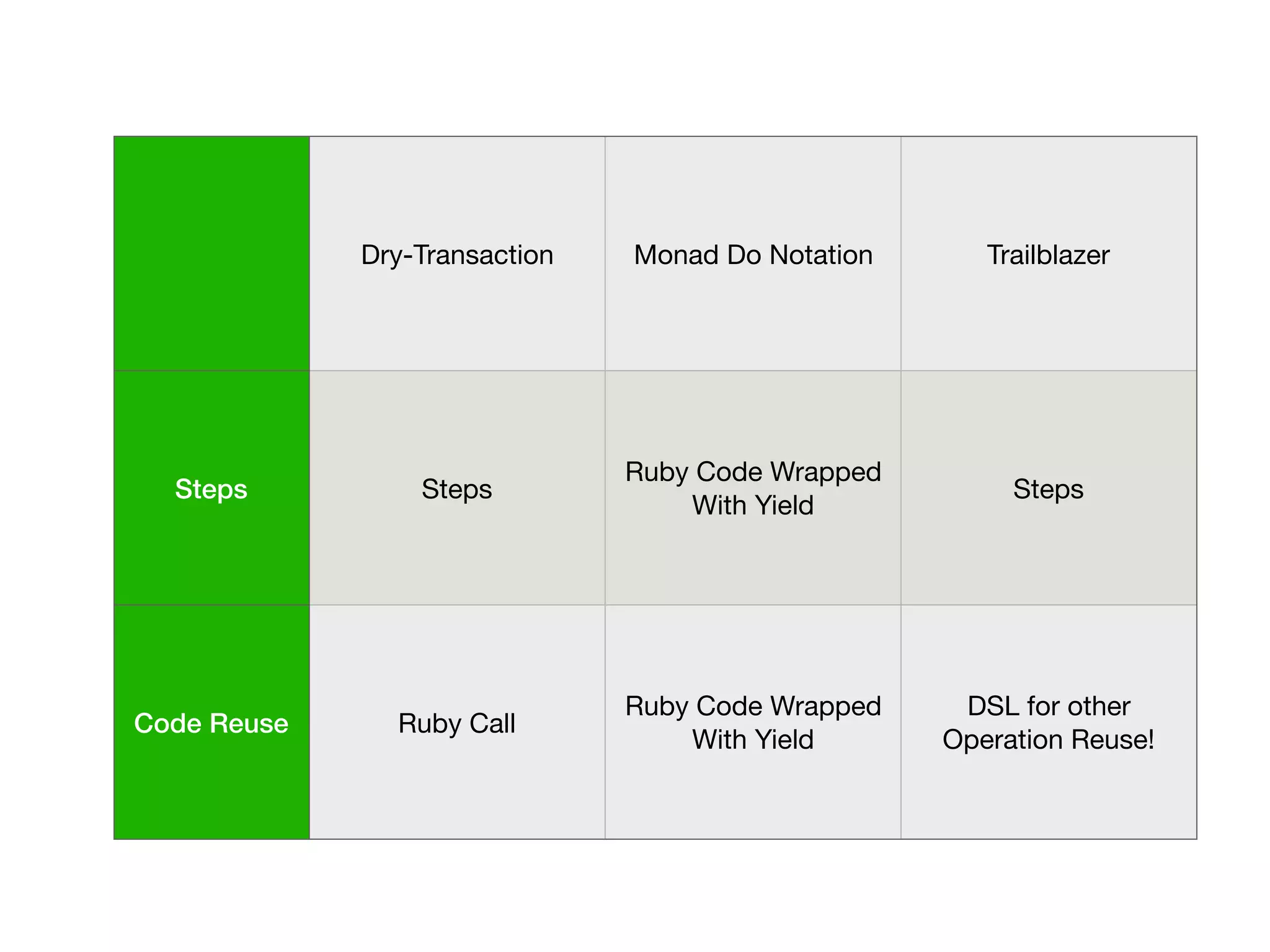

39. Dry-Transaction Monad Do Notation Trailblazer
Steps Steps
Ruby Code Wrapped
With Yield
Steps
Code Reuse Ruby Call
Ruby Code Wrapped
With Yield
DSL for other
Operation Reuse!

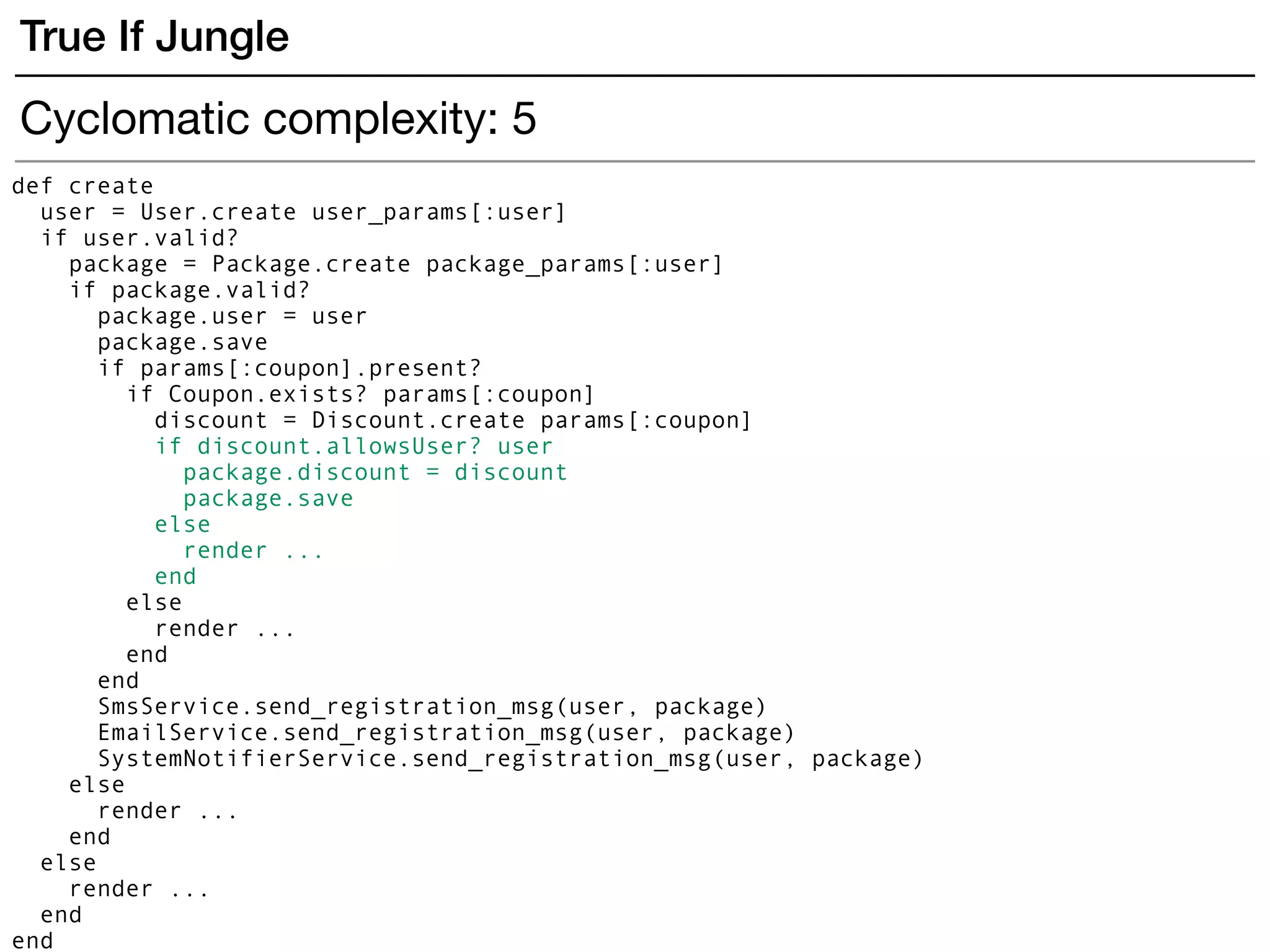

40. True If Jungle
def create
user = User.create user_params[:user]
if user.valid?
package = Package.create package_params[:user]
if package.valid?
package.user = user
package.save
if params[:coupon].present?
if Coupon.exists? params[:coupon]
discount = Discount.create params[:coupon]
if discount.allowsUser? user
package.discount = discount
package.save
else
render ...
end
else
render ...
end
end
SmsService.send_registration_msg(user, package)
EmailService.send_registration_msg(user, package)
SystemNotifierService.send_registration_msg(user, package)
else
render ...
end
else
render ...
end
end
Cyclomatic complexity: 5

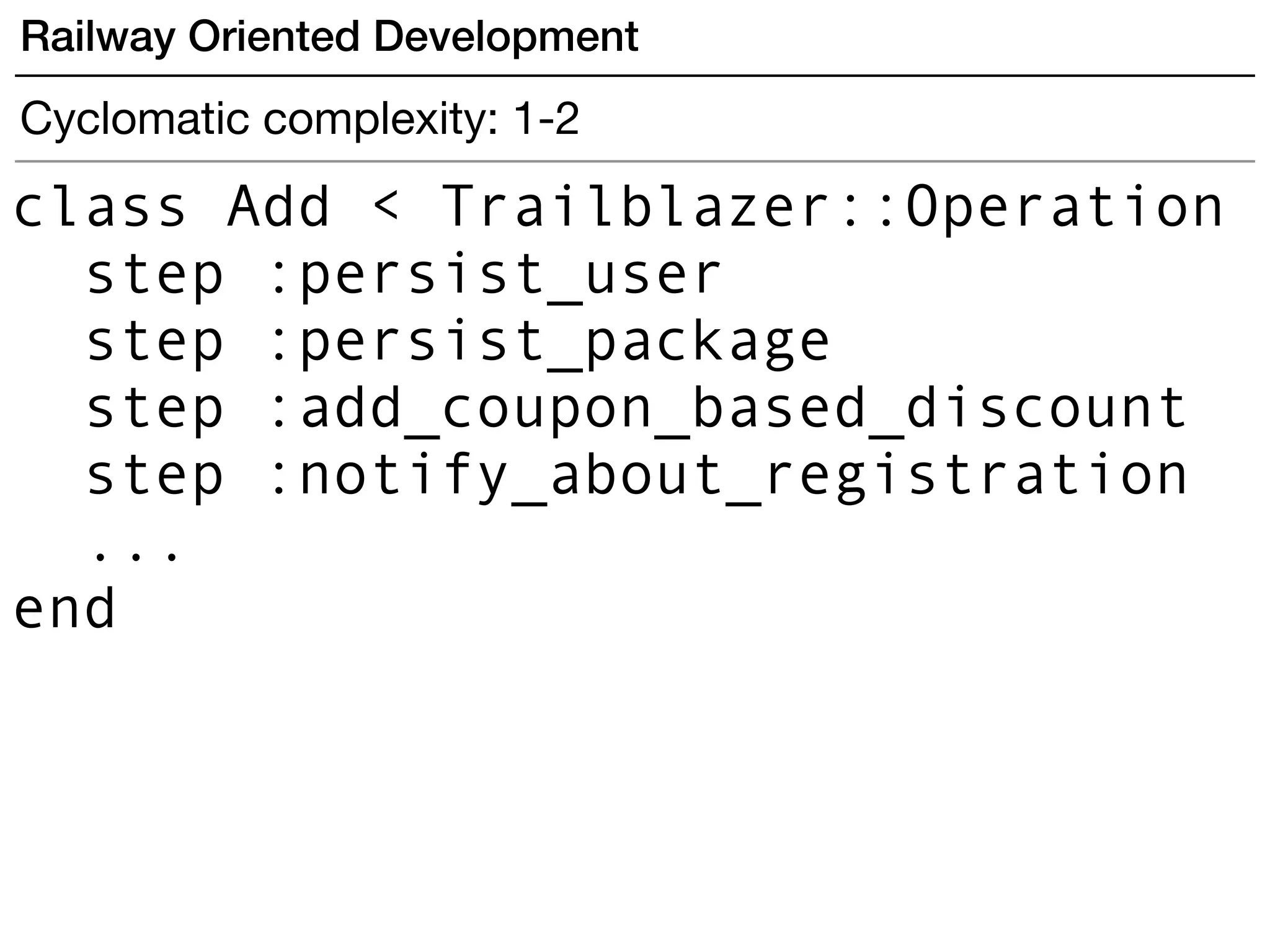

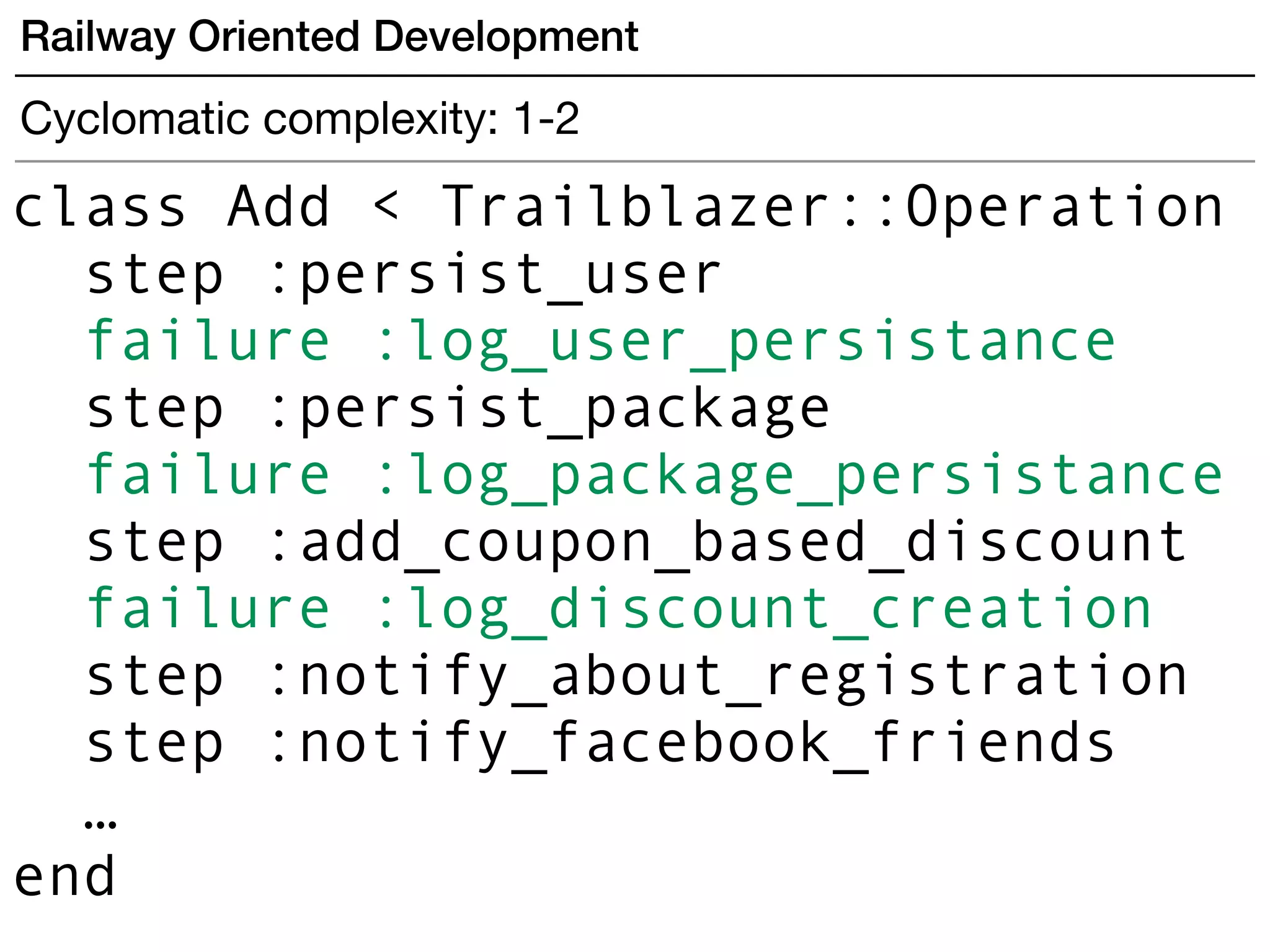

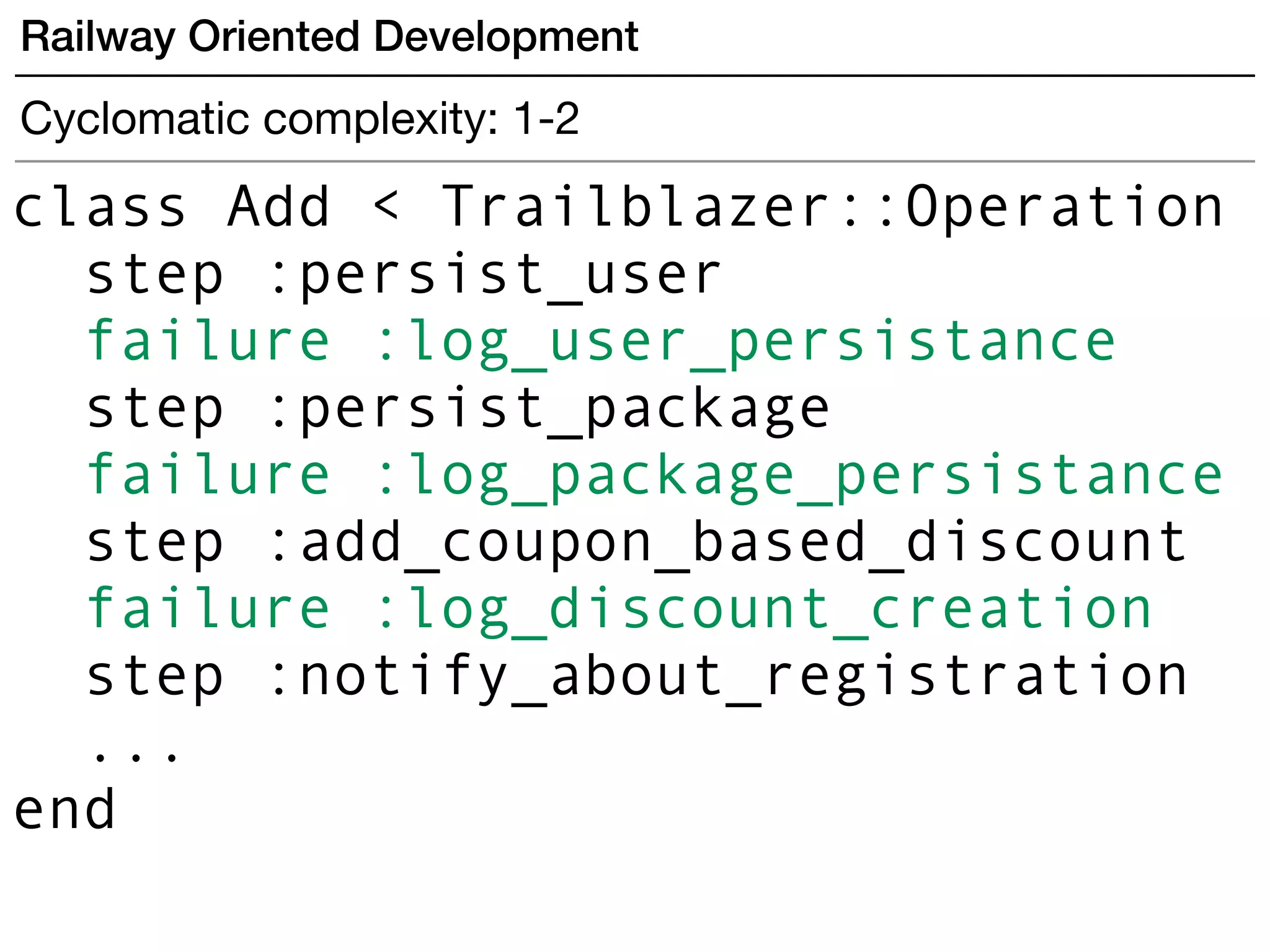

41. Railway Oriented Development
Cyclomatic complexity: 1-2
class Add < Trailblazer::Operation
step :persist_user
step :persist_package
step :add_coupon_based_discount
step :notify_about_registration
...
end

42. Railway Oriented Development
Cyclomatic complexity: 1-2
class Add < Trailblazer::Operation
step :persist_user
failure :log_user_persistance
step :persist_package
failure :log_package_persistance
step :add_coupon_based_discount
failure :log_discount_creation
step :notify_about_registration
...
end

43. Railway Oriented Development
Cyclomatic complexity: 1-2
class Add < Trailblazer::Operation
step :persist_user
failure :log_user_persistance
step :persist_package
failure :log_package_persistance
step :add_coupon_based_discount
failure :log_discount_creation
step :notify_about_registration
step :notify_facebook_friends
…
end

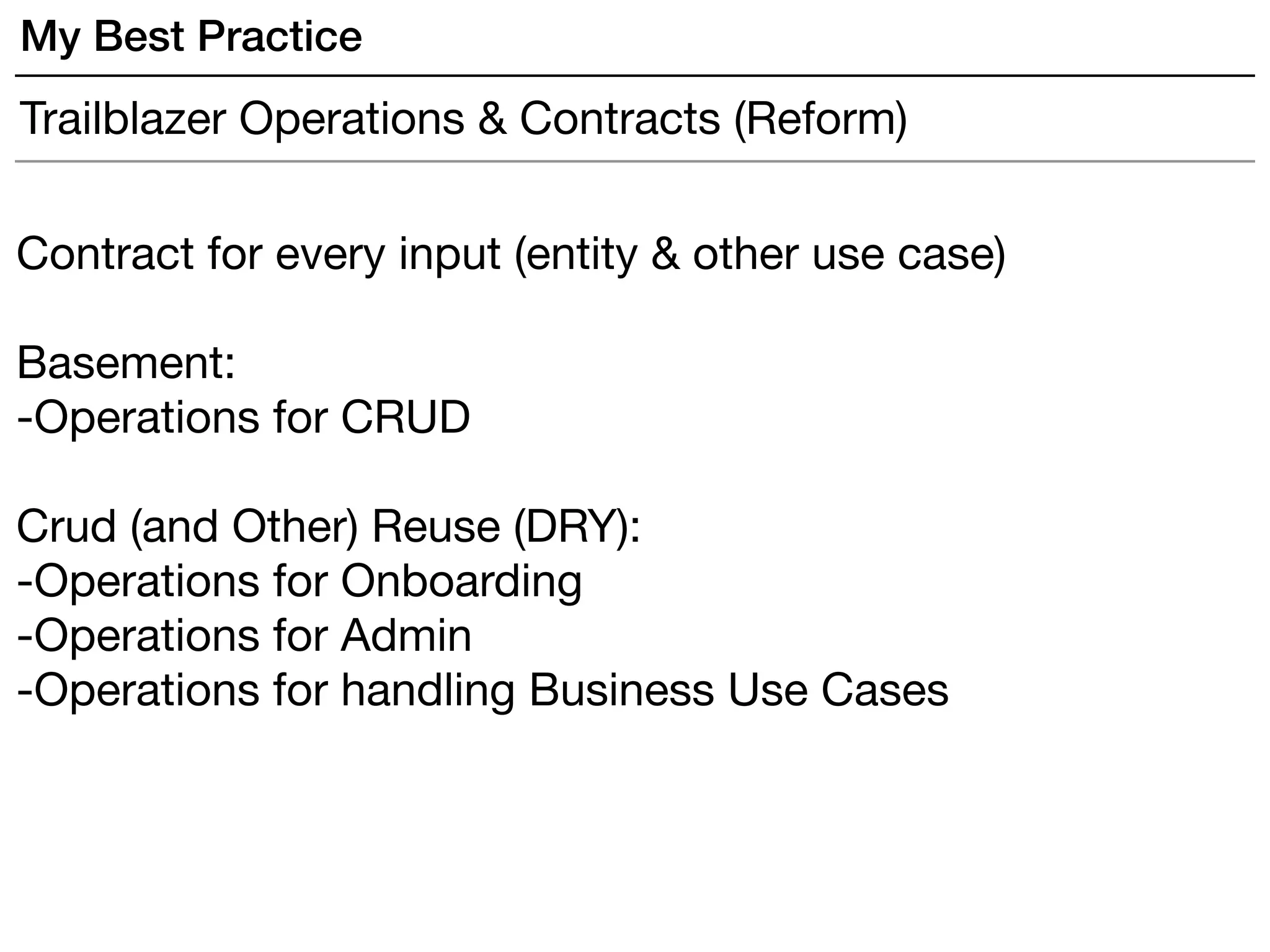

44. Contract for every input (entity & other use case)
Basement:
-Operations for CRUD
Crud (and Other) Reuse (DRY):
-Operations for Onboarding
-Operations for Admin
-Operations for handling Business Use Cases
Trailblazer Operations & Contracts (Reform)
My Best Practice

49. Thank you ;)
Botond Orban Enthusiast IT Guy, Architect
Enthusiastic about Ruby
https://github.com/orbanbotond
@orbanbotond
