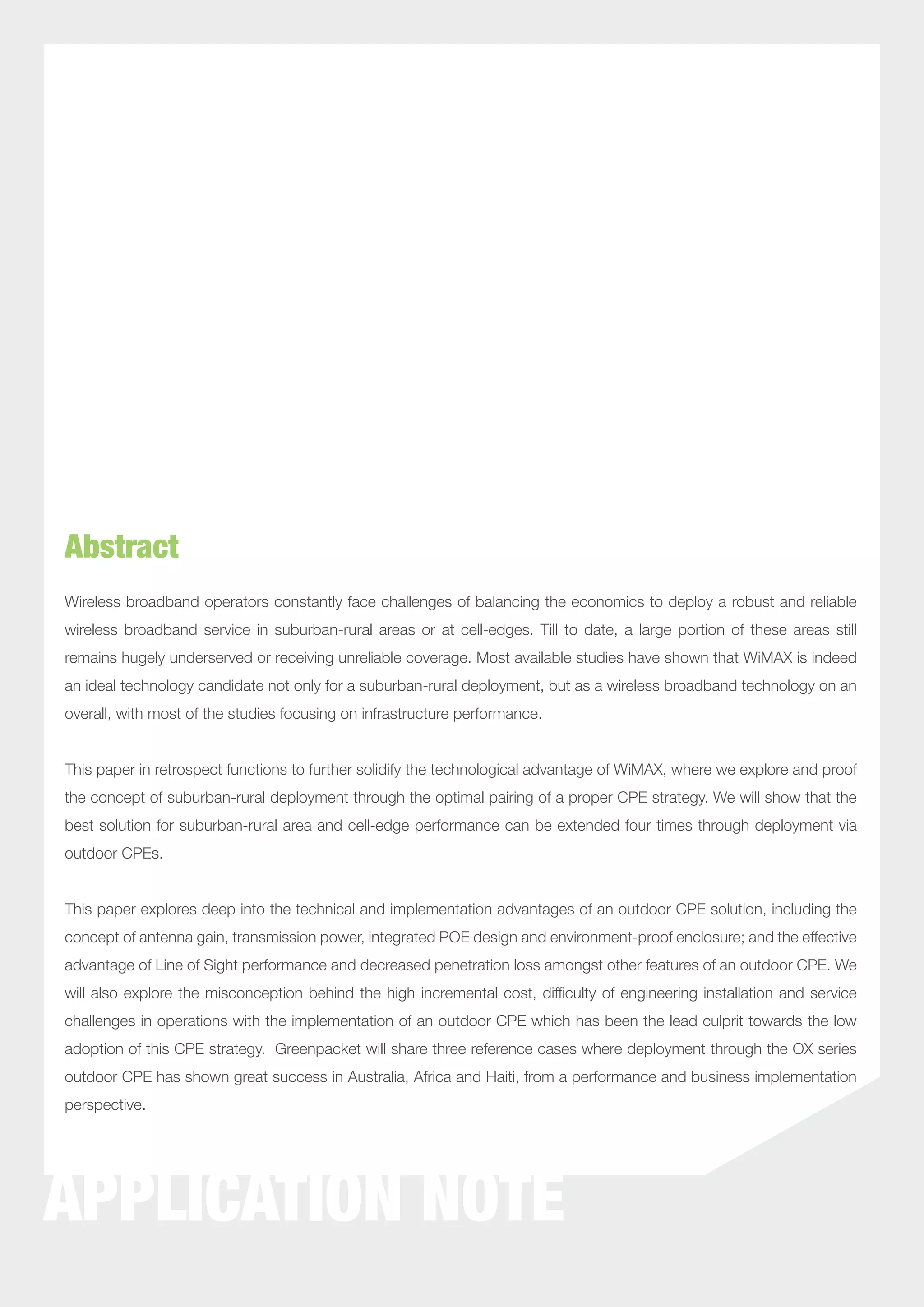

Wireless broadband operators constantly face challenges of balancing the economics to deploy a robust and reliable wireless broadband service in suburban-rural areas or at cell-edges. Till to date, a large portion of these areas still remains hugely underserved or receiving unreliable coverage.
This paper in retrospect functions to further solidify the technological advantage of WiMAX, where we explore and proof the concept of suburban-rural deployment through the optimal pairing of a proper CPE strategy.
This paper explores deep into the technical and implementation advantages of an outdoor CPE solution, including the concept of antenna gain, transmission power, integrated POE design and environment-proof enclosure; and the effective advantage of Line of Sight performance and decreased penetration loss amongst other features of an outdoor CPE. We will also explore the misconception behind the high incremental cost, difficulty of engineering installation and service challenges in operations with the implementation of an outdoor CPE.
