Broadband Access Over Cable Networks: Evolution Towards Fiber Deep Architectures
- 1. Broadband Access Over Cable Networks Xiaolin Lu Multimedia 1999 AT&T Labs XL 9/15/99
- 2. What is this? An invited speech on Multimedia 1999 A historical review of the cable technology evolution, and why it is what it is today XL 9/15/99

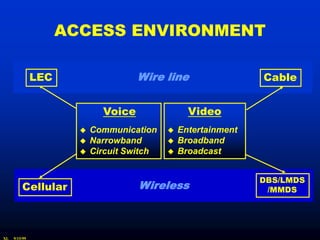

- 3. ACCESS ENVIRONMENT LEC Wire line Cable Voice Video Communication Entertainment Narrowband Broadband Circuit Switch Broadcast DBS/LMDS Cellular Wireless /MMDS XL 9/15/99
- 4. IN THE PAST ... Voice = Communication Video = Entertainment LEC Cable Twist Pair Star Coax Tree-and-Branch Feature rich POTS Broadcast video $84B “toll collection” $24B “$1 buffet” Monopoly Voice-oriented DLC, ISDN FTTH XL 9/15/99

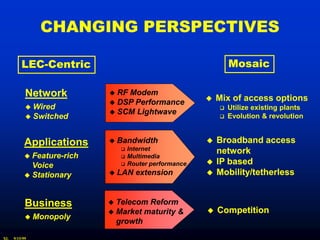

- 5. CHANGING PERSPECTIVES LEC- LEC-Centric Mosaic Network RF Modem Mix of access options DSP Performance Wired Utilize existing plants SCM Lightwave Switched Evolution & revolution Applications Bandwidth Broadband access Internet network Feature- Feature-rich Multimedia Voice Router performance IP based Stationary LAN extension Mobility/tetherless Business Telecom Reform Market maturity & Competition Monopoly growth XL 9/15/99

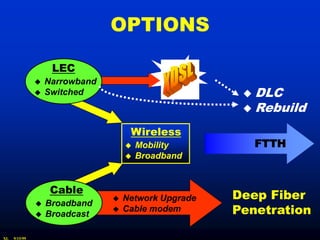

- 6. OPTIONS LEC Narrowband Switched DLC Rebuild Wireless Mobility FTTH Broadband Cable Network Upgrade Deep Fiber Broadband Broadcast Cable modem Penetration XL 9/15/99
- 7. XL 9/15/99
- 8. CABLE DATA REVENUE PROJECTION (US) 1000 800 Revenue ($M) 600 Kagan 400 Forrester 200 0 '96 '97 '98 '99 2000 XL 9/15/99
- 9. ASSET AND LIABILITY Broadband (1GHz) ? Quality and Reliability Low- Low-cost Connection ? Upstream Ubiquity ? Maintenance Coverage (95% US HHP) ? Reputation Acceptance (TV) ? Scale Evolution in The New Environment XL 9/15/99

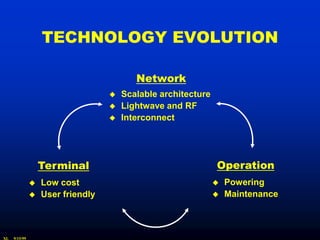

- 10. TECHNOLOGY EVOLUTION Network Scalable architecture Lightwave and RF Interconnect Terminal Operation Low cost Powering User friendly Maintenance XL 9/15/99
- 11. NETWORK UPGRADE DWDM Segmentation COAX HFC Digitization Deep fiber penetration XL 9/15/99

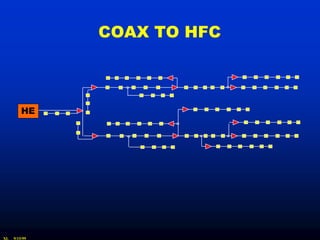

- 12. COAX TO HFC HE XL 9/15/99

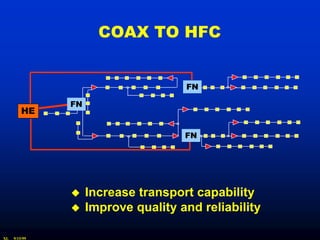

- 13. COAX TO HFC FN FN HE FN Increase transport capability Improve quality and reliability XL 9/15/99

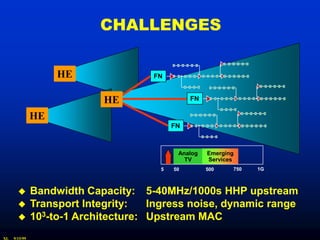

- 14. CHALLENGES HE FN HE FN HE FN Analog Emerging TV Services 5 50 500 750 1G Bandwidth Capacity: 5-40MHz/1000s HHP upstream Transport Integrity: Ingress noise, dynamic range 103-to-1 Architecture: Upstream MAC to- XL 9/15/99

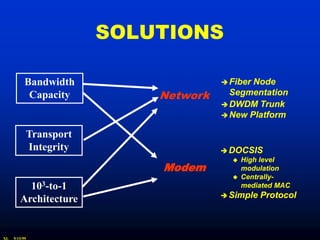

- 15. SOLUTIONS Bandwidth FiberNode Capacity Network Segmentation DWDM Trunk New Platform Transport Integrity DOCSIS High level Modem modulation Centrally- Centrally- 103-to-1 mediated MAC Simple Protocol Architecture XL 9/15/99

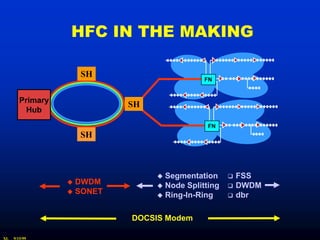

- 16. HFC IN THE MAKING SH FN Primary SH Hub FN SH Segmentation FSS DWDM Node Splitting DWDM SONET Ring-In-Ring dbr DOCSIS Modem XL 9/15/99

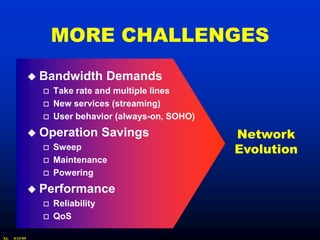

- 17. MORE CHALLENGES Bandwidth Demands Take rate and multiple lines New services (streaming) User behavior (always-on, SOHO) Operation Savings Network Sweep Evolution Maintenance Powering Performance Reliability QoS XL 9/15/99

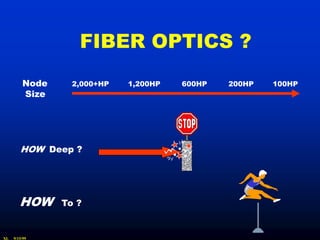

- 18. FIBER OPTICS ? Node 2,000+HP 1,200HP 600HP 200HP 100HP Size HOW Deep ? HOW To ? XL 9/15/99
- 19. ARCHITECTURES Tree-and-Branch Broadcast FN Cascaded ??? Cell-Based Narrowcast RN Clustered XL 9/15/99

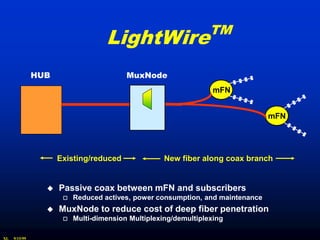

- 20. TM LightWire HUB MuxNode mFN mFN Existing/reduced New fiber along coax branch Passive coax between mFN and subscribers Reduced actives, power consumption, and maintenance MuxNode to reduce cost of deep fiber penetration Multi-dimension Multiplexing/demultiplexing XL 9/15/99

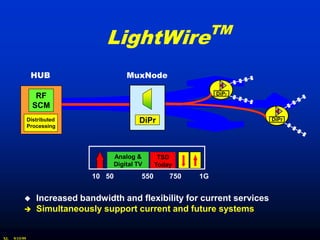

- 21. TM LightWire HUB MuxNode DiPr RF SCM Distributed DiPr DiPr Processing Analog & TSD Digital TV Today 10 50 550 750 1G Increased bandwidth and flexibility for current services Simultaneously support current and future systems XL 9/15/99
- 22. ADVANTAGES Operation Savings 61% reduction in active components Reduced power consumption Simplification of maintenance Improved Performance Reduced ingress noise funneling (10-48MHz operation) Increased RF bandwidth Improved reliability Future Proof Flexibility between current track and future opportunities Improved QoS and further cost reduction XL 9/15/99
- 23. OPERATION SAVINGS Current Network: 5.5 actives/mile XL 9/15/99
- 24. OPERATION SAVINGS 61% reduction in active components 21+% improvement in reliability XL 9/15/99

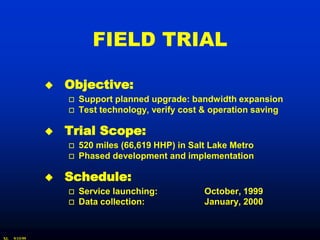

- 25. FIELD TRIAL Objective: Support planned upgrade: bandwidth expansion Test technology, verify cost & operation saving Trial Scope: 520 miles (66,619 HHP) in Salt Lake Metro Phased development and implementation Schedule: Service launching: October, 1999 Data collection: January, 2000 XL 9/15/99

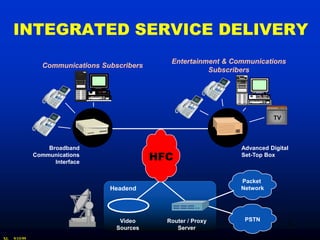

- 26. INTEGRATED SERVICE DELIVERY Entertainment & Communications Communications Subscribers Subscribers TV Broadband Advanced Digital Communications Interface HFC Set-Top Box Packet Headend Network Video Router / Proxy PSTN 26 Sources Server XL 9/15/99

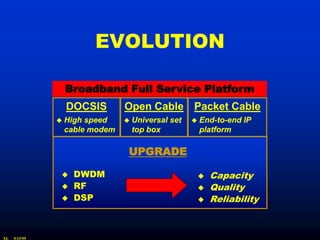

- 27. EVOLUTION Broadband Full Service Platform DOCSIS Open Cable Packet Cable High speed Universal set End-to- End-to-end IP cable modem top box platform UPGRADE DWDM Capacity RF Quality DSP Reliability XL 9/15/99
