1. Maximizing your Cable TV
infrastructure for triple play
broadband services with CableLAN
(Ethernet over coaxial)
broto@gscom-asia.com
(C) GSCOM 2010

2. CableLAN Access
Network
2
 Leverage existing Cable TV Infrastructure (one
way or two way)
 Network connection is achieved through AV200
CableLAN Ethernet Adapter
 Distance up to 1200 meters
 Throughput up to 200 Mbps
 Flexible, scalable, reliable and upgradable
network configuration
 No interference with TV signal (Uses 2 – 32 Mhz)
 Support: QOS, VLAN, SNMP and DES/3DES
Encryption
(C) GSCOM 2010

3. CableLAN Network
Architecture
3
(C) GSCOM 2010

4. CableLAN and DOCSIS
4
Features CableLAN DOCSIS
Bandwidth Downstream 200 Mbps 54 Mbps
Bandwidth Upstream 200 Mbps 10 Mbps
Modulation OFDM QPSK/QAM
Frequency Range 2 – 32 Mhz 91 – 587 Mhz/
5 – 65 Mhz
Network Architecture Modular, Hierarchical,
distributed centralized
CableTV Network One way and two Two way
compatibility way
(C) GSCOM 2010

5. Solution brief:
HFC network integration for
robust data services
5
 Clean-up return path of HFC network
 Create distributed network
(C) GSCOM 2010

6. Solution brief:
Intra-building connection
6
LAN Building 1 Coaxial Cable LAN Building 2
200 Mbps
1,200 Meters
 High speed connection between building up to
200 Mbps with the distance up to 1200 meters
 More cost effective compared to Fiber Optic
installation
 More reliable compared to wireless connection
(C) GSCOM 2010

7. Solution brief:
Broadband over powerline
(BPL) injection (MV/LV)
7
Tap to MV cable
Coax
Cable MV Coupler
Phase 1
Phase 2
Phase 3
BPL Modem
 Medium voltage (MV) and low voltage (LV) signal injection
through coupler enable the system to transmit data through
electrical wire.
 Applying 3 phase will enable the system to inject the data
signal through all the 3 phase electrical network, so all the
electrical wire become data network infrastructure.
(C) GSCOM 2010

8. Investment per Home Pass
8
$ 850
$ 75
$30
FTTH DOCSIS CableLAN
*www.gigaon.com
**Exclude cable laying
(C) GSCOM 2010

9. CableLAN Benefit
9
 Leveraging existing Cable TV
infrastructure (one way or two way)
 Support triple play application: data,
voice, and video with bandwidth up to
200 Mbps
 Scalable network configuration (invest
as you grow)
 Signal travel long distance (up
to1200 meters)
 Lowest cost per home pass
 Fast deployment, non disruptive, and
quick ROI
(C) GSCOM 2010

10. Site installation
10
 An apartment building
with 3 towers and 700
rooms
 Service provided:
PayTV and Internet
 CableLAN network
Installation can finished
within 5 days and
immediately ready to
provide services.
(C) GSCOM 2010

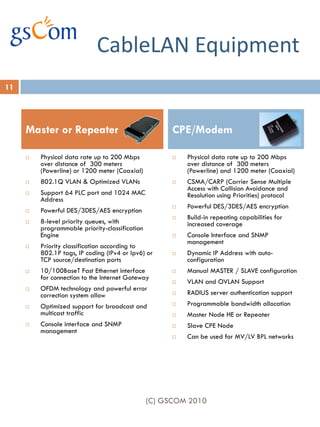

11. CableLAN Equipment
11
Master or Repeater CPE/Modem
 Physical data rate up to 200 Mbps  Physical data rate up to 200 Mbps
over distance of 300 meters over distance of 300 meters
(Powerline) or 1200 meter (Coaxial) (Powerline) and 1200 meter (Coaxial)
 802.1Q VLAN & Optimized VLANs  CSMA/CARP (Carrier Sense Multiple
Access with Collision Avoidance and
 Support 64 PLC port and 1024 MAC Resolution using Priorities) protocol
Address
 Powerful DES/3DES/AES encryption
 Powerful DES/3DES/AES encryption
 Build-in repeating capabilities for
 8-level priority queues, with increased coverage
programmable priority-classification
Engine  Console Interface and SNMP
management
 Priority classification according to
802.1P tags, IP coding (IPv4 or Ipv6) or  Dynamic IP Address with auto-
TCP source/destination ports configuration
 10/100BaseT Fast Ethernet interface  Manual MASTER / SLAVE configuration
for connection to the Internet Gateway
 VLAN and OVLAN Support
 OFDM technology and powerful error
correction system allow  RADIUS server authentication support
 Optimized support for broadcast and  Programmable bandwidth allocation
multicast traffic  Master Node HE or Repeater
 Console interface and SNMP  Slave CPE Node
management
 Can be used for MV/LV BPL networks
(C) GSCOM 2010

12. Contact Us
12
PT Global Solution Comindo
Ruko Apartment WGP
Blok R01-36
Kelapa Gading Permai
Jakata 14240
Indonesia
Tel: +62-21-45844975
Fax: +62-21-45844976
info@gscom-asia.com
www.gscom-asia.com
(C) GSCOM 2010
