From GR8Conf EU 2012. Read the presentation abstract here: http://gr8conf.eu/Presentations/Under-the-Hood-Spring-in-Grails

1. Under the Hood:
Using Spring in Grails
Burt Beckwith
SpringSource

2. Who Am I
CONFIDENTIAL 2

3. Who Am I
Java developer for over 13 years
Background in Spring, Hibernate, Spring Security
Grails developer for 5 years
SpringSource employee on the Grails team
Created or reworked over 40 Grails plugins
http://burtbeckwith.com/blog/
https://twitter.com/#!/burtbeckwith
CONFIDENTIAL 3

4. Spring Overview
 Main functions of Spring
• Bean container: ApplicationContext and BeanFactory
• Dependency Injection (DI) and Inversion of Control (IoC)
• Proxies
• Transactions
• Security
• Caching
• Event publishing and listening
• Exception conversion
CONFIDENTIAL 4

5. Bean PostProcessors
CONFIDENTIAL 5

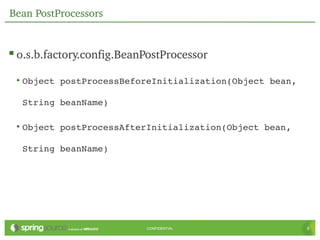

6. Bean PostProcessors
 o.s.b.factory.config.BeanPostProcessor
• Object postProcessBeforeInitialization(Object bean,
String beanName)
• Object postProcessAfterInitialization(Object bean,
String beanName)
CONFIDENTIAL 6

7. Bean PostProcessors
 o.s.b.factory.config.BeanFactoryPostProcessor
• void postProcessBeanFactory(ConfigurableListableBeanFactory
beanFactory)
CONFIDENTIAL 7

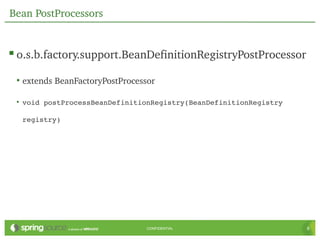

8. Bean PostProcessors
 o.s.b.factory.support.BeanDefinitionRegistryPostProcessor
• extends BeanFactoryPostProcessor
• void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry
registry)
CONFIDENTIAL 8

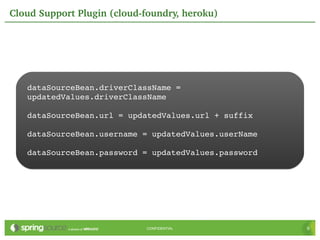

9. Cloud Support Plugin (cloud­foundry, heroku)
dataSourceBean.driverClassName =
updatedValues.driverClassName
dataSourceBean.url = updatedValues.url + suffix
dataSourceBean.username = updatedValues.userName
dataSourceBean.password = updatedValues.password
CONFIDENTIAL 9

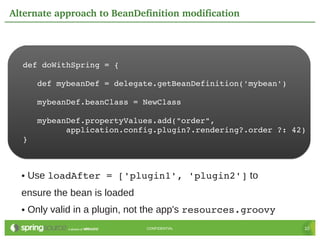

10. Alternate approach to BeanDefinition modification
def doWithSpring = {
def mybeanDef = delegate.getBeanDefinition('mybean')
mybeanDef.beanClass = NewClass
mybeanDef.propertyValues.add("order",
application.config.plugin?.rendering?.order ?: 42)
}
● Use loadAfter = ['plugin1', 'plugin2'] to
ensure the bean is loaded
● Only valid in a plugin, not the app's resources.groovy
CONFIDENTIAL 10

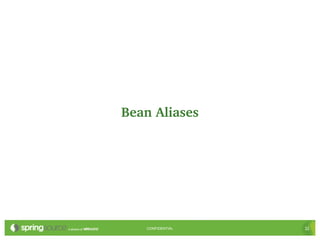

11. Bean Aliases
CONFIDENTIAL 11

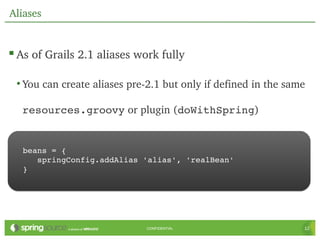

12. Aliases
 As of Grails 2.1 aliases work fully
• You can create aliases pre­2.1 but only if defined in the same
resources.groovy or plugin (doWithSpring)
beans = {
springConfig.addAlias 'alias', 'realBean'
}
CONFIDENTIAL 12

13. Aliases
 The cache plugin registers the alias cacheOperationSource for
the bean registered as
org.springframework.cache.annotation.AnnotationCacheOperationSource#0
 Can use to have multiple implementations of a bean and choose
one via configuration at startup, e.g. per­environment or some
other rule
CONFIDENTIAL 13

14. Spring MVC Controllers
CONFIDENTIAL 14

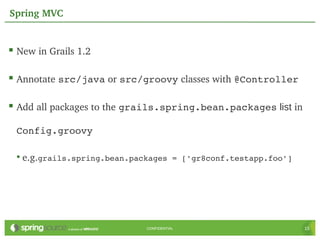

15. Spring MVC
 New in Grails 1.2
 Annotate src/java or src/groovy classes with @Controller
 Add all packages to the grails.spring.bean.packages list in
Config.groovy
• e.g.grails.spring.bean.packages = ['gr8conf.testapp.foo']
CONFIDENTIAL 15

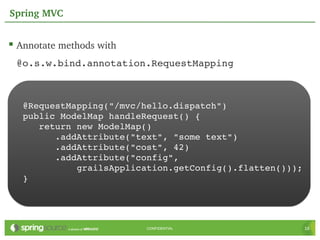

16. Spring MVC
 Annotate methods with
@o.s.w.bind.annotation.RequestMapping
@RequestMapping("/mvc/hello.dispatch")
public ModelMap handleRequest() {
return new ModelMap()
.addAttribute("text", "some text")
.addAttribute("cost", 42)
.addAttribute("config",
grailsApplication.getConfig().flatten()));
}
CONFIDENTIAL 16

17. Spring MVC
 @RequestMapping URI value must end in .dispatch
 Add entries in UrlMappings to create more natural URLs
class UrlMappings {
static mappings = {
…
"/mvc/hello"(uri:"/mvc/hello.dispatch")
"/mvc/other"(uri:"/mvc/other.dispatch")
}
}
CONFIDENTIAL 17

18. Spring MVC
 Use @Autowired for dependency injection (on fields in Groovy
classes, on setters or constructors in Java)
private GrailsApplication grailsApplication;
@Autowired
public void setGrailsApplication(GrailsApplication app) {
grailsApplication = app;
}
CONFIDENTIAL 18

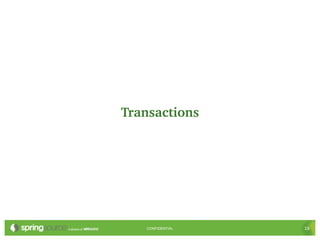

19. Transactions
CONFIDENTIAL 19

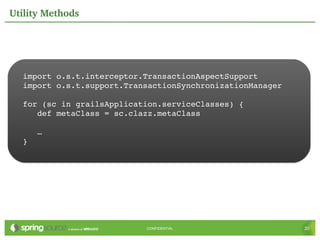

20. Utility Methods
import o.s.t.interceptor.TransactionAspectSupport
import o.s.t.support.TransactionSynchronizationManager
for (sc in grailsApplication.serviceClasses) {
def metaClass = sc.clazz.metaClass
…
}
CONFIDENTIAL 20

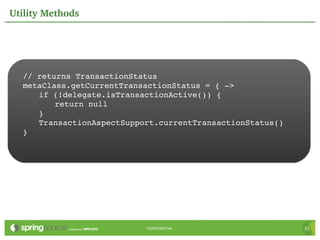

21. Utility Methods
// returns TransactionStatus
metaClass.getCurrentTransactionStatus = { ­>
if (!delegate.isTransactionActive()) {
return null
}
TransactionAspectSupport.currentTransactionStatus()
}
CONFIDENTIAL 21

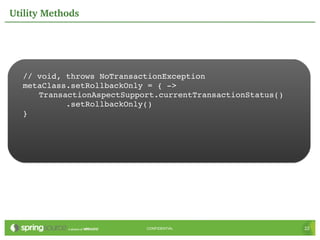

22. Utility Methods
// void, throws NoTransactionException
metaClass.setRollbackOnly = { ­>
TransactionAspectSupport.currentTransactionStatus()
.setRollbackOnly()
}
CONFIDENTIAL 22

23. Utility Methods
// returns boolean
metaClass.isRollbackOnly = { ­>
if (!delegate.isTransactionActive()) {
return false
}
delegate.getCurrentTransactionStatus().isRollbackOnly()
}
CONFIDENTIAL 23

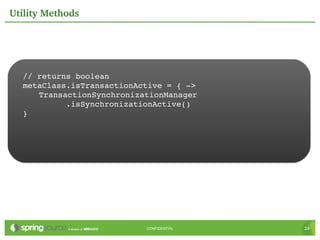

24. Utility Methods
// returns boolean
metaClass.isTransactionActive = { ­>
TransactionSynchronizationManager
.isSynchronizationActive()
}
CONFIDENTIAL 24

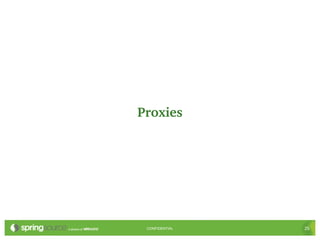

25. Proxies
CONFIDENTIAL 25

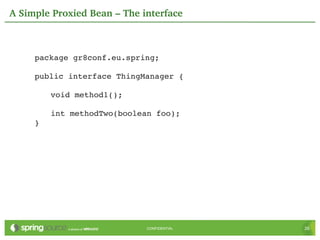

26. A Simple Proxied Bean – The interface
package gr8conf.eu.spring;
public interface ThingManager {
void method1();
int methodTwo(boolean foo);
}
CONFIDENTIAL 26

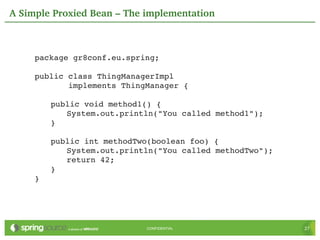

27. A Simple Proxied Bean – The implementation
package gr8conf.eu.spring;
public class ThingManagerImpl
implements ThingManager {
public void method1() {
System.out.println("You called method1");
}
public int methodTwo(boolean foo) {
System.out.println("You called methodTwo");
return 42;
}
}
CONFIDENTIAL 27

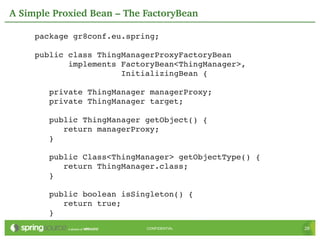

28. A Simple Proxied Bean – The FactoryBean
package gr8conf.eu.spring;
public class ThingManagerProxyFactoryBean
implements FactoryBean<ThingManager>,
InitializingBean {
private ThingManager managerProxy;
private ThingManager target;
public ThingManager getObject() {
return managerProxy;
}
public Class<ThingManager> getObjectType() {
return ThingManager.class;
}
public boolean isSingleton() {
return true;
}
CONFIDENTIAL 28

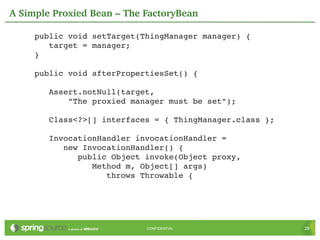

29. A Simple Proxied Bean – The FactoryBean
public void setTarget(ThingManager manager) {
target = manager;
}
public void afterPropertiesSet() {
Assert.notNull(target,
"The proxied manager must be set");
Class<?>[] interfaces = { ThingManager.class };
InvocationHandler invocationHandler =
new InvocationHandler() {
public Object invoke(Object proxy,
Method m, Object[] args)
throws Throwable {
CONFIDENTIAL 29

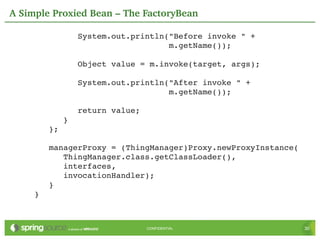

30. A Simple Proxied Bean – The FactoryBean
System.out.println("Before invoke " +
m.getName());
Object value = m.invoke(target, args);
System.out.println("After invoke " +
m.getName());
return value;
}
};
managerProxy = (ThingManager)Proxy.newProxyInstance(
ThingManager.class.getClassLoader(),
interfaces,
invocationHandler);
}
}
CONFIDENTIAL 30

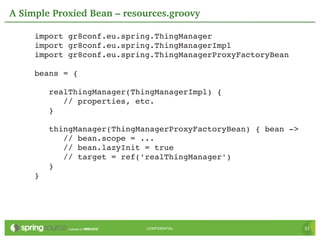

31. A Simple Proxied Bean – resources.groovy
import gr8conf.eu.spring.ThingManager
import gr8conf.eu.spring.ThingManagerImpl
import gr8conf.eu.spring.ThingManagerProxyFactoryBean
beans = {
realThingManager(ThingManagerImpl) {
// properties, etc.
}
thingManager(ThingManagerProxyFactoryBean) { bean ­>
// bean.scope = ...
// bean.lazyInit = true
// target = ref('realThingManager')
}
}
CONFIDENTIAL 31

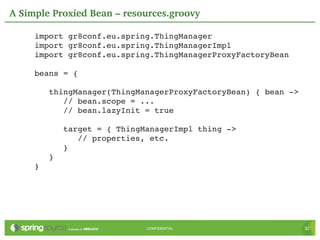

32. A Simple Proxied Bean – resources.groovy
import gr8conf.eu.spring.ThingManager
import gr8conf.eu.spring.ThingManagerImpl
import gr8conf.eu.spring.ThingManagerProxyFactoryBean
beans = {
thingManager(ThingManagerProxyFactoryBean) { bean ­>
// bean.scope = ...
// bean.lazyInit = true
target = { ThingManagerImpl thing ­>
// properties, etc.
}
}
}
CONFIDENTIAL 32

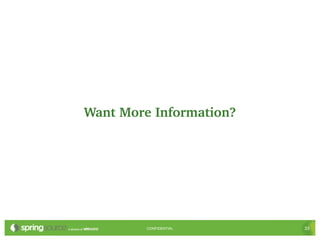

33. Want More Information?
CONFIDENTIAL 33

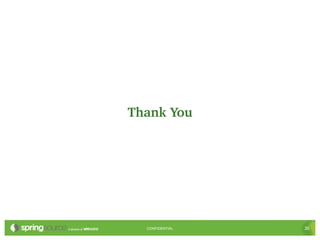

35. Thank You
CONFIDENTIAL 35
