1. Under the Hood: Using Spring in Grails
Burt Beckwith
SpringSource
CONFIDENTIAL
© 2010 SpringSource, A division of VMware. All rights reserved

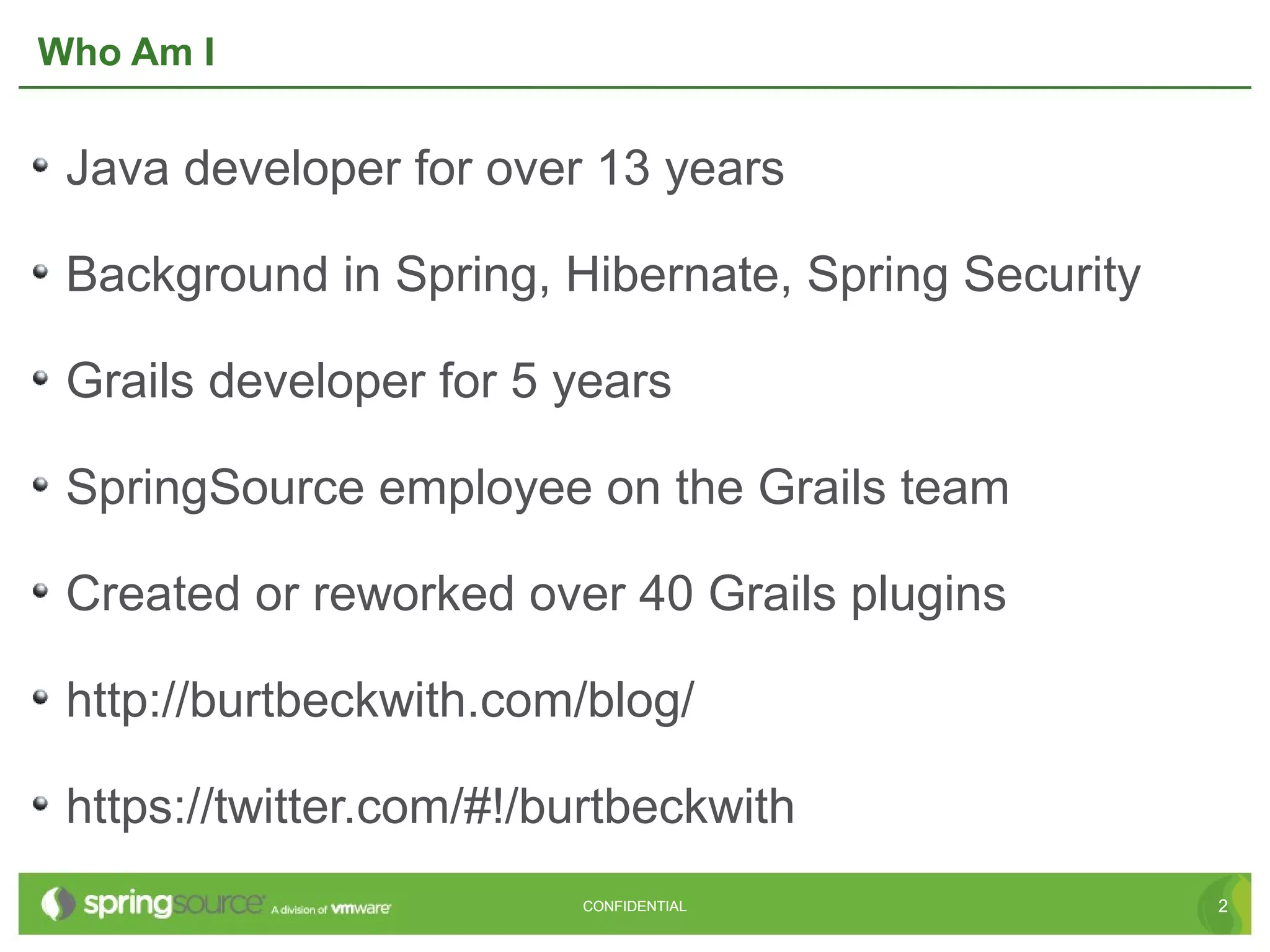

2. Who Am I
Java developer for over 13 years
Background in Spring, Hibernate, Spring Security
Grails developer for 5 years
SpringSource employee on the Grails team
Created or reworked over 40 Grails plugins
http://burtbeckwith.com/blog/
https://twitter.com/#!/burtbeckwith
CONFIDENTIAL 2

3. Spring Overview
 Main functions of Spring
• Bean container: ApplicationContext and BeanFactory
• Dependency Injection (DI) and Inversion of Control (IoC)
• Proxies
• Transactions
• Security
• Caching
• Event publishing and listening
• Exception conversion
CONFIDENTIAL 3

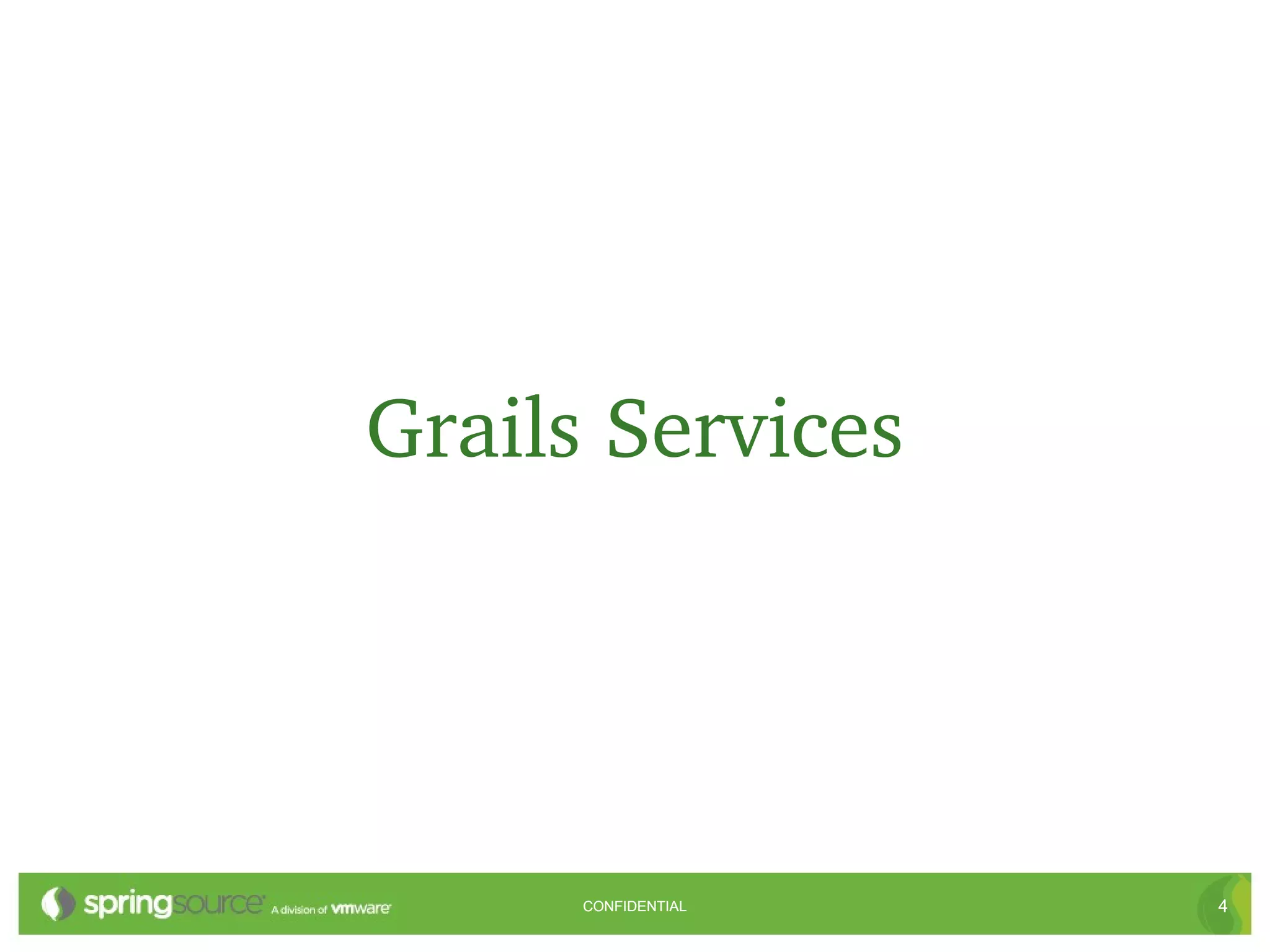

4. Grails Services
CONFIDENTIAL 4

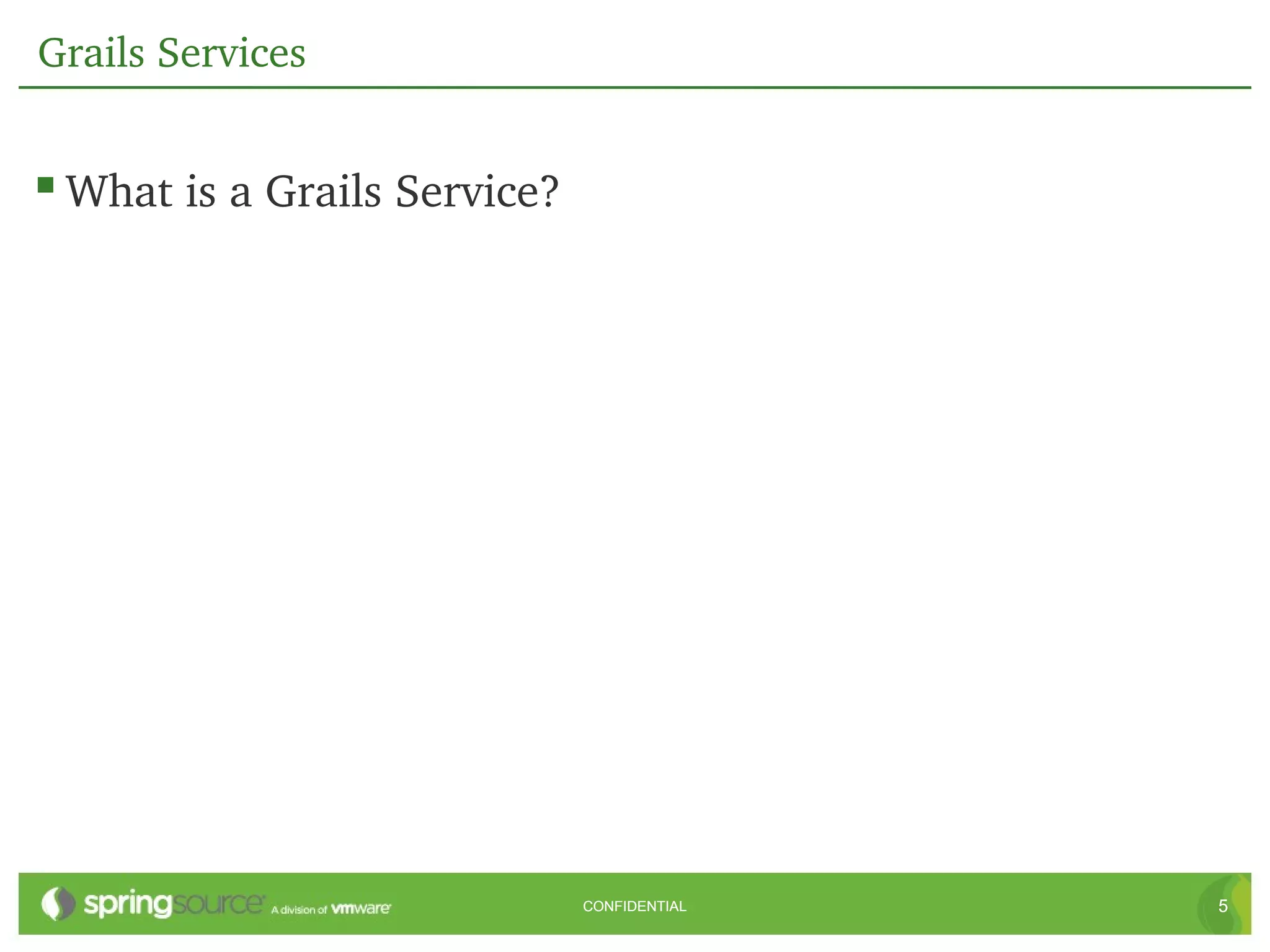

5. Grails Services
 What is a Grails Service?
CONFIDENTIAL 5

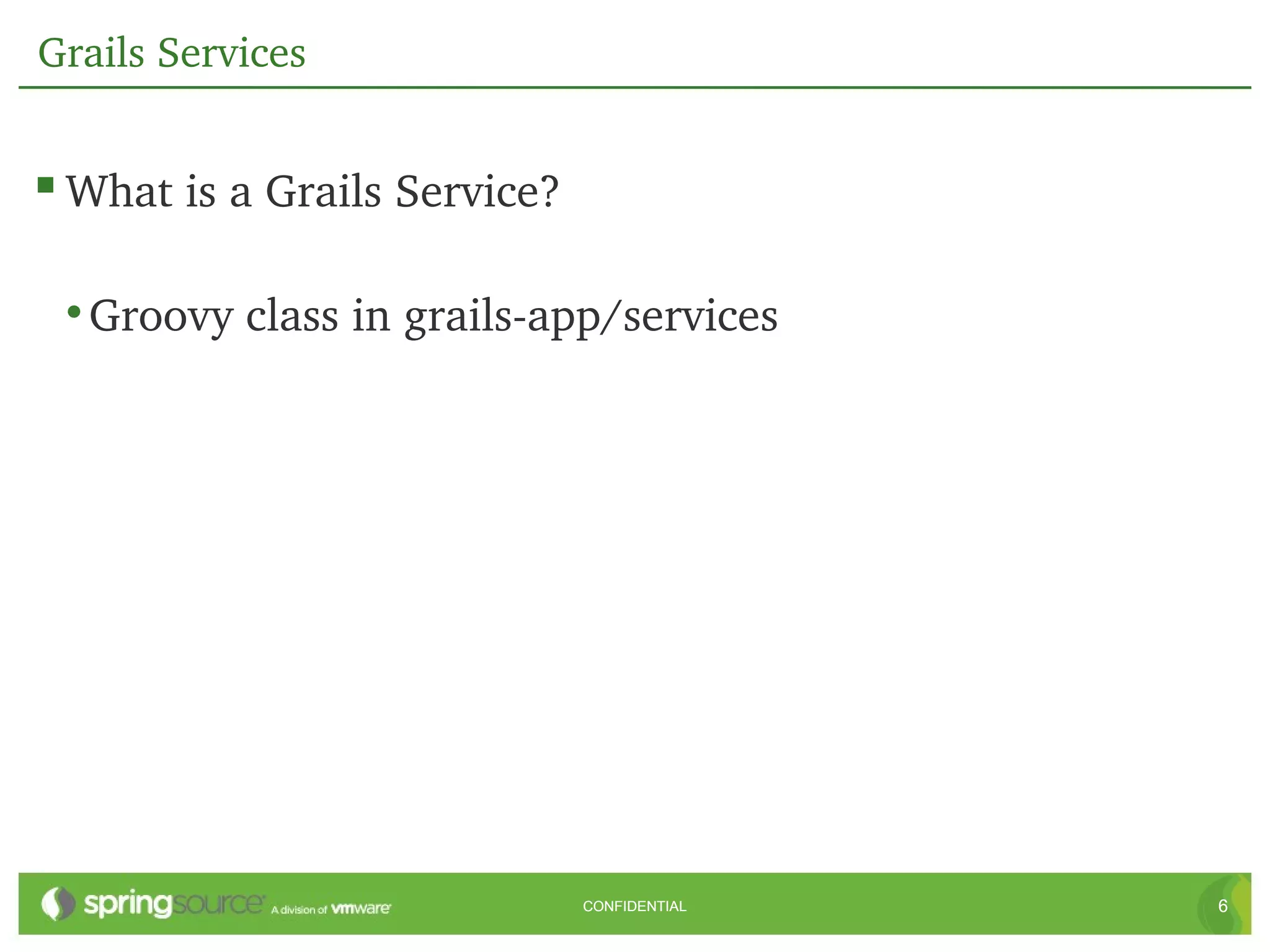

6. Grails Services
 What is a Grails Service?
• Groovy class in grails­app/services
CONFIDENTIAL 6

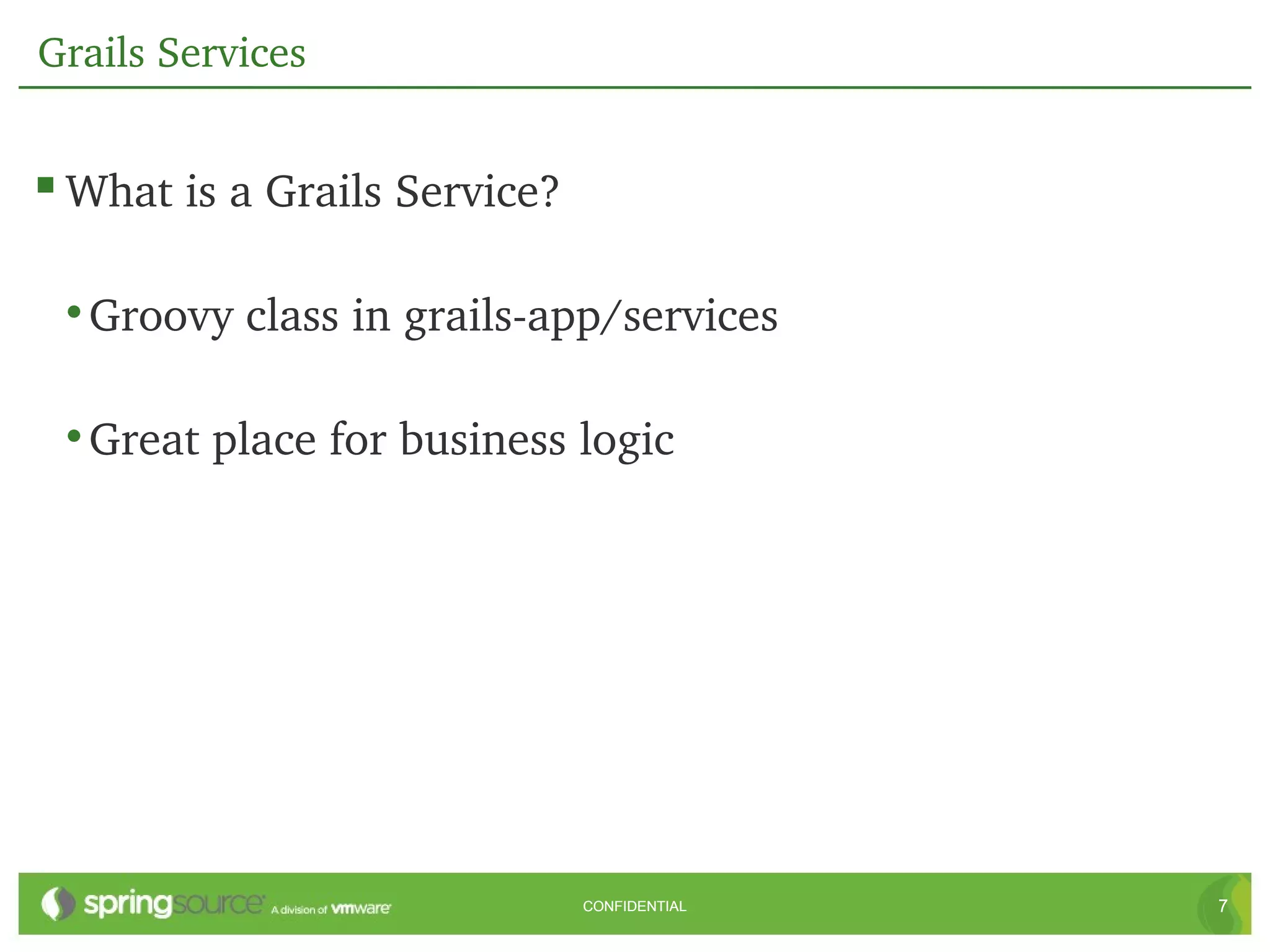

7. Grails Services
 What is a Grails Service?
• Groovy class in grails­app/services
• Great place for business logic
CONFIDENTIAL 7

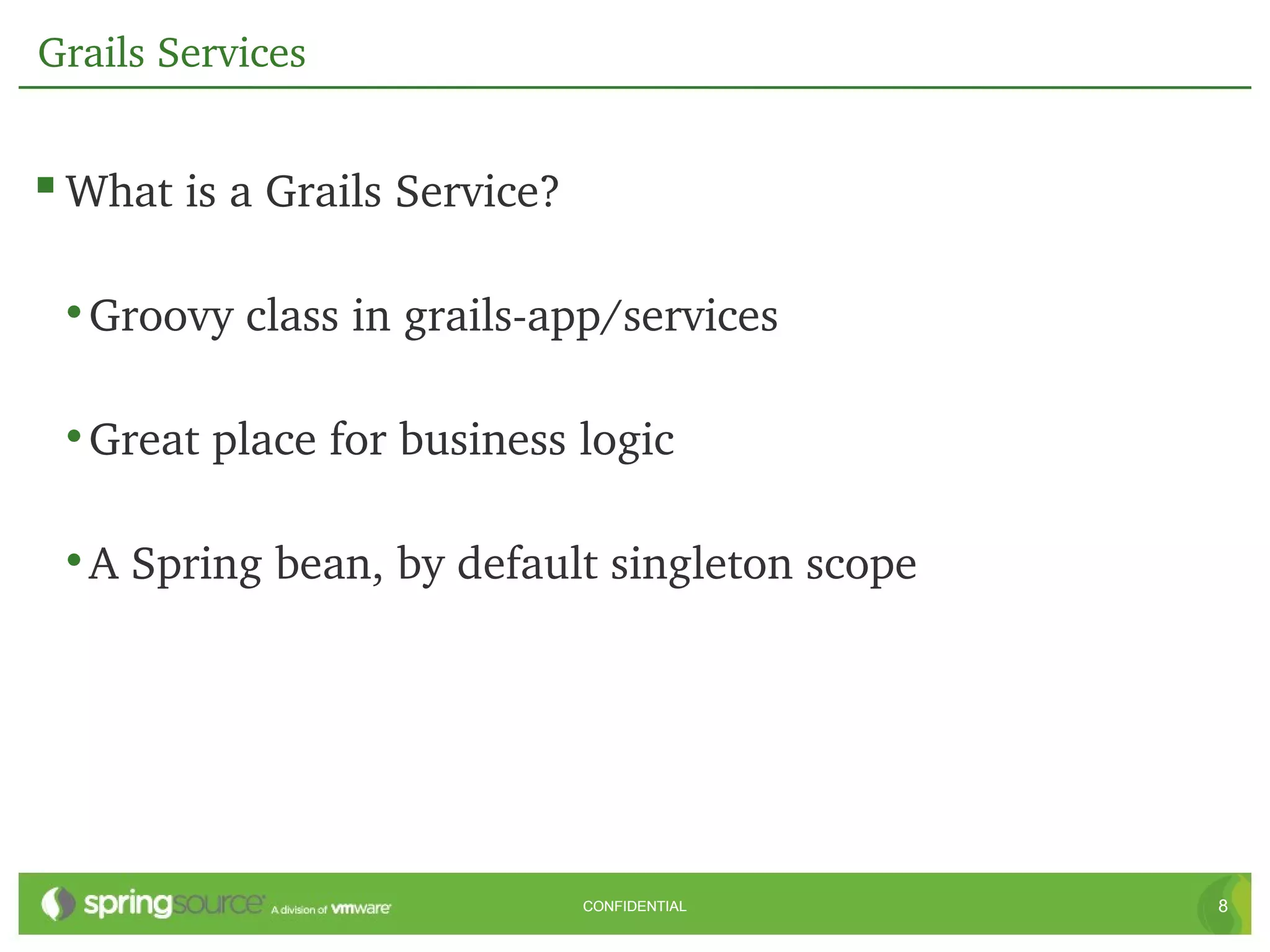

8. Grails Services
 What is a Grails Service?
• Groovy class in grails­app/services
• Great place for business logic
• A Spring bean, by default singleton scope
CONFIDENTIAL 8

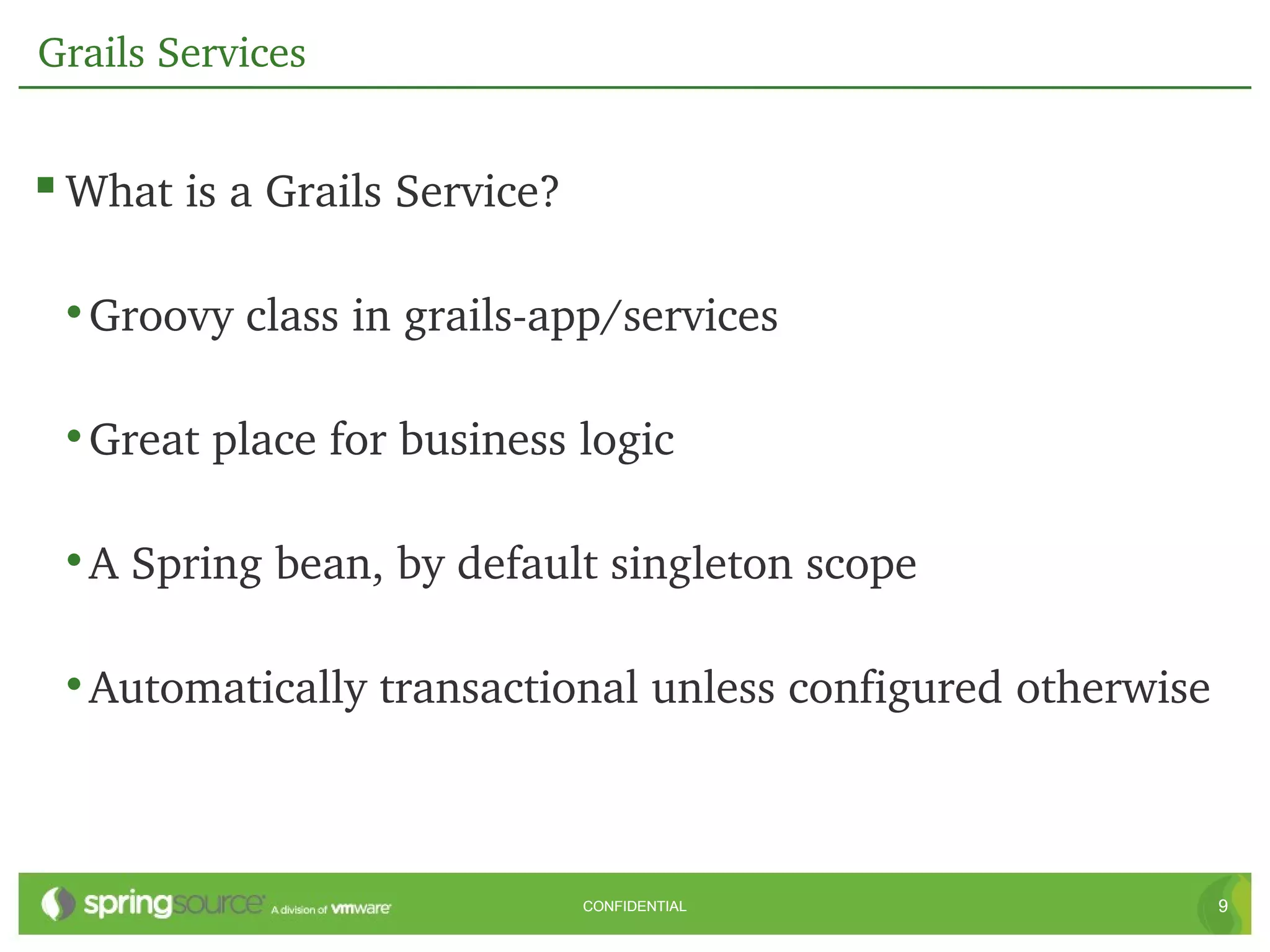

9. Grails Services
 What is a Grails Service?
• Groovy class in grails­app/services
• Great place for business logic
• A Spring bean, by default singleton scope
• Automatically transactional unless configured otherwise
CONFIDENTIAL 9

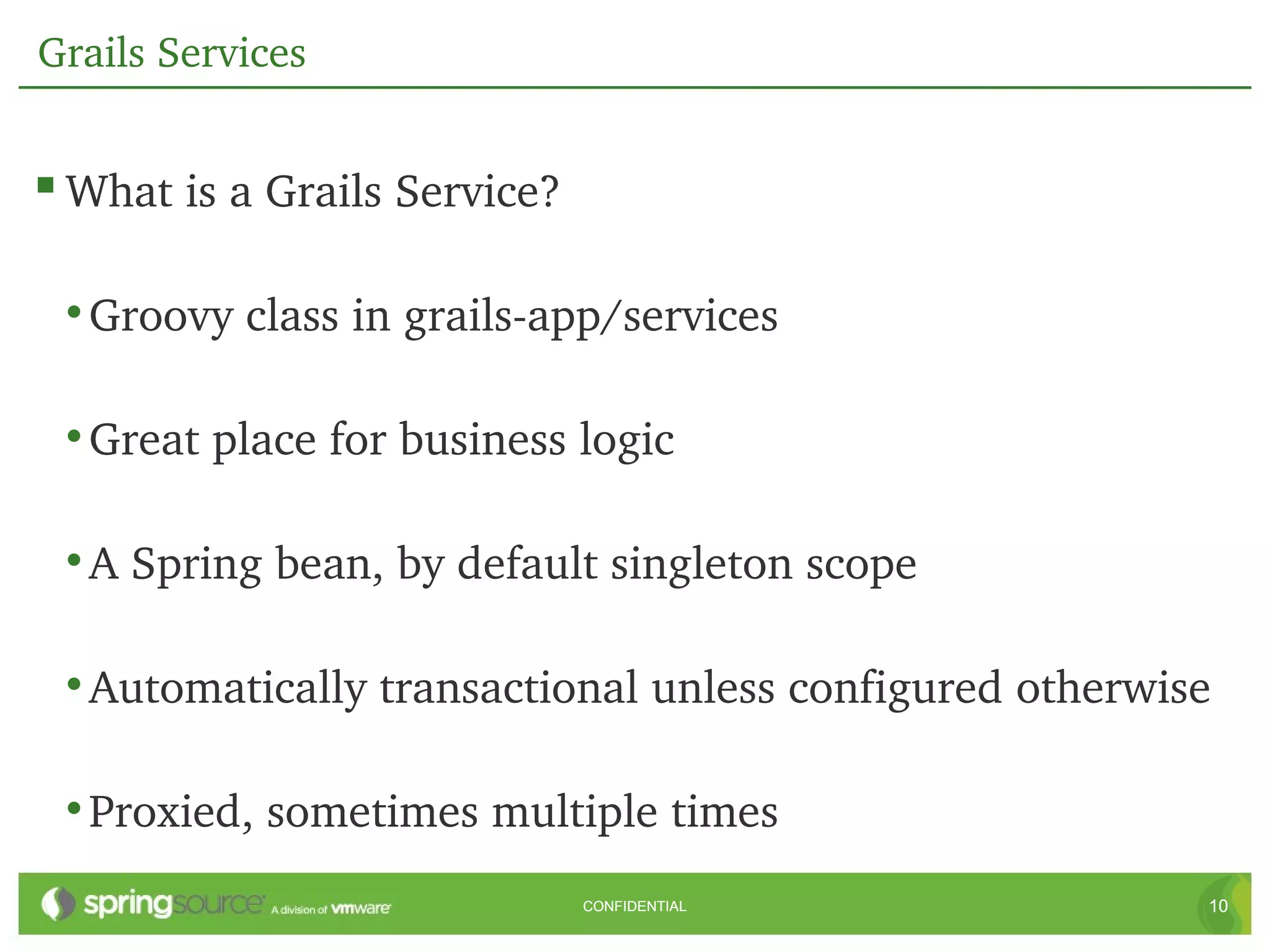

10. Grails Services
 What is a Grails Service?
• Groovy class in grails­app/services
• Great place for business logic
• A Spring bean, by default singleton scope
• Automatically transactional unless configured otherwise
• Proxied, sometimes multiple times
CONFIDENTIAL 10

11. Manually Wiring
CONFIDENTIAL 11

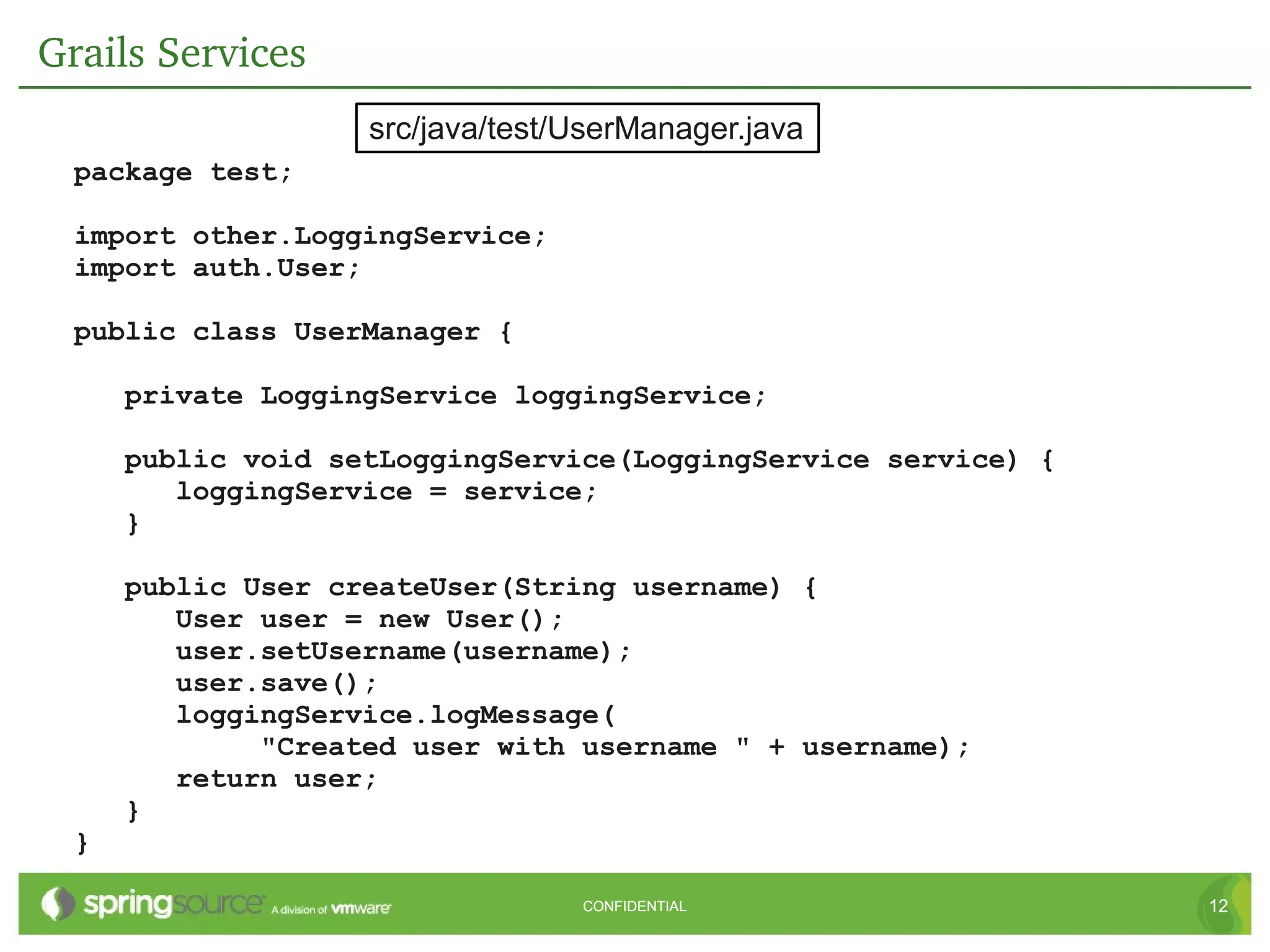

12. Grails Services
src/java/test/UserManager.java
package test;
import other.LoggingService;
import auth.User;
public class UserManager {
private LoggingService loggingService;
public void setLoggingService(LoggingService service) {
loggingService = service;
}
public User createUser(String username) {
User user = new User();
user.setUsername(username);
user.save();
loggingService.logMessage(
"Created user with username " + username);
return user;
}
}
CONFIDENTIAL 12

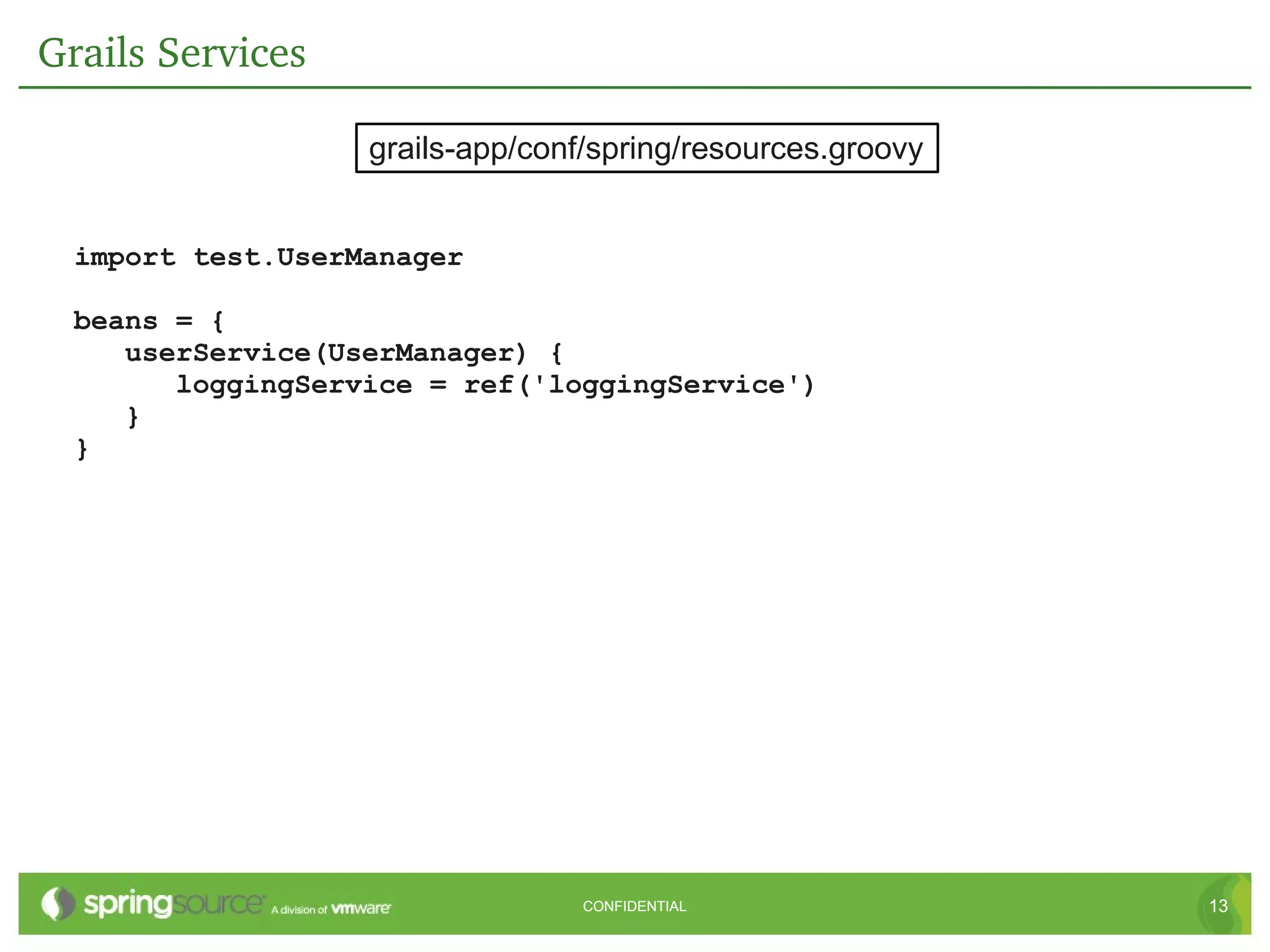

13. Grails Services
grails-app/conf/spring/resources.groovy
import test.UserManager
beans = {
userService(UserManager) {
loggingService = ref('loggingService')
}
}
CONFIDENTIAL 13

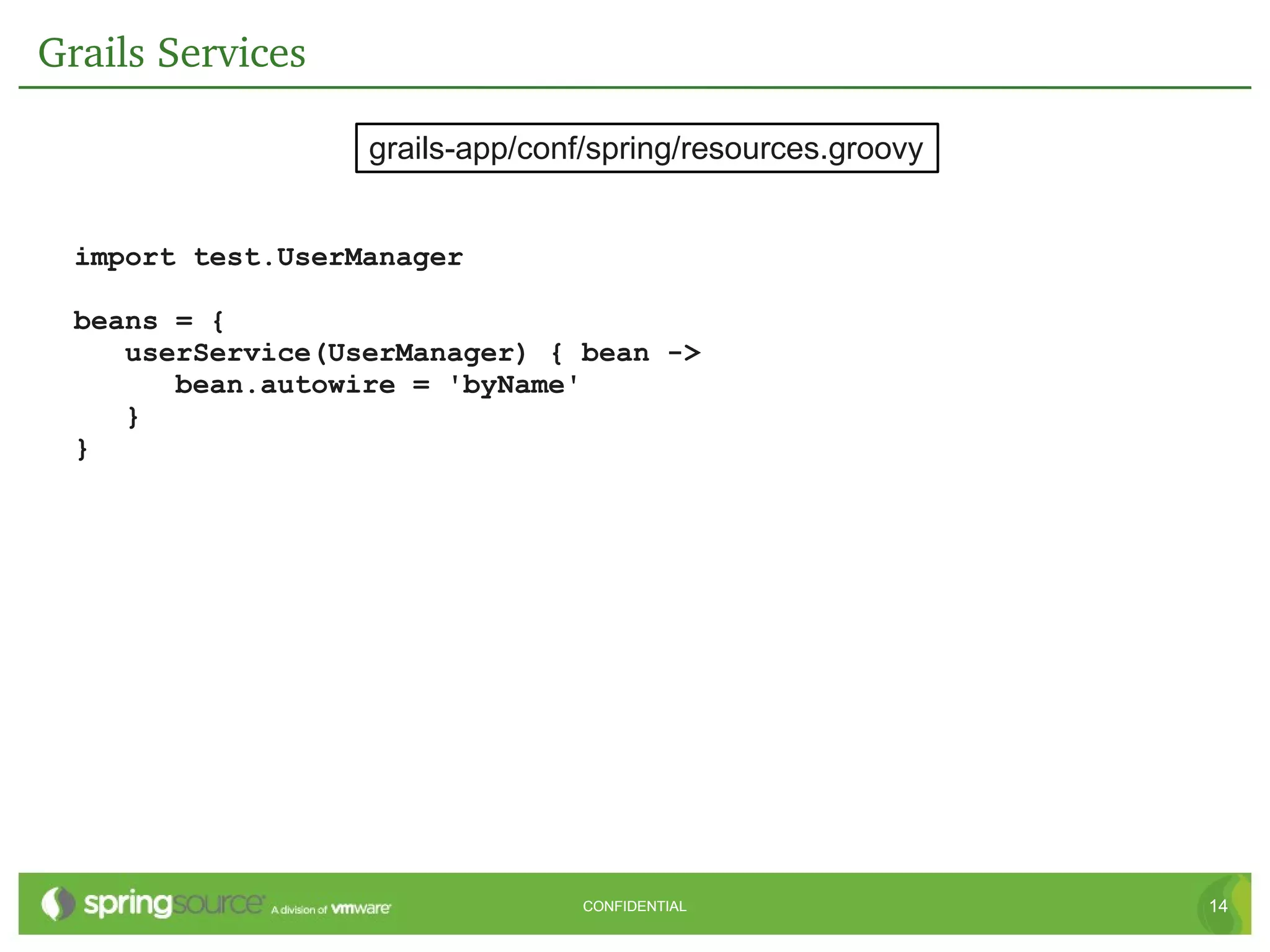

14. Grails Services
grails-app/conf/spring/resources.groovy
import test.UserManager
beans = {
userService(UserManager) { bean ->
bean.autowire = 'byName'
}
}
CONFIDENTIAL 14

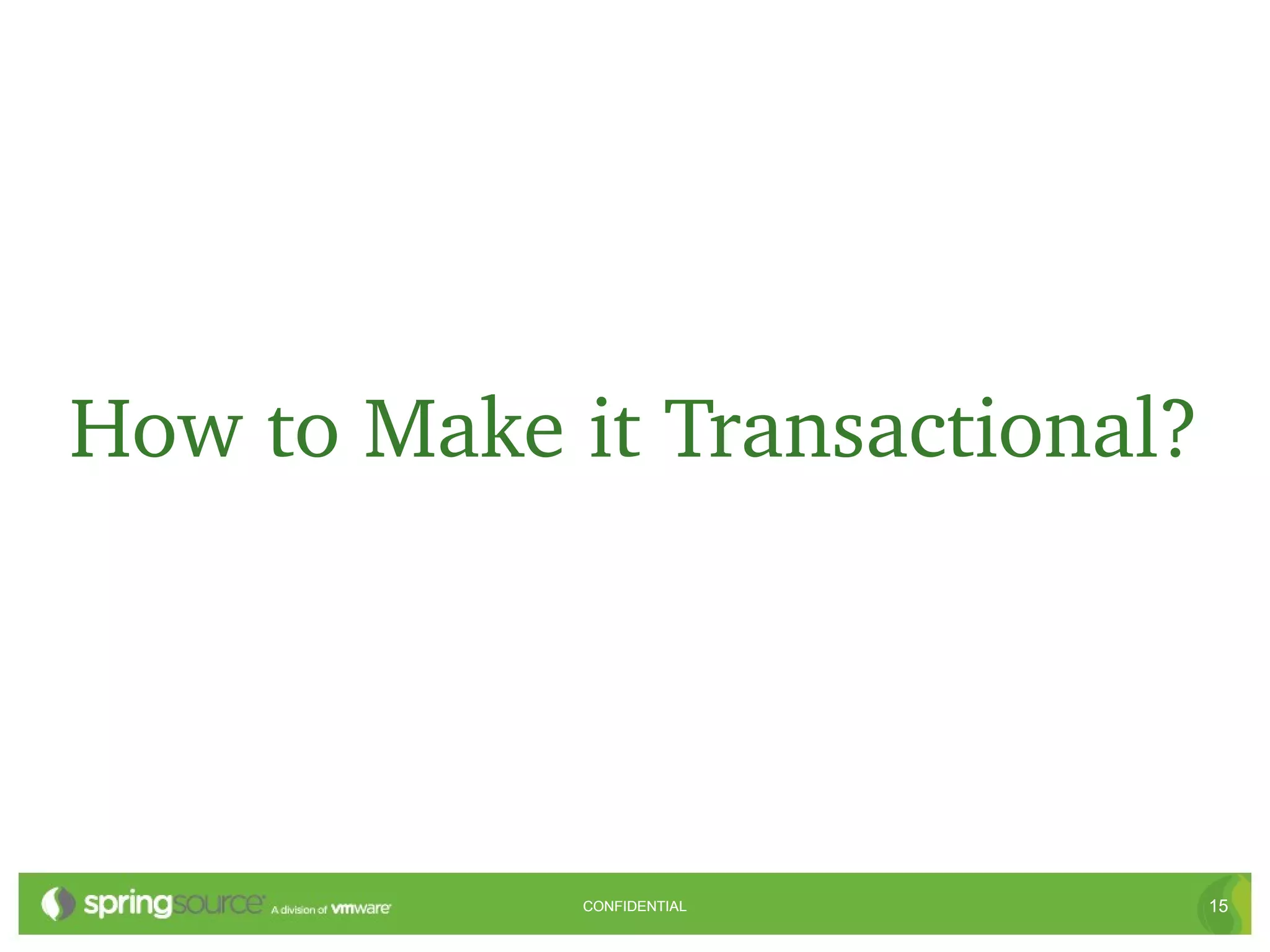

15. How to Make it Transactional?
CONFIDENTIAL 15

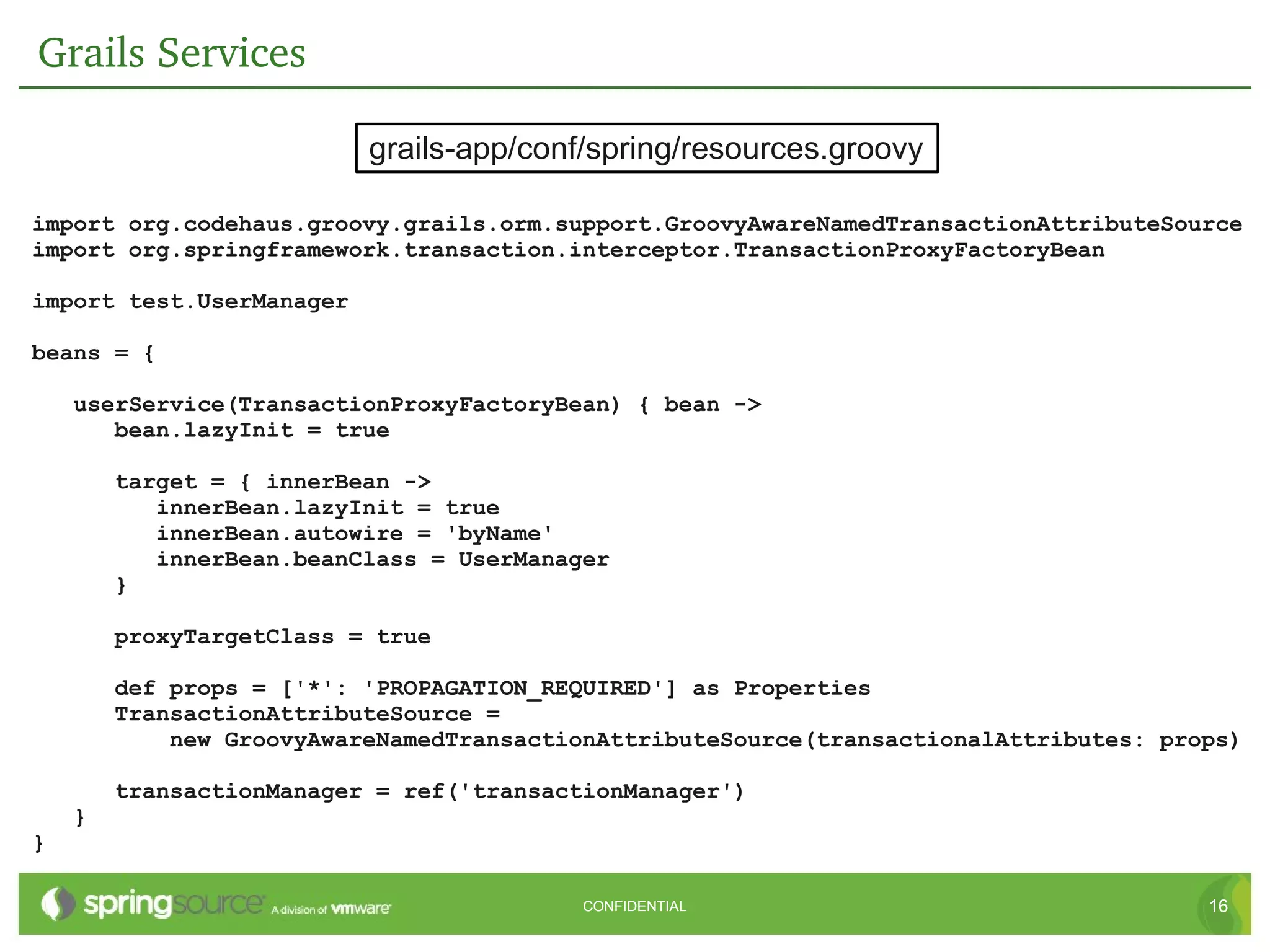

16. Grails Services
grails-app/conf/spring/resources.groovy
import org.codehaus.groovy.grails.orm.support.GroovyAwareNamedTransactionAttributeSource
import org.springframework.transaction.interceptor.TransactionProxyFactoryBean
import test.UserManager
beans = {
userService(TransactionProxyFactoryBean) { bean ->
bean.lazyInit = true
target = { innerBean ->
innerBean.lazyInit = true
innerBean.autowire = 'byName'
innerBean.beanClass = UserManager
}
proxyTargetClass = true
def props = ['*': 'PROPAGATION_REQUIRED'] as Properties
TransactionAttributeSource =
new GroovyAwareNamedTransactionAttributeSource(transactionalAttributes: props)
transactionManager = ref('transactionManager')
}
}
CONFIDENTIAL 16

17. or
CONFIDENTIAL 17

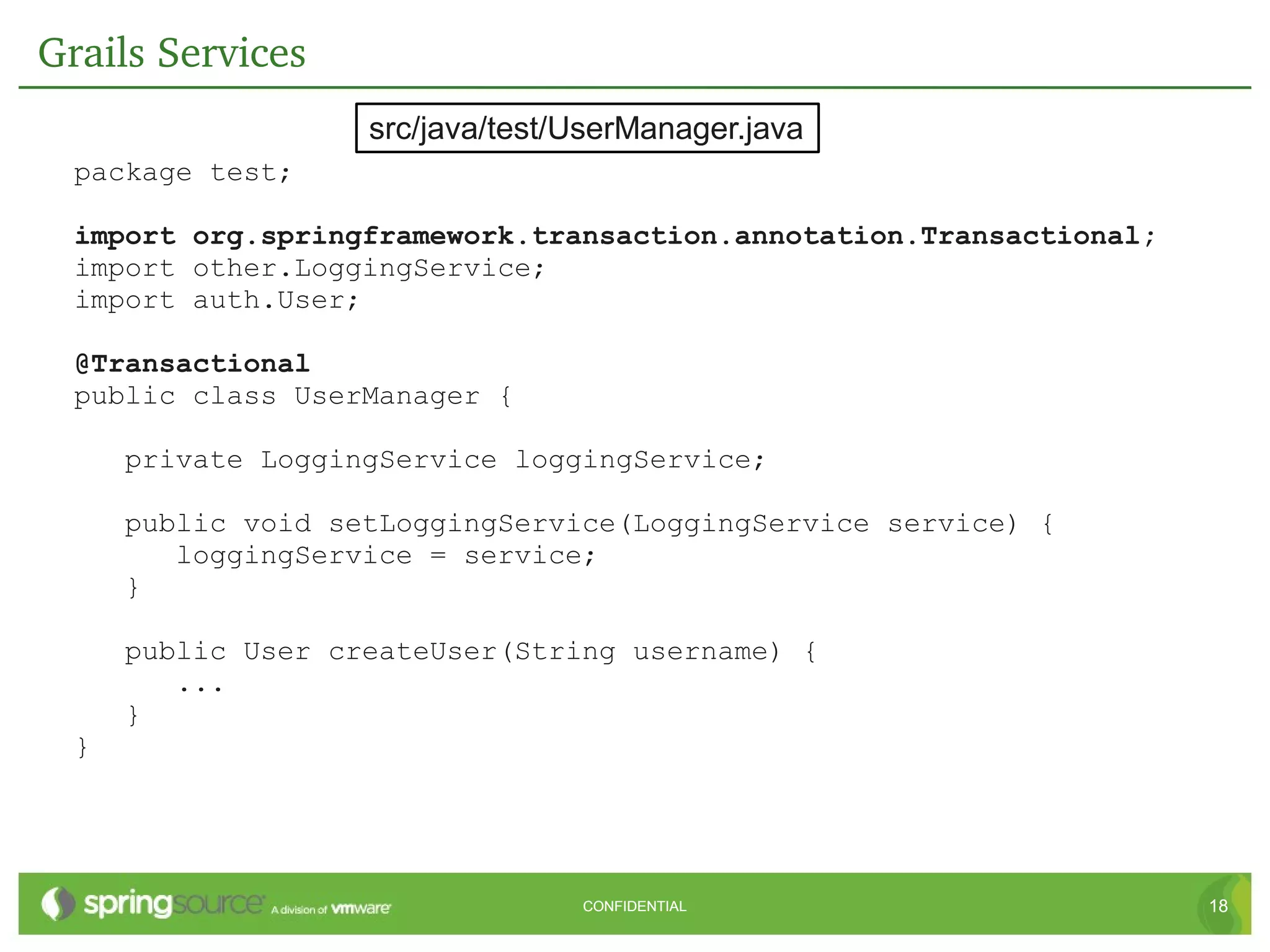

18. Grails Services
src/java/test/UserManager.java
package test;
import org.springframework.transaction.annotation.Transactional;
import other.LoggingService;
import auth.User;
@Transactional
public class UserManager {
private LoggingService loggingService;
public void setLoggingService(LoggingService service) {
loggingService = service;
}
public User createUser(String username) {
...
}
}
CONFIDENTIAL 18

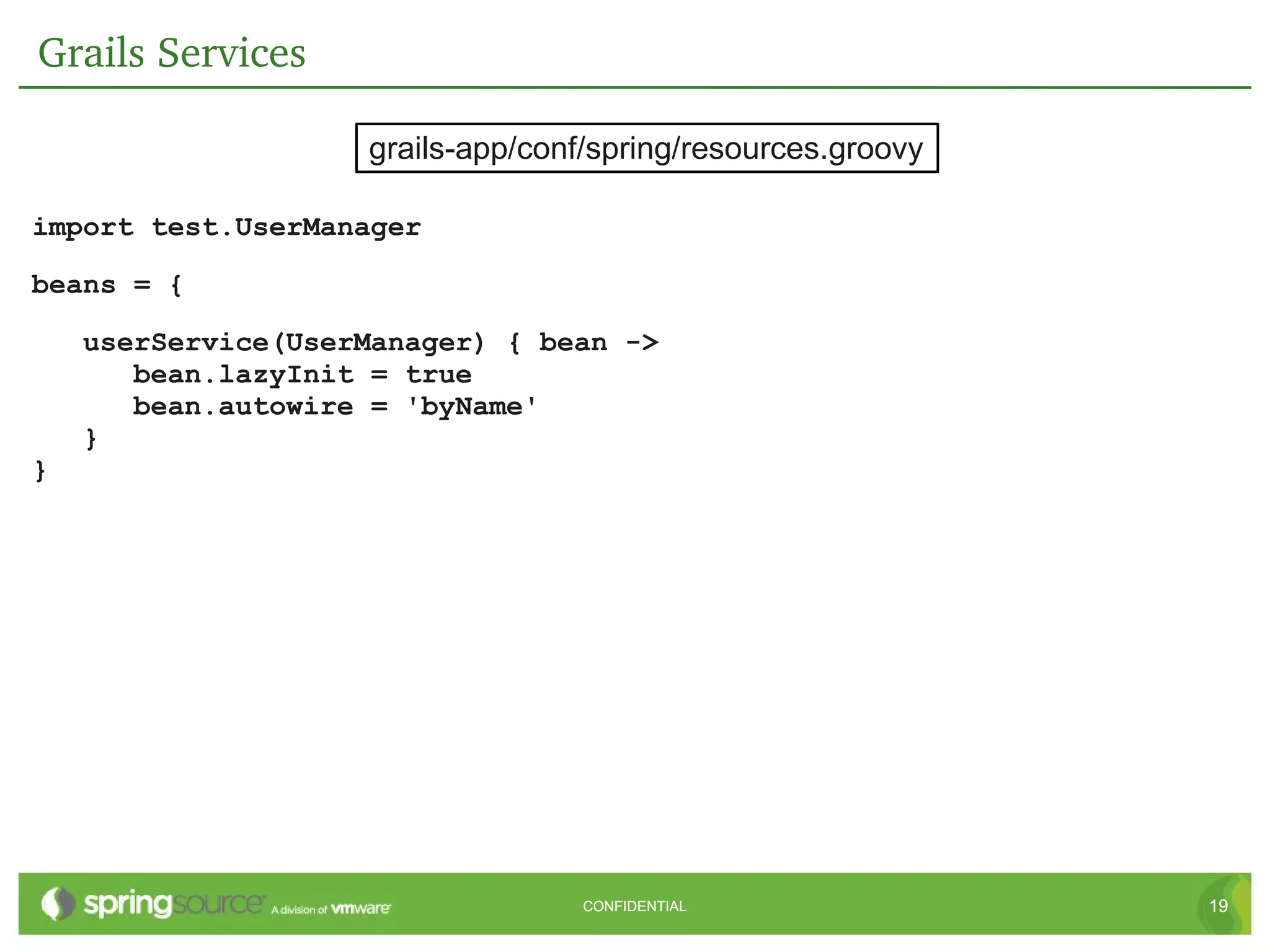

19. Grails Services
grails-app/conf/spring/resources.groovy
import test.UserManager
beans = {
userService(UserManager) { bean ->
bean.lazyInit = true
bean.autowire = 'byName'
}
}
CONFIDENTIAL 19

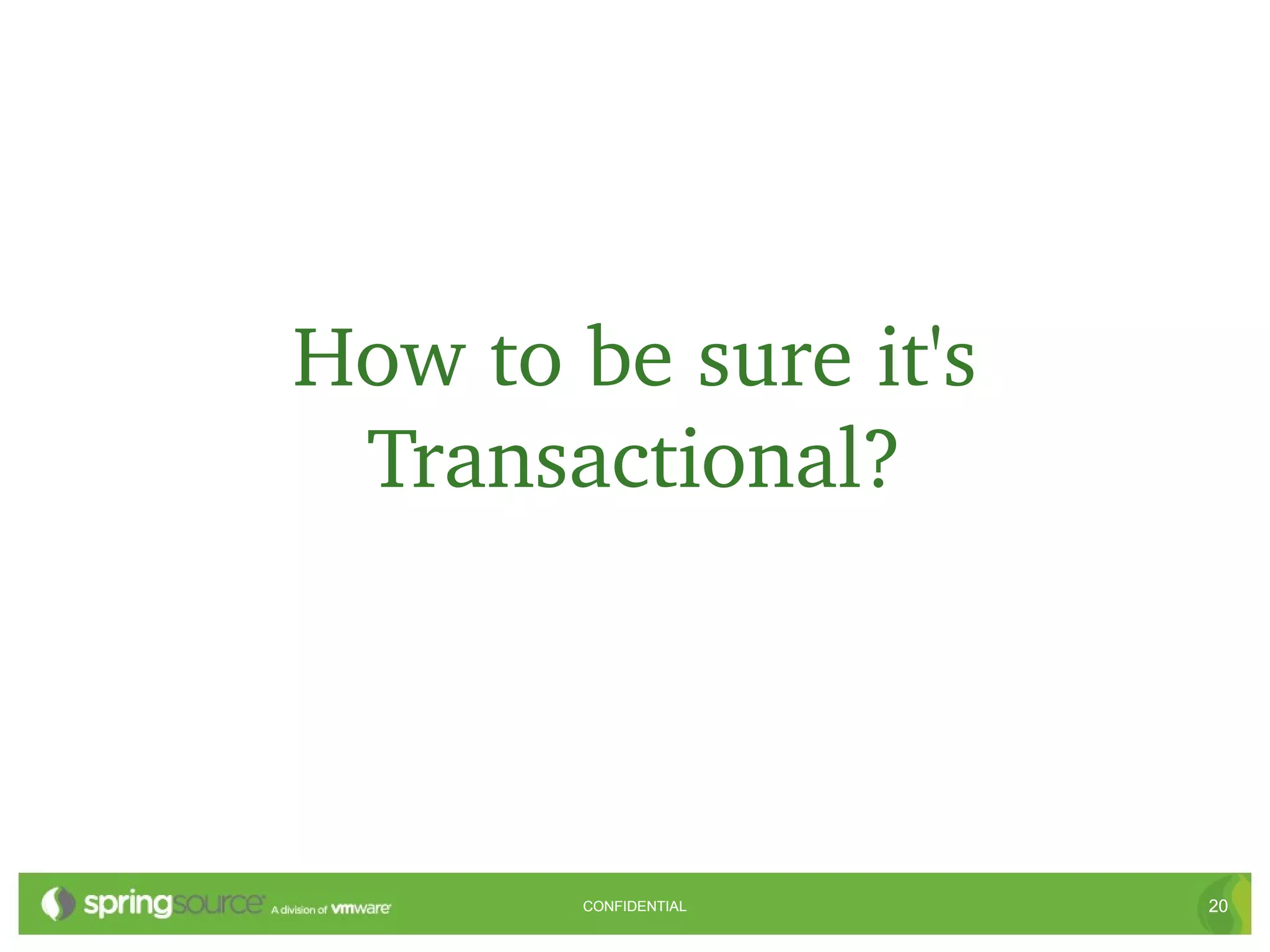

20. How to be sure it's
Transactional?
CONFIDENTIAL 20

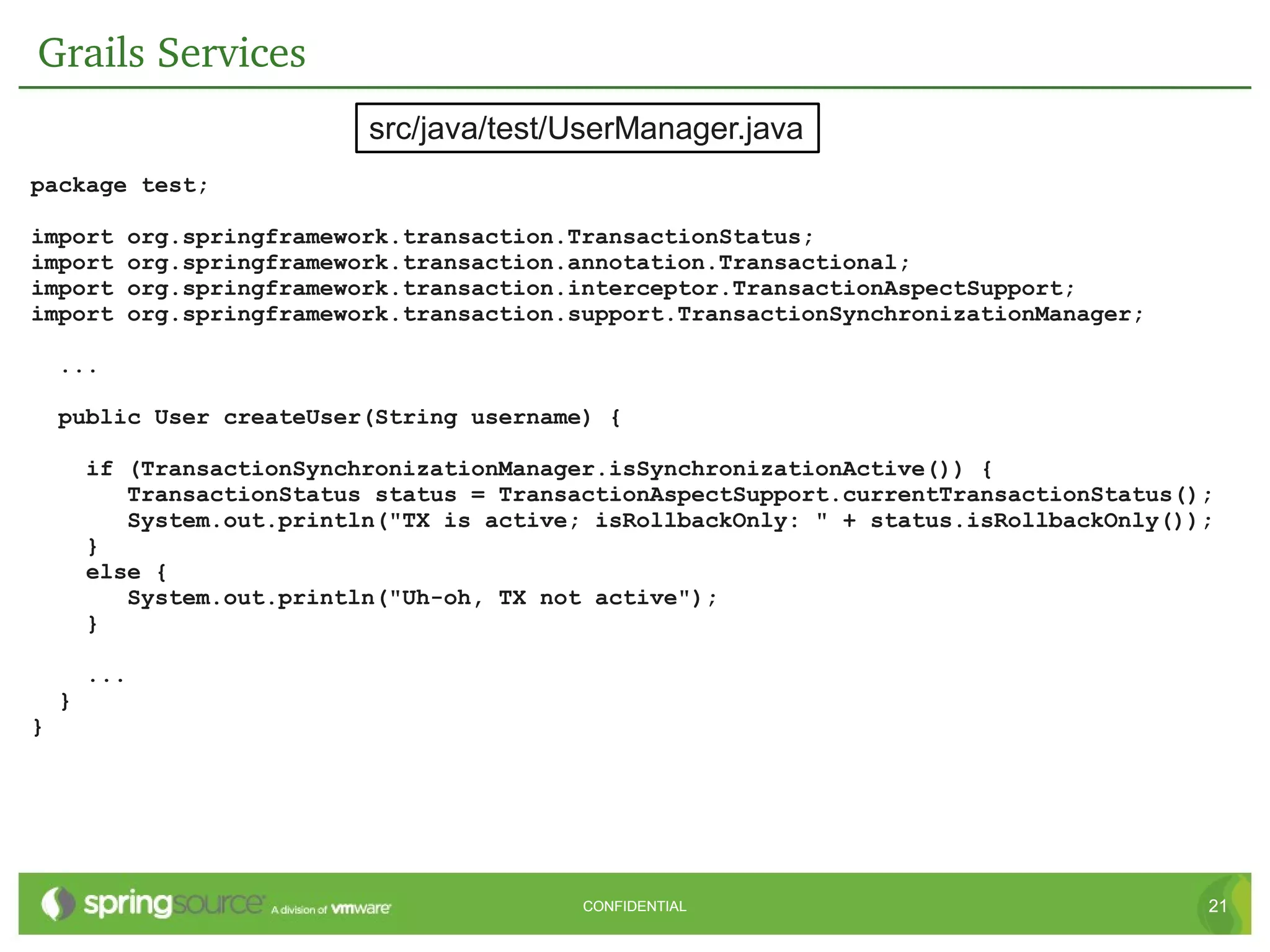

21. Grails Services
src/java/test/UserManager.java
package test;
import org.springframework.transaction.TransactionStatus;
import org.springframework.transaction.annotation.Transactional;
import org.springframework.transaction.interceptor.TransactionAspectSupport;
import org.springframework.transaction.support.TransactionSynchronizationManager;
...
public User createUser(String username) {
if (TransactionSynchronizationManager.isSynchronizationActive()) {
TransactionStatus status = TransactionAspectSupport.currentTransactionStatus();
System.out.println("TX is active; isRollbackOnly: " + status.isRollbackOnly());
}
else {
System.out.println("Uh-oh, TX not active");
}
...
}
}
CONFIDENTIAL 21

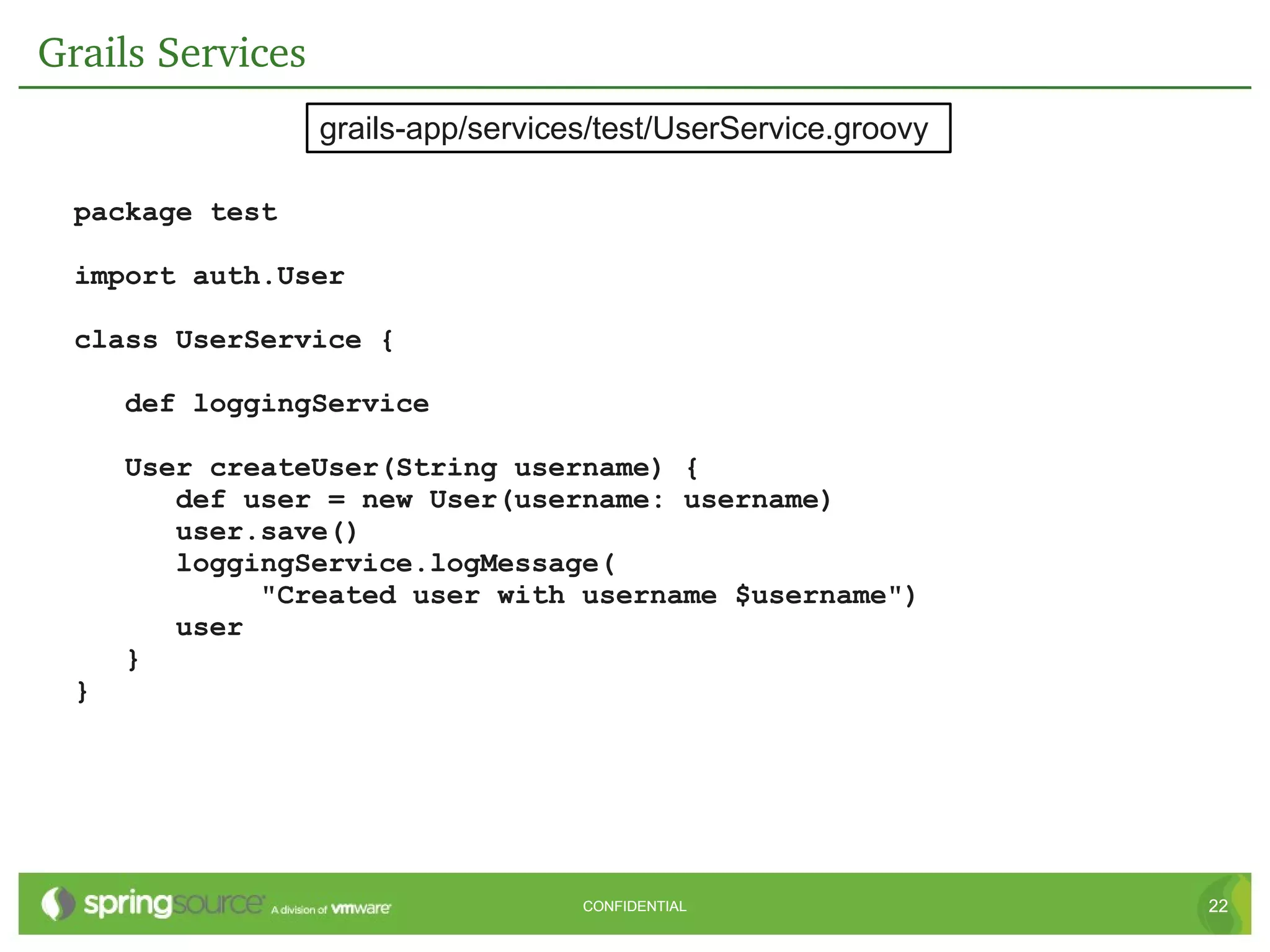

22. Grails Services
grails-app/services/test/UserService.groovy
package test
import auth.User
class UserService {
def loggingService
User createUser(String username) {
def user = new User(username: username)
user.save()
loggingService.logMessage(
"Created user with username $username")
user
}
}
CONFIDENTIAL 22

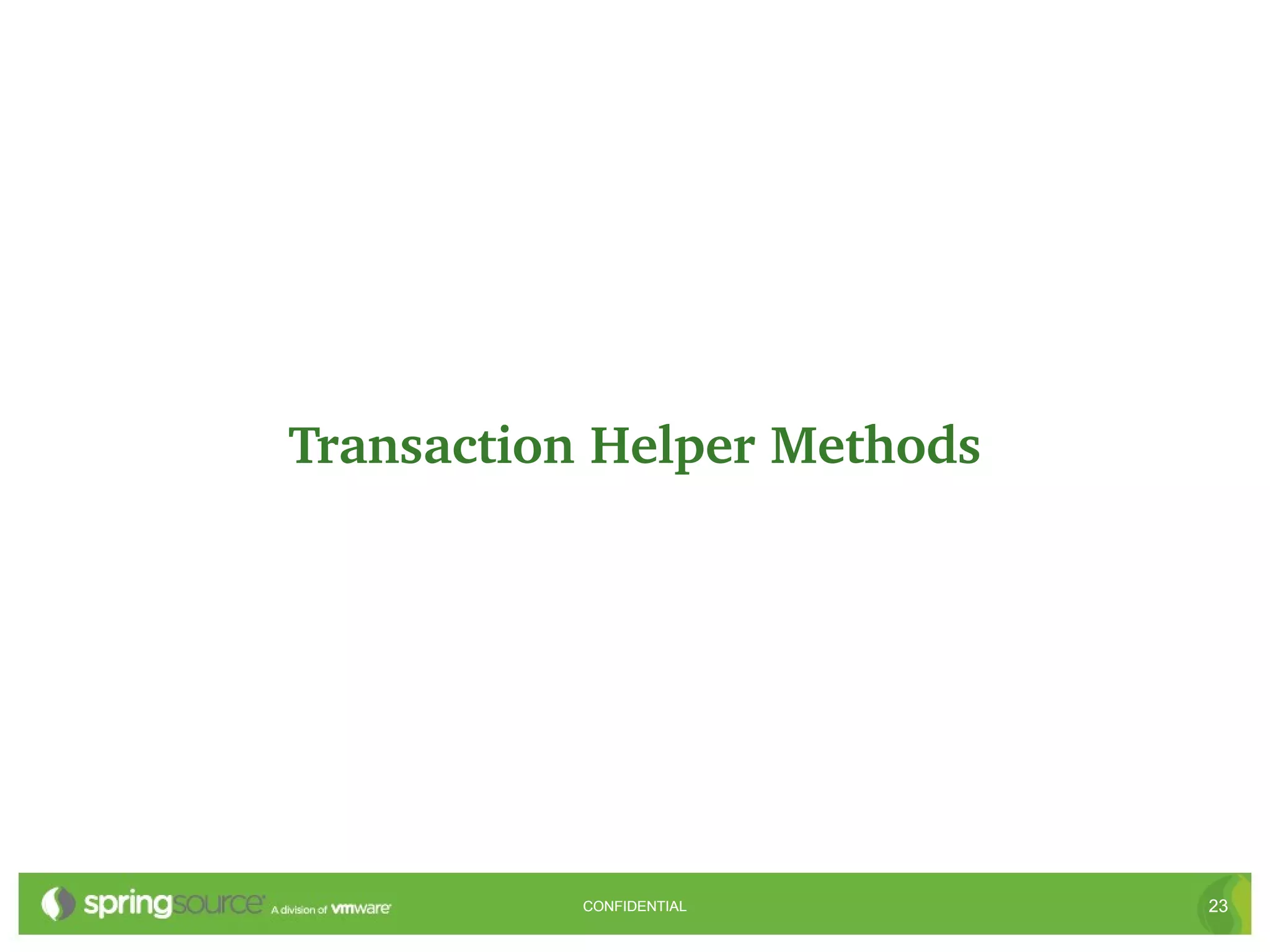

23. Transaction Helper Methods
CONFIDENTIAL 23

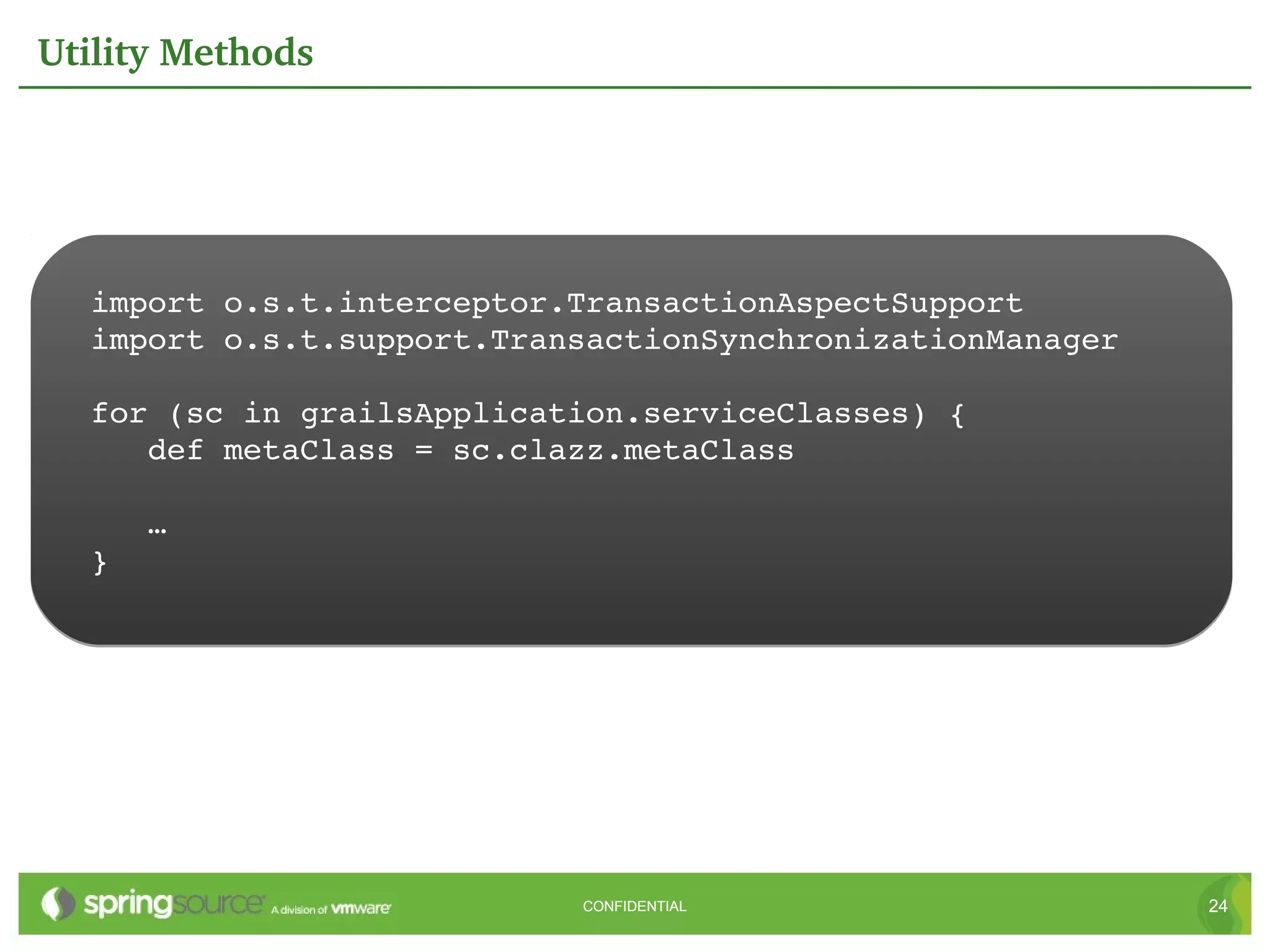

24. Utility Methods
import o.s.t.interceptor.TransactionAspectSupport
import o.s.t.support.TransactionSynchronizationManager
for (sc in grailsApplication.serviceClasses) {
def metaClass = sc.clazz.metaClass
…
}
CONFIDENTIAL 24

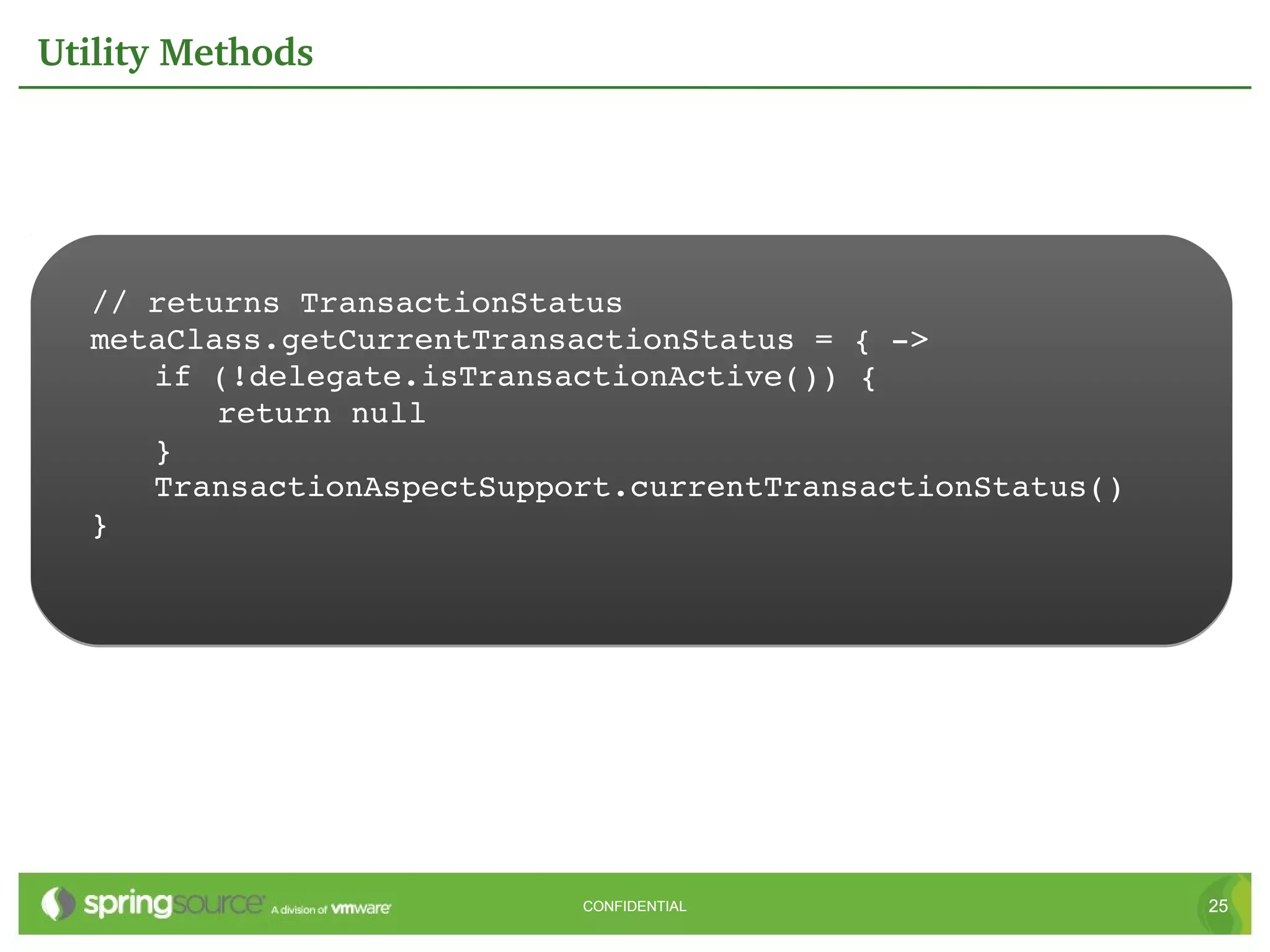

25. Utility Methods
// returns TransactionStatus
metaClass.getCurrentTransactionStatus = { ­>
if (!delegate.isTransactionActive()) {
return null
}
TransactionAspectSupport.currentTransactionStatus()
}
CONFIDENTIAL 25

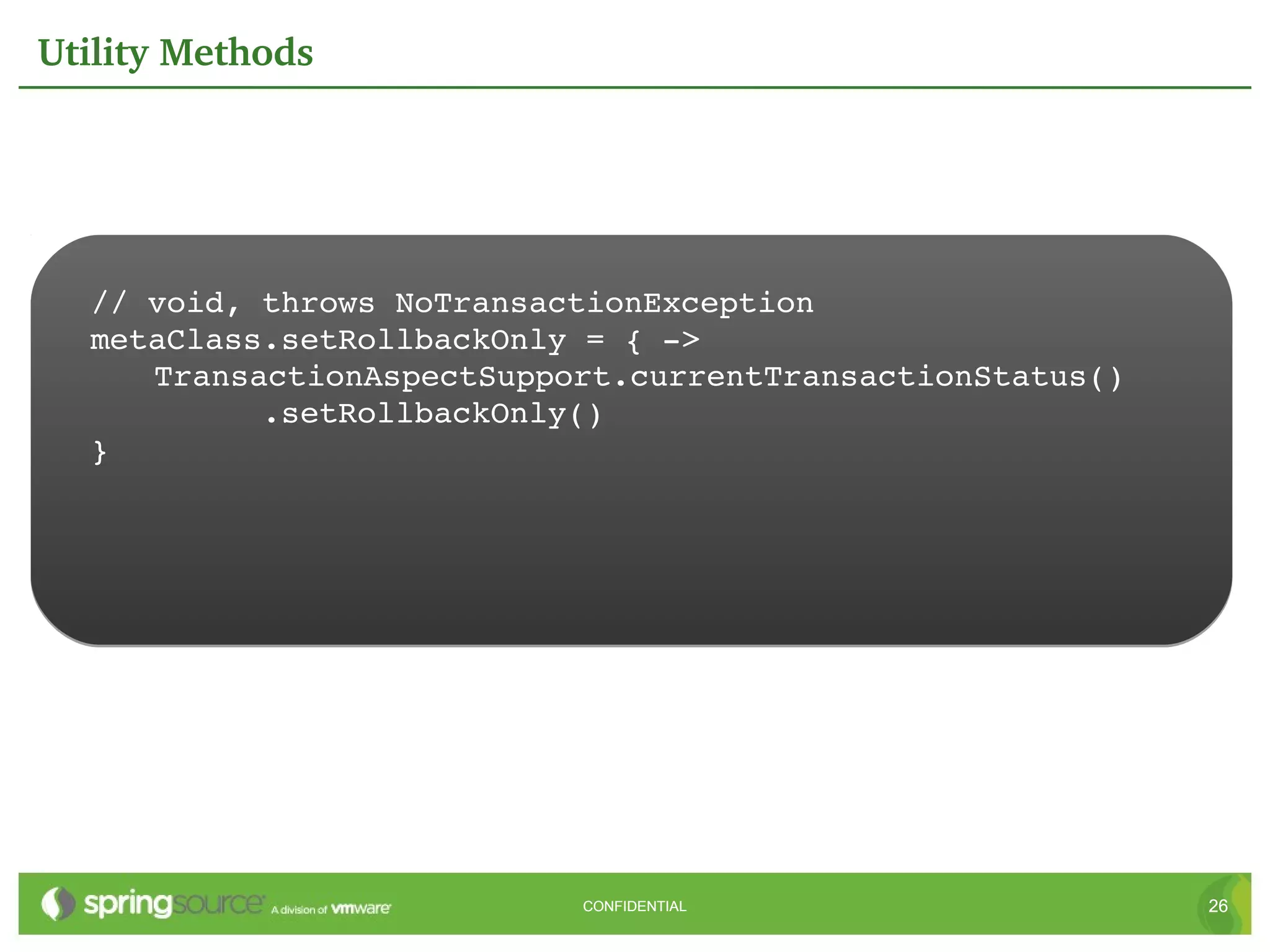

26. Utility Methods
// void, throws NoTransactionException
metaClass.setRollbackOnly = { ­>
TransactionAspectSupport.currentTransactionStatus()
.setRollbackOnly()
}
CONFIDENTIAL 26

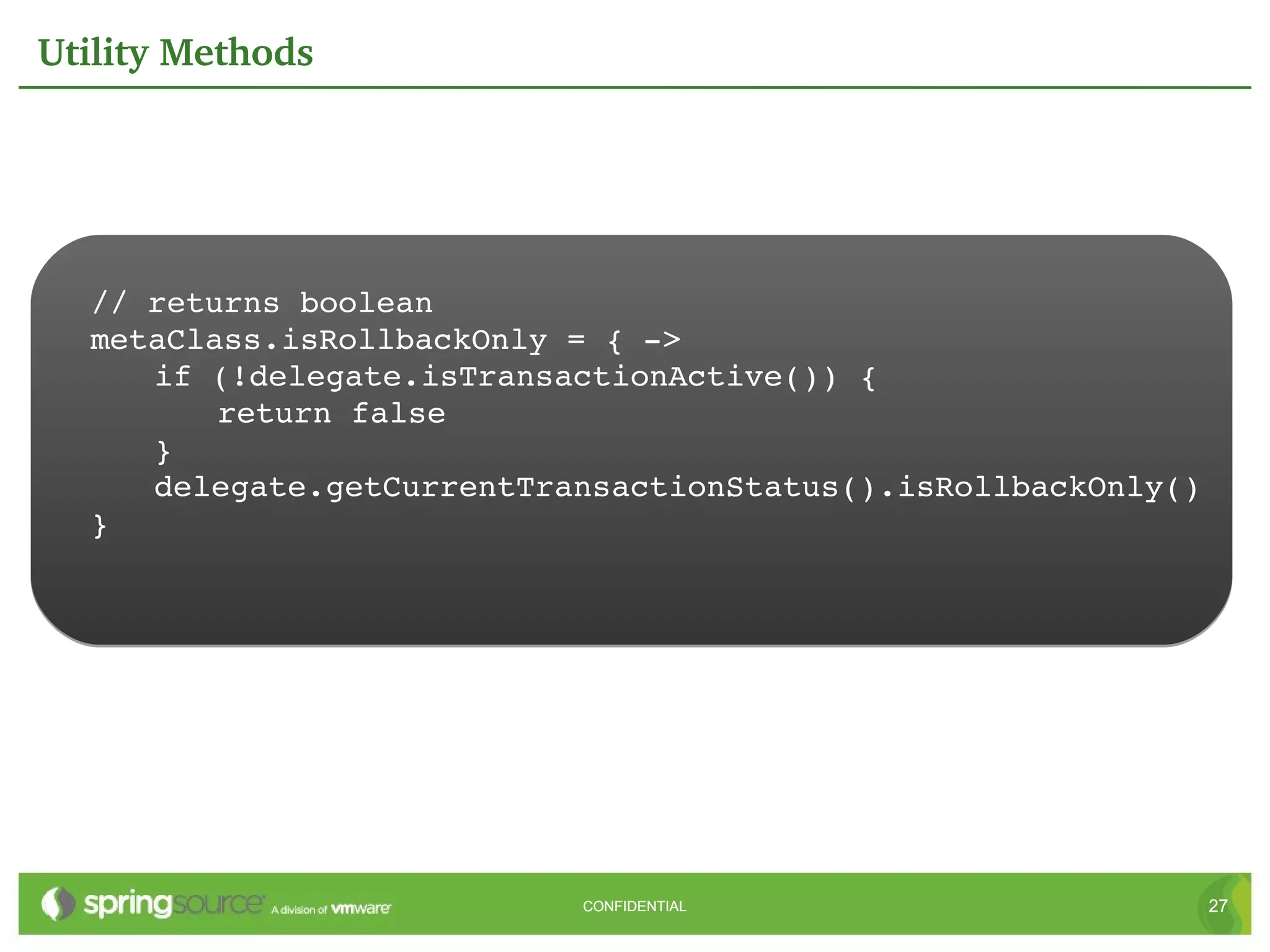

27. Utility Methods
// returns boolean
metaClass.isRollbackOnly = { ­>
if (!delegate.isTransactionActive()) {
return false
}
delegate.getCurrentTransactionStatus().isRollbackOnly()
}
CONFIDENTIAL 27

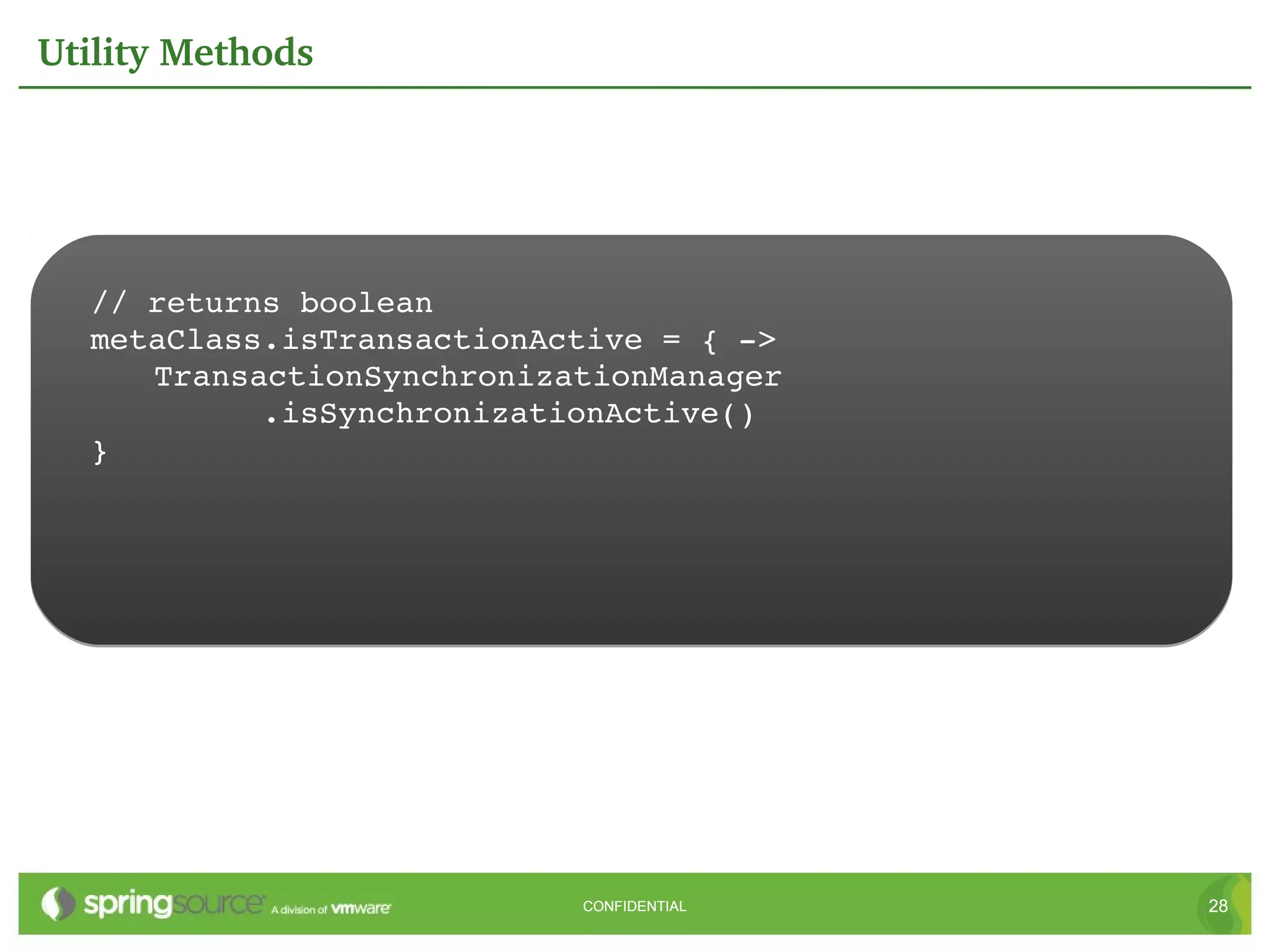

28. Utility Methods
// returns boolean
metaClass.isTransactionActive = { ­>
TransactionSynchronizationManager
.isSynchronizationActive()
}
CONFIDENTIAL 28

29. Dependency Injection
CONFIDENTIAL 29

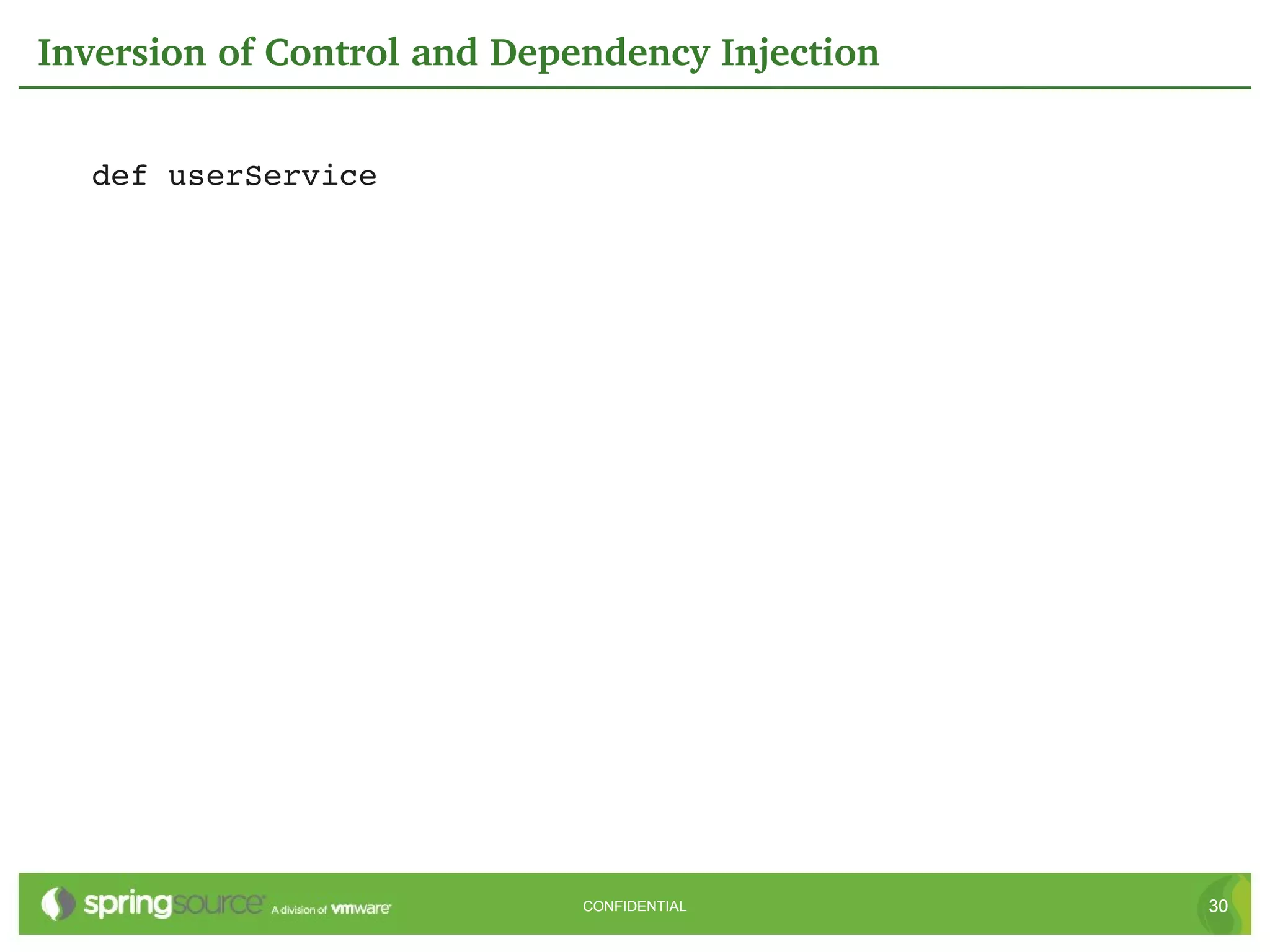

30. Inversion of Control and Dependency Injection
def userService
CONFIDENTIAL 30

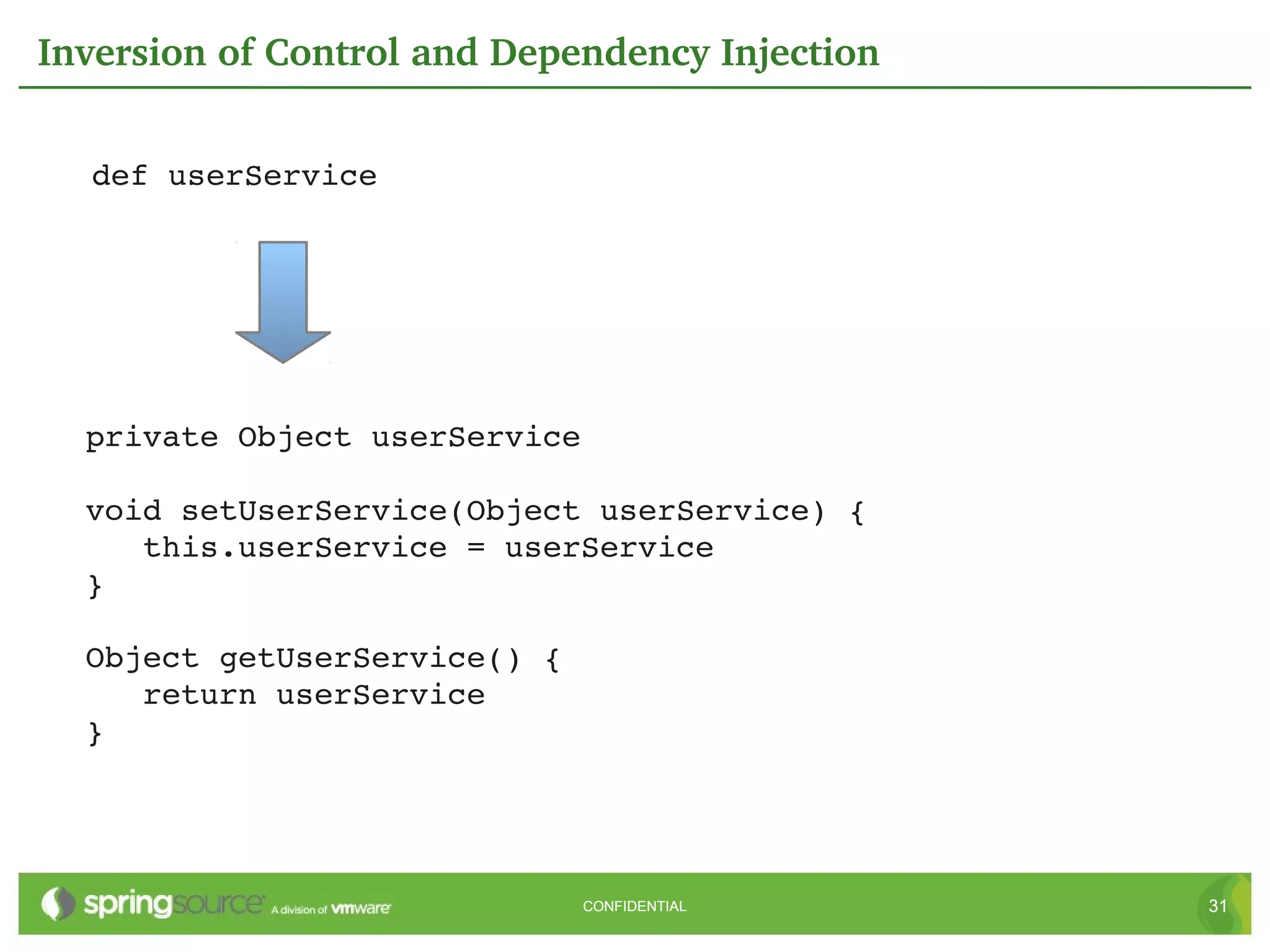

31. Inversion of Control and Dependency Injection
def userService
private Object userService
void setUserService(Object userService) {
this.userService = userService
}
Object getUserService() {
return userService
}
CONFIDENTIAL 31

32. Complex dependency
configuration using Spring
SpEL
CONFIDENTIAL 32

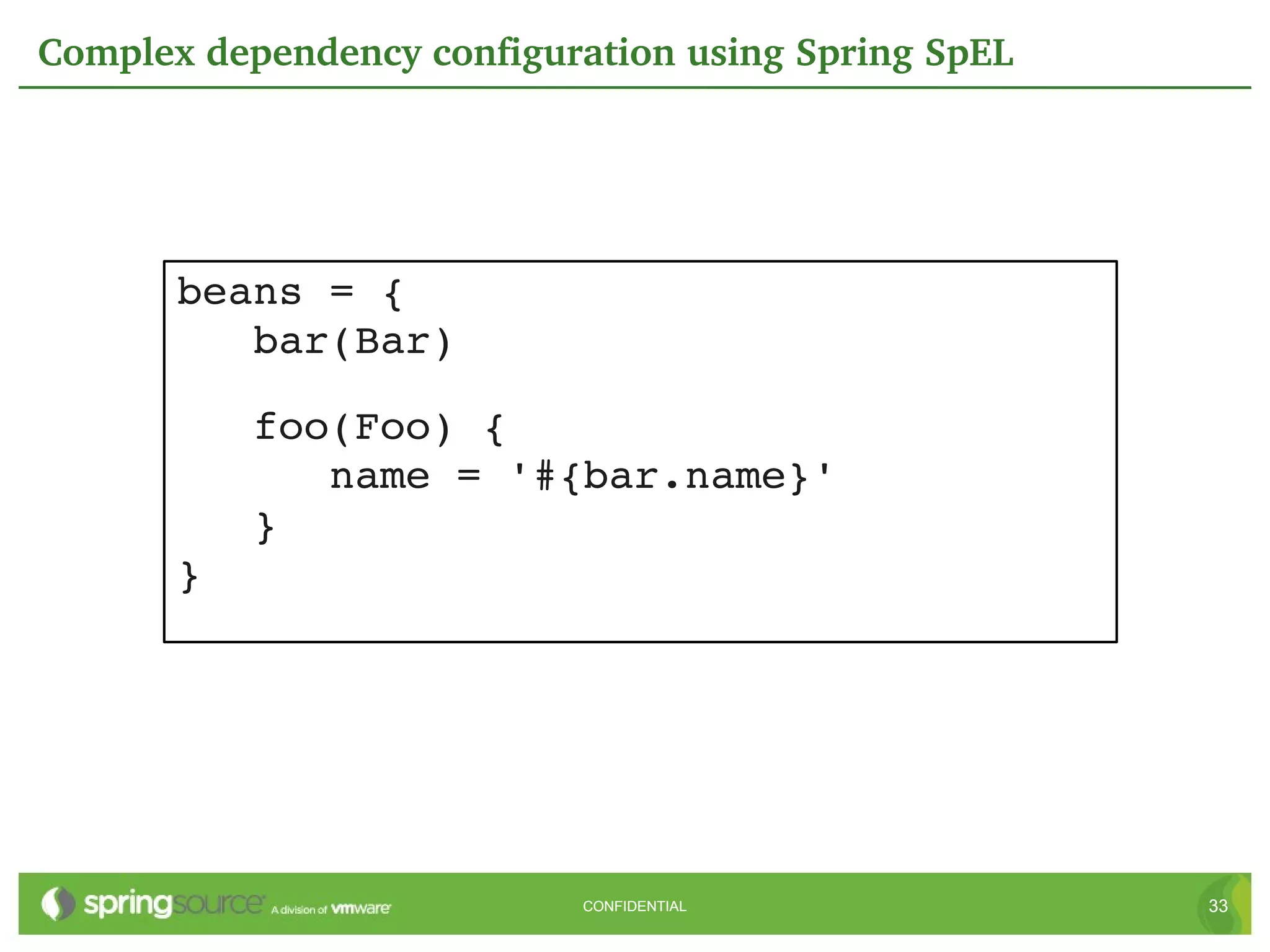

33. Complex dependency configuration using Spring SpEL
beans = {
bar(Bar)
foo(Foo) {
name = '#{bar.name}'
}
}
CONFIDENTIAL 33

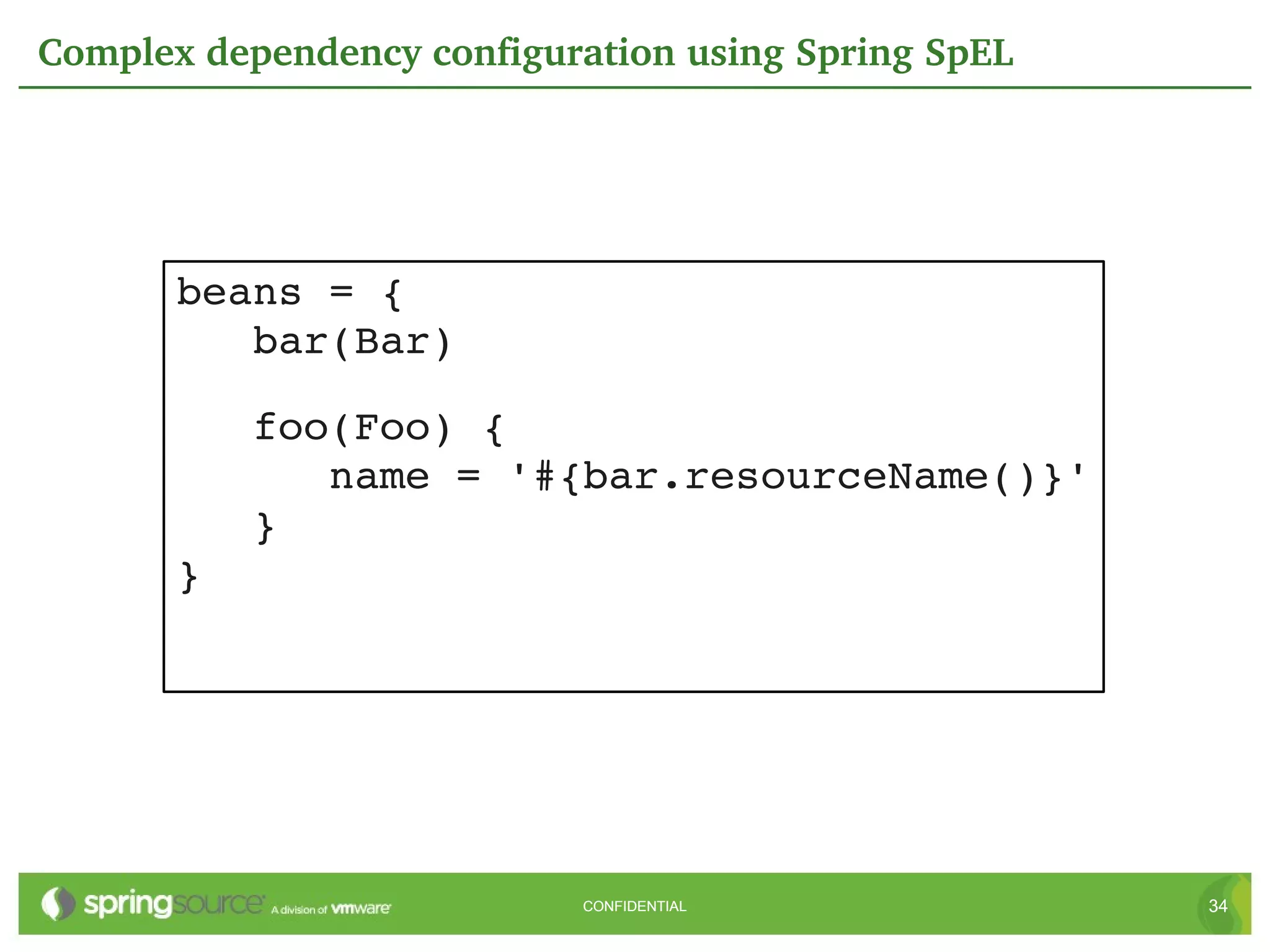

34. Complex dependency configuration using Spring SpEL
beans = {
bar(Bar)
foo(Foo) {
name = '#{bar.resourceName()}'
}
}
CONFIDENTIAL 34

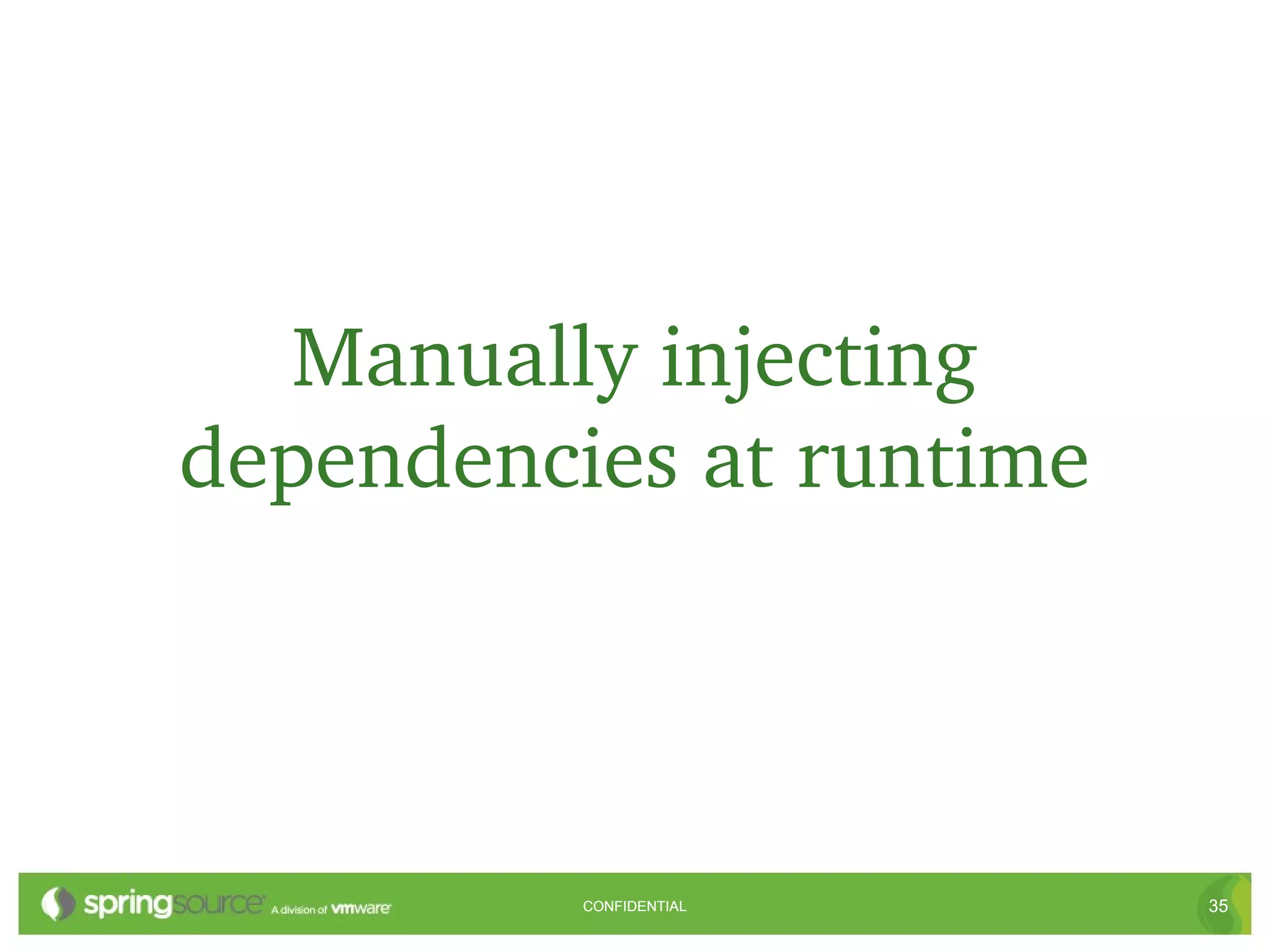

35. Manually injecting
dependencies at runtime
CONFIDENTIAL 35

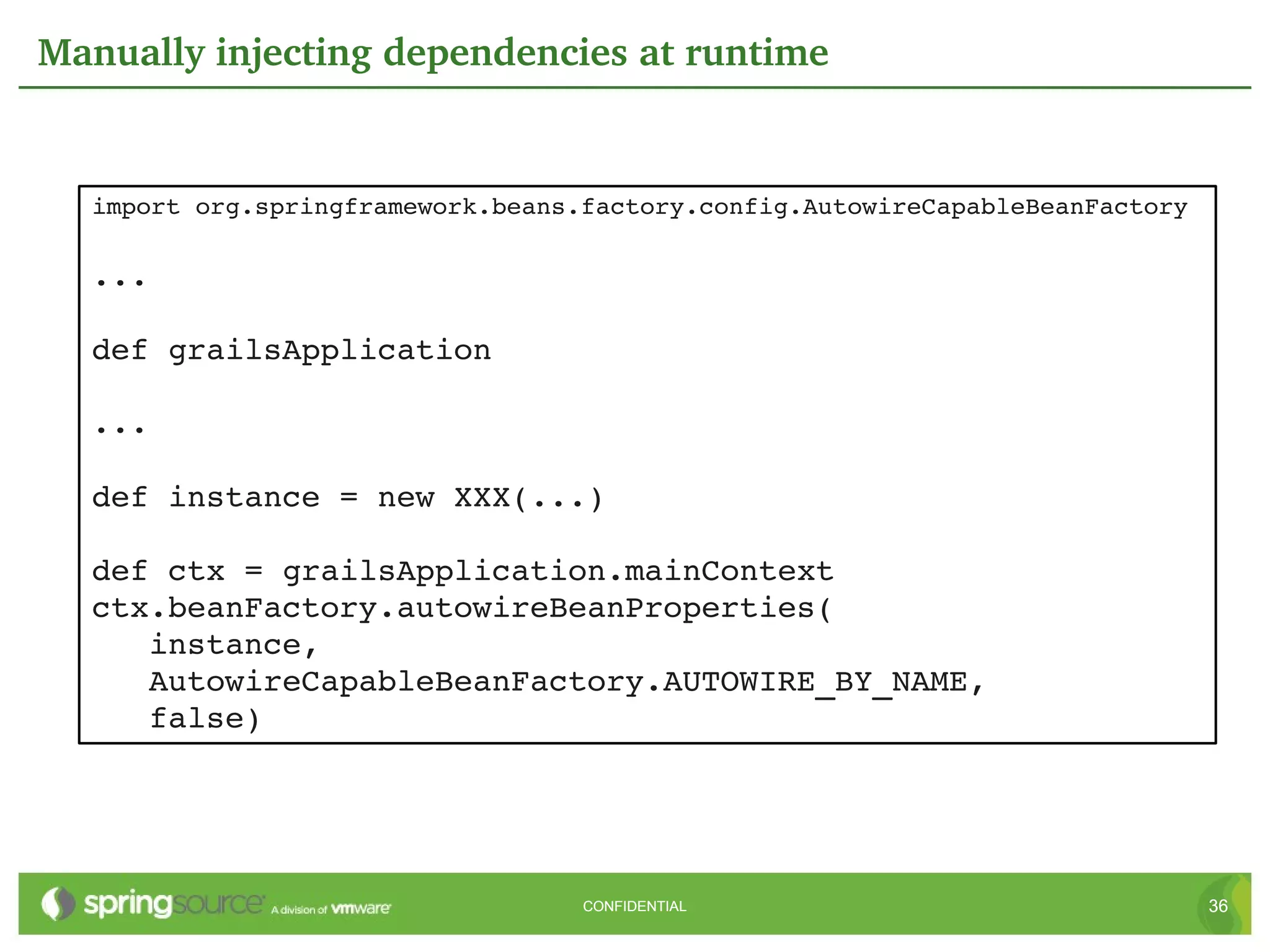

36. Manually injecting dependencies at runtime
import org.springframework.beans.factory.config.AutowireCapableBeanFactory
...
def grailsApplication
...
def instance = new XXX(...)
def ctx = grailsApplication.mainContext
ctx.beanFactory.autowireBeanProperties(
instance,
AutowireCapableBeanFactory.AUTOWIRE_BY_NAME,
false)
CONFIDENTIAL 36

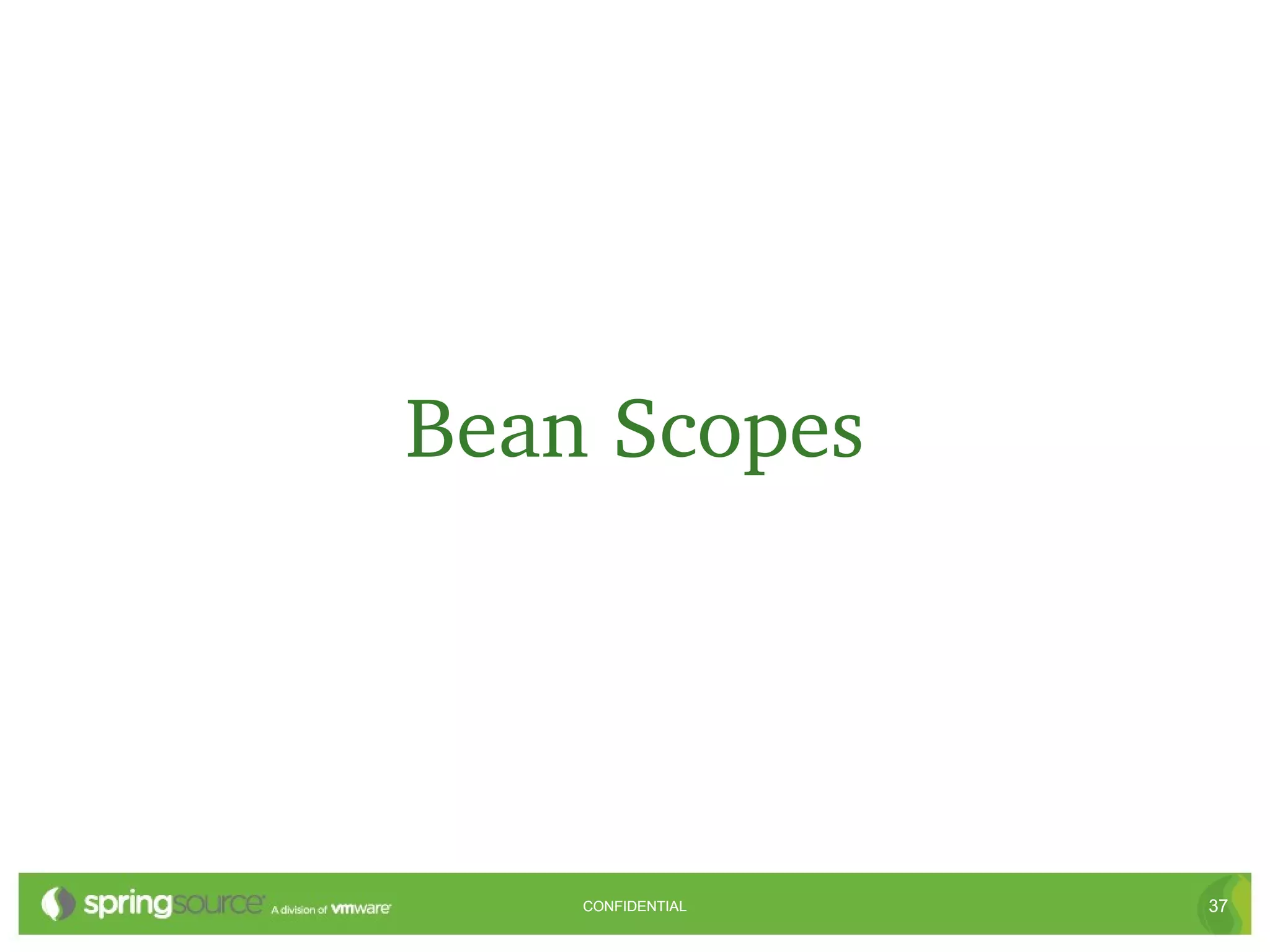

37. Bean Scopes
CONFIDENTIAL 37

38. Bean Scopes
 By default Spring beans are singletons
CONFIDENTIAL 38

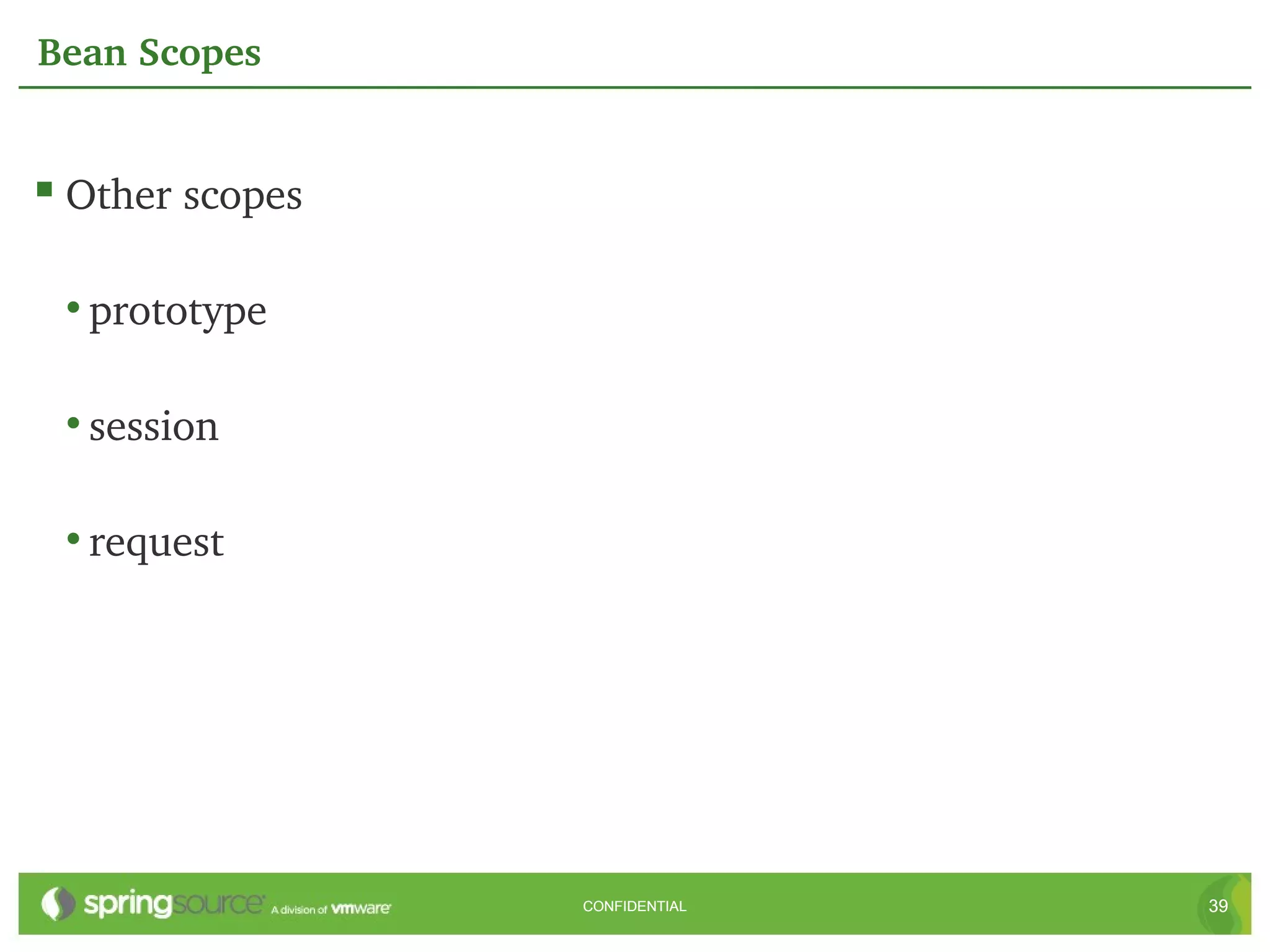

39. Bean Scopes
 Other scopes
• prototype
• session
• request
CONFIDENTIAL 39

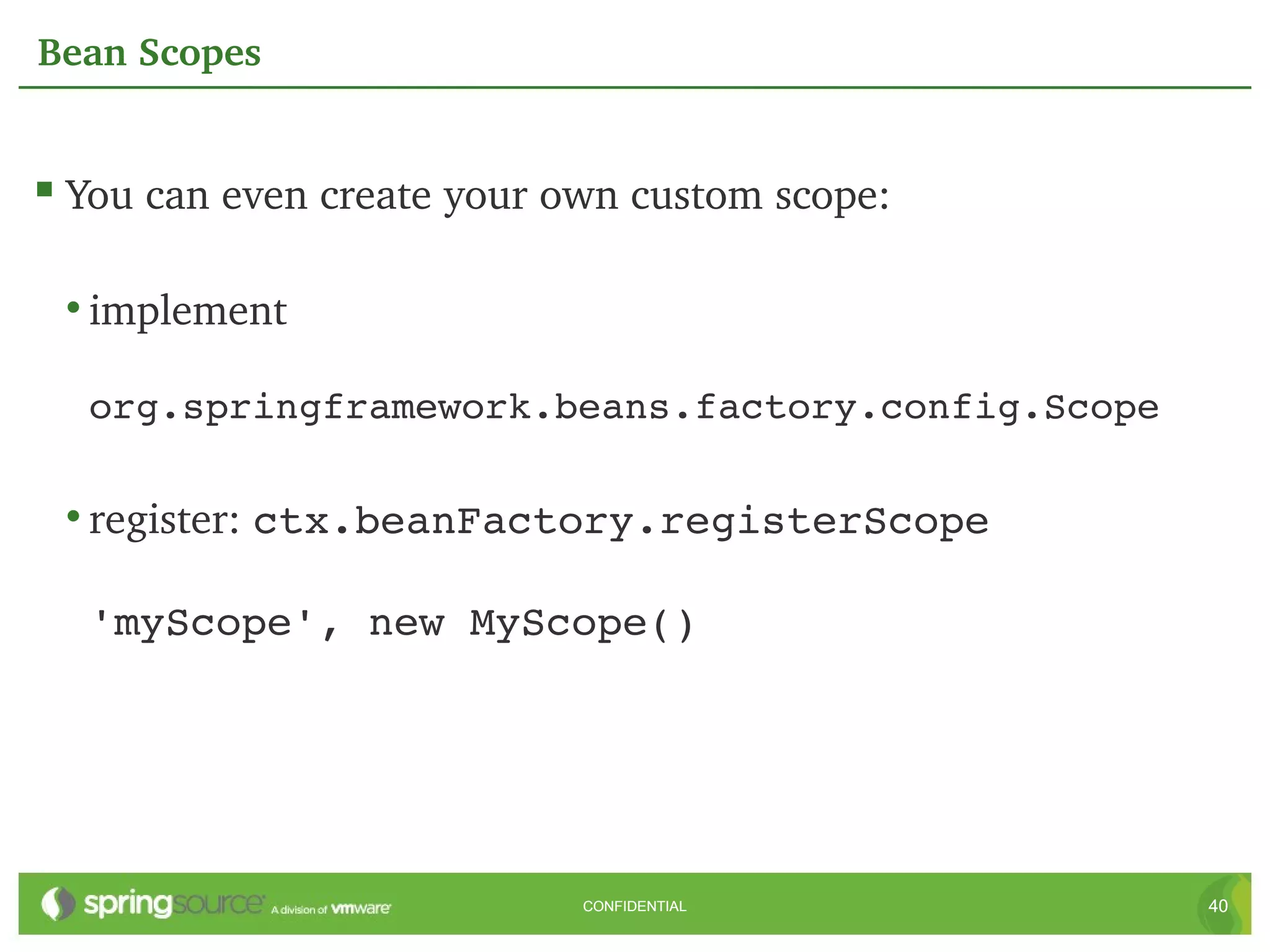

40. Bean Scopes
 You can even create your own custom scope:
• implement
org.springframework.beans.factory.config.Scope
• register: ctx.beanFactory.registerScope
'myScope', new MyScope()
CONFIDENTIAL 40

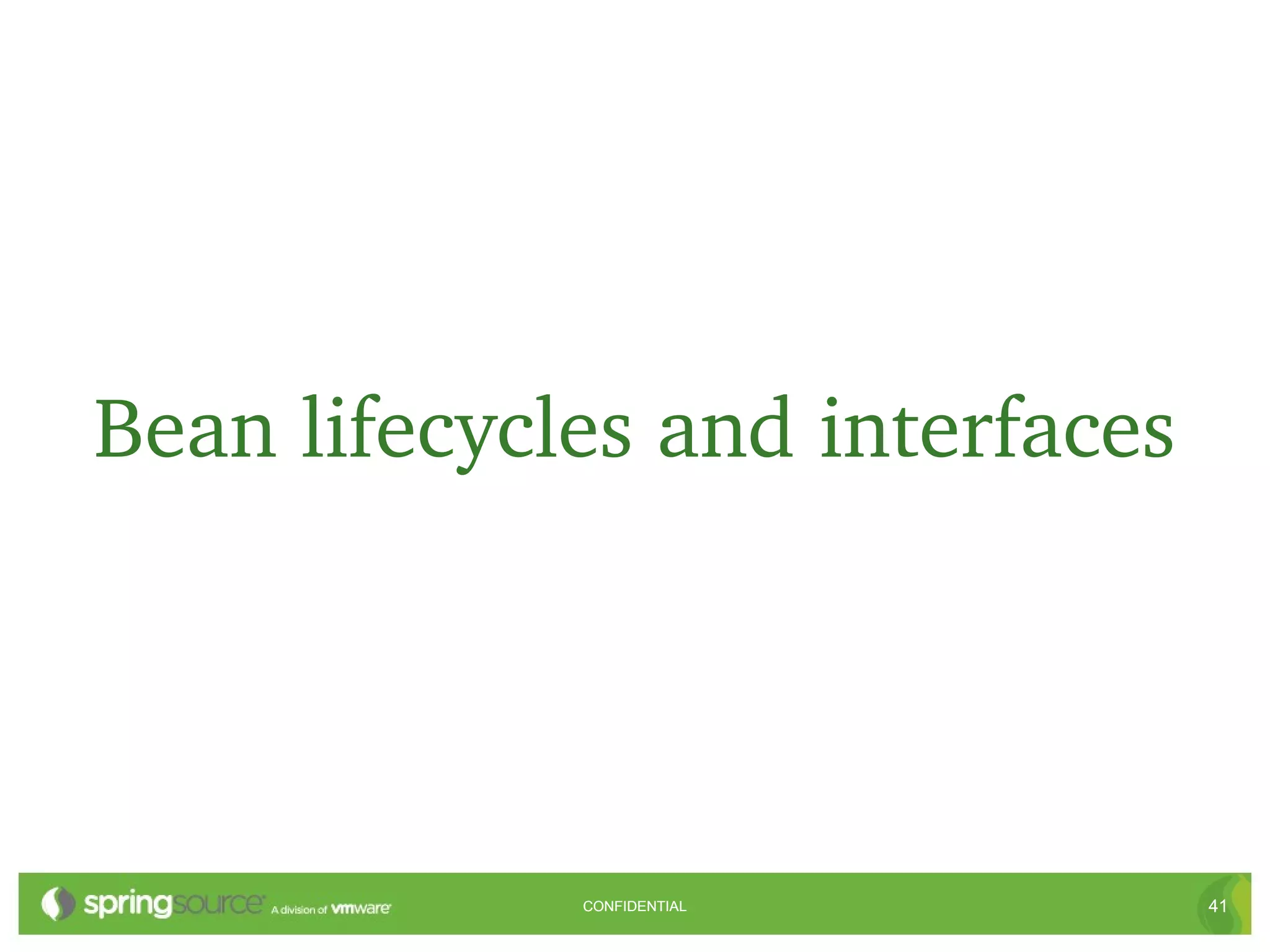

41. Bean lifecycles and interfaces
CONFIDENTIAL 41

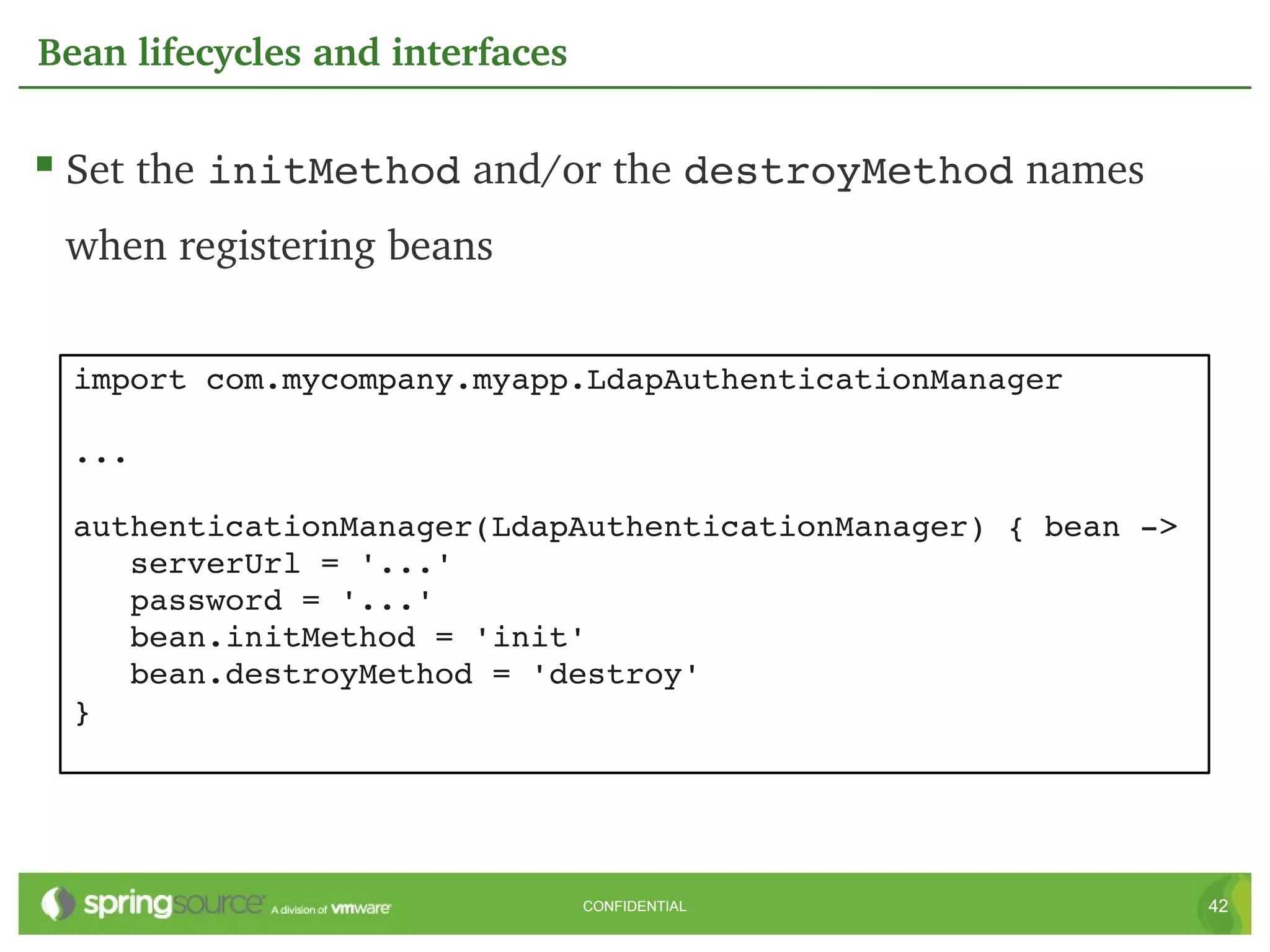

42. Bean lifecycles and interfaces
 Set the initMethod and/or the destroyMethod names
when registering beans
import com.mycompany.myapp.LdapAuthenticationManager
...
authenticationManager(LdapAuthenticationManager) { bean ­>
serverUrl = '...'
password = '...'
bean.initMethod = 'init'
bean.destroyMethod = 'destroy'
}
CONFIDENTIAL 42

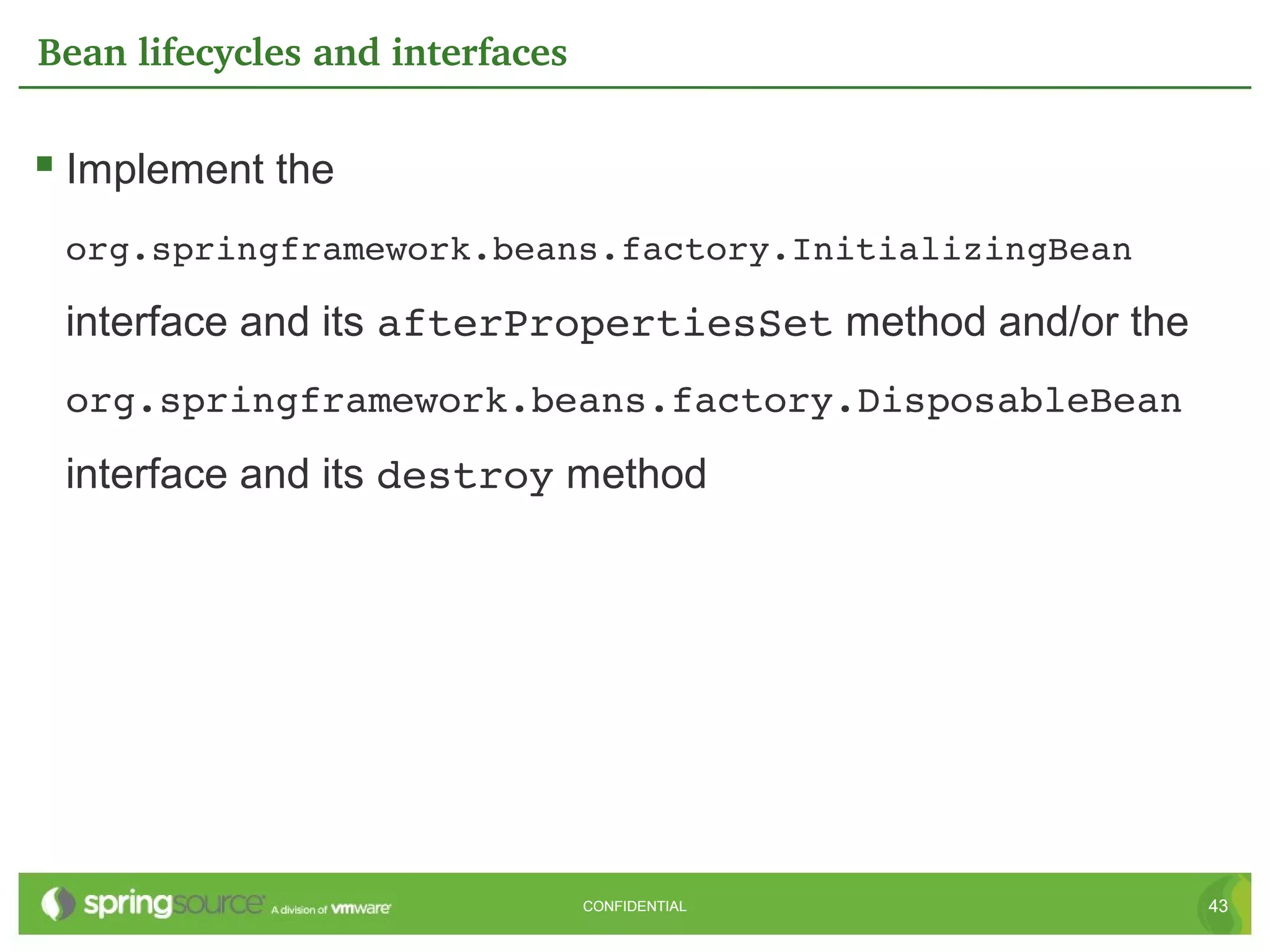

43. Bean lifecycles and interfaces
 Implement the
org.springframework.beans.factory.InitializingBean
interface and its afterPropertiesSet method and/or the
org.springframework.beans.factory.DisposableBean
interface and its destroy method
CONFIDENTIAL 43

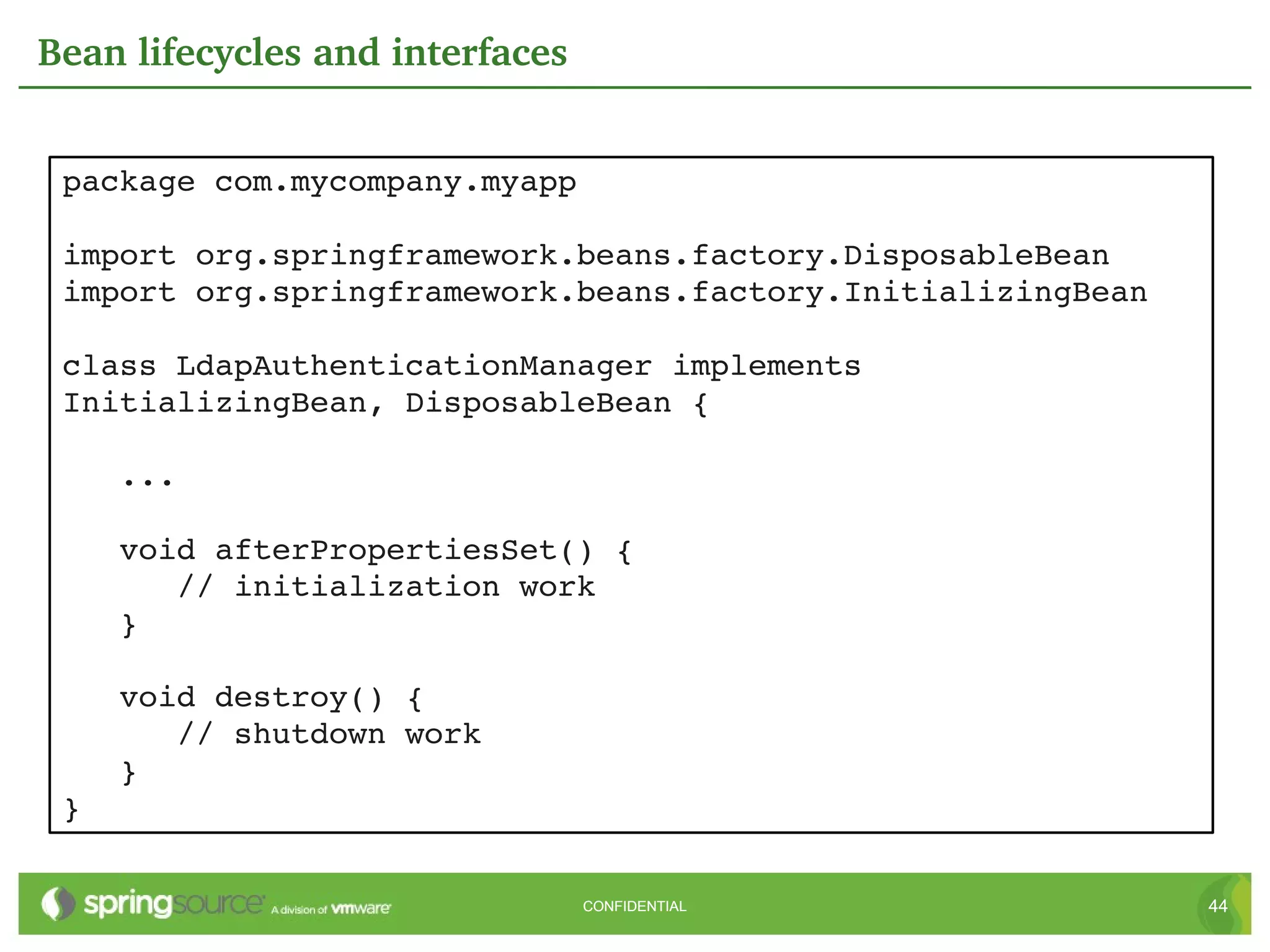

44. Bean lifecycles and interfaces
package com.mycompany.myapp
import org.springframework.beans.factory.DisposableBean
import org.springframework.beans.factory.InitializingBean
class LdapAuthenticationManager implements
InitializingBean, DisposableBean {
...
void afterPropertiesSet() {
// initialization work
}
void destroy() {
// shutdown work
}
}
CONFIDENTIAL 44

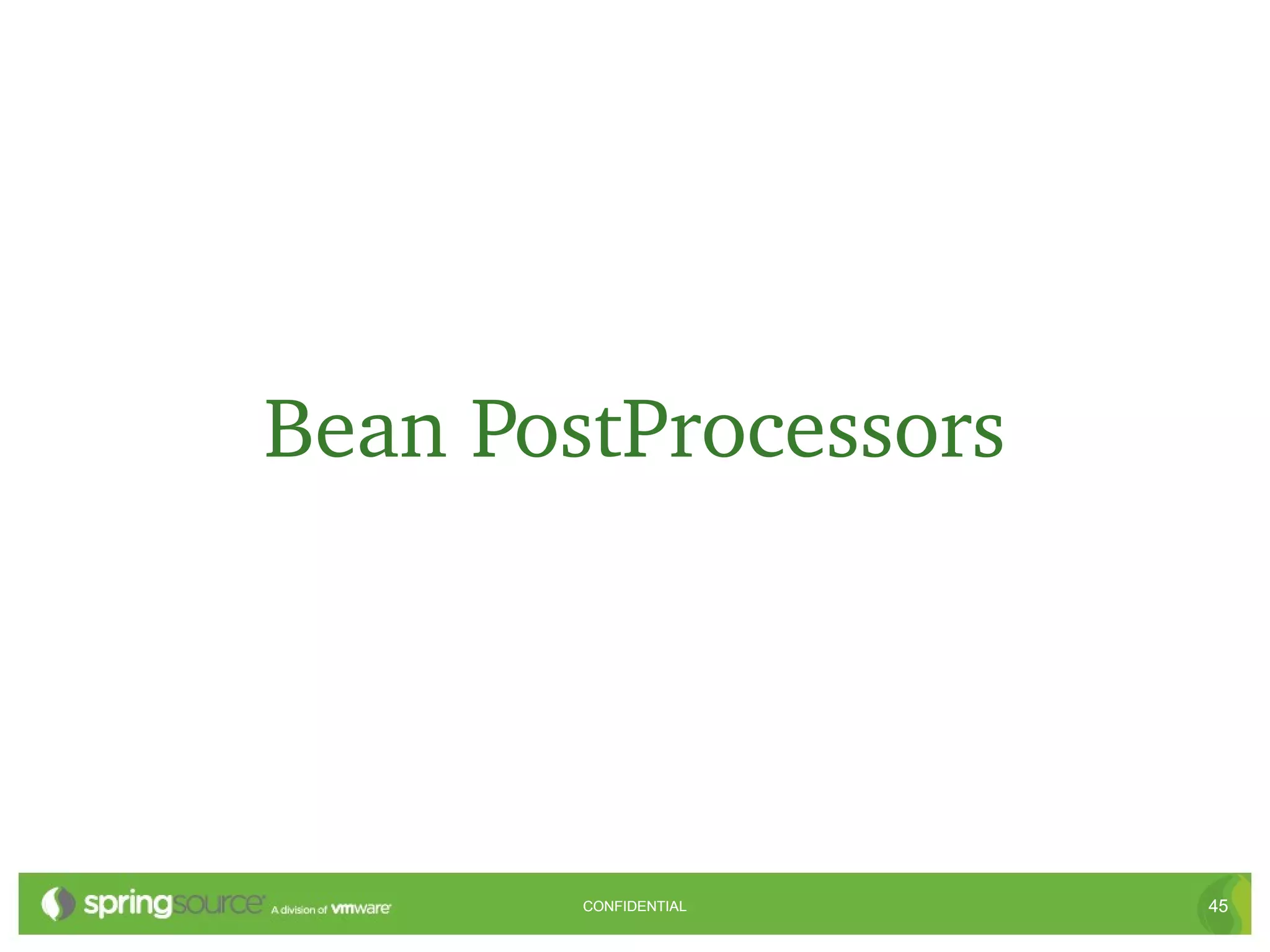

45. Bean PostProcessors
CONFIDENTIAL 45

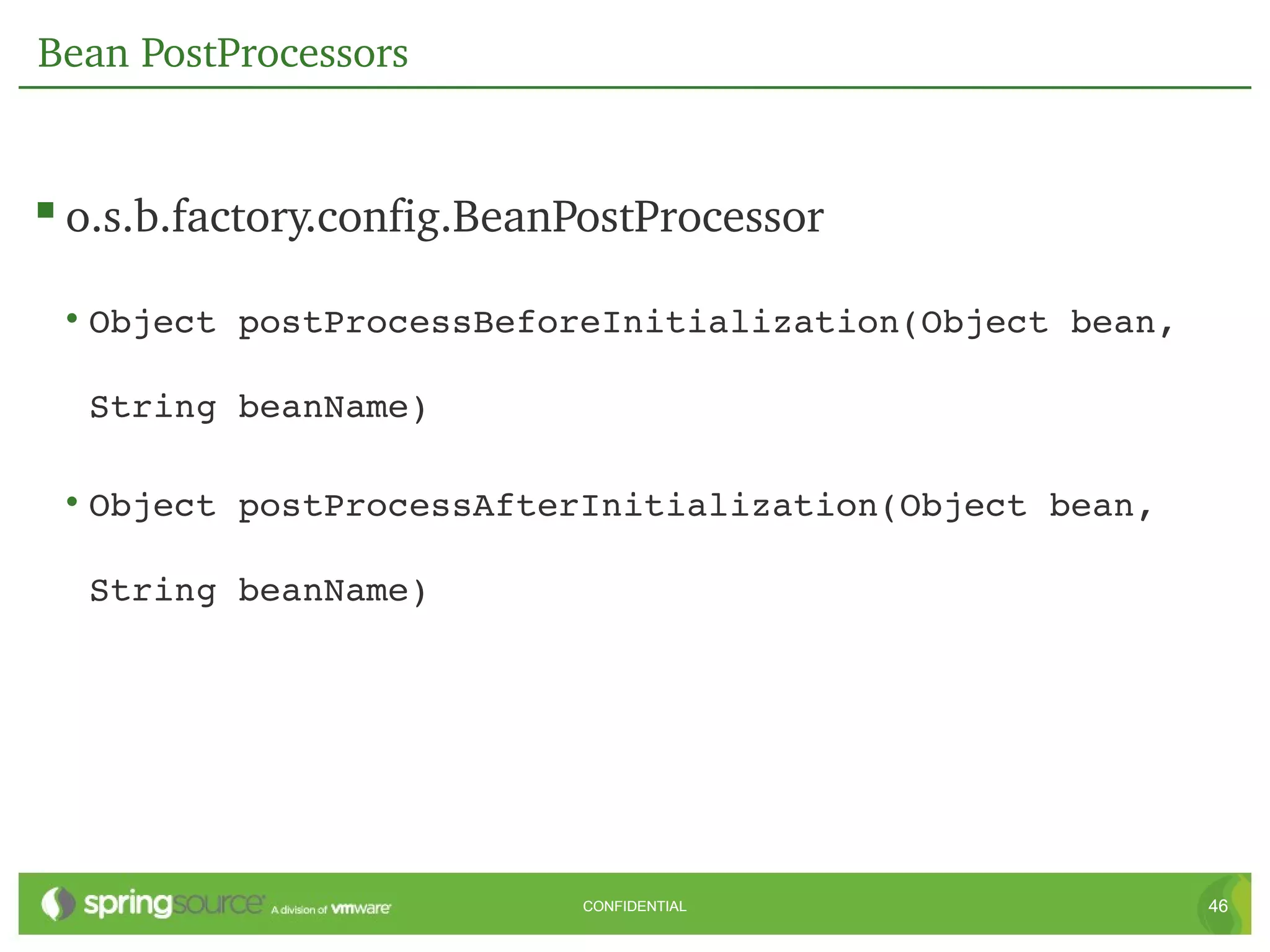

46. Bean PostProcessors
 o.s.b.factory.config.BeanPostProcessor
• Object postProcessBeforeInitialization(Object bean,
String beanName)
• Object postProcessAfterInitialization(Object bean,
String beanName)
CONFIDENTIAL 46

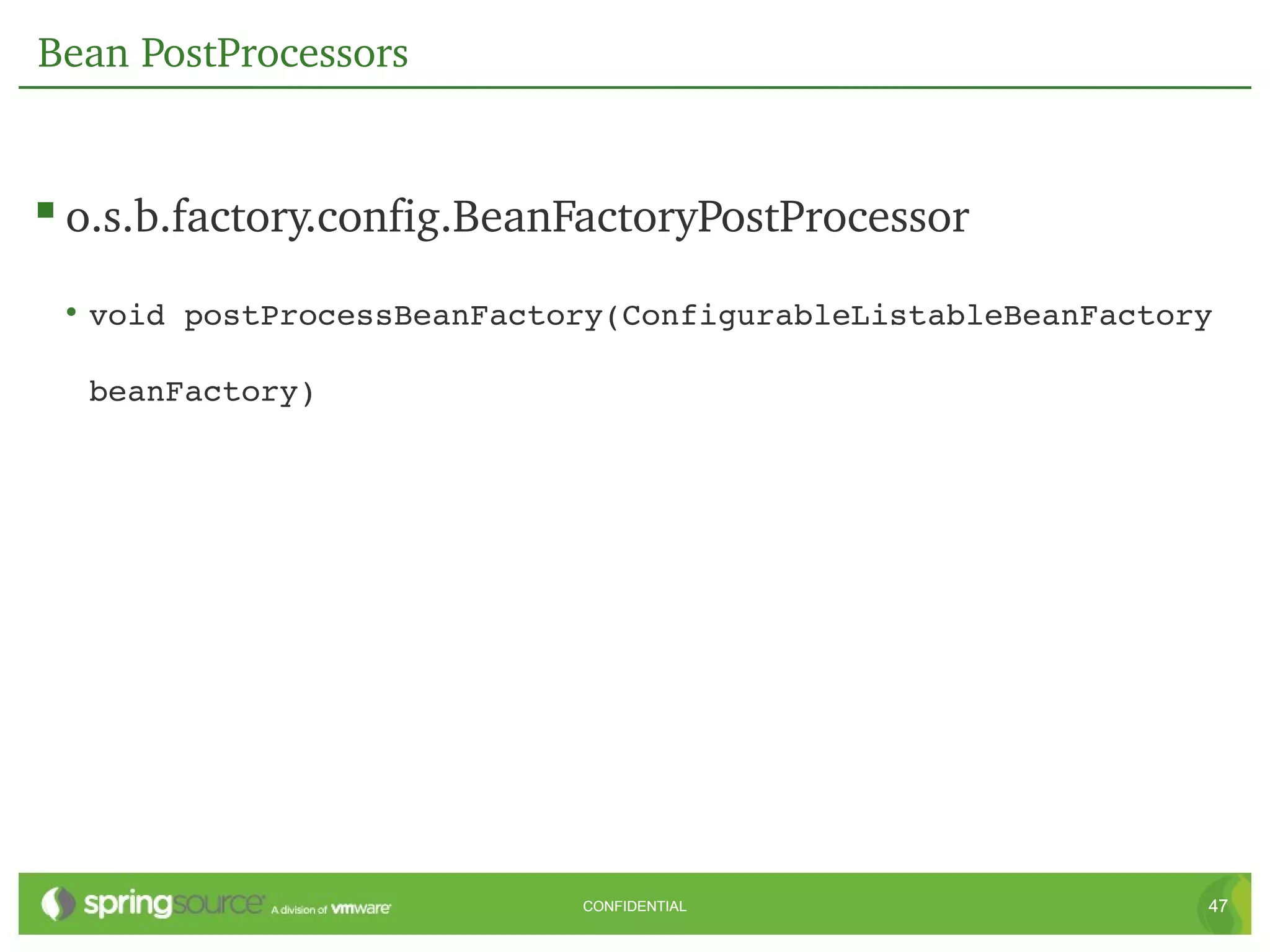

47. Bean PostProcessors
 o.s.b.factory.config.BeanFactoryPostProcessor
• void postProcessBeanFactory(ConfigurableListableBeanFactory
beanFactory)
CONFIDENTIAL 47

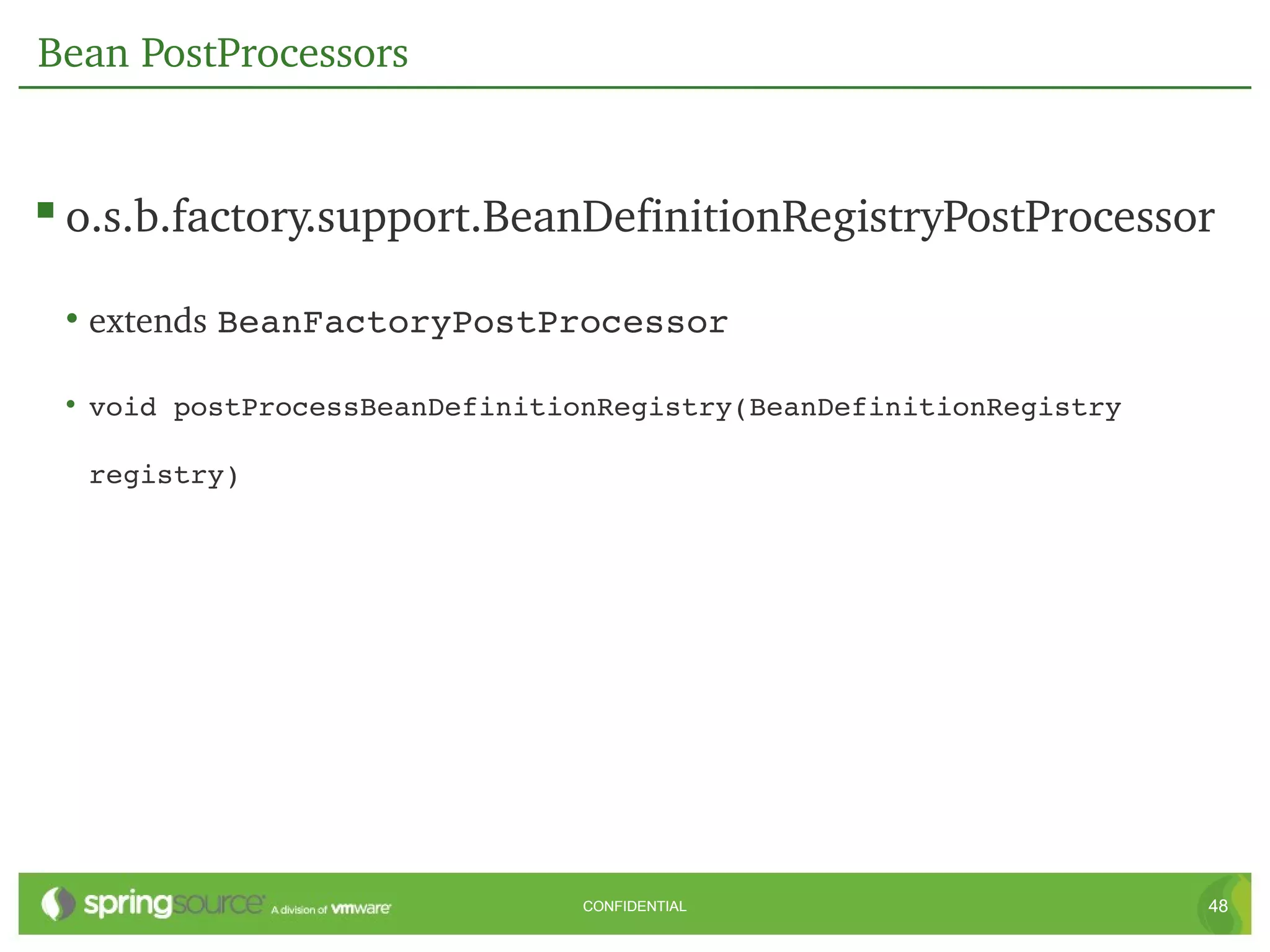

48. Bean PostProcessors
 o.s.b.factory.support.BeanDefinitionRegistryPostProcessor
• extends BeanFactoryPostProcessor
• void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry
registry)
CONFIDENTIAL 48

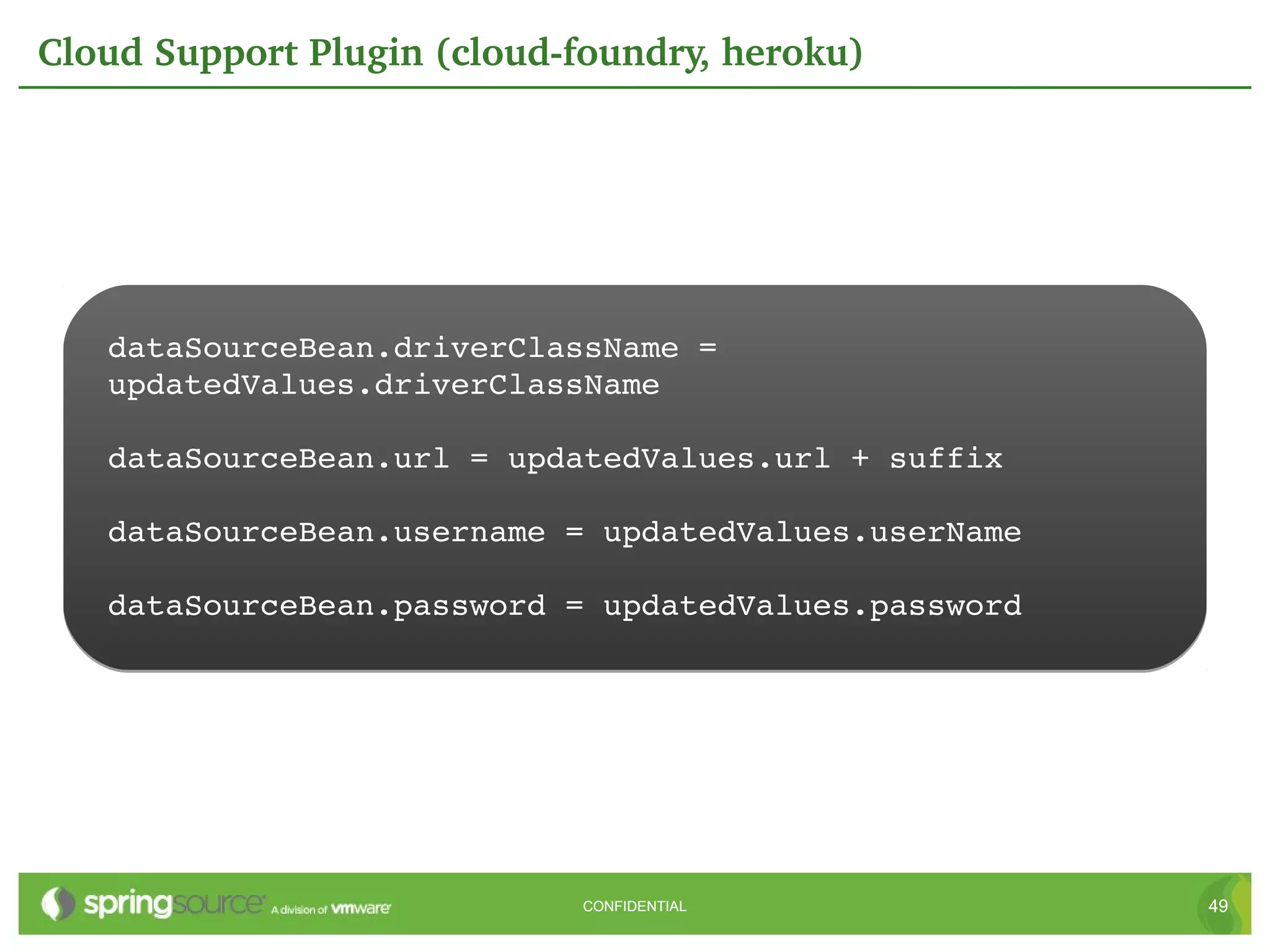

49. Cloud Support Plugin (cloud­foundry, heroku)
dataSourceBean.driverClassName =
updatedValues.driverClassName
dataSourceBean.url = updatedValues.url + suffix
dataSourceBean.username = updatedValues.userName
dataSourceBean.password = updatedValues.password
CONFIDENTIAL 49

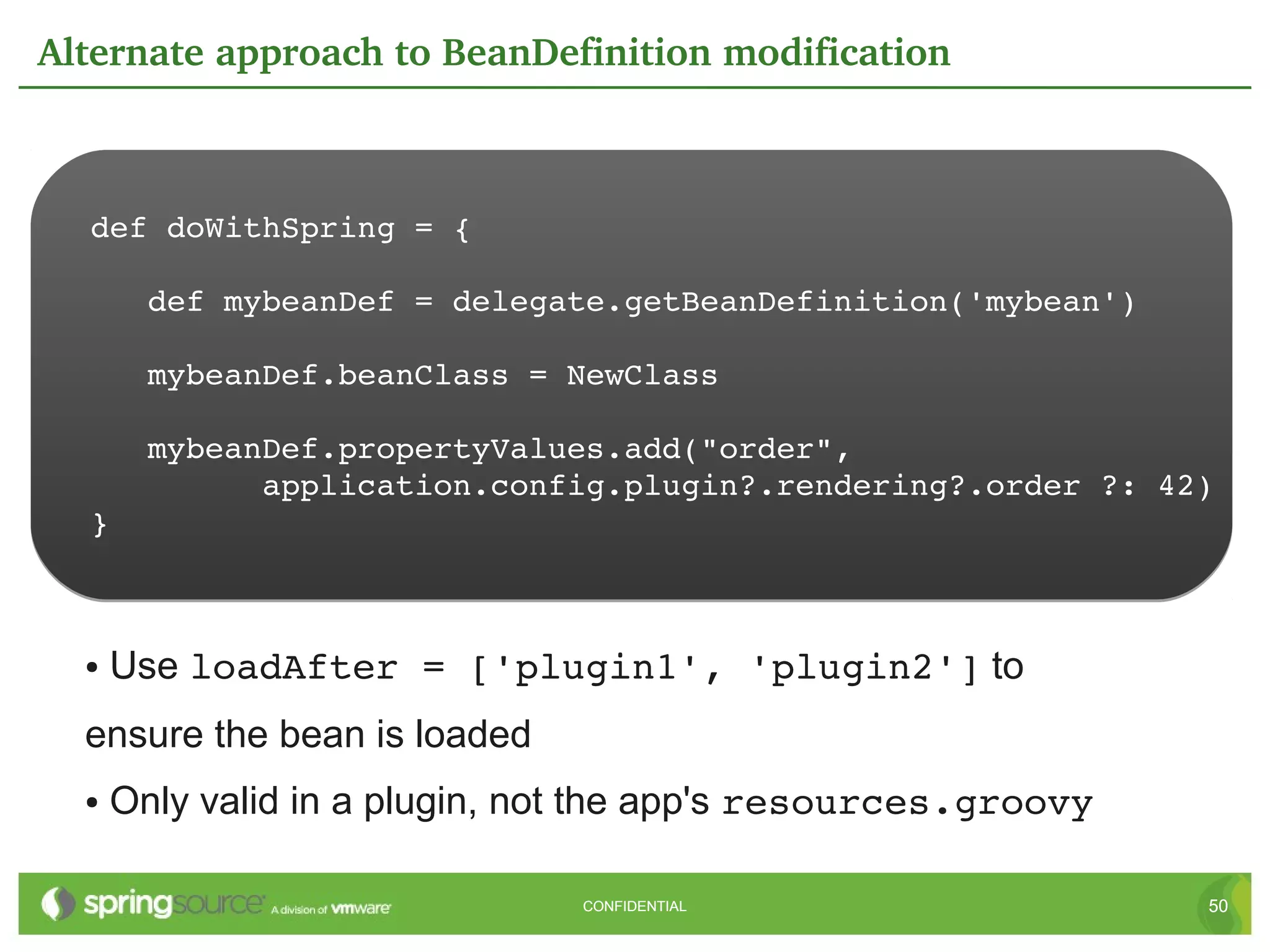

50. Alternate approach to BeanDefinition modification
def doWithSpring = {
def mybeanDef = delegate.getBeanDefinition('mybean')
mybeanDef.beanClass = NewClass
mybeanDef.propertyValues.add("order",
application.config.plugin?.rendering?.order ?: 42)
}
● Use loadAfter = ['plugin1', 'plugin2'] to
ensure the bean is loaded
● Only valid in a plugin, not the app's resources.groovy
CONFIDENTIAL 50

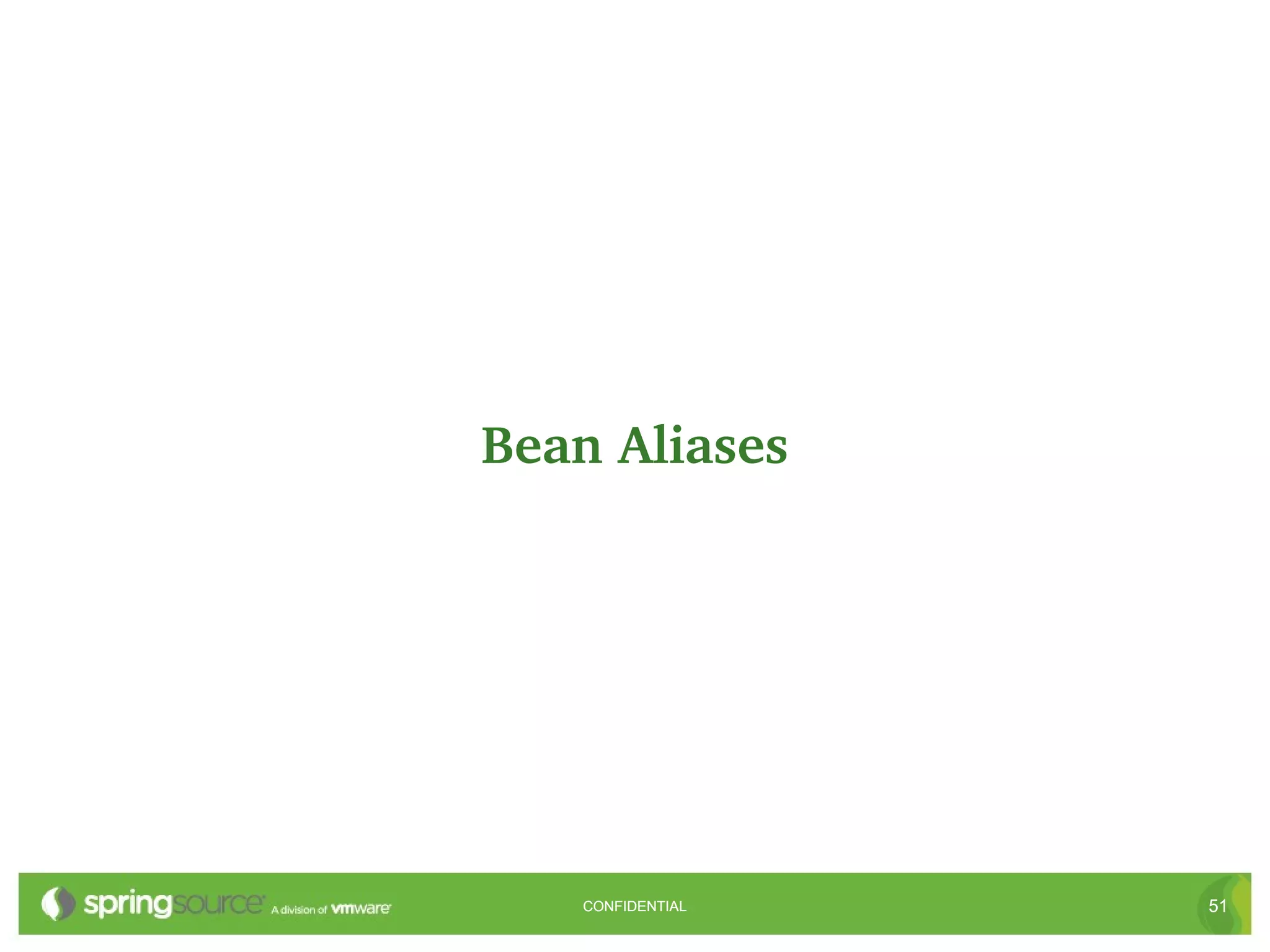

51. Bean Aliases
CONFIDENTIAL 51

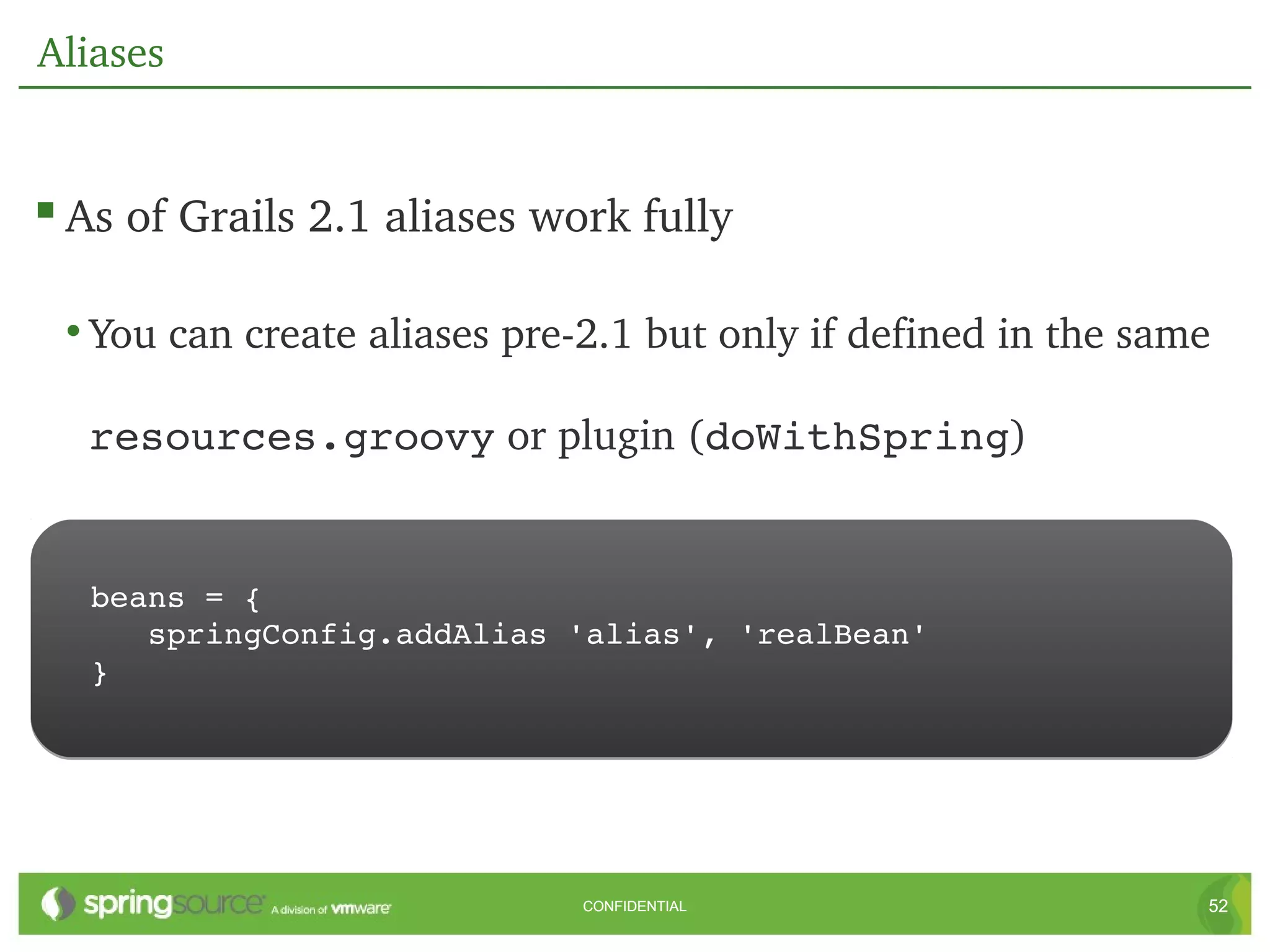

52. Aliases
 As of Grails 2.1 aliases work fully
• You can create aliases pre­2.1 but only if defined in the same
resources.groovy or plugin (doWithSpring)
beans = {
springConfig.addAlias 'alias', 'realBean'
}
CONFIDENTIAL 52

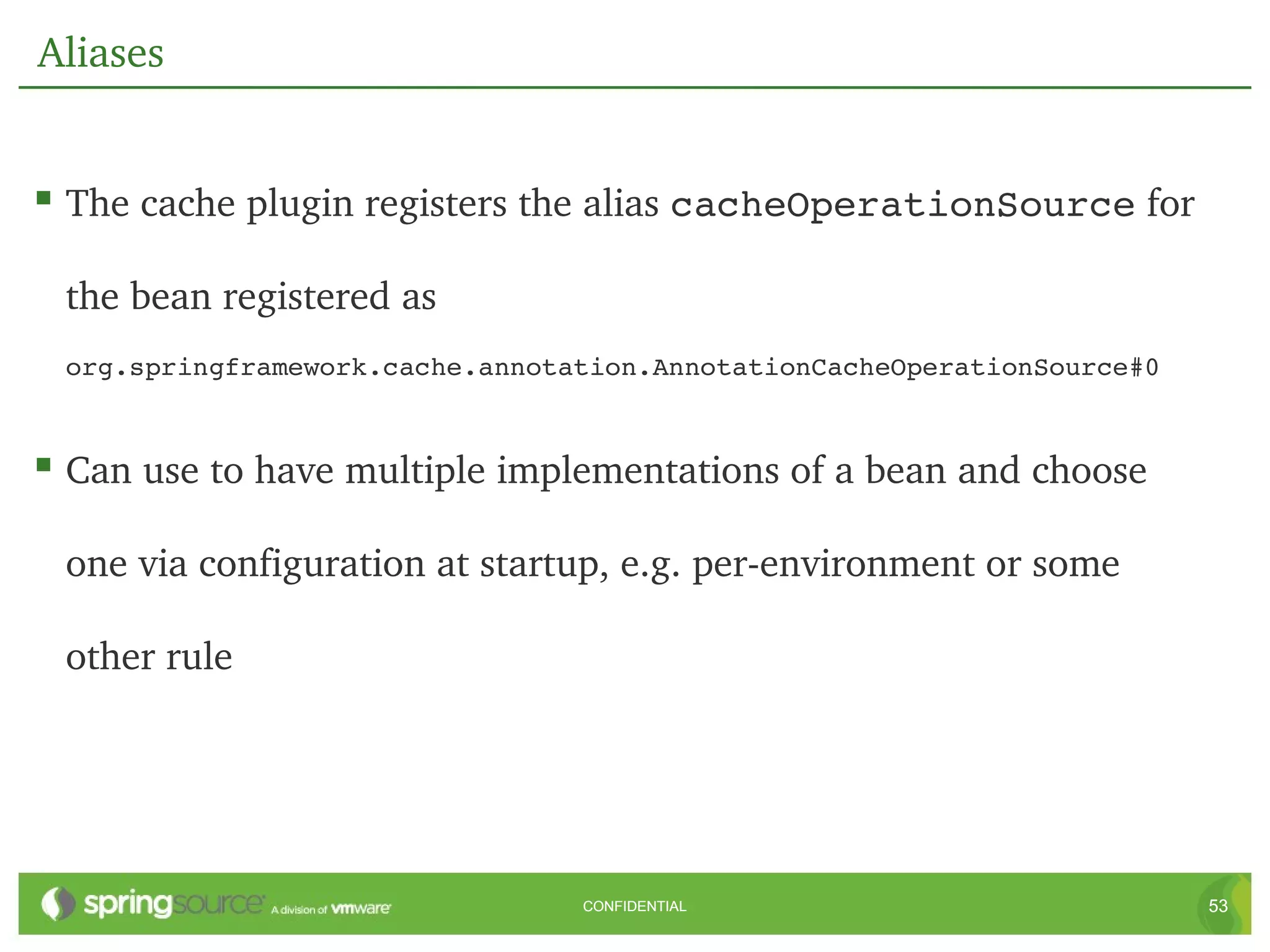

53. Aliases
 The cache plugin registers the alias cacheOperationSource for
the bean registered as
org.springframework.cache.annotation.AnnotationCacheOperationSource#0
 Can use to have multiple implementations of a bean and choose
one via configuration at startup, e.g. per­environment or some
other rule
CONFIDENTIAL 53

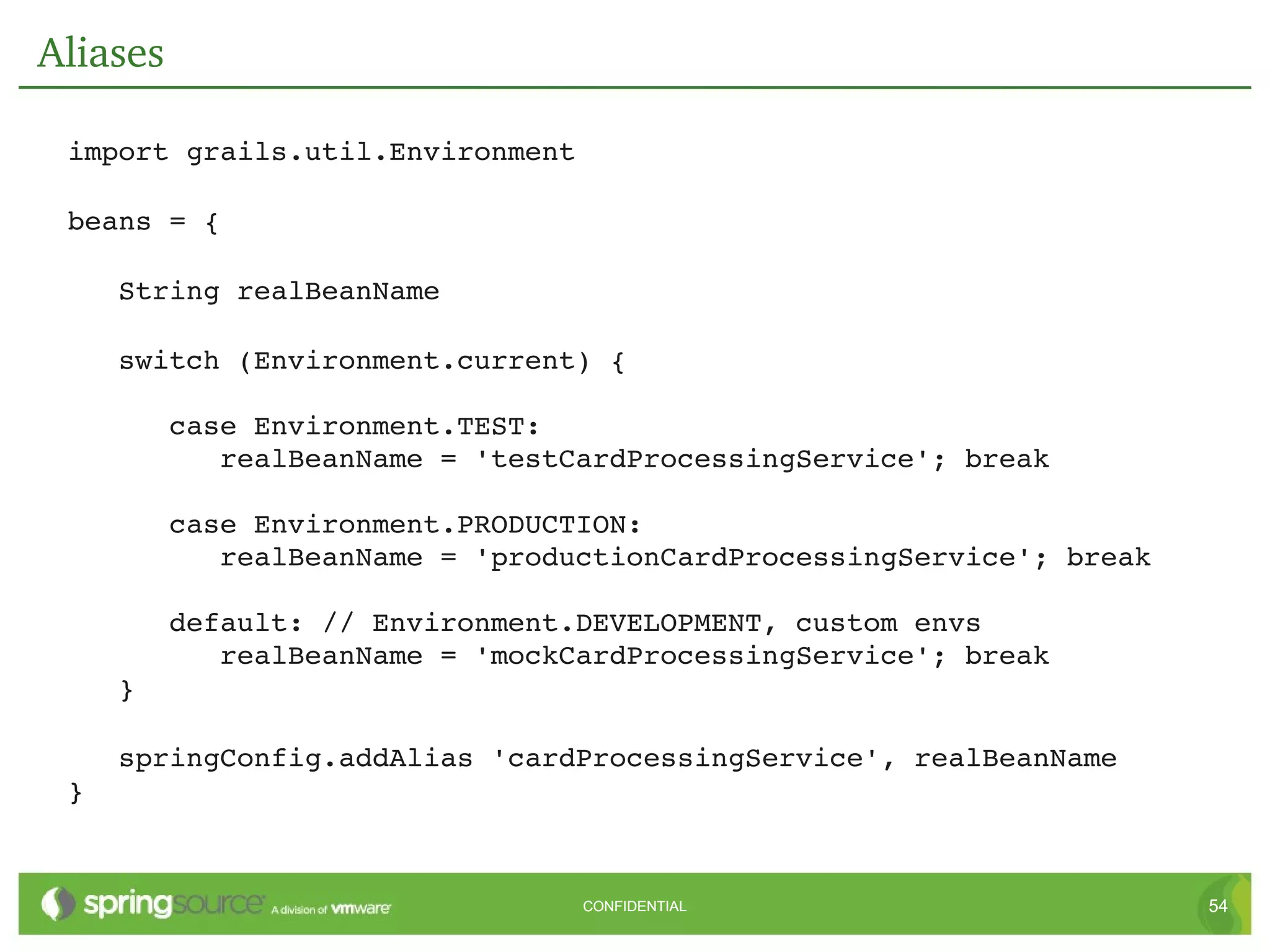

54. Aliases
import grails.util.Environment
beans = {
String realBeanName
switch (Environment.current) {
case Environment.TEST:
realBeanName = 'testCardProcessingService'; break
case Environment.PRODUCTION:
realBeanName = 'productionCardProcessingService'; break
default: // Environment.DEVELOPMENT, custom envs
realBeanName = 'mockCardProcessingService'; break
}
springConfig.addAlias 'cardProcessingService', realBeanName
}
CONFIDENTIAL 54

55. Internationalization
CONFIDENTIAL 55

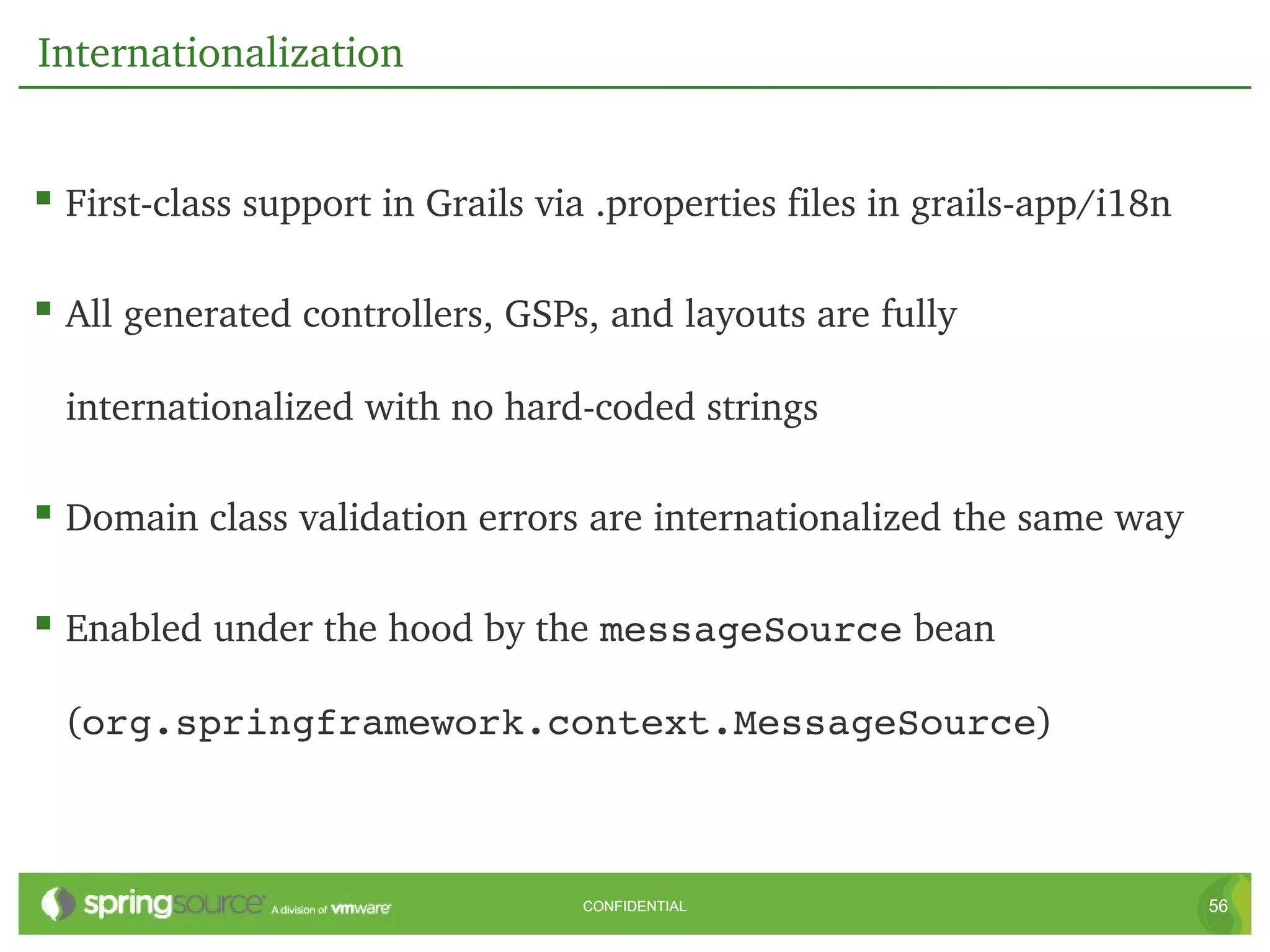

56. Internationalization
 First­class support in Grails via .properties files in grails­app/i18n
 All generated controllers, GSPs, and layouts are fully
internationalized with no hard­coded strings
 Domain class validation errors are internationalized the same way
 Enabled under the hood by the messageSource bean
(org.springframework.context.MessageSource)
CONFIDENTIAL 56

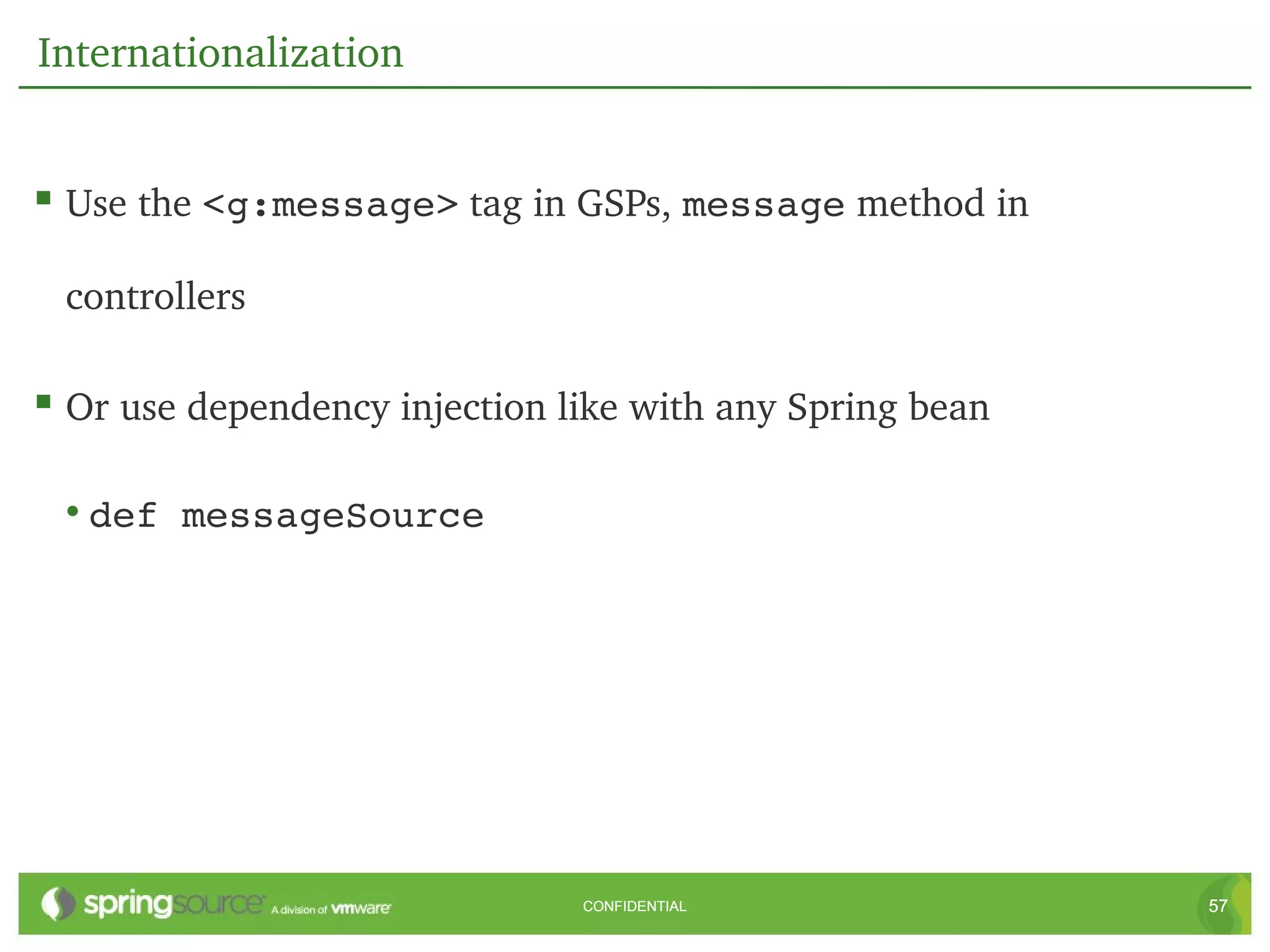

57. Internationalization
 Use the <g:message> tag in GSPs, message method in
controllers
 Or use dependency injection like with any Spring bean
• def messageSource
CONFIDENTIAL 57

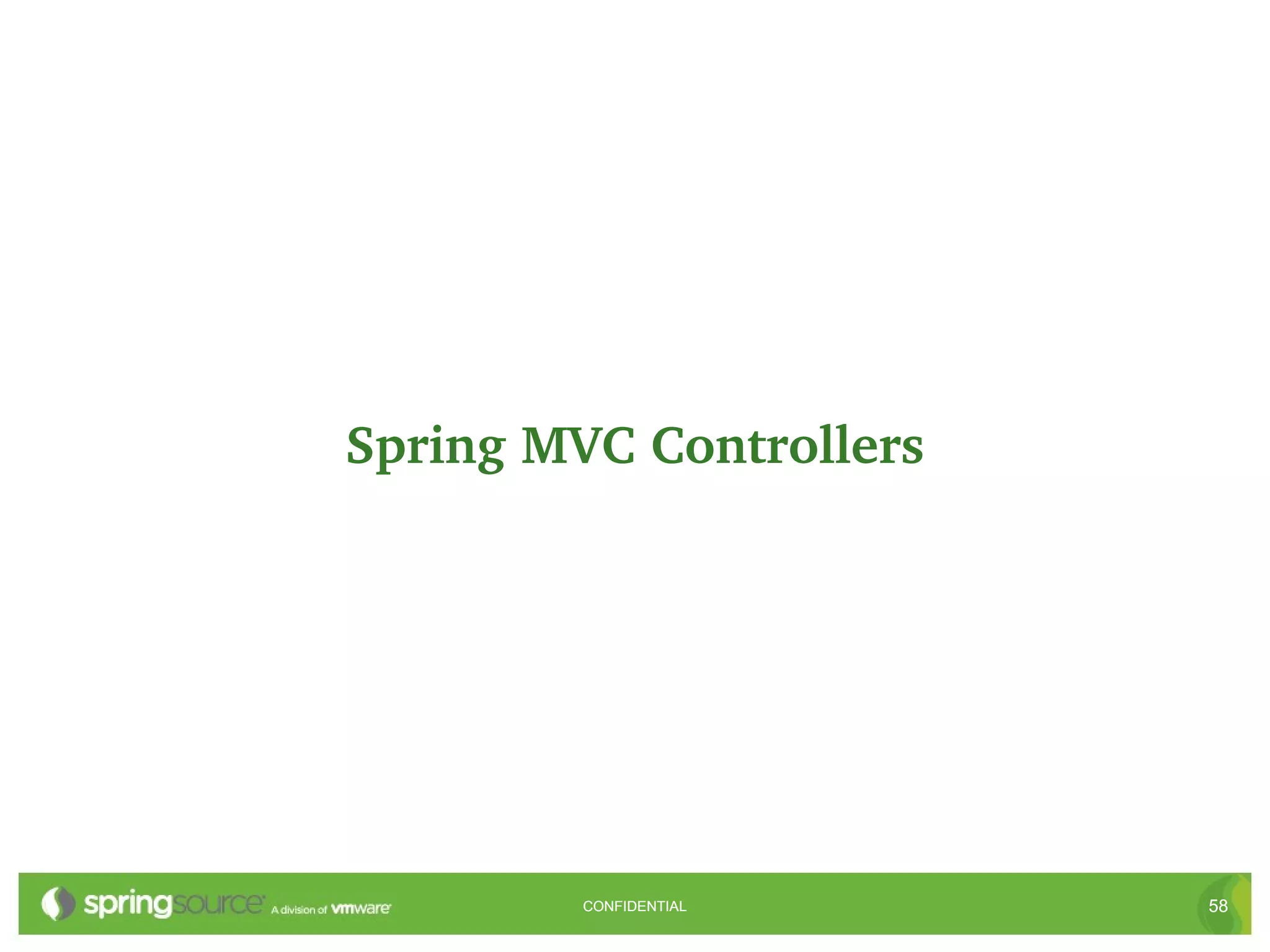

58. Spring MVC Controllers
CONFIDENTIAL 58

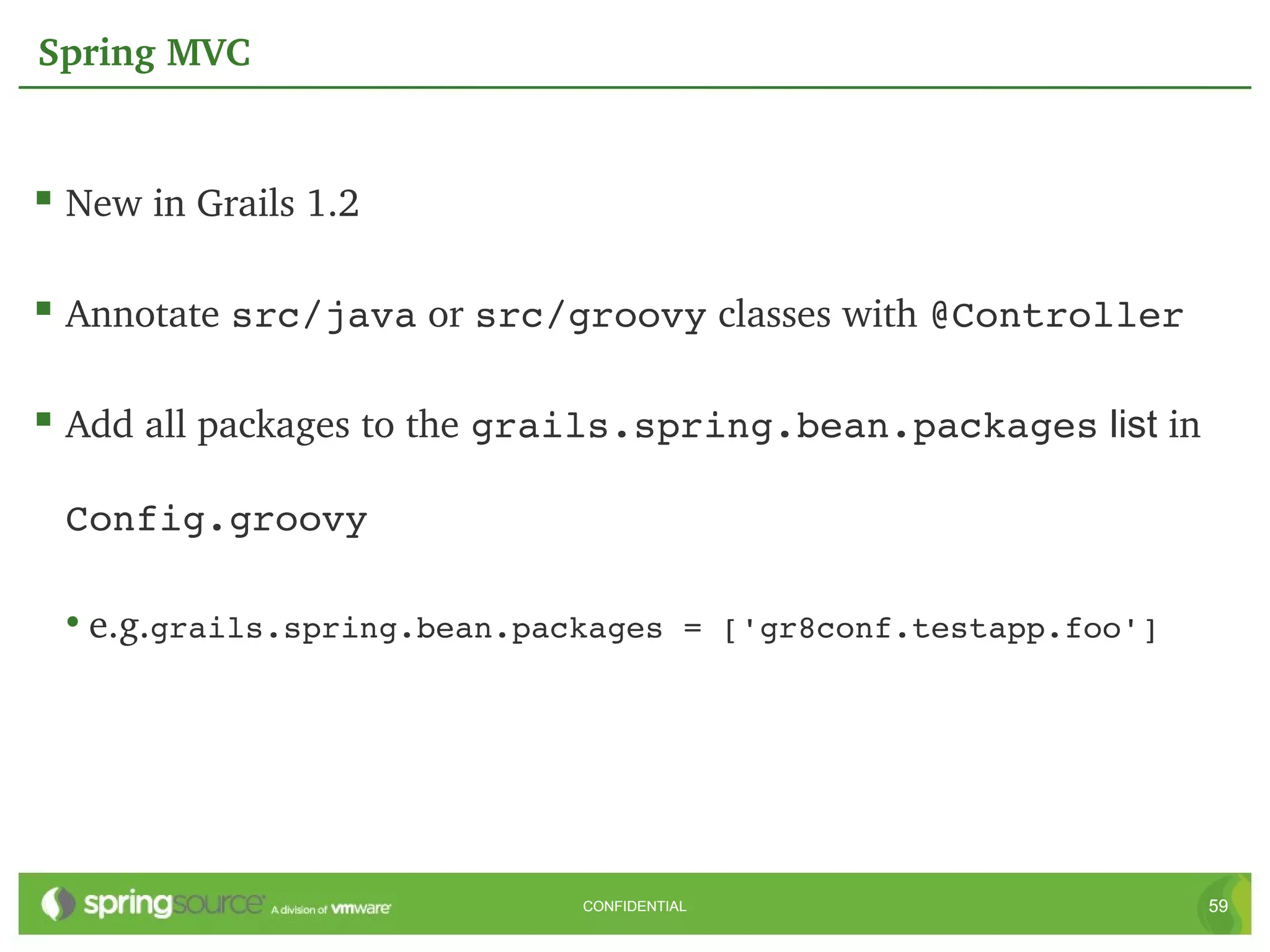

59. Spring MVC
 New in Grails 1.2
 Annotate src/java or src/groovy classes with @Controller
 Add all packages to the grails.spring.bean.packages list in
Config.groovy
• e.g.grails.spring.bean.packages = ['gr8conf.testapp.foo']
CONFIDENTIAL 59

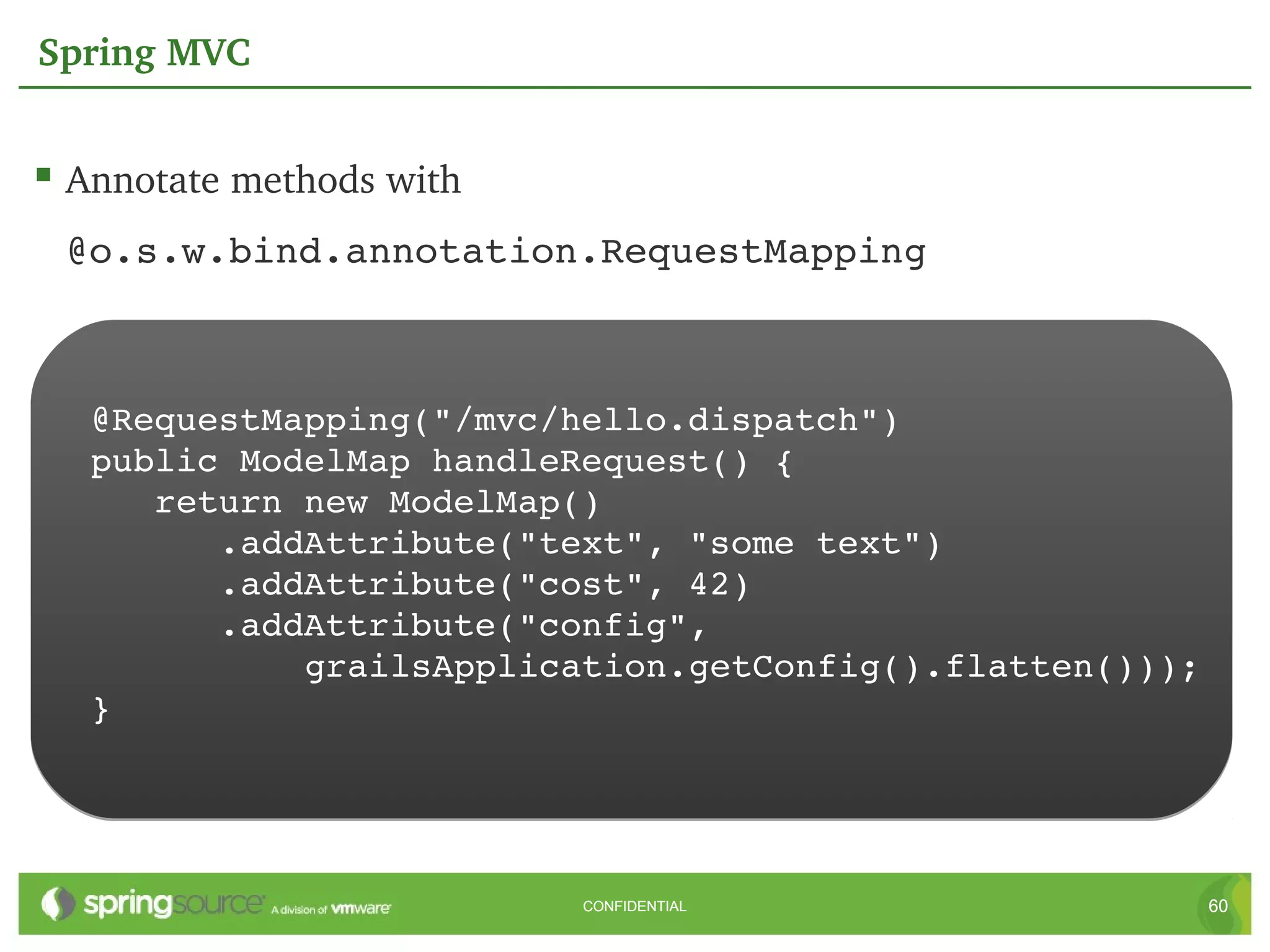

60. Spring MVC
 Annotate methods with
@o.s.w.bind.annotation.RequestMapping
@RequestMapping("/mvc/hello.dispatch")
public ModelMap handleRequest() {
return new ModelMap()
.addAttribute("text", "some text")
.addAttribute("cost", 42)
.addAttribute("config",
grailsApplication.getConfig().flatten()));
}
CONFIDENTIAL 60

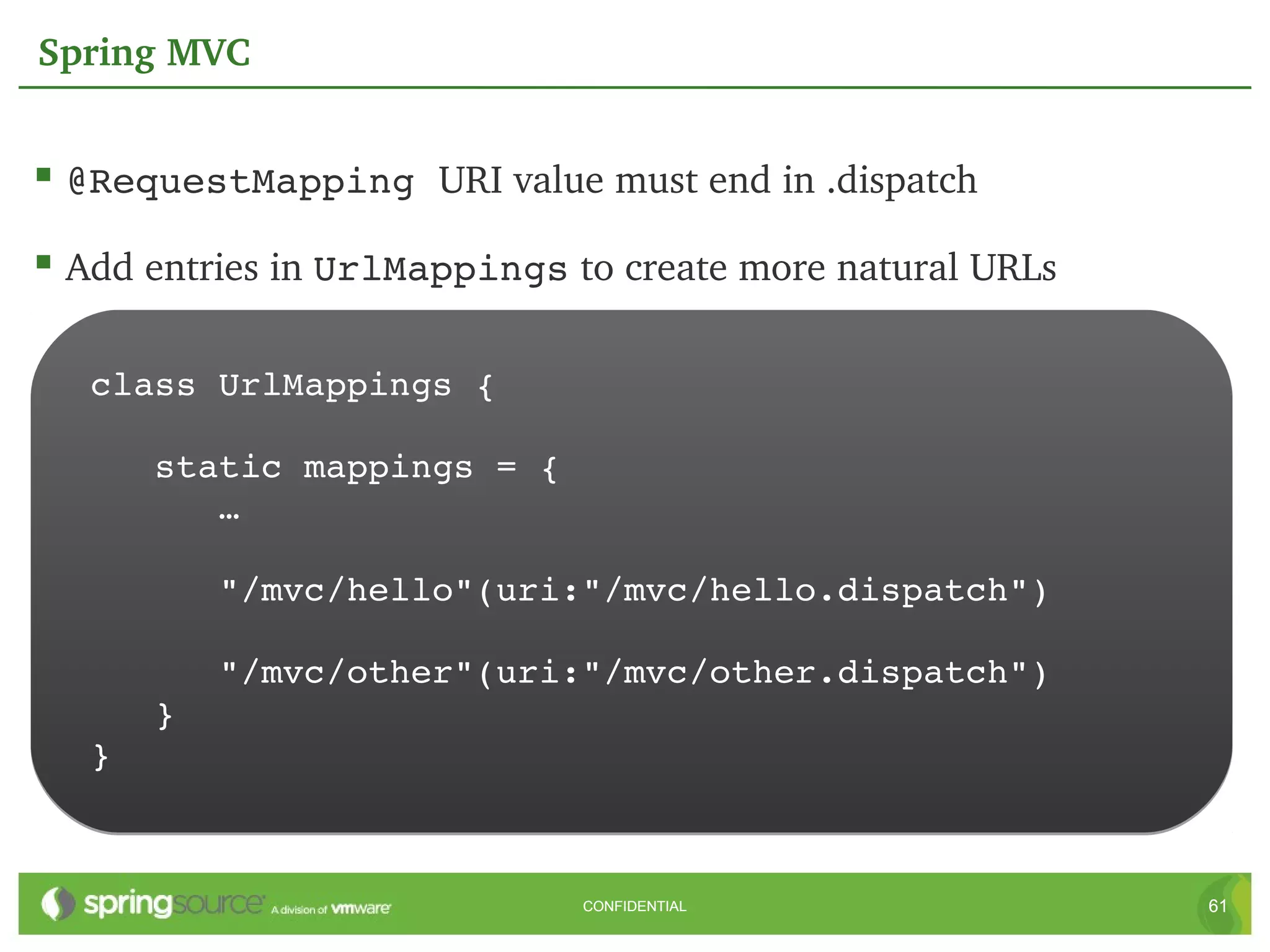

61. Spring MVC
 @RequestMapping URI value must end in .dispatch
 Add entries in UrlMappings to create more natural URLs
class UrlMappings {
static mappings = {
…
"/mvc/hello"(uri:"/mvc/hello.dispatch")
"/mvc/other"(uri:"/mvc/other.dispatch")
}
}
CONFIDENTIAL 61

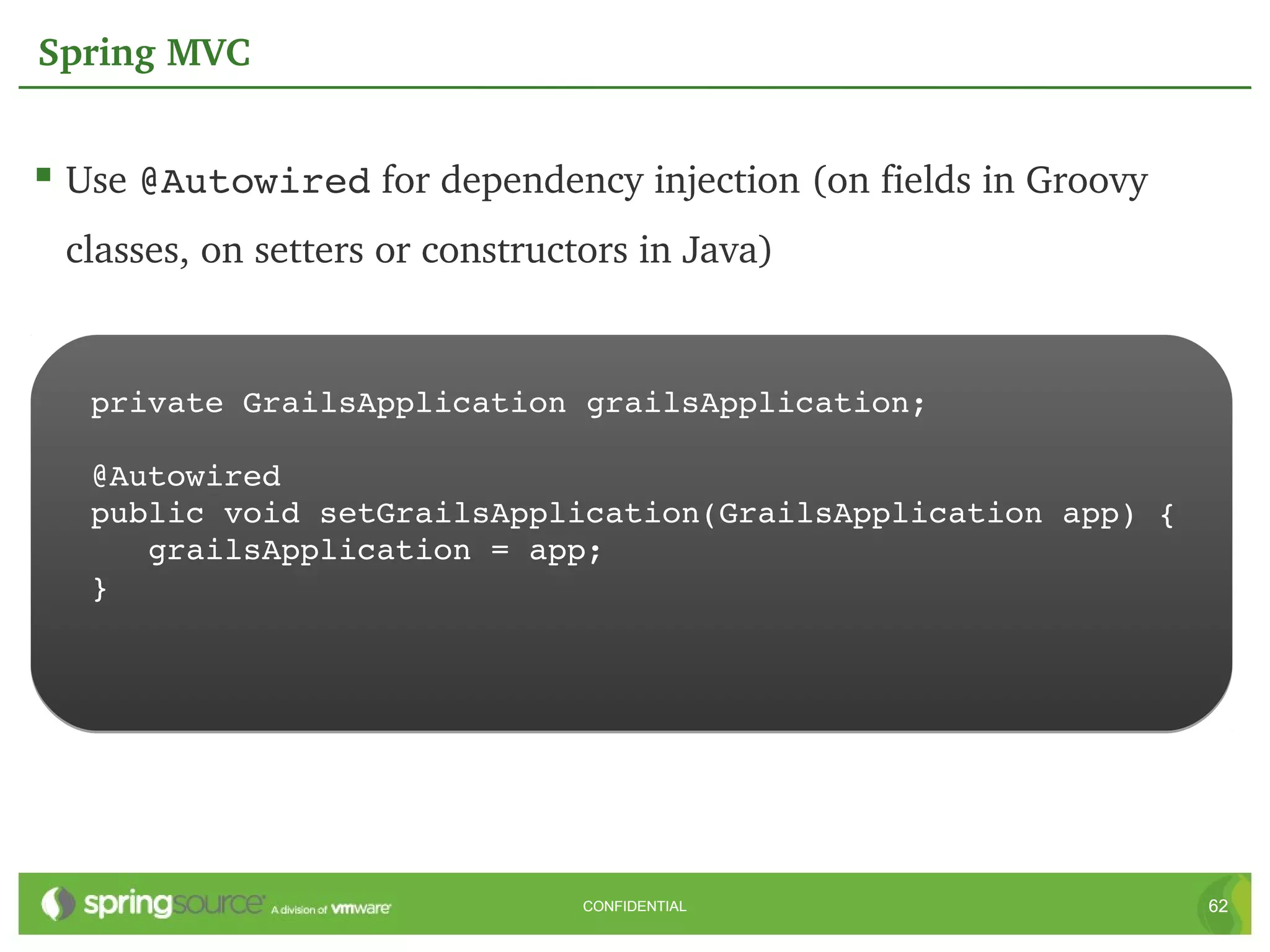

62. Spring MVC
 Use @Autowired for dependency injection (on fields in Groovy
classes, on setters or constructors in Java)
private GrailsApplication grailsApplication;
@Autowired
public void setGrailsApplication(GrailsApplication app) {
grailsApplication = app;
}
CONFIDENTIAL 62

63. Hibernate Integration
CONFIDENTIAL 63

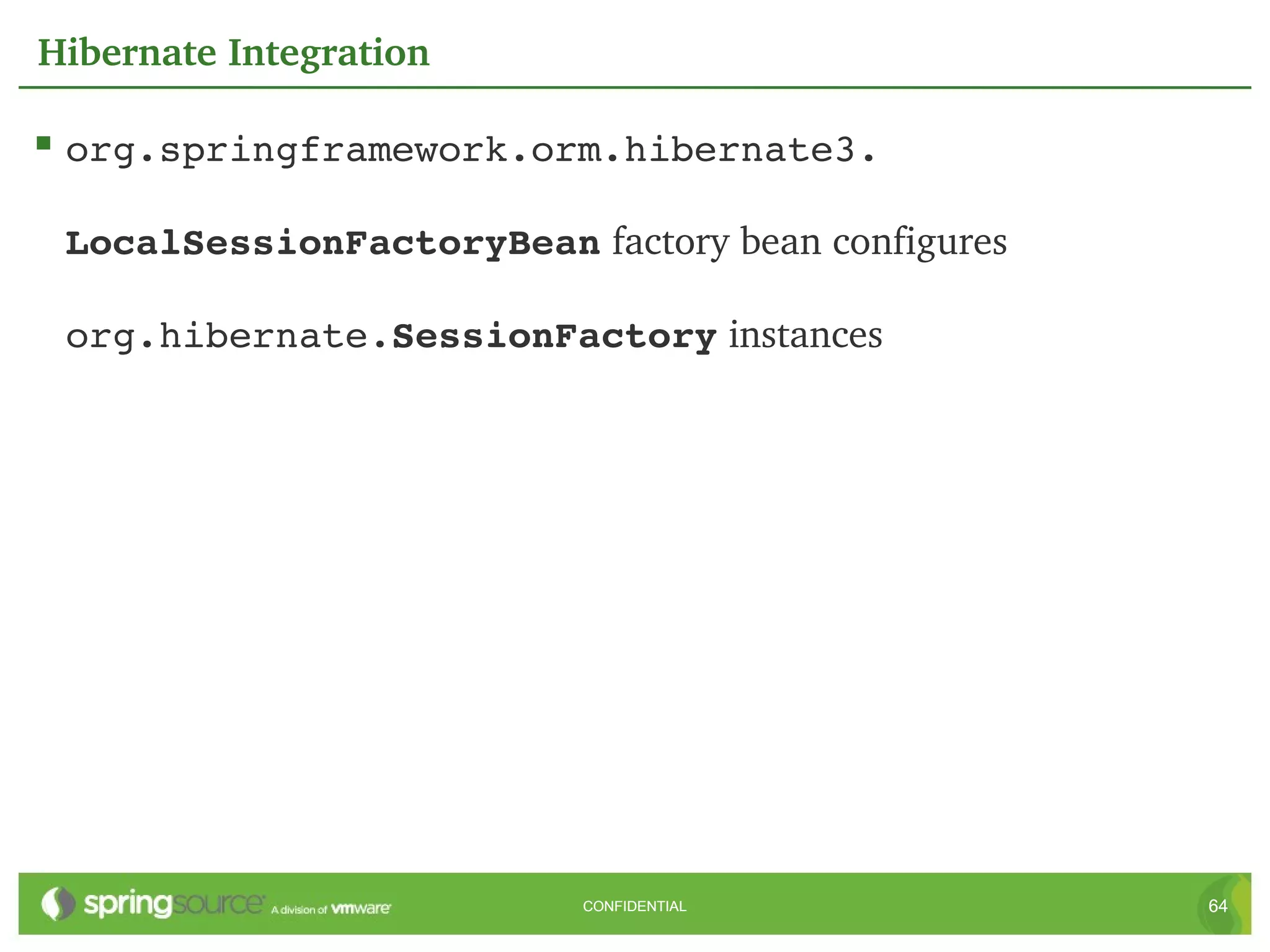

64. Hibernate Integration
 org.springframework.orm.hibernate3.
LocalSessionFactoryBean factory bean configures
org.hibernate.SessionFactory instances
CONFIDENTIAL 64

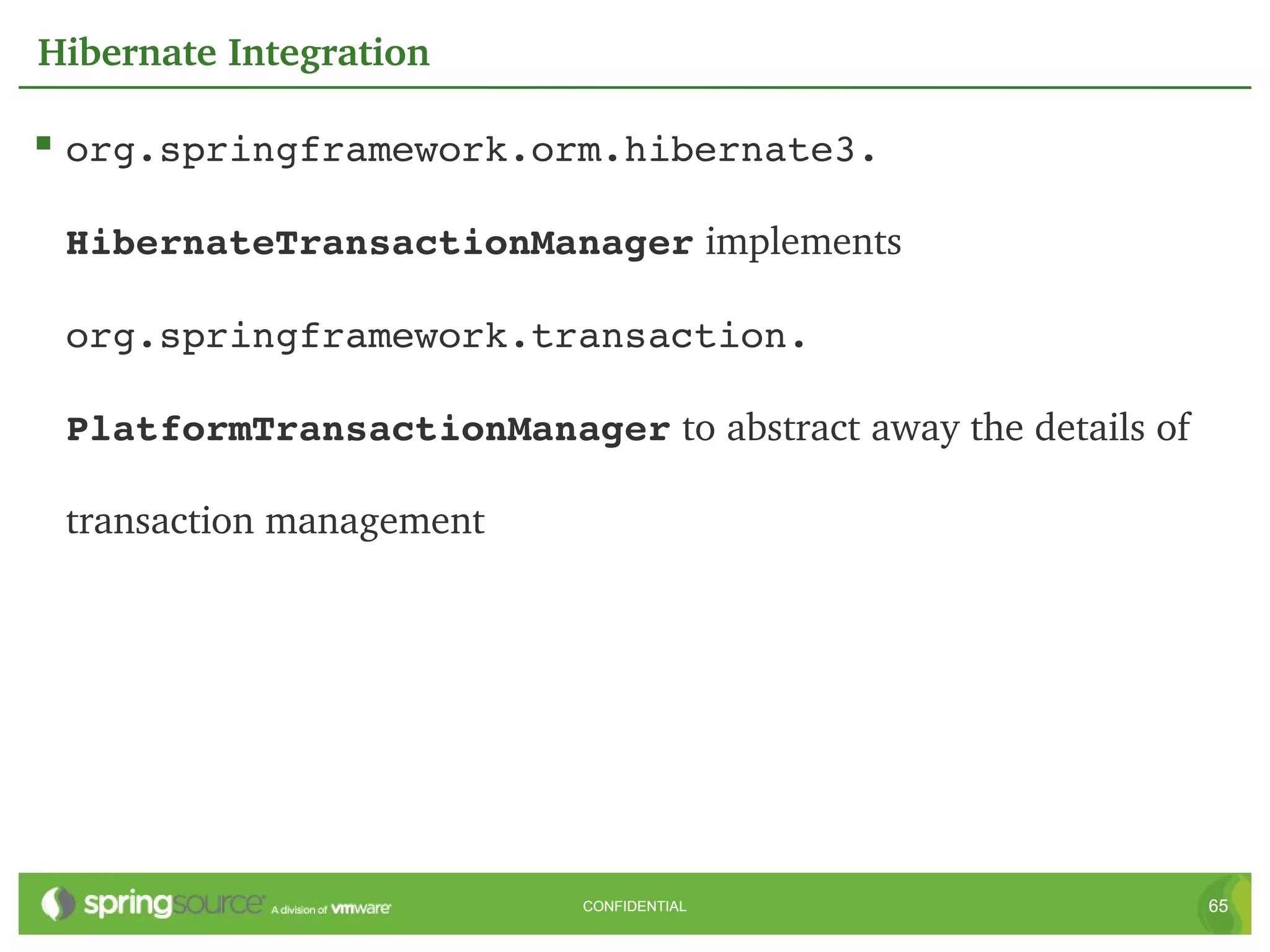

65. Hibernate Integration
 org.springframework.orm.hibernate3.
HibernateTransactionManager implements
org.springframework.transaction.
PlatformTransactionManager to abstract away the details of
transaction management
CONFIDENTIAL 65

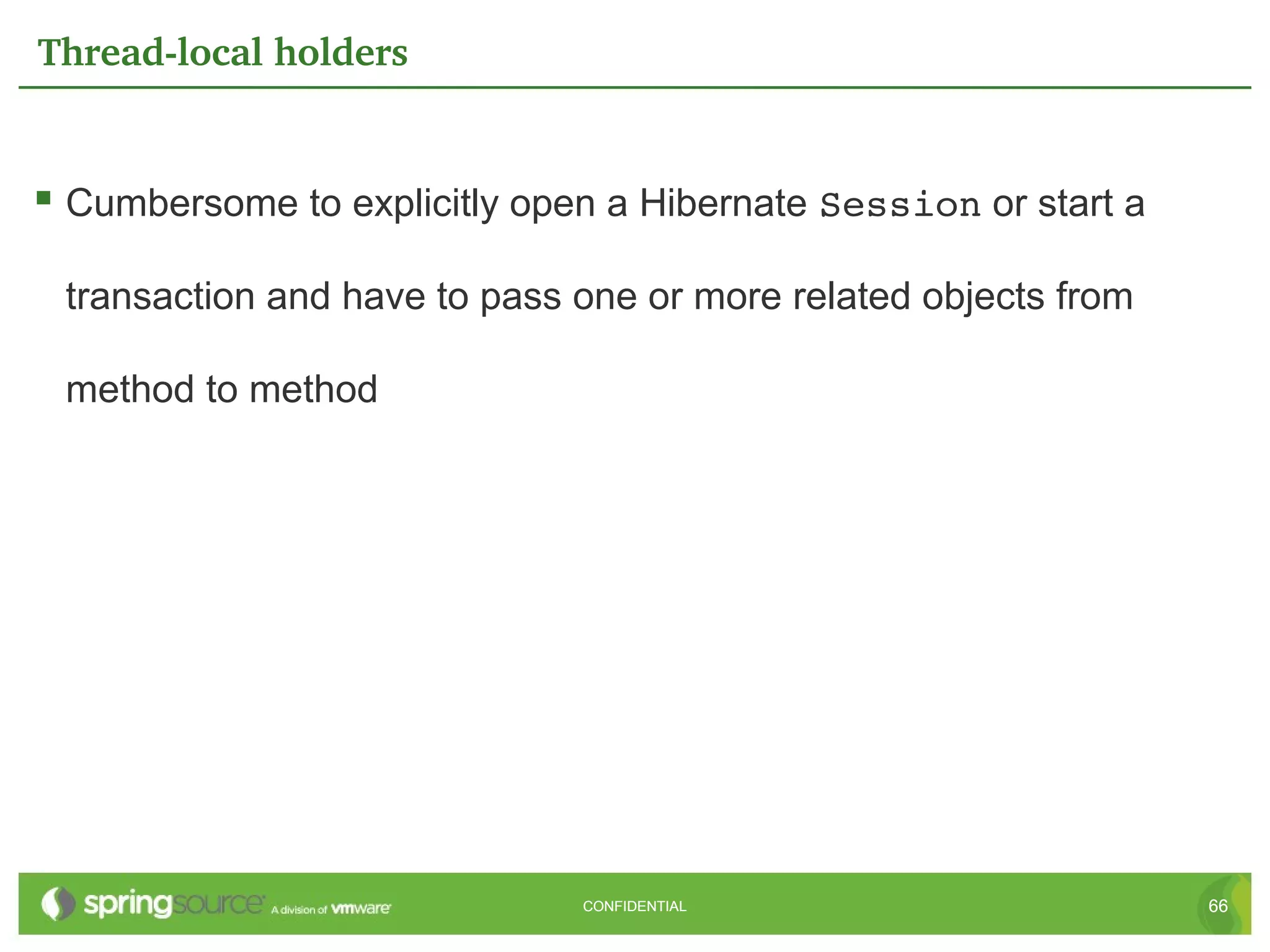

66. Thread­local holders
 Cumbersome to explicitly open a Hibernate Session or start a
transaction and have to pass one or more related objects from
method to method
CONFIDENTIAL 66

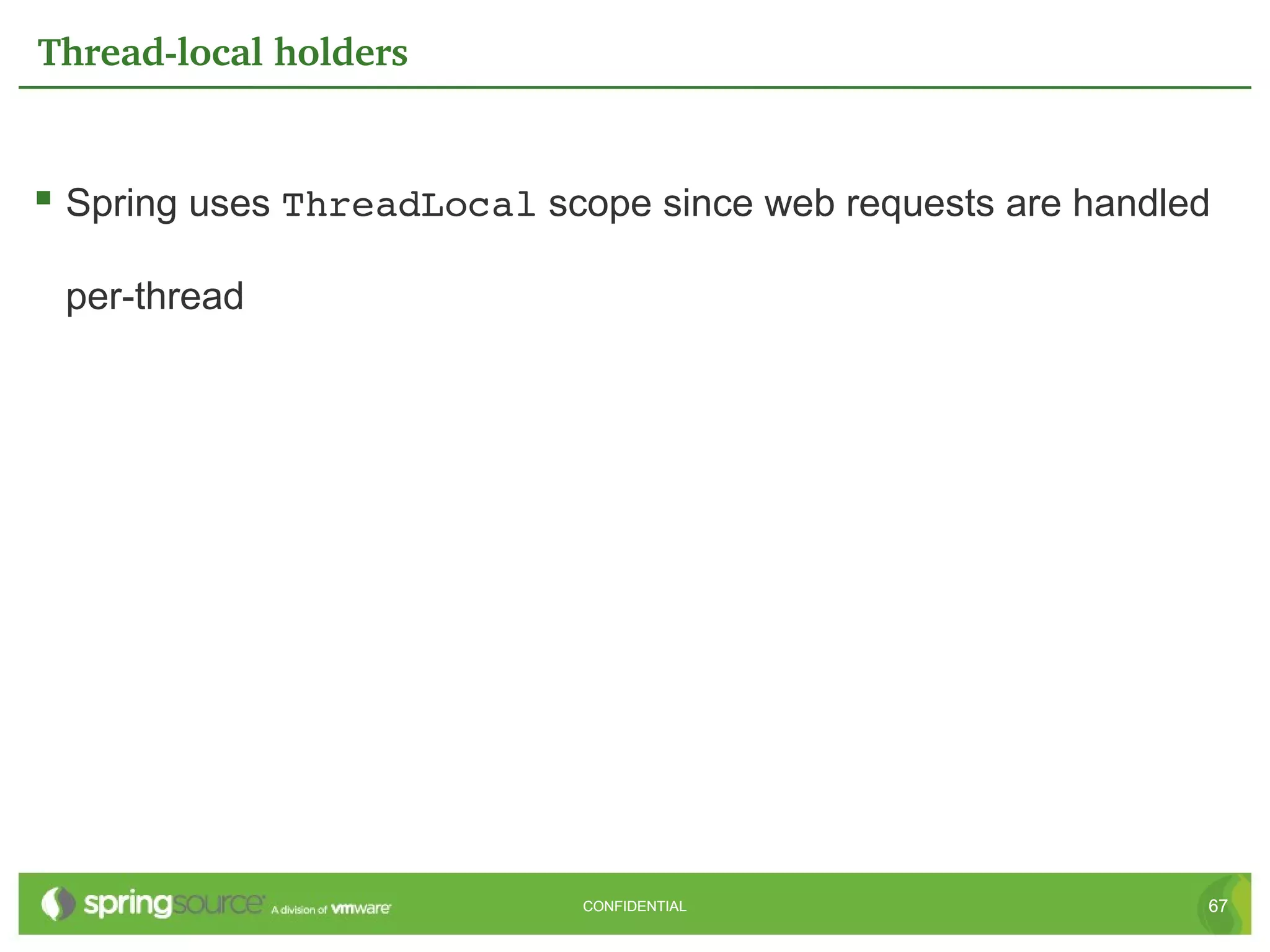

67. Thread­local holders
 Spring uses ThreadLocal scope since web requests are handled
per-thread
CONFIDENTIAL 67

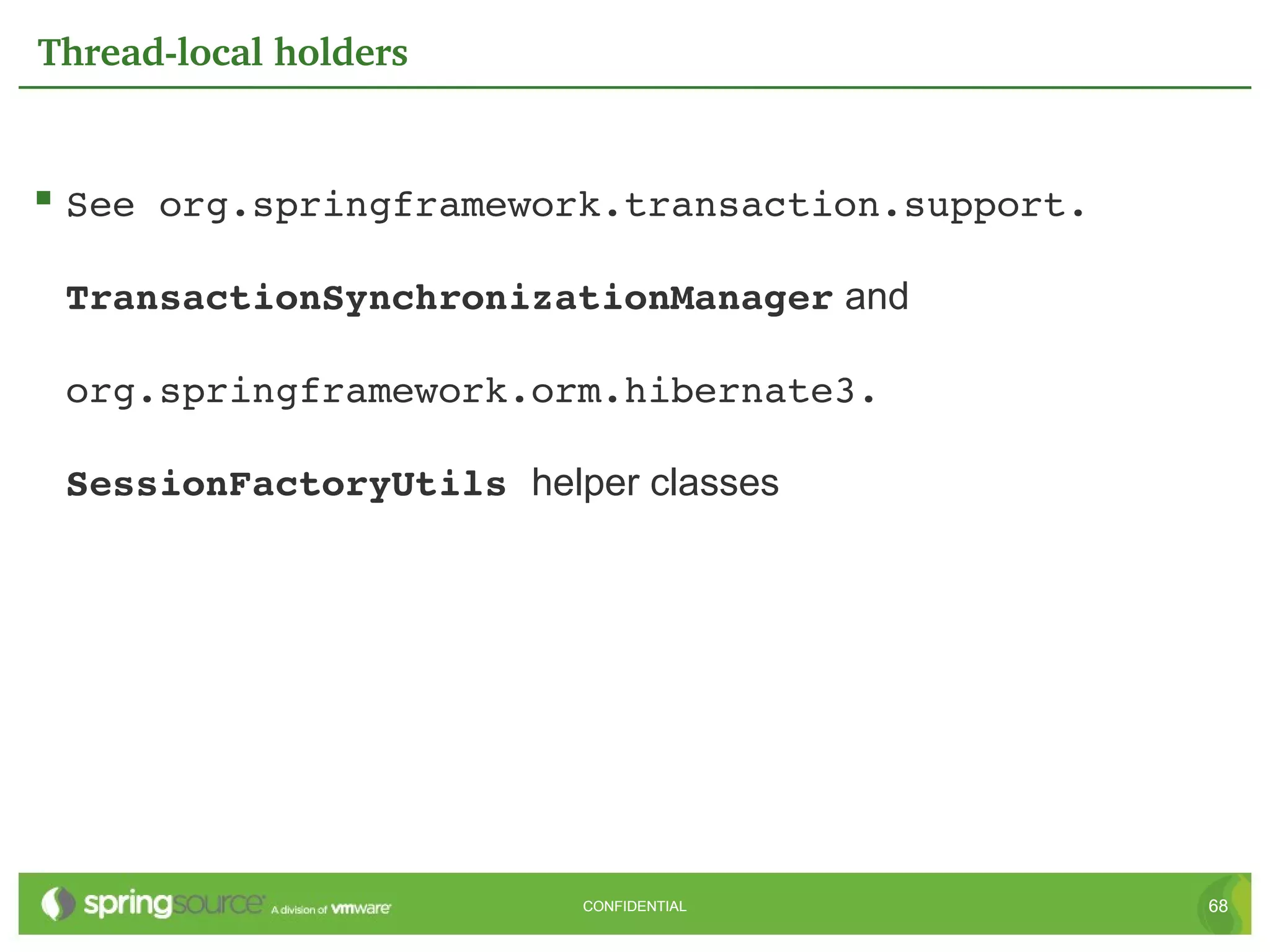

68. Thread­local holders
 See org.springframework.transaction.support.
TransactionSynchronizationManager and
org.springframework.orm.hibernate3.
SessionFactoryUtils helper classes
CONFIDENTIAL 68

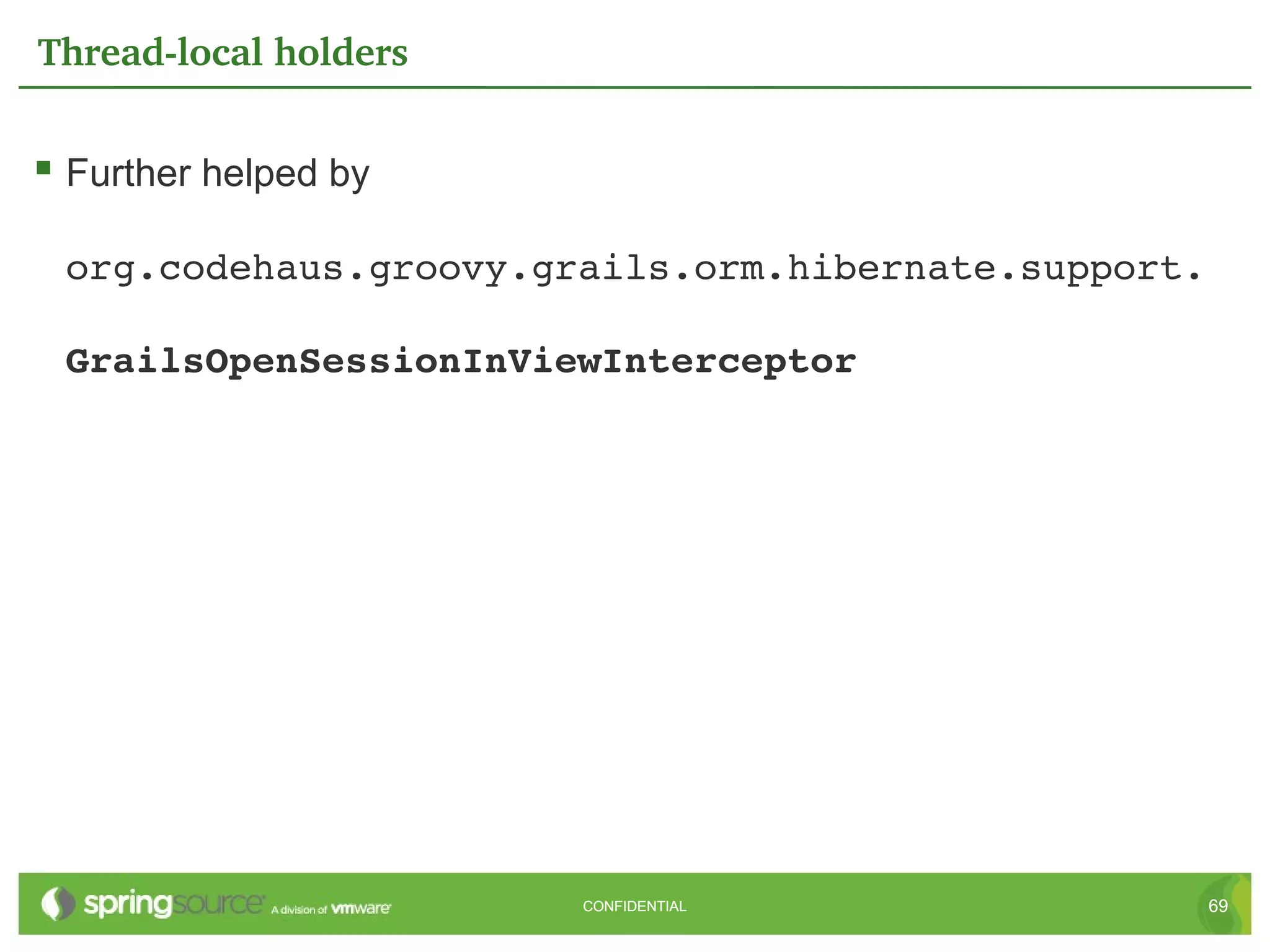

69. Thread­local holders
 Further helped by
org.codehaus.groovy.grails.orm.hibernate.support.
GrailsOpenSessionInViewInterceptor
CONFIDENTIAL 69

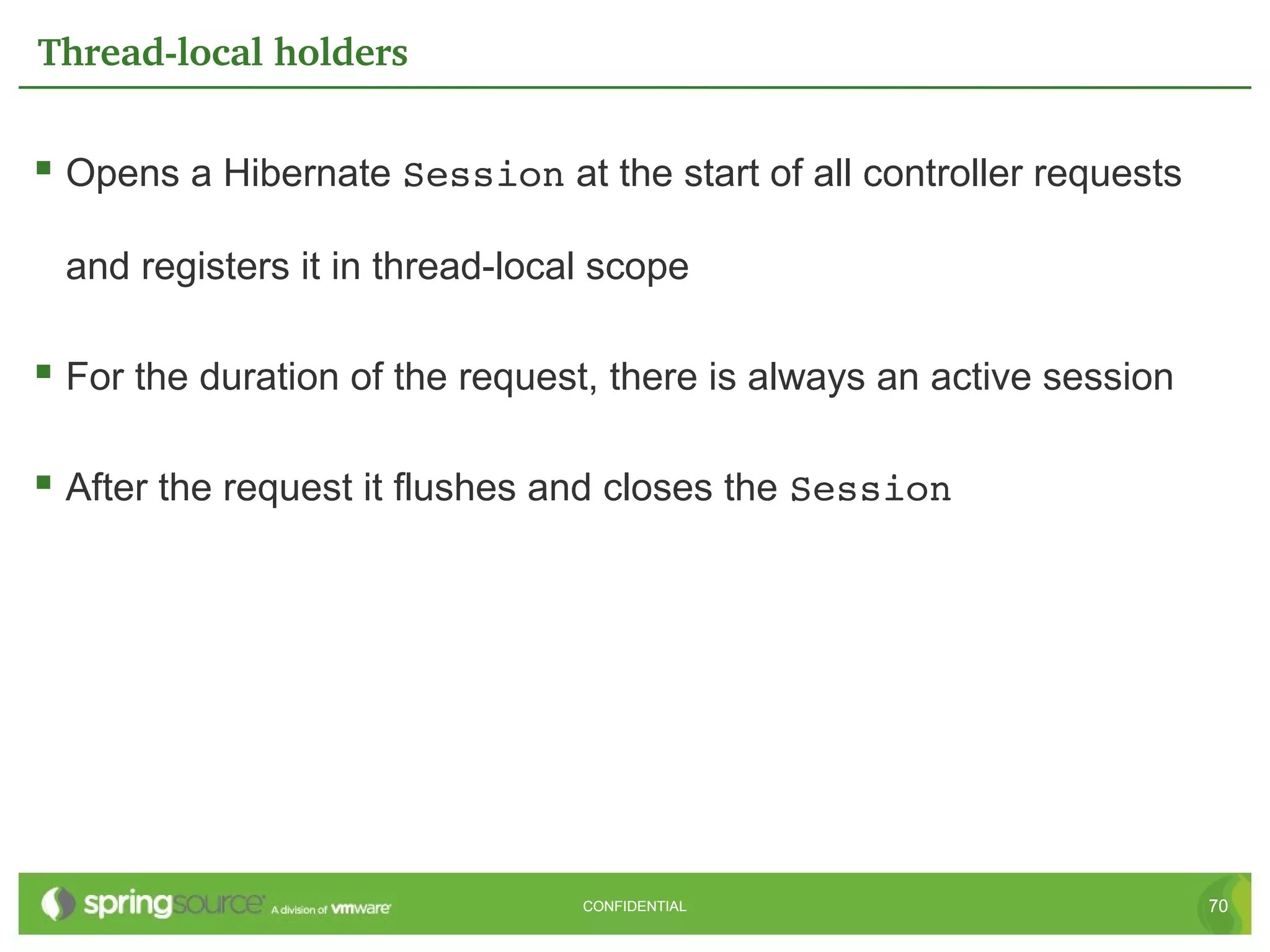

70. Thread­local holders
 Opens a Hibernate Session at the start of all controller requests
and registers it in thread-local scope
 For the duration of the request, there is always an active session
 After the request it flushes and closes the Session
CONFIDENTIAL 70

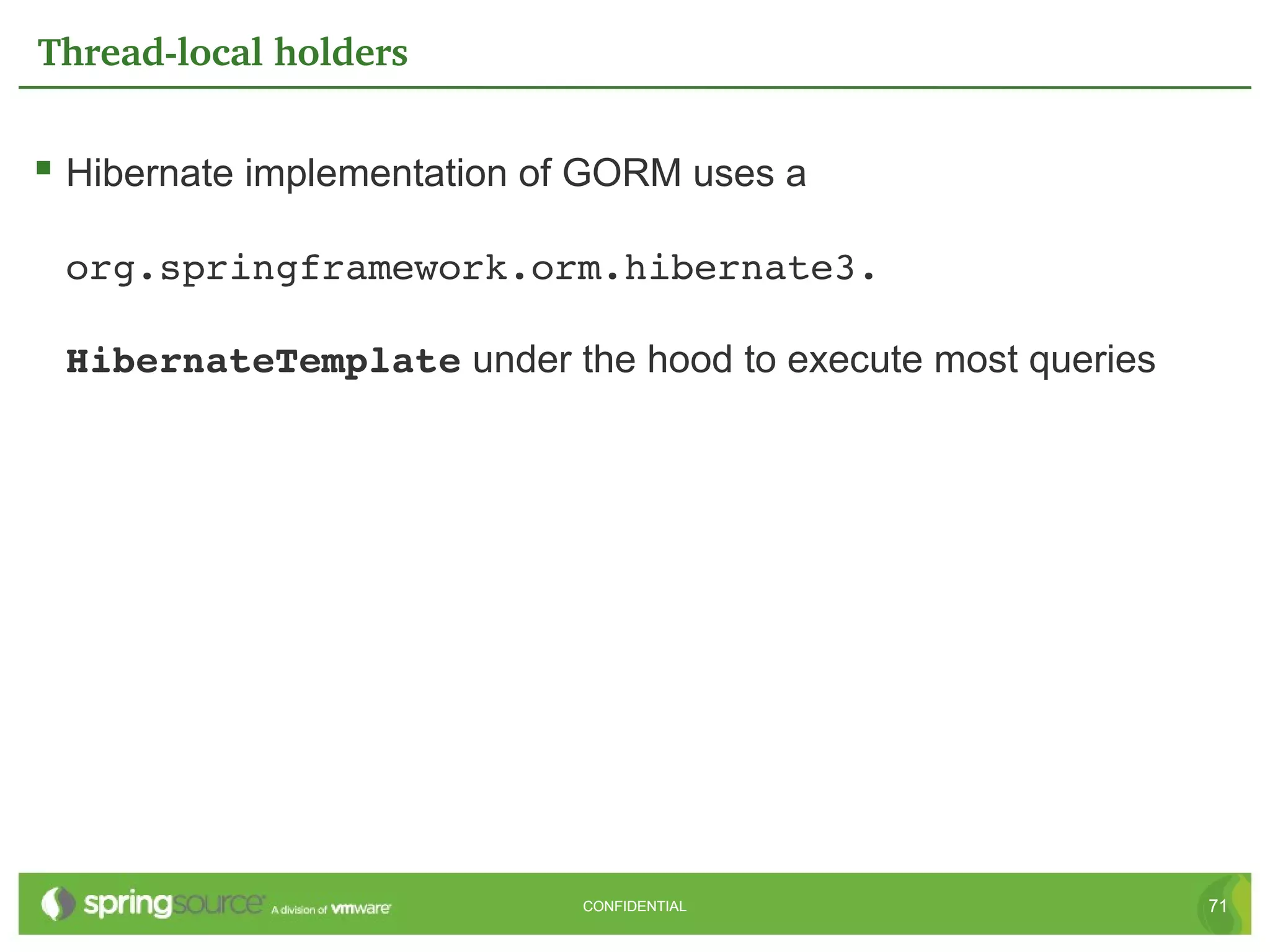

71. Thread­local holders
 Hibernate implementation of GORM uses a
org.springframework.orm.hibernate3.
HibernateTemplate under the hood to execute most queries
CONFIDENTIAL 71

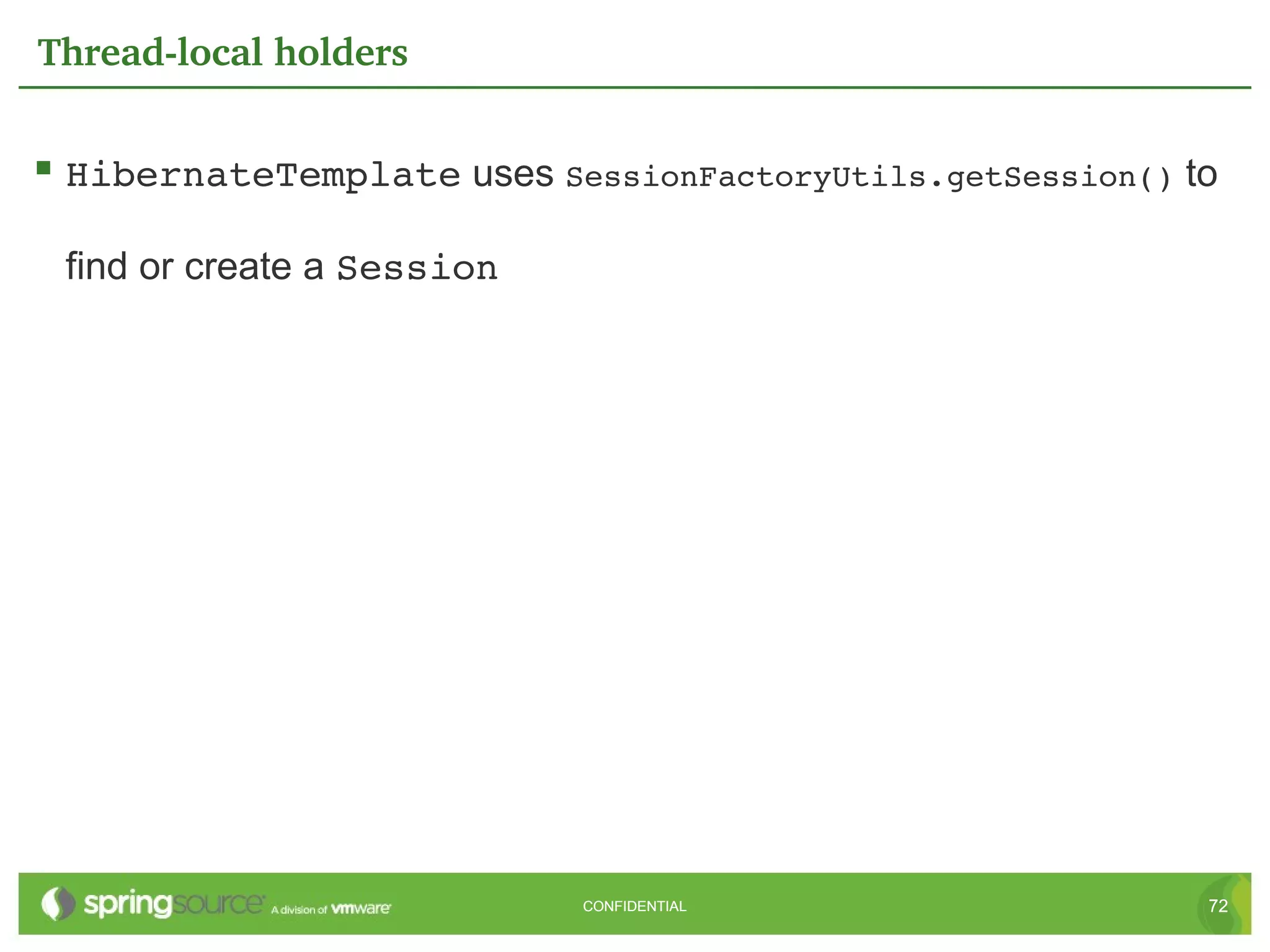

72. Thread­local holders
 HibernateTemplate uses SessionFactoryUtils.getSession() to
find or create a Session
CONFIDENTIAL 72

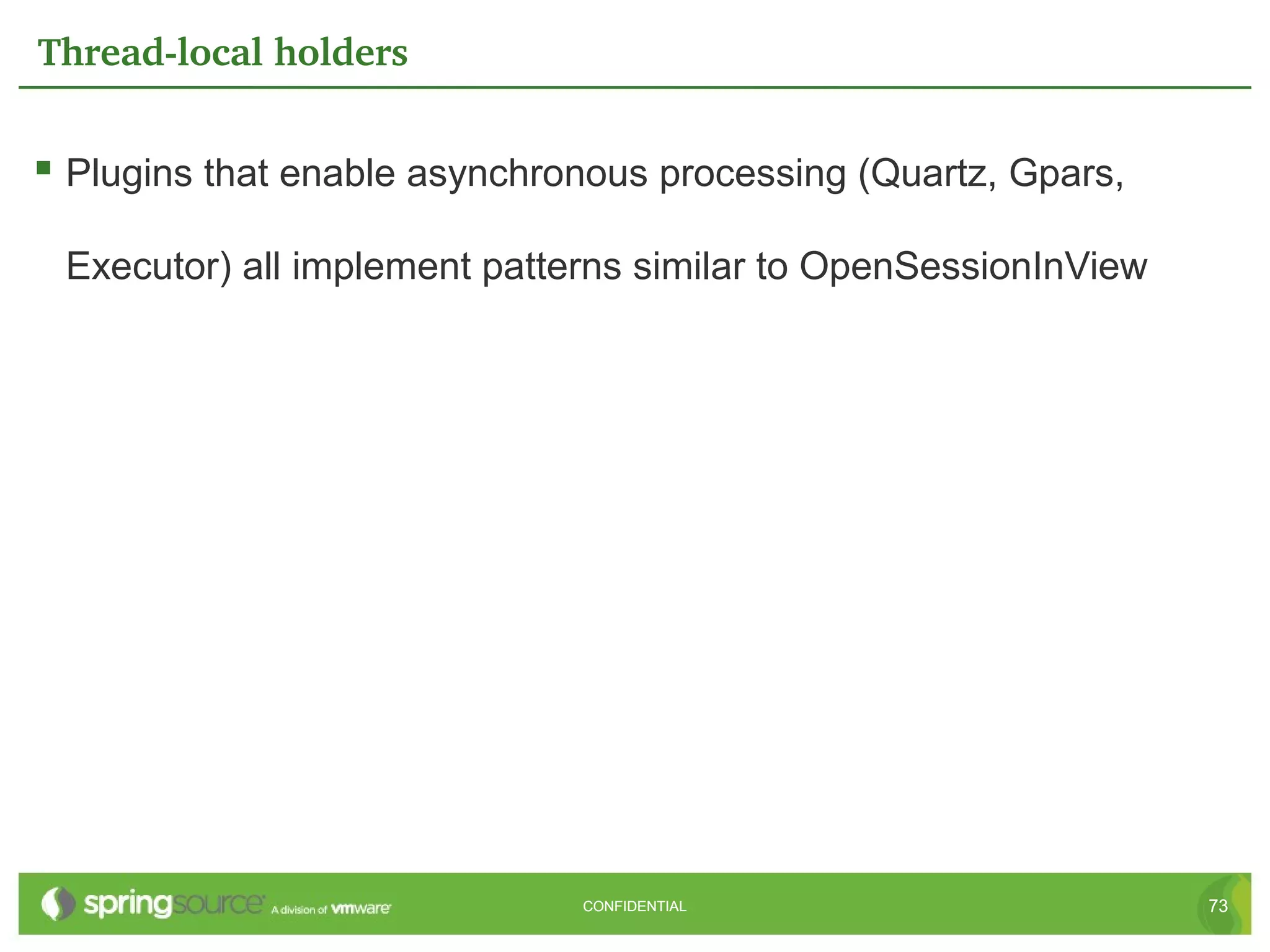

73. Thread­local holders
 Plugins that enable asynchronous processing (Quartz, Gpars,
Executor) all implement patterns similar to OpenSessionInView
CONFIDENTIAL 73

74. Other Cool Stuff
CONFIDENTIAL 74

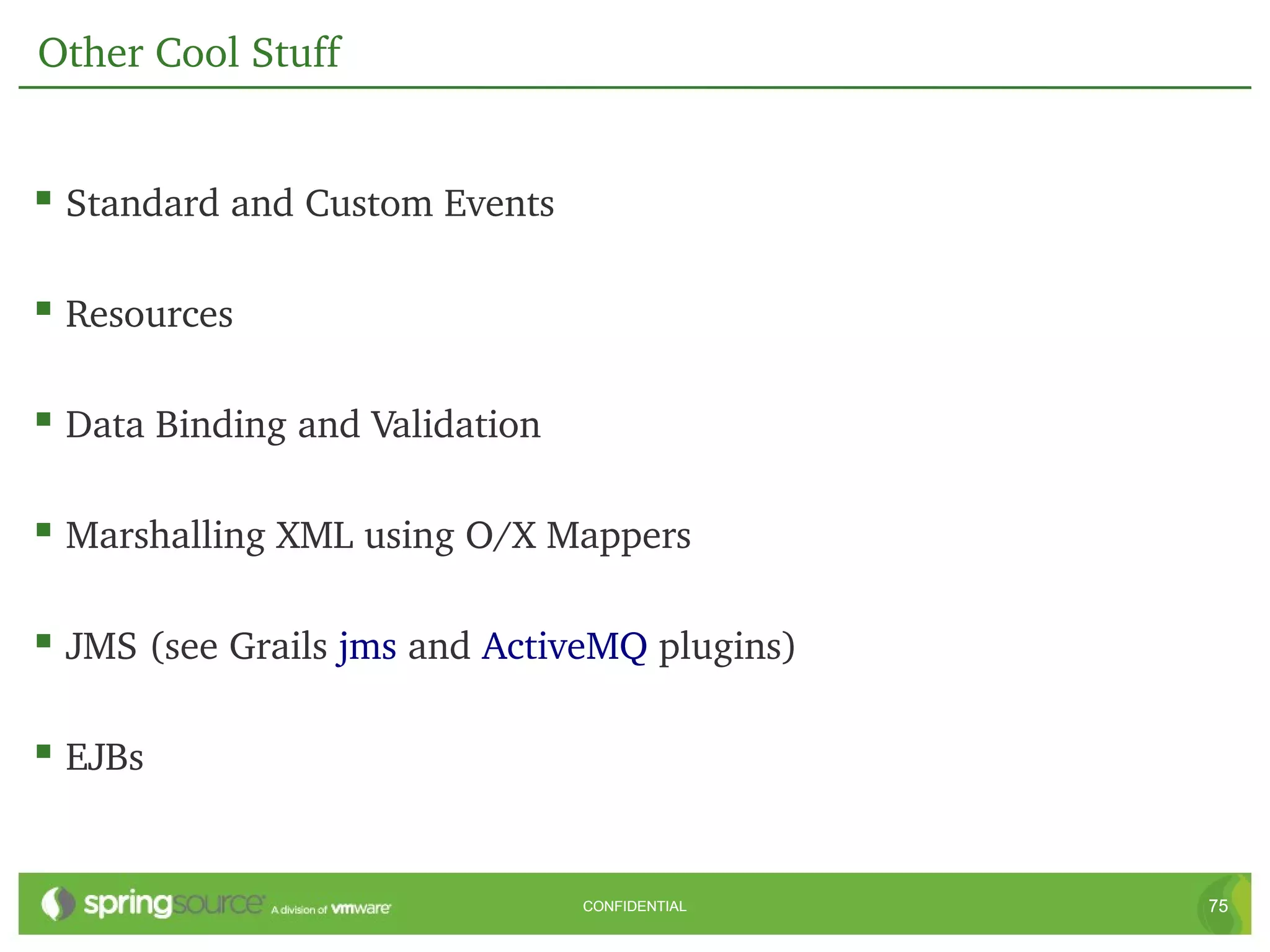

75. Other Cool Stuff
 Standard and Custom Events
 Resources
 Data Binding and Validation
 Marshalling XML using O/X Mappers
 JMS (see Grails jms and ActiveMQ plugins)
 EJBs
CONFIDENTIAL 75

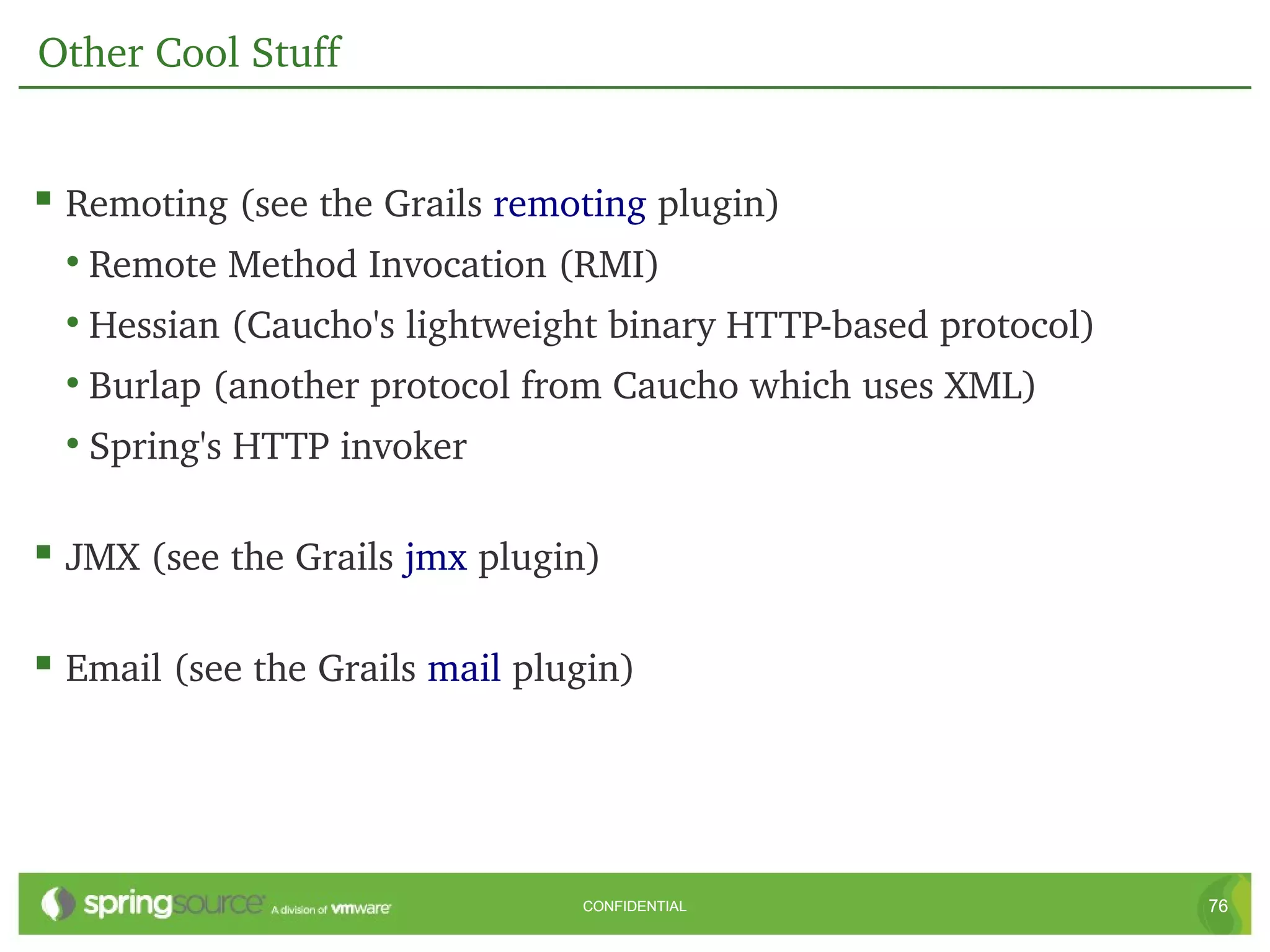

76. Other Cool Stuff
 Remoting (see the Grails remoting plugin)
• Remote Method Invocation (RMI)
• Hessian (Caucho's lightweight binary HTTP­based protocol)
• Burlap (another protocol from Caucho which uses XML)
• Spring's HTTP invoker
 JMX (see the Grails jmx plugin)
 Email (see the Grails mail plugin)
CONFIDENTIAL 76

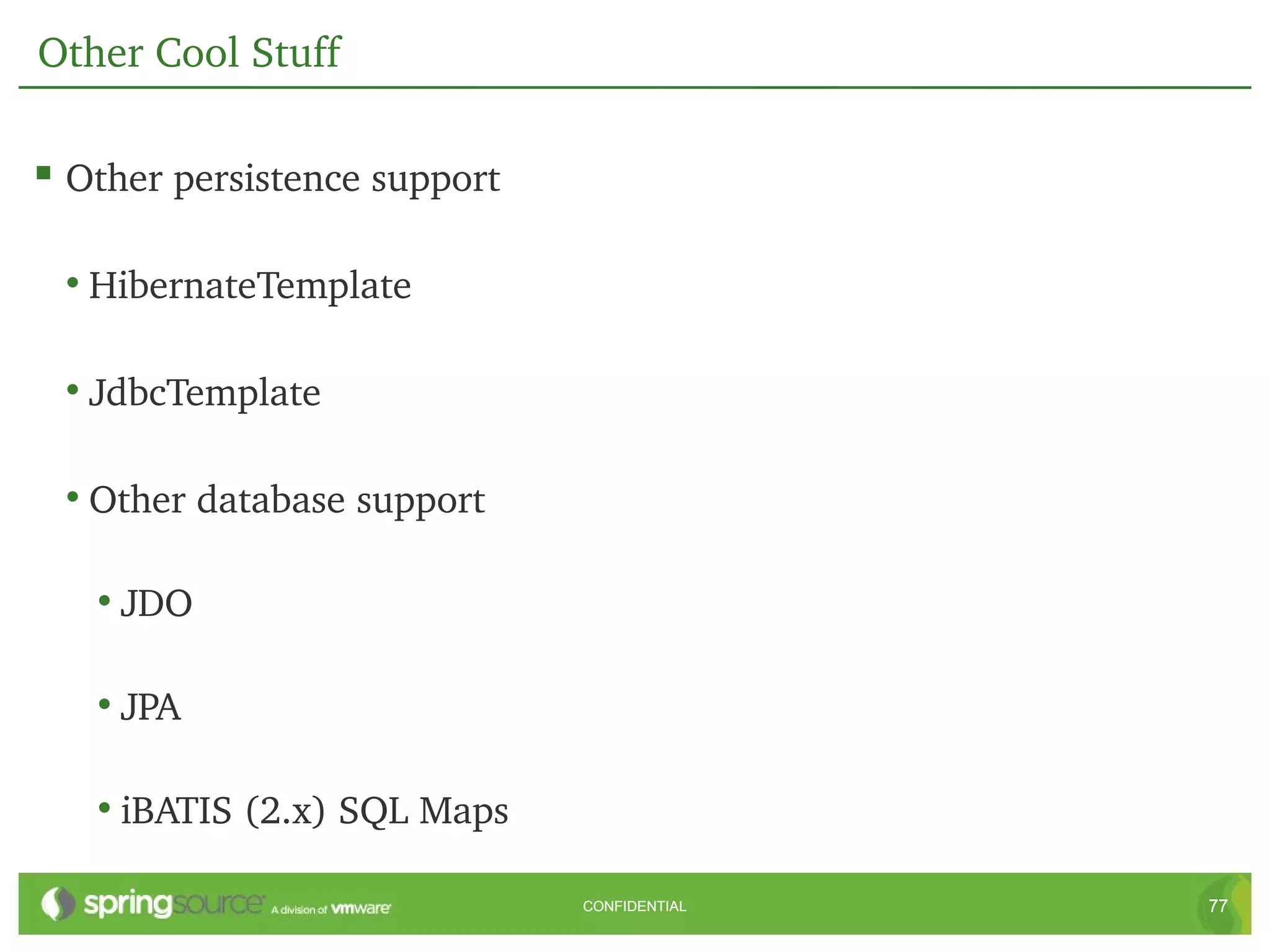

77. Other Cool Stuff
 Other persistence support
• HibernateTemplate
• JdbcTemplate
• Other database support
• JDO
• JPA
• iBATIS (2.x) SQL Maps
CONFIDENTIAL 77

78. Want More Information?
CONFIDENTIAL 78

80. Thank You
CONFIDENTIAL 80
