1. Solr로 나만의 검색엔진을 만들어보자
- 제1회 루씬 한글분석기 기술세미나 -
강동혁
㈜맥스트 책임연구원
2013-04-12

2. ’02
대용량 텍스트 데이터베이스의
효율적인 점진적 클러스터링 기법 – 텍스트 마이닝
‘09
VitaminMD – 사이트 통합검색
공개SW 공모대전 - 루씬한글분석기
‘12
Ponket – 검색 및 쿠폰 자동분류
‘13
Augmented Reality Platform - 위치검색

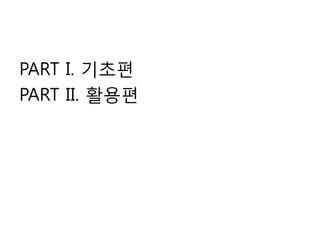

3. PART I. 기초편
PART II. 활용편

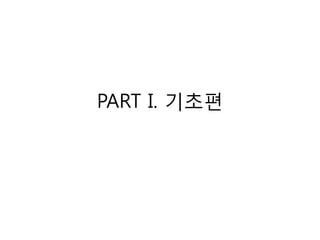

4. PART I. 기초편

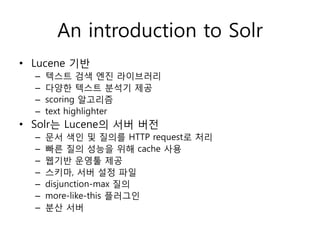

5. An introduction to Solr
• Lucene 기반
– 텍스트 검색 엔진 라이브러리
– 다양한 텍스트 분석기 제공
– scoring 알고리즘
– text highlighter
• Solr는 Lucene의 서버 버전
– 문서 색인 및 질의를 HTTP request로 처리
– 빠른 질의 성능을 위해 cache 사용
– 웹기반 운영툴 제공
– 스키마, 서버 설정 파일
– disjunction-max 질의
– more-like-this 플러그인
– 분산 서버

6. Install & Deploy
1. http://lucene.apache.org/solr/ 접속한다.
2. 최신버전 (solr-4.2.1.zip) 다운로드한다.
3. 압축을 푼다.
4. cd example
java –jar start.jar
5. http://localhost:8983/solr/admin 확인한다.
• Apache Tomcat 이용 시 dist/solr-4.x.x.war 를 Apache
Tomcat 의 webapps 에 복사한다.

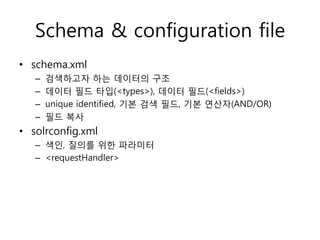

7. Schema & configuration file
• schema.xml
– 검색하고자 하는 데이터의 구조
– 데이터 필드 타입(<types>), 데이터 필드(<fields>)
– unique identified, 기본 검색 필드, 기본 연산자(AND/OR)
– 필드 복사
• solrconfig.xml
– 색인, 질의를 위한 파라미터
– <requestHandler>

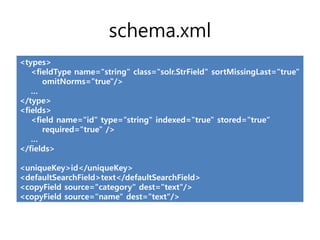

8. schema.xml
<types>
<fieldType name="string" class="solr.StrField" sortMissingLast="true"
omitNorms="true"/>
…
</type>
<fields>
<field name="id" type="string" indexed="true" stored="true“
required="true" />
…
</fields>
<uniqueKey>id</uniqueKey>
<defaultSearchField>text</defaultSearchField>
<copyField source="category" dest="text"/>
<copyField source="name" dest="text"/>

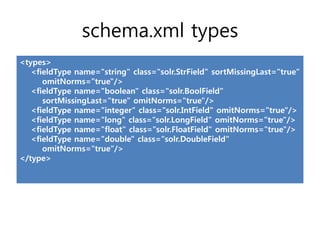

9. schema.xml types
<types>
<fieldType name="string" class="solr.StrField" sortMissingLast="true“
omitNorms="true"/>
<fieldType name="boolean" class="solr.BoolField"
sortMissingLast="true" omitNorms="true"/>
<fieldType name="integer" class="solr.IntField" omitNorms="true"/>
<fieldType name="long" class="solr.LongField" omitNorms="true"/>
<fieldType name="float" class="solr.FloatField" omitNorms="true"/>
<fieldType name="double" class="solr.DoubleField"
omitNorms="true“/>
</type>

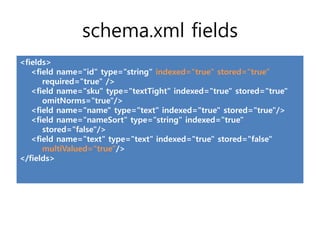

10. schema.xml fields
<fields>
<field name="id" type="string" indexed="true" stored="true"
required="true" />
<field name="sku" type="textTight" indexed="true" stored="true"
omitNorms="true"/>
<field name="name" type="text" indexed="true" stored="true"/>
<field name="nameSort" type="string" indexed="true"
stored="false"/>
<field name="text" type="text" indexed="true" stored="false"
multiValued="true"/>
</fields>

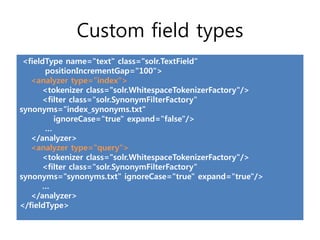

11. Custom field types
<fieldType name="text" class="solr.TextField“
positionIncrementGap="100">
<analyzer type="index">
<tokenizer class="solr.WhitespaceTokenizerFactory"/>
<filter class="solr.SynonymFilterFactory"
synonyms="index_synonyms.txt"
ignoreCase="true" expand="false"/>
…
</analyzer>
<analyzer type="query">
<tokenizer class="solr.WhitespaceTokenizerFactory"/>
<filter class="solr.SynonymFilterFactory"
synonyms="synonyms.txt" ignoreCase="true" expand="true"/>
…
</analyzer>
</fieldType>

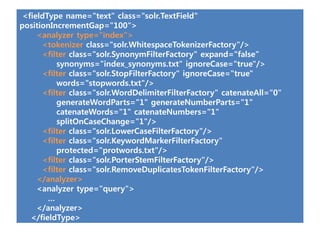

12. <fieldType name="text" class="solr.TextField"
positionIncrementGap="100">
<analyzer type="index">
<tokenizer class="solr.WhitespaceTokenizerFactory"/>
<filter class="solr.SynonymFilterFactory" expand="false“
synonyms="index_synonyms.txt" ignoreCase="true"/>
<filter class="solr.StopFilterFactory" ignoreCase="true"
words="stopwords.txt"/>
<filter class="solr.WordDelimiterFilterFactory" catenateAll="0"
generateWordParts="1" generateNumberParts="1"
catenateWords="1" catenateNumbers="1"
splitOnCaseChange="1"/>
<filter class="solr.LowerCaseFilterFactory"/>
<filter class="solr.KeywordMarkerFilterFactory"
protected="protwords.txt"/>
<filter class="solr.PorterStemFilterFactory"/>
<filter class="solr.RemoveDuplicatesTokenFilterFactory"/>
</analyzer>
<analyzer type="query">
…
</analyzer>
</fieldType>

13. <fieldType name="text" class="solr.TextField"
positionIncrementGap="100">
<analyzer type="index">
…
</analyzer>
<analyzer type="query">
<tokenizer class="solr.WhitespaceTokenizerFactory"/>
<filter class="solr.SynonymFilterFactory" expand="true“
synonyms="synonyms.txt" ignoreCase="true"/>
<filter class="solr.StopFilterFactory" ignoreCase="true"
words="stopwords.txt"/>
<filter class="solr.WordDelimiterFilterFactory" catenateAll="0“
generateWordParts="1" generateNumberParts="1"
catenateWords="0" catenateNumbers="0"
splitOnCaseChange="1"/>
<filter class="solr.LowerCaseFilterFactory"/>
<filter class="solr.KeywordMarkerFilterFactory"
protected="protwords.txt"/>
<filter class="solr.PorterStemFilterFactory"/>
<filter class="solr.RemoveDuplicatesTokenFilterFactory"/>
</analyzer>
</fieldType>

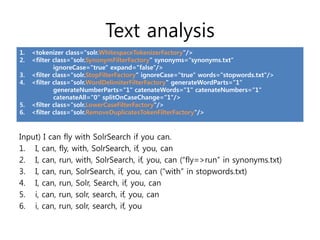

14. Text analysis
1. <tokenizer class="solr.WhitespaceTokenizerFactory"/>
2. <filter class="solr.SynonymFilterFactory" synonyms=“synonyms.txt“
ignoreCase="true" expand="false"/>
3. <filter class="solr.StopFilterFactory" ignoreCase="true" words="stopwords.txt"/>
4. <filter class="solr.WordDelimiterFilterFactory" generateWordParts="1“
generateNumberParts="1" catenateWords="1" catenateNumbers="1"
catenateAll="0“ splitOnCaseChange="1"/>
5. <filter class="solr.LowerCaseFilterFactory"/>
6. <filter class="solr.RemoveDuplicatesTokenFilterFactory"/>
Input) I can fly with SolrSearch if you can.
1. I, can, fly, with, SolrSearch, if, you, can
2. I, can, run, with, SolrSearch, if, you, can (“fly=>run” in synonyms.txt)
3. I, can, run, SolrSearch, if, you, can (“with” in stopwords.txt)
4. I, can, run, Solr, Search, if, you, can
5. i, can, run, solr, search, if, you, can
6. i, can, run, solr, search, if, you

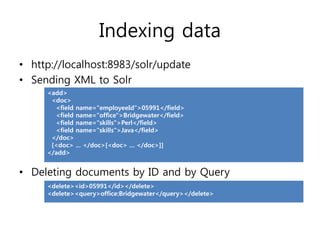

16. Indexing data
• http://localhost:8983/solr/update
• Sending XML to Solr
<add>
<doc>
<field name="employeeId">05991</field>
<field name="office">Bridgewater</field>
<field name="skills">Perl</field>
<field name="skills">Java</field>
</doc>
[<doc> ... </doc>[<doc> ... </doc>]]
</add>
• Deleting documents by ID and by Query
<delete><id>05991</id></delete>
<delete><query>office:Bridgewater</query></delete>

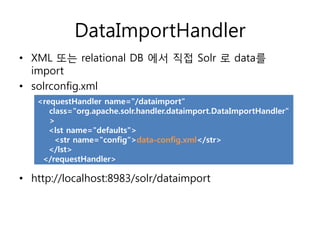

17. DataImportHandler
• XML 또는 relational DB 에서 직접 Solr 로 data를
import
• solrconfig.xml
<requestHandler name="/dataimport"
class="org.apache.solr.handler.dataimport.DataImportHandler"
>
<lst name="defaults">
<str name="config“>data-config.xml</str>
</lst>
</requestHandler>
• http://localhost:8983/solr/dataimport

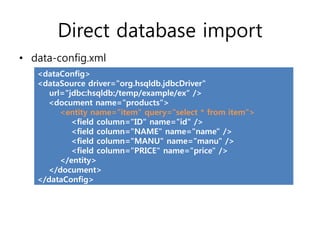

18. Direct database import
• data-config.xml
<dataConfig>
<dataSource driver="org.hsqldb.jdbcDriver"
url="jdbc:hsqldb:/temp/example/ex“ />
<document name="products">
<entity name="item" query="select * from item">
<field column="ID" name="id" />
<field column="NAME" name="name" />
<field column="MANU" name="manu" />
<field column="PRICE" name="price" />
</entity>
</document>
</dataConfig>

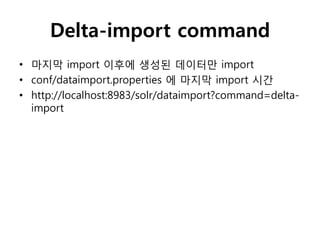

19. Delta-import command
• 마지막 import 이후에 생성된 데이터만 import
• conf/dataimport.properties 에 마지막 import 시간
• http://localhost:8983/solr/dataimport?command=delta-
import

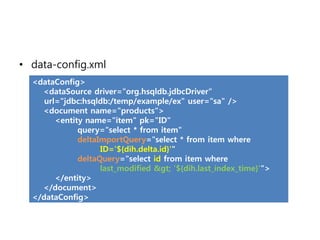

20. • data-config.xml
<dataConfig>
<dataSource driver="org.hsqldb.jdbcDriver"
url="jdbc:hsqldb:/temp/example/ex" user="sa" />
<document name="products">
<entity name="item" pk="ID"
query="select * from item"
deltaImportQuery="select * from item where
ID='${dih.delta.id}'"
deltaQuery="select id from item where
last_modified &gt; '${dih.last_index_time}'">
</entity>
</document>
</dataConfig>

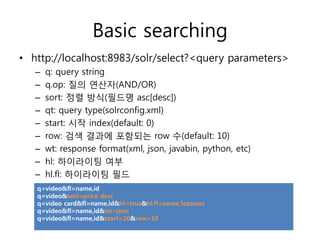

21. Basic searching
• http://localhost:8983/solr/select?<query parameters>
– q: query string
– q.op: 질의 연산자(AND/OR)
– sort: 정렬 방식(필드명 asc[desc])
– qt: query type(solrconfig.xml)
– start: 시작 index(default: 0)
– row: 검색 결과에 포함되는 row 수(default: 10)
– wt: response format(xml, json, javabin, python, etc)
– hl: 하이라이팅 여부
– hl.fl: 하이라이팅 필드
q=video&fl=name,id
q=video&sort=price desc
q=video card&fl=name,id&hl=true&hl.fl=name,features
q=video&fl=name,id&wt=json
q=video&fl=name,id&start=20&row=10

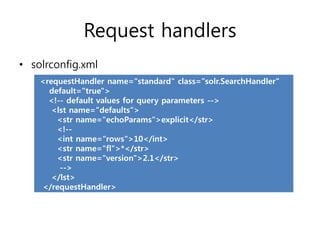

22. Request handlers
• solrconfig.xml
<requestHandler name="standard" class="solr.SearchHandler"
default="true">
<!-- default values for query parameters -->
<lst name="defaults">
<str name="echoParams">explicit</str>
<!--
<int name="rows">10</int>
<str name="fl">*</str>
<str name="version">2.1</str>
-->
</lst>
</requestHandler>

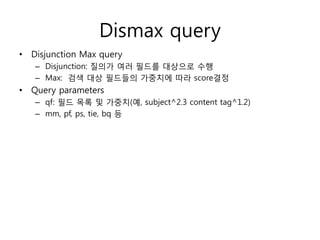

23. Dismax query
• Disjunction Max query
– Disjunction: 질의가 여러 필드를 대상으로 수행
– Max: 검색 대상 필드들의 가중치에 따라 score결정
• Query parameters
– qf: 필드 목록 및 가중치(예, subject^2.3 content tag^1.2)
– mm, pf, ps, tie, bq 등

24. Dismax query handler
• solrconfig.xml
<requestHandler name="dismax" class="solr.SearchHandler" >
<lst name="defaults">
<str name="defType">dismax</str>
<str name="sort">regdttm desc</str>
<float name="tie">0.01</float>
<str name="qf">content^0.5 subject^2.0</str>
<str name="pf">content^0.5 subject^2.0</str>
<str name="fl">*</str>
<bool name="hl">true</bool>
<str name="hl.fl">subject content</str>
</lst>
</requestHandler>

25. More-like-this(MLT) search
• 연관 검색

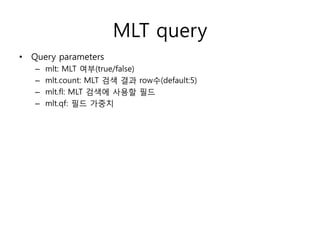

26. MLT query
• Query parameters
– mlt: MLT 여부(true/false)
– mlt.count: MLT 검색 결과 row수(default:5)
– mlt.fl: MLT 검색에 사용할 필드
– mlt.qf: 필드 가중치

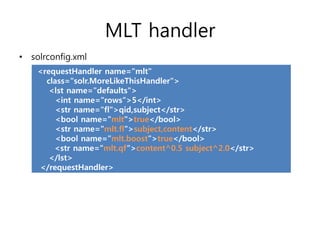

27. MLT handler
• solrconfig.xml
<requestHandler name="mlt"
class="solr.MoreLikeThisHandler">
<lst name="defaults">
<int name="rows">5</int>
<str name="fl">qid,subject</str>
<bool name="mlt">true</bool>
<str name="mlt.fl">subject,content</str>
<bool name="mlt.boost">true</bool>
<str name="mlt.qf“>content^0.5 subject^2.0</str>
</lst>
</requestHandler>

28. Solr cores
• 복수의 데이터 색인
• Single core
– http://localhost:8983/solr/select?q=lucene
• Multicore
– http://localhost:8983/solr/news/select?q=ios
– http://localhost:8983/solr/blog/select?q=android
• solr.xml
<solr sharedLib="lib">
<cores adminPath="/admin/cores">
<core name=“news" instanceDir=“news" />
<core name=“blog" instanceDir=“blog" />
</cores>
</solr>

30. PART II. 활용편

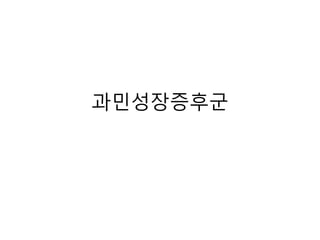

32. 과민성장증후군

33. 과민/성장/증후군?

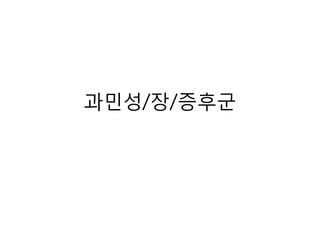

34. 과민성/장/증후군

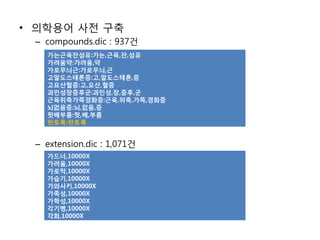

35. • 의학용어 사전 구축
– compounds.dic : 937건
가는근육잔섬유:가는,근육,잔,섬유
가려움약:가려움,약
가로무늬근:가로무늬,근
고알도스테론증:고,알도스테론,증
고요산혈증:고,요산,혈증
과민성장증후군:과민성,장,증후,군
근육위축가쪽경화증:근육,위축,가쪽,경화증
뇌없음증:뇌,없음,증
헛배부름:헛,배,부름
판토록:판토록
– extension.dic : 1,071건
가드너,10000X
가려움,10000X
가로막,10000X
가습기,10000X
가와사키,10000X
가족성,10000X
가학성,10000X
각기병,10000X
각화,10000X

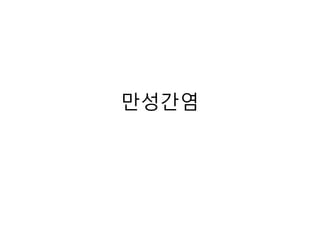

36. 만성간염

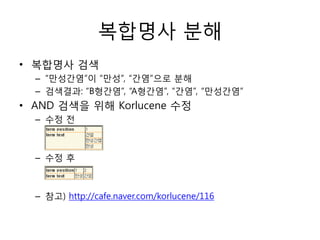

37. 복합명사 분해
• 복합명사 검색
– “만성간염”이 “만성”, “간염”으로 분해
– 검색결과: “B형간염”, “A형간염”, “간염”, “만성간염”
• AND 검색을 위해 Korlucene 수정
– 수정 전
– 수정 후
– 참고) http://cafe.naver.com/korlucene/116

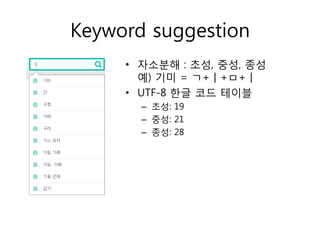

38. Keyword suggestion
• 자소분해 : 초성, 중성, 종성
예) 기미 = ㄱ+ㅣ+ㅁ+ㅣ
• UTF-8 한글 코드 테이블
– 초성: 19
– 중성: 21
– 종성: 28

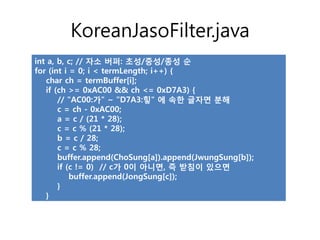

39. KoreanJasoFilter.java
int a, b, c; // 자소 버퍼: 초성/중성/종성 순
for (int i = 0; i < termLength; i++) {
char ch = termBuffer[i];
if (ch >= 0xAC00 && ch <= 0xD7A3) {
// "AC00:가" ~ "D7A3:힣" 에 속한 글자면 분해
c = ch - 0xAC00;
a = c / (21 * 28);
c = c % (21 * 28);
b = c / 28;
c = c % 28;
buffer.append(ChoSung[a]).append(JwungSung[b]);
if (c != 0) // c가 0이 아니면, 즉 받침이 있으면
buffer.append(JongSung[c]);
}
}

40. • schema.xml
<fieldType name="jasoNgramFront" class="solr.TextField"
positionIncrementGap="100">
<analyzer type="index">
<tokenizer class="solr.WhitespaceTokenizerFactory"/>
<filter class=“KoreanJasoFilterFactory"/>
<filter class="solr.EdgeNGramFilterFactory"
maxGramSize="50" minGramSize="1" side="front" />
<filter class="solr.LowerCaseFilterFactory"/>
<filter class="solr.RemoveDuplicatesTokenFilterFactory"/>
</analyzer>
<analyzer type="query">
<tokenizer class="solr.WhitespaceTokenizerFactory"/>
<filter class=“KoreanJasoFilterFactory"/>
<filter class="solr.LowerCaseFilterFactory"/>
</analyzer>
</fieldType>

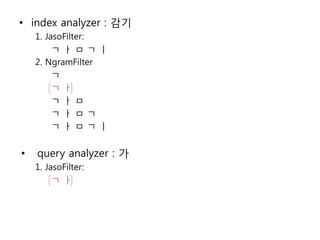

41. • index analyzer : 감기
1. JasoFilter:
ㄱㅏㅁㄱㅣ
2. NgramFilter
ㄱ
ㄱㅏ
ㄱㅏㅁ
ㄱㅏㅁㄱ
ㄱㅏㅁㄱㅣ
• query analyzer : 가
1. JasoFilter:
ㄱㅏ

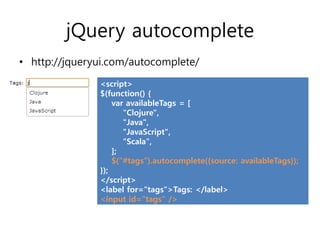

42. jQuery autocomplete
• http://jqueryui.com/autocomplete/
<script>
$(function() {
var availableTags = [
"Clojure",
"Java",
"JavaScript",
"Scala",
];
$("#tags”).autocomplete({source: availableTags});
});
</script>
<label for="tags">Tags: </label>
<input id="tags" />

43. Ponket

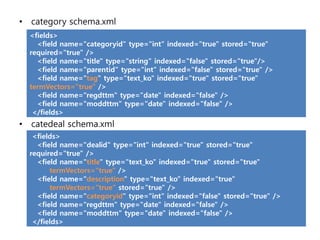

44. • category schema.xml
<fields>
<field name="categoryid" type="int" indexed="true" stored="true"
required="true" />
<field name="title" type="string" indexed="false" stored="true"/>
<field name="parentid" type="int" indexed="false" stored="true" />
<field name="tag" type="text_ko" indexed="true" stored="true"
termVectors="true" />
<field name="regdttm" type="date" indexed="false" />
<field name="moddttm" type="date" indexed="false" />
</fields>
• catedeal schema.xml
<fields>
<field name="dealid" type="int" indexed="true" stored="true"
required="true" />
<field name="title" type="text_ko" indexed="true" stored="true"
termVectors="true" />
<field name="description" type="text_ko" indexed="true"
termVectors="true“ stored="true" />
<field name="categoryid" type="int" indexed="false" stored="true" />
<field name="regdttm" type="date" indexed="false" />
<field name="moddttm" type="date" indexed="false" />
</fields>

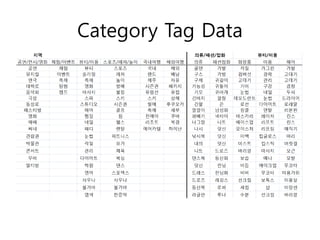

45. Category Tag Data

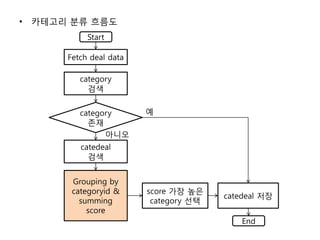

46. • 카테고리 분류 흐름도
Start
Fetch deal data
category
검색
category 예
존재
아니오
catedeal
검색
Grouping by
categoryid & score 가장 높은
catedeal 저장
summing category 선택
score
End

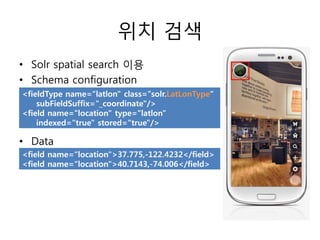

47. 위치 검색
• Solr spatial search 이용
• Schema configuration
<fieldType name=“latlon" class="solr.LatLonType“
subFieldSuffix="_coordinate"/>
<field name="location" type="latlon"
indexed="true" stored="true"/>
• Data
<field name=“location">37.775,-122.4232</field>
<field name=“location">40.7143,-74.006</field>

48. • geofilt – The distance filter
– pt: 위도, 경도 좌표
– sfield: 위치 검색 필드
– d: 거리(km)
http://localhost:8983/solr/select?wt=json&...&q=*:*
&fq={!geofilt pt=45.15,-93.85 sfield=location d=5}
• Search result
"response":{"numFound":8,"start":0,"docs":[
{ "name":"Samsung SpinPoint P120 SP2514N - hard drive - 250
GB - ATA-133",
“location":"45.17614,-93.87341"},
{ "name":"Maxtor DiamondMax 11 - hard drive - 500 GB -
SATA-300",
“location":"45.17614,-93.87341"}, …
• Java
SolrQuery query = new SolrQuery().
setFilterQueries("{!geofilt pt="+spatial.getLocation()+
" sfield=location d="+spatial.getDistance()+"}“);

49. 검색?

50. 어렵지 않아요.
Solr와 함께라면…

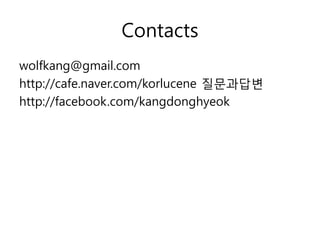

51. Contacts
wolfkang@gmail.com
http://cafe.naver.com/korlucene 질문과답변
http://facebook.com/kangdonghyeok

52. 감사합니다.
