1. Fazendo mágica com
ElasticSearch
PEDROFRANCESCHI
@pedroh96
pedro@pagar.me
github.com/pedrofranceschi

2. Outubro/2010

3. Filters
Full text search
Sort
Highlight
Facets
Pagination

4. Você vai precisar buscar dados.

5. Você vai precisar entender dados.

6. (My)SQL não é a solução.
(… nem NoSQL)

7. O que é o ElasticSearch?

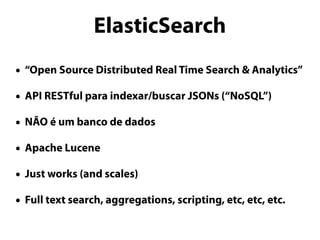

8. ElasticSearch
• “Open Source Distributed Real Time Search & Analytics”
• API RESTful para indexar/buscar JSONs (“NoSQL”)
• NÃO é um banco de dados
• Apache Lucene
• Just works (and scales)
• Full text search, aggregations, scripting, etc, etc, etc.

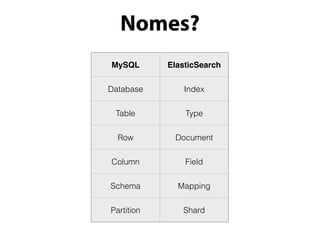

9. Nomes?
MySQL ElasticSearch
Database Index
Table Type
Row Document
Column Field
Schema Mapping
Partition Shard

10. Como usar o ElasticSearch?

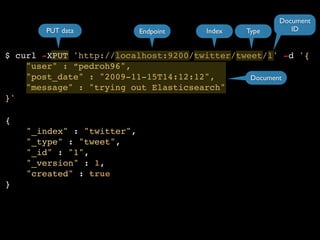

11. $ curl -XPUT 'http://localhost:9200/twitter/tweet/1' -d '{!
"user" : “pedroh96",!
"post_date" : "2009-11-15T14:12:12",!
"message" : "trying out Elasticsearch"!
}'
Endpoint Index Type
Document
ID
Document
{!
"_index" : "twitter",!
"_type" : "tweet",!
"_id" : "1",!
"_version" : 1,!
"created" : true!
}
PUT data

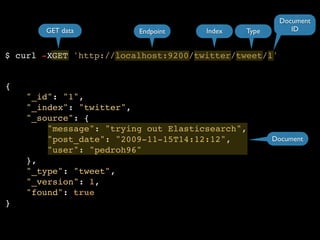

12. Endpoint Index Type
$ curl -XGET 'http://localhost:9200/twitter/tweet/1'
Document
ID
{!
"_id": "1",!
"_index": "twitter",!
"_source": {!
"message": "trying out Elasticsearch",!
"post_date": "2009-11-15T14:12:12",!
"user": "pedroh96"!
},!
"_type": "tweet",!
"_version": 1,!
"found": true!
}
Document
GET data

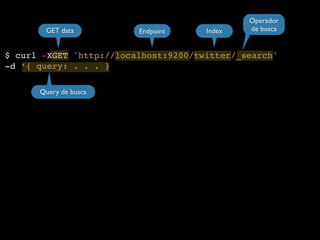

13. GET data Endpoint Index
$ curl -XGET 'http://localhost:9200/twitter/_search'!
-d ‘{ query: . . . }!
!
!
Query de busca
!
!
!
!
!
!
!
Operador
de busca

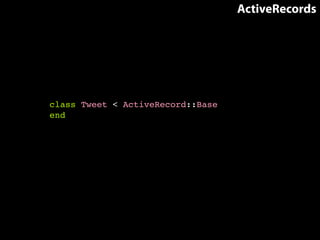

14. ActiveRecords
class Tweet < ActiveRecord::Base!
end

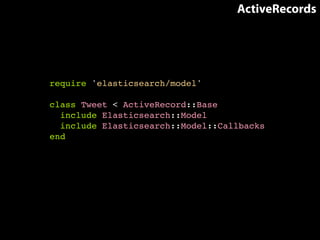

15. ActiveRecords
require 'elasticsearch/model'!
!
class Tweet < ActiveRecord::Base!
include Elasticsearch::Model!
include Elasticsearch::Model::Callbacks!
end!
!

16. Tweet.import

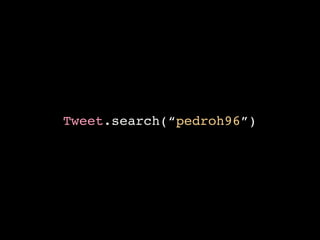

17. Tweet.search(“pedroh96”)

18. Por que usar o ElasticSearch?

19. DISCLAIMER

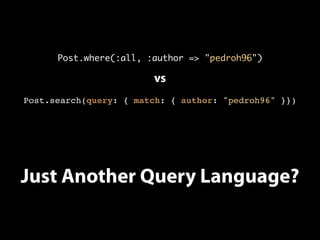

20. Post.where(:all, :author => "pedroh96")
vs
Post.search(query: { match: { author: "pedroh96" }})
Just Another Query Language?

21. 1) Full text search

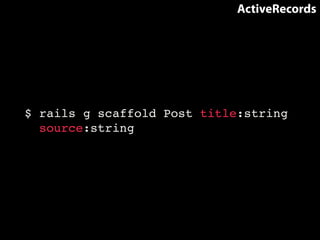

22. ActiveRecords
$ rails g scaffold Post title:string!
source:string

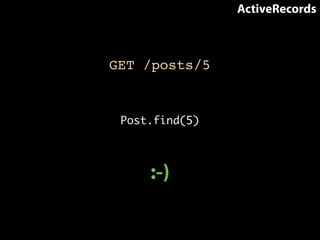

23. GET /posts/5
Post.find(5)
:-)
ActiveRecords

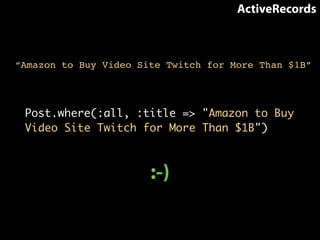

24. ActiveRecords
“Amazon to Buy Video Site Twitch for More Than $1B”
Post.where(:all, :title => "Amazon to Buy
Video Site Twitch for More Than $1B")
:-)

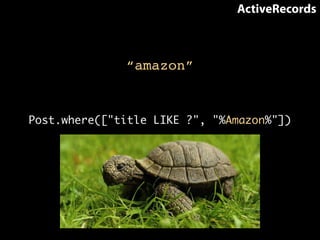

25. “amazon”
Post.where(["title LIKE ?", "%Amazon%"])
???
ActiveRecords

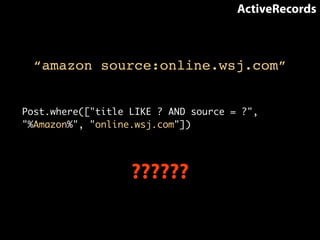

26. “amazon source:online.wsj.com”
Post.where(["title LIKE ? AND source = ?",
"%Amazon%", "online.wsj.com"])
??????
ActiveRecords

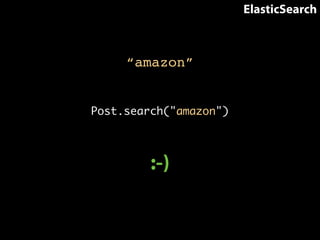

27. “amazon”
Post.search("amazon")
:-)
ElasticSearch

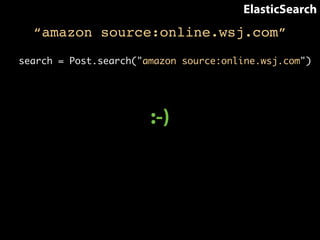

28. ElasticSearch
“amazon source:online.wsj.com”
search = Post.search("amazon source:online.wsj.com")
:-)

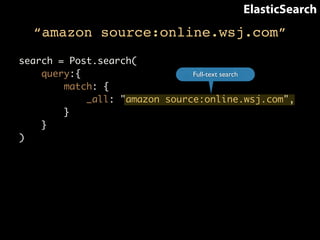

29. ElasticSearch
“amazon source:online.wsj.com”
search = Post.search(
query:{
match: {
_all: "amazon source:online.wsj.com",
}
}
)
Full-text search

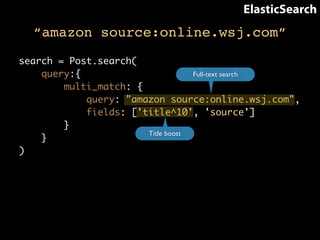

30. ElasticSearch
“amazon source:online.wsj.com”
search = Post.search(
query:{
multi_match: {
query: "amazon source:online.wsj.com",
fields: ['title^10', 'source']
}
}
)
Full-text search
Title boost

31. ElasticSearch
“amazon source:online.wsj.com”
search = Post.search(
query:{
multi_match: {
query: "amazon source:online.wsj.com",
fields: ['title^10', 'source']
}
},
highlight: {
fields: {
title: {}
}
}
)
Title highlight
Full-text search
Title boost

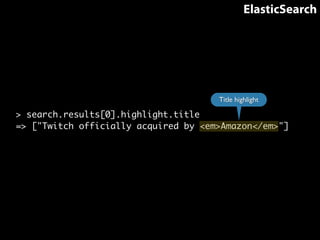

32. ElasticSearch
Title highlight
> search.results[0].highlight.title
=> ["Twitch officially acquired by <em>Amazon</em>"]

34. 2) Aggregations (faceting)

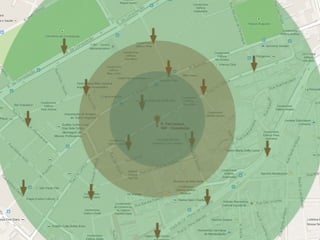

35. Geo distance aggregation

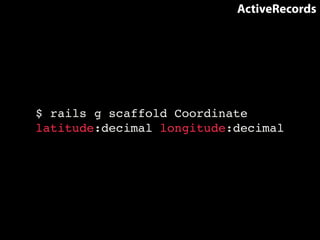

37. ActiveRecords
$ rails g scaffold Coordinate
latitude:decimal longitude:decimal

38. ActiveRecords
class Coordinate < ActiveRecord::Base!
end

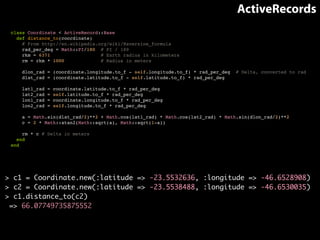

39. ActiveRecords
class Coordinate < ActiveRecord::Base!
def distance_to(coordinate)!
# From http://en.wikipedia.org/wiki/Haversine_formula!
rad_per_deg = Math::PI/180 # PI / 180!
rkm = 6371 # Earth radius in kilometers!
rm = rkm * 1000 # Radius in meters!
!
dlon_rad = (coordinate.longitude.to_f - self.longitude.to_f) * rad_per_deg # Delta, converted to rad!
dlat_rad = (coordinate.latitude.to_f - self.latitude.to_f) * rad_per_deg!
!
lat1_rad = coordinate.latitude.to_f * rad_per_deg!
lat2_rad = self.latitude.to_f * rad_per_deg!
lon1_rad = coordinate.longitude.to_f * rad_per_deg!
lon2_rad = self.longitude.to_f * rad_per_deg!
!
a = Math.sin(dlat_rad/2)**2 + Math.cos(lat1_rad) * Math.cos(lat2_rad) * Math.sin(dlon_rad/2)**2!
c = 2 * Math::atan2(Math::sqrt(a), Math::sqrt(1-a))!
!
rm * c # Delta in meters!
end!
end
> c1 = Coordinate.new(:latitude => -23.5532636, :longitude => -46.6528908)
> c2 = Coordinate.new(:latitude => -23.5538488, :longitude => -46.6530035)
> c1.distance_to(c2)
=> 66.07749735875552

40. ActiveRecords
origin = Coordinate.new(:latitude => -23.5532636, :longitude => -46.6528908)
buckets = [!
{!
:to => 100,!
:coordinates => []!
},!
{!
:from => 100,!
:to => 300,!
:coordinates => []!
},!
{!
:from => 300,!
:coordinates => []!
}!
]!
Coordinate.all.each do |coordinate|!
distance = origin.distance_to(coordinate)!
!
buckets.each do |bucket|!
if distance < bucket[:to] and distance > (bucket[:from] || 0)!
bucket[:coordinates] << coordinate!
end!
end!
end
??????

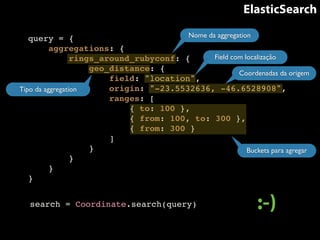

41. ElasticSearch
query = {!
aggregations: {!
Nome da aggregation
rings_around_rubyconf: {!
geo_distance: {!
Field com localização
Coordenadas da origem
field: "location",!
origin: "-23.5532636, -46.6528908",!
ranges: [!
{ to: 100 },!
{ from: 100, to: 300 },!
{ from: 300 }!
]!
}!
Tipo da aggregation
}!
}!
}
Buckets para agregar
search = Coordinate.search(query) :-)

42. (Extended) stats aggregation

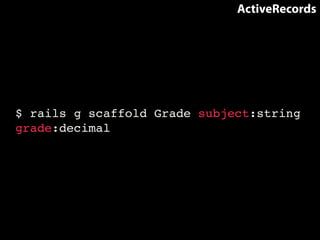

43. ActiveRecords
$ rails g scaffold Grade subject:string
grade:decimal

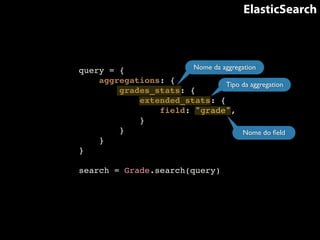

44. ElasticSearch
query = {!
aggregations: {!
Nome da aggregation
grades_stats: {!
Tipo da aggregation
extended_stats: {!
field: "grade",!
}!
}!
}!
}!
!
search = Grade.search(query)
Nome do field

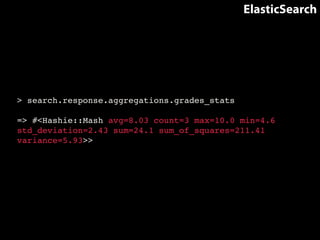

45. ElasticSearch
> search.response.aggregations.grades_stats!
!
=> #<Hashie::Mash avg=8.03 count=3 max=10.0 min=4.6
std_deviation=2.43 sum=24.1 sum_of_squares=211.41
variance=5.93>>

46. (Extended) stats aggregation
+
Scripting

47. ElasticSearch
query = {!
aggregations: {!
grades_stats: {!
extended_stats: {!
field: "grade",!
}!
}!
}!
}

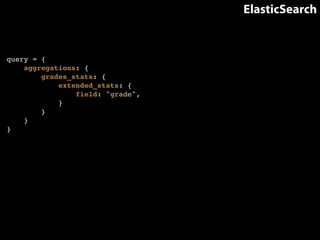

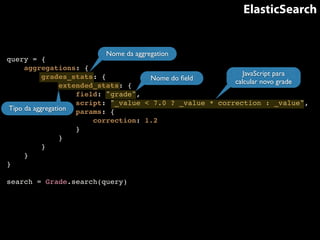

48. ElasticSearch
query = {!
aggregations: {!
Nome da aggregation
grades_stats: {!
extended_stats: {!
field: "grade",!
script: "_value < 7.0 ? _value * correction : _value",!
params: {!
correction: 1.2!
}!
}!
}!
}!
}!
!
search = Grade.search(query)
Nome do field
JavaScript para
calcular novo grade
Tipo da aggregation

49. ElasticSearch
> search.response.aggregations.grades_stats!
!
=> #<Hashie::Mash avg=8.34 count=3 max=10.0 min=5.52
std_deviation=2.00 sum=25.02 sum_of_squares=220.72
variance=4.01>>

50. Term aggregation

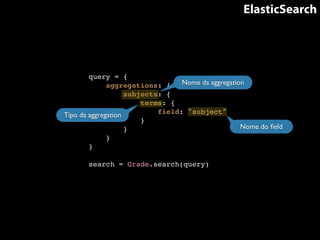

51. ElasticSearch
query = {!
aggregations: {!
subjects: {!
terms: {!
Nome da aggregation
field: "subject"!
}!
}!
}!
}!
!
search = Grade.search(query)
Nome do field
Tipo da aggregation

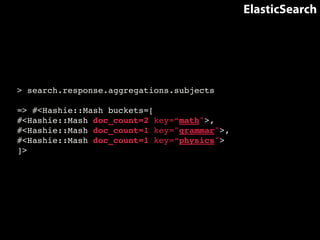

52. ElasticSearch
> search.response.aggregations.subjects!
!
=> #<Hashie::Mash buckets=[!
#<Hashie::Mash doc_count=2 key=“math">,!
#<Hashie::Mash doc_count=1 key="grammar">,
#<Hashie::Mash doc_count=1 key=“physics">!
]>

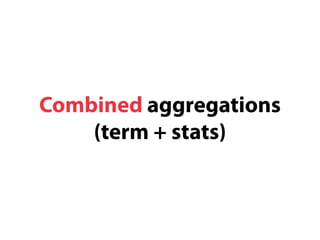

53. Combined aggregations
(term + stats)

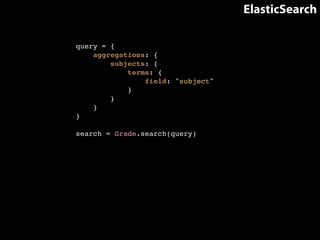

54. ElasticSearch
query = {!
aggregations: {!
subjects: {!
terms: {!
field: "subject"!
}!
}!
}!
}!
!
search = Grade.search(query)

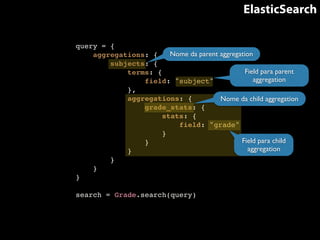

55. ElasticSearch
query = {!
aggregations: {!
subjects: {!
terms: {!
Nome da parent aggregation
field: "subject"!
},!
aggregations: {!
grade_stats: {!
stats: {!
Nome da child aggregation
field: "grade"!
}!
}!
}!
}!
}!
}!
!
search = Grade.search(query)
Field para parent
aggregation
Field para child
aggregation

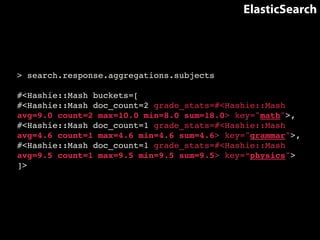

56. ElasticSearch
> search.response.aggregations.subjects!
!
#<Hashie::Mash buckets=[!
#<Hashie::Mash doc_count=2 grade_stats=#<Hashie::Mash
avg=9.0 count=2 max=10.0 min=8.0 sum=18.0> key="math">,
#<Hashie::Mash doc_count=1 grade_stats=#<Hashie::Mash
avg=4.6 count=1 max=4.6 min=4.6 sum=4.6> key="grammar">,
#<Hashie::Mash doc_count=1 grade_stats=#<Hashie::Mash
avg=9.5 count=1 max=9.5 min=9.5 sum=9.5> key=“physics">!
]>

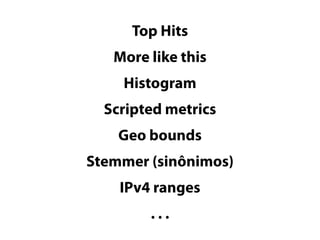

57. Top Hits
More like this
Histogram
Scripted metrics
Geo bounds
Stemmer (sinônimos)
IPv4 ranges
. . .

58. 3) Scoring

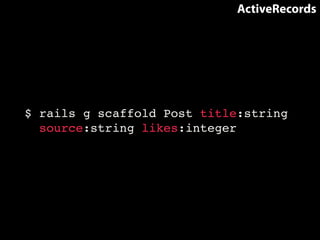

59. ActiveRecords
$ rails g scaffold Post title:string!
source:string likes:integer

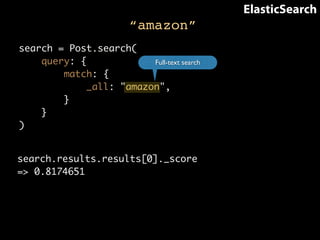

60. “amazon”
ElasticSearch
search = Post.search(
query: {
match: {
_all: "amazon",
}
}
)
Full-text search
search.results.results[0]._score
=> 0.8174651

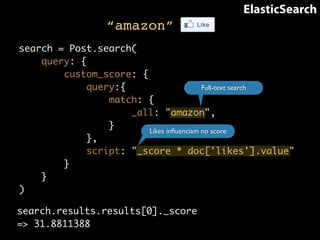

61. “amazon”
ElasticSearch
search = Post.search(
query: {
custom_score: {
query:{
match: {
_all: "amazon",
}
},
script: "_score * doc['likes'].value"
}
}
)
Full-text search
Likes influenciam no score
search.results.results[0]._score
=> 31.8811388

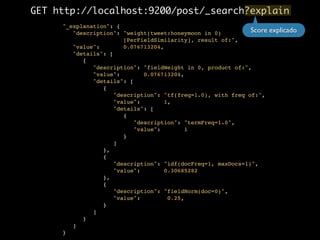

62. GET http://localhost:9200/post/_search?explain
"_explanation": {!
"description": "weight(tweet:honeymoon in 0)!
[PerFieldSimilarity], result of:",!
"value": 0.076713204,!
"details": [!
{!
"description": "fieldWeight in 0, product of:",!
"value": 0.076713204,!
"details": [!
{!
"description": "tf(freq=1.0), with freq of:",!
"value": 1,!
"details": [!
{!
"description": "termFreq=1.0",!
"value": 1!
}!
]!
},!
{!
"description": "idf(docFreq=1, maxDocs=1)",!
"value": 0.30685282!
},!
{!
"description": "fieldNorm(doc=0)",!
"value": 0.25,!
}!
]!
}!
]!
}
Score explicado

63. 4) Indexando responses

64. $ rails g scaffold Post title:string!
source:string likes:integer

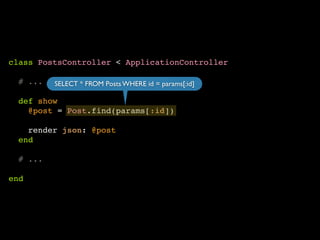

65. class PostsController < ApplicationController!
!
# ...!
!
def show!
@post = Post.find(params[:id])!
!
render json: @post!
end!
!
# ...!
!
end
SELECT * FROM Posts WHERE id = params[:id]

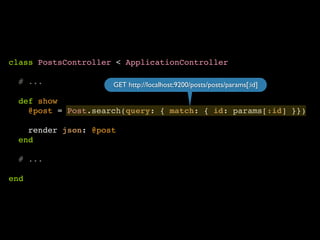

66. class PostsController < ApplicationController!
!
# ...!
!
def show!
@post = Post.search(query: { match: { id: params[:id] }})!
!
render json: @post!
end!
!
# ...!
!
end
GET http://localhost:9200/posts/posts/params[:id]

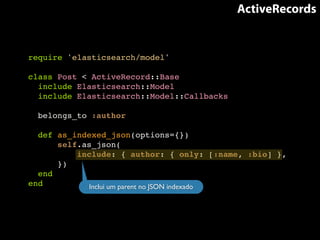

67. ActiveRecords
require 'elasticsearch/model'!
!
class Post < ActiveRecord::Base!
include Elasticsearch::Model!
include Elasticsearch::Model::Callbacks!
!
belongs_to :author!
!
def as_indexed_json(options={})!
self.as_json(!
include: { author: { only: [:name, :bio] },!
})!
end!
end Inclui um parent no JSON indexado

68. Expondo o ElasticSearch

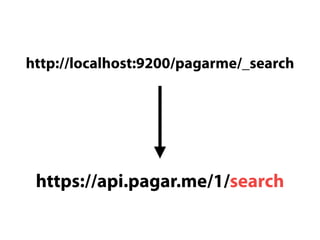

70. http://localhost:9200/pagarme/_search
https://api.pagar.me/1/search

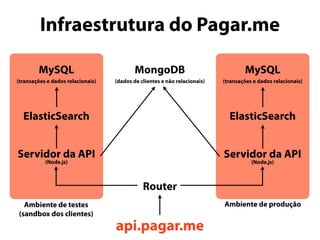

71. Infraestrutura do Pagar.me
ElasticSearch ElasticSearch
Router
api.pagar.me
Servidor da API
(Node.js)
MySQL
(transações e dados relacionais)
MySQL
(transações e dados relacionais)
MongoDB
(dados de clientes e não relacionais)
Ambiente de testes
(sandbox dos clientes)
Servidor da API
(Node.js)
Ambiente de produção

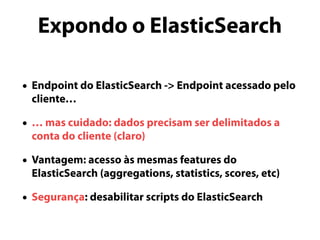

72. Expondo o ElasticSearch
• Endpoint do ElasticSearch -> Endpoint acessado pelo
cliente…
• … mas cuidado: dados precisam ser delimitados a
conta do cliente (claro)
• Vantagem: acesso às mesmas features do
ElasticSearch (aggregations, statistics, scores, etc)
• Segurança: desabilitar scripts do ElasticSearch

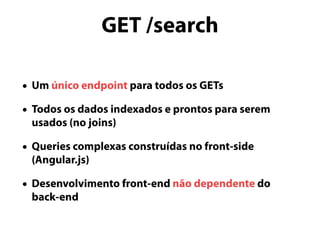

73. GET /search
• Um único endpoint para todos os GETs
• Todos os dados indexados e prontos para serem
usados (no joins)
• Queries complexas construídas no front-side
(Angular.js)
• Desenvolvimento front-end não dependente do
back-end

76. Overall…

78. 1)Há uma ferramenta para cada tarefa.
2)Um martelo é sempre a ferramenta certa.
3)Toda ferramenta também é um martelo.

79. MySQL
!=
NoSQL
!=
ElasticSearch

80. Obrigado! :)
PEDROFRANCESCHI
@pedroh96
pedro@pagar.me
github.com/pedrofranceschi

81. Perguntas?
PEDROFRANCESCHI
@pedroh96
pedro@pagar.me
github.com/pedrofranceschi

82. Fazendo mágica com
ElasticSearch
PEDROFRANCESCHI
@pedroh96
pedro@pagar.me
github.com/pedrofranceschi
