JSON Support
in MySQL 5.7
Georgi “Joro” Kodinov
Team lead, MySQL server general team

Copyright © 2015, Oracle and/or its affiliates. All rights reserved.
Agenda
2
 The new JSON data type
 Inlined JSON path expressions
 The new JSON functions
 Indexing JSON data

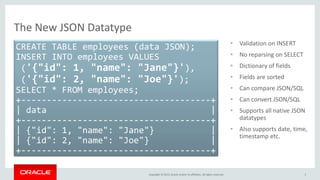

CREATE TABLE employees (data JSON);
INSERT INTO employees VALUES
('{"id": 1, "name": "Jane"}'),
('{"id": 2, "name": "Joe"}');
SELECT * FROM employees;
+-------------------------------------+
| data |
+-------------------------------------+
| {"id": 1, "name": "Jane"} |
| {"id": 2, "name": "Joe"} |
+-------------------------------------+
• Validation on INSERT
• No reparsing on SELECT
• Dictionary of fields
• Fields are sorted
• Can compare JSON/SQL
• Can convert JSON/SQL
• Supports all native JSON
datatypes
• Also supports date, time,
timestamp etc.
3
The New JSON Datatype

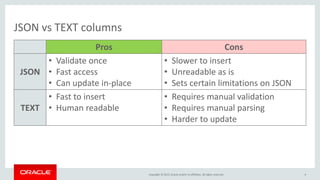

JSON vs TEXT columns
Pros Cons
JSON
• Validate once
• Fast access
• Can update in-place
• Slower to insert
• Unreadable as is
• Sets certain limitations on JSON
TEXT
• Fast to insert
• Human readable
• Requires manual validation
• Requires manual parsing
• Harder to update
4

Beware: SQL vs JSON comparisons !
5
SQL JSON
create table t1 (data json); create table t2 (
id integer,
data varchar(20));
insert into t1 values
('{ "id": 1, "data": "1" }'),
('{ "id": 2, "data": "3" }');
insert into t2 values
(1, '1'),
(2, '3');
select count(*) from t1 where
data->'$.id' = data->'$.data';
select count(*) from t2 where
id = data;
0 rows ! 1 row !

Agenda
6

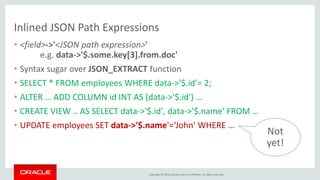

Inlined JSON Path Expressions
• <field>->'<JSON path expression>'
e.g. data->'$.some.key[3].from.doc'
• Syntax sugar over JSON_EXTRACT function
• SELECT * FROM employees WHERE data->'$.id'= 2;
• ALTER … ADD COLUMN id INT AS (data->'$.id') …
• CREATE VIEW .. AS SELECT data->'$.id', data->'$.name' FROM …
• UPDATE employees SET data->'$.name'=‘John' WHERE …
Not
yet!

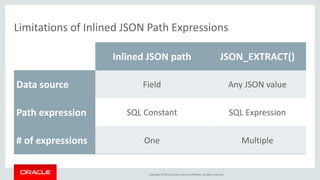

Limitations of Inlined JSON Path Expressions
Inlined JSON path JSON_EXTRACT()
Data source Field Any JSON value
Path expression SQL Constant SQL Expression
# of expressions One Multiple

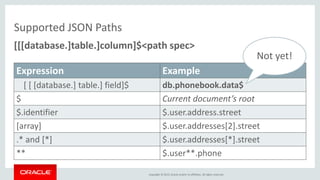

Supported JSON Paths
[[[database.]table.]column]$<path spec>
Expression Example
[ [ [database.] table.] field]$ db.phonebook.data$
$ Current document’s root
$.identifier $.user.address.street
[array] $.user.addresses[2].street
.* and [*] $.user.addresses[*].street
** $.user**.phone
Not yet!

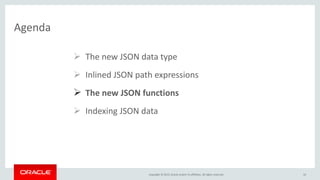

Agenda
10

New functions to handle JSON data
Example Result
SELECT JSON_VALID('{ "a":1 }'); 1
SELECT JSON_TYPE('[ 1, 2, 3 ]'); ARRAY
SELECT JSON_KEYS('{ "a":1, "b": 2 }'); ["a", "b"]
SELECT JSON_LENGTH('[ 1, 2, 3 ]'); 3
SELECT JSON_DEPTH('{ "a":{ "c": 1 }, "b": 2 }'); 3
11
Information

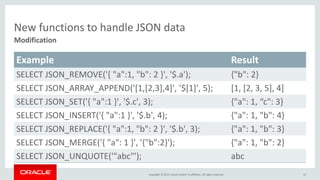

Example Result
SELECT JSON_REMOVE('{ "a":1, "b": 2 }', '$.a'); {"b": 2}
SELECT JSON_ARRAY_APPEND('[1,[2,3],4]', '$[1]', 5); [1, [2, 3, 5], 4]
SELECT JSON_SET('{ "a":1 }', '$.c', 3); {"a": 1, “c": 3}
SELECT JSON_INSERT('{ "a":1 }', '$.b', 4); {"a": 1, "b": 4}
SELECT JSON_REPLACE('{ "a":1, "b": 2 }', '$.b', 3); {"a": 1, "b": 3}
SELECT JSON_MERGE('{ "a": 1 }', '{"b":2}'); {"a": 1, "b": 2}
SELECT JSON_UNQUOTE('"abc"'); abc
12
Modification

Example Result

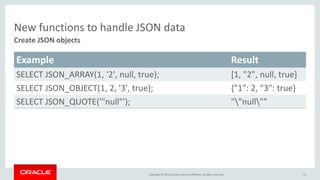

SELECT JSON_ARRAY(1, '2', null, true); [1, "2", null, true]
SELECT JSON_OBJECT(1, 2, '3', true); {"1": 2, "3": true}
SELECT JSON_QUOTE('"null"'); ""null""
13
Create JSON objects

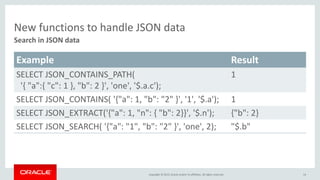

Example Result
SELECT JSON_CONTAINS_PATH(
'{ "a":{ "c": 1 }, "b": 2 }', 'one', '$.a.c');
1
SELECT JSON_CONTAINS( '{"a": 1, "b": "2" }', '1', '$.a'); 1
SELECT JSON_EXTRACT('{"a": 1, "n": { "b": 2}}', '$.n'); {"b": 2}
SELECT JSON_SEARCH( '{"a": "1", "b": "2" }', 'one', 2); "$.b"
14
Search in JSON data

15

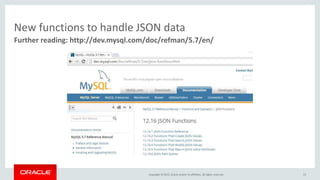

Further reading: http://dev.mysql.com/doc/refman/5.7/en/

Agenda
16

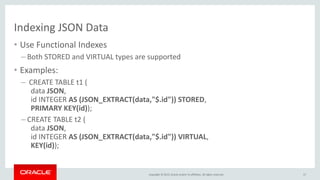

Indexing JSON Data
• Use Functional Indexes
– Both STORED and VIRTUAL types are supported
• Examples:
– CREATE TABLE t1 (
data JSON,
id INTEGER AS (JSON_EXTRACT(data,"$.id")) STORED,
PRIMARY KEY(id));
– CREATE TABLE t2 (
data JSON,
id INTEGER AS (JSON_EXTRACT(data,"$.id")) VIRTUAL,
KEY(id));
17

Indexing JSON: STORED vs VIRTUAL columns
Pros Cons
STORED
• Can be primary key too
• All index types supported
• Looks like a normal field
• Slow ALTER TABLE
• Takes space on disk
VIRTUAL
• Instant ALTER TABLE
• Faster INSERT
• Looks like a normal field
• Secondary key only
• BTREE index only
18

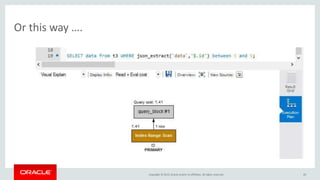

Or this way ….
20

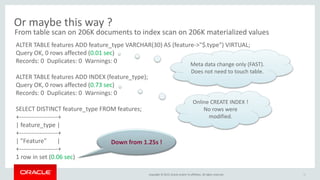

Or maybe this way ?
21
ALTER TABLE features ADD feature_type VARCHAR(30) AS (feature->"$.type") VIRTUAL;
Query OK, 0 rows affected (0.01 sec)
Records: 0 Duplicates: 0 Warnings: 0
ALTER TABLE features ADD INDEX (feature_type);
Query OK, 0 rows affected (0.73 sec)
Records: 0 Duplicates: 0 Warnings: 0
SELECT DISTINCT feature_type FROM features;
+-------------------+
| feature_type |
+-------------------+
| "Feature" |
+-------------------+
1 row in set (0.06 sec)
From table scan on 206K documents to index scan on 206K materialized values
Down from 1.25s !
Meta data change only (FAST).
Does not need to touch table.
Online CREATE INDEX !
No rows were
modified.

Roadmap
• Online alter for virtual columns
• Advanced JSON functions
• In-place update of JSON/BLOB
• Full text and GIS index on virtual columns
• Improved performance through condition pushdown
22

Questions ?
@gkodinov, georgi.kodinov@oracle.com if you forget !
