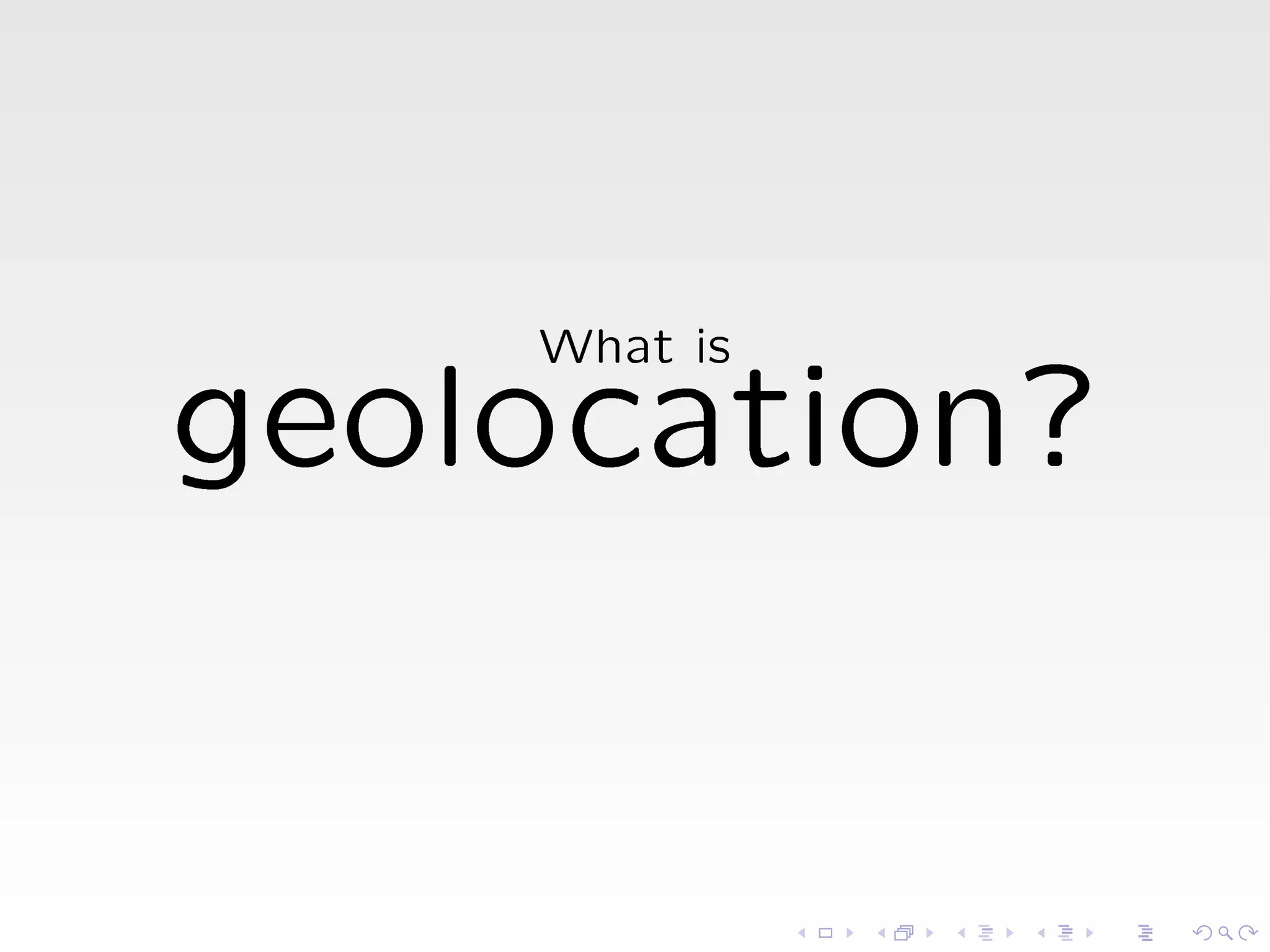

2. What is
geolocation?

3. identication of a real-world geographic
location

4. identication of a real-world geographic
location
=
context

5. Brief history: early days
many 1000s BC: smoke signals
as early as 3200 BC: celestial navigation
from 1000 BC: homing pigeons
between 1100-1200 AD: the magnetic compass

6. Brief history: modern era
early 1900s: radio triangulation
1960s: satellite GPS
1990s: automotive GPS navigation

7. Brief history: web era
late 1990s: IP lookup
mid 2000s: WiFi, GSM relevation
2004: A-GPS on smartphones

8. Brief history: web era
late 1990s: IP lookup
mid 2000s: WiFi, GSM relevation
2004: A-GPS on smartphones

9. Location-aware apps
Later also Google, Facebook, and Twitter

10. Cool!
Let's join the party

11. Cool!
Let's join the party
introducing:
Stalk my Friends

13. 1st step: display a map
We'll use Google Maps
# app/views/layouts/application.html.slim
= javascript_include_tag https://maps.googleapis.com/maps/api/js
// app/assets/javascripts/maps.js
$(document).ready(function() {
var mapOptions = {
zoom: 8,
center: new google.maps.LatLng(43.7710332, 11.2480006),
mapTypeId: google.maps.MapTypeId.ROADMAP
};
var map = new google.maps.Map($(’#map’)[0], mapOptions);
});
git: google maps

14. 2nd step: geolocate
if (navigator.geolocation) {
navigator.geolocation.getCurrentPosition(
function(p) {
var latlng = new google.maps.LatLng(p.coords.latitude,
p.coords.longitude);
$(’span#position’).text(latlng);
if (myMarker) myMarker.setMap(null);
myMarker = new google.maps.Marker(
{position: latlng, map: map, title: This is me}
);
},
function(error) {
alert(error.message);
},
{maximumAge: 600000}
);
}
else { console.error(No HTML5? What are you using, IE6?); }
git: HTML5 geolocation

15. Geolocation API
supported by all current browers
location sources:
1. GPS
2. WiFi/Bluetooth MAC address
3. GSM/CDMA cell IDs
4. IP address
one-shot vs continuous

17. Geocode
New feature: set the position manually.

18. Geocode
New feature: set the position manually.
We need to geocode the address.

19. Geocode
New feature: set the position manually.
We need to geocode the address.
Several services:
Google: 2.500 requests/day [1]
Yahoo!: 50.000 requests/day [2]
Bing: 50.000 requests/day [3]
Nominatim: 1 request/second [4]
FreeGeoIP: 1000 requests/hour [5]
Geocoder.ca and Geocoder.us: ?
many others...

20. Gems for geocode
Geokit (deprecated, still lacks support for Rails 3) [7]
Graticule [6]
Geocoder [8]

21. Geocoder gem in action
# Gemfile
gem geocoder
# map_controller.rb
def geocode
position = Geocoder.coordinates(params[:query])
respond_to do |wants|
wants.json { render :json = position }
end
end
// applications.js
$(’[data-action=cheat]’).click(function() {
$.getJSON(’/geocode/’, {query: $(’#address’).val()}, map.cheat);
}); git: geocoding

22. Awesome! We have a user position.
Now to interact with other users we need:
store lat/long (and address, eventually) in a DB
query the DB for nearby points

23. 1st approach: D.I.Y. I
# migration
class CreateUsers ActiveRecord::Migration
def change
create_table :users do |t|
t.string :name
t.float :latitude
t.float :longitude
t.string :address
t.timestamps
end
end
end

24. 1st approach: D.I.Y. II
# app/controllers/users_controller.rb
class UsersController ApplicationController
respond_to :json
def index
@users = @user.nearbys(params[:radius])
respond_with @users
end
end

25. 1st approach: D.I.Y. III
# app/models/user.rb
class User ActiveRecord::Base
attr_accessible :address, :latitude, :longitude, :name
def nearbys(radius)
# ... oh s@#!t
end
end

26. Let’s do some math
Earth is a sphere: coordinates are in degree, distance is in
meters.
Solve the second (inverse) geodetic problem
Given two points, determine the azimuth and length of the
line (straight line, arc or geodesic) that connects them. [9]
spherical model: Haversine formula (approximation)
oblate spheroid model: Vincenty's formulae

27. Haversine formula
d = 2r arcsin h(φ2 − φ1 ) + cos(φ1 ) cos(φ2 ) h(ψ2 − ψ1 ) (1)
=2 r arcsin sin2
φ2 − φ1
2
+ cos(φ1 ) cos(φ2 ) sin2
ψ2 − ψ1
2
(2)
where:
h() is the haversine function: h(θ) = sin(θ/2) 2
= 1−cos(θ)
2
d distance
r radius of the sphere (6371.0 km)
φ1 , φ2 latitude of point 1 and latitude of point 2
ψ1 , ψ2 longitude of point 1 and longitude of point 2

28. Geocoder to the rescue!
# app/models/user.rb
geocoded_by :address
reverse_geocoded_by :latitude, :longitude
after_validation :reverse_geocode
# app/controllers/users_controller.rb
def index
@users = @user.nearbys(params[:radius])
respond_with @users
end
Geocoder implements the Haversine formula
directly in the SQL query.
git: Geocoder backend

29. Geocoder goodies
# Nearest point
user = User.near(Firenze, 50, :order = distance).first
# distance from arbitrary point to user
user.distance_from([40.714, 11.234])
# Find the bearing (direction) between places
bearing = user.bearing_to(Paris, France)
Geocoder::Calculations.compass_point(bearing)
= NW
# find the geographic center (aka center of gravity)
polygon = [user1, user2, [40.22,-73.99], user4]
Geocoder::Calculations.geographic_center(polygon)
= [35.14968, -90.048929]

30. Geocoder considerations
Pros
simple and easy to use
Cons
only circle areas
SLOW (depends on the DBMS)

31. 2nd approach: PostGIS
PostGIS [10] is an extention for PostgreSQL that adds
support for geographic objects.
Alternatives are:
MySQL: implements the datatype geometry
Sqlite: with SpatiaLite extension

32. PostGIS setup
# install on a ubuntu box
sudo apt-get install postgresql-9.1-postgis
# prepare the db
createdb template_postgis
createlang plpgsql template_postigs
psql -Upostgres -d template_postgis -f [...]/postgis.sql
psql -Upostgres -d template_postgis -f [...]/spatial_ref_sys.sql
psql -Upostgres -d template_postgis -f [...]/postgis_comments.sql
# inside postgres console
UPDATE pg_database SET datistemplate = TRUE
WHERE datname = ’template_postgis’;

33. PostGIS features
PostGIS follows the OpenGIS Simple Features
Specication for SQL [11]
data types for points, linestrings, polygons, multipoints,
multilinestrings, multipolygons and geometrycollections
functions for measurement like area, distance, length
and perimeter
spatial indexes for high speed spatial querying

34. PostGIS with Ruby
We'll use gem activerecord-postgis-adapter
to integrate postgis data types in ActiveRecord.

35. ActiveRecord PostGIS
# config/database.yml
development:
adapter: postgis
encoding: unicode
database: stalk_my_friends
pool: 5
username: nebirhos
template: template_postgis
# migration
add_column :users, :position, :point, :geographic = true
add_index :users, :position, :spatial = true
# app/models/user.rb
self.rgeo_factory_generator = RGeo::Geographic.simple_mercator_factory
# SRID 4326, used by Google Maps

36. PostGIS query
# app/models/user.rb
def nearbys(radius)
radius = radius.to_i*1000
User.where( ST_Distance(position, ?, false) = ? ,
position, radius ).where(id ?, id)
end
git: master

37. Questions?

38. Thanks for watching!
Francesco Disperati | @nebirhos
http://nebirhos.com
Source code of the demo app available at
https://github.com/nebirhos/stalk-my-friends
Special thanks to Cantiere Creativo and Silvia Shell
