Continuous Integration as a Development Team’s Way of Life
- 1.
- 2.
- 3. 6/5/16 1 CONTINUOUS INTEGRATION ASA DEVELOPMENT TEAM’S WAY OF LIFE Melissa Benua Senior Software Engineer PlayFab, Inc Better Software West 2016 Continuous Integration + Continuous Delivery Continuous Integration (1999): “The practice of merging all developer working copies to a shared mainline several times a day.” Continuous Delivery (2010): “Every code change can be deployed to production.” Develop Build Test Deploy

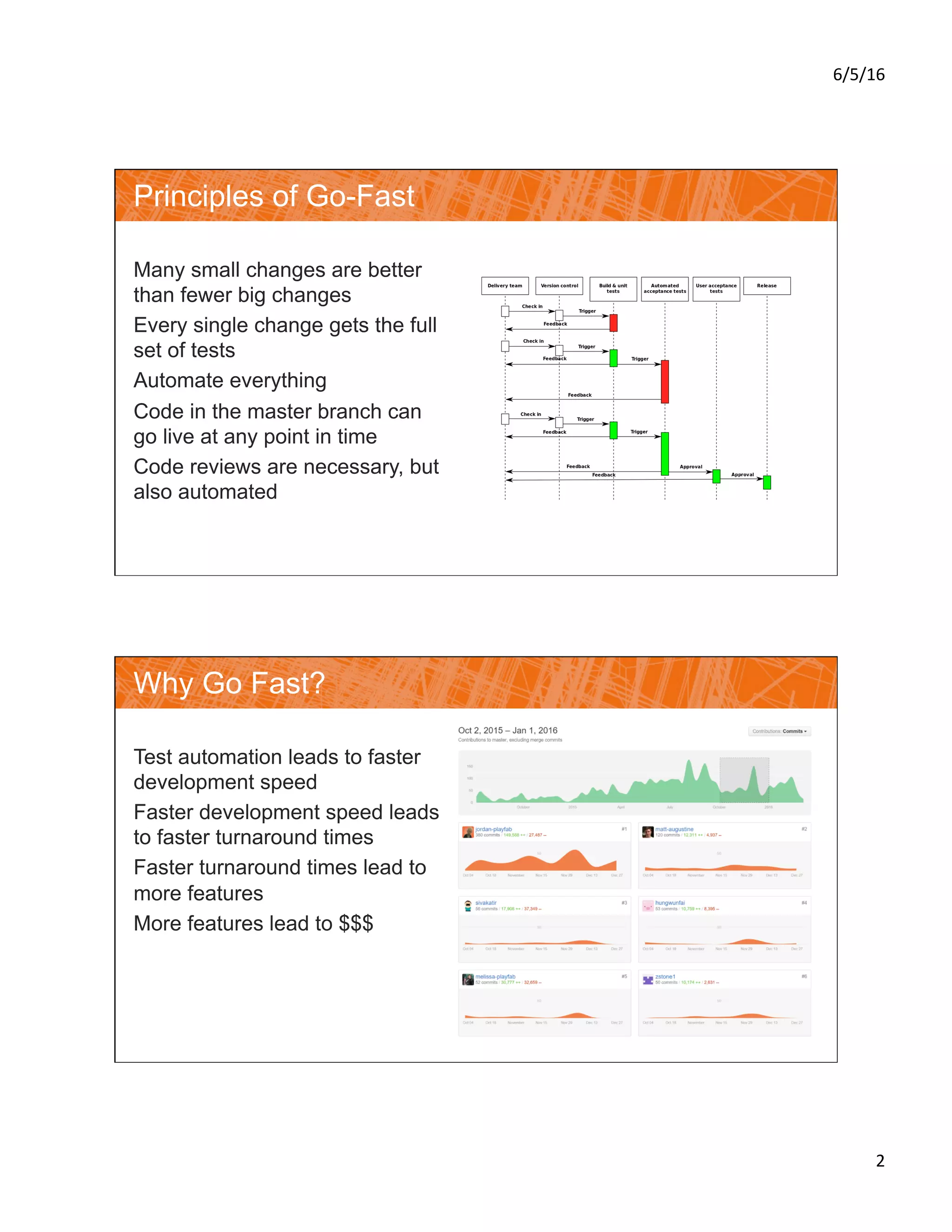

- 4. 6/5/16 2 Principles of Go-Fast Manysmall changes are better than fewer big changes Every single change gets the full set of tests Automate everything Code in the master branch can go live at any point in time Code reviews are necessary, but also automated Why Go Fast? Test automation leads to faster development speed Faster development speed leads to faster turnaround times Faster turnaround times lead to more features More features lead to $$$

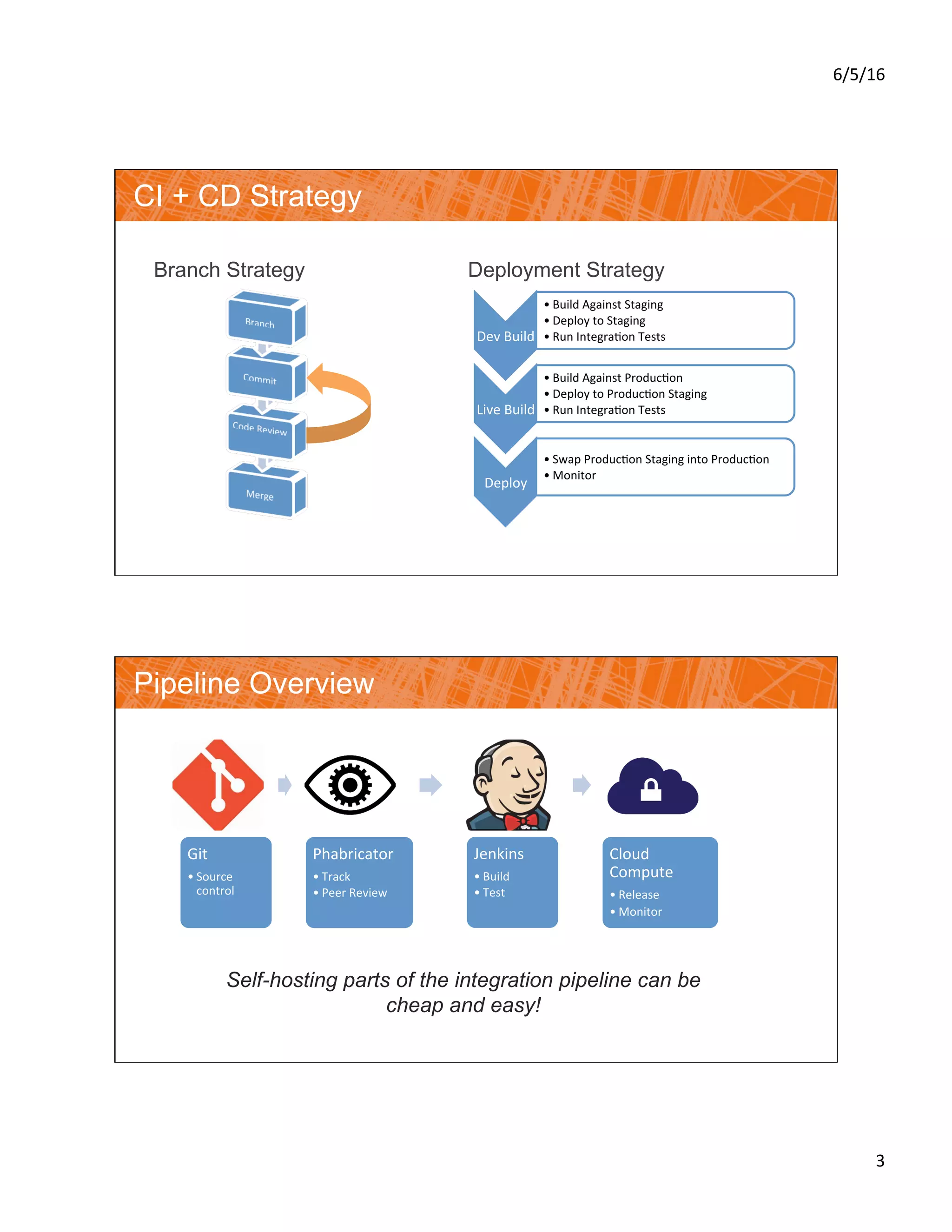

- 5. 6/5/16 3 CI + CDStrategy Branch Strategy Deployment Strategy Dev Build • Build Against Staging • Deploy to Staging • Run Integra?on Tests Live Build • Build Against Produc?on • Deploy to Produc?on Staging • Run Integra?on Tests Deploy • Swap Produc?on Staging into Produc?on • Monitor Pipeline Overview Self-hosting parts of the integration pipeline can be cheap and easy! Git • Source control Phabricator • Track • Peer Review Jenkins • Build • Test Cloud Compute • Release • Monitor

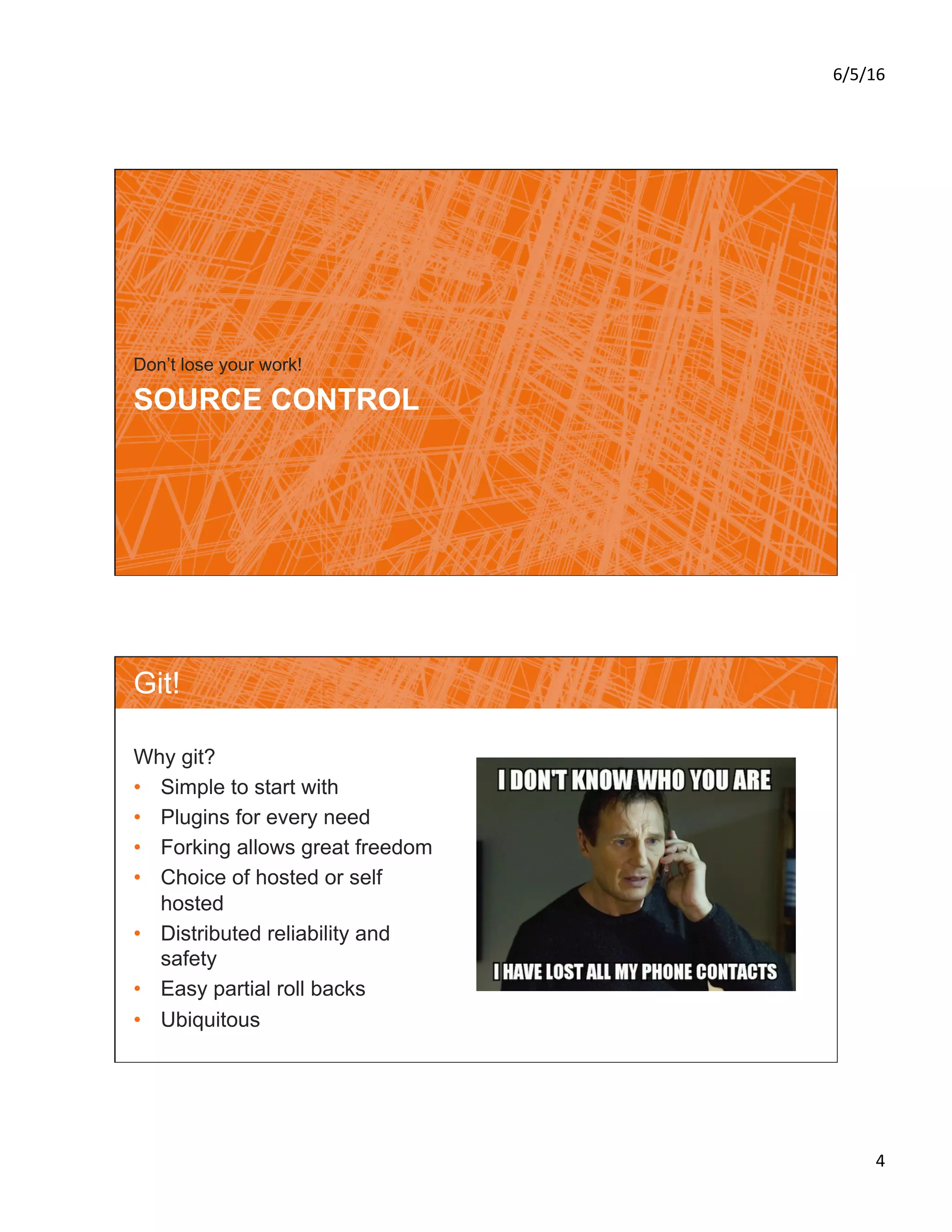

- 6. 6/5/16 4 SOURCE CONTROL Don’t loseyour work! Git! Why git? • Simple to start with • Plugins for every need • Forking allows great freedom • Choice of hosted or self hosted • Distributed reliability and safety • Easy partial roll backs • Ubiquitous

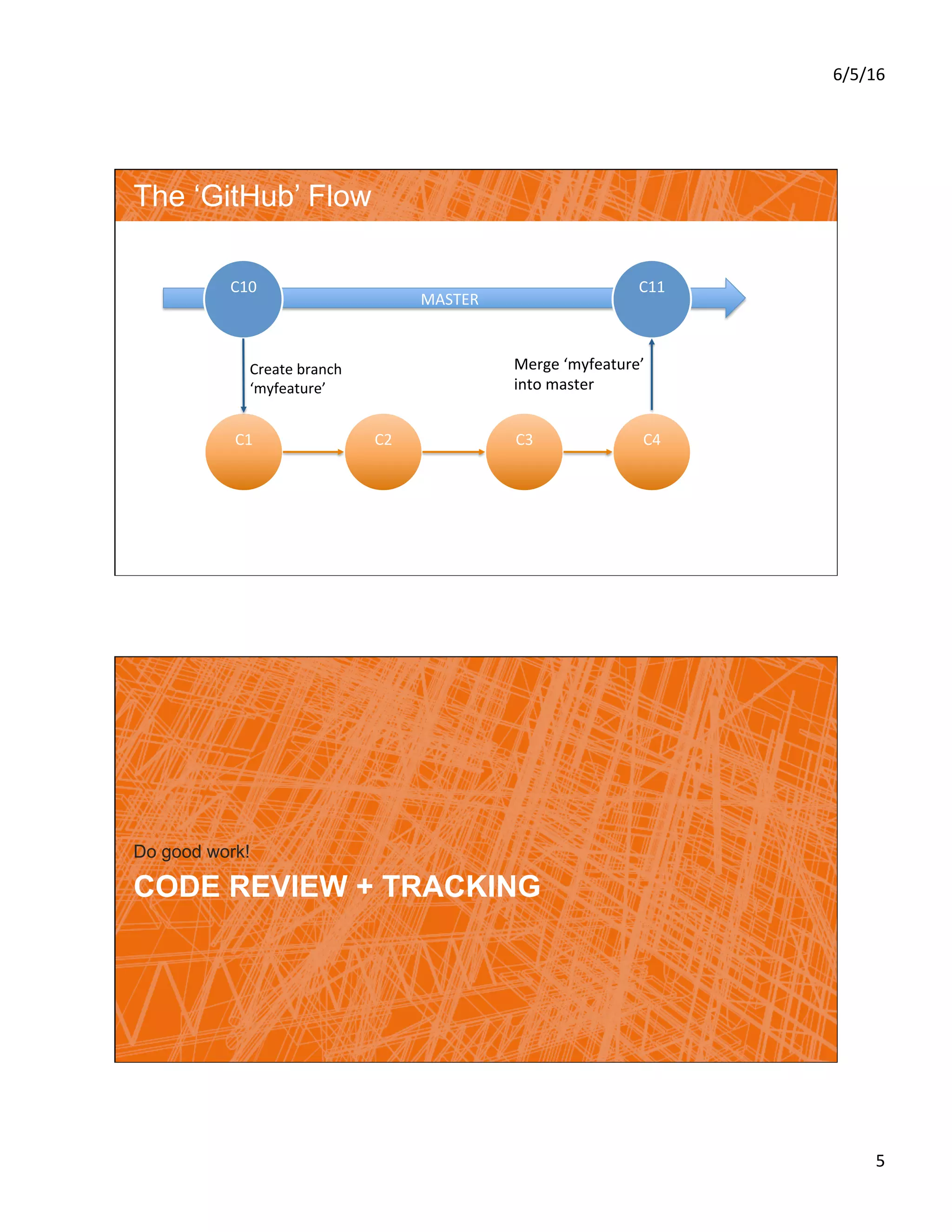

- 7. 6/5/16 5 MASTER The ‘GitHub’ Flow C2 C10 C1 C3 C4 C11 Create branch ‘myfeature’ Merge ‘myfeature’ into master CODE REVIEW + TRACKING Do good work!

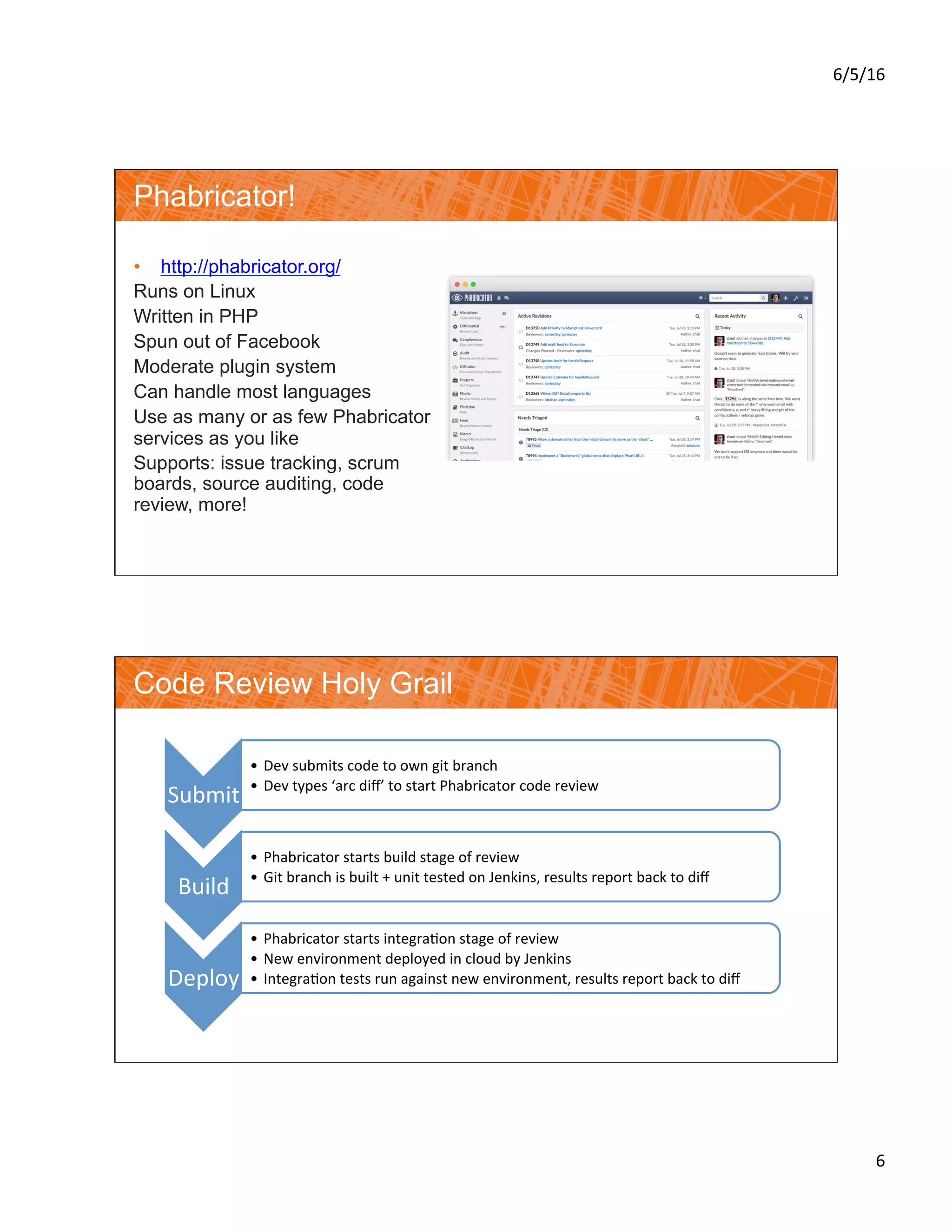

- 8. 6/5/16 6 Phabricator! • http://phabricator.org/ Runs onLinux Written in PHP Spun out of Facebook Moderate plugin system Can handle most languages Use as many or as few Phabricator services as you like Supports: issue tracking, scrum boards, source auditing, code review, more! Code Review Holy Grail Submit • Dev submits code to own git branch • Dev types ‘arc diff’ to start Phabricator code review Build • Phabricator starts build stage of review • Git branch is built + unit tested on Jenkins, results report back to diff Deploy • Phabricator starts integra?on stage of review • New environment deployed in cloud by Jenkins • Integra?on tests run against new environment, results report back to diff

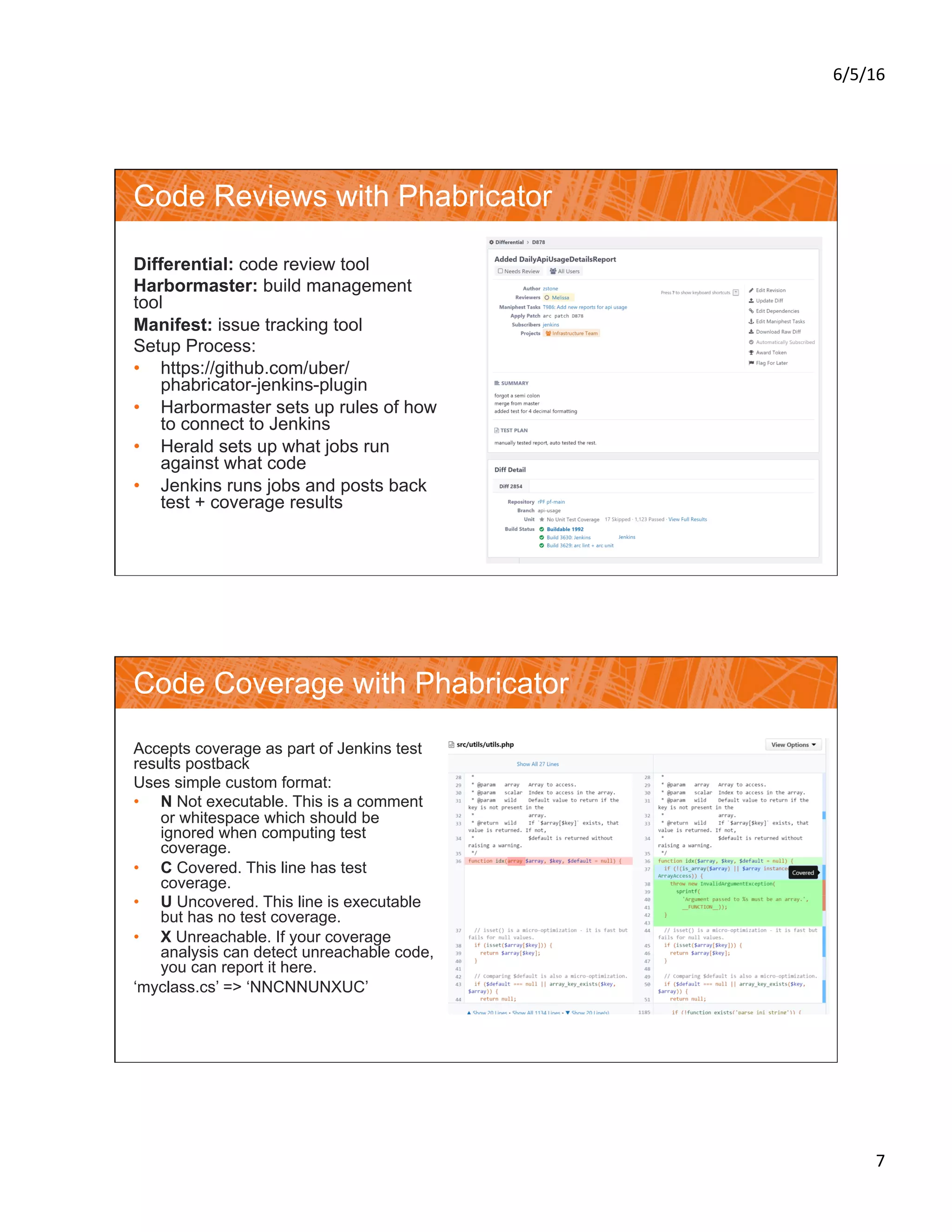

- 9. 6/5/16 7 Code Reviews withPhabricator Differential: code review tool Harbormaster: build management tool Manifest: issue tracking tool Setup Process: • https://github.com/uber/ phabricator-jenkins-plugin • Harbormaster sets up rules of how to connect to Jenkins • Herald sets up what jobs run against what code • Jenkins runs jobs and posts back test + coverage results Code Coverage with Phabricator Accepts coverage as part of Jenkins test results postback Uses simple custom format: • N Not executable. This is a comment or whitespace which should be ignored when computing test coverage. • C Covered. This line has test coverage. • U Uncovered. This line is executable but has no test coverage. • X Unreachable. If your coverage analysis can detect unreachable code, you can report it here. ‘myclass.cs’ => ‘NNCNNUNXUC’

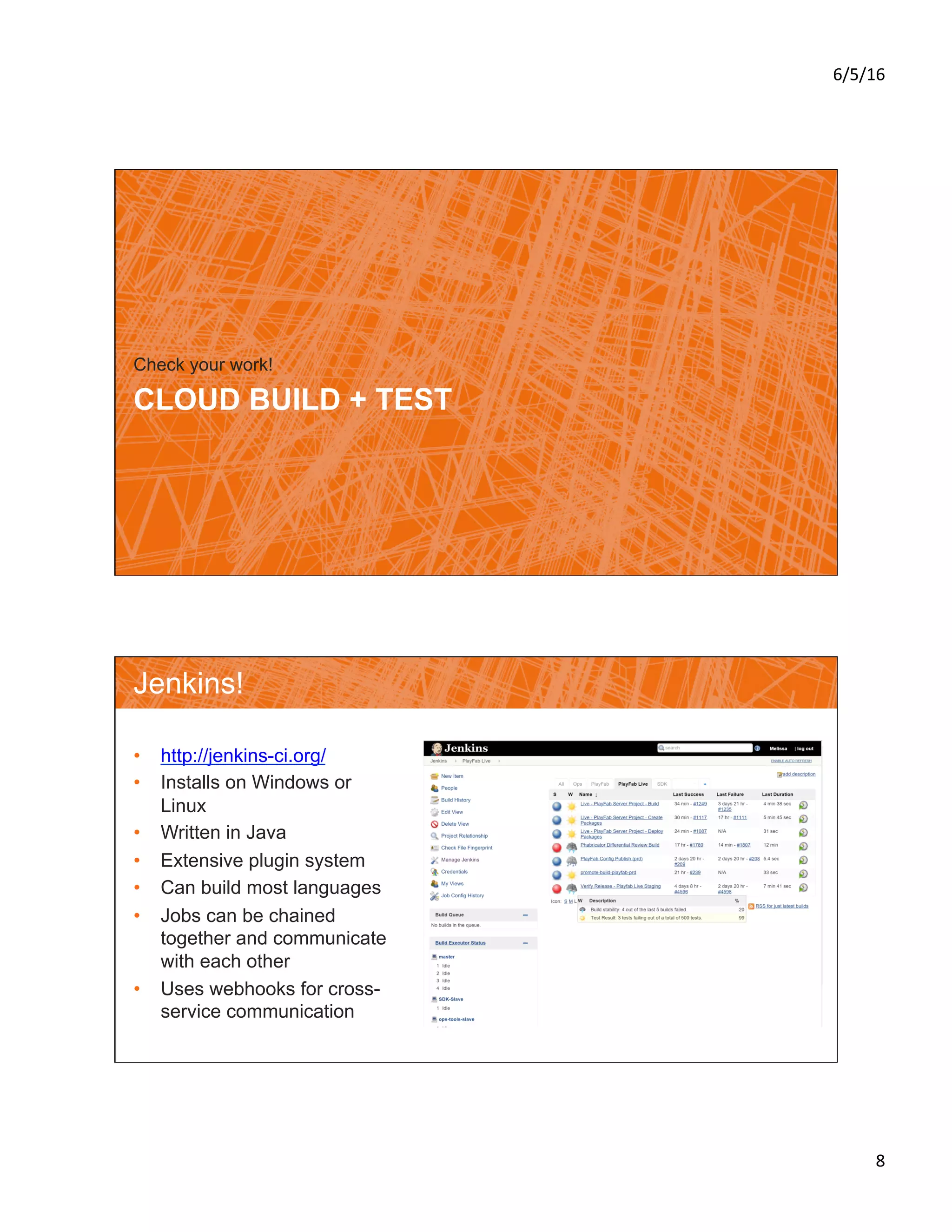

- 10. 6/5/16 8 CLOUD BUILD +TEST Check your work! Jenkins! • http://jenkins-ci.org/ • Installs on Windows or Linux • Written in Java • Extensive plugin system • Can build most languages • Jobs can be chained together and communicate with each other • Uses webhooks for cross- service communication

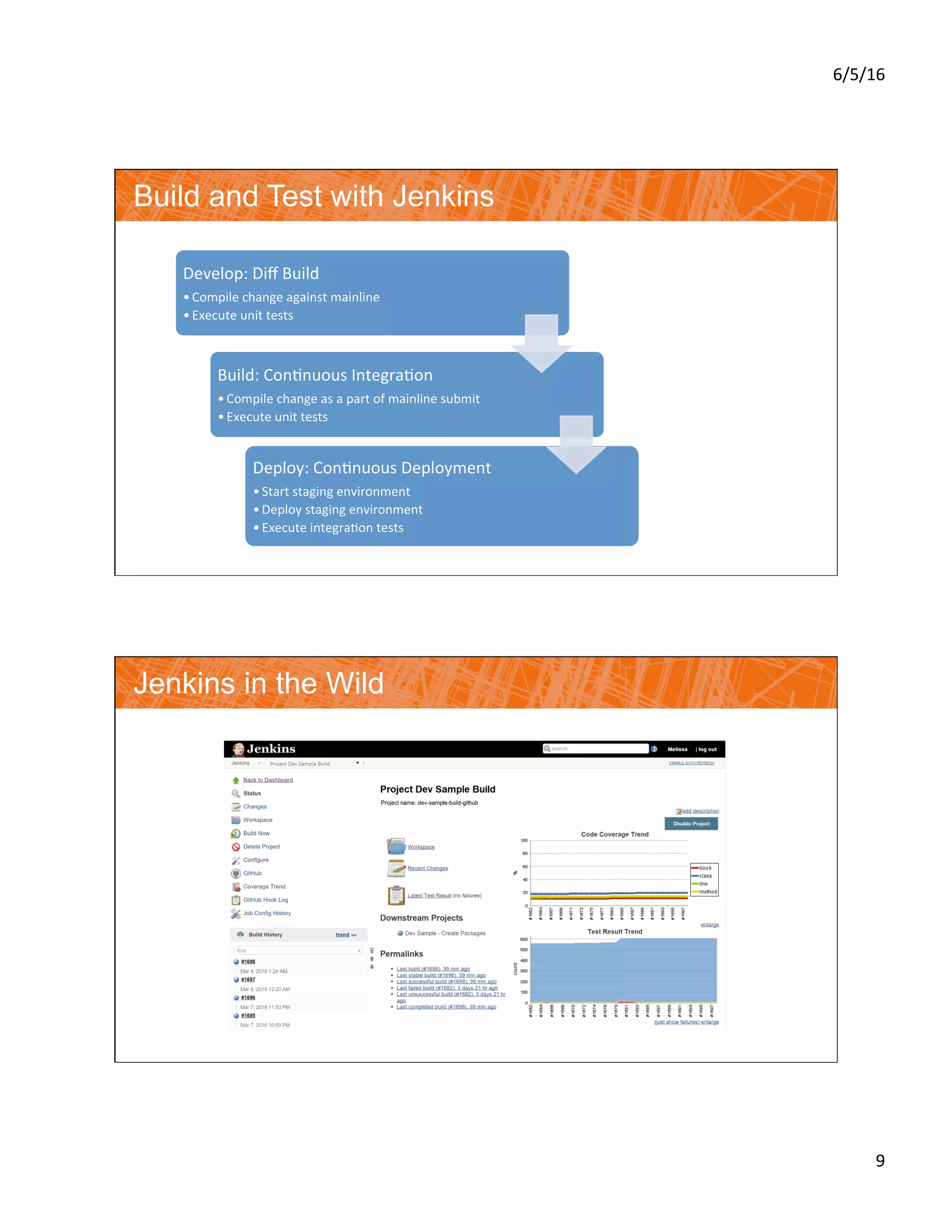

- 11. 6/5/16 9 Build and Testwith Jenkins Develop: Diff Build • Compile change against mainline • Execute unit tests Build: Con?nuous Integra?on • Compile change as a part of mainline submit • Execute unit tests Deploy: Con?nuous Deployment • Start staging environment • Deploy staging environment • Execute integra?on tests Jenkins in the Wild

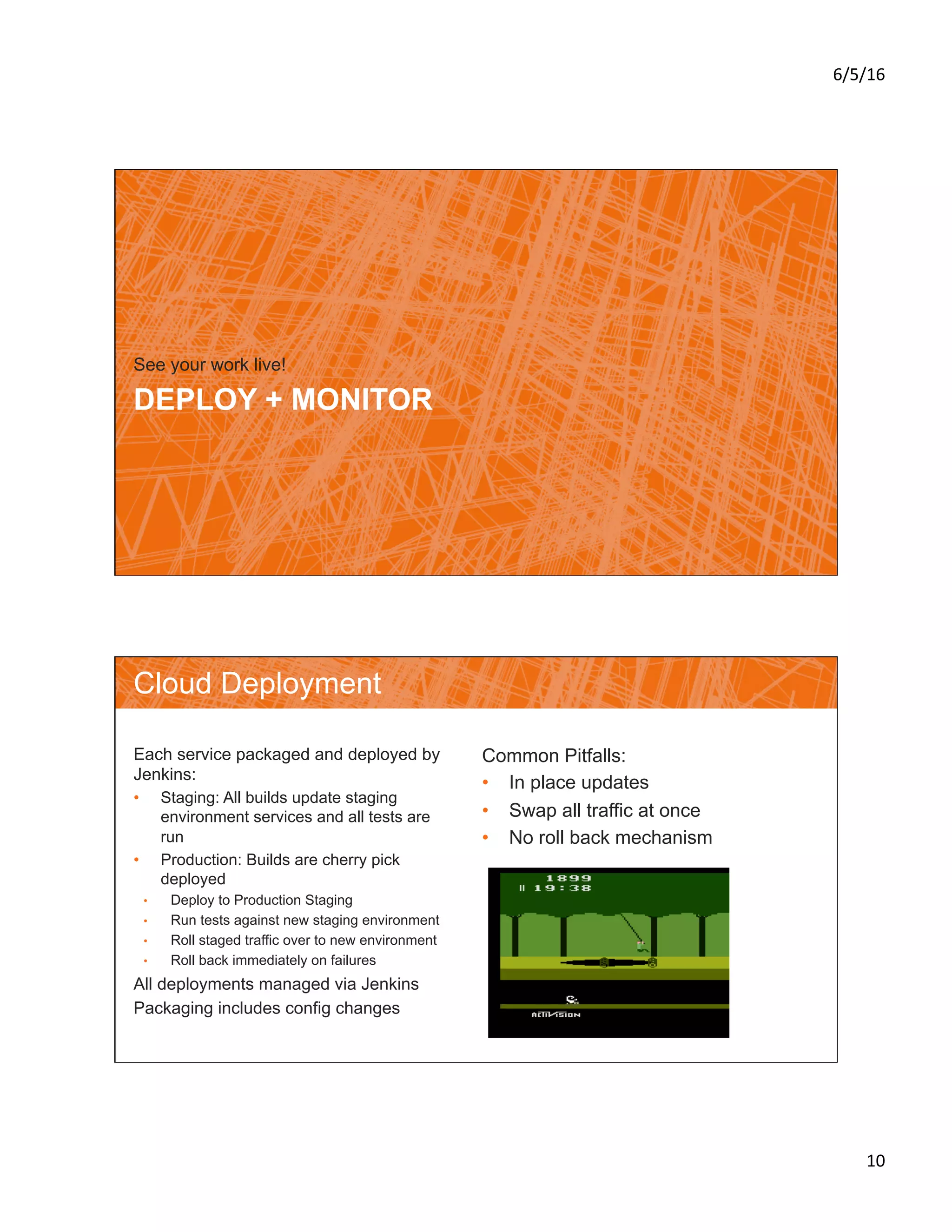

- 12. 6/5/16 10 DEPLOY + MONITOR Seeyour work live! Cloud Deployment Each service packaged and deployed by Jenkins: • Staging: All builds update staging environment services and all tests are run • Production: Builds are cherry pick deployed • Deploy to Production Staging • Run tests against new staging environment • Roll staged traffic over to new environment • Roll back immediately on failures All deployments managed via Jenkins Packaging includes config changes Common Pitfalls: • In place updates • Swap all traffic at once • No roll back mechanism

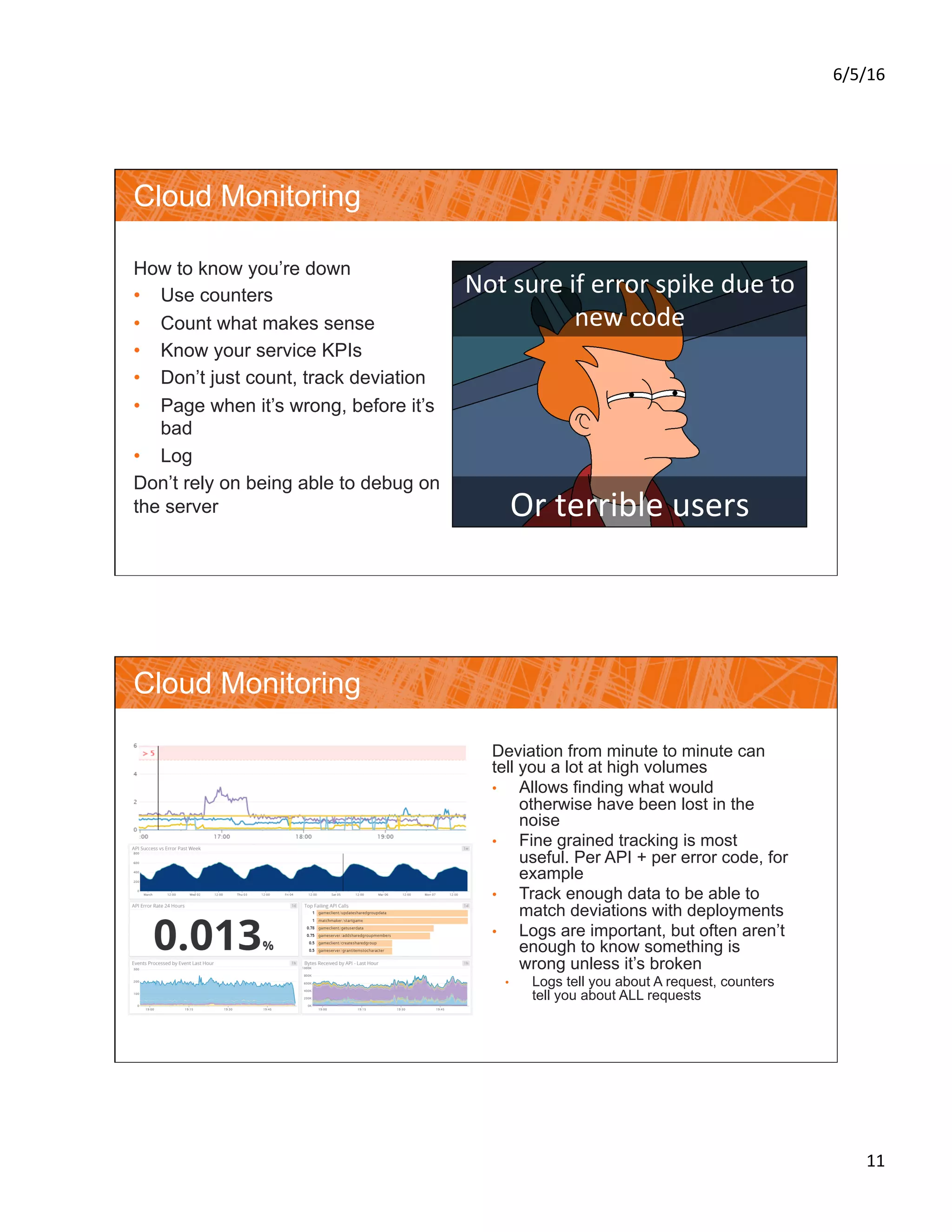

- 13. 6/5/16 11 Cloud Monitoring How toknow you’re down • Use counters • Count what makes sense • Know your service KPIs • Don’t just count, track deviation • Page when it’s wrong, before it’s bad • Log Don’t rely on being able to debug on the server Not sure if error spike due to new code Or terrible users Cloud Monitoring Deviation from minute to minute can tell you a lot at high volumes • Allows finding what would otherwise have been lost in the noise • Fine grained tracking is most useful. Per API + per error code, for example • Track enough data to be able to match deviations with deployments • Logs are important, but often aren’t enough to know something is wrong unless it’s broken • Logs tell you about A request, counters tell you about ALL requests

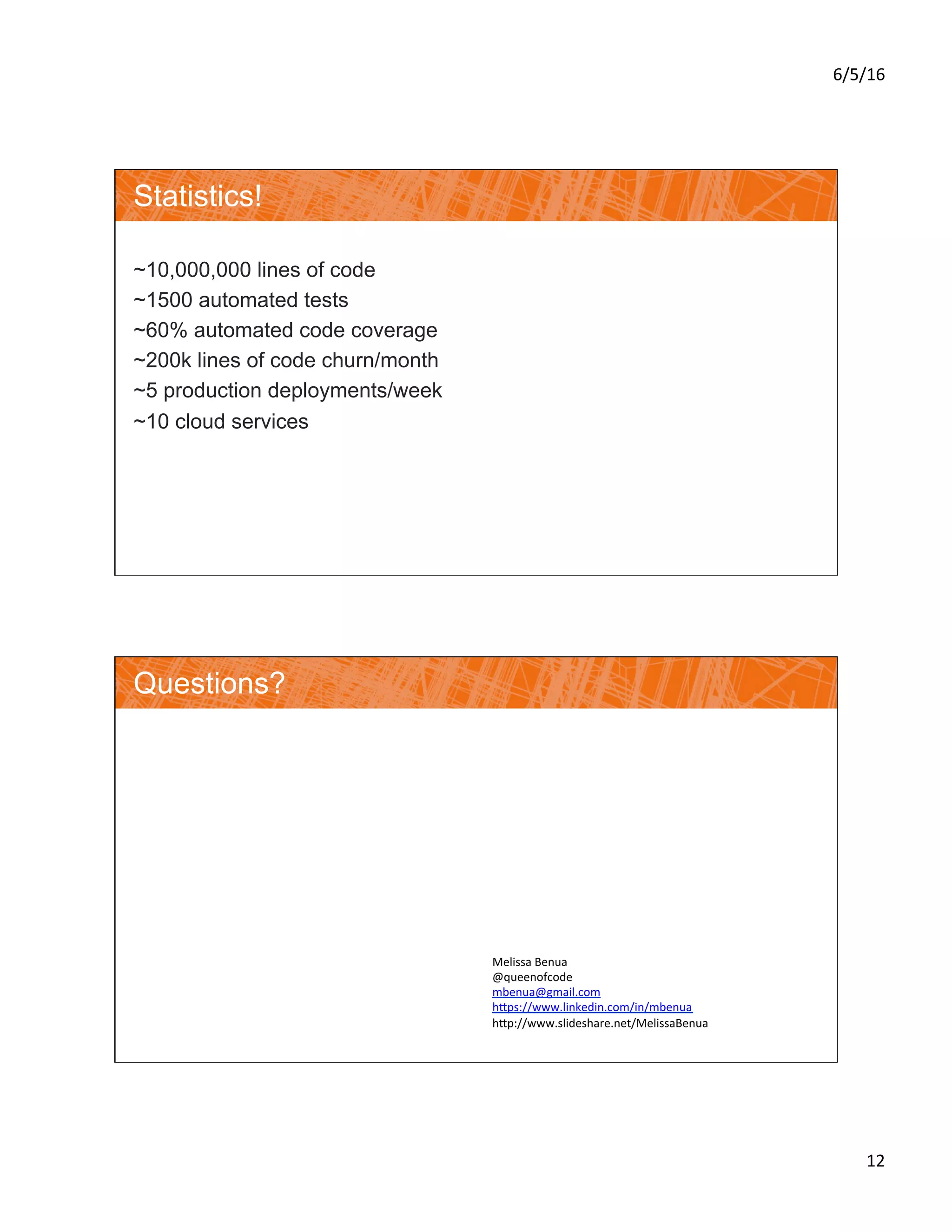

- 14. 6/5/16 12 Statistics! ~10,000,000 lines ofcode ~1500 automated tests ~60% automated code coverage ~200k lines of code churn/month ~5 production deployments/week ~10 cloud services Questions? Melissa Benua @queenofcode mbenua@gmail.com h_ps://www.linkedin.com/in/mbenua h_p://www.slideshare.net/MelissaBenua

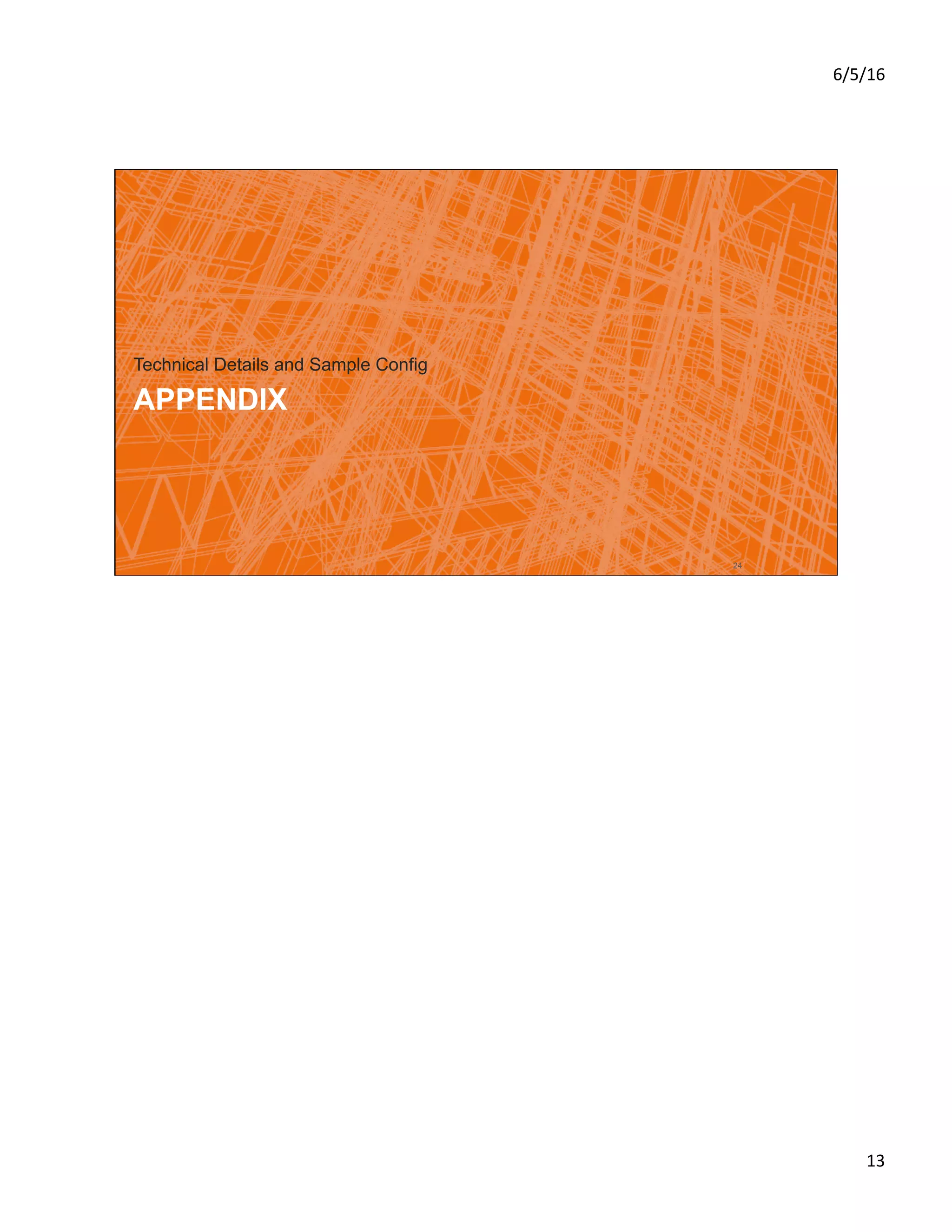

- 15. 6/5/16 13 APPENDIX Technical Details andSample Config 24
