The documents show the configuration of VLANs on a network switch. VLANs named Sales, Marketing, Finance and Staff were created and ports were assigned to each VLAN to separate network traffic. Ports 1-5 were assigned to VLAN 10 (Sales), ports 6-10 to VLAN 20 (Marketing), ports 11-15 to VLAN 30 (Finance) and the remaining ports to VLAN 40 (Staff). This partitions the switch ports into different virtual LANs to allow communication within groups but prevent it across groups.

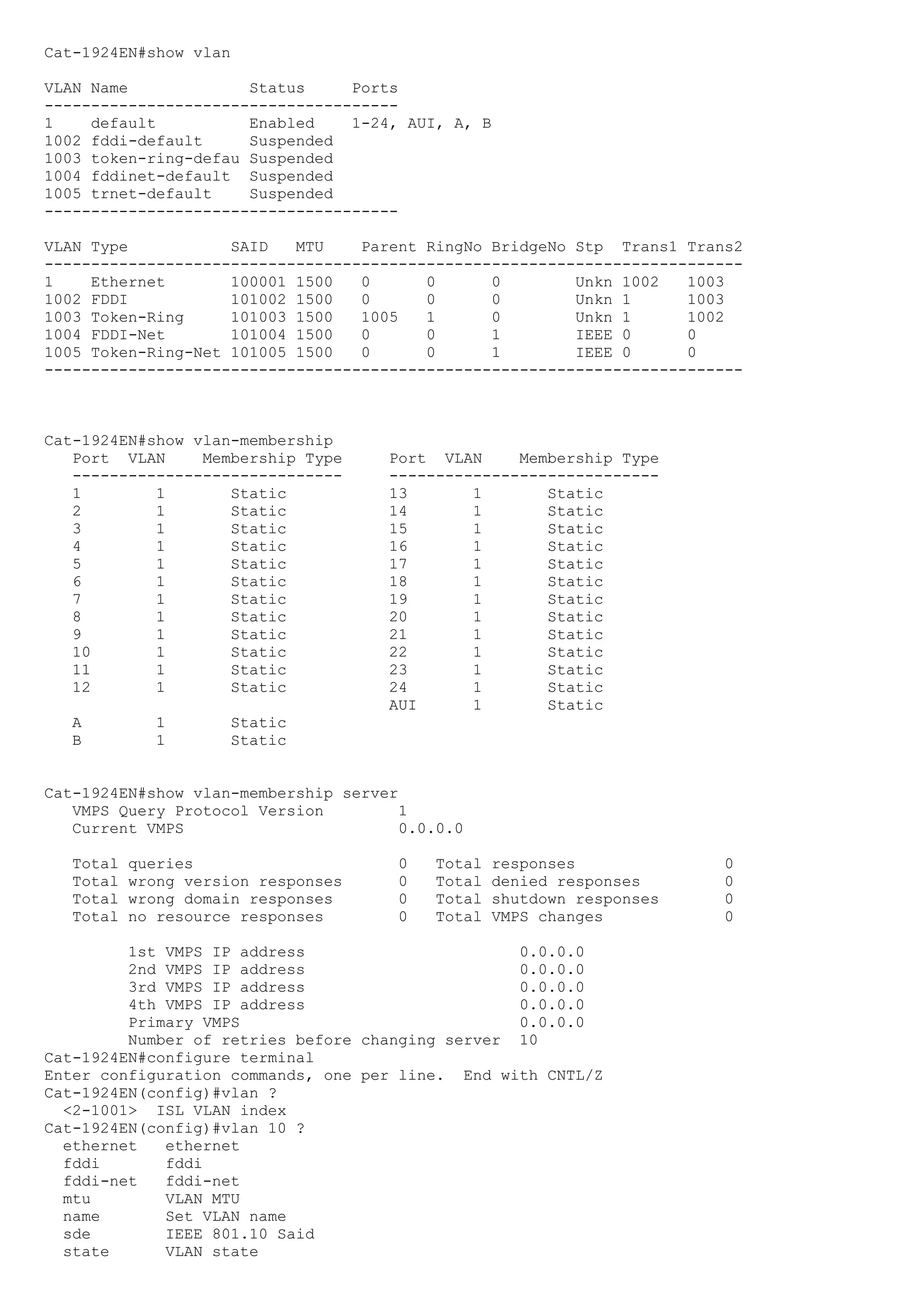

1. Cat-1924EN#show vlan
VLAN Name Status Ports
--------------------------------------
1 default Enabled 1-24, AUI, A, B
1002 fddi-default Suspended
1003 token-ring-defau Suspended
1004 fddinet-default Suspended
1005 trnet-default Suspended
--------------------------------------
VLAN Type SAID MTU Parent RingNo BridgeNo Stp Trans1 Trans2
---------------------------------------------------------------------------
1 Ethernet 100001 1500 0 0 0 Unkn 1002 1003
1002 FDDI 101002 1500 0 0 0 Unkn 1 1003
1003 Token-Ring 101003 1500 1005 1 0 Unkn 1 1002
1004 FDDI-Net 101004 1500 0 0 1 IEEE 0 0
1005 Token-Ring-Net 101005 1500 0 0 1 IEEE 0 0
---------------------------------------------------------------------------
Cat-1924EN#show vlan-membership
Port VLAN Membership Type Port VLAN Membership Type
----------------------------- -----------------------------
1 1 Static 13 1 Static
2 1 Static 14 1 Static
3 1 Static 15 1 Static
4 1 Static 16 1 Static
5 1 Static 17 1 Static
6 1 Static 18 1 Static
7 1 Static 19 1 Static
8 1 Static 20 1 Static
9 1 Static 21 1 Static
10 1 Static 22 1 Static
11 1 Static 23 1 Static
12 1 Static 24 1 Static
AUI 1 Static
A 1 Static
B 1 Static
Cat-1924EN#show vlan-membership server
VMPS Query Protocol Version 1
Current VMPS 0.0.0.0
Total queries 0 Total responses 0
Total wrong version responses 0 Total denied responses 0
Total wrong domain responses 0 Total shutdown responses 0
Total no resource responses 0 Total VMPS changes 0
1st VMPS IP address 0.0.0.0
2nd VMPS IP address 0.0.0.0
3rd VMPS IP address 0.0.0.0
4th VMPS IP address 0.0.0.0
Primary VMPS 0.0.0.0
Number of retries before changing server 10
Cat-1924EN#configure terminal
Enter configuration commands, one per line. End with CNTL/Z
Cat-1924EN(config)#vlan ?
<2-1001> ISL VLAN index
Cat-1924EN(config)#vlan 10 ?
ethernet ethernet
fddi fddi
fddi-net fddi-net
mtu VLAN MTU
name Set VLAN name
sde IEEE 801.10 Said
state VLAN state

2. tlb-1 VLAN Translational Bridge
tlb-2 VLAN Translational Bridge
tokenring tokenring
tr-net Token ring net
<cr>
Cat-1924EN(config)#vlan 10 name Sales ?
ethernet ethernet
fddi fddi
fddi-net fddi-net
mtu VLAN MTU
sde IEEE 801.10 Said
state VLAN state
tlb-1 VLAN Translational Bridge
tlb-2 VLAN Translational Bridge
tokenring tokenring
tr-net Token ring net
<cr>
Cat-1924EN(config)#vlan 10 name Sales ethernet ?
<cr>
Cat-1924EN(config)#vlan 10 name Sales ethernet
Cat-1924EN(config)#
Cat-1924EN(config)#vlan 20 name Marketing ethernet
Cat-1924EN(config)#vlan 30 name Finance ethernet
Cat-1924EN(config)#vlan 40 name Staff
Cat-1924EN(config)#end
Cat-1924EN#
Cat-1924EN#show vlan
VLAN Name Status Ports
--------------------------------------
1 default Enabled 1-24, AUI, A, B
10 Sales Enabled
20 Marketing Enabled
30 Finance Enabled
40 Staff Enabled
1002 fddi-default Suspended
1003 token-ring-defau Suspended
1004 fddinet-default Suspended
1005 trnet-default Suspended
--------------------------------------
VLAN Type SAID MTU Parent RingNo BridgeNo Stp Trans1 Trans2
---------------------------------------------------------------------------
1 Ethernet 100001 1500 0 0 0 Unkn 1002 1003
10 Ethernet 100010 1500 0 1 1 Unkn 0 0
20 Ethernet 100020 1500 0 1 1 Unkn 0 0
30 Ethernet 100030 1500 0 1 1 Unkn 0 0
40 Ethernet 100040 1500 0 1 1 Unkn 0 0
--More--
1002 FDDI 101002 1500 0 0 0 Unkn 1 1003
1003 Token-Ring 101003 1500 1005 1 0 Unkn 1 1002
1004 FDDI-Net 101004 1500 0 0 1 IEEE 0 0
1005 Token-Ring-Net 101005 1500 0 0 1 IEEE 0 0
---------------------------------------------------------------------------
Cat-1924EN#config t
Enter configuration commands, one per line. End with CNTL/Z
Cat-1924EN(config)#interface ethernet 0/1
Cat-1924EN(config-if)#vlan-membership ?
dynamic Set VLAN membership type as dynamic
static Set VLAN membership type as static
Cat-1924EN(config-if)#vlan-membership static ?
<1-1005> ISL VLAN index
Cat-1924EN(config-if)#vlan-membership static 10 ?
<cr>
Cat-1924EN(config-if)#vlan-membership static 10

3. Cat-1924EN(config-if)#exit
Cat-1924EN(config)#interface ethernet 0/2
Cat-1924EN(config-if)#vlan-membership static 10
Cat-1924EN(config-if)#interface ethernet 0/3
Cat-1924EN(config-if)#vlan-membership static 10
Cat-1924EN(config-if)#interface ethernet 0/4
Cat-1924EN(config-if)#vlan-membership static 10
Cat-1924EN(config-if)#interface ethernet 0/5
Cat-1924EN(config-if)#vlan-membership static 10
Cat-1924EN(config-if)#interface ethernet 0/6
Cat-1924EN(config-if)#vlan-membership static 20
Cat-1924EN(config-if)#interface ethernet 0/7
Cat-1924EN(config-if)#vlan-membership static 20
Cat-1924EN(config-if)#interface ethernet 0/8
Cat-1924EN(config-if)#vlan-membership static 20
Cat-1924EN(config-if)#interface ethernet 0/9
Cat-1924EN(config-if)#vlan-membership static 20
Cat-1924EN(config-if)#interface ethernet 0/10
Cat-1924EN(config-if)#vlan-membership static 20
Cat-1924EN(config-if)#interface ethernet 0/11
Cat-1924EN(config-if)#vlan-membership static 30
Cat-1924EN(config-if)#interface ethernet 0/12
Cat-1924EN(config-if)#vlan-membership static 30
Cat-1924EN(config-if)#interface ethernet 0/13
Cat-1924EN(config-if)#vlan-membership static 30
Cat-1924EN(config-if)#interface ethernet 0/14
Cat-1924EN(config-if)#vlan-membership static 30
Cat-1924EN(config-if)#interface ethernet 0/15
Cat-1924EN(config-if)#vlan-membership static 30
Cat-1924EN(config-if)#interface ethernet 0/16
Cat-1924EN(config-if)#vlan-membership static 40
Cat-1924EN(config-if)#interface ethernet 0/17
Cat-1924EN(config-if)#vlan-membership static 40
Cat-1924EN(config-if)#interface ethernet 0/18
Cat-1924EN(config-if)#vlan-membership static 40
Cat-1924EN(config-if)#interface ethernet 0/19
Cat-1924EN(config-if)#vlan-membership static 40
Cat-1924EN(config-if)#interface ethernet 0/20
Cat-1924EN(config-if)#vlan-membership static 40
Cat-1924EN(config-if)#interface ethernet 0/21
Cat-1924EN(config-if)#vlan-membership static 40
Cat-1924EN(config-if)#interface ethernet 0/22
Cat-1924EN(config-if)#vlan-membership static 40
Cat-1924EN(config-if)#interface ethernet 0/23
Cat-1924EN(config-if)#vlan-membership static 40
Cat-1924EN(config-if)#interface ethernet 0/24
Cat-1924EN(config-if)#vlan-membership static 40
Cat-1924EN(config-if)#end
Cat-1924EN#
Cat-1924EN#show vlan-membership
Port VLAN Membership Type Port VLAN Membership Type
----------------------------- -----------------------------
1 10 Static 13 30 Static
2 10 Static 14 30 Static
3 10 Static 15 30 Static
4 10 Static 16 40 Static
5 10 Static 17 40 Static
6 20 Static 18 40 Static
7 20 Static 19 40 Static
8 20 Static 20 40 Static
9 20 Static 21 40 Static
10 20 Static 22 40 Static
11 30 Static 23 40 Static
12 30 Static 24 40 Static

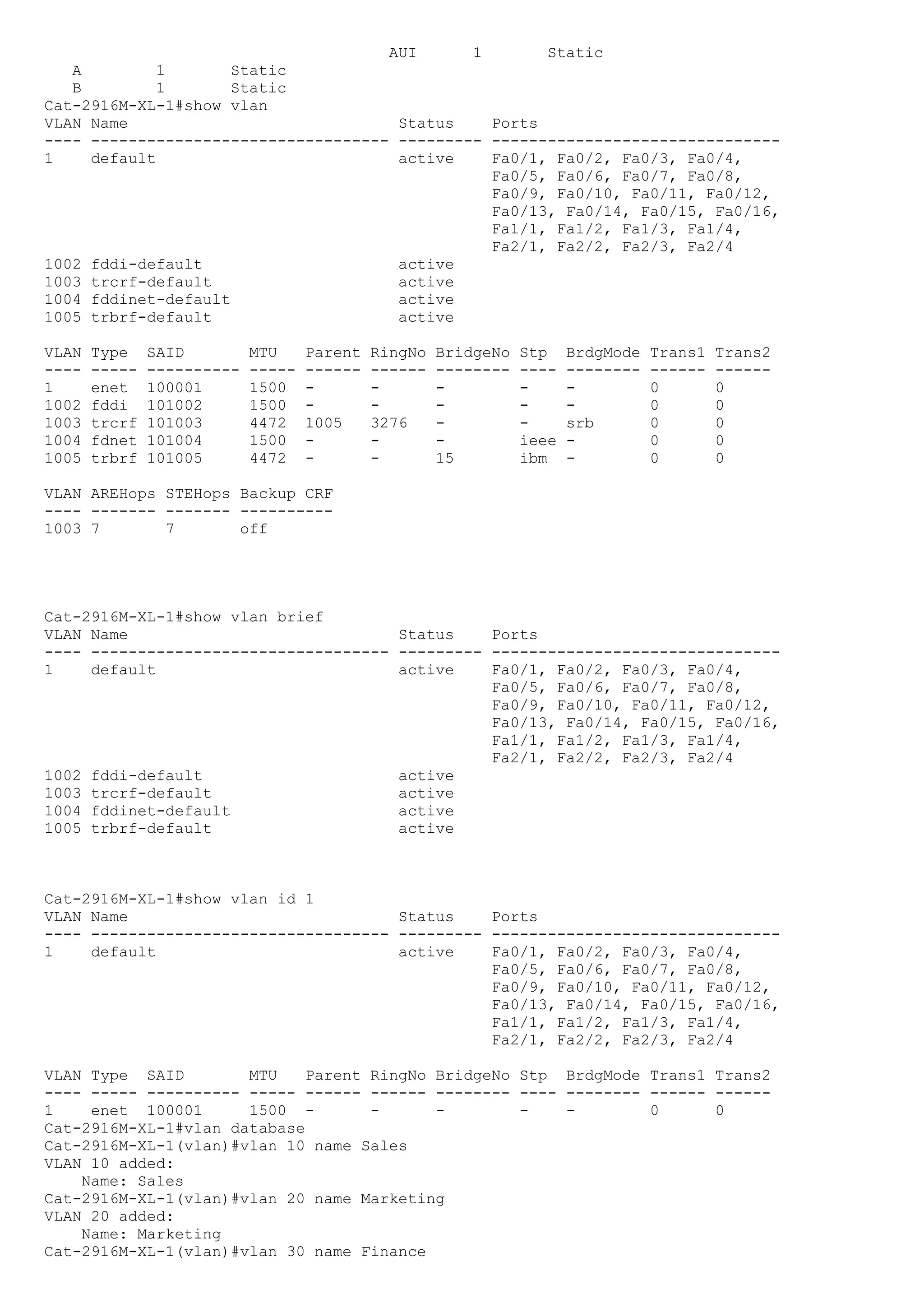

4. AUI 1 Static
A 1 Static
B 1 Static
Cat-2916M-XL-1#show vlan
VLAN Name Status Ports
---- -------------------------------- --------- -------------------------------
1 default active Fa0/1, Fa0/2, Fa0/3, Fa0/4,
Fa0/5, Fa0/6, Fa0/7, Fa0/8,
Fa0/9, Fa0/10, Fa0/11, Fa0/12,
Fa0/13, Fa0/14, Fa0/15, Fa0/16,
Fa1/1, Fa1/2, Fa1/3, Fa1/4,
Fa2/1, Fa2/2, Fa2/3, Fa2/4
1002 fddi-default active
1003 trcrf-default active
1004 fddinet-default active
1005 trbrf-default active
VLAN Type SAID MTU Parent RingNo BridgeNo Stp BrdgMode Trans1 Trans2
---- ----- ---------- ----- ------ ------ -------- ---- -------- ------ ------
1 enet 100001 1500 - - - - - 0 0
1002 fddi 101002 1500 - - - - - 0 0
1003 trcrf 101003 4472 1005 3276 - - srb 0 0
1004 fdnet 101004 1500 - - - ieee - 0 0
1005 trbrf 101005 4472 - - 15 ibm - 0 0
VLAN AREHops STEHops Backup CRF
---- ------- ------- ----------
1003 7 7 off
Cat-2916M-XL-1#show vlan brief
VLAN Name Status Ports
---- -------------------------------- --------- -------------------------------
1 default active Fa0/1, Fa0/2, Fa0/3, Fa0/4,
Fa0/5, Fa0/6, Fa0/7, Fa0/8,
Fa0/9, Fa0/10, Fa0/11, Fa0/12,
Fa0/13, Fa0/14, Fa0/15, Fa0/16,
Fa1/1, Fa1/2, Fa1/3, Fa1/4,
Fa2/1, Fa2/2, Fa2/3, Fa2/4
1002 fddi-default active
1003 trcrf-default active
1004 fddinet-default active
1005 trbrf-default active
Cat-2916M-XL-1#show vlan id 1
VLAN Name Status Ports
---- -------------------------------- --------- -------------------------------
1 default active Fa0/1, Fa0/2, Fa0/3, Fa0/4,
Fa0/5, Fa0/6, Fa0/7, Fa0/8,
Fa0/9, Fa0/10, Fa0/11, Fa0/12,
Fa0/13, Fa0/14, Fa0/15, Fa0/16,
Fa1/1, Fa1/2, Fa1/3, Fa1/4,
Fa2/1, Fa2/2, Fa2/3, Fa2/4
VLAN Type SAID MTU Parent RingNo BridgeNo Stp BrdgMode Trans1 Trans2
---- ----- ---------- ----- ------ ------ -------- ---- -------- ------ ------
1 enet 100001 1500 - - - - - 0 0
Cat-2916M-XL-1#vlan database
Cat-2916M-XL-1(vlan)#vlan 10 name Sales
VLAN 10 added:
Name: Sales
Cat-2916M-XL-1(vlan)#vlan 20 name Marketing
VLAN 20 added:
Name: Marketing
Cat-2916M-XL-1(vlan)#vlan 30 name Finance

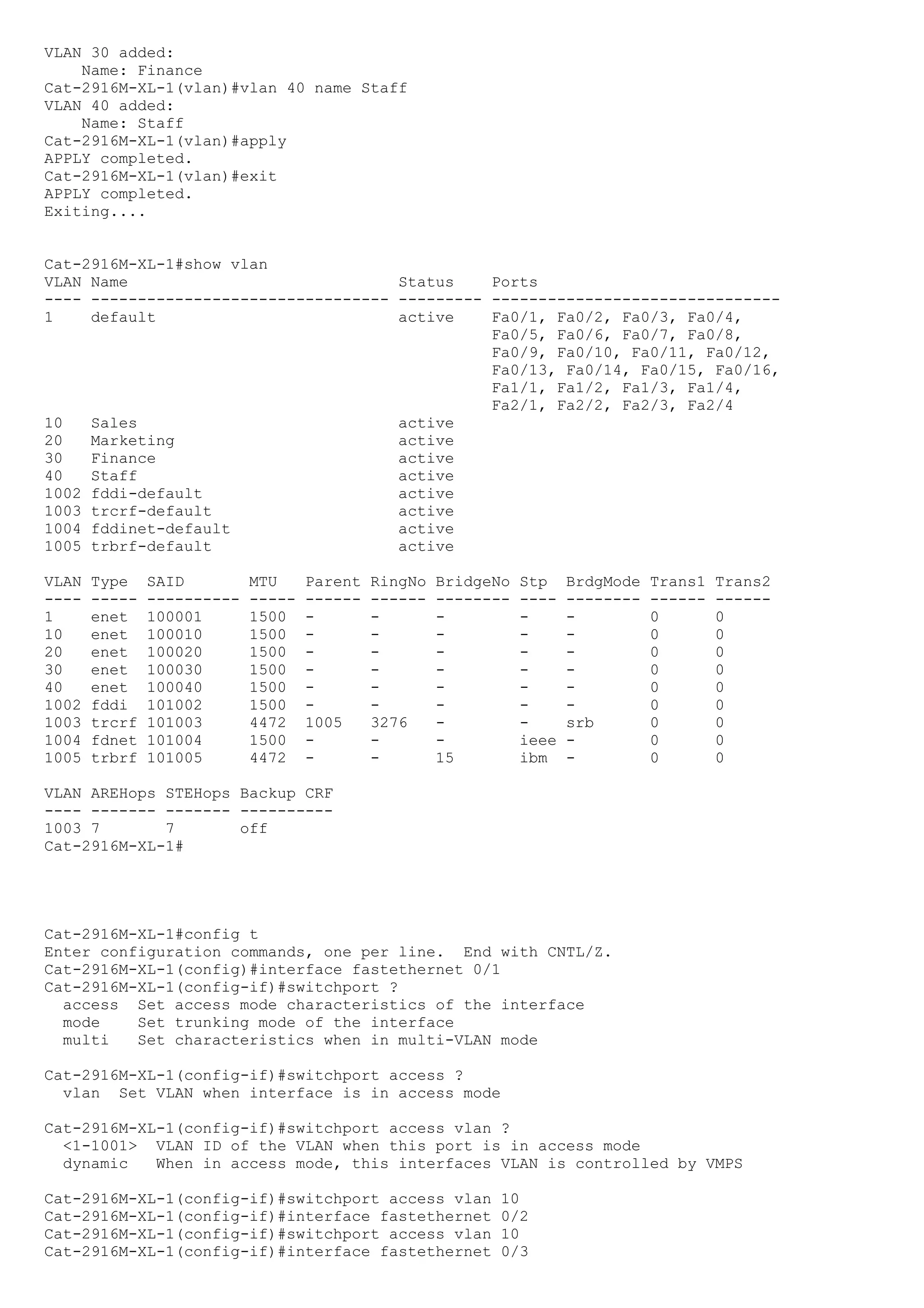

5. VLAN 30 added:
Name: Finance
Cat-2916M-XL-1(vlan)#vlan 40 name Staff
VLAN 40 added:
Name: Staff
Cat-2916M-XL-1(vlan)#apply
APPLY completed.
Cat-2916M-XL-1(vlan)#exit
APPLY completed.
Exiting....
Cat-2916M-XL-1#show vlan
VLAN Name Status Ports
---- -------------------------------- --------- -------------------------------
1 default active Fa0/1, Fa0/2, Fa0/3, Fa0/4,
Fa0/5, Fa0/6, Fa0/7, Fa0/8,
Fa0/9, Fa0/10, Fa0/11, Fa0/12,
Fa0/13, Fa0/14, Fa0/15, Fa0/16,
Fa1/1, Fa1/2, Fa1/3, Fa1/4,
Fa2/1, Fa2/2, Fa2/3, Fa2/4
10 Sales active
20 Marketing active
30 Finance active
40 Staff active
1002 fddi-default active
1003 trcrf-default active
1004 fddinet-default active
1005 trbrf-default active
VLAN Type SAID MTU Parent RingNo BridgeNo Stp BrdgMode Trans1 Trans2
---- ----- ---------- ----- ------ ------ -------- ---- -------- ------ ------
1 enet 100001 1500 - - - - - 0 0
10 enet 100010 1500 - - - - - 0 0
20 enet 100020 1500 - - - - - 0 0
30 enet 100030 1500 - - - - - 0 0
40 enet 100040 1500 - - - - - 0 0
1002 fddi 101002 1500 - - - - - 0 0
1003 trcrf 101003 4472 1005 3276 - - srb 0 0
1004 fdnet 101004 1500 - - - ieee - 0 0
1005 trbrf 101005 4472 - - 15 ibm - 0 0
VLAN AREHops STEHops Backup CRF
---- ------- ------- ----------
1003 7 7 off
Cat-2916M-XL-1#
Cat-2916M-XL-1#config t
Enter configuration commands, one per line. End with CNTL/Z.
Cat-2916M-XL-1(config)#interface fastethernet 0/1
Cat-2916M-XL-1(config-if)#switchport ?
access Set access mode characteristics of the interface
mode Set trunking mode of the interface
multi Set characteristics when in multi-VLAN mode
Cat-2916M-XL-1(config-if)#switchport access ?
vlan Set VLAN when interface is in access mode
Cat-2916M-XL-1(config-if)#switchport access vlan ?
<1-1001> VLAN ID of the VLAN when this port is in access mode
dynamic When in access mode, this interfaces VLAN is controlled by VMPS
Cat-2916M-XL-1(config-if)#switchport access vlan 10
Cat-2916M-XL-1(config-if)#interface fastethernet 0/2
Cat-2916M-XL-1(config-if)#switchport access vlan 10
Cat-2916M-XL-1(config-if)#interface fastethernet 0/3

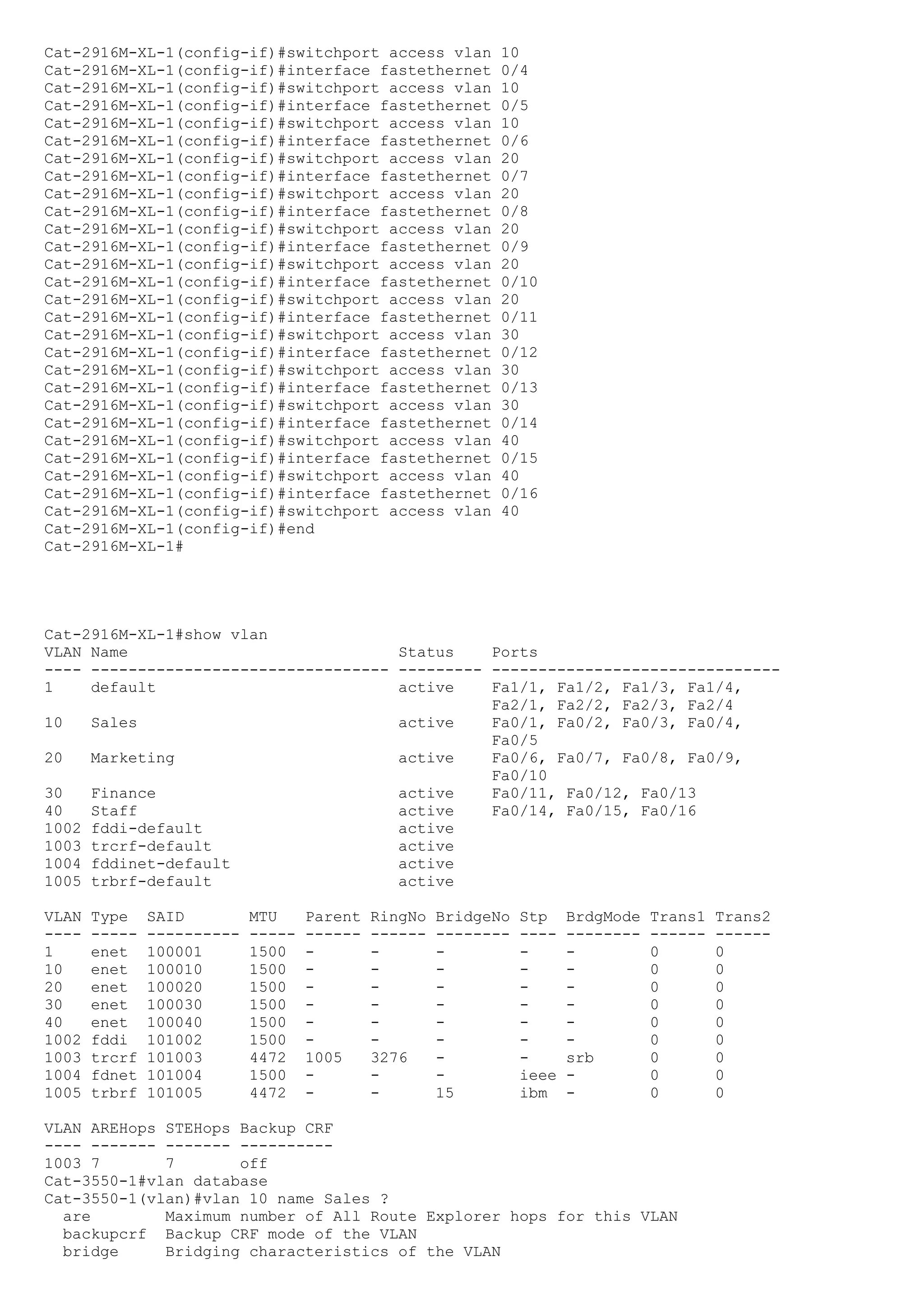

6. Cat-2916M-XL-1(config-if)#switchport access vlan 10
Cat-2916M-XL-1(config-if)#interface fastethernet 0/4
Cat-2916M-XL-1(config-if)#switchport access vlan 10
Cat-2916M-XL-1(config-if)#interface fastethernet 0/5
Cat-2916M-XL-1(config-if)#switchport access vlan 10
Cat-2916M-XL-1(config-if)#interface fastethernet 0/6
Cat-2916M-XL-1(config-if)#switchport access vlan 20
Cat-2916M-XL-1(config-if)#interface fastethernet 0/7
Cat-2916M-XL-1(config-if)#switchport access vlan 20
Cat-2916M-XL-1(config-if)#interface fastethernet 0/8
Cat-2916M-XL-1(config-if)#switchport access vlan 20
Cat-2916M-XL-1(config-if)#interface fastethernet 0/9
Cat-2916M-XL-1(config-if)#switchport access vlan 20
Cat-2916M-XL-1(config-if)#interface fastethernet 0/10
Cat-2916M-XL-1(config-if)#switchport access vlan 20
Cat-2916M-XL-1(config-if)#interface fastethernet 0/11
Cat-2916M-XL-1(config-if)#switchport access vlan 30
Cat-2916M-XL-1(config-if)#interface fastethernet 0/12
Cat-2916M-XL-1(config-if)#switchport access vlan 30
Cat-2916M-XL-1(config-if)#interface fastethernet 0/13
Cat-2916M-XL-1(config-if)#switchport access vlan 30
Cat-2916M-XL-1(config-if)#interface fastethernet 0/14
Cat-2916M-XL-1(config-if)#switchport access vlan 40
Cat-2916M-XL-1(config-if)#interface fastethernet 0/15
Cat-2916M-XL-1(config-if)#switchport access vlan 40
Cat-2916M-XL-1(config-if)#interface fastethernet 0/16
Cat-2916M-XL-1(config-if)#switchport access vlan 40
Cat-2916M-XL-1(config-if)#end
Cat-2916M-XL-1#
Cat-2916M-XL-1#show vlan
VLAN Name Status Ports
---- -------------------------------- --------- -------------------------------
1 default active Fa1/1, Fa1/2, Fa1/3, Fa1/4,
Fa2/1, Fa2/2, Fa2/3, Fa2/4
10 Sales active Fa0/1, Fa0/2, Fa0/3, Fa0/4,
Fa0/5
20 Marketing active Fa0/6, Fa0/7, Fa0/8, Fa0/9,
Fa0/10
30 Finance active Fa0/11, Fa0/12, Fa0/13
40 Staff active Fa0/14, Fa0/15, Fa0/16
1002 fddi-default active
1003 trcrf-default active
1004 fddinet-default active
1005 trbrf-default active
VLAN Type SAID MTU Parent RingNo BridgeNo Stp BrdgMode Trans1 Trans2
---- ----- ---------- ----- ------ ------ -------- ---- -------- ------ ------
1 enet 100001 1500 - - - - - 0 0
10 enet 100010 1500 - - - - - 0 0
20 enet 100020 1500 - - - - - 0 0
30 enet 100030 1500 - - - - - 0 0
40 enet 100040 1500 - - - - - 0 0
1002 fddi 101002 1500 - - - - - 0 0
1003 trcrf 101003 4472 1005 3276 - - srb 0 0
1004 fdnet 101004 1500 - - - ieee - 0 0
1005 trbrf 101005 4472 - - 15 ibm - 0 0
VLAN AREHops STEHops Backup CRF
---- ------- ------- ----------
1003 7 7 off
Cat-3550-1#vlan database
Cat-3550-1(vlan)#vlan 10 name Sales ?
are Maximum number of All Route Explorer hops for this VLAN
backupcrf Backup CRF mode of the VLAN
bridge Bridging characteristics of the VLAN

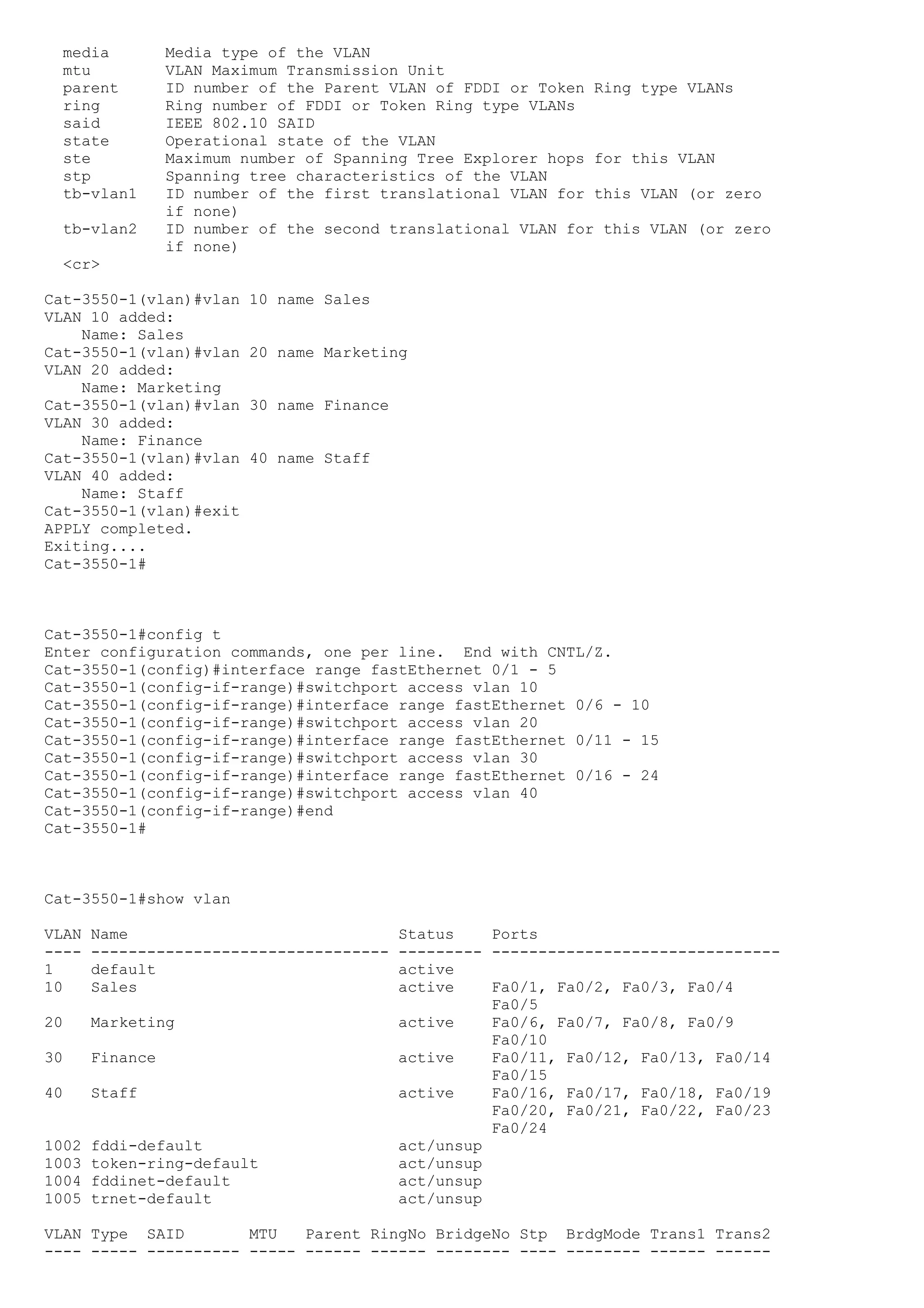

7. media Media type of the VLAN
mtu VLAN Maximum Transmission Unit
parent ID number of the Parent VLAN of FDDI or Token Ring type VLANs
ring Ring number of FDDI or Token Ring type VLANs
said IEEE 802.10 SAID
state Operational state of the VLAN
ste Maximum number of Spanning Tree Explorer hops for this VLAN
stp Spanning tree characteristics of the VLAN
tb-vlan1 ID number of the first translational VLAN for this VLAN (or zero
if none)
tb-vlan2 ID number of the second translational VLAN for this VLAN (or zero
if none)
<cr>
Cat-3550-1(vlan)#vlan 10 name Sales
VLAN 10 added:
Name: Sales
Cat-3550-1(vlan)#vlan 20 name Marketing
VLAN 20 added:
Name: Marketing
Cat-3550-1(vlan)#vlan 30 name Finance
VLAN 30 added:
Name: Finance
Cat-3550-1(vlan)#vlan 40 name Staff
VLAN 40 added:
Name: Staff
Cat-3550-1(vlan)#exit
APPLY completed.
Exiting....
Cat-3550-1#
Cat-3550-1#config t
Enter configuration commands, one per line. End with CNTL/Z.
Cat-3550-1(config)#interface range fastEthernet 0/1 - 5
Cat-3550-1(config-if-range)#switchport access vlan 10
Cat-3550-1(config-if-range)#interface range fastEthernet 0/6 - 10
Cat-3550-1(config-if-range)#switchport access vlan 20
Cat-3550-1(config-if-range)#interface range fastEthernet 0/11 - 15
Cat-3550-1(config-if-range)#switchport access vlan 30
Cat-3550-1(config-if-range)#interface range fastEthernet 0/16 - 24
Cat-3550-1(config-if-range)#switchport access vlan 40
Cat-3550-1(config-if-range)#end
Cat-3550-1#
Cat-3550-1#show vlan
VLAN Name Status Ports
---- -------------------------------- --------- -------------------------------
1 default active
10 Sales active Fa0/1, Fa0/2, Fa0/3, Fa0/4
Fa0/5
20 Marketing active Fa0/6, Fa0/7, Fa0/8, Fa0/9
Fa0/10
30 Finance active Fa0/11, Fa0/12, Fa0/13, Fa0/14
Fa0/15
40 Staff active Fa0/16, Fa0/17, Fa0/18, Fa0/19
Fa0/20, Fa0/21, Fa0/22, Fa0/23
Fa0/24
1002 fddi-default act/unsup
1003 token-ring-default act/unsup
1004 fddinet-default act/unsup
1005 trnet-default act/unsup
VLAN Type SAID MTU Parent RingNo BridgeNo Stp BrdgMode Trans1 Trans2
---- ----- ---------- ----- ------ ------ -------- ---- -------- ------ ------

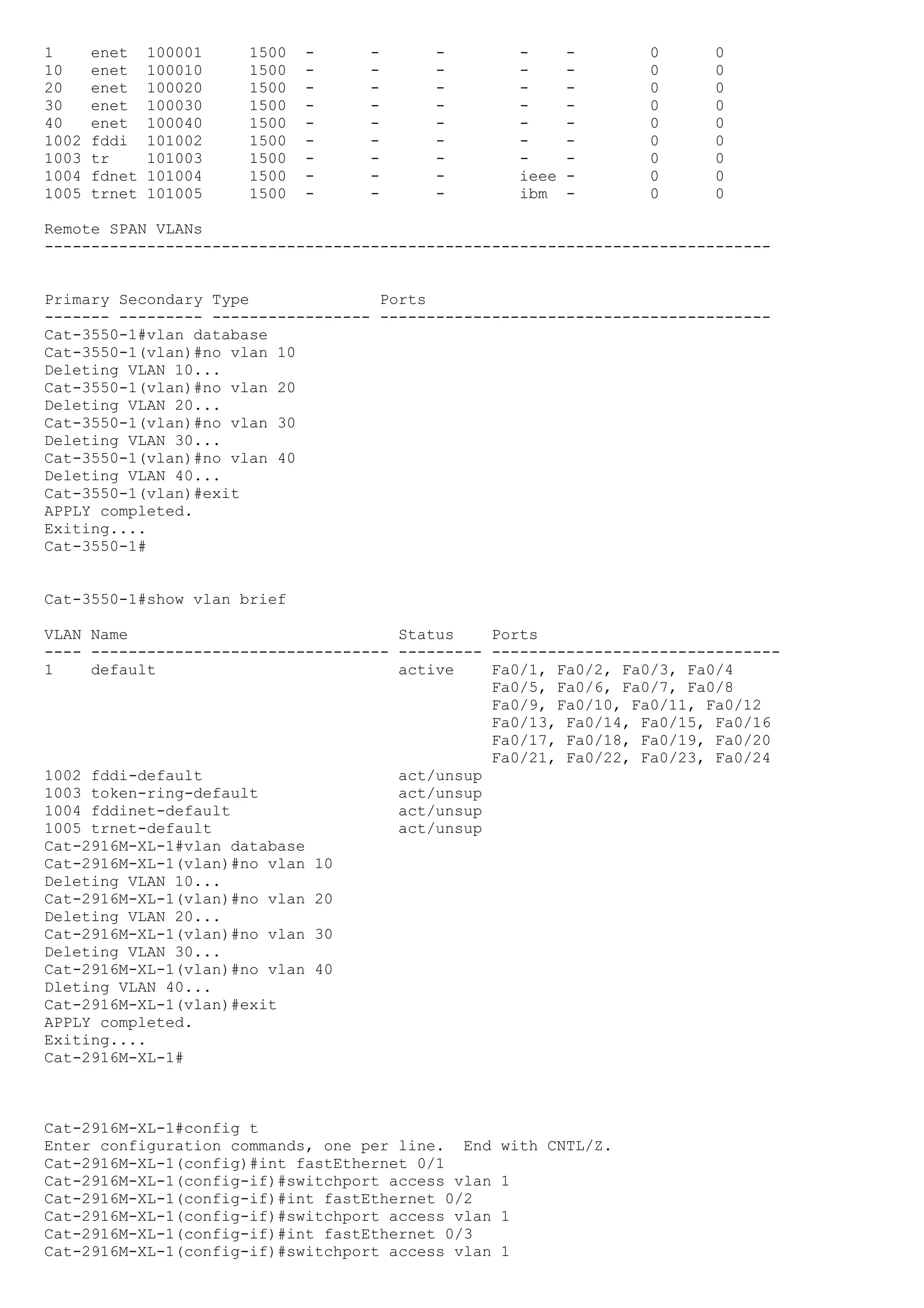

8. 1 enet 100001 1500 - - - - - 0 0
10 enet 100010 1500 - - - - - 0 0
20 enet 100020 1500 - - - - - 0 0
30 enet 100030 1500 - - - - - 0 0
40 enet 100040 1500 - - - - - 0 0
1002 fddi 101002 1500 - - - - - 0 0
1003 tr 101003 1500 - - - - - 0 0
1004 fdnet 101004 1500 - - - ieee - 0 0
1005 trnet 101005 1500 - - - ibm - 0 0
Remote SPAN VLANs
------------------------------------------------------------------------------
Primary Secondary Type Ports
------- --------- ----------------- ------------------------------------------
Cat-3550-1#vlan database
Cat-3550-1(vlan)#no vlan 10
Deleting VLAN 10...
Cat-3550-1(vlan)#no vlan 20
Deleting VLAN 20...
Cat-3550-1(vlan)#no vlan 30
Deleting VLAN 30...
Cat-3550-1(vlan)#no vlan 40
Deleting VLAN 40...
Cat-3550-1(vlan)#exit
APPLY completed.
Exiting....
Cat-3550-1#
Cat-3550-1#show vlan brief
VLAN Name Status Ports
---- -------------------------------- --------- -------------------------------
1 default active Fa0/1, Fa0/2, Fa0/3, Fa0/4
Fa0/5, Fa0/6, Fa0/7, Fa0/8
Fa0/9, Fa0/10, Fa0/11, Fa0/12
Fa0/13, Fa0/14, Fa0/15, Fa0/16
Fa0/17, Fa0/18, Fa0/19, Fa0/20
Fa0/21, Fa0/22, Fa0/23, Fa0/24
1002 fddi-default act/unsup
1003 token-ring-default act/unsup
1004 fddinet-default act/unsup
1005 trnet-default act/unsup
Cat-2916M-XL-1#vlan database
Cat-2916M-XL-1(vlan)#no vlan 10
Deleting VLAN 10...
Cat-2916M-XL-1(vlan)#no vlan 20
Deleting VLAN 20...
Cat-2916M-XL-1(vlan)#no vlan 30
Deleting VLAN 30...
Cat-2916M-XL-1(vlan)#no vlan 40
Dleting VLAN 40...
Cat-2916M-XL-1(vlan)#exit
APPLY completed.
Exiting....
Cat-2916M-XL-1#
Cat-2916M-XL-1#config t
Enter configuration commands, one per line. End with CNTL/Z.
Cat-2916M-XL-1(config)#int fastEthernet 0/1
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 0/2
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 0/3
Cat-2916M-XL-1(config-if)#switchport access vlan 1

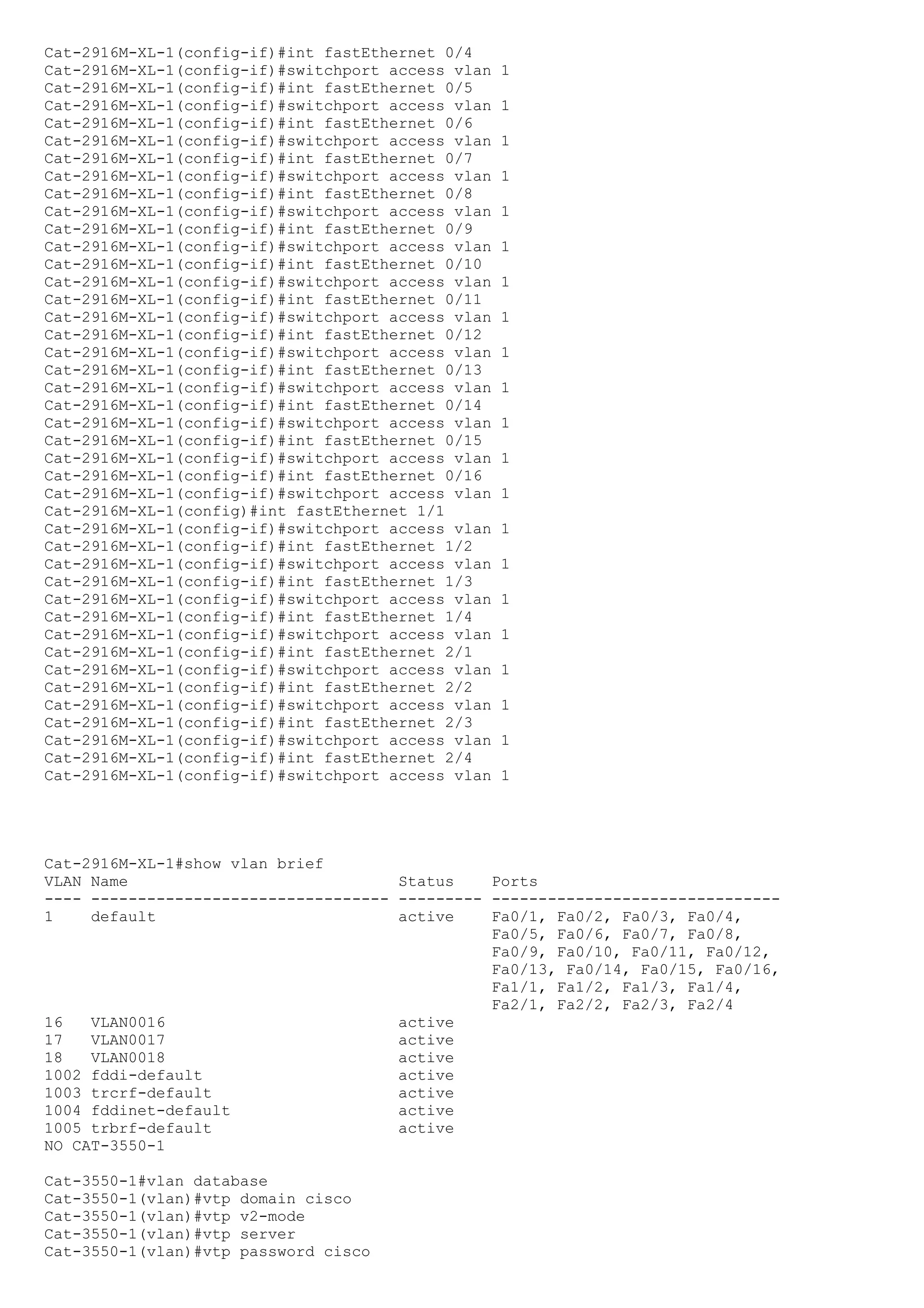

9. Cat-2916M-XL-1(config-if)#int fastEthernet 0/4
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 0/5
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 0/6
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 0/7
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 0/8
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 0/9
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 0/10
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 0/11
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 0/12
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 0/13
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 0/14
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 0/15
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 0/16
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config)#int fastEthernet 1/1
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 1/2
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 1/3
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 1/4
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 2/1
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 2/2
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 2/3
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1(config-if)#int fastEthernet 2/4
Cat-2916M-XL-1(config-if)#switchport access vlan 1
Cat-2916M-XL-1#show vlan brief
VLAN Name Status Ports
---- -------------------------------- --------- -------------------------------
1 default active Fa0/1, Fa0/2, Fa0/3, Fa0/4,
Fa0/5, Fa0/6, Fa0/7, Fa0/8,
Fa0/9, Fa0/10, Fa0/11, Fa0/12,
Fa0/13, Fa0/14, Fa0/15, Fa0/16,
Fa1/1, Fa1/2, Fa1/3, Fa1/4,
Fa2/1, Fa2/2, Fa2/3, Fa2/4
16 VLAN0016 active
17 VLAN0017 active
18 VLAN0018 active
1002 fddi-default active
1003 trcrf-default active
1004 fddinet-default active
1005 trbrf-default active
NO CAT-3550-1
Cat-3550-1#vlan database
Cat-3550-1(vlan)#vtp domain cisco
Cat-3550-1(vlan)#vtp v2-mode
Cat-3550-1(vlan)#vtp server
Cat-3550-1(vlan)#vtp password cisco

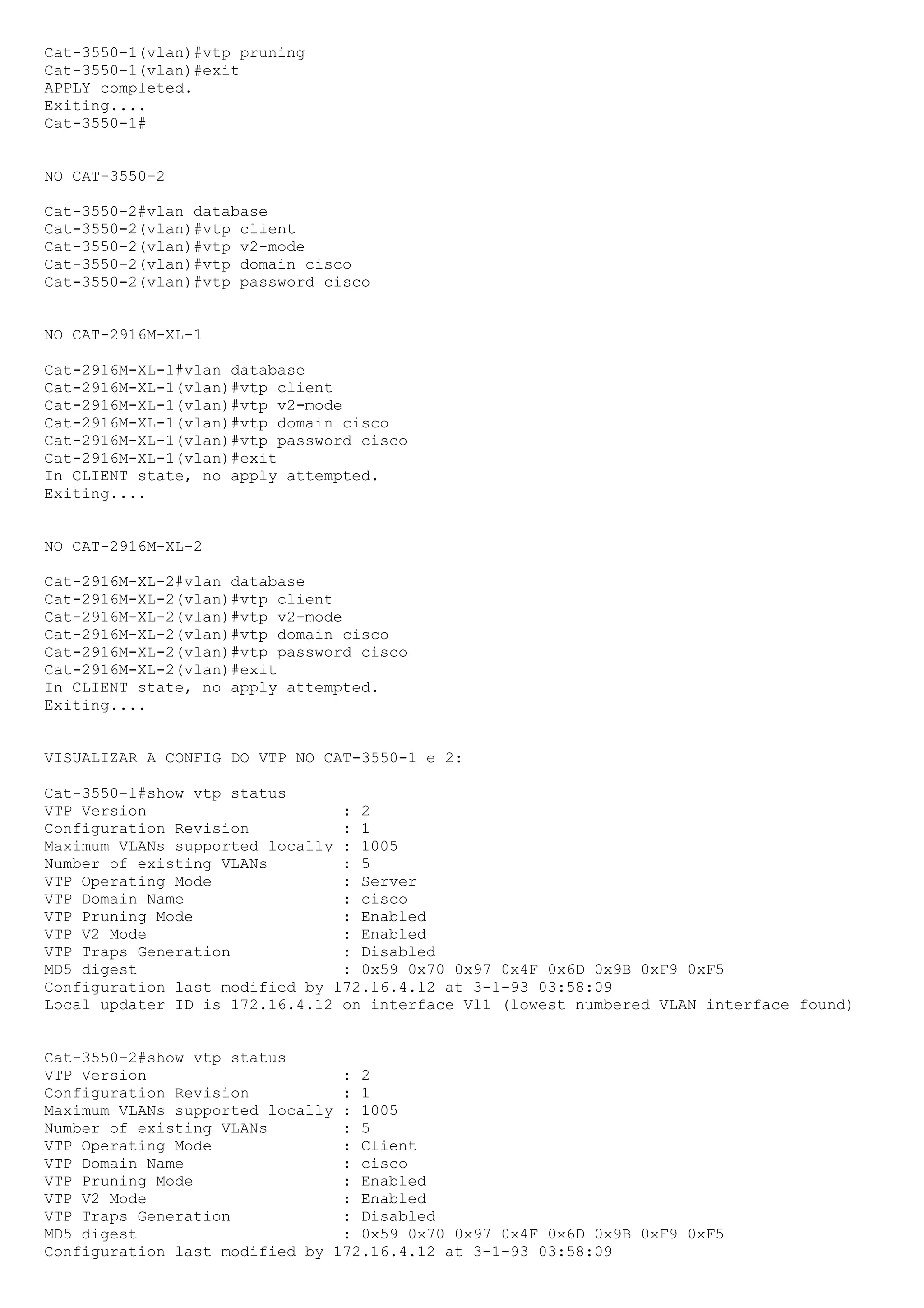

10. Cat-3550-1(vlan)#vtp pruning
Cat-3550-1(vlan)#exit
APPLY completed.
Exiting....
Cat-3550-1#
NO CAT-3550-2
Cat-3550-2#vlan database
Cat-3550-2(vlan)#vtp client
Cat-3550-2(vlan)#vtp v2-mode
Cat-3550-2(vlan)#vtp domain cisco
Cat-3550-2(vlan)#vtp password cisco
NO CAT-2916M-XL-1
Cat-2916M-XL-1#vlan database
Cat-2916M-XL-1(vlan)#vtp client
Cat-2916M-XL-1(vlan)#vtp v2-mode
Cat-2916M-XL-1(vlan)#vtp domain cisco
Cat-2916M-XL-1(vlan)#vtp password cisco
Cat-2916M-XL-1(vlan)#exit
In CLIENT state, no apply attempted.
Exiting....
NO CAT-2916M-XL-2
Cat-2916M-XL-2#vlan database
Cat-2916M-XL-2(vlan)#vtp client
Cat-2916M-XL-2(vlan)#vtp v2-mode
Cat-2916M-XL-2(vlan)#vtp domain cisco
Cat-2916M-XL-2(vlan)#vtp password cisco
Cat-2916M-XL-2(vlan)#exit
In CLIENT state, no apply attempted.
Exiting....
VISUALIZAR A CONFIG DO VTP NO CAT-3550-1 e 2:
Cat-3550-1#show vtp status
VTP Version : 2
Configuration Revision : 1
Maximum VLANs supported locally : 1005
Number of existing VLANs : 5
VTP Operating Mode : Server
VTP Domain Name : cisco
VTP Pruning Mode : Enabled
VTP V2 Mode : Enabled
VTP Traps Generation : Disabled
MD5 digest : 0x59 0x70 0x97 0x4F 0x6D 0x9B 0xF9 0xF5
Configuration last modified by 172.16.4.12 at 3-1-93 03:58:09
Local updater ID is 172.16.4.12 on interface Vl1 (lowest numbered VLAN interface found)
Cat-3550-2#show vtp status
VTP Version : 2
Configuration Revision : 1
Maximum VLANs supported locally : 1005
Number of existing VLANs : 5
VTP Operating Mode : Client
VTP Domain Name : cisco
VTP Pruning Mode : Enabled
VTP V2 Mode : Enabled
VTP Traps Generation : Disabled
MD5 digest : 0x59 0x70 0x97 0x4F 0x6D 0x9B 0xF9 0xF5
Configuration last modified by 172.16.4.12 at 3-1-93 03:58:09

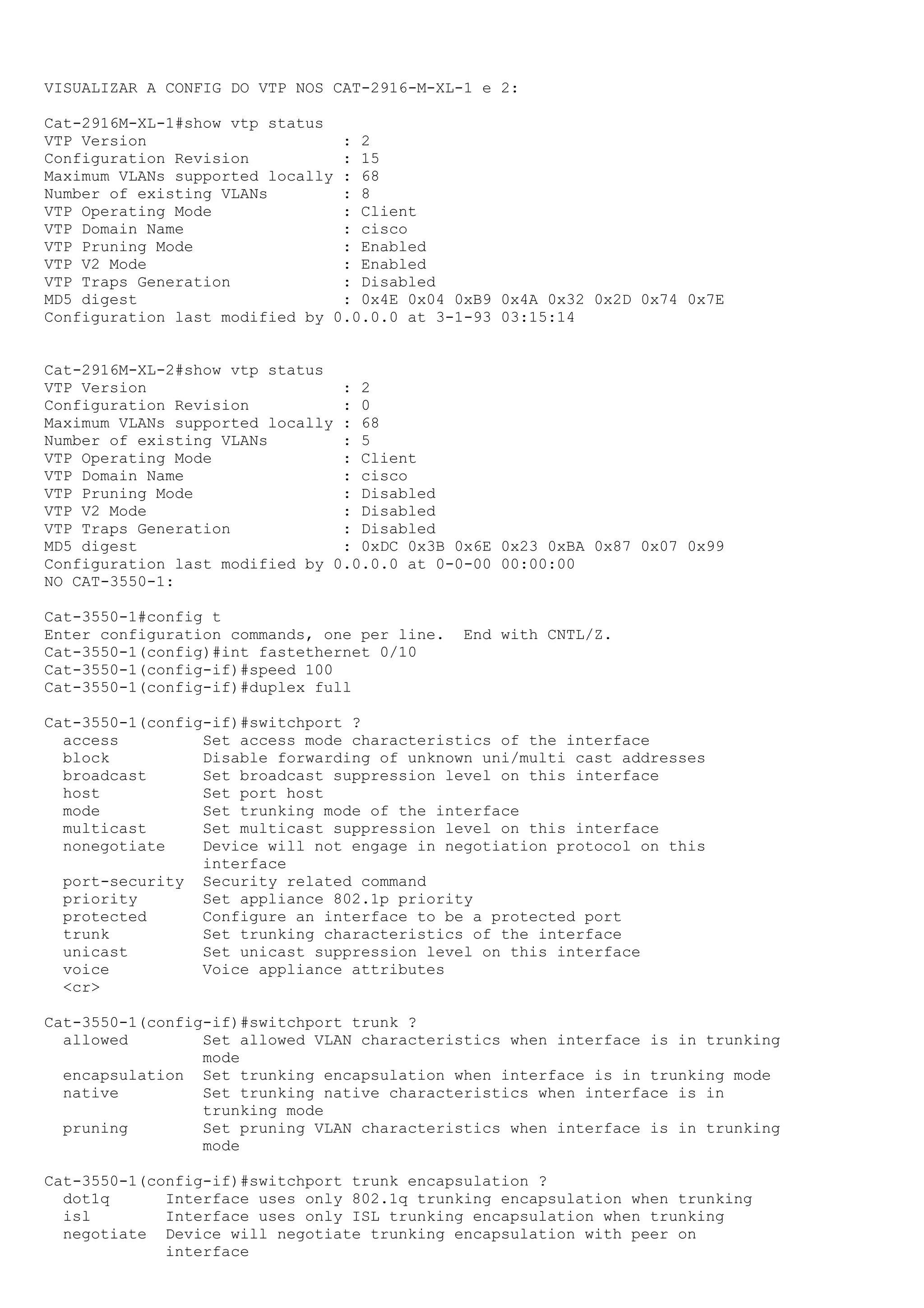

11. VISUALIZAR A CONFIG DO VTP NOS CAT-2916-M-XL-1 e 2:
Cat-2916M-XL-1#show vtp status
VTP Version : 2
Configuration Revision : 15
Maximum VLANs supported locally : 68
Number of existing VLANs : 8
VTP Operating Mode : Client
VTP Domain Name : cisco
VTP Pruning Mode : Enabled
VTP V2 Mode : Enabled
VTP Traps Generation : Disabled
MD5 digest : 0x4E 0x04 0xB9 0x4A 0x32 0x2D 0x74 0x7E
Configuration last modified by 0.0.0.0 at 3-1-93 03:15:14
Cat-2916M-XL-2#show vtp status
VTP Version : 2
Configuration Revision : 0
Maximum VLANs supported locally : 68
Number of existing VLANs : 5
VTP Operating Mode : Client
VTP Domain Name : cisco
VTP Pruning Mode : Disabled
VTP V2 Mode : Disabled
VTP Traps Generation : Disabled
MD5 digest : 0xDC 0x3B 0x6E 0x23 0xBA 0x87 0x07 0x99
Configuration last modified by 0.0.0.0 at 0-0-00 00:00:00
NO CAT-3550-1:
Cat-3550-1#config t
Enter configuration commands, one per line. End with CNTL/Z.
Cat-3550-1(config)#int fastethernet 0/10
Cat-3550-1(config-if)#speed 100
Cat-3550-1(config-if)#duplex full
Cat-3550-1(config-if)#switchport ?
access Set access mode characteristics of the interface
block Disable forwarding of unknown uni/multi cast addresses
broadcast Set broadcast suppression level on this interface
host Set port host
mode Set trunking mode of the interface
multicast Set multicast suppression level on this interface
nonegotiate Device will not engage in negotiation protocol on this
interface
port-security Security related command
priority Set appliance 802.1p priority
protected Configure an interface to be a protected port
trunk Set trunking characteristics of the interface
unicast Set unicast suppression level on this interface
voice Voice appliance attributes
<cr>
Cat-3550-1(config-if)#switchport trunk ?
allowed Set allowed VLAN characteristics when interface is in trunking
mode
encapsulation Set trunking encapsulation when interface is in trunking mode
native Set trunking native characteristics when interface is in
trunking mode
pruning Set pruning VLAN characteristics when interface is in trunking
mode
Cat-3550-1(config-if)#switchport trunk encapsulation ?
dot1q Interface uses only 802.1q trunking encapsulation when trunking
isl Interface uses only ISL trunking encapsulation when trunking
negotiate Device will negotiate trunking encapsulation with peer on
interface

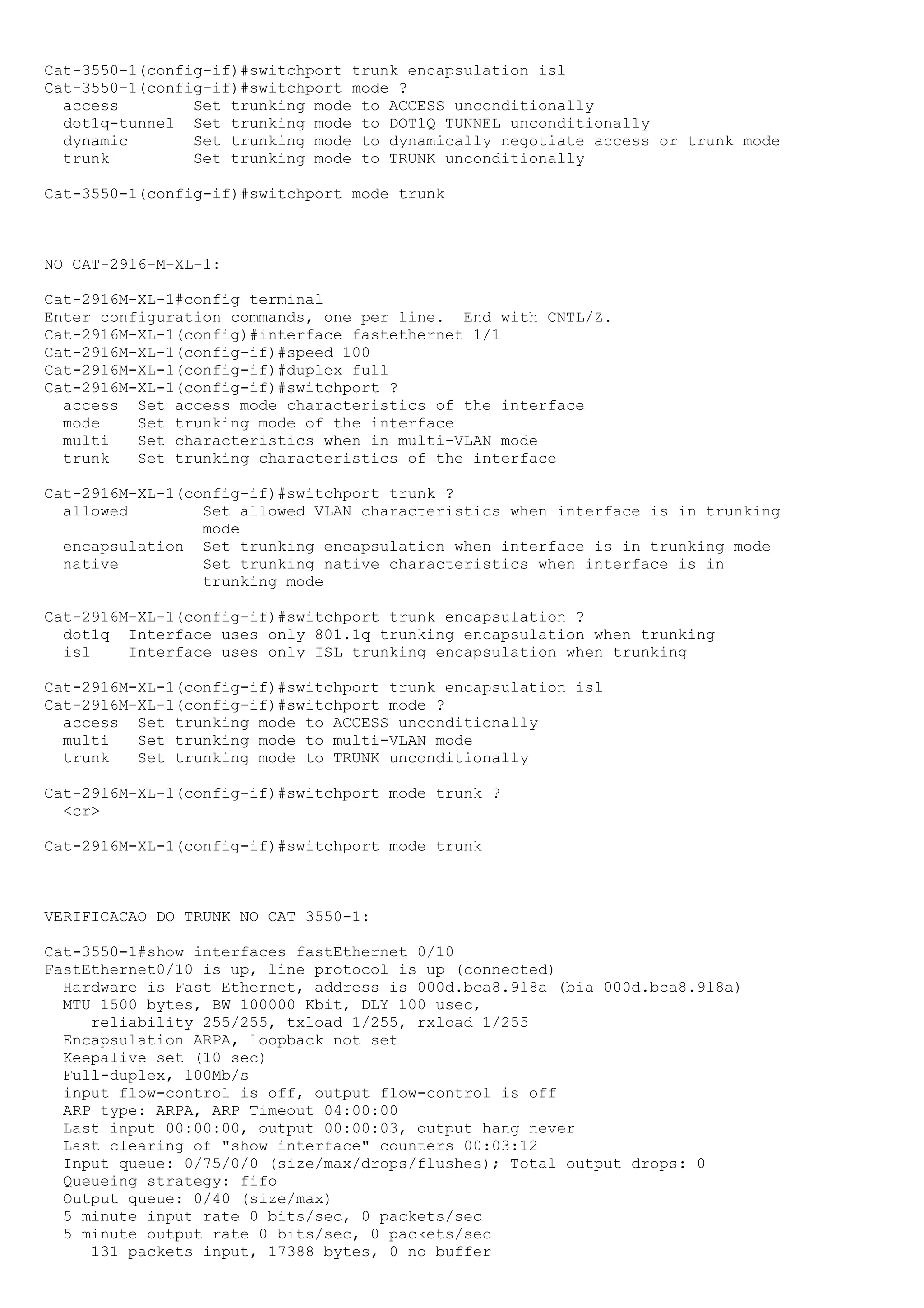

12. Cat-3550-1(config-if)#switchport trunk encapsulation isl
Cat-3550-1(config-if)#switchport mode ?
access Set trunking mode to ACCESS unconditionally
dot1q-tunnel Set trunking mode to DOT1Q TUNNEL unconditionally
dynamic Set trunking mode to dynamically negotiate access or trunk mode
trunk Set trunking mode to TRUNK unconditionally
Cat-3550-1(config-if)#switchport mode trunk
NO CAT-2916-M-XL-1:
Cat-2916M-XL-1#config terminal
Enter configuration commands, one per line. End with CNTL/Z.
Cat-2916M-XL-1(config)#interface fastethernet 1/1
Cat-2916M-XL-1(config-if)#speed 100
Cat-2916M-XL-1(config-if)#duplex full
Cat-2916M-XL-1(config-if)#switchport ?
access Set access mode characteristics of the interface
mode Set trunking mode of the interface
multi Set characteristics when in multi-VLAN mode
trunk Set trunking characteristics of the interface
Cat-2916M-XL-1(config-if)#switchport trunk ?
allowed Set allowed VLAN characteristics when interface is in trunking
mode
encapsulation Set trunking encapsulation when interface is in trunking mode
native Set trunking native characteristics when interface is in
trunking mode
Cat-2916M-XL-1(config-if)#switchport trunk encapsulation ?
dot1q Interface uses only 801.1q trunking encapsulation when trunking
isl Interface uses only ISL trunking encapsulation when trunking
Cat-2916M-XL-1(config-if)#switchport trunk encapsulation isl
Cat-2916M-XL-1(config-if)#switchport mode ?
access Set trunking mode to ACCESS unconditionally
multi Set trunking mode to multi-VLAN mode
trunk Set trunking mode to TRUNK unconditionally
Cat-2916M-XL-1(config-if)#switchport mode trunk ?
<cr>
Cat-2916M-XL-1(config-if)#switchport mode trunk
VERIFICACAO DO TRUNK NO CAT 3550-1:
Cat-3550-1#show interfaces fastEthernet 0/10
FastEthernet0/10 is up, line protocol is up (connected)
Hardware is Fast Ethernet, address is 000d.bca8.918a (bia 000d.bca8.918a)
MTU 1500 bytes, BW 100000 Kbit, DLY 100 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation ARPA, loopback not set
Keepalive set (10 sec)
Full-duplex, 100Mb/s
input flow-control is off, output flow-control is off
ARP type: ARPA, ARP Timeout 04:00:00
Last input 00:00:00, output 00:00:03, output hang never
Last clearing of "show interface" counters 00:03:12
Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0
Queueing strategy: fifo
Output queue: 0/40 (size/max)
5 minute input rate 0 bits/sec, 0 packets/sec
5 minute output rate 0 bits/sec, 0 packets/sec
131 packets input, 17388 bytes, 0 no buffer

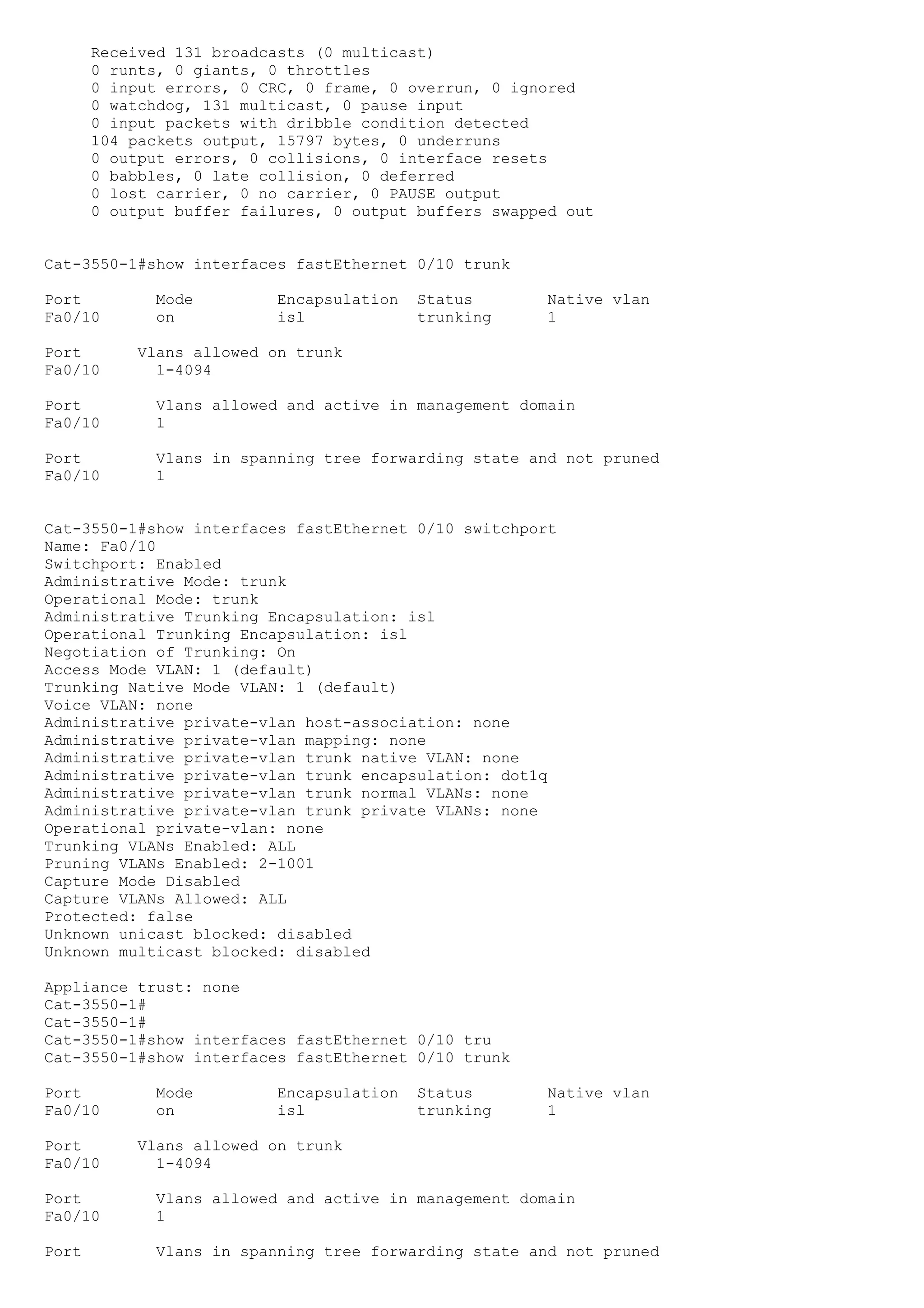

13. Received 131 broadcasts (0 multicast)
0 runts, 0 giants, 0 throttles
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored
0 watchdog, 131 multicast, 0 pause input
0 input packets with dribble condition detected
104 packets output, 15797 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 babbles, 0 late collision, 0 deferred
0 lost carrier, 0 no carrier, 0 PAUSE output
0 output buffer failures, 0 output buffers swapped out
Cat-3550-1#show interfaces fastEthernet 0/10 trunk
Port Mode Encapsulation Status Native vlan
Fa0/10 on isl trunking 1
Port Vlans allowed on trunk
Fa0/10 1-4094
Port Vlans allowed and active in management domain
Fa0/10 1
Port Vlans in spanning tree forwarding state and not pruned
Fa0/10 1
Cat-3550-1#show interfaces fastEthernet 0/10 switchport
Name: Fa0/10
Switchport: Enabled
Administrative Mode: trunk
Operational Mode: trunk
Administrative Trunking Encapsulation: isl
Operational Trunking Encapsulation: isl
Negotiation of Trunking: On
Access Mode VLAN: 1 (default)
Trunking Native Mode VLAN: 1 (default)
Voice VLAN: none
Administrative private-vlan host-association: none
Administrative private-vlan mapping: none
Administrative private-vlan trunk native VLAN: none
Administrative private-vlan trunk encapsulation: dot1q
Administrative private-vlan trunk normal VLANs: none
Administrative private-vlan trunk private VLANs: none
Operational private-vlan: none
Trunking VLANs Enabled: ALL
Pruning VLANs Enabled: 2-1001
Capture Mode Disabled
Capture VLANs Allowed: ALL
Protected: false
Unknown unicast blocked: disabled
Unknown multicast blocked: disabled
Appliance trust: none
Cat-3550-1#
Cat-3550-1#
Cat-3550-1#show interfaces fastEthernet 0/10 tru
Cat-3550-1#show interfaces fastEthernet 0/10 trunk
Port Mode Encapsulation Status Native vlan
Fa0/10 on isl trunking 1
Port Vlans allowed on trunk
Fa0/10 1-4094
Port Vlans allowed and active in management domain
Fa0/10 1
Port Vlans in spanning tree forwarding state and not pruned

14. Fa0/10 1
VERIFICACAO DO TRUNK NO CAT 2916-1:
Cat-2916M-XL-1#show int fastEthernet 1/1
FastEthernet1/1 is up, line protocol is up
Hardware is Fast Ethernet, address is 0050.50b6.b814 (bia 0050.50b6.b814)
MTU 1500 bytes, BW 100000 Kbit, DLY 100 usec, rely 255/255, load 1/255
Encapsulation ARPA, loopback not set, keepalive not set
Full-duplex, 100Mb/s, 100BaseTX/FX
ARP type: ARPA, ARP Timeout 04:00:00
Last input 00:00:01, output 00:00:01, output hang never
Last clearing of "show interface" counters 00:01:55
Queueing strategy: fifo
Output queue 0/40, 0 drops; input queue 0/75, 0 drops
5 minute input rate 0 bits/sec, 0 packets/sec
5 minute output rate 0 bits/sec, 1 packets/sec
63 packets input, 8554 bytes, 0 no buffer
Received 51 broadcasts, 0 runts, 0 giants, 0 throttles
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 watchdog, 49 multicast
0 input packets with dribble condition detected
159 packets output, 8526 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 babbles, 0 late collision, 0 deferred
0 lost carrier, 0 no carrier
0 output buffer failures, 0 output buffers swapped out
Cat-2916M-XL-1#show int fastEthernet 1/1 switchport
Name: Fa1/1
Switchport: Enabled
Administrative mode: trunk
Operational Mode: trunk
Administrative Trunking Encapsulation: isl
Operational Trunking Encapsulation: isl
Negotiation of Trunking: Disabled
Access Mode VLAN: 0 ((Inactive))
Trunking Native Mode VLAN: 1 (default)
Trunking VLANs Enabled: ALL
Trunking VLANs Active: 1
Pruning VLANs Enabled: NONE
NO CAT-3550-2:
Cat-3550-2#config t
Enter configuration commands, one per line. End with CNTL/Z.
Cat-3550-2(config)#int f0/10
Cat-3550-2(config-if)#speed 100
Cat-3550-2(config-if)#duplex full
Cat-3550-2(config-if)#switchport trunk encapsulation isl
Cat-3550-2(config-if)#switchport mode trunk
Cat-3550-2(config-if)#end
NO CAT-2916M-XL-2:
Cat-2916M-XL-2#config t
Enter configuration commands, one per line. End with CNTL/Z.
Cat-2916M-XL-2(config)#int f1/1
Cat-2916M-XL-2(config-if)#speed 100
Cat-2916M-XL-2(config-if)#duplex full
Cat-2916M-XL-2(config-if)#switchport trunk encapsulation isl
Cat-2916M-XL-2(config-if)#switchport mode trunk
Cat-2916M-XL-2(config-if)#end
VERIFICANDO A CONFIGURACAO NO 3550-2:
Cat-3550-2#show int fastEthernet 0/10 trunk

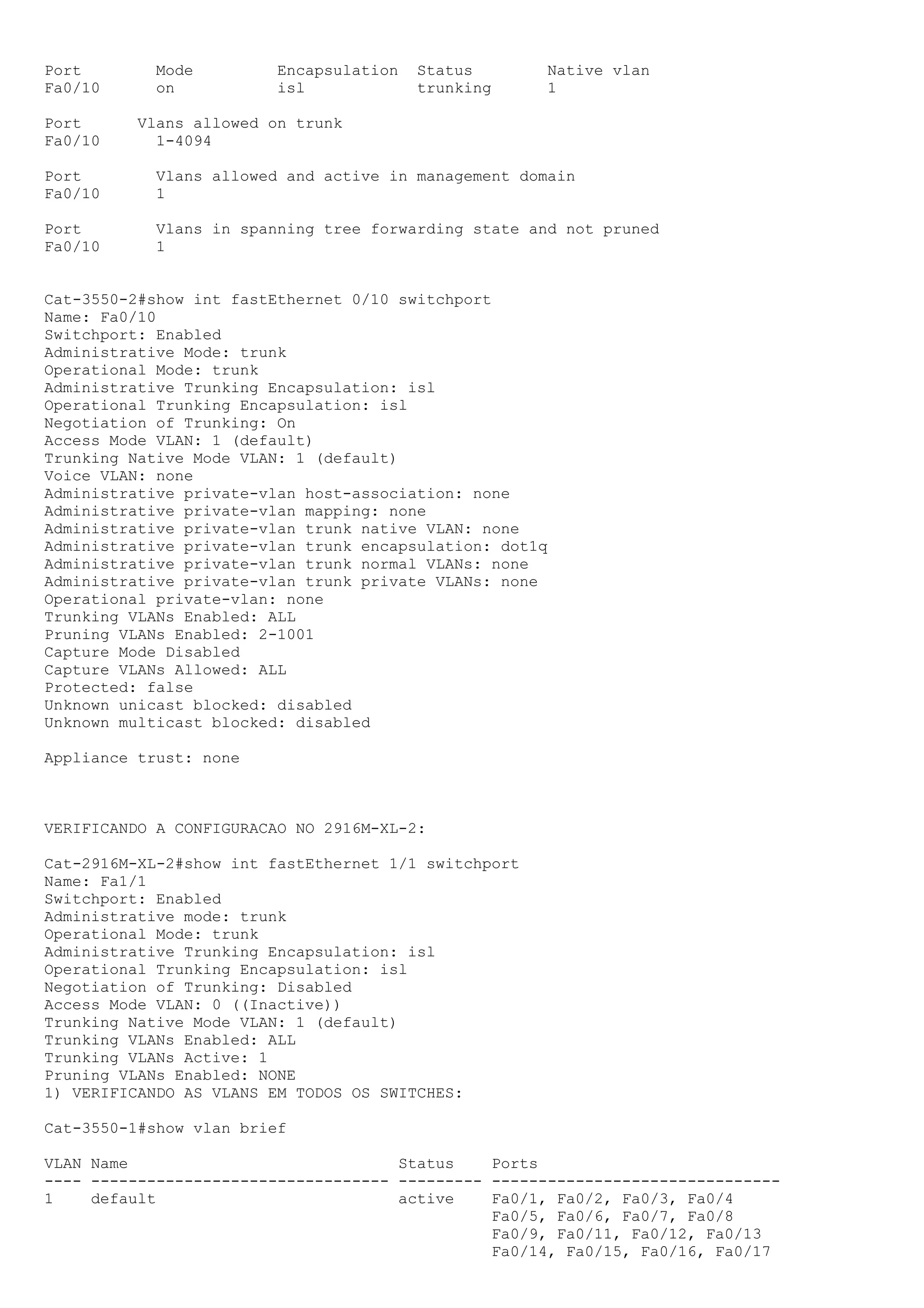

15. Port Mode Encapsulation Status Native vlan
Fa0/10 on isl trunking 1
Port Vlans allowed on trunk
Fa0/10 1-4094
Port Vlans allowed and active in management domain
Fa0/10 1
Port Vlans in spanning tree forwarding state and not pruned
Fa0/10 1
Cat-3550-2#show int fastEthernet 0/10 switchport
Name: Fa0/10
Switchport: Enabled
Administrative Mode: trunk
Operational Mode: trunk
Administrative Trunking Encapsulation: isl
Operational Trunking Encapsulation: isl
Negotiation of Trunking: On
Access Mode VLAN: 1 (default)
Trunking Native Mode VLAN: 1 (default)
Voice VLAN: none
Administrative private-vlan host-association: none
Administrative private-vlan mapping: none
Administrative private-vlan trunk native VLAN: none
Administrative private-vlan trunk encapsulation: dot1q
Administrative private-vlan trunk normal VLANs: none
Administrative private-vlan trunk private VLANs: none
Operational private-vlan: none
Trunking VLANs Enabled: ALL
Pruning VLANs Enabled: 2-1001
Capture Mode Disabled
Capture VLANs Allowed: ALL
Protected: false
Unknown unicast blocked: disabled
Unknown multicast blocked: disabled
Appliance trust: none
VERIFICANDO A CONFIGURACAO NO 2916M-XL-2:
Cat-2916M-XL-2#show int fastEthernet 1/1 switchport
Name: Fa1/1
Switchport: Enabled
Administrative mode: trunk
Operational Mode: trunk
Administrative Trunking Encapsulation: isl
Operational Trunking Encapsulation: isl
Negotiation of Trunking: Disabled
Access Mode VLAN: 0 ((Inactive))
Trunking Native Mode VLAN: 1 (default)
Trunking VLANs Enabled: ALL
Trunking VLANs Active: 1
Pruning VLANs Enabled: NONE
1) VERIFICANDO AS VLANS EM TODOS OS SWITCHES:
Cat-3550-1#show vlan brief
VLAN Name Status Ports
---- -------------------------------- --------- -------------------------------
1 default active Fa0/1, Fa0/2, Fa0/3, Fa0/4
Fa0/5, Fa0/6, Fa0/7, Fa0/8
Fa0/9, Fa0/11, Fa0/12, Fa0/13
Fa0/14, Fa0/15, Fa0/16, Fa0/17

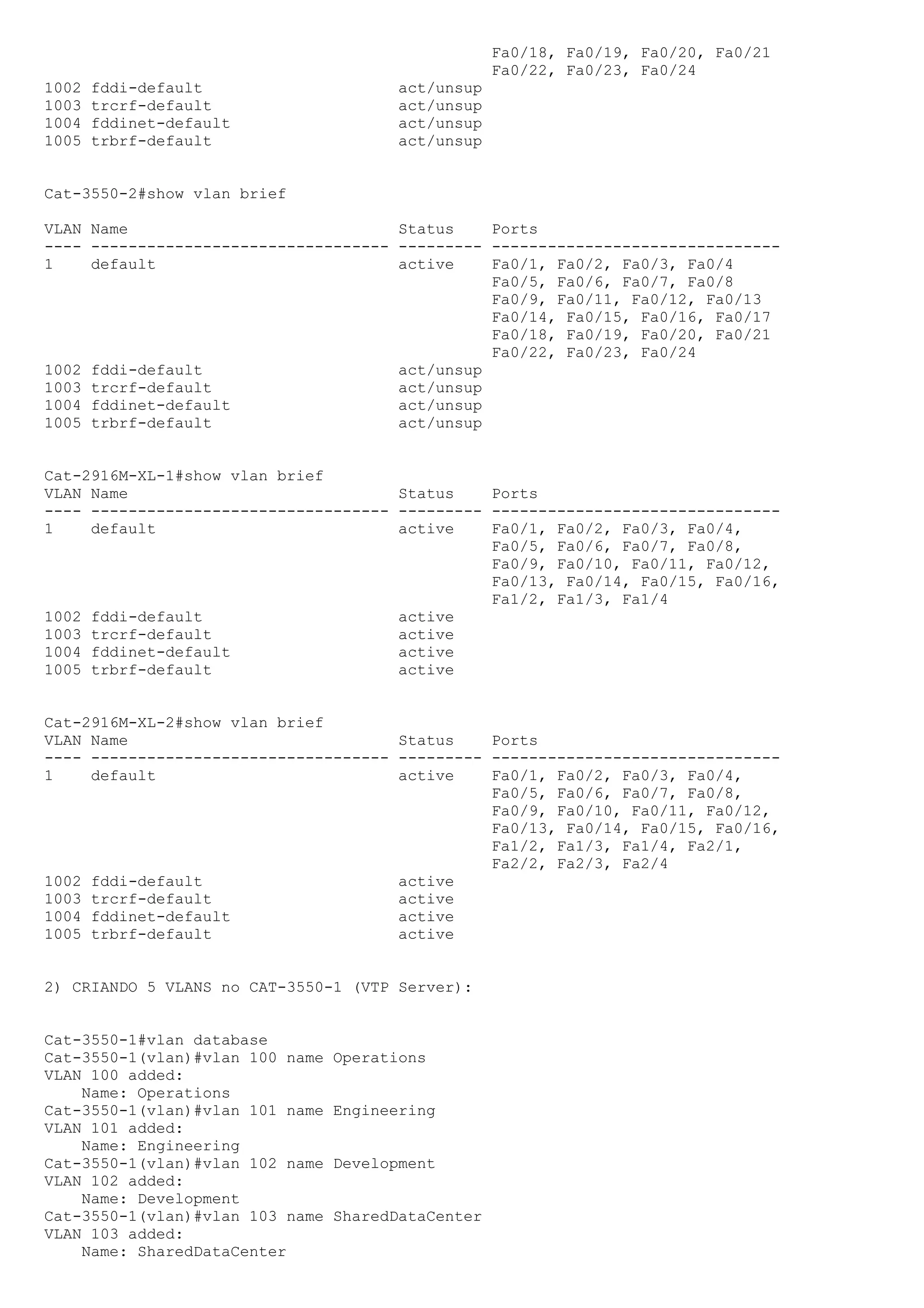

16. Fa0/18, Fa0/19, Fa0/20, Fa0/21
Fa0/22, Fa0/23, Fa0/24
1002 fddi-default act/unsup
1003 trcrf-default act/unsup
1004 fddinet-default act/unsup
1005 trbrf-default act/unsup
Cat-3550-2#show vlan brief
VLAN Name Status Ports
---- -------------------------------- --------- -------------------------------
1 default active Fa0/1, Fa0/2, Fa0/3, Fa0/4
Fa0/5, Fa0/6, Fa0/7, Fa0/8
Fa0/9, Fa0/11, Fa0/12, Fa0/13
Fa0/14, Fa0/15, Fa0/16, Fa0/17
Fa0/18, Fa0/19, Fa0/20, Fa0/21
Fa0/22, Fa0/23, Fa0/24
1002 fddi-default act/unsup
1003 trcrf-default act/unsup
1004 fddinet-default act/unsup
1005 trbrf-default act/unsup
Cat-2916M-XL-1#show vlan brief
VLAN Name Status Ports
---- -------------------------------- --------- -------------------------------
1 default active Fa0/1, Fa0/2, Fa0/3, Fa0/4,
Fa0/5, Fa0/6, Fa0/7, Fa0/8,
Fa0/9, Fa0/10, Fa0/11, Fa0/12,
Fa0/13, Fa0/14, Fa0/15, Fa0/16,
Fa1/2, Fa1/3, Fa1/4
1002 fddi-default active
1003 trcrf-default active
1004 fddinet-default active
1005 trbrf-default active
Cat-2916M-XL-2#show vlan brief
VLAN Name Status Ports
---- -------------------------------- --------- -------------------------------
1 default active Fa0/1, Fa0/2, Fa0/3, Fa0/4,
Fa0/5, Fa0/6, Fa0/7, Fa0/8,
Fa0/9, Fa0/10, Fa0/11, Fa0/12,
Fa0/13, Fa0/14, Fa0/15, Fa0/16,
Fa1/2, Fa1/3, Fa1/4, Fa2/1,
Fa2/2, Fa2/3, Fa2/4
1002 fddi-default active
1003 trcrf-default active
1004 fddinet-default active
1005 trbrf-default active

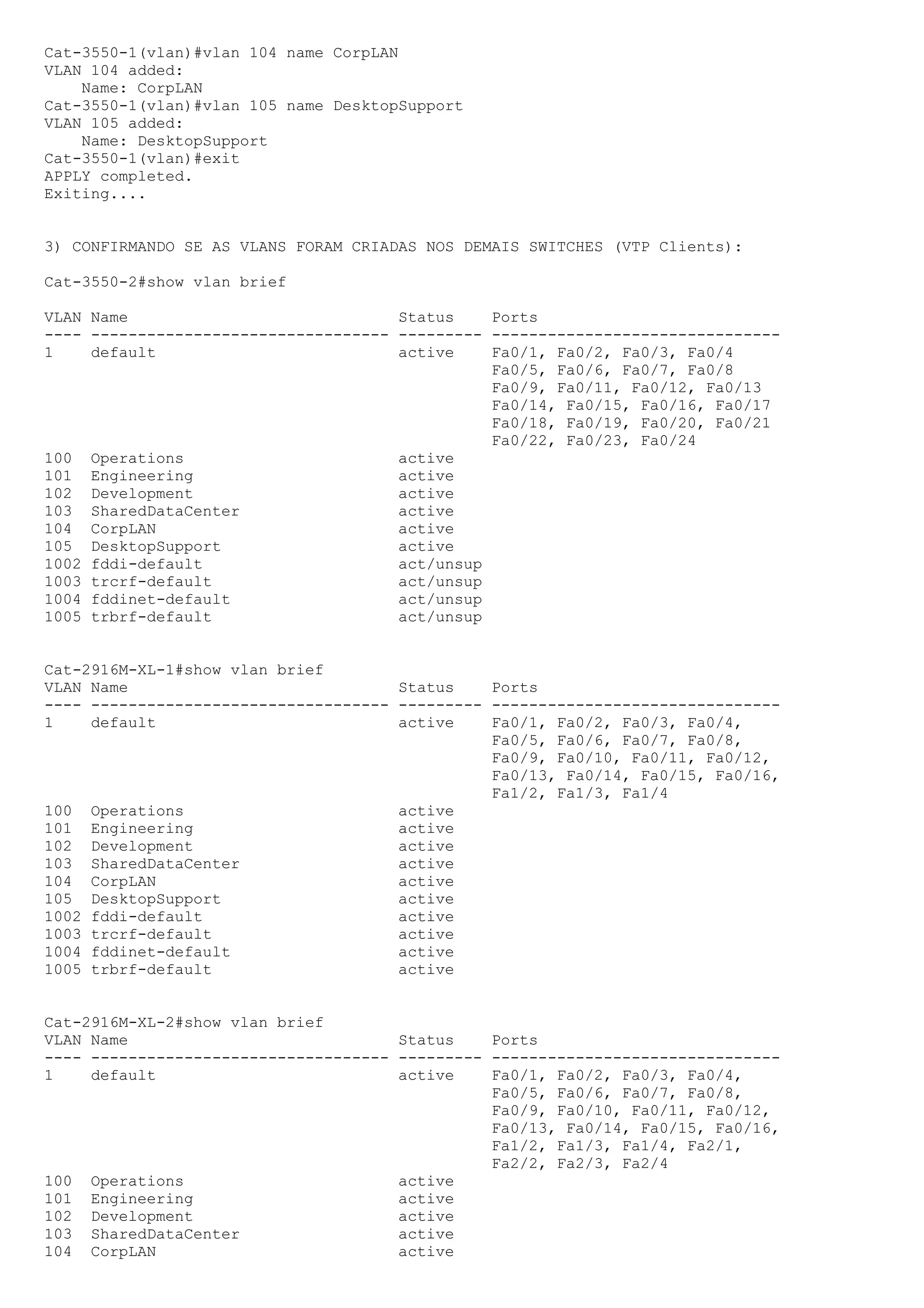

2) CRIANDO 5 VLANS no CAT-3550-1 (VTP Server):
Cat-3550-1#vlan database
Cat-3550-1(vlan)#vlan 100 name Operations
VLAN 100 added:
Name: Operations
Cat-3550-1(vlan)#vlan 101 name Engineering
VLAN 101 added:
Name: Engineering
Cat-3550-1(vlan)#vlan 102 name Development
VLAN 102 added:
Name: Development
Cat-3550-1(vlan)#vlan 103 name SharedDataCenter
VLAN 103 added:
Name: SharedDataCenter

17. Cat-3550-1(vlan)#vlan 104 name CorpLAN
VLAN 104 added:
Name: CorpLAN
Cat-3550-1(vlan)#vlan 105 name DesktopSupport
VLAN 105 added:
Name: DesktopSupport
Cat-3550-1(vlan)#exit
APPLY completed.
Exiting....
3) CONFIRMANDO SE AS VLANS FORAM CRIADAS NOS DEMAIS SWITCHES (VTP Clients):
Cat-3550-2#show vlan brief
VLAN Name Status Ports
---- -------------------------------- --------- -------------------------------
1 default active Fa0/1, Fa0/2, Fa0/3, Fa0/4
Fa0/5, Fa0/6, Fa0/7, Fa0/8
Fa0/9, Fa0/11, Fa0/12, Fa0/13
Fa0/14, Fa0/15, Fa0/16, Fa0/17
Fa0/18, Fa0/19, Fa0/20, Fa0/21
Fa0/22, Fa0/23, Fa0/24
100 Operations active
101 Engineering active
102 Development active
103 SharedDataCenter active
104 CorpLAN active
105 DesktopSupport active
1002 fddi-default act/unsup
1003 trcrf-default act/unsup
1004 fddinet-default act/unsup
1005 trbrf-default act/unsup
Cat-2916M-XL-1#show vlan brief
VLAN Name Status Ports
---- -------------------------------- --------- -------------------------------
1 default active Fa0/1, Fa0/2, Fa0/3, Fa0/4,
Fa0/5, Fa0/6, Fa0/7, Fa0/8,
Fa0/9, Fa0/10, Fa0/11, Fa0/12,
Fa0/13, Fa0/14, Fa0/15, Fa0/16,
Fa1/2, Fa1/3, Fa1/4
100 Operations active
101 Engineering active
102 Development active
103 SharedDataCenter active
104 CorpLAN active
105 DesktopSupport active
1002 fddi-default active
1003 trcrf-default active
1004 fddinet-default active
1005 trbrf-default active
Cat-2916M-XL-2#show vlan brief
VLAN Name Status Ports
---- -------------------------------- --------- -------------------------------
1 default active Fa0/1, Fa0/2, Fa0/3, Fa0/4,
Fa0/5, Fa0/6, Fa0/7, Fa0/8,
Fa0/9, Fa0/10, Fa0/11, Fa0/12,
Fa0/13, Fa0/14, Fa0/15, Fa0/16,
Fa1/2, Fa1/3, Fa1/4, Fa2/1,
Fa2/2, Fa2/3, Fa2/4
100 Operations active
101 Engineering active
102 Development active
103 SharedDataCenter active
104 CorpLAN active

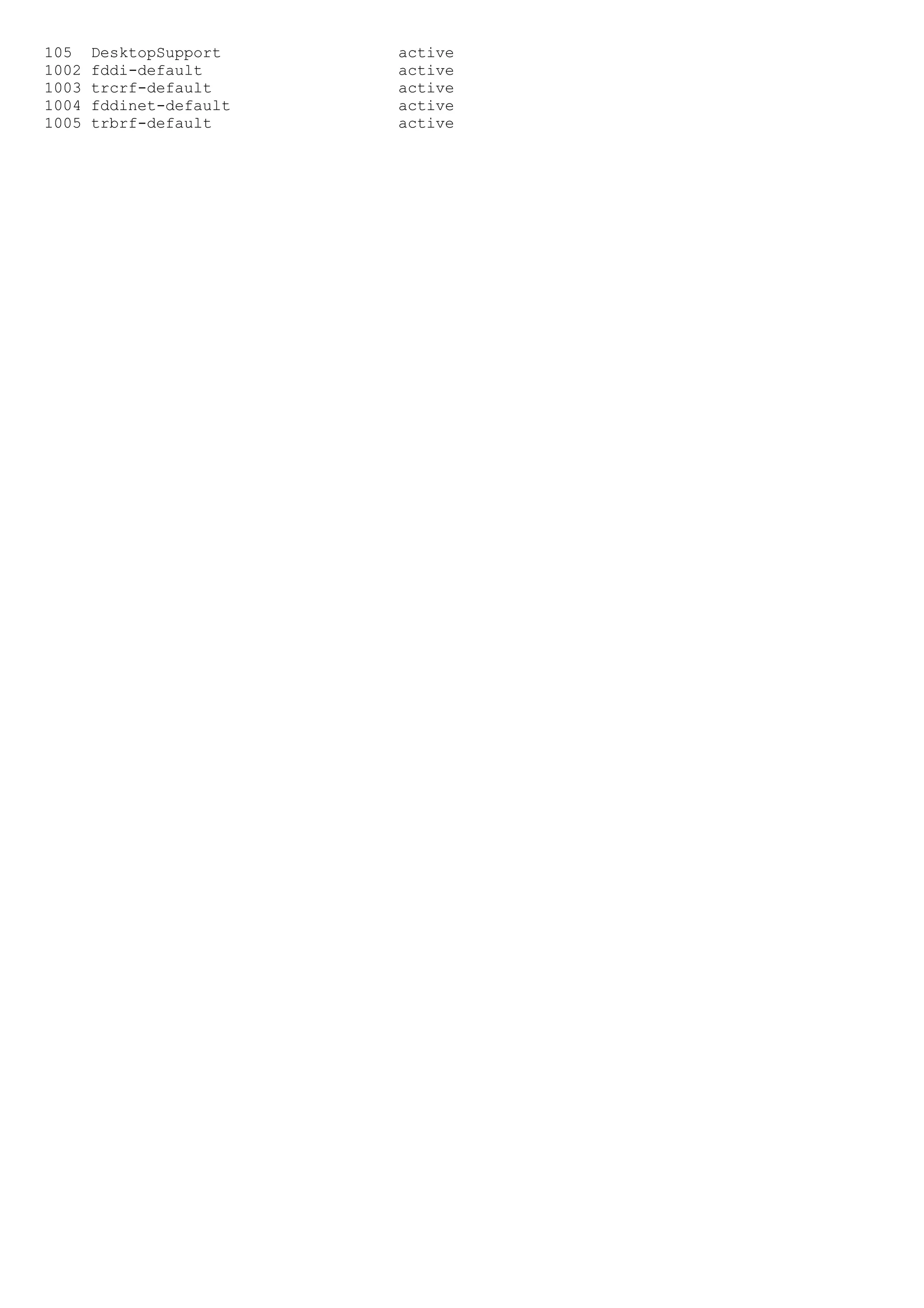

18. 105 DesktopSupport active
1002 fddi-default active
1003 trcrf-default active
1004 fddinet-default active
1005 trbrf-default active
