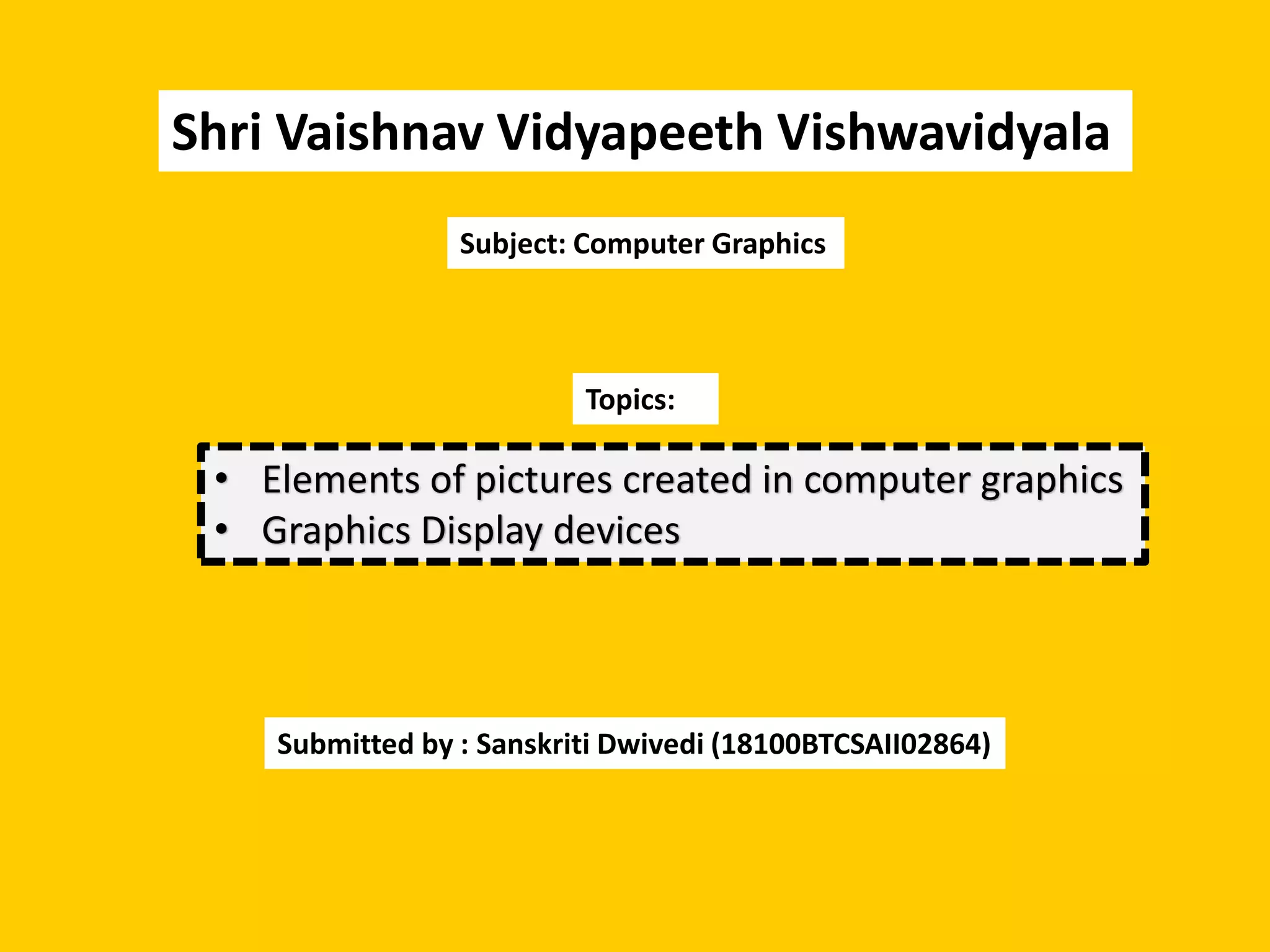

1. Submitted by : Sanskriti Dwivedi (18100BTCSAII02864)
Shri Vaishnav Vidyapeeth Vishwavidyala
Subject: Computer Graphics
Topics:
• Elements of pictures created in computer graphics
• Graphics Display devices

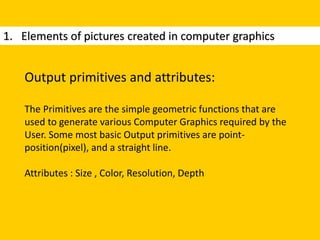

2. 1. Elements of pictures created in computer graphics
Output primitives and attributes:
The Primitives are the simple geometric functions that are
used to generate various Computer Graphics required by the
User. Some most basic Output primitives are point-
position(pixel), and a straight line.
Attributes : Size , Color, Resolution, Depth

3. 1. Elements of pictures created in computer graphics
Output primitives and attributes:
• Polylines
• Text
• Filled Images
• Raster Images

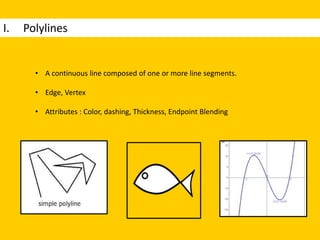

4. I. Polylines
• A continuous line composed of one or more line segments.
• Edge, Vertex
• Attributes : Color, dashing, Thickness, Endpoint Blending

5. II. Text
• A continuous line composed of one or more line segments.
• Display Modes: Text mode, Graphics mode.
• Attributes : Font color, Spacing, orientation,size.
• drawstring(x,y,string)

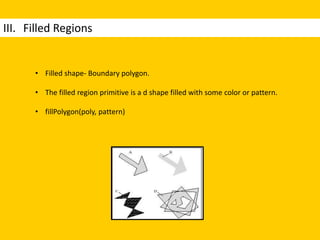

6. III. Filled Regions
• Filled shape- Boundary polygon.
• The filled region primitive is a d shape filled with some color or pattern.
• fillPolygon(poly, pattern)

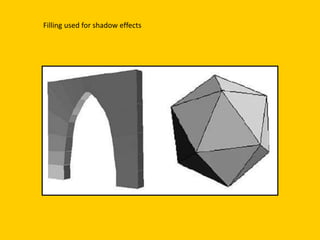

7. Filling used for shadow effects

8. IV. Raster Image
• Also called bitmap graphics.
• Hand designed , computed , scanned images.

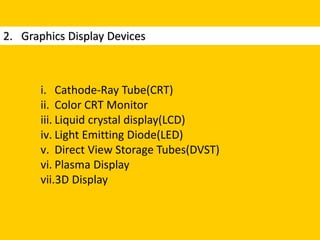

9. 2. Graphics Display Devices
i. Cathode-Ray Tube(CRT)
ii. Color CRT Monitor
iii. Liquid crystal display(LCD)
iv. Light Emitting Diode(LED)
v. Direct View Storage Tubes(DVST)
vi. Plasma Display
vii.3D Display

10. i. Cathode-ray Tube (CRT)
• CRT stands for Cathode ray tube
• Cathode ray tube is a particular
type of vacuum tube that displays
images when an electron beam
collides on the radiant surface.

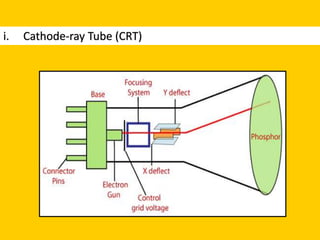

11. i. Cathode-ray Tube (CRT)

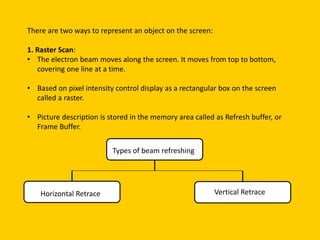

12. There are two ways to represent an object on the screen:
1. Raster Scan:
• The electron beam moves along the screen. It moves from top to bottom,
covering one line at a time.
• Based on pixel intensity control display as a rectangular box on the screen
called a raster.
• Picture description is stored in the memory area called as Refresh buffer, or
Frame Buffer.
Types of beam refreshing
Vertical Retrace
Horizontal Retrace

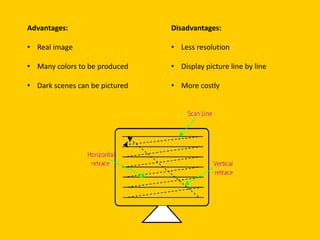

13. Advantages:
• Real image
• Many colors to be produced
• Dark scenes can be pictured
Disadvantages:
• Less resolution
• Display picture line by line
• More costly

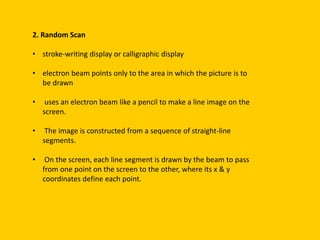

14. 2. Random Scan
• stroke-writing display or calligraphic display
• electron beam points only to the area in which the picture is to
be drawn
• uses an electron beam like a pencil to make a line image on the
screen.
• The image is constructed from a sequence of straight-line
segments.
• On the screen, each line segment is drawn by the beam to pass
from one point on the screen to the other, where its x & y
coordinates define each point.

15. Advantages:
• High Resolution
• Draw smooth line Drawing
Disadvantages:
• It does only the wireframe.
• It creates complex scenes due
to flicker.

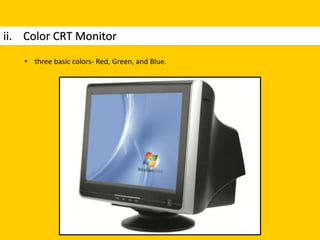

16. ii. Color CRT Monitor
• three basic colors- Red, Green, and Blue.

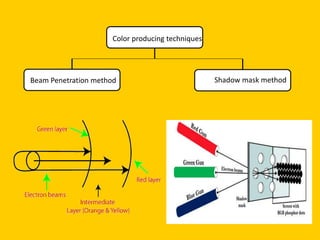

17. Color producing techniques
Shadow mask method
Beam Penetration method

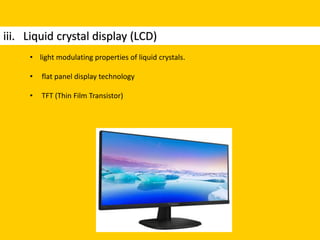

18. iii. Liquid crystal display (LCD)
• light modulating properties of liquid crystals.
• flat panel display technology
• TFT (Thin Film Transistor)

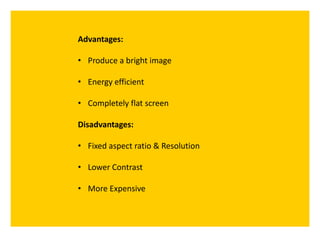

19. Advantages:
• Produce a bright image
• Energy efficient
• Completely flat screen
Disadvantages:
• Fixed aspect ratio & Resolution
• Lower Contrast
• More Expensive

20. iv. Light Emitting Diode (LED)
• LED is a device which emits when current passes through it.
• TV, smartphones, motor vehicles, traffic light, etc.

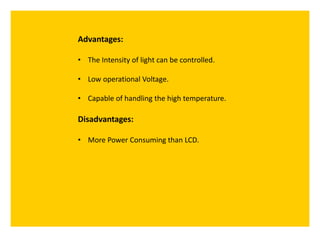

21. Advantages:
• The Intensity of light can be controlled.
• Low operational Voltage.
• Capable of handling the high temperature.
Disadvantages:
• More Power Consuming than LCD.
