- 1. Computational Analysis ofa Thin Plate David J. Parker April 28, 2008 Faculty Sponsors: Donald Griffin & Connor Ballance

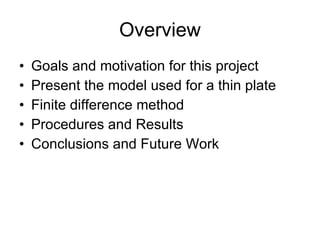

- 2. Overview Goals andmotivation for this project Present the model used for a thin plate Finite difference method Procedures and Results Conclusions and Future Work

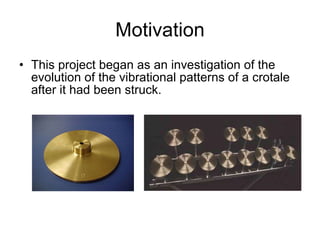

- 3. Motivation This projectbegan as an investigation of the evolution of the vibrational patterns of a crotale after it had been struck.

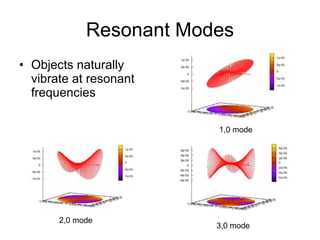

- 4. Resonant Modes Objectsnaturally vibrate at resonant frequencies 1,0 mode 2,0 mode 3,0 mode

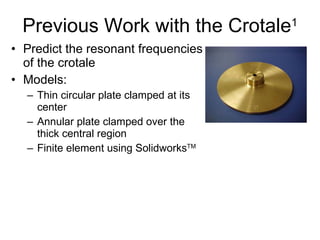

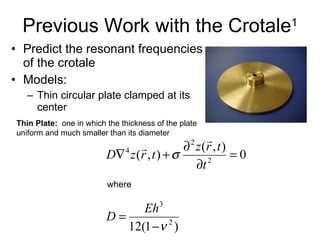

- 5. Previous Work withthe Crotale 1 Predict the resonant frequencies of the crotale Models: Thin circular plate clamped at its center where Thin Plate: one in which the thickness of the plate uniform and much smaller than its diameter
- 6. Previous Work withthe Crotale 1 Predict the resonant frequencies of the crotale Models: Thin circular plate clamped at its center Annular plate clamped over the thick central region
- 7. Previous Work withthe Crotale 1 Predict the resonant frequencies of the crotale Models: Thin circular plate clamped at its center Annular plate clamped over the thick central region Finite element using Solidworks TM

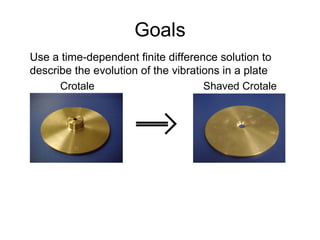

- 8. Goals Crotale ShavedCrotale Use a time-dependent finite difference solution to describe the evolution of the vibrations in a plate

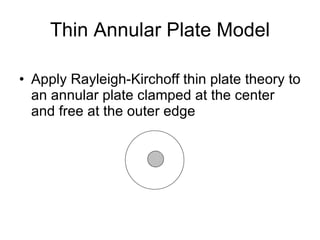

- 9. Thin Annular PlateModel Apply Rayleigh-Kirchoff thin plate theory to an annular plate clamped at the center and free at the outer edge

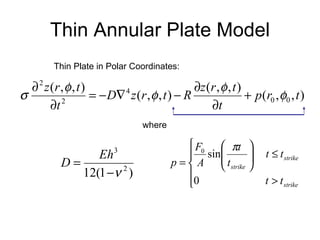

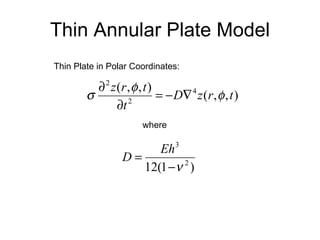

- 10. Thin Annular PlateModel where Thin Plate in Polar Coordinates:
- 11. Thin Annular PlateModel where Thin Plate in Polar Coordinates:

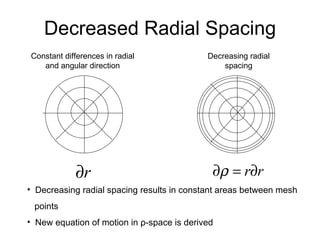

- 12. Decreased Radial SpacingConstant differences in radial and angular direction Decreasing radial spacing Decreasing radial spacing results in constant areas between mesh points New equation of motion in ρ -space is derived

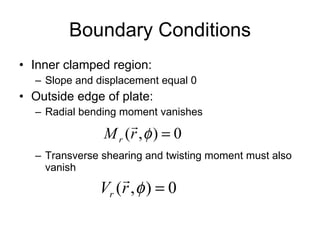

- 13. Boundary Conditions Innerclamped region: Slope and displacement equal 0 Outside edge of plate: Radial bending moment vanishes Transverse shearing and twisting moment must also vanish
- 14.
- 15.

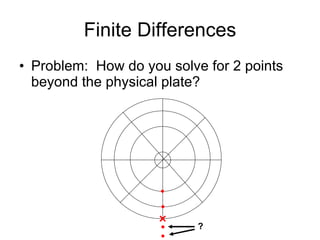

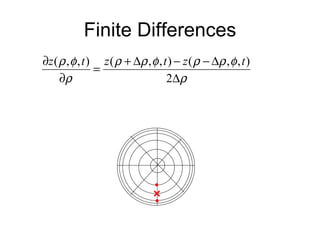

- 16. Finite Differences Problem: How do you solve for 2 points beyond the physical plate? ?
- 17.

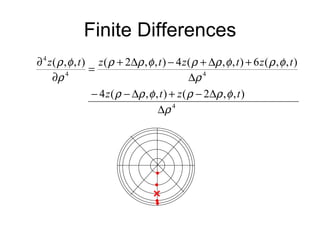

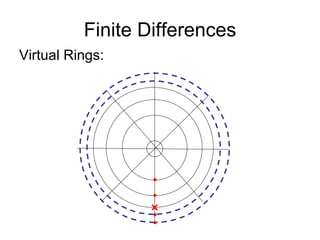

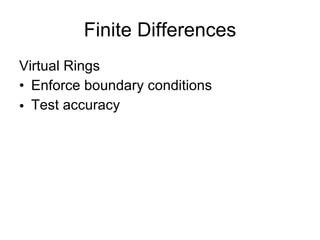

- 18. Finite Differences VirtualRings Enforce boundary conditions Test accuracy

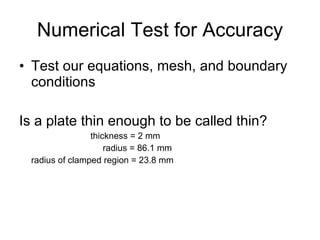

- 19. Numerical Test forAccuracy Test our equations, mesh, and boundary conditions Is a plate thin enough to be called thin? thickness = 2 mm radius = 86.1 mm radius of clamped region = 23.8 mm
- 20. Numerical Test forAccuracy Record the amplitude of driving point at 2 µs intervals for 0.25 s after a simulated strike.

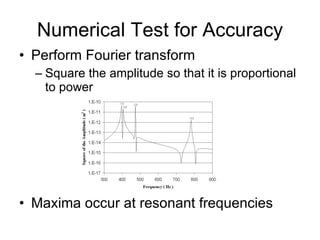

- 21. Numerical Test forAccuracy Perform Fourier transform Square the amplitude so that it is proportional to power Maxima occur at resonant frequencies

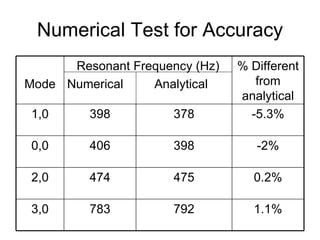

- 22. Numerical Test forAccuracy 1.1% 792 783 3,0 0.2% 475 474 2,0 -2% 398 406 0,0 -5.3% 378 398 1,0 % Different from analytical Resonant Frequency (Hz) Numerical Analytical Mode

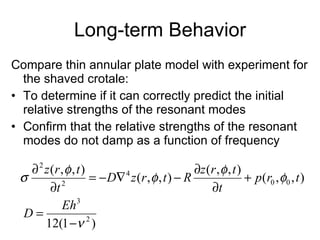

- 23. Long-term Behavior Comparethin annular plate model with experiment for the shaved crotale: To determine if it can correctly predict the initial relative strengths of the resonant modes Confirm that the relative strengths of the resonant modes do not damp as a function of frequency

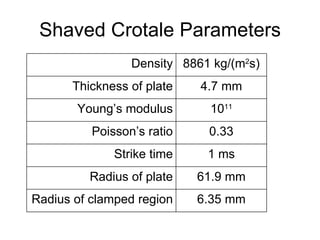

- 24. Shaved Crotale Parameters6.35 mm Radius of clamped region 61.9 mm Radius of plate 1 ms Strike time 0.33 Poisson’s ratio 10 11 Young’s modulus 4.7 mm Thickness of plate 8861 kg/(m 2 s) Density

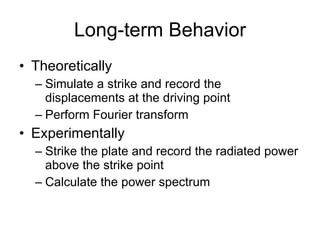

- 25. Long-term Behavior TheoreticallySimulate a strike and record the displacements at the driving point Perform Fourier transform Experimentally Strike the plate and record the radiated power above the strike point Calculate the power spectrum

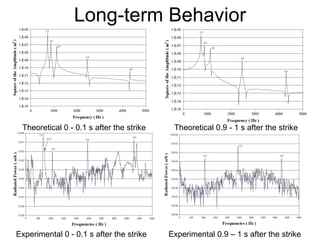

- 26. Long-term Behavior Theoretical0 - 0.1 s after the strike Theoretical 0.9 - 1 s after the strike Experimental 0 - 0.1 s after the strike Experimental 0.9 – 1 s after the strike

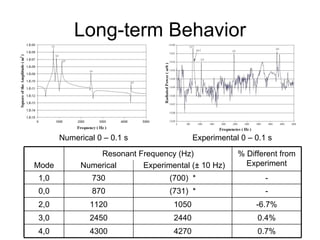

- 27. Long-term Behavior Numerical0 – 0.1 s Experimental 0 – 0.1 s 0.7% 4270 4300 4,0 0.4% 2440 2450 3,0 -6.7% 1050 1120 2,0 - (731) * 870 0,0 - (700) * 730 1,0 % Different from Experiment Resonant Frequency (Hz) Numerical Experimental ( ± 10 Hz) Mode

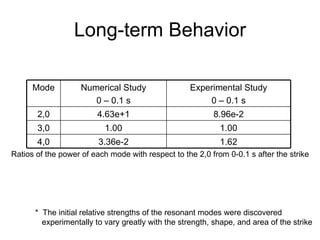

- 28. Long-term Behavior Ratiosof the power of each mode with respect to the 2,0 from 0-0.1 s after the strike * The initial relative strengths of the resonant modes were discovered experimentally to vary greatly with the strength, shape, and area of the strike 1.62 3.36e-2 4,0 1.00 1.00 3,0 8.96e-2 4.63e+1 2,0 Experimental Study 0 – 0.1 s Numerical Study 0 – 0.1 s Mode

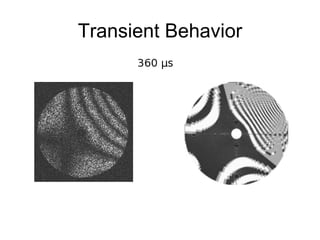

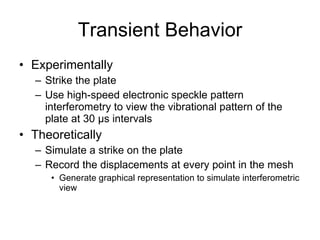

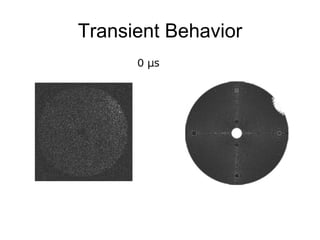

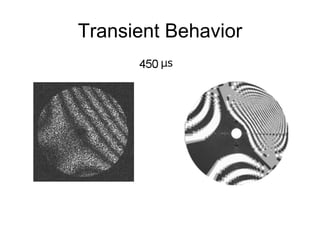

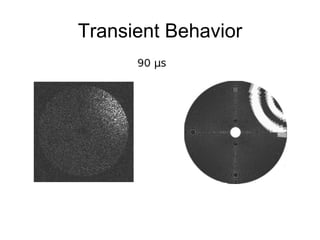

- 29. Transient Behavior ExperimentallyStrike the plate Use high-speed electronic speckle pattern interferometry to view the vibrational pattern of the plate at 30 µs intervals Theoretically Simulate a strike on the plate Record the displacements at every point in the mesh Generate graphical representation to simulate interferometric view

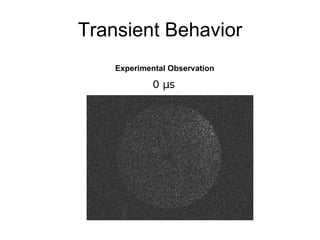

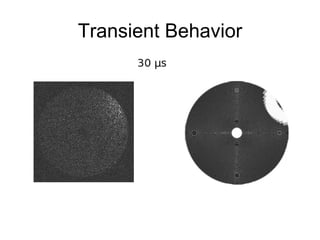

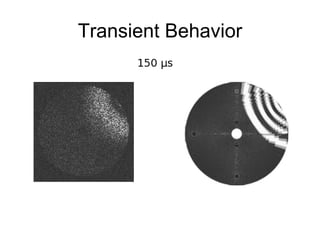

- 30. Transient Behavior ExperimentalObservation

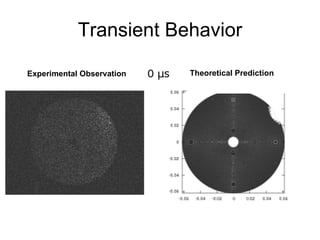

- 31. Transient Behavior ExperimentalObservation Theoretical Prediction
- 32.

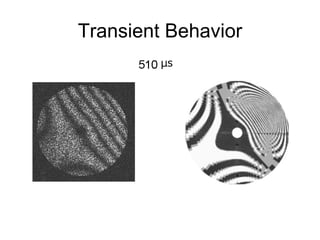

- 33.

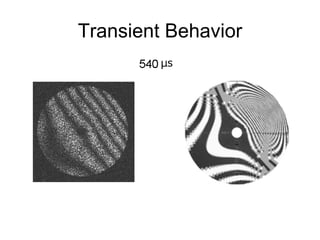

- 34.
- 35.
- 36.
- 37.
- 38.
- 39.
- 40.

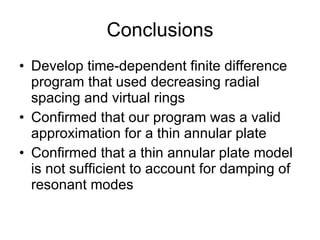

- 41. Conclusions Develop time-dependentfinite difference program that used decreasing radial spacing and virtual rings Confirmed that our program was a valid approximation for a thin annular plate Confirmed that a thin annular plate model is not sufficient to account for damping of resonant modes

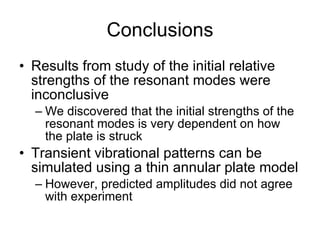

- 42. Conclusions Results fromstudy of the initial relative strengths of the resonant modes were inconclusive We discovered that the initial strengths of the resonant modes is very dependent on how the plate is struck Transient vibrational patterns can be simulated using a thin annular plate model However, predicted amplitudes did not agree with experiment

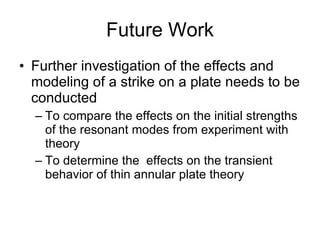

- 43. Future Work Furtherinvestigation of the effects and modeling of a strike on a plate needs to be conducted To compare the effects on the initial strengths of the resonant modes from experiment with theory To determine the effects on the transient behavior of thin annular plate theory

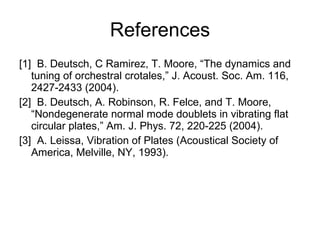

- 44. References [1] B. Deutsch, C Ramirez, T. Moore, “The dynamics and tuning of orchestral crotales,” J. Acoust. Soc. Am. 116, 2427-2433 (2004). [2] B. Deutsch, A. Robinson, R. Felce, and T. Moore, “Nondegenerate normal mode doublets in vibrating flat circular plates,” Am. J. Phys. 72, 220-225 (2004). [3] A. Leissa, Vibration of Plates (Acoustical Society of America, Melville, NY, 1993).
