Compatibility refers to a monochrome TV receiver's ability to produce a black and white picture from a color television signal without modifications. Reverse compatibility is a color TV receiver's ability to produce a black and white picture from a standard monochrome signal without modifications. Both are possible because color TV transmission standards were designed to be compatible with existing monochrome TV receivers by using the same 7MHz channel bandwidth, 5.5MHz video bandwidth, and synchronization pulses as monochrome signals.

1. COMPATIBILITY
&
REVERSE COMPABILITY
Presented By- Manjiri R.Kharat (T.Y.I.E)

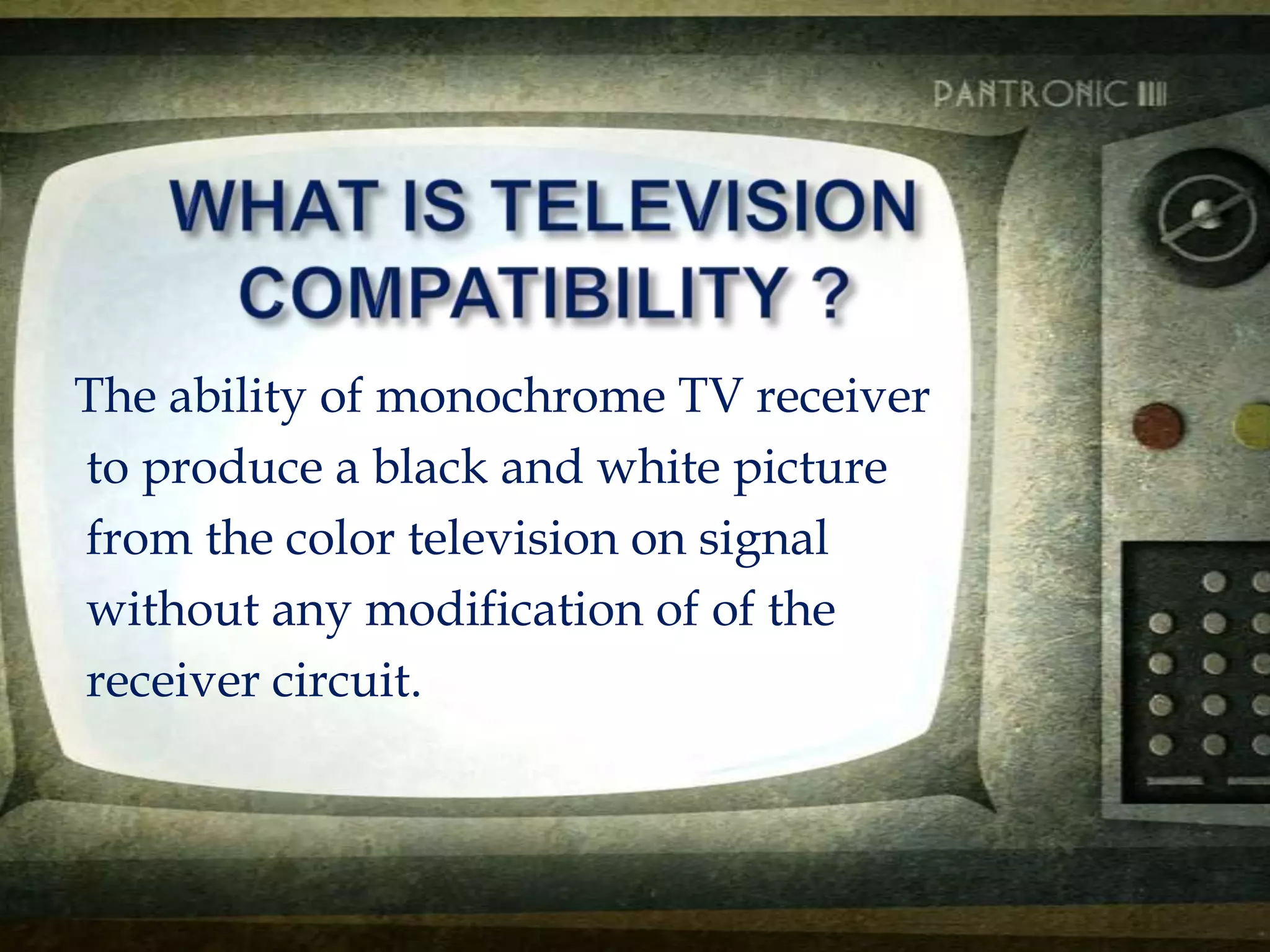

2. The ability of monochrome TV receiver
to produce a black and white picture
from the color television on signal
without any modification of of the
receiver circuit.

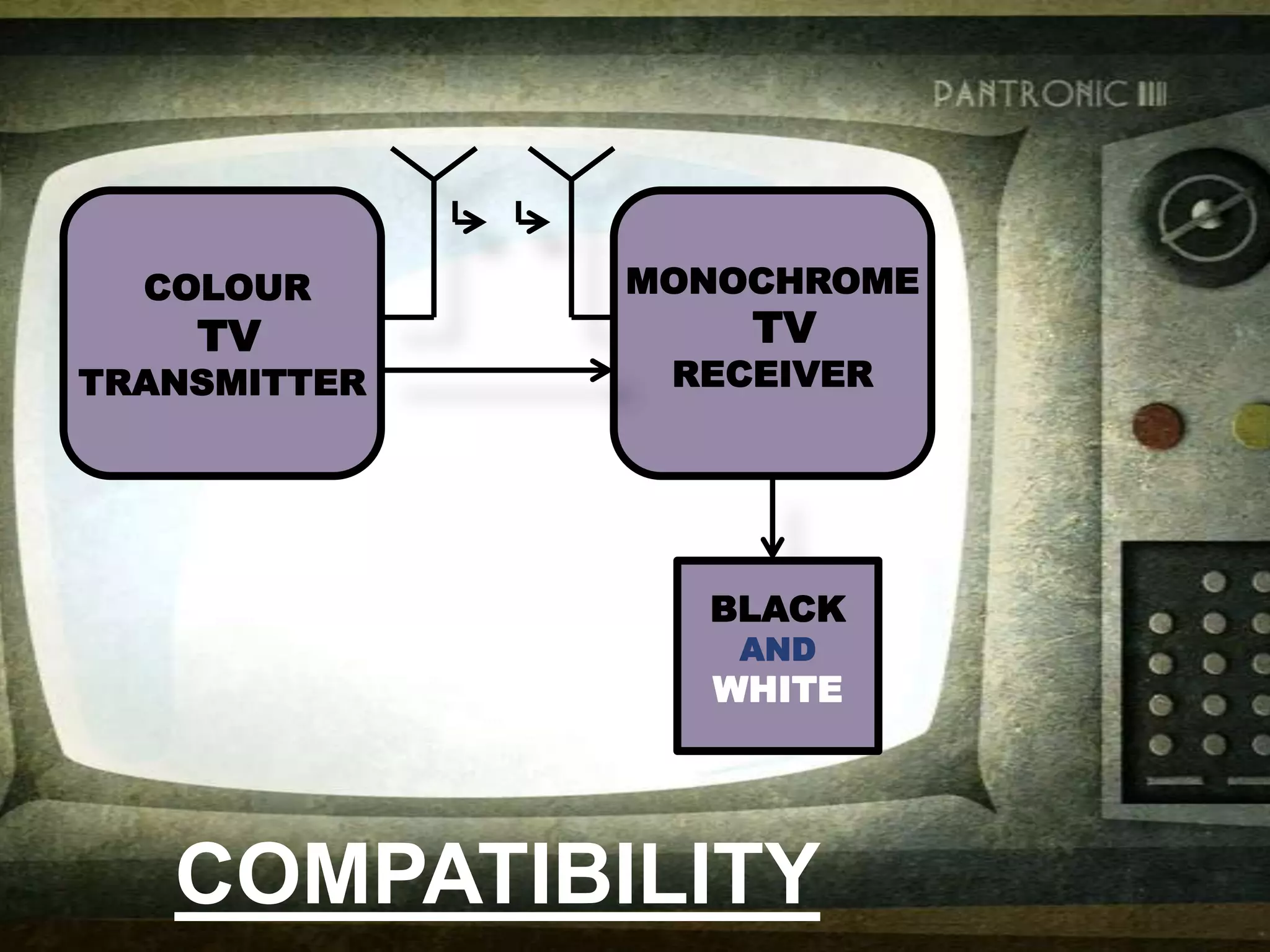

3. COLOUR
MONOCHROME
TRANSMITTER
RECEIVER
TV
TV
BLACK
AND
WHITE
COMPATIBILITY

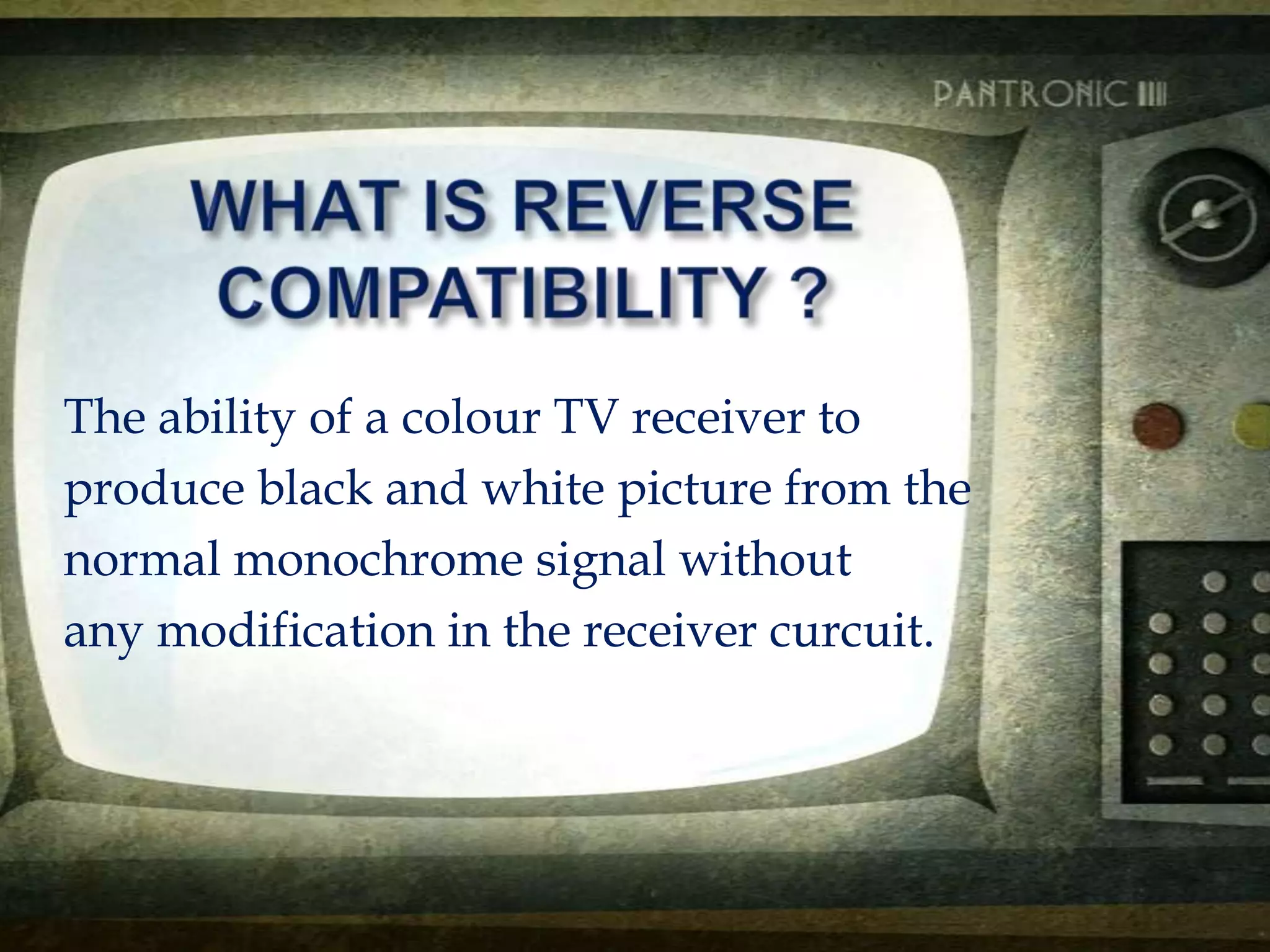

4. The ability of a colour TV receiver to
produce black and white picture from the
normal monochrome signal without
any modification in the receiver curcuit.

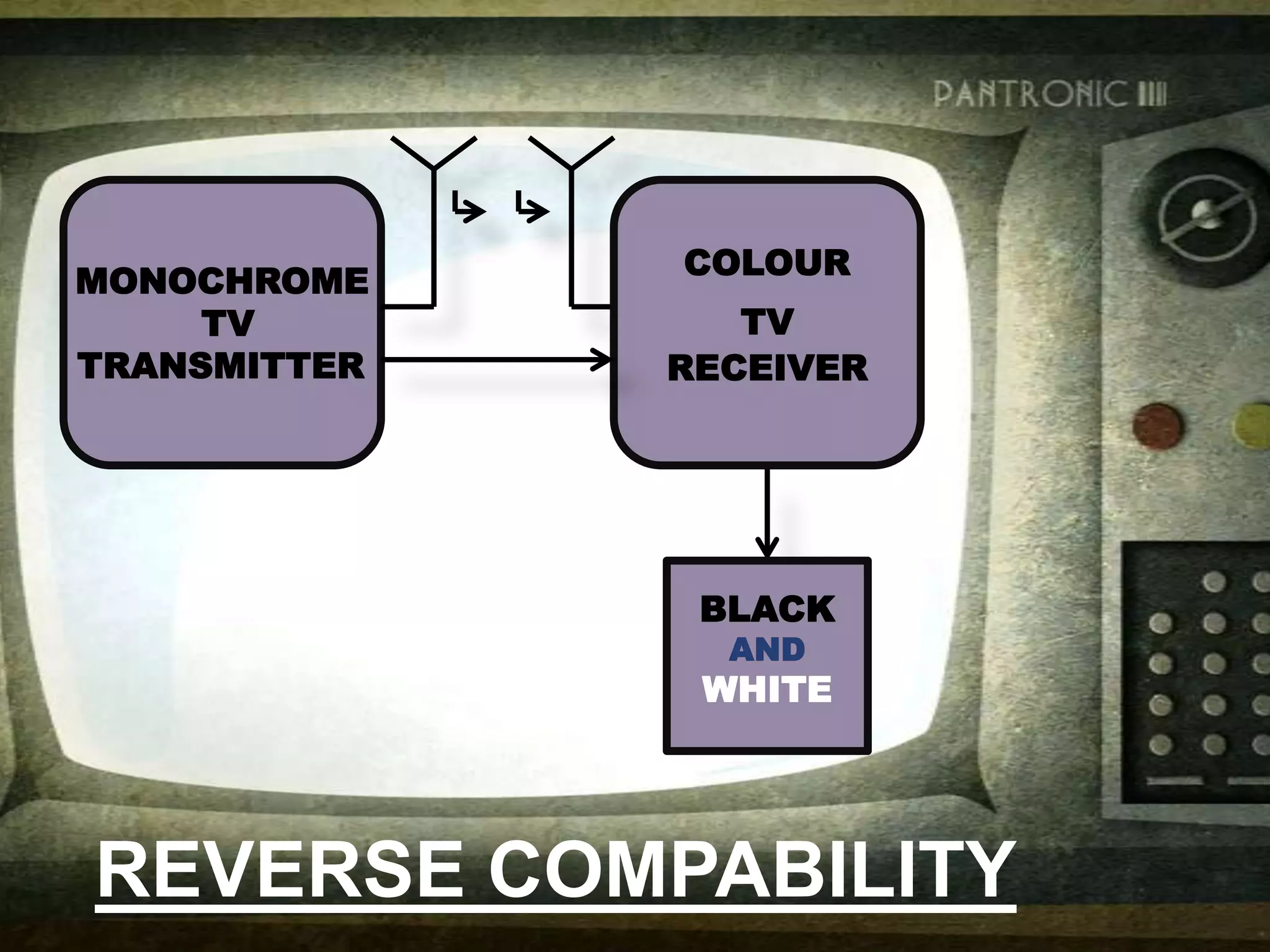

5. MONOCHROME
TV
TRANSMITTER
COLOUR
TV
RECEIVER
BLACK
AND
WHITE
REVERSE COMPABILITY

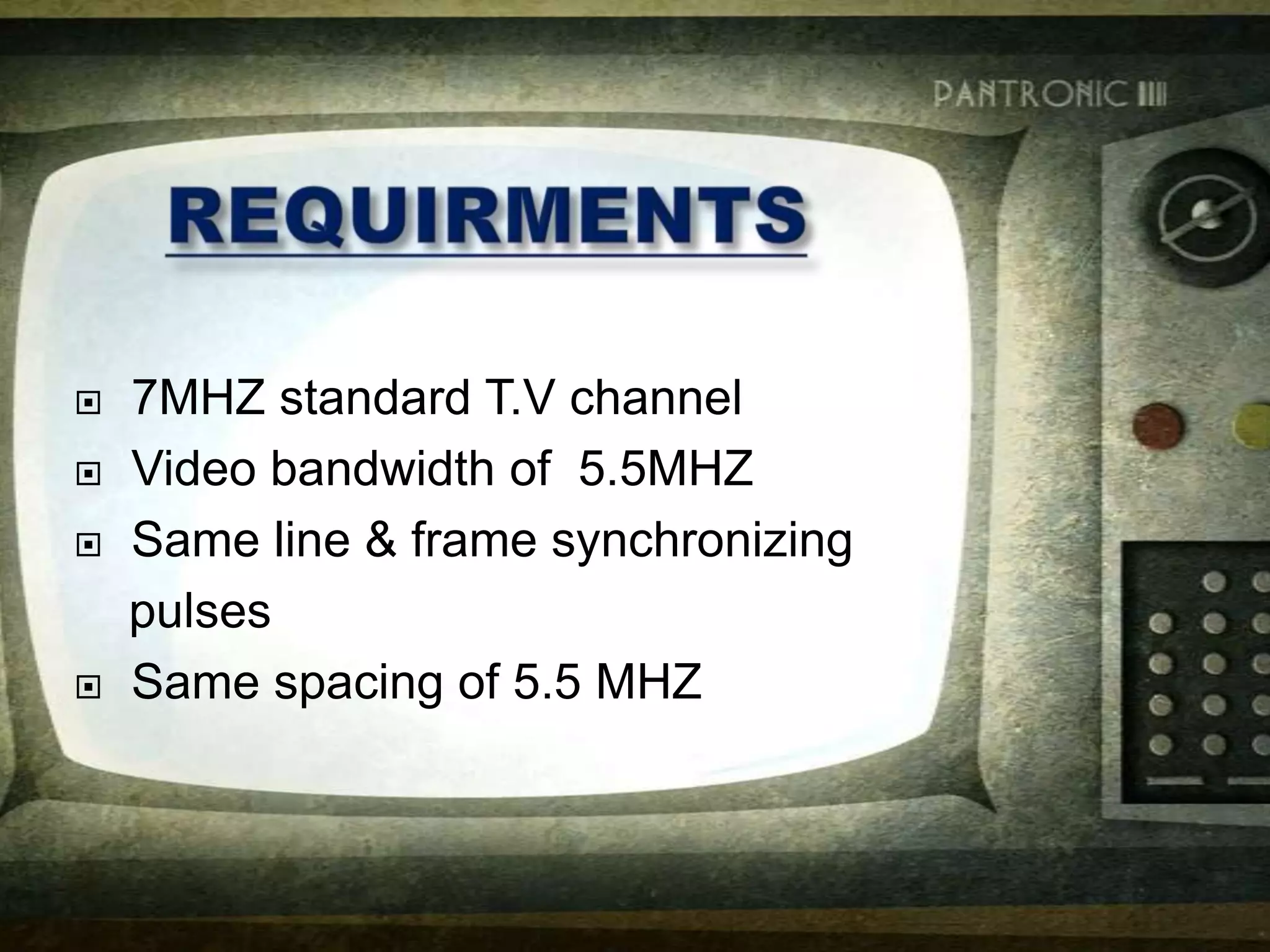

7. 



7MHZ standard T.V channel
Video bandwidth of 5.5MHZ
Same line & frame synchronizing
pulses
Same spacing of 5.5 MHZ

8. THANK
YOU
