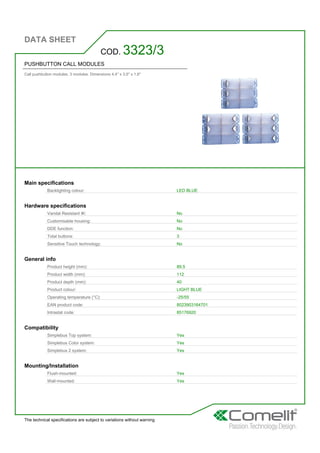

1. DATA SHEET
The technical specifications are subject to variations without warning
PUSHBUTTON CALL MODULES
Call pushbutton modules. 3 modules. Dimensions 4.4'' x 3.5'' x 1.6''
COD. 3323/3
Main specifications
Backlighting colour: LED BLUE
Hardware specifications
Vandal Resistant IK: No
Customisable housing: No
DDE function: No
Total buttons: 3
Sensitive Touch technology: No
General info
Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 40
Product colour: LIGHT BLUE
Operating temperature (°C): -25/55
EAN product code: 8023903164701
Intrastat code: 85176920
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Mounting/Installation
Flush-mounted: Yes
Wall-mounted: Yes

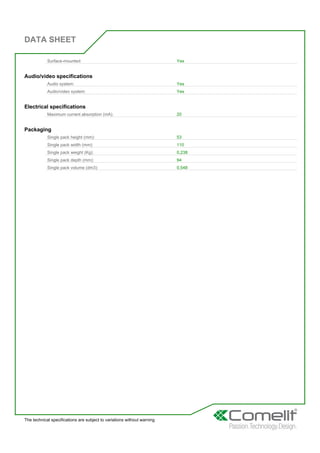

2. DATA SHEET
The technical specifications are subject to variations without warning
Surface-mounted: Yes
Audio/video specifications
Audio system: Yes
Audio/video system: Yes
Electrical specifications
Maximum current absorption (mA): 20
Packaging
Single pack height (mm): 53
Single pack width (mm): 110
Single pack weight (Kg): 0,238
Single pack depth (mm): 94
Single pack volume (dm3): 0,548
