Comelit 3320/2 Data Sheet

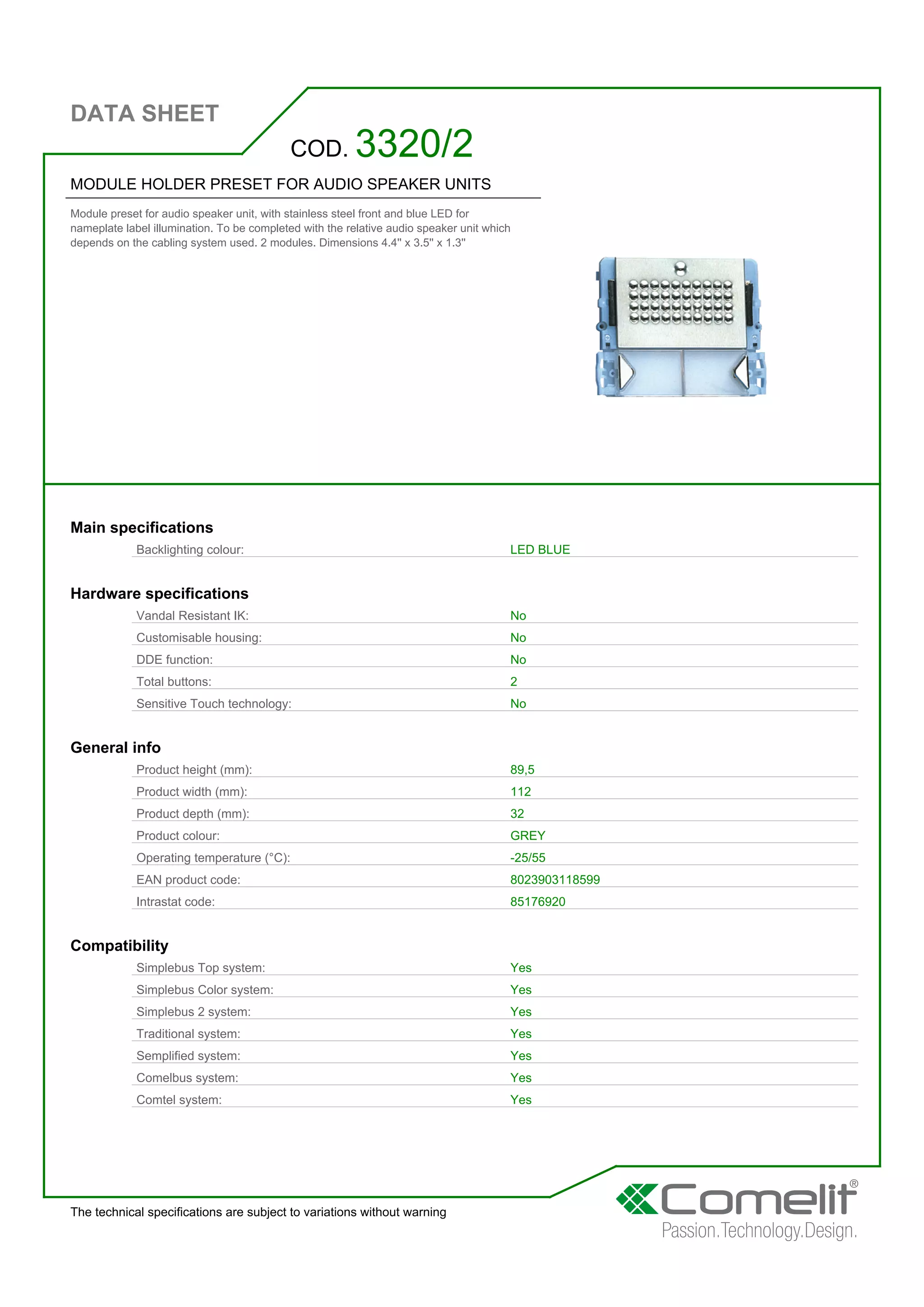

1. DATA SHEET
The technical specifications are subject to variations without warning
MODULE HOLDER PRESET FOR AUDIO SPEAKER UNITS
Module preset for audio speaker unit, with stainless steel front and blue LED for
nameplate label illumination. To be completed with the relative audio speaker unit which
depends on the cabling system used. 2 modules. Dimensions 4.4'' x 3.5'' x 1.3''
COD. 3320/2
Main specifications
Backlighting colour: LED BLUE
Hardware specifications
Vandal Resistant IK: No
Customisable housing: No
DDE function: No
Total buttons: 2
Sensitive Touch technology: No
General info
Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 32
Product colour: GREY
Operating temperature (°C): -25/55
EAN product code: 8023903118599
Intrastat code: 85176920
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Traditional system: Yes
Semplified system: Yes
Comelbus system: Yes
Comtel system: Yes

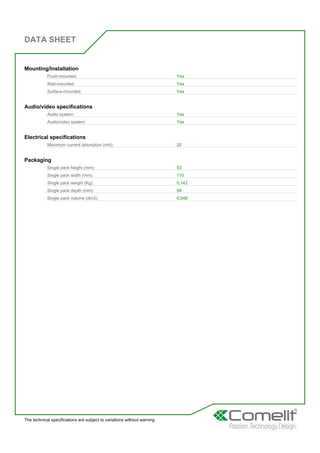

2. DATA SHEET
The technical specifications are subject to variations without warning
Mounting/Installation
Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes
Audio/video specifications
Audio system: Yes
Audio/video system: Yes
Electrical specifications
Maximum current absorption (mA): 20
Packaging
Single pack height (mm): 53
Single pack width (mm): 110
Single pack weight (Kg): 0,142
Single pack depth (mm): 94
Single pack volume (dm3): 0,548
