The document details the technical specifications of a module holder preset for an audio speaker unit, made from stainless steel and featuring two pushbuttons. It includes various dimensions, operating temperature ranges, compatibility with multiple systems, and installation options. The specifications also cover electrical parameters, packaging information, and indicate that the hardware is vandal resistant.

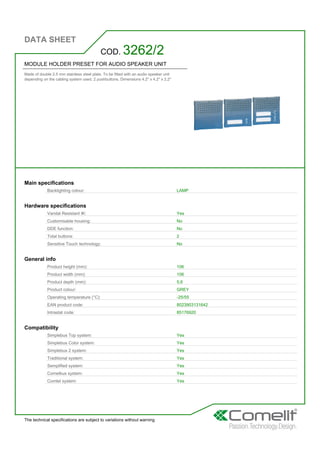

1. DATA SHEET
The technical specifications are subject to variations without warning
MODULE HOLDER PRESET FOR AUDIO SPEAKER UNIT
Made of double 2.5 mm stainless steel plate. To be fitted with an audio speaker unit
depending on the cabling system used. 2 pushbuttons. Dimensions 4.2'' x 4.2'' x 2.2''
COD. 3262/2
Main specifications
Backlighting colour: LAMP
Hardware specifications
Vandal Resistant IK: Yes
Customisable housing: No
DDE function: No
Total buttons: 2
Sensitive Touch technology: No
General info
Product height (mm): 106
Product width (mm): 106
Product depth (mm): 5,6
Product colour: GREY
Operating temperature (°C): -25/55
EAN product code: 8023903131642
Intrastat code: 85176920
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Traditional system: Yes
Semplified system: Yes
Comelbus system: Yes
Comtel system: Yes

2. DATA SHEET
The technical specifications are subject to variations without warning
Mounting/Installation
Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes
Audio/video specifications
Audio system: Yes
Audio/video system: Yes
Electrical specifications
Maximum current absorption (mA): 150
Packaging
Single pack height (mm): 109
Single pack width (mm): 110
Single pack weight (Kg): 0,443
Single pack depth (mm): 45
Single pack volume (dm3): 0,54
