The document details the technical specifications of the Powercom push-button module for the VIP 4662C audio/video unit, highlighting its preconfiguration for audio/video speaker units and featuring a stainless steel front panel with blue LED lighting. It provides measurements and operational parameters such as product dimensions, temperature range, and electrical specifications. The module is designed for flush, wall, and surface mounting, with packaging dimensions also included.

1. DATA SHEET
The technical specifications are subject to variations without warning
POWERCOM NO PUSH-BUTTON MODULE FOR VIP 4662C
AUDIO/VIDEO UN.
Module preconfigured for audio/video speaker units, with stainless steel front panel and
blue LED for nameplate lighting. To be completed with the audio/video group art. 4662C. 0
buttons.
COD. 3331/0
Main specifications
Backlighting colour: LED BLUE
General info
Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 32
Product colour: GREY
Operating temperature (°C): -25/55
EAN product code: 8023903209501
Intrastat code: 85176920
Mounting/Installation
Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes
Audio/video specifications
Audio/video system: Yes
Electrical specifications
Maximum current absorption (mA): 20
Packaging
Single pack height (mm): 53
Single pack width (mm): 110
Single pack weight (Kg): 0,1

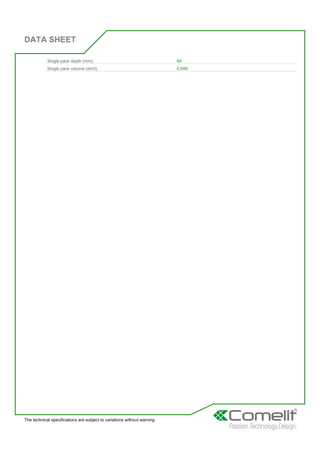

2. DATA SHEET
The technical specifications are subject to variations without warning
Single pack depth (mm): 94
Single pack volume (dm3): 0,548
