1. DATA SHEET
The technical specifications are subject to variations without warning
BRACKET FOR WIRING SIMPLEBUS COLOR FOR PLANUX
MONITOR
The video door entry system is complete conversation privacy as standard. Handles local
floor calls and call repetition as standard. Dimensions: 3.8?x4.2?x0.7?
COD. 6114C
Functions
Alarm function: Yes
Floor door call function: Yes
Actuator control function: Yes
Intercom function: Yes
General info
Product height (mm): 106
Product width (mm): 96
Product depth (mm): 17
Operating temperature (°C): -5/55
EAN product code: 8023903192261
Intrastat code: 85176910
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Audio/video specifications
Audio system: No
Audio/video system: Yes
Electrical specifications
Maximum current absorption (mA): 200
Packaging
Single pack height (mm): 30

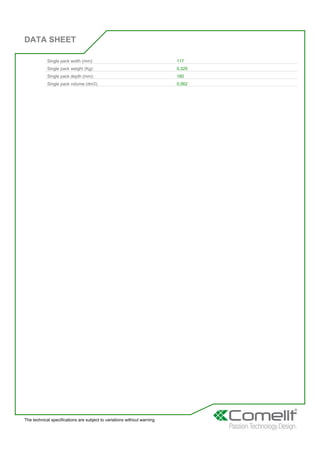

2. DATA SHEET
The technical specifications are subject to variations without warning
Single pack width (mm): 117
Single pack weight (Kg): 0,325
Single pack depth (mm): 160
Single pack volume (dm3): 0,562
