1. DATA SHEET
The technical specifications are subject to variations without warning
MODULE HOLDER PRESET FOR AUDIO/VIDEO UNIT
Module made of double 2.5 mm stainless steel plate. To be fitted with audio/video unit
which depends on the cabling system used. 2 pushbuttons. Dimensions 4.2'' x 4.2'' x 2.2''
COD. 3268/2
Main specifications
Backlighting colour: LAMP
Hardware specifications
Vandal Resistant IK: Yes
Customisable housing: No
DDE function: No
Total buttons: 2
Sensitive Touch technology: No
General info
Product height (mm): 106
Product width (mm): 106
Product depth (mm): 5,6
Product colour: GREY
Operating temperature (°C): -25/55
EAN product code: 8023903131673
Intrastat code: 85176920
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Traditional system: Yes
Semplified system: Yes
Comelbus system: Yes
Comtel system: Yes

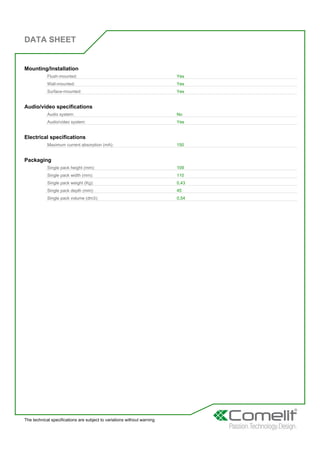

2. DATA SHEET
The technical specifications are subject to variations without warning
Mounting/Installation
Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes
Audio/video specifications
Audio system: No
Audio/video system: Yes
Electrical specifications
Maximum current absorption (mA): 150
Packaging
Single pack height (mm): 109
Single pack width (mm): 110
Single pack weight (Kg): 0,43
Single pack depth (mm): 45
Single pack volume (dm3): 0,54
