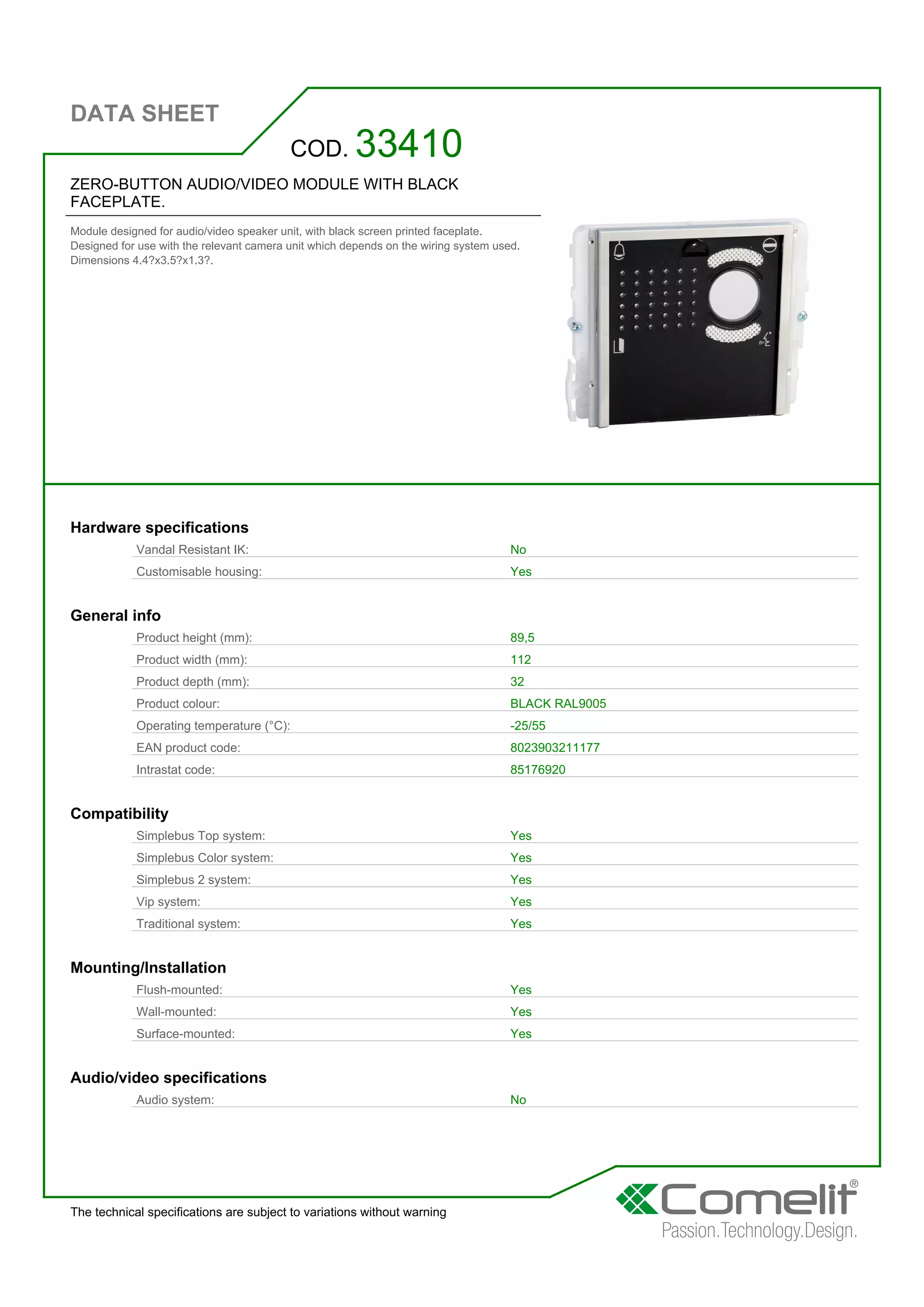

1. DATA SHEET
The technical specifications are subject to variations without warning
ZERO-BUTTON AUDIO/VIDEO MODULE WITH BLACK
FACEPLATE.
Module designed for audio/video speaker unit, with black screen printed faceplate.
Designed for use with the relevant camera unit which depends on the wiring system used.
Dimensions 4.4?x3.5?x1.3?.
COD. 33410
Hardware specifications
Vandal Resistant IK: No
Customisable housing: Yes
General info
Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 32
Product colour: BLACK RAL9005
Operating temperature (°C): -25/55
EAN product code: 8023903211177
Intrastat code: 85176920
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Vip system: Yes
Traditional system: Yes
Mounting/Installation
Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes
Audio/video specifications
Audio system: No

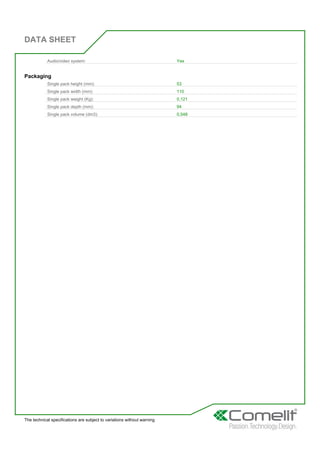

2. DATA SHEET
The technical specifications are subject to variations without warning
Audio/video system: Yes
Packaging
Single pack height (mm): 53
Single pack width (mm): 110
Single pack weight (Kg): 0,121
Single pack depth (mm): 94
Single pack volume (dm3): 0,548
