The document outlines the technical specifications for a video door entry system that features an intercom function, local floor calls, and call repetition. It includes dimensions, product details, compatibility information with different systems, and electrical specifications. The product operates within a temperature range of -5/55°C and has specific packaging dimensions and weight.

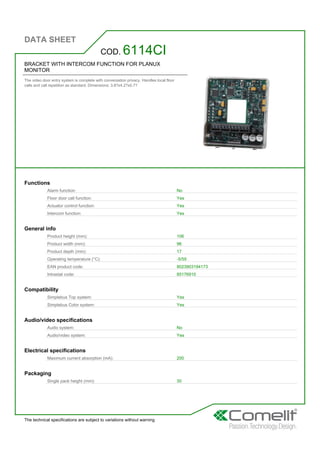

1. DATA SHEET
The technical specifications are subject to variations without warning
BRACKET WITH INTERCOM FUNCTION FOR PLANUX
MONITOR
The video door entry system is complete with conversation privacy. Handles local floor
calls and call repetition as standard. Dimensions: 3.8?x4.2?x0.7?
COD. 6114CI
Functions
Alarm function: No
Floor door call function: Yes
Actuator control function: Yes
Intercom function: Yes
General info
Product height (mm): 106
Product width (mm): 96
Product depth (mm): 17
Operating temperature (°C): -5/55
EAN product code: 8023903194173
Intrastat code: 85176910
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Audio/video specifications
Audio system: No
Audio/video system: Yes
Electrical specifications
Maximum current absorption (mA): 200
Packaging
Single pack height (mm): 30

2. DATA SHEET
The technical specifications are subject to variations without warning
Single pack width (mm): 117
Single pack weight (Kg): 0,3
Single pack depth (mm): 160
Single pack volume (dm3): 0,562
